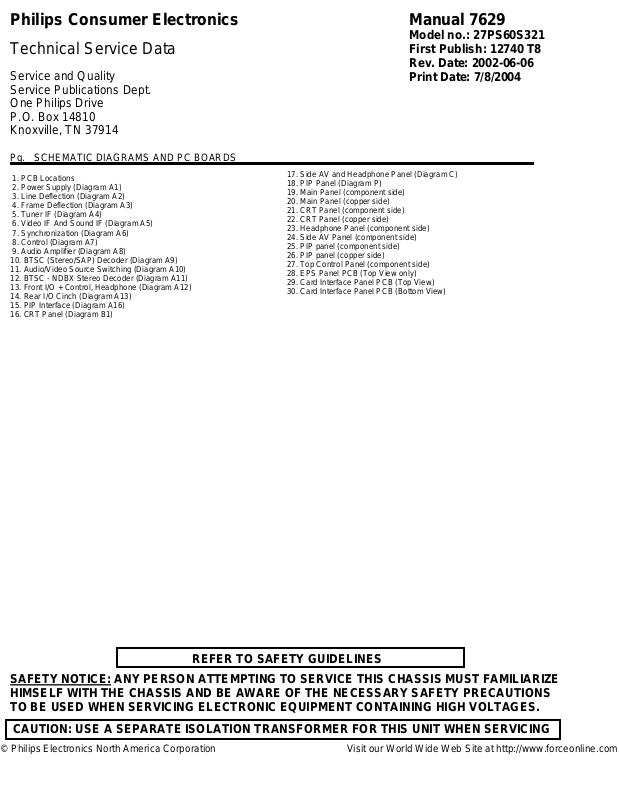

Page 1

Philips Consumer Electronics

Technical Service Data

Service and Quality Service Publications Dept. One Philips Drive P.O. Box 14810 Knoxville, TN 37914

Pg. SCHEMATIC DIAGRAMS AND PC BOARDS

1. PCB Locations

2. Power Supply (Diagram A1)

3. Line Deflection (Diagram A2)

4. Frame Deflection (Diagram A3)

5. Tuner IF (Diagram A4)

6. Video IF And Sound IF (Diagram A5)

7. Synchronization (Diagram A6)

8. Control (Diagram A7)

9. Audio Amplifier (Diagram A8)

10. BTSC (Stereo/SAP) Decoder (Diagram A9)

11. Audio/Video Source Switching (Diagram A10)

12. BTSC - NDBX Stereo Decoder (Diagram A11)

13. Front I/O + Control, Headphone (Diagram A12)

14. Rear I/O Cinch (Diagram A13)

15. PIP Interface (Diagram A16)

16. CRT Panel (Diagram B1)

Manual 7629

Model no.: 27PS60S321 First Publish: 12740 T8 Rev. Date: 2002-06-06 Print Date: 7/8/2004

17. Side AV and Headphone Panel (Diagram C)

18. PIP Panel (Diagram P)

19. Main Panel (component side)

20. Main Panel (copper side)

21. CRT Panel (component side)

22. CRT Panel (copper side)

23. Headphone Panel (component side)

24. Side AV Panel (component side)

25. PIP panel (component side)

26. PIP panel (copper side)

27. Top Control Panel (component side)

28. EPS Panel PCB (Top View only)

29. Card Interface Panel PCB (Top View)

30. Card Interface Panel PCB (Bottom View)

REFER TO SAFETY GUIDELINES

SAFETY NOTICE:

ANY PERSON ATTEMPTING TO SERVICE THIS CHASSIS MUST FAMILIARIZE HIMSELF WITH THE CHASSIS AND BE AWARE OF THE NECESSARY SAFETY PRECAUTIONS TO BE USED WHEN SERVICING ELECTRONIC EQUIPMENT CONTAINING HIGH VOLTAGES.

CAUTION: USE A SEPARATE ISOLATION TRANSFORMER FOR THIS UNIT WHEN SERVICING

Page 2

Philips Consumer Electronics

Technical Service Data

Service and Quality Service Publications Dept. One Philips Drive P.O. Box 14810 Knoxville, TN 37914

Manual 7629

Model no.: 27PS60S321 First Publish: 12740 T8 Rev. Date: 2002-06-06 Print Date: 7/8/2004

Mechanical Diagrams

REFER TO SAFETY GUIDELINES

SAFETY NOTICE: HIMSELF WITH THE CHASSIS AND BE AWARE OF THE NECESSARY SAFETY PRECAUTIONS TO BE USED WHEN SERVICING ELECTRONIC EQUIPMENT CONTAINING HIGH VOLTAGES.

CAUTION: USE A SEPARATE ISOLATION TRANSFORMER FOR THIS UNIT WHEN SERVICING

ANY PERSON ATTEMPTING TO SERVICE THIS CHASSIS MUST FAMILIARIZE

Page 3

MAIN CABINET EXPLODED VIEW Page: 1 of 1

Page 4

Philips Consumer Electronics

Technical Service Data

Service and Quality Service Publications Dept. One Philips Drive P.O. Box 14810 Knoxville, TN 37914

Manual 7629

Model no.: 27PS60S321 First Publish: 12740 T8 Rev. Date: 2002-06-06 Print Date: 7/8/2004

Electrical Adjustments

REFER TO SAFETY GUIDELINES

SAFETY NOTICE: HIMSELF WITH THE CHASSIS AND BE AWARE OF THE NECESSARY SAFETY PRECAUTIONS TO BE USED WHEN SERVICING ELECTRONIC EQUIPMENT CONTAINING HIGH VOLTAGES.

CAUTION: USE A SEPARATE ISOLATION TRANSFORMER FOR THIS UNIT WHEN SERVICING

ANY PERSON ATTEMPTING TO SERVICE THIS CHASSIS MUST FAMILIARIZE

Page 5

Alignments

Index of this chapter:

1. General Alignment Conditions

2. Commercial Mode ls SDAM Entry

3. Hardware Alignments

4. Software Alignments and Settings

Note: The Service Default Alignment Mode (SDAM) is described in the "Service Modes, Error Codes and Fault Finding" section. SDAM menu navigation is performed by using the MENU UP, MENU DOWN, MENU LEFT, and MENU RIGHT keys of the remote control transmitter.

General Alignment Conditions

Perform all electrical adjustments under the following conditions:

AC voltage and frequency: 110 V (± 10 %), 60 Hz (± 5 %). Connect the television set to the AC power via an isolation transformer. Allow the televisi on set to warm up for approximately20 minutes. Measure the voltages and waveforms in relation to chassi s ground (with the

exception of the voltages on the primary side of the power supply). Never use

heatsinks as ground. Test probe: Ri > 10 MO; Ci < 2.5pF. Use an isolated trimmer/screwdriver to perform the alignments.

Service Default Alignment Mode (SDAM) Entry for Commercial Models

Note: For comm erci al models, a master setup remote control is required in order to access the Service

Default Alignment Mode (S DAM ) .

1. Use the master setup remote control to identify the television’s operational mode (either “consumer” or “commercial”). Place the master setup r emote control in setup mode by pressing the TV SETUP key.

2. Pr ess the RECALL key. Information similar to t he following will be displayed.

Status Item Status Data Meaning

SYSTEM STAT US (L011TV-US4PV) Information title MODE COMMERCIAL/CONSUMER Operational mode CHANNEL CHANNEL, INPUT Currently tuned channel /i nput DCM OFF/ON Data Comm. Module online/offli ne CODES 209 222 1 33 Internal data for factory/service use SIGNAL TUNED/NOT TUNED Valid signal present/absent OP HRS 0031h Number of hours set has operated (hex) ERRORS 0 0 0 0 0 Internal data for factory/service use

Page 6

VERSION 3.3 Microproce sso r sof t ware ve rsi o n

3. To change the television’s mode, ensure the master setup remote contr ol is in setup mode, then press the 0-2-4-9-9-5-MENU keys in order, without permitting the display to time out while entering the key sequence.

ote: If the operational mode is changed, the television must be turned off and then back on to

complete the mode change. When the television is in consumer mode, do not use the master setup remote control to activate commercial mode features.

4. W hen the t el evision is in commercial mode, the Instit ut ional Television Menu may be accessed by pressing the MENU button. Though the specific items in the menu will vary, information similar to the following will be displayed.

Menu Item Settings / Options

(MENU TITLE) SETUP MENU / MAIN MENU LANGUAGE ENGLISH / ESPANOL / FRANCAIS CHANNEL INSTALL > CABLE TUNING ON / OFF BRIGHTNESS - - - | - - - 31 COLOR - - - | - - - 31 CONTRAST - - - | - - - 31 SHARPNESS - - - | - - - 31 TINT - - - | | - - - 0 NOISE REDUCTION ON / OFF SOUND MODE MONO / STEREO SAP OFF / NO SAP / ON AUDIO OUT FIXED / VARIABLE BALANCE - - - | - - - 0 TREBLE - - - | - - - 31 BASS - - - | - - - 31 INCRED STEREO ON / OFF AVL ON / OFF VOLUME BAR ON / OFF MIN VOLUME | - - - - - - 0 MAX VOLUME - - - - - - | 63 SWITCH ON VOLUME - - - | - - - 31 SWITCH ON CHANNEL CH. 1-125 / FRONT / AUX / S-VIDEO / CVI / STANDARD POWER ON STANDARD / FORCE D CHANNEL DISPLAY NUMBER / LABEL / ALL / NONE KEYBOARD LOCK ON / OFF ESP 1 – 99 / OFF AUDIO / VIDEO MUTE OFF / BLACK / BLUE EXT AUD / VID OUT ON / OFF WELCOME MESSAGE > CHANNEL GUIDE POWER ON / OFF / ON REMINDER ON / OFF 3 DIGIT ENT RY ON / OFF A/CH A/V SWITCH ON – OFF CC OFF / CC-1 / CC-2 / CC ON MUTE SAVE CC ON / OFF V-CHIP MENU ITEM ON / OFF

Page 7

SAVE V-CHIP ON / OFF V-CHIP SETUP > SLEEPTIMER OFF / 15 / 30 / 45 / 60 / 90 / 120 / 180 / 240 EXIT >

5. Aft er making changes to the setti ngs, t he EXI T option may be used to l eave the Instit utional Television Menu.

Hardware Alignments

Page 8

Figure: Mono Carrier (Top View) LS

Vg2 Adjustment

1. Enter SDAM:

2. Press the following key sequence on the remote control transmitter: 0-6-2-5-9-6-MENU Do not allow the display to time out between entries while keying the sequence.

3. Use the MENU UP/DOWN keys to highlight the WHITE TONE sub menu.

Page 9

4. Press the MENU LEFT or MENU RIGHT key to enter the WHITE TONE sub menu.

5. In the WHITE TONE sub menu, press the MENU UP/DOW N keys to select NORMAL RED, NORMAL GREEN, or NORMAL BLUE.

6. Use the MENU LEFT/RIGHT keys to set the values of NORMAL RED, NORMAL GREEN and NORMAL BLUE to 40.

7. Press the MENU button twice to enter the normal user menu.

8. In the normal user menu, use the MENU UP/DOWN keys to highlight the PICTURE sub menu (if necessary).

9. Press the MENU LEFT/RIGHT keys to enter the PICTURE sub menu.

10.Use the MENU UP/DOW N keys to select PICTURE. Be sure to record the current value of PICTURE.

11.Use the MENU LEFT/RIGHT keys to set the value of PICTURE to zero.

12.Use the MENU UP/DOW N keys to select BRIGHTNESS. Be sure to record the current value of BRIGHTNESS.

13.Use the MENU LEFT/RIGHT keys to set the value of BRIGHTNESS to minimum (OSD just visible in a dark room).

14.Press the MENU button twice to return to the top level SDAM menu.

15.Press the STATUS/EXIT button to hide the SDAM onscreen display.

16.Connect the RF output of a video pattern generator to the antenna input.

17.Input a "black picture" test pattern to the television set.

18.Set the oscilloscope to 50 V/div and the time base to 0.2 milliseconds (external triggering on the vertical pulse).

19.Ground the scope at the CRT panel and connect a 10:1 probe to one of the cathodes of the picture tube socket (see schematic diagram B).

20.Measure the cut off pulse during first full l ine after the frame blanking (see Fig. 8-2). You will see two pulses, one being the cut off pulse and the other being the white drive pulse. Choose the one with the lowest value; this is the cut off pulse.

21.Select the cathode with the highest VDC value for the alignment. Adjust the V Cut-Off of this gun with the SCREEN potentiometer (see Fig. 8-1) on the LOT to the correct value (see table below).

22.Press the STATUS/EXIT button to display the SDAM onscreen display.

23.Press the MENU button to enter the normal user menu.

24.In the normal user menu, use the MENU UP/DOWN keys to highlight the PICTURE sub menu (if necessary).

25.Press the MENU LEFT/RIGHT keys to enter the PICTURE sub menu.

26.Use the MENU UP/DOWN keys to select PICTURE.

27.Use the MENU LEFT/RIGHT keys to reset the value of PICTURE to the original value.

28.Use the MENU UP/DOW N keys to select BRIGHTNESS.

29.Use the MENU LEFT/RIGHT keys to reset the value of BRIGHTNESS to the original value.

30.Press the MENU button twice to return to the top level SDAM menu.

31.Use the POWER button on the remote control transmitter or the POWER button on the television set to turn off the television set. This will save the changes

Page 10

made in SDAM.

Figure: V Cut-Off

Table: Cut-off Voltage, Large Screen

Screen Size

25/28Tesla, 25/28BLD +140V +/- 4V

Cut-off Voltage

20RF/21RF/25RF /29RF , 21RF Pi n-F r ee, 25"HF LA , 25V/27V/32V/35V/ 25"/33"/28BLS, 29",29SF E U,

21RF AP/CH, 25" AP/ CH, 25RF/29RFAP/CH, 29SF AP + 155V +/ - 4V 21RF Ph, 24/28/32WS BLD,29RF ( Eu) , 28/32WSRF +160V +/- 4V

+145V +/- 4V

Focusing

1. Connect the RF output of a video pattern generator to the antenna input.

2. Input a circle or crosshatch test pattern to the television set.

3. Press the AUTO PICTURE button on the remote control transmitter repeatedly to choose PERSONAL or MOVIES picture mode.

4. Adjust the FOCUS potentiometer (see Fig. 8-1)until the vertical lines near the left and right sides of the screen, and near the horizontal center of the screen, are at minimum width without visible haze.

Software Alignments and Settings

The following options are performed in the Service Default Alignment Mode (SDAM). SDAM is described in the "Service Modes, Error Codes and Fault Finding" section. The following alignments are explained:

1. OPTIONS

2. TUNER

3. WHITE TONE

Page 11

4. GEOMETRY

5. AUDIO

Options

Figure: Options Menu

Options are used to control the presence or absence of certain features and hardware.

How to change an Option Byte

An Option Byte represents a number of different options. Changing these bytes directly makes it possible to set all options very quickly. All options are controlled via seven option bytes.

To change Option Byte(s):

1. Enter SDAM: Press the following key sequence on the remote control transmitter: 0-6-2-5-9-6-MENU Do not allow the display to time out between entries while keying the sequence.

2. Use the MENU UP/DOWN keys to highlight the OPTIONS sub menu.

3. Press the MENU LEFT or MENU RIGHT key to enter the OPTIONS sub menu.

4. In the OPTIONS sub menu, press the MENU UP/DOWN keys to select OP 1 through OP 7.

5. Use the number keys on the remote control transmitter to enter a new value for the selected option byte. The value must be entered as a three-digit value (for example, "4" would be entered as "0-0-4").

6. The selected value must be between 0 and 255.

7. When all desired changes to the option bytes are made, press the MENU button to return to the top level SDAM menu. This will save changes to the option byte settings.

8. To ensure the option byte changes take effect: Turn the tele vision set OFF by using the POWER button on the remote control transmitter or the local keyboard. Disconnect the television set from AC power for at least ten seconds. Reconnect the television set to AC power. Turn the television set ON by using the POWER button on the remote control transmitter or the local keyboard.

Page 12

T8 Option Byte Codes

MODEL OPTION BYTES

OP1 OP2 OP3 OP4 OP5 OP6 OP7

20RF40 S321 * NOT AVAILABLE 20RF40 S325 * NOT AVAILABLE 20RF50 S321 0 23 129 162 252 152 0 20RF50 S325 0 23 129 162 252 152 0 21PT63 9A85 * NOT AVAI LABLE 21PT83 9B85 * NOT AVAI LABLE 25PS40 S321 0 23 1 1 144 153 0 25PS40 S325 0 23 1 1 144 153 0 25PS50 S321 0 23 1 162 252 152 0 26LL50 0131 16 23 1 1 144 153 0 26LW 50 2231 16 23 1 162 252 152 0 27PS50 B321 0 23 1 162 252 152 0 27PS55 S321 0 23 1 162 252 152 0 27PS60 S321 0 23 1 162 253 152 0 27RF50 S325 0 23 129 162 252 152 0 27RF72 S325 * NOT AVAILABLE 29LL60 0131 16 23 1 162 252 152 0 29LW 60 2231 16 23 1 162 252 152 0 29PV70 2235 16 23 129 162 252 152 0 32PS55 S321 0 23 129 162 252 152 0 32PS60 B321 0 23 129 162 253 152 0 32PS61 S321 0 23 129 162 253 152 0 33LL80 1131 0 23 129 162 253 152 0 CH0119 C322 133 16 2 132 0 - CH0127 C321 213 18 2 64 0 - MS2530 C321 0 5 0 10 192 9 0 HC0113 C321 1 16 148 148 0 - HC0119 C322 1 16 148 148 0 - MS2530 C325 0 5 0 10 192 9 0 MS2730 C321 0 5 0 1 192 9 0 MS3250 C321 0 215 129 162 164 88 0 MS3650 C329 0 215 129 162 164 88 0 PA0113 C321 221 218 35 36 128 - PA0132 C321 223 222 43 40 0 - PC0119 C322 133 16 2 132 0 - PC0125 C321 133 16 2 64 0 - PC0127 C321 213 18 2 64 0 - PCW 227 C321 213 222 3 33 0 - PCW 227 S321 213 222 3 33 0 - PL0119 C322 1 16 0 132 128 - PL0125 C321 1 16 0 128 128 - PL0127 C321 193 16 0 64 128 - PLW225 S321 213 254 3 35 128 - PPC132 C321 223 222 43 40 0 - PPC132 C331 223 222 43 40 0 - PPC136 C327 223 222 43 40 0 - PRF227 S325 215 254 3 35 128 - -

Page 13

SC3127 N321 213 18 2 64 0 - SC3132 N321 223 222 43 40 0 - SC3132 N331 223 222 43 40 0 - -

* Option Byte Data for these m odels was not available at m anual release. Refer to f ut ur e updates to thi s m anual regardi ng t hese model s.

Tuner

Note: Described alignments are only necessary when the NVM (part reference

number7602) is replaced.

Figure: Tuner Menu

IF PLL

This adjustment is auto-aligned. Therefore, no action is required.

AGC (AGC take over point)

1. Connect the RF output of a video pattern generator to the antenna input.

2. Input a color bar test pattern to the television set.

3. Set the amplitude of the video pattern generator to 10 mV and set the frequency to 61.25 MHz (channel 3).

4. Connect a DC multimeter to pin 1 of the tuner(item 1000 on the main chassis).

5. Enter SDAM: Press the following key sequence on the remote control transmitter: 0-6-2-5-9-6-MENU Do not allow the display to time out between entries while keying the sequence.

6. Use the MENU UP/DOWN keys to highlight the TUNER sub menu.

7. Press the MENU LEFT/RIGHT keys to enter the TUNER sub menu.

8. Use the MENU UP/DOWN keys to select AGC.

9. Use the MENU LEFT/RIGHT keys to adjust the AGC value (default value is 27) until the voltage at pin 1 of the tuner lies between 3.8V and 2.3V.

Page 14

10.Press the MENU button to return to the top level SDAM menu.

11.To ensure the AGC change takes effect: Turn the television set OFF by using the POWER button on the remote control transmitter or the local keyboard. Disconnect the television set from AC power for at least ten seconds. Reconnect the television set to AC power. Turn the television set ON by using the POWER button on the remote control transmitter or the local keyboard.

SL (Slicing Level)

This adjustment sets the sync slicing level for non-standard signals. SL should be turned ON to help correct picture instability in premium decoded cable channels. OFF: slicing level dependent on noise detector ON: fixed slicing level of 70%

To adjust SL:

1. Enter SDAM: Press the following key sequence on the remote control transmitter: 0-6-2-5-9-6-MENU Do not allow the display to time out between entries while keying the sequence.

2. Use the MENU UP/DOWN keys to highlight the TUNER sub menu.

3. Press the MENU LEFT/RIGHT keys to enter the TUNER sub menu.

4. Use the MENU UP/DOWN keys to select SL.

5. Use the MENU LEFT/RIGHT keys to toggle SL "Off" and "On"

6. Press the MENU button to return to the top level SDAM menu.

7. To ensure the SL setting is saved: Turn the television set OFF by using the POWER button on the remote control transmitter or the local keyboard. Disconnect the television set from AC power for at least ten seconds. Reconnect the television set to AC power. Turn the television set ON by using the POWER button on the remote control transmitter or the local keyboard.

White Tone

Page 15

Figure: White Tone Menu

The values of the black cut off le vel can be adjusted in the WHITE TONE sub menu. Normally, no alignment is needed for WHITETONE, and the given default values are used.

Default settings: NORMAL (color temperature = 9600 K):

NORMAL RED = 40 NORMAL GREEN = 40 NORMAL BLUE = 40

To adjust NORMAL RED, NORMAL GREEN, and NORMAL BLUE:

1. Enter SDAM: Press the following key sequence on the remote control transmitter: 0-6-2-5-9-6-MENU Do not allow the display to time out between entries while keying the sequence.

2. Use the MENU UP/DOWN keys to highlight the WHITE TONE sub menu.

3. Press the MENU LEFT/RIGHT keys to enter the WHITE TONE sub menu.

4. Use the MENU UP/DOWN keys to select NORMAL RED, NORMAL GREEN, or NORMAL BLUE.

5. Use the MENU LEFT/RIGHT keys to adjust the value of NORMAL RED, NORMAL GREEN, or NORMAL BLUE.

6. When all desired changes to the WHITE TONE submenu values are made, press the MENU button to return to the top level SDAM menu.

7. To ensure the WHITE TONE settings are saved: Turn the television set OFF by using the POWER button on the remote control transmitter or the local keyboard. Disconnect the television set from AC power for at least ten seconds. Reconnect the television set to AC power. Turn the television set ON by using the POWER button on the remote control transmitter or the local keyboard.

Geometry

The geometry alignments menu contains several Items for correct picture geometry alignment.

1. Connect the RF output of a video pattern generator to the antenna input.

2. Input a crosshatch test pattern to the television set.

3. Set the amplitude of the video pattern generator to at least 1 mV and set the frequency to 61.25 MHz (channel 3).

4. Press the AUTO PICTURE button on the remote control transmitter repeatedly to choose PERSONAL or MOVIES picture mode.

5. Enter SDAM: Press the following key sequence on the remote control transmitter:

Page 16

0-6-2-5-9-6-MENU Do not allow the display to time out between entries while keying the sequence.

6. Use the MENU UP/DOWN keys to highlight the GEOMETRY sub menu.

7. Press the MENU LEFT/RIGHT keys to enter the GEOMETRY sub menu.

8. Use the MENU UP/DOWN keys to highlight either the HORIZONTAL sub menu or the VERTICAL sub menu.

9. Press the MENU LEFT/RIGHT keys to enter either the HORIZONTAL sub menu or the VERTICAL sub menu.

10.Use the MENU UP/DOWN keys to select items in the HORIZONTAL sub menu or the VERTICAL sub menu.

11.Use the MENU LEFT/RIGHT keys to adjust the values of items in the HORIZONTAL and VERTICAL sub menus.

12.When all desi red changes to the HORIZ ONTAL and VERTICAL sub menu values are made, press the MENU button twice to return to the top level SDAM menu.

13.To ensure the GEOMETRY settings are saved: Turn the television set OFF by using the POWER button on the remote control transmitter or the local keyboard. Disconnect the television set from AC power for at least ten seconds. Reconnect the television set to AC power. Turn the television set ON by using the POWER button on the remote control transmitter or the local keyboard.

The following alignments can be performed in the GEOMETRY submenu:

Figure: Horizontal Menu

Page 17

Horizontal:

Horizontal Parallelogram (HP) Aligns straight vertical lines at the top and the

bottom of the screen; vertical rotation round the center.

Horizontal Bow(HB) Aligns straight horizontal lines at the top and the bottom of the

screen; horizontal rotati on around the center.

Horizontal Shift(HSH) Aligns the horizontal center of the picture to the horizontal

center of the CRT.

East West Width(EWW) Aligns the width of the picture. East Wes t Parabola(EWP) Aligns strai ght vertical lines at the sides of the screen. Uppe r Corner Parabola (UCP) Aligns straight vertical lines in the upper corners of

the screen.

Lower Corner Parabola (LCP) Aligns straight vertical lines in the lower corners of

the screen.

East West Trapezium(EWT) Align straight vertical lines at the middle of the screen.

Figure: Vertical Menu

Vertical:

Vertical slope (VSL) Aligns the picture so the proportions are the same at the top

and bottom of the screen. This alignment must be performed first, before all other vertical alignments. Turning SBL ON will assist in performing this alignment.

Vertical Am plitude(VAM) Aligns the height of the picture (other vertical alignments

are NOT compensated).

Vertical S-Correction (VSC) Aligns the vertical linearity, so that the vertical intervals

of the grid-patterns are the same over the entire height of the screen.

Page 18

Vertical Shift(VSH) Aligns the vertical center of the picture to the vertical center of

the CRT. After performing this alignment, it may be necessary to perform the VAM alignment again.

Vertical Zoom(VX ) Adjusts picture height. Service blanking(SBL) Turns the blanking of the lower half of the screen ON or

OFF (to be used in combination with the vertical slope alignment).

The table below lists the default GEOMETRY values for the different television sets.

Table: Default Geometry Values

Alignment

HP Hor. Paralle logram 31 33 33 31 33

HB Hor. Bow 30 30 30 30 30

HSH Hor. S hift 35 39 39 35 39

EWW Ea st West Widt h 34 35 35 34 35

EWP Ea st West Parabola 33 22 22 33 22

Description 20RFL260/37R

BTSC NON-DBX

21PT839B/85R BTSC DBX

27RFL260/37R BTSC DBX

20RFL250/37R BISONIC

21PT639A/85R BISONIC

UCP Upper Corner

Parabola

LCP Lower C orner

Parabola

EWT East West

Trapezium

VSL Vert. Slope 33 31 31 33 31

VAM Vert. Amplitude 33 25 25 33 25

VSC Vert. S -correction 32 35 35 32 35

VSH Vert. S hift 35 21 21 35 21

VX Vert. Zoom 33 25 25 33 25

35 41 41 35 41

43 31 31 43 31

Audio

Page 19

Figure: Audio Menu

No alignments are necessary for the AUDIO sub menu. Use the default values.

AF-M

Default value is 300.

A2T

TV A2 Threshold Default value is 250.

To adjust AF-M:

1. Enter SDAM: Press the following key sequence on the remote control transmitter: 0-6-2-5-9-6-MENU Do not allow the display to time out between entries while keying the sequence.

2. Use the MENU UP/DOW N keys to highlight the AUDIO sub menu.

3. Press the MENU LEFT/RIGHT keys to enter the AUDIO sub menu.

4. Use the MENU UP/DOWN keys to select AF-M.

5. Use the MENU LEFT/RIGHT keys to adjust the value of AF-M to 300.

6. Press the MENU button to return to the top level SDAM menu.

7. To ensure the AF-M setting is saved: Turn the television set OFF by using the POWER button on the remote control transmitter or the local keyboard. Disconnect the television set from AC power for at least ten seconds. Reconnect the television set to AC power. Turn the television set ON by using the POWER button on the remote control transmitter or the local keyboard.

To adjust A2T:

1. Enter SDAM: Press the following key sequence on the remote control transmitter: 0-6-2-5-9-6-MENU Do not allow the display to time out between entries while keying the sequence.

2. Use the MENU UP/DOW N keys to highlight the AUDIO sub menu.

3. Press the MENU LEFT/RIGHT keys to enter the AUDIO sub menu.

Page 20

4. Use the MENU UP/DOWN keys to select A2T.

5. Use the MENU LEFT/RIGHT keys to adjust the value of A2T to 250.

6. Press the MENU button to return to the top level SDAM menu.

7. To ensure the A2T setting is saved: Turn the television set OFF by using the POWER button on the remote control transmitter or the local keyboard. Disconnect the television set from AC power for at least ten seconds. Reconnect the television set to AC power. Turn the television set ON by using the POWER button on the remote control transmitter or the local keyboard.

Page 21

Philips Consumer Electronics

Technical Service Data

Service and Quality Service Publications Dept. One Philips Drive P.O. Box 14810 Knoxville, TN 37914

Manual 7629

Model no.: 27PS60S321 First Publish: 12740 T8 Rev. Date: 2002-06-06 Print Date: 7/8/2004

Parts List

REFER TO SAFETY GUIDELINES

SAFETY NOTICE: HIMSELF WITH THE CHASSIS AND BE AWARE OF THE NECESSARY SAFETY PRECAUTIONS TO BE USED WHEN SERVICING ELECTRONIC EQUIPMENT CONTAINING HIGH VOLTAGES.

CAUTION: USE A SEPARATE ISOLATION TRANSFORMER FOR THIS UNIT WHEN SERVICING

ANY PERSON ATTEMPTING TO SERVICE THIS CHASSIS MUST FAMILIARIZE

Page 22

27PS60S321 - Manual no. 7629 Page: 1

Cabinet & Accessory Parts

S AC01 AC Cord. . . . . . . . . . . . . . . 3135 010 03831

AC03 Battery, 1.5V, 2-PACK. . . . . . . . 9299 000 65263

AC04 Cabinet Back Assembly. . . . . . . . 3121 237 52451

AC09 Clip, Anode Lead . . . . . . . . . . 3135 014 04471

S AC10 CRT, A68AJB82X11 . . . . . . . . . . 9301 891 90631

AC11 Customer Control Buttons . . . . . . 3139 137 83131

S AC12 Degaussing Coil. . . . . . . . . . . 2422 549 43967

AC13 Holder, Degaussing Coil (4 Used) . . 3135 013 01641

AC16 Owner's Manual . . . . . . . . . . . 3121 235 20111

AC16b Quick Use Guide. . . . . . . . . . . 3121 233 40911

REMOTE Remote Transmitter, RC19041001/01. . 3139 228 86501 AC20 Cabinet Front Assembly f/27PS60S321. 3121 237 51791

AC20a Cabinet Front. . . . . . . . . . . . 3139 137 83171

AC20b Chassis Guide. . . . . . . . . . . . 3139 124 31381

AC20d Light Guide. . . . . . . . . . . . . 3139 124 35111

AC20f Power Button . . . . . . . . . . . . 3139 137 83141

AC20j Speaker, Full Range, 16ohm, 5W (2 Use

d). . . . . . . . . . . . . . . . . . 2422 264 00411

S AC21 Deflection Yoke. . . . . . . . . . . 3313 203 01242

Main Chassis Assembly Parts

0127 Socket Fuse. . . . . . . . . . . . . 2422 088 00271

S 0211 Connector, 2 Pin . . . . . . . . . . 2422 025 16269

S 0212 Connector, 2 Pin . . . . . . . . . . 2422 025 16375

0217 Connector, 5 Pin . . . . . . . . . . 2422 025 12481

0219 Connector, 6 Pin . . . . . . . . . . 2422 025 12482

0220 Connector, 5 Pin . . . . . . . . . . 2422 025 04853

S 0221 Connector, 4 Pin . . . . . . . . . . 2422 025 15503

S 0222 Connector, 2 Pin . . . . . . . . . . 2422 025 10646

0223 Socket, Cinch, 9 Pin . . . . . . . . 2422 026 05236

0225 Socket, MDIN, 10 Pin . . . . . . . . 2422 026 04926

0226 Connector, 4 Pin . . . . . . . . . . 2422 025 12479

0229 Connector, 7 Pin . . . . . . . . . . 2422 025 11244

0240 Connector, 4 Pin . . . . . . . . . . 2422 025 12479

0242 Connector, 5 Pin . . . . . . . . . . 2422 025 12481

0243 Connector, 6 Pin . . . . . . . . . . 2422 025 04854

0246 Connector, 5 Pin . . . . . . . . . . 2422 025 12481

0267 Connector, 3 Pin . . . . . . . . . . 2412 020 00725

0269 Socket, Cinch, 3 Pin . . . . . . . . 2422 026 05182

0284 Connector, 4 Pin . . . . . . . . . . 2422 025 12479

1000 Tuner, V+U PLL . . . . . . . . . . . 2422 542 90108

1002 SAW Filter, 45MHZ75, OFWM1971M L . 2422 549 44518

1200 Filter, Ceramic, 4MHz5 . . . . . . . 2422 549 40807

S 1500 Fuse, 4A, 250V, IEC. . . . . . . . . 2422 086 10914

S 1515 Relay, 1P, 12V . . . . . . . . . . . 2422 132 07444

1600 Tact Switch. . . . . . . . . . . . . 2422 128 02742

1601 Tact Switch. . . . . . . . . . . . . 2422 128 02742

1602 Tact Switch. . . . . . . . . . . . . 2422 128 02742

1603 Tact Switch. . . . . . . . . . . . . 2422 128 02742

1606 Tact Switch. . . . . . . . . . . . . 2422 128 02742

1660 Crystal Resonator, 12 MHz, 20P, HC49/

U A. . . . . . . . . . . . . . . . . 2422 543 01203

1831 Crystal Resonator, 18MHZ432 12P HC49

/U A . . . . . . . . . . . . . . . . 2422 543 00842

2004 Cap, 47n, 10%, 16v, Ceramic. . . . . 3198 017 34730

2005 Cap, 10u, 20%, 50v, Electrolytic . . 3198 025 51090 2006 Cap, 470u, 20%, 16v, Electrolytic. . 3198 025 24710 2007 Cap, 100n, +80/-20%, 25v, Ceramic. . 3198 023 41040 2008 Cap, 100u, 20%, 25v, Electrolytic. . 3198 025 31010

2009 Cap, 22n, 10%, 25v, Ceramic. . . . . 3198 017 32230

2101 Cap, 470n, +80/-20%, 16v, Ceramic. . 3198 017 24740

2102 Cap, 22p, 5%, 50v, Ceramic . . . . . 3198 016 02290

2103 Cap, 330p, 10%, 50v, Ceramic . . . . 3198 017 33310

2104 Cap, 330p, 5%, 50v, Ceramic. . . . . 3198 016 33310

2105 Cap, 10u, 20%, 50v, Electrolytic . . 3198 025 51090 2106 Cap, 10u, 20%, 50v, Electrolytic . . 3198 025 51090

2111 Cap, 22p, 5%, 50v, Ceramic . . . . . 3198 016 02290

2112 Cap, 22p, 5%, 50v, Ceramic . . . . . 3198 016 02290

2113 Cap, 22p, 5%, 50v, Ceramic . . . . . 3198 016 02290

2121 Cap, 22p, 5%, 50v, Ceramic . . . . . 3198 016 02290

2122 Cap, 330p, 5%, 50v, Ceramic. . . . . 3198 016 33310

2123 Cap, 2u2, +80/-20%, 10v, Ceramic . . 3198 017 22250

2124 Cap, 330p, 5%, 50v, Ceramic. . . . . 3198 016 33310

2125 Cap, 2u2, +80/-20%, 10v, Ceramic . . 3198 017 22250

2131 Cap, 330p, 5%, 50v, Ceramic. . . . . 3198 016 33310

2132 Cap, 2u2, +80/-20%, 10v, Ceramic . . 3198 017 22250

2133 Cap, 330p, 5%, 50v, Ceramic. . . . . 3198 016 33310

2134 Cap, 2u2, +80/-20%, 10v, Ceramic . . 3198 017 22250

2135 Cap, 22p, 5%, 50v, Ceramic . . . . . 3198 016 02290

2136 Cap, 22p, 5%, 50v, Ceramic . . . . . 3198 016 02290

2141 Cap, 330p, 5%, 50v, Ceramic. . . . . 3198 016 33310

2143 Cap, 100n, +80/-20%, 25v, Ceramic. . 3198 023 41040

2150 Cap, 150n, 10%, 16v, Ceramic . . . . 2238 780 15652

2171 Cap, 2n2, 10%, 50v, Ceramic. . . . . 3198 019 12220

2181 Cap, 22p, 5%, 50v, Ceramic . . . . . 3198 016 02290

2184 Cap, 2u2, +80/-20%, 10v, Ceramic . . 3198 017 22250 2201 Cap, 100n, +80/-20%, 25v, Ceramic. . 3198 023 21040 2202 Cap, 100n, +80/-20%, 25v, Ceramic. . 3198 023 21040 2203 Cap, 100n, +80/-20%, 25v, Ceramic. . 3198 023 41040

S = Safety Part Be sure to use exact replacement part.

2204 Cap, 100n, +80/-20%, 25v, Ceramic. . 3198 023 41040 2205 Cap, 220n, +80/-20%, 25v, Ceramic. . 3198 023 22240 2208 Cap, 100n, +80/-20%, 25v, Ceramic. . 3198 023 41040 2209 Cap, 4u7, 20%, 50v, Electrolytic . . 3198 025 54780 2210 Cap, 1u, +80/-20%, 16v, Ceramic. . . 3198 017 21050 2211 Cap, 470n, +80/-20%, 10v, Ceramic. . 3198 017 44740

2213 Cap, 22n, 10%, 50v, Ceramic. . . . . 3198 017 02230

2214 Cap, 22n, 10%, 50v, Ceramic. . . . . 3198 017 02230

2215 Cap, 22n, 10%, 50v, Ceramic. . . . . 3198 017 02230

2216 Cap, 1000u, 20%, 16v, Electrolytic . 3198 026 21020

2217 Cap, 22n, 10%, 25v, Ceramic. . . . . 3198 017 32230

2219 Cap, 220n, +80/-20%, 25v, Ceramic. . 3198 023 22240 2220 Cap, 470n, 10%, 50v, Polyester . . . 3198 014 04740

2221 Cap, 22n, 10%, 50v, Ceramic. . . . . 3198 017 02230

2241 Cap, 1n5, 10%, 50v, Ceramic. . . . . 3198 017 31520

2242 Cap, 1u, +80/-20%, 10v, Ceramic. . . 3198 017 41050

2243 Cap, 2n2, 10%, 50v, Ceramic. . . . . 3198 017 02220

2244 Cap, 100n, 5%, 63v, Metallized Polyes

ter. . . . . . . . . . . . . . . . . 2222 370 76104

2245 Cap, 220n, +80/-20%, 16v, Ceramic. . 3198 023 22240 2247 Cap, 1000u, 20%, 16v, Electrolytic . 3198 026 21020

2248 Cap, 22n, 10%, 50v, Ceramic. . . . . 3198 017 02230

2249 Cap, 22n, 10%, 25v, Ceramic. . . . . 3198 017 32230

2250 Cap, 2u2, 20%, 50v, Electrolytic . . 3198 025 52280

2252 Cap, 1n, 5%, 25v, Ceramic. . . . . . 3198 016 31020

2253 Cap, 1n, 5%, 25v, Ceramic. . . . . . 3198 016 31020

2254 Res, Zero ohm, Chip Jumper . . . . . 3198 021 90020

2405 Cap, 220u, 20%, 25v, Electrolytic. . 3198 025 32210 2441 Cap, 1u, 20%, 50v, Electrolytic. . . 3198 025 51080 2443 Cap, 47n, +80/-20%, 50v, Ceramic . . 3198 017 24730 2444 Cap, 1u, 20%, 50v, Electrolytic. . . 3198 025 51080 2450 Cap, 47u, 20%, 160v, Electrolytic. . 2020 021 91139

2451 Cap, 15n, 10%, 50v, Polyester. . . . 3198 014 01530

2452 Cap, 180p, 5%, 50v, Ceramic. . . . . 3198 016 01810

2455 Cap, 47u, 20%, 25v, Electrolytic . . 3198 025 34790 2457 Cap, 470n, 5%, 250v, Polypropylene . 2222 479 90023 2458 Cap, 2u2, 20%, 100v, Electrolytic. . 2020 021 91331

2459 Cap, 680p, 10%, 500v, Ceramic. . . . 3198 019 46810

2460 Cap, 100p, 5%, 50v, Ceramic. . . . . 3198 016 01010

2462 Cap, 330n, 10%, 250v, Polypropylene 2022 333 00084

2463 Cap, 680p, 10%, 2kV, Ceramic . . . . 2020 558 90485

2463 Cap, 1.2nF, 10%, 2kV, Ceramic. . . . 2020 558 90488

2465 Cap, 11n, 5%, 1600v, Polypropylene . 2222 375 90155 2471 Cap, 100n, 10%, 50v, Polyester . . . 3198 014 01040 2472 Cap, 150n, 10%, 63v, Metallized Polye

ster . . . . . . . . . . . . . . . . 2222 365 75154

2473 Cap, 100n, 10%, 63v, Metallized Polye

ster . . . . . . . . . . . . . . . . 2222 365 75104

2474 Cap, 2n2, 10%, 50v, Ceramic. . . . . 3198 017 02220

2475 Cap, 2n2, 10%, 50v, Ceramic. . . . . 3198 017 02220

2476 Cap, 4n7, 10%, 50v, Ceramic. . . . . 3198 017 04720

2480 Cap, 47u, 20%, 25v, Electrolytic . . 2020 021 90586

2481 Cap, 470p, 10%, 500v, Ceramic. . . . 3198 019 44710

2482 Cap, 68n, 10%, 250v, Polyester . . . 2222 347 90234 2485 Cap, 4u7, 20%, 250v, Electrolytic. . 2020 021 90856 2486 Cap, 470u, 20%, 16v, Electrolytic. . 2020 021 91577 2487 Cap, 47u, 20%, 50v, Electrolytic . . 2020 021 90854 2488 Cap, 1000u, 20%, 16v, Electrolytic . 2020 021 91049 2489 Cap, 470u, 20%, 16v, Electrolytic. . 2020 021 91577

2491 Cap, 1n, 10%, 500v, Ceramic. . . . . 3198 019 41020

S 2500 Cap, 470n, 20%, 275v, Metallized Poly

propylene. . . . . . . . . . . . . . 2222 336 29148

2501 Cap, 2n2, 10%, 1000v, Ceramic. . . . 3198 019 52220

2502 Cap, 2n2, 10%, 1000v, Ceramic. . . . 3198 019 52220

2503 Cap, 470u, 20%, 200v, Electrolytic . 2020 024 90626

2505 Cap, 2n2, 10%, 1000v, Ceramic. . . . 3198 019 52220

2507 Cap, 470p, 10%, 50v, Ceramic . . . . 3198 017 04710

2508 Cap, 470p, 10%, 1000v, Ceramic . . . 3198 019 64710

S 2515 Cap, 1n5, 20%, v, Ceramic. . . . . . 2020 554 90128

2520 Cap, 100n, 10%, 16v, Ceramic . . . . 3198 017 01040

2521 Cap, 22u, 20%, 50v, Electrolytic . . 3198 025 52290

2522 Cap, 100n, 10%, 16v, Ceramic . . . . 3198 017 01040

2523 Cap, 1n5, 10%, 2000v, Ceramic. . . . 2020 558 90489

2525 Cap, 470p, 10%, 50v, Ceramic . . . . 3198 017 04710

2527 Cap, 2n2, 10%, 50v, Ceramic. . . . . 3198 017 02220

2528 Cap, 1n, 10%, 50v, Ceramic . . . . . 3198 017 01020

2540 Cap, 10n, 10%, 50v, Ceramic. . . . . 3198 017 01030

2541 Cap, 10n, 10%, 50v, Ceramic. . . . . 3198 017 01030

2560 Cap, 680p, 10%, 1000v, Ceramic . . . 2020 558 90472 2561 Cap, 100u, 20%, 160v, Electrolytic . 2020 021 91654

2562 Cap, 1n, 10%, 50v, Ceramic . . . . . 3198 019 11020

2563 Cap, 100n, 10%, 50v, Polyester . . . 3198 014 01040 2564 Cap, 2u2, 20%, 25v, Electrolytic . . 2020 021 91353 2566 Cap, 470u, 20%, 6.3v, Electrolytic . 3198 025 04710 2567 Cap, 47u, 20%, 25v, Electrolytic . . 3198 025 34790 2568 Cap, 1u, 20%, 50v, Electrolytic. . . 3198 025 51080 2580 Cap, 47u, 20%, 16v, Electrolytic . . 3198 028 24790 2581 Cap, 22u, 20%, 50v, Electrolytic . . 3198 025 52290 2601 Cap, 220n, +80/-20%, 25v, Ceramic. . 3198 023 22240

2602 Cap, 100p, 5%, 50v, Ceramic. . . . . 3198 016 01010

2606 Cap, 1n, 10%, 50v, Ceramic . . . . . 3198 017 01020

2607 Cap, 33p, 5%, 50v, Ceramic . . . . . 3198 016 33390

Page 23

27PS60S321 (continued) Page: 2

2608 Cap, 1u, +80/-20%, 10v, Ceramic. . . 3198 017 41050

2609 Cap, 33p, 5%, 50v, Ceramic . . . . . 3198 016 33390

2611 Cap, 1u, +80/-20%, 10v, Ceramic. . . 3198 017 41050

2612 Cap, 68p, 5%, 50v, Ceramic . . . . . 3198 016 06890

2613 Cap, 68p, 5%, 50v, Ceramic . . . . . 3198 016 06890

2615 Cap, 1n, 10%, 50v, Ceramic . . . . . 3198 017 01020

2618 Cap, 1u, +80/-20%, 10v, Ceramic. . . 3198 017 41050 2619 Cap, 1u, +80/-20%, 16v, Ceramic. . . 3198 017 21050 2691 Cap, 10u, 20%, 50v, Electrolytic . . 3198 025 51090 2801 Cap, 22u, 20%, 50v, Electrolytic . . 3198 025 52290 2802 Cap, 220n, +80/-20%, 25v, Ceramic. . 3198 023 22240 2804 Cap, 2u2, +80/-20%, 10v, Ceramic . . 3198 017 22250

2805 Res, Zero ohm, Chip Jumper . . . . . 3198 021 90020

2806 Res, Zero ohm, Chip Jumper . . . . . 3198 021 90020

2831 Cap, 1p, 25%, 50v, Ceramic . . . . . 3198 016 31080

2832 Cap, 1p, 25%, 50v, Ceramic . . . . . 3198 016 31080

2833 Cap, 47p, 5%, 50v, Ceramic . . . . . 3198 016 34790

2834 Cap, 470p, 5%, 50v, Ceramic. . . . . 3198 016 34710

2835 Cap, 220p, 5%, 50v, Ceramic. . . . . 3198 016 32210

2836 Cap, 1n5, 10%, 50v, Ceramic. . . . . 3198 017 31520

2837 Cap, 4u7, 20%, 50v, Electrolytic . . 3198 025 54780 2840 Cap, 100n, +80/-20%, 25v, Ceramic. . 3198 023 41040 2841 Cap, 10u, 20%, 50v, Electrolytic . . 3198 025 51090 2842 Cap, 100n, +80/-20%, 25v, Ceramic. . 3198 023 41040 2843 Cap, 10u, 20%, 50v, Electrolytic . . 3198 025 51090 2844 Cap, 10u, 20%, 50v, Electrolytic . . 3198 025 51090 2845 Cap, 100n, +80/-20%, 25v, Ceramic. . 3198 023 41040 2846 Cap, 100u, 20%, 25v, Electrolytic. . 3198 025 31010

2849 Cap, 1n, 5%, 25v, Ceramic. . . . . . 3198 016 31020

2850 Cap, 1n, 5%, 25v, Ceramic. . . . . . 3198 016 31020

2851 Res, Zero ohm, Chip Jumper . . . . . 3198 021 90020

2852 Cap, 1n, 5%, 25v, Ceramic. . . . . . 3198 016 31020

2853 Res, Zero ohm, Chip Jumper . . . . . 3198 021 90020

2854 Cap, 1n, 5%, 25v, Ceramic. . . . . . 3198 016 31020

2855 Cap, 33p, 5%, 50v, Ceramic . . . . . 3198 016 33390

2856 Cap, 47p, 5%, 50v, Ceramic . . . . . 3198 016 34790

2857 Cap, 150p, 5%, 50v, Ceramic. . . . . 3198 016 31510

2860 Cap, 180p, 5%, 50v, Ceramic. . . . . 3198 016 31810

2894 Cap, 220p, 5%, 50v, Ceramic. . . . . 3198 016 32210

2895 Cap, 560p, 5%, 25v, Ceramic. . . . . 3198 016 35610

2897 Cap, 390p, 5%, 50v, Ceramic. . . . . 3198 016 33910

2898 Cap, 10n, 10%, 50v, Ceramic. . . . . 3198 017 31030

2902 Cap, 1000u, 20%, 16v, Electrolytic . 3198 026 21020 2903 Cap, 1u, 20%, 50v, Electrolytic. . . 3198 025 51080 2904 Cap, 470n, +80/-20%, 16v, Ceramic. . 3198 017 24740

2905 Cap, 1n, 10%, 50v, Ceramic . . . . . 3198 017 01020

2906 Cap, 470n, +80/-20%, 16v, Ceramic. . 3198 017 24740

2907 Cap, 1n, 10%, 50v, Ceramic . . . . . 3198 017 01020

2908 Cap, 10u, 20%, 50v, Electrolytic . . 3198 025 51090

2910 Cap, 3n3, 10%, 50v, Ceramic. . . . . 3198 017 03320

2911 Cap, 3n3, 10%, 50v, Ceramic. . . . . 3198 017 03320

2950 Cap, 330p, 5%, 50v, Ceramic. . . . . 3198 016 33310

3000 Res, 100 ohm, 5%, 1/6W, Carbon Film. 3198 011 01010 3001 Res, 100 ohm, 5%, 1/6W, Carbon Film. 3198 011 01010

3002 Res, Zero ohm, 'Chip' Jumper . . . . 3198 021 90030

3003 Res, 1K5, 5%, 1/16W, Metallized Glass 3198 021 31520 3004 Res, 8K2, 5%, 1/16W, Metallized Glass 3198 021 38220 3005 Res, 100 ohm, 5%, 1/6W, Carbon Film. 3198 011 01010 3101 Res, 68 ohm, 5%, 1/6W, Carbon Film . 3198 011 06890 3102 Res, 1K, 5%, 1/16W, Metallized Glass 3198 021 31020 3103 Res, 150 ohm, 5%, 1/6W, Carbon Film. 3198 011 01510 3104 Res, 220K, 5%, 1/16W, Metallized Glas 3198 021 32240 3105 Res, 150 ohm, 5%, 1/6W, Carbon Film. 3198 011 01510 3106 Res, 220K, 5%, 1/16W, Metallized Glas 3198 021 32240 3111 Res, 75 ohm, 5%, 1/6W, Carbon Film . 3198 011 07590 3112 Res, 100 ohm, 5%, 1/6W, Carbon Film. 3198 011 01010 3113 Res, 75 ohm, 5%, 1/6W, Carbon Film . 3198 011 07590 3114 Res, 100 ohm, 5%, 1/6W, Carbon Film. 3198 011 01010 3115 Res, 75 ohm, 5%, 1/6W, Carbon Film . 3198 011 07590 3116 Res, 100 ohm, 5%, 1/6W, Carbon Film. 3198 011 01010

3122 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

3123 Res, 150 ohm, 5%, 1/6W, Carbon Film. 3198 011 01510 3124 Res, 47K, 5%, 1/16W, Metallized Glass 3198 021 34730 3125 Res, 150 ohm, 5%, 1/6W, Carbon Film. 3198 011 01510 3126 Res, 47K, 5%, 1/16W, Metallized Glass 3198 021 34730 3131 Res, 150 ohm, 5%, 1/6W, Carbon Film. 3198 011 01510 3132 Res, 47K, 5%, 1/16W, Metallized Glass 3198 021 34730 3133 Res, 150 ohm, 5%, 1/6W, Carbon Film. 3198 011 01510 3134 Res, 47K, 5%, 1/16W, Metallized Glass 3198 021 34730 3135 Res, 75 ohm, 5%, 1/6W, Carbon Film . 3198 011 07590 3136 Res, 100 ohm, 5%, 1/6W, Carbon Film. 3198 011 01010

3138 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

3141 Res, 1K, 5%, 1/6W, Carbon Film . . . 3198 011 01020 3149 Res, 100K, 5%, 1/16W, Metallized Glas 3198 021 31040 3150 Res, 150K, 5%, 1/16W, Metallized Glas 3198 021 31540 3154 Res, 5K6, 5%, 1/6W, Carbon Film. . . 3198 011 05620 3156 Res, 10K, 5%, 1/6W, Carbon Film. . . 3198 011 01030 3157 Res, 1K5, 5%, 1/16W, Metallized Glass 3198 021 31520 3158 Res, 10K, 5%, 1/16W, Metallized Glass 3198 021 31030 3159 Res, 1K2, 1%, 1/10W, Metallized Glass 2120 108 92616 3170 Res, 4K7, 5%, 1/6W, Carbon Film. . . 3198 011 04720 3172 Res, 68K, 5%, 1/6W, Carbon Film. . . 3198 011 06830

S = Safety Part Be sure to use exact replacement part.

3173 Res, 10K, 5%, 1/6W, Carbon Film. . . 3198 011 01030 3174 Res, 8K2, 5%, 1/6W, Carbon Film. . . 3198 011 08220 3175 Res, 8K2, 5%, 1/6W, Carbon Film. . . 3198 011 08220 3176 Res, 100 ohm, 5%, 1/6W, Carbon Film. 3198 011 01010 3177 Res, 8K2, 5%, 1/6W, Carbon Film. . . 3198 011 08220 3178 Res, 3K9, 5%, 1/6W, Carbon Film. . . 3198 011 03920 3179 Res, 2K2, 5%, 1/6W, Carbon Film. . . 3198 011 02220 3200 Res, 390 ohm, 5%, 1/6W, Carbon Film. 3198 011 03910 3201 Res, 100 ohm, 5%, 1/6W, Carbon Film. 3198 011 01010 3202 Res, 100 ohm, 5%, 1/6W, Carbon Film. 3198 011 01010 3203 Res, 100 ohm, 5%, 1/6W, Carbon Film. 3198 011 01010 3204 Res, 22K, 5%, 1/6W, Carbon Film. . . 3198 011 02230 3206 Res, 33K, 5%, 1/16W, Metallized Glass 3198 021 33330 3207 Res, 1K, 5%, 1/6W, Carbon Film . . . 3198 011 01020 3208 Res, 220 ohm, 5%, 1/16W, Metallized G

lass . . . . . . . . . . . . . . . . 3198 021 32210

3209 Res, 68 ohm, 5%, 1/16W, Metallized Gl

ass. . . . . . . . . . . . . . . . . 3198 021 36890

3212 Res, 470 ohm, 5%, 1/16W, Metallized G

lass . . . . . . . . . . . . . . . . 3198 021 34710

3213 Res, 560 ohm, 5%, 1/6W, Carbon Film. 3198 011 05610 3214 Res, 100 ohm, 5%, 1/10W, Metallized G

lass . . . . . . . . . . . . . . . . 3198 021 51010

3215 Res, 560 ohm, 5%, 1/16W, Metallized G

lass . . . . . . . . . . . . . . . . 3198 021 35610

3216 Res, 68 ohm, 5%, 1/6W, Carbon Film . 3198 011 06890 3217 Res, 330K, 5%, 1/16W, Metallized Glas 3198 021 33340 3218 Res, 82K, 5%, 1/16W, Metallized Glass 3198 021 38230 3219 Res, 2K2, 5%, 1/16W, Metallized Glass 3198 021 32220 3220 Res, 100 ohm, 5%, 1/6W, Carbon Film. 3198 011 01010 3221 Res, 560 ohm, 5%, 1/6W, Carbon Film. 3198 011 05610 3222 Res, 100 ohm, 5%, 1/6W, Carbon Film. 3198 011 01010 3223 Res, 100 ohm, 5%, 1/10W, Metallized G

lass . . . . . . . . . . . . . . . . 3198 021 51010

3226 Res, 560 ohm, 5%, 1/16W, Metallized G

lass . . . . . . . . . . . . . . . . 3198 021 35610

3235 Res, 100 ohm, 5%, 1/6W, Carbon Film. 3198 011 01010 3241 Res, 22K, 5%, 1/16W, Metallized Glass 3198 021 32230 3242 Res, 12K, 5%, 1/10W, Metallized Glass 3198 021 51230 3244 Res, 820 ohm, 5%, 1/6W, Carbon Film. 3198 011 08210 3245 Res, 39K, 1%, 1/10W, Metallized Glass 2120 108 92633

3246 Res, 10k, 5%, Carbon . . . . . . . . 3198 021 51030

3247 Res, 680K, 5%, 1/10W, Metallized Glas 3198 021 56840 3248 Res, 33K, 5%, 1/10W, Metallized Glass 3198 021 53330 3249 Res, 820 ohm, 5%, 1/6W, Carbon Film. 3198 011 08210 3250 Res, 8K2, 5%, 1/6W, Carbon Film. . . 3198 011 08220 3251 Res, 100 ohm, 5%, 1/6W, Carbon Film. 3198 011 01010

3256 Res, 1k, 5%, Carbon. . . . . . . . . 3198 021 51020

3257 Res, 10M, 5%, 1/10W, Metallized Glass 3198 021 51060 3258 Res, 100K, 5%, 1/10W, Metallized Glas 3198 021 51040 3259 Res, 470K, 5%, 1/10W, Metallized Glas 3198 021 54740 3441 Res, 100 ohm, 5%, 1/10W, Metallized G

lass . . . . . . . . . . . . . . . . 3198 021 51010

3442 Res, Zero ohm, Chip Jumper . . . . . 3198 021 90020

3443 Res, 1M, 5%, 1/10W, Metallized Glass 3198 021 51050 3445 Res, 15K, 5%, 1/6W, Carbon Film. . . 3198 011 01530 3446 Res, 5K6, 5%, 1/6W, Carbon Film. . . 3198 011 05620 3447 Res, 56 ohm, 5%, 1/4W, Carbon Film . 2120 101 74569 3448 Res, 470 ohm, 5%, 1/6W, Carbon Film. 3198 011 04710 3449 Res, 68 ohm, 5%, 1/6W, Carbon Film . 3198 011 06890 3450 Res, 33 ohm, 5%, 1/6W, Carbon Film . 3198 011 03390 S 3451 Res, 10 ohm, 5%, 1/3W, Metal Film. . 2306 204 03109 3452 Res, 10K, 1%, 3/5W, Metal Film . . . 2312 915 11003 3453 Res, 1K, 5%, 1/6W, Carbon Film . . . 3198 011 01020 3454 Res, 3K9, 1%, 3/5W, Metal Film . . . 2312 915 13902 3455 Res, 6R8, 5%, 1 1/3W, Metal Film . . 3198 012 26880

3456 Res, Zero ohm, Chip Jumper . . . . . 3198 021 90020

3457 Res, Zero ohm, Chip Jumper . . . . . 3198 021 90020

3458 Res, 1K, 5%, 1/6W, Carbon Film . . . 3198 011 01020 3459 Res, 15K, 5%, 1 1/3W, Metal Film . . 3198 012 21530 3460 Res, 3K9, 5%, 1/6W, Carbon Film. . . 3198 011 03920 3463 Res, 33 ohm, 5%, 1/6W, Carbon Film . 3198 011 03390 3465 Res, 27K, 1%, 3/5W, Metal Film . . . 2312 915 12703 3468 Res, 220 ohm, 5%, 1/6W, Carbon Film. 3198 011 02210 3469 Res, 3K3, 5%, 1/6W, Carbon Film. . . 3198 011 03320 3470 Res, 330K, 5%, 1/10W, Metallized Glas 3198 021 53340 3471 Res, 3R3, 1%, 3/5W, Metal Film . . . 2312 915 13308 3472 Res, 3R3, 1%, 3/5W, Metal Film . . . 2312 915 13308 3473 Res, 3R3, 1%, 3/5W, Metal Film . . . 2312 915 13308 3474 Res, 2K2, 1%, 3/5W, Metal Film . . . 2312 915 12202 3475 Res, 2K2, 1%, 3/5W, Metal Film . . . 2312 915 12202 3477 Res, 150 ohm, 5%, 1/6W, Carbon Film. 3198 011 01510 3478 Res, 150 ohm, 5%, 1/6W, Carbon Film. 3198 011 01510 3479 Res, 2K7, 5%, 1/10W, Metallized Glass 3198 021 52720 3480 Res, 1R5, 5%, 1/4W, Carbon Film. . . 2120 101 74158

3481 Res, 12k, 1%, Metal Film . . . . . . 2312 915 11203

3482 Res, 12k, 1%, Metal Film . . . . . . 2312 915 11203

3484 Res, 3K9, 5%, 1/6W, Carbon Film. . . 3198 011 03920 3486 Res, 33 ohm, 5%, 2 1/2W, Metal Film. 3198 012 33390 3488 Res, 4R7, 5%, 1/2W, Metal Film . . . 2306 207 03478 3490 Res, 8K2, 5%, 1/6W, Carbon Film. . . 3198 011 08220

3492 Res, 1k, 5%, Carbon. . . . . . . . . 3198 021 51020

Page 24

27PS60S321 (continued) Page: 3

3493 Res, 6R8, 5%, 1/3W, Metal Film . . . 2306 204 03688 3494 Res, 4R7, 5%, 1/2W, Metal Film . . . 2306 207 03478

3495 Res, 22k, 5%, Carbon . . . . . . . . 3198 021 52230

3496 Res, 100K, 5%, 1/10W, Metallized Glas 3198 021 51040 3497 Res, 100K, 5%, 1/10W, Metallized Glas 3198 021 51040 3498 Res, 12K, 5%, 1/10W, Metallized Glass 3198 021 51230

3499 Res, 10k, 5%, Carbon . . . . . . . . 3198 021 51030

S 3500 Res, 3M3, 5%, 1/2W, Metallized Glass 2322 242 13335 S 3501 Res, 3M3, 5%, 1/2W, Metallized Glass 2322 242 13335 3504 Res, 3 ohm, +30%/-20%, 144v, PTC, Car

bon Film . . . . . . . . . . . . . . 2122 663 00019

S 3506 Res, 1M5, 5%, 1/2W, Metallized Glass 2322 242 13155 S 3507 Surge Protector, DSP-301N-A21F A. . 2422 549 43073 S 3508 Res, 220 ohm, 20%, 1/2W, Carbon Film 3198 013 02210 3510 Res, 4.7 ohm, 20%, 3W1, NTC, Carbon F

ilm. . . . . . . . . . . . . . . . . 2122 612 00056

3519 Res, 270 ohm, 5%, 1/6W, Carbon Film. 3198 011 02710 3520 Res, 1K2, 5%, 1/10W, Metallized Glass 3198 021 51220 3521 Res, 4R7, 5%, 1/6W, Carbon Film. . . 3198 011 04780 3522 Res, 330K, 5%, 1/10W, Metallized Glas 3198 021 53340 S 3523 Res, 100 ohm, 5%, 1/3W, Metal Film . 2306 204 03101 3524 Res, 56K, 5%, 1/10W, Metallized Glass 3198 021 55630

3525 Res, 1k, 5%, Carbon. . . . . . . . . 3198 021 51020

3526 Res, 0R1, 5%, 3/5W, Metal Film . . . 3198 012 11070 3527 Res, 0R33, 5%, 3/5W, Metal Film. . . 3198 012 13370

3528 Res, Zero ohm, Chip Jumper . . . . . 3198 021 90020

3529 Res, 47K, 5%, 1/10W, Metallized Glass 3198 021 54730

3530 Res, 10k, 5%, Carbon . . . . . . . . 3198 021 51030

3531 Res, 4K7, 5%, 1/10W, Metallized Glass 3198 021 54720 S 3532 Res, 2K2, 5%, 1/3W, Metal Film . . . 2306 204 03222 3541 Res, 470 ohm, 5%, 1/10W, Metallized G

lass . . . . . . . . . . . . . . . . 3198 021 54710

3542 Res, 1K5, 5%, 1/10W, Metallized Glass 3198 021 51520 3543 Res, 82K, 1%, 3/5W, Metal Film . . . 2312 915 18203 3544 Res, 4K7, 1%, 1/8W, Metallized Glass 2322 734 64702 3545 Res, 270K, 5%, 1/8W, Metallized Glass 2322 730 61274 3548 Res, 15K, 5%, 1/10W, Metallized Glass 3198 021 51530 3552 Res, 4K7, 5%, 1/10W, Metallized Glass 3198 021 54720

3557 Res, 1k, 5%, Carbon. . . . . . . . . 3198 021 51020

3560 Res, 47 ohm, 5%, 1/6W, Carbon Film . 3198 011 04790 3561 Res, 100 ohm, 5%, 1/6W, Carbon Film. 3198 011 01010 3562 Res, 12K, 5%, 1/10W, Metallized Glass 3198 021 51230 3563 Res, 5K6, 5%, 1/10W, Metallized Glass 3198 021 55620 3564 Res, 0R1, 5%, 1 1/3W, Metal Film . . 3198 012 21070 3565 Res, 330 ohm, 5%, 1W, Metal Film . . 3198 012 13310 3566 Res, 2K2, 5%, 1/10W, Metallized Glass 3198 021 52220 3567 Res, 1K8, 5%, 1/16W, Metallized Glass 3198 021 31820 3568 Res, 8K2, 5%, 1/10W, Metallized Glass 3198 021 58220 3569 Res, 5K6, 5%, 1/10W, Metallized Glass 3198 021 55620 3580 Res, 47K, 5%, 1/10W, Metallized Glass 3198 021 54730 3594 Res, 330 ohm, 5%, 1/10W, Metallized G

lass . . . . . . . . . . . . . . . . 3198 021 53310

3595 Res, 220K, 5%, 1/10W, Metallized Glas 3198 021 52240 3596 Res, 220K, 5%, 1/10W, Metallized Glas 3198 021 52240 3601 Res, 8K2, 5%, 1/6W, Carbon Film. . . 3198 011 08220 3603 Res, 100 ohm, 5%, 1/6W, Carbon Film. 3198 011 01010 3604 Res, 100 ohm, 5%, 1/6W, Carbon Film. 3198 011 01010 3605 Res, 4K7, 5%, 1/16W, Metallized Glass 3198 021 34720 3606 Res, 2K2, 5%, 1/6W, Carbon Film. . . 3198 011 02220 3607 Res, 2K2, 5%, 1/6W, Carbon Film. . . 3198 011 02220 3608 Res, 100 ohm, 5%, 1/6W, Carbon Film. 3198 011 01010 3609 Res, 1K, 5%, 1/6W, Carbon Film . . . 3198 011 01020 3610 Res, 8K2, 5%, 1/6W, Carbon Film. . . 3198 011 08220 3611 Res, 100 ohm, 5%, 1/16W, Metallized G

lass . . . . . . . . . . . . . . . . 3198 021 31010

3618 Res, 6K8, 5%, 1/6W, Carbon Film. . . 3198 011 06820 3622 Res, 100 ohm, 5%, 1/10W, Metallized G

lass . . . . . . . . . . . . . . . . 3198 021 51010

3623 Res, 4K7, 5%, 1/16W, Metallized Glass 3198 021 34720 3624 Res, 100 ohm, 5%, 1/6W, Carbon Film. 3198 011 01010 3625 Res, 100 ohm, 5%, 1/6W, Carbon Film. 3198 011 01010 3626 Res, 4K7, 5%, 1/16W, Metallized Glass 3198 021 34720 3627 Res, 4K7, 5%, 1/16W, Metallized Glass 3198 021 34720 3628 Res, 10K, 5%, 1/16W, Metallized Glass 3198 021 31030 3630 Res, 2K2, 5%, 1/16W, Metallized Glass 3198 021 32220

3632 Res, Zero ohm, Chip Jumper . . . . . 3198 021 90020

3634 Res, 100 ohm, 5%, 1/6W, Carbon Film. 3198 011 01010 3635 Res, 100 ohm, 5%, 1/6W, Carbon Film. 3198 011 01010 3636 Res, 100 ohm, 5%, 1/10W, Metallized G

lass . . . . . . . . . . . . . . . . 3198 021 51010

3638 Res, 75 ohm, 5%, 1/16W, Metallized Gl

ass. . . . . . . . . . . . . . . . . 3198 021 37590

3639 Res, Zero ohm, Chip Jumper . . . . . 3198 021 90020

3681 Res, 390 ohm, 5%, 1/16W, Metallized G

lass . . . . . . . . . . . . . . . . 3198 021 33910

3682 Res, 3K3, 5%, 1/16W, Metallized Glass 3198 021 33320 3683 Res, 390 ohm, 5%, 1/16W, Metallized G

lass . . . . . . . . . . . . . . . . 3198 021 33910

3684 Res, 560 ohm, 5%, 1/16W, Metallized G

lass . . . . . . . . . . . . . . . . 3198 021 35610

3685 Res, 560 ohm, 5%, 1/16W, Metallized G

lass . . . . . . . . . . . . . . . . 3198 021 35610

S = Safety Part Be sure to use exact replacement part.

3686 Res, 1K5, 5%, 1/16W, Metallized Glass 3198 021 31520 3691 Res, 330 ohm, 5%, 1/16W, Metallized G

lass . . . . . . . . . . . . . . . . 3198 021 33310

3693 Res, 220 ohm, 5%, 1/16W, Metallized G

lass . . . . . . . . . . . . . . . . 3198 021 32210

3694 Res, 4K7, 5%, 1/16W, Metallized Glass 3198 021 34720 3801 Res, 220 ohm, 5%, 1/6W, Carbon Film. 3198 011 02210 3802 Res, 1K, 5%, 1/6W, Carbon Film . . . 3198 011 01020 3809 Res, 75 ohm, 5%, 1/16W, Metallized Gl

ass. . . . . . . . . . . . . . . . . 3198 021 37590

3810 Res, 75 ohm, 5%, 1/16W, Metallized Gl

ass. . . . . . . . . . . . . . . . . 3198 021 37590

3831 Res, 47K, 5%, 1/16W, Metallized Glass 3198 021 34730 3832 Res, 100 ohm, 5%, 1/6W, Carbon Film. 3198 011 01010 3833 Res, 100 ohm, 5%, 1/6W, Carbon Film. 3198 011 01010 3836 Res, 1K, 5%, 1/16W, Metallized Glass 3198 021 31020 3837 Res, 100 ohm, 5%, 1/6W, Carbon Film. 3198 011 01010 3838 Res, 1K, 5%, 1/16W, Metallized Glass 3198 021 31020 3839 Res, 100 ohm, 5%, 1/6W, Carbon Film. 3198 011 01010 3843 Res, 2K2, 5%, 1/16W, Metallized Glass 3198 021 32220 3901 Res, 1K, 5%, 1/16W, Metallized Glass 3198 021 31020 3902 Res, 3K3, 5%, 1/16W, Metallized Glass 3198 021 33320 3903 Res, 3K3, 5%, 1/16W, Metallized Glass 3198 021 33320 3904 Res, 10K, 5%, 1/16W, Metallized Glass 3198 021 31030 3905 Res, 3K3, 5%, 1/16W, Metallized Glass 3198 021 33320 3906 Res, 10K, 5%, 1/16W, Metallized Glass 3198 021 31030 3907 Res, 8K2, 5%, 1/16W, Metallized Glass 3198 021 38220

4001 Res, Zero ohm, 'Chip' Jumper . . . . 3198 021 90030

4002 Res, Zero ohm, 'Chip' Jumper . . . . 3198 021 90030

4170 Res, Zero ohm, Chip Jumper . . . . . 3198 021 90020

4181 Res, Zero ohm, 'Chip' Jumper . . . . 3198 021 90030

4209 Res, Zero ohm, 'Chip' Jumper . . . . 3198 021 90030

4216 Res, Zero ohm, 'Chip' Jumper . . . . 3198 021 90030

4217 Res, Zero ohm, 'Chip' Jumper . . . . 3198 021 90030

4401 Res, Zero ohm, Chip Jumper . . . . . 3198 021 90020

4402 Res, Zero ohm, Chip Jumper . . . . . 3198 021 90020

4430 Res, Zero ohm, Chip Jumper . . . . . 3198 021 90020

4500 Res, Zero ohm, Chip Jumper . . . . . 3198 021 90020

4601 Res, Zero ohm, Chip Jumper . . . . . 3198 021 90020

4613 Res, Zero ohm, Chip Jumper . . . . . 3198 021 90020

4614 Res, Zero ohm, Chip Jumper . . . . . 3198 021 90020

4615 Res, Zero ohm, 'Chip' Jumper . . . . 3198 021 90030

4617 Res, Zero ohm, Chip Jumper . . . . . 3198 021 90020

4618 Res, Zero ohm, Chip Jumper . . . . . 3198 021 90020

4619 Res, Zero ohm, Chip Jumper . . . . . 3198 021 90020

4622 Res, Zero ohm, Chip Jumper . . . . . 3198 021 90020

4623 Res, Zero ohm, Chip Jumper . . . . . 3198 021 90020

4691 Res, Zero ohm, Chip Jumper . . . . . 3198 021 90020

4692 Res, Zero ohm, Chip Jumper . . . . . 3198 021 90020

4693 Res, Zero ohm, Chip Jumper . . . . . 3198 021 90020

4696 Res, Zero ohm, Chip Jumper . . . . . 3198 021 90020

4801 Res, Zero ohm, Chip Jumper . . . . . 3198 021 90020

4831 Res, Zero ohm, Chip Jumper . . . . . 3198 021 90020

4833 Res, Zero ohm, Chip Jumper . . . . . 3198 021 90020

4835 Res, Zero ohm, Chip Jumper . . . . . 3198 021 90020

4901 Res, Zero ohm, Chip Jumper . . . . . 3198 021 90020

4903 Res, Zero ohm, Chip Jumper . . . . . 3198 021 90020

4982 Res, Zero ohm, Chip Jumper . . . . . 3198 021 90020

5001 Coil, 27u. . . . . . . . . . . . . . 3198 018 22790

5002 Coil, 820n . . . . . . . . . . . . . 3198 018 18270

5201 Coil, 6u8. . . . . . . . . . . . . . 3198 018 16880

5202 Coil, 10u. . . . . . . . . . . . . . 3198 018 21090

5204 Fixed, Inductor, 100MHz, 80 ohm. . . 3198 018 90020 5205 Fixed, Inductor, 100MHz, 80 ohm. . . 3198 018 90020

5206 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

5241 Coil, 10u. . . . . . . . . . . . . . 3198 018 21090

5242 Coil, 10u. . . . . . . . . . . . . . 3198 018 11090

S 5445 Transformer, LOT, USLOT+U AT2078 . . 3128 138 21401

5451 Coil, 33u. . . . . . . . . . . . . . 3198 018 73390

5452 Fixed, Inductor, 100MHz, 80 ohm. . . 3198 018 90020

5457 Coil, Linear Correction, 42u . . . . 2422 535 94865

5461 Transformer, Signal Driver, SC10015-0

0 B. . . . . . . . . . . . . . . . . 2422 531 02465

5471 Coil, 3u3. . . . . . . . . . . . . . 3198 018 73380

5472 Coil, 3u3. . . . . . . . . . . . . . 3198 018 23380

5480 Fixed Inductor, 39u, 10%, LAL04. . . 2422 535 97336

S 5501 Filter, Mains, 5mH, 2A . . . . . . . 2422 549 43432

S 5520 Transformer, SMT Layer, SS39009-04 B 2422 531 02459

5521 Fixed, Inductor, 100MHz, 50R. . . . 3198 018 90010

5560 Fixed, Inductor, 100MHz, 50R. . . . 3198 018 90010

5561 Coil, 27u. . . . . . . . . . . . . . 3198 018 22790

5562 Fixed, Inductor, 100MHz, 50R. . . . 3198 018 90010

5564 Fixed, Inductor, 100MHz, 50R. . . . 3198 018 90010

5602 Coil, 5u6. . . . . . . . . . . . . . 3198 018 15680

5603 Coil, 5u6. . . . . . . . . . . . . . 3198 018 15680

5604 Coil, 5u6. . . . . . . . . . . . . . 3198 018 15680

5831 Coil, 6u8. . . . . . . . . . . . . . 3198 018 16880

5832 Coil, 6u8. . . . . . . . . . . . . . 3198 018 16880

5833 Coil, 6u8. . . . . . . . . . . . . . 3198 018 16880

5835 Coil, 12u. . . . . . . . . . . . . . 3198 018 31290

6001 Zener Diode, 33 volt . . . . . . . . 3198 010 23390

6006 Diode, Signal, 1N4148. . . . . . . . 3198 010 10010

Page 25

27PS60S321 (continued) Page: 4

6007 Diode, Signal, 1N4148. . . . . . . . 3198 010 10010

6150 Diode, Signal, BAS316. . . . . . . . 3198 010 10630

6201 Diode, Signal, BAS316. . . . . . . . 3198 010 10630

6202 Diode, Signal, BAS316. . . . . . . . 3198 010 10630

6206 Zener Diode, 6.8 volt. . . . . . . . 3198 020 56880

6445 Zener Diode, 10 volt . . . . . . . . 3198 020 51090

6447 Diode, Signal, 1N4148. . . . . . . . 3198 010 10010

6448 Zener Diode, 6.2 volt. . . . . . . . 9331 668 30133

6449 Diode, Signal, BAV99 . . . . . . . . 3198 010 10620

6453 Zener Diode, 6.8 volt. . . . . . . . 3198 020 56880

6460 Diode, Rect, BY228/24. . . . . . . . 9340 559 50112

6461 Diode, Rect, RGP30J-L7004. . . . . . 9338 617 60682

6462 Zener Diode, 9.1 volt. . . . . . . . 9331 177 80133

6465 Diode, Signal, BAV21 . . . . . . . . 3198 010 10070

6466 Diode, Signal, BAV21 . . . . . . . . 3198 010 10070

6467 Diode, Signal, BAS316. . . . . . . . 3198 010 10630

6468 Diode, Signal, BAS316. . . . . . . . 3198 010 10630

6469 Diode, Rect, BYD33J . . . . . . . . 9337 234 20133

6470 Diode, Signal, BAV99 . . . . . . . . 3198 010 10620

6476 Zener Diode, 15 volt . . . . . . . . 3198 010 21590

6481 Zener Diode, 5.6 volt. . . . . . . . 3198 010 25680

6482 Zener Diode, 9.1 volt. . . . . . . . 9331 177 80133

6483 Zener Diode, 33 volt . . . . . . . . 3198 010 23390

6485 Diode, Rect, BYD33J . . . . . . . . 9337 234 20133

6486 Diode, Rect, EGP20DL-5100. . . . . . 9322 164 42682

6487 Diode, Rect, BYD33D . . . . . . . . 9337 234 00133

6488 Diode, Rect, EGP20DL-5100. . . . . . 9322 164 42682

6500 Diode, Bridge Rect, GBU4JL-7002. . . 9322 132 55667

6520 Diode, Rect, BYD33D . . . . . . . . 9337 234 00133

6523 Diode, Signal, 1N4148. . . . . . . . 3198 010 10010

6524 Diode, Rect, 1N5062 . . . . . . . . 3198 010 10120

6525 Diode, Rect, 1N5062 . . . . . . . . 3198 010 10120

6526 Zener Diode, 22 volt . . . . . . . . 3198 020 52290

6540 Zener Diode, 6.2 volt. . . . . . . . 9331 668 30133

6541 Zener Diode, 9.1 volt. . . . . . . . 9322 150 08685

6560 Diode, Rect, BYV29X-500. . . . . . . 9340 555 59127

6562 Diode, Rect, EGP20DL-5100. . . . . . 9322 164 42682

6563 Diode, Signal, BAS316. . . . . . . . 3198 010 10630

6565 Diode, Signal, BAV70 . . . . . . . . 9331 849 10215

6566 Diode, Signal, 1N4148. . . . . . . . 3198 010 10010

6569 Diode, Signal, BAS316. . . . . . . . 3198 010 10630

6570 Zener Diode, 6.8 volt. . . . . . . . 3198 020 56880

6580 Diode, Signal, BAS316. . . . . . . . 3198 010 10630

6681 Diode Signal, IG BAT85 . . . . . . . 9336 247 60133

6691 LED, VS LTL-10224WHCR. . . . . . . . 9322 050 99682

6692 IR, Receiver, TSOP1836UH3V . . . . . 9322 127 54667

6831 Diode, Signal, 1N4148. . . . . . . . 3198 010 10010

6901 Res, Zero ohm, Chip Jumper . . . . . 3198 021 90020

7101 Transistor, NPN, BC847B. . . . . . . 3198 010 42030

7102 Transistor, PNP, BC857B. . . . . . . 3198 010 42150

7103 Transistor, NPN, BC847B. . . . . . . 3198 010 42030

7172 Transistor, PNP, BC857B. . . . . . . 3198 010 42150

7173 Transistor, NPN, BC847B. . . . . . . 3198 010 42030

7174 Transistor, PNP, BC857B. . . . . . . 3198 010 42150

7200 IC, SM TDA9587H/N1/3 . . . . . . . . 9352 716 32557

7201 Transistor, NPN, BC847B. . . . . . . 3198 010 42030

7204 Transistor, PNP, BC857B. . . . . . . 3198 010 42150

7205 Transistor, PNP, BC857B. . . . . . . 3198 010 42150

7208 Transistor, PNP, BC857B. . . . . . . 3198 010 42150

7441 Transistor, PNP, BC857B. . . . . . . 3198 010 42150

7443 Transistor, PNP, BC557B. . . . . . . 3198 020 40110

7450 Transistor, PNP, PDTA114ET . . . . . 3198 010 44010

7460 Transistor, NPN, BU4508DX. . . . . . 9340 550 92127

7461 Transistor, NPN, BC337-25. . . . . . 3198 020 43530

7462 Transistor, NPN, PDTC143ZT . . . . . 9340 547 00215

7463 Transistor, PNP, BC327-25. . . . . . 3198 020 43430

7471 IC, TDA8359J/N2. . . . . . . . . . . 9352 701 64112

7480 Transistor, NPN, BD135 . . . . . . . 3198 020 41010

7482 Transistor, NPN, BD135 . . . . . . . 3198 020 41010

S 7515 Optical Coupler, TCET1104(G) . . . . 9322 175 72667

7520 IC, TEA1507P/N1. . . . . . . . . . . 9352 673 56112

7521 FET Power STP8NC50FP . . . . . . . . 9322 160 72687

7522 Transistor, NPN, BC847B(COL) . . . . 3198 010 42030

7540 Transistor, NPN, BC547B(COL) . . . . 3198 020 40030

7541 Transistor, NPN, PDTC114ET . . . . . 9340 310 10215

7542 Transistor, PNP, BC857B(COL) . . . . 3198 010 42150

7560 IC, L78L33ACZ. . . . . . . . . . . . 9322 134 92676

7561 Transistor, NPN, PDTC143ZT . . . . . 9340 547 00215

7562 Transistor, PNP, BC857B(COL) . . . . 3198 010 42150

7564 Transistor, PNP, BC857B(COL) . . . . 3198 010 42150

7580 Transistor, PNP, BC857B(COL) . . . . 3198 010 42150

7602 IC, M24C08-WBN6. . . . . . . . . . . 9322 154 38682

7801 IC, SM HEF4052BT . . . . . . . . . . 9333 729 50653

7802 IC, SM HEF4052BT . . . . . . . . . . 9333 729 60653

7831 IC, MSP3445G-PO-B8 . . . . . . . . . 9322 160 81682

7901 IC, AN7522N. . . . . . . . . . . . . 9322 158 65667

9001 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9171 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9172 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9173 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9175 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9176 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

S = Safety Part Be sure to use exact replacement part.

9178 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9179 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9181 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9182 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9183 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9192 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9193 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9406 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9407 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9408 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9409 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9410 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9411 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9412 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9413 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9415 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9416 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9417 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9418 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9419 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9421 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9422 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9423 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9425 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9427 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9453 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9460 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9500 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9501 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9503 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

S 9506 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

S 9507 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9510 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9512 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9513 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9514 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9515 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9516 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9518 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9520 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9521 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9522 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9524 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9525 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9528 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9610 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9611 Coil, 27u. . . . . . . . . . . . . . 3198 018 22790

9612 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9613 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9614 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9615 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9616 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9617 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9618 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9619 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9620 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9621 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9622 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9623 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9624 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9625 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9626 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9627 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9628 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9629 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9630 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9631 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9632 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9633 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9634 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9637 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9638 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9639 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9640 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9641 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9642 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9643 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9644 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9645 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9646 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9648 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9650 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9654 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9655 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9656 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9657 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9658 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9659 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9660 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9661 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9662 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9663 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

Page 26

27PS60S321 (continued) Page: 5

9664 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9665 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9666 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9668 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9669 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9670 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9672 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9674 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9675 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9676 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9678 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9679 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9680 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9683 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9685 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9686 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9687 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9688 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9689 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9690 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9691 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9694 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9695 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9697 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9698 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9699 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9821 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9822 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9824 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9825 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9827 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9828 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9829 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9830 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9831 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9832 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9834 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9835 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9836 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9837 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9838 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9839 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9840 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9841 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9842 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9843 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9844 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9845 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9846 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9847 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9848 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9849 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9851 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9901 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9902 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9903 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9904 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9905 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9911 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9912 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9913 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9914 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9915 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9916 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9918 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9919 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9920 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9921 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9922 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9991 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9994 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9996 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9998 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

CBA Main Chassis Assembly. . . . . . . . 3139 177 27041

CRT Panel Parts (Part of Main Chassis)

CRT Panel Parts (Part of Main Chassis

0244 Connector, 5 Pin . . . . . . . . . . 2422 025 04853

0245 Connector, 6 Pin . . . . . . . . . . 2422 025 04854

S 0254 CRT Socket, 9 Pin. . . . . . . . . . 2422 500 80076

2330 Cap, 100n, 10%, 250v, Metallized Poly

ester. . . . . . . . . . . . . . . . 2222 368 90177

2340 Cap, 10u, 20%, 250v, Electrolytic. . 2020 012 93495

2341 Cap, 3n3, 10%, 500v, Ceramic . . . . 3198 019 43320

2342 Cap, 560p, 5%, 50v, Ceramic. . . . . 3198 016 05610

2343 Cap, 3n3, 10%, 2000v, Ceramic. . . . 2020 558 90529

2344 Cap, 100n, +80/-20%, 25v, Ceramic. . 3198 023 21040

2345 Cap, 1n, 10%, 500v, Ceramic. . . . . 3198 019 41020

3331 Res, 100 ohm, 5%, 1/6W, Carbon Film. 3198 011 01010 3332 Res, 1K, 20%, 1/2W, Carbon Film. . . 3198 013 01020 3333 Res, 100 ohm, 5%, 1/6W, Carbon Film. 3198 011 01010 3334 Res, 1K, 20%, 1/2W, Carbon Film. . . 3198 013 01020

S = Safety Part Be sure to use exact replacement part.

3335 Res, 100 ohm, 5%, 1/6W, Carbon Film. 3198 011 01010 3336 Res, 1K, 20%, 1/2W, Carbon Film. . . 3198 013 01020 S 3340 Res, 10 ohm, 5%, 1/2W, Metal Film. . 2306 207 03109 S 3341 Res, 1 ohm, 5%, 1/3W, Metal Film . . 2306 204 03108 S 3342 Res, 1 ohm, 5%, 1/3W, Metal Film . . 2306 204 03108 3343 Res, 1K5, 20%, 1/2W, Carbon Film . . 3198 013 01520 3344 Res, 22 ohm, 5%, 1/6W, Carbon Film . 3198 011 02290 3345 VDR DC 1MA/ 50V S MAX 115V A . . . 2322 593 13507 3346 Res, 22 ohm, 5%, 1/6W, Carbon Film . 3198 011 02290

3347 Res, Zero ohm, Chip Jumper . . . . . 3198 021 90020

3350 Res, Zero ohm, Chip Jumper . . . . . 3198 021 90020

3353 Res, Zero ohm, Chip Jumper . . . . . 3198 021 90020

5342 Coil, 22u. . . . . . . . . . . . . . 2422 535 97333

6331 Diode, Signal, BAV21 . . . . . . . . 3198 010 10070

6332 Diode, Signal, BAS316. . . . . . . . 3198 010 10630

6333 Diode, Signal, BAV21 . . . . . . . . 3198 010 10070

6335 Diode, Signal, BAV21 . . . . . . . . 3198 010 10070

7330 IC, TDA6107Q/N2. . . . . . . . . . . 9352 576 50112

9311 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9341 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9342 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9343 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

Side AV+HP Panel Parts - 313912723881

CBA Side AV+HP Panel Assembly. . . . . . 3139 127 23881

0232 1 Pin Headphone Socket . . . . . . . 2422 026 04747

0250 3 Pin Cinch Socket . . . . . . . . . 2422 026 04815

0251 6 Pin Connector. . . . . . . . . . . 2422 025 12482

0254 5 Pin Connector. . . . . . . . . . . 2422 025 12481

0255 4 Pin Connector. . . . . . . . . . . 2422 025 12479

2171 Cap, 470p, 10%, 50v, Ceramic . . . . 3198 019 14710

2172 Cap, 470p, 10%, 50v, Ceramic . . . . 3198 019 14710

2173 Cap, 470p, 10%, 50v, Ceramic . . . . 3198 019 14710

2174 Cap, 470p, 10%, 50v, Ceramic . . . . 3198 019 14710

2176 Cap, 470p, 10%, 50v, Ceramic . . . . 3198 019 14710

2177 Cap, 10u, 20%, 50v, Electrolytic . . 3198 025 51090

2178 Cap, 470p, 10%, 50v, Ceramic . . . . 3198 019 14710

2179 Cap, 10u, 20%, 50v, Electrolytic . . 3198 025 51090 3150 Res, 47K, 5%, 1/6W, Carbon Film. . . 3198 011 04730 3151 Res, 150 ohm, 5%, 1/6W, Carbon Film. 3198 011 01510 3152 Res, 47K, 5%, 1/6W, Carbon Film. . . 3198 011 04730 3153 Res, 150 ohm, 5%, 1/6W, Carbon Film. 3198 011 01510 3156 Res, 120 ohm, 5%, 1/6W, Carbon Film. 3198 011 01210 3157 Res, 120 ohm, 5%, 1/6W, Carbon Film. 3198 011 01210

6161 Zener Diode, 6.8 volt. . . . . . . . 3198 010 26880

9153 Jumper . . . . . . . . . . . . . . . 3198 036 90010

9170 Jumper . . . . . . . . . . . . . . . 3198 036 90010

9171 Jumper . . . . . . . . . . . . . . . 3198 036 90010

PIP Panel Parts - 313917721831

CBA PIP Panel Assembly . . . . . . . . . 3139 177 21831

0134 Bracket, PIP . . . . . . . . . . . . 3139 124 33161

0192 Cable, 4 Pin, 280mm. . . . . . . . . 3139 110 38681

0193 Cable, 7 Pin, 280mm. . . . . . . . . 3139 131 01731

0194 Cable, 5 Pin, 280mm. . . . . . . . . 3139 110 38811

0195 Cable, 5 Pin, 280mm. . . . . . . . . 3139 131 01741

0197 Cable, 4 Pin, 280mm. . . . . . . . . 3139 110 38681

0198 Cable, 4 Pin, 280mm. . . . . . . . . 3139 110 38681

0216 Connector, 3 Pin . . . . . . . . . . 2412 020 00725

0226 Connector, 4 Pin . . . . . . . . . . 2422 025 12479

0229 Connector, 2 Pin,. . . . . . . . . . 2422 025 16343

0235 Connector, 2 Pin . . . . . . . . . . 2412 020 00724

0240 Connector, 4 Pin . . . . . . . . . . 2422 025 12479

0242 Connector, 5 Pin . . . . . . . . . . 2422 025 12481

0243 Connector, 2 Pin . . . . . . . . . . 2412 020 00724

0266 Connector, 3 Pin . . . . . . . . . . 2412 020 00725

0284 Connector, 4 Pin . . . . . . . . . . 2422 025 12479

1802 Resinator Crystal, 14M31818, 20P . . 2422 543 00904 2800 Cap, 470n, +80/-20%, 16v, Ceramic. . 3198 017 24740 2801 Cap, 100n, +80/-20%, 25v, Ceramic. . 3198 023 21040 2802 Cap, 100n, +80/-20%, 25v, Ceramic. . 3198 023 21040 2803 Cap, 47u, 20%, 25v, Electrolytic . . 3198 025 34790 2804 Cap, 10u, 20%, 50v, Electrolytic . . 3198 025 51090 2805 Cap, 100n, +80/-20%, 25v, Ceramic. . 3198 023 21040 2806 Cap, 100u, 20%, 25v, Electrolytic. . 3198 025 31010

2807 Cap, 47p, 5%, 50v, Ceramic . . . . . 3198 016 04790

2808 Cap, 10u, 20%, 50v, Electrolytic . . 3198 025 51090

2809 Cap, 10n, 10%, 50v, Ceramic. . . . . 3198 017 01030

2810 Cap, 10n, 10%, 50v, Ceramic. . . . . 3198 017 01030

2811 Cap, 10n, 10%, 50v, Ceramic. . . . . 3198 017 01030

2812 Cap, 47u, 20%, 25v, Electrolytic . . 3198 025 34790 2813 Cap, 10u, 20%, 50v, Electrolytic . . 3198 025 51090

2814 Cap, 10n, 10%, 50v, Ceramic. . . . . 3198 017 01030

2815 Cap, 10n, 10%, 50v, Ceramic. . . . . 3198 017 01030

2816 Cap, 10n, 10%, 50v, Ceramic. . . . . 3198 017 01030

2819 Cap, 12p, 5%, 50v, Ceramic . . . . . 3198 016 01290

2820 Cap, 220n, +80/-20%, 25v, Ceramic. . 3198 023 22240 2821 Cap, 220n, +80/-20%, 25v, Ceramic. . 3198 023 22240

2822 Cap, 33n, 10%, 50v, Ceramic. . . . . 3198 017 03330

2823 Cap, 10n, 10%, 50v, Ceramic. . . . . 3198 017 01030

Page 27

27PS60S321 (continued) Page: 6

2824 Cap, 47u, 20%, 25v, Electrolytic . . 3198 025 34790

2825 Cap, 10n, 10%, 50v, Ceramic. . . . . 3198 017 01030

2826 Cap, 560p, 5%, 50v, Ceramic. . . . . 3198 016 05610

2827 Cap, 10n, 10%, 50v, Ceramic. . . . . 3198 017 01030

2828 Cap, 100n, +80/-20%, 25v, Ceramic. . 3198 023 21040 2829 Cap, 47u, 20%, 25v, Electrolytic . . 3198 025 34790 2830 Cap, 100n, +80/-20%, 25v, Ceramic. . 3198 023 21040 2831 Cap, 47u, 20%, 25v, Electrolytic . . 3198 025 34790 2832 Cap, 100n, +80/-20%, 25v, Ceramic. . 3198 023 21040 2833 Cap, 47u, 20%, 25v, Electrolytic . . 3198 025 34790

2834 Cap, 100n, 10%, 16v, Ceramic . . . . 3198 017 01040

2837 Cap, 10n, 10%, 50v, Ceramic. . . . . 3198 017 01030

2858 Cap, 47u, 20%, 25v, Electrolytic . . 3198 025 34790 2859 Cap, 470n, +80/-20%, 16v, Ceramic. . 3198 017 24740

2862 Cap, 390p, 5%, 50v, Ceramic. . . . . 3198 016 03910

2890 Cap, 100u, 20%, 25v, Electrolytic. . 3198 025 31010

2891 Cap, 10n, 10%, 50v, Ceramic. . . . . 3198 017 01030

2892 Cap, 47u, 20%, 25v, Electrolytic . . 3198 025 34790 2893 Cap, 47u, 20%, 25v, Electrolytic . . 3198 025 34790

2894 Cap, 10n, 10%, 50v, Ceramic. . . . . 3198 017 01030

3801 Res, 100 ohm, 5%, 1/10W, Metalized Gl

ass. . . . . . . . . . . . . . . . . 3198 021 51010

3802 Res, 100 ohm, 5%, 1/10W, Metalized Gl

ass. . . . . . . . . . . . . . . . . 3198 021 51010

3803 Res, 1K, 5%, 1/6W, Carbon Film . . . 3198 011 01020 3804 Res, 1K5, 5%, 1/6W, Carbon Film. . . 3198 011 01520 3805 Res, 100 ohm, 5%, 1/10W, Metalized Gl

ass. . . . . . . . . . . . . . . . . 3198 021 51010

3806 Res, 2K7, 5%, 1/10W, Metalized Glass 3198 021 52720 3807 Res, 8K2, 5%, 1/10W, Metalized Glass 3198 021 58220 3808 Res, 8K2, 5%, 1/10W, Metalized Glass 3198 021 58220 3809 Res, 8K2, 5%, 1/10W, Metalized Glass 3198 021 58220 3810 Res, 10K, 5%, 1/10W, Metalized Glass 3198 021 51030 3812 Res, 10K, 5%, 1/10W, Metalized Glass 3198 021 51030 3813 Res, 15K, 5%, 1/6W, Carbon Film. . . 3198 011 01530 3814 Res, 1K, 5%, 1/10W, Metalized Glass. 3198 021 51020 3815 Res, 1K, 5%, 1/10W, Metalized Glass. 3198 021 51020 3816 Res, 820 ohm, 5%, 1/10W, Metalized Gl

ass. . . . . . . . . . . . . . . . . 3198 021 58210

3817 Res, 1K, 5%, 1/10W, Metalized Glass. 3198 021 51020 3818 Res, 15K, 5%, 1/10W, Metalized Glass 3198 021 51530 3819 Res, 10K, 5%, 1/10W, Metalized Glass 3198 021 51030 3820 Res, 1K, 5%, 1/6W, Carbon Film . . . 3198 011 01020 3821 Res, 390 ohm, 5%, 1/10W, Metalized Gl

ass. . . . . . . . . . . . . . . . . 3198 021 53910

3822 Res, 390 ohm, 5%, 1/10W, Metalized Gl

ass. . . . . . . . . . . . . . . . . 3198 021 53910

3823 Res, 390 ohm, 5%, 1/10W, Metalized Gl

ass. . . . . . . . . . . . . . . . . 3198 021 53910

3824 Res, 15K, 5%, 1/10W, Metalized Glass 3198 021 51530 3827 Res, 330 ohm, 5%, 1/10W, Metalized Gl

ass. . . . . . . . . . . . . . . . . 3198 021 53310

3828 Res, 4M7, 5%, 1/10W, Metalized Glass 3198 021 54750 3829 Res, 15K, 5%, 1/10W, Metalized Glass 3198 021 51530 3830 Res, 2K2, 5%, 1/10W, Metalized Glass 3198 021 52220 3831 Res, 1M, 5%, 1/10W, Metalized Glass. 3198 021 51050 3832 Res, 100 ohm, 5%, 1/6W, Carbon Film. 3198 011 01010 3833 Res, 100 ohm, 5%, 1/10W, Metalized Gl

ass. . . . . . . . . . . . . . . . . 3198 021 51010

3834 Res, 100 ohm, 5%, 1/10W, Metalized Gl

ass. . . . . . . . . . . . . . . . . 3198 021 51010

3836 Res, 1K, 5%, 1/10W, Metalized Glass. 3198 021 51020 3838 Res, 220 ohm, 5%, 1/10W, Metalized Gl

ass. . . . . . . . . . . . . . . . . 3198 021 52210

3839 Res, 390 ohm, 5%, 1/10W, Metalized Gl

ass. . . . . . . . . . . . . . . . . 3198 021 53910

3840 Res, Zero ohm, "Chip" Jumper . . . . 3198 021 90020

3843 Res, 220 ohm, 5%, 1/10W, Metalized Gl

ass. . . . . . . . . . . . . . . . . 3198 021 52210

3844 Res, 390 ohm, 5%, 1/10W, Metalized Gl

ass. . . . . . . . . . . . . . . . . 3198 021 53910

3845 Res, Zero ohm, "Chip" Jumper . . . . 3198 021 90020

3848 Res, 220 ohm, 5%, 1/10W, Metalized Gl

ass. . . . . . . . . . . . . . . . . 3198 021 52210

3849 Res, 390 ohm, 5%, 1/10W, Metalized Gl

ass. . . . . . . . . . . . . . . . . 3198 021 53910

3850 Res, Zero ohm, "Chip" Jumper . . . . 3198 021 90020

3852 Res, 12K, 5%, 1/10W, Metalized Glass 3198 021 51230 3853 Res, 12K, 5%, 1/10W, Metalized Glass 3198 021 51230 3854 Res, 15K, 5%, 1/10W, Metalized Glass 3198 021 51530 3856 Res, 820 ohm, 5%, 1/10W, Metalized Gl

ass. . . . . . . . . . . . . . . . . 3198 021 58210

3857 Res, Zero ohm, "Chip" Jumper . . . . 3198 021 90020

3858 Res, 1K2, 5%, 1/10W, Metalized Glass 3198 021 51220 3859 Res, 47K, 5%, 1/10W, Metalized Glass 3198 021 54730 3860 Res, 1K8, 5%, 1/10W, Metalized Glass 3198 021 51820 3862 Res, 33 ohm, 5%, 1/10W, Metalized Gla

ss. . . . . . . . . . . . . . . . . . 3198 021 53390

3865 Res, 150 ohm, 5%, 1/6W, Carbon Film. 3198 011 01510 3890 Res, 68 ohm, 5%, 1/6W, Carbon Film . 3198 011 06890

4800 Res, Zero ohm, "Chip" Jumper . . . . 3198 021 90020

4870 Res, Zero ohm, "Chip" Jumper . . . . 3198 021 90020

4871 Res, Zero ohm, "Chip" Jumper . . . . 3198 021 90020

4872 Res, Zero ohm, "Chip" Jumper . . . . 3198 021 90020

4909 Res, Zero ohm, "Chip" Jumper . . . . 3198 021 90020

5890 Coil, 10u. . . . . . . . . . . . . . 3198 018 21090

5891 Coil, 10u. . . . . . . . . . . . . . 3198 018 21090

5892 Coil, 10u. . . . . . . . . . . . . . 3198 018 21090

6800 Diode, Signal, BAT85 . . . . . . . . 9336 247 60133

6801 Diode, Signal, BAT85 . . . . . . . . 9336 247 60133

6802 Diode, Signal, BAT85 . . . . . . . . 9336 247 60133

6890 Zener Diode, 3.9 volt. . . . . . . . 3198 020 53980

7801 IC, HEF4053BT. . . . . . . . . . . . 9333 729 60653

7802 IC, N74F06N. . . . . . . . . . . . . 9339 990 90602

7803 IC, M65669SP . . . . . . . . . . . . 9322 146 60682

7804 Transistor, NPN, BC847B. . . . . . . 3198 010 42030

7805 Transistor, NPN, BC847B. . . . . . . 3198 010 42030

7806 Transistor, NPN, BC847B. . . . . . . 3198 010 42030

7807 Transistor, NPN, BC847B. . . . . . . 3198 010 42030

7810 Transistor, NPN, BC847B. . . . . . . 3198 010 42030

7813 Transistor, NPN, BC847B. . . . . . . 3198 010 42030

7816 Transistor, NPN, BC847B. . . . . . . 3198 010 42030

7818 IC, HEF4053BT. . . . . . . . . . . . 9333 729 60653

7820 Transistor, NPN, BC847B. . . . . . . 3198 010 42030

7890 IC, MC78M05CT. . . . . . . . . . . . 9334 703 90687

7891 Transistor, NPN, BC337 . . . . . . . 9331 796 00126

9800 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9810 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9912 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9913 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9914 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9915 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9917 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9919 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9920 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9921 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9922 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9924 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9925 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9927 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9928 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

9929 Wire Jumper, 0.58MM. . . . . . . . . 3198 036 90010

S = Safety Part Be sure to use exact replacement part.

Page 28

CircuitDescription

Index of this chapter:

1. Introduction

2. Audio signal processing

3. Video signal processing

4. Synchronization

5. Deflection

6. Power supply

7. Control

8. Abbreviations

Note : For complete block diagrams a reference is made to Block diagram .

Page 1 of 32SPMS

Introduction

The S8/T8 chassis is a global TV chassisfor the model year 2001 and is used for TV sets with screen sizesfrom 25” - 36” (large screen), in Super Flat,Real Flat and Wide Screen executions.

The standard architecture consists of a Main panel, aPicture Tube panel, a Side I/O panel and a Top Controlpanel. In some executions, a Picture In Picture (PIP) panel is used. The Main panel consists primarily of conventional components withhardly any surface mounted devices.

7/8/2004

Page 29

Page 2 of 32SPMS

Figure:

The functions for video processing, microprocessor (μP)and teletext (TXT) decoder are combined in one IC (TDA958xH), theso-called Ultimate One Chip (UOC). This chip is (surface) mountedon the copper side of the LSP.

7/8/2004

Page 30

Page 3 of 32SPMS

Figure:

The S8/T8 is divided into 2 basic systems, i.e.mono and stereo sound. While the audio processing for the mono soundis done in the audio block of the UOC, an external audio processingIC is used for stereo sets.

The tuning system features 181 channels with on-screen display.The main tuning system uses a tuner, a microcomputer, and a memoryIC mounted on the main panel. The microcomputer communicates with the memory IC, the customerkeyboard, remote

receiver, tuner, signal processor IC and the audiooutput IC via the I 2 Cbus. The memory IC retains the settings for favorite stations, customer-preferredsettings, and service / factory data. The on-screen graphics and closed caption decoding aredone within the microprocessor, and then sent to the signal processorIC to be added to the main signal.

The chassis utilizes a Switching Mode Power Supply (SMPS) forthe main voltage source. The chassis has a ‘hot’ ground referenceon the primary side and a cold ground reference on the secondaryside of the power supply and the rest of the chassis.

Audio Signal Processing

Block diagram Audio

Stereo

In stereo sets, the signal goes via the SAWfilter (position 1002), to the audio demodulator part of the UOCIC 7200. The audio output on pin 48 goes to the stereo decoder 7831or 7861. The switch inside this IC selects either the internal decoderor an external source. There are two stereo decoders used:

1. a BTSC DBXstereo/SAP decoder (MSP34X5 at position 7831) for the highestspecified sets and

2. a BTSC non-DBX stereo decoder (TDA 9853 at position 7861)for BTSC Economic.

The output is fed to the to the audio amplifier (AN7522at position 7901). The volume level is controlled at this IC (pin9) by a control line (VolumeMute) from the microprocessor. The audiosignal from 7901 is then sent to the speaker / headphone outputpanel.

Mono

7/8/2004

Page 31

Page 4 of 32SPMS

In mono sets, the signal goes via the SAW filter(position 1002), to the audio demodulator part of the UOC IC 7200.The audio output on pin 48 goes, via the smart sound circuit (7941for Bass and 7942 for Treble) and buffer 7943, to the audio amplifier(AN7523 at position 7902). The volume level is controlled at this IC (pin 9) by a ‘VolumeMute’ controlline from the microprocessor. The audio signal from IC 7902 is then sent to the speaker / headphoneoutput panel.

Figure:

Video Signal Processing

Introduction

The video signal-processing path consists ofthe following parts:

RF signalprocessing.

Video source selection.

Video demodulation.

Luminance / Chrominance signal processing.

RGB control.

RGB amplifier

The processing circuits listed above are all integratedin the UOC TV processor. The

surrounding components are for the adaptationof the selected application. The I

Cbus is for

defining and controlling the signals.

RF signal processing

7/8/2004

Page 32

Page 5 of 32SPMS

The incoming RF signal goes to the tuner (pos.1000), where the 45.75 MHz IF signal is developed and amplified.The IF signals then exits the tuner from pin 11 to pass throughthe SAW filters (pos. 1002). The shaped signal is then applied to theIF processor part of the UOC (pos. 7200). Tuner AGC (Automatic Gain Control) will reduce the tunergain and thus the tuner output voltage when receiving strong RF signals.Adjust the AGC takeover point via the Service Alignment Mode (SAM).The tuner AGC starts working when the video-IF input reaches a

certaininput level. Adjust this level via the I

C bus. The tuner AGCsignal goes to the tuner (pin 1) via the open collector output (pin22) of the UOC. The IC also generates an Automatic Frequency Control (AFC) signal that goes to the tuning

system via the I

C bus, to provide frequencycorrection when needed.

The demodulated composite video signal is available atpin 38 and then buffered by transistor

7201.

Video source selection

The Composite Video Blanking Signal (CVBS)from buffer 7201 goes to the audio carrier trap filters (1200, 1201,or 1202 depending on the system used) to remove the audio signal. Thesignal then goes to pin 40 of IC 7200. The internal input switchselects the following input signals:

Pin 40: terrestrialCVBS input

Pin 42: external AV1 CVBS input

Pin 44: external Side I/O CVBS or AV2Luminance (Y) input

Pin 45: external AV2 Chrominance (C) input

7/8/2004

Page 33

Page 6 of 32SPMS

Figure:

Once the signal source is selected, a chroma filter calibrationis performed. The received color burst sub-carrier frequency is usedfor this. Correspondingly, the chroma band pass filter for PAL/NTSCprocessing or the cloche filter for SECAM processing is switchedon. The selected luminance (Y) signal is supplied to the horizontaland vertical synchronization processing circuit and to the luminanceprocessing circuit. In the luminance-processing block, the luminancesignal goes to the chroma trap filter. This trap is switched "on" or "off" dependingon the color burst detection of the chroma calibration circuit. The group delay correction part can be switched betweenthe BG and a flat group delay characteristic. This has the advantagethat in multi-standard receivers no compromise has to be made forthe choice of the SAW filter.

Video demodulation

The color decoder circuit detects whether thesignal is a PAL, NTSC or SECAM signal. The result is made knownto the auto system manager. The PAL/NTSC decoder has aninternal clock generator, which is stabilized to the required frequency byusing the 12 MHz clock signal from the reference oscillator of themicrocontroller / teletext decoder. The base-band delay line is used to obtain a good suppression ofcross color effects. The Y signal and the delay line outputs U and V are appliedto the luminance / chroma signal processing part of theTV processor.

7/8/2004

Page 34

Page 7 of 32SPMS

Luminance / Chrominance signalprocessing

The output of the YUV separator is fed to theinternal YUV switch, which switches between the output of the YUV separatoror the external YUV (for DVD or PIP) on pins 51-53. Pin 50 is theinput for the insertion control signal called ‘FBL-1’. Whenthis signal level becomes higher than 0.9 V (but less than 3 V),the RGB signals at pins 51, 52 and 53 are inserted into the pictureby using the internal switches. Also some picture improvement features are implementedin this part:

Black stretch This functioncorrects the black level of incoming signals, which have a differencebetween the black level and the blanking level. The amount of extension dependsupon the difference between actual black level and the darkest partof the incoming video signal level. It is detected by means of aninternal capacitor.

White stretch Thisfunction adapts the transfer characteristic of the luminance amplifierin a non-linear way depending on the average picture content ofthe luminance signal. It operates in such a way that maximum stretching isobtained when signals with a low video level are received. For brightpictures, stretching is not active.

Dynamic skintone correction This circuit corrects (instantaneouslyand locally) the hue of those colors which are located in the areain the UV plane that matches the skin tone. The correction is dependenton the luminance, saturation and distance to the preferred axis.

The YUV signal is then fed to the color matrix circuit,which converts it to R, G and B signals. The OSD/TXT signal from the microprocessor ismixed with the main signal at this point, before being output tothe CRT board (pins 56, 57 and 58).

Picture in picture (if present)

The PIP controller M65669FP is an NTSC videoprocessor for TV applications. It contains all of the analog signalprocessing, control logic and memory, necessary to provide sub-picture insertionfrom a second, non-synchronized, video source into the main pictureof the TV. This can be an external source (via the rear I/Oinputs) or the video signal of the tuner. Sync signals are derived from the sandcastle signal and separatedby circuit 7171-7174 on the PIP-interface, and then fed to pins32 and 33 of the PIP processor 7803.

RGB control

The RGB control circuit enables the pictureparameters contrast, brightness and saturation to be adjusted, byusing a combination of the user menus and the remote control. Additionallyautomatic gain control for the RGB signals via cut-off stabilizationis achieved in this functional block to obtain an accurate biasingof the picture tube. Therefor this block inserts the cut-off pointmeasuring pulses into the RGB signals during the vertical retraceperiod.

7/8/2004

Page 35

The following additional controls are used:

Black current calibration loop Becauseof the 2-point black current stabilization circuit, both the blacklevel and the amplitude of the RGB output signals depend on the drivecharacteristics of the picture tube. The system checks whether thereturning measuring currents meet the requirements, and adapt theoutput level and gain of the circuit when necessary. After stabilizationof the loop, the RGB drive signals are switched on. The 2-pointblack level system adapts the drive voltage for each cathode insuch a way that the two measuring currents have the right value. Thisis done with the measurement pulses during the frame flyback. Duringthe first frame, three pulses with a current of 8 μA aregenerated to adjust the cut off voltage. During the second frame,three pulses with a current of 20 μA are generated to adjustthe ‘white drive’. This has as a consequence,that a change in the gain of the output stage will be compensatedby a gain change of the RGB control circuit. Pin 55 (BLKIN) of theUOC is used as the feedback input from the CRT base panel.

Blue stretch Thisfunction increases the color temperature of the bright scenes (amplitudeswhich exceed a value of 80% of the nominal amplitude).This effect is obtained by decreasing the small signal gain of thered and green channel signals, which exceed this 80% level.

Beam currentlimiting A beam current limiting circuit inside the UOChandles the contrast and brightness control for the RGB signals.This prevents the CRT from being overdriven, which could otherwisecause serious damage in the line output stage. The reference usedfor this purpose is the DC voltage on pin 54 (BLCIN) of the TV processor.Contrast and brightness reduction of the RGB output signals is thereforeproportional to the voltage present on this pin. Contrast reductionstarts when the voltage on pin 54 is lower than 2.8 V. Brightnessreduction starts when the voltage on pin 54 is less than 1.7 V.The voltage on pin 54 is normally 3.3 V (limiter not active). Duringset switch-off, the black current control circuit generates a fixedbeam current of 1 mA. This current ensures that the picture tubecapacitance is discharged. During the switch-off period, the verticaldeflection is placed in an over-scan position, so that the dischargeis not visible on the screen.

Page 8 of 32SPMS

RGB amplifier

From outputs 56, 57 and 58 of IC 7200 the RGBsignals are applied to the integrated output amplifier (7330) onthe CRT panel. Via the outputs 7, 8 and 9 the picture tube cathodesare driven. The supply voltage for the amplifier is +200V and is derived from the line output stage.

Synchronization

7/8/2004

Page 36

Page 9 of 32SPMS

Inside IC 7200 part D the vertical and horizontalsync pulses are separated. These ‘H’ and ‘V’ signalsare synchronised with the incoming CVBS signal. They are then fedto the H- and Vdrive circuits and to the OSD/TXT circuitfor synchronization of the On Screen Display and Teletext (CC)informationrmation.

Deflection

Horizontal drive

The horizontal drive signal is obtained froman internal VCO, which is running at twice the line frequency. Thisfrequency is divided by two, to lock the first control loop to theincoming signal. When the IC is switched ‘on’, the ‘Hdrive’ signalis suppressed until the frequency is correct. The ‘Hdrive’ signal is available atpin 30. The ‘Hflybk’ signal is fed to pin 31 tophase lock the horizontal oscillator, so that Q7462 cannot switch ‘on’ duringthe flyback time. The ‘EWdrive’ signal for the E/Wcircuit (if present) is available on pin 15, where it drives transistor7400 to make linearity corrections in the horizontal drive.

When the set is switched on, the ‘+8V’ voltagegoes to pin 9 of IC 7200. The horizontal drive starts up in a softstart mode. It starts with a very short T

transistor. The T

frequency during switch on is therefore about 2 times higherthan the normal value. The ‘on’ time is slowlyincreased to the nominal value in 1175 ms. When the nominal valueis reached, the PLL is closed in such a way that only very smallphase corrections are necessary.

The ‘EHTinformation’ line on pin 11is intended to be used as a ‘X-ray’ protection.When this protection is activated (when the voltage exceeds 6 V),the horizontal drive (pin 30) is switched "off" immediately.If the ‘H-drive’ is stopped, pin 11 will become lowagain. Now the horizontal drive is again switched on via the slowstart procedure. The ‘EHTinformation’ line (Aquadag)is also fed back to the UOC IC 7200 pin 54, to adjust the picturelevel in order to compensate for changes in the beam current.

The ‘filament’ voltage is monitoredfor ‘no voltage’ or ‘excessive voltage’.This voltage is rectified by diode 6447 and fed to the emitter oftransistor 7443. If this voltage goes above 6.8 V, transistor 7443will conduct, making the ‘EHT0’ line ‘high’.This will immediately switch off the horizontal drive (pin 30) viathe slow stop procedure.

The horizontal drive signal exits IC 7200 at pin 30 andgoes to 7462, the horizontal driver transistor. The signal is amplified andcoupled to the base circuit of 7460, the horizontal output transistor.This will drive the line output transformer (LOT) and associatedcircuit. The LOT provides the extra high voltage (EHT), the VG2voltage and the focus and filament voltages for

ofthe transistor is identical to the time in normal operation. Thestarting

OFF

time of the horizontaloutput

7/8/2004

Page 37

Page 10 of 32SPMS

the CRT, while theline output circuit drives the horizontal deflection coil.

Vertical drive

A divider circuit performs the vertical synchronization.The vertical ramp generator needs an external resistor (R3245, pin 20)and capacitor (C2244, pin 21). A differential output is availableat pins 16 and 17, which are DC-coupled with the vertical outputstage. During the insertion of RGB signals, the maximum vertical frequencyis increased to 72 Hz so that the circuit can also synchronize onsignals with a higher vertical frequency like VGA. To avoid damage of the picture tube when the vertical deflectionfails, the guard output is fed to the beam current limiting input.When a failure is detected the RGB-outputs are blanked. When novertical deflection output stage is connected this guard circuitwill also blank the output signals.

These ‘V_DRIVE+’ and ‘V_DRIVE-‘ signalsare applied to the input pins 1 and 2 of IC 7471 (full bridge verticaldeflection amplifier). These are voltage driven differential inputs.As the driver device (IC 7200) delivers output currents, R3474 and R3475convert them to voltage. The differential input voltage is comparedwith the voltage across measuring resistor R3471 that provides internalfeedback information. The voltage across this measuring resistoris proportional to the output current, which is available at pins4 and 7 where they drive the vertical deflection coil (connector0222) in phase opposition. IC 7471 is supplied by +13 V. The vertical flybackvoltage is determined by an external supply voltage at pin 6 (VlotAux+50V).This voltage is almost totally available as flyback voltage acrossthe coil, this being possible due to the absence of a coupling capacitor(which is not necessary, due to the ‘bridge’ configuration).

Deflection corrections

The linearity correction

A constant voltage on the horizontal deflectioncoil should result in a sawtooth current. This however is not thecase as the resistance of the coil is not negligible. In order tocompensate for this resistance, a pre-magnetised coil L5457 is used.R3485 and C2459 ensure that L5457 does not excite, because of its ownparasite capacitance. This L5457 is called the "linearity coil".

The Mannheim effect

When clear white lines are displayed, the high-voltagecircuit is heavily loaded. During the first half of the flyback,the high voltage capacitors are considerable charged. At that pointin time, the deflection coil excites through C2465. This current peak,through the high-voltage capacitor, distorts the flyback pulse.This causes synchronisation errors, causing an oscillation underthe

7/8/2004

Page 38

Page 11 of 32SPMS

white line. During t3 - t5, C2490//2458 is chargedvia R3459. At the moment of the flyback, C2490//2458is subjected to the negative voltage pulses of the parabola as aresult of which D6465 and D6466 are conducting and C2490//2458is switched in parallel with C2456//2457. Thisis the moment the high-voltage diodes are conducting. Now extraenergy is available for excitation through C2465 and the line deflection. Asa consequence the flyback pulse is less distorted.

The S-Correction

Since the sides of the picture are furtheraway from the point of deflection than from the centre, a linearsawtooth current would result in a non-linear image being scanned(the center would be scanned slower than the sides). For the center-horizontal line,the difference in relation of the distances is larger then thosefor the top and bottom lines. An S-shaped current will have to besuperimposed onto the sawtooth current. This correction is calledfinger-length correction or S-correction.

C2456//2457 is relatively small, asa result of which the sawtooth current will generate a parabolicvoltage with negative voltage peaks. Left and right, the voltageacross the deflection coil decreases, and the deflection will slowdown; in the center, the voltage increases and deflection is faster.The larger the picture width, the higher the deflection current throughC2456//2457. The current also results in a parabolic voltageacross C2484//2469, resulting in the fingerlength correctionproportionally increasing with the picture width. The east/westdrive signal will ensure the largest picture width in the centerof the frame. Here the largest correction is applied.

East/West correction

In the T8, there are three types of CRTs, namelythe 100º, 110º and wide screen CRTs. The 100º CRTis raster-correction-free and does not need East/West correction. The 110º 4:3 CRT comes with East/Westcorrection and East/West protection. The wide screen TV sets have all the correction of the110 4:3 CRT and also have additional picture format like the 4:3format, 16:9, 14:9, 16:9 zoom, subtitle zoom and the Super-Wide pictureformat

A line, written at the upper- or lower side of the screen,will be larger at the screen center when a fixed deflection currentis used. Therefore the amplitude of the defelection current must beincreased when the spot approaches the center of the screen. Thisis called the East/West or pincushion correction.

The ‘Ewdrive’ signal from pin 15 ofIC 7200 takes care for the correct correction. It drives FET

7400.It also corrects breathing of the picture, due to beam current variations(the EHT varies dependent of the beam current). This correctionis derived from the ‘EHTinformation’ line.

7/8/2004

Page 39

Page 12 of 32SPMS

Two protections are built-in for the E/W circuit:over-current and over-voltage protection. See paragraph 9.3.5.

Panorama

The panorama function is only used in 16:9sets. This is a function to enable the 4:3 and SuperWide feature.It drives the ‘Bass_panorama’ line, toactivate relay 1400. When this relay is switched on, the capacitors2453//2454 are added in parallel to the defaultS-correction capacitors 2456//2457. This results inan increased capacitance, a lower resonance frequency of the linedeflection coil and the S-correction capacitors and therefore aless steep S-corrected line deflection current.

Power Supply

Figure:

7/8/2004

Page 40

Page 13 of 32SPMS

Figure:

Introduction

The supply is a Switching Mode Power Supply(SMPS). The frequency of operation varies with the circuit load.This ‘Quasi-Resonant Flyback’ behavior has someimportant benefits compared to a ‘hard switching’ fixedfrequency Flyback converter. The efficiency can be improved up to90%, which results in lower power consumption. Moreoverthe supply runs cooler and safety is enhanced. The power supply starts operating when a DC voltage goes fromthe rectifier bridge via T5520, R3532 to pin 8. The operating voltagefor the driver circuit is also taken from the ‘hot’ sideof this transformer.

The switching regulator IC 7520 starts switching the FET ‘on’ and ‘off’,to control the current flow through the primary winding of transformer5520. The energy stored in the primary winding during the ‘on’ timeis delivered to the secondary windings during the ‘off’ time.

7/8/2004

Page 41

Page 14 of 32SPMS

The ‘MainSupply’ line is the referencevoltage for the power supply. It is sampled by resistors 3543 and3544 and fed to the input of the regulator 7540 / 6540.This regulator drives the feedback optocoupler 7515 to set the feedbackcontrol voltage on pin 3 of 7520. The power supply in the set is ‘on’ anytime AC power goes to the set.

Derived Voltages

The voltages supplied by the secondary windingsof T5520 are:

‘MainAux’ forthe audio circuit (voltage depends on set execution, see table below),

3.3 V and 3.9 V for the microprocessor and

‘MainSupply’ for the horizontaloutput (voltage depends on set execution, see table below).

Other supply voltages are provided by the LOT. It supplies +50 V(only for large screen sets), +13 V, +8 V, +5V and a +200 V source for the video drive. The secondaryvoltages of the LOT are monitored by the ‘EHTinformation’ lines.These lines are fed to the video processor part of the UOC IC 7200on pins 11 and 34. This circuit will shut ‘off’ the horizontaldrive in case of over-voltage or excessive beam current.

7/8/2004

Page 42

Figure:

Page 15 of 32SPMS

Figure:

Degaussing

When the set is switched on, the degaussingrelay 1515 is immediately activated as transistor 7580 is conducting.Due to the RC-time of R3580 and C2580, it will last about 3 to 4 secondsbefore transistor 7580 is switched off.

Basic IC Functionality

For a clear understanding of the Quasi-Resonantbehavior, it is possible to explain it by a simplified circuit diagram(see Figure below). In this circuit diagram, the secondary sideis transferred to the primary side and the transformer is replacedby an inductance L P .C D is the

totaldrain capacitance including the resonance capacitor C R , parasitic output capacitorC

of the MOSFETand the winding capacitance C

transformer is representedby n (N

/N S ).

ofthe transformer. The turns ratio of the

OSS

7/8/2004

Page 43

Page 16 of 32SPMS

Figure:

In the Quasi-Resonant mode each period can be dividedinto four different time intervals, in chronological order:

Interval 1: t0 < t < t1primary stroke At the beginning of the first interval,the MOSFET is switched ‘on’ and energy is storedin the primary inductance (magnetization). At the end, the MOSFETis switched ‘off’ and the second interval starts.

Interval 2:t1 < t < t2 commutation time In thesecond interval, the drain voltage will rise from almost zero to V

+n•(V

+V F ). V F is the forward voltagedrop of de diode that

OUT

will be omitted from the equations from nowon. The current will change its positive derivative, correspondingto V

/L P .

OUT

Interval 3:t2 < t < t3 secondary stroke In thethird interval, the stored energy is transferred

/L P , to a negative derivative, correspondingto -n•V

to the output,so the diode starts to conduct and the inductive current I L will decrease. In

otherwords, the transformer will be demagnetized. When the inductivecurrent has become zero the next interval begins.

7/8/2004

Page 44

Page 17 of 32SPMS

Interval 4:t3 < t < t00 resonance time In thefourth interval, the energy stored in the drain capacitor C D will start to resonatewith the inductance L P .The voltage and current

waveforms are sinusoidal waveforms. Thedrain voltage will drop from V

-n•V

OUT

+n•V

OUT

to V

Frequency Behavior

The frequency in the QR-mode is determinedby the power stage and is not influenced by the controller (important parametersare L P and C D ). The frequency varieswith the input voltage V

andthe output power P

storedin the transformer. This leads to longer magnetizing t

times, whichwill decrease the frequency. See the frequency versus output powercharacteristics below. The frequency characteristic is not onlyoutput power-, but also input voltage dependent. The higher theinput voltage, the smaller t

.If the required output power increases, more energy has to be

OUT

and demagnetizingt

PRIM

,so the higher the frequency will be.

PRIM

SEC

Figure:

Point P1 is the minimum frequency f

that occurs at the specifiedminimum input voltage and

MIN

maximum output power required by the application.Of course the minimum frequency has to be chosen above the audiblelimit (>20 kHz).

Start-Up Sequence

When the rectified AC voltage V

7/8/2004

(via the center tapconnected to pin 8) reaches the Mains

Page 45

Page 18 of 32SPMS

dependent operation level(Mlevel: between 60 and 100 V), the internal ‘Mlevel switch’ willbe opened and the start-up current source is enabled to charge capacitorC2521 at the V

pinas

shown below. The ‘soft start’ switch is closed whenthe V

capacitorC

Once the V

(C2522, betweenpin 5 and the sense resistor R3526), is charged to 0.5 V.

capacitoris charged to the start-up voltage V

reachesa level of 7 V and the ‘soft start’

CC-start

(11V), the IC starts driving

the MOSFET. Both internal current sourcesare switched ‘off’ after reaching this start-up voltage.Resistor R

(3524)will discharge the ‘soft start’ capacitor, suchthat the peak current

will slowly increase. This to prevent ‘transformerrattle’. During start-up, the V

capacitorwill be discharged until the moment that the primary

auxiliary windingtakes over this voltage.

Figure:

The moment that the voltage on pin 1 drops below the ‘under voltagelock out‘ level (UVLO = ± 9 V), the ICwill stop switching and will enter a safe restart from the rectifiedmains voltage.

7/8/2004

Page 46

Operation

The supply can run in three different modesdepending on the output power:

Quasi-Resonant mode (QR) TheQR mode, described above, is used during normal operation. Thiswill give a high efficiency.

Frequency Reductionmode (FR) The FR mode (also called VCO mode) is implementedto decrease the switching losses at low output loads. In this waythe efficiency at low output powers is increased, which enables powerconsumption smaller than 3 W during standby. The voltage at thepin 3 (Ctrl) determines where the frequency reduction starts. Anexternal Ctrl voltage of 1.425 V corresponds with an internal VCOlevel of 75 mV. This fixed VCO level is called V

VCO,start

voltage between 75 mV and 50mV (at levels larger than 75 mV, Ctrl voltage < 1.425V, theoscillator will run on maximum frequency f

VCO,max

)the frequency is reduced to the minimum level of 6 kHz. Valley switchingis still

active in this mode.

Minimum Frequencymode (MinF) At VCO levels below 50 mV, the minimum frequencywill remain on 6 kHz, which is called the MinF mode. Because ofthis low frequency, it is possible to run at very low loads withouthaving any output regulation problems.

. The frequencywill be reduced in relation to the VCO

= 175 kHztypically). At 50 mV (V

oscH

Page 19 of 32SPMS

Figure:

7/8/2004

Page 47

Page 20 of 32SPMS

Safe-Restart Mode

This mode is introduced to prevent the componentsfrom being destroyed during eventual system fault conditions. Itis also used for the Burst mode. The Safe-Restart mode will be enteredif it is triggered by one of the following functions:

Over voltageprotection,

Short winding protection,

Maximum ‘on time’ protection,

reachingUVLO level (fold back during overload),

Detecting a pulse for Burst mode,

Over temperature protection.

When entering the Safe-Restart mode, the output driveris immediately disabled and latched. The V

UVLO is reached. To recharge the V

winding will not chargethe V

capacitoranymore and the V

capacitor, the internalcurrent source (I

voltagewill drop until

(restart)(VCC)

)

will be switched ‘on’ to initiate a new start-upsequence as described before. This Safe-Restart mode will persistuntil the controller detects no faults or burst triggers.

Standby

The set goes to Standby in the following cases:

After pressingthe ‘standby’ key on the remote control.

When the set is in protection mode.

In Standby, the power supply works in ‘burstmode’. Burst mode can be used to reduce the power consumption below1 W at stand-by. During this mode, the controller is active (generatinggate pulses) for only a short time and for a longer time inactivewaiting for the next burst cycle. In the active period the energy is transferred to thesecondary and stored in the buffer capacitor C

in front of the linear stabilizer(see Figure below). During the inactive period, the load

STAB

(e.g. microprocessor)discharges this capacitor. In this mode, the controller makes useof the Safe-Restart mode.

7/8/2004

Page 48

Page 21 of 32SPMS

Figure:

The system enters burst mode standby when the microprocessoractivates the ‘Stdby_con’ line. Whenthis line is pulled high, the base of Q7541 is allowed to go high.This is triggered by the current from collector Q7542. When Q7541 turns ‘on’,the opto-coupler (7515) is activated, sending a large current signalto pin 3 (Ctrl). In response to this signal, the IC stops switchingand enters a ‘hiccup’ mode. This burst activationsignal should be present for longer than the ‘burst blank’ period(typically 30 μs): the blanking time prevents false bursttriggering due to spikes. Burst mode standby operation continues until the microcontrollerpulls the ‘Stdby_con’ signal low again.The base of Q7541 is unable to go high, thus cannot turn ‘on’.This will disable the burst mode. The system then enters the start-upsequence and begins normal switching behavior.

For a more detailed description of one burst cycle, threetime intervals are defined:

t1: Discharge of V CC when gate drive is active During thefirst interval, energy is

transferred, which result in a ramp-upof the output voltage (V

)in front of the

STAB

stabilizer. When enough energy is stored in thecapacitor, the IC will be switched ‘off’ by acurrent pulse generated at the secondary side. This pulse is transferredto the primary side via the opto coupler. The controller will disablethe output driver (safe restart mode) when the current pulse reachesa threshold level of 16 mA into the Ctrl pin. A resistor R

(R3519) is placed inseries with the opto coupler, to limit the current going into theCtrl pin. Meanwhile the V

t2: Dischargeof V CC when gate drive is inactive During thesecond interval, the V

capacitoris discharged but has to stay above V

UVLO

7/8/2004

Page 49

Page 22 of 32SPMS

isdischarged to V

t3: Charge ofV CC when gate drive is inactive Thethird interval starts when the UVLO is

reached. The internal currentsource charges the V

capacitor is recharged). Once the V

UVLO

.The output voltage will decrease depending on the load.

capacitor(also the soft start

capacitor is chargedto the start-up voltage, the

driver is activated and a new burstcycle is started.

Figure:

Protection Events

The SMPS IC 7520 has the following protectionfeatures:

Demagnetization sense

This feature guarantees discontinuous conductionmode operation in every situation. The oscillator will not starta new primary stroke until the secondary stroke has ended. Thisis to ensure that FET 7521 will not turn on until the demagnetization oftransformer 5520 is complete.The function is an additional protectionfeature against:

saturationof the transformer,

damage of the components during initial start-up,

an overload of the output.

The demag(netization) sense is realized by an internalcircuit that guards the voltage (Vdemag) at pin 4 that is connectedto V

winding byresistor R 1 (R3522). The Figure below shows the

circuit and the idealized waveformsacross this winding.

7/8/2004

Page 50

Page 23 of 32SPMS

Figure:

Over Voltage Protection

The Over Voltage Protection ensures that theoutput voltage will remain below an adjustable level. This worksby sensing the auxiliary voltage via the current flowing into pin4 (DEM) during the secondary stroke. This voltage is a well-defined replicaof the output voltage. Any voltage spikes are averaged by an internalfilter. If the output voltage exceeds the OVP trip level, theOVP circuit switches the power MOSFET ‘off’. Next, the controller waits until the ‘under voltagelock out‘ level (UVLO = ± 9 V) is reachedon pin 1 (V

process is repeated as long as the OVP conditionexists. The output voltage at which the OVP function trips, is setby the demagnetization resistor R3522.

).This is followed by a safe restart cycle, after which switchingstarts again. This

Over Current Protection

The internal OCP protection circuit limitsthe ‘sense’ voltage on pin 5 to an internal level.

Over Power Protection

7/8/2004

Page 51

Page 24 of 32SPMS

During the primary stroke, the rectified ACinput voltage is measured by sensing the current drawn from pin4 (DEM). This current is dependent on the voltage on pin 9 of transformer 5520and the value of R3522. The current informationrmation is used toadjust the peak drain current, which is measured via pin I

SENSE

Short Winding Protection

If the ‘sense’ voltage onpin 5 exceeds the short winding protection voltage (0.75 V), theconverter will stop switching. Once V

drops below the UVLOlevel, capacitor C2521 will

be recharged and the supply will startagain. This cycle will be repeated until the short circuit is removed(safe restart mode). The short winding protection will also protectin case of a secondary diode short circuit. This protection circuit is activated after the leadingedge blanking time (LEB).

LEB time

The LEB (Leading Edge Blanking) time is aninternally fixed delay, preventing false triggering of the comparatordue to current spikes. This delay determines the minimum ‘on’ timeof the controller.

Over Temperature protection

When the junction temperature exceeds the thermalshutdown temperature (typ. 140º C), the IC will disablethe driver. When the V

recharged to the V

level.If the temperature is still too high, the V

(start)

voltagedrops to UVLO, the V

capacitorwill be

voltage will drop

againto the UVLO level (Safe-Restart mode). This mode will persist untilthe junction temperature drops 8 degrees typically below the shutdowntemperature.

Mains dependent operation enabling level

To prevent the supply from starting at a lowinput voltage, which could cause audible noise, a mains detectionis implemented (Mlevel). This detection is provided via pin 8, thatdetects the minimum start-up voltage between 60 and 100 V. As previous mentioned,the controller is enabled between 60 and 100 V. An additional advantage of this function is the protection againsta disconnected buffer capacitor (C

).In this case, the supply will not be able to start-up because theV

willnot be charged to the start-up voltage.

capacitor

Control

7/8/2004

Page 52

Page 25 of 32SPMS

Figure:

Introduction

The microprocessor part of the UOC, has thecomplete control and teletext on board. User menu, Service DefaultMode, Service Alignment Mode and Customer Service Mode are

generatedby the μP. Communication to other ICs is done via the I

C-bus.

I 2 C-Bus

The main control system, which consists ofthe microprocessor part of the UOC (7200), is

linked to the externaldevices (tuner, NVM, MSP, etc) by means of the I 2 C-bus. An internalI 2 C-bus is usedto control other signal processing functions, like video processing,sound IF, vision IF, synchronization, etc.

User Interface

The S8/T8 uses a remote control withRC5 protocol. The incoming signal is connected to pin 67 of theUOC.

The "Top Control" keyboard, connectedto UOC pin 80, can also control the set. Button

7/8/2004

Page 53

Page 26 of 32SPMS

recognition is donevia a voltage divider.

The front LED (6691) is connected to an output controlline of the microprocessor (pin 5). It is activated to provide theuser information about whether or not the set is working correctly (e.g.,responding to the remote control, normal operation (USA only) orfault condition)

In- And Output Selection

For the control of the input and output selections,there are three lines:

STATUS1 This signal providesinformationrmation to the microprocessor on whether a video signalis available on the SCART1 AV input and output port (only for Europe). Thissignal is not connected in NAFTA sets.

STATUS2 Thissignal provides informationrmation to the microprocessor on whethera video signal is available on the SCART2 AV input and output port(only for Europe). For sets with an SVHS input it provides the additional informationrmationif a Y/C or CVBS source is present. The presence of anexternal Y/C source makes this line ‘high’ whilea CVBS source makes the line ‘low’.

SEL-MAIN-FRNT-RR Thisis the source select control signal from the microprocessor. Thiscontrol line is under user control or can be activated by the othertwo control lines.

Power Supply Control

The microprocessor part is supplied with 3.3V and 3.9 V both derived from the ‘MainAux’ voltagevia a 3V3 stabilizer (7560) and a diode. Two signals are used to control the power supply:

Stdby_con This signalis generated by the microprocessor when over-current takes placeat the ‘MainAux’ line. This is done to enablethe power supply into standby burst mode, and to enable this modeduring a protection. This signal is ‘low’ undernormal operation conditions and goes to ‘high’ (3.3V) under ‘standby’ and ‘fault’ conditions.

POWER_DOWN Thissignal is generated by the power supply. Under normal operatingconditions this signal is ‘high’ (3.3 V). During ‘standby’ mode,this signal is a pulse train of approx. 10 Hz and a ‘high’ durationof 5 ms. It is used to give information to the UOC about the fault conditionin the Audio amplifier supply circuit. This information is generatedby sensing the current on the ‘MainAux’ line (usingvoltage drop across R3564 to trigger Q7562). This signal goes ‘low’ whenthe DC-current on the ‘MainAux’ line exceeds 1.6- 2.0 A. It is also used to give an early warning to the UOC abouta power failure. Then the information is used to mute the soundamplifier to prevent a switch off noise and to solve the switch-offspot.

7/8/2004

Page 54

Protection Events

Several protection events are controlled bythe UOC:

BC protection , to protect thepicture tube from a too high beam current. The UOC has the capabilityof measuring the normal back level current during the vertical flyback.So if for some reason the CRT circuit is malfunctioning (i.e. highbeam current), the normal black current will be out of the 75 μArange, and the UOC will trigger the power supply to shut down. However,this is a high beam-current situation, the TV screen will be brightwhite before the set is shut down.

E/Wprotection , two protection mechanisms are built in, over-currentand over-voltage.



In case ofover-current due to defective parts in the line deflection outputstage, a high current will flow through resistors 3405//3406.If this current is large enough to create a voltage drop of 0.7V across 3405//3406, transistor Q7606 (in A7 diagram) will conduct and pin 80 of the UOC will be pulled down. Thereafter,the UOC will shut down the power supply. In case of further currentincrease, the fused resistor 3411 is built-in for double protection.



In case of a high voltage appearing across capacitor 2401(dependent of the tube size), which is high enough to trigger zenerdiode 6401 into conduction, transistor Q7606 (in A7 diagram) willconduct and UOC is triggered to shut down the power supply.

I 2 C protection , to check whetherall I 2 C IC"sare functioning.

In case one of these protections is activated, the setwill go into ‘standby’.

The ‘on’ and ‘standby’ LEDsare controlled via the UOC.

Page 27 of 32SPMS

Abbreviation list

Abbreviation Description

2CS

ACI

ADC

AFC

AFT

AGC

7/8/2004

2 Carrier (or Channel) Stereo

Automatic Channel Installation: algorithm that installsTV sets directly from cable network by means of a predefined TXTpage

Analogue to Digital Converter

Automatic Frequency Control: control signal used totune to the correct frequency

Automatic Fine Tuning

Automatic Gain Control: algorithm that controls thevideo

Page 55

input of the featurebox

Page 28 of 32SPMS

ATS

AVL

BC-PROT

BCL

B/G

BLC-INFORMATION

BTSC

Amplitude Modulation

Asia Pacific

Aspect Ratio: 4 by 3 or 16 by 9

Automatic Tuning System

External Audio Video

Automatic Volume Level

Beam Current Protection

Beam Current Limitation

Monochrome TV system. Sound carrier distance is 5.5MHz

Black current informationrmation

Broadcast Television Standard Committee. MultiplexFM stereo sound system, originating from the USA and used e.g. inLATAM and AP-NTSC countries

B-TXT

ComPair

CRT

CSM

CTI

CVBS

DAC

DBE

DBX

D/K

Blue teletext

Closed Caption

Computer aided rePair

Cathode Ray Tube or picture tube

Customer Service Mode

Colour Transient Improvement: manipulates steepnessof chroma transients

Composite Video Blanking and Synchronisation

Digital to Analogue Converter

Dynamic Bass Enhancement: extra low frequency amplification

Dynamic Bass Expander

Monochrome TV system. Sound carrier distance is 6.5MHz

DFU

DNR

DSP

7/8/2004

Direction For Use: description for the end user

Dynamic Noise Reduction

Digital Signal Processing

Page 56

Page 29 of 32SPMS

DST

DVD

EEPROM

EHT

EHT-INFORMATION

EXT

FBL

FILAMENT

FLASH

Dealer Service Tool: special remote control designedfor dealers to enter e.g. service mode

Digital Versatile Disc

Electrically Erasable and Programmable Read Only Memory

Extra High Tension

Extra High Tension informationrmation

Europe

East West, related to horizontal deflection of theset

External (source), entering the set via SCART or Cinch

Fast Blanking: DC signal accompanying RGB signals

Filament of CRT

Flash memory

HFB

Hue

I2C

IIC

Interlaced

Field Memory

Frequency Modulation

Horizontal Acquisition: horizontal sync pulse comingout of the HIP

Horizontal Flyback Pulse: horizontal sync pulse fromlarge signal deflection

Headphone

Colour phase control for NTSC (not the same as ‘Tint’)

Monochrome TV system. Sound carrier distance is 6.0MHz

Integrated IC bus

Intermediate Frequency

Integrated IC bus

Scan mode where two fields are used to form one frame.Each field contains half the number of the total amount of lines.The fields are written in “pairs”, causing lineflicker.

ITV

LATAM

7/8/2004

Institutional TV

Latin America

Page 57

Page 30 of 32SPMS

LED

L/L’

LNA

LSP

M/N

MSP

MUTE

NICAM

Light Emitting Diode

Monochrome TV system. Sound carrier distance is 6.5MHz. L’ is Band I, L is all bands except for Band I

Low Noise Amplifier

Large Screen

Loudspeaker

Large signal panel

Monochrome TV system. Sound carrier distance is 4.5MHz

Multistandard Sound Processor: ITT sound decoder

Mute-Line

Not Connected

Near Instantaneous Compounded Audio Multiplexing. Thisis a digital sound system, mainly used in Europe.

NTSC

NVM

OSD

PAL

PCB

PIP

National Television Standard Committee. Colour systemmainly used in North America and Japan. Colour carrier NTSC M/N = 3.579545 MHz,NTSC 4.43 = 4.433619 MHz (this is a VCR norm, it is not transmittedoff-air)

Non Volatile Memory: IC containing TV related datae.g. alignments

Option Byte

Open Circuit

On Screen Display

Phase Alternating Line. Colour system mainly used inWest Europe (colour carrier = 4.433619 MHz) and South America (colour carrier PAL M = 3.575612 MHz and PAL N =

3.582056 MHz)

Printed Circuit board

Picture In Picture

PLL

POR

Progressive Scan

7/8/2004

Phase Locked Loop. Used for e.g. FST tuning systems.The customer can give directly the desired frequency

Power-On Reset

Scan mode where all scan lines are displayed in oneframe

Page 58

Page 31 of 32SPMS

at the same time, creating a double vertical resolution.

PTP

RAM

RC5

RGB

ROM

SAM

SAP

S/C

SCAVEM

SCL

Picture Tube Panel (or CRT-panel)

Random Access Memory

Remote Control handset

Remote Control system 5, signal from the remote controlreceiver

Red Green Blue

Read Only Memory

Service Alignment Mode

Second Audio Program

Sandcastle: pulse derived from sync signals

Short Circuit

Scan Velocity Modulation

Serial Clock

SDA

SDM

SECAM

SIF

STBY

SVHS

THD

TXT

μP

Serial Data

Service Default Mode

SEequence Couleur Avec Memoire. Colour system mainlyused in France and East Europe. Colour carriers =

4.406250MHz and 4.250000 MHz

Sound Intermediate Frequency

Small Screen

Standby

Super Video Home System

Software

Total Harmonic Distortion

Teletext

Microprocessor

UOC

VBAT

7/8/2004

Ultimate One Chip

Vertical Acquisition

Page 59

Page 32 of 32SPMS

Main supply voltage for the deflection stage (mostly141 V)

V-chip

VCR

WYSIWYR

XTAL

Violence Chip

Video Cassette Recorder

What You See Is What You Record: record selection thatfollows main picture and sound

Quartz crystal

Luminance (Y) and Chrominance (C) signal

7/8/2004

Page 60

Page 1 of 16SPMS

Service Modes, Error Codes and Fault Finding

Index:

1. Test points.

2. Service Modes.

3. Problems and Solving Tips (related to CSM).

4. Compair.

5. Error Codes.

6. The Blinking LED Procedure.

7. Protections.

8. Repair Tips.

Supporting Overviews

I2C-IC overview

Test points overview Main Panel

Test points overview CRT Panel

Test Points

The chassis is equipped with test points printedon the circuit board assemblies. These test points refer to thefunctional blocks:

Table: TestpointOverview

Test point Circuit Diagram

A1-A2-A3-.. Audio processing A8, A9 / A11

C1-C2-C3-.. Control A7

F1-F2-F3-.. Frame drive and output A3

I1-I2-I3-.. Tuner & IF A4

L1-L2-L3-. Line drive and output A2

P1-P2-P3-.. Power supply A1

S1-S2-S3-.. Synchronisation A6

V1-V2-V3-.. Video processing A5, B1

7/8/2004

Page 61

Page 2 of 16SPMS

The numbering is in a logical sequence for diagnostics.Always start diagnosing within a functional block in the sequenceof the relevant test points for that block. Perform measurements under the following conditions:

Televisionset in Service Default Alignment Mode.

Video input: Color bar signal.

Audio input: 3 kHz left channel, 1 kHz rightchannel.

Service Modes

Service Default Alignment Mode (SDAM) offersseveral features for the service technician, while the CustomerService Mode (CSM) is used for communication between the servicer andthe customer. The T8 chassis also offers the option of using ComPair,a hardware interface between a computer and the TV chassis. It offersthe abilities of structured troubleshooting, error code reading,and software version readout for all T8 chassis. Minimum requirementsfor ComPair: a 486 processor, Windows 3.1 and a CD-ROM drive.

Note : ComPairproducts will become available as they are developed.

Table: ServiceModes

SWCluster

7/8/2004

Software name

UOC

UOCDiversity SpecialFeatures

type

Page 62

Page 3 of 16SPMS

2US9 L01UM9x.y

3US2 L01UN2x.y

1US5 L01US5x.y

2US2 L01UM2x.y

3US3 L01UN3x.y

1US4 L01US4x.y

Abbreviations in Software name:U = USA (NAFTA), M = Mono, N = StereonondBx and S = Stereo dBx.

TDA9577 (SS)

TDA9577 (SS) (LS)

TDA9588 (LS)

TDA9577 (LS)

TDA9577 (SS) (LS)

TDA9587 (SS), TDA9588 (LS)

55K ROM Size

64K ROM Size

55K ROM Size

64K ROM Size

Mono (Magnavox)

Stereo non-dBx (Magnavox)

Stereo non-dBx (Magnavox), Non PIP

Mono(Philips)

Stereo non-dBx (Philips), CVI

Stereo non-dBx (Philips), PIP

Service Default Alignment Mode (SDAM)

Purpose

Tocreate a predefined setting for measurements to be made.

To override software protections.

To start the blinking LED procedure.

To change option settings.

To display / clear the error code buffer.

To perform alignments.

7/8/2004

Page 63

Specifications

Tuningfrequency: 61.25 MHz (channel 3)

Color system: NTSC M

All picture settings at 50% (brightness,color contrast, hue)

Bass, treble and balance at 50%; volumeat 25%.

All service-unfriendly modes (if present) aredisabled. The service unfriendly modes are:



(sleep) timer



child/parental lock



blue mute



hotel/hospitality mode



auto shutoff (when no "IDENT" videosignal is received for 15 minutes)



skipping of non-favorite presets / channels



auto-storage of personal presets



auto user menu timeout

Run timer (maximum four digits displayed)

Software version

Option settings

Error buffer reading and erasing

Software alignments

Page 4 of 16SPMS

How to enter SDAM

To enter SDAM, use one of the following methods:

Press thefollowing key sequence on the remote control transmitter:

0-6-2-5-9-6-MENU

Do not allow the display to time out betweenentries while keying the sequence.

Short jumper wires 9631 and 9641 on the monocarrier (see Fig. 8-1) and apply AC power. Then press the power button(remove the short after start-up). Caution :Entering SDAM by shorting wires 9631 and 9641 will override the +8V-protection.Do this only for a short period. When doing this, the service-technicianmust know exactly what he is doing, as it could damage the televisionset.

Or via ComPair (with the ComPair "Tools" RC7150Service Remote, it should be possible to enter SDAM via the ComPairinterface IR).

After entering SDAM, the following screen is visible,with S at the upper right side for recognition.

7/8/2004

Page 64

Figure: SDAM Menu

Explanation of SDAM Menu

Page 5 of 16SPMS

1. LLLL Thisrepresents the run timer. The run timer counts normal operationhours, but does not count standby hours. (maximum four digits displayed).

2. AAABCD-X.Y This is the software identificationof the main microprocessor:



A = theproject name (L01).



B = the region: E= Europe,A= Asia Pacific, U= NAFTA, L= LATAM.



C = the feature of software diversity:N = stereo non-dBx, S = stereo dBx, M = mono,D = DVD



D = the language cluster number:



X = the main software version number



Y = the sub software version number

3. S Indication of the service mode. S= SDAM= Service DefaultAlignment Mode.

4. Error Buffer Showsall errors detected since the last time the buffer was erased. Fiveerrors possible.

5. Option Bytes Usedto set the option bytes. See "Options" in the Alignments sectionfor a detailed description. Seven codes possible.

6. Clear Erasesthe contents of the error buffer. Select the CLEAR menu item andpress the MENU RIGHT key. The contents of the error buffer are cleared.

7. Options Usedto set the option bits. See "Options" in the Alignments sectionfor a detailed description.

8. AKB Used to disable (0) or enable (1) the "blackcurrent loop" (AKB = Auto Kine Bias).

9. Tuner Usedto align the tuner. See "Tuner" in the Alignments section for adetailed description.

10. White Tone Usedto align the white tone. See "White Tone" in the Alignments sectionfor a

7/8/2004

Page 65

Page 6 of 16SPMS

detailed description.

11. Geometry Usedto align the geometry settings of the television. See "Geometry"in the Alignments section for a detailed description.

12. Audio Noaudio alignment is necessary for this television set.

How to navigate in SDAM

InSDAM, select menu items with the MENU UP/DOWN keys on theremote control transmitter. The selected item will be highlighted.When not all menu items fit on the screen, use the MENU UP/DOWNkeys to display the next / previous menu items.

With the MENU LEFT/RIGHT keys, it ispossible to:



Activate theselected menu item.



Change the value of the selected menu item.



Activate the selected submenu.

In SDAM, When you press the MENU button, theset will switch to the normal user menus (with the SDAM mode still activein the background). To return to the SDAM menu press the STATUS/EXITbutton.

When you press the MENU key in while in an SDAM submenu,you will return to the previous menu.

How to store SDAM settings

To store settings changed in SDAM leave thetop level SDAM menu by using the POWER button on the remote control transmitteror the television set.

How to exit SDAM

Switch the set to STANDBY by pressing the POWERbutton on the remote control transmitter or the television set. If you turn the television set off by removing the ACpower (i.e., unplugging the television) without using the POWERbutton, the television set will remain in SDAM when AC power isreapplied, and the error buffer is not cleared.

Customer Service Mode (CSM)

Purpose

The Customer Service Mode shows error codesand information on the TV operation settings. The servicer can instructthe customer to enter CSM by telephone and read off the informationdisplayed. This helps the servicer to diagnose problems and failuresin the TV set

7/8/2004

Page 66

before making a service call. The CSM is a read-only mode; therefore, modificationsare not possible in this mode.

How to enter CSM

To enter CSM, press the following key sequenceon the remote control transmitter: 1-2-3-6-5-4 Do not allow the display to time out between entries while keyingthe sequence. Upon entering the Customer Service Mode, the following screenwill appear:

Page 7 of 16SPMS

Figure: CSM Menu

Explanation of CSM Menu

1. Indicationof the service mode CSM = Customer Service Mode

2. Reserved.

3. Software identification of the main microprocessor(see "Service Default Alignment Mode" for an explanation)

4. Reserved item.

5. Indicates the type of TV system or whether ornot the television is receiving an "IDENT" signal on the selected source.If no "IDENT" signal is detected, the display will read "NOT TUNED"

6. Error code buffer. Displays the last five errorsdetected in the error code buffer.

How to exit CSM To exit CSM, use one of the following methods:

Press theMENU, STATUS/EXIT, or POWER button on the remote controltransmitter.

Press the POWER button on the television set.

Problems and SolvingTips Related to CSM

7/8/2004

Page 67

Page 8 of 16SPMS

Picture Problems

Note :The problems described below are all related to the TV settings.The procedures used to change the value (or status) of the differentsettings are described.

Picture too dark or too bright

If:

The pictureimproves when you have press the AUTO PICTURE button on the remotecontrol transmitter, or

The picture improves when you enter the Customer ServiceMode

Then:

1. Press theAUTO PICTURE button on the remote control transmitter repeatedly(if necessary) to choose PERSONAL picture mode.

2. Press the MENU button on the remote controltransmitter. This brings up the normal user menu.

3. In the normal user menu, use the MENU UP/DOWNkeys to highlight the PICTURE sub menu (if necessary).

4. Press the MENU LEFT/RIGHT keys to enterthe PICTURE sub menu.

5. Use the MENU UP/DOWN keys (if necessary)to select BRIGHTNESS.

6. Press the MENU LEFT/RIGHT keys to increaseor decrease the BRIGHTNESS value.

7. Use the MENU UP/DOWN keys to selectPICTURE.

8. Press the MENU LEFT/RIGHT keys to increaseor decrease the PICTURE value.

9. Press the MENU button on the remote controltransmitter twice to exit the user menu.

10. The new PERSONAL preference values are automatically stored.

White line around picture elements and text

If: The picture improves after you have pressed the "Smart Picture"button on the remote control transmitter Then:

1. Press theAUTO PICTURE button on the remote control transmitter repeatedly(if necessary) to choose PERSONAL picture mode.

2. Press the MENU button on the remote controltransmitter. This brings up the normal user menu.

3. In the normal user menu, use the MENU UP/DOWNkeys to highlight the PICTURE sub menu (if necessary).

7/8/2004

Page 68

Page 9 of 16SPMS

4. Press the MENU LEFT/RIGHT keys to enterthe PICTURE sub menu.

5. Use the MENU UP/DOWN keys to selectSHARPNESS.

6. Press the MENU LEFT key to decrease the SHARPNESS value.

7. Press the MENU button on the remote controltransmitter twice to exit the user menu.

8. The new PERSONAL preference value is automatically stored.

Snowy picture

Enter CSM, by pressing the following key sequenceon the remote control transmitter: 1-2-3-6-5-4 Do not allow the display to time out between entries while keyingthe sequence. Check CSM line 5. If this line reads "Not Tuned," checkthe following:

Antenna notconnected. Connect the antenna.

No antenna signal or bad antenna signal. Connecta proper antenna signal.

The tuner is faulty (in this case line 6, theError Buffer line, will contain error number 10). Check the tunerand replace/repair the tuner if necessary.

Black and white picture

If:

The pictureimproves after you have pressed the "Smart Picture" button on theremote control transmitter

Then:

1. Press theAUTO PICTURE button on the remote control transmitter repeatedly(if necessary) to choose PERSONAL picture mode.

2. Press the MENU button on the remote controltransmitter. This brings up the normal user menu.

3. In the normal user menu, use the MENU UP/DOWNkeys to highlight the PICTURE sub menu (if necessary).

4. Press the MENU LEFT/RIGHT keys to enterthe PICTURE sub menu.

5. Use the MENU UP/DOWN keys to selectCOLOR.

6. Press the MENU RIGHT key to increase the COLORvalue.

7. Press the MENU button on the remote controltransmitter twice to exit the user menu.

8. The new PERSONAL preference value is automatically stored.

Menu text not sharp enough

7/8/2004

Page 69

Page 10 of 16SPMS

If:

The pictureimproves after you have pressed the "Smart Picture" button on theremote control transmitter.

Then:

1. Press theAUTO PICTURE button on the remote control transmitter repeatedly(if necessary) to choose PERSONAL picture mode.

2. Press the MENU button on the remote controltransmitter. This brings up the normal user menu.

3. In the normal user menu, use the MENU UP/DOWNkeys to highlight the PICTURE sub menu (if necessary).

4. Press the MENU LEFT/RIGHT keys to enterthe PICTURE sub menu.

5. Use the MENU UP/DOWN keys to selectPICTURE.

6. Press the MENU LEFT key to decrease the PICTURE value.

7. Press the MENU button on the remote controltransmitter twice to exit the user menu.

8. The new PERSONAL preference value is automatically stored.

ComPair

Introduction

ComPair (Computer Aided Repair) is a servicetool for Philips Consumer Electronics products. ComPair is a further developmentof the DST (special remote control transmitter for Service), whichallows faster and more accurate diagnostics. ComPair has three bigadvantages:

ComPair helpsyou quickly get an understanding on how to repair the chassis ina short time by guiding you systematically through the repair procedures.

ComPair allows very detailed diagnostics (onI2C level) and is therefore capable of accurately indicating problem areas.You do not have to know anything about I2C commands yourself becauseComPair takes care of this.

ComPair speeds up the repair time since it can automaticallycommunicate with the chassis (when the microprocessor is working)and all repair information is directly available. When ComPair isinstalled together with the Force electronic manual of the T8 chassis,schematics and CBAs are only a mouse-click away.

Specifications

ComPair consists of a Windows based faultfindingprogram and an interface box between PC

7/8/2004

Page 70

Page 11 of 16SPMS

and the product. The ComPairinterface box is connected to the PC via a serial or RS232 cable.

In the case of the L01 chassis, the ComPair interfacebox and the TV communicate via a bidirectional service cable viathe service connector (Connector 0267). The ComPair faultfinding program is able to determinethe problem of the television set. ComPair can gather diagnostic informationin two ways:

Automatic(by communication with the television): ComPair can automaticallyread the contents of the entire error buffer. Diagnosis is doneon I2C level. ComPair can access the I2C bus of the television.ComPair can send and receive I2C commands to the microprocessorof the television. In this way, it is possible for ComPair to communicate (read and write) to devices on the I2C busses of the TV-set.

Manually (by asking questions to the servicer): Automatic diagnosis is only possible if the microprocessor of the televisionis working correctly, and only to a certain extent. When this isnot the case, ComPair will guide you through the faultfinding treeby asking you questions (for example; Does the screen gives a picture?Click on the correct answer: YES / NO) and showing youexamples (for example; Measure test-point I7 and click on the correct oscillogramyou see on the oscilloscope). You can answer by clicking on a link (for example, text or a waveform picture) that will bring you tothe next step in the faultfinding process.

By a combination of automatic diagnostics and an interactive questionand answer procedure, ComPair will enable you to find most problemsin a fast and effective way. Beside fault finding, ComPair provides some additional features like:

Uploadingor downloading of presets.

Management of preset lists.

If both ComPair and the Force electronic servicemanual are installed, all the schematics and CBAs of the television setare available by clicking on the appropriate hyperlink. Example:Measure the DC-voltage on capacitor C2568 (Schematic/Panel)at the Monocarrier. Click on the "Panel" hyperlinkto automatically show the CBA with a highlighted capacitor C2568.Click on the "Schematic" hyperlink to automatically show the electronicposition of the highlighted capacitor.

How To Connect

1. Firstinstall the ComPair Browser software (see the Quick Reference Cardfor installation instructions).

2. Connect the RS232 interface cable between afree serial (COM) port of your PC and the PC connector (marked with "PC")of the ComPair interface.

3. Connect the AC power adapter to the supply connector (marked"POWER 9V DC") on the ComPair interface.

7/8/2004

Page 71

Page 12 of 16SPMS

4. Switch the ComPair interface OFF.

5. Switch the television set OFF (and remove theAC power).

6. Connect the ComPair interface cable betweenthe connector on the rear side of the ComPair interface (marked"I2C") and the ComPair connector on the mono carrier (Connector0267).

7. Plug the AC power adapter in the AC power outletand switch on the ComPair interface. The green and red LEDs lightup together. The red LED turns off after approximately 1 second,while the green LED remains lit.

8. Start the ComPair program and read the "introduction" chapter.

Figure: ComPair Connection

How To Order

ComPair order codes:

ComPair InterfaceBox 4822 727 21631

CDR Interface board 3122 785 90200

TV cable 3122 785 90004

DVD cable 3122 785 90017

BETA CALIBRATION DISK 7104 099 93132

Extra Com Cable S83-940

AC Adapter T405-ND

Error Buffer

The error code buffer contains all errors detectedsince the last time the buffer was erased. The

7/8/2004

Page 72

Page 13 of 16SPMS

buffer is writtenfrom left to right. When an error occurs that is not yet in theerror code buffer, it is displayed at the left side and all othererrors shift one position to the right.

How To Read The Error Buffer

You can read the error buffer in 3 ways:

On screenvia the SDAM (if you have a picture). Examples:



ERROR: 0 00 0 0 : No errors detected



ERROR: 6 0 0 0 0 : Error code 6 is the lastand only detected error



ERROR: 9 6 0 0 0 : Error code 6 was detectedfirst and error code 9 is the last detected (newest) error

Via (when you have no picture). See "The BlinkingLED Procedure"

Via ComPair.

How To Clear The Error Buffer

Theerror code buffer is cleared in the following cases:

By using the CLEAR command in the SDAM menu:



To enter SDAM,Press the following key sequence on the remote control transmitter:



0-6-2-5-9-6-MENU



Do not allow the display to time out betweenentries while keying the sequence.



Make sure the menu item CLEAR is highlighted.Use the MENU UP/DOWN buttons, if necessary.



Press the MENU RIGHT button to clear the error buffer.The text on the right side of the "CLEAR" line will change from"CLEAR?" to "CLEARED"

If the contents of the error buffer have notchanged for 50 hours, the error buffer resets automatically.

Note: If SDAM is exited by disconnecting the AC power from the televisionset, the error buffer is not reset.

Error Codes

In case of non-intermittent faults, write downthe errors present in the error buffer and clear the error bufferbefore you begin the repair. This ensures that old error codes are no longer present. If possible, check the entire contents of the error buffer.In some situations an error code is only the result of another error andnot the actual cause of the problem (for example, a fault in theprotection detection circuitry can also lead to a protection).

7/8/2004

Page 73

Table: Error Code Table

Page 14 of 16SPMS

ERROR Device

0 Not applicable No Error

1 Not applicable

2 Not applicable

3 TDA8359/TDA9302

4 MSP34X5/TDA9853

5 TDA95XX

Error description

X-Ray Protection

Horizontal Protection

Vertical Protection

MAP I2C identification error

POR 3.3V / 8V Protection

Check item Diagram

2465, 7460 A2

7460, 7461, 7462, 7463, 6467

7861, VloAux +13v

7831, 7861 A9 or A11

7200, 7560, 7480

A2, A3

A1, A2. A5, A6, A7

6 I2C bus

7 Not applicable - - -

8 Not applicable

9 M24C08

10 Tuner

11 TDA6107/8

12 M65669

General I2C bus error

E/W Protection (Large Screen)

NVM I2C identification error

Tuner I2C identification error

Black current loop protection

MAP I2C identification

7200, 3624, 3625

7400, 3405, 3406, 3400

7602, 3611, 3603, 3604

1000, 7482 A2, A4

7330, RGB amps, CRT

7803 P

B1, B2

7/8/2004

Page 74

Page 15 of 16SPMS

error

Note: Error 7 is not applicable.

TheBlinking LED Procedure

Using this procedure, you can make the contentsof the error buffer visible via the front LED. This is especiallyuseful when there is no picture.

When the SDAM is entered, the LED will blink the contentsof the error-buffer:

1-12 shortblinks (indicates error number 1-12)

when all the error-codes are displayed, thesequence finishes with an "ON" LED blink of 3 seconds

the sequence starts again

Example of error buffer: 12 9 6 0 0 After entering SDAM, the following occurs:

12 shortblinks followed by a pause of 3 seconds

9 short blinks followed by a pause of 3 seconds

6 short blinks followed by a pause of 3 seconds

1 long "ON" blink of 3 seconds to finish thesequence

the sequence starts again.

Protections

If a fault situation is detected, an errorcode will be generated; and, if necessary, the television set willgo in to protection mode. Blinking of the red LED at a frequencyof 3 Hz indicates the protection mode. In some error cases, themicroprocessor does not put the set in protection mode. The errorcodes of the error buffer and the blinking LED procedure can beread via the Service Default Alignment Menu (SDAM), or via ComPair. To get a quick diagnosis the chassis has two service modes implemented:

The CustomerService Mode (CSM).

The Service Default Alignment Mode (SDAM).

For a detailed description see Chapter 9 paragraphs 3.4and 4.5.

7/8/2004

Page 75

Repair Tips

Below some failure symptoms are given, followedby a repair tip.

Set is dead and makes hiccuping sound "Main Power Supply" is available. Hiccupping stops when L5561is de-soldered, meaning that problem is in the "Main Power Supply"line. No output voltages at LOT, no horizontal deflection. Reason:line transistor 7460 is defective.

Set is dead,and makes no sound Check power supply IC 7520. Result: voltage at pins 1,3, 4, 5 and 6 are about 180 V and pin 8 is 0 V. The reason why thevoltage on these pins is so high is because the output driver (pin6) has an open load. That is why MOSFET 7521 is not able to switch.Reason: feedback resistor 3523 is defective. Caution : Be careful measuringthe gate of 7521; circuitry is very high ohmic and can easily bedamaged!

Set is in hiccupmode and shuts down after 8 seconds Blinking LED (setis in SDAM mode) indicates error 5. As it is unlikely that P "POR"and "+8V protection" happen at the same time, measure the"+8V" supply. If this voltage is missing, check transistor7480.

Set is in non-stophiccup mode Set is in over-current mode; check the secondary sensing (optocoupler 7515) and the "Main Power Supply" voltage. Signal "Stdby_con"must be logic low under normal operation conditions and goes tohigh (3.3 V) under standby and fault conditions.

Set turns on,but without picture and sound The screen shows snow, but OSD and other menus are okay.Blinking LED procedure indicates error 11, so problem is expectedin the tuner (part reference number 1000). Check presence of supplyvoltages. "Vlotaux+5V" voltages at pin 5 and 7 are okay;"VT_supply" at pin 9 is missing. Conclusion: resistor 3460is defective.

Set turns on,but with a half screen at the bottom. Sound is okay Blinking LED (set is in SDAM mode) indicates error 3. Check"Vlotaux+11V" and "+50V". If they are okay, problemis expected in the vertical amplifier IC 7471. Use an oscilloscopeto measure the waveform on pin 17 of the UOC. Also measure the waveformat pin 1 of IC 7471. If the signal there is missing, a defectiveresistor R3244 caused the problem

Page 16 of 16SPMS

7/8/2004

Page 76

Page 1 of 7SPMS

Mechanical Instructions

Rear Cover Removal

1. Removeall fixation screws of the rear cover.

2. Now pull the rear cover backward to remove it.

Service Position Main Panel

There are 2 configurations. With and withoutpanel bracket. Both have a different service position: Main panel without bracket.

1. Disconnectthe strain relief of the AC power cord.

2. Remove the main panel, by pushing the two centerclips outward [1]. At the same time pull the panelaway from the CRT [2].

3. Disconnect the degaussing coil by removing thecable from (red) connector 0201.

4. Turn the panel 90 degrees counter clockwise [3].

5. Flip the panel 90 degrees [4],with the components towards the CRT.

6. Turn the panel with the rear I/O towardsthe CRT [5].

7. Slide the metal heatsink (near the mains transformer5520) underneath the right chassis bracket, so the panel is secured [6].

7/8/2004

Page 77

Page 2 of 7SPMS

Figure:

7/8/2004

Page 78

Page 3 of 7SPMS

Main panel with bracket.

1. Disconnectthe strain relief of the AC power cord.

2. Disconnect the degaussing coil by removing thecable from (red) connector 0201 [1].

3. Remove the panel bracket from the bottom tray,by pulling it backward [2] and turn the chassistray 90 degrees counter clockwise.

4. Move the panel somewhat to the left and flipit 90 degrees [3], with the components towardsthe CRT.

5. Turn the panel with the rear I/O towardsthe CRT.

6. Place the hook of the tray in the fixation holeof the cabinet bottom [4] and secure it.

7/8/2004

Page 79

Page 4 of 7SPMS

7/8/2004

Page 80

Figure:

Side I/O PanelRemoval

1. Removethe complete Side I/O assembly after unscrewing the 2 fixationscrews.

2. Release the 2 fixation clamps and lift the boardout of the bracket.

Page 5 of 7SPMS

Figure:

Pip Module (If Present)

Service Position

1. Removethe module bracket from the bottom tray by pulling it backward.

2. Hook the bracket in the first row of the cabinetbottom. In other words: reposition the bracket from [1] to [2].

7/8/2004

Page 81

Page 6 of 7SPMS

Figure:

Panel Removal

1. Liftthe board out of its bracket after releasing the 2 fixation clamps.

Figure:

Rear Cover Mounting

7/8/2004

Page 82

Before you mount the rear cover, perform thefollowing checks:

1. Check whetherthe AC power cord is mounted correctly in its guiding brackets.

2. Replace the strain relief of the AC power cordinto the cabinet.

3. Check whether all cables are replaced in theiroriginal position.

Page 7 of 7SPMS

7/8/2004

Page 83

Philips Consumer Electronics

Technical Service Data

Service and Quality Service Publications Dept. One Philips Drive P.O. Box 14810 Knoxville, TN 37914

Manual 7629

Model no.: 27PS60S321 First Publish: 12740 T8 Rev. Date: 2002-06-06 Print Date: 7/8/2004

Scope Patterns

REFER TO SAFETY GUIDELINES

SAFETY NOTICE: HIMSELF WITH THE CHASSIS AND BE AWARE OF THE NECESSARY SAFETY PRECAUTIONS TO BE USED WHEN SERVICING ELECTRONIC EQUIPMENT CONTAINING HIGH VOLTAGES.

CAUTION: USE A SEPARATE ISOLATION TRANSFORMER FOR THIS UNIT WHEN SERVICING

ANY PERSON ATTEMPTING TO SERVICE THIS CHASSIS MUST FAMILIARIZE

Page 84
