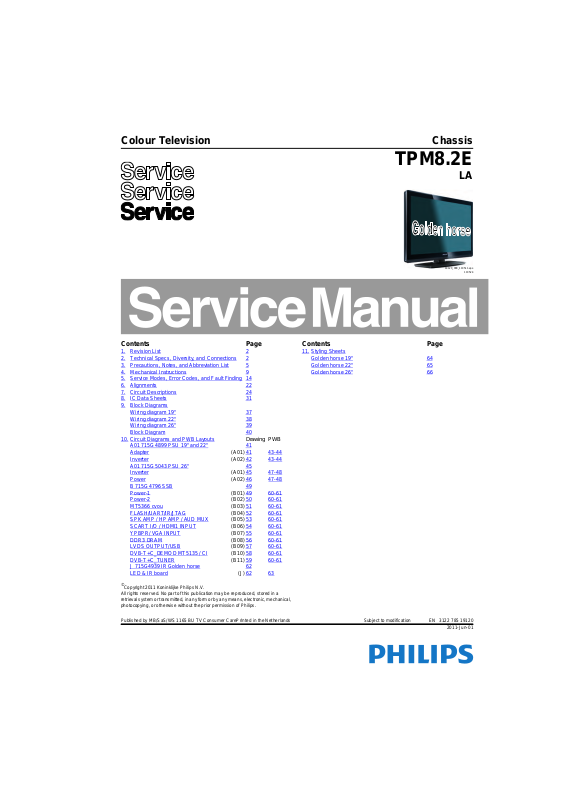

Philips 26PFL3606H, TPM8.2E Schematic

Colour Television Chassis

19120_000_110511.eps

110524

TPM8.2E

LA

Contents Page Contents Page

1. Revision List 2

2. Technical Specs, Diversity, and Connections 2

3. Precautions, Notes, and Abbreviation List 5

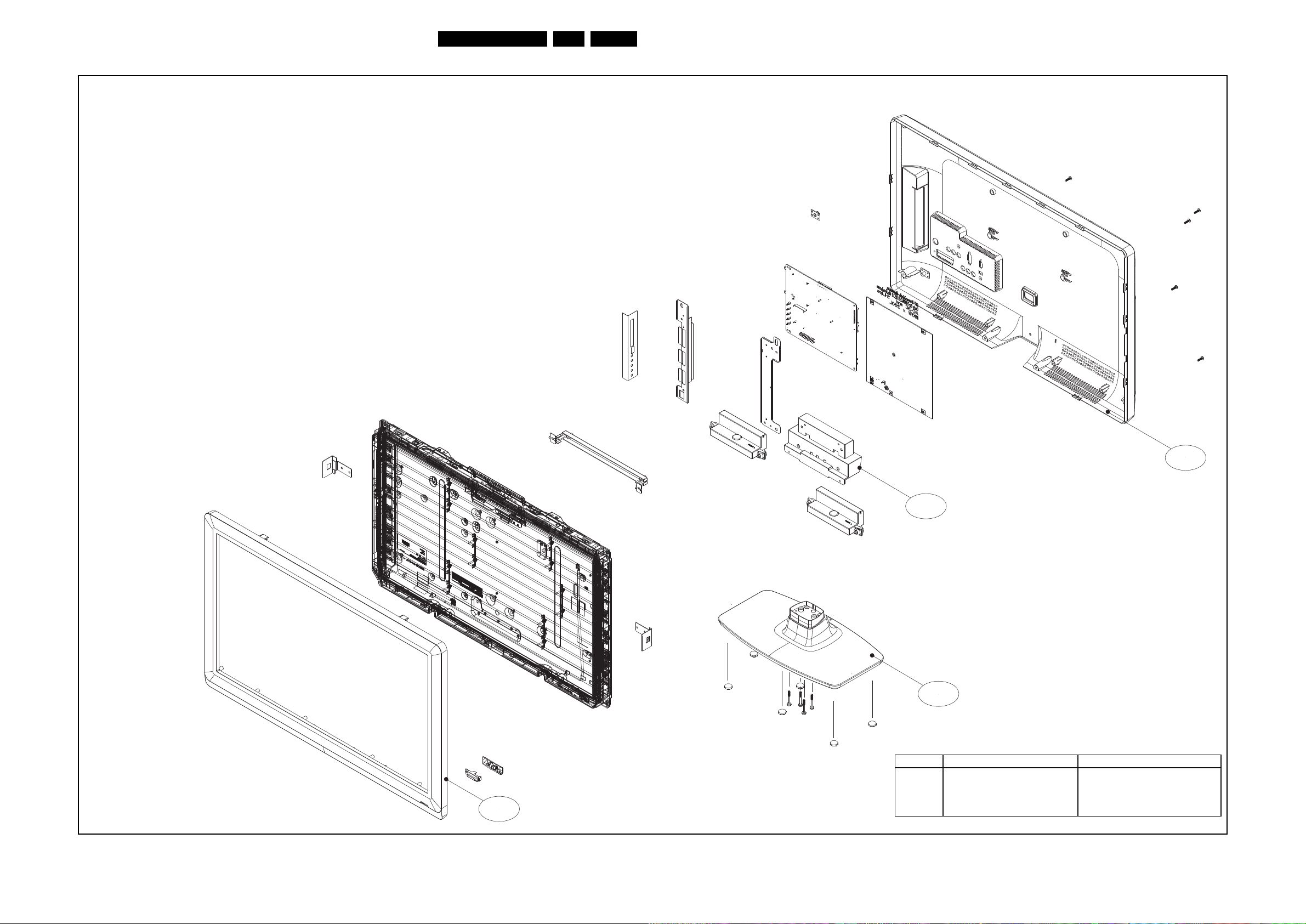

4. Mechanical Instructions 9

5. Service Modes, Error Codes, and Fault Finding 14

6. Alignments 22

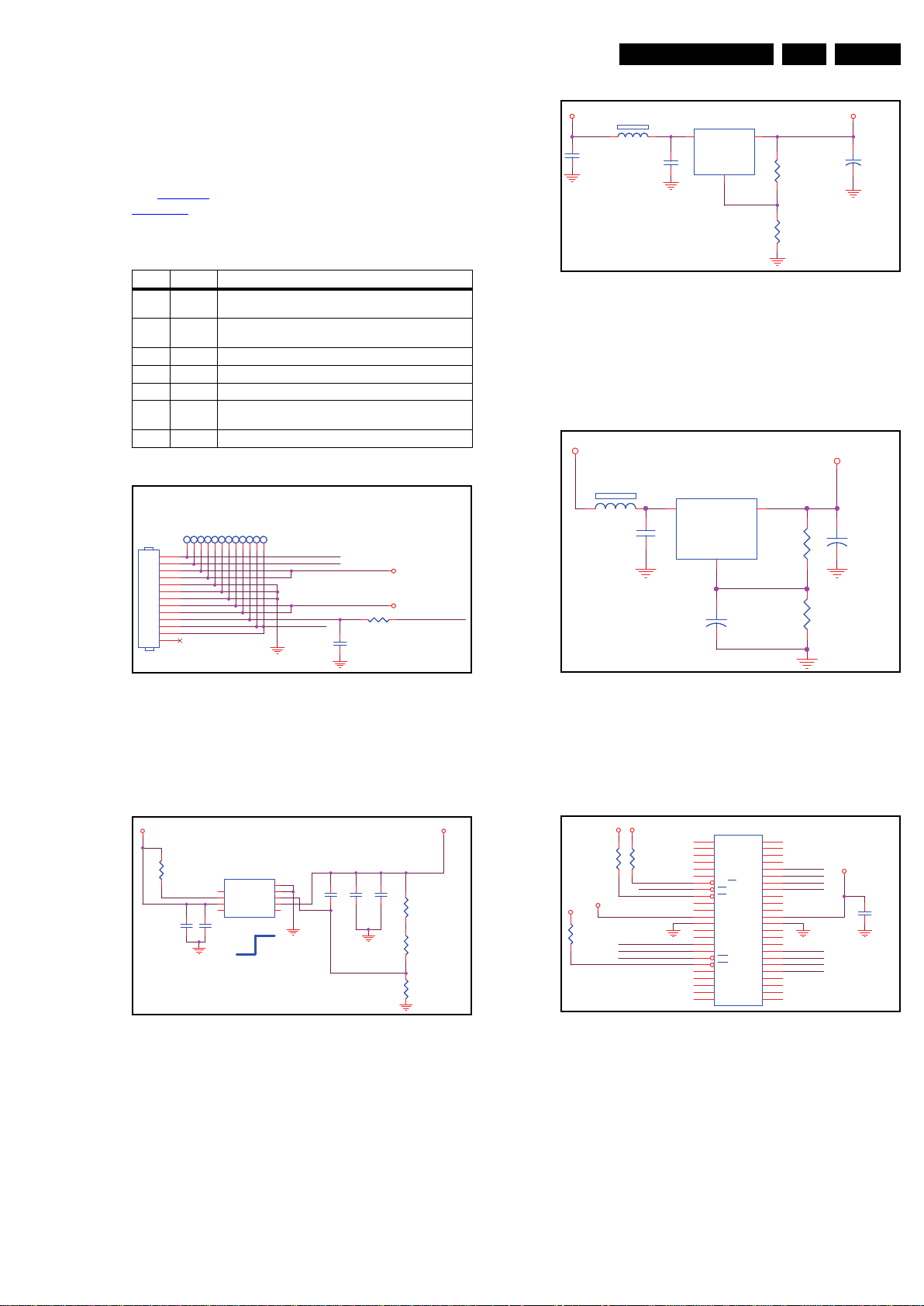

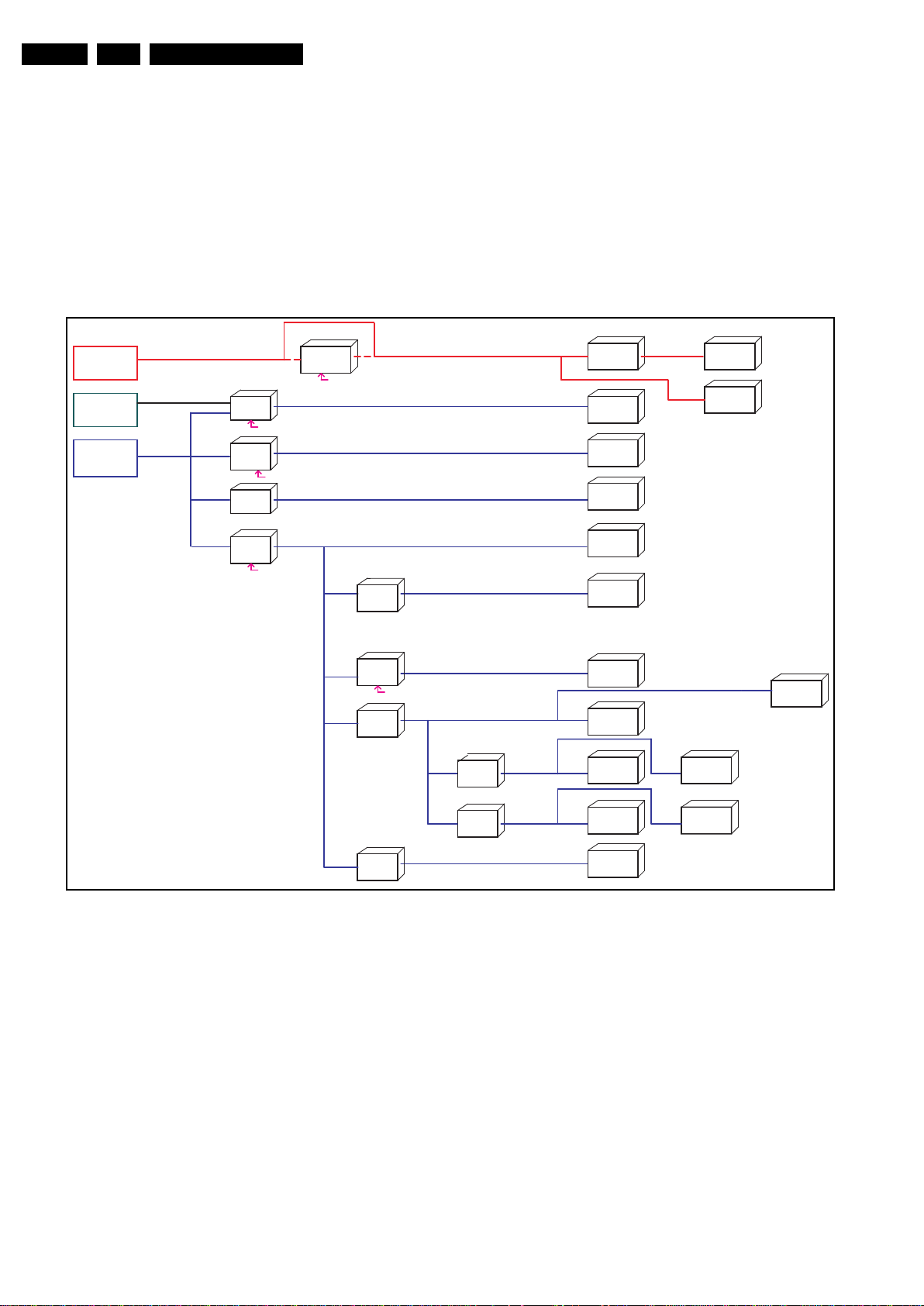

7. Circuit Descriptions 24

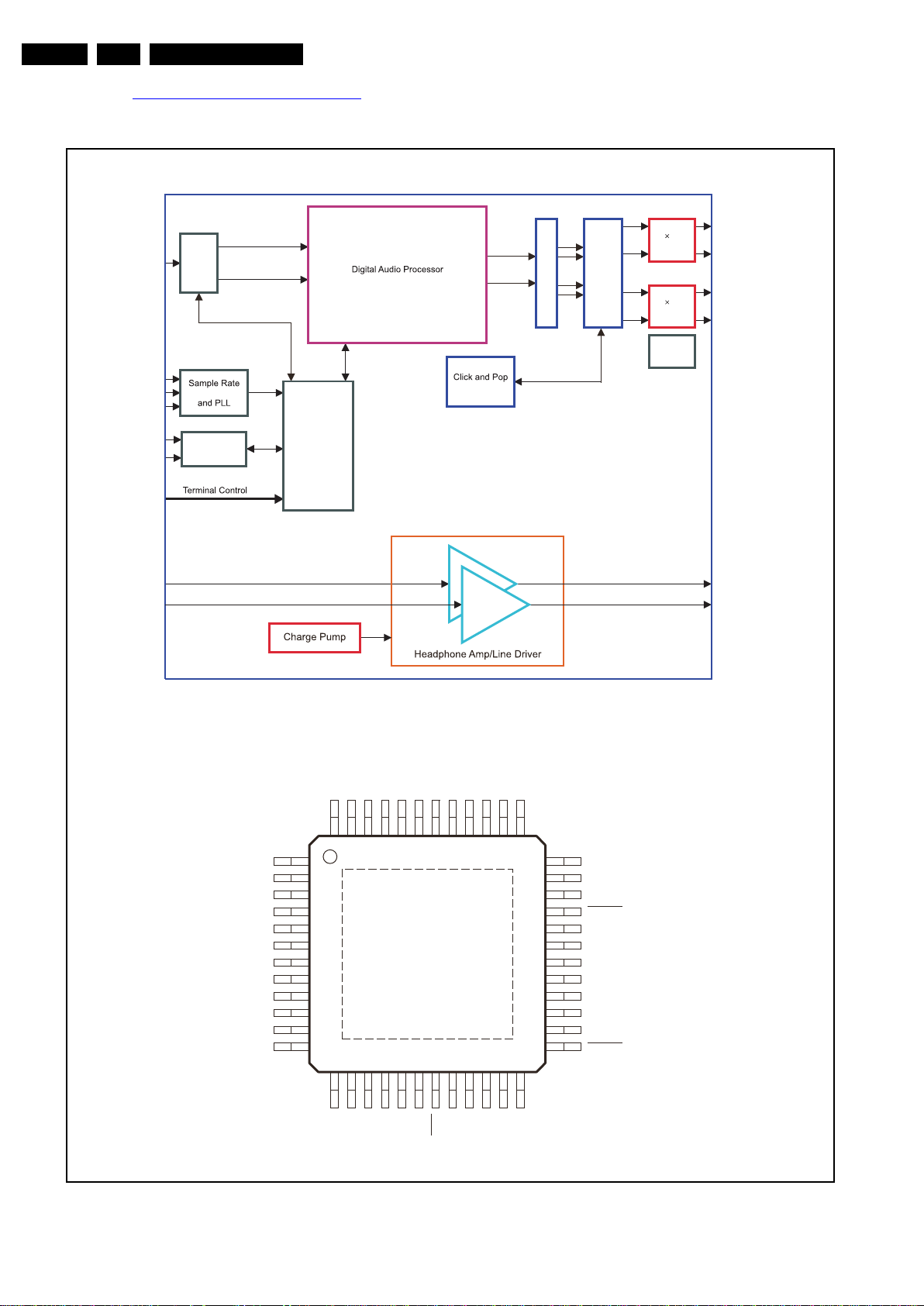

8. IC Data Sheets 31

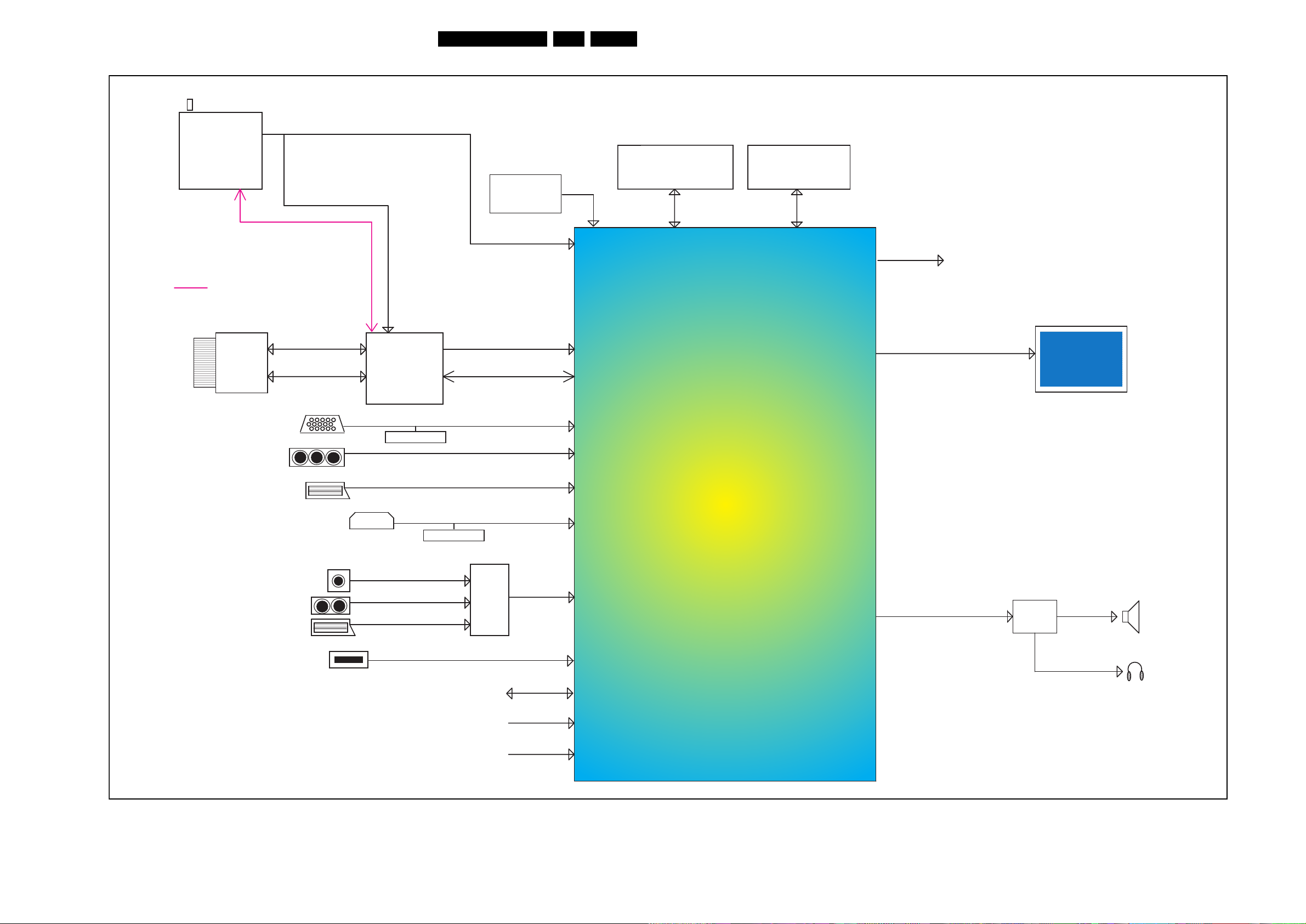

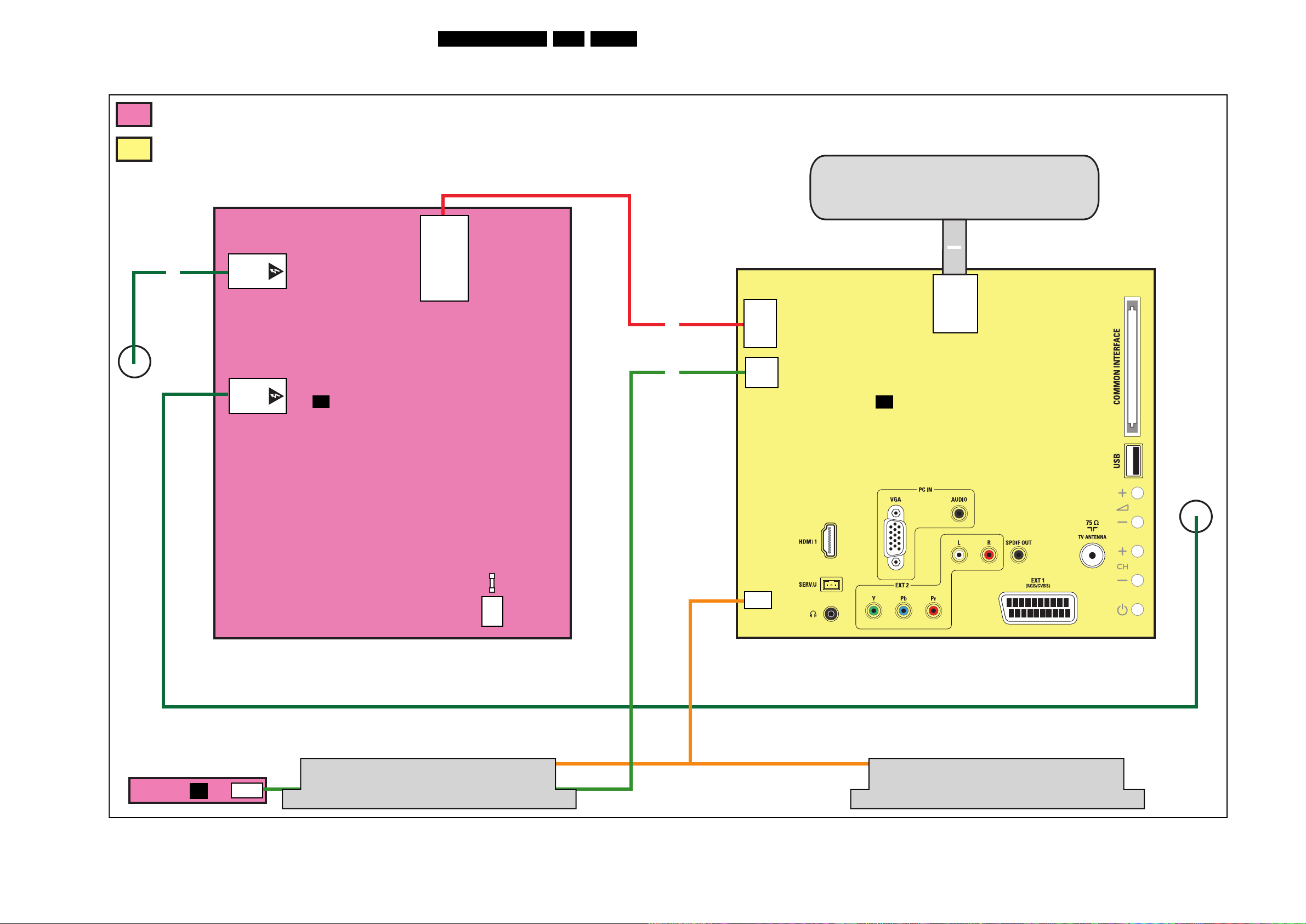

9. Block Diagrams Wiring diagram 19" 37 Wiring diagram 22" 38 Wiring diagram 26" 39 Block Diagram 40

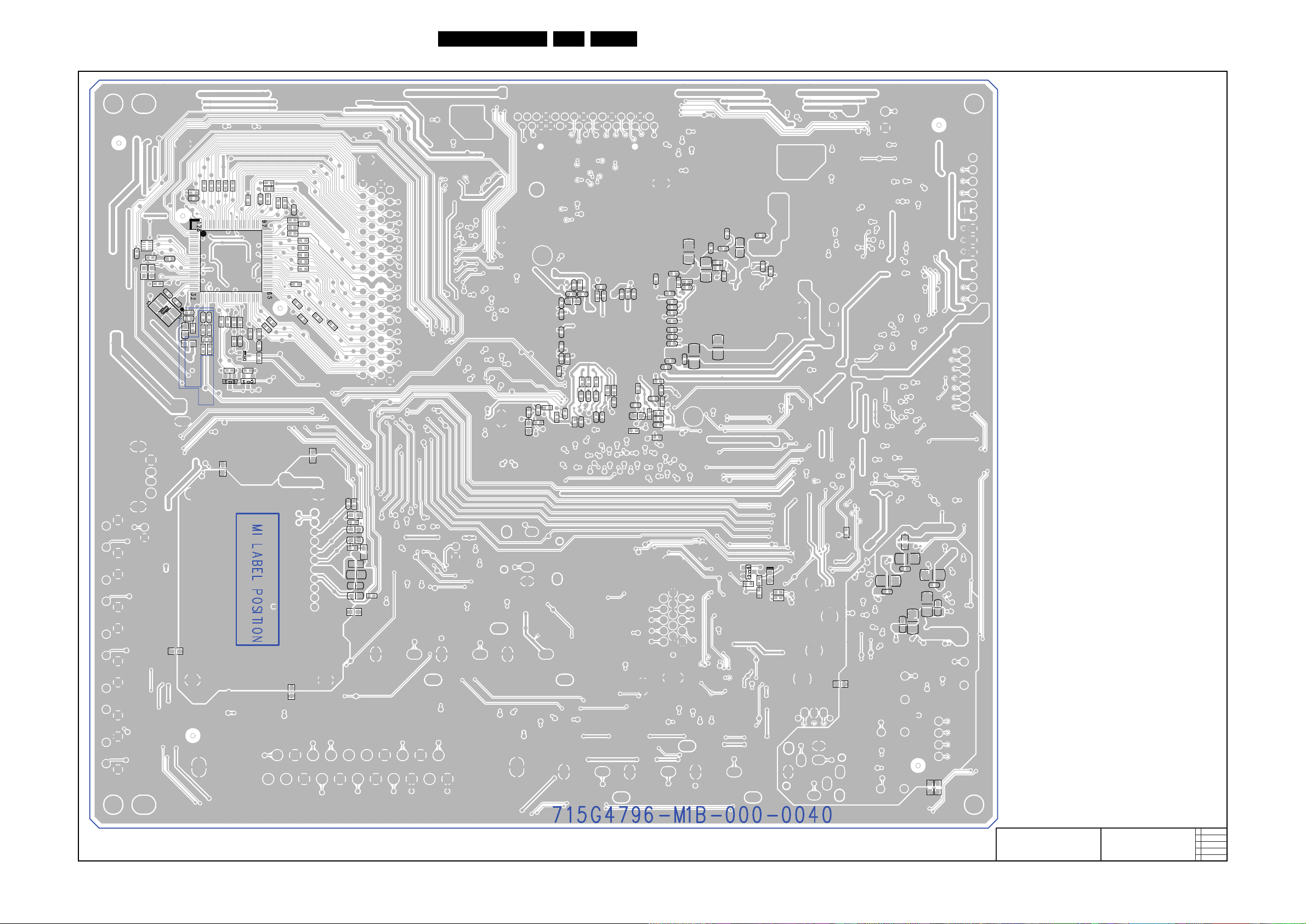

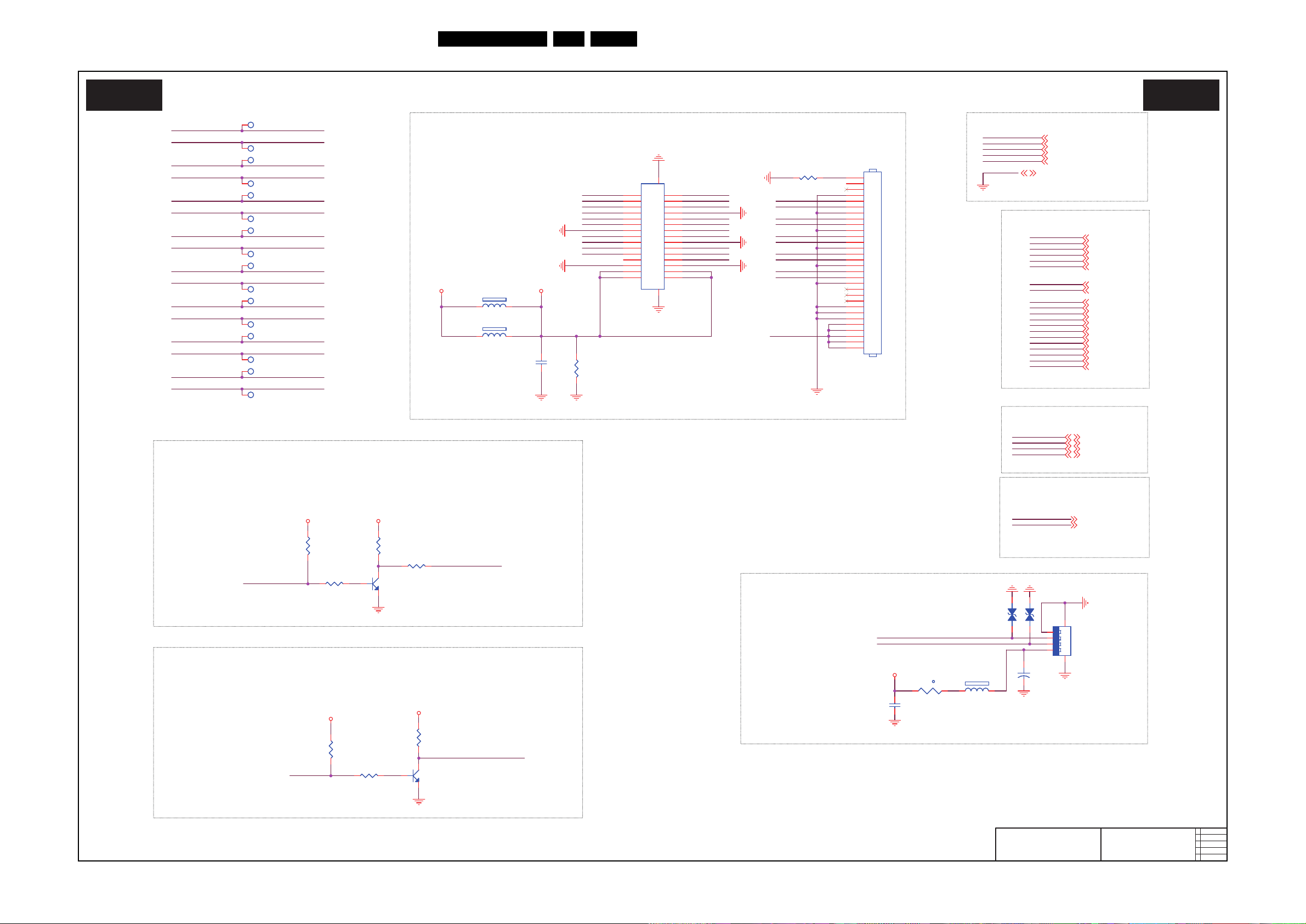

10. Circuit Diagrams and PWB Layouts Drawing PWB A01 715G4899 PSU 19" and 22" 41 Adapter (A01) 41 43-44 Inverter (A02) 42 43-44 A01 715G5043 PSU 26" 45 Inverter (A01) 45 47-48 Power (A02) 46 47-48 B 715G4796 SSB 49 Power-1 (B01) 49 60-61 Power-2 (B02) 50 60-61 MT5366 cvou (B03) 51 60-61 FLASH/UART/IR/JTAG (B04) 52 60-61 SPK AMP / HP AMP / AUD MUX (B05) 53 60-61 SCART I/O / HDMI1 INPUT (B06) 54 60-61 YPBPR/ VGA INPUT (B07) 55 60-61 DDR3 DRAM (B08) 56 60-61 LVDS OUTPUT/USB (B09) 57 60-61 DVB-T+C_DEMOD MT5135 / CI (B10) 58 60-61 DVB-T+C_TUNER (B11) 59 60-61 J 715G4939 IR Golden horse 62 LED & IR board (J) 62 63

©

Copyright 2011 Koninklijke Philips N.V. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or transmitted, in any form or by any means, electronic, mechanical, photocopying, or otherwise without the prior permission of Philips.

11. Styling Sheets Golden horse 19" 64 Golden horse 22" 65 Golden horse 26" 66

Published by MB/SaS/WS 1165 BU TV Consumer CarePrinted in the Netherlands Subject to modification EN 3122 785 19120

2011-Jun-01

EN 2 TPM8.2E LA1.

Revision List

1. Revision List

Manual xxxx xxx xxxx.0

• First release.

2. Technical Specs, Diversity, and Connections

Index of this chapter:

2.1 Technical Specifications

2.2 Directions for Use

2.3 Connections

2.4 Chassis Overview

Notes:

• Figures can deviate due to the di

• Specifications are indicative (subject to cha

fferent set executions.

2.1 Technical Specifications

For on-line product support please use the links in. Here is product information available, as well as getting started, user manuals, frequently asked questions and software & drivers.

Table 2-1 Described Model Numbers:

Model Number Styling Published in

19HFL3233D/10 Golden horse 3122 785 19120 19PFL3606H/12 Golden horse 3122 785 19120 19PFL3606H/58 Golden horse 3122 785 19120 19PFL3606H/60 Golden horse 3122 785 19120 22PFL3606H/12 Golden horse 3122 785 19120 22PFL3606H/58 Golden horse 3122 785 19120 22PFL3606H/60 Golden horse 3122 785 19120 26PFL3606H/12 Golden horse 3122 785 19120 26PFL3606H/58 Golden horse 3122 785 19120 26PFL3606H/60 Golden horse 3122 785 19120

2.2 Dir ections for Use

Directions for use can be downloaded from the following websites:

http://www.philips.com/support http://www.p4c.philips.com

nge).

Note: The given Model Numbers are subject to change.

2011-Jun-01

2.3 Connections

19120_001_110511.eps

110524

11

10

3

4

7

9

1

2

5

6

8

1 2 3 4

10000_022_090121.eps

090121

Technical Specs, Diversity, and Connections

EN 3TPM8.2E LA 2.

Note: The following connecto

(acc. to DIN/IEC 757): Bk= Black, Bu= Blue, Gn= Green, Gy= Grey, Rd= Red, Wh= White, Ye= Yellow.

2.3.1 Side Connections

1 - Common Interface

68p-See diagram

2 - USB2.0

1-+5V k 2-Data (-) jk 3-Data (+) jk 4-Ground Gnd H

DVB-T+C_DEMOD MT5135 / CI. jk

Figure 2-2 USB (type A)

r colour abbreviations are used

Figure 2-1 Connection overview

2.3.2 Rear Connections

3 - TV ANTENNA - In

Signal input from an antenna, cable or satellite.

2011-Jun-01

EN 4 TPM8.2E LA2.

21

20

1

2

10000_001_090121.eps

090121

1

6

10

11

5

15

10000_002_090121.eps

090127

10000_017_090121.eps

090428

19

1

18 2

Technical Specs, Diversity, and Connections

4 - EXT1: Video RGB/YC - In, CVBS - In/Out, Audio - In/Out

Figure 2-3 SCART connector

1-Audio R 0.5 V 2-Audio R 0.5 V 3-Audio L 0.5 V

/ 1 kΩ k

RMS

/ 10 kΩ j

RMS

/ 1 kΩ k

RMS

4-Ground Audio Gnd H 5-Ground Blue Gnd H 6-Audio L 0.5 V 7-Video Blue/C-out 0.7 V 8-Function Select 0 - 2 V: INT

/ 10 kΩ j

RMS

/ 75 Ω jk

PP

4.5 - 7 V: EXT 16:9

9.5 - 12 V: EXT 4:3 j 9-Ground Green Gnd H 10 - n.c. 11 - Video Green 0.7 V

/ 75 Ω j

PP

12 - n.c. 13 - Ground Red Gnd H 14 - Ground P50 Gnd H 15 - Video Red/C 0.7 V 16 - Status/FBL 0 - 0.4 V: INT

/ 75 Ω j

PP

1 - 3 V: EXT / 75 Ω j 17 - Ground Video Gnd H 18 - Ground FBL Gnd H 19 - Video CVBS 1 V 20 - Video CVBS/Y 1 V 21 - Shield Gnd H

/ 75 Ω k

PP

/ 75 Ω j

PP

5 - EXT2: Video YPbPr - In, Audio - In

Gn - Video - Y 1 V Bu -Video - Pb 0.7 V Rd -Video - Pr 0.7 V Wh - Audio - L 0.5 V Rd -Audio - R 0.5 V

/ 75 Ω jq

PP

/ 75 Ω jq

PP

/ 75 Ω jq

PP

/ 10 kΩ jq

RMS

/ 10 kΩ jq

RMS

6 - Head phone (Output)

Bk -Head phone 80 - 600 Ω / 10 mW ot

7 - Cinch: S/PDIF - Out

Bk -Coaxial 0.4 - 0.6V

/ 75 Ω kq

PP

8 - Audio - In: Left / Right, VGA

Gn - Audio L/R in 0.5 V

/ 10 kΩ jq

RMS

9 - PC IN:VGA

Figure 2-4 VGA connector

1 -Video Red 0.7 V 2-Video Green 0.7 V 3-Video Blue 0.7 V 4-n.c.

/ 75 Ω j

PP

/ 75 Ω j

PP

/ 75 Ω j

PP

5-Ground Gnd H 6-Ground Red Gnd H 7-Ground Green Gnd H 8-Ground Blue Gnd H 9-+5V 10 - Ground Sync Gnd H

DC

+5 V j

11 - Ground Red Gnd H 12 - DDC_SDA DDC data j 13 - H-sync 0 - 5 V j 14 - V-sync 0 - 5 V j 15 - DDC_SCL DDC clock j

10 - HDMI: Digital Video, Digital Audio - In

Figure 2-5 HDMI (type A) connector

1-D2+ Data channel j 2-Shield Gnd H 3-D2- Data channel j 4-D1+ Data channel j 5-Shield Gnd H 6-D1- Data channel j 7-D0+ Data channel j 8-Shield Gnd H 9-D0- Data channel j 10 - CLK+ Data channel j 11 - Shield Gnd H 12 - CLK- Data channel j 13 - Easylink/CEC Control channel jk 14 - n.c. 15 - DDC_SCL DDC clock j 16 - DDC_SDA DDC data jk 17 - Ground Gnd H 18 - +5V j 19 - HPD Hot Plug Detect j 20 - Ground Gnd H

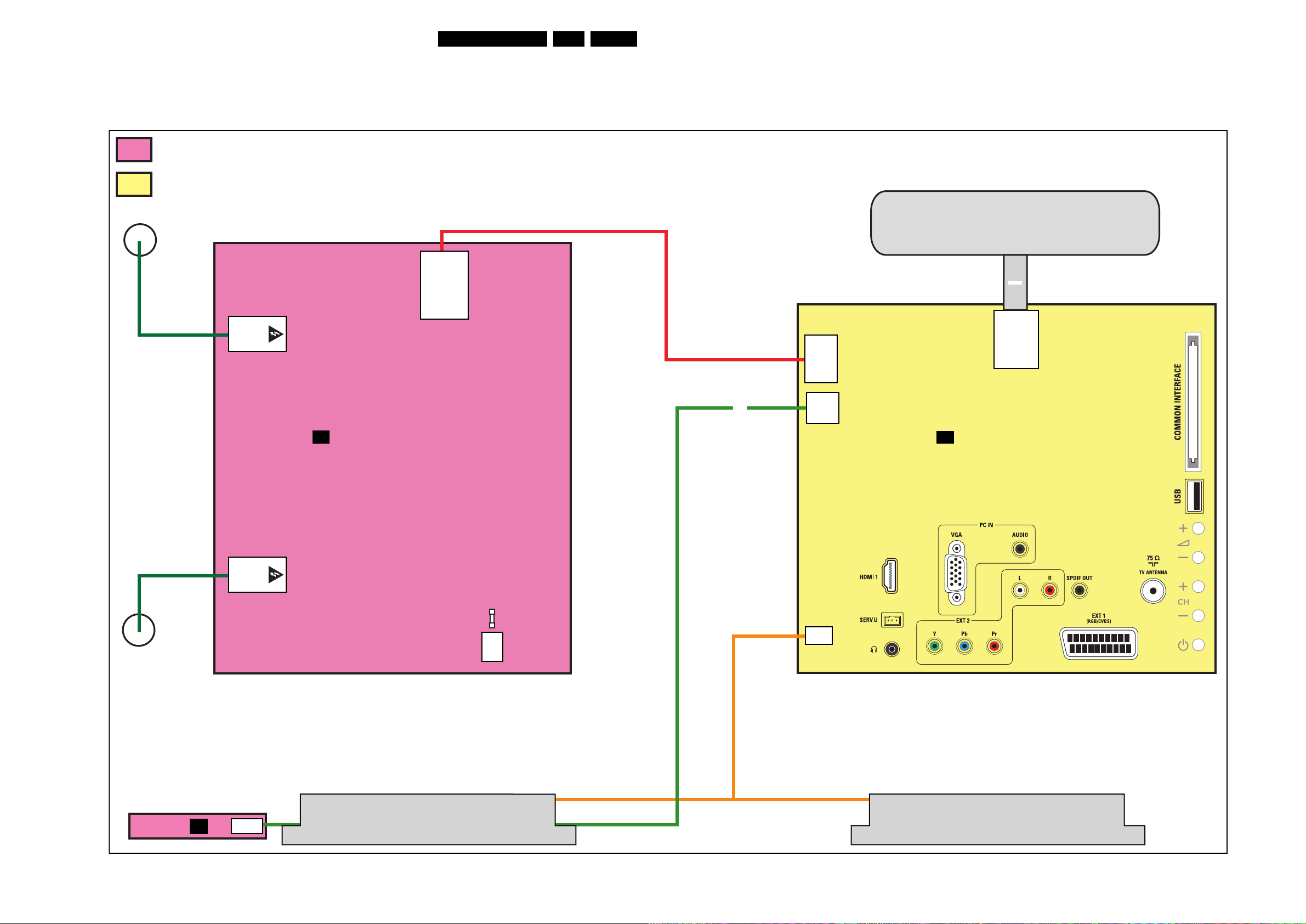

2.4 Chassis Overview

Refer to 9. Block Diagrams for PWB/CBA locations.

2011-Jun-01

11 - Service / UART

1-Ground Gnd H 2-UART_TX Transmit k 3-UART_RX Receive j

Precautions, Notes, and Abbreviation List

3. Precautions, Notes, and Abbreviation List

EN 5TPM8.2E LA 3.

Index of this chapter:

3.1 Safety Instructions

3.2 Warnings

3.3 Notes

3.4 Abbreviation List

3.1 Safety Instructions

Safety regulations require the following during a repair:

• Connect the set to the Mains/AC Power via an isolation transformer (> 800 VA).

• Replace safety components, indicated by the symbol h,

ly by components identical to the original ones. Any

on other component substitution (other than original type) may increase risk of fire or electrical shock hazard.

Safety regulations require that after a repa returned in its original condition. Pay in particular attention to the following points:

• Route the wire trees correctly and fix them with the

nted cable clamps.

mou

• Check the insulation of the Mains/AC Power lead for external d

• Check the strain relief of the Mains/AC Power cord for proper function.

• Check the electrical DC resistance between the Mains/AC Pow a Mains/AC Power isolated power supply):

1. Unplug the Mains/AC Power cord and connect a wire

2. Set the Mains/AC Power switch to the “on” position

3. Measure the resistance value between the pins of the

4. Switch “off” the set, and remove the wire between the

• Check the cabinet for defects, to prevent touching of any inner parts by the custo

amage.

er plug and the secondary side (only for sets that have

between th

(keep the Mains/AC Power cord unplugged!).

Mains/AC Powe tuner or the aerial connection on the set. The reading should be between 4.5 MΩ and 12 MΩ.

two pins o

e two pins of the Mains/AC Power plug.

r plug and the metal shielding of the

f the Mains/AC Power plug.

mer.

ir, the set must be

• Where necessary, measure the waveforms and voltages with (D) and w voltages in the power supply section both in normal operation (G) and in stand-by (F). These values are indicated by means of the appropriate symbols.

3.3.2 Schematic Notes

• All resistor values are in oh often used to indicate the decimal point location (e.g. 2K2 indicates 2.2 kΩ).

• Resistor values with no multiplier may be indicated with either an “E” or an “R

• All capacitor values are g nano-farads (n = × 10

• Capacitor values may also use the value multiplier as the decimal point indication (e.g

• An “asterisk” (*) indica to the diversity tables for the correct values.

• The correct component values are listed on the Philips Spare Parts

3.3.3 Spare Parts

For the latest spare part overview, consult your Philip Part web portal.

3.3.4 BGA (Ball Grid Array) ICs

Introduction

For more information on how to handle

http://www.atyourservice-magazine.com. Select

URL: “Magazine”, then go to “Repair downloads”. H Information on how to deal with BGA-ICs.

BGA Temperature Profiles

For BGA-ICs, you mu Where applicable and available, this profile is added to the IC Data Sheet information section in this manual.

ithout (E) aerial signal. Measure the

ms, and the value multiplier is

” (e.g. 220E or 220R indicates 220 Ω).

iven in micro-farads (μ = × 10-6),

-9

), or pico-farads (p = × 10

. 2p2 indicates 2.2 pF).

tes component usage varies. Refer

Web Portal.

BGA devices, visit this

st use the correct temperature-profile.

-12

).

s Spare

ere you will find

3.2 Warnings

• All ICs and many other semiconductors are susceptible to electrostatic discharges (ESD w). Careless handling during repair can reduce life drastically. Make sure that, during repair, you are connected with the same potential as the mass of the set by a wristband with resistance. Keep components and tools also at this same potential.

• Be careful during measurements in the high voltage

on.

secti

• Never replace modules or othe is switched “on”.

• When you align the set, use plastic rather than metal tools.

his will prevent any short circuits and the danger of a

T circuit becoming unstable.

r components while the unit

3.3 Notes

3.3.1 General

• Measure the voltages and waveforms with regard to the chassis (= on the tested area of circuitry. The voltages and waveforms shown in the diagrams are indicative. Measure them in the Service Default Mode with a colour bar signal and stereo sound (L: 3 kHz, R: 1 kHz unless stated otherwise) and picture carrier at 475.25 MHz for PAL, or 61.25 MHz for NTSC (channel 3).

tuner) ground (H), or hot ground (I), depending

3.3.5 Lead-free Soldering

Due to lead-free technology some rules h by the workshop during a repair:

• Use only lead-free soldering tin. required, please contact the manufacturer of your soldering equipment. In general, use of solder paste within workshops should be avoided because paste is not easy to store and to handle.

• Use only adequate solder tools applicable for lead-free

ldering tin. The solder tool must be able:

so – To reach a solder-tip temperature of at least 400°C. – To stabilize the adjusted temperature at the solder-tip. – To exchange solder-tips for different applications.

• Adjust your solder tool so that a temperature of around

- 380°C is reached and stabilized at the solder joint.

360°C Heating time of the solder-joint should not exceed ~ 4 sec. Avoid temperatures above 400°C, otherwise wear-out of tips will increase drastically and flux-fluid will be destroyed. To avoid wear-out of tips, switch “off” unused equipment or reduce heat.

• Mix of lead-free soldering tin/parts with leaded sold tin/parts is possible but PHILIPS recommends strongly to avoid mixed regimes. If this cannot be avoided, carefully clear the solder-joint from old tin and re-solder with new tin.

3.3.6 Alternative BOM identification

It should be noted that on the European Service website,

ernative BOM” is referred to as “Design variant”.

“Alt

If lead-free solder paste is

ave to be respected

ering

2011-Jun-01

EN 6 TPM8.2E LA3.

10000_053_110228.eps

110228

Precautions, Notes, and Abbreviation List

The third digit in the serial number (example: AG2B0335000001) indicates the number of the alternative B.O.M. (Bill Of Materials) that has been used for producing the specific TV set. In general, it is possible that the same TV model on the market is produced with e.g. two different types of displays, coming from two different suppliers. This will then result in sets which have the same CTN (Commercial Type Number; e.g. 28PW9515/12) but which have a different B.O.M. number. By looking at the third digit o identify which B.O.M. is used for the TV set he is working with. If the third digit of the serial n (example: AG1B033500001), then the TV set has been manufactured according to B.O.M. number 1. If the third digit is a “2” (example: AG2B0335000001), then the set has been produced according to B.O.M. no. 2. This is important for ordering the correct spare parts! For the third digit, the numbers 1...9 and the characters A...Z can be indicated by the third digit of the serial number.

Identification: The bottom line of a type plate gives a 14-digit serial number. Digits 1 and 2 refer to SN is Lysomice, RJ is Kobierzyce), digit 3 refers to the B.O.M. code, digit 4 refers to the Service version change code, digits 5 and 6 refer to the production year, and digits 7 and 8 refer to production week (in example below it is 2010 week 10 / 2010 week 17). The 6 last digits contain the serial number.

3.3.7 Board Level Repair (BLR) or Component Level Repair R)

(CL

If a board is defective, consult your repair procedure if the board has to be exchanged or if it should be repaired on component level. If your repair procedure says the board shou completely, do not solder on the defective board. Otherwise, it cannot be returned to the O.E.M. supplier for back charging!

3.3.8 Practical Service Precautions

• It makes sense to avoid exposure to electrical shock. Wh dangerous impact, others of quite high potential are of limited current and are sometimes held in less regard.

• Always respect vo dangerous in themselves, they can cause unexpected reactions that are best avoided. Before reaching into a powered TV set, it is best to test the high voltage insulation. It is easy to do, and is a good service precaution.

so in total: 9 plus 26= 35 different B.O.M.s can be

used,

Figure 3-1 Serial number (example)

ile some sources are expected to have a possible

f the serial nu

u

mber contains the number “1”

ltages. While some may not be

mber, one can

the production centre (e.g.

to decide

ld be

exchanged

3.4 Abbreviation List

0/6/12 SCART switch control signal on A/V

board. 0 = loop through (AUX to TV), 6 = play 16 : 9 format, 12 = play 4 : 3

m

at

for

AARA Automatic Aspect Ratio Adaptation:

algorithm that remove horizontal black bars; keeps the original aspect ratio

ACI Automatic Channel Installation:

ADC Analogue to Digital Converter AFC Automatic Frequency Control: control

AGC Automatic Gain Control: algorithm that

AM Amplitude Modulation AP Asia Pacific AR Aspect Ratio: 4 by 3 or 16 by 9 ASF Auto Screen Fit: algorithm that adapts

ATSC Advanced Television Systems

ATV See Auto TV Auto TV A hardware and software control

AV External Audio Video AVC Audio Video Controller AVIP Audio Video Input Processor B/G Monochrome TV system. Sound

BDS Business Display Solutions (iTV) BLR Board-Level Repair BTSC Broadcast Television Standard

B-TXT Blue TeleteXT C Centre channel (audio) CEC Consumer Electronics Control bus:

CL C

CLR Component Level Repair ComPair Computer aided rePair CP Connected Planet / Copy Protection CSM Customer Service Mode CTI Color Transient Improvement:

CVBS Composite Video Blanking and

DAC D DBE Dynamic Bass Enhancement: extra

DCM Data Communication Module. Also

DDC See “E-DD D/K Monochrome TV system. Sound

DFI Dynamic Frame Insertion

algorithm tha directly from a cable network by mea

ns of a predefined TXT page

signal u frequency

controls the vid box

aspect ratio to bars without discarding video information

ommittee

C the USA

system that measures pictu and adapts image parameters in a dynamic way

carrier distance is 5

ommittee

C system, originating from the USA and used e.g. in LATAM and AP-NTSC countries

remote control bus on HD connections

onstant Level: audio output to

connect with an external amp

pulates steepness of chroma

i

man transients

Synchroniza

igital to Analogue Converter

low frequency a

referred to as System Card or Smartcard (for iTV).

carrier distance is 6

adapts aspect ratio to

t installs TV channels

s

ed to tune to the correct

eo inp

remove

, the digital TV standard in

.

. Multiplex FM stereo sound

tion

m

plification

C”

.

ut of the feature

horizontal black

re content,

5 MHz

MI

l

ifier

5 MHz

2011-Jun-01

Precautions, Notes, and Abbreviation List

EN 7TPM8.2E LA 3.

DFU Directions For Use: owner's manual DMR Digital Media Reader: card reader DMSD Digital Multi Standard Decoding DNM Digital Natural Motion DNR Digital Noise Reduction: noise

n feature of the set

reductio DRAM Dynamic RAM DRM Digital Rights Management DSP Digital Signal Processing DST Dealer Service Tool: special remote

control d

esigned for service

technicians DTCP Digital Transmission Content

rotection; A protocol for protecting

P

digital audio/video content that is

traversing a high speed serial bus,

such as IEEE-1394 DVB-C Digital Video Broadcast - Cable DVB-T Digital Video Broadcast - Terrestrial DVD Digital Versatile Disc DVI(-d) Digital Visual Interface (d= digital only) E-DDC Enhanced Display Data Channel

standard for communication

(VESA

channel and display). Using E-DDC,

the video source can read the EDID

information form the display. EDID Extended Display Identification Data

standard)

(VESA EEPROM Electrically Erasable and

rogrammable Read Only Memory

P EMI Electro Magnetic Interference EPG Electronic Program Guide EPLD Erasable Programmable Logic Device EU Europe EXT EXTernal (source), entering the set by

CART or by cinches (jacks)

S FDS Full Dual Screen (same as FDW) FDW Full Dual Window (same as FDS) FLASH FLASH memory FM Field Memory or Frequency

ion

Modulat FPGA Field-Programmable Gate Array FTV Flat TeleVision Gb/s Giga bits per second G-TXT Green TeleteXT H H_sync to the module HD High Definition HDD Hard Disk Drive HDCP High-bandwidth Digital Content

rotection: A “key” encoded into the

P

HDMI/DVI signal that prevents video

data piracy. If a source is HDCP coded

and connected via HDMI/DVI without

the proper HDCP decoding, the

picture is put into a “snow vision” mode

or changed to a low resolution. For

normal content distribution the source

and the display device must be

enabled for HDCP “software key”

decoding. HDMI High Definition Multimedia Interface HP HeadPhone I Monochrome TV system. Sound

rier distance is 6.0 MHz

2

C Inter IC bus

I

2

D Inter IC Data bus

I

2

S Inter IC Sound bus

I

car

IF Intermediate Frequency IR Infra Red IRQ Interrupt Request ITU-656 The ITU Radio communication Sector

-R) is a standards body

(ITU

subcommittee of the International

Telecommunication Union relating to

radio communication. ITU-656 (a.k.a.

SDI), is a digitized video format used for broadcast grade video. Uncompressed digital component or digital composite signals can be used. The SDI signal is self-synchronizing, uses 8 bit or 10 bit data words, and has a maximum data rate of 270 Mbit/s, with a minimum bandwidth of 135 MHz.

iTV Institutional TeleVision; TV sets for

hotels, hosp

itals etc.

LS Last Status; The settings last chosen

by the custo

mer and read and stored in RAM or in the NVM. They are called at start-up of the set to configure it according to the customer's preferences

LATAM Latin America LCD Liquid Crystal Display LED Light Emitting Diode L/L' Monochrome TV system. Sound

distance is 6.5 MHz. L' is Band

carrier I, L is all bands except for Band I

LPL LG.Philips LCD (supplier) LS Loudspeaker LVDS Low Voltage Differential Signalling Mbps Mega bits per second M/N Monochrome TV system. Sound

carrier distance is 4.5 MH

z

MHEG Part of a set of international standards

related to

the presentation of multimedia information, standardised by the Multimedia and Hypermedia Experts Group. It is commonly used as a language to describe interactive television services

MIPS Microprocessor without Interlocked

eline-Stages; A RISC-based

Pip microprocessor

MOP Matrix Output Processor MOSFET Metal Oxide Silicon Field Effect

Transistor, switching d

evice MPEG Motion Pictures Experts Group MPIF Multi Platform InterFace MUTE MUTE Line MTV Mainstream TV: TV-mode with

Consumer TV features enabled (iTV) NC Not Connected NICAM Near Instantaneous Compounded

Audio Multiplexing. This is a digital

sound system, mainly used in Europe. NTC Negative Temperature Coefficient,

non-linear resistor NTSC National Television Standard

Committee. Color system mainly used

America and Japan. Color

in North

carrier NTSC M/N= 3.579545 MHz,

NTSC 4.43= 4.433619 MHz (this is a

VCR norm, it is not transmitted off-air) NVM Non-Volatile Memory: IC containing

ted data such as alignments

TV rela O/C Open Circuit OSD On Screen Display OAD Over the Air Download. Method of

software

upgrade via RF transmission. Upgrade software is broadcasted in TS with TV channels.

OTC On screen display Teletext and

Control; also

called Artistic (SAA5800)

P50 Project 50: communication protocol

en TV and peripherals

betwe

PAL Phase Alternating Line. Color system

mainly used in West Europe (colour

arrier = 4.433 619 MHz) and South

c America (colo

ur carrier

2011-Jun-01

EN 8 TPM8.2E LA3.

Precautions, Notes, and Abbreviation List

PAL M = 3.575 612 MHz and

PAL N = 3.582 056 MHz) PCB Printed Circuit Board (same as “PWB”) PCM Pulse Code Modulation PDP Plasma Display Panel PFC Power Factor Corrector (or Pre-

nditioner)

co PIP Picture In Picture PLL Phase Locked Loop. Used for e.g.

tuning systems. The customer

FST

can give directly the desired frequency POD Point Of Deployment: a removable

CAM module, impleme

nting the CA

system for a host (e.g. a TV-set) POR Power On Reset, signal to reset the uP PSDL Power Supply for Direct view LED

ht with 2D-dimming

backlig PSL Power Supply with integrated LED

drivers PSLS Power Supply with integrated LED

drivers wit

h added Scanning

functionality PTC Positive Temperature Coefficient,

non-linear resistor PWB Printed Wiring Board (same as “PCB”) PWM Pulse Width Modulation QRC Quasi Resonant Converter QTNR Quality Temporal Noise Reduction QVCP Quality Video Composition Processor RAM Random Access Memory RGB Red, Green, and Blue. The primary

lor signals for TV. By mixing levels

co

of R, G, and B, all colors (Y/C) are

reproduced. RC Remote Control RC5 / RC6 Signal protocol from the remote

ntrol receiver

co RESET RESET signal ROM Read Only Memory RSDS Reduced Swing Differential Sig

nalling

data interface R-TXT Red TeleteXT SAM Service Alignment Mode S/C Short Circuit SCART Syndicat des Constructeurs

reils Radiorécepteurs et

d'Appa

Téléviseurs SCL Serial Clock I SCL-F CLock Signal on Fast I SD Standard Definition SDA Serial Data I SDA-F DAta Signal on Fast I

2

C

2

C bus

2

C

2

C bus SDI Serial Digital Interface, see “ITU-656” SDRAM Synchronous DRAM SECAM SEequence Couleur Avec Mémoire.

Colour system ma

inly used in France and East Europe. Colour carriers = 4.406 250 MHz and

4.250 000 MHz

SIF Sound Intermediate Frequency SMPS Switched Mode Power Supply SoC System on Chip SOG Sync On Green SOPS Self Oscillating Power Supply SPI Serial Peripheral Interface bus; a 4-

chronous serial data link

wire syn standard

S/PDIF Sony Philips Digital InterFace SRAM Static RAM SRP Service Reference Protocol SSB Small Signal Board SSC

Spread Spectrum Clocking, used to reduce the effects of EMI

STB Set Top Box STBY STand-BY

SVGA 800 × 600 (4:3) SVHS Super Video Home System SW Software SWAN Spatial temporal Weighted Averaging

ise reduction

No SXGA 1 280 × 1024 TFT Thin Film Transistor THD Total Harmonic Distortion TMDS Transmission Minimized D

ifferential

Signalling TS Transport Stream TXT TeleteXT TXT-DW Dual Window with TeleteXT UI User Interface uP Microprocessor UXGA 1 600 × 1 200 (4:3) V V-sync to the module VESA Video Electronics Standards

ssociation

A VGA 640 × 480 (4:3) VL Variable Level out: processed audio

put toward external amplifier

out VSB Vestigial Side Band; modulation

od

meth WYSIWYR What You See Is What You Record:

rd selection that follows main

reco

picture and sound WXGA 1 280 × 768 (15:9) XTAL Quartz crystal XGA 1 024 × 768 (4:3) Y Luminance signal Y/C Luminance (Y) and Chrominance (C)

signal YPbPr Component video. Luminance and

scaled color difference

signals (B-Y

and R-Y) YUV Component video

2011-Jun-01

4. Mechanical Instructions

19120_100_110511.eps

110511

Mechanical Instructions

EN 9TPM8.2E LA 4.

Index of this chapter:

4.1 Cable Dressing

4.2 Service Positions

4.3 Assembly/Panel Removal

4.4 Set Re-assembly

4.1 Cable Dressing

Notes:

• Figures below can deviate slightly from the actual situation, due to th

e different set executions.

Figure 4-1 Cable dressing 19"

2011-Jun-01

19120_101_110511.eps

110511

EN 10 TPM8.2E LA4.

Mechanical Instructions

Figure 4-2 Cable dressing 22"

2011-Jun-01

19120_102_110527.eps

110527

Mechanical Instructions

EN 11TPM8.2E LA 4.

4.2 Service Positions

For easy servicing of a TV set, the set should be put face down on a soft flat surface, foam buffers or other specific workshop tools. Ensure that a stable situation is created to perform measurements and alignments. When using foam bars take care that these always support the cabinet and never only the display. Caution: Failure to follow these guidelines can seriously damage the display! Ensure that ESD safe measures are taken.

4.3 Assembly/Panel Removal

Instructions below apply to the 22PFL3606H/12, but will be similar for other models.

4.3.1 Rear Cover

Refer to Warning: Disconnect the mains power cord before removing the rear cover.

1. Remove the fixation screws [1] and [2] that secure the rear

2. At the indicated areas [3] the cover is secured by clips. Be

3.

Figure 4-4 for details.

cover. Refer to

very careful with releasing those. Lift the rear cover from the TV. Make sure that wires and flat foils are not damaged while lifting th the set.

Figure 4-4 for details.

e rear cover from

Figure 4-3 Cable dressing 26"

2011-Jun-01

19120_103_110512.eps

110526

1

2 × 12

M3 × 6

2

1

2

1

3

EN 12 TPM8.2E LA4.

19120_104_110512.eps

110530

2

1

3

Mechanical Instructions

4.3.2 Small Signal Board (SSB)

Refer to Caution: it is ma original position during re-assembly. Failure to do so may result in damaging the SSB.

1. Release the clips from both th

2. Release the clamps and unplug all other connectors [2].

3. Remove all fixation screws [3] from the SSB.

4. Take out of the SSB. Refer to

Figure 4-5 for details.

ndatory to remount all different screws at their

e LVDS ca connectors that connect to the SSB [1]. Caution: be careful, as these are ve

ry fragile connectors!

Figure 4-5 for details.

2011-Jun-01

Figure 4-5 SSB removal

Figure 4-4 Rear cover removal

bles/Flat Foils

4.3.3 Power Supply Unit (PSU)

Caution: it is mandatory to

original position during re-assembly. Failure to do so may result in damaging the PSU.

1. Release the Power board cables fro

2. Unplug power connectors from the SSB, as it is not unplugable at the P

3. Unplug all other connectors from the PSU.

4. Remove all fixation screws from the PSU.

5. The PSU can be taken out of the set now.

4.3.4 Speakers

1. Unplug speaker connector from the SSB.

2. Release speaker cables from the clamp

3. Take the speakers out.

When defective, replace both units.

4.3.5 IR/LED Board

1. Unplug the connectors from the IR/LED board.

2. Release the clips that hold the board and take it out from the bezel.

When defective, replace

4.3.6 LCD Panel 19"/22"

1. Release the LVDS connector from the LCD panel.

2. Release the lamp connectors from the PSU.

3. Take out the speakers, as described earlier.

4. Remove the IR/LED board as described earlier.

SU itself (soldered connector).

remount all different screws at their

m

their clamps.

s

both units.

.

5. Release all tapes that fit cables to the back side of the LCD panel.

6. Remove all fixation screws of the sub frames on the sides

the LCD panel.

of

7. Lift the sub frames, together with the mounted panels from

e LCD panel and put it aside.

th

8. Lift the LCD panel from the front bezel.

When defective, replace the whole unit.

4.3.7 LCD Panel 26"

1. Release the LVDS connector from the LCD panel.

2. Release the lamp connectors from the PSU.

3. Take out the speakers, as described

4. Remove the IR/LED board as described earlier.

5. Remove the PSU, as described earlier.

6. Remove the SSB, as described earlier.

7. Release all tapes that fit cables to the back side of the LCD

nel.

pa

8. Remove all fixation screws of these frames.

9. Remove all fixation screws of the clamps on the sides of

e LCD panel and take out these clamps.

th

10. Lift the LCD panel from the front bezel.

When defective, replace the whole unit.

earlier.

the sub frames and take out

Mechanical Instructions

EN 13TPM8.2E LA 4.

4.4 Set Re-assembly

To re-assemble the whole set, execute all processes in reverse order.

Notes:

• While re-assembling, make sure that a and connected in their original position. See

Figure 4-3.

• Pay special attention not to damage the EMC foams on the

elds. Ensure that EMC foams are mounted

SSB shi correctly.

ll cables are placed

Figure 4-1 to

2011-Jun-01

EN 14 TPM8.2E LA5.

Service Modes, Error Codes, and Fault Finding

5. Service Modes, Error Codes, and Fault Finding

Index of this chapter:

5.1 Test Points

5.2 Service Modes

5.3 Stepwise Start-up

5.4 Service Tools

5.5 Software Upgrading

5.6 Error Codes

5.7 The Blinking LED Procedure

5.8 Fault Finding and Repair Tips

5.1 Test Points

As most signals are digital, it will be difficult to measure waveforms with a standard oscilloscope. However, several key ICs are capable of generating test patterns, which can be controlled via ComPair. In this way it is possible to determine which part is defective.

Perform measurements under the following conditions:

• Service Default Mode.

• Video: Colour bar signal.

• Audio: 3 kHz left, 1 kHz right.

5.2 Service Modes

The Service Mode feature is split into four parts:

• Service Default Mode (SDM).

• Service Alignment Mode (SAM).

• Customer Service Mode (CSM).

• Computer Aided Repair Mode (ComPair).

Table 5-1 Service mode overview

Service Modes Description

SAM Service alignment mode SDM Service default Mode CSM Customer Service Mode, a 3-page compact

USB software

deable

upgra

NVM-Editor in SAM

Service Data New Service data in SAM for CTN, Prod.

USB copy/paste

M

in SA UART logging UART logging is available , however no

Blind SAM Remote control sequence “062598” +

Clear Buffer RC sequence “062599” + “OK” or via SAM

SDM and SAM offer features, which can be used by the Service

ngine

er to repair/align a TV set. Some features are:

e

• A pre-defined situation to ensure measurements can be made under uniform conditions (S

• Activates the blinking LED procedure for error identification when no p

• Make alignments (e.g. White Tone), reset the error buffer (SAM).

tus overview of the set. These pages will

sta be written to a dump file on a USB stick upon entering CSM-mode

Software upgrad MTK-chips MT5366 can be done via USB. The main software can be upgraded via Autorun.upg

NVM-editor provides address and data field editing

no., and 1 ke

yboard

Channe

l list, NVM data, Readable info,

EDID

specification of the MTK definition.

“Menu” + “Panel code”

i

cture is available (SDM).

ing of flash memories

2NC programming with a virtual

output, according to

DM).

memory

• Display information (“SDM” or “SAM” indication in up right corner of screen, error buffer, software version, operating hours, options and option codes, sub menus).

CSM is a Service Mode that can be enabled by the consumer. CSM displays d forward to the dealer or call centre. In CSM mode, “CSM”, is displayed in the top right corner of the screen. The information provided in CSM and the purpose of CSM is to:

• Increase the home repair hit rate.

• Decrease the number of nuisance calls.

• Solve customer problems without home visit.

ComPair Mode is used for communication between a computer and a T engineer to quickly diagnose the TV set by reading out error codes, read and write in NVMs, communicate with ICs and the μP (PWM, registers, etc.), and by making use of a fault finding database. It will also be possible to up and download the software of the TV set via I ComPair has to be connected to the TV set via the ComPair connector, which will be accessible through the rear of the set (without removing the rear cover).

Note: For the new model range, a new remote control (RC) is used with some rename activation of the Service modes. For instance the old “MENU” button is now called “HOME” (or is indicated by a “house” icon).

5.2.1 General

Next items are applicable to all S

Life Timer

During the life time cycle of the TV set, a timer is ke “Op. Hour”). It counts the normal operation hours (not the Stand-by hours). The actual value of the timer is displayed in SDM and SAM in a decimal value. Every two soft-resets increase the hour by + 1. Stand-by hours are not counted.

Software Identification, Version, and Cluster

The software ID, version, and cluster will be shown in the main menu display of SDM, SAM, an

screen will show: “AAAAAB X.YY”, where:

The

• AAAAA is the chassis name.

• B is the region indication: E = Europe NAFTA, L = LATAM.

• X is the main version number: this is updated wit change of specification (incompatible with the previous software version). Numbering will go from 01 - 99 and AA - ZZ.

- If the main version number changes, the new version numbe

- If the main version number changes, the default settings are loaded. YY is the sub version number: this is updated w

• change (backwards compatible with the previous versions). Numbering will go from 00 - 99.

- If the sub version number changes, the new version numbe

- If the NVM is fresh, the software ide and cluster will be written to NVM.

5.2.2 Service Default Mode (SDM)

Purpose

Set the TV in SDM mode in order to be able to create a pred

efine platform, a simplified SDM is introduced (without protection override and without tuning to a predefined frequency).

iagnosis information, which the customer can

2

C /UART level and can be used by a Service

V

on I

2

C with help of ComPair. To do this,

d buttons. This has an impact on the

e

rvice Modes or are general.

d CSM.

, A

r is writt

en in the NVM.

r is writt

en in the NVM.

ntification,

d setting for measurements to be made. In this

per

pt (called

= AP/China, U =

h a major

ith a minor

version,

2011-Jun-01

Service Modes, Error Codes, and Fault Finding

19120_200_110512.eps

110512

19120_201_110512.ep

s

110512

EN 15TPM8.2E LA 5.

Specifications

• Set linear video and audio settings to 50%, but volume to 25%. Stored use

• All service-unfriendly modes (if present) are disabled,

r settings are not affected.

since they interfere with diagnosing/repairing a set. These service unfriendly modes are: – (Sleep) timer. – Blue mute/Wall paper. – Auto switch “off” (when there is no “ident” signal). – Hotel or hospital mode.

V

– Child lock or parental lock (manual or via

-chip).

– Skipping, blanking of “Not favourite”, “Skipped” or

“Locked” presets/channels. Automatic storing of Personal Preset or Last Status

–

settings.

– Automatic user menu time-out (menu switches back/

F automatically.

OF

– Auto Volume levelling (AVL).

How to Activate SDM

To activate SDM, use the following methods:

• Press the following key sequence on the

RC transmitter: “062596”, directly followed by the “MENU” button. Note: It is possible that,

together with the SDM, the main menu will appear. To switch it “off”, push the “MENU” button again.

After activating this mode, “SDM” will appear in the upper left corner of the screen (when a picture is available).

On Screen Menu

After activating SDM, the following

items are

displayed, with “SDM” in the upper right corner of the screen to indicate that the television is in Service Default Mode. Menu items and explanation:

xxx Operating hours (in decimal).

• xx

• AAAAAB X.YY See

paragraph Software Identification,

Version, and Cluster for the SW name definition.

• ERR Shows all errors detected sinc

e the last time the buffer was erased in format <xxx> <xxx> <xxx> <xxx> <xxx> (five errors possible).

• OP Used to read-out

the option bytes.

Ten

codes (in two rows) are possible.

• Press the following key sequence on the remote control transmitter: “062596” directly followed by the OK button to

itch to SAM

sw

(do not allow the display to time out between entries while keying the sequence). Remarks: new RC will not have I+ button, but function still remains.

How to Exit SDM

• Switch the set to Stand-by, by pressing the standby button on the remote control transmitter or on the television set. Via a standard customer RC-transmitter: key

• in “00”-sequence.

f the TV is switched “off” by a power interrupt while

Note: I in

SDM, the TV will show up in the last status of SDM menu as soon as the power is supplied again. The error buffer will not be cleared.

5.2.3 Service Alignment Mode (SAM)

Purpose

• To modify the NVM.

• To display/clear the error code buffer.

• To perform alignments.

Specifications

• Operation hours counter (maximum five digits displayed).

• Software version, error codes, an

d option se

ttings display.

• Error buffer clearing.

• Option settings.

• Software alignments (White Tone).

• NVM Editor.

• Set screen mode to full screen (all conten

Activate SAM

How to

t is visible).

To activate SAM, use one of the following methods:

• Press the following key sequence on the remote control transmitter: “062596”,

directly followed by the “OK” button. Do not allow the display to time out between entries while keying the sequence.

• Or via ComPair. After entering SAM, the following items are displayed, with “SAM” in the upper right corner of the screen to indicate that the televisio

n is in Service Alignmen

t Mode.

Figure 5-1 SDM menu

How to Navigate

As this mode is read only, there is not much to na

vigate. T

o

switch to other modes, use one of the following methods:

• Command MENU from the user remote will enter the rmal user menu (brightness, contrast, colour, e

no

tc...) with “SDM” OSD remaining, and pressing MENU key again will return to the last status of SDM again.

• To prevent the OSD from interfering with measurements in SDM, comman

d “OSD” or “i+” (“STATUS” or “INFO” for NAFTA and LATAM) from the user remote will toggle the OSD “on/off” with “SDM” OSD remaining always “on”.

Figure 5-2 Example of SAM

2011-Jun-01

EN 16 TPM8.2E LA5.

Service Modes, Error Codes, and Fault Finding

Table 5-2 SAM mode overview

Main Menu Sub-menu 1 Sub-menu 2 Description

System Information Op Hour This represents the life timer. The timer counts normal oper ation hours, but does not count

Main SW ID e.g. “TPM82E 1.068A” See paragraph Software Identification, Version, and Cluster for the SW name definition. ERR e.g. “000 000 000 000 000” Shows all errors detected since the last time the buffer was erased. Five errors possible. OP1 e.g. “012 004 192 002 156 032 007

OP2 e.g. “056 023 000 106 064 000 000

Clear Press [OK] to clean the Error

RGB Align Warm R Gain To align the White Tone. See

NVM editor Address Select and fill the NVM address

Upload to USB Copy Channel List to USB To upload several settings from the TV to an USB stick

Download from USB Copy Channel List from USB To download several settings from the USB stick to the TV

Initialize NVM Press [OK] to Initialize NVM

EDID Write Enable Press [OK] to enable EDID

Service Data Type Number Press [OK] use key pad edit type

Clear OAD Version Press [OK] to clean OAD

des immediately

Co

Normal R Gain

Cool R Gain

Store Store the RGB value

Value Select and fill the NVM value Store Store the value in the address

Copy NVM to USB Copy Readable Info to USB Copy Edid to USB

Copy NVM from USB Copy Readable Info from USB Copy Edid from USB

mediately

im

writable immediately

Production Number Press [OK] use key pad edit

12NC SSB Press [OK] use key pad edit SSB

12NC PSU Press [OK] use key pad edit PSU

12NC Display Press [OK] use key pad edit display

Version immediately

026”

122”

G Gain B Gain

number immediately

production number immediately

immediately

Stand-by hours.

Option code is hard coded in SW, it cannot be edited in SAM mode. Only to show in SAM system information.

Erases the contents of the error buffer. Select this menu item and press the MENU RIGH T key on the remote control. The content of the error buffer is cleared.

paragraph

6.3 Software Alignments in the Alignments section for a detailed description

To initialize a (corrupted) NVM. Be careful, this will erase all settings.

Enable EDID writable

Use Key pad to edit several service data

Clean OAD Version

How to Navigate

• In the SAM menu, select menu items with the UP/DOWN keys on the remote control transmitter. T will be indicated. When not all menu items fit on the screen, use the UP/DOWN keys to display the next/previous menu items.

• With the “LEFT/RIGHT” keys, it –

(De) activate the selected menu item.

is possible to:

– (De) activate the selected sub menu. – Change the value of the selected menu item.

• When you press the MENU button twice while in top level

M,

the set will switch to the normal user menu (with the

SA SAM mode still active in the background). To return to the SAM menu press the MENU button.

• The “INFO [i+]” key from the user remote will toggle the

“on/off” with “SAM” OSD remaining always

OSD

• Press the following key sequence on the remote control transmitter: ì062596î directly follow

ed by the MENU button to switch to SDM (do not allow the display to time out between entries while keying the sequence). Remarks: new RC will not have I+ button, but function still remain.

How to Store SAM Settings

To store the settings changed in SAM mode (except the

ALIGN settings), leave the top level SAM menu by using

B

RG the POWER butt

2011-Jun-01

on on the remote control transmitter or the

he selected item

“on”.

television set. The mentioned exceptions must be stored separately via the STORE button.

How to Exit SAM

Use one of the following methods:

• Switch the set to STANDBY by pressing the mains button e remote control transmitter or th

on th

e television set.

• Via a standard RC-transmitter, key in “00” sequence.

When the TV is switched “off” by a power interrupt while

Note: in SA

M, the TV will show up in “normal operation mode” as soon as the power is supplied again. The error buffer will not be cleared.

5.2.4 Customer Service Mode (CSM)

Purpose

The Customer Service Mode shows error codes and information on the

TV’s operati

on settings.The call centre can instruct the customer (by telephone) to enter CSM in order to identify the status of the set.This helps the call centre to diagnose problems and failures in the TV set before making a service call.

modifications are not

The CSM is a read-only mode; therefore, possible in this mode.

Service Modes, Error Codes, and Fault Finding

19120_202_110512.eps

110512

19120_20

3_110512.eps

110512

19120_204_110512.eps

110512

EN 17TPM8.2E LA 5.

Specifications

• Ignore “Service unfriendly modes”.

• Line number for every line (to make CSM language independent).

• Set the screen mode to full screen (all contents on screen is visible).

• After leaving the Customer Service Mode, the original

ed.

settings are resto

• Possibility to use “CH+” or “CH-” for chan

r

nel surf

ing, or

enter the specific channel number on the RC.

How to Activate CSM

To activate CSM, press the following ke

y sequence on a standard remote control transmitter: “123654” (do not allow the display to time out between entries while keying the sequ

ence). After entering the Customer Service

Mode, the following items are displayed.

Note: Activation of

the CSM is

only possible if there is no (user)

menu on the screen!

• 1.4 Option Co

de 1 Gives the option codes of option group

1 as set in SAM.

Co

• 1.5 Option

de 2 Gives the option codes of option group

2 as set in SAM.

• 1.6 SSB Gives an identifi

cation of the SSB as stored in NVM. Note that if an NVM is replaced or is initialized after corruption, this identification number has to be re-written to NVM. This identification number is the 12NC number of the SSB.

lay

• 1.7 Disp

Displays the 12NC of the NVM.

• 1.8 PSU Displays the 12NC of the PSU.

• 2.1 Current Main SW Displays the

built-in main software version. In case of field problems related to software, software can be upgraded. As this software is consumer upgradeable, it will also be published on the Internet.

• 2.2 Standb

y SW Displays the built-in stand-by processor software version. Upgrading this software will be possible via USB.

el Cod

• 2.3 Pan

• 2.4 NVM version D

• 3.1 Signal Quality/Present Analo

e Displays the Display Code number.

etects and displays NVM version.

gue/digital signal

strength.

• 3.2 Child lock Not active / active. This is a combined item for locks. If any lock (channel lock, parental lock) is active, the item shall show “a

• 3.3 HDC

P keys Indi

ctive”.

cates if the HDMI keys (or HDCP keys) are valid or not. In case these keys are not valid and the customer wants to make use of the HDMI functionality, the SSB has to be replaced.

Figure 5-3 CSM Menu [1/3]

Figure 5-4 CSM Menu [2/3]

Figure 5-5 CSM Menu [3/3]

Contents of CSM

• 1.1 Set Type T

his information is very helpful for a helpdesk/workshop as reference for further diagnosis. In this way, it is not necessary for the customer to look at the rear of the TV-set. Note that if an NVM is replaced or is initialized after corruption, this set type has to be re-written to NVM.

.2 Production code Displays the pro

• 1

duction code (the serial number) of the TV. Note that if an NVM is replaced or

is initialized after corruption, this production

code has to be re-written to NVM.

3 Installation date Indicates the date of t

• 1.

he first installation of the TV. This date is acquired via time extraction.

How to Navigate

By means of the “CURSOR-DOWN/UP” knob (or the scroll wheel) on the RC-t

ransmitter, can be navigated through the

menus.

How to Exit CSM

To exit CSM, use one of the following methods.

• Press the MENU/HOME button on the remote control transmitter.

• Press the POWER button on the remote control transmitter.

• Press the POWER button on the television set.

5.2.5 Blind SAM Display Option Code Selection

When after an SSB or display exchange, the display option

is not set pro

code

perly, it will result in a TV with “no display”. Therefore, it is required to set this display option code after such a repair. To do so, press the following key sequence on a standard RC transmit

ter: “062598”

directly followed by MENU and “xxx”, where “xxx” is a 3 digit decimal value of the panel type: see column “Display Code” in

Table 6-2. When the value is

accepted and stored in NVM, the set will switch to Stand-by, to indicate that the process has been completed. During this bec

algorithm, the NVM-content must be filtered,

a

use several items in the NVM are TV-related and not SSB related (e.g. Model and Prod. S/N). Therefore, “Model” and “Prod. S/N” data is changed into “See Type Plate”. In case a call cen

tre or consumer reads “See

Type Plate” in CSM mode, he needs to look to the side/bottom sticker to identify the set, for further actions.

2011-Jun-01

EN 18 TPM8.2E LA5.

19080_206_110323.eps

110401

Power Off

Standby Soft Mode

Power On

Semi- Standby

Standby

Switch

Off(Mains Power Plug)

Standby Soft Mode Command Received, previously in Standby

Soft Mode (Power tact switch)

TV Wakeup commands Received (TV Wakeup keys)

Digital background tasks started

Digital background tasks completed

Swith On, previously in

Standby/Semi- Standby (Mains Power Plug)

Standby Soft Mode

Command Received (Power tact

switch)

Switch Off (Mains Power Plug)

Switch Off

(Mains Power Plug)

Swith On, previously in Standby Soft Mode (Mains Power Plug)

Standby commands

Received (RC

Standby key)

Standby Soft Mode

Command Received, previously in Standby Soft Mode (Power tact switch)

TV Wakeup commands Received (TV Wakeup keys)

Switch On, previously in Power On Mode (Power tact switch)

Standby Soft Mode Command Received, (Power tact switch)

Switch Off (Mains Power Plug)

Swith On,previously in TV Operation Mode (Mains Power Plug)

5.3 Stepwise Start-up

Service Modes, Error Codes, and Fault Finding

2011-Jun-01

Figure 5-6 Stepwise Start-up

Service Modes, Error Codes, and Fault Finding

10000_036_090121.eps

091118

TO

UART SERVICE

CONNECTOR

TO

UART SERVICE

CONNECTOR

TO I2C SERVICE CONNECTOR

TO TV

PC

HDMI I

2

C only

Optional power

5V DC

ComPair II Developed by Philips Brugge

RC out

RC in

Optional

Switch

Power ModeLink/

Activity

I

2

C

ComPair II

Multi

function

RS232 /UART

EN 19TPM8.2E LA 5.

5.4 Service Tools

5.4.1 ComPair

Introduction

ComPair (Computer Aided Repair) is a Service tool for Philips Cons

umer Electronics products. and offers the following:

1. ComPair helps to quickly get an understanding on how to repair the chassis in a short and effective

2. ComPair allows very detailed di capable of accurately indicating problem areas. No knowledge on I

2

C or UART commands is necessary,

because ComPair takes care of this.

3. ComPair speeds up the repair time since it can

tomatically communicate with the chassis (when the

au microprocessor is working) and all repair information is directly available.

4. ComPair features TV software up possibilities.

Specifications

ComPair consists of a Windows based fault find and an interface box between PC and the (defective) product. The ComPair II interface box is connected to the PC via an USB cable. For the TV chassis, the ComPair interface box and the TV communicate via a bi-directional cable via the service connector(s). The ComPair fault finding program is able to dete problem of the defective television, by a combination of automatic diagnostics and an interactive question/answer procedure.

How to Connect

This is described in the chassis fau ComPair.

agnostics and is therefore

t finding database in

l

way.

ing progra

mine the

r

m

Note: When you encounter problems, contact your lo support desk.

Additional cables for VCOM Alignment

• ComPair/I2C interface cable: 3122 785 90004.

• ComPair/VGA adapter cable: 9965 100 09269.

Note: When you encounter problems, contact your lo support desk.

5.5 Software Upgrading

5.5.1 Description

It is possible for the user to upgrade the main software via the USB port. This allo stand alone set. A description on how to upgrade the main software can be found in the DFU or on the Philips website.

5.5.2 Introduction

Philips continuously tries to imp recommend that the TV software is updated when updates are available. Software update files can be obtained from the dealer or can be downloaded from the following websites:

http://www.philips.com/support

Preparing a portable memory for software upgrade

The following requirements have to be met:

1. A personal computer connected to the Internet.

2. An archive utility that supports the for Windows or

3. A USB flash drive (preferably empty).

ws replacement of a software image in a

r

ove its products, and it’s

ZIP-format (e.g. WinZip

Stufflt for Mac OS).

cal

Figure 5-7 ComPair II interface connection

Caution: It is compulsory to connect the TV to the PC a

shown in the picture above (with the ComPair interface in between), as the ComPair interface acts as a level shifter. If one connects the TV directly to the PC (via UART), ICs can be blown!

Note:

1. Only FAT/DOS-formatted flas

h drives are supported.

2. Only use software update files that can be found on the

http://www.philips.com/support web site.

5.5.3 Check the current TV software version

Before starting the software upgrade procedure, it is advised to check that what

the curren

t TV software:

1. Press the “123654” button on the remote control to enter the CSM mode. Use the up/down cursor keys to select “Current Main

2. Software”.

If the current software version of the TV is the same as the latest update file found on

http://www.philips.com/support, it is

not necessary to update the TV software.

5.5.4 Download the latest software

1. Point the web browser to

http://www.philips.com/support.

2. Find information and software related to the TV.

3. Select the latest software update file and download it to the PC.

4. Insert a USB flash drive into one of the USB ports of the

s

PC.

5. Decompress the downloaded ZIP file and copy the

un.upg” to the root directory of the USB flash drive.

r

“auto

5.5.5 Update the TV software

How to Order

ComPair II order codes:

• ComPair II interface: 3122 785 91020.

• Software is available via the Philips Service web p ComPair UART interface cable for TPM8.2x xx.

• (using DB9 to 2mm

pitch JST connector): 3122

ortal.

785 90630.

1. Insert mains power and wait for system to boot completely.

2. Insert the USB flash drive that contains the software update files.

3. The TV will detect the USB flash drive automatically. a window jumps out as

Figure 5-8.

Then

Note: If the USB flash drive is not detected after power up, disconnect it

4. Select [Update] and press OK. See

and re-insert it.

Figure 5-8.

2011-Jun-01

EN 20 TPM8.2E LA5.

19080_208_110324.eps

110324

19080_209_110324.eps

110324

Service Modes, Error Codes, and Fault Finding

5. To proceed, In next menu select [Start] and press OK to start software updates. See

Figure 5-9.

6. Upgrading will now begins and the status of the updating progress will be displayed.

7. When the TV software is updated. Remove your USB flash

then select [Restart] and press OK to restart t

drive,

Figure 5-10.

TV.See

19080_207_110324.eps

he

110324

Figure 5-8 Update the TV software [1/3]

5

.5.6 Content and Usage of the One-Zip Software File

Below you find a content explanation of the One-Zip file, and instructions on how and when t

o use it. Only files that are

relevant for Service are mentioned here.

• EDID

_clustername.zip: C

ontains the EDID content of the

different EDID NVMs. See ComPair for further instructions.

• FUS_clustername_version.zip: Contains t “autorun.upg” which is needed to upgrade the TV main software and the software download application.

uste

• NVM_cl

rname_version.zip: Default NVM content.

Must be programmed via ComPair.

5.5.7 How to Copy NVM Data to/from USB

When copying data to and from a USB memory stick, the folder “repair” is used

. When inserting an empty USB memory stick, and downloading data to the stick, the TV will create this folder. When sending data from a USB memory stick to a TV, the intended data must be available in the “repair” folder. Note that when copying EDID data to the TV, all necessary EDID files must be in this folder While copying to

or from the USB “Repair” F

.

older to TV, the

files need to be named accordingly:

• Channel List: CM_TPS82E_LA_CK.BIN

• EDID 1: HDMI_1_EDID_TPM82E_LA_CK.BIN

• EDID 2: HDMI_2_EDID_TPM82E_LA_CK.BIN

• VGA_EDID: VAG_EDID_TPM82E_LA_CK.BIN

• NVM: NVM_TPM82E_LA_CK.BIN For copying EDID data to the TV, all 3 EDID files need to be available in

repair directory.

he

Figure 5-9 Update the TV software [2/3]

Figure 5-10 Update the TV software [3/3]

Note:

• Do not remove the USB flash drive during the software update.

• If a power failure occurs during the update, do not remove the USB flash

drive from the T

V. The TV will continue the

software update as soon as the power comes up again.

• If an error occurs during the update retry the procedure or

act th

cont

e dealer.

• We do not recommend downgrading to an older version.

• Once the upgrade is finished, use the PC to remove the TV

are from the USB portable memory.

softw

5.6 Error Codes

5.6.1 Introduction

Error codes are required to indicate failure principle a unique error code is available for every.

• Activated (SW) protection.

•Failing I

• General I

2

C device.

2

C error. The last five errors, stored in the NVM, are shown in the Service menu’s. This is called the error buffer. The

error code buffer contains all errors detected since the last

time the buffer was erased. T

he buffer is written right. When an error occurs that is not yet in the error code buffer, it is displayed at the left side and all other errors shift one position to the right. An error will be added to the buffer if this error differs from any error in the buffer. The last found error is displa An error with a designated error code never le situation. It must always be diagnosable (e.g. error buffer via OSD or blinking LED In case a failure identified by an error code automatically results in othe

r error codes (cause and effect), only the error

code of the MAIN failure is displayed.

Errors code information:

• Error 000: No problem.

• Error 011: I

2

C bus error. When this error occurs, the TV will

not start up due to the blocked bus.

• Error 012: Tuner error. T

here is no I

towards the tuner after start-up.

• Error 013: Panel VC

C error. This voltage is made in the

power supply and results in protection in case of absence.

5.6.2 How to Clear the Error Buffer

You can read the error buffer in three ways:

• On screen via the SAM/SDM/CSM (if you have a picture).

Example: – ERR

OR: 0 0 0 0 0: No e

rrors detected.

s in the TV set. In

or via C

2

C communication

from left to

yed on

the left.

ads to a deadlock

omPair).

2011-Jun-01

Service Modes, Error Codes, and Fault Finding

EN 21TPM8.2E LA 5.

– ERROR: 6 0 0 0 0: Error code 6 is the last and only

detected error.

RROR: 9 6 0 0 0: Error code 6 was detected first and

– E

error code 9 is the last detected (newest) error.

• Via the blinking LED procedure (when you have no picture). See paragraph

5.7 The Blinking LED Procedure.

•Via ComPair.

5.6.3 Error codes

Errors code information:

• Error 000

• Error 011: I not start up due to the blocked bus.

• Error 012 towards the tuner after start-up.

• Error 013 power supply and results in protection in case of absence.

5.6.4 How to Clear the Error Buffer

The error code buffer is cleared in the following cases:

• By using the CLEAR command in the SAM menu.

• By using the following key sequence on the remote control transmitter: “062

• If the contents of the error buffer have not changed for 50 ho

Note: If yo television set, the error buffer is not reset.

: No problem.

2

C bus error. When this error occurs, the TV will

: Tuner error. There is no I2C communication

: Panel VCC error. This voltage is made in the

599” directly followed by the OK button.

urs, the error buffer resets automatically.

u exit SAM by disconnecting the mains from the

5.7 The Blinking LED Procedure

5.7.1 Introduction

5.8.1 NVM Editor

In some cases, it can be convenient if one directly can change the NVM contents. This can SAM mode. With this option, single bytes can be changed.

Caution:

• Do not change these, without understanding the function of

• Always write down the existing NVM settings, before

5.8.2 Load Default NVM Values

It is possible to upload the default ComPair in case the SW is changed, the NVM is replaced with a new (empty) one, or when the NVM content is corrupted. After replacing an EEPROM (or with a defective/no EEPROM), default settings should be used to enable the set to start-up and allow the Service Default Mode and Service Alignment Mode to be accessed.

5.8.3 No Picture

When you have no picture, first make sure you have entered the correct display code. the instructions. See also

5.8.4 Unstable Picture via HDMI input

Check (via ComPair) if HDMI EDID d programmed.

tting, because incorrect NVM settings may

each se seriously hamper the correct functioning of the TV set!

anging the settings. This will enable you to return to the

ch original settings, if the new settings turn out to be incorrect.

be done with the “NVM Editor” in

values to the NVM with

See paragraph

Table 6-2.

6.4 Option Settings for

ata is properly

The software is capable of identifying diff Because it is possible that more than one error can occur over time, an error buffer is available, which is capable of storing the last five errors that occurred. This is useful if the OSD is not working properly. Errors can also be displayed b The method is to repeatedly let the front LED pulse with as many pulses as the error code number, followed by a period of

1.5 seconds in which the LED is “off”. Then this sequence is

repeated. Example (1): error code 4 will result in LED “on” for 0.25 seconds / LED “off” for 0.25 seconds. After this sequence, the LED will be “off” for 1.5 seconds. Any RC command terminates the sequence. Error code LED blinking is in red colour. Example (2): the entering SDM, the following occurs.

• 1 long blink of 5 seconds to start the sequence.

• 12 short blinks followed by a pause of 1.5 seconds.

• 9 short blinks followed by a pause of 1.5 seconds.

• 6 short blinks followed by a pause of 1.5 seconds.

• 1 long blink of 1.5 seconds to finish the sequence.

• The sequence starts again with 12 short blinks.

5.7.2 Displaying the Entire Error Buffer

Additionally, the entire error buffer is displaye Mode “SDM” is entered.

content of the error buffer is “12 9 6 0 0” After

y the blinking LED procedure.

erent kinds of errors.

four times the sequence

5.8 Fault Finding and Repair Tips

Note:

• It is assumed that the components are mounted correctly

ith correct values and no bad solder joints.

w

• Before any fault finding actions, are set.

check if the correct options

d when Service

5.8.5 No Picture via HDMI input

Check whether the HDCP key is valid. This can be done in CSM.

5.8.6 TV Will Not Start-up from Stand-by

Possible Stand-by Controller failure. Re

5.8.7 CSM

When CSM is activated and there is a USB memory stick conn

ected to the TV, the software will dump the complete CSM content to the USB memory stick. The file (CSM_CTN name_serial no.txt) will be saved in the root of the USB memory sti

5.8.8 Loudspeakers

Make sure that the volume is set to minimum during disconnecting th audio amplifier can be damaged by disconnecting the speakers during ON-state of the set!

5.8.9 Display option code

Attention: In case the SSB is replaced, always check the Display Code in CSM, even when picture is available. Performance with the incorrect display option code can lead to unwanted side-effects for certain conditions.

ck.

e speakers in the ON-state of the TV. The

flash the software.

2011-Jun-01

EN 22 TPM8.2E LA6.

6. Alignments

Alignments

Index of this chapter:

6.1 General Alignment Conditions

6.2 Hardware Alignments

6.3 Software Alignments

6.4 Option Settings

6.5 Reset of Repaired SSB

6.1 General Alignment Conditions

Perform all electrical adjustments under the following conditions:

• Power supply voltage: 195 - 264 V

, 50/ 60 ± 3 Hz.

AC

• Connect the set to the mains via an isolation transformer internal resistance.

with low

• Allow the set to warm up for approximately 15 minutes.

• Measure voltages and waveforms in relation to correct

(e.g. measure audio signals

ground

in relation to AUDIO_GND). Caution: It is

• Test probe: R

not allowed > 10 MΩ, Ci < 20 pF.

i

• Use an isolated trimmer/screw

to use heat sinks as ground.

driver to perform

alignments.

6.2 Hardware Alignments

Not applicable.

6.3 Software Alignments

Put the set in SAM mode (see Chapter 5. Service Modes, Error

Codes, and Fault Finding). The SAM menu will now appear on

the screen. Select RGB Align and go to one of the sub menus. The align The following items can be aligned:

• White point

To store the data:

• Press OK on the RC before the cu

• Select “Store” and press OK on the RC

• Switch the set to stand-by mode.

For the next alignments, supply the video generator to the RF input:

• EU/AP-PAL models: a PAL B/G TV-signal w

• US/AP-NT

• LAT

6.3.1 Display adjustment

You can use the default values. The default values are average values coming from produ

•

• Select a colour temperature

• Set the RED, GREEN and BLUE default values according

• When finished press OK on the RC, then press STORE to

•

A repaired SSB in Service should get the service Set type

ments are explained below.

rsor is m

left

following

strength of at least 1 mV and a frequency of 475.25 MHz

SC models: an NTSC M/N TV-signal with a

signal strength of at least 1 mV and a frequency of

61.25 MHz (channel 3).

AM models: an NT

SC M TV-signal with a signal strength of at least 1 mV and a frequency of 61.25 MHz (channel 3).

ction.

Enter SAM mode.

(e.g. C

OOL, NORMAL, or

WARM).

to the values in

Table 6-1.

store the aligned values to the NVM. Restore the initial picture settings after the alignments.

oved to the

test signals via a

i

th a signal

Table 6-1 White tone default settings

Colour temperature

Red Green Blue

Picture mode

Normal (9 000K)

Screen size

19" 128 118 100 22" 128 105 97 26" 128 115 109

Cool (11 000K) 19" 128 122 118

22" 128 106 114 26" 128 114 124

Warm (6 500K) 19" 128 108 61

22" 128 95 59 26" 128 106 67

This group setting of colour temp

erature will be applie

automatically to the TV / VGA / HDMI / AV sources.

6.4 Option Settings

6.4.1 Introduction

The microprocessor communicates with a large number of I ICs in the set. To ensure good communication and to make digital diagnosis possible, the microprocessor has to know which ICs to address. The presence / absence of these MT5366 ICs (back-end advanced video picture improvement IC which offers motion estimation and compensation features (commercially called HDNM) is made known by the option codes.

6.4.2 Option Code Overview

Enter SAM mode to check the option codes. They can not be edited in the NVM.

6.4.3 Display Code Overview

Press the following key sequence on a standard RC

smitter: “062598” directly follow

tran

ed by MENU and “xxx”, where “xxx” is a 3 digit decimal value of the panel type: see column “Display Code” in

Table 6-2. When the value is

accepted and stored in NVM, the set will switch to Stand-by, to indicate that the process h

as been completed.

Table 6-2 Display code overview

CTN_ALT BOM# Panel Type Display Code

19HFL3233D/10 LGD LC185WH1-TLG1 131 19PFL3606H/12 LGD LC185WH1-TLG1 131 19PFL3606H/58 LGD LC185WH1-TLG1 131 19PFL3606H/60 LGD LC185WH1-TLG1 131 22PFL3606H/12 LGD LC215WUE-TCA1 132 22PFL3606H/58 LGD LC215WUE-TCA1 132 22PFL3606H/60 LGD LC215WUE-TCA1 132 26PFL3606H/12 LGD LC260WXE-SBB1 133 26PFL3606H/58 LGD LC260WXE-SBB1 133 26PFL3606H/60 LGD LC260WXE-SBB1 133

6.5 Reset of Repaired SSB

A very important issue towards a repaired SSB from a Service repair shop (SSB repair on component level) implies the reset of the NVM on the SSB. “00PF00000000

00” and Production code “00000000000000”.

d

2

C

2011-Jun-01

Also the virgin bit (MENU > Setup > TV settings > Reinstall TV > Start now) is to be set. To set all this, you can use the ComPair tool or use the “NVM editor” and “Service Data” items in SAM (do not forget to “store”).

After a repaired SSB has been mounted in the set (set repair

board level), the type number (CTN) and production code of

on the TV has to be set according to the type plate of the set. For this, you can use the NVM editor in SAM. The loading of the CTN and production code can also be done via ComPair (Model number programming).

In case of a display replacement, reset the “Operation hours

lay” to “0”, or to the operation hours of the replacement

disp display.

Alignments

EN 23TPM8.2E LA 6.

2011-Jun-01

EN 24 TPM8.2E LA7.

19120_205_110512.eps

110526

I2C

NVM 24C128

ENV57U04D8F /TDTK-G731

USB 2.0

24C02

MT5366 cvou

AUDIO AMP

TAS5717

SPK

D-SUB (PC IN)

DDC

RCA (YPBPR)

YPbPr

VGA

PHONE JACK (PC R/L) RCA (YPBPR R/L)

SCART (AUDIO R/L)

HDMI1

LVDS (50/60 Hz)

[RX0 : RX3]

RGB/CVBS

SCART

MT5135 DVB-C/T DEMOD CI/CI+ CONTROLLER

PCMCIA CI CARD

TS DATA OUT (SERIAL)

LCD PANEL T-CON

RF Tuner for PAL/DVB-C/T/T2

HP R/L

HEADPHONE

AUD MUX

CD 4025

L/R

PCMCIA INTERFACE

TS DATA IN/OUT (PARALLEL)

IF (+/-) for DVB C/T

IF (+/-) for PAL/SECAM

TMDS

NAND FLASH

128 M × Bits × 1

DDRIII/64M × 16 Bits

1.3 GHz × 1

USB (Multimedia)

Multimedia & debug, sw code download

I2C

SPI

I2C for No DVB-T2

SPK R/L

L/R

24C02

DDC

UART

Side Key

RC

SPDIF Out

7. Circuit Descriptions

Circuit Descriptions

Index of this chapter:

7.1 Introduction

7.2 Power Supply

7.3 Power Management

7.4 Circuit Description

Notes:

7.1 Introduction

The TPM8.2E LA platform uses MT5366/MT5135. It supports decoder and a TV controller offers high integration for advanced applications. It combines a transport de-multiplexer, a high definition video decode, an AC3 decode, a dual-link LVDS/mini-LVDS transmitter, and an NTSC/PAL/SECAM TV decoder with a 3D comb filter (NTSC/PAL).

7.1.1 Implementation

Key components of this chassis are:

•Only new cir

cuits (circuits that are not published recently)

are described.

• Figures can deviate slightly from the actual situation, due to different set exe

cutions.

• For a good understanding of the following circuit descriptions, please use the wiring, block (see chapter

9. Block

Diagrams) and circuit diagrams (see chapter

10. Circuit Diagrams and PWB Layouts).Where necessary,

you will find a separate drawing for clarification.

• MT5366CVOU System-On-Chip (SOC) TV Processor

• TDTK-G731D Tuner (DVB T/C, analogue)

• MT5135AE DVB T/C demodulator

• TAS5717 Audio amplifier

7.1.2 TPM8.2E Architecture Overview

2011-Jun-01

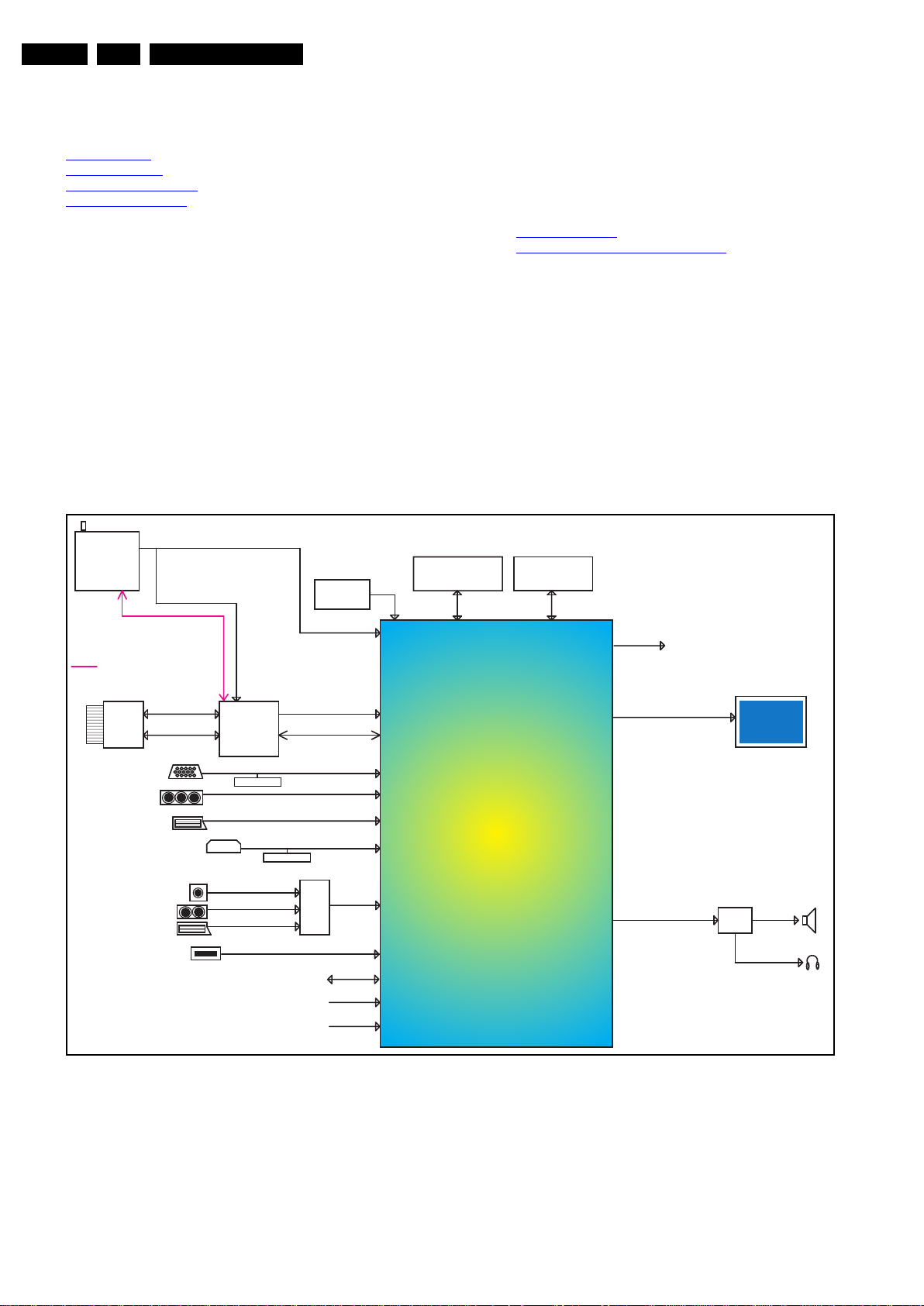

Figure 7-1 Architecture of TPM8.2E LA

7.1.3 SSB Cell Layout

19120_206_110516.eps

110525

MT5366

DDR3

TUNER

DC/DC

AUDIO CLA SS - D

SERVICE

CONNECTOR

DIGITAL I/O

ANALOG I/O

Circuit Descriptions

EN 25TPM8.2E LA 7.

Figure 7-2 SSB layout cells (top view)

2011-Jun-01

EN 26 TPM8.2E LA7.

19120_207_110516.eps

110526

PWR_18V

PER_12V

STB_PWR5V

+5V_SW

DV33 & AV33

BUCK CONVERTER

PANEL_VCC_ON/OFF

DV33

+5V_TUNER

AV12

DV15_ DDR

PCMCIA CARD

+5V_SW

POWER SWITCH

AON4421

POWER SWITCH

AON4421

DV11

LDO

TJ4220G DP

RF TUNER

TDTK-G731D

LCD PANEL T-CON

TPA5717A

LDO

G5250M1 T1U

CI_PWR_EN

CI CARD PWR

CI2_VCC

AUDIO AMP

PANEL

TPS54319

+5V_SW

MAIN CHIP

MT5366

LDO

AZ1117D

MAIN CHIP

MT5366

DDRIII

K4B1G1646E

DV15_ DDR

LDO

AZ1117D

AV33

MAIN CHIP

AV12

DVB-C/T DEMODULATOR

DV15_DDR

LDO

LM1108

MAIN CHIP

MT5366

DV33SB DV33SB

BUCK CONVERTER

TPS54319

MAIN CHIP

MT5366

DV11 & VCCK

VCCK

OPWR

SB

USB multi-media

USB PWR

+5V_USB

MT5135

DVB-C/T DEMODULATOR

DV33

LDO

G9141

MT5135

+5V_SW

5135_DV10

DVB-C/T DEMODULATOR

PWR_18V

+5V_STB

AV33

Q751

U701

U705

Q702

U706

U704

U703

U1015

U702

AUDIO Mux

CD4052BPW

Regulator

L78L12BUTR

OPAV120

U604

U605

U1006

CN103

W/ SAW

Q705

PWR_12V

+5V or +12V

PWR_ON

U401

U602

TU102

CN159

U401

U1011

U404

U1011

+18V

AON4421

POWER SWITCH

5135_DV10

MT5366

MT5135

Circuit Descriptions

7.2 Power Supply

7.2.1 Power Supply Unit

Before checking other parts first check whethe PSU is not broken. Always replace a defective fuse with one with the correct specifications! This part is available in the regular market. Consult the Philips Service web portal for the boards.

7.3 Power Management

r fuse on the

orde

r codes of the

The output voltages to the chassis are:

• +5V-STANDBY (Stand-by mode only)

• +12V (on-mode)

• +18V for audio circuit

7.2.2 Diversity

The diversity in power supply units is mainly dete diversity in screen sizes, but please note to always order the correct replacement.

rmined by the

2011-Jun-01

The on-board DC/DC converters de (depending on set execution):

• +5V-STANDBY, permanent voltage for the Stand-by roller, LED/IR

cont

receiver and controls; connector CN701

pin 11 and 12.

• +12V, input from the power supply for T-con, audio amp in

t; con

SCART ou

nector CN701 pins 3 and 4.

• +18V, input from the power supply for audio (in active

mode); connector CN701 pi

Figure 7-3 Power Architecture

liver the following voltages

ns 8 and 9.

7.4 Circuit Description

19120_208_110518.eps

110524

PWR_ON

BRIGHT_ADJ

INVERTER_ON_OFF

STB_PWR5V

PWR_18V

PWR_12V

DC POWER INPUT

TP702 TP702

TP712 TP712

TP704 TP704

TP710 TP710

TP703 TP703

CN701 CN701

1 2 3 4 5 6 7 8 9 10 11 12 13

TP709 TP709

TP707 TP707

R702

100R 1/16W 5%

R702

100R 1/16W 5%

C701 NC/10uF

TP701 TP701

TP708 TP708

TP705 TP705

TP706 TP706

TP711 TP711

19120_210_110518.eps

110518

+5V_SW +5V_TUNER

OFF ON

R760

47K +-1% 1/16W

R760

47K +-1% 1/16W

R759

15K 1%

R759

15K 1%

R761

12K 1% 1/16W

R761

12K 1% 1/16W

R766

10K 1/16W 5%

R766

10K 1/16W 5%

C772 10uF 16V

C758 1UF16V

U706

TJ4220GDP-ADJ

U706

TJ4220GDP-ADJ

NC

1

EN

2

VIN

3

NC

4

NC

5

VOUT

6

ADJ/SENSE

7

GND

8

E-PAD

9

C771 10uF 16V C771 10uF 16V

C752

10uF 16V

C752

10uF 16V

C770 10uF 16V C770 10uF 16V

19120_212_110518.eps

110518

DV15_DDR

DV33

C729

22UF 16V

C729

22UF 16V

R726

27ohm 1/10W +/-1%

R726

27ohm 1/10W +/-1%

R712 120R 1% 1/10W

FB705

220R/2000mA

FB705

220R/2000mA

1 2

U703

AZ1117D

U703

AZ1117D

VIN 3 VOUT

2

GND/ADJ

1

+

C730

220UF 16V

+

C730

220UF 16V

C725 10uF 16V

19120_213_110518.eps

110518

DV33

AV12

R756

120R 1% 1/10W

R756

120R 1% 1/10W

U704

AZ1117D

U704

AZ1117D

VIN

3

VOUT

2

GND/ADJ

1

R757

1R 1/10W 5%

R757

1R 1/10W 5%

FB751

220R/2000mA

FB751

220R/2000mA

1 2

C757

1UF16V

C757

1UF16V

+

C756

NC/22uF 16V

+

C756

NC/22uF 16V

+

C759 22uF 16V

+

C759 22uF 16V

19120_214_110519.eps

110519

POCE1#

POOE#

PARB#

PAALE

PACLE

Flash_WP#

POWE#

PDD4

PDD7 PDD6 PDD5

PDD0

PDD2

PDD3 PDD1

DV33 DV33

DV33

U4051

K9F1G08U0C-PIB0

U4051

K9F1G08U0C-PIB0

NC24

39

NC1

1

NC2

2

NC3

3

NC4

4

NC5

5

NC27

46

ALE

17

CLE

16

WE

18

NC17

26

NC8

11

WP

19

RY/BY1

7

NC9

14

NC10

15

NC18

27

NC19

28

NC11

20

NC12

21

NC13

22

I/O3

32

NC20

33

VSS2

36

VCC1

12

RE

8

VCC2

37

I/O2

31

I/O1

30

I/O0

29

VSS1

13

NC26

45

I/O7

44

I/O6

43

I/O5

42

I/O4

41

NC25

40

NC14

23

NC15

24

NC16

25

CE1

9

NC21

34

NC22

35

NC28

47

NC23

38

NC6

6

NC7

10

NC29

48

R4247

4K7 1/16W 5%

R4247

4K7 1/16W 5%

R4243 4K7 1/16W 5%

R4244

4K7 1/16W 5%

R4244

4K7 1/16W 5%

C4262

220N 10V

C4262

220N 10V

7.4.1 System power

The main board power is received at connector CN701 from power board, to re

Table 7-1 for the correct pining, The shown test points in

See

Figure 7-4.

Table 7-1 Connector CN701 overview

Item Pin Description

1 1 INVERTER_ON_OFF, Inverter board

2 2 BRIGHT_ADJ, Inverter bright PWM

3 3, 4 +12 V Supply 4 5, 6, 7 Ground 5 8, 9 +18 V Supply 6 10 STANDBY, Standby

7 11, 12 STB_PWR5V, +5VSB Supply

ceive the power and signals from the PSU.

control (Low: OFF, High: ON)

control (Max.: 0 V, Min.: 3.3 V)

control (High: Normal, Low: Stand by)

Circuit Descriptions

7.4.4 AV12 (U704)

This AZ117D provides the 1.2 V power supply for the DVBT/C demodulator (U1011)

EN 27TPM8.2E LA 7.

Figure 7-6 DDR3 1.5V

Figure 7-4 System power

7.4.2 Tuner power

TJ4220GDP provides the tuner power of approximately 5 V.

Figure 7-5 Tuner power

7.4.3 DDR3 1.5V

This AZ117D provides the 1.5 V power supply for the DDR memory (U404).

Figure 7-7 AV12 (U704)

7.4.5 Nand flash Memory (U4051)

The set uses a 128 MB NAND flash for software code

Figure 7-8 Nand flash Memory (U4051)

2011-Jun-01

EN 28 TPM8.2E LA7.

19120_215_110519.eps

110519

SYS_EEPROM_WP

OSCL0 OSDA0

DV33 DV33 DV33

DV33

TP4217 TP4217

C4251

1UF16V

C4251

1UF16V

U409

AT24C128BN-SH-T

U409

AT24C128BN-SH-T

A0

1

A1

2

A2

3

VSS 4 SDA

5

SCL

6

WP

7

VCC

8

Q503

BC847C

Q503

BC847C

3

2

1

R4223

4K7 1/16W 5%

R4223

4K7 1/16W 5%

R4245

4K7 1/16W 5%

R4245

4K7 1/16W 5%

TP4212 TP4212

TP4211 TP4211

R4222

4K7 1/16W 5%

R4222

4K7 1/16W 5%

R4225

10K 1/16W 5%

R4225

10K 1/16W 5%

TP4216 TP4216

R4224

4K7 1/16W 5%

R4224

4K7 1/16W 5%

19120_216_110519.eps

110526

ORESET#

+5V_STB

DV33SB

R4233

6K8 1%

R4233

6K8 1%

R4231

1.2K 1/16W 1%

R4231

1.2K 1/16W 1%

R4217

100K 1/16W 5%

R4217

100K 1/16W 5%

R4200

NC/0R05 1/16W

R4200

NC/0R05 1/16W

U410

MAX809STRG

U410

MAX809STRG

GND

1

RESET

2

VCC

3

19120_217_110519.eps

110519

HP_SC_MUTE

DV33SB

STB_PWR5V

D602

BAS316

D602

BAS316

A 1 K

2

R643

4.7K1/16W

R643

4.7K1/16W

D604

BAS316

D604

BAS316

A 1 K

2

R648

10K 1/16W 5%

R648

10K 1/16W 5%

C689

22UF 16V

C689

22UF 16V

D601

BAS316

D601

BAS316

A 1 K

2

C670 22UF 16V

D603

BAS316

D603

BAS316

A 1 K

2

R631

0R05 1/16W

R631

0R05 1/16W

Q601

BC857BW

Q601

BC857BW

1

2 3

19120_209_110518.eps

110518

AV33

DV33

+5V_SW

+5V_SW to DV33/AV33

attach

C734

22UF 16V

C734

22UF 16V

C718 100N 16V

C714

22UF 16V

C714

22UF 16V

R722

300R 1/16W 1%

R722

300R 1/16W 1%

R730

100K 1%

R730

100K 1%

C733

10N 50V

C733

10N 50V

R729

33Kohm 1/16W +/-1%

R729

33Kohm 1/16W +/-1%

R731

7K5 1/16W 5%

R731

7K5 1/16W 5%

FB707

220R/2000mA

FB707

220R/2000mA

1 2

C711

100N 16V

C711

100N 16V

C716

100N 50V

C716

100N 50V

R737

180K 1%

R737

180K 1%

C724

10uF 16V

C724

10uF 16V

R732

0R05 1/4W

R732

0R05 1/4W

U702 TPS54319RTE

VIN

1

VIN

2

GND

3

GND

4

AGND

5

VSNS

6

COMP

7

RT/CLK

8

SS

9

PH

10

PH

11

PH

12

BOOT

13

PWRGD

14

EN

15

VIN

16

PwPd

17

C722

3300pF 50V

C722

3300pF 50V

L702

1.5UH

L702

1.5UH

C732

NC/22UF 16V

C732

NC/22UF 16V

Circuit Descriptions

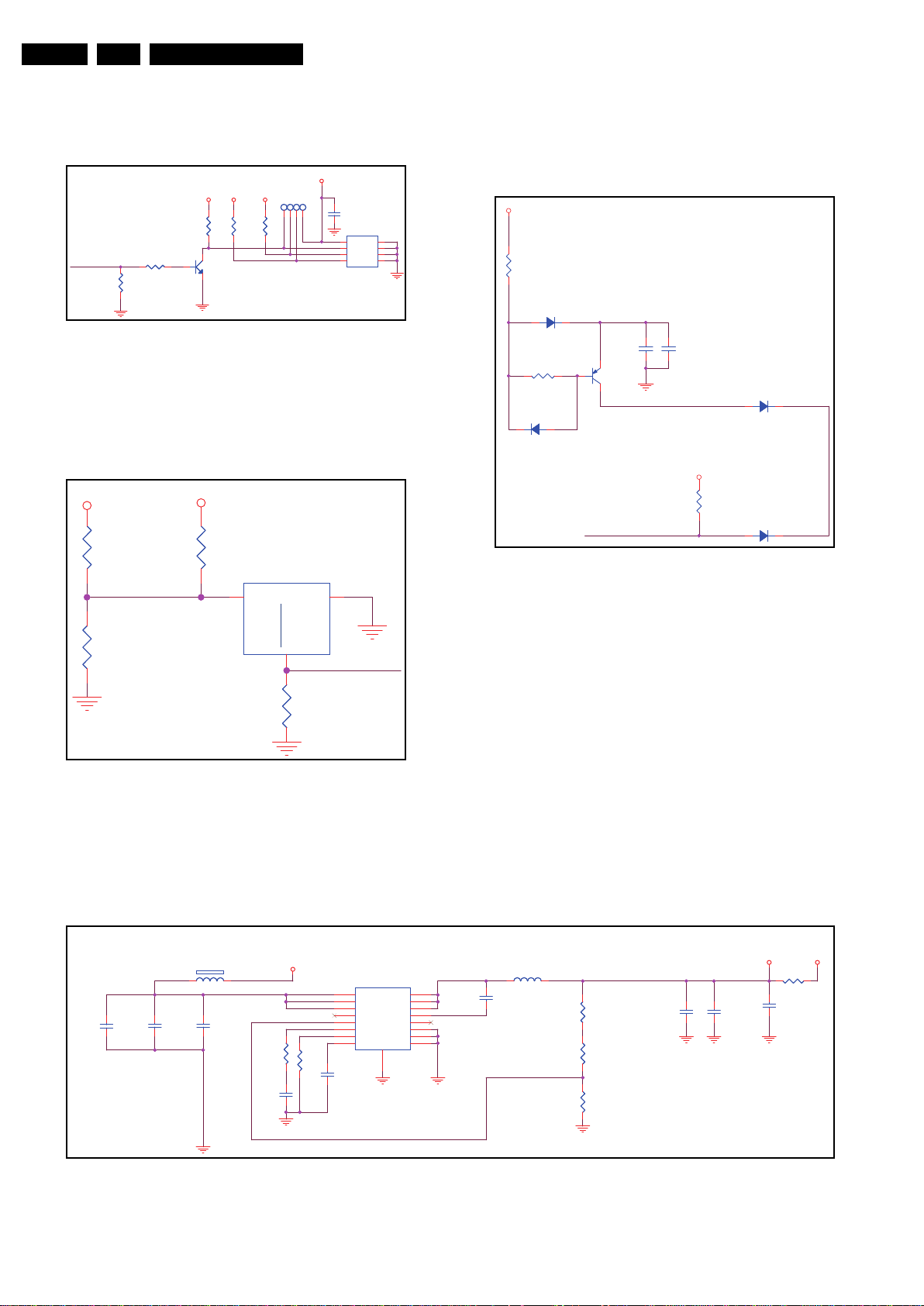

7.4.6 NVM (U409)

The system EEPROM is a 128 kB IC. It contains all system settings.

Figure 7-9 NVM (U409)

7.4.7 Reset (U410)

When the input voltage for the MT5366 main processor drops b

2.9 V, a system reset will be enforced by U410.

elow

7.4.8 Audio Mute circuit

This circuit will provide a “high-to-low” pulse when t SSB power line goes low. This will trigger the related audio mute circuit, preventing the audio circuit making uncontrolled sounds.

he +5 V

Figure 7-10 Reset (U410)

7.4.9 AV33 and DV33 (U702)

The circuit around U702 will provide supply to the SSB.

2011-Jun-01

the main 3.3 V power

Figure 7-12 AV33 and DV33 (U702)

Figure 7-11 Audio Mute circuit

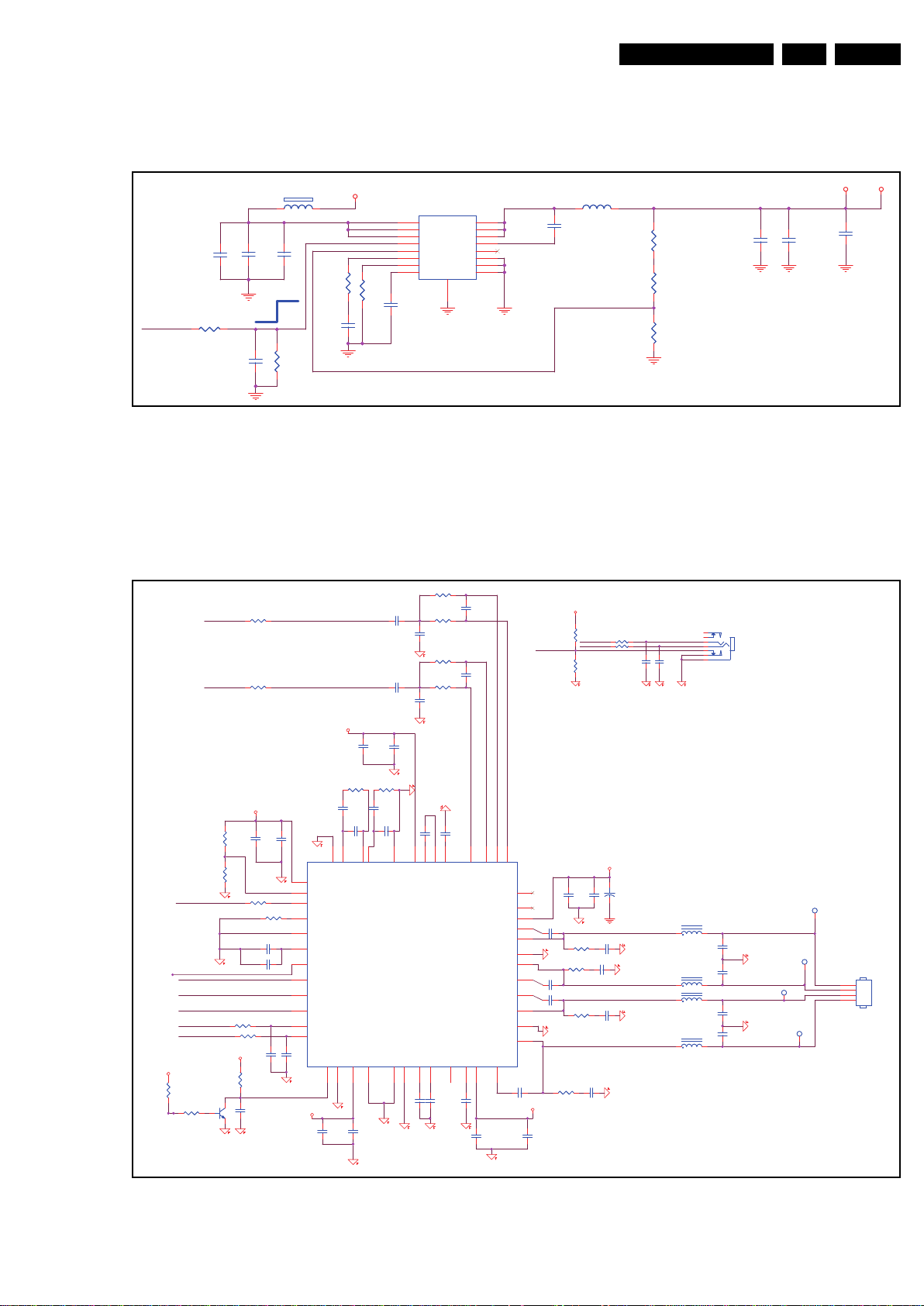

7.4.10 Core Power

19120_211_110518.eps

110518

PWR_ON

DV11

+5V_STB

VCCK

OFF ON

attach

FB706

220R/2000mA

FB706

220R/2000mA

1

2

C715

100N 50V

C715

100N 50V

C721

22UF 16V

C721

22UF 16V

R721

33Kohm 1/16W +/-1%

R721

33Kohm 1/16W +/-1%

R736

180K 1%

R736

180K 1%

C735

10N 50V

C735

10N 50V

U701 TPS54319RTE

VIN

1

VIN

2

GND

3

GND

4

AGND

5

VSNS

6

COMP

7

RT/CLK

8

SS

9

PH

10

PH

11

PH

12

BOOT

13

PWRGD

14

EN

15

VIN

16

PwPd

17

R715

7K5 1/16W 5%

R715

7K5 1/16W 5%

C720

3300pF 50V

C720

3300pF 50V

R718

300R 1/16W 1%

R718

300R 1/16W 1%

C719

10uF 16V

C719

10uF 16V

R720

12K 1% 1/16W

R720

12K 1% 1/16W

C723

NC/22uF 10V

C723

NC/22uF 10V

C717 100N 16V

C707

100N 16V

C707

100N 16V

R742

NC/10K 1/16W 5%

R742

NC/10K 1/16W 5%

L701

1.5UH

L701

1.5UH

C709

1UF16V

C709

1UF16V

R714

1K 1/16W 5%

R714

1K 1/16W 5%

C713

22UF 16V

C713

22UF 16V

19120_218_110519.eps

110531

AL1O

AR1O

ROUT-

LOUT-

LOUT+ ROUT+

ROUT-

LOUT+

ROUT+

LOUT-

HPOUTL

SCLK

HPOUTR

LRCLK

SDATA0

OSDA0 OSCL0

MCLK_1

MCLK_2

AVDD

PVDD

AVDD

DV33

PVDD

AVDD

GND_Sound

GND_SoundGND_Sound

GND_Sound

GND_Sound GND_Sound

GND_Sound

R/A 2.5 MM

<9.2mm High

10.5mm High

C666 330PF 50V

C668 47P 50V

C688

NC/15pF 50V

C688

NC/15pF 50V

R686

20K 1/16W 5%

R686

20K 1/16W 5%

C693

4.7nF 50V

C693

4.7nF 50V

R667

470R 1/16W 1%

R667

470R 1/16W 1%

L603

47UH

L603

47UH

CN601CN601

1

2

3

4

R676

43K 1%

R676

43K 1%

L601

47UH

L601

47UH

R683

43K 1%

R683

43K 1%

R679

20K 1/16W 5%

R679

20K 1/16W 5%

C698 330NF 16V

C664 330PF 50V

C680

100N 16V

C680

100N 16V

C665

1N 50V

C665

1N 50V

C658

1N 50V

C658

1N 50V

R688

10K 1/16W 5%

R688

10K 1/16W 5%

C686

NC/15pF 50V

C686

NC/15pF 50V

R684

20K 1/16W 5%

R684

20K 1/16W 5%

C677 4.7uF 10VC677 4.7uF 10V

R681 22R 1/16W 5%R681 22R 1/16W 5%

R669

10R 1/16W 5%

R669

10R 1/16W 5%

C682 10uF

C690

4.7nF 50V

C690

4.7nF 50V

C632

4.7uF 25V

C632

4.7uF 25V

R654

10R 1/16W 5%

R654

10R 1/16W 5%

C695 1UF16V

C660

1N 50V

C660

1N 50V

C6792N2 50V C6792N2 50V

C663

47P 50V

C663

47P 50V

TP601TP601

1

TP602TP602

1

R675

18.2K OHM +-1% 1/16W

R675

18.2K OHM +-1% 1/16W

R687

10K 1/16W 5%

R687

10K 1/16W 5%

C673100N 16V C673100N 16V

Q607

BC847C

Q607

BC847C

C676 100N 16VC676 100N 16V

C692

10uF

C692

10uF

C697

47N16V

C697

47N16V

R653

10R 1/16W 5%

R653

10R 1/16W 5%

R663 22R 1/16W 5%R663 22R 1/16W 5%

R652

10R 1/16W 5%

R652

10R 1/16W 5%

C659

1N 50V

C659

1N 50V

C683 33N 50VC683 33N 50V

C681 1UF16V

C653

10uF

C653

10uF

C678 330NF 16V

R672

20K 1/16W 5%

R672

20K 1/16W 5%

L602

47UH

L602

47UH

C694

47N16V

C694

47N16V

L604

47UH

L604

47UH

C661 330NF 16V

C684

1UF16V

C684

1UF16V

C691 33N 50VC691 33N 50V

C675

100N 16V

C675

100N 16V

C633

4.7uF 25V

C633

4.7uF 25V

R665

NC/10K 1/16W 5%

R665

NC/10K 1/16W 5%

TP603TP603

1

C685 33N 50V

C654

100N 50V

C654

100N 50V

U602

TAS5717

U602

TAS5717

AVDD

13

A_SEL#

14

DVSSO

17

VR_DIG

18

PDN#

19

LRCLK

20

SCLK

21

SDIN

22

SDA

23

SCL

24

RESET#25STEST

26

GND29AGND30VREG31SSTIMER32HP_SDZ33GVDD_OUT34PVDD_CD

35

OUT_D

37

PGND_CD

38

OUT_C

39

BST_C

40

BST_B

41

OUT_B

42

PGND_AB

43

BST_A

45

PVDD_AB

46

HP_PWMR

47

HP_PWML

48

HPL_OUT

2

HPR_OUT

3

HPR_IN

4

HPVSS

5

CPN

6

CPP

7

HPVDD

8

AVSS

9

PLL_FLTM

10

PLL_FLTP

11

VR_ANA

12

HPL_IN

1

OSC_RES

16

MCLK

15

BST_D

36

DVDD27DVSS

28

OUT_A

44

GND1

49

C655

100N 50V

C655

100N 50V

R666

470R 1/16W 1%

R666

470R 1/16W 1%

C650

10uF 16V

C650

10uF 16V

+

C656

220UF 25V

+

C656

220UF 25V

R673

10K 1/16W 5%

R673

10K 1/16W 5%

R674

10K 1/16W 5%

R674

10K 1/16W 5%

TP604TP604

1

C674 100N 16V

C662 330NF 16V

C687 10uF

R613

22R 1/16W 5%

R613

22R 1/16W 5%

C699 33N 50VC699 33N 50V

C6721UF16V C6721UF16V

HP_DET#

HPOUTL HPOUTR

DV33

GND_Sound GND_Sound

GND_Sound

HEADPHONE R/L OUTPUT

------------><---

---------------><---

------------><---

C651

100N 16V

C651

100N 16V

R650

NC/4K7 1/16W 5%

R650

NC/4K7 1/16W 5%

CN602

PHONEJACK

CN602

PHONEJACK

1

2

3

4

5

6 7

R658 4R7 1/16W 5%R658 4R7 1/16W 5%

R651

0R05 1/16W

R651

0R05 1/16W

C652

100N 16V

C652

100N 16V

R659 4R7 1/16W 5%R659 4R7 1/16W 5%

Circuit Descriptions

EN 29TPM8.2E LA 7.

The circuit around U701 will provide the main 1 supply to the MT5366 micro processor.

7.4.11 Audio Amplifier (U602)

The TAS5717 is providing the audio amplification to the speakers and headphone from digital inp signals enter the IC via pins 20 to 24. The IC contains two

.1 V power

ut signals. It's I

Figure 7-13 Core Power

2

S

separate stereo Class-D amplifiers for the normal speakers as well as for the headphone. In the headphone plug a signalling switch is coupled to the main processor which then via I

2

S

controls the amplifier.

Figure 7-14 Audio Amplifier (U602)

2011-Jun-01

EN 30 TPM8.2E LA7.

19120_219_110519.eps

110519

DEMOD_RST

TN

TP

XTALI

XTALO

# 2 D C _ I C

2 D _ I C

1 D _ I C

0 D _ I C

2 A T A D T U O _ I C _ M

1 A T A D T U O _ I C _ M

0 A T A D T U O _ I C _ M

0 A _ I C

C N Y S T U O _ I C _ M

1 A _ I C

D I L A V T U O _ I C _ M

2 A _ I C

# G E R _ I C

3 A _ I C

4 A _ I C

# T I A W _ I C

5 A _ I C

T E S E R _ I C

6 A _ I C

7 A _ I C

7 A T A D N I _ I C _ M

2 1 A _ I C

6 A T A D N I _ I C _ M

K L C N I _ I C _ M

M_CI_INDATA5

M_CI_INVALID

M_CI_INDATA4

CI_IREQ#

M_CI_INDATA3

CI_WE#

M_CI_INDATA2

CI_A14

M_CI_INDATA1

CI_A13

M_CI_INDATA0

CI_A8

M_CI_INSYNC

CI_A9

CI_A11

CI_OE#

CI_VS1#

CI_A10

CI_CE1#

M_CI_OUTDATA7

CI_D7

M_CI_OUTDATA6

CI_D6

M_CI_OUTDATA5

5 D _ I C

4 A T A D T U O _ I C _ M

4 D _ I C

3 A T A D T U O _ I C _ M

3 D _ I C

# 1 D C _ I C K L C T U O _ I C _ M

CI_IOWR#

CI_IORD#

T N I _ I C

L R T C _ P I H C _ D A P

N E _ R W P _ I C

RSSI

+ D A 5 3 1 5 T M

- D A 5 3 1 5 T M

T _ C G A _ F R

I S S R

L A V S T _ D O M E D

C N Y S S T _ D O M E D

0 A T A D S T _ D O M E D

A T A D _ I P S

K L C _ I P S

E L C _ I P S

K L C S T _ D O M E D

K L C _ 5 3 1 5 T M

A T A D _ 5 3 1 5 T M

T S R _ D O M E D

5 3 1 5 _ C G A _ F R

l o r t n o C _ C G A _ F R

2 1 V A _ 5 3 1 5

0 1 V D _ 5 3 1 5

3 3 V D _ 5 3 1 5

4 _ 3 3 D D V A

5135_DV33

5135_DV10

AVDD33_3

AVDD33_2

5135_DV33

3 3 V D _ 5 3 1 5

3 _ 3 3 D D V A

AVDD33_1

5135_AV12

5135_DV10

3 3 V D _ 5 3 1 5

5 3 1 5 T M

6 8 2 1 R

M 5 . 7

6 8 2 1 R

M 5 . 7

4 8 2 1 R

W 6 1 / 1 5 0 R 0

4 8 2 1 R

W 6 1 / 1 5 0 R 0

5 8 2 1 R

% 5 - / + W 0 1 / 1 M 0 1

5 8 2 1 R

% 5 - / + W 0 1 / 1 M 0 1

RP1005

47 OHM 1/16W 5%

RP1005

47 OHM 1/16W 5%

1 2 3

4

8 7 6

5

9 2 2 1 C

V 0 5 P 0 1

9 2 2 1 C

V 0 5 P 0 1

0 4 2 1 C

V 6 1 N 7 4 / C N

0 4 2 1 C

V 6 1 N 7 4 / C N

0 6 2 1 R

W 6 1 / 1 5 0 R 0

0 6 2 1 R

W 6 1 / 1 5 0 R 0

3 9 2 1 R % 5 W 6 1 / 1 K 0 1

TP1001 TP1001

6 6 2 1 R

% 5 W 6 1 / 1 7 K 4

6 6 2 1 R

% 5 W 6 1 / 1 7 K 4

1 1 0 1 U

E A 5 3 1 5 T M

1 1 0 1 U

E A 5 3 1 5 T M

PAD_SPI_CLE 1 PAD_SPI_DATA 2 PAD_SPI_CLK 3 PAD_PVR_TS_DATA1 4 PAD_PVR_TS_DATA0(TS_ERR) 5 PAD_PVR_TS_SYNC(TS_DATA7) 6 PAD_PVR_TS_VAL(TS_DATA6) 7 PAD_PVR_TS_CLK(TS_DATA5) 8 PAD_CI_TS_DATA0(TS_DATA4) 9 PAD_CI_TS_SYNC(TS_DATA3)

10

PAD_CI_TS_VAL(TS_DATA2)

11

PAD_CI_TS_CLK(TS_DATA1)

12

DGND33

13

DVDD33

14

PAD_DEMOD_TS_DATA0(TS_DATA0)

15

PAD_DEMOD_TS_SYNC(TS_SYNC)

16

PAD_DEMOD_TS_VAL(TS_VAL)

17

PAD_DEMOD_TS_CLK(TS_CLK)

18

PAD_MT5135_RST

19

DVDD10

20

AVDD12_PLL

21

AVDD33_RSSI

22

PAD_ADIN0

23

AVSS33_RSSI

24

PAD_TN

25

PAD_TP

26

AVDD33_DEMOD_3

27

AVSS33_DEMOD_3

28

PAD_XTALI

29

AVSS33_XTAL

30

PAD_XTALO

31

AVDD33_XTAL

32

A T A D _ R E N U T _ D A P

1 4

K L C _ R E N U T _ D A P

2 4

C G A _ F I _ D A P

3 4

C G A _ F R _ D A P

4 4

K L C _ S T _ 2 S _ D A P

5 4

C N Y S _ S T _ 2 S _ D A P P

6 4

L A V _ S T _ 2 S _ D A

7 4

0 A T A D _ S T _ 2 S _ D A P

8 4

3 3 D N G D

9 4

3 3 D D V D

0 5

1 A T A D _ S T _ 2 S _ D A P

1 5

2 A T A D _ S T _ 2 S _ D A P

2 5

3 A T A D _ S T _ 2 S _ D A P

3 5

4 A T A D _ S T _ 2 S _ D A P

4 5

5 A T A D _ S T _ 2 S _ D A P

5 5

6 A T A D _ S T _ 2 S _ D A P

6 5

7 A T A D _ S T _ 2 S _ D A P

7 5

L R T C _ P I H C _ D A P

8 5

_ 1 D C _ D A P

9 5

3 D _ D A P

0 6

1 1 D _ D A P

1 6

4 D _ D A P

2 6

2 1 D _ D A P

3 6

5 D _ D A P

4 6

PAD_D13

65

PAD_D6

66

PAD_D14

67

PAD_D7

68

PAD_D15

69

PAD_CE1_

70

DVDD33

71

DGND33

72

PAD_A10

73

PAD_VS1_

74

PAD_OE_

75

PAD_IORD_

76

PAD_A11

77

PAD_IOWR_

78

PAD_A9

79

PAD_A17

80

PAD_A8

81

DGND10

82

DVDD10

83

PAD_A18

84

PAD_A13

85

PAD_A19

86

PAD_A14

87

PAD_A20

88

DVDD33

89

DGND33

90

PAD_WE_

91

PAD_A21

92

PAD_READY

93

PAD_A22

94

PAD_A16

95

PAD_A23

96

5 1 A _ D A P

7 9

4 2 A _ D A P

8 9

2 1 A _ D A P

9 9

5 2 A _ D A P

0 0 1

7 A _ D A P

1 0 1

_ 2 S V _ D A P

2 0 1

6 A _ D A P

3 0 1

T E S E R _ A I C M C P _ D A P

4 0 1

0 1 D D V D

3 1 1

2 A _ D A P

4 1 1

2 D V B _ D A P

5 1 1

1 A _ D A P

6 1 1

1 D V B _ D A P

7 1 1

0 A _ D A P

8 1 1

8 D _ D A P

9 1 1

0 D _ D A P

0 2 1

9 D _ D A P

1 2 1

1 D _ D A P

2 2 1

0 1 D _ D A P

3 2 1

2 D _ D A P

4 2 1

_ 2 D C _ D A P

5 2 1

T N I _ I C _ D A P

6 2 1

3 3 D N G D

7 2 1

3 3 D D V D

8 2 1

L E S K L C _ T X E _ D A P

3 3

3 _ D O M E D _ 2 1 S S V A

4 3

N N I _ A G P F I _ D A P

5 3

P N I _ A G P F I _ D A P

6 3

D O M E D _ 2 1 D D V A

7 3

A G P F I _ 3 3 D D V A

8 3

5 _ 0 1 S S V A

9 3

0 1 D D V D

0 4

5 A _ D A P

5 0 1

_ T I A W _ D A P

6 0 1

4 A _ D A P

7 0 1

3 A _ D A P

8 0 1

3 3 D N G D

9 0 1

3 3 D D V D

0 1 1

_ G E R _ D A P

1 1 1

0 1 D N G D

2 1 1

2 6 2 1 R

% 5 W 6 1 / 1 7 K 4 / C N

2 6 2 1 R

% 5 W 6 1 / 1 7 K 4 / C N

8 5 2 1 R

% 5 W 6 1 / 1 7 K 4

8 5 2 1 R

% 5 W 6 1 / 1 7 K 4

7.4.12 Demodulator

Circuit Descriptions

The MT5135AE provides a high performance DVB-T and DV

B-C demodulation function, the integrated CI+ controller and interface also reduces the complexity of TS routing. Overall Features:

• Integrated DVB-T and DVB-C demodulators.

• Integrated CI/CI+ controller and interface.

• On-chip integrated SAW filter function.

• 10-Bit ADC accepting IF or low-IF inputs.

• RSSI measurement.

• Independent RF and IF AGC controls.

• One parallel or serial TS interface accepting output.

7.4.13 Tuner

The tuner covers all bands in VHF and UHF. It includes digital terrestrial (DVB-T), -ca

ble (DVB-C), and analogue (PAL, Secam). The tuner is fully controlled via the I selection, as well as broadcast system selection.

2011-Jun-01

2

C bus for address

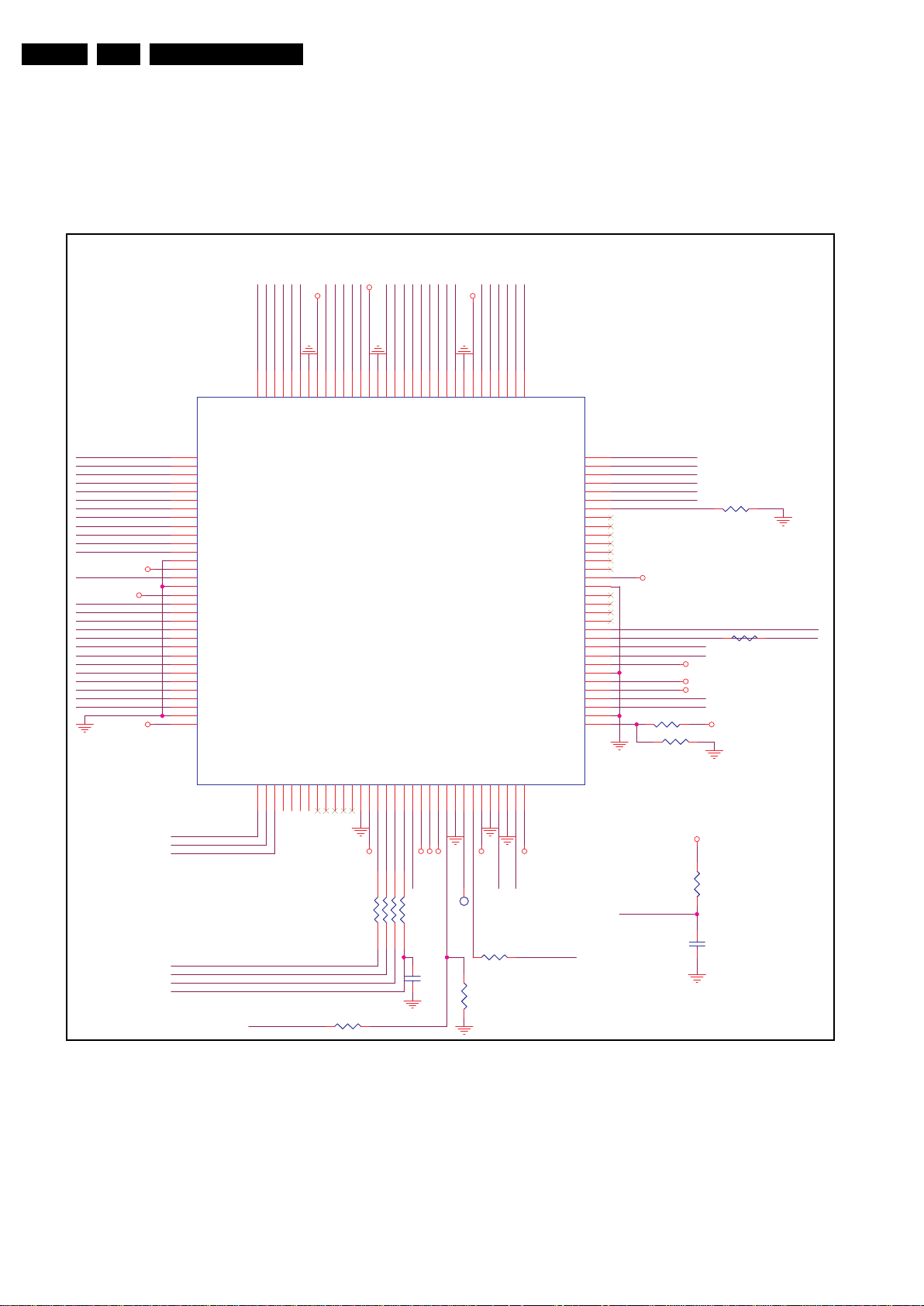

Figure 7-15 Demodulator

8. IC Data Sheets

19120_300_110516.eps

110526

Block diagram

MT5366 CVOU

IC Data Sheets

EN 31TPM8.2E LA 8.

This chapter shows the internal block diagrams and pin configurations of ICs that are drawn as “black boxes” in the

electrical diagrams (with the exception of “memory” and “logic” ICs).

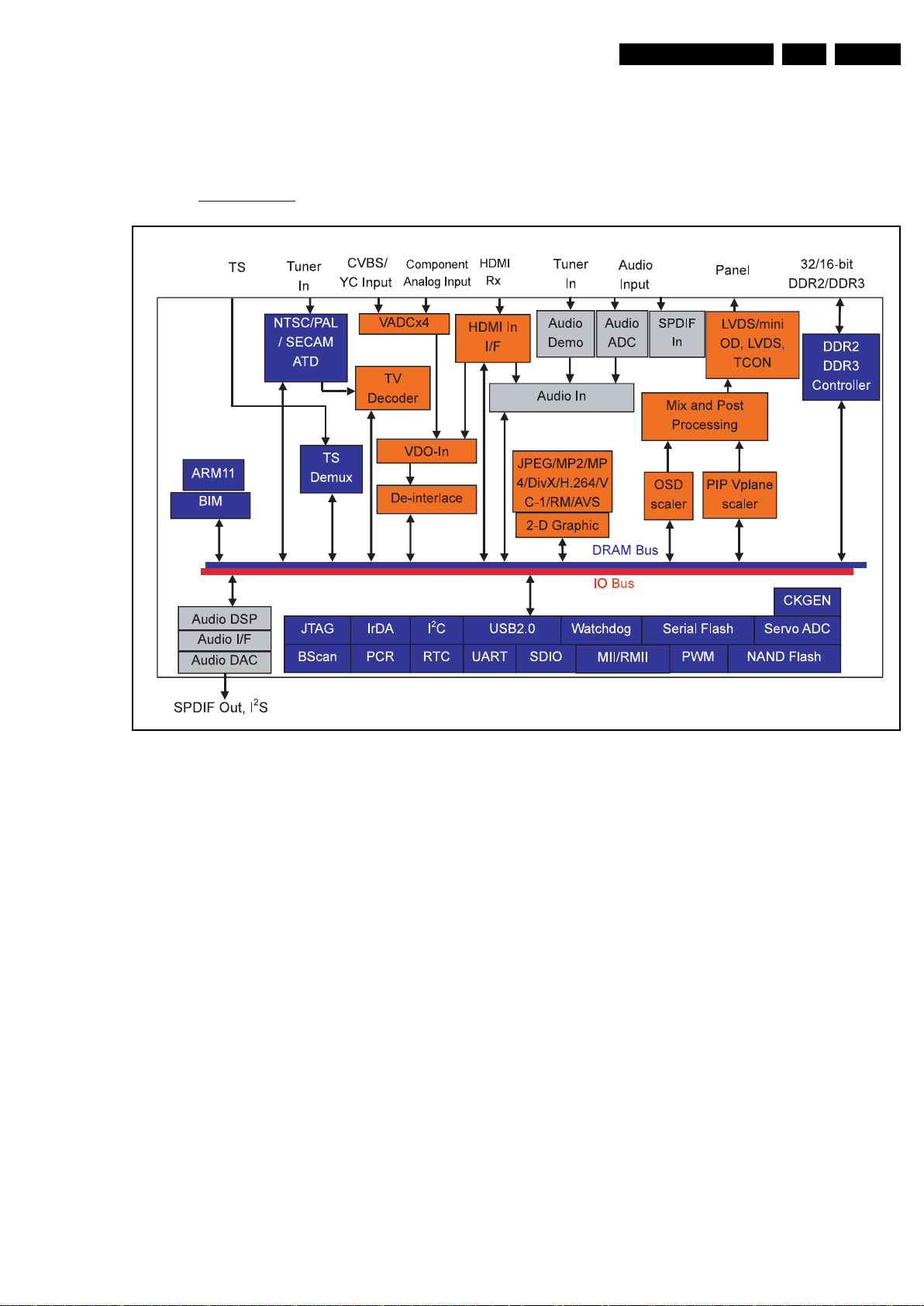

8.1 Diagram MT5366 cvou B03, MT5366CVOU LQFP-256 (IC U401)

Figure 8-1 Internal block diagram

2011-Jun-01

19120_301_110516.eps

110524

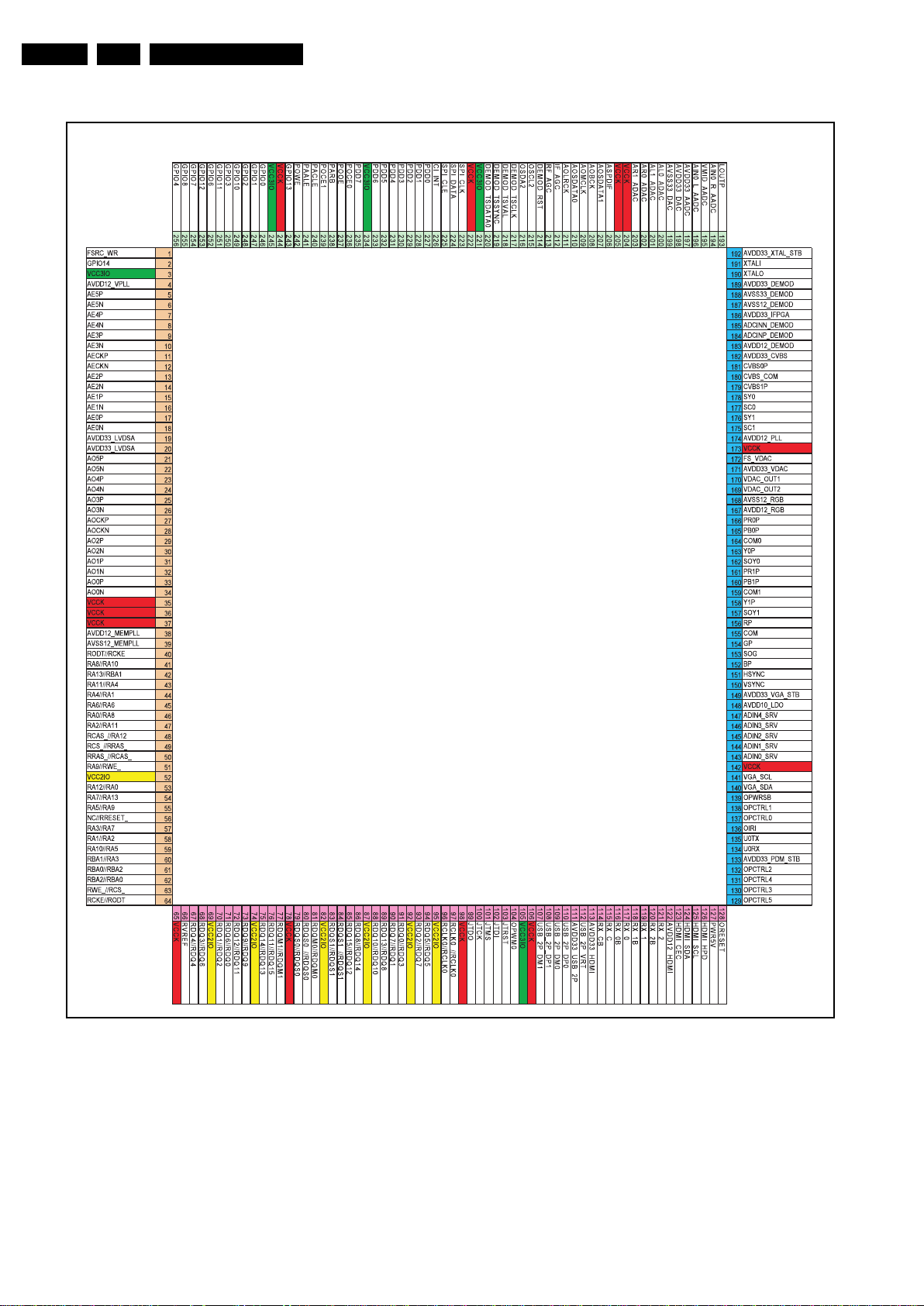

Pinning information

MT5366

EN 32 TPM8.2E LA8.

IC Data Sheets

2011-Jun-01

Figure 8-2 Pin configuration

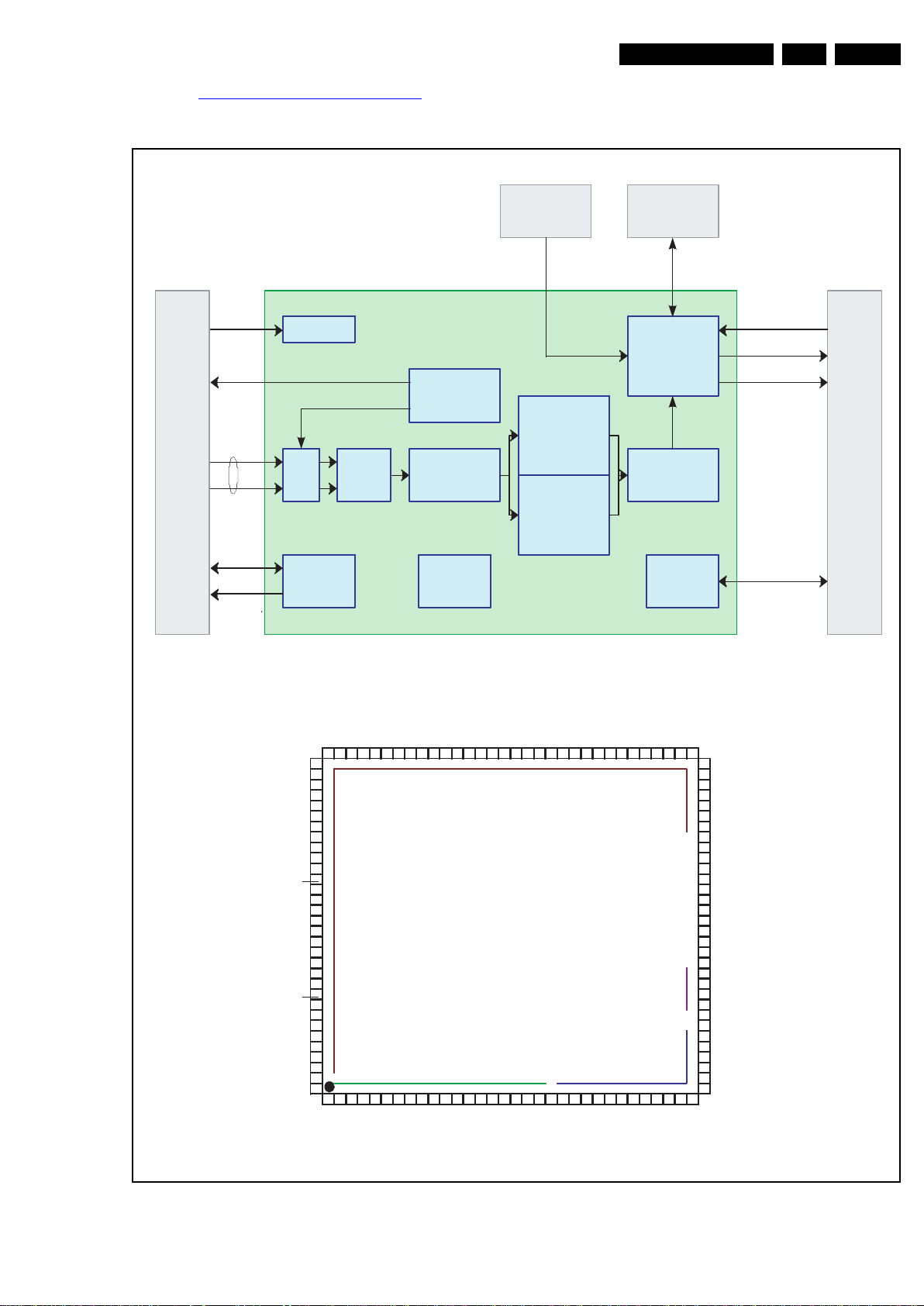

8.2 Diagram DVB-T+C_DEMOD MT5135 / CI B10, MT5135AE/A LQFP-128 (IC U1011)

19080_303_110317.eps

110330

Block diagram

Pinning information

A15 97 A24 98 A12 99

A25 100

A7 101

VS2_ 102

A6 103

CMCIA_RESET 104

A5 105

WAIT_ 106

A4 107 A3 108

DVSS 109

DVDD33 110

REG_ 111 DVSS 112

DVDD10 113

A2 114

BVD2 115

A1 116

BVD1 117

A0 118 D8 119 D0 120 D9 121 D1 122

D10 123

D2 124

CD2_ 125

96 95 94 93 92 91 90 89 88 87 86 85 84 83 82 81 80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65

CI interface

MT5135AE

64 D5 63 D12 62 D4 61 D11 60 D3 59 CD1_ 58 CHIP_CTRL 57 S2_TS_DATA7 56 S2_TS_DATA6 55 S2_TS_DATA5 54 S2_TS_DATA4 53 S2_TS_DATA3 52 S2_TS_DATA2 51 S2_TS_DATA1 50 DVDD33

49 DVSS 48 S2_TS_DATA0 47 S2_TS_VAL 46 S2_TS_SYNC 45 S2_TS_CLK 44 RF_AGC 43 IF_AGC 42 TUNER_CLK 41 TUNER_DATA 40 DVDD10

39 DVSS 38 AVDD33 37 AVDD12 36 IFPGA_INP

CI_INT 126

DVSS 127

DVDD

33 128

Host chip and TS interface Analog interface 35 IFPGA_INN

34 AVSS12 33 EXT_CLKSEL

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32

32A

61A

22A

YDAER

12A

EW

_

SSVD

33DDVD

02A

41A

91A

31A

81A

01DDVD

SSVD

8A

71A

9A

R WOI

_

11A

D RO I

_

EO

_

1SV

_

01A

SSVD

33DDVD

1EC

_

51D7D41D6D31D

IPS

_

ELC

IPS

_

ATAD

IPS

_

LC

RVP

_

ST

_

1ATAD

RVP

_

ST

_

0ATAD

S_ST_RVP

Y

CN

RVP

_

ST

_

LAV

LC_ST_RVP

IC

_

ST

_

0ATAD

ST_IC

_

CNYS

IC

_

ST

_

LAV

IC

_

ST

_

LC

SSVD

33DDVD

DOMED

_

ST

_

0A T

AD

D O MED

_

ST

_

CN Y

S

DO ME

D

_

ST

_

LAV

DOMED

_

ST

_

LC

B_TSR_5315TM

01DDVD

21DDVA

3 3DDVA

0NIDA

33SSVA

NT

PT

33DDVA

33SSVA

ILATX

33SSVA

OLATX

33DDVA

e cafret

n

i dom

e d l anre

txE

ecaf retni re

n uT

RF Tuner

RSSI

RF AGC

Differential IF signal

Tuner SDA

Tuner SCL

Other demodulators

CAM

PCMCIA interface

RSSI ADC

AGC

PGA

10-bit ADC

Integrated SAW filter function

DVB-C demodulator

CI+ controller

SIF Master

Microcontroller

DVB-T demodulator

Demod TS output

TS interface

PVR playback TS PVR recording TS

Demod TS

MT5135AE

FEC decoder

SPI transceiver

SPI interface

Main decoder chip

IC Data Sheets

EN 33TPM8.2E LA 8.

K

Figure 8-3 Internal block diagram and pin configuration

K

2011-Jun-01

EN 34 TPM8.2E LA8.

19120_302_110516.eps

110516

Block diagram

Pinning information

CPN

CPP

PLL_FLTP

VR_ANA

HPVDD

AVSS

PLL_FLTM

HPR_IN

HPVSS

HPL_OUT

HPL_IN

RESET

HPR_OUT

STEST

N D P

G I D _ R V

S E R _ C S O

O S S V D

DVDD

K L C M

L E S _ A

K L C S

N I D S

K L C R L

D D V A

A D S

L C S

DVSS

GND

VREG

B A _ D N G P

A _ T U O

C _ T S B

C _ T U O

GVDD_OUT HP_SD

R M W P _ P H

B A _ D D V P

D _ T U O

BST_D

AGND

L M W P _ P H

A _ T S B

D C _ D N G P

PVDD_CD

B _ T U O

B _ T S B

SSTIMER

TAS5717

(TAS5719)

1 2 3 4 5 6 7 8 9 10 11 12

13

14

15 16

17

18 19 20

21 22

23

24

25

26

27

28

29

30

31

32

48

47

46

45 44

43 42 41 40 39 38 37

36 35 34 33

SDIN

MCLK

SCLK

LRCLK

Serial Audio

Port

Protection

Logic

Control

(DAP)

SDA

SCL

4

Order

th

Noise

Shaper

and

PWM

S R C

Autodetect

Serial

Control

Microcontroller

Based

System

Control

OUT_A

OUT_B

2HB

FET Out

OUT_C

OUT_D

2HB

FET Out

HPL_IN

HPL_OUT

HPR_IN

HPR_OUT

IC Data Sheets

8.3 Diagram SPK AMP / HP AMP / AUD MUX B05, TAS5717 HTQFP-48 10W (IC U602)

2011-Jun-01

Figure 8-4 Internal block diagram and pin configuration

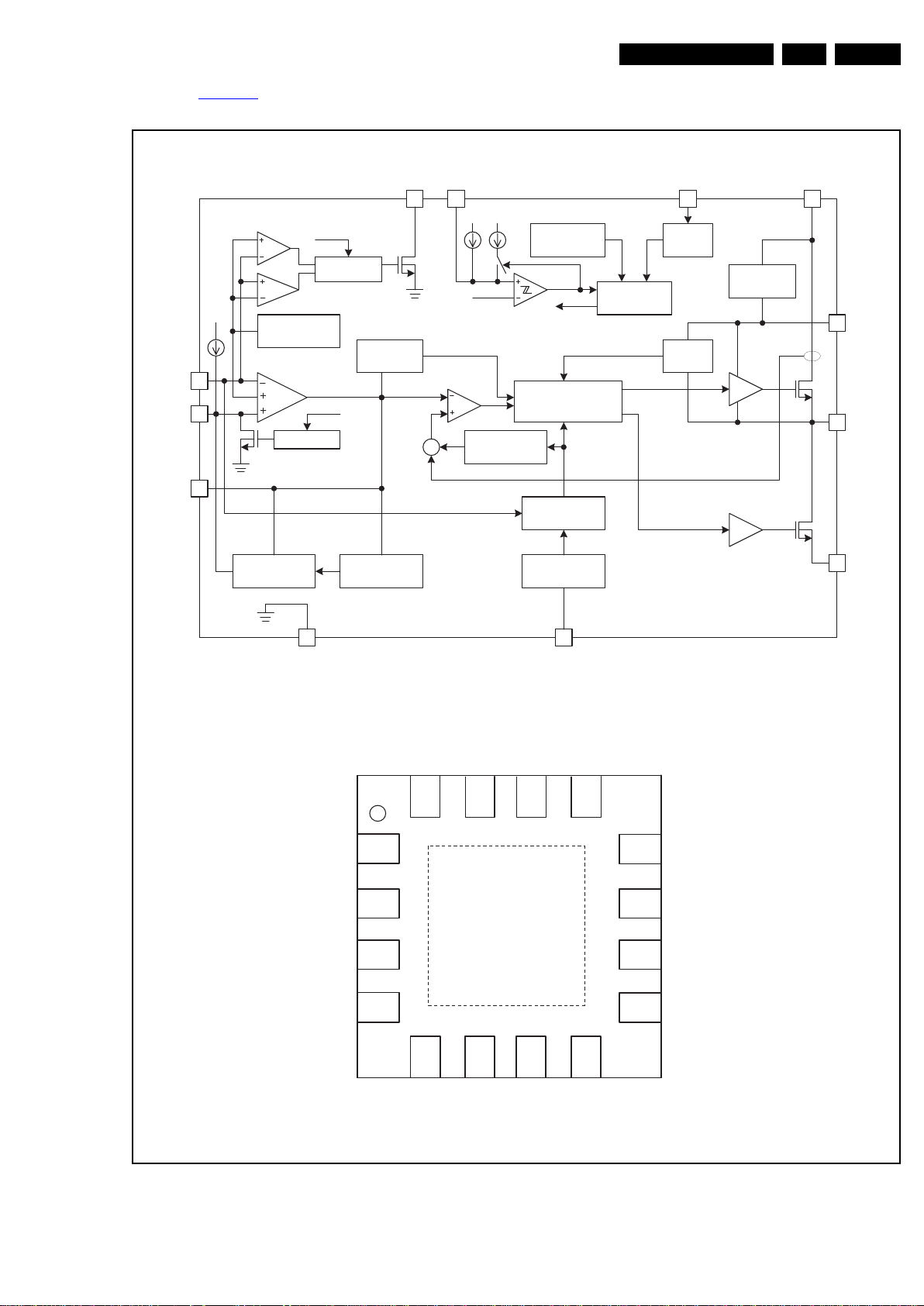

8.4 Diagram Power-1 B01, G5173R41D (IC U701)

19120_303_110517.eps

110524

Block diagram

Pinning information

P M O C

1

2

3

4

12

11

10

9

LX

SS

6 1

5 1

4 1

3 1

T R

D N G A

B F

Thermal

Pad

G P

S B

N E

N I V

VINA

VIN

GND

5

6

7

8

P M O C

1

2

3

4

12

11

10

9

LX

SS

6 1

5 1

4 1

3 1

T R

D N G A

B F

Thermal

Pad

G P

S B

N E

N I V

VINA

VIN

GND

5

6

7

8

Logic

PG

SHDN

93%

107%

Voltage

Reference

FB

Erramp

SS

Logic

COMP

OverLoad

Recovery

Maximum

Clamp

AGND

Minimum

Clamp

PWM

SHDN

Slope

Compensation

Frequency

Shift

Oscillator

G5173R41D

RT

Logic and PWM Latch

Boot

UVLO

GND

LX

BS

Buffer

Current

Sense

VIN

Boot

Charge

EN

Enable

Threshold

Enable

Comparator

UVLO

Shutdown

Logic

SHDN

Thermal

Shutdown

VINA

IC Data Sheets

EN 35TPM8.2E LA 8.

Figure 8-5 Internal block diagram and pin configuration

2011-Jun-01

Personal Notes:

10000_012_090121.eps

090121

EN 36 TPM8.2E LA8.

IC Data Sheets

2011-Jun-01

9. Block Diagrams

19120_400_110519.eps

110526

Board Level Repair

Component Level Repair Only For Authorized W orkshop

WIRING DIAGRAM 19"

(Golden horse)

SSB

(1053 )

B

MAIN POWER SUPPLY

(1054)

LCD DISPLAY

(1050)

CN9102

1. BL-ON/OFF

2. BRIGHTNESS

3. +5V3

4. +5V3

5. GND

6. GND

7. GND

8. +18V

9. +18V

10. -

11. Standby

A

CN409

1. LVDS_VDD

2. LVDS_VDD

3. LVDS_VDD

4. LVDS_VDD

......

25. O0P

26. O0N

27. GND

28. -

29. -

30. GND

CN701

13. -

12. STB_PWR5V

11. STB_PWR5V

10. PWR_ON

9. PWR_18V

8. PWR_18V

7. GND

6. GND

5. GND

4. PWR_12V

3. PWR_12V

2. BRIGHT_ADJ

1. INVERTER_ON_OFF

CN9901

1. N

2. L

IR/LED BOARD (1056)

CN201

5P

J

TO

BACKLIGHT

CN8103

1. HV2

2. HV2

3. HV2

DANGEROUS

HIGH VOLTAGE

CN8102

1. HV2

2. HV2

3. HV2

DANGEROUS

HIGH VOLTAGE

TO

BACKLIGHT

CN601

1. ROUT-

2. ROUT+

3. LOUT-

4. LOUT+

CN402

7. Key2

6. Key1

5. DV33SB

4. GND

3. RC6

2. LED_G

1. LED_R

8402

8408

RIGHT SPEAKER LEFT SPEAKER

9-1 Wiring diagram 19"

Block Diagrams

EN 37TPM8.2E LA 9.

2011-Jun-01

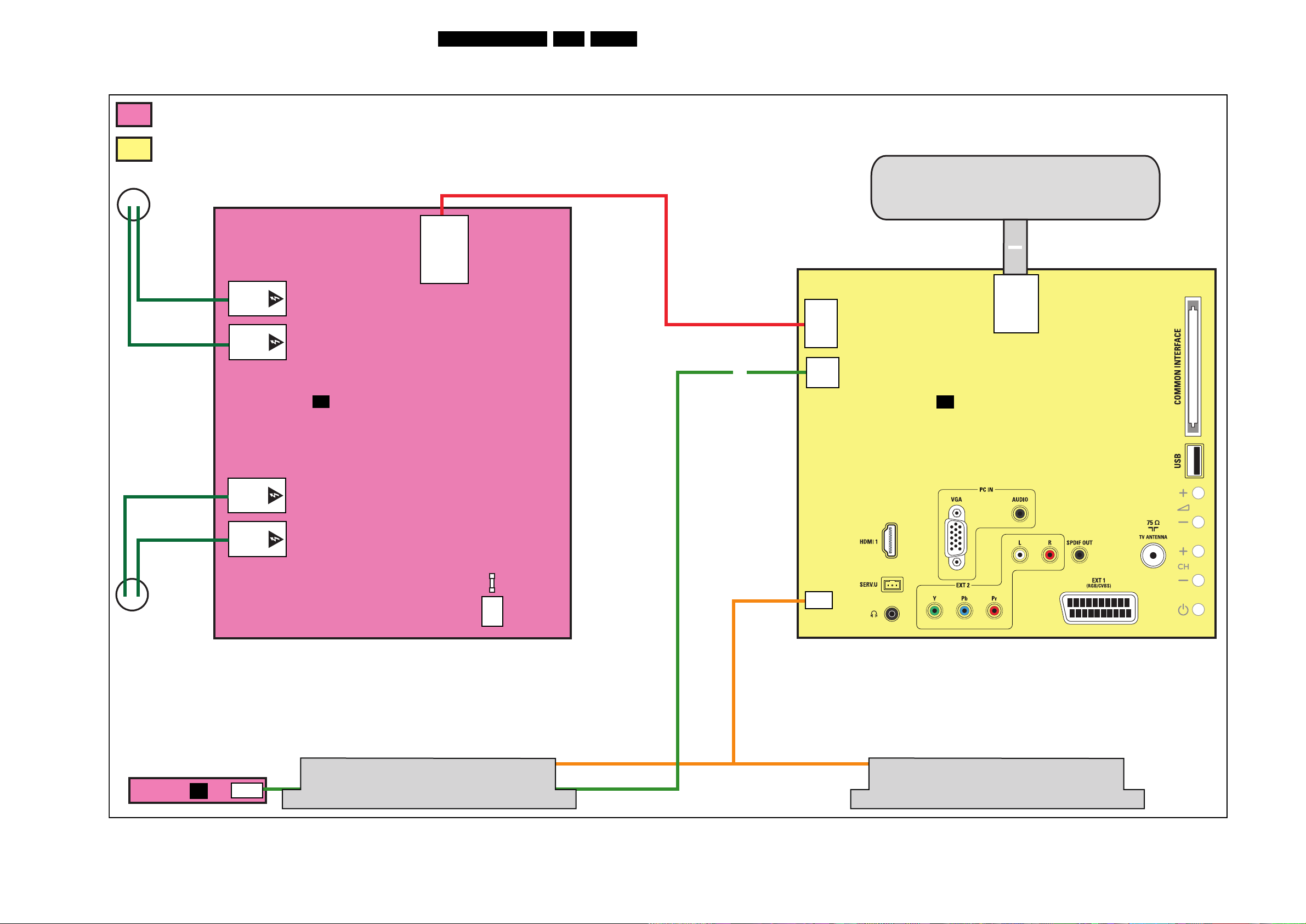

9-2 Wiring diagram 22"

19120_401_110519.eps

110526

Board Level Repair

Component Level Repair Only For Authorized W orkshop

WIRING DIAGRAM 22" (Golden horse)

SSB

(1053 )

B

MAIN POWER SUPPLY

(1054)

LCD DISPLAY

(1050)

CN9102

1. BL-ON/OFF

2. BRIGHTNESS

3. +5V3

4. +5V3

5. GND

6. GND

7. GND

8. +18V

9. +18V

10. -

11. Standby

A

CN408

1. O0N

2. O0P

3. O1N

4. O1P

......

25. GND

26. GND

27. LVDS_VDD

28. LVDS_VDD

29. LVDS_VDD

30. LVDS_VDD

CN701

13. -

12. STB_PWR5V

11. STB_PWR5V

10. PWR_ON

9. PWR_18V

8. PWR_18V

7. GND

6. GND

5. GND

4. PWR_12V

3. PWR_12V

2. BRIGHT_ADJ

1. INVERTER_ON_OFF

CN9901

1. N

2. L

IR/LED BOARD (1056)

CN201

5P

J

TO

BACKLIGHT

CN8103

1. HV2

2. HV2

3. HV2

DANGEROUS

HIGH VOLTAGE

CN8101

1. HV2

2. HV2

3. HV2

DANGEROUS

HIGH VOLTAGE

TO

BACKLIGHT

CN601

1. ROUT-

2. ROUT+

3. LOUT-

4. LOUT+

CN402

7. Key2

6. Key1

5. DV33SB

4. GND

3. RC6

2. LED_G

1. LED_R

8402

8408

CN8104

1. HV2

2. HV2

3. HV2

DANGEROUS

HIGH VOLTAGE

CN8102

1. HV2

2. HV2

3. HV2

DANGEROUS

HIGH VOLTAGE

RIGHT SPEAKER LEFT SPEAKER

Block Diagrams

EN 38TPM8.2E LA 9.

2011-Jun-01

9-3 Wiring diagram 26"

19120_402_110526.eps

110527

Board Level Repair

Component Level Repair Only For Authorized W orkshop

WIRING DIAGRAM 26" (Golden horse)

SSB

(1053 )

B

MAIN POWER SUPPLY

(1054)

LCD DISPLAY

(1050)

CN902

1. ON/OFF

2. PDIM

3. +12V

4. +12V

5. GND

6. GND

7. GND

8. +18V/+24V

9. +18V/+24V

10. PS_ON

11. +5V

12. +5V

13. -

A

CN408

1. O0N

2. O0P

3. O1N

4. O1P

......

25. GND

26. GND

27. LVDS_VDD

28. LVDS_VDD

29. LVDS_VDD

30. LVDS_VDD

CN701

13. -

12. STB_PWR5V

11. STB_PWR5V

10. PWR_ON

9. PWR_18V

8. PWR_1 8V

7. GND

6. GND

5. GND

4. PWR_12V

3. PWR_12V

2. BRIGHT_ADJ

1. INVERTER_ON_OFF

CN901

1. N

2. L

IR/LED BOARD (1056)

CN201

5P

J

CN812

1. HV2

2. HV2

3. HV2

DANGEROUS

HIGH VOLTAGE

TO

BACKLIGHT

CN601

1. ROUT-

2. ROUT+

3. LOUT-

4. LOUT+

CN402

7. Key2

6. Key1

5. DV33SB

4. GND

3. RC6

2. LED_G

1. LED_R

8408

CN811

1. HV2

2. HV2

3. HV2

DANGEROUS

HIGH VOLTAGE

LEFT SPEAKER

8402

RIGHT SPEAKER

8902

8802

Block Diagrams

EN 39TPM8.2E LA 9.

2011-Jun-01

9-4 Block Diagram

19120_403_110519.eps

110526

I2C

NVM 24C128

ENV57U04D8F /TDTK-G731

USB 2.0

24C02

MT5366 cvou

AUDIO AMP

TAS5717

SPK

D-SUB (PC IN)

DDC

RCA (YPBPR)

YPbPr

VGA

PHONE JACK (PC R/L) RCA (YPBPR R/L)

SCART (AUDIO R/L)

HDMI1

LVDS (50/60 Hz)

[RX0 : RX3]

RGB/CVBS

SCART

MT5135 DVB-C/T DEMOD CI/CI+ CONTROLLER

PCMCIA CI CARD

TS DATA OUT (SERIAL)

LCD PANEL T-CON

RF Tuner for PAL/DVB-C/T/T2

HP R/L

HEADPHONE

AUD MUX

CD 4025

L/R

PCMCIA INTERFACE

TS DATA IN/OUT (PARALLEL)

IF (+/-) for DVB C/T

IF (+/-) for PAL/SECAM

TMDS

NAND FLASH

128 M × Bits × 1

DDRIII/64M × 16 Bits

1.3 GHz × 1

USB (Multimedia)

Multimedia & debug, sw code download

I2C

SPI

I2C for No DVB-T2

SPK R/L

L/R

24C02

DDC

UART

Side Key

RC

SPDIF Out

Block Diagrams

EN 40TPM8.2E LA 9.

2011-Jun-01

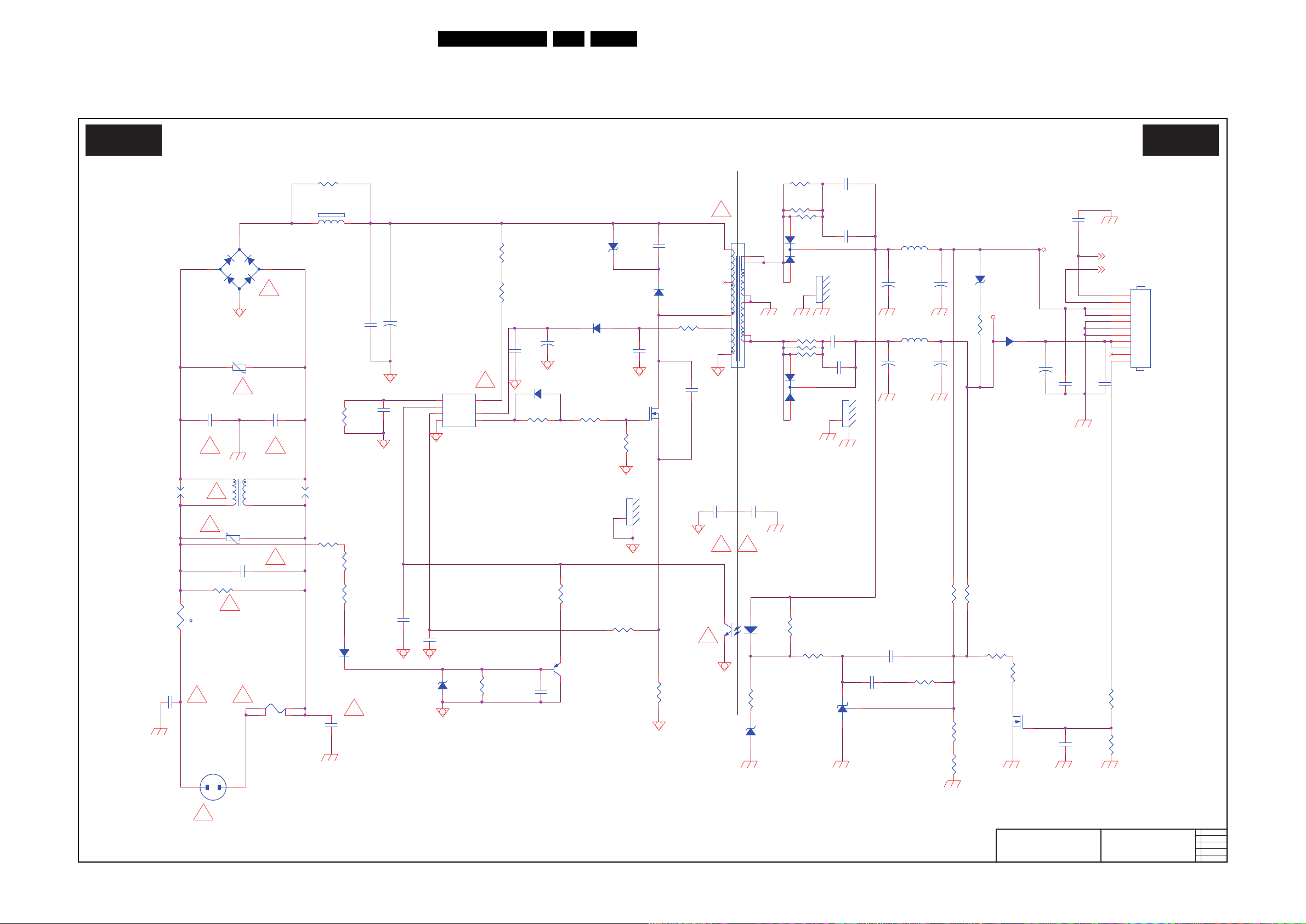

Circuit Diagrams and PWB Layouts

2011-04-13

1

715G4899

Adapter

A01 A01

19120_500_110517.eps

110517

+18V

+5.3V

!

HV

!

BRIGHTNESS

INV-ON/OFF

HOT COLD

Fuse clip P15T0002 1

C9104

1N 500V

C9104

1N 500V

SG9901

GS41-201MA

SG9901

GS41-201MA

HD9105HD9105

1

2

D9101

UF1007

D9101

UF1007

C9118

330pF/500V(NC)

C9118

330pF/500V(NC)

R9115

3.3 OHM 1/4W

R9115

3.3 OHM 1/4W

C9112

100P 50V

C9112

100P 50V

C9102

1N 500V

C9102

1N 500V

C9906

0.0022uF/250V

C9906

0.0022uF/250V

T9101

PT-011791

T9101

PT-011791

3

6

2

1 5

9

11 12

7

8

10

HD9102HD9102

1

2

D9106

SR104

D9106

SR104

C9901

470pF/250V

C9901

470pF/250V

R9119

10 OHM 1/8W

R9119

10 OHM 1/8W

C9111

330pF/500V(NC)

C9111

330pF/500V(NC)

R9129

51K OHM

R9129

51K OHM

R9110

10K OHM +-5% 1/8W

R9110

10K OHM +-5% 1/8W

F9901

3.15AH 250V

F9901

3.15AH 250V

3

4

1 2

R9114

18KOHM +-5% 1/8W (NC)

R9114

18KOHM +-5% 1/8W (NC)

IC9103

TL431CZ-AP

IC9103

TL431CZ-AP

1

3

2

R9132

2K4 1/8W 1%

R9132

2K4 1/8W 1%

R9126

430 OHM

R9126

430 OHM

D9103

FR103

D9103

FR103

R9117

100 OHM 1/4W

R9117

100 OHM 1/4W

R9125 0R39 5% 1W

L9103

3.5uH

L9103

3.5uH

C9115

0.0022uF/500V

C9115

0.0022uF/500V

R9120

22K 1/4W

R9120

22K 1/4W

C9125

150PF 1KV

C9125

150PF 1KV

R9116

100 OHM 1/4W

R9116

100 OHM 1/4W

R9107

3.3M 1/4W

R9107

3.3M 1/4W

R9133

1KOHM 1/8W(NC)

R9133

1KOHM 1/8W(NC)

+

C9107

100uF 450V

+

C9107

100uF 450V

D9102

SP10150

D9102

SP10150

1

2

3

Q9103

STP8NK80ZFP

Q9103

STP8NK80ZFP

Q9101

BC857C

Q9101

BC857C

C9151

10N 50V

C9151

10N 50V

ZD9103

RLZ6.2B

ZD9103

RLZ6.2B

1 2

IC9102

EL817MA

IC9102

EL817MA

12

43

R9136

330 OHM 1/4W(NC)

R9136

330 OHM 1/4W(NC)

C9127

100N 50V

C9127

100N 50V

R9118

100 OHM 1/4W

R9118

100 OHM 1/4W

R9113

3.3M 1/4W

R9113

3.3M 1/4W

R9108

330K 1/8W

R9108

330K 1/8W

+

C9114

470UF 35V

+

C9114

470UF 35V

R9106

100 OHM +-5% 1/8W(NC)

R9106

100 OHM +-5% 1/8W(NC)

R9103100 OHM 1/4WR9103100 OHM 1/4W

-

+

BD9901

KBJ408G

-

+

BD9901

KBJ408G

2

1

3

4

C9130

10U 16V

C9130

10U 16V

R9104100 OHM 1/4WR9104100 OHM 1/4W

ZD9102

P6KE15A

ZD9102

P6KE15A

12

D9107

LL4148

D9107

LL4148

C9903

470pF/250V

C9903

470pF/250V

+

C9113

1000uF 35V

+

C9113

1000uF 35V

C9128

100N 50V(NC)

C9128

100N 50V(NC)

R9102

100R 1/8W 5%

R9102

100R 1/8W 5%

L9902

LF-009561

L9902

LF-009561

1

2

4

3

D9105

SP1060

D9105

SP1060

1

2

3

FB9901

BEAD

FB9901

BEAD

1 2

ZD9106

P6KE180A

ZD9106

P6KE180A

12

R9109

1KOHM +-1% 1/8W

R9109

1KOHM +-1% 1/8W

CN9102

Wire Harness

CN9102

Wire Harness

1 2

3

4 5 6 7

8

9 10 11

R9121

100 OHM 1/4W

R9121

100 OHM 1/4W

R9123

3K3 1/8W 5%

R9123

3K3 1/8W 5%

R9111

100KOHM +-5% 1/8W

R9111

100KOHM +-5% 1/8W

R9127

100R 1/8W 5%

R9127

100R 1/8W 5%

R9101

3.3M 1/4W

R9101

3.3M 1/4W

C9110

1N 50V(NC)

C9110

1N 50V(NC)

L9104

3.5uH

L9104

3.5uH

R9134

4R3 1W 5%

R9134

4R3 1W 5%

D9104

LS4148

D9104

LS4148

R9122

1K 1/4W

R9122

1K 1/4W

+

C9116

100uF/25V(NC)

+

C9116

100uF/25V(NC)

C9129

330N 25V

C9129

330N 25V

C9905

0.0022uF/250V

C9905

0.0022uF/250V

C9126

100N 50V

C9126

100N 50V

SG9902

GS41-201MA

SG9902

GS41-201MA

t

NR9901

SCK13074MMY502

t

NR9901

SCK13074MMY502

12

C9119

100N 50V

C9119

100N 50V

R9105100 OHM 1/4WR9105100 OHM 1/4W

C9133

220P 100V(NC)

C9133

220P 100V(NC)

R9130

330KOHM 1/8W(NC)

R9130

330KOHM 1/8W(NC)

C9117

47N 50V(NC)

C9117

47N 50V(NC)

CN9901

SOCKET

CN9901

SOCKET

12

+

C9121

2200uF 16V

+

C9121

2200uF 16V

HQ9103HQ9103

1

2

C9103

10nF

C9103

10nF

C9124

100N 25V(NC)

C9124

100N 25V(NC)

R9900

2M7 5% 1/2W

R9900

2M7 5% 1/2W

RV9902

TVR14561KFC4FY

RV9902

TVR14561KFC4FY

ZD9107

RLZ6.8B

ZD9107

RLZ6.8B

1 2

C9902

470pF/250V

C9902

470pF/250V

IC9101

LD7750RGR

IC9101

LD7750RGR

OTP

1

COMP

2

CS

3

GND

4

OUT

5

VCC

6

HV

8

+

C9120

22uF/50V

+

C9120

22uF/50V

C9900

470pF/250V

C9900

470pF/250V

C9908

0.33uF275V

C9908

0.33uF275V

R9128

3K9 1/8W 1%

R9128

3K9 1/8W 1%

RV9901

TVR14561KFC4FY

RV9901

TVR14561KFC4FY

Q9102

RK7002(NC)

Q9102

RK7002(NC)

+

C9122

470UF 16V

+

C9122

470UF 16V

R9112

10K OHM +-5% 1/8W

R9112

10K OHM +-5% 1/8W

R9131

1.5KOHM +-5% 1/8W

R9131

1.5KOHM +-5% 1/8W

10. Circuit Diagrams and PWB Layouts

10-1 A01 715G4899 PSU 19" and 22"

Adapter

EN 41TPM8.2E LA 10.

2011-Jun-01

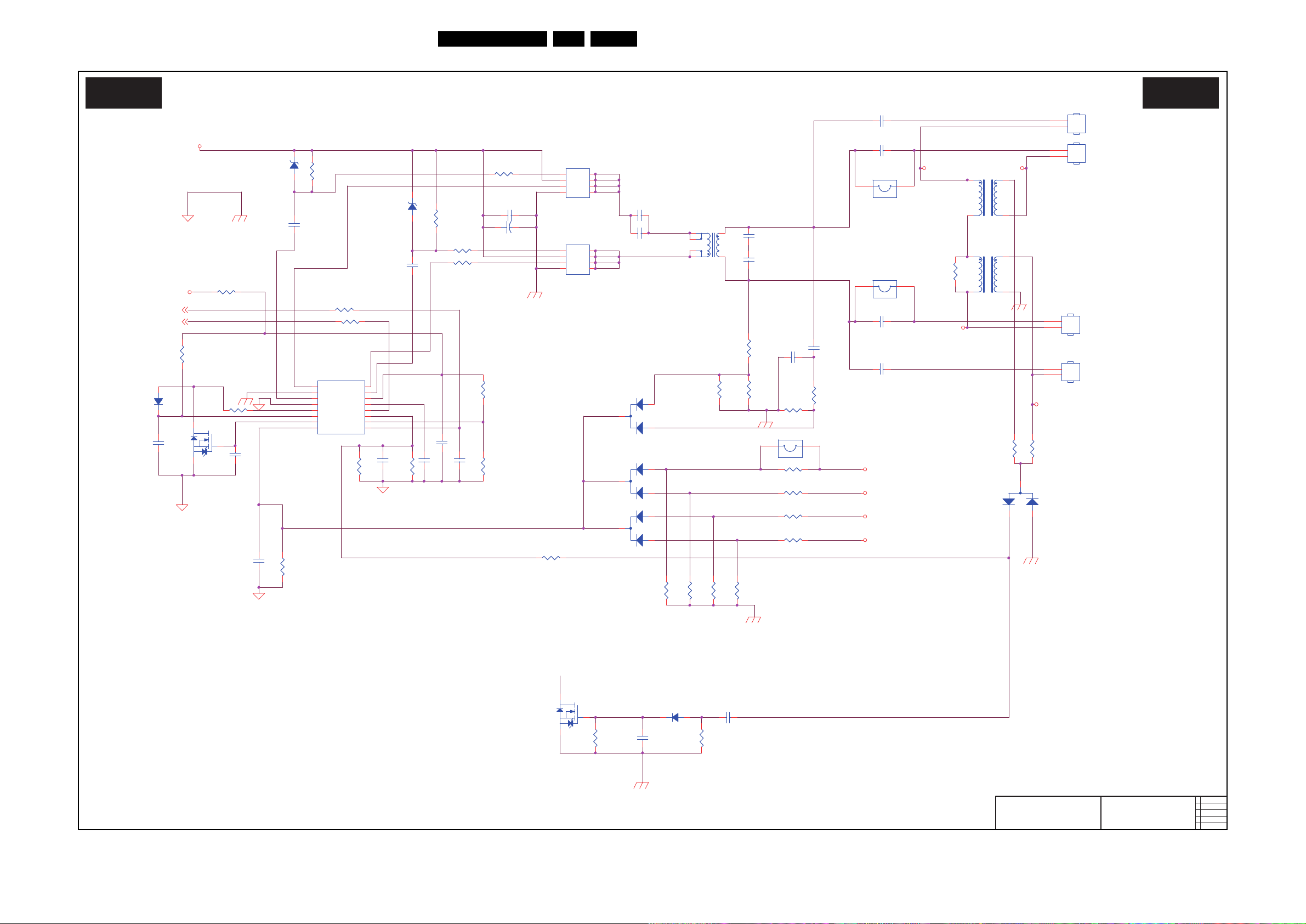

Inverter

19120_501_110517.eps

110517

2011-04-13

1

715G4899

Inverter

A02 A02

OVPT

ISEN

VSEN

ISEN

+5.3V

+18V

LV1

LV3

LV2

LV4

LV3

LV1

LV2

BRIGHTNESS

INV-ON/OFF

R8117

0 OHM +-5% 1/10W

R8117

0 OHM +-5% 1/10W

Q8106

AO4620

Q8106

AO4620

S2

1

G2

2

S1

3

G1

4

D1

5

D1

6

D2

7

D2

8

D8102

LL4148

D8102

LL4148

L8102

200mH

L8102

200mH

1

2 3

4

R8105

22 OHM 1/8W

R8105

22 OHM 1/8W

ZD8102

RLZ5.6B

ZD8102

RLZ5.6B

1 2

C8127

22pF 50V(NC)

C8127

22pF 50V(NC)

C8112

56pF3KV

C8112

56pF3KV

Q8105

AO4620

Q8105

AO4620

S2

1

G2

2

S1

3

G14D1

5

D1

6

D2

7

D2

8

R8125

1 MOHM +-1% 1/8W

R8125

1 MOHM +-1% 1/8W

R8154

4.7K OHM 1/4W(NC)

R8154

4.7K OHM 1/4W(NC)

C8106

1U 25V

C8106

1U 25V

R8109

100KOHM +-5% 1/8W

R8109

100KOHM +-5% 1/8W

IC8101

TA 9687GN- A -0-TR

IC8101

TA 9687GN- A -0-TR

VSEN

1

SSTCMP

2

CT

3

RT1

4

GNDA

5

PDR2

6

GNDP

7

NDR2

8

NDR1

9

PDR1

10

VDDA

11

TIMER

12

PWM

13

ISEN

14

OVPT

15

ENA

16

R8107

10K 1/8W

R8107

10K 1/8W

R8104

360OHM +-5% 1/8W

R8104

360OHM +-5% 1/8W

R8153

1K 1/8W(NC)

R8153

1K 1/8W(NC)

C8113

220P 50V

C8113

220P 50V

T8101

POWER X'FMR

T8101

POWER X'FMR

6

5

1 2

8

7

D8103

BAV99

D8103

BAV99

3

1

2

C8102

56pF3KV

C8102

56pF3KV

J8109

JUMPER

J8109

JUMPER

1

2

R8130

0R05OHM1/8W

R8130

0R05OHM1/8W

R8124

1M 1/8W 5%

R8124

1M 1/8W 5%

J8110

JUMPER

J8110

JUMPER

1

2

C8111

2pF 6KV

C8111

2pF 6KV

R8133

0 OHM +-5% 1/8W

R8133

0 OHM +-5% 1/8W

+

C8105

470uF 35V

+

C8105

470uF 35V

C8101

56pF3KV

C8101

56pF3KV

R8108

47K +-5% 1/8W

R8108

47K +-5% 1/8W

R8114

820 OHM +-5% 1/8W(NC)

R8114

820 OHM +-5% 1/8W(NC)

R8113

1M 1/8W

R8113

1M 1/8W

R8122

6.8K 1/8W

R8122

6.8K 1/8W

C8107

27pF 5% SL 3KV

C8107

27pF 5% SL 3KV

D8101 BAV70D8101 BAV70

3

1

2

C8125

1NF(NC)

C8125

1NF(NC)

R8127 10K 1/8WR8127 10K 1/8W

D8110

1N4148(NC)

D8110

1N4148(NC)

R8134 0oHM

R8110

100KOHM +-5% 1/8W

R8110

100KOHM +-5% 1/8W

R8106

10K 1/8W

R8106

10K 1/8W

C8120

33N 50V

C8120

33N 50V

R8103

5K1 +-5% 1/8W

R8103

5K1 +-5% 1/8W

R8115

100KOHM +-5% 1/8W

R8115

100KOHM +-5% 1/8W

C8117

47N 50V

C8117

47N 50V

CN8104

CONN

CN8104

CONN

1 2

Q8107

RK7002FD5T116(NC)

Q8107

RK7002FD5T116(NC)

R8119

33KOHM +-5% 1/8W(NC)

R8119

33KOHM +-5% 1/8W(NC)

R8132

0R051/8W

R8132

0R051/8W

CN8102

CONN

CN8102

CONN

1 2

R8123

1M 1/8W

R8123

1M 1/8W

R8102

5.1K 1/8W

R8102

5.1K 1/8W

D8104 BAV70D8104 BAV70

3

1

2

C8116

390P 50V

C8116

390P 50V

R8111

6.2MOHM +-5% 1/2W

R8111

6.2MOHM +-5% 1/2W

R8118

5K1 +-5% 1/8W

R8118

5K1 +-5% 1/8W

J8111

JUMPER

J8111

JUMPER

1 2

ZD8101

RLZ5.6B

ZD8101

RLZ5.6B

1 2

R8121

510OHM +-5% 1/8W

R8121

510OHM +-5% 1/8W

C8108

47N 50V

C8108

47N 50V

Q8101 RK7002FD5T116

R8112

51K +-5% 1/8W

R8112

51K +-5% 1/8W

C8121

1U 25V

C8121

1U 25V

C8119

1U 25V

C8119

1U 25V

R8126 10K 1/8WR8126 10K 1/8W

R8116

1K OHM(NC)

R8116

1K OHM(NC)

CN8101

CONN

CN8101

CONN

1 2

C8109

1U 25V

C8109

1U 25V

R8120

1M OHM

R8120

1M OHM

CN8103

CONN

CN8103

CONN

1

2

C8110

56pF3KV

C8110

56pF3KV

R8128 10K 1/8WR8128 10K 1/8W

C8118

33N 50V

C8118

33N 50V

C8122

100N 25V

C8122

100N 25V

C8103

100N 50V

C8103

100N 50V

C8104

47N 50V

C8104

47N 50V

D8105 BAV70D8105 BAV70

3

1

2

R8129 10K 1/8WR8129 10K 1/8W

L8101

200mH

L8101

200mH

1

2 3

4

C8126

27pF 5% SL 3KV

C8126

27pF 5% SL 3KV

Circuit Diagrams and PWB Layouts

EN 42TPM8.2E LA 10.

2011-Jun-01

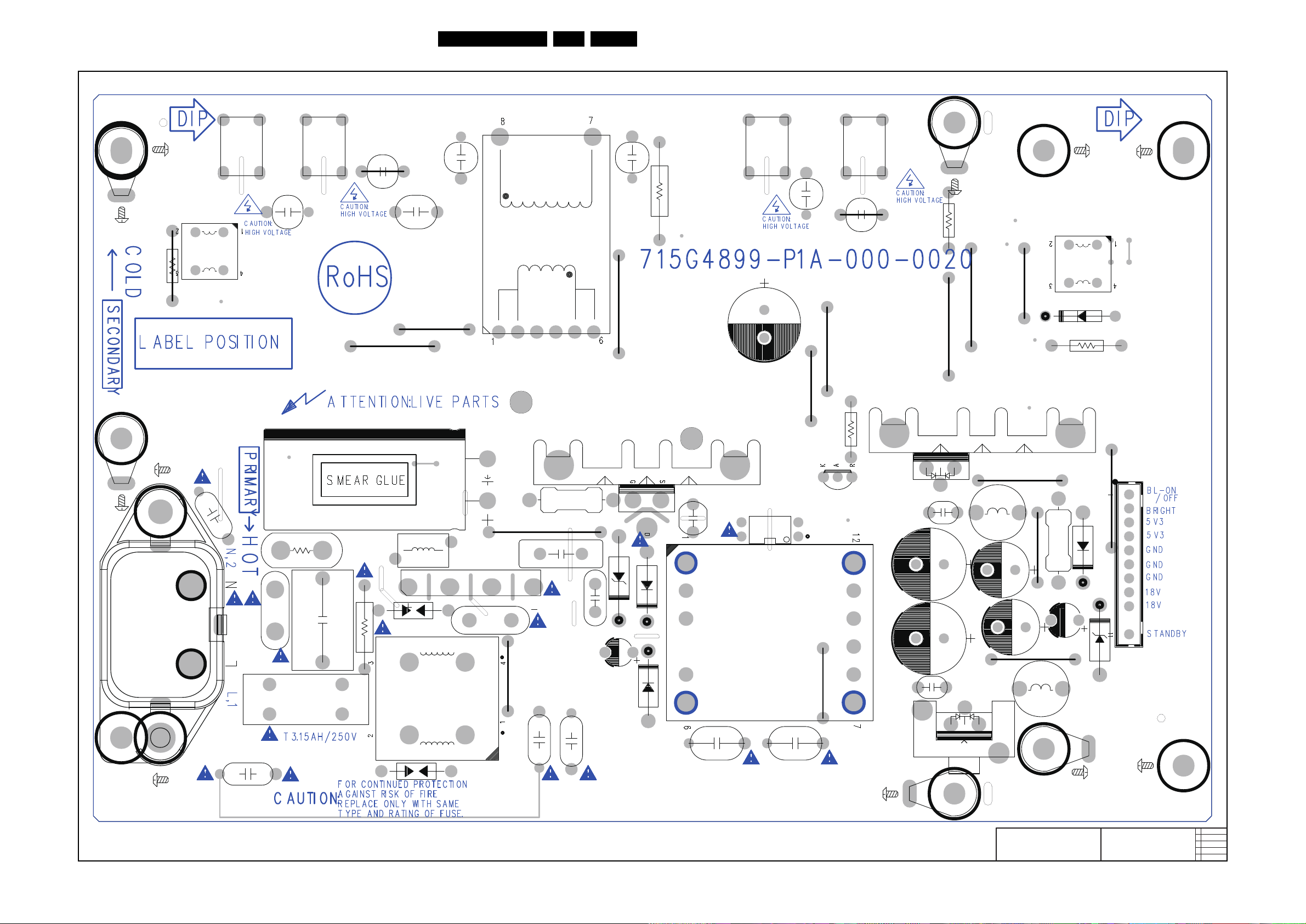

Power layout top

19120_502_110517.eps

110517

2011-04-13

1

715G4899

Power

layout top

SL8

SL1

SL2

SL3

SL4

SL9

H2

H1

M11M12

J1

J2

J3

J4

SL6

SL5

SL7

SL10

RV9901

RV9902

CN9901

F9901

C9115

C9125

C8101

C8102

C8107

C8110

C8112

C8126

C9103

C9908

D8110

D9101

D9103

D9106

NR9901

C9120

C9116

C9114

C9122

C8105

C9113

C9121

L8101

L8102

FB9901

J802

J805

J807

J911

J903

C9107

IC9103

D9102

D9105

Q9103

ZD9102

ZD9106

CN8101

CN8102

CN8103

CN8104

IC9102

J803

J804

J806

J901

J905

J907

J801

J902

J904

R8116

R9129

R8120

R8154

HD902

C9111

C9118

HD9105

R9125

R9134

T8101

J808

T9101

CN9102

L9104

L9103

HQ9103

M4

M3

M5

M1

M2

M8

M7

H3

BD9901

M10

M6

M9

L9902

C8111

J8109

J8110

J8111

C9900

C9901

C9902

C9903

C9905 C9906

R9900

R8111

SG9901

SG9902

Circuit Diagrams and PWB Layouts

EN 43TPM8.2E LA 10.

2011-Jun-01

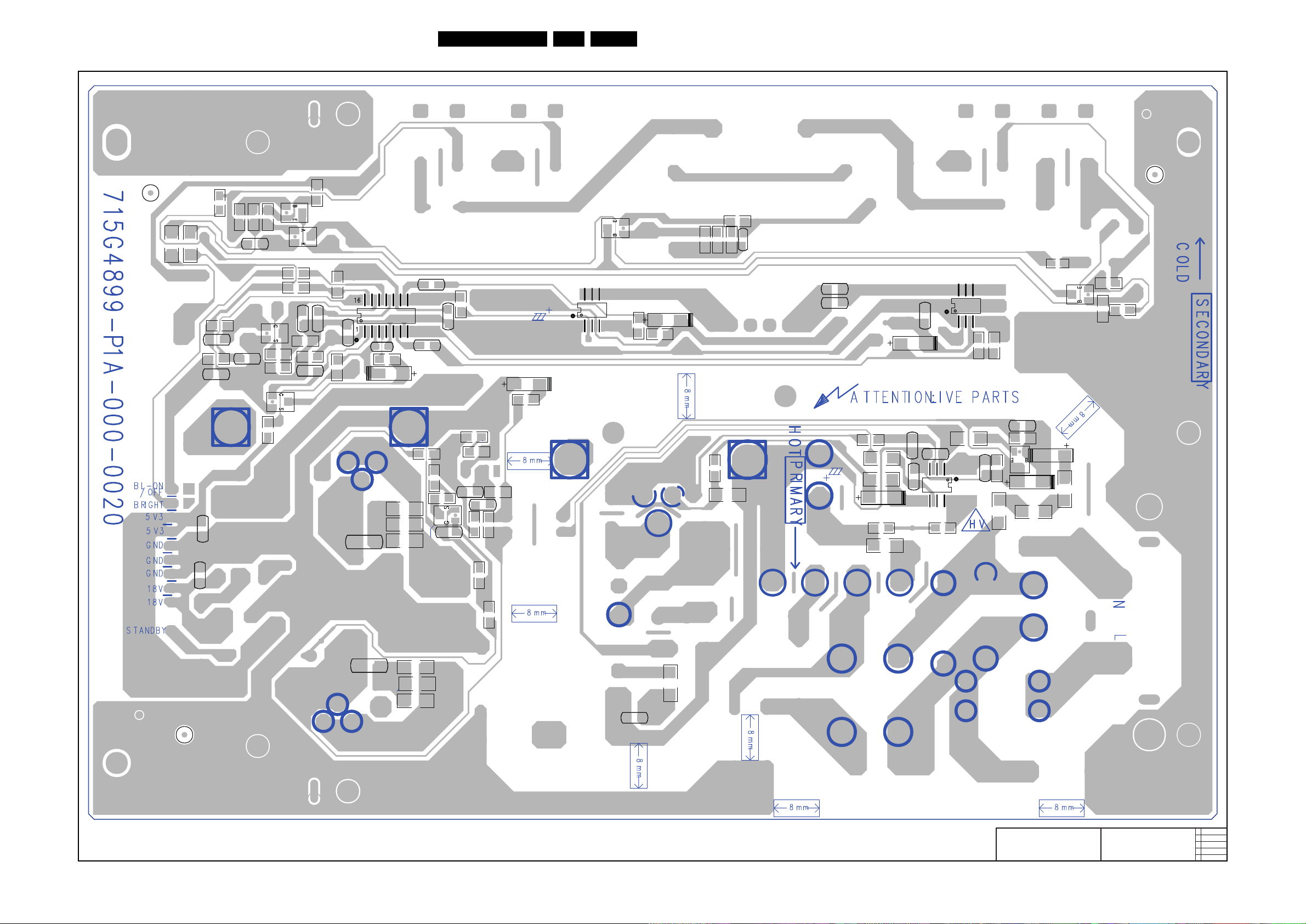

19120_503_110518.eps

110518

2011-04-13

1

715G4899

Power

layout bottom

IC8101

C8113

C8103

C8104

C8106

C8108

C8109

C8117

C8118

C8119

C8120

C8121

C8122

C8125

C8127

C9110

C9112

C9117

C9119

C9124

C9126

C9127

C9128

C9129

C9130

C9133

C9151

C9102

C9104

R8117

R8102

R8103

R8104

R8105

R8106

R8107

R8108

R8109

R8110

R8113

R8114

R8115

R8119

R8121

R8122

R8124

R8125

R8126

R8129

R8130

R8132

R8133

R8153

R9102

R9106

R9108

R9109

R9110

R9114

R9119

R9123

R9126

R9127

R9128

R9130

R9131

R9132

R9133

R9101

R9103

R9104

R9105

R9107

R9113

R9115

R9116

R9117

R9118

R9120

R9121

R9122

R9136

R8134

ZD8101

D8102

D9104

D9107

ZD8102

ZD9103

ZD9107

Q8105

Q8106

FD1

FD3

FD2

C8116

R8112

R8123

R8127

R8128

IC9101

R9112

R9111

Q8101

R8118

Q8107

D8103

D8101

D8104

D8105

Q9101

Q9102

J908

J909

J910

Power layout bottom

Circuit Diagrams and PWB Layouts

EN 44TPM8.2E LA 10.

2011-Jun-01

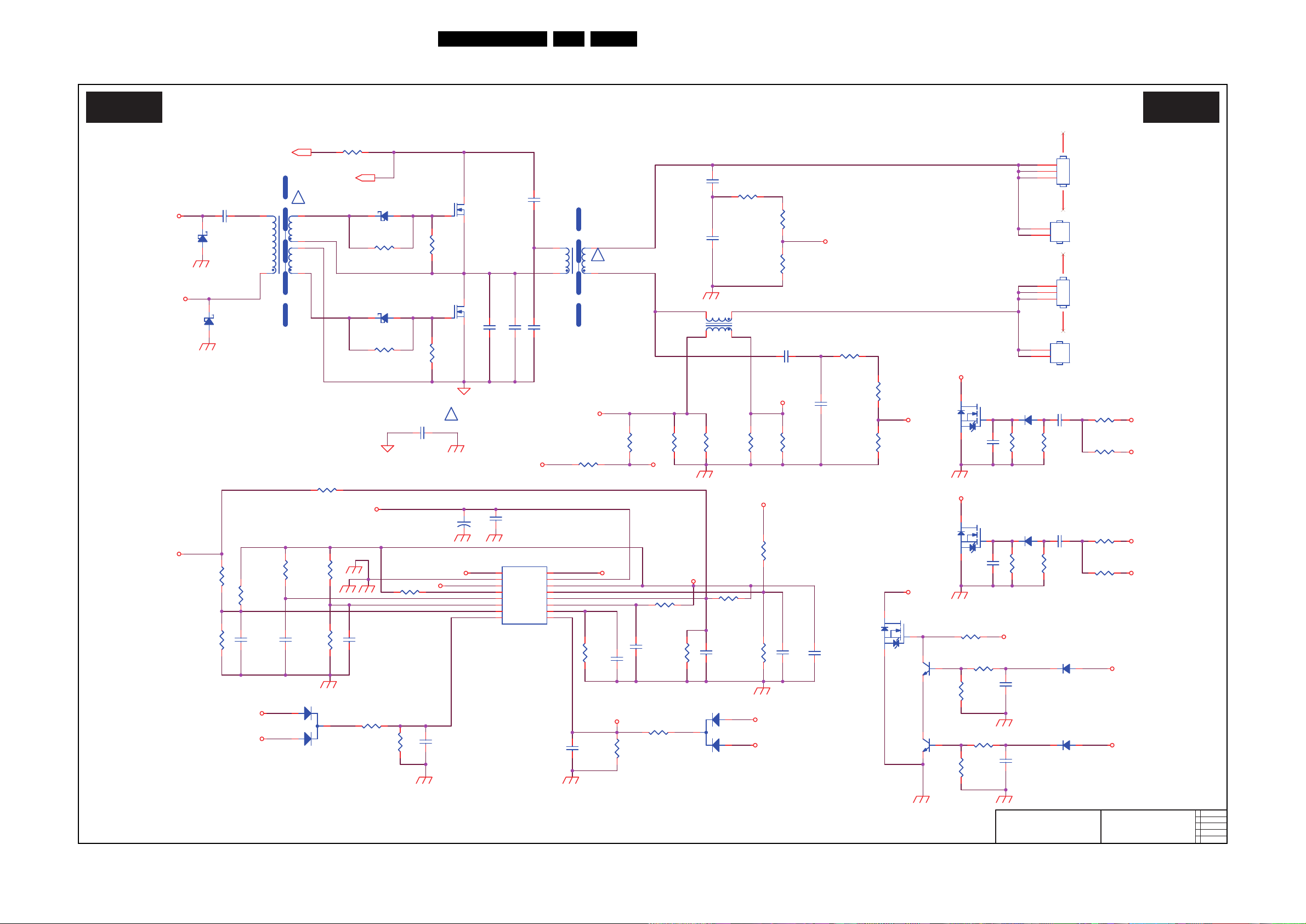

10-2 A01 715G5043 PSU 26"

19120_504_110518.eps

110518

Inverter

A01 A01

2011-05-16

1

715G5043

Inverter

ENA

VP1

B+_390V

R8101

+12V

DR1 DR2

DR1

DR2

VS1

VS2

ZCS

VS2

IS2

VREF

ON/OFF

PDIM

ISEN

IS1

IS2

IS1

VREF

ISEN

VREF

VS1

ISEN

VS2

VS1

IS1

IS2

680K

COLD HOT

COLDHOT

R8113 47R 1%

C8130 1U 25V

R820

51K +-5% 1/8W

R820

51K +-5% 1/8W

R8112 33R 1%

D8106

1N4148

D8106

1N4148

R8111 47R 1%

!!

R8107 51K +-5% 1/8W

R8134R8134

D8108

BAV70

D8108

BAV70

3

1

2

CN812 CONN

1

2

R8101

0.1 ohm

R8101

0.1 ohm

C8111

0.1uF 50V

C8111

0.1uF 50V

D8109 1N4148

R8137

100K 1/8W

R8137

100K 1/8W

Q8103 RK7002FD5T116

C8106C8106

R8126 1M 1/8W 5%

D8101

SS0520

D8101

SS0520

C8162 56PF 50V

C8112 1uF

!!

R8105 51K +-5% 1/8W

D8104 SS0520

Q8105 PMBS3904

C8108C8108

C8113 330P 50V

T8101

POWER X'FMR

T8101

POWER X'FMR

4

7

2 6

R8132

68K 1/8W

R8132

68K 1/8W

R8140

1M 1/8W 5%

R8140

1M 1/8W 5%

IC8101

OZ9976GN-C-0-TR

IC8101

OZ9976GN-C-0-TR

DRV1

1

GND

2

ZCS

3

RT1

4

CT

5

LCT

6

PDIM

7

VSEN8ISEN

9

SSTCMP

10

TIMER

11

ADIM

12

ENA

13

VREF

14

VIN

15

DRV2

16

R8109

51K +-5% 1/8W

R8109

51K +-5% 1/8W

R8110 33R 1%

R8154 0 ohm

+

C8110

100UF 50V

+

C8110

100UF 50V

CN811 CONN

1

2

C8115

47N 50V

C8115

47N 50V

R8122

10K 1/8W

R8122

10K 1/8W

C8161

100NF 50V

C8161

100NF 50V

R8145NCR8145 NC

R8136

1K 1/8W

R8136

1K 1/8W

Q8108 RK7002FD5T116

R8104

51K +-5% 1/8W

R8104

51K +-5% 1/8W

Q8101

2SK4096LS

Q8101

2SK4096LS

R8114

100 OHM 1/8W

R8114

100 OHM 1/8W

C8120 330P 50V

D8102

SS0520

D8102

SS0520

R8116 10K 1/8W

R8141

51K +-5% 1/8W

R8141

51K +-5% 1/8W

C8104 1NF

R8142

75K OHM

R8142

75K OHM

R8146NCR8146 NC

R8147

1M5 +-1% 1/8W

R8147

1M5 +-1% 1/8W

R8102

100 OHM 1/8W

R8102

100 OHM 1/8W

C8114NCC8114 NC

Q8102

2SK4096LS

Q8102

2SK4096LS

C9909

220pF +-10%

C9909

220pF +-10%

C8102

1UF450V

C8102

1UF450V

D8110 1N4148

R8130

10K 1/8W

R8130

10K 1/8W

R8153NCR8153

NC

R8106 39K 1/8W 1%

C8101 1UF450V

R8161 1M 1/8W

T8102

POWER X'FMR

T8102

POWER X'FMR

10

7

54

1 9

C8107

1N5 50V

C8107

1N5 50V

R8131NCR8131

NC

Q8104 PMBS3904

C8103 1NF

R8143

1.2K OHM

R8143

1.2K OHM

R8123 1M 1/8W 5%

C8152 56PF 50V

R8164NCR8164

NC

R8108 39K 1/8W 1%

CN802

CONN

CN802

CONN

1

2

3

4 5

R8162 10K 1/8W

R8135

39K 1/8W 1%

R8135

39K 1/8W 1%

C8109 1N5 50V

C8121

15N 50V

C8121

15N 50V

C8151

100NF 50V

C8151

100NF 50V

T8103 3MH

1

2

4

3

C8117 220N 50V

!!

R8103

100 OHM 1/8W

R8103

100 OHM 1/8W

R8152 10K 1/8W

R8138 10K 1/8W

R8115NCR8115

NC

C8131 1U 25V

CN801

CONN

CN801

CONN

1

2

3

4 5

D8103 SS0520

R8125

10K 1/8W

R8125

10K 1/8W

C8105 2U2 16V

R8151 1M 1/8W

R8133

3M3

R8133

3M3

R8139

150K 1/8W 5%

R8139

150K 1/8W 5%

C8116 2U2 16V

Q8109 RK7002FD5T116

R8117 10K 1/8W

C8119 2U2 16V

C8118 4N7 50V

D8105

1N4148

D8105

1N4148

R8163 0 ohm

D8107

BAV70

D8107

BAV70

3

1

2

R8144

10K 1/8W

R8144

10K 1/8W

Inverter

Circuit Diagrams and PWB Layouts

EN 45TPM8.2E LA 10.

2011-Jun-01

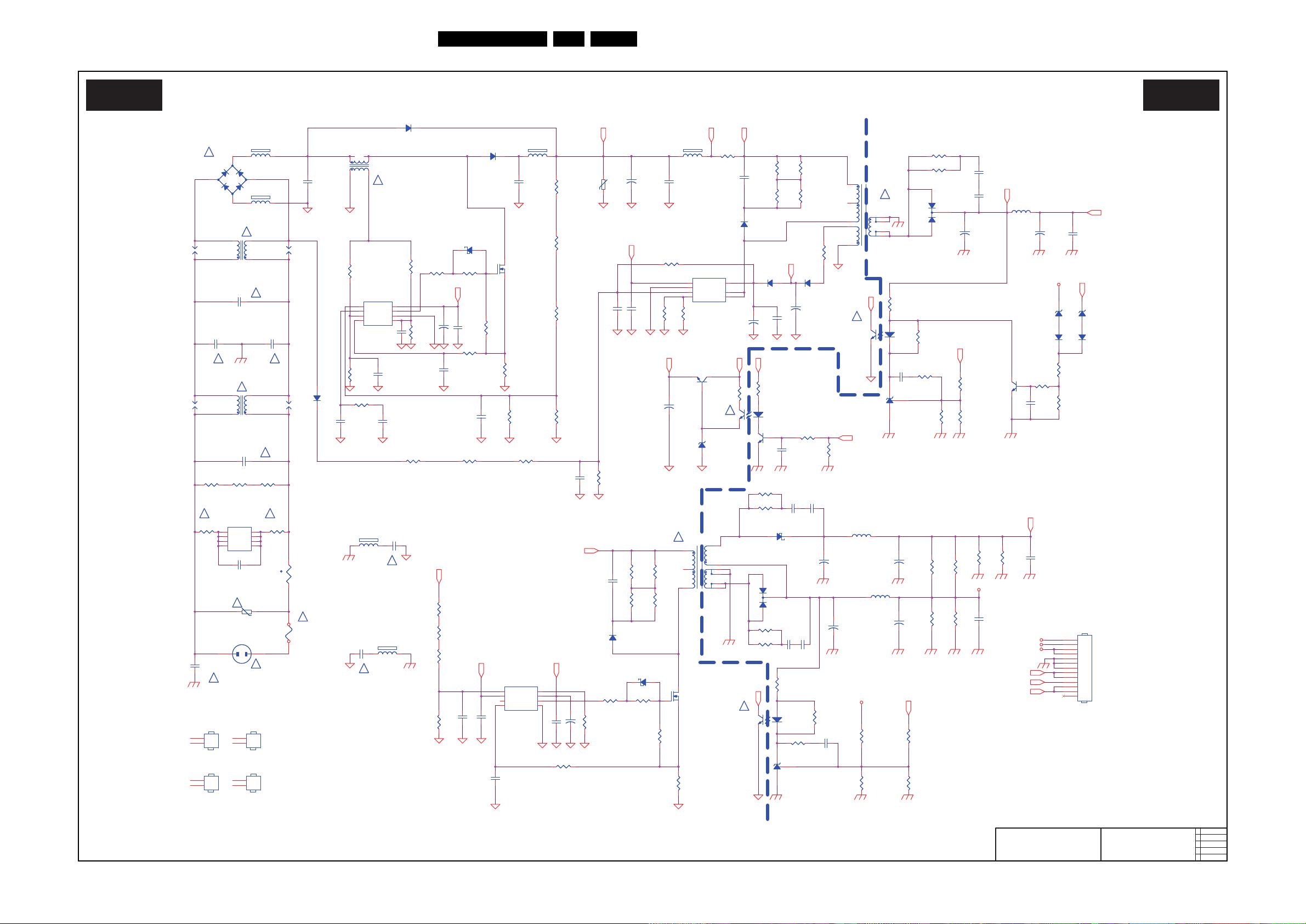

Power

19120_505_110518.eps

110518

Power

A02 A02

2011-05-16

1

715G5043

Power

+5VS

FB_1

FB

B+

B+_390V

FB_1

+18V/+24V

FB

PS_ON

B+

B+_

Vcc

+18V/+24V

+5V

B+_

Vcc_1

+5V

+18V/+24V

PS_ON

+18V/+24V

Vcc_1

+5V

+5VS

+12V

ON/OFF

PDIM

+12V

1.33A/1.0A

1A

2.5A

HOT COLD

FB9908

BEAD

FB9908

BEAD

1

2

RV906NCRV906 NC

R9307 560K 1/8W

R9304R9304

R9274 1K 1/4W

C9904

220pF +-10%

C9904

220pF +-10%

C9903

220pF +-10%

C9903

220pF +-10%

R9287 20K 1/8W 1%

C9307

0.1uF 50V

C9307

0.1uF 50V

C9277

0.1uF 50V

C9277

0.1uF 50V

C9818

0.47UF 50V

C9818

0.47UF 50V

SG902 GS41-201MA

R9351R9351

D9354 1N4148

HS21

HEAT SINK

HS21

HEAT SINK

1 2

FB9902 BEAD

1

2

FB9907 BEAD

1

2

!!

R9824 19K1 +-1% 1/8W

FB9903

BEAD

FB9903

BEAD

1 2

Q9101 2SK4101LS-MG5/FS

R939

10K 1/8W

R939

10K 1/8W

!!

C9907

47pF

C9907

47pF

R9801

0.2OHM2W

R9801

0.2OHM2W

!!

C9309 4N7 50V

+

C9141

10uF/50V

+

C9141

10uF/50V

R9168R9168

+

C9353 330uF 16V

+

C9353 330uF 16V

R9382 10K 1/8W

R9128

24KOHM +-1% 1/8W

R9128

24KOHM +-1% 1/8W

!!

L9901 13mH

124

3

!!

C9816NCC9816 NC

C9902

0.47uF 305V

C9902

0.47uF 305V

D9140 PR1007

R9278 22KOHM 1/8W +-1%

R9383 1K 1/8W

R9170R9170

!!

R9112R9112

R9355 1K 1/8W

IC9270

PC123X8YFZOF

IC9270

PC123X8YFZOF

12

43

R9354 220R 1/8W 5%

L9180

3.5uH

L9180

3.5uH

C9378

0.1uF 50V

C9378

0.1uF 50V

HS1

HEAT SINK

HS1

HEAT SINK

1 2

C9170C9170

R9306R9306

R9111R9111

D9252 FCHS30A08

1

2

3

R905 390K

C9179

0.1uF 50V

C9179

0.1uF 50V

!!

ZD9352

MTZJ T-72 30B

ZD9352

MTZJ T-72 30B

1 2

R9807NCR9807 NC

R9805 10K 1/8W

C9120

10N 50V

C9120

10N 50V

C9355 220N 50V

R902NCR902 NC

!!

IC9350

PC123X8YFZOF

IC9350

PC123X8YFZOF

12

43

+

C9333

22uF/50V

+

C9333

22uF/50V

R901NCR901 NC

R9253R9253

Q9801 2SK4087LS

R9310

1M5 1/4W 1%

R9310

1M5 1/4W 1%

!!

R9359NCR9359 NC

R9169R9169

R9358 2K2 1/8W 1%

R9348

0.1 ohm

R9348

0.1 ohm

R9143

22 OHM 1/8W

R9143

22 OHM 1/8W

R9311

1M5 1/4W 1%

R9311

1M5 1/4W 1%

!!

R9821 1MOHM +-1% 1/4W

R9114R9114

R9811 10K 1/8W

R9822 1MOHM +-1% 1/4W

R9301

2.4 OHM 1/4W

R9301

2.4 OHM 1/4W

+

C9331 100UF 50V

+

C9331 100UF 50V

R9305R9305

IC9301 A6069H

S/OCP

1

BR

2

GND

3

FB/OLP4VCC

5

D/ST

7

D/ST

8

R9165R9165

F901

FUSE 3.15A H, 250V AC.

F901

FUSE 3.15A H, 250V AC.

R9357 2K4 1/8W 1%

R960 1K 1/8W

D9335 PR1007

R9125 1M5 1/4W 1%

+

C9257 470uF 35V

+

C9257 470uF 35V

+

C937

10uF/50V

+

C937

10uF/50V

D9350 MBRF1560CT

1

2

3

R9303R9303

R9171R9171

Q921

2SD1624T-TD-E

Q921

2SD1624T-TD-E

C9905

220pF +-10%

C9905

220pF +-10%

C9261C9261

R9124 1M5 1/4W 1%

R9272R9272

SG904 GS41-201MA

!!

IC9801 LD7591GS

INV

1

COMP

2

RAMP

3

CS4ZCD

5

GND

6

OUT

7

VCC

8

C9308

0.1uF 50V

C9308

0.1uF 50V

Q950 PMBS3904

C9142

0.1uF 50V

C9142

0.1uF 50V

R9312

1M5 1/4W 1%

R9312

1M5 1/4W 1%

t

NR901tNR901

1 2

L9350

3.5uH

L9350

3.5uH

+

C9175 100UF 50V

+

C9175 100UF 50V

D9805

SS0520

D9805

SS0520

1

2

R9803

10 OHM 1/8W

R9803

10 OHM 1/8W

C9813

0.1uF 50V

C9813

0.1uF 50V R9809 1K 1/8W

R9809 1K 1/8W

R903NCR903 NC

+

C9814

22uF/50V

+

C9814

22uF/50V

!!

R9331

2.4 OHM 1/4W

R9331

2.4 OHM 1/4W

!!

T9301

POWER X'FMR

T9301

POWER X'FMR

1

2

4

5

6

7

8

9

10

R9276

10K 1/8W

R9276

10K 1/8W

!!

R9134 1K 1/8W

R9302

2.4 OHM 1/4W

R9302

2.4 OHM 1/4W

R9381 1K 1/8W

HS5

HEAT SINK

HS5

HEAT SINK

1 2

R9101

0.43 OHM +-5% 2WS

R9101

0.43 OHM +-5% 2WS

!!

C9819 100P 50V

C9350C9350

C9171C9171

T9101 POWER X'FMR

4

5

3

7

8

9

10

11 12

SG905 GS41-201MA

R9126 1M5 1/4W 1%

CN902

CONN

CN902

CONN

1 2

3

4 5 6 7

8

9 10 11 12 13

!!

C9817 100N 50V

C9812 56PF 50V

R9350R9350

R9275

3.9K 1/8W

R9275

3.9K 1/8W

!!

C9374

0.1uF 50V

C9374

0.1uF 50V

D9106

SS0520

D9106

SS0520

12

!!

D9303 1N4148

C9811 10NF

!!

L9902 13mH

124

3

!!

R9144

10K 1/4W

R9144

10K 1/4W

C956

0.1uF 50V

C956

0.1uF 50V

IC9352

AS431AZTR-E1

IC9352

AS431AZTR-E1

FB909 BEAD

1

2

ZD9351

MTZJ T-72 16B

ZD9351

MTZJ T-72 16B

1 2

R9823 1MOHM +-1% 1/4W

CN901

SOCKET

CN901

SOCKET

1

2

Q9370

PMBS3904

Q9370

PMBS3904

R9273R9273

C9815

220P 50V

C9815

220P 50V

C9810 1UF450V

R9337

4.7 MOHM +-5% 1/4W

R9337

4.7 MOHM +-5% 1/4W

R9804

22 OHM 1/8W

R9804

22 OHM 1/8W

C9906

470pF/250V

C9906

470pF/250V

R9145

470 OHM 1/8W

R9145

470 OHM 1/8W

+

C9172 470uF 35V

+

C9172 470uF 35V

ZD901

MTZJ T-72 16B

ZD901

MTZJ T-72 16B

1 2

RV901

Varistor

RV901

Varistor

SG903 GS41-201MA

C9329 1NF

R963 10K 1/8W

+

C9801

100uF M 450V

+

C9801

100uF M 450V

IC901

CAP004DG

IC901

CAP004DG

NC

1

D1

2

D1

3

NC

4

NC

5

D2

6

D2

7

NC

8

C9276 330NF 50V

C9139

1NF

C9139

1NF

HS20

HEAT SINK

HS20

HEAT SINK

1 2

!!

C9260C9260

R9825NCR9825 NC

D9151

SR510-22

D9151

SR510-22

1 2

IC951 PC123X8YFZOF

12

43

L9801 300uH

1

2 6

10

D9801 FMN-1106S

+

C9354

470uF 16V

+

C9354

470uF 16V

R9113R9113

R9356 1K 1/8W

C9901

0.47uF 305V

C9901

0.47uF 305V

R9810 36K 1/8W +/-5%

IC9101

LD7523GS

IC9101

LD7523GS

BNO

1

COMP

2

NC

3

CS

4

GND

5

OUT

6

VCC

7

OVP

8

C9351C9351

R9252R9252

R9806

470 OHM 1/8W

R9806

470 OHM 1/8W

R961

1K 1/8W

R961

1K 1/8W

+

C9259 100UF 50V

+

C9259 100UF 50V

L9251

3.5uH

L9251

3.5uH

D9802 IN5408G-04

R9808

10K 1/8W

R9808

10K 1/8W

R9279NCR9279 NC

R9133

10 OHM 1/8W

R9133

10 OHM 1/8W

D9301 PR1007

C9908

470pF/250V

C9908

470pF/250V

C9318

0.47UF 50V

C9318

0.47UF 50V

IC9271 AS431AZTR-E1

C9826 10NF

D9330 PR1007

C9144 220P 50V

-

+

BD901 S10B06G

-

+

BD901 S10B06G

2

1

3

4

FB9901

BEAD

FB9901

BEAD

1

2

R9280 2KOHM +-1% 1/8W

R904 390K

R9166R9166

D9355 1N4148

C9143

0.1uF 50V

C9143

0.1uF 50V

100K 1/4W

100OHM 1/4W

0.001uF

100OHM 1/4W

0.001uF

Circuit Diagrams and PWB Layouts

EN 46TPM8.2E LA 10.

2011-Jun-01

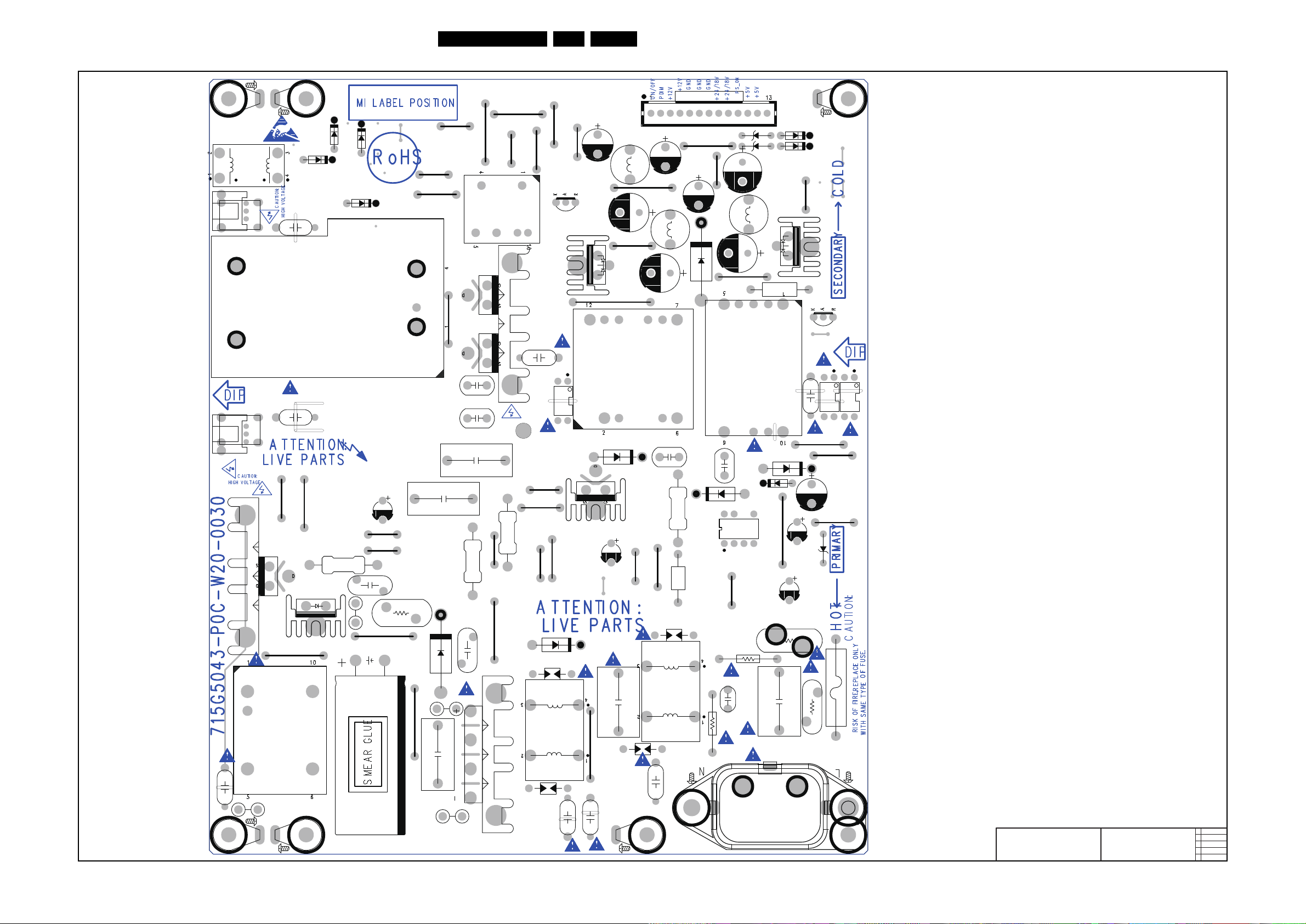

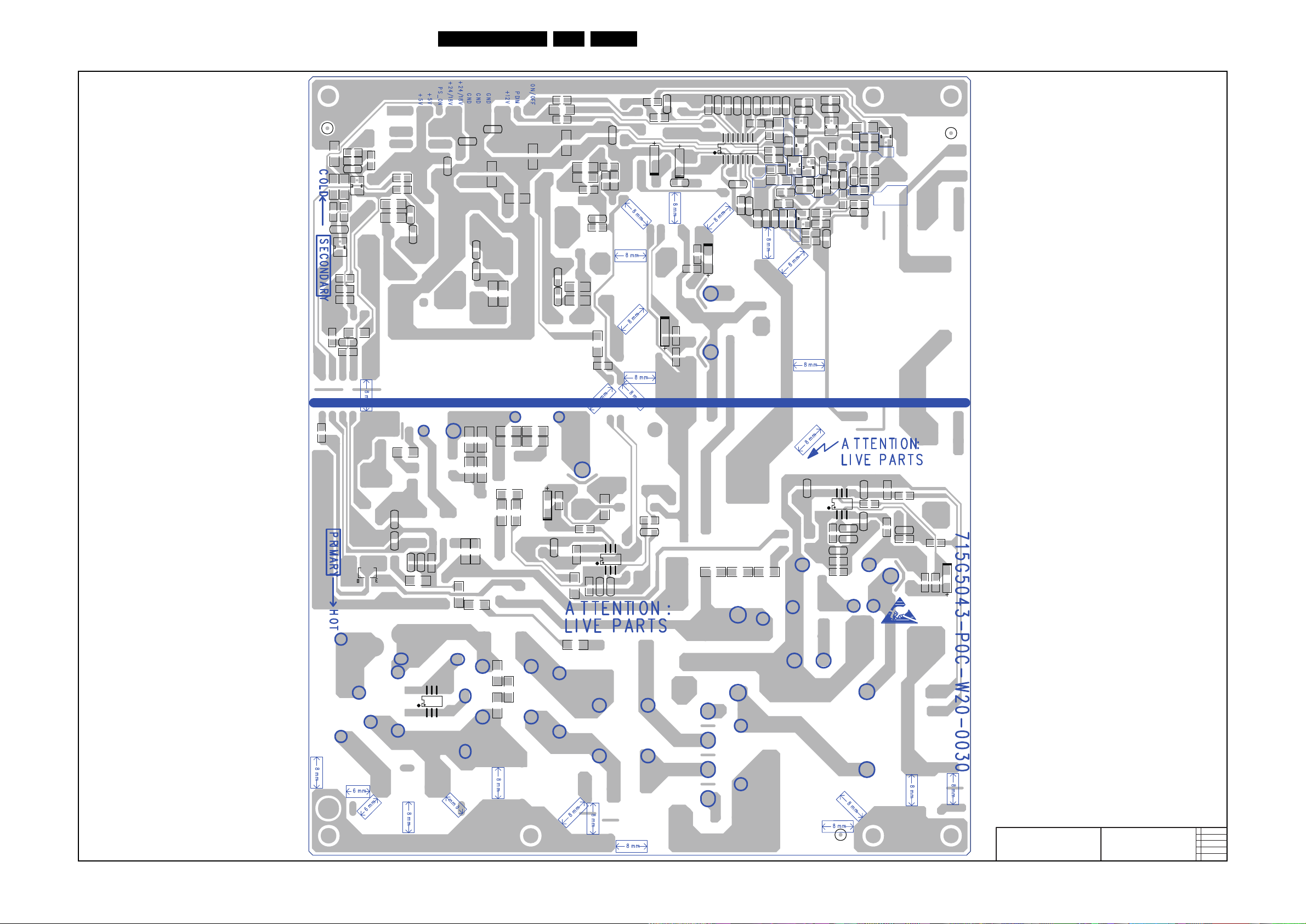

Power layout top

19120_506_110518.eps

110518

2011-05-03

1

715G5043

Power

layout top

SL4

SL1

SL2

SL3

SL6

SL7

SL10

SL8

SL5

SL11

SL9

SL12

CN902

CN811

CN812

L9901

L9902

T8101

T9101

T9301

CN901

HS3

HS20

HS21

HS2

HS4

HS5

HS7

CN801 CN802

BD901

C9907

C8103

C8104

C9139

C9329

C9903

C9904

C9906

C8101

C8102

C9810

D8105

D8106

D8109

D8110

D9303

D9354

D9355

D9140

D9301

D9330

D9335

RV906

RV901

D9151

IC951

IC9270

IC9350

IC9301

D9801

C937

C9141

C9333

C9814

C8110

C9175

C9259

C9331

C9172

C9257

C9353

FB9901

FB9902

FB9907

FB9908

FB909

FB9903

F901

M3

J9901

J9906

J9907

J9910

J9911

J9913

J9920

J9921

J9922

J9923

J9924

J9928

J9931

J9904

J9908

J9912

J9916

J9917

J9919

J9930

J9933

J9936

J9905

J9914

J9925

J9934

J9937

J9909

J9926

J9927

J9929

J9935

J9902

J9903

C9801

L9180

L9251

L9350

R904

R905

R8101

R9101

R9348

R9801

M1

M2

M5

M8

SG902

SG903

SG904

SG905

IC9271

IC9352

D9252

D9350

Q9101

Q9801

ZD901

ZD9351

ZD9352

L9801

J9915

T8102

M4

M6

C9354

C8106

C8108

C9811

NR901

C9905

C9826

Q8101Q8102

J9932

J9938

T8103

C9901

C9902

D9802

C9908

C9909

J9918

Circuit Diagrams and PWB Layouts

EN 47TPM8.2E LA 10.

2011-Jun-01

Power layout bottom

19120_507_110518.eps

110518

2011-05-03

1

715G5043

Power

layout bottom

IC901

C956

C8105

C8107

C8109

C8111

C8112

C8113

C8114

C8115

C8116

C8117

C8118

C8119

C8120

C8121

C8130

C8131

C8151

C8152

C8161

C8162

C9120

C9142

C9143

C9144

C9170 C9171

C9179

C9260 C9261

C9276

C9277

C9307

C9308C9309

C9318

C9350

C9351

C9355

C9374

C9378

C9812

C9813

C9815

C9816

C9817 C9818

C9819

R8116

R820

R939

R960

R961

R963

R8102

R8103

R8104

R8106

R8108

R8109

R8110

R8111

R8112 R8113

R8114

R8115

R8117

R8122

R8123

R8125

R8126

R8130

R8131

R8132 R8133

R8134

R8135

R8136

R8137

R8138

R8139

R8140

R8141

R8142

R8144

R8147

R8151

R8152

R8161

R8162

R9128

R9133

R9134

R9143

R9145

R9275

R9276

R9278

R9279

R9280

R9287

R9307

R9354

R9355

R9356

R9357 R9358 R9359

R9381 R9382

R9383

R9803

R9804

R9805

R9806

R9808

R9809

R9810

R9811

R9824 R9825

R901

R902

R903

R9111 R9112 R9113 R9114

R9124

R9125

R9126

R9144

R9165

R9166

R9168

R9169

R9170

R9171

R9252 R9253

R9272

R9273

R9274

R9301

R9302

R9303

R9304 R9305

R9306

R9310

R9311

R9312

R9331

R9337

R9350 R9351

R9821 R9822 R9823

JR9902

JR9903

JR9904

MH20

MH21

MH22

D8101

D8102

D8103

D8104

D9106

D9805

IC9101

IC9801

IC8101

Q8103 Q8108

Q8109

D8107

D8108

Q950

Q8104

Q8105

Q9370

Q921

R8143

R8145

R8146

R9807

R8105

R8107

JR9901

JR9905

JR9906

R8153

R8163

R8154

R8164

Circuit Diagrams and PWB Layouts

EN 48TPM8.2E LA 10.

2011-Jun-01

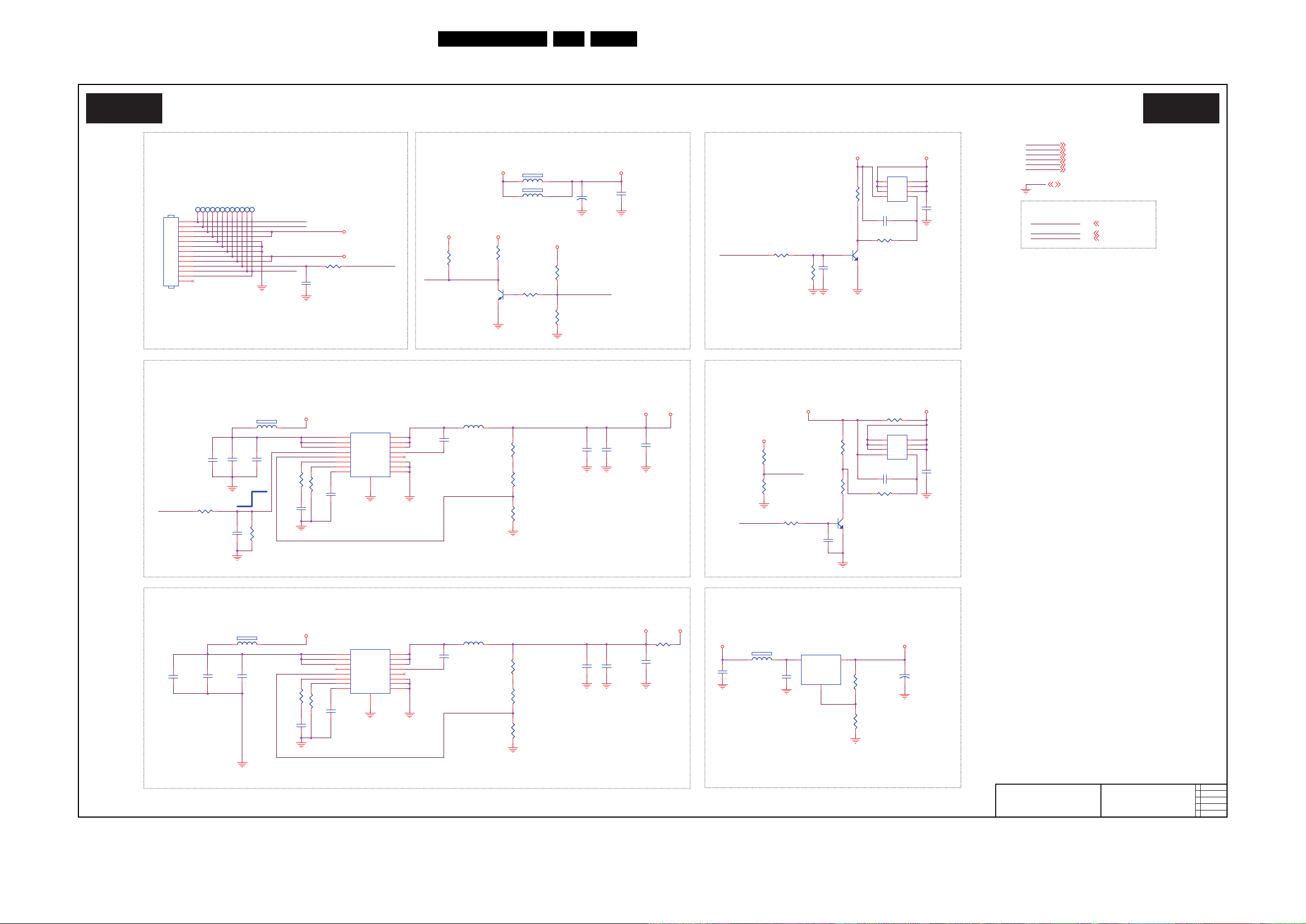

10-3 B 715G4796 SSB

19120_508_110518.eps

110518

Power-1

B01 B01

2011-05-17

1

715G4796

Power-1

GND

DV15_DDR

BRIGHT_ADJ INVERTER_ON_OFF

OPWRSB

PWR_ON

BRIGHT_ADJ

INVERTER_ON_OFF

DV33

DV11

AV33

STB_PWR5V

VCCK

PWR_ON

DV33SB

OPWRSB

PWR_ON

POWER_DETECT

+5V_STB

+5V_SW

PWR_18V

STB_PWR5V

+5V_STB

DV15_DDR

DV33

AV33

DV11

+5V_STB

DV33

+5V_SW

VCCK

DV33SB

DV33SB+5V_STB

PWR_12V

PWR_18V

+18V

GND 5,6,7,8,9,10,11,12,13,14

VCCK 6

+5V_SW5,8,9,10,12,13 DV33 5,6,7,8,12,13 AV33 6 DV15_DDR 6,11

OPWRSB6 BRIGHT_ADJ 12

INVERTER_ON_OFF 12

DV33SB 5,6,7,8,9

DC POWER INPUT

SMD/0402

EC080-35

ȗ⹰

GPIO Contrl

OFF ON

+5V_STB to DV11/VCCK

+5V_SW to DV33/AV33

+5V_STB to +5V_SW

PWR_18V to +18V control by PWR_ON

attachattach

attach

DV33 to DV15_DDR

R717

NC/10K 1/16W 5%

R717

NC/10K 1/16W 5%

C734

22UF 16V

C734

22UF 16V

FB706

220R/2000mA

FB706

220R/2000mA

1

2

C729

22UF 16V

C729

22UF 16V

TP702TP702

Q703

BC847C

Q703

BC847C

FB702

120R/3000mA

FB702

120R/3000mA

1 2

C715

100N 50V

C715

100N 50V

TP712TP712

C721

22UF 16V

C721

22UF 16V

R734

22K 1/16W 5%

R734

22K 1/16W 5%

C705 100N 16V

R739

NC/15K 1/16W 5%

R739

NC/15K 1/16W 5%

C718 100N 16V

R716

10K 1/16W 5%

R716

10K 1/16W 5%

C708

10uF 16V

C708

10uF 16V

R721

33Kohm 1/16W +/-1%

R721

33Kohm 1/16W +/-1%

C714

22UF 16V

C714

22UF 16V

C703

1UF16V

C703

1UF16V

R704

33K 1/16W 5%

R704

33K 1/16W 5%

R722

300R 1/16W 1%

R722

300R 1/16W 1%

R736

180K 1%

R736

180K 1%

FB701

120R/3000mA

FB701

120R/3000mA

1

2

R725

NC/7K5 1/16W 5%

R725

NC/7K5 1/16W 5%

R726

27ohm 1/10W +/-1%

R726

27ohm 1/10W +/-1%

R712 120R 1% 1/10W

TP704TP704

C735

10N 50V

C735

10N 50V

U701 TPS54319RTE

VIN

1

VIN

2

GND

3

GND

4

AGND

5

VSNS

6

COMP

7

RT/CLK

8

SS

9

PH

10

PH

11

PH

12

BOOT

13

PWRGD

14

EN

15

VIN

16

PwPd

17

C728

NC/10uF 25V

C728

NC/10uF 25V

FB705

220R/2000mA

FB705

220R/2000mA

1 2

R730

100K 1%

R730

100K 1%

R715

7K5 1/16W 5%

R715

7K5 1/16W 5%

C720

3300pF 50V

C720

3300pF 50V

R719

NC/47K 1/16W 5%

R719

NC/47K 1/16W 5%

TP710TP710

Q702

AON4421

Q702

AON4421

D

1

D

2

D

3

G4S

5

D

6

D

7

D

8

+

C702

470UF 10V

+

C702

470UF 10V

R718

300R 1/16W 1%

R718

300R 1/16W 1%

U703

AZ1117D

U703

AZ1117D

VIN3VOUT

2

GND/ADJ

1

C733

10N 50V

C733

10N 50V

R744

10K 1/16W 5%

R744

10K 1/16W 5%

TP703TP703

R729

33Kohm 1/16W +/-1%

R729

33Kohm 1/16W +/-1%

R705

1K 1/16W 5%

R705

1K 1/16W 5%

R727

NC/5K1 1/16W 5%

R727

NC/5K1 1/16W 5%

+

C730

220UF 16V

+

C730

220UF 16V

C719

10uF 16V

C719

10uF 16V

R731

7K5 1/16W 5%

R731

7K5 1/16W 5%

CN701CN701

1 2

3

4 5 6 7

8

9 10 11 12 13

FB707

220R/2000mA

FB707

220R/2000mA

1 2

C711

100N 16V

C711

100N 16V

R743

75K 1/16W 5%

R743

75K 1/16W 5%

R724

0R05 1/4W

R724

0R05 1/4W

R720

12K 1% 1/16W

R720

12K 1% 1/16W

C716

100N 50V

C716

100N 50V

Q701

BC847C

Q701

BC847C

3

2

1

C723

NC/22uF 10V

C723

NC/22uF 10V

R737

180K 1%

R737

180K 1%

TP709TP709

R738

10K 1/16W 5%

R738

10K 1/16W 5%

C717 100N 16V

Q704

NC/BC847C

Q704

NC/BC847C

3

2

1

C724

10uF 16V

C724

10uF 16V

C707

100N 16V

C707

100N 16V

R732

0R05 1/4W

R732

0R05 1/4W

C725 10uF 16V

C727

NC/1uF 25V

C727

NC/1uF 25V

R723

NC/10K 1/16W 5%

R723

NC/10K 1/16W 5%

U702 TPS54319RTE

VIN

1

VIN

2

GND

3

GND

4

AGND

5

VSNS

6

COMP

7

RT/CLK

8

SS

9

PH

10

PH

11

PH

12

BOOT

13

PWRGD

14

EN

15

VIN

16

PwPd

17

R742

NC/10K 1/16W 5%

R742

NC/10K 1/16W 5%

TP707TP707

R702

100R 1/16W 5%

R702

100R 1/16W 5%

L701

1.5UH

L701

1.5UH

R706

22K 1/16W 5%

R706

22K 1/16W 5%

R703

1K 1/16W 5%

R703

1K 1/16W 5%

C709

1UF16V

C709

1UF16V

C701 NC/10uF

Q705

NC/AON4421

Q705

NC/AON4421

D

1

D

2

D

3

G

4

S

5

D

6

D

7

D

8

R714

1K 1/16W 5%

R714

1K 1/16W 5%

C722

3300pF 50V

C722

3300pF 50V

TP701TP701

C713

22UF 16V

C713

22UF 16V

TP708TP708

TP705TP705

L702

1.5UH

L702

1.5UH

TP706TP706

C726

NC/100N 16V

C726

NC/100N 16V

C732

NC/22UF 16V

C732

NC/22UF 16V

C731

NC/100N 16V

C731

NC/100N 16V

TP711TP711

Power-1

Circuit Diagrams and PWB Layouts

EN 49TPM8.2E LA 10.

2011-Jun-01

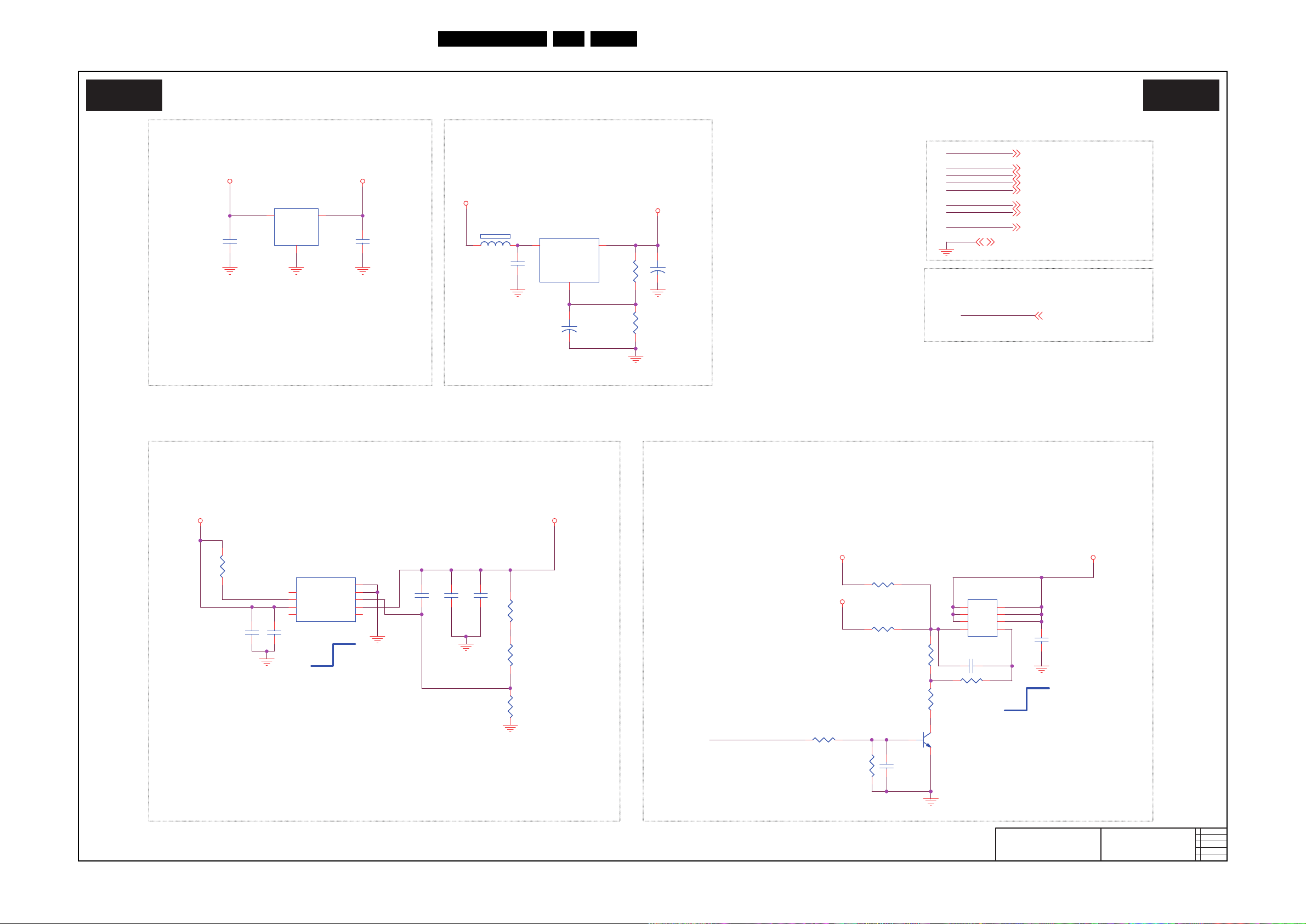

Power-2

19120_509_110518.eps

110518

Power-2

B02 B02

2011-05-17

1

715G4796

Power-2

+5V_SW

+5V_STB

DV33SB

PANEL_VCC

DV33

GND

PANEL_VCC_ON/OFF

AV12

+5V_TUNER

PWR_12V

PANEL_VCC_ON/OFF

DV33SB+5V_STB

DV33

AV12

+5V_SW +5V_TUNER

PANEL_VCC

PWR_12V

+5V_STB

PANEL_VCC_ON/OFF 6

GND 4,6,7,8,9,10,11,12,13,14

PANEL_VCC 12

AV12 6,13

DV33SB 4,6,7,8,9

DV33 4,6,7,8,12,13

+5V_TUNER 14

+5V_SW4,8,9,10,12,13

+5V_STB 4,7

PWR_12V 4

GPIO Contrl

OFF ON

+5V_STB to DV33SBDV33 to AV12

+5V_SW to +5V_TUNER

PANEL_VCC

ON OFF

R755

33K 1/16W 5%

R755

33K 1/16W 5%

R756

120R 1% 1/10W

R756

120R 1% 1/10W

R760

47K +-1% 1/16W

R760

47K +-1% 1/16W

U705U705

GND

1

VOUT

2

VIN

3

C754

NC/4.7UF 10V

C754

NC/4.7UF 10V

R759

15K 1%

R759

15K 1%

R761

12K 1% 1/16W

R761

12K 1% 1/16W

R752

0R05 1/4W

R752

0R05 1/4W

R766

10K 1/16W 5%

R766

10K 1/16W 5%

C772 10uF 16V

R753

0R05 1/16W

R753

0R05 1/16W

C753

4.7UF 10V

C753

4.7UF 10V

U704

AZ1117D

U704

AZ1117D

VIN

3

VOUT

2

GND/ADJ

1

R758

2K2 1/16W 5%

R758

2K2 1/16W 5%

R757

1R 1/10W 5%

R757

1R 1/10W 5%

Q752

BC847C

Q752

BC847C

C760

1UF16V

C760

1UF16V

C758 1UF16VC758 1UF16V

Q751

AON4421

Q751

AON4421

D

1

D

2

D

3

G

4

S

5

D

6

D

7

D

8

R751

15K 1/16W 5%

R751

15K 1/16W 5%

U706

TJ4220GDP-ADJ

U706

TJ4220GDP-ADJ

NC

1

EN

2

VIN

3

NC

4

NC

5

VOUT

6

ADJ/SENSE

7

GND

8

E-PAD

9

C762 10uF 16V

R754

NC/0R05 1/4W

R754

NC/0R05 1/4W

C771 10uF 16VC771 10uF 16V

FB751

220R/2000mA

FB751

220R/2000mA

1 2

C757

1UF16V

C757

1UF16V

R764

10K 1/16W 5%

R764

10K 1/16W 5%

+

C756

NC/22uF 16V

+

C756

NC/22uF 16V

C761 10uF 16V

C752

10uF 16V

C752

10uF 16V

+

C759 22uF 16V

+

C759 22uF 16V

C770 10uF 16VC770 10uF 16V

Circuit Diagrams and PWB Layouts

EN 50TPM8.2E LA 10.

2011-Jun-01

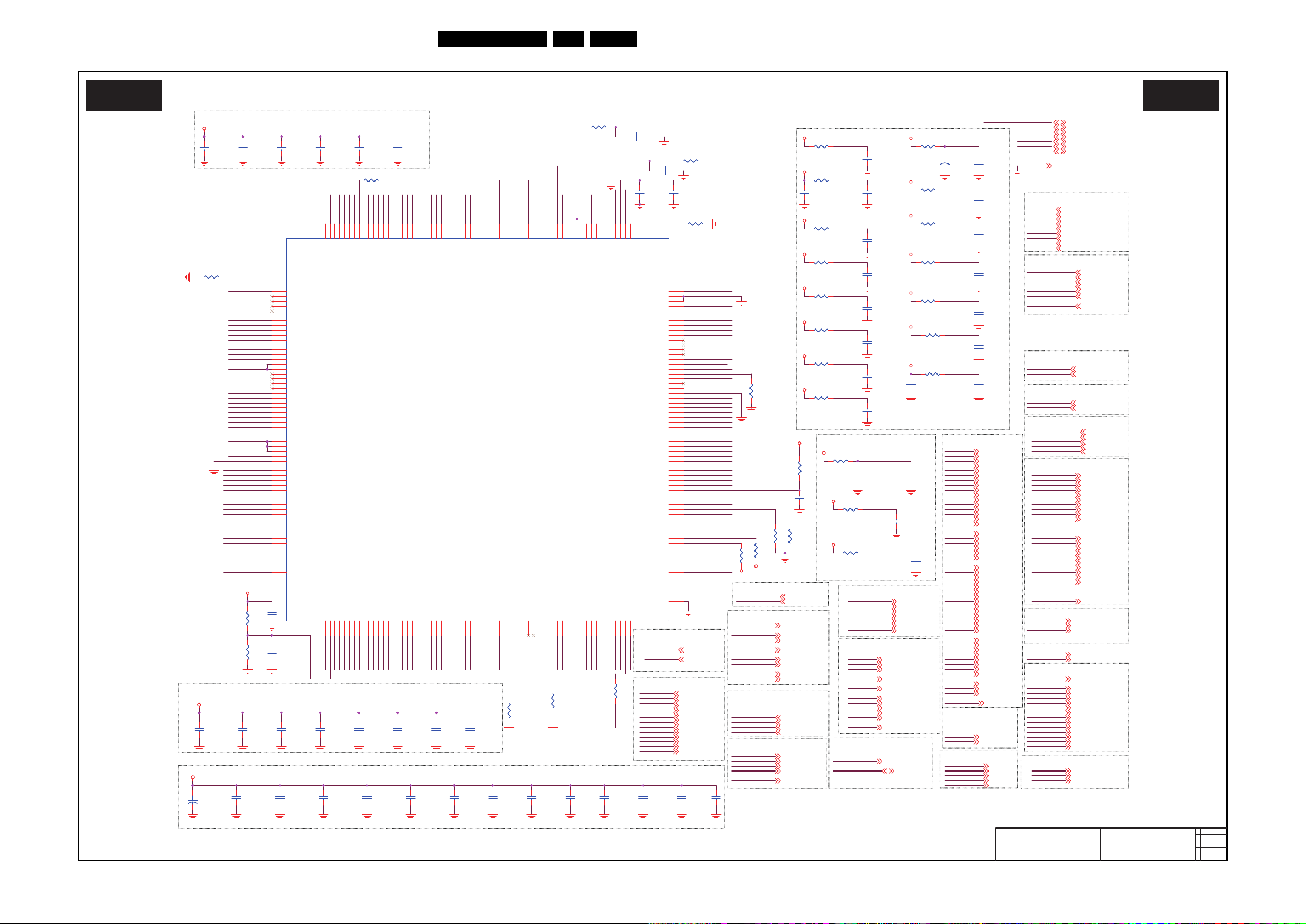

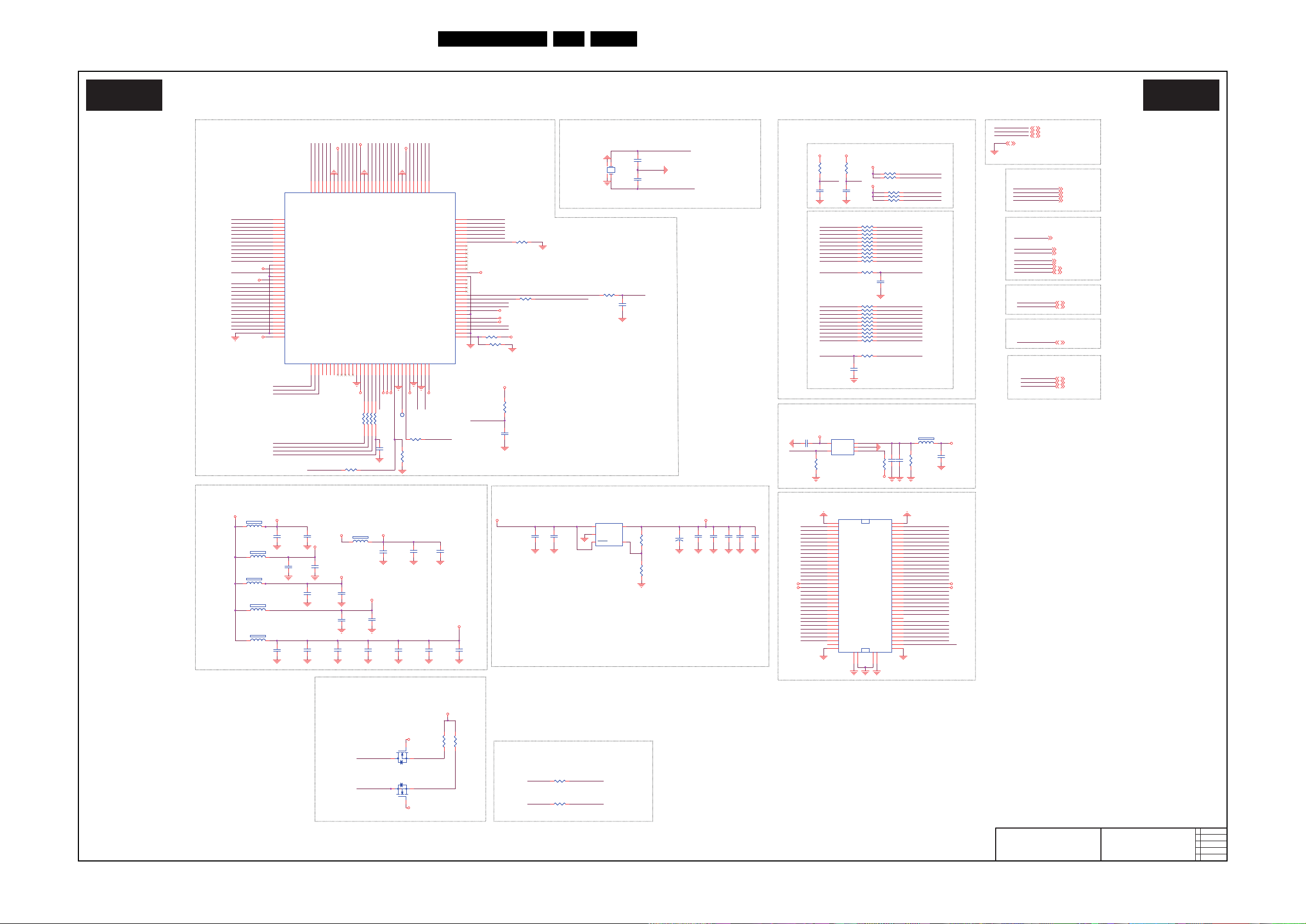

MT5366 cvou

19120_510_110518.eps

110518

MT5366 cvou

B03 B03

2011-05-17

1

715G4796

MT5366 cvou

AVDD12_RGB

SOY0

Y0P

COM0

PR0P PB0P

VDAC_FSVDAC_FS AVDD33_VDAC

SOY1

PB1P

PR1P

Y1P

COM1

GP SOG

VGACOM

BP

RP

VSYNC

HSYNC

VGASCL VGASDA

TU_FAT_IN2+

TU_FAT_IN2-

AVDD33_DEMOD

AVDD33_IFPGA

AVDD12_DEMOD

CVBS_COM

CVBS1P

AVDD33_CVBS

5135_REFCLKP

AR1O

AVDD33_AADC

VMID_AADC

E1P E1N E0P

O3P O3N

OCKN

OCKP O2P

O2N O1P O1N O0P O0N

E0N

E3P E3N

E2P E2N

AVDD12_VPLL

USB_DM0

USB_DP0

AVDD33_USB_2P

AVDD12_MEMPLL

DV15_DDR

AVDD12_HDMI

M_RX1_1B

M_RX1_C

M_RX1_CB

M_RX1_0

M_RX1_0B

M_RX1_1

M_RX1_2

M_RX1_2B

HDMI_CEC

HDMI_SCL

HDMI_SDA

ORESET#

U0RX

U0TX

OPWRSB

RC6

AVDD10_LDO

AVDD12_PLL

AVDD33_XTAL_STB OXTALO

OXTALI

AVDD33_REG_STB

AVDD33_LVDSTX

ADIN3_SRV

SCART_FS0

OPCTRL2 OPCTRL4

OPCTRL5

AVDD33_PDM_STB

AVDD33_XTAL_STB

AVDD33_REG_STB

AVDD33_PDM_STB

SOG

GP

HSYNC VSYNC RP

BP VGACOM

VGASCL

VGASDA

CVBS2P

SCART_FS0

JTRST#

JTCK JTDI

JTDO JTMS

OXTALO

OXTALI

ORESET#

U0TX U0RX

RC6

OSDA0 OSCL0

PACLE

PAALE POCE1# PARB#

POOE#

POWE#

PDD0

PDD2

PDD3

PDD4

PDD6

PDD7

PDD1

PDD5

OPCTRL5

CVBS1P CVBS_COM

VCCK

ADIN3_SRV ADIN2_SRV

OPCTRL2 OPCTRL3 OPCTRL4

HDMI_CEC HDMI_SCL

HDMI_SDA

M_RX1_1B

M_RX1_C

M_RX1_CB

M_RX1_0

M_RX1_0B

M_RX1_1 M_RX1_2

M_RX1_2B

USB_DP0

USB_DM0

GPIO_3

GPIO_2

AOSDATA1

AL1O

AR1O

RVREF5

AIN0_L_AADC

AIN0_R_AADC

DEMOD_TSVAL DEMOD_TSSYNC DEMOD_TSDATA0

DEMOD_TSCLK

CI_INT

SPI_CLE SPI_DATA SPI_CLK

GPIO_14

BL_DIMMING

AVDD12_RGB

AVDD12_DEMOD

AVDD33_CVBS

AVDD33_DEMOD

AVDD33_IFPGA

AVDD33_VDAC

AVDD12_PLL

AVDD33_USB_2P

AVDD12_HDMI

AVDD33_HDMI

AVDD12_VPLL

AVDD12_MEMPLL

AVDD33_DAC

AVDD33_AADC

AVDD33_LVDSTX

CVBS2PCVBS2P

DV33

AIN0_L_AADC

AIN0_R_AADC

DV33

RF_AGC

PDD0

PDD2

DV33

PDD3

PDD4

PDD6

PDD7

PDD1

PDD5

DV33

DEMOD_TSSYNC

DEMOD_TSVAL

DEMOD_TSCLK

DEMOD_TSDATA0

RF_AGC_H

VCCK

SPI_DATA

SPI_CLE

CI_INT

SPI_CLK

GPIO_3

GPIO_11

GPIO_13

GPIO_2

OSDA0

OSCL0

PACLE

PAALE

POCE1#

PARB#

POOE#

POWE#

AOSDATA1

MRF_AGC

AVDD33_DAC

RF_AGC_H

TU_FAT_IN2+ TU_FAT_IN2-

ADIN2_SRV

DEMOD_RST

E1P E1N

E0P

O3P O3N

OCKN

OCKP

O2P O2N

O1P O1N

O0P O0N

E0N

E3P E3N

E2P E2N

OPCTRL3

GPIO_14

RCLK0

RCLK0#

1_A10 1_A12

1_A9 1_A11 1_A13

RDQS1# RDQS0#

RDQS0

RDQS1

RDQ1 RDQ2 RDQ3

RDQ7

RDQ6

RDQ5

RDQ0

RDQ4

RDQ15

RDQ14

RDQ9

RDQ13

RDQ8

RDQ12

RDQ11

RDQ10

RDQM1 RDQM0

1_A2

1_CS#

1_A0

1_BA2

1_BA0

1_CKE

1_RAS#

1_BA1

1_A1

1_CAS#

1_ODT

1_WE#

1_A4

1_A3

1_A6

1_A5

1_A8

1_A7

VCCK

DV33SB AV33

DV33

IF_AGC

AV12 VCCK

OPWRSB

DV15_DDRDDRV

DEMOD_RST

OPCTRL4 AOSDATA1

GPIO_11

GPIO_10

PWR5V

GPIO_13

GPIO_12

VCCK

AVDD33_HDMI

GPIO_10

PWR5V

USB_VRT

HDMI_HPD

GPIO_1

GPIO_1GPIO_1

ECKP ECKN

OPCTRL1 OPCTRL0

ADIN4_SRV

ADIN1_SRV

AOBCLK AOSDATA0

AOSDATA0

AOLRCK

AOBCLK

AOMCLK_A

GPIO_6

GPIO_6 GPIO_8

GPIO_8

AOBCLK_A

AOSDATA0_A

AOMCLK

M_SPDIF_Out

GPIO_0

VCCK

OPWM0BL_DIMMING

JTRST#

JTCK

JTDI

JTDO

JTMS

DDRV

VCCK

DDRV

RDQS1#

RDQS0#

RDQS0

RDQS1

RDQM1

RDQM0

RCLK0

RCLK0#

RDQ1

RDQ2

RDQ3

RDQ7

RDQ6

RDQ5

RDQ0

RDQ4

RDQ15

RDQ14

RDQ9

RDQ13

RDQ8

RDQ12

RDQ11

RDQ10

DV33

VCCK

1_CKE

1_A0

1_BA1

1_RAS# 1_CAS#

1_WE#

1_A2

1_A4 1_A6

1_A5

1_A7

1_A8

1_A9

1_A10

1_A11

1_A12

1_A13

1_A1

DDRV

1_ODT

1_CS#

1_BA2

1_BA0

1_A3

1_RST#

AL1O

AOLRCK_A

AOLRCK

SOY1 Y1P COM1 PB1P PR1P

SOY0

PB0P PR0P

Y0P COM0

AOMCLK_A

AOMCLK

DV15_DDR

VCCK

DV33SB

DV15_DDR

DV33

AV33

AV12

AV33

AV12

AV33

DV33SB

HSYNC 10 VSYNC 10 RP 10 GP 10

SOG 10

VGACOM 10

BP 10

VGASDA 10 VGASCL 10

CVBS2P 9

SCART_FS09

OXTALI 7 OXTALO 7

OPCTRL5 7

RC6 7

U0RX 7,10

U0TX 7,10

ORESET# 7

JTDO 7 JTCK 7 JTMS 7 JTDI 7 JTRST# 7

OSDA0 7,8

POWE# 7OSCL0 7,8

PAALE 7

PACLE 7

POCE1# 7

POOE# 7

PARB# 7

PDD7 7

PDD6 7

PDD5 7

PDD4 7

PDD3 7

PDD2 7

PDD1 7

PDD0 7

CVBS1P 10 CVBS_COM 10

LED_R 7

HP_SC_MUTE 8

SPK_MUTE 8

ADIN3_SRV 7

ADIN2_SRV 7

HDMI_CEC 9 HDMI_SDA 9 HDMI_SCL 9

M_RX1_CB 9 M_RX1_C 9 M_RX1_0B 9 M_RX1_0 9 M_RX1_1B 9 M_RX1_1 9 M_RX1_2B 9 M_RX1_2 9

USB_DM0 12 USB_DP0 12

VGA_RX/TX_EN 10 AIN_CTL1 8

AOSDATA1 7

AR1O 8 AL1O 8

CI_INT 13

SPI_CLE 13 SPI_DATA 13 SPI_CLK 13

BL_DIMMING 12

SYS_EEPROM_WP 7,9,10

GND 4,5,7,8,9,10,11,12,13,14

DEMOD_TSCLK 13 DEMOD_TSVAL 13 DEMOD_TSSYNC 13 DEMOD_TSDATA0 13

AIN0_R_AADC 8 AIN0_L_AADC 8

RF_AGC_H 13,14

TU_FAT_IN2+ 14 TU_FAT_IN2- 14

DEMOD_RST13

E0P 12 E1P 12

E0N 12 E1N 12 E2N 12

E2P 12

E3N12

E3P12

O3N12

O3P12

O1P 12

O0N 12 O1N 12

OCKP 12

O2N 12 OCKN 12

O2P 12

O0P 12

1_A13 11 RCLK0 11

RCLK0# 11 1_WE# 11

1_A3 11

RDQ9 11

1_ODT 11 1_CAS#11 1_RAS#11 1_CKE 11 1_CS#11

RDQS111

1_A4 11

RDQ10 11

RDQ0 11

RDQS1# 11 RDQS011

1_A5 11

RDQ11 11

RDQS0# 11

RDQ1 11

RDQM1 11

1_A6 11

RDQ12 11

RDQM0 11

RDQ2 11

1_A7 11

RDQ13 11

RDQ3 11

1_A8 11

RDQ14 11

RDQ4 11

1_A9 11

RDQ15 11

RDQ5 11

1_A10 11

1_A0 11

RDQ6 11

1_A11 11

1_BA0 11

1_A1 11

RDQ7 11

1_BA1 11

1_A12 11

1_BA2 11

1_A2 11

RDQ8 11

DV33SB 4,5,7,8,9

AV33 4

DV33 4,5,7,8,12,13

IF_AGC 14

AV12 5,13

VCCK 4

OPWRSB4

DV15_DDR 4,11

OPCTRL4 7

AOSDATA1 7

BL_ON/OFF 12 PANEL_VCC_ON/OFF 5

PWR5V_1 9

AIN_CTL0 8

HP_DET# 8

HDMI_HPD 9

LED_G 7

ECKP 12 ECKN 12

AOSDATA0_A 8

AOBCLK_A 8

AOLRCK_A 8

AOMCLK_A 8

CI_OCP 13 AMP_CTRL 8

M_SPDIF_Out10

POWER_DETECT 4

1_RST# 11

SOY1 9 Y1P 9 COM1 9 PB1P 9 PR1P 9

SOY0 10 Y0P 10 COM0 10 PB0P 10 PR0P 10

AOMCLK 8

DRAM IO Power

3.3V IO Power

Standby Power

Analog Normal Power

VGA in

Full SCART 1

Demod IF

SVideo/CVBS

YPbPr

LVDS out

USB

HDMI

System IO

GPIO

I2S & SPDIF Out

Stand by GPIO

NAND/Serial Flash

JTAG

ADAC

AADC Mux in

DVB only

DVB/ATSC Only

DVB/DTMB/PureATV Only

DRAM

Strapping

QFP256

C4183 100N 16V

C4171

100N 16V

C4171

100N 16V

R4154

0R05 1/16W

R4154

0R05 1/16W

C4197 100N 16V

C4178 100N 16V

R4161

0R05 1/16W

R4161

0R05 1/16W

C4179 100N 16V

R4152

0R05 1/16W

R4152

0R05 1/16W

R4162

0R05 1/16W

R4162

0R05 1/16W

C4200

4.7UF 10V

C4200

4.7UF 10V

C4165 100N 16V

C4157 100N 16V

R4166

0R05 1/16W

R4166

0R05 1/16W

R4176

1K 1/16W 5%

R4176

1K 1/16W 5%

C4190 100N 16V

R4155

0R05 1/16W

R4155

0R05 1/16W

C4164 NC/100N 16V

R4150

0R05 1/16W

R4150

0R05 1/16W

C4150 100N 16V

C4175 100N 16V

R4183

NC/0R05 1/16W

R4183

NC/0R05 1/16W

C4203 10uF

R4160

0R05 1/16W

R4160

0R05 1/16W

C4151 100N 16V

C4195 100N 16V

C4198 100N 16V

R4159

0R05 1/16W

R4159

0R05 1/16W

R4179

4K7 1/16W 5%

R4179

4K7 1/16W 5%

C4187 100N 16V

R4167

4K7 1/16W 5%

R4167

4K7 1/16W 5%

R4180

4K7 1/16W 5%

R4180

4K7 1/16W 5%

C4210 100N 16V

C4188 100N 16V

C4166 100N 16V

C4153 100N 16V

C4172 10uF

C4185 100N 16V

R4174

10K 1/16W 5%

R4174

10K 1/16W 5%

C4154 100N 16V

C4168 100N 16V

C4162 100N 16V

R4163

0R05 1/16W

R4163

0R05 1/16W

MT5366CVOU

U401

MT5366CVOU

U401

FSRC_WR

1

VCC3IO

3

GPIO14

2

AVDD12_VPLL

4

AE5P

5

AE5N

6

AE4P

7

AE4N

8

AE3P

9

AE3N

10

AECKP

11

AECKN

12

AE2P

13

AE2N

14

AE1P

15

AE1N

16

AE0P

17

AE0N

18

AVDD33_LVDSA

19

AVDD33_LVDSA

20

AO5P

21

AO5N

22

AO4P

23

AO4N

24

AO3P

25

AO3N

26

AOCKP

27

AOCKN

28

AO2P

29

AO2N

30

AO1P

31

AO1N

32

AO0P

33

AO0N

34

VCCK

35

VCCK

36

VCCK

37

AVDD12_MEMPLL

38

AVSS12_MEMPLL

39

RODT//RCKE

40

RA8//RA10

41

RA13//RBA1

42

RA11//RA4

43

RA4//RA1

44

RA6//RA6

45

RA0//RA8

46

RA2//RA11

47

RCAS_//RA12

48

RCS_//RRAS_

49

RRAS_//RCAS_

50

RA9//RWE_

51

VCC2IO

52

RA12//RA0

53

RA7//RA13

54

RA5//RA9

55

NC//RRESET_

56

RA3//RA7

57

RA1//RA2

58

RA10//RA5

59

RBA1//RA3

60

RBA0//RBA2

61

RBA2//RBA0

62

RWE_//RCS_

63

RCKE//RODT

64

AVDD33_XTAL_STB

192

XTALI

191

XTALO

190

AVDD33_DEMOD

189

AVSS33_DEMOD

188

AVSS12_DEMOD

187

AVDD33_IFPGA

186

ADCINN_DEMOD

185

ADCINP_DEMOD

184

AVDD12_DEMOD

183

AVDD33_CVBS

182

CVBS0P

181

CVBS_COM

180

CVBS1P

179

SY0

178

SC0

177

SY1

176

SC1

175

AVDD12_PLL

174

VCCK

173

FS_VDAC

172

AVDD33_VDAC

171

VDAC_OUT1

170

VDAC_OUT2

169

AVSS12_RGB

168

AVDD12_RGB

167

PR0P

166

PB0P

165

COM0

164

Y0P

163

SOY0

162

PR1P

161

PB1P

160

COM1

159

Y1P

158

SOY1

157

RP

156

COM

155

GP

154

SOG

153

BP

152

HSYNC

151

VSYNC

150

AVDD33_VGA_STB

149

AVDD10_LDO

148

ADIN4_SRV

147

ADIN3_SRV

146

ADIN2_SRV

145

ADIN1_SRV

144

ADIN0_SRV

143

VCCK

142

VGA_SCL

141

VGA_SDA

140

OPWRSB

139

OPCTRL1

138

OPCTRL0

137

OIRI

136

U0TX

135

U0RX

134

AVDD33_PDM_STB

133

OPCTRL2

132

OPCTRL4

131

OPCTRL3

130

OPCTRL5

129

GPIO4

256

GPIO8

255

GPIO7

254

GPIO12

253

GPIO6

252

GPIO11

251

GPIO3

250

GPIO10

249

GPIO2

248

GPIO1

247

GPIO0

246

VCC3IO

245

VCCK

244

GPIO13

243

POWE_

242

PAALE

241

PACLE

240

POCE1_

239

PARB_

238

POOE_

237

POCE0_

236

PDD7

235

VCC3IO

234

PDD6

233

PDD5

232

PDD4

231

PDD3

230

PDD2

229

PDD1

228

PDD0

227

CI_INT

226

SPI_CLE

225

SPI_DATA

224

SPI_CLK

223

VCCK

222

VCC3IO

221

DEMOD_TSDATA0

220

DEMOD_TSSYNC

219

DEMOD_TSVAL

218

DEMOD_TSCLK

217

OSDA2

216

OSCL2

215

DEMOD_RST

214

RF_AGC

213

IF_AGC

212

AOLRCK

211

AOSDATA0

210

AOMCLK

209

AOBCK

208

AOSDATA1

207

ASPDIF

206

VCCK

205

VCCK

204

AR1_ADAC

203

AR0_ADAC

202

AL1_ADAC

201

AL0_ADAC

200

AVSS33_DAC

199

AVDD33_DAC

198

AVDD33_AADC

197

AIN0_L_AADC

196

VMID_AADC

195

AIN0_R_AADC

194

LOUTP

193

VCCK65RVREF66RDQ4//RDQ467RDQ3//RDQ668VCC2IO69RDQ1//RDQ270RDQ6//RDQ071RDQ12//RDQ11

72

RDQ9//RDQ973VCC2IO74RDQ14//RDQ1375RDQ11//RDQ15

76

RDQM1//RDQM177VCCK78RDQS0//RDQS079RDQS0_//RDQS0_80RDQM0//RDQM081VCC2IO82RDQS1//RDQS183RDQS1_//RDQS1_84RDQ15//RDQ12

85

RDQ8//RDQ1486VCC2IO87RDQ10//RDQ10

88

RDQ13//RDQ889RDQ7//RDQ190RDQ0//RDQ391VCC2IO92RDQ2//RDQ793RDQ5//RDQ594VCC2IO95RCLK0//RCLK096RCLK0_//RCLK0_97VCCK98JTDO99JTCK

100

JTMS

101

JTDI

102

JTRST_

103

OPWM0

104

VCC3IO

105

VCCK

106

USB_2P_DM1

107

USB_2P_DP1

108

USB_2P_DM0

109

USB_2P_DP0

110

AVDD33_USB_2P

111

USB_2P_VRT

112

AVDD33_HDMI

113

RX_CB

114

RX_C

115

RX_0B

116

RX_0

117

RX_1B

118

RX_1

119

RX_2B

120

RX_2

121

AVDD12_HDMI

122

HDMI_CEC

123

HDMI_SDA

124

HDMI_SCL

125

HDMI_HPD

126

PWR5V

127

ORESET_

128

EPAD_GND

257

C4196 100N 16V

C4156 100N 16V

C4181 100N 16V

R4165

0R05 1/16W

R4165

0R05 1/16W

+

C4191

NC/220uF 16V

+

C4191

NC/220uF 16V

+

C1196 330UF 6.3V

+

C1196 330UF 6.3V

C4177 NC/100N 16V

R4182

10K 1/16W 5%

R4182

10K 1/16W 5%

C4167 1UF16V

R4158

0R05 1/16W

R4158

0R05 1/16W

C4204 NC/22P 50VC4204 NC/22P 50V

C4202 100N 16V

R4156

0R05 1/16W

R4156

0R05 1/16W

R4169

10K 1/16W 5%

R4169

10K 1/16W 5%

R4168 560R 1/16W 1%

R4171

5.1K 1%

R4171

5.1K 1%

C4201 100N 16V

C4184 100N 16V

R4151

47R 1/16W 5%

R4151

47R 1/16W 5%

C4159

100N 16V

C4159

100N 16V

C4194 100N 16V

C4193 100N 16V

C4158 100N 16V

R4181

10K 1/16W 5%

R4181

10K 1/16W 5%

C4152 10uF

C4180 100N 16V

C4186 100N 16V

R4170

1Kohm 1/16W +/-1%

R4170

1Kohm 1/16W +/-1%

C4160 100N 16V

C4170 100N 16V

C4189 100N 16V

C4205 100N 16V

R4172

1Kohm 1/16W +/-1%

R4172

1Kohm 1/16W +/-1%

C4161

4.7UF 10V

C4161

4.7UF 10V

C4182 100N 16V

R4153

0R05 1/16W

R4153

0R05 1/16W

C4199 100N 16V

C4174 100N 16V

R4175

0R05 1/16W

R4175

0R05 1/16W

R4178

1.3K 1%

R4178

1.3K 1%

C4155 100N 16V

C4176 100N 16V

R4157

0R05 1/16W

R4157

0R05 1/16W

R4173

0R05 1/16W

R4173

0R05 1/16W

C4173 47N16VC4173 47N16V

C4163 10uF

R4164

0R05 1/16W

R4164

0R05 1/16W

R4177

1K 1/16W 5%

R4177

1K 1/16W 5%

C4192 100N 16V

Core Power

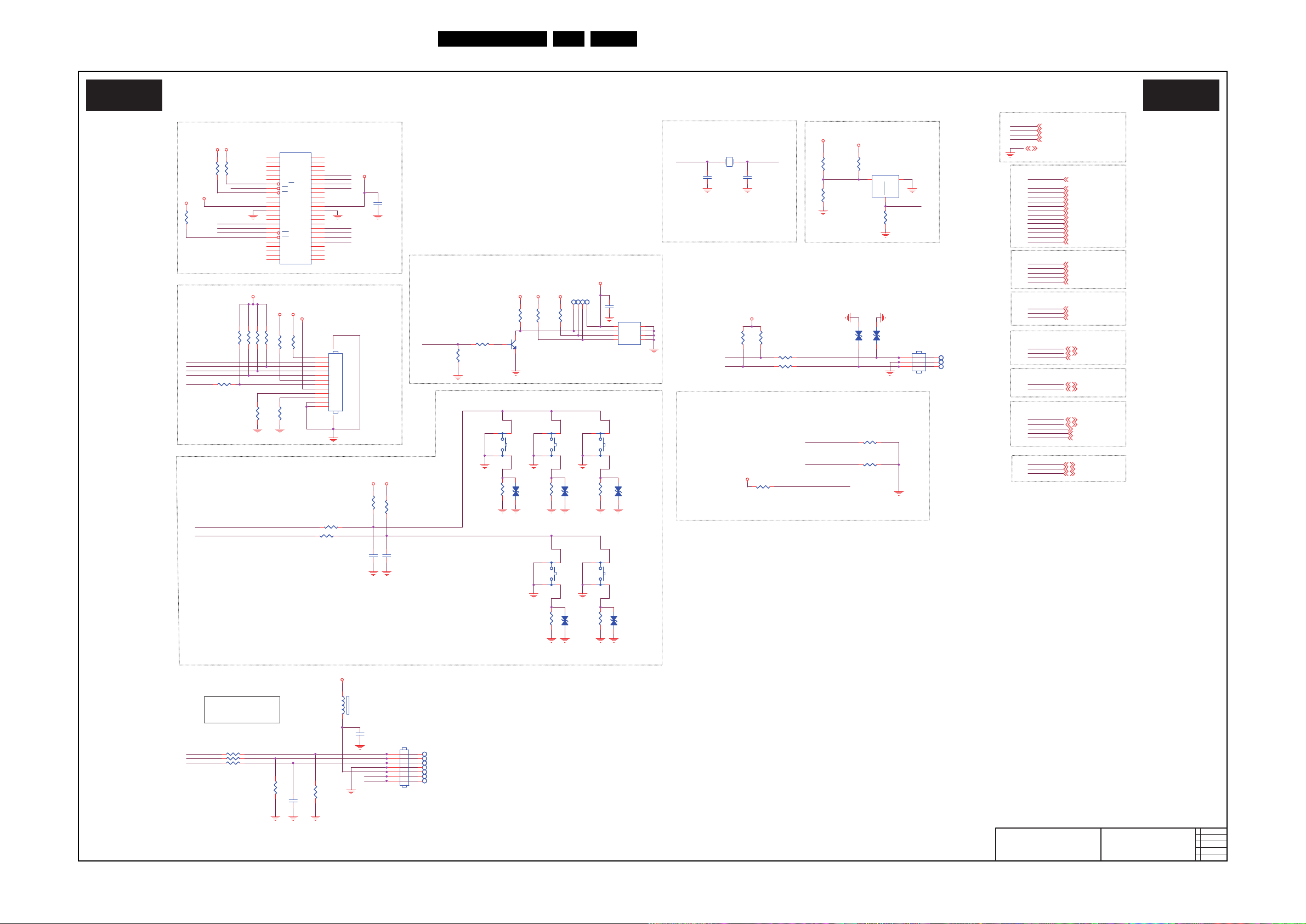

Circuit Diagrams and PWB Layouts

EN 51TPM8.2E LA 10.

2011-Jun-01

FLASH/UART/IR/JTAG

19120_511_110518.eps

110518

FLASH/UART/IR/JTAG

B04 B04

2011-05-17

1

715G4796

FLASH/UART/IR/JTAG

AOSDATA1

SYS_EEPROM_WP

JTRST#

JTCK JTDI

JTDO JTMS

OXTALO

OXTALI ORESET#

U0TX U0RX

RC6

PACLE

PAALE POCE1# PARB#

POOE#

POWE#

PDD0

PDD2

PDD3

PDD4

PDD6

PDD7

PDD1

PDD5

OXTALI

OXTALO

OSDA0 OSCL0

OPCTRL4

OPCTRL5

AOSDATA1

POCE1#

POOE#

PARB#

PAALE

PACLE

Flash_WP#

POWE#

JTAG_DBGACK

JTDO

JTAG_DBGRQ

TVTREF#1

JTMS JTCK

JTDI

JTRST#

ORESET#

U0TX

U0RX

KEY_MENU_L_R_SOURCEADIN3_SRV

KEY_UP_DN_DCSWADIN2_SRV

+5V_STB DV33 DV33SB

+5V_SW

ADIN3_SRV

OPCTRL5

SYS_EEPROM_WP

LED_R

OPCTRL4

ADIN2_SRV

RC6

LED_R LED_G

LED_G

OSCL0 OSDA0

Key2

Key1

PDD4

PDD7 PDD6 PDD5

PDD0

PDD2

PDD3 PDD1

Key1 Key2

DV33

+5V_STB

DV33DV33 DV33

DV33SB

DV33SB DV33SB

DV33SB

DV33

DV33SB

DV33

SYS_EEPROM_WP 6,9,10

JTDO 6

JTCK 6 JTMS 6

JTDI 6

POWE# 6 PAALE 6

PACLE 6 POCE1# 6 POOE# 6 PARB# 6

OXTALI 6

OXTALO 6

ORESET# 6

JTRST# 6

PDD0 6

PDD1 6

PDD2 6

PDD3 6

PDD4 6

PDD5 6

PDD6 6

PDD7 6

ADIN2_SRV 6 ADIN3_SRV 6

OSDA0 6,8 OSCL0 6,8

U0TX 6,10 U0RX 6,10

GND 4,5,6,8,9,10,11,12,13,14

+5V_SW 4,5,8,9,10,12,13 +5V_STB 4,5 DV33 4,5,6,8,12,13 DV33SB4,5,6,8,9

RC6 6

LED_R 6

OPCTRL4 6 OPCTRL5 6 AOSDATA1 6

LED_G 6

27MHz CRYSTAL

NAND Flash 128MBytex8

STRAPPING

JTAG Port

Reset IC

TO IR/KEY BOARD

SYSTEM EEPROM

U-ART

U-ART & RS232

SYS EEPROM

X'TAL & RESET

JTAG

FLASH

IR & KEY

STRAPPING

----><----| ----><----|

VOL+

----><----|----><----|

CH+

----><----|

VOL-

POWER

CH-

LED_R#: Enable(Stand_By): Low Disable: High

CN402CN402

1 2

3

4 5 6 7

U4051

K9F1G08U0C-PIB0

U4051

K9F1G08U0C-PIB0

NC24

39

NC1

1

NC2

2

NC3

3

NC4

4

NC5

5

NC27

46

ALE

17

CLE

16

WE

18

NC17

26

NC8

11

WP

19

RY/BY1

7

NC9

14

NC10

15

NC18

27

NC19

28

NC11

20

NC12

21

NC13

22

I/O3

32

NC20

33

VSS2

36

VCC1

12

RE

8

VCC2

37

I/O2

31

I/O1

30

I/O0

29

VSS1

13

NC26

45

I/O7

44

I/O6

43

I/O5

42

I/O4

41

NC25

40

NC14

23

NC1524NC16

25

CE1

9

NC21

34

NC22

35

NC28

47

NC23

38

NC6

6

NC7

10

NC29

48

R4213

100R 1/16W 1%

R4213

100R 1/16W 1%

TP4217TP4217

R4237

10K 1/16W 5%

R4237

10K 1/16W 5%

R4207

NC/10K 1/16W 5%

R4207

NC/10K 1/16W 5%

TP4202TP4202

R4247

4K7 1/16W 5%

R4247

4K7 1/16W 5%

R4243 4K7 1/16W 5%

R4244

4K7 1/16W 5%

R4244

4K7 1/16W 5%

R4215

NC/10K 1/16W 5%

R4215

NC/10K 1/16W 5%

SW05SWSW05

SW

13

4

2

C4251

1UF16V

C4251

1UF16V

TP4204TP4204

SW04SWSW04

SW

1

3

4

2

R4204

NC/1K 1/16W 5%

R4204

NC/1K 1/16W 5%

SW03SWSW03

SW

13

4 2

C4260 27P 50V

TP4201TP4201

R4233

6K8 1%

R4233

6K8 1%

ZD002

NC/VPORT0603100KV05

ZD002

NC/VPORT0603100KV05

12

U409

AT24C128BN-SH-T

U409

AT24C128BN-SH-T

A0

1

A1

2

A2

3

VSS4SDA

5

SCL

6

WP

7

VCC

8

R4210

100R 1/16W 1%

R4210

100R 1/16W 1%

R4232 100R 1/16W 5%R4232 100R 1/16W 5%

TP4203TP4203

R002

2K2 +-1% 1/16W

R002

2K2 +-1% 1/16W

TP4215TP4215

C4256

100N 16V

C4256

100N 16V

R4220

4K7 1/16W 5%

R4220

4K7 1/16W 5%

R4202

NC/10K 1/16W 5%

R4202

NC/10K 1/16W 5%

FB4152 600R/200mA

12

ZD004

NC/VPORT0603100KV05

ZD004

NC/VPORT0603100KV05

12

Q503

BC847C

Q503

BC847C

3

2

1

R4223

4K7 1/16W 5%

R4223

4K7 1/16W 5%

R4214

NC/33R 1/16W 5%

R4214

NC/33R 1/16W 5%

C4257

100N 16V

C4257

100N 16V

ZD4153 VPORT0603100KV05

1 2

R4245

4K7 1/16W 5%

R4245

4K7 1/16W 5%

SW01SWSW01

SW

13

4 2

R4228

1K 1/16W 5%

R4228

1K 1/16W 5%

R001

5.6K 1%

R001

5.6K 1%

R4208

NC/10K 1/16W 5%

R4208

NC/10K 1/16W 5%

R4239

10K 1/16W 5%

R4239

10K 1/16W 5%

R4229 100R 1/16W 5%R4229 100R 1/16W 5%

R4203

NC/10K 1/16W 5%

R4203

NC/10K 1/16W 5%

R4211

3.9K 1%

R4211

3.9K 1%

R004

5.6K 1%

R004

5.6K 1%

R4241

10K 1/16W 5%

R4241

10K 1/16W 5%

TP4213TP4213

R4209

3.9K 1%

R4209

3.9K 1%

ZD4154

VPORT0603100KV05

ZD4154

VPORT0603100KV05

1 2

SW02SWSW02

SW

13

4

2

TP4214TP4214

CN410CN410

1 2

3

C4261 27P 50V

TP4212TP4212

ZD005

NC/VPORT0603100KV05

ZD005

NC/VPORT0603100KV05

12

TP4211TP4211

C4262

220N 10V

C4262

220N 10V

R4201 NC/15K 1/16W 5%R4201 NC/15K 1/16W 5%

R4231

1.2K 1/16W 1%

R4231

1.2K 1/16W 1%

R4222

4K7 1/16W 5%

R4222

4K7 1/16W 5%

R4217

100K 1/16W 5%

R4217

100K 1/16W 5%

R4200

NC/0R05 1/16W

R4200

NC/0R05 1/16W

R003

470R 1/16W 1%

R003

470R 1/16W 1%

R4225

10K 1/16W 5%

R4225

10K 1/16W 5%

NC/CONN

WAFER 1.0mm 12P A1001WV-S-12P

CN406

NC/CONN

WAFER 1.0mm 12P A1001WV-S-12P

CN406

1 2

3

4 5 6 7

8

9 10 11 12

1314

R4221

4K7 1/16W 5%

R4221

4K7 1/16W 5%

R005

2K2 +-1% 1/16W

R005

2K2 +-1% 1/16W

U410

MAX809STRG

U410

MAX809STRG

GND

1

RESET

2

VCC

3

ZD003

NC/VPORT0603100KV05

ZD003

NC/VPORT0603100KV05

12

C4254

100N 16V

C4254

100N 16V

TP4207TP4207

ZD001

NC/VPORT0603100KV05

ZD001

NC/VPORT0603100KV05

12

R4212

NC/10K 1/16W 5%

R4212

NC/10K 1/16W 5%

R4206

NC/10K 1/16W 5%

R4206

NC/10K 1/16W 5%

TP4216TP4216

R4230

100R 1/16W 5%

R4230

100R 1/16W 5%

X4150 27MHz

1

2

R4205

NC/10K 1/16W 5%

R4205

NC/10K 1/16W 5%

R4216

100R 1/16W 5%

R4216

100R 1/16W 5%

TP4206TP4206

R4224

4K7 1/16W 5%

R4224

4K7 1/16W 5%

TP4205TP4205

C4252

10N 50V

C4252

10N 50V

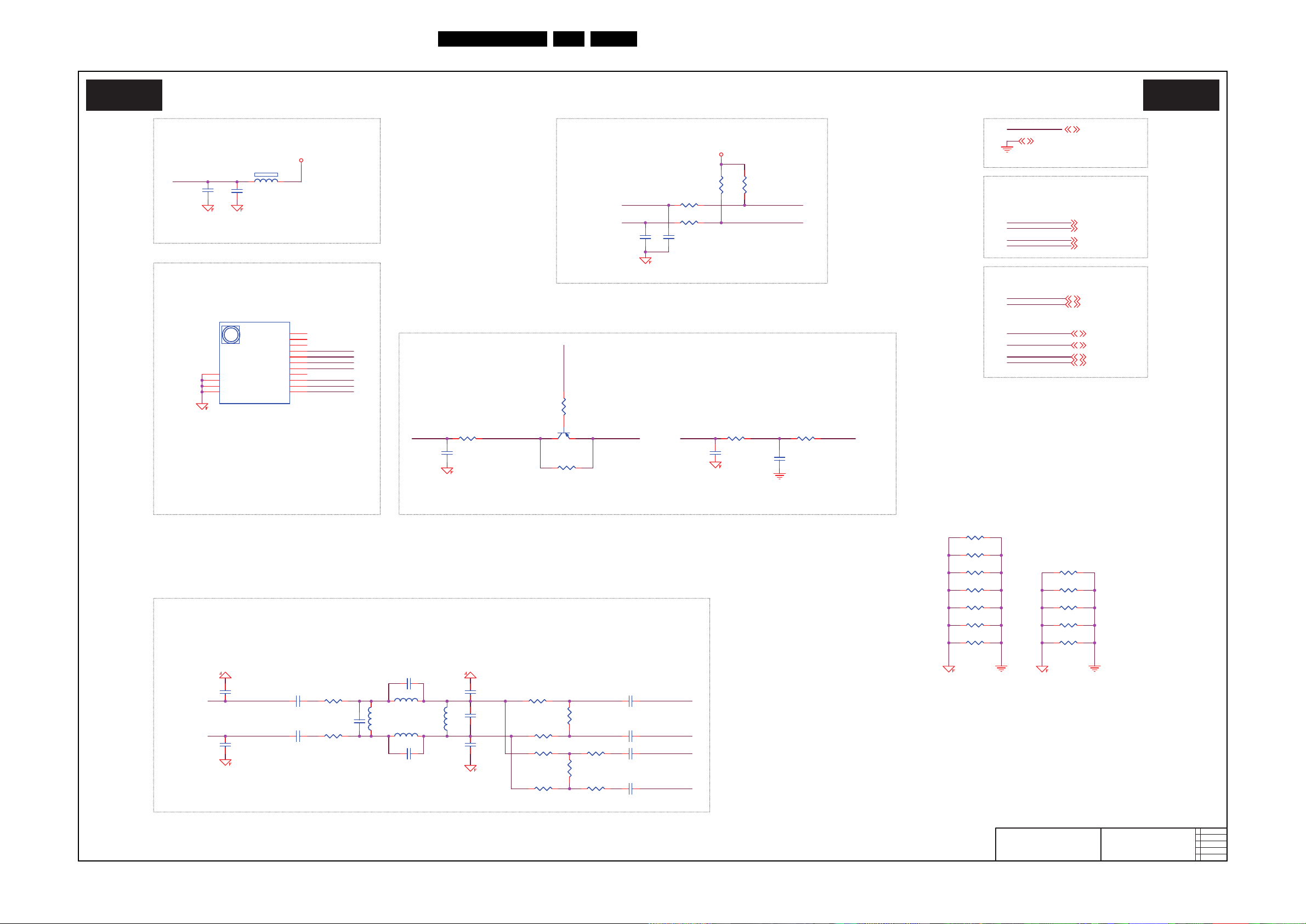

Circuit Diagrams and PWB Layouts

EN 52TPM8.2E LA 10.

2011-Jun-01

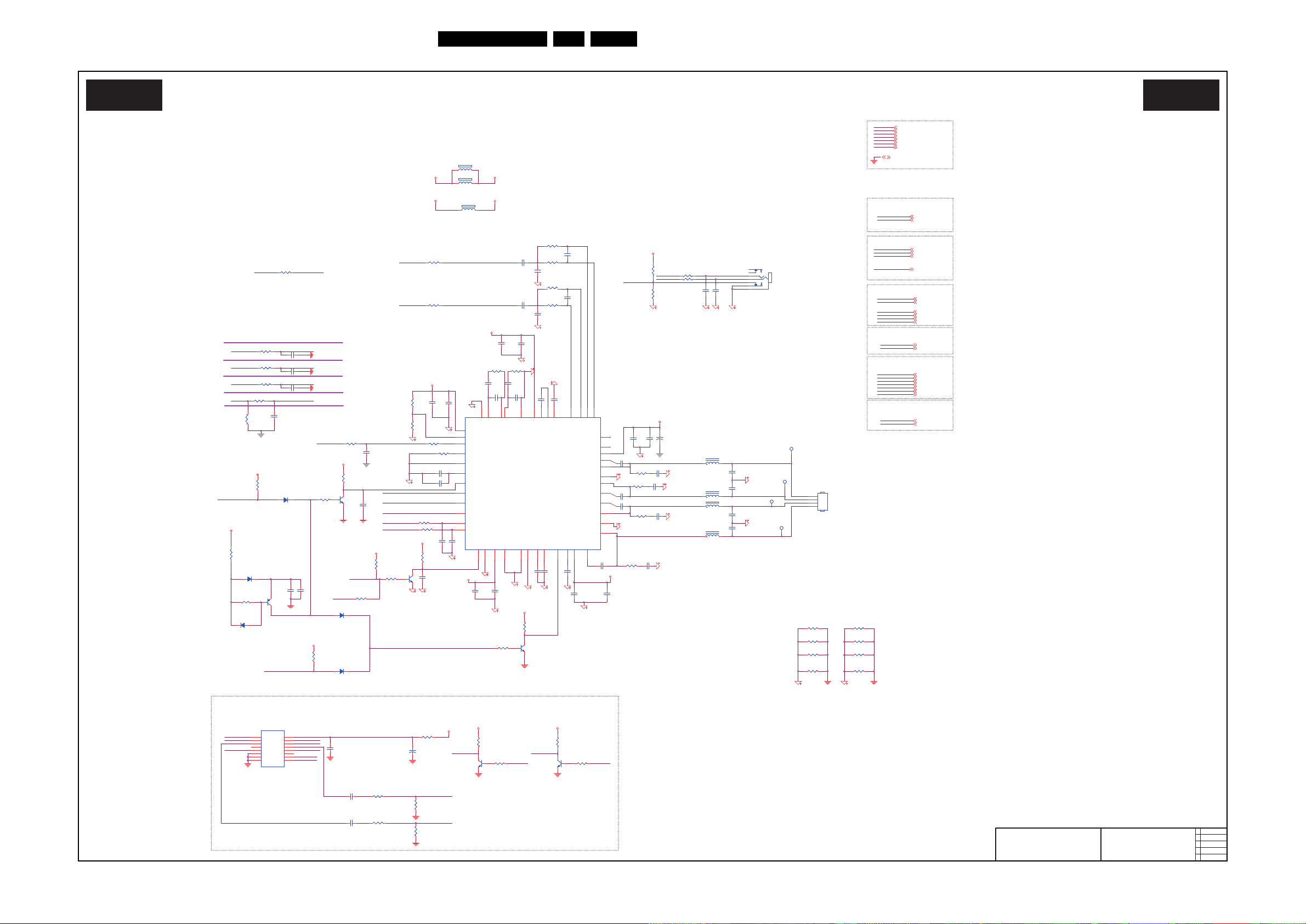

SPK AMP / HP AMP / AUD MUX

19120_512_110519.eps

110519

SPK AMP / HP AMP / AUD MUX

B05 B05

2011-05-17

1

715G4796

SPK AMP / HP AMP

/ AUD MUX

+18V

AL1O AR1O

DV33

HP_SC_MUTE AMP_CTRL

HP_DET#

DV33SB

STB_PWR5V +5V_SW

SCART1_LIN

AIN_CTL1

YPBPR_LIN

YPBPR_RIN

AMUX_5V

AIN0_L_AADC

AIN0_R_AADC

SCART1_RIN

VGA_RIN VGA_LIN

AIN_CTL0

HP_SC_MUTE

AL1O

AR1O

ROUT-

LOUT-

LOUT+

ROUT+

ROUT-

LOUT+

ROUT+

OFF_MUTE

LOUT-

HP_DET#

YPBPR_RIN VGA_RIN

VGA_LIN

SCART1_LIN

SCART1_RIN

AIN0_L_AADC

AUD_LOUT

AMUX_5V

YPBPR_LIN

AIN_CTL1

MUX_CTLA

MUX_CTLB MUX_CTLA MUX_CTLB

AIN_CTL0

AUD_ROUT AIN0_R_AADC

AOBCLK_A

AOLRCK_A AOSDATA0_A

OSDA0 OSCL0

PWR_12V

AOMCLK

SDATA0

AOLRCK_A

AOBCLK_A

AOSDATA0_A

AMP_CTRL

SPK_MUTE

HPOUTL

AMP_MUTE

HPOUTR

AOMCLK_A

LRCLK

HPOUTL

MCLK

SCLK

HPOUTR

LRCLK

SDATA0

SCLK

OSDA0 OSCL0

MCLK_1AOMCLK_A

SPK_MUTE

AOMCLK

MCLK_1MCLK

MCLK_2

DV33SB

PVDD

AVDD

+18V

DV33

AVDD

PVDD

AVDD

DV33

STB_PWR5V

DV33

+5V_SW

DV33SB

DV33

+5V_SW +5V_SW

PVDD

AVDD

GND_Sound GND_Sound

GND_Sound

GND_SoundGND_Sound

GND_Sound

GND_Sound GND_Sound

GND_Sound

AL1O 6 AR1O 6

GND 4,5,6,7,9,10,11,12,13,14

+18V4 STB_PWR5V 4 +5V_SW 4,5,9,10,12,13 DV33 4,5,6,7,12,13 DV33SB 4,5,6,7,9

HP_SC_MUTE 6 AMP_CTRL 6

HP_DET# 6

AIN0_R_AADC 6 AIN0_L_AADC 6

AIN_CTL0 6

VGA_LIN 10

VGA_RIN 10

YPBPR_RIN 10 YPBPR_LIN 10

SCART1_RIN 9 SCART1_LIN 9

AIN_CTL1 6

AOLRCK_A 6 AOBCLK_A 6 AOSDATA0_A 6 OSDA0 6,7 OSCL0 6,7

PWR_12V 4,5

AMUX_5V 9,10

SPK_MUTE 6

AOMCLK_A 6

AOMCLK 6

HEADPHONE R/L OUTPUT

Audio Control

PWM audio input for HP AMP

I2Saudio input for SPK AMP

Audio Input for MUX

Audio Control

Audio Output to MT5365

EC80 SMD

------------><---

---------------><---

Audio Input MUX

Audio MUX CTRL

Grounding

<9.2mm High

10.5mm High

For IIc trace under Main chip

------------><---

D602

BAS316

D602

BAS316

A1K

2

C666 330PF 50V

C667

22P 50V

C667

22P 50V

C668 47P 50V

C688

NC/15pF 50V

C688

NC/15pF 50V

R611

0R05 1/16W

R611

0R05 1/16W

R686

20K 1/16W 5%

R686

20K 1/16W 5%

C693

4.7nF 50V

C693

4.7nF 50V

U605

CD4052BPW

U605

CD4052BPW

Y2

2

Y0

1

VEE

7

INH

6

CTL_B

9

CTL_A

10

Yout

3

X0

12

X3

11

VSS

8

Y34Xout

13

X1

14

VDD

16

X2

15

Y1

5

Q605

BC847C

Q605

BC847C

C613 22P 50VC613 22P 50V

R667

470R 1/16W 1%

R667

470R 1/16W 1%

R680

0R05 1/10W

R680

0R05 1/10W

FB602

220R/2000mA

FB602

220R/2000mA

1 2

C651

100N 16V

C651

100N 16V

Q602

BC847C

Q602

BC847C

L603

47UH

L603

47UH

R685 47K 1/16W 5%

CN601CN601

1

2

3

4

R678

10K 1/16W 5%

R678

10K 1/16W 5%

R676

43K 1%

R676

43K 1%

R677

0R05 1/10W

R677

0R05 1/10W

L601

47UH

L601

47UH

FB603

220R/2000mA

FB603

220R/2000mA

1 2

R683

43K 1%

R683

43K 1%

R643

4.7K1/16W

R643

4.7K1/16W

R682

0R05 1/10W

R682

0R05 1/10W

R603

0R05 1/16W

R603

0R05 1/16W

R679

20K 1/16W 5%

R679

20K 1/16W 5%

C698 330NF 16V

C664 330PF 50V

C680

100N 16V

C680

100N 16V

C665

1N 50V

C665

1N 50V

C658

1N 50V

C658

1N 50V

FB601

220R/2000mA

FB601

220R/2000mA

1 2

D604

BAS316

D604

BAS316

A1K

2

R655

22R 1/16W 5%

R655

22R 1/16W 5%

R689

0R05 1/10W

R689

0R05 1/10W

R650

NC/4K7 1/16W 5%

R650

NC/4K7 1/16W 5%

Q603

BC847C

Q603

BC847C

R688

10K 1/16W 5%

R688

10K 1/16W 5%

C686

NC/15pF 50V

C686

NC/15pF 50V

CN602

PHONEJACK

CN602

PHONEJACK

1

2

3

4

5

6 7

R684

20K 1/16W 5%

R684

20K 1/16W 5%

C677 4.7uF 10VC677 4.7uF 10V

R681 22R 1/16W 5%R681 22R 1/16W 5%

R669

10R 1/16W 5%

R669

10R 1/16W 5%

C682 10uF

C690

4.7nF 50V

C690

4.7nF 50V

R690

0R05 1/10W

R690

0R05 1/10W

C632

4.7uF 25V

C632

4.7uF 25V

R668

0R05 1/10W

R668

0R05 1/10W

C610 10uF 16V

R654

10R 1/16W 5%

R654

10R 1/16W 5%

R660

NC/10K 1/16W 5%

R660

NC/10K 1/16W 5%

C695 1UF16V

C660

1N 50V

C660

1N 50V

C6792N2 50V C6792N2 50V

C663

47P 50V

C663

47P 50V

R604

10K 1/16W 5%

R604

10K 1/16W 5%

R658 4R7 1/16W 5%R658 4R7 1/16W 5%

TP601TP601

1

R605

10R 1/8W 5%

R605

10R 1/8W 5%

TP602TP602

1

R675

18.2K OHM +-1% 1/16W

R675

18.2K OHM +-1% 1/16W

R687

10K 1/16W 5%

R687

10K 1/16W 5%

R648

10K 1/16W 5%

R648

10K 1/16W 5%

C673100N 16V C673100N 16V

Q607

BC847C

Q607

BC847C

C676 100N 16VC676 100N 16V

R656

22R 1/16W 5%

R656

22R 1/16W 5%

C692

10uF

C692

10uF

C697

47N16V

C697

47N16V

C657

1UF16V

C657

1UF16V

R653

10R 1/16W 5%

R653

10R 1/16W 5%

R663 22R 1/16W 5%R663 22R 1/16W 5%

R652

10R 1/16W 5%

R652

10R 1/16W 5%

C659

1N 50V

C659

1N 50V

R664

0R05 1/10W

R664

0R05 1/10W

C696

22pF 50V

C696

22pF 50V

C683 33N 50VC683 33N 50V

C681 1UF16V

R607 10K 1/16W 5%

R671

10K 1/16W 5%

R671

10K 1/16W 5%

D605

BAS316

D605

BAS316

A

1

K

2

C653

10uF

C653

10uF

C678 330NF 16V

R672

20K 1/16W 5%

R672

20K 1/16W 5%

C605 10uF 16V

L602

47UH

L602

47UH

C694

47N16V

C694

47N16V

L604

47UH

L604

47UH

C661 330NF 16V

R646

10K 1/16W 5%

R646

10K 1/16W 5%

R608 NC/10K 1/16W 5%

C684

1UF16V

C684

1UF16V

R606 10K 1/16W 5%

C691 33N 50VC691 33N 50V

R662

22R 1/16W 5%

R662

22R 1/16W 5%

R610

NC/22R 1/16W 5%

R610

NC/22R 1/16W 5%

C689

22UF 16V

C689

22UF 16V

R612

NC/0R05 1/16W

R612

NC/0R05 1/16W

C675

100N 16V

C675

100N 16V

Q606

BC847C

Q606

BC847C

C633

4.7uF 25V

C633

4.7uF 25V

R651

0R05 1/16W

R651

0R05 1/16W

C669 22P 50VC669 22P 50V

R665

NC/10K 1/16W 5%

R665

NC/10K 1/16W 5%

TP603TP603

1

C607 100N 16V

R609

10K 1/16W 5%

R609

10K 1/16W 5%

R661

0R05 1/10W

R661

0R05 1/10W

C685 33N 50V

D601

BAS316

D601

BAS316

A1K

2

C670 22UF 16V

R657

22R 1/16W 5%

R657

22R 1/16W 5%

C654

100N 50V

C654

100N 50V

C652

100N 16V

C652

100N 16V

+

C608

100uF 10V

+

C608

100uF 10V

U602

TAS5717

U602

TAS5717

AVDD

13

A_SEL#

14

DVSSO

17

VR_DIG

18

PDN#

19

LRCLK

20

SCLK

21

SDIN

22

SDA

23

SCL

24

RESET#25STEST

26

GND29AGND30VREG31SSTIMER32HP_SDZ33GVDD_OUT34PVDD_CD

35

OUT_D

37

PGND_CD

38

OUT_C

39

BST_C

40

BST_B

41

OUT_B

42

PGND_AB

43

BST_A

45

PVDD_AB

46

HP_PWMR

47

HP_PWML

48

HPL_OUT

2

HPR_OUT

3

HPR_IN

4

HPVSS

5

CPN

6

CPP

7

HPVDD

8

AVSS

9

PLL_FLTM

10

PLL_FLTP

11

VR_ANA

12

HPL_IN

1

OSC_RES

16

MCLK

15

BST_D

36

DVDD27DVSS

28

OUT_A

44

GND1

49

D603

BAS316

D603

BAS316

A1K

2

C655

100N 50V

C655

100N 50V

R666

470R 1/16W 1%

R666

470R 1/16W 1%

R601

0R05 1/16W

R601

0R05 1/16W

C650

10uF 16V

C650

10uF 16V

+

C656

220UF 25V

+

C656

220UF 25V

R673

10K 1/16W 5%

R673

10K 1/16W 5%

R674

10K 1/16W 5%

R674

10K 1/16W 5%

TP604TP604

1

C674 100N 16V

R631

0R05 1/16W

R631

0R05 1/16W

C662 330NF 16V

C687 10uF

R670 10K 1/16W 5%

R613

22R 1/16W 5%

R613

22R 1/16W 5%

R602 NC/10K 1/16W 5%

R659 4R7 1/16W 5%R659 4R7 1/16W 5%

C612 22P 50VC612 22P 50V

C699 33N 50VC699 33N 50V

C6721UF16V C6721UF16V

Q601

BC857BW

Q601

BC857BW

1

23

Circuit Diagrams and PWB Layouts

EN 53TPM8.2E LA 10.

2011-Jun-01

SCART I/O / HDMI1 INPUT

19120_513_110519.eps

110519

SCART I/O / HDMI1 INPUT

B06 B06

2011-05-17

1

715G4796

SCART I/O / HDMI1 INPUT

CVBS2P

SOY1

SCART1_RIN SCART1_LIN

SCART_FS0

CVBS2P

PB1P PR1P

Y1P COM1

SOY1

SCT1_G_IN

SCT1_FB_IN

SCT1_R_IN

SCT1_AUL_IN

SCT1_AV_IN

SCT1_B_IN

SCT1_FS_IN

SCT1_AUR_IN

SCT1_AV1_GND

SCT1_AVO_GND

SCT1_R_IN

SCT1_G_IN

SCT1_B_IN

Y1P

PR1P

PB1P

COM1

SCART_FS0

SCT1_AV_IN

SCT1_AUR_IN

SCT1_AUL_IN

AMUX_5V

HDMI_CEC

PWR5V_1

HDMI_HPD

SCL_1 SDA_1

M_RX1_2 M_RX1_2B

M_RX1_1

M_RX1_1B M_RX1_0

M_RX1_0B

M_RX1_C

M_RX1_CB

CEC_1

HDMI_SCL

PWR5V_1 HPLUGP3_5V

HDMI_SDA

HDMI_SCL

PWR5V_1

CEC_1 HDMI_SCL

HDMI_SDA

M_RX1_0B

M_RX1_0

M_RX1_1B

M_RX1_1

M_RX1_2B

M_RX1_2

M_RX1_CB

M_RX1_C

SYS_EEPROM_WP

HDMI_SDA

SYS_EEPROM_WP

M_RX1_1B

M_RX1_C

M_RX1_CB

M_RX1_0

M_RX1_0B

M_RX1_1 M_RX1_2

M_RX1_2B

HDMI_CEC

AV12

DV33 DV33SB +5V_SW

GND

PWR5V_1

HDMI_SCL

PWR5V_1

CEC_1

HDMI_SCL HDMI_SDA

M_RX1_0B

M_RX1_0

M_RX1_1B

M_RX1_1

M_RX1_2B

M_RX1_2

M_RX1_CB

M_RX1_C

HDMI_HPD

HDMI_SDA

SCT1_FS_IN

CEC_1

M_RX1_CB

SCART1_RIN

SCART1_LIN

SCT1_FB_IN

AMUX_5V

+5V_SW

DV33SB

SCART1_RIN 8 SCART1_LIN 8

CVBS2P 6 Y1P 6

COM1 6 PB1P 6 PR1P 6

SCART_FS06

SOY1 6

AMUX_5V 8,10

HDMI_SDA 6

M_RX1_CB 6 M_RX1_C 6 M_RX1_0B 6 M_RX1_0 6 M_RX1_1B 6 M_RX1_1 6 M_RX1_2B 6 M_RX1_2 6

HDMI_CEC 6

AV12 5,6,13

DV33 4,5,6,7,8,12,13 DV33SB 4,5,6,7,8 +5V_SW 4,5,8,10,12,13

GND 4,5,6,7,8,10,11,12,13,14

PWR5V_1 6

SYS_EEPROM_WP 6,7,10

HDMI_HPD 6

HDMI_SCL 6

Function Select

RGB IN

SCART Audio InputCVBS IN

FAST BLANKING/SOY

SCART(RGB + CVBS)

-------><--------------><-------

-------><-------

---><---|>

SCART1 in_out

HDMI 1 EDID EEPROM

SMD/0402

HDMI1 ESD PROTECTER

Rear HDMI 1

HDMI output to MT5365

HDMI I2C

HDMI control

>|---<>--->|---<>---

R1020

75 OHM +-5% 1/16W

R1020

75 OHM +-5% 1/16W

C1012

10N 50V

C1012

10N 50V

C1009 47pF 50V

R1002

75 OHM +-5% 1/16W

R1002

75 OHM +-5% 1/16W

Q506

BC847C

Q506

BC847C

3

2

1

ZD1074

NC/VPORT0603100KV05

ZD1074

NC/VPORT0603100KV05

1 2

C1010

47N16V

C1010

47N16V

C1004

15PF50V

C1004

15PF50V

C1003

10N 50V

C1003

10N 50V

R1211 470K 1/16W 5%

FB1052

80 OHM

FB1052

80 OHM

1 2

C504 100N 16VC504 100N 16V

CN502

HDMI HEADER V/T 19P H:10.5mm

CN502

HDMI HEADER V/T 19P H:10.5mm

SHELL1

20

SHELL2

21

D2+

1

D2 Shield

2

D2-

3

D1+

4

D1 Shield

5

D1-

6

D0+

7

D0 Shield

8

D0-

9

CK+

10

CK Shield

11

CK-

12

CE Remote

13

NC

14

DDC CLK

15

DDC DATA

16

GND

17

+5V

18

HP DET

19

SHELL4

23

SHELL3

22

SHELL5

24

SHELL6

25

SHELL7

26

R1017 10K 1/16W 5%

R1004

68R 1/16W 5%

R1004

68R 1/16W 5%

R531

NC/470K 1/16W 5%

R531

NC/470K 1/16W 5%

R534

4K7 1/16W 5%

R534

4K7 1/16W 5%

R1010

100R 1/16W 5%

R1010

100R 1/16W 5%

ZD1072

NC/VPORT0603100KV05

ZD1072

NC/VPORT0603100KV05

1 2

R1213 470K 1/16W 5%

R546

10K 1/16W 5%

R546

10K 1/16W 5%

R1001

75 OHM +-5% 1/16W

R1001

75 OHM +-5% 1/16W

ZD1065 NC/VPORT0603100KV05

1 2

R503

27K 1/16W 5%

R503

27K 1/16W 5%

ZD504

NC/VPORT0603100KV05

ZD504

NC/VPORT0603100KV05

1 2

R1014

75 OHM +-5% 1/16W

R1014

75 OHM +-5% 1/16W

R1212

470K 1/16W 5%

R1212

470K 1/16W 5%

R1015

51K 1/16W 5%

R1015

51K 1/16W 5%

C1005

15PF50V

C1005

15PF50V

TP501TP501

FB502

600R/200mA

FB502

600R/200mA

1 2

U514 RClamp0524P.TCTU514 RClamp0524P.TCT

IN1

1

IN2

2

GND

3

IN3

4

IN4

5

OUT4

6

OUT3

7

GND

8

OUT2

9

OUT1

10

R1006

10K 1/16W 5%

R1006

10K 1/16W 5%

R1214

470K 1/16W 5%

R1214

470K 1/16W 5%

SCART

CN151

SCART

CN151

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

2223

C1015

NC/470P 50V

C1015

NC/470P 50V

R532

10K 1/16W 5%

R532

10K 1/16W 5%

C1002

15PF50V

C1002

15PF50V

TP502TP502

C1001

10N 50V

C1001

10N 50V

R535

33R 1/16W 5%

R535

33R 1/16W 5%

ZD1073

NC/VPORT0603100KV05

ZD1073

NC/VPORT0603100KV05

1 2

C1011

10N 50V

C1011

10N 50V

R1018

68R 1/16W 5%

R1018

68R 1/16W 5%

ZD1067 NC/VPORT0603100KV05

1 2

R548

3K3 1/16W 5%

R548

3K3 1/16W 5%

R1007

10K 1/16W 5%

R1007

10K 1/16W 5%

C1008

10uF 16V

C1008

10uF 16V

U505

M24C02-WDW6P

U505

M24C02-WDW6P

E0

1

E1

2

E2

3

VSS

4

SDA

5

SCL

6

WC

7

VCC

8

U515 RClamp0524P.TCTU515 RClamp0524P.TCT

IN1

1

IN2

2

GND

3

IN3

4

IN4

5

OUT4

6

OUT3

7

GND

8

OUT2

9

OUT1

10

D508

BAS316

D508

BAS316

A

1

K

2

C1006

10N 50V

C1006

10N 50V

D503

BAS316

D503

BAS316

A1K

2

R529

1K 1/16W 5%

R529

1K 1/16W 5%

R547

NC/33R 1/16W 5%

R547

NC/33R 1/16W 5%

ZD502 NC/VPORT0603100KV05

12

R1013

0R05 1/16W

R1013

0R05 1/16W

R1003

75 OHM +-5% 1/16W

R1003

75 OHM +-5% 1/16W

C1013

10N 50V

C1013

10N 50V

R533 100R 1/16W 5%R533 100R 1/16W 5%

TP504TP504

R536

47K 1/10W 5%

R536

47K 1/10W 5%

C1007

10uF 16V

C1007

10uF 16V

R523

47K 1/10W 5%

R523

47K 1/10W 5%

TP503TP503

R530

4K7 1/16W 5%

R530

4K7 1/16W 5%

R1019

100R 1/16W 5%

R1019

100R 1/16W 5%

ZD1068 NC/VPORT0603100KV05

12

ZD1066 NC/VPORT0603100KV05

1 2

R537 100R 1/16W 5%R537 100R 1/16W 5%

FB1054

80 OHM

FB1054

80 OHM

1

2

D509

BAS316

D509

BAS316

A

1

K

2

Q507

BC847C

Q507

BC847C

3

2

1

FB1053

80 OHM

FB1053

80 OHM

1

2

ZD1075

NC/VPORT0603100KV12

ZD1075

NC/VPORT0603100KV12

1 2

U516 RClamp0524P.TCTU516 RClamp0524P.TCT

IN1

1

IN2

2

GND

3

IN3

4

IN45OUT4

6

OUT3

7

GND

8

OUT2

9

OUT1

10

R1005

68R 1/16W 5%

R1005

68R 1/16W 5%

C507

220N 10V

C507

220N 10V

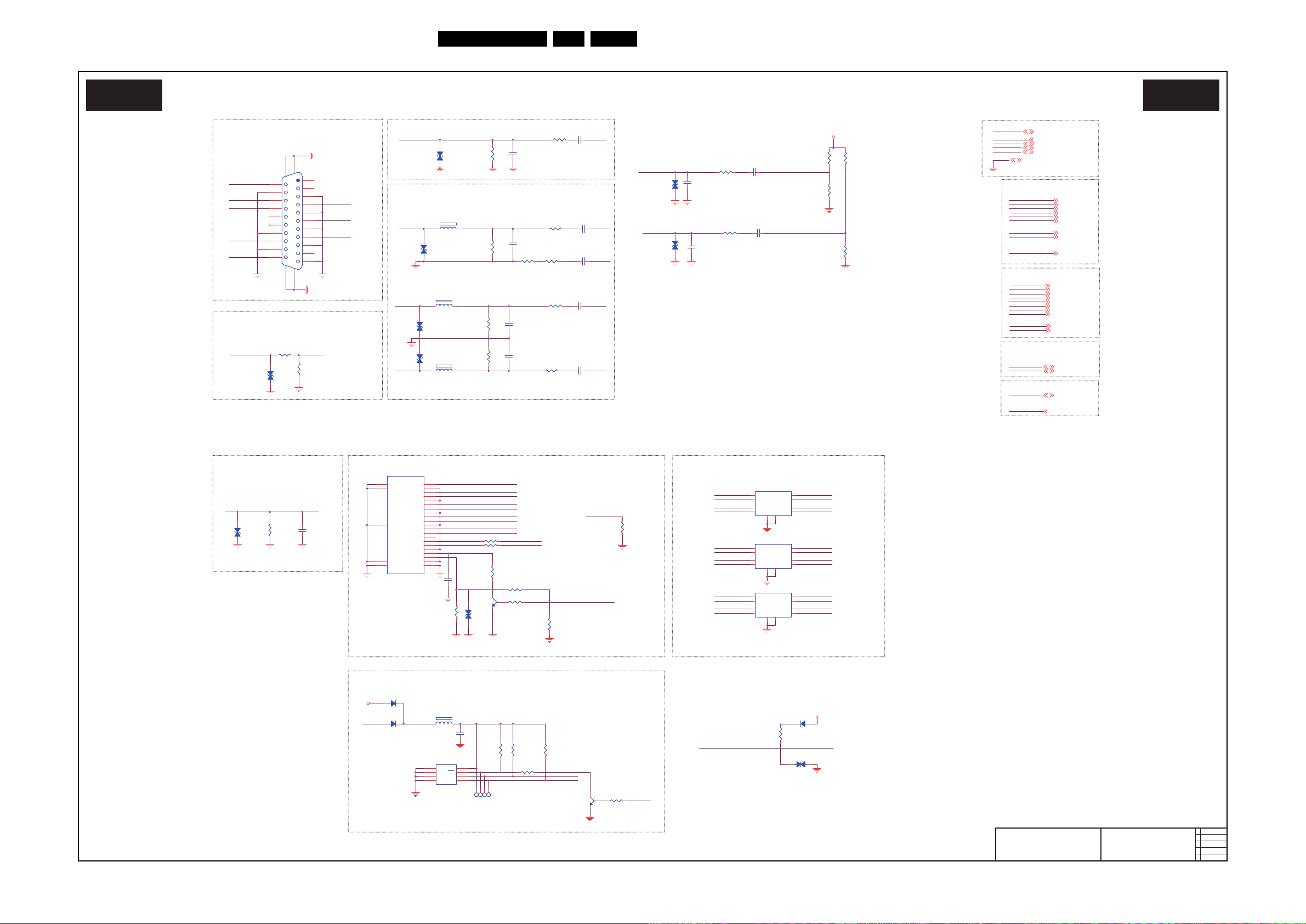

Circuit Diagrams and PWB Layouts

EN 54TPM8.2E LA 10.

2011-Jun-01

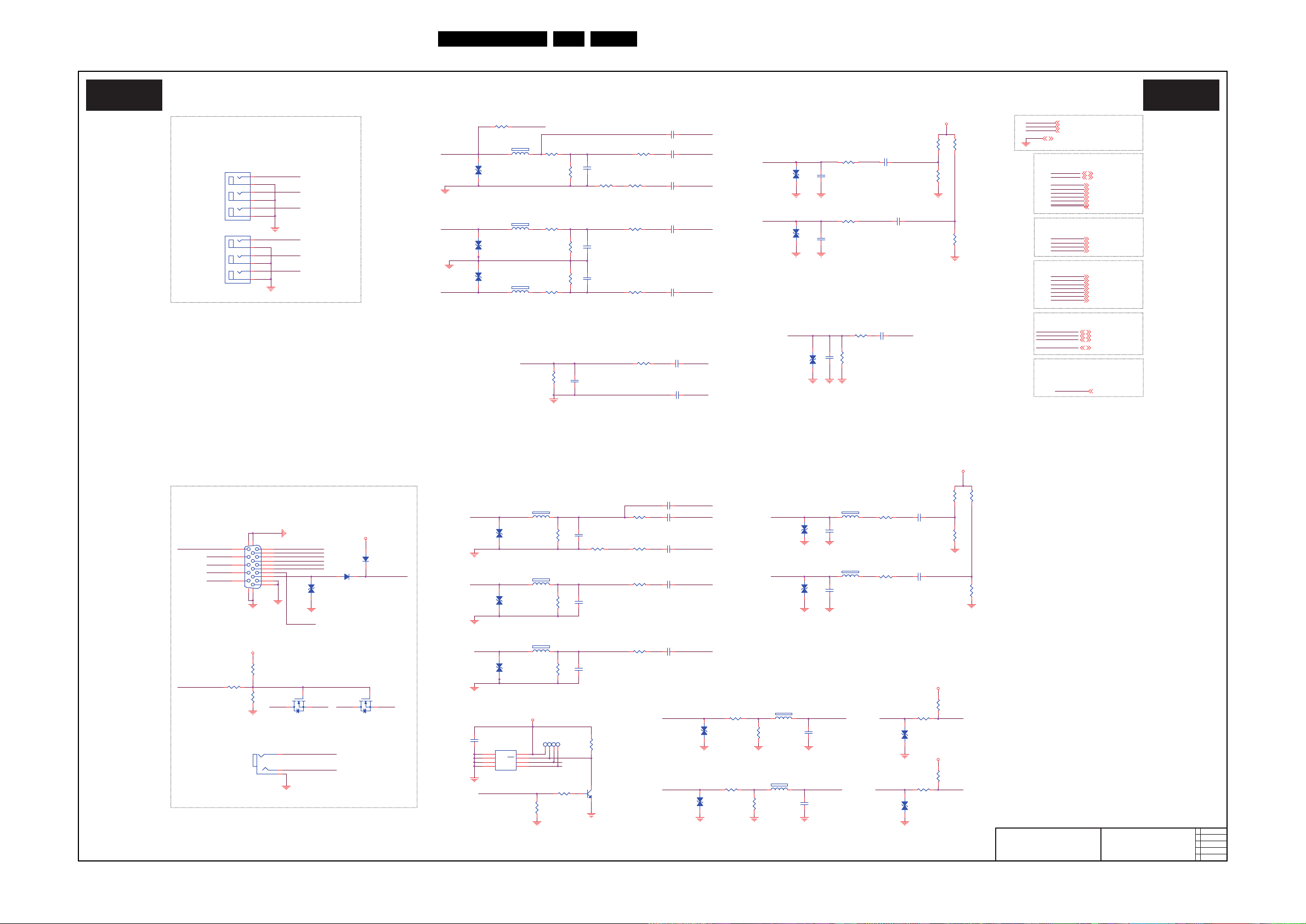

YPBPR/ VGA INPUT

19120_514_110519.eps

110519

YPBPR/ VGA INPUT

B07 B07

2011-05-17

1

715G4796

YPBPR/ VGA INPUT

PR0P

COM0

PB0P

Y0P

SOY0

VGA_AudioRIN

RP

VGACOM

BP

GP

RED_GND GRN_GND

RED GRN

BLU_GND

BLU

HSYNC

VSYNC

SOG

VGA_PLUGPWR

BLU

RED

VSYNC#

Y_IN_1

PB_IN_1

PR_IN_1

VGA_AudioLIN

VGASCL_IN

VGASDA_IN

VSYNC#

HSYNC#

AMUX_5V

PR_IN_1

HSYNC# VGASCL_IN

VGASDA_IN

VGA_LIN VGA_RIN

HSYNC BP SOG GP VGACOM RP

YPBPR_LIN YPBPR_RIN

U0RX

U0TX

U0RX#U0RX

VGA_RX/TX_EN

U0RX#

U0TX

VGA_RIN

VGA_LIN

U0TX#

Y_IN_1

YPBPR_RIN

SYS_EEPROM_WP

VSYNC

CVBS1P SOY0

Y0P PB0P COM0 PR0P

+5V_SW

CVBS_COM

VGASDA

VGASCL

SYS_EEPROM_WP

PB_IN_1

YPBPR_LIN

DV33SB

U0TX#

GRN

YPBPR_L_IN

VGA_AudioRIN

VGA_AudioLIN

CVBS1P

AV1_CVBS_IN

CVBS_COM

SPDIF_OUT M_SPDIF_Out

M_SPDIF_Out

YPBPR_R_IN

SPDIF_OUT

YPBPR_R_IN

YPBPR_L_IN

VGASDA

VGASCL

VGA_PLUGPWR

VGASCL VGASDA

BLU_GND

GND

GRN_GND

RED_GND

VGA_RX/TX_EN

AV1_CVBS_IN

VGA_PLUGPWR

+5V_SW

AMUX_5V

+5V_SW

U0RX 6,7

U0TX 6,7

VGA_RX/TX_EN 6

SYS_EEPROM_WP 6,7,9

VGASDA 6

VGASCL 6

YPBPR_LIN 8 YPBPR_RIN 8 VGA_LIN 8 VGA_RIN 8

CVBS1P 6 CVBS_COM 6 SOY0 6 Y0P 6 PB0P 6 COM0 6 PR0P 6

VSYNC 6 HSYNC 6 BP 6 SOG 6 GP 6 VGACOM 6

RP 6

AMUX_5V 8,9 DV33SB 4,5,6,7,8,9

+5V_SW4,5,8,9,12,13

GND 4,5,6,7,8,9,11,12,13,14

M_SPDIF_Out6

NEARLY Connecter

SMD/0402

VGA Input

Video Input

Audio Input

Others Control Interface

VGA & Audio in

VGA RX/TX

PC Audio in

YPbPr in SPDIF output

YPbPr

SMD/0402

---><---|>

---><---|>---><---|>

>|---<>--->|---<>---

---><---|>

>|---<>--->|---<>---

SPDIF

---><---|>

Audio Out

---><---|>

R1170

68R 1/16W 5%

R1170

68R 1/16W 5%

R1179 NC/2K2 1/16W 5%

R1208

100R 1/16W 5%

R1208

100R 1/16W 5%

ZD1166 NC/VPORT0603100KV05

1 2

FB1160 80 OHM

1 2

R1207

10K 1/16W 5%

R1207

10K 1/16W 5%

R1169

75 OHM +-5% 1/16W

R1169

75 OHM +-5% 1/16W

R1187

NC/100R 1/16W 5%

R1187

NC/100R 1/16W 5%

R1181

0R05 1/16W

R1181

0R05 1/16W

R1197 470K 1/16W 5%

R1167

18R 1/16W 5%

R1167

18R 1/16W 5%

FB1157

120R/3000mA

FB1157

120R/3000mA

1 2

FB1155

80 OHM

FB1155

80 OHM

1

2

C1160

100N 16V

C1160

100N 16V

D1160 BAS316

A1K

2

ZD1167

NC/VPORT0603100KV05

ZD1167

NC/VPORT0603100KV05

1 2

C118333P 50V C118333P 50V

ZD1156

NC/VPORT0603100KV05

ZD1156

NC/VPORT0603100KV05

1 2

C1171

10uF 6.3V

C1171

10uF 6.3V

C1162

10N 50V

C1162

10N 50V

R1162

10K 1/16W 5%

R1162

10K 1/16W 5%

C1159

15PF50V

C1159

15PF50V

FB1159 80 OHM

1 2

R1193

470K 1/16W 5%

R1193

470K 1/16W 5%

ZD1160 NC/VPORT0603100KV05

1 2

R1186

0R05 1/16W

R1186

0R05 1/16W

ZD1164

NC/VPORT0603100KV05

ZD1164

NC/VPORT0603100KV05

1 2

R1165

18R 1/16W 5%

R1165

18R 1/16W 5%

C1185

NC/47P 50V

C1185

NC/47P 50V

C1166

NC/10N 50V

C1166

NC/10N 50V

R1160

10K 1/16W 5%

R1160

10K 1/16W 5%

Q1150

BC847C

Q1150

BC847C

3

2

1

TP102TP102

C1169 5PF 50V

FB1152

80 OHM

FB1152

80 OHM

1

2

R1158 10K 1/16W 5%

R1206

NC/10K 1/16W 5%

R1206

NC/10K 1/16W 5%

R1199

10K 1/16W 5%

R1199

10K 1/16W 5%

TP103TP103

C1173

10N 50V

C1173

10N 50V

R1155

100R 1/16W 5%

R1155

100R 1/16W 5%

R1177 10K 1/16W 5%

R1156

56R 1/16W 5%

R1156

56R 1/16W 5%

TP104TP104

U110

M24C02-WDW6P

U110

M24C02-WDW6P

E0

1

E1

2

E2

3

VSS4SDA

5

SCL

6

WC

7

VCC

8

C1165

10uF 16V

C1165

10uF 16V

FB1151

80 OHM

FB1151

80 OHM

1 2

R1161

56R 1/16W 5%

R1161

56R 1/16W 5%

C1176

10N 50V

C1176

10N 50V

FB1158

120R/3000mA

FB1158

120R/3000mA

1

2

C1152

1.5nF 50V

C1152

1.5nF 50V

R1182 0R05 1/16W

ZD1155 NC/VPORT0603100KV05

1 2

A

B

C

CN111

JACK

A

B

C

CN111

JACK

2 1 4

3

5

6

C1182

100N 16V

C1182

100N 16V

C1172

10N 50V

C1172

10N 50V

R1180 NC/2K2 1/16W 5%

FB1156

80 OHM

FB1156

80 OHM

1 2

R1189

NC/0R05 1/16W

R1189

NC/0R05 1/16W

ZD1161 NC/VPORT0603100KV05

1 2

R1191

470K 1/16W 5%

R1191

470K 1/16W 5%

ZD1163 NC/VPORT0603100KV05

1 2

FB1153

80 OHM

FB1153

80 OHM

1 2

ZD1154 NC/VPORT0603100KV05

1 2

ZD1152 NC/VPORT0603100KV05

12

TP101TP101

C1163

10uF 16V

C1163

10uF 16V

R1176

100R 1/16W 5%

R1194

470K 1/16W 5%

R1194

470K 1/16W 5%

R1184

240 OHM +-1% 1/16W

R1184

240 OHM +-1% 1/16W

R1159

68R 1/16W 5%

R1159

68R 1/16W 5%

ZD1157

NC/VPORT0603100KV05

ZD1157

NC/VPORT0603100KV05

1 2

C1154 5PF 50V

C1156

10N 50V

C1156

10N 50V

R1166

68R 1/16W 5%

R1166

68R 1/16W 5%

C1157 5PF 50V

R1188

NC/75 OHM +-5% 1/16W

R1188

NC/75 OHM +-5% 1/16W

R1175

68R 1/16W 5%

R1175

68R 1/16W 5%

C1167 5PF 50V

R1185

100R 1/16W 5%

R1185

100R 1/16W 5%

R1195

470K 1/16W 5%

R1195

470K 1/16W 5%

C1186

NC/10N 50V

C1186

NC/10N 50V

R1168

0R05 1/16W

R1168

0R05 1/16W

C1174

NC/10N 50V

C1174

NC/10N 50V

R1163

18R 1/16W 5%

R1163

18R 1/16W 5%

R1173

68R 1/16W 5%

R1173

68R 1/16W 5%

FB1154

80 OHM

FB1154

80 OHM

1 2

C1177

10uF 6.3V

C1177

10uF 6.3V

C1164

NC/10N 50V

C1164

NC/10N 50V

R1196 470K 1/16W 5%

C1175

10N 50V

C1175

10N 50V

A

B

C

CN116

JACK

A

B

C

CN116

JACK

2 1 4

3

5

6

R1164

56R 1/16W 5%

R1164

56R 1/16W 5%

R1203

4K7 1/16W 5%

R1203

4K7 1/16W 5%

D1159 BAS316

A

1

K

2

C1153

10N 50V

C1153

10N 50V

R1154

10K 1/16W 5%

R1154

10K 1/16W 5%

R1200

10K 1/16W 5%

R1200

10K 1/16W 5%

C1184

NC/47N16V

C1184

NC/47N16V

R1198

470K 1/16W 5%

R1198

470K 1/16W 5%

R1157

100R 1/16W 5%

R1157

100R 1/16W 5%

ZD1162 NC/VPORT0603100KV05

1 2

ZD1150 NC/VPORT0603100KV05

1 2

R1171

75 OHM +-5% 1/16W

R1171

75 OHM +-5% 1/16W

C1168 5PF 50V

R1192

470K 1/16W 5%

R1192

470K 1/16W 5%

R1174

75 OHM +-5% 1/16W

R1174

75 OHM +-5% 1/16W

C1161

15PF50V

C1161

15PF50V

R1153

68R 1/16W 5%

R1153

68R 1/16W 5%

ZD1153 NC/VPORT0603100KV05

1 2

Q1152 2N7002

C1151

NC/1UF16V

C1151

NC/1UF16V

R1178

100R 1/16W 5%

R1178

100R 1/16W 5%

C1155

15PF50V

C1155

15PF50V

CN102 PHONEJACK

1

2

3

ZD1151 NC/VPORT0603100KV05

1 2

ZD1158

NC/VPORT0603100KV05

ZD1158

NC/VPORT0603100KV05

1 2

CN101CN101

1 6 2 7

3 8

4 9 5

11 12 13 14 15

10

1716

18 19

Q1151 2N7002

C1170

1.5nF 50V

C1170

1.5nF 50V

R1152

10K 1/16W 5%

R1152

10K 1/16W 5%

C1158

10N 50V

C1158

10N 50V

Circuit Diagrams and PWB Layouts

EN 55TPM8.2E LA 10.

2011-Jun-01

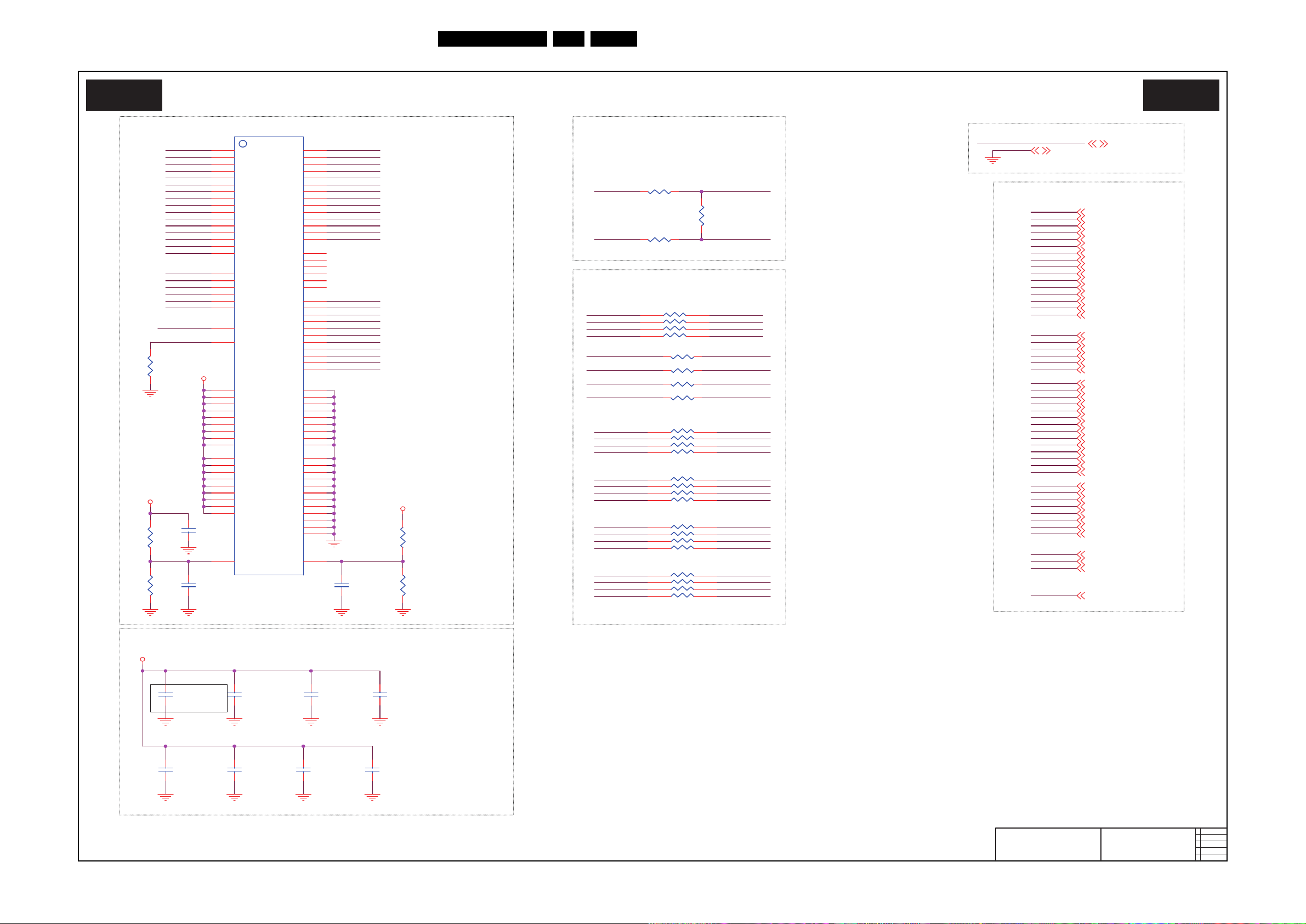

DDR3 DRAM

19120_515_110519.eps

110519

DDR3 DRAM

B08 B08

2011-05-17

1

715G4796

DDR3 DRAM

1_RST#

1_A10 1_A12

1_A9 1_A11 1_A13

GND

RDQS1# RDQS0#

RDQS0

RDQS1

RDQ1 RDQ2 RDQ3

RDQ7

RDQ6

RDQ5

RDQ0

RDQ4

RDQ15

RDQ14

RDQ9

RCLK0 RCLK0#

RDQ13

RDQ8

RDQ12

RDQ11

RDQ10

RDQM1 RDQM0

1_A2

1_CS#

1_A0

1_BA2

1_BA0

1_CKE

1_RAS#

1_BA1

1_A1

1_CAS#

1_ODT

1_WE#

1_A4

1_A3

1_A6

1_A5

1_A8

1_A7

B_WE#

B_ODT

B_CAS# B_RAS#

1_A1

1_BA1

1_A4

B_BA1

B_A4 B_A10

B_A1

1_A10

1_CS#

1_A5 1_A2

1_CKE

B_A2

B_A5

B_CKE

1_RST# 1_A13

1_A7

1_A9

B_A7

B_A9 B_A13

B_RST#

1_A0

1_A11 1_A8 1_A6

1_A12

B_A6

B_A8

B_A11

B_A12

B_A0

B_CS#

1_BA0

1_A3

1_BA2

1_RAS#

1_CAS#

1_ODT

1_WE#

RVREF2

RDQS1# RDQS0#

RDQS0

RDQS1

ZQ1

RDQ1 RDQ2 RDQ3

RDQ7

RDQ6

RDQ5

RDQ0

RDQ4

RDQ15

RDQ14

RDQ9

RDQ13

RDQ8

RDQ12

RDQ11

RDQ10

RVREF1

B_CAS#

B_A1

B_ODT B_RAS#

CLK0 CLK0#

B_A3

B_A2

B_WE# B_CKE

B_A5 B_A7

B_A6

B_A4

B_A9 B_A11

B_A10

B_A8

B_A13

B_A12

B_BA0 B_BA1

B_A0

B_BA2

B_CS#

B_RST#

RDQM1 RDQM0

B_A3

B_BA0 B_BA2

CLK0#

CLK0

RCLK0

RCLK0#

DV15_DDRDDRV

DDRV

1_A7 6

RDQ2 6

1_A8 6

RDQ3 6

1_A9 6

RDQ4 6

1_A10 6

RDQ5 6

1_A11 6

RDQ6 6 RDQ7 6

1_A13 6

RDQ8 6

1_A0 6

1_WE# 6 1_ODT 6

RDQ9 6

1_A12 6

1_CAS#6 1_RAS#6

1_BA1 6

RDQ10 6 RDQ11 6 RDQ12 6 RDQ13 6 RDQ14 6

1_A1 6

RDQ15 6

1_A2 6

RCLK0 6 RCLK0# 6

1_A3 6

RDQS16

1_CS#6

RDQS1# 6

1_A4 6

RDQS06

1_CKE 6

RDQS0# 6

1_BA0 6

1_A5 6

RDQM1 6

RDQ0 6

1_BA2 6

RDQM0 6

1_A6 6

RDQ1 6

1_RST# 6

GND 4,5,6,7,8,9,10,12,13,14

DV15_DDR 4,6

DDR interface from MT5365

Damping for DDR#1 ADDR/CMD

This is very important !!!

CAPs for DRAM IO Power ( Close to DDR#1 )

DDR3#1

Damping and Termination for CLK

DDR3 64Mx16Bits /1.3GHz

RP4105

100 OHM 1/16W

RP4105

100 OHM 1/16W

1 2

3

4

8

7 6 5

C4103 10uF

R4108 240 OHM +-1% 1/16W

RP4106

100 OHM 1/16W

RP4106

100 OHM 1/16W

1 2

3

4

8

7 6 5

RP4104

100 OHM 1/16W

RP4104

100 OHM 1/16W

1 2

3

4

8

7 6 5

C4110 100N 16V

C4104 10uF 16V

C4106 100N 16V

C4108 100N 16V

R4101

1KOHM +-1% 1/16W

R4101

1KOHM +-1% 1/16W

R4107 1KOHM +-1% 1/16W

R4104 100R 1/16W 5%

C4107 100N 16V

RP4103

100 OHM 1/16W

RP4103

100 OHM 1/16W

1 2

3

4

8

7 6 5

C4105 100N 16V

R4110 100R 1/16W 5%R4110 100R 1/16W 5%

R4106 1KOHM +-1% 1/16W

C4102 100N 16V

C4109 100N 16V

R4112 100R 1/16W 5%R4112 100R 1/16W 5%

R4103

0R05 OHM

R4103

0R05 OHM

R4113 100R 1/16W 5%R4113 100R 1/16W 5%

C4111 100N 16V

R4102

1KOHM +-1% 1/16W

R4102

1KOHM +-1% 1/16W

C4101 100N 16V

R4105

0R05 OHM

R4105

0R05 OHM

R4111 100R 1/16W 5%R4111 100R 1/16W 5%

U404

K4B1G1646E-HCH9

U404

K4B1G1646E-HCH9

VDD_0

B2

NC_0

J1

VSS_0

A9

VSSQ_0

B1

UDQS#

B7

VDDQ_0

A1

DQU6

B8

VSSQ_1

B9

UDM

D3

UDQS

C7

VSSQ_2

D1

DQU7

A3

VDDQ_1

A8

DQU1

C3

VDDQ_2

C1

VDDQ_3

C9

DQU0

D7

VDDQ_4

D2

DQU4

A7

VSSQ_3

D8

DQU3

C2

DQU2

C8

VSSQ_4

E2

DQU5

A2

VDD_1

D9

NC_1

J9

VSS_1

B3

VSSQ_5

E8

LDQS#

G3

VDDQ_5

E9

DQL6

G2

VSSQ_6

F9

LDM

E7

LDQS

F3

VSSQ_7

G1

DQL7

H7

VDDQ_6

F1

DQL1

F7

VDDQ_7

H2

DQL0

E3

VDDQ_8

H9

DQL4

H3

VSSQ_8

G9

DQL3

F8

DQL2

F2

BA2

M3

DQL5

H8

VDD_5

N1

VREFDQ

H1

VSS_2

E1

VSS_5

J8

CK

J7

VDD_2

G7

CKE

K9

WE#

L3

RAS#

J3

CK#

K7

ODT

K1

RESET#

T2

BA0

M2

BA1

N8

CAS#

K3

CS#

L2

A10/AP

L7

A1

P7

A2

P3

A0

N3

VDD_3K2VSS_3

G8

A3

N2

A5

P2

A6

R8

A4

P8

A7

R2

A9

R3

A11

R7

A8

T8

VSS_4

J2

VDD_4

K8

A12/BC#

N7

NC_3

L9

ZQ

L8

NC_2

L1

VREFCA

M8

NC_4

M7

NC

T3

NC_6

T7

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VDD_6

N9

VDD_7

R1

VDD_8

R9

RP4102

100 OHM 1/16W

RP4102

100 OHM 1/16W

1 2

3

4

8

7 6 5

Circuit Diagrams and PWB Layouts

EN 56TPM8.2E LA 10.

2011-Jun-01

LVDS OUTPUT/USB

19120_516_110519.eps

110519

LVDS OUTPUT/USB

B09 B09

2011-05-17

1

715G4796

LVDS OUTPUT/USB

INVERTER_ON_OFF

BL_DIMMING

BRIGHT_ADJ

BL_ON/OFF

DV33SB

GND

PANEL_VCC +5V_SW

E1P E1N

E0P

O3P O3N

OCKN

OCKP

O2P O2N

O1P O1N

O0P O0N

E0N

E3P E3N

E2P E2N

USB_DP0

USB_DM0

BL_ON/OFF BL_DIMMING BRIGHT_ADJ INVERTER_ON_OFF

DV33 +5V_STB

ECKN

ECKP

USB_DP0 USB_DM0

E3P

E1P

E3N ECKP

ECKN

E2N

E2P

E0P

E0N

E1N

O1N

LVDS_VDD

O2P

O2N

OCKN OCKP

O0N

O1N

O3N O3P

O0P

O1P

OCKN

O0N

OCKP O3P

O3N

O0P

O2NO2P

O1P

LVDS_VDD

O0P

O1P

O2P

O3P

O2N

O1N

O3N

O0N

E0P

E1P

E2P

E1N

E3P

E0N

E3N

E2N

DV33

DV33DV33

+5V_SW

LVDS_VDD

PANEL_VCC

GND 4,5,6,7,8,9,10,11,13,14

E3P6 E3N6

O3P6 O3N6

O0P 6 O0N 6 O1P 6 O1N 6 O2P 6 O2N 6 OCKP 6 OCKN 6

E0P 6 E0N 6 E1P 6 E1N 6 E2P 6 E2N 6

USB_DM0 6 USB_DP0 6

BL_ON/OFF 6 BL_DIMMING 6 BRIGHT_ADJ 4 INVERTER_ON_OFF 4

PANEL_VCC 5 +5V_SW 4,5,8,9,10,13 DV33SB 4,5,6,7,8,9 DV33 4,5,6,7,8,13 +5V_STB 4,5,7

ECKP 6 ECKN 6

LVDS Interface

Backlight Brightness Control

USB 2.0

USB interface

Backligh Control Interface

Backlight ON/OFF Control

LVDS OUTPUT

FB405

120R/3000mA

FB405

120R/3000mA

1

2

ZD1159

VPORT0603100KV05

ZD1159

VPORT0603100KV05

12

R406

4K7 1/16W 5%

R406

4K7 1/16W 5%

C409

10uF 16V

C409

10uF 16V

Q401

BC847C

Q401

BC847C

3

1

2

R410

10K 1/16W 5%

R410

10K 1/16W 5%

CN409 NC/CONN

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

t

TH4050

PTCR

t

TH4050

PTCR

1 2

TP418TP TP418TP

TP406TP TP406TP

C406

NC/10uF 6.3V

C406

NC/10uF 6.3V

R401

NC/4K7 1/16W 5%

R401

NC/4K7 1/16W 5%

R404

4K7 1/16W 5%

R404

4K7 1/16W 5%

Q402

BC847C

Q402

BC847C

3

1

2

TP402TP TP402TP

TP417TP TP417TP

R420

NC/0R05OHM1/16W

R420

NC/0R05OHM1/16W

TP409TP TP409TP

TP413TP TP413TP

TP404TP TP404TP

TP408TP TP408TP

R405

100R 1/16W 5%

R405

100R 1/16W 5%

R418

NC/10K 1/10W 5%

R418

NC/10K 1/10W 5%

TP403TP TP403TP

R403

1K 1/16W 5%

R403

1K 1/16W 5%

FB404

220R/2000mA

FB404

220R/2000mA

1 2

TP414TP TP414TP

R408

1K 1/16W 5%

R408

1K 1/16W 5%

TP405TP TP405TP

TP412TP TP412TP

CN408 S1312-30SVA-1R

2 4 6

8

10 12 14 16 18 20 22 24 26 28 30

1

3

5 7 9 11 13 15 17 19 21 23 25 27 29

31 32

TP419TP TP419TP

ZD1165 VPORT0603100KV05

12

TP415TP TP415TP

FB406

120R/3000mA

FB406

120R/3000mA

12

TP407TP TP407TP

TP416TP TP416TP

+

C405

100uF 10V

+

C405

100uF 10V

1234

CN103 USB CONN

1234

CN103 USB CONN

1

2

3

4

65

Circuit Diagrams and PWB Layouts

EN 57TPM8.2E LA 10.

2011-Jun-01

DVB-T+C_DEMOD MT5135 / CI

19120_517_110519.eps

110519

DVB-T+C_DEMOD MT5135 / CI

B10 B10

2011-05-17

1

715G4796

DVB-T+C_DEMOD

MT5135 / CI

DEMOD_RST

TNTPXTALI

XTALO

CI_INCLK

M_CI_OUTCLK

M_CI_OUTDATA2

M_CI_INDATA2

M_CI_INDATA1 M_CI_INDATA3

M_CI_INDATA4 M_CI_INDATA5

M_CI_INVALID

M_CI_INDATA6 M_CI_INDATA7

M_CI_OUTVALID M_CI_OUTDATA0

M_CI_OUTSYNC M_CI_OUTDATA1

CI_OUTSYNC

CI_OUTDATA2

CI_OUTDATA0 CI_OUTDATA1

CI_OUTVALID

CI_INDATA1

CI_INDATA2

CI_OUTDATA0

CI_D7

CI_A8

CI_IOWR#

CI_OUTDATA3

CI_INDATA2

CI_INDATA7

CI_INDATA6

CI_A13

CI_INDATA3

CI_CE1#

CI_INDATA5

CI_INVALID

CI_INDATA4

CI_OUTDATA6

CI_REG#

CI_OUTDATA2

CI_INDATA3

CI_INDATA0

CI_VS1#

CI_A14

CI_INDATA7

CI_OUTSYNC

CI_OUTCLK

CI_INVALID

CI_A10

CI_INDATA6

M_CI_INSYNC

M_CI_INCLK

CI_A6

CI_A7

CI_OUTDATA3

CI_A12

CI_A1

CI_A2

CI_D1

CI_D0

M_CI_OUTDATA3

CI_A3

CI_A4

M_CI_OUTDATA6

CI_A5

CI_A0

CI_D2

CI_INCLK

CI_D3

CI_INSYNC

CI_OUTDATA4

CI_D4

CI_OE#

CI_WE#

CI_OUTDATA1

CI_OUTDATA7

CI_IORD#

CI_IREQ#

CI_OUTDATA4

CI_D5

CI_A11

CI_OUTVALID

CI_INDATA1

CI_WAIT#

CI_CD1#

CI_OUTDATA5CI_D6

CI_A9

CI_CD2#

CI_RESET

CI_CE2#

M_CI_INDATA0

CI_OUTDATA6 CI_OUTDATA7

CI_OUTDATA5

M_CI_OUTDATA4

CI_INDATA0

CI_INSYNC

M_CI_OUTDATA7

M_CI_OUTDATA5

CI_INDATA4 CI_INDATA5

CI_OUTCLK

CI_CD2#

CI_D2

CI_D1

CI_D0

M_CI_OUTDATA2

M_CI_OUTDATA1

M_CI_OUTDATA0

CI_A0

M_CI_OUTSYNC

CI_A1

M_CI_OUTVALID

CI_A2

CI_REG#

CI_A3

CI_A4

CI_WAIT#

CI_A5

CI_RESET

CI_A6

CI_A7

M_CI_INDATA7

CI_A12

M_CI_INDATA6

M_CI_INCLK

M_CI_INDATA5

M_CI_INVALID

M_CI_INDATA4

CI_IREQ#

M_CI_INDATA3

CI_WE#

M_CI_INDATA2

CI_A14

M_CI_INDATA1

CI_A13

M_CI_INDATA0

CI_A8

M_CI_INSYNC

CI_A9

CI_A11

CI_OE#

CI_VS1#

CI_A10

CI_CE1#

M_CI_OUTDATA7

CI_D7

M_CI_OUTDATA6

CI_D6

M_CI_OUTDATA5

CI_D5 M_CI_OUTDATA4 CI_D4 M_CI_OUTDATA3 CI_D3 CI_CD1#M_CI_OUTCLK

CI_IOWR#

CI_IORD#

CI_INT

PAD_CHIP_CTRL

CI_PWR_EN

RSSI

MT5135AD+

MT5135AD-

XTALI

XTALO

MT5135AD+ MT5135AD-

RF_AGC_T

RSSI

RF_AGC_Control

RF_AGC_H

DEMOD_TSCLK DEMOD_TSVAL DEMOD_TSSYNC DEMOD_TSDATA0

CI_INT

DEMOD_RST

DEMOD_TSVAL

DEMOD_TSSYNC

DEMOD_TSDATA0

SPI_DATA SPI_CLK

SPI_CLE

+5V_SW

CI_OCPCI_PWR_EN

CI_VS1#

CI_IREQ#

CI_WAIT#

CI_OUTCLK

CI_CE2#

DV33

CI_CD2#

AV12

DEMOD_TSCLK

MT5135_CLK MT5135_DATA

SPI_DATA

SPI_CLK SPI_CLE

DEMOD_RST

T2_CLK

T2_DATA

TUNER_CLK

MT5135_DATA

MT5135_CLK

T2_CLK

TUNER_CLK TUNER_DATA

CI_OCP

CI_CD1#

T2_DATATUNER_DATA

RF_AGC_5135 RF_AGC_H

RF_AGC_Control

5135_DV33

CI2_VCC CI2_VCCCI2_VCC

CI2_VCC

5135_AV12

5135_DV10

5135_DV33

AVDD33_4

5135_DV33

5135_DV10

AVDD33_3

AVDD33_2

5135_DV33

DV33

AV12

AVDD33_3

AVDD33_1

5135_AV12

5135_DV10

+5V_SW

5135_AV12

5135_DV10

AVDD33_4

AVDD33_1

AVDD33_2

AVDD33_3

+5V_SW

DV33

CI2_VCC

5135_DV33

5135_DV33 5135_DV33

5135_DV33

DV33

GND 4,5,6,7,8,9,10,11,12,14

MT5135AD- 14 MT5135AD+ 14

DEMOD_TSCLK 6 DEMOD_TSVAL 6 DEMOD_TSSYNC 6 DEMOD_TSDATA0 6

CI_INT 6

+5V_SW 4,5,8,9,10,12

DV33 4,5,6,7,8,12 AV12 5,6

RF_AGC_Control 14 RF_AGC_T 14

RF_AGC_H 6,14

DEMOD_RST6

SPI_CLK 6 SPI_DATA 6 SPI_CLE 6

TUNER_CLK 14 TUNER_DATA 14

CI_OCP 6

PCMCIA 5V Slot

Function 1 (Internal CI) CI Interface

CI interface

CI Bus Power Control

SMD/0402

DV10 for MT5135

DV33 & AV12 for MT5135

DVB-T DEMOD MT5135 X'TAL for MT5135

Demod/Tuner Control

IF input from Tuner

GPIO Control

TS output to Mt5365 (Serial)

MT5135 I2C

MT5135

I2C for Tuner

I2C for MT5135 & Tuner

FB1015

120R/600mA

FB1015

120R/600mA

1

2

R1269 22R 1/16W 5%R1269 22R 1/16W 5%

C1212 100N 16V

C1222

100N 16V

C1222

100N 16V

R1256 10K 1/16W 5%R1256 10K 1/16W 5%

C1232

NC/10uF 6.3V

C1232

NC/10uF 6.3V

C1208

NC/100N 16V

C1208

NC/100N 16V

C1235 NC/10uF 6.3V

C1211 100N 16V

Q1501 2N7002

C1223

NC/47N 16V

C1223

NC/47N 16V

R1292 47R 1/16W 5%R1292 47R 1/16W 5%

R1255 10K 1/16W 5%R1255 10K 1/16W 5%

R1286

7.5M

R1286

7.5M

C1209 100N 16V

R1284

0R05 1/16W

R1284

0R05 1/16W

C1236 10uF 6.3V

R1271 22R 1/16W 5%R1271 22R 1/16W 5% R1273 22R 1/16W 5%R1273 22R 1/16W 5%

C1220 100N 16V

R1274

22R 1/16W 5%

R1274

22R 1/16W 5%

C1233 NC/10uF 6.3V

R1285

10M 1/10W +/-5%

R1285

10M 1/10W +/-5%

R1267 22R 1/16W 5%R1267 22R 1/16W 5%

Q1500 2N7002

FB1006

220R/2000mA

FB1006

220R/2000mA

1

2

R1288

22R 1/16W 5%

R1288

22R 1/16W 5%

FB1016

120R/600mA

FB1016

120R/600mA

1

2

RP1005

47 OHM 1/16W 5%

RP1005

47 OHM 1/16W 5%

123

4

876

5

R1275 22R 1/16W 5%R1275 22R 1/16W 5%

C1229

10P 50V

C1229

10P 50V

C1221

100N 16V

C1221

100N 16V

C1240

NC/47N 16V

C1240

NC/47N 16V

C1225

10uF 16V

C1225

10uF 16V

C1228

NC/10uF 16V

C1228

NC/10uF 16V

C1230

10P 50V

C1230

10P 50V

R1277

22R 1/16W 5%

R1277

22R 1/16W 5%

C1217 100N 16V

FB1012

120R/600mA

FB1012

120R/600mA

1 2

R1279

22R 1/16W 5%

R1279

22R 1/16W 5%

R1260

0R05 1/16W

R1260

0R05 1/16W

R1280

22R 1/16W 5%

R1280

22R 1/16W 5%

C1200 1UF16V

C1204

100N 16V

C1204

100N 16V

FB1014

120R/600mA

FB1014

120R/600mA

1 2

C1210 100N 16V

R1371

0R05 1/16W

R1371

0R05 1/16W

R1253 10K 1/16W 5%R1253 10K 1/16W 5%

R1282

4.7K1/16W

R1282

4.7K1/16W

R1276 22R 1/16W 5%R1276 22R 1/16W 5%

R1259

NC/10K 1/16W 5%

R1259

NC/10K 1/16W 5%

R1278

22R 1/16W 5%

R1278

22R 1/16W 5%

R1254 NC/10K 1/16W 5%R1254 NC/10K 1/16W 5%

R1268 22R 1/16W 5%R1268 22R 1/16W 5%

U1006

G5250M1T1U

U1006

G5250M1T1U

OUT

1

GND

2

OC

3

EN

4

IN

5

C1239 33P50V

C1238 33P50V

C1215 100N 16V

R1372

4K7 1/16W 5%

R1372

4K7 1/16W 5%

R1293

10K 1/16W 5%

R1293

10K 1/16W 5%

X1001 27MHz

1

2

3

4

TP1001TP1001

+

C764 22uF 16V

+

C764 22uF 16V

C1202

100N 16V

C1202

100N 16V

R1266

4K7 1/16W 5%

R1266

4K7 1/16W 5%

U1011

MT5135AE

U1011

MT5135AE

PAD_SPI_CLE1PAD_SPI_DATA2PAD_SPI_CLK3PAD_PVR_TS_DATA14PAD_PVR_TS_DATA0(TS_ERR)5PAD_PVR_TS_SYNC(TS_DATA7)6PAD_PVR_TS_VAL(TS_DATA6)7PAD_PVR_TS_CLK(TS_DATA5)8PAD_CI_TS_DATA0(TS_DATA4)9PAD_CI_TS_SYNC(TS_DATA3)10PAD_CI_TS_VAL(TS_DATA2)11PAD_CI_TS_CLK(TS_DATA1)12DGND3313DVDD3314PAD_DEMOD_TS_DATA0(TS_DATA0)15PAD_DEMOD_TS_SYNC(TS_SYNC)16PAD_DEMOD_TS_VAL(TS_VAL)17PAD_DEMOD_TS_CLK(TS_CLK)18PAD_MT5135_RST19DVDD1020AVDD12_PLL21AVDD33_RSSI22PAD_ADIN023AVSS33_RSSI24PAD_TN25PAD_TP26AVDD33_DEMOD_327AVSS33_DEMOD_328PAD_XTALI29AVSS33_XTAL30PAD_XTALO31AVDD33_XTAL

32

PAD_TUNER_DATA

41

PAD_TUNER_CLK

42

PAD_IF_AGC

43

PAD_RF_AGC

44

PAD_S2_TS_CLK

45

PPAD_S2_TS_SYNC

46

AD_S2_TS_VAL

47

PAD_S2_TS_DATA0

48

DGND33

49

DVDD33

50

PAD_S2_TS_DATA1

51

PAD_S2_TS_DATA2

52

PAD_S2_TS_DATA3

53

PAD_S2_TS_DATA4

54

PAD_S2_TS_DATA5

55

PAD_S2_TS_DATA6

56

PAD_S2_TS_DATA7

57

PAD_CHIP_CTRL

58

PAD_CD1_

59

PAD_D3

60

PAD_D11

61

PAD_D4

62

PAD_D12

63

PAD_D5

64

PAD_D13

65

PAD_D6

66

PAD_D14

67

PAD_D7

68

PAD_D15

69

PAD_CE1_

70

DVDD33

71

DGND33

72

PAD_A10

73

PAD_VS1_

74

PAD_OE_

75

PAD_IORD_

76

PAD_A11

77

PAD_IOWR_

78

PAD_A9

79

PAD_A17

80

PAD_A8

81

DGND10

82

DVDD10

83

PAD_A1884PAD_A1385PAD_A1986PAD_A1487PAD_A20

88

DVDD33

89

DGND33

90

PAD_WE_

91

PAD_A21

92

PAD_READY

93

PAD_A2294PAD_A1695PAD_A23

96

PAD_A15

97

PAD_A24

98

PAD_A12

99

PAD_A25

100

PAD_A7

101

PAD_VS2_

102

PAD_A6

103

PAD_PCMCIA_RESET

104

DVDD10

113

PAD_A2

114

PAD_BVD2

115

PAD_A1

116

PAD_BVD1

117

PAD_A0

118

PAD_D8

119

PAD_D0

120

PAD_D9

121

PAD_D1

122

PAD_D10

123

PAD_D2

124

PAD_CD2_

125

PAD_CI_INT

126

DGND33

127

DVDD33

128

PAD_EXT_CLKSEL

33

AVSS12_DEMOD_3

34

PAD_IFPGA_INN

35

PAD_IFPGA_INP

36

AVDD12_DEMOD

37

AVDD33_IFPGA

38

AVSS10_5

39

DVDD10

40

PAD_A5

105

PAD_WAIT_

106

PAD_A4

107

PAD_A3

108

DGND33

109

DVDD33

110

PAD_REG_

111

DGND10

112

R1265 22R 1/16W 5%R1265 22R 1/16W 5%

PCMCIA

CN159

PCMICA CARD

PCMCIA

CN159

PCMICA CARD

A15

20

A16

19

CE1#

7

OE#

9

WE#

15

READY#:IREQ#

16

GND

1

GND

34

D0

30

D1

31

D2

32

D3

2

D4

3

D5

4

D6

5

D7

6

A0

29

A1

28

A2

27

A3

26

A4

25

A5

24

A6

23

A7

22

A8

12

A9

11

A10

8

A11

10

A12

21

A13

13

A14

14

WP#

33

VPP1

18

VCC

17

GND

68

CD2#

67

D10

66

D9

65

D8

64

BVD1#:STSCHG

63

BVD2#:SPKR

62

GND

35

CD1#

36

D11

37

D12

38

D13

39

D14

40

D15

41

CE2#

42

VS1#

43

IORD#

44

IOWR#

45

A17

46

A18

47

A19

48

A20

49

A21

50

VCC

51

VPP2

52

A22

53

A23

54

A24

55

A25

56

VS2#

57

RESET

58

WAIT#

59

INPACK

60

REG#

61

69697070717172

72

R1291 47R 1/16W 5%R1291 47R 1/16W 5%

C1216 100N 16V

C1224

10P 50V

C1224

10P 50V

FB1013

120R/600mA

FB1013

120R/600mA

1 2

C1213 100N 16V

C1226100N 16V C1226100N 16V

R1262

NC/4K7 1/16W 5%

R1262

NC/4K7 1/16W 5%

R1289

22R 1/16W 5%

R1289

22R 1/16W 5%

R1258

4K7 1/16W 5%

R1258

4K7 1/16W 5%

R1295

12K 1% 1/16W

R1295

12K 1% 1/16W

R1373

4K7 1/16W 5%

R1373

4K7 1/16W 5%

C1218 100N 16V

U1015 G9141T11U

IN

1

GND

2

SHDN

3

SET

4

OUT

5

R1250

10K 1/16W 5%

R1250

10K 1/16W 5%

R1294

1.2K 1/16W 1%

R1294

1.2K 1/16W 1%

FB1017

120R/600mA

FB1017

120R/600mA

1

2

C1206

100N 16V

C1206

100N 16V

R1281

4.7K1/16W

R1281

4.7K1/16W

C122710uF 16V C122710uF 16V

R1272 22R 1/16W 5%R1272 22R 1/16W 5%

R1252 10K 1/16W 5%R1252 10K 1/16W 5%

R1290

22R 1/16W 5%

R1290

22R 1/16W 5%

R1287

22R 1/16W 5%

R1287

22R 1/16W 5%

R1251

10K 1/16W 5%

R1251

10K 1/16W 5%

R1270 22R 1/16W 5%R1270 22R 1/16W 5%

C1237 NC/10uF 6.3V

C1207

100N 16V

C1207

100N 16V

C1205

100N 16V

C1205

100N 16V

C1234 10uF 6.3V

R1264 22R 1/16W 5%R1264 22R 1/16W 5%

C1214 100N 16V

R1370

0R05 1/16W

R1370

0R05 1/16W

R1283

10K 1/16W 5%

R1283

10K 1/16W 5%

C1219 100N 16V

Circuit Diagrams and PWB Layouts

EN 58TPM8.2E LA 10.

2011-Jun-01

DVB-T+C_TUNER

19120_518_110519.eps

110519

DVB-T+C_TUNER

B11 B11

2011-05-17

1

715G4796

DVB-T+C_TUNER

TT_SCL

TT_SDA

RF_AGC_H

TUNER_CLK TUNER_DATA

MT5135AD+

MT5135AD-

TUNER_CLK

TUNER_DATA

MT5135AD+

MT5135AD-

TU_FAT_IN2+

TU_FAT_IN2-

RF_AGC_T

RF_AGC_H

RF_AGC_Control

TU_FAT_IN2+ TU_FAT_IN2-

IF_AGC

+5V_TUNER

IF_AGCT

DIF1_OUT2

DIF1_OUT2 DIF1_OUT1

RF_AGC_T +5V_VCC TT_SDA TT_SCL

RF_AGC_S

IF_AGCT

RF_AGC_T

DIF1_OUT1

+5V_VCC

+5V_TUNER

GND_Tuner

+5V_TUNER

GND_Tuner GND_Tuner

GND_Tuner

GND_Tuner GND_Tuner

TUNER_CLK 13 TUNER_DATA 13

RF_AGC_H 6,13

GND 4,5,6,7,8,9,10,11,12,13

RF_AGC_T 13 RF_AGC_Control 13

TU_FAT_IN2+ 6 TU_FAT_IN2- 6

IF_AGC 6

+5V_TUNER 5

MT5135AD+ 13

MT5135AD- 13

SMD/0402 SMD/0402

LG Tuner with DVB-C/T:G731D(sawless)

Tuner Control

TUNER

Tuner IF output

I2C for Tuner and MT5135

BPF

+5V for Tuner

C1312

NC/220pF 50V

C1312

NC/220pF 50V

R1347

NC/0R05 1/10W

R1347

NC/0R05 1/10W

R1323

0R05 1/16W

R1323

0R05 1/16W

C1302

100N 50V

C1302

100N 50V

R1353

0R05 1/10W

R1353

0R05 1/10W

C1315

220pF 50V

C1315

220pF 50V

C1304

NC/47nF 16V

C1304

NC/47nF 16V

TU102

TDTK-G731D

TU102

TDTK-G731D

N/C

1

N/C(P3)

2

N/C

3

RF AGC

4

+B(5V)

5

SDA

6

SCL

7

N/C

8

N/C

9

DIF(+)

10

DIF(-)

11

TH1

12

TH2

13

TH3

14

TH4

15

C1306

47N 50V

C1306

47N 50V

C1308

220pF 50V

C1308

220pF 50V

C1313

10N 50V

C1313

10N 50V

R1348

NC/0R05 1/10W

R1348

NC/0R05 1/10W

FB1034

120R/600mA

FB1034

120R/600mA

1

2

R1337

10K 1/16W 5%

R1337

10K 1/16W 5%

R1342

180R 1/16W 1%

R1342

180R 1/16W 1%

R1354

NC/0R05 1/10W

R1354

NC/0R05 1/10W

L1053

0.12UH

L1053

0.12UH

C1301

39P 50V

C1301

39P 50V

C1310

10N 50V

C1310

10N 50V

R1320

0R05 1/16W

R1320

0R05 1/16W

C1318 10N 50VC1318 10N 50V

C1314

10N 50V

C1314

10N 50V

R1349

0R05 1/10W

R1349

0R05 1/10W

R1331

4K7 1/10W 5%

R1331

4K7 1/10W 5%

R1335

10K 1/16W 5%

R1335

10K 1/16W 5%

C1316

5P6 50V

C1316

5P6 50V

R1319

49.9 OHM 1/16W 1%

R1319

49.9 OHM 1/16W 1%

R1321

75 OHM +-5% 1/16W

R1321

75 OHM +-5% 1/16W

R1344

0R05 1/10W

R1344

0R05 1/10W

R1332

100R 1/16W 5%

R1332

100R 1/16W 5%

R1336

100K 1/16W 5%

R1336

100K 1/16W 5%

R1334

NC/10K 1/16W 5%

R1334

NC/10K 1/16W 5%

C1317

10N 50V

C1317

10N 50V

R1350

0R05 1/10W

R1350

0R05 1/10W

R1343

0R05 1/10W

R1343

0R05 1/10W

C1305

47N16V

C1305

47N16V

C1311

220pF 50V

C1311

220pF 50V

R1330

4K7 1/10W 5%

R1330

4K7 1/10W 5%

L1050

0.22uH 10%

L1050

0.22uH 10%

R1338

NC/0R05 1/16W

R1338

NC/0R05 1/16W

R1345

0R05 1/10W

R1345

0R05 1/10W

C1303 10uF 16V

R1351

0R05 1/10W

R1351

0R05 1/10W

C1323

56pF 50V

C1323

56pF 50V

R1317

0R05 1/16W

R1317

0R05 1/16W

R1314

NC/0R05 1/16W

R1314

NC/0R05 1/16W

R1318

180R 1/16W 1%

R1318

180R 1/16W 1%

L1051

0.12UH

L1051

0.12UH

C1309

10N 50V

C1309

10N 50V

Q1008

BC857BW

Q1008

BC857BW

1

2

3

R1341

0R05 1/16W

R1341

0R05 1/16W

R1346

NC/0R05 1/10W

R1346

NC/0R05 1/10W

C1300

39P 50V

C1300

39P 50V

R1352

NC/0R05 1/10W

R1352

NC/0R05 1/10W

L1052

NC/0.22uH 10%

L1052

NC/0.22uH 10%

C1307

5P6 50V

C1307

5P6 50V

R1322

49.9 OHM 1/16W 1%

R1322

49.9 OHM 1/16W 1%

R1333

100R 1/16W 5%

R1333

100R 1/16W 5%

C1324

56pF 50V

C1324

56pF 50V

Circuit Diagrams and PWB Layouts

EN 59TPM8.2E LA 10.

2011-Jun-01

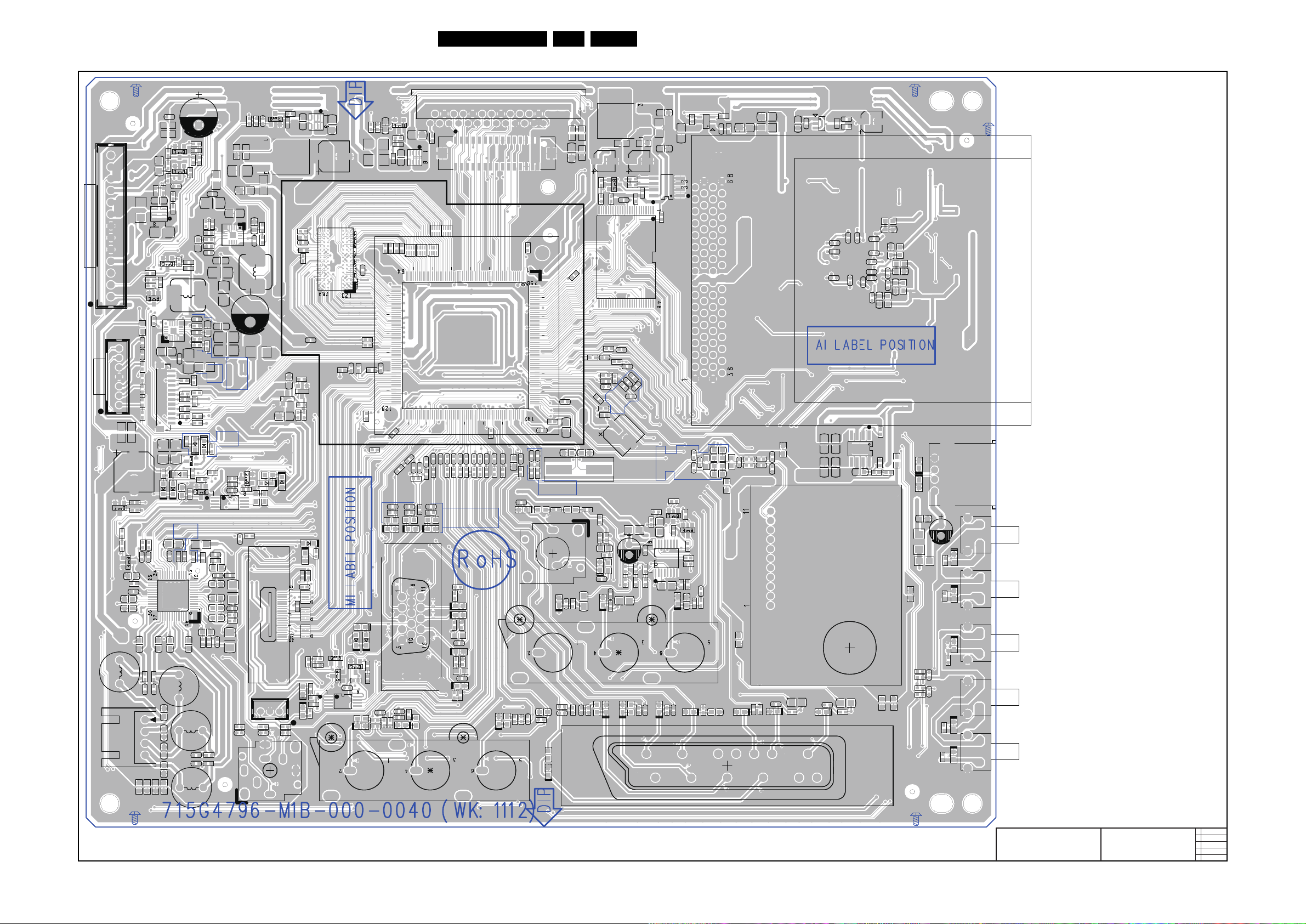

SSB layout top

19120_519_110519.eps

110519

2011-05-17

1

715G4796

SSB

layout top

H1H2

TP1

TP2

H3H4

C4

C5

C6

C7

C8

C9

C3

C10

SW1

SW2

SW3

SW4

SW5

SW6

SW7

SW8

C19

C20

C21

C23

C24

C25

C26

SW9

SW10

SW11

SW12

SW13

SW14

SW15

SW16

SW17

C12

C13

C14

SW18

SW19

SW20

SW21

SW22

R1

CN410

CN102

CN602

CN103

CN151

TU102

C1002

C1004

C1005

C1009

C1012

C1013

C1154

C1155

C1157

C1159

C1160

C1161

C1164

C1166

C1167C1168 C1169

C1174

C1186

C1202

C1204

C1208

C1226

C1305

C694

C697

C652

C4173

C4252 C4254

C4256

C4257

C4262

C504

C507

C660

C705

C707

C711

C717

C718

C726

C733

C735

C1015

C1171

C1177

C1185

C1200

C1307

C1316

C4251

C679

C693

C695

C703

C709

C715

C716

C720

C722

C753

C754

C757

C760

C1007

C1008

C1163

C1165

C1225

C1227

C409

C605

C610

C708

C719

C724

C725

C762

C713

C714

C721

C729

C732

C734

ZD001

ZD002 ZD003

ZD004

ZD005

ZD1065

ZD1066

ZD1067

ZD1068

ZD1072 ZD1073

ZD1074

ZD1150

ZD1151

ZD1152

ZD1153ZD1154 ZD1155

ZD1156

ZD1157

ZD1158

ZD1160

ZD1161

ZD1162

ZD1163

ZD1167

ZD1166

ZD4153ZD4154

Q702

Q751

C730

FB1157

FB1158

FB405

FB406

FB4152

FB502

FB701

FB702

L1050

L1051

L1052

L1053

FB1006

FB404

FB601

FB602

FB705

FB706

FB707

FB751

L701

L702

U701

U702

R001

R002

R003

R004

R005

R1001

R1002

R1003

R1006R1007

R1013

R1014

R1015

R1017

R1020

R1152

R1154

R1155

R1156

R1158

R1161

R1163

R1164

R1165

R1167

R1168

R1169R1171 R1174

R1177

R1178

R1179

R1180

R1181

R1182

R1186

R1188

R1191

R1192

R1193

R1194

R1195

R1196

R1197

R1198

R1203

R1206 R1207

R1208

R1211

R1212

R1213

R1214

R1281

R1282

R1283

R1294

R1295

R1317

R1335

R1341

R401 R403

R404

R406

R408

R410

R675

R4169

R4200

R4201

R4203

R4204

R4205

R4206

R4207

R4208

R4209 R4210

R4211

R4212

R4213

R4214

R4215

R4216

R4217

R4220

R4221

R4222

R4223 R4224

R4225

R4228R4229

R4230

R4231

R4232

R4233

R4243

R4244

R4245

R4247

R503

R529

R531

R532

R534

R535

R4237

R603

R606

R643

R646

R648

R651

R601

R604

R608 R607

R609

R678

R725

R727

R681

R602

R4171

R650

R685

R702

R703

R704

R705

R706

R714

R716

R717

R734

R738

R739

R742

R653

R751

R755

R758

R759R760

R764

R766

FB1052

FB1053

FB1054

FB1151

FB1152

FB1153

FB1154

FB1155

FB1156

FB1159

FB1160

R712

R726

R756 R757

R732

TH4050

U514 U515 U516

D1159

D1160

D503

D508

D509

D601

D603

D604

D602

D605

U1006

U1015

Q401

Q402

Q606

Q1150

Q503

Q507

Q704

Q602

Q603

Q701

Q703

Q752

U410

Q1151

Q1152

Q601

U703

U704

U4051

U605

C756C759

R743 R744

R752

ZD1075

CN111

CN116

C651

C665

C686

C688

C607

C770

C771

C772

CN701

C752

C659

C758

C761

R660

R666

R674

R662

R667

R669

ZD502

U706

U705

U602

C658

C664

C666

C667

C669

C673

C676

C612

C613

C663

C668

C672

C681

C683

C684

C685

C690

C691

C699

C727

C677

C728

ZD1159ZD1165

Q705

C764

FB603

R688 R687

R652

R654

R655

R656

R657

R658R659

R663

R665

R670

R671

R672

R673

R676

R679

R683 R684

R686

R719

R723

R753

R724

R754

Q605

Q607

C1308

C1309

C1311

C1312

C1313

C1315

C1323C1324

C4204

L601

L602

L603

L604

CN159

C1210

C1232

C4195

R1184

C1182

C1183

ZD1164

R1185

U401

X4150

C11

C661 C662 C678C698

C4192

R405

R4202

R631

R715

R718

R720

R721

R722

R729 R730

R731

R736

R737

R761

C1184

C1151

R1187

R4155 R4156

R4176

R4177

CN601

C1209

C1211

C1212

C1213

C1214 C1215

C1216

C1217C1218

C1220

C1001

C1003

C1006

C1010

C1011

C1152

C1153

C1156

C1158

C1162

C1170

C1172

C1173

C1175

C1176

C1310

C1314

C4101

C4108

C1233

C1234

C1236

C1237

C4260 C4261

C4189

C4193

C4201

RP4102

RP4103

RP4104

RP4105

RP4106

R1004

R1005

R1010

R1018

R1019

R1153

R1157

R1159

R1166

R1170

R1173

R1175

R1176

R1314

R1318

R1342

R4103

R4104

R4105

R4106

R4107

R4108

R4110

R4111

R4112

R4113

R4151

R4163

R4167

R4168

R4174

R4241

FB1012

FB1013

FB1014

FB1015

FB1017

C406

C731

C701

CN408

C1228

R418

C657

R420

C656

C689

C670

CN101

C723

SW03

SW04

SW05

SW02

SW01

R536

R523

CN406

R1160

R1162

R1199

R1200

C1196

R548

C702

C405

C1205

C1206

CN1

C4191

C1207

U110

U409

U505

U404

R1189

CN409

R613

R1351

R1345

R1350

R1343

R1349

R1344

R1353

R661

R664

R668

R677

CN402

R605

C608

R612

R4183

C653

C692

C4172

C696

R611

CN502

Circuit Diagrams and PWB Layouts

EN 60TPM8.2E LA 10.

2011-Jun-01

SSB layout bottom

19120_520_110519.eps

110519

2011-05-17

1

715G4796

SSB

layout bottom

TP701

TP702

TP706

TP707

TP703

TP710

TP4202

TP4201

TP4204

TP4203

TP4205

TP705

TP704

TP101

TP102

TP103

TP104

TP4211

TP4212

TP4213

TP4214

TP4215

TP4216

TP4217

TP501

TP502

TP503

TP504

TP601

TP602

TP603

TP604

TP711

TP712

C1

C2

TP708

TP709

TP1001

C22

TP402

TP403

TP404TP405

TP406

TP407

TP408

TP409

TP412

TP413

TP414

TP415

TP416

TP417

TP418

TP419

TP4206

TP4207

C15

C16

C17

C18

C1304

C4168

C1300

C1301

C1302 C1306

C4167

ZD504

FB1034

R1319 R1320

R1321

R1322

R1323

R1332

R1333

R1334

R1336

R1337

R1338

R4175

R530

R533

R537

R4181

R4182

R546

R4179

R1330

R1331

Q506

C654

C674

C675

C680

C655

C632

R547

C1317

C1318

U1011

X1001

R1259

C1229

C4174

R1251

R1252

R1253

R1254

R1255

R1256

R4162

C1219

C1221

C1222

C1223

C1224

C1230

C1238

C1239

C1240

C4102

C4105

C4107

C4109

C4110

C4111

C4150

C4151

C4153

C4154

C4155

C4156

C4157 C4158

C1235

C4161

C4200

RP1005

C4159

C4160

C4162

C4164

C4165

C4166

C4170

C4171

C4175

C4176

C4177

C4178

C4179

C4180

C4181

C4182

C4183

C4184

C4185

C4186

C4187

C4188

C4190

C4194

C4196

C4197

C4198

C4199

C4202

C4104

R4101 R4102

R4150

R4152

R4153

R4154

R4157

R4158

R4159

R4160

R4161

R4164

R4165

R4166

R4170

R4172

R4173

R4178

R4180

R4239

Q1500

Q1501

FB1016

R1285

R1286

R1250

R1258

R1260

R1262

R1264

R1265

R1266

R1267

R1268

R1269

R1270

R1271

R1272

R1273

R1274

R1275

R1276

R1277

R1278

R1279

R1280

R1284

R1287

R1288

R1289

R1290

R1291

R1292

R1293

R1370

R1371

R1372 R1373

C633

C4210

C4106

C4205

R610

C1303

Q1008

R1348

R1347

R1352

R1346

R1354

C4103

C4152

C4163

C4203

C650

C682

C687

R680

R682

R689

R690

Circuit Diagrams and PWB Layouts

EN 61TPM8.2E LA 10.

2011-Jun-01

Circuit Diagrams and PWB Layouts

19120_521_110519.eps

110519

LED & IR

J J

2011-04-19

1

715G4939

LED & IR Board

RC6

LED_R

DV33SB

----><----|

TP3TP3

1

Q201 BC847BW

R203

100R 1/16W 5%

R203

100R 1/16W 5%

R201

2K7 1/16W 5%

R201

2K7 1/16W 5%

U201 IR RECEIVER IRM-3636F45 36KHZ

OUT

1

GND

2

VCC

3

ZD202

NC/VPORT0603100KV05

ZD202

NC/VPORT0603100KV05

12

TP1TP1

1

R206

6.2KOHM 5% 1/16W

R206

6.2KOHM 5% 1/16W

TP4TP4

1

R202

1K 1/16W 5%

R202

1K 1/16W 5%

CN201CN201

1 2

3

4 5

67

LED201

LED

LED201

LED

12

C201

100N 50V

C201

100N 50V

10-4 J 715G4939 IR Golden horse

LED & IR board

EN 62TPM8.2E LA 10.

2011-Jun-01

LED & IR board layout

19120_522_110519.eps

110526

2011-04-19

1

715G4939

LED & IR board

layout top/bottom

ZD3

SET1

LED201

U201

TP1

TP3

TP4

SET10

SET11

C201

Q201

R201

R202

R203

R206

ZD202

CN201

Layout LED & IR Board (Top Side)

Layout LED & IR Board (Bottom Side)

Circuit Diagrams and PWB Layouts

EN 63TPM8.2E LA 10.

2011-Jun-01

11. Styling Sheets

19120_800_110519.eps

110526

Golden horse 19"

Pos No. Description Remarks

31 BEZEL ASSY 41 REAR COVER 50 BASE _ASSY 91 BASE _NECK 1176 REMOTE CONTROL

FOR ELECTRICAL PARTS/ASSEMBLIES SEE WIRING DIAGRAM CHAPTER 9

31

50

41

91

11-1 Golden horse 19"

Styling Sheets

EN 64TPM8.2E LA 11.

2011-Jun-01

11-2 Golden horse 22"

19120_801_110519.eps

110526

Golden horse 22"

Pos No. Description Remarks

31 BEZEL ASSY 41 REAR COVER 50 BASE _ASSY 91 BASE _NECK 1176 REMOTE CONTROL

FOR ELECTRICAL PARTS/ASSEMBLIES SEE WIRING DIAGRAM CHAPTER 9

31

51

41

91

Styling Sheets

EN 65TPM8.2E LA 11.

2011-Jun-01

11-3 Golden horse 26"

19120_802_110519.eps

110526

Golden horse 26"

Pos No. Description Remarks

31 BEZEL ASSY 41 REAR COVER 50 BASE _ASSY 91 BASE _NECK 1176 REMOTE CONTROL

FOR ELECTRICAL PARTS/ASSEMBLIES SEE WIRING DIAGRAM CHAPTER 9

31

51

41

91

Styling Sheets

EN 66TPM8.2E LA 11.

2011-Jun-01
