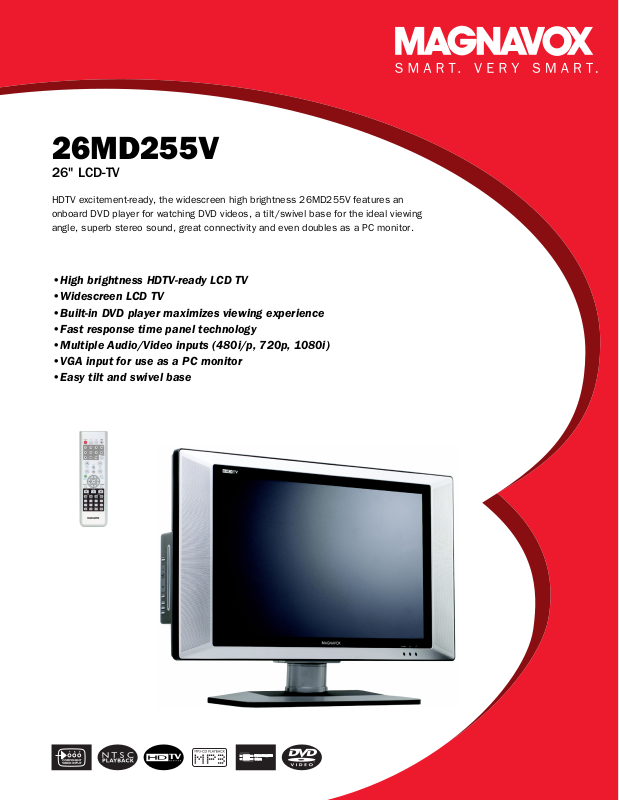

Page 1
26MD255V
26" LCD-TV
HDTV excitement-ready, the widescreen high brightness 26MD255V features an
onboard DVD player for watching DVD videos, a tilt/swivel base for the ideal viewing
angle, superb stereo sound, great connectivity and even doubles as a PC monitor.
•High brightness HDTV-ready LCD TV
•Widescreen LCD TV
•Built-in DVD player maximizes viewing experience
•Fast response time panel technology
•Multiple Audio/Video inputs (480i/p, 720p, 1080i)
•VGA input for use as a PC monitor
•Easy tilt and swivel base
Page 2
26MD255V/17
26" LCD-TV
Product specifications
Picture/Display
• Aspect ratio: Widescreen
• Brightness: 450 cd/m²
• Contrast ratio (typical): 500:1
• Display screen type: LCD WXGA Active Matrix TFT
• Picture enhancement: 3/2 - 2/2 motion pull down,
3D MA dei
correction, Black stretch, Blue stretch, Green
enhancement, Progressive Scan, White stretch
• Screen enhancement: Anti-Reflection coated
sc
• Viewing angle (H / V): 176 / 176 degree
• Response time (typical): 16 ms
• Panel resolution: 1280 x 768p
Supported Display Resolution
Resolution Refresh rate
Computer formats
640 x 480 60Hz
800 x 600 56, 60Hz
1024 x 768 60Hz
Video formats
480i 60Hz
480p 60Hz
720p 60Hz
1080i 60Hz
Sound
• Output power (RMS): 2 x 8W
• Sound Enhancement: Auto Volume Leveller
• Sound System: Mono, SAP
nterlacing, Automatic skin tone
reen
• VESA Mount: 100 x 100 mm
• Remote control type: RC-172M
Tuner/Reception/Transmission
• Tuner bands: Hyperband, S-Channel, UHF, VHF
• TV system: NTSC
• Aerial Input: 75 ohm F-type
• Number of channels (cable): 125
• Number of channels (off-air): 69
Built-in DVD
• Playback media: Audio CD, CD-R, CD-RW, Picture
CD, DVD-Video, DVD+R, DVD-R, DVD+RW, DVD-RW,
MP3, VCD
Connectivity
• AV 1: Audio L/R in, S-Video
• AV 2: Audio L/R in, CVBS in
• AV 3: Audio L/R in, YPbPr, 480i, 480p, 576i, 576p,
, 1080i
720p
• AV output: Audio (L/R) x1, Composite (CVBS) x1
• PC: 3.5 mm PC audio input x1, DVI-D x1, VGA-in
ub 15HD
D-S
• Other connections: Digital audio out, Monitor out
• Rear Connections: Antenna F-type
Power
• Power consumption: < 120 W
• Standby power consumption: < 2 W
• Ambient temperature: 5 °C to 40 °C
• Power supply: 100-240VAC, 50/60Hz
HDTV-ready LCD TV
HDTV delivers exceptional picture quality and real
movie-viewing experience that makes television more
dynamic, truer than anything you've seen before. It is
the latest and best television signal available. It
features picture quality more than twice that of
traditional analog broadcasts. In order to effectively
maximize the HDTV signal, a television must
incorporate advanced signal input connectivity and
circuitry design. To use HDTV the TV must be
connected through its component video or DVI inputs
to a DTV set-top box and set to operate in the DTV
mode.
Widescreen LCD TV
The screen's wider width to height aspect ratio
enhances the viewer's entertainment experience.
Built-in DVD player
A multi-format DVD player integrated into the LCD TV
that makes it easy for video fans and music lovers to
enjoy all widely accepted DVD and CD formats as well
as the increasing popular MP3 digital music without
the cost of purchasing and the hassle of hooking up a
separate player. The integrated player is compatible
with DVD, DVD+R/RW, DVD-R/RW, VCD, CD, CR-RW,
picture CD, MP3 and HDCD discs.
Fast response time
Faster response time delivers improved display of
video action with faster transitions that dramatically
reduce visible image artifacts in the display of
fast-moving images.
Multiple AV inputs
Multiple AV inputs accommodate a variety of format
choices in connecting video and audio devices (480i/
p, 720p, 1080i).
Loudspeakers
• Number of Loudspeakers: 2
Convenience
• Ease of Installation: Autostore, Automatic Tuning
System (ATS)
• Remote Control: TV, DVD
• Screen Format Adjustments: 4:3, Pan, 16:9
mpress, Zoom
co
• User convenience: Sleep Timer
• Child Protection: Child Lock+Parental Control
Date of issue 2009-07-31
Version: 2.0.5
12 NC: 8639 000 16547
UPC: 0 37849 96454 5
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips Electronics N.V. or their
respective owners.
© 2009 Magnavox.
All Rights reserved.
www.magnavox.com
Dimensions
• Product weight: 14.7 kg
• Product weight (lb): 32.4
• Product dimensions (WxDxH): 770 x 103 x 440 mm
• Product dimension (WxDxH) inch: 30.3 x 4.1 x 17.3
Accessories
• Included Accessories: Batteries for remote control,
Power cord, Quick Use Guide, Remote Control, User
Manual, Warranty certificate
VGA input
VGA input provides a connector to accommodate input
of an analog signal for use as a PC monitor.
Easy tilt and swivel base
Screen tilt and swivel is a mechanism built into the
base permits the LCD TV to swivel and tilt backward
or forward.
