Philips 26HFL5561V/F7 Leaflet

Download

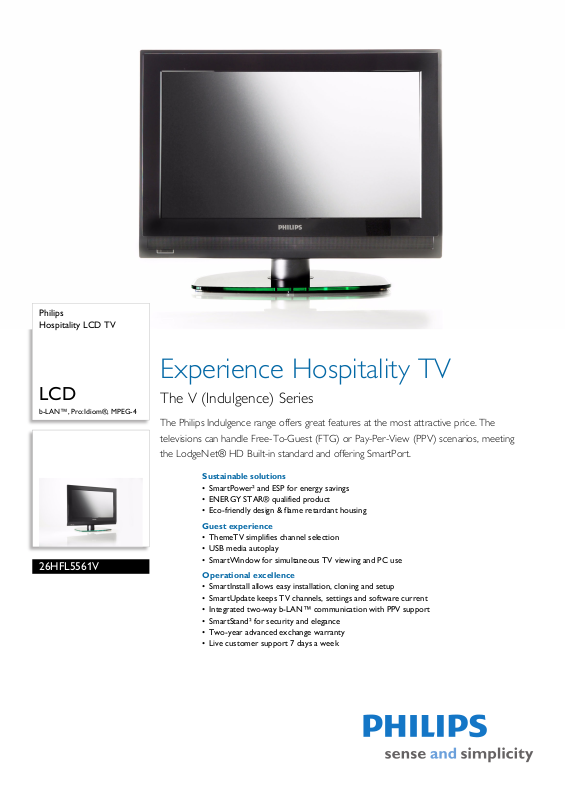

Page 1

Philips Hospitality LCD TV

Experience Hospitality TV

LCD

b-LAN™, Pro:Idiom®, MPEG-4

26HFL5561V

The V (Indulgence) Series

The Philips Indulgence range offers great features at the most attractive price. The televisions can handle Free-To-Guest (FTG) or Pay-Per-View (PPV) scenarios, meeting the LodgeNet® HD Built-in standard and offering SmartPort.

Sustainable solutions

• SmartPower² and ESP for energy savings

• ENERGY STAR® qualified product

• Eco-friendly design & flame retardant housing

Guest experience

• ThemeTV simplifies channel selection

• USB media autoplay

• SmartWindow for simultaneous TV viewing and PC use

Operational excellence

• SmartInstall allows easy installation, cloning and setup

• SmartUpdate keeps TV channels, settings and software current

• Integrated two-way b-LAN™ communication with PPV support

• SmartStand² for security and elegance

• Two-year advanced exchange warranty

• Live customer support 7 days a week

Page 2

Hospitality LCD TV

LCD b-LAN™, Pro:Idiom®, MPEG-4

Highlights

26HFL5561V/F7

Eco-friendly design

Sustainability is integral to the way Philips does bu

siness. Philips TVs are designed and produced according to our EcoDesign principles aimed at minimizing overall environmental impact, through lower power consumption, removal of hazardous substances, lower weight, more efficient packaging and better recyclability. Philips TVs also have a special housing of flame retardant material. Independent tests carried out by emergency fire services have shown that whereas TVs can sometimes intensify fires caused by external sources, Philips TVs will not contribute to the fire.

ENERGY STAR®

This product has earned the ENERGY STAR®. ENERGY STAR qualified products meet or exceed the guidelines estabished by the U.S. govenment for in-use and standby power consumption, at the time of manufacture. Learn more at ENERGYSTAR.gov.

Everyday support (USA-based)

Your hotel never closes, and neither do we. Phili

ps offers you real help from a live person 7

days a week, excluding major holidays.

Integrated two-way b-LAN™

Philips televisions feature the LodgeNet Interact

ive b-LAN™ communication protocol built into the TV. This allows for simple and reliable cloning, customizing, and updating of our products. By integrating b-LAN™, these televisions also work right out of the box in all

LodgeNet® systems, without any need for terminals or cards.

SmartInstall

Philips introduces SmartInstall, the most c

omplete and easy to use installation process we have ever offered. SmartInstall consists of an easy to use PC program that allows all features to be configured and all channels to be mapped in a fraction of the time it takes to do so on an actual television with a remote. And with the addition of the Philips Smart Gateway, the televisions can even automatically clone all settings when plugged in.

SmartPower² and ESP

Our second generation power saving te

chnology allows the backlight intensity to be dynamically adjusted by the system to reduce the power consumption by up to 60%, saving substantially on energy costs. In addition, Philips' Energy Savings Programmability (ESP) allows the set to turn itself off when not in use to save even more energy when guests or maids leave televisions on for long periods while the room is vacant.

SmartStand²

Philips unique SmartStand² is a complete commerci swivel that can be limited in either or both directions to 30, 60, or 90 degrees. The stand includes a securable mounting plate that can be affixed either using security screws or non-drill adhesive. In addition, all security hardware for drill and non-drill mounting is included on select models (check with your Philips representative for specific models).

SmartUpdate

Philips televisions are the first to automatically k

eep themselves updated. All SmartUpdate featured Philips commercial televisions on the property can automatically check for and download updated channel maps, settings, and/

al solution, offering 180 degree

or software. Philips televisions update in the background when new files are found, and as a result, the guest experience has minimal disruption. SmartUpdate requires a Philips Smart Gateway to operate.

SmartWindow

SmartWindow allows your guests the added convenience o on one half of the screen while enjoying the TV content of their choice on the other half. The perfect balance of work and leisure.

ThemeTV

Hotel guests often have difficulty locating des

irable programs since they are unfamiliar with the channel lineup. Traditional Electronic Program Guides (EPGs) are little help as the guest has to scroll through multiple pages to find channels. In addition, traditional EPGs require hotels to pay fees for channel information on a per room basis. Philips is proud to introduce a better program-location tool with ThemeTV. Guests simply filter by type of channel, for example "Sports" and instantly see and tune to any Sports channel available. Guests are seconds away from desirable content.

Advanced exchange warranty

Philips offers unmatched commitment to k

eeping your guest rooms in working order. We have such confidence in the reliability of our televisions that we offer a two-year advanced exchange warranty with same day ship. In the unlikely event that something does go wrong we ship a replacement directly to you. (Same day ship applies to calls received MF prior to 2 PM ET.)

USB media autoplay

Philips TVs feature a USB connector that al

lows the guest to connect USB memory

sticks to play music or photos right on the TV.

f working on their laptop PC's

MPEG 4 HD

decoder integrated

Page 3

Hospitality LCD TV

LCD b-LAN™, Pro:Idiom®, MPEG-4

Specifications

26HFL5561V/F7

Picture/Display

• Aspect ratio: 16:9, Widescreen

•Color cabinet: Black

• Brightness: 450 cd/m²

• Contrast ratio (typical): 1000:1

• Dynamic screen contrast: 8000:1

• Diagonal screen size: 26 inch / 66 cm

• Picture enhancement: Pixel Plus 3 HD, Progressive an, 3/2 - 2/2 motion pull down, 3D Combfilter,

s Dynamic contrast enhancement, Contrast Plus, Digital Noise Reduction, Jagged Line Suppression, Luminance Transient Improver, Color Transient Improvement, Automatic skin tone correction, Color Enhancement, Motion adaptive deinterlacing, Active Control

• Screen enhancement: Anti-Reflection coated

• Display screen type: LCD WXGA Active Matrix

TFT Panel resolution: 1366 x 768p

•

• Response time (typical): 8 ms

• Viewing angle: 178º (H) / 178º (V)

Supported Display Resolution

• Computer formats

Res

olution Refresh rate 640 x 480 60Hz 800 x 600 60Hz 1024 x 768 60Hz 1366 x 768 60Hz

deo formats

• Vi olution Refresh rate

Res 480i 60Hz 480p 60Hz 720p 60Hz 1080i 60Hz 1080p 24, 25, 30, 50, 60Hz

Sound

• Sound System: Stereo, Dolby Digital (AC-3)

• Output power (RMS): 2 x 10W

• Sound Enhancement: Auto Volume Leveller,

credible Surround, Treble and Bass Control

Loudspeakers

• Built-in speakers: 2

Convenience

• Ease of Installation: Fine Tuning, PLL Digital Tuning,

Program Name, Advanced Hotel Mode, Cloning of TV settings via USB, Keyboard lock-out, Security menu access

• Ease of Use: Auto Volume Leveller (AVL

Picture, Smart Sound

• Screen Format Adjustments:

Modes

• Comfort: Hotel Guest features, Sleep timer,

Switch on channel, V message

• User convenience: Closed captioning (digital),

hip a

nd parental lock

• Interactive hotel features: Connectivity panel

mpatible, Remote diagnostics, SmartClone,

co SmartGuide, SmartSecure, SmartUpdate,

4:3, 7 Widescreen

olume limitation, Welcome

), Smar

SmartWindow, Integrated bLAN, Smoovie Pay TV

• Other convenience: Kensington lock

Tuner/Reception/Transmission

• Tuner bands: Hyperband, S-Channel, UHF, VHF

• TV system: NTSC, ATSC

•Video Playback: NTSC

• Number of Preset Channels: 250

• Cable: Unscrambled Digital Cable -QAM

• Terrestrial: ATSC (8VSB)

• Aerial Input: 75 ohm F-type

Connectivity

• AV 1: Audio L/R in, CVBS in

• AV 2: Audio L/R in, YPbPr

• AV 3: VGA PC-in

• AV 4: HDMI (v1.3 with CEC)

• AV 5: HDMI (v1.3 with CEC)

• AV 6: HDMI (v1.3 with CEC)

•Front / Side connections: Audio Headphone Out, S-video in, USB

• Other connections: Antenna F-type, RS232 Serial,

out (coaxial)

S/PDIF

• Connectivity Enhancements: RJ12 SmartPlug

ector, External Loudspeaker connector

conn

in, CVBS in,

L/R

Power

• Mains power: 110 - 240V, 50/60Hz

• Maximum Power Consumption: 125 W

• SmartPower high mode: 55.42 W

• SmartPower medium mode: 57.4 W

• SmartPower low mode: 67.5 W

• SmartPower Off mode: 70.8 W

• Standby power consumption: < 1 W

• Ambient temperature: 5 °C to 40 °C

Dimensions

• Set dimensions in inch (W x H x D):

26.8 x 18.6 x 4.5 inch

•Set dimensions with stand in inch (W

26.8 x 21.1 x 14.2 inch

• Product weight (lb): 24.3

• Product weight (+stand) (lb): 32.6 lb

• Weight incl. Packaging (lb): 35.9

• VESA wall mount compatible: 200 x 100 mm

• Box dimensions in inch (W x H x D):

x 9.1 x 21

.8 inch

x H x D):

Accessories

• Included accessories: Warranty Leaflet, Power Cord (3m), Quick start guide, Swivel stand with anti-theft, Security Bolts (Table Stand), Security Screws (Table Stand), Batteries for remote control, Remote Control

• Optional accessories: Set up Remote RC2573GR,

ting brackets/ stands

Multimedia Applications

• Multimedia connections: USB

• Playback Formats: JPEG Still pictures, MP3,

eshow files (.alb)

Slid

Green Specifications

• Safety: Flame retardant housing

co Designed

•E

• SmartPower²

•Energy Star 3.0

• Low Power Standby

•

Issue date 2012-08-08

Version: 1.3.3

12 NC: 8670 000 70529 UPC: 6 09585 20175 0

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.

www.philips.com

* Advanced Exchange warranty is valid in the United States only. Local

warranties govern sales in other countries. * Dolby Digital is a registered trademark of Dolby Labs * LodgeNet and b-LAN are trademarks of LodgeNet Interactive

Corporation

* Pro:Idiom is a registered trademark of the Zenith corporation.
