Philips 233V5, 233V5LAB, 233V5LHAB User Manual

233V5

www.philips.com/welcome

EN User manual 1 Customer care and warranty 28 Troubleshooting & FAQs 33

Table of Contents

1. Important ................................................ 1

1.1 Safety precautions and maintenance ...1

1.2 Notational Descriptions .............................2

1.3 Disposal of product and packing

material ................................................................3

2. Setting up the monitor ......................... 4

2.1 Installation ...........................................................4

2.2 Operating the monitor ...............................6

2.3 Remove Base Stand and Base .................9

3. Image Optimization .............................10

3.1 SmartContrast ..............................................10

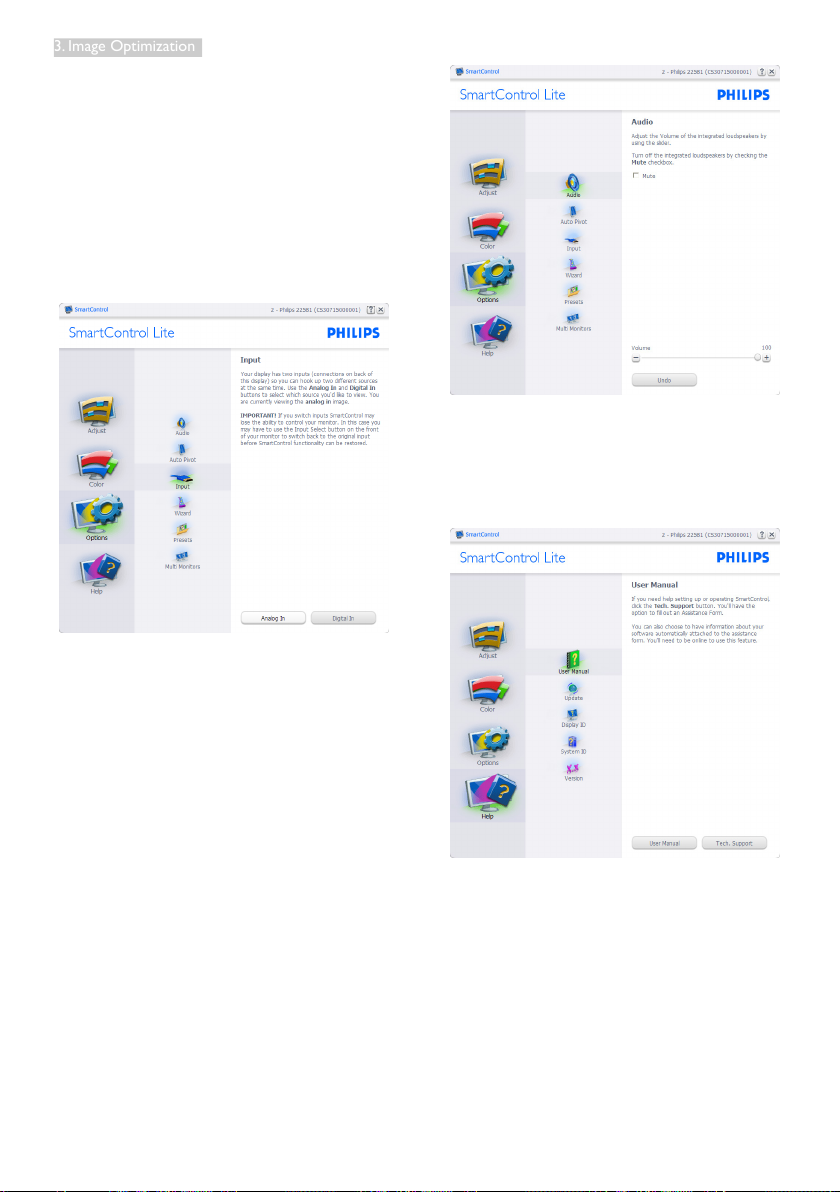

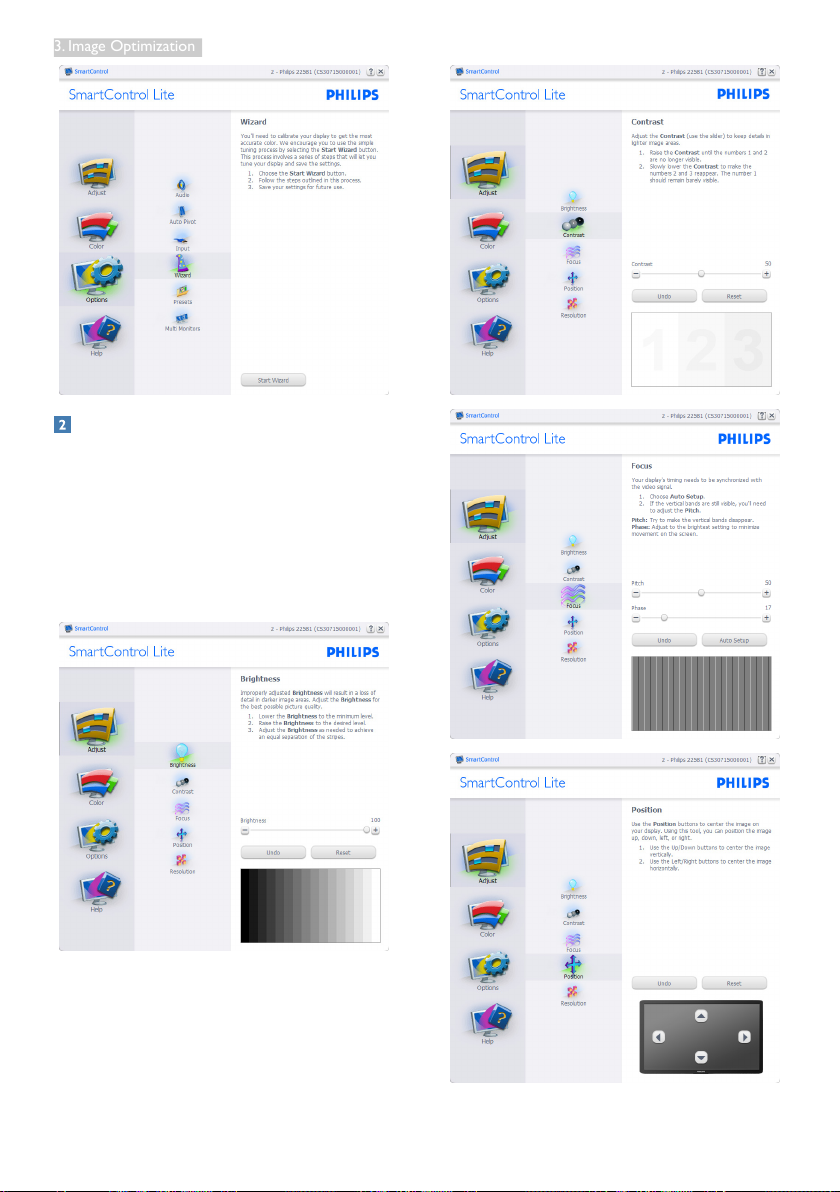

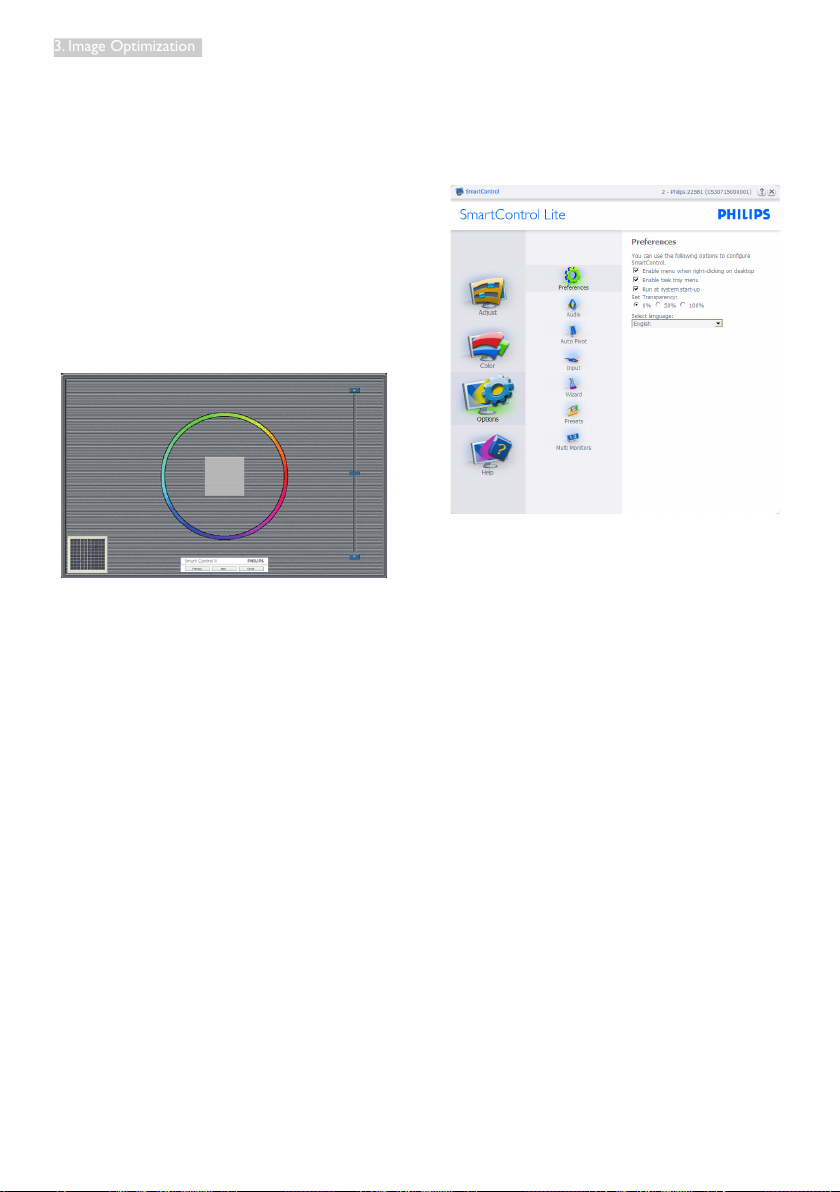

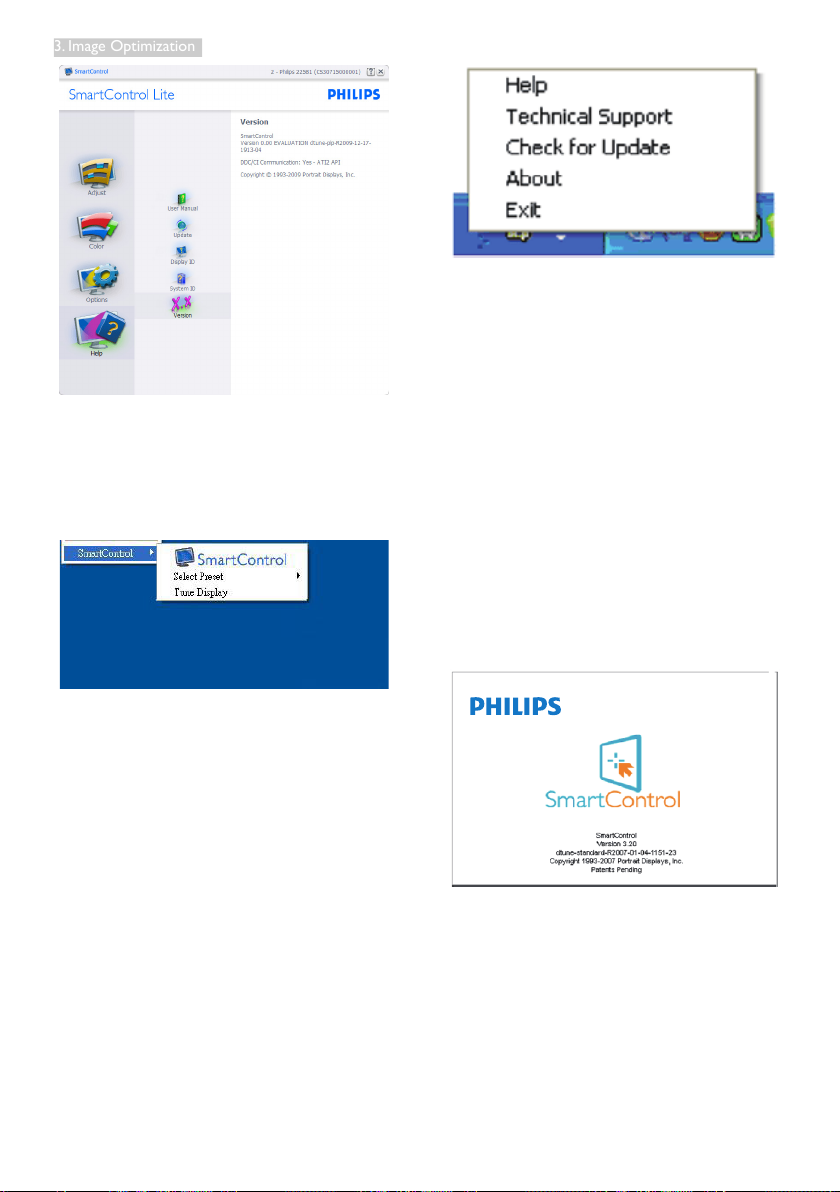

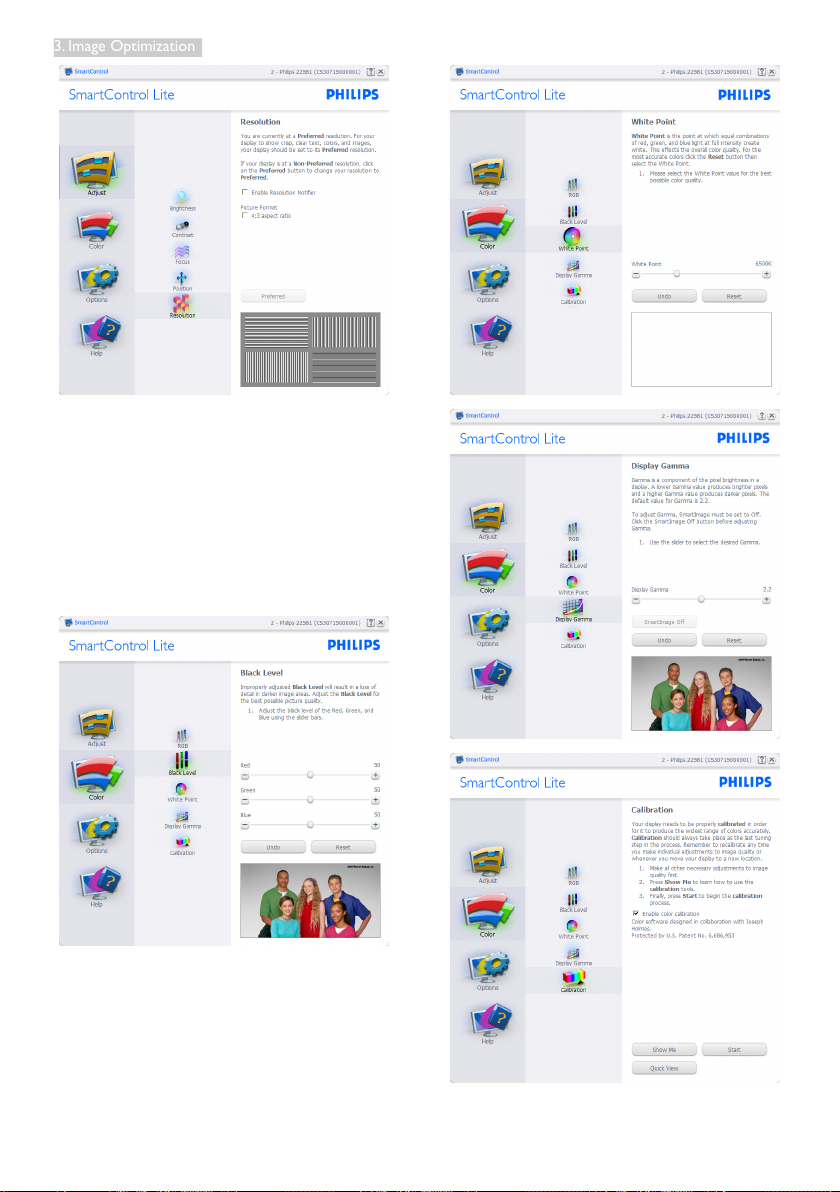

3.2 Philips SmartControl Lite .......................10

4. Technical Specifications ......................17

4.1 Resolution & Preset Modes...................20

5. Power Management ............................21

6. Regulatory Information ......................22

7. Customer care and warranty ...........28

7.1 Philips’ Flat Panel Monitors Pixel

Defect Policy ..................................................28

7.2 Customer Care & Warranty .................30

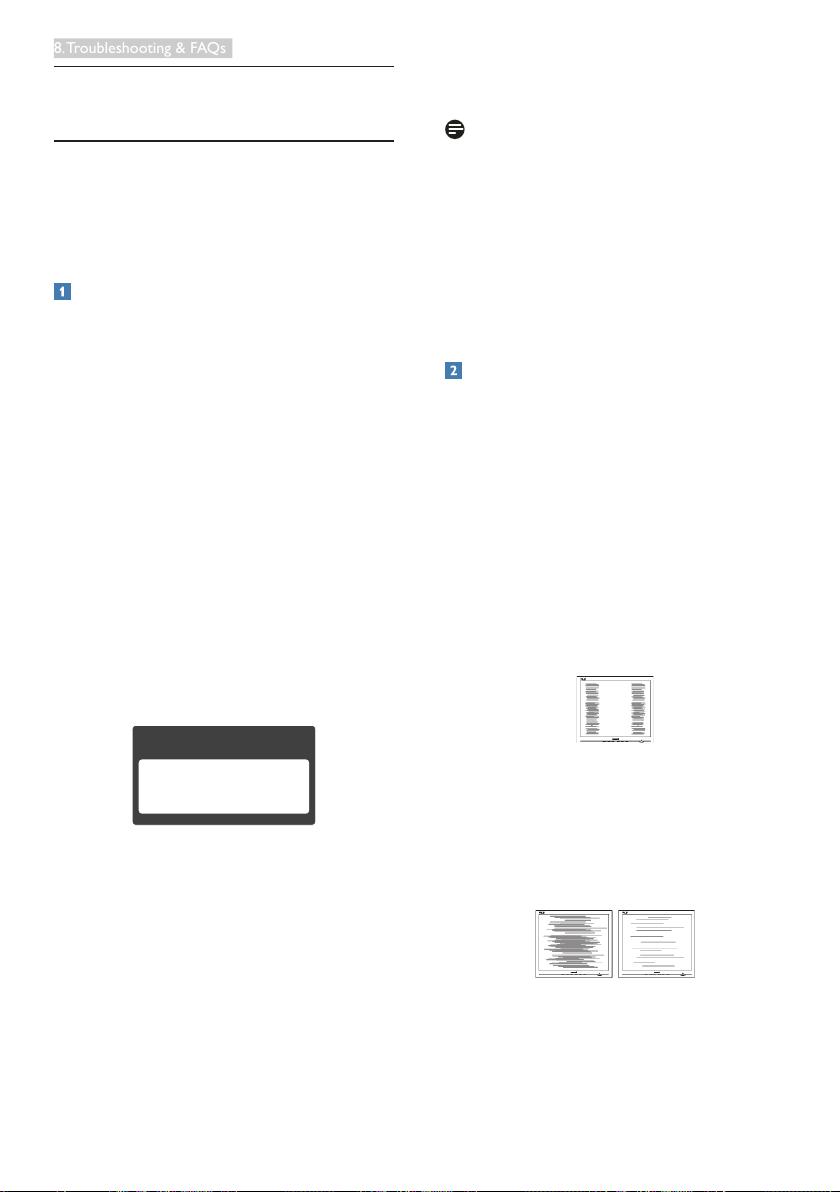

8. Troubleshooting & FAQs ...................33

8.1 Troubleshooting ...........................................33

8.2 General FAQs ...............................................34

1. Important

This electronic user’s guide is intended for anyone who uses the Philips monitor. Take time to read this user manual before you use your monitor. It contains important information and notes regarding operating your monitor.

The Philips guarantee applies provided the product is handled properly for its intended use, in accordance with its operating instructions and upon presentation of the original invoice or cash receipt, indicating the date of purchase, dealer’s name and model and production number of the product.

1.1 Safety precautions and maintenance

Warnings

Use of controls, adjustments or procedures other than those specified in this documentation may result in exposure to shock, electrical hazards and/or mechanical hazards.

Read and follow these instructions when connecting and using your computer monitor.

Operation

• Please Keep the monitor out of direct

sunlight, very strong bright lights and away from any other heat source. Lengthy exposure to this type of environment may result in discoloration and damage to the monitor.

• Remove any object that could fall into

ventilation holes or prevent proper cooling of the monitor’s electronics.

• Do not block the ventilation holes on the

cabinet.

• When positioning the monitor, make sure

the power plug and outlet are easily accessible.

• If turning off the monitor by detaching the

power cable or DC power cord, wait for 6 seconds before attaching the power cable or DC power cord for normal operation.

• Please use approved power cord provided by Philips all the time. If your power cord is missing, please contact with your local service center. (Please refer to Customer Care Consumer Information Center)

• Do not subject the monitor to severe vibration or high impact conditions during operation.

• Do not knock or drop the monitor during operation or transportation.

Maintenance

• To protect your monitor from possible damage, do not put excessive pressure on the LCD panel. When moving your monitor, grasp the frame to lift; do not lift the monitor by placing your hand or fingers on the LCD panel.

• Unplug the monitor if you are not going to use it for an extensive period of time.

• Unplug the monitor if you need to clean it with a slightly damp cloth. The screen may be wiped with a dry cloth when the power is off. However, never use organic solvent, such as, alcohol, or ammonia-based liquids to clean your monitor.

• To avoid the risk of shock or permanent damage to the set, do not expose the monitor to dust, rain, water, or excessive moisture environment.

• If your monitor gets wet, wipe it with dry cloth as soon as possible.

• If foreign substance or water gets in your monitor, please turn the power off immediately and disconnect the power cord. Then, remove the foreign substance or water, and send it to the maintenance center.

• Do not store or use the monitor in locations exposed to heat, direct sunlight or extreme cold.

• In order to maintain the best performance of your monitor and use it for a longer lifetime, please use the monitor in a location that falls within the following temperature and humidity ranges.

1. Important

• Temperature: 0-40°C 32-95°F

• Humidity: 20-80% RH

Important information for Burn-in/Ghost image

• Always activate a moving screen saver program when you leave your monitor unattended. Always activate a periodic screen refresh application if your monitor will display unchanging static content. Uninterrupted display of still or static images over an extended period may cause “burn in”, also known as “afterimaging” or “ghost imaging”, on your screen. "Burn-in", "after-imaging", or "ghost imaging" is a well-known phenomenon in LCD panel technology. In most cases, the “burned in” or “after-imaging” or “ghost imaging” will disappear gradually over a period of time after the power has been switched off.

Warning

Failure to activate a screen saver, or a periodic screen refresh application may result in severe” burn-in” or “after-image” or “ghost image” symptoms will not disappear and cannot be repaired. The damage mentioned above is not covered under your warranty.

Service

• The casing cover should be opened only

by qualified service personnel.

• If there is any need for any document for

repair or integration, please contact with your local service center. (please refer to the chapter of "Consumer Information Center")

• For transportation information, please

refer to "Technical Specifications".

• Do not leave your monitor in a car/trunk

under direct sun light.

Note

Consult a service technician if the monitor does not operate normally, or you are not sure

what procedure to take when the operating instructions given in this manual have been followed.

1.2 Notational Descriptions

The following subsections describe notational conventions used in this document.

Notes, Cautions and Warnings

Throughout this guide, blocks of text may be accompanied by an icon and printed in bold or italic type. These blocks contain notes, cautions or warnings. They are used as follows:

Note

This icon indicates important information and tips that help you make better use of your computer system.

Caution

This icon indicates information that tells you how to avoid either potential damage to hardware or loss of data.

Warning

This icon indicates the potential for bodily harm and tells you how to avoid the problem.

Some warnings may appear in alternate formats and may not be accompanied by an icon. In such cases, the specific presentation of the warning is mandated by the relevant regulatory authority.

1. Important

1.3 Disposal of product and packing material

Waste Electrical and Electronic EquipmentWEEE

This marking on the product or on its packaging illustrates that, under European Directive 2002/96/EC governing used electrical and electronic appliances, this product may not be disposed of with normal household waste. You are responsible for disposal of this equipment through a designated waste electrical and electronic equipment collection. To determine the locations for dropping off such waste electrical and electronic, contact your local government office, the waste disposal organization that serves your household or the store at which you purchased the product.

Your new monitor contains materials that can be recycled and reused. Specialized companies can recycle your product to increase the amount of reusable materials and to minimize the amount to be disposed of.

All redundant packing material has been omitted. We have done our utmost to make the packaging easily separable into mono materials.

Please find out about the local regulations on how to dispose of your old monitor and packing from your sales representative.

Taking back/Recycling Information for Customers

Philips establishes technically and economically viable objectives to optimize the environmental performance of the organization's product, service and activities.

From the planning, design and production stages, Philips emphasizes the important of making products that can easily be recycled. At Philips, end-of-life management primarily entails participation in national take-back initiatives and recycling programs whenever possible, preferably in cooperation with competitors, which recycle all materials (products and related packaging material) in accordance with all Environmental Laws and taking back program with the contractor company.

Your display is manufactured with high quality materials and components which can be recycled and reused.

To learn more about our recycling program please visit

http://www.philips.com/sites/philipsglobal/ about/sustainability/ourenvironment/ productrecyclingservices.page

2. Setting up the monitor

VGA (optional)

DVI (optional)

Audio cable (optional)Power cable

www.philips.com/welcome

233V5

Quick

Start

SmartControl software Monitor drivers

使用产品前请阅读使用说明

保留备用

2.1 Installation

Package contents

Install base stand

1. Place the monitor face down on soft and smooth surface taking care to avoid scratching or damaging the screen.

2. Attach/Slide the base column with the monitor until it clicks into position.

3. Hold the monitor base stand with both hands and firmly insert the base stand into the base column.

2. Setting up the monitor

Connecting to your PC

233V5LSB

AC power input VGA input DVI-D input (available for selected models) Kensington anti-theft lock

233V5LAB

AC power input VGA input DVI-D input Earphone output

Audio input

Kensington anti-theft lock

233V5LHAB

AC power input VGA input HDMI input Earphone output

Audio input

Kensington anti-theft lock

Connect to PC

1. Connect the power cord to the back of the monitor firmly.

2. Turn off your computer and unplug its power cable.

3. Connect the monitor signal cable to the video connector on the back of your computer.

4. Plug the power cord of your computer and your monitor into a nearby outlet.

5. Turn on your computer and monitor. If the monitor displays an image, installation is complete.

2. Setting up the monitor

2.2 Operating the monitor

Front view product description

233V5LSB

233V5LAB, 233V5LHAB

6 2347

Switch monitor’s power ON and OFF.

Access the OSD menu

Confirm the OSD adjustment. Return to previous OSD level. Adjust the brightness level. Adjust the OSD menu.

Change display format.

Automatically adjust the monitor.

6 2347

Switch monitor’s power ON and OFF.

Access the OSD menu

Confirm the OSD adjustment. Return to previous OSD level. Adjust the brightness level. Adjust the OSD menu.

Adjust the speaker volume.

Automatically adjust the monitor.

2. Setting up the monitor

Description of the On Screen Display



















 





 



 







 

















What is On-Screen Display (OSD)?

On-Screen Display (OSD) is a feature in all Philips LCD monitors. It allows an end user to adjust screen performance or select functions of the monitors directly through an on-screen instruction window. A user friendly on screen display interface is shown as below:

233V5LAB:





233V5LSB:





233V5LHAB:





Basic and simple instruction on the control keys

In the OSD shown above, you can press

buttons at the front bezel of the monitor to move the cursor, and press OK button to confirm the choice or change.

233V5LSB (for Analog only model):



2. Setting up the monitor

The OSD Menu

Below is an overall view of the structure of the On-Screen Display. You can use this as a reference when you want to work your way around the different adjustments later on.

Main menu Sub menu

VGA
