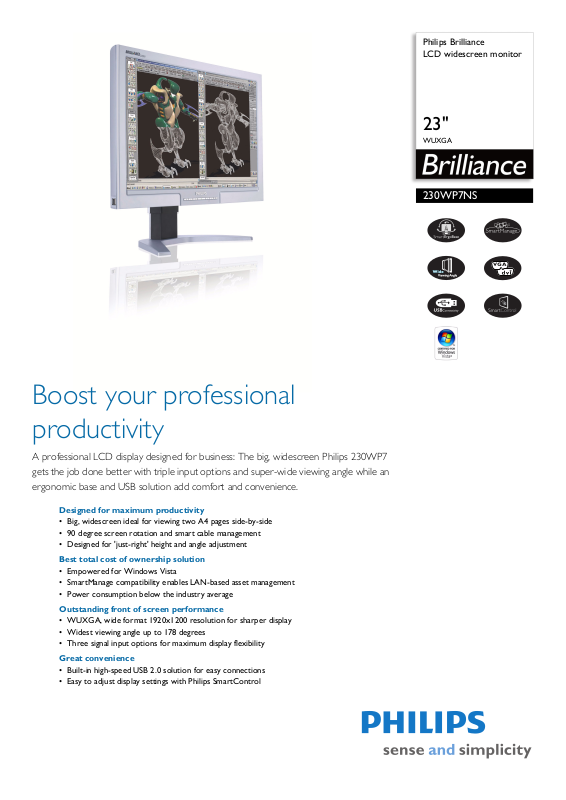

Philips Brilliance
LCD widescreen monitor

23"

WUXGA

230WP7NS

Boost your professional
productivity

A professional LCD display designed for business: The big, widescreen Philips 230WP7
gets the job done better with triple input options and super-wide viewing angle while an
ergonomic base and USB solution add comfort and convenience.

Designed for maximum productivity

• Big, widescreen ideal for viewing two A4 pages side-by-side

• 90 degree screen rotation and smart cable management

• Designed for 'just-right' height and angle adjustment

Best total cost of ownership solution

• Empowered for Windows Vista

• SmartManage compatibility enables LAN-based asset management

• Power consumption below the industry average

Outstanding front of screen performance

• WUXGA, wide format 1920x1200 resolution for sharper display

• Widest viewing angle up to 178 degrees

• Three signal input options for maximum display flexibility

Great convenience

• Built-in high-speed USB 2.0 solution for easy connections

• Easy to adjust display settings with Philips SmartControl

LCD widescreen monitor

230WP7NS/00

23" WUXGA

Specifications Product highlights

Picture/Display

• LCD panel type: 1920 x 1200 pixels, Anti-glare
polarizer, RGB vertical stripe

• Panel Size: 23" / 58.4 cm

• Effective viewing area: 495.4 x 309.6 mm

• Pixel pitch: 0.258 x 0.258 mm

• Brightness: 300 cd/m²

• Contrast ratio (typical): 700:1

• Display colours: 16.7 M

• Viewing angle: 178º (H) / 178º (V), @ C/R > 10

• Response time (typical): 12 ms

• White Chromaticity, 6500K: x = 0.313 / y = 0.329

• White Chromaticity, 9300K: x = 0.283 / y = 0.297

• Maximum Resolution: 1920 x 1200 @ 60Hz
(digital input)

• Recommended Resolution: 1920 x 1200 @ 60Hz
(digital input)

• Video Dot Rate: 205 MHz

• Horizontal Scanning Frequency: 30 - 94 kHz

• Vertical Scanning Frequency: 56 - 85 Hz

• Aspect ratio: 16:10

•sRGB

Connectivity

• Signal Input: Analogue (VGA), DVI-I, DVI-D

• USB: 4 x USB 2.0

• Video Sync Input Signal: Composite Sync, Separate
Sync, Sync on Green

• Video input impedance: 75 ohm

• Sync input impedance: 2.2k ohm

• Video input signal levels: 0.7 Vpp

Convenience

• Convenience Enhancements: On-screen Display,
SmartManage enabled

• Monitor Controls: Auto, Brightness Control (Up/
Down), Left/Right, Menu (OK), Power On/Off

• OSD Languages: English, French, German, Italian,
Russian, Spanish

• Other convenience: Kensington lock compatible

• Plug & Play Compatibility: DDC/CI, Windows 98/
ME/2000/XP/Vista

• Regulatory Approvals: CE Mark, Energy Star,

FCC-B, UL, CSA, SEMKO, TCO '03, TÜV/GS,
TÜV Ergo

• Swivel: +/- 45°

• Tilt: -5° to 25°

• Pivot: 90° (counter-clockwise)

• VESA Mount: 100 x 100 mm

Accessories

• Included Accessories: AC Power Cord, DVI-D
cable, USB cable, VGA cable

•User Manual

Dimensions

• Box dimensions (W x H x D):
655

x 547 x 305 mm

• Box dimensions in inch (W x H x D):

25.8

x 21.5 x 12 inch

• Set dimensions (W x H x D):
548

x 380.4 x 87.6 mm

• Set dimensions in inch (W x H x D):

21.6

x 15 x 3.5 inch

• Set dimensions with stand (W x H x D):
548

x 422.6 x 215.3 mm

• Set dimensions with stand in inch (W x H x D):

21.6

x 16.6 x 8.5 inch

• Height adjustment range: 130 mm

• Height adjustment range (inch): 5.1 inch

• MTBF: 50,000 hrs

• Relative Humidity: 20% - 80%

• Temperature range (operation): 0°C to 35°C

• Temperature range (storage): -20°C to 60°C

• Product weight (+stand): 9.6 kg

• Product weight (+stand) (lb): 21.1 lb

• Weight incl. Packaging: 11.8 kg

• Weight incl. Packaging (lb): 26 lb

Power

• Complies with: Energy Star

• Consumption: 75 W (Typical)

• Off Mode: < 2 W

• Power LED indicator: Stand by/sleep - Amber,
Operation - green

• Power supply: Built-in, 100-240VAC, 50/60Hz

•

Super Ergo Base

The Super Ergo base is a monitor base that delivers
ergonomic display comfort and provides intelligent cable
management. The base's people-friendly height, swivel,
tilt and rotation angle adjustments position the monitor
for maximum comfort that can ease the physical strains
of a long workday; intelligent cable management reduces
cable clutter and keeps the workspace neat and
professional.

Windows Vista ready

Philips Vista-ready monitors are empowered for vibrant,
exciting display of this new, visually sophisticated and
demanding Windows operating system, designed to
enhance your entertainment experience, make you more
productive and help you control your computing
experience at home and in the office, making viewing,
finding and organising information for work or play quick,
efficient and easy.

SmartManage enabled

SmartManage is a system for monitoring, managing and
checking status of display devices as well as delivering
remote support to users who experience difficulties - all
accomplished over a LAN.

WUXGA, wide format 1920 x 1200

Wide fo rmat o f Ultr a Extended Gra phics Array, a displ ay
specification that is capable of displaying 1920 x 1200
resolution, or approximately 2.3 million pixels.

Widest viewing angle (178°)

The widest viewing angle up to 178 degree provides the
clearest display from any angles.

Triple input

Triple input is a means for displaying digital and analogue
signals. A triple input monitor provides one D-Sub (VGA)
and one DVI-I interface connector. The DVI-I interface
connector accepts either a digital or an analogue signal
input via optional adapter for maximum display flexibility
and 'insurance' from your monitor obsolete.

USB connectivity solution

The universal serial bus or USB is a standard protocol for
linking PCs and peripherals. Because it delivers high
speed at a low cost, USB has become the most popular
method for connecting peripheral devices to a computer.
By placing a USB 2.0 solution in a monitor, Philips
provides a conveniently located, easy-to-use, high-speed
USB connection for reading, writing, loading and
transferring programs, data, digital media or music files
to, from or among your PC and one or more USB devices.

SmartControl

PC software for fine tuning display performance and
settings. Philips offers users two choices for display setting
adjustment. Either navigate the multilevel On Screen
Display menu through buttons on the display itself or use
the Philips SmartControl software to easily adjust the
various display settings in a familiar way.

Issue date 2008-10-20

Version: 10.0.15

12 NC: 8639 000 16761
EAN: 87 10895 94512 7

© 2008 Koninklijke Philips Electronics N.V.
All Rights reserved.

Specifications are subject to change without notice.
