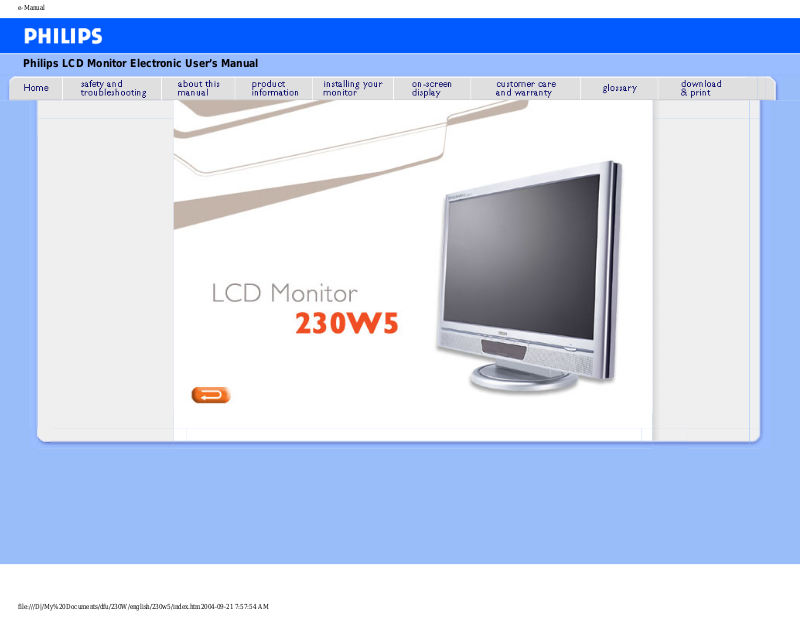

Philips LCD Monitor Electronic User’s Manual
file:///D|/My%20Documents/dfu/230W/english/230w5/index.htm2004-09-21 7:57:54 AM
Safety and Troubleshooting Information
• Safety
Precautions
and
Maintenance
• Installation
Locations
• FAQs
• Troubleshooting
• Regulatory
Information
• Other Related
Information
Safety and Troubleshooting Information
Safety precautions and maintenance
WARNING: Use of controls, adjustments or procedures other than
those specified in this documentation may result in exposure to shock,
electrical hazards and/or mechanical hazards.
Read and follow these instructions when connecting and using your computer monitor:
● Unplug the monitor if you are not going to use it for an extensive period of time.
● Unplug the monitor if you need to clean it with a slightly damp cloth. The screen may be
wiped with a dry cloth when the power is off. However, never use alcohol, solvents or
ammonia-based liquids.
● Consult a service technician if the monitor does not operate normally when you have
followed the instructions in this manual.
● The casing cover should be opened only by qualified service personnel.
● Keep the monitor out of direct sunlight and away from stoves or any other heat source.
● Remove any object that could fall into the vents or prevent proper cooling of the monitor’s
electronics.
● Do not block the ventilation holes on the cabinet.
● Keep the monitor dry. To avoid electric shock, do not expose it to rain or excessive
moisture.
● When positioning the monitor, make sure the power plug and outlet are easily accessible.
● If turning off the monitor by detaching the power cable or DC power cord, wait for 6
seconds before attaching the power cable or DC power cord for normal operation.
● To avoid the risk of shock or permanent damage to the set, do not expose the monitor to
rain or excessive moisture.
● IMPORTANT: Always activate a screen saver program during your application. If a still
image in high contrast remains on the screen for an extended period of time, it may leave
an 'after-image' or 'ghost image' on front of the screen. This is a well-known phenomenon
that is caused by the shortcomings inherent in LCD technology. In most cases, the afterimage will disappear gradually over a period of time after the power has been switched
off. Be aware, that the after-image symptom cannot be repaired and is not covered under
warranty.
Consult a service technician if the monitor does not operate normally when the operating
instructions given in this manual have been followed.
RETURN TO TOP OF THE PAGE
Installation Locations
file:///D|/My%20Documents/dfu/230W/english/230w5/safety/safety.htm (1 of 2)2004-09-21 7:57:57 AM
Safety and Troubleshooting Information
● Avoid exposure to heat and extreme cold.
● Do not store or use the LCD monitor in locations exposed to heat, direct sunlight or
extreme cold.
● Avoid moving the LCD monitor between locations with large temperature differences.
Choose a site that falls within the following temperature and humidity ranges.
❍ Temperature: 0-35°C 32-95°F
❍ Humidity: 20-80% RH
● Do not subject the LCD monitor to severe vibration or high impact conditions. Do not
place the LCD monitor in the trunk of a car.
● Take care not to mishandle this product by either knocking or dropping it during operation
or transportation.
● Do not store or use the LCD monitor in locations where there is a high level of humidity
or in dusty environments. Do not allow water or other liquids to spill on or into the LCD
monitor.
RETURN TO TOP OF THE PAGE
file:///D|/My%20Documents/dfu/230W/english/230w5/safety/safety.htm (2 of 2)2004-09-21 7:57:57 AM
About This Manual
• About This
Guide
• Notational
Descriptions
About This Manual
About This Guide
This electronic user's guide is intended for anyone who uses the Philips LCD Monitor. It
describes the LCD monitor's features, setup, operation and other important information. Its
contents are identical to the information in our printed version.
It includes the following sections:
● Safety and Troubleshooting Information provides tips and solutions for common problems
as well as other related information you may need.
● About This Electronic User's Manual gives an overview of information included, along with
notation icon descriptions and other documentation for your reference.
● Product Information gives an overview of the monitor's features as well as the technical
specifications for this monitor.
● Installing Your Monitor describes the initial setup process and gives an overview of how to
use the monitor.
● On-Screen Display provides information on adjusting the settings on your monitor.
● Customer Care and Warranty contains a list of worldwide Philips Consumer Information
Centers along with help desk phone numbers and information on the warranty applicable
to your product.
● Glossary defines technical terms.
● Download and Print Option transfers this entire manual to your hard drive for easy
reference.
RETURN TO TOP OF THE PAGE
Notational Descriptions
The following subsections describe notational conventions used in this document.
Notes, Cautions and Warnings
Throughout this guide, blocks of text may be accompanied by an icon and printed in bold or italic
type. These blocks contain notes, cautions or warnings. They are used as follows:
file:///D|/My%20Documents/dfu/230W/english/230w5/about/about.htm (1 of 2)2004-09-21 7:57:59 AM
About This Manual
NOTE: This icon indicates important information and tips that help you make
better use of your computer system.
CAUTION: This icon indicates information that tells you how to avoid either
potential damage to hardware or loss of data.
WARNING: This icon indicates the potential for bodily harm and tells you how
to avoid the problem.
Some warnings may appear in alternate formats and may not be accompanied by an icon. In
such cases, the specific presentation of the warning is mandated by the relevant regulatory
authority.
RETURN TO TOP OF THE PAGE
©2004 Koninklijke Philips Electronics NV
All rights reserved. Reproduction, copying, use, modification, hiring, renting, public performance, transmission and/or
broadcasting in whole or in part is prohibited without written consent of Philips Electronics NV
file:///D|/My%20Documents/dfu/230W/english/230w5/about/about.htm (2 of 2)2004-09-21 7:57:59 AM
Product Information

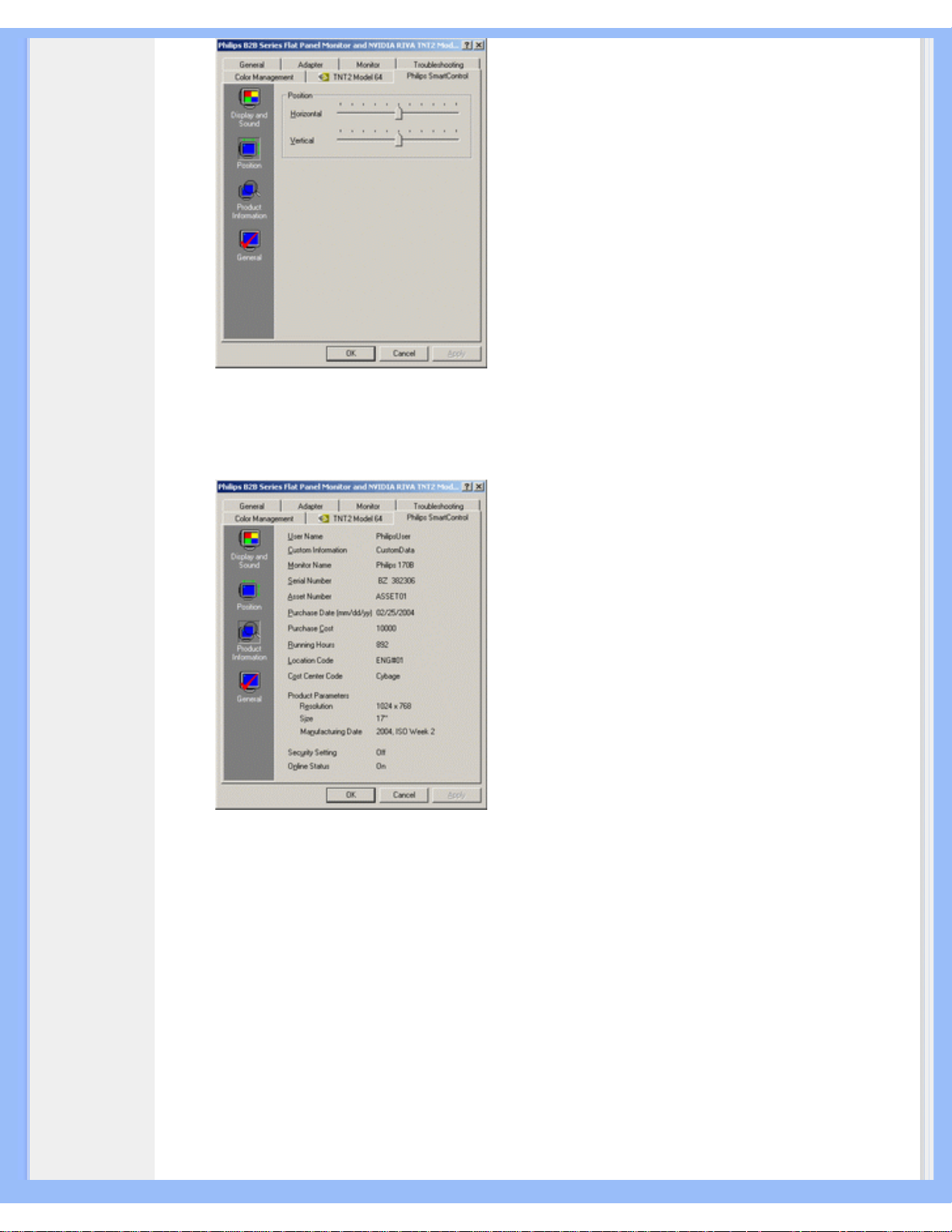

• SmartManage
• Product
Features
• Technical
Specifications
• Resolution &
Preset Modes
• Philips Pixel
Defect Policy
• Automatic
Power Saving
• Physical
Specification
• Pin
Assignment
• Product
Views
• Physical
Function
Product Information

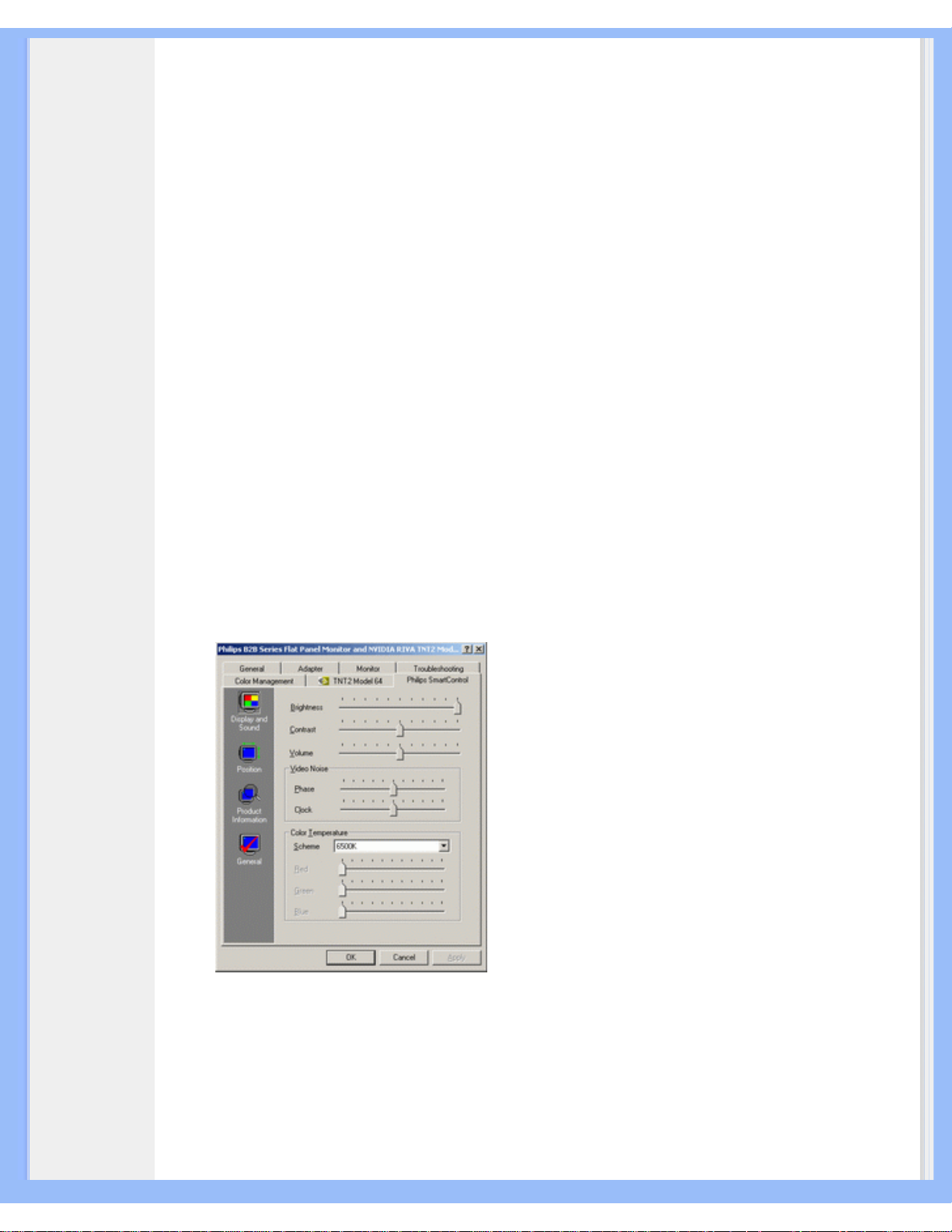

Product Features
BRILLIANCE 230W5
The Best Productivity Solution
● Outstanding front of screen performance
❍ WUXGA, wide format 1920x1200 resolution for sharper display
❍ Fast response time capable of handling fast moving pictures
❍ Widest viewing angle up to 176 degree for extra efficiency
● Maximum comfort for maximum productivity
❍ Large viewing area for seeing more images without scrolling
❍ Easy to access connections on a front to improve efficiency
❍ Screen tilt and swivel adjustment for ideal viewing angle
● Multi-function for ultimate convenience
❍ A solid-state 6-in-1 media card reader for easy media access
❍ Easy connection via hi-speed USB 2.0 Hub to any USB devices
❍ Display from multiple video sources: YPbPr, S-Video and CVBS (230W5VS only)
❍ PiP allows watching a second source simultaneously (230W5VS only)
● Great convenience
❍ Easy plug and play DVI ensures true digital experience
❍ Embedded power supply eliminates external power adapters
❍ VESA mounting pattern for easy wall mounting of display
RETURN TO TOP OF THE PAGE
Technical Specifications*
LCD PANEL
• Type TFT LCD
• Screen size 23 inch / 58.4 cm
• Pixel Pitch 0.258 x 0.258 mm
• LCD Panel type
1920 x 1200 pixels
R.G.B. vertical stripe
Anti-glare polarizer, hard coated
• Effective viewing area 495.36 x 309.6 mm
• Display Colors 8 bits interface (16.7M colors)
SCANNING
file:///D|/My%20Documents/dfu/230W/english/230w5/product/product.htm (1 of 7)2004-09-21 7:58:02 AM
Product Information
• Vertical refresh rate 56Hz-85Hz
• Horizontal Frequency 30kHz-94kHz
VIDEO
• Video dot rate
< 205 MHz (Analog input)
< 165 MHz (Digital input)
• Input impedance
- Video
75 ohm + 3%
- Sync
2.2K ohm
• Input signal levels 0.7 Vpp
• Sync input signal
Separate sync
Composite sync
Sync on green
• Sync polarities Positive and negative
• S-Video Y input 1.0Vpp, C input 0.3Vpp, 75ohm input impedance
• CVBS Composite, 1.0Vpp, 75 ohm input impedance
• Input Frequency
WUXGA Hsync 75 kHz, Vsync 60 Hz (N.I.)
WXGA Hsync 48 kHz, Vsync 60 Hz (N.I.)
SVGA Hsync 38 kHz, Vsync 60 Hz (N.I.)
VGA Hsync 31 kHz, Vsync 60 Hz (N.I.)
• Video interface
DVI-I, D-Sub, S-Video, composite and components video
(YPbPr)
AUDIO
• Input level for PC/Video 500mV nominal
• Loudspeaker 6W Stereo Audio (3W/channel RMSx2, 200 Hz-10 kHz)
Optical characteristics
• Contrast ratio: 500:1 (typ.)
• Brightness:
250 cd/m
2
(typ.)
• White Chromaticity:
x: 0.283 y: 0.297 (at 9300°K)
x: 0.313 y: 0.329 (at 6500°K)
• Viewing Angle (C/R>10)
Upper >88° (typ.)
Lower >88° (typ.)
Left >88° (typ.)
Right >88° (typ.)
• Response time 16 ms (typ.)
file:///D|/My%20Documents/dfu/230W/english/230w5/product/product.htm (2 of 7)2004-09-21 7:58:02 AM
Product Information
* This data is subject to change without notice.
RETURN TO TOP OF THE PAGE
Resolution and Preset Modes
•
Recommended
1920 x 1200 at 60Hz
20 factory preset modes:
H. freq (kHz) Mode Resolution V. freq (Hz)
31.469 IBM VGA 10H 640x350 70.086
31.469 IBM VGA 3H 720x400 70.086
31.469 IBM VGA 12H 640x480 59.940
35.000 MACINTOSH 640x480 67.000
37.500 VESA 640x480 75.000
35.156 VESA 800x600 56.250
37.879 VESA 800x600 60.317
46.875 VESA 800x600 75.000
49.700 MACINTOSH 832x624 75.000
48.363 VESA 1024x768 60.004
60.023 VESA 1024x768 75.029
68.700 MACINTOSH 1152x870 75.000
71.810 SUN WS 1152x900 76.150
63.981 VESA 1280x1024 60.020
79.976 VESA 1280x1024 75.025
91.1 VESA 1280x1024 85.0
75.0 VESA 1600x1200 60.0
67.05 CVT 2.3MA 1920x1080 60.0 (for D-Sub)
74.56 CVT 2.3MA 1920x1200 60.0 (for D-Sub)
74.52 CVT 2.3MA-R 1920x1200 60.0 (for DVI)
RETURN TO TOP OF THE PAGE
file:///D|/My%20Documents/dfu/230W/english/230w5/product/product.htm (3 of 7)2004-09-21 7:58:02 AM
Product Information
Automatic Power Saving
If you have VESA DPMS compliance display card or software installed in your PC, the monitor can
automatically reduce its power consumption when not in use. If an input from a keyboard, mouse
or other input device is detected, the monitor will 'wake up' automatically. The following table
shows the power consumption and signaling of this automatic power saving feature:
Power Management Definition
VESA Mode Video H-sync V-sync Power Used LED color
On Active Pulse Pulse
90W (typ.)
Blue
Off Blanked No No < 2.5W Amber
DC Power OFF
Not Active
No No 2W Off
This monitor is ENERGY STAR® compliant. As an ENERGY STAR® Partner, PHILIPS has
determined that this product meets the
ENERGY STAR
®
guidelines for energy efficiency.
RETURN TO TOP OF THE PAGE
Physical Specifications
• Dimension (WxHxD)
548 x 452 x250 mm
• Weight 9.0 Kg
• Power supply 90 — 264 VAC, 50/60 Hz
• Power consumption 90 W (typ.)
• Temperature 0° C to 35° C
• Relative humidity
20% to 80%
• System MTBF 50K hrs (excluding CCFL 40K hrs)
* This data is subject to change without notice.
file:///D|/My%20Documents/dfu/230W/english/230w5/product/product.htm (4 of 7)2004-09-21 7:58:02 AM
Product Information
RETURN TO TOP OF THE PAGE
Pin Assignment
1. The digital only connector contains 24 signal contacts organized in three rows of eight contacts.
Signal pin assignments are listed in the following table:
Pin
No.
Signal Assignment
Pin
No.
Signal Assignment
Pin
No.
Signal Assignment
1
T.M.D.S. Data2-
9
T.M.D.S. Data1- 17 T.M.D.S. Data0-
2
T.M.D.S. Data2+
10
T.M.D.S. Data1+ 18 T.M.D.S. Data0+
3
T.M.D.S. Data2/4
Shield
11
T.M.D.S. Data1/3
Shield
19
T.M.D.S. Data0/5
Shield
4
No connect
12
No connect 20 No connect
5
No connect
13
No connect 21 No connect
6
DDC Clock
14
+5V Power 22
T.M.D.S. Clock
Shield
7
DDC Data
15
Ground (for +5V) 23 T.M.D.S. Clock+
8
No connect 16 Hot Plug Detect 24 T.M.D.S. Clock-
2. The 15-pin D-sub connector (male) of the signal cable:
file:///D|/My%20Documents/dfu/230W/english/230w5/product/product.htm (5 of 7)2004-09-21 7:58:02 AM
Product Information
Pin
No.
Assignment
Pin
No.
Assignment
1
Red video input
9
+5V
2
Green video input/SOG
10
Cable detect
3
Blue video input
11
Identical output,
connected to pin 10
4
Ground
12
Serial data line (SDA)
5
No connect
13
H. Sync / H+V
6
Red video ground
14
V. Sync
7
Green video ground
15
Data clock line (SCL)
8
Blue video ground
RETURN TO TOP OF THE PAGE
Product Views
Follow the links to see various views of the monitor and its components.
Front View Product Description
RETURN TO TOP OF THE PAGE
Physical Function
1) Tilt
file:///D|/My%20Documents/dfu/230W/english/230w5/product/product.htm (6 of 7)2004-09-21 7:58:02 AM
Product Information
2) Swivel
RETURN TO TOP OF THE PAGE
file:///D|/My%20Documents/dfu/230W/english/230w5/product/product.htm (7 of 7)2004-09-21 7:58:02 AM
Installing Your LCD Monitor
•
Front View
Produt
Description
•

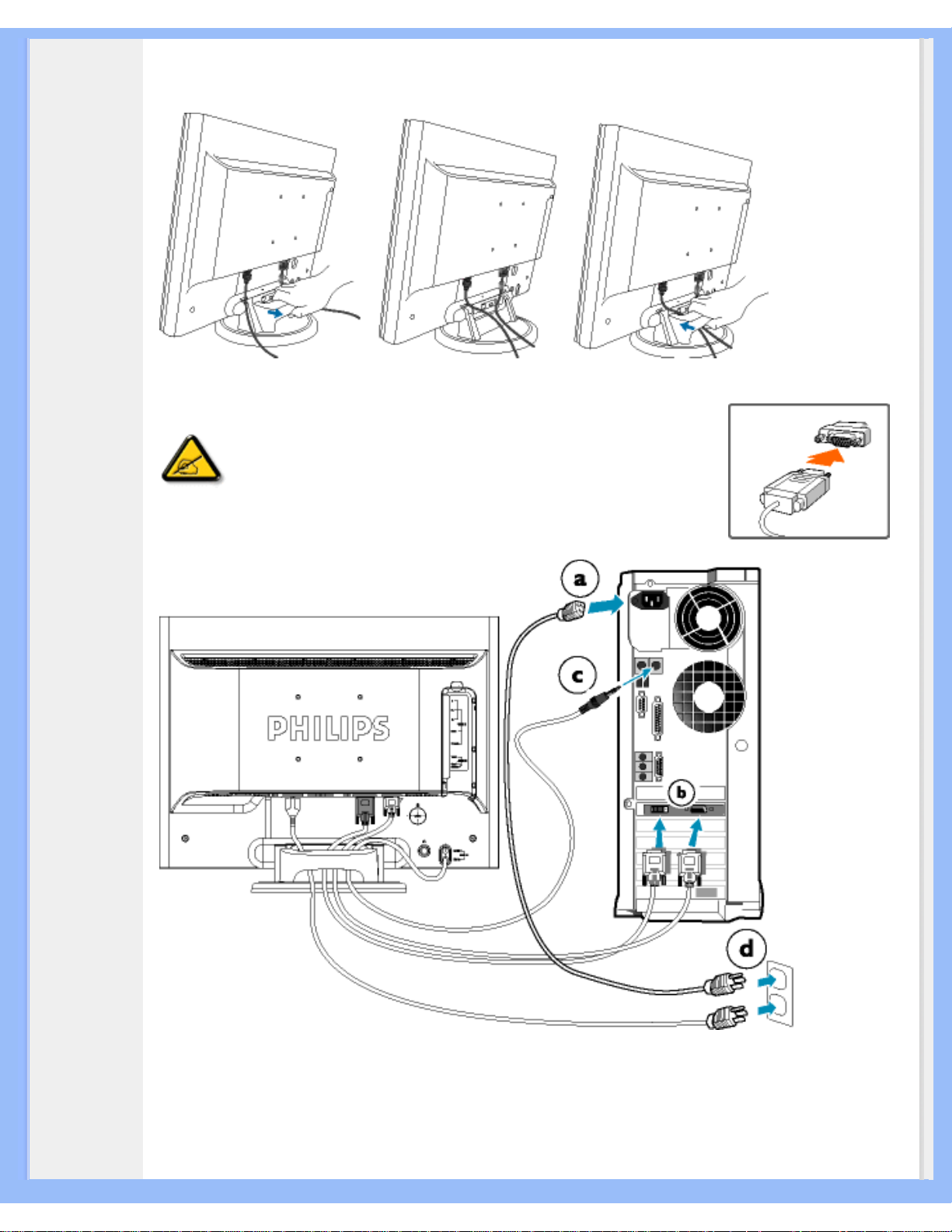

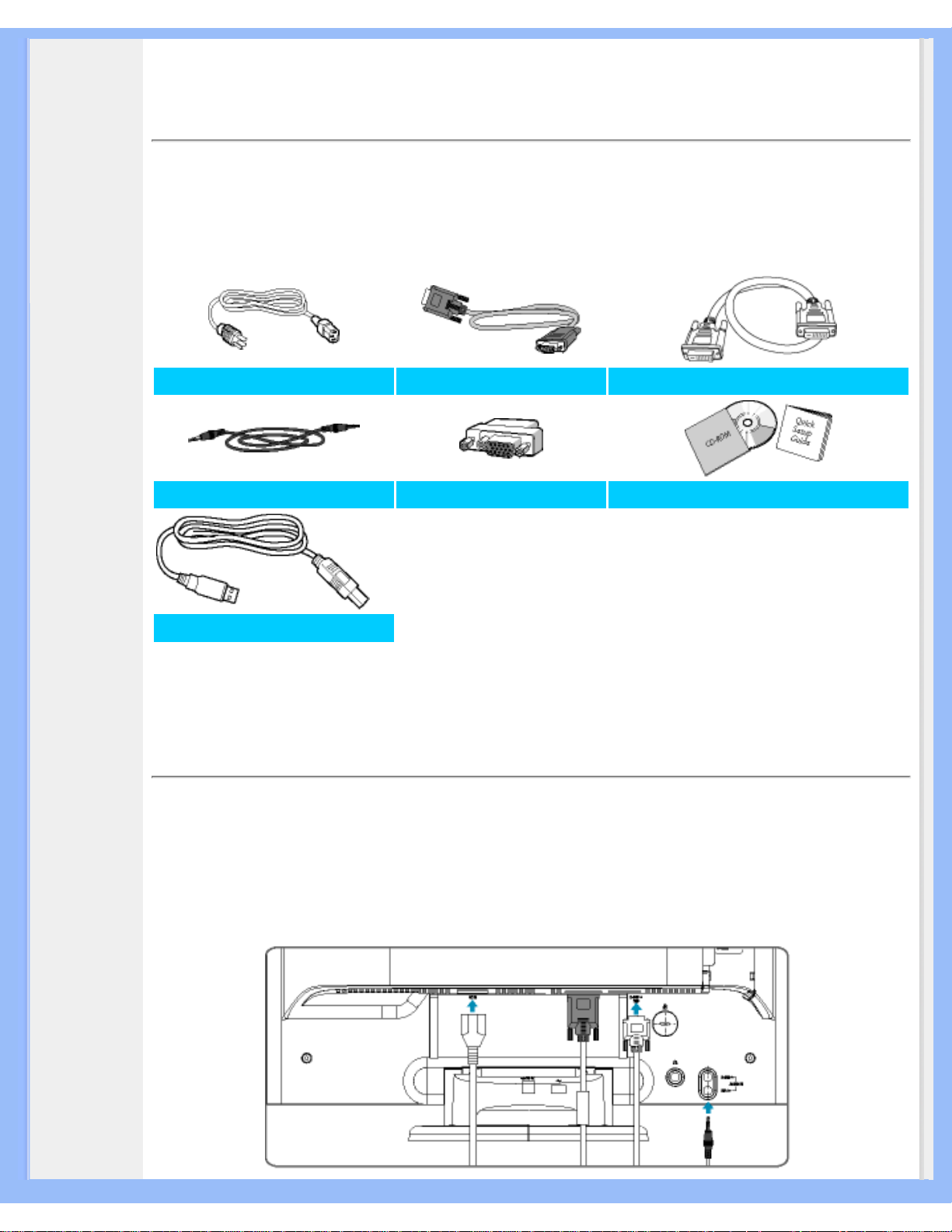

Setting Up
and
Connecting
Your Monitor
•

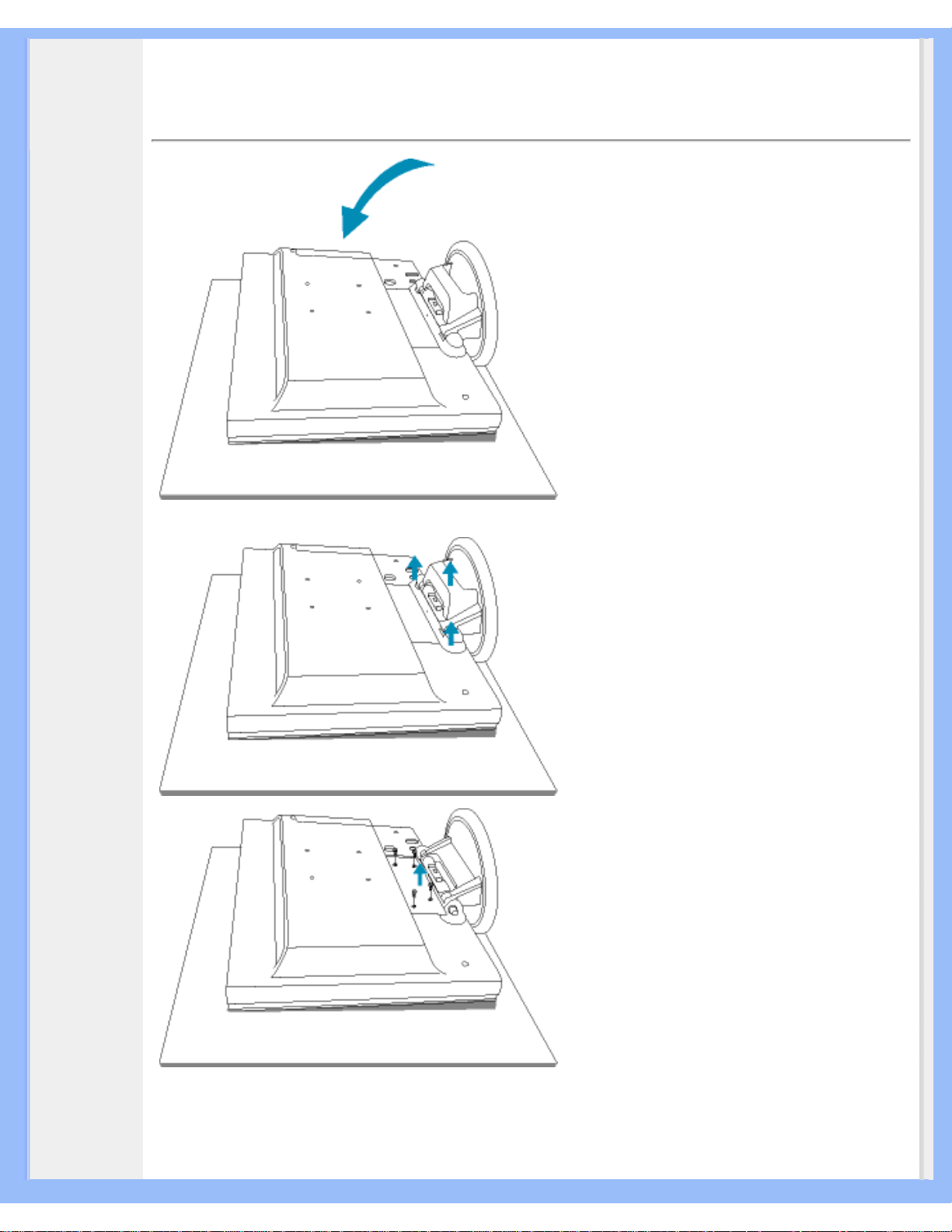

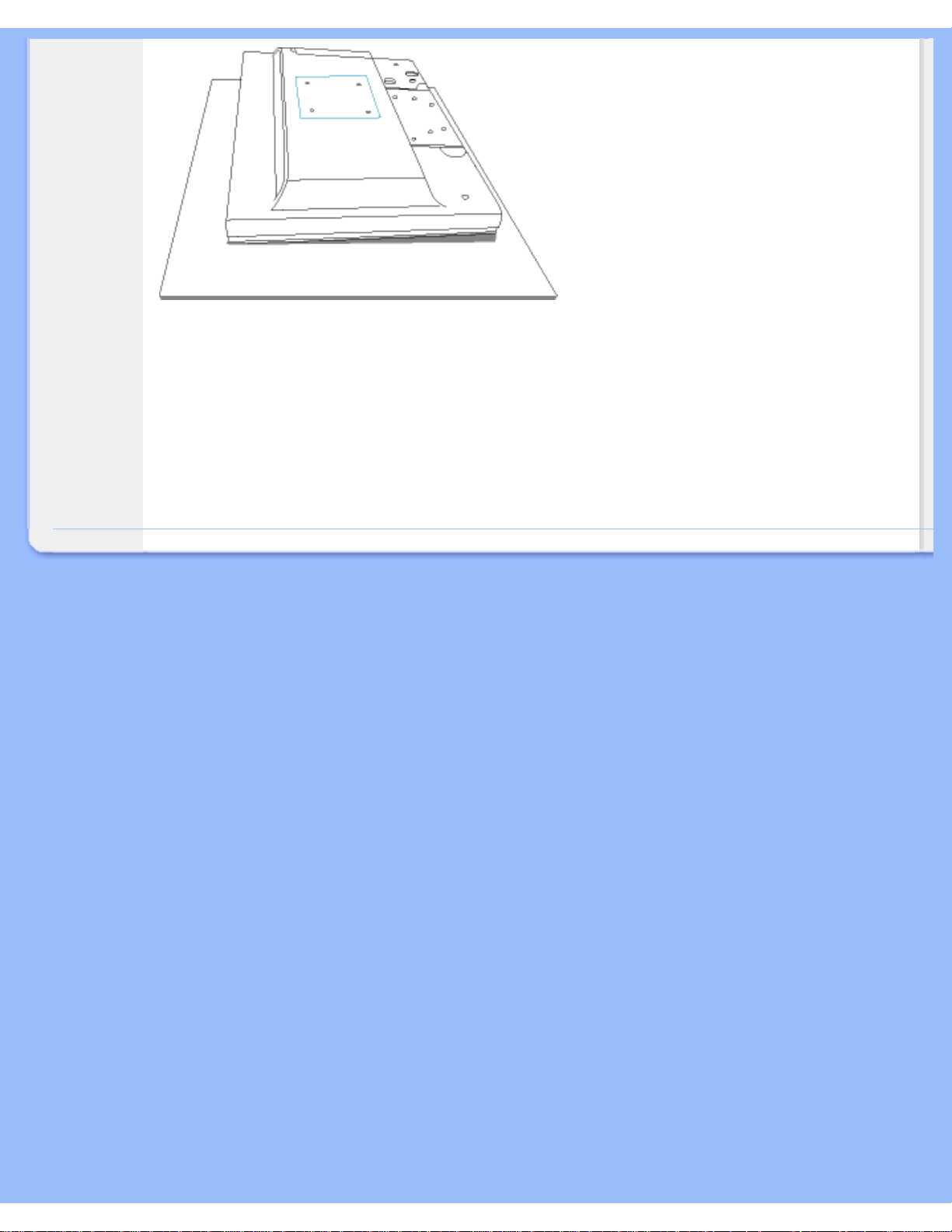

VESA
Standard
Mounting
•
Getting
Started
•
Optimizing
Performance

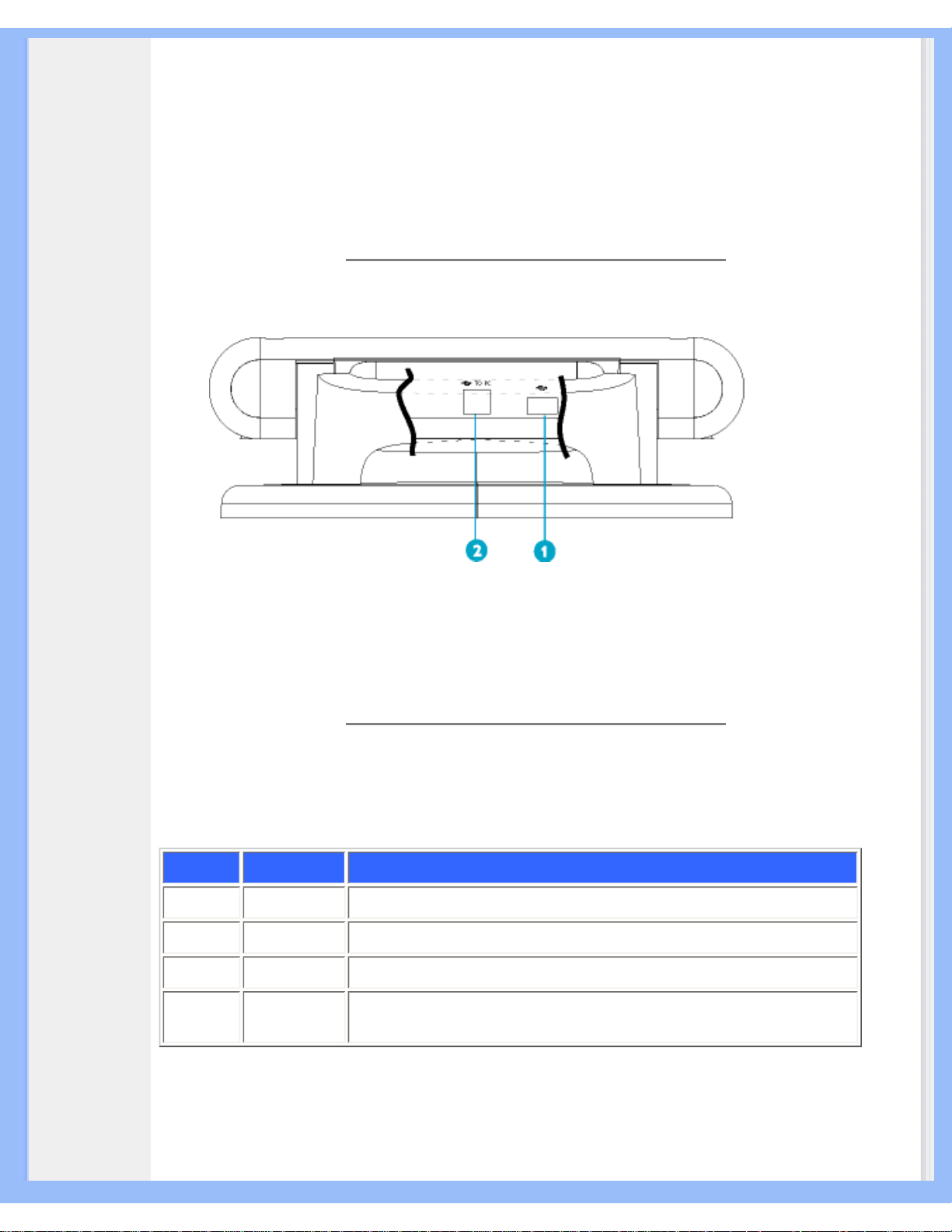

• Universal
Card Reader
Installing Your LCD Monitor

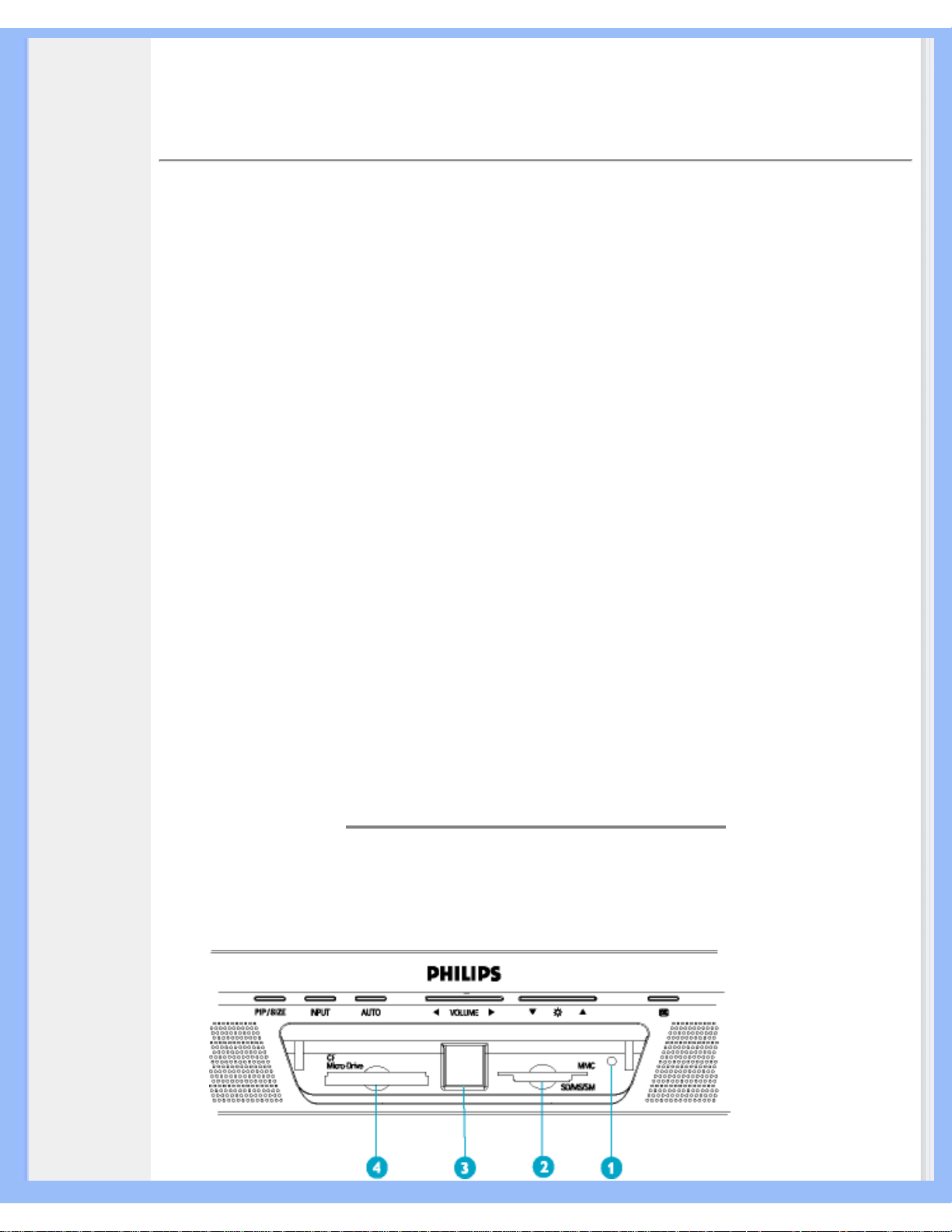

Front View Product Description
1 To switch monitor's power On and Off
2
Power LED
3
To access OSD menu
4
To adjust the OSD
5
To adjust brightness of the display
6
To adjust the OSD
7
VOLUME
To adjust speaker volume
8
AUTO
Automatically adjust the horizontal position, vertical
position, phase and clock setting
9
INPUT
Signal input selection
file:///D|/My%20Documents/dfu/230W/english/230w5/install/install.htm (1 of 4)2004-09-21 7:58:05 AM
Installing Your LCD Monitor
10
PIP/SIZE
Activate PIP (Picture in Picture) window (230W5VS)
or
adjust screen size (230W5BS)
RETURN TO TOP OF THE PAGE
Rear View
Monitor model (230W5BS)
1 PC audio input for D-Sub
2 PC audio input for DVI-I
3 Earphone jack
4 VGA input
5 DVI-I input
6 USB to USB devices
7 USB to PC host
8 AC power input

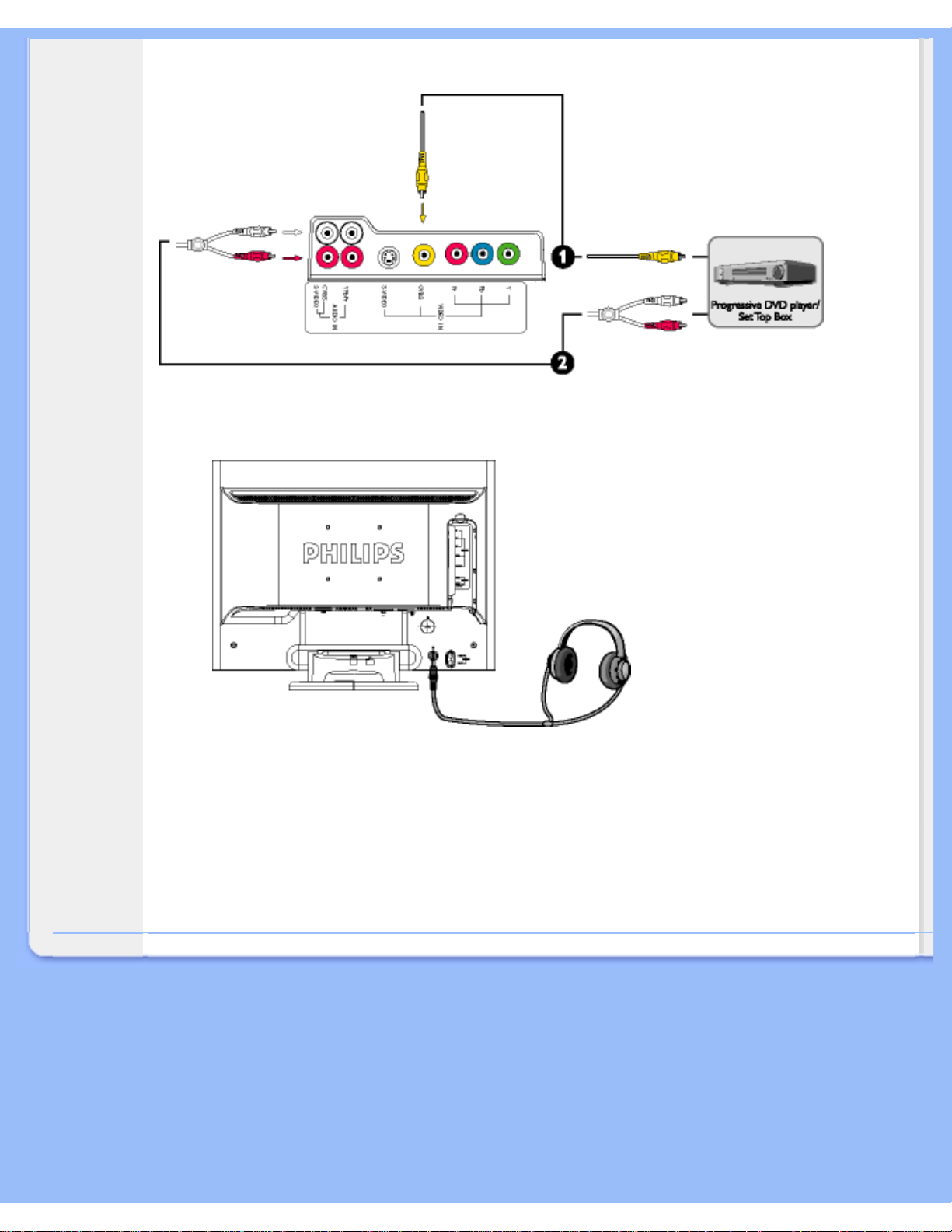

Video model
file:///D|/My%20Documents/dfu/230W/english/230w5/install/install.htm (2 of 4)2004-09-21 7:58:05 AM
Installing Your LCD Monitor
1 Component Video (YPbPr) input
2 Component Video (YPbPr) input
3 Component Video (YPbPr) input
4 CVBS video input
5 S-Video input
6 Audio input for YPbPr video
7 Audio input for CVBS/S-Video
8 PC audio for D-Sub
9 PC audio for DVI-I
10 Earphone jack
11 VGA input
12 DVI-I input
13 USB to USB devices
14 USB to PC host
15 AC power input
RETURN TO TOP OF THE PAGE
Optimizing Performance
● For best performance, ensure that your display settings are set at 1920x1200@60Hz
file:///D|/My%20Documents/dfu/230W/english/230w5/install/install.htm (3 of 4)2004-09-21 7:58:05 AM
Installing Your LCD Monitor
Note: You can check the current display settings by pressing the 'OK' button
once. Go into the Product Information. The current display mode is shown on
the item called RESOLUTION.
RETURN TO TOP OF THE PAGE
file:///D|/My%20Documents/dfu/230W/english/230w5/install/install.htm (4 of 4)2004-09-21 7:58:05 AM
On-Screen Display
• Description
of the OnScreen
Display
•
The OSD
Tree
On-Screen Display
Description of the On Screen Display
What is the On-Screen Display?
This is a feature in all Philips LCD monitors. It allows an end user to adjust screen performance of
the monitors directly through an on-screen instruction window. The user interface provides userfriendliness and ease-of-use when operating the monitor.
Basic and simple instruction on the control keys.
When you press the
button on the front control of your monitor, the On-Screen Display (OSD)
Main Controls window will pop up and you can then start making adjustments to your monitor's
various features. Use the
or the keys to make your adjustments.
RETURN TO TOP OF THE PAGE
The OSD Tree
file:///D|/My%20Documents/dfu/230W/english/230w5/osd/osddesc.htm (1 of 5)2004-09-21 7:58:11 AM
On-Screen Display
Below is an overall view of the structure of the On-Screen Display. You can use this as a reference
when you want to work your way around the different adjustments later on.
file:///D|/My%20Documents/dfu/230W/english/230w5/osd/osddesc.htm (2 of 5)2004-09-21 7:58:11 AM
On-Screen Display
file:///D|/My%20Documents/dfu/230W/english/230w5/osd/osddesc.htm (3 of 5)2004-09-21 7:58:11 AM
On-Screen Display
file:///D|/My%20Documents/dfu/230W/english/230w5/osd/osddesc.htm (4 of 5)2004-09-21 7:58:11 AM
On-Screen Display
RETURN TO TOP OF THE PAGE
file:///D|/My%20Documents/dfu/230W/english/230w5/osd/osddesc.htm (5 of 5)2004-09-21 7:58:11 AM
Customer Care & Warranty
Customer Care & Warranty
PLEASE SELECT YOUR COUNTRY/AREA TO REVIEW DETAILS OF YOUR
WARRANTY COVERAGE
WESTERN EUROPE: Austria • Belgium • Cyprus • Denmark • France • Germany • Greece •
Finland • Ireland • Italy • Luxembourg • the Netherlands • Norway • Portugal • Sweden •
Switzerland • Spain • United Kingdom
EASTERN EUROPE: Czech Republic • Hungary • Poland • Russia • Slovakia • Slovenia •
Turkey
LATIN AMERICA: Antilles • Argentina • Brasil • Chile • Colombia • Mexico • Paraguay •
Peru • Uruguay • Venezuela
NORTH AMERICA: Canada • USA
PACIFIC: Australia • New Zealand
ASIA: Bangladesh • China • Hong Kong • India • Indonesia • Japan • Korea • Malaysia •
Pakistan • Philippines • Singapore • Taiwan • Thailand
AFRICA: Morocco • South Africa
MIDDLE EAST: Dubai • Egypt
file:///D|/My%20Documents/dfu/230W/english/warranty/warranty.htm2004-09-21 7:58:14 AM
Glossary
Glossary
A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
C
Color temperature
A way of describing the color of a radiating source in terms of the temperature (in degrees Kelvin) of
a black body radiating with the same dominant frequency as the source.
Most Philips monitors offer the possibility of setting the color temperature to any desired value.
RETURN TO TOP OF THE PAGE
D
D-SUB
Your monitor comes with a D-Sub cable.
Digital Visual Interface (DVI)
The Digital Visual Interface (DVI) specification provides a high-speed digital connection for visual
data types that is display technology independent. The interface is primarily focused at providing a
connection between a computer and its display device. The DVI specification meets the needs of all
segments of the PC industry (workstation, desktop, laptop, etc.) and will enable these different
segments to unite around one monitor interface specification.
file:///D|/My%20Documents/dfu/230W/english/230w5/glossary/glossary.htm (1 of 5)2004-09-21 7:58:17 AM
Glossary
The DVI interface enables:
1. Reduce signal loss and video noise in signal due to less signal conversion.
2. Independent from display technology, and can be used on LCD, Plasma, LCOS, etc.
3. Plug and play through hot plug detection, EDID and DDC2B.
4. Digital and Analog support in a single connector (DVI-I only).
RETURN TO TOP OF THE PAGE
E
Energy Star Computers Program
An energy conservation program launched by the US Environmental Protection Agency (EPA),
promotes the manufacture and marketing of energy-efficient office automation equipment.
Companies joining this program, must be willing to commit themselves to manufacture one or more
products capable of going into a low -power state (< 2.5 W) either after a period of inactivity, or after
a predetermined time selected by the user.
RETURN TO TOP OF THE PAGE
L
LCD Liquid Crystal Display
An alphanumeric display, using the unique properties of liquid crystal, to form characters. The latest
flat-panel displays, contains a matrix of hundreds or thousands of individual LCD cells that generate
text and colorful graphics on a screen. They consume little power, though they do require external
lighting to make them legible to the user.
RETURN TO TOP OF THE PAGE
file:///D|/My%20Documents/dfu/230W/english/230w5/glossary/glossary.htm (2 of 5)2004-09-21 7:58:17 AM
Glossary
U
USB or Universal Serial Bus
A smart plug for PC peripherals. USB automatically determines resources (like driver software and
bus bandwidth) required by peripherals. USB makes necessary resources available without user
intervention.
● USB eliminates "case anxiety" -- the fear of removing the computer case to install add-on
peripherals. USB also eliminates adjustment of complicated IRQ settings when installing
new peripherals.
● USB does away with "port gridlock." Without USB, PCs are normally limited to one printer,
two Com port devices (usually a mouse and modem), one Enhanced Parallel Port add-on
(scanner or video camera, for example) and a joystick. More and more peripherals for
multimedia computers arrive on the market every day. With USB, up to 127 devices can run
simultaneously on a computer.
● USB permits "hot plug-in." There's no need to shut down, plug in, reboot and run set-up to
install peripherals. And no need to go through the reverse process to unplug a device.
In short, USB transforms today's "Plug-and-Pray" into true Plug-and-Play!
Hub
A Universal Serial Bus device that provides additional connections to the Universal Serial Bus.
Hubs are a key element in the plug-and-play architecture of USB. The Figure shows a typical hub.
Hubs serve to simplify USB connectivity from the user's perspective providing low cost and
complexity.
Hubs are wiring concentrators and enable the multiple attachment characteristics of USB.
Attachment points are referred to as ports. Each hub converts a single attachment point into
multiple attachment points. The architecture supports concatenation of multiple hubs.
The upstream port of a hub connects the hub towards the host. Each of the other downstream ports
of a hub allows connection to another hub or function. Hubs can detect, attach and detach at each
downstream port and enable the distribution of power to downstream devices. Each downstream
port can be individually enabled and configured at either full or low speed. The hub isolates low
speed ports from full speed signaling.
A hub consists of two portions: the Hub Controller and Hub Repeater. The repeater is a protocolcontrolled switch between the upstream port and downstream ports. It also has hardware support
for reset and suspend/resume signaling. The controller provides the interface registers to allow
file:///D|/My%20Documents/dfu/230W/english/230w5/glossary/glossary.htm (3 of 5)2004-09-21 7:58:17 AM
Glossary
communication to/from the host. Hub specific status and control commands permit the host to
configure a hub and to monitor and control its ports.
Device
A logical or physical entity that performs a function. The actual entity described depends on the
context of the reference. At the lowest level, device may refer to a single hardware component, as
in a memory device. At a higher level, it may refer to a collection of hardware components that
perform a particular function, such as a Universal Serial Bus interface device. At an even higher
level, device may refer to the function performed by an entity attached to the Universal Serial Bus;
for example, a data/FAX modem device. Devices may be physical, electrical, addressable, and
logical.
Downstream
The direction of data flow from the host or away from the host. A downstream port is the port on a
hub electrically farthest from the host that generates downstream data traffic from the hub.
Downstream ports receive upstream data traffic.
Upstream
The direction of data flow towards the host. An upstream port is the port on a device electrically
closest to the host that generates upstream data traffic from the hub. Upstream ports receive
downstream data traffic.
file:///D|/My%20Documents/dfu/230W/english/230w5/glossary/glossary.htm (4 of 5)2004-09-21 7:58:17 AM
Glossary
RETURN TO TOP OF THE PAGE
V
Vertical refresh rate
Expressed in Hz, it is the number of frames (complete pictures) written to the screen every second.
RETURN TO TOP OF THE PAGE
file:///D|/My%20Documents/dfu/230W/english/230w5/glossary/glossary.htm (5 of 5)2004-09-21 7:58:17 AM
Download and Print
•Installing
your LCD
monitor
driver
•Download
and
Printing
Instructions
Download and Print
Installing Your LCD monitor driver
System requirements:
● PC running Windows 95, Windows® 98, Windows® 2000 , Windows® Me, Windows® XP
or later
● Find your driver ".inf/.icm/.cat" at : lcd\pc\drivers
Read the "Driver_install02.txt" file before installing.
This page provides an option to read the manual in .pdf format. PDF files can be downloaded into
your hard disk, then viewed and printed with Acrobat Reader or through your browser.
If you do not have Adobe® Acrobat Reader installed, click on the link to install the application.
Adobe® Acrobat Reader for PC / Adobe® Acrobat Reader for Mac.
Download instructions:
To download the file:
1. Click-and-hold your mouse over the icon below. (Windows® 95/98/2000/Me/XP users rightclick)
Download
230W5.pdf
2. From the menu that appears, choose 'Save Link As...', 'Save Target As...' or 'Download Link to
Disk'.
3. Choose where you would like to save the file; click 'Save' (if prompted to save as either 'text' or
'source', choose 'source').
Printing instructions:
file:///D|/My%20Documents/dfu/230W/english/download/download.htm (1 of 2)2004-09-21 7:58:19 AM
Download and Print
To print the manual:
1. With the manual file open, follow your printer's instructions and print the pages you need.
RETURN TO TOP OF THE PAGE
file:///D|/My%20Documents/dfu/230W/english/download/download.htm (2 of 2)2004-09-21 7:58:19 AM
FAQs (Frequently Asked Questions)
• Safety and
Troubleshooting
• General FAQs
• Screen
Adjustments
• Compatibility
with Other
Peripherals
• LCD Panel
Technology
• Ergonomics,
Ecology and
Safety
Standards
• Troubleshooting
• Regulatory
Information
• Other Related
Information
FAQs (Frequently Asked Questions)
General FAQs
Q:
When I install my monitor what should I do if the screen shows 'Cannot display this video
mode'?
A: Recommended video mode is 1920x1200 @60Hz.
1. Unplug all cables, then connect your PC to the monitor that you used previously.
2. In the Windows Start Menu, select Settings/Control Panel. In the Control Panel Window,
select the Display icon. Inside the Display Control Panel, select the 'Settings' tab. Under the
setting tab, in box labeled 'desktop area', move the slidebar to 1920x1200 pixels.
3. Open 'Advanced Properties' and set the Refresh Rate to 60Hz, then click OK.
4. Restart your computer and repeat step 2 and 3 to verify that your PC is set at
1920x1200@60Hz.
5. Shut down your computer, disconnect your old monitor and reconnect your Philips LCD
monitor.
6. Turn on your monitor and then turn on your PC.
Q: What does 'refresh rate' mean in connection with an LCD monitor?
A: The refresh rate is of much less relevance for LCD monitors. LCD monitors display a
stable, flicker-free image at 60Hz. There is no visible difference between 85Hz and 60Hz.
Q: What are the .inf and .icm files on the set-up disk & CD-ROM? How do I install the drivers
(.inf and .icm)?
A: These are the driver files for your monitor. Follow the instructions in your user manual to
install the drivers. Your computer may ask you for monitor drivers (.inf and .icm files) or a
driver disk when you first install your monitor. Follow the instructions to insert the driver
disk (either floppy or CD-ROM) included in this package. Monitor drivers (.inf and .icm files)
will be installed automatically.
Q: How do I adjust the resolution?
A: Your video card/graphic driver and monitor together determine the available resolutions.
You can select the desired resolution under Windows® 95/98 with the 'Display properties/
Settings' control panel
.
file:///D|/My%20Documents/dfu/230W/english/230w5/safety/saf_faq.htm (1 of 7)2004-09-21 7:58:27 AM
Loading...
