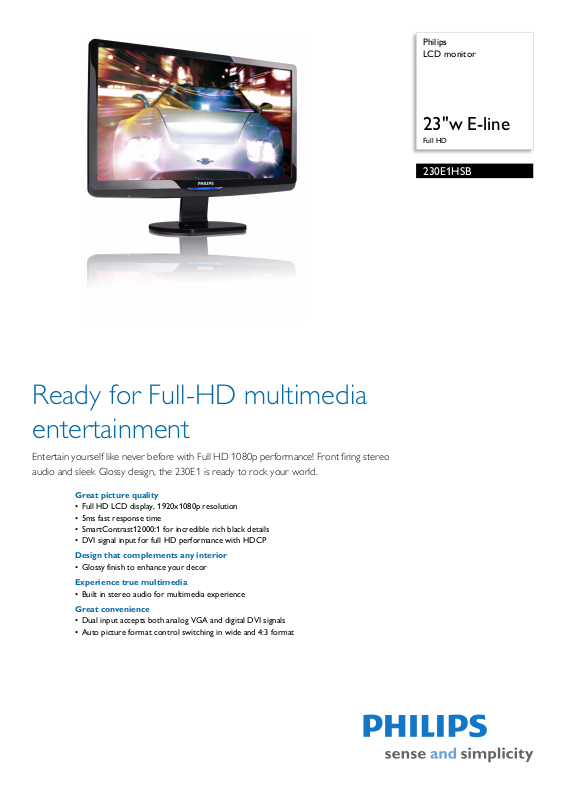

Philips 230E1HSB-93 User Manual

Philips
LCD monitor

23"w E-line

Full HD

230E1HSB

Ready for Full-HD multimedia
entertainment

Entertain yourself like never before with Full HD 1080p performance! Front firing stereo
audio and sleek Glossy design, the 230E1 is ready to rock your world.

Great picture quality

• Full HD LCD display, 1920x1080p resolution

• 5ms fast response time

• SmartContrast12000:1 for incredible rich black details

• DVI signal input for full HD performance with HDCP

Design that complements any interior

• Glossy finish to enhance your decor

Experience true multimedia

• Built in stereo audio for multimedia experience

Great convenience

• Dual input accepts both analog VGA and digital DVI signals

• Auto picture format control switching in wide and 4:3 format

LCD monitor

23"w E-line Full HD

230E1HSB/93

Specifications

Picture/Display

• LCD panel type: TFT-LCD

• Aspect ratio: 16:9

•Panel Size: 23''

• Pixel pitch: 0.265 x 0.265 mm

• SmartContrast ratio (dynamic): 12000:1

• Viewing angle: 170º (H) / 160º (V), @ C/R > 10

• Brightness: 300 cd/m²

• Contrast ratio (typical): 1000:1

• Response time (typical): 5 ms

• Optimum Resolution: 1920 x 1080 @ 60Hz

• Display colors: 16.7 M

• Horizontal Scanning Frequency: 30 - 83 kHz

• Vertical Scanning Frequency: 56 - 76 Hz

•sRGB

Connectivity

• Signal Input: VGA (Analog ), DVI-D

• Sync Input: Composite Sync,
on Green

Convenience

• Built-in Audio: 2W x 2

• User convenience: On-screen Display

• Monitor Controls: Auto (Back), Auto picture (Up),

put (Down), Menu (OK), Power On/Off,

In
SmartImage, Volume control

• OSD Languages: English, Fr
Russian, Simplified Chinese, Spanish, Portuguese,
Turkish

• Regulatory Approvals: CCC, CE Mark, Energy Star,

CC Class B, UL/cUL

F

• Plug & Play Compatibility: DDC/CI, sRGB,

ws 98, Windows 2000, Windows XP,

Windo
Windows Vista

• Other convenience: Kensingto

Stand

• Tilt: -5 to 20 degree

Separate Sync, Sync

ench, German, Italian,

n lock compatible

Power

•Consumption (On mode): < 50 W (typical)

• Power LED indicator: Operation - Blue, Stand by/
eep -blue(blinking)

sl

• Power supply: Built-in, 100-240VAC, 50/60Hz

• Consumption (Off Mo

de): < 0.5 W

Dimensions

• Set dimensions with stand (W x H x D):

547 x 433 x 201 mm

•Set dimensions with st

21.53 x 17.04 x 7.9 inch

•Set dimensions (W x H x D): 547 x 351 x 68 mm

• Set dimensions in inch (W x H x D):

.53 x 13.8 x 2.67 inch

21

•Box dimensions (W x H x D):

59

• Box dimensions in inch (W x H x D):

23

• Product weight (+stand): 5.6 kg

• Product weight (+stand) (lb): 12.36 lb

• Weight incl. Packaging: 7.3 kg

• Weight incl. Packaging (lb): 16.1 lb

x 134 mm

6 x 495

.5 x 19.5 x 5.27 inch

and in inch (W x H x D):

Operating conditions

• Temperature Range (Operation): 0 - 40 °C

• Temperature Range (storage): -20 - 60 °C

• Relative Humidity: 20 - 80 %

• MTBF: 50,000 hour(s)

Sustainability

• Environmental and energy: Energy Star, EPEAT

Silver, RoHS

Cabinet

• Color: Glossy black

• Finish: Glossy bezel

•

Highlights

Full HD 1920x1080p LCD display

This display has a resolution t hat is re ferred to as Ful l
HD. With state-of-the-art LCD screen technology it
has the full high-definition widescreen resolution of
1920 x 1080p. It allows the best possible picture
quality from any format of HD input signal. It
produces brilliant flicker-free pictures with optimum
brightness and superb colors. This vibrant and sharp
image will provide you with an enhanced viewing
experience.

5ms on/off response time

On-Off response time is the period required for a
liquid crystal cell to go from active (black) to inactive
(white) and back to active (black) again. It is
measured in milliseconds. Faster is better: Lower
response time means faster transitions and,
therefore, results in fewer visible image artifacts in
the display of transition of texts and graphics. On-Off
response time is a more important measure in the
display of business content like documents, graphs
and photos.

SmartContrast ratio 12000:1

You want the LCD flat display with the highest
contrast and most vibrant images. Philips advanced
video processing combined with unique extreme
dimming and backlight boosting technology results in
vibrant images. SmartContrast will increase the
contrast with excellent blacklevel and accurate
rendition of dark shades and colors. It gives a bright,
lifelike picture with high contrast and vibrant colors.

Issue date 2009-04-22

Version: 2.1.4

12 NC: 8670 000 51431
EAN: 87 12581 47641 0

© 2009 Koninklijke Philips Electronics N.V.
All Rights reserved.

Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.

www.philips.com

Auto picture format control

Philips auto picture format control on OSD is to
switch from the 4:3 aspect ratio to the widescreen
mode and back again to match the display's aspect
ratio with your content for working with wide
documents without scrolling or viewing widescreen
media in the widescreen mode and distortion-free,
native mode display of 4:3 ratio content.

Built-in stereo audio

A pair of high quality stereo speakers built into a
display device. It can be visible front firing, or invisible
down firing, top firing, rear firing, etc depending on
model and design.
