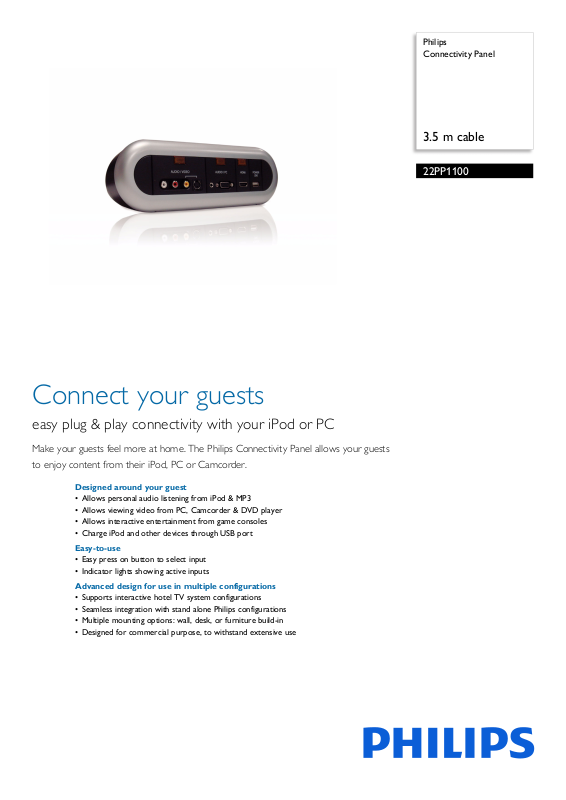

Philips
Connectivity Panel
3.5 m cable
22PP1100
Connect your guests
easy plug & play connectivity with your iPod or PC
Make your guests feel more at home. The Philips Connectivity Panel allows your guests
to enjoy content from their iPod, PC or Camcorder.
Designed around your guest
• Allows personal audio listening from iPod & MP3
• Allows viewing video from PC, Camcorder & DVD player
• Allows interactive entertainment from game consoles
• Charge iPod and other devices through USB port
Easy-to-use
• Easy press on button to select input
• Indicator lights showing active inputs
Advanced design for use in multiple configurations
• Supports interactive hotel TV system configurations
• Seamless integration with stand alone Philips configurations
• Multiple mounting options: wall, desk, or furniture build-in
• Designed for commercial purpose, to withstand extensive use
Connectivity Panel
3.5 m cable
22PP1100/10
Specifications
Connectivity
• Connectivity panel connectors: Audio L/R in
(cinch), CVBS in, S-Video in, Audio L/R in (3.5mm
jack), VGA PC in, HDMI in, USB (5V power)
Dimensions
• Product dimensions (WxDxH): 260 x 84 x 55 mm
• Product weight: 1.66 kg
• Bezel color: Black Front with Silver Bezel
Accessories
• Included accessories: External power adaptor,
Cable pack (3.5m), HDMI cable, RJ12 cable
(SmartPort), RS232 cable, VGA/audio cable, Svideo to CVBS adaptor, CVBS to SCART adaptor,
Scart adapter, Cable ties, Screws, Rubber feet,
User Manual, Warranty Leaflet
• Optional accessories: Desktop cover cap
PP1019
22
Related Products
• Compatible with: 26HF5445, 26HF7875,
32HF5445, 32HF7875, 42HF7845
•
Highlights
iPod & MP3 audio listening
Guests can listen to music from the source of their
choice (iPod, other MP3 Player, or audio output
from their PC) through plug & play connection with
3.5mm audio jack
Viewing of video media
Viewing of video media from PC, camcorder, DVD
player and various other devices is supported
through VGA, composite audio/video, S-Video and
HDMI connectors
Interactive entertainment
Game consoles can be connected to the TV through
composite audio/video or HDMI connectors.
USB charging
USB 5V power socket allows guests to charge their
personal devices.
Select input press on button
Press on button for easy input selection.
Indicator lights
Indicator lights provide easy to understand feedback
to guests, by showing which input is active.
System configurations
Connectivity Panel supports various interactive and
entertainment hotel TV system configurations,
through industry standard Philips SmartPort
protocol.
Stand alone configurations
Seamless integration with Philips TVs in stand-alone
configuration is supported, see compatibility list.
Multiple mounting options
Philips Convenience Panel can be mounted in various
ways, e.g. in the wall, on the desk or as a furniture
build-in. An optional desktop kit is required to
mount the panel to a desk.
Built for commercial use
Philips Connectivity Panel is a commercial product,
built with high-quality materials for intensive daily
use by hotel guests.
Issue date 2014-02-05
Version: 1.0.2
12 NC: 8670 000 37836
EAN: 87 12581 40238 9
© 2014 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
