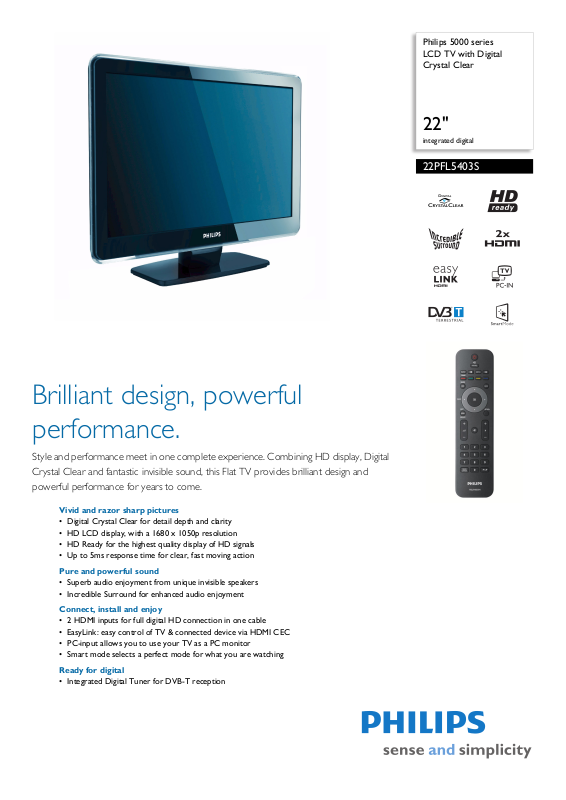

Philips 5000 series
LCD TV with Digital
Crystal Clear
22"
integrated digital
22PFL5403S
Brilliant design, powerful
performance.
Style and performance meet in one complete experience. Combining HD display, Digital
Crystal Clear and fantastic invisible sound, this Flat TV provides brilliant design and
powerful performance for years to come.
Vivid and razor sharp pictures
• Digital Crystal Clear for detail depth and clarity
• HD LCD display, with a 1680 x 1050p resolution
• HD Ready for the highest quality display of HD signals
• Up to 5ms response time for clear, fast moving action
Pure and powerful sound
• Superb audio enjoyment from unique invisible speakers
• Incredible Surround for enhanced audio enjoyment
Connect, install and enjoy
• 2 HDMI inputs for full digital HD connection in one cable
• EasyLink: easy control of TV & connected device via HDMI CEC
• PC-input allows you to use your TV as a PC monitor
• Smart mode selects a perfect mode for what you are watching
Ready for digital
• Integrated Digital Tuner for DVB-T reception
Page 2
LCD TV with Digital Crystal Clear
22PFL5403S/60
22" integrated digital
Specifications Product highlights
Picture/Display
• Aspect ratio: Widescreen
• Brightness: 300 cd/m²
• Contrast ratio (typical): 1000:1
• Response time (typical): 5 ms
• Viewing angle: 170º (H) / 160º (V)
• Diagonal screen size: 22 inch / 56 cm
• Display screen type: LCD WSXGA Active Matrix
TFT
• Panel resolution: 1680 x 1050p
• Picture enhancement: 3/2 - 2/2 motion pull down,
3D Combfilter, White stretch, Digital Crystal
Clear, Progressive Scan, Smart Picture
• Screen enhancement: Anti-Reflection coated
screen
Supported Display Resolution
• Computer formats
Resolution Refresh rate
640 x 480 60Hz
800 x 600 60Hz
1024 x 768 60Hz
1680 x 1050 50Hz, 60Hz
• Video formats
Resolution Refresh rate
480i 60Hz
480p 60Hz
576i 50Hz
576p 50Hz
720p 50, 60Hz
1080i 50, 60Hz
1080p 24, 50, 60Hz
Sound
• Output power (RMS): 2 x 5W
• Sound Enhancement: Auto Volume Leveller,
Incredible Surround, Smart Sound
• Sound System: Mono, Stereo
Convenience
• Clock: Sleep Timer, Start timer, Stop timer
• Connection Enhancement: Easy link
• Ease of Installation: Auto Program Naming,
Automatic Channel Install(ACI), Automatic
Tuning Sys tem (A TS), Auto store , Fine Tunin g, PLL
Digital Tuning, Plug & Play
• Ease of Use: Auto Volume Leveller (AVL), On
Screen Display, Program List, Side Control
• Electronic Program Guide: Now + Next EPG, 8
day Electronic Program Guide
• Picture in Picture: Text dual screen
• Remote Control: TV
• Remote control type: RCPF05E08B
• Screen Format Adjustments: 4:3, Movie expand
14:9, Movie expand 16:9, Subtitle Zoom, Super
Zoom, Widescreen
• Teletext: 100 page Smart Text
• Smart mode: Movie, Personal, Power saver,
Standard, Vivid
Tuner/Reception/Transmission
• Aerial Input: 75 ohm coaxial (IEC75)
• TV system: PAL I, PAL B/G, PAL D/K, SECAM B/
G, SECAM D/K, SECAM L/L'
• Video Playback: NTSC, SECAM, PAL
• DVB: DVB Terrestrial *
• Tuner bands: Hyperband, S-Channel, UHF, VHF
Connectivity
• Ext 1 Scart: Audio L/R, CVBS in/out, RGB
• Ext 2: S-video in, CVBS in, Audio L/R in
• Ext 3: YPbPr, Audio L/R in
• HDMI 1: HDMI v1.3
• HDMI 2: HDMI v1.3
• EasyLink (HDMI-CEC): One touch play, System
standby
• Other connections: Headphone out, PC Audio in,
PC-In VGA, S/PDIF out (coaxial), Common
Interface
Power
• Ambient temperature: 5 °C to 35 °C
• Mains power: 100-240V, 50/60Hz
• Power consumption: 53 W
• Standby power consumption: <0.3 W
Dimensions
• Set dimensions (W x H x D): 538 x 375 x 71 mm
• Set dimensions with stand (W x H x D):
538
x 428 x 205 mm
• Box dimensions (W x H x D):
643
x 481 x 237 mm
• VESA wall mount compatible: 100 x 100 mm
Accessories
• Included Accessories: Table top stand, Power
cord, Quick start guide, User Manual, Warranty
certificate, Remote Control, Batteries for remote
control
•
Digital Crystal Clear
Digital Crystal Clear is a package of picture innovations
that digitally adjusts and optimizes picture quality to
optimal contrast, color and sharpness levels. It's like
watching vivid cinema-like images.
LCD display, 1680 x 1050p
This WSXGA display with state-of-the-art LCD screen
technology gives you widescreen HD resolution of 1680
x 1050p pixels. It produces brilliant flicker-free
progressive scan pictures with optimum brightness and
superb colors. This vibrant and sharp image will provide
you with an enhanced viewing experience.
HD Ready
Enjoy the exceptional picture quality of High Definition
pictures and be f ully p rep are d for H D so urces like H DTV
settop box or Blu-ray disc. HD Ready is a protected label
that offers picture quality beyond that of progressive
scan. It conforms to strict standards laid out by EICTA to
offer a HD screen that displays the benefits of resolution
and picture quality of a High Definition signal. It has a
universal connection for both analog YPbPr and
uncompressed Digital connection of DVI or HDMI,
supporting HDCP. It can display 720p, and 1080i signals
at 50 and 60Hz.
Integrated Digital DVB-T tuner
The integrated DVB-T tuner lets you receive Digital
Terrestrial TV to watch or record. This means you do not
need an additional set top box and also the additional
cables.
Incredible Surround
Incredible Surround is an audio technology from Philips
that dramatically magnifies the sound field to immerse
you in the audio. Using state-of-the-art electronic phase
shifting, Incredible Surround mixes sounds from left and
right in such a way that it expands the virtual distance
between the two speakers. This wider spread greatly
enhances the stereo effect and creates a more natural
sound dimension. Incredible Surround allows you to
experience total surround with greater depth and width
of sound, without the use of additional speakers.
2 HDMI inputs
HDMI makes an uncompressed digital RGB connection
from the source to the screen. By eliminating conversion
to an analog signal, it delivers an unblemished image. The
non-degraded signal reduces flicker and leads to a clearer
picture. HDMI intelligently communicates the highest
ou tp ut reso lu tion wit h t he sour ce device . T he HDMI i np ut
is fully backward compatible with DVI sources but
includes digital audio. HDMI uses HDCP copy protection.
With 2 HDMI inputs you can connect multiple HD
sources, for instance an HD settop box, and a Blu-ray
player. Your TV is fully prepared for the HD future.
EasyLink
EasyLink uses the HDMI CEC industry standard protocol
to sh are fu nct ional ity bet ween c onnec ted dev ice s an d th e
TV. With EasyLink only one remote control is needed to
operate main functionalities on your TV and connected
devices. EasyLink uses the standard HDMI cable to
transfer system commands. It works between all
electronic devices equipped with HDMI CEC.
PC input (VGA)
With PC input you can connect your TV to a computer by
a VGA cable and use the TV as a PC monitor.
Issue date 2009-02-20
Version: 2.0.10
12 NC: 8670 000 37274
EAN: 87 12581 39755 5
© 2009 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
