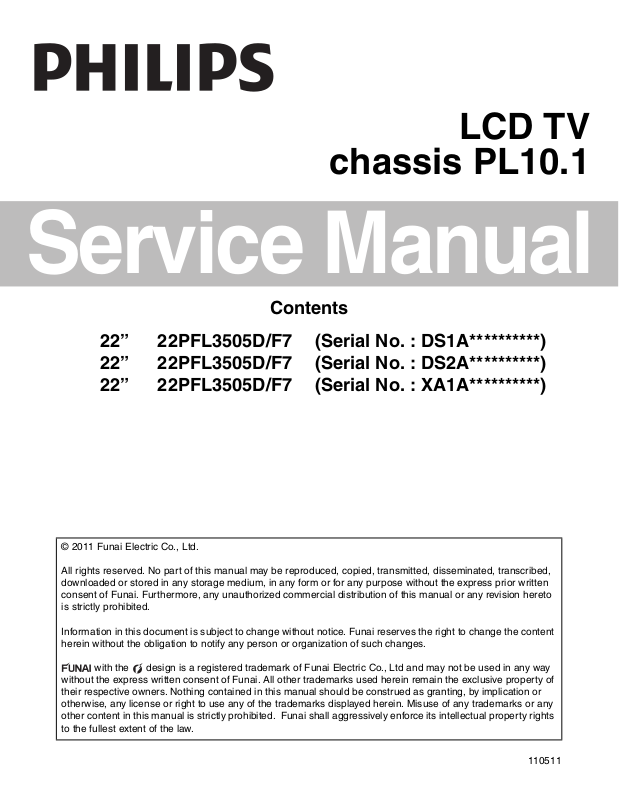

Page 1

LCD TV

chassis PL10.1

Service Manual

Contents

22” 22PFL3505D/F7 (Serial No. : DS1A**********) 22” 22PFL3505D/F7 (Serial No. : DS2A**********) 22” 22PFL3505D/F7 (Serial No. : XA1A**********)

All rights reserved. No part of this manual may be reproduced, copied, transmitted, disseminated, transcribed, downloaded or stored in any storage medium, in any form or for any purpose without the express prior written consent of Funai. Furthermore, any unauthorized commercial distribution of this manual or any revision hereto is strictly prohibited.

Information in this document is subject to change without notice. Funai reserves the right to change the content herein without the obligation to notify any person or organization of such changes.

with the design is a registered trademark of Funai Electric Co., Ltd and may not be used in any way without the express written consent of Funai. All other trademarks used herein remain the exclusive property of their respective owners. Nothing contained in this manual should be construed as granting, by implication or otherwise, any license or right to use any of the trademarks displayed herein. Misuse of any trademarks or any other content in this manual is strictly prohibited. Funai shall aggressively enforce its intellectual property rights to the fullest extent of the law.

110511

Page 2

IMPORTANT SAFETY NOTICE

Proper service and repair is important to the safe, reliable operation of all P&F Equipment. The service procedures recommended by P&F and described in this service manual are effective methods of performing service operations. Some of these service special tools should be used when and as recommended.

It is important to note that this service manual contains various CAUTIONS and NOTICES which should be carefully read in order to minimize the risk of personal injury to service personnel. The possibility exists that improper service methods may damage the equipment. It also is important to understand that these CAUTIONS and NOTICES ARE NOT EXHAUSTIVE. P&F could not possibly know, evaluate and advice the service trade of all conceivable ways in which service might be done or of the possible hazardous consequences of each way. Consequently, P&F has not undertaken any such broad evaluation. Accordingly, a servicer who uses a service procedure or tool which is not recommended by P&F must first use all precautions thoroughly so that neither his safety nor the safe operation of the equipment will be jeopardized by the service method selected.

The LCD panel is manufactured to provide many years of useful life. Occasionally a few non active pixels may appear as a tiny spec of color. This is not to be considered a defect in the LCD screen.

Page 3

TABLE OF CONTENTS

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

Important Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Standard Notes for Servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Cabinet Disassembly Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

Electrical Adjustment Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

How to Initialize the LCD TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1

Firmware Renewal Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1

Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1

Block Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-1

Schematic Diagrams / CBA and Test Points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-1

Waveforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-1

Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-1

Exploded Views. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-1

Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-1

Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15-1

Page 4

SPECIFICATIONS

< TUNER / NTSC >

ANT. Input ---------------------- 75 Ω Unbal., F type

Description Condition Unit Nominal Limit

1. AFT Pull-In Range --- MHz ±2.3 ±2.1 20

20 23

2. Synchronizing Sens.

TV.ch.4 CA.ch.31 CA.ch.87

dBµ dBµ dBµ

18 18 18

< TUNER / ATSC >

Description Condition Unit Nominal Limit

1. Received Freq. Range (-28dBm) --- kHz --- ±100

2. ATSC Dynamic Range (min / max)

ch.4 ch.10 ch.41

dBm dBm dBm

---

-76/0

-76/+4

< LCD PANEL >

Description Condition Unit Nominal Limit

1. Native Pixel Resolution

2. Brightness (w / filter) --- cd/m

3. Viewing Angle

Horizontal

Vert ical

Horizontal

Vert ical

pixels pixels

° °

1366

768

280 ---

-85 to 85

-80 to 80

---

< VIDEO >

Description Condition Unit Nominal Limit

1. Over Scan

2. Color Temperature

3. Resolution (composite video)

Horizontal

Vert ical

--x y

Horizontal

Vert ical

% %

°K

---

line line

5 5

12000

0.272

0.278 400

350

5±5 5±5

--±3% ±3%

---

< AUDIO >

All items are measured across 8 Ω load at speaker output terminal with L.P.F.

Description Condition Unit Nominal Limit

1. Audio Output Vol. Max (ATSC 0 dBfs)

2. Audio Distortion (NTSC) 500mW: Lch/Rch % 0.5/0.5 2.0/2.0

3. Audio Freq. Response (NTSC)

Lch/Rch W 3.3/3.3 3.0/3.0

6dB: Lch

6dB: Rch

Hz Hz

70 to 10 k 70 to 10 k

---

1-1 PL10.1SP

Page 5

IMPORTANT SAFETY PRECAUTIONS

Prior to shipment from the factory, our products are strictly inspected for recognized product safety and electrical codes of the countries in which they are to be sold. However, in order to maintain such compliance, it is equally important to implement the following precautions when a set is being serviced.

Safety Precautions for LCD TV Circuit

1. Before returning an instrument to the

customer, always make a safety check of the

entire instrument, including, but not limited to, the following items:

a. Be sure that no built-in protective devices are

defective and have been defeated during servicing. (1) Protective shields are provided on this chassis to protect both the technician and the customer. Correctly replace all missing protective shields, including any removed for servicing convenience. (2) When reinstalling the chassis and/or other assembly in the cabinet, be sure to put back in place all protective devices, including but not limited to, nonmetallic control knobs, insulating fishpapers, adjustment and compartment covers/shields, and isolation resistor/capacitor networks. Do not operate this instrument or

permit it to be operated without all protective devices correctly installed and functioning. Servicers who defeat safety features or fail to perform safety checks may be liable for any resulting damage.

b. Be sure that there are no cabinet openings

through which an adult or child might be able to insert their fingers and contact a hazardous voltage. Such openings include, but are not limited to, (1) spacing between the Liquid Crystal Panel and the cabinet mask, (2) excessively wide cabinet ventilation slots, and (3) an improperly fitted and/or incorrectly secured cabinet back cover.

c. Antenna Cold Check - With the instrument AC

plug removed from any AC source, connect an electrical jumper across the two AC plug prongs. Place the instrument AC switch in the on position. Connect one lead of an ohmmeter to the AC plug prongs tied together and touch the other ohmmeter lead in turn to each tuner antenna input exposed terminal screw and, if applicable, to the coaxial connector. If the measured resistance is less than 1.0 megohm or greater than 5.2 megohm, an abnormality exists that must be corrected before the instrument is returned to the customer. Repeat this test with the instrument AC switch in the off position.

d. Leakage Current Hot Check - With the

instrument completely reassembled, plug the AC line cord directly into a 120 V AC outlet. (Do not use an isolation transformer during this test.) Use a leakage current tester or a metering system that complies with American National Standards Institute (ANSI) C101.1 Leakage Current for Appliances and Underwriters Laboratories (UL) 1410, (50.7). With the instrument AC switch first in the on position and then in the off position, measure from a known earth ground (metal water pipe, conduit, etc.) to all exposed metal parts of the instrument (antennas, handle brackets, metal cabinet, screw heads, metallic overlays, control shafts, etc.), especially any exposed metal parts that offer an electrical return path to the chassis. Any current measured must not exceed 0.5 milli-ampere. Reverse the instrument power cord plug in the outlet and repeat the test.

READING SHOULD NOT BE ABOVE 0.5 mA

LEAKAGE

DEVICE

BEING

TESTED

TEST ALL EXPOSED METAL SURFACES

ALSO TEST WITH PLUG REVERSED USING AC ADAPTER PLUG AS REQUIRED

ANY MEASUREMENTS NOT WITHIN THE LIMITS SPECIFIED HEREIN INDICATE A POTENTIAL SHOCK HAZARD THAT MUST BE ELIMINATED BEFORE RETURNING THE INSTRUMENT TO THE CUSTOMER OR BEFORE CONNECTING THE ANTENNA OR ACCESSORIES.

2. Read and comply with all caution and safety-

related notes on or inside the receiver cabinet, on the receiver chassis, or on the Liquid Crystal Panel.

CURRENT

TESTER

EARTH GROUND

2-1 LTVN_ISP

Page 6

3. Design Alteration Warning - Do not alter or add to the mechanical or electrical design of this TV receiver. Design alterations and additions, including, but not limited to circuit modifications and the addition of items such as auxiliary audio and/or video output connections, might alter the safety characteristics of this receiver and create a hazard to the user. Any design alterations or additions will void the manufacturer's warranty and may make you, the servicer, responsible for personal injury or property damage resulting therefrom.

4. Hot Chassis Warning a. Some TV receiver chassis are electrically

connected directly to one conductor of the AC power cord and maybe safety-serviced without an isolation transformer only if the AC power plug is inserted so that the chassis is connected to the ground side of the AC power source. To confirm that the AC power plug is inserted correctly, with an AC voltmeter, measure between the chassis and a known earth ground. If a voltage reading in excess of

1.0 V is obtained, remove and reinsert the AC power plug in the opposite polarity and again measure the voltage potential between the chassis and a known earth ground.

b. Some TV receiver chassis normally have 85V

AC(RMS) between chassis and earth ground regardless of the AC plug polarity. This chassis can be safety-serviced only with an isolation transformer inserted in the power line between the receiver and the AC power source, for both personnel and test equipment protection.

c. Some TV receiver chassis have a secondary

ground system in addition to the main chassis ground. This secondary ground system is not isolated from the AC power line. The two ground systems are electrically separated by insulation material that must not be defeated or altered.

5. Observe original lead dress. Take extra care to assure correct lead dress in the following areas: a. near sharp edges, b. near thermally hot parts-be sure that leads and components do not touch thermally hot parts, c. the AC supply, d. high voltage, and, e. antenna wiring. Always inspect in all areas for pinched, out of place, or frayed wiring. Check AC power cord for damage.

6. Components, parts, and/or wiring that appear to have overheated or are otherwise damaged should be replaced with components, parts, or wiring that meet original specifications. Additionally, determine the cause of overheating and/or damage and, if necessary, take corrective action to remove any potential safety hazard.

7. Product Safety Notice - Some electrical and mechanical parts have special safety-related characteristics which are often not evident from visual inspection, nor can the protection they give necessarily be obtained by replacing them with components rated for higher voltage, wattage, etc. Parts that have special safety characteristics are identified by a # on schematics and in parts lists. Use of a substitute replacement that does not have the same safety characteristics as the recommended replacement part might create shock, fire, and/or other hazards. The product's safety is under review continuously and new instructions are issued whenever appropriate. Prior to shipment from the factory, our products are strictly inspected to confirm they comply with the recognized product safety and electrical codes of the countries in which they are to be sold. However, in order to maintain such compliance, it is equally important to implement the following precautions when a set is being serviced.

2-2 LTVN_ISP

Page 7

Precautions during Servicing

A. Parts identified by the # symbol are critical for

safety. Replace only with part number specified.

B. In addition to safety, other parts and assemblies

are specified for conformance with regulations applying to spurious radiation. These must also be replaced only with specified replacements. Examples: RF converters, RF cables, noise blocking capacitors, and noise blocking filters, etc.

C. Use specified internal wiring. Note especially:

1) Wires covered with PVC tubing

2) Double insulated wires

3) High voltage leads

D. Use specified insulating materials for hazardous

live parts. Note especially:

1) Insulation Tape

2) PVC tubing

3) Spacers

4) Insulators for transistors.

E. When replacing AC primary side components

(transformers, power cord, etc.), wrap ends of wires securely about the terminals before soldering.

F. Observe that the wires do not contact heat

producing parts (heat sinks, oxide metal film resistors, fusible resistors, etc.)

G. Check that replaced wires do not contact sharp

edged or pointed parts.

H. When a power cord has been replaced, check that

11~13 lb (5~6 kg) of force in any direction will not loosen it.

I. Also check areas surrounding repaired locations. J. Use care that foreign objects (screws, solder

droplets, etc.) do not remain inside the set.

K. When connecting or disconnecting the internal

connectors, first, disconnect the AC plug from the AC supply outlet.

L. When installing parts or assembling the cabinet

parts, be sure to use the proper screws and tighten certainly.

2-3 LTVN_ISP

Page 8

Safety Check after Servicing

Examine the area surrounding the repaired location for damage or deterioration. Observe that screws, parts and wires have been returned to original positions. Afterwards, perform the following tests and confirm the specified values in order to verify compliance with safety standards.

1. Clearance Distance

When replacing primary circuit components, confirm specified clearance distance (d) and (d') between soldered terminals, and between terminals and surrounding metallic parts. (See Fig. 1)

Table 1: Ratings for selected area

Chassis or Secondary Conductor

Primary Circuit

AC Line Voltage Region

110 to 130 V

Note: This table is unofficial and for reference only. Be

sure to confirm the precise values.

U.S.A. or

Canada

Clearance

Distance (d), (d’)

≥ 3.2 mm

(0.126 inches)

2. Leakage Current Test

Confirm the specified (or lower) leakage current between B (earth ground, power cord plug prongs) and externally exposed accessible parts (RF terminals, antenna terminals, video and audio input and output terminals, microphone jacks, earphone jacks, etc.) is lower than or equal to the specified value in the table below.

Measuring Method: (Power ON)

Insert load Z between B (earth ground, power cord plug prongs) and exposed accessible parts. Use an AC voltmeter to measure across both terminals of load Z. See Fig. 2 and following table.

d' d

Fig. 1

Exposed Accessible Part

AC Voltmeter (High Impedance)

Earth Ground

Power Cord Plug Prongs

Fig. 2

Table 2: Leakage current ratings for selected areas

AC Line Voltage Region Load Z Leakage Current (i) Earth Ground (B) to:

110 to 130 V

Note: This table is unofficial and for reference only. Be sure to confirm the precise values.

U.S.A. or

Canada

0.15 µF CAP. & 1.5 kΩ

RES. Connected in parallel

2-4 LTVN_ISP

i ≤ 0.5 mA rms

Exposed accessible

parts

Page 9

STANDARD NOTES FOR SERVICING

Circuit Board Indications

1. The output pin of the 3 pin Regulator ICs is indicated as shown.

To p Vi ew

Out

2. For other ICs, pin 1 and every fifth pin are indicated as shown.

Pin 1

3. The 1st pin of every male connector is indicated as shown.

Pin 1

Input

Bottom View

Pb (Lead) Free Solder

Pb free mark will be found on PCBs which use Pb free solder. (Refer to figure.) For PCBs with Pb free mark, be sure to use Pb free solder. For PCBs without Pb free mark, use standard solder.

Pb free mark

How to Remove / Install Flat Pack-IC

1. Removal

With Hot-Air Flat Pack-IC Desoldering Machine:

1. Prepare the hot-air flat pack-IC desoldering machine, then apply hot air to the Flat Pack-IC (about 5 to 6 seconds). (Fig. S-1-1)

Fig. S-1-1

2. Remove the flat pack-IC with tweezers while applying the hot air.

3. Bottom of the flat pack-IC is fixed with glue to the CBA; when removing entire flat pack-IC, first apply soldering iron to center of the flat pack-IC and heat up. Then remove (glue will be melted). (Fig. S-1-6)

4. Release the flat pack-IC from the CBA using tweezers. (Fig. S-1-6)

CAUTION:

1. The Flat Pack-IC shape may differ by models. Use an appropriate hot-air flat pack-IC desoldering machine, whose shape matches that of the Flat Pack-IC.

2. Do not supply hot air to the chip parts around the flat pack-IC for over 6 seconds because damage to the chip parts may occur. Put masking tape around the flat pack-IC to protect other parts from damage. (Fig. S-1-2)

3-1 TVN_SN

Page 10

3. The flat pack-IC on the CBA is affixed with glue, so be careful not to break or damage the foil of each pin or the solder lands under the IC when removing it.

With Soldering Iron:

1. Using desoldering braid, remove the solder from all pins of the flat pack-IC. When you use solder flux which is applied to all pins of the flat pack-IC, you can remove it easily. (Fig. S-1-3)

CBA

Masking Ta pe

Tweezers

Hot-air Flat Pack-IC Desoldering Machine

Flat Pack-IC

Fig. S-1-2

Flat Pack-IC

Desoldering Braid

Soldering Iron

Fig. S-1-3

2. Lift each lead of the flat pack-IC upward one by one, using a sharp pin or wire to which solder will not adhere (iron wire). When heating the pins, use a fine tip soldering iron or a hot air desoldering machine. (Fig. S-1-4)

Sharp Pin

Fine Tip Soldering Iron

4. Release the flat pack-IC from the CBA using tweezers. (Fig. S-1-6)

Fig. S-1-4

3-2 TVN_SN

Page 11

With Iron Wire:

1. Using desoldering braid, remove the solder from all pins of the flat pack-IC. When you use solder flux which is applied to all pins of the flat pack-IC, you can remove it easily. (Fig. S-1-3)

2. Affix the wire to a workbench or solid mounting point, as shown in Fig. S-1-5.

3. While heating the pins using a fine tip soldering iron or hot air blower, pull up the wire as the solder melts so as to lift the IC leads from the CBA contact pads as shown in Fig. S-1-5.

4. Bottom of the flat pack-IC is fixed with glue to the CBA; when removing entire flat pack-IC, first apply soldering iron to center of the flat pack-IC and heat up. Then remove (glue will be melted). (Fig. S-1-6)

5. Release the flat pack-IC from the CBA using tweezers. (Fig. S-1-6)

Note: When using a soldering iron, care must be

taken to ensure that the flat pack-IC is not being held by glue. When the flat pack-IC is removed from the CBA, handle it gently because it may be damaged if force is applied.

Hot Air Blower

2. Installation

1. Using desoldering braid, remove the solder from the foil of each pin of the flat pack-IC on the CBA so you can install a replacement flat pack-IC more easily.

2. The “ I ” mark on the flat pack-IC indicates pin 1. (See Fig. S-1-7.) Be sure this mark matches the pin 1 on the PCB when positioning for installation. Then presolder the four corners of the flat pack-IC. (See Fig. S-1-8.)

3. Solder all pins of the flat pack-IC. Be sure that none of the pins have solder bridges.

Example :

Pin 1 of the Flat Pack-IC is indicated by a " " mark.

Fig. S-1-7

To Solid Mounting Point

CBA

Tweezers

Iron Wire

Soldering Iron

Fig. S-1-5

Fine Tip Soldering Iron

Flat Pack-IC

Presolder

Flat Pack-IC

CBA

Fig. S-1-8

Fig. S-1-6

3-3 TVN_SN

Page 12

Instructions for Handling Semiconductors

Electrostatic breakdown of the semi-conductors may occur due to a potential difference caused by electrostatic charge during unpacking or repair work.

1. Ground for Human Body

Be sure to wear a grounding band (1 MΩ) that is properly grounded to remove any static electricity that may be charged on the body.

2. Ground for Workbench

Be sure to place a conductive sheet or copper plate with proper grounding (1 MΩ) on the workbench or other surface, where the semi-conductors are to be placed. Because the static electricity charge on clothing will not escape through the body grounding band, be careful to avoid contacting semi-conductors with your clothing.

1MΩ

CBA

Grounding Band

1MΩ

CBA

Conductive Sheet or Copper Plate

3-4 TVN_SN

Page 13

CABINET DISASSEMBLY INSTRUCTIONS

1. Disassembly Flowchart

This flowchart indicates the disassembly steps for the cabinet parts and the CBA in order to gain access to items to be serviced. When reassembling, follow the steps in reverse order. Bend, route and dress the cables as they were.

[12] Function CBA

[13] IR Sensor CBA

[14]*1 Junction CBA

[10] Speaker Holder

[11] Speaker

[1] Stand

Assembly

[2] Rear Assembly

[3] Jack Holder (D)

[4] Digital Main CBA Unit

[5] Jack Holder (A)

[6] Jack CBA

[7] Main CBA

Step/

Loc.

No.

Part

Fig.

No.

Removal Note

12(S-9), CN102,

[7] Main CBA

CN201, CN872,

CN1550, CN1650, CN1750

Stand

[8]

Holder

D2 2(S-10), 3(S-11) ---

LCD

[9]

Module

D2 --------------- ---

Assembly

[10]

Speaker Holder

4(S-12), 4(S-13),

Speaker Cushion

[11] Speaker D2 --------------- ---

[12]

[13]

[14]

Function CBA

IR Sensor CBA

Junction

CBA

CL103B ---

D3 D2

(S-14), CL102A

D3 D2

--------------- ---

---

[8] Stand Holder

[9] LCD Module Assembly

[15] Front Cabinet

2. Disassembly Method

Step/

Loc.

No.

Stand

[1]

Assembly Rear

[2]

Assembly Jack

[3]

Holder(D)

Digital Main

[4]

CBA UnitD2D3

Part

Fig.

No.

Removal Note

D1 4(S-1) ---

D1 9(S-2), (S-3) ---

D2 (S-4) ---

4(S-5), 4(S-6), 2(H-1), CN3701, CN3702, CN3902, Shield Box

---

Front

[15]

Cabinet

↓

(1)

: 22PFL3505D/F7 (Serial No.: DS1A)

↓

(2)

D2 --------------- ---

↓

(3)

↓

(4)

↓

(5)

Note:

(1) Order of steps in procedure. When reassembling,

follow the steps in reverse order. These numbers are also used as the Identification (location) No. of parts in figures.

(2) Parts to be removed or installed. (3) Fig. No. showing procedure of part location (4) Identification of parts to be removed, unhooked,

unlocked, released, unplugged, unclamped, or desoldered. P = Spring, L = Locking Tab, S = Screw, H = Hex Screw, CN = Connector e.g. 2(S-2) = two Screws of (S-2), 2(L-2) = two Locking Tabs of (L-2)

(5) Refer to the following "Reference Notes in the

Table."

Jack

[5]

Holder(A)

[6] Jack CBA

D2 (S-7) ---

4(S-8), CN701, CN871 ---

4-1 PL10.1DC

Page 14

[2] Rear Assembly

(S-2)

[1] Stand Assembly

(S-1)

(S-2)

(S-3)

(S-2)

Fig. D1

4-2 PL10.1DC

Page 15

[15] Front Cabinet

(S-13)

Speaker Cushion

(S-12)

[11] Speaker

[9] LCD Module Assembly

(S-6)

[4] Digital Main CBA Unit

[3] Jack Holder(D)

(S-4)

[11] Speaker

Speaker Cushion

(S-12)

[10] Speaker Holder

[12] Function CBA

[14]*

Junction

CBA

(S-14)

[8] Stand Holder

[13] IR Sensor CBA

[7] Main CBA

*1: 22PFL3505D/F7 (Serial No.: DS1A)

(S-10)

(S-9)

(S-11)

Shield Box

(H-1)

[5] Jack Holder(A)

(S-9)

[6] Jack CBA

Fig. D2

(S-5)

(S-7)

(S-8)

4-3 PL10.1DC

Page 16

TV Cable Wiring Diagram

To LCD Module Assembly

Main CBA

To LCD Module Assembly

Digital Main CBA Unit

CN1550

CN1650

CN1750

CN872

To Speaker

AC CORD

CN201

CN301

CN302

CN702

CN102

Junction CBA

CN101 CL102A

CN3902

CN3701

CN3702

Jack CBA

CN701

CN871

To Speaker

Function CBA

CL103B

IR Sensor CBA

CL103A

CL102B

22PFL3505D/F7 (Serial No.: DS1A)

Fig. D3

4-4 PL10.1DC

Page 17

ELECTRICAL ADJUSTMENT INSTRUCTIONS

General Note: “CBA” is abbreviation for “Circuit Board Assembly.”

Note: Electrical adjustments are required after

replacing circuit components and certain mechanical parts. It is important to perform these adjustments only after all repairs and replacements have been completed. Also, do not attempt these adjustments unless the proper equipment is available.

Test Equipment Required

1. NTSC Pattern Generator (Color Bar W/White Window, Red Color, Dot Pattern, Gray Scale, Monoscope, Multi-Burst)

2. Remote control unit

3. Color Analyzer

How to set up the service mode:

Service mode:

1. Turn the power on.

2. Press [MENU] button to display Setup menu.

3. Select “Features”.

4. Select “Current Software Info”.

5. Press [0], [6], [2], [5], [9], [6] and [Info] buttons on the remote control unit in this order. The following screen appears.

"*" differs depending on the models.

Code :

*******-***-*-*****-****

Pic code :

**-*******-*****-**

MIPS :

Push 0key

Press "POWER" key to exit.

Tuner :

****-*****-**** safety_Non

Safety :

5-1 PL10.3EA

Page 18

1. Purity Check Mode

2. VCOM Adjustment

This mode cycles through full-screen displays of red, green, blue, and white to check for non-active pixels.

1. Enter the Service mode.

2. Each time the [7] button on the remote control unit is pressed, the display changes as follows.

Purity Check Mode

White mode

[7] button

Black mode

[7] button

Red mode

[7] button

Green mode

[7] button

Blue mode

Test Point Adj. Point

Screen

[CHANNEL UP/DOWN ]

buttons

M. EQ. Spec.

Color analyzer See below

Figure

To avoid interference from ambient light, this adjustment should be performed in a dark room.

Perpendicularity

L = 1.18 inches

Color Analyzer

1. Operate the unit for more than 60 minutes.

2. Set the color analyzer at the zero point calibration and bring the optical receptor pointing at the center of the LCD-Panel at a distance of 1.18 inches(3cm) away from the LCD-Panel surface. Note: The optical receptor must be set perpendicularly to the LCD Panel surface.

3. Enter the Service mode.

4. Press [3] button on the remote control unit.

5. Press [CHANNEL UP/DOWN] buttons on the remote control unit so that the color analyzer value becomes minimum.

6. To cancel or to exit from the VCOM Adjustment, press [PREV CH] button.

[7] button

White 20% mode

Note:

When entering this mode, the default setting is White mode.

3. To cancel or to exit from the Purity Check Mode, press [PREV CH] button.

5-2 LC8NEA

Page 19

The White Balance Adjustment should be performed when replacing the LCD Panel or Digital Main CBA.

3. White Balance Adjustment

Purpose: To mix red, green and blue beams correctly

for pure white. Symptom of Misadjustment: White becomes bluish

or reddish.

Test Poi nt

Screen

Adj. Point Mode Input

[VOLUME

DOWN]

button

[VIDEO1]

C/D

M. EQ. Spec.

White Raster

(APL 70%)

(APL 40%)

5. [CUTOFF] Press [1] button to select “COR” for Red Cutoff adjustment. Press [3] button to select “COB” for Blue Cutoff adjustment.

[DRIVE]

Press [4] button to select “DR” for Red Drive adjustment. Press [6] button to select “DB” for Blue Drive adjustment.

6. In each color mode, press [CHANNEL UP/DOWN] buttons to adjust the values of color.

7. Adjust Cutoff and Drive so that the color temperature becomes 12000°K (x

0.272 / y

0.278 ±0.005).

8. To cancel or to exit from the White Balance Adjustment, press [PREV CH] button.

Pattern Generator,

Color analyzer

x= 0.272 ± 0.005 y= 0.278 ± 0.005

Figure

To avoid interference from ambient light, this adjustment should be performed in a dark room.

Perpendicularity

L = 1.18 inches

INPUT: WHITE 70%, 40%

Color Analyzer

1. Operate the unit for more than 60 minutes.

2. Input the White Raster(70%=70IRE, 40%=40IRE).

INPUT SIGNAL

0IRE 0IRE

Low

Hight

Light

100IRE

40%=40IRE

70%=70IRE

100IRE

3. Set the color analyzer at the CHROMA mode and zero point calibration. Bring the optical receptor pointing at the center of the LCD-Panel at a distance of 1.18 inches(3cm) away from the LCDPanel surface. Note: The optical receptor must be set perpendicularly to the LCD Panel surface.

4. Enter the Service mode. Press [VOLUME DOWN] button on the remote control unit and select “C/D” mode.

5-3 LC8NEA

Page 20

HOW TO INITIALIZE THE LCD TV

The purpose of initialization is to place the set in a new out of box condition. The customer will be prompted to select a language and program channels after the set has been initialized. To put the program back at the factory-default, initialize the LCD TV using the following procedure.

1. Turn the power on.

2. Enter the service mode.

- To cancel the service mode, press [POWER]

button on the remote control unit.

3. Press [INFO] button on the remote control unit to initialize the LCD television.

4. "INITIALIZED" will appear in the upper right of the screen. "INITIALIZED" color will change to green from red when initializing is completed.

6-1 PL10.3INT

Page 21

FIRMWARE RENEWAL MODE

Equipment Required

a. USB storage device b. Remote Control Unit

Firmware Update Procedure

Note: There are two states (the User Upgrade and

the Factory Upgrade) in firmware update.

User Upgrade Upgrade the firmware only.

The setting values are not initialized.

Factory upgrade Upgrade the firmware and

initialize the setting values.

The identification of User Upgrade and Factory Upgrade are done by the filename.

1. Turn the power off and unplug the AC Cord.

2. Insert the USB storage device to the USB port as shown below.

USB port

Rear Cabinet

USB storage device

The appearance shown in *1 is described as follows.

Appearance State

Downloading...

Writing...

Downloading the firmware from the USB storage device.

Writing the downloaded firmware in flash memory.

Checking... Checking the new firmware.

5. When the firmware update is completed, the following will appear on the screen.

Software Upgrade

The software upgrade is completed. Remove USB storage device, turn TV off then on again.

Remove the USB storage device from the USB port. Turn the power off and turn the power on again.

Note:

When the Factory Upgrade is used, after restarting TV, shift to initial screen menu in service mode. "INITIALIZED" will appear on the upper right of the screen. "INITIALIZED" color will change to green from red when initializing is completed.

3. Plug the AC cord in the wall outlet and turn the power on.

4. The update will start and the following will appear on the screen.

"*" differs depending on the models.

Software Upgrade

Software upgrade in progress. Please wait. Do not remove the USB storage device or turn the TV off while upgrade is in progress.

Current Version:

New Version:

Downloading...

*******-***-*-***-**** *******-***-*-***-****

Note: If the above screen isn’t displayed, repeat from

step 1.

7-1 PL10.0FW

Page 22

[ Power Supply Section ]

FLOW CHART NO.1

The power cannot be turned on.

TROUBLESHOOTING

Is the fuse (F601) normal?

Ye s

Is normal state restored when once unplugged power cord is plugged again several seconds?

Ye s

Is the INV+31V line voltage normal?

Ye s

Check each rectifying circuit of the secondary circuit and service it if de

FLOW CHART NO.2

The fuse blows out.

Check the presence that the primary component is leaking or shorted and service it if defective.

After servicing, replace the fuse.

FLOW CHART NO.3

When the output voltage fluctuates.

fective.

See FLOW CHART No.2 <The fuse blows out.>

Check if there is any leak or short-circuiting on the primary circuit component, and service it if defective. (D601, D602, D603, D604, Q601, Q602, Q603, IC602, T601)

Check the presence that the rectifying diode or circuit is shorted in each rectifying circuit of secondary side, and service it if defective.

Does the photocoupler circuit on secondary side operate normally?

Check IC601, D circuit and service it if defective.

FLOW CHART NO.4

When buzz sound can be heard in the vicinity of power circuit.

Check if there is any short-circuit on the rectifying diode and the circuit and service it if def D638, D639, D641, D643)

FLOW CHART NO.5

INV+31V is not output.

Is approximately +31V voltage supplied to the cathode of D632?

Check if there is circuit, and service it if def

615, D616 and their periphery,

ective. (IC631, Q201, Q205, Q206, Q634, Q6

any leak or short-circuit on the loaded

the

Ye s

ective.

36, Q637, Q640, Q641, Q

Check IC601, D633, D648, Q631 and their periphery circuit, and service it if defective.

in each rec

Check C632, D632, D633 and their periphery circuit, and service it if defective.

tifying circuit of the secondary side,

643, D631, D632, D636,

8-1 PL10.1TR

Page 23

FLOW CHART NO.6

PANEL+24.5V is not output.

Is approximately +30V voltage supplied to the collector of Q205?

Ye s

Check Q202, Q203, D203, D205, P-ON-H1 line and their periphery circuit, and service it if defective.

FLOW CHART NO.7

PANEL+13V is not output.

Is approximately collector of Q201?

Is approximately +14V voltage supp base of Q201?

Replace Q201.

FLOW CHART NO.8

P-ON+7V is not output.

+15V voltage supp

Ye s

lied to the

Ye s

See FLOW CHART No.5 <INV+31V is not output.>

Check C631, D and service it if de

Check Q202, Q203, D201, D202, D210 and their periphery circuit, and ser

631, D668 and their periphery circuit,

fective.

vice it if defective.

Is approximately + cathde of D641?

Check if there is any leak or short-circuit on the loaded circuit, and service it if defective.

FLOW CHART NO.9

P-ON+5V is not output. (PANEL+13V is outputted normally.)

Is approximately + collector of Q636?

Is approximately +6V voltage supp base of Q636?

Replace Q636.

7V voltage supplied to the

Ye s

6.3V voltage supplied to the

Ye s

lied to the

Ye s

Check C641, D641 and their periphery circuit, and service it if de

See FLOW CHAR

Check D659 and it if defective.

fective.

T No.8 <P-ON+7V is not output.>

their periphery circuit, and service

8-2 PL10.1TR

Page 24

FLOW CHART NO.10

TUNER+5V is not output. (PANEL+13V is outputted normally.)

Is approximately +6.3V voltage supplied to the collector of Q637?

Ye s

Is approximately +6V voltage supplied to the base of Q637?

Ye s

Replace Q637.

FLOW CHART NO.11

P-ON+3V is not output.

Is approximately +3V voltage supplied to the cathode of D638?

Ye s

Check if there is the loaded circuit, and ser

FLOW CHART NO.12

P-ON+3.3V(PANEL+3.3V) is not output.

any leak or short-circuit on

vice it if defective.

See FLOW CHART No.8 <P-ON+7V is not output.>

Check D659 and their periphery circuit, and service it if defective.

Check C638, D638 and their periphery circuit, and service it if defective.

Is approximately + cathode of D639?

Is the "H" s

Replace Q640.

FLOW CHART NO.13

P-ON+9V is not output. (PANEL+13V is outputted normally.)

Is approximately +14V voltage supplied to the collector of Q641?

Is approximately +10V voltage supplied to the base of Q641?

Replace Q641.

5V voltage supplied to the

Ye s

ignal inputted to the base of Q640?

Ye s

Check C639, D639 and their periphery circuit, and service it if defective.

Check Q638, Q639, P-ON-H2 line an circuit, and service it if defective.

Check C643, D643 and their periphery circuit, and service it if defective.

Check D666 and it if defective.

their periphery circuit, and service

d their periphery

8-3 PL10.1TR

Page 25

FLOW CHART NO.14

AL+3.3V is not output. (P-ON+7V is outputted normally.)

Is approximately +5V voltage supplied to Pin(3) of IC631?

Ye s

Replace IC631.

FLOW CHART NO.15

LCD-7.1V is not output.

Is approximately -9V voltage supplied to the Anode of D636?

Ye s

Is approximately base of Q206?

Replace Q206.

-8V voltage supplied to the

Ye s

Check D654, D655, R659, R682 and their periphery circuit, and service it if defective.

Check C636, D636, D637 and their per circuit, and service it if defective.

Check Q202, Q2 peripher

y circuit, and service it if defective.

03, D204, P-ON-H1 line and their

iphery

FLOW CHART NO.16

SP+14V is not output.

Is approximately +15V voltage supplied to the cathode of D643?

Ye s

Check if there is loaded circuit, and se

any leak or short-circuit on the

rvice it if defective.

Check C643, D643 and their periphery circuit, and service it if defective.

8-4 PL10.1TR

Page 26

[ Video Signal Section ]

FLOW CHART NO.1

The key operation is not functioning.

Are the contact point and installation state of the key switches (SW101, SW103~SW107) nor

Ye s

When pressing each switches (SW101, SW103~SW107) do the voltage of Pin(29) of CN302 increase?

Ye s

Replace Digital Main CBA Unit.

FLOW CHART NO.2

No operation is possible from the remote control unit.

Operation is possible from the unit.

Is 3.3V voltage supplied to Pin(2) ter remote control receiver (RS101

Ye s

Is the "L" pulse sent out Pin(1) terminal of remote control receiver (RS101) when the infrared remote

control is activated?

Ye s

Is the "L" pulse supplied to Pin(25

Ye s

Replace Digital Main CBA Unit.

mal?

minal of the

) of CN301?

Re-install the switches (SW101, SW103~SW107) correctly or replace the poor switch.

Check the switches (SW101, SW103~SW107) and their periphery, and service it if defective.

Check AL+3.3V line and service it if defective.

Replace the remote control receiver(RS101) or the remote control unit.

Check the line between Pin(1) terminal of remote control receiver(RS101) and Pin(25) of CN301, and service it if defective.

FLOW CHART NO.3

Picture does not appear normally.(Video input)

Are the video signal inputted to Pin(

Is the "H" level inputted to the Pin(5) of CN302?

Replace Digital Main CBA Unit or LCD Module Assembly.

4) of CN302?

Ye s

Check the line between Pin(4) of CN302 and JK752, and service it if defective.

Check JK751, R678 and their periphery, and service it if defective.

8-5 PL10.1TR

Page 27

FLOW CHART NO.4

Picture does not appear normally.(Tuner input)

Are the DIF signal inputted to Pin(26,28) of CN302?

Ye s

Replace Digital Main CBA Unit or LCD Module Assembly.

FLOW CHART NO.5

Picture does not appear normally.(S-Video input)

Are the video signal o

Pin(6): S-VIDEO-C-IN Pin(8): S-VIDEO-Y-IN

Is the "L" signal inputted

Replace Digital Main Assembly.

utputted to Pin(6, 8) of C

Ye s

to the Pin(5) of CN302?

Ye s

CBA Unit or LCD Module

N302?

Check the line between Pin(26, 28) of CN302 and TU301 or TU302, and service it if defective.

Check the line between Pin(6, 8) of CN302 and JK751, and service it if defective.

Is the "L" signal inputted

Check CL701, C and their periphery, and service it if defective.

N701, CN702

to the Pin(19) of CN701?

Ye s

Replace JK751

FLOW CHART NO.6

Picture does not appear normally.(Y/Pb/Pr input)

Are the video signal inputted to Pin CN302?

Pin(15): VIDEO-Y-IN Pin(17): VIDEO-Pb-IN Pin(19): VIDEO-Pr-IN

Replace Digital Main Assembly.

CBA Unit or LCD Module

(15, 17, 19) of

Ye s

Check the line b and input terminals(JK731, JK732, JK733), and service it if defective.

etween Pin(15, 17, 19) of CN302

8-6 PL10.1TR

Page 28

[ Audio Signal Section ]

FLOW CHART NO.1

Audio is not outputted normally.(Audio input)

Are the audio(L/R) signals inputted to Pin(2, 15) of IC771?

Ye s

Are the audio(L/R) signals inputted to Pin(6, 8) of CN301?

Ye s

Are the audio(L/R) si of IC803?

Are the audio(L/R) si of IC801?

Are the audio(L/R) signals outputte of IC801?

Check JK851, SP861,SP862 and their periphery circuit, and service it if defective.

gnals inputted to Pin(3, 5)

Ye s

gnals outputted to Pin(1, 7)

Ye s

gnals inputted to Pin(1, 9)

Ye s

d to Pin(4, 6)

Ye s

Check the line between Pin(2, 15) of IC771 and input terminal(JK753, JK754), and service it if defective.

Replace Digital Main CBA Unit.

Check the line b Pin(3, 5) of IC803, and service it if defective.

Replace IC803

Check the line b Pin(1, 9) of IC801, and service it if defective.

Check IC801 and their periphery circuit, and service it if defective.

etween Pin(6, 8) of CN301 and

etween Pin(1, 7) of IC803 and

FLOW CHART NO.2

Audio is not outputted normally.(Component Audio input)

Are the audio(L/R) signals inputted to Pin(4, 11) of IC771?

Ye s

Are the audio(L/R) signals inputted to Pin(6, 8) of CN301?

Ye s

Are the audio(L/R) signals inputted to Pin(3, 5) of IC803?

Ye s

Are the audio(L/R) signals outputted to Pin(1, 7) of IC803?

Ye s

Are the audio(L/R) signals inputted to Pi of IC801?

Ye s

Are the audio(L/R) signals outputted to of IC801?

Ye s

n(1, 9)

Pin(4, 6)

Check the line between Pin(4, 11) of IC771 and input terminal(JK741, JK742), and service it if defective.

Replace Digital Main

Check the line b Pin(3, 5) of IC803, and s

Replace IC803

Check the line between Pin(1, 7) of IC803 and Pin(1, 9) of IC801, and service it if defective.

Check IC801 and their periphery circuit, and service it if de

fective.

CBA Unit.

etween Pin(6, 8) of CN301 and

ervice it if defective

Check JK851, SP861,SP862 and their periphery circuit, and service it if defective.

8-7 PL10.1TR

Page 29

FLOW CHART NO.3

Audio is not outputted normally.(Tuner input)

Are the DIF signals outputted to Pin(26, 28) of CN302?

Ye s

Are the audio(L/R) signals inputted to Pin(6, 8) of CN301?

Ye s

Are the audio(L/R) signals inputted to Pin(3, 5) of IC803?

Ye s

Are the audio(L/R) si of IC803?

Are the audio(L/R) si of IC801?

Check JK851, SP861,SP862 and their periphery circuit, and service it if defective.

gnals outputted to Pin(1, 7)

Ye s

gnals inputted to Pin(1, 9)

Ye s

gnals outputted to Pin(4, 6)

Ye s

Check TU301 or TU302 and their periphery circuit, and service it if defective.

Replace Digital Main CBA Unit.

Check the line between Pin(6, 8) of CN301 and Pin(3, 5) of IC803, and service it if defective.

Replace IC803

Check the line b Pin(1, 9) of IC801, and service it if defective.

Check IC801 and their periphery circuit, and service it if defective.

etween Pin(1, 7) of IC803 and

FLOW CHART NO.4

Audio is not outputted normally.(HDMI Audio input)

Are the audio(L/R) signals inputted to Pin(5, 14) of IC771?

Ye s

Are the audio(L/R) signals inputted to Pin(6, 8) of CN301?

Ye s

Are the audio(L/R) signals inputted to Pin(3, 5) of IC803?

Ye s

Are the audio(L/R) signals outputted to Pin(1, 7) of IC803?

Ye s

Are the audio(L/R) signals inputted to Pi of IC801?

Ye s

Are the audio(L/R) signals outputted to of IC801?

Ye s

n(1, 9)

Pin(4, 6)

Check the line between Pin(5, 14) of IC771 and input terminal(JK721, JK722), and service it if defective.

Replace Digital Main

Check the line b Pin(3, 5) of IC803, and s

Replace IC803

Check the line between Pin(1, 7) of IC803 and Pin(1, 9) of IC801, and service it if defective.

Check IC801 and their periphery circuit, and service it if de

fective.

CBA Unit.

etween Pin(6, 8) of CN301 and

ervice it if defective

Check JK851, SP861,SP862 and their periphery circuit, and service it if defective.

8-8 PL10.1TR

Page 30

FLOW CHART NO.5

Audio is not outputted normally.(PC Audio input)

Are the audio(L/R) signals inputted to Pin(1, 12) of IC771?

Ye s

Are the audio(L/R) signals inputted to Pin(6, 8) of CN301?

Ye s

Are the audio(L/R) signals inputted to Pin(3, 5) of IC803?

Ye s

Are the audio(L/R) si of IC803?

Are the audio(L/R) signals inputted to Pin(1, 9) of IC801?

Are the audio(L/R) signals outputte of IC801?

Check JK851, SP861,SP862 and their periphery circuit, and service it if defective.

gnals outputted to Pin(1, 7)

Ye s

d to Pin(4, 6)

Ye s

Check the line between Pin(1, 12) of IC771 and input terminal(JK711), and service it if defective.

Replace Digital Main CBA Unit.

Check the line between Pin(6, 8 Pin(3, 5) of IC803, and service it if defective.

Replace IC803

Check the line between Pin(1, 7) of IC803 and Pin(1, 9) of IC801, and service it if defective.

Check IC801 an service it if defective.

d their periphery circuit, and

) of CN301 and

8-9 PL10.1TR

Page 31

BLOCK DIAGRAMS

System Control Block Diagram [22PFL3505D/F7 (Serial No.:DS1A)]

POWER

D101

SENSOR

REMOTE

RS101

CL102B

REMOTE22

P-ON+5V55

KEY-IN144

CL103ACL103B

KEY-IN133

POWER SUPPLY

BLOCK DIAGRAM

INVERTER

BLOCK

DIAGRAM

CL102A

JUNCTION

CBA

CN101

REMOTE22

P-ON+5V55

KEY-IN144

CN102

P-ON+5V

CN302CN3702

KEY-IN129 29

KEY SWITCH

FUNCTION CBA IR SENSOR CBA

CN301CN3701

P-ON-H199

REMOTE25 25

P-ON-H211

VCOM

IC201,Q207,

Q208,Q209

P-ON-H2

DRIVE

P-ON-H1

PROTECT1

CN301CN3701

PROTECT1

PROTECT2

PROTECT3

BACKLIGHT-SW

VCOM-PWM

PROTECT3 5

BACKLIGHT-SW

BACKLIGHT-ADJ

MAIN CBA

SCL

SDA

TU302 (TUNER UNIT)

Either TU301 or TU302 is used for Main CBA.

SCL

CN3702 CN302

SDA

SCL

SDA

TU301 (TUNER UNIT)

IC3301

(MAIN MICRO CONTROLLER)

AC5

KEY-IN1

R22

R23

AB13

P-ON-H2

P-ON-H1

REMOTE

AUDIO-MUTE

INPUT0

INPUT1

AB9

AUDIO-MUTE

INPUT0

INPUT1

TO AUDI O

BLOCK

DIAGRAM

9-1

AD4

AD5

PROTECT2

PROTECT1

AE5

AB18

PROTECT3

VCOM-PWM

AB16

BACKLIGHT-SW

AB23

BACKLIGHT-ADJ

AC18

AC19

SCL

SDA

CLKOUT

E11

CLKIN

25MHz

X3101

OSC

DIGITAL MAIN CBA UNIT

SCK

SIN

SOUTCSWP

AB25

AB24

AC25

AC24

652

SCK

IC3101 (MEMORY)

PL10.1ABLS

Page 32

System Control Block Diagram [22PFL3505D/F7 (Serial No.:DS2A, XA1A)]

KEY SWITCH

FUNCTION CBA

KEY-IN133

RS101

POWER

D101

SENSOR

REMOTE

CL102B

REMOTE22

P-ON+5V55

KEY-IN144

CN102

P-ON+5V

CL103A CL103B

CN302CN3702

KEY-IN129 29

IR SENSOR CBA

CN301CN3701

P-ON-H199

REMOTE25 25

P-ON-H211

VCOM

IC201,Q207,

Q208,Q209

P-ON-H2

DRIVE

POWER SUPPLY

BLOCK DIAGRAM

P-ON-H1

PROTECT1

CN301CN3701

PROTECT1

PROTECT2

INVERTER

PROTECT3

BACKLIGHT-SW

VCOM-PWM

PROTECT3

BACKLIGHT-SW

BLOCK

DIAGRAM

BACKLIGHT-ADJ

TU302 (TUNER UNIT)

Either TU301 or TU302 is used for Main CBA.

SCL

CN3702 CN302

SDA

SCL

SDA

TU301 (TUNER UNIT)

MAIN CBA

IC3301

(MAIN MICRO CONTROLLER)

AC5

KEY-IN1

R22

R23

AB13

P-ON-H2

P-ON-H1

REMOTE

AUDIO-MUTE

INPUT0

INPUT1

AB9

AUDIO-MUTE

INPUT0

INPUT1

TO AUDIO

BLOCK

DIAGRAM

9-2

PROTECT1 AD5

PROTECT2 AD4

AE5

AB18

AB16

PROTECT3

VCOM-PWM

BACKLIGHT-SW

AB23

BACKLIGHT-ADJ

AC18

AC19

SCL

SDA

SCK

SIN

SOUTCSWP

E11

AB25

AB24

AC25

AC24

652

SCK

IC3101 (MEMORY)

X3101

CLKOUT

CLKIN

25MHz

OSC

DIGITAL MAIN CBA UNIT

PL10.1BBLS

Page 33

Video Block Diagram

AUDIO SIGNAL

TO DIGITAL

SIGNAL PROCESS

BLOCK DIAGRAM

VIDEO SIGNAL

VIDEO-IN

S-VIDEO-SW

S-VIDEO-Y-IN

S-VIDEO-C-IN

COM-VIDEO-Y-IN

COM-VIDEO-Pr-IN

COM-VIDEO-Pb-IN

S-VIDEO-C-IN6 6

S-VIDEO-Y-IN88

VIDEO-IN4 4

COM-VIDEO-Y-IN

COM-VIDEO-Pb-IN

S-VIDEO-SW5 5

15 15

17 17

CN302 CN3702

WF1WF2

WF3

COM-VIDEO-Pr-IN

19 19

WF6

WF4 WF5

VGA-R-IN

VGA-G-IN

123

VGA-B-IN

JK3703

VGA-VSYNC

VGA-HSYNC

131415

PC-RGB

VGA-SCL

VGA-SDA

IF-AGC

DIF-OUT1

DIF-OUT2

DIGITAL MAIN CBA UNIT

IF-AGC24 24

DIF-OUT228 28

DIF-OUT126 26

CN302 CN3702

JK752

VIDEO-IN

CN702

VIDEO-IN 27

272826

CN701

2020

S-VIDEO-C-IN

S-VIDEO-Y-IN 26

S-VIDEO-SW 1919

COM-VIDEO-Y-IN

JK751

S-VIDEO

-IN

1818

1616

COM-VIDEO-Pb-IN

COM-VIDEO-Pr-IN

COMPONENT

-Y-IN

JK731

JK732

COMPONENT

-Pb-IN

COMPONENT

-Pr-IN

JK733

9-3

MAIN CBA

IF-AGC

DIF-OUT1

DIF-OUT2

IF-AGC

DIF-OUT1

DIF-OUT2

JACK CBA

TU302

Either TU301 or TU302 is used for Main CBA.

(TUNER UNIT)

TU301

(TUNER UNIT)

PL10.1BLV

Page 34

Audio Block Diagram

AUDIO SIGNAL

DIGITAL

SIGNAL

AUDIO(L)

CN3702CN302

AUDIO(L)13 13

PROCESS

BLOCK

DIAGRAM

AUDIO(R)

AUDIO(R)11 11

SYSTEM

INPUT1

CN3702CN302

INPUT110 10

CONTROL

BLOCK

INPUT0

AUDIO-MUTE

INPUT012 12

DIAGRAM

IC3801

(D/A CONVERTER)

BCLK

LRCLK

876

(R-CH)

AD ATA 0

D/A

(L-CH)

CONVERTER

DIGITAL

SIGNAL

PROCESS

BLOCK

DIAGRAM

ACLK

CN3701CN301

SPDIF

CN3702

AUDIO-MUTE 2020

SPDIF

AMP(L)-OUT66

AMP(R)-OUT88

CN302

WF7

IC803

(OP AMP)

1 3

Q801

DRIVE

MUTE CONTROL

9,109,10

HEADPHONE(L)

SP(R) 1,21,2

MAIN CBA DIGITAL MAIN CBA UNIT

IC771

(AUDIO SELECTOR)

241

CN702CN701

BUFFER

Q773

BUFFER

151112

Q774

CONTROL

LOGIC

2323

SPDIF

AUDIO(L)13 13

AUDIO(R)15 15

INPUT124 24

INPUT022 22

DRIVE

IC801 (AUDIO AMP)

Q722

Q771

109

3,43,4

CN702CN701

HEADPHONE(R)

JACK CBA

CN872

SP(R)1SP-GND 2

Q841

CN871

BUFFER

SP(L)1SP-GND 2

AUDIO(L)

JK753

-IN

AUDIO(R)

JK754

-IN COMPONENT-

JK741

AUDIO(L)-IN

COMPONENT-

JK742

AUDIO(R)-IN

PC-AUDIO-IN

JK711

HDMI-

JK721

AUDIO(L)-IN

HDMI-

JK722

DIGITAL

JK841

AUDIO(R)-IN

9-4

AUDIO-OUT

(COAXIAL)

JK851

HEADPHONE

JACK

SP861

SPEAKER

L-CH

SP862

SPEAKER

R-CH

PL10.1BLA

Page 35

Digital Signal Process Block Diagram

LCD MODULE

ASSEMBLY

LLV1(+)21

LLV1(-)20

LLV0(+)23

LLV0(-)22

LLV2(+)19

LLV2(-)18

LLV3(+)13

LLV3(-)12

LLV4(+)11

LLV4(-)10

LLV5(+)9

LLV5(-)8

LLVCLK(+)16

LLVCLK(-)15

TP6

POL5

CPV4

OE13

STV1

CN3902

AUDIO SIGNAL

VIDEO SIGNAL

Y24

Y23

AD23

AD24

AE23

AF23

AF22

AE22

AD21

AD22

AE21

AF21

AF20

AE20

AF24

AE24

W25

W23

POL

CPV

Y22

STV

IC3201

(DDR2 SDRAM)

B1,B9,C2,C8,

D1,D3,D7,D9,

DATA(0-15)

ADDESS(0-12)

H1,H3,H7,H9

F1,F9,G2,G8,

M2,M3,M7,M8,

N2,N3,N7,N8,

P2,P3,P7,P8,R2

VGA-HSYNC

IC3301 (DIGITAL SIGNAL PROCESS)

VGA-VSYNC

VGA-SCL

VGA-SDA

AE9

AB11

LVDS TX

DIGITAL

SIGNAL

PROCESS

AUDIO I/F

A/D

CONVERTER

DEMODULATOR

/MPEG DECODER

S-VIDEO-SW

IF-AGC

AF7

AF2

AE2

AD9

AC10

AD12

AD10

AD11

T3T1T2

AA3

AUDIO

DECODER

HDMI

I/F

B10

A10

A11

B11

A13-15,A18,

A21-23,B13-15,

B17,B19-23

B4A4B6A6A7

C15,C17-19,

C23,C24,D14,

D15,D17-19,

D22,D23

VIDEO

DECODER

VGA-HSYNC

VGA-VSYNC

DIGITAL MAIN CBA UNIT

VGA-SCL

VGA-SDA

VGA-R-IN

VGA-G-IN

VIDEO-IN

VGA-B-IN

S-VIDEO-Y-IN

S-VIDEO-C-IN

COM-VIDEO-Y-IN

COM-VIDEO-Pb-IN

TO VIDEO

BLOCK DIAGRAM

DIF-OUT1

DIF-OUT2

COM-VIDEO-Pr-IN

IF-AGC

S-VIDEO-SW

AUDIO(R)

AUDIO(L)

BCLK

9-5

LRCLK

TO AUDI O

BLOCK DIAGRAM

ACLK

SPDIF

AD ATA 0

TMDS-D0(+)

TMDS-D0(-)

TMDS-D1(+)

79461

TMDS-D1(-)

TMDS-D2(+)

TMDS-D2(-)

HDMI-IN1

JK3701

TMDS-CLOCK(+)

TMDS-CLOCK(-)

SDA

SCL

101216

TMDS-D0(+)

TMDS-D0(-)

TMDS-D1(+)

79461

TMDS-D1(-)

TMDS-D2(+)

TMDS-D2(-)

JK3702

HDMI-IN2

TMDS-CLOCK(+)

TMDS-CLOCK(-)

SDA

SCL

101216

PL10.1BLD

Page 36

Inverter Block Diagram

BACK

LIGHT

BACK

LIGHT

BACK

LIGHT

LCD MODULE

ASSEMBLY

CN1550

T1500

786

CN1650

786

T1600

CURRENT

CONTROL

SWITCH

Q1500

Q1600

CN1750

T1700

CURRENT

CONTROL

SWITCH

786

CURRENT

Q1700

CONTROL

SWITCH

Q1750

OVER VOLTAGE

Q1751

PROTECTOR

OVER VOLTAGE

PROTECTOR

Q1650

OVER VOLTAGE

Q1651

PROTECTOR

OVER VOLTAGE

PROTECTOR

Q1550

OVER VOLTAGE

Q1551

PROTECTOR

OVER VOLTAGE

PROTECTOR

Q1004,Q1011,

Q1013,Q1014

Q1001,Q1002

INV+31V

SW+12.5V

PANEL+15V

VCC

VREF

IC1001

(PWM CONTROL)

Q1023,

Q1024

Q1005,

Q1007,

Q1008

DTC

DRIVE

Q1006,

PWM

Q1009,

Q1010

CONTROL

LOGIC

DRIVE

Q1003

IC1002

5 6

OSC

(COMPARATOR)

Q1401

PROTECT3

Q1402

BACKLIGHT-SW

67523

BACKLIGHT-ADJ

MAIN CBA

SYSTEM

CONTROL

BLOCK

DIAGRAM

9-6

PL10.1BLINV

Page 37

Power Supply Block Diagram

P-ON+3V

P-ON+7V

AL+3.3V

P-ON+3.3V

LCD MODULE ASSEMBLY

19,20

NOTE:

The voltage for parts in hot circuit is measured using

hot GND as a common terminal.

21,22

P-ON+5V

DIGITAL MAIN CBA UNIT

13,14

P-ON+3.3V

PANEL+13V

PANEL+12.5V

INV+33V

P-ON+9V

P-ON+5V

SP+14V

AL+3.3V

TUNER+5V

TO SYSTEM

P-ON-H1

P-ON-H2

CONTROL

BLOCK

DIAGRAM

VCOM

PROTECT2

PROTECT1

PANEL-7.1V8

P-ON+3.3V6,7

PANEL+24.5V4

PANEL+13V2,3

VCOM10

CN201

SW-7.1V

Q206

For continued protection against risk of fire,

replace only with same type 4 A, 125V fuse.

SW+24.5V

CAUTION ! :

ATTENTION : Utiliser un fusible de rechange de même type de 4A, 125V.

Q205

P-ON+7V16

P-ON+3V10

CN301 CN3701

SWITCHING

Q202,Q203

4A/125V

AL+3.3V21,22

P-ON+3.3V19,20

P-ON+5V14

SWITCHING

Q643

SW+3.3V

Q640,D662

SWITCHING

Q638,Q639

Q631

FEED

Q637

BACK

SW+12.5V

Q632

Q641

SW+9V

Q402

SW+13V

Q201,D202

111510

SW+5V

Q633

SW+5V

Q635,Q636

IC631

Q634

REG.

+3.3V

+5V REG.

T601

BRIDGE

RECTIFIER

D601- D604

LINE

FILTER

L601

F601

4A/125V

HOT CIRCUIT. BE CAREFUL.

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.

If Main Fuse (F601) is blown , check to see that all components in the power supply

circuit are not defective before you connect the AC plug to the AC power supply.

Otherwise it may cause some components in the power supply circuit to fail.

AC601

AC CORD

4A/125V

9-7

IC601

ERROR

VOLTAGE DET

3 2

HOT COLD

SWITCHING

Q602, Q603

5OUT

2FB3IS6VCC

ZCD

SWITCHING

Q601

SWITCHING

CONTROL

IC602

PL10.1BLP

MAIN CBA

Page 38

SCHEMATIC DIAGRAMS / CBA AND TEST POINTS

Standard Notes

WARNING

Many electrical and mechanical parts in this chassis have special characteristics. These characteristics often pass unnoticed and the protection afforded by them cannot necessarily be obtained by using replacement components rated for higher voltage, wattage, etc. Replacement parts that have these special safety characteristics are identified in this manual and its supplements; electrical components having such features are identified by the mark “#” in the schematic diagram and the parts list. Before replacing any of these components, read the parts list in this manual carefully. The use of substitute replacement parts that do not have the same safety characteristics as specified in the parts list may create shock, fire, or other hazards.

Notes:

1. Do not use the part number shown on these drawings for ordering. The correct part number is shown in the parts list, and may be slightly different or amended since these drawings were prepared.

2. All resistance values are indicated in ohms (K = 10

3. Resistor wattages are 1/4W or 1/6W unless otherwise specified.

4. All capacitance values are indicated in µF (P = 10

5. All voltages are DC voltages unless otherwise specified.

This schematic diagrams are masterized version that should cover the entire PL10.1 chassis models. Thus some parts in detail illustrated on this schematic diagrams may vary depend on the model within the PL10.1 chassis. Please refer to the parts lists for each models.

7. The Circuit Board layout illustrated on this service manual is the latest version for this chassis at the moment of making this service manual. Depend on the mass production date of each model, the actual layout of each Board may differ slightly from this version.

, M = 106).

-6

µF).

10-1 PL10.1SC

Page 39

LIST OF CAUTION, NOTES, AND SYMBOLS USED IN THE SCHEMATIC DIAGRAMS ON

THE FOLLOWING PAGES:

1. CAUTION:

CAUTION: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME

TYPE_A,_V FUSE.

ATTENTION: UTILISER UN FUSIBLE DE RECHANGE DE MÊME TYPE DE_A,_V.

2. CAUTION:

Fixed Voltage (or Auto voltage selectable) power supply circuit is used in this unit. If Main Fuse (F601) is blown, first check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail.

3. Note:

1. Do not use the part number shown on the drawings for ordering. The correct part number is shown in the parts list, and may be slightly different or amended since the drawings were prepared.

2. To maintain original function and reliability of repaired units, use only original replacement parts which are listed with their part numbers in the parts list section of the service manual.

4. Voltage indications on the schematics are as shown below:

Plug the TV power cord into a standard AC outlet.:

(Unit: Volt)

5.0 5.0

Power on mode

5. How to read converged lines

1-D3

Distinction Area

Line Number (1 to 3 digits)

Examples:

1. "1-D3" means that line number "1" goes to the line numbe "1" of the area "D3".

2. "1-B1" means that line number "1" goes to the line number "1" of the area "B1".

6. Test Point Information

: Indicates a test point with a jumper wire across a hole in the PCB.

: Used to indicate a test point with a component lead on foil side.

: Used to indicate a test point with no test pin.

: Used to indicate a test point with a test pin.

Voltage

Indicates that the voltage is not consistent here.

AREA D3

1-B1

AREA B1

1-D3

ABCD

10-2 PL10.1SC

Page 40

Main 1 Schematic Diagram

10-3

PL10.1SCM1

Page 41

Main 2 Schematic Diagram

10-4

PL10.1SCM2

Page 42

Main 3 Schematic Diagram

10-5

PL10.1SCM3

Page 43

Main 4 Schematic Diagram

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit. If Main Fuse (F601) is blown , check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail.

4A/125V

CAUTION ! :

ATTENTION : Utiliser un fusible de rechange de même type de 4A, 125V.

For continued protection against risk of fire, replace only with same type 4 A, 125V fuse.

NOTE:

The voltage for parts in hot circuit is measured using hot GND as a common terminal.

10-6

PL10.1SCM4

Page 44

Jack Schematic Diagram

10-7

PL10.1SCJ

Page 45

Function Schematic Diagram

10-8

PL10.1SCF

Page 46

IR Sensor & Junction Schematic Diagram

10-9

PL10.1SCIR

Page 47

Digital Main 1 Schematic Diagram

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3301. IC3301 is divided into five and shown as IC3301 (1/5) ~ IC3301 (5/5) in this Digital Main Schematic Diagram Section.

10-10

PL10.1SCD1

Page 48

Digital Main 2 Schematic Diagram

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3301. IC3301 is divided into five and shown as IC3301 (1/5) ~ IC3301 (5/5) in this Digital Main Schematic Diagram Section.

10-11

PL10.1SCD2

Page 49

Digital Main 3 Schematic Diagram

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3301. IC3301 is divided into five and shown as IC3301 (1/5) ~ IC3301 (5/5) in this Digital Main Schematic Diagram Section.

10-12

PL10.1SCD3

Page 50

Digital Main 4 Schematic Diagram

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3301. IC3301 is divided into five and shown as IC3301 (1/5) ~ IC3301 (5/5) in this Digital Main Schematic Diagram Section.

10-13

PL10.1SCD4

Page 51

Digital Main 5 Schematic Diagram

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3301. IC3301 is divided into five and shown as IC3301 (1/5) ~ IC3301 (5/5) in this Digital Main Schematic Diagram Section.

10-14

PL10.1SCD5

Page 52

Main CBA Top View

Because a hot chassis ground is present in the power supply circuit, an isolation transformer must be used when repairing. Also, in order to have the ability to increase the input slowly, when troubleshooting this type of power supply circuit, a variable isolation transformer is required.

CAUTION !

CAUTION ! :

4A/125V

NOTE:

The voltage for parts in hot circuit is measured using hot GND as a common terminal.

ATTENTION : Utiliser un fusible de rechange de même type de 4A, 125V.

For continued protection against risk of fire, replace only with same type 4 A, 125V fuse.

10-15

BA0172F01011

Page 53

Main CBA Bottom View

CAUTION !

WF6

PIN 19 OF CN302

WF5

PIN 17 OF CN302

WF4

PIN 15 OF CN302

WF7

PIN 13 OF CN302

WF2

PIN 8 OF CN302

WF3

PIN 6 OF CN302

WF1

PIN 4 OF CN302

4A/125V

CAUTION ! :

For continued protection against risk of fire, replace only with same type 4 A, 125V fuse.

ATTENTION : Utiliser un fusible de rechange de même type de 4A, 125V.

NOTE:

The voltage for parts in hot circuit is measured using hot GND as a common terminal.

10-16

BA0172F01011

Page 54

Jack CBA, Function CBA, IR Sensor CBA & Junction CBA Top View

Function CBA

Junction CBA [22PFL3505D/F7 (Serial No.:DS1A)]

Not Used

IR Sensor CBA

Not Used

Jack CBA

10-17

BA01N2F01021

Page 55

Jack CBA, Function CBA, IR Sensor CBA & Junction CBA Bottom View

Junction CBA [22PFL3505D/F7 (Serial No.:DS1A)]

Function CBANot UsedIR Sensor CBA

Not Used

Jack CBA

10-18

BA01N2F01021

Page 56

WAVEFORMS

WF1 ~ WF7 = Waveforms to be observed at

Waveform check points. (Shown in Schematic Diagram.)

Input: NTSC Color Bar Signal (with 1kHz Audio Signal)

WF1

WF2

Pin 4 of CN302

CVBS 0.2V 20µs

Pin 8 of CN302

S-VIDEO-Y 0.2V

20µs

WF5

WF6

Pin 17 of CN302

VIDEO-Pb 0.2V 20µs

Pin 19 of CN302

VIDEO-Pr 0.2V 20µs

WF3

WF4

Pin 6 of CN302

S-VIDEO-C 0.2V

Pin 15 of CN302

VIDEO-Y 0.2V 20µs

20µs

Pin 13 of CN302

WF7

AUDIO 0.1V 0.5ms

11-1

LC8NWF1

Page 57

WIRING DIAGRAM

[22PFL3505D/F7 (Serial No.:DS1A)]

HDMI-

PC-RGB-IN

CONNECTOR-1

HDMI-

CONNECTOR-2

SP861

SPEAKER

L-CH

DIGITAL MAIN CBA UNIT

CN3902

1STV

CL3902

BACK

CN1550

3OE1

2XAO

LIGHT

CL871

9LLV5(+)

8LLV5(-)

7GND

6TP

5POL

4CPV

BACK

CN1650

LIGHT

SP862

12LLV3(-)

11LLV4(+)

10LLV4(-)

BACK

CN1750

SPEAKER

R-CH

13LLV3(+)

LIGHT

14GND

CL201

CN201

MAIN CBA

CL872

16LLVCLK(+)

15LLVCLK(-)

2 PANEL+13V

1 GND

18LLV2(-)

17GND

4 PANEL+24.5V

3 PANEL+13V

CL102B

CL102

GND

CL102A

CN101CN102

19LLN2(+)

5 GND

REMOTE

22LLV0(-)

21LLV1(+)

20LLV1(-)

7 PANEL+3.3V

6 PANEL+3.3V

KEY-IN1

3 AL+3.3V

24GND

23LLV0(+)

LCD MODULE

9 GND

8 PANEL-7.1V

10 VCOM

P-ON+5V

ASSEMBLY

11 GND

JUNCTION

COMPONENT

-Y-IN

CN701

SP(R)

CN702 CL701

CBA

COMPONENT

-Pb-IN

COMPONENT

HEADPHONE(R)

SP(R)

HEADPHONE(R)

GND77GND

-Pr-IN

COMPONENT-

GND

CL103A

CL103

CL103B

AUDIO(L)-IN

COMPONENT-

AUDIO(R)-IN

GND

HEADPHONE(L)

AL+3.3V

GND

KEY-IN1

HDMI-

AUDIO(L)-IN

GND

HDMI-

AUDIO(R)-IN

AUDIO(L)

P-ON+9V

AUDIO(R)

COM-VIDEO-Pr-IN

IR SENSOR

CBA

FUNCTION

CBA

VIDEO-IN

AUDIO(L)

-IN

GND

COM-VIDEO-Pb-IN

S-VIDEO-SW

AC CORD

AC601

AUDIO(R)

-IN

COM-VIDEO-Y-IN

GND

PC-AUDIO

-IN

INPUT0

SPDIF

S-VIDEO

INPUT1

GND

-IN

S-VIDEO-Y-IN

DIGITAL

AUDIO-OUT

(COAXIAL)

CN871

VIDEO-IN

S-VIDEO-C-IN

GND

SP(L)2SP-GND

JACK CBA

HEAD

PHONE

JACK

CN3701CN301

CL3701

P-ON-H2

AUDIO(L)-OUT(NU)

TUNER UNIT

513

GND

AUDIO(R)-OUT(NU)

PROTECT3

AMP(L)-OUT

GND

AMP(R)-OUT

P-ON-H1

P-ON+3V

PROTECT1

SP(R)2SP-GND

CN872

141012

GNDNUP-ON+5V

PROTECT2

172220

P-ON+7V

GND

P-ON+3.3V

192321

P-ON+3.3V

AL+3.3V

GND

231921

GND

REMOTE

OE2

KEY-IN1

3 AL+3.3V

REMOTE

BACKLIGHT-SW

P-ON+5V

LED1(NU)

BACKLIGHT-ADJ

CN3702CN302

CL3702

VCOM-PWM

GND

12-1

SPDIF

GND

513

VIDEO-IN

S-VIDEO-SW

S-VIDEO-C-IN

GND

S-VIDEO-Y-IN

GND

INPUT1

AUDIO(R)

INPUT0

AUDIO(L)

141012

GND

COM-VIDEO-Y-IN

GND

172220

COM-VIDEO-Pb-IN

GND

231921

COM-VIDEO-Pr-IN

AUDIO-MUTE

SDA

SCL

RESET

192321

IF-AGC

GND

DIF-OUT1

GND

DIF-OUT2

KEY-IN1

PL10.1AWI

Page 58

[22PFL3505D/F7 (Serial No.:DS2A, XA1A)]

HDMI-

PC-RGB-IN

CONNECTOR-1

HDMI-

CONNECTOR-2

SP861

SPEAKER

L-CH

DIGITAL MAIN CBA UNIT

CN3902

1STV

CL3902

BACK

CN1550

2XAO

LIGHT

3OE1

4CPV

6TP

5POL

CN1650

BACK

7GND

LIGHT

MAIN CBA

8LLV5(-)

9LLV5(+)

11LLV4(+)

10LLV4(-)

CN1750

BACK

12LLV3(-)

LIGHT

13LLV3(+)

14GND

CL201

CN201

16LLVCLK(+)

15LLVCLK(-)

2 PANEL+13V

1 GND

18LLV2(-)

17GND

4 PANEL+24.5V

3 PANEL+13V

20LLV1(-)

19LLN2(+)

6 PANEL+3.3V

5 GND

22LLV0(-)

21LLV1(+)

7 PANEL+3.3V

SP862

SPEAKER

CL872

24GND

23LLV0(+)

LCD MODULE

9 GND

8 PANEL-7.1V

10 VCOM

R-CH

ASSEMBLY

11 GND

COMPONENT

-Pb-IN

COMPONENT

-Y-IN

CN701

SP(R)

HEADPHONE(R)

SP(R)

CN702 CL701

CL103B

CL103

AL+3.3V

CL103A

CL102B

COMPONENT

-Pr-IN

COMPONENT-

HEADPHONE(R)

GND77GND

GND

KEY-IN1

AUDIO(L)-IN

COMPONENT-

AUDIO(R)-IN

GND

HEADPHONE(L)

IR SENSOR

HDMI-

AUDIO(L)-IN

HDMI-

AUDIO(R)-IN

GND

AUDIO(L)

P-ON+9V

FUNCTION

CBA

VIDEO-IN

AUDIO(L)

AUDIO(R)

COM-VIDEO-Pr-IN

GND

COM-VIDEO-Pb-IN

AC601

AUDIO(R)

-IN

S-VIDEO-SW

COM-VIDEO-Y-IN

GND

INPUT0

AC CORD

PC-AUDIO

-IN

S-VIDEO

SPDIF

INPUT1

GND

-IN

S-VIDEO-Y-IN

DIGITAL

AUDIO-OUT

(COAXIAL)

CN871

VIDEO-IN

S-VIDEO-C-IN

GND

CL871

SP(L)2SP-GND

HEAD

PHONE

JACK CBA

JACK

CN3701CN301

CL3701

P-ON-H2

AUDIO(L)-OUT(NU)

TUNER UNIT

513

GND

AUDIO(R)-OUT(NU)

PROTECT3

AMP(L)-OUT

GND

AMP(R)-OUT

P-ON-H1

P-ON+3V

PROTECT1

GNDNUP-ON+5V

CL102

GND

REMOTE

KEY-IN1

SP(R)2SP-GND

CN3702CN302

CL3702

GND

SPDIF

GND

CN102

VIDEO-IN

CN872

172220

GND

P-ON+3.3V

192321

P-ON+3.3V

AL+3.3V

GND

OE2

REMOTE

BACKLIGHT-SW

LED1(NU)

BACKLIGHT-ADJ

VCOM-PWM

141012

PROTECT2

P-ON+7V

12-2

3 AL+3.3V

513

S-VIDEO-SW

S-VIDEO-C-IN

GND

S-VIDEO-Y-IN

P-ON+5V

GND

INPUT1

AUDIO(R)

INPUT0

AUDIO(L)

GND

COM-VIDEO-Y-IN

172220

GND

COM-VIDEO-Pb-IN

GND

COM-VIDEO-Pr-IN

AUDIO-MUTE

192321

231921

SDA

SCL

RESET

IF-AGC

GND

DIF-OUT1

GND

DIF-OUT2

KEY-IN1

PL10.1BWI

Page 59

Cabinet

22PFL3505D/F7 (Serial No.: DS1A, DS2A)

22PFL3505D/F7 (Serial No.: XA1A)

A18

B19

EXPLODED VIEWS

L12

Digital Main CBA Unit

22PFL3505D/F7 (Serial No.: XA1A)

X10

22PFL3505D/F7 (Serial No.: DS1A, DS2A)

Rear Assembly

A18

B19

A12

A11

A13

CL103

IR Sensor CBA

B22

CL872

B15

Function CBA

See Electrical Parts List for parts with this mark.

CL871

B15

SP862

Junction CBA

LCD1

CL102

22PFL3505D/F7 (Serial No.: DS1A)

SP861

CL201

Main CBA

CL3902

L13

CL3701

CL3702

L12

B14

CL701

B13

Jack CBA

B25

L11

22PFL3505D/F7 (Serial No.: XA1A)

A10

Stand Assembly

22PFL3505D/F7 (Serial No.: XA1A)

AC601

L10

13-1 PL10.1CEX

Page 60

Packing [22PFL3505D/F7 (Serial No.: DS1A, DS2A)]

L10

X13

X6 X8 X10 X11

Ta pe

Stand Assembly

Packing Ta pe

Ta pe

FRONT

Packing Tape

FRONT

Some Ref. Numbers are not in sequence.

Packing Tape

13-2 PL10.1PEX

Page 61

Packing [22PFL3505D/F7 (Serial No.: XA1A]

L10

X13

Ta pe

X6 X8 X11

Stand Assembly

Packing Ta pe

FRONT

Packing Tape

S17

FRONT

Some Ref. Numbers are not in sequence.

13-3 PL10.1PEX

Page 62

PARTS LIST [22PFL3505D/F7 (Serial No. : DS1A)]

Mechanical Parts

PRODUCT SAFETY NOTE: Products marked with a

# have special characteristics important to safety. Before replacing any of these components, read carefully the product safety notice in this service manual. Don't degrade the safety of the product through improper servicing.

NOTE: Parts that are not assigned part numbers (---------) are not available.

Ref. No. Description Part No.

STAND ASSEMBLY A9172UH 1ESA19910

REAR ASSEMBLY A0172UH 1ESA23007 A1 FRONT CABINET A9172UH 1EM023691 A9 JACK HOLDER(A) A01N2UH 1EM223903 A10 JACK HOLDER(D) A01N2UH 1EM223904 A11 FUNCTION KNOB A91H2UH 1EM222865 A12 KNOB FRAME A01F2UH 1EM327217 A13 SENSOR LED LENS A91H2UH 1EM325697 A18 ENERGY STAR LABEL A91F2UH ---------B1 SHIELD BOX A01F2UH 1EM224323 B2 STAND HOLDER A9172UH 1EM223044A B7 GASKET A8AF0UH 1EM425861 B8 SPEAKER HOLDER A91N2UH 1EM222983 B15 SPEAKER CUSHION A91N2UH 1EM325798 B19 CLOTH(10X190XT0.3) L0200UA 1EM420019 B22 SPACER L0001UA 0EM407895 B25 THERMOSTAR TMS-L-2(12*12HC) XK10000X4003 CL201 WIRE ASSEMBLY 11PIN FFC 11PIN 90MM WX1A9170-107 CL701 WIRE ASSEMBLY 29PIN FFC 29PIN 50MM WX1A94F0-101 CL871 2PIN WIRE ASSEMBLY 2PIN / 80MM WX1A9172-003 CL872 2PIN WIRE ASSEMBLY 2PIN / 80MM WX1A9172-003 CL3701 WIRE ASSEMBLY 29PIN FFC 29PIN 50MM WX1A94F0-101 CL3702 WIRE ASSEMBLY 29PIN FFC 29PIN 50MM WX1A94F0-101 CL3902 WIRE ASSEMBLY 24PIN FFC 24PIN 80MM WX1A9170-101 L1 SCREW P-TIGHT 3X10 BIND HEAD+ GBHP3100 L3 SCREW S-TIGHT M3X6 BIND HEAD+ GBJS3060 L4 SCREW S-TIGHT M3X8 BIND HEAD+ GBHS3080 L8 ASSEMBLED SCREW M3X10 1EM420633A L9 DOUBLE SEMS SCREW M4X10 + BLK FPH34100 L11 HEX SCREW #4-40 7MM 1EM430139 L12 ASSEMBLED SCREW ( D9 M3X6 ) A71F0UH 1EM424392B LCD1 LCD MODULE 6BIT NORMAL GRADE UJ22MXA SP861 SPEAKER S0307F03 DS08070XQ001 SP862 SPEAKER S0307F03 DS08070XQ001

PACKING

S1 CARTON A0172UH 1EM430619 S2 STYROFOAM TOP A9172UH 1EM024029 S3 STYROFOAM BOTTOM A9172UH 1EM024030 S4 SET BAG A81N0UH 1EM322872A S5 SERIAL NO. LABEL A01P0UH ---------S6 STAND BAG A81N0UH 1EM425888

ACCESSORIES

L10 STAND SCREW KIT A9172UH 1ESA19917 X1 BAG POLYETHYLENE 235X365XT0.03 0EM408420A X2# OWNERS MANUAL A01N2UH 1EMN25619

Ref. No. Description Part No.

X3 REMOTE CONTROL TRANSMITTER YKF259-

X4 BATTERY R03-B500/01S XB0M451CZB01 X6 QUICK START GUIDE A01N2UH 1EMN25699 X8 CHILD SAFETY SHEET A91H2UH 1EMN24526 X9 CONNECTION GUIDE A91N2UH 1EM325917 X10 REGISTRATION CARD(PHILIPS) A01F2UH 1EMN25799 X11 WALL MOUNT INSTRUCTION A01F2UH 1EMN25659 X13 CABLE MANAGEMENT TIE(BLACK) A01F2UH 1EM431197

001

URMT34JHG001

20091221 14-1 A0172CA

Page 63

Electrical Parts

PRODUCT SAFETY NOTE: Products marked with a

NOTES:

1. Parts that are not assigned part numbers (---------) are not available.

2. Tolerance of Capacitors and Resistors are noted with the following symbols.

C.....±0.25% D.....±0.5% F.....±1%

G.....±2% J......±5% K.....±10%

M.....±20% N.....±30% Z.....+80/-20%

DIGITAL MAIN CBA UNIT

Ref. No. Description Part No.

DIGITAL MAIN CBA UNIT A0172MMA-005

MAIN CBA

Ref. No. Description Part No.

MAIN CBA Consists of the following:

CAPACITORS

C201 ELECTROLYTIC CAP. 470µF/25V M CE1EMASDL471 C202 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C204 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100 C207 ELECTROLYTIC CAP. 22µF/50V M CE1JMASDL220 C208 ELECTROLYTIC CAP. 47µF/25V M CE1EMASDL470 C209 ELECTROLYTIC CAP. 47µF/25V M CE1EMASDL470 C214 CHIP CERAMIC CAP.(1608) CH J 1000pF/50V CHD1JJ3CH102 C215 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104 C216 CHIP CERAMIC CAP. (1608) B K 1µF/16V CHD1CK30B105 C217 ELECTROLYTIC CAP. 47µF/25V M CE1EMASDL470 C302 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104 C303 ELECTROLYTIC CAP. 220µF/10V M CE1AMASDL221 C305 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104 C306 ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL1R0 C309 CHIP CERAMIC CAP.(1608) B K 0.1µF/25V CHD1EK30B104 C310 CHIP CERAMIC CAP.(1608) CH J 47pF/50V CHD1JJ3CH470 C311 CHIP CERAMIC CAP.(1608) CH J 47pF/50V CHD1JJ3CH470 C314 CHIP CERAMIC CAP.(1608) CH J 33pF/50V CHD1JJ3CH330 C315 CHIP CERAMIC CAP.(1608) CH J 33pF/50V CHD1JJ3CH330 C330 CHIP CERAMIC CAP.(1608) CH D 10pF/50V CHD1JD3CH100 C331 CHIP CERAMIC CAP.(1608) CH D 10pF/50V CHD1JD3CH100 C401 ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL1R0 C601# CAP METALIZED FILM 0.47µF/300V K 3.5MM CT2F474DC004 C602 ELECTROLYTIC CAP 47µF/200V M CE2DMZNDL470 C603 CAP ELECTROLYTIC 390µF/200V CEB391DYG006 C605 POLYESTER FILM CAP. (PB FREE) 0.0015µF/

C607# CERAMIC CAP. 560pF/2KV CA3D561PAN04 C608 POLYESTER FILM CAP. (PB FREE) 0.001µF/

C609 ELECTROLYTIC CAP. 47µF/50V M CE1JMASDL470

100V J

A0172MPWA001

CA2A152DT018

CA2A102DT018

Ref. No. Description Part No.

C610 ELECTROLYTIC CAP. 100µF/50V M CE1JMASDL101 C611 CAP CERAMIC (AX) 0.1µF/50V/B/K CA1J104TU061 C613 CAP CERAMIC (AX) 220pF/50V/B/K CA1J221TU061 C614 CAP CERAMIC (AX) 1000pF/50V/B/K CA1J102TU061 C615 CAP CERAMIC (AX) 3300pF/50V/B/K CA1J332TU061 C631 ELECTROLYTIC CAP. 470µF/25V M CE1EMASDL471 C632 ELECTROLYTIC CAP. 1000µF/35V M CE1GMZADL102 C633 CERAMIC CAP. B K 1500pF/1KV CCD3AKN0B152 C634 POLYESTER FILM CAP. (PB FREE) 0.022µF/

C636# ELECTROLYTIC CAP. 100µF/25V M CE1EMASDL101 C638 CAP ALUMINUM ELECTOLYTIC 2200µF/6.3V MCE0KMZNDL222

C639 CAP ALUMINUM ELECTOLYTIC 2200µF/6.3V MCE0KMZNDL222

C641 ELECTROLYTIC CAP 3300µF/10V CE1AMZNDL332 C643 ELECTROLYTIC CAP. 470µF/25V M CE1EMZNDL471 C645 POLYESTER FILM CAP. (PB FREE) 0.0022µF/

C647 ELECTROLYTIC CAP. 100µF/16V M CE1CMASDL101 C649 ELECTROLYTIC CAP. 220µF/10V M CE1AMASDL221 C650 ELECTROLYTIC CAP. 220µF/10V M CE1AMASDL221 C652 ELECTROLYTIC CAP. 1000µF/6.3V M CE0KMASDL102 C653 ELECTROLYTIC CAP. 22µF/50V M CE1JMASDL220 C654 ELECTROLYTIC CAP. 100µF/16V M CE1CMASDL101 C656 ELECTROLYTIC CAP. 100µF/16V M CE1CMASDL101 C658 CHIP CERAMIC CAP. (1608) B K 1µF/16V CHD1CK30B105 C659 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C660 ELECTROLYTIC CAP. 3.3µF/50V M CE1JMASDL3R3 C692# CAP CERAMIC 4700pF/250V/M/KX CA2E472MR101 C805 ELECTROLYTIC CAP. 330µF/25V M CE1EMASDL331 C806 ELECTROLYTIC CAP. 330µF/25V M CE1EMASDL331 C807 CHIP CERAMIC CAP.(1608) B K 0.022µF/25V CHD1EK30B223 C808 CHIP CERAMIC CAP.(1608) B K 0.022µF/25V CHD1EK30B223 C809 CHIP CERAMIC CAP. (1608) B K 1µF/16V CHD1CK30B105 C810 CHIP CERAMIC CAP. (1608) B K 1µF/16V CHD1CK30B105 C811 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104 C812 ELECTROLYTIC CAP. 470µF/25V M CE1EMASDL471 C813 ELECTROLYTIC CAP. 100µF/25V M CE1EMASDL101 C816 CHIP CERAMIC CAP.(1608) CH J 1000pF/50V CHD1JJ3CH102 C817 CHIP CERAMIC CAP.(1608) CH J 1000pF/50V CHD1JJ3CH102 C825 CHIP CERAMIC CAP. (1608) B K 1µF/16V CHD1CK30B105 C826 CHIP CERAMIC CAP.(1608) CH J 390pF/50V CHD1JJ3CH391 C827 CHIP CERAMIC CAP. (1608) B K 1µF/16V CHD1CK30B105 C828 CHIP CERAMIC CAP.(1608) CH J 390pF/50V CHD1JJ3CH391 C829 CHIP CERAMIC CAP.(1608) CH J 1000pF/50V CHD1JJ3CH102 C830 CAP CERAMIC (AX) 1000pF/50V/B/K CA1J102TU061 C831 ELECTROLYTIC CAP. 100µF/16V M CE1CMASDL101 C832 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104 C1003 ELECTROLYTIC CAP. 100µF/16V M CE1CMASDL101 C1004 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104 C1005 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C1006 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100 C1007 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C1008 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C1009 CHIP CERAMIC CAP. B K 470pF/50V CHD1JK30B471 C1010 CHIP CERAMIC CAP. B K 470pF/50V CHD1JK30B471 C1012 METALIZED POLYESTER FILM CAP. 0.47µF/

C1013 POLYESTER FILM CAP. (PB FREE) 0.0039µF/

C1014 ELECTROLYTIC CAP. 47µF/25V M CE1EMASDL470

100V J

50V J

100V J

CA2A223DT018

CA2A222DT018

CT1J474DT040

CA2A392DT018

20091221 14-2 A0172EL

Page 64

Ref. No. Description Part No.

C1015 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C1016 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C1017 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C1018 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C1019 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C1020 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C1021 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C1401 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C1403 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100 C1404 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100 C1500 CAP CERAMIC (AX) 0.1µF/50V/F/Z CA1J104TU062 C1501 ELECTROLYTIC CAP. 470µF/35V M CE1GMZNDL471 C1502 CERAMIC CAP. B K 2200pF/500V CCD2JKS0B222 C1503 CERAMIC CAP. B K 2200pF/500V CCD2JKS0B222 C1550 CAP CERAMIC HV 15pF/6.3KV/SL/J CCA1500MR001 C1551 CAP CERAMIC (AX) 1500pF/50V/B/K CA1J152TU061 C1552 CAP CERAMIC (AX) 1500pF/50V/B/K CA1J152TU061 C1553 CAP CERAMIC HV 15pF/6.3KV/SL/J CCA1500MR001 C1554 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100 C1555 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100 C1556 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C1557 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C1558 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C1600 CAP CERAMIC (AX) 0.1µF/50V/F/Z CA1J104TU062 C1601 ELECTROLYTIC CAP. 470µF/35V M CE1GMZNDL471 C1602 CERAMIC CAP. B K 2200pF/500V CCD2JKS0B222 C1603 CERAMIC CAP. B K 2200pF/500V CCD2JKS0B222 C1650 CAP CERAMIC HV 15pF/6.3KV/SL/J CCA1500MR001 C1651 CAP CERAMIC (AX) 1500pF/50V/B/K CA1J152TU061 C1652 CAP CERAMIC (AX) 1500pF/50V/B/K CA1J152TU061 C1653 CAP CERAMIC HV 15pF/6.3KV/SL/J CCA1500MR001 C1657 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100 C1658 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100 C1659 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C1660 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C1661 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C1700 CAP CERAMIC (AX) 0.1µF/50V/F/Z CA1J104TU062 C1701 ELECTROLYTIC CAP. 470µF/35V M CE1GMZNDL471 C1702 CERAMIC CAP. B K 2200pF/500V CCD2JKS0B222 C1703 CERAMIC CAP. B K 2200pF/500V CCD2JKS0B222 C1750 CAP CERAMIC HV 15pF/6.3KV/SL/J CCA1500MR001 C1751 CAP CERAMIC (AX) 1500pF/50V/B/K CA1J152TU061 C1752 CAP CERAMIC (AX) 1500pF/50V/B/K CA1J152TU061 C1753 CAP CERAMIC HV 15pF/6.3KV/SL/J CCA1500MR001 C1754 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100 C1755 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100 C1756 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C1757 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C1758 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104

CONNECTORS

CN102 242 SERIES CONNECTOR 224202105W1 J322C05TG001 CN201 FFC CONNECTOR IMSA-9615S-11A-PP-A JC96J11ER007 CN301 FFC CONNECTOR IMSA-9615S-29A-PP-A JC96J29ER007 CN302 FFC CONNECTOR IMSA-9615S-29A-PP-A JC96J29ER007 CN702 FFC CONNECTOR IMSA-9615S-29A-PP-A JC96J29ER007 CN872 CONNECTOR PRINT OSU

CN1550# CONNECTOR PRINT OSU KW05-120-02-00 J30502KET001 CN1650# CONNECTOR PRINT OSU KW05-120-02-00 J30502KET001 CN1750# CONNECTOR PRINT OSU KW05-120-02-00 J30502KET001

008283021200000S+

J383C02UG004

DIODES

D201 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D202 IC SHUNT REGULATOR KIA431-AT/P NSZBA0TJY036

Ref. No. Description Part No.

D203 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D204 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D205 DIODE ZENER 27BSB-T26 NDTB027BST26 D206 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D207 DIODE ZENER 5V6BSB-T26 NDTB5R6BST26 D210 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D211 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D212 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D401 DIODE FR104-B NDLZ000FR104 D402 DIODE ZENER 8V2BSB-T26 NDTB8R2BST26 D404 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D405 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D406 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D407 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D408 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D409 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D410 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D411 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D412 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D413 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D414 DIODE ZENER 6V2BSB-T26 NDTB6R2BST26 D416 DIODE ZENER 10BSB-T26 NDTB010BST26 D417 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D418 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D419 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D601# DIODE 1N5397BD NDL1001N5397 D602# DIODE 1N5397BD NDL1001N5397 D603# DIODE 1N5397BD NDL1001N5397 D604# DIODE 1N5397BD NDL1001N5397 D607 DIODE ZENER 11BSB-T26 NDTB011BST26 D608 DIODE ZENER 27BSB-T26 NDTB027BST26 D609 DIODE ZENER 27BSB-T26 NDTB027BST26 D610 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D612 DIODE FR104-B NDLZ000FR104 D613 DIODE FR104-B NDLZ000FR104 D614 DIODE FAST RECOVERY FR103BB NDWZ0FR103BB D615# DIODE ZENER 39BSB-T26 NDTB039BST26 D616 DIODE ZENER 27BSB-T26 NDTB027BST26 D617 DIODE FAST RECOVERY FR103BB NDWZ0FR103BB D631 DIODE FAST RECOVERY FR153-B/P NDWZ0FR153BP D632 DIODE SCHOTTKY 30PHA20-FC QD9Z030PHA20 D633# DIODE ZENER 1ZB43BB NDWZ0001ZB43 D634 IC SHUNT REGULATOR KIA431-AT/PF5 NSZBB0TJY036 D635 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D636 DIODE FR104-B NDLZ000FR104 D637# DIODE ZENER 36BSB-T26 NDTB036BST26 D638 SCHOTTKY BARRIER DIODE SB140 NDWZ000SB140 D639 DIODE FAST RECOVERY FR151BD NDWZ0FR151BD D641 DIODE SCHOTTKY SB360BH NDWZ000SB360 D642 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D643 FAST RECOVERY DIODE FR252 NDWZ000FR252 D646 DIODE ZENER 11BSA-T26 NDTA011BST26 D648 DIODE ZENER 5V6BSB-T26 NDTB5R6BST26 D649# DIODE ZENER 3V3BSB-T26 NDTB3R3BST26 D650# DIODE ZENER 5V6BSA-T26 NDTA5R6BST26 D651 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D654 DIODE FR154BD NDL1000FR154 D655 DIODE FR154BD NDL1000FR154 D657 DIODE ZENER 4V7BSB-T26 NDTB4R7BST26 D658 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D659 SHUNT REGULATOR KIA431B-AT/P NSZBA0TJY038 D662 IC SHUNT REGULATOR KIA431-AT/P NSZBA0TJY036 D665 WIRE CP STP-S-0.50 XZ40F0REN001

20091221 14-3 A0172EL

Page 65

Ref. No. Description Part No.

D666 DIODE ZENER 10BSB-T26 NDTB010BST26 D668# DIODE ZENER 1ZB20BB NDWZ0001ZB20 D671 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D672 DIODE FAST RECOVERY FR103BB NDWZ0FR103BB D804 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D805 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D808 DIODE ZENER 20BSB-T26 NDTB020BST26 D809 DIODE ZENER 20BSB-T26 NDTB020BST26 D1003 WIRE CP STP-S-0.50 XZ40F0REN001 D1004 WIRE CP STP-S-0.50 XZ40F0REN001 D1005 DIODE ZENER 15BSB-T26 NDTB015BST26 D1007 DIODE ZENER 6V8BSB-T26 NDTB6R8BST26 D1009 DIODE ZENER 12BSB-T26 NDTB012BST26 D1010 WIRE CP STP-S-0.50 XZ40F0REN001 D1012 WIRE CP STP-S-0.50 XZ40F0REN001 D1013 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1045 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1401 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1402 DIODE ZENER 7V5BSB-T26 NDTB7R5BST26 D1403 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1404 DIODE ZENER 7V5BSB-T26 NDTB7R5BST26 D1406 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1504# DIODE ZENER 1ZB43BB NDWZ0001ZB43 D1550 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1551 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1552 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1553 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1554 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1555 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1556 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1557 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1558 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1559 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1560 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1561 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1562 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1563 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1564 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1565 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1567 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1604# DIODE ZENER 1ZB43BB NDWZ0001ZB43 D1650 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1651 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1652 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1653 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1654 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1655 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1656 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1657 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1658 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1659 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1660 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1661 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1662 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1663 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1664 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1665 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1667 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1704# DIODE ZENER 1ZB43BB NDWZ0001ZB43 D1750 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1751 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1752 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1753 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

Ref. No. Description Part No.

D1754 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1755 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1756 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1757 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1758 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1759 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1760 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1761 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1762 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1763 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1764 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1765 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 D1767 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

ICS

IC201 IC TL3472CDR NSZBA0TTY115 IC601# PHOTO COUPLER LTV817MCF NPECLTV817MF IC602 IC SWITING FA5571N-D1-TE1/SOP-8 QSCA0T0FD003 IC631 IC REGULATOR MM3123DPRE QSCA0T0MM108 IC801 AUDIO AMP IC TDA1517P/N3 112 NSCA0SNXP003 IC803 IC OP AMP NJM4558M(TE1)-#ZZZB QSZBA0TJR089 IC1001 IC PULSE-WIDTH-MODULATION CONT

IC1002 IC BA10324AF-E2 QSZBA0TRM032

TL494CDR

NSCA0T0TY006

COILS

L301 CHOKE COIL 22µH-K LLBD00PKV021 L302 CHIP INDUCTOR LK1608R22K-T LLACKB3TUR22 L303 CHIP INDUCTOR LK1608R22K-T LLACKB3TUR22 L601# LINE FILTER JLB20102 LLEG0Z0XB006

TRANSISTORS

Q201 TRANSISTOR 2SC2120-O(TE2 F T) QQS02SC2120F Q202 TRANSISTOR KTA1267-GR-AT/P NQS1KTA1267P Q203 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q204 TRANSISTOR 2SA950-Y(TE2 F T) QQSY02SA950F Q205 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q206 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q207 TRANSISTOR 2SC2655-Y(TE6 F M) QQSY2SC2655F Q208 TRANSISTOR KTA1281-Y-AT/P NQVYKTA1281P Q209 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q215 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q401 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q402 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q601# MOS FET TK7A50D QEWZTK7A50DQ Q602 FET POWER MOS SMD KHB1D0N60D-RTF/

Q603 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q631 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q632 TRANSISTOR 2SC2120-O(TE2 F T) QQS02SC2120F Q633 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q634 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q635 TRANSISTOR 2SA950-Y(TE2 F T) QQSY02SA950F Q636 TRANSISTOR 2SC2120-O(TE2 F T) QQS02SC2120F Q637 TRANSISTOR 2SC2120-O(TE2 F T) QQS02SC2120F Q638 NPN TRANSISTOR SMD 2SC4081UBTLQ QQ1Q2SC4081U Q639 PNP TRANSISTOR SMD 2SA1576UBTLQ QQ1Q2SA1576U Q640 NPN TRANSISTOR POWER 2SC4881F HFE

Q641 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q643 TRANSISTOR 2SA950-Y(TE2 F T) QQSY02SA950F Q801 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q1001 TRANSISTOR 2SA950-Y(TE2 F T) QQSY02SA950F Q1002 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q1003 NPN TRANSISTOR SMD 2SC4081UBTLQ QQ1Q2SC4081U Q1004 TRANSISTOR 2SA950-Y(TE2 F T) QQSY02SA950F

PMC

MAX320

NF1ZKHB1D0N6

QQWZ2SC4881F

20091221 14-4 A0172EL

Page 66

Ref. No. Description Part No.

Q1005 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q1006 TRANSISTOR 2SC2120-O(TE2 F T) QQS02SC2120F Q1007 TRANSISTOR 2SC2120-O(TE2 F T) QQS02SC2120F Q1008 TRANSISTOR 2SA950-Y(TE2 F T) QQSY02SA950F Q1009 TRANSISTOR 2SA950-Y(TE2 F T) QQSY02SA950F Q1010 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q1011 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q1013 NPN TRANSISTOR SMD 2SC4081UBTLQ QQ1Q2SC4081U Q1014 NPN TRANSISTOR SMD 2SC4081UBTLQ QQ1Q2SC4081U Q1023 NPN TRANSISTOR SMD 2SC4081UBTLQ QQ1Q2SC4081U Q1024 PNP TRANSISTOR SMD 2SA1576UBTLQ QQ1Q2SA1576U Q1401 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q1402 NPN TRANSISTOR SMD 2SC4081UBTLQ QQ1Q2SC4081U Q1500# FET MOS SMD TPC8214-H QF2ZTPC8214H Q1550 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q1551 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q1600# FET MOS SMD TPC8214-H QF2ZTPC8214H Q1650 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q1651 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q1700# FET MOS SMD TPC8214-H QF2ZTPC8214H Q1750 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q1751 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P

RESISTORS

R201 RES. CARBON FILM J 1/2W J 12 Ω RCX2120T1003 R202 CHIP RES. 1/10W F 8.2k Ω RRXAFR5H8201 R203 CHIP RES. 1/10W F 2.7k Ω RRXAFR5H2701 R204 CHIP RES. 1/10W F 2.7k Ω RRXAFR5H2701 R205 CHIP RES. 1/10W J 1.5k Ω RRXAJR5Z0152 R206 RES CARBON FILM T 1/4W J 8.2 Ω RCX48R2T1001 R207 RES CARBON FILM T 1/4W J 5.6k Ω RCX4562T1001 R208 RES CARBON FILM T 1/4W J 5.6k Ω RCX4562T1001 R209 RES CARBON FILM T 1/4W J 6.8 Ω RCX46R8T1001 R210 RES CARBON FILM T 1/4W J 6.8 Ω RCX46R8T1001 R211 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R212 CHIP RES. 1/10W J 22k Ω RRXAJR5Z0223 R213 RES CARBON FILM T 1/4W J 27k Ω RCX4273T1001 R214 CHIP RES. 1/10W J 3.3k Ω RRXAJR5Z0332 R215 RES CARBON FILM T 1/4W J 220 Ω RCX4221T1001 R217 RES CARBON FILM T 1/4W J 680 Ω RCX4681T1001 R218 RES CARBON FILM T 1/4W J 6.8k Ω RCX4682T1001 R219 RES CARBON FILM T 1/4W J 10 Ω RCX4100T1001 R220 CHIP RES. 1/10W J 47k Ω RRXAJR5Z0473 R221 CHIP RES. 1/10W J 22k Ω RRXAJR5Z0223 R222 RES CARBON FILM T 1/4W J 220 Ω RCX4221T1001 R223 RES CARBON FILM T 1/4W J 4.7k Ω RCX4472T1001 R224 CHIP RES. 1/10W J 1 Ω RRXAJR5Z01R0 R225 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R226 RES CARBON FILM T 1/4W J 10 Ω RCX4100T1001 R227 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R228 WIRE CP STP-S-0.50 XZ40F0REN001 R229 RES CARBON FILM T 1/4W J 10 Ω RCX4100T1001 R230 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R231 CHIP RES. 1/10W J 1.5k Ω RRXAJR5Z0152 R232 CHIP RES. 1/10W J 15k Ω RRXAJR5Z0153 R233 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R234 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102 R236 WIRE CP STP-S-0.50 XZ40F0REN001 R243 RES CARBON FILM T 1/4W J 6.8 Ω RCX46R8T1001 R250 RES CARBON FILM T 1/4W J 100 Ω RCX4101T1001 R251 CHIP RES. 1/10W J 47k Ω RRXAJR5Z0473 R252 RES CARBON FILM T 1/4W J 3.9k Ω RCX4392T1001 R253 RES CARBON FILM T 1/4W J 56k Ω RCX4563T1001

Ref. No. Description Part No.

R254 RES CARBON FILM T 1/4W J 6.8k Ω RCX4682T1001 R302 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R303 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R304 CHIP RES. 1/10W J 82 Ω RRXAJR5Z0820 R305 CHIP RES. 1/10W J 82 Ω RRXAJR5Z0820 R313 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R330 CHIP RES. 1/10W J 47 Ω RRXAJR5Z0470 R331 CHIP RES. 1/10W J 47 Ω RRXAJR5Z0470 R401# CHIP RES. 1/10W J 1 Ω RRXAJR5Z01R0 R402 CHIP RES. 1/10W F 30k Ω RRXAFR5H3002 R403 CHIP RES. 1/10W F 43.0 k Ω RRXAFR5H4302 R406 CHIP RES. 1/10W J 47k Ω RRXAJR5Z0473 R407 CHIP RES. 1/10W J 47k Ω RRXAJR5Z0473 R408 CHIP RES. 1/10W J 47k Ω RRXAJR5Z0473 R409 CHIP RES. 1/10W J 2.2k Ω RRXAJR5Z0222 R411 CHIP RES. 1/10W J 22k Ω RRXAJR5Z0223 R412 CHIP RES. 1/10W J 22k Ω RRXAJR5Z0223 R413 CHIP RES. 1/10W J 22k Ω RRXAJR5Z0223 R601# GLASS GLAZE RES. 1/2W J 2.7M Ω RXX2JZLZ0275 R602# CEMENT RES. 3W K 1.2 Ω RW031R2PG007 R604 RES CHIP 3216 1/4W J 2.7M Ω RRX4275HH034 R605 WIRE CP STP-S-0.50 XZ40F0REN001 R606 RES CARBON FILM T 1/4W J 47k Ω RCX4473T1001 R607 RES CHIP 3216 1/4W J 2.7M Ω RRX4275HH034 R609 RES CARBON FILM T 1/4W J 180 Ω RCX4181T1001 R610 RES CARBON FILM T 1/4W J 10 Ω RCX4100T1001 R611 RES CARBON FILM T 1/4W J 4.7k Ω RCX4472T1001 R612 RES CARBON FILM T 1/4W J 100 Ω RCX4101T1001 R613# METAL OXIDE FILM RES. 2W J 0.27 Ω RN02R27ZU001 R614 RES CARBON FILM T 1/4W J 33 Ω RCX4330T1001 R615 RES CARBON FILM T 1/4W J 27 Ω RCX4270T1001 R616 RES CARBON FILM T 1/4W J 33 Ω RCX4330T1001 R617 RES CARBON FILM T 1/4W J 100k Ω RCX4104T1001 R618 WIRE CP STP-S-0.50 XZ40F0REN001 R619 WIRE CP STP-S-0.50 XZ40F0REN001 R622 RES CARBON FILM T 1/4W J 1.2k Ω RCX4122T1001 R623 RES CARBON FILM T 1/4W J 10k Ω RCX4103T1001 R624 RES CARBON FILM T 1/4W J 10k Ω RCX4103T1001 R626 RES CARBON FILM T 1/4W J 5.6k Ω RCX4562T1001 R631 RES CARBON FILM T 1/4W J 12k Ω RCX4123T1001 R632 RES CHIP.(1608) 1/10W D 1.1k Ω RRXADR5H1101 R633 RES CHIP.(1608) 1/10W D 10k Ω RRXADR5H1002 R636 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R637 RES CARBON FILM T 1/4W J 120 Ω RCX4121T1001 R638 RES CARBON FILM T 1/4W J 2.7k Ω RCX4272T1001 R639 CHIP RES. 1/10W F 3.3k Ω RRXAFR5H3301 R640 CHIP RES. 1/10W F 18k Ω RRXAFR5H1802 R641 CHIP RES. 1/10W F 330 Ω RRXAFR5H3300 R642 CHIP RES. 1/10W F 22k Ω RRXAFR5H2202 R643 CHIP RES. 1/10W F 22k Ω RRXAFR5H2202 R644 CHIP RES. 1/10W F 22k Ω RRXAFR5H2202 R645 CHIP RES. 1/10W F 11k Ω RRXAFR5H1102 R646 CHIP RES. 1/10W F 39k Ω RRXAFR5H3902 R647 CHIP RES. 1/10W J 47k Ω RRXAJR5Z0473 R648 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R649 RES CARBON FILM T 1/4W J 680 Ω RCX4681T1001 R650 RES CARBON FILM T 1/4W J 680 Ω RCX4681T1001 R651# RES CARBON FILM T 1/4W J 10 Ω RCX4100T1001 R652 WIRE CP STP-S-0.50 XZ40F0REN001 R653 WIRE CP STP-S-0.50 XZ40F0REN001 R654 RES CARBON FILM T 1/4W J 470 Ω RCX4471T1001 R655 RES CARBON FILM T 1/4W J 2.7k Ω RCX4272T1001 R656 RES CARBON FILM T 1/4W J 680 Ω RCX4681T1001

20091221 14-5 A0172EL

Page 67

Ref. No. Description Part No.

R657 CHIP RES. 1/10W F 27k Ω RRXAFR5H2702 R658 CHIP RES. 1/10W F 18k Ω RRXAFR5H1802 R659 RES. CARBON FILM J 1/2W J 3.9 Ω RCX23R9T1003 R660 RES CHIP.(1608) 1/10W D 10k Ω RRXADR5H1002 R661 RES CARBON FILM T 1/4W J 680 Ω RCX4681T1001 R662 RES CARBON FILM T 1/4W J 39 Ω RCX4390T1001 R663 RES CARBON FILM T 1/4W J 1.8 Ω RCX41R8T1001 R664 RES CARBON FILM T 1/4W J 3.9 Ω RCX43R9T1001 R665 RES CARBON FILM T 1/4W J 3.9 Ω RCX43R9T1001 R666 CHIP RES. 1/10W J 22k Ω RRXAJR5Z0223 R667 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102 R668 CHIP RES. 1/10W J 47k Ω RRXAJR5Z0473 R669 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102 R670 RES CARBON FILM T 1/4W J 270 Ω RCX4271T1001 R671 RES CARBON FILM T 1/4W J 10 Ω RCX4100T1001 R673 CHIP RES. 1/10W F 3.6k Ω RRXAFR5H3601 R674 CHIP RES. 1/10W F 10k Ω RRXAFR5H1002 R675 RES CARBON FILM T 1/4W J 560 Ω RCX4561T1001 R676 RES CARBON FILM T 1/4W J 22 Ω RCX4220T1001 R677 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102 R678 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R679 RES CARBON FILM T 1/4W J 10k Ω RCX4103T1001 R681 RES CARBON FILM T 1/4W J 2.2 Ω RCX42R2T1001 R682 RES. CARBON FILM J 1/2W J 3.9 Ω RCX23R9T1003 R683 METAL OXIDE FILM RES. 1W J 2.7 Ω RN012R7ZU001 R684 METAL OXIDE FILM RES. 1W J 2.7 Ω RN012R7ZU001 R685 RES CARBON FILM T 1/4W J 47 Ω RCX4470T1001 R688 RES CARBON FILM T 1/4W J 1.0 Ω RCX41R0T1001 R690 RES CARBON FILM T 1/4W J 1.5 Ω RCX41R5T1001 R691 WIRE CP STP-S-0.50 XZ40F0REN001 R694 RES CARBON FILM T 1/4W J 8.2 Ω RCX48R2T1001 R699 RES CARBON FILM T 1/4W J 56 Ω RCX4560T1001 R803 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R804 CHIP RES. 1/10W J 8.2 Ω RRXAJR5Z08R2 R805 CHIP RES. 1/10W J 8.2 Ω RRXAJR5Z08R2 R806 WIRE CP STP-S-0.50 XZ40F0REN001 R807 WIRE CP STP-S-0.50 XZ40F0REN001 R808 CHIP RES. 1/10W F 3.3k Ω RRXAFR5H3301 R809 CHIP RES. 1/10W F 300 Ω RRXAFR5H3000 R810 CHIP RES. 1/10W J 5.6k Ω RRXAJR5Z0562 R811 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R813 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R814 CHIP RES. 1/10W J 5.6k Ω RRXAJR5Z0562 R815 CHIP RES. 1/10W J 470 Ω RRXAJR5Z0471 R816 CHIP RES. 1/10W J 470 Ω RRXAJR5Z0471 R817 CHIP RES. 1/10W F 15k Ω RRXAFR5H1502 R818 CHIP RES. 1/10W F 15k Ω RRXAFR5H1502 R819 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R820 CHIP RES. 1/10W J 5.6k Ω RRXAJR5Z0562 R821 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R823 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R826 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R830 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R834 RES CARBON FILM T 1/4W J 10k Ω RCX4103T1001 R836 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R837 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R838 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R842 CHIP RES. 1/10W J 27k Ω RRXAJR5Z0273 R1003 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102 R1005 RES CARBON FILM T 1/4W J 4.7k Ω RCX4472T1001 R1006 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R1007 CHIP RES. 1/10W J 22k Ω RRXAJR5Z0223 R1008 CHIP RES. 1/10W F 5.6k Ω RRXAFR5H5601

Ref. No. Description Part No.

R1009 CHIP RES.(1608) 1/10W F 75k Ω RRXAFR5H0753 R1012 WIRE CP STP-S-0.50 XZ40F0REN001 R1014 CHIP RES. 1/10W J 2.2k Ω RRXAJR5Z0222 R1015 CHIP RES. 1/10W J 82k Ω RRXAJR5Z0823 R1016 CHIP RES. 1/10W J 56k Ω RRXAJR5Z0563 R1017 CHIP RES. 1/10W J 220k Ω RRXAJR5Z0224 R1020 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102 R1021 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102 R1023 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102 R1024 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102 R1025 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102 R1026 RES CARBON FILM T 1/4W J 4.7k Ω RCX4472T1001 R1027 RES CARBON FILM T 1/4W J 1.5k Ω RCX4152T1001 R1028 RES CARBON FILM T 1/4W J 2.2k Ω RCX4222T1001 R1029 RES CARBON FILM T 1/4W J 150 Ω RCX4151T1001 R1030 RES CARBON FILM T 1/4W J 2.2k Ω RCX4222T1001 R1031 RES CARBON FILM T 1/4W J 150 Ω RCX4151T1001 R1036 CHIP RES. 1/10W J 5.1k Ω RRXAJR5Z0512 R1037 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R1043 CHIP RES. 1/10W J 12k Ω RRXAJR5Z0123 R1044 CHIP RES. 1/10W F 2.7k Ω RRXAFR5H2701 R1045 CHIP RES. 1/10W F 1.2k Ω RRXAFR5H1201 R1048 RES CARBON FILM T 1/4W J 33k Ω RCX4333T1001 R1049 RES CARBON FILM T 1/4W J 1.2k Ω RCX4122T1001 R1050 WIRE CP STP-S-0.50 XZ40F0REN001 R1051 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R1053 WIRE CP STP-S-0.50 XZ40F0REN001 R1054 CHIP RES. 1/10W F 120 k Ω RRXAFR5H1203 R1055 CHIP RES. 1/10W F 10k Ω RRXAFR5H1002 R1056 CHIP RES. 1/10W F 18k Ω RRXAFR5H1802 R1058 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R1059 CHIP RES. 1/10W J 120k Ω RRXAJR5Z0124 R1060 CHIP RES. 1/10W F 7.50 k Ω RRXAFR5H7501 R1061 CHIP RES. 1/10W F 4.7k Ω RRXAFR5H4701 R1062 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R1063 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R1064 CHIP RES. 1/10W F 1.0k Ω RRXAFR5H1001 R1065 CHIP RES. 1/10W F 27k Ω RRXAFR5H2702 R1066 CHIP RES. 1/10W J 5.1k Ω RRXAJR5Z0512 R1067 CHIP RES. 1/10W J 6.8k Ω RRXAJR5Z0682 R1068 CHIP RES. 1/10W J 8.2k Ω RRXAJR5Z0822 R1069 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R1070 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R1071 RES CARBON FILM T 1/4W J 2.7k Ω RCX4272T1001 R1072 RES CARBON FILM T 1/4W J 2.7k Ω RCX4272T1001 R1074 CHIP RES. 1/10W J 12k Ω RRXAJR5Z0123 R1075 CHIP RES. 1/10W J 22k Ω RRXAJR5Z0223 R1076 CHIP RES. 1/10W J 22k Ω RRXAJR5Z0223 R1105 CHIP RES. 1/10W J 3.3k Ω RRXAJR5Z0332 R1106 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R1107 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R1109 CHIP RES. 1/10W F 2.2k Ω RRXAFR5H2201 R1110 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R1401 CHIP RES. 1/10W J 47k Ω RRXAJR5Z0473 R1402 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R1403 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R1404 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R1405 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R1406 CHIP RES. 1/10W J 120k Ω RRXAJR5Z0124 R1407 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R1500 CHIP RES. 1/10W J 10 Ω RRXAJR5Z0100 R1501 CHIP RES. 1/10W J 10 Ω RRXAJR5Z0100 R1502 CHIP RES. 1/10W J 12k Ω RRXAJR5Z0123

20091221 14-6 A0172EL

Page 68

Ref. No. Description Part No.

R1503 CHIP RES. 1/10W J 12k Ω RRXAJR5Z0123 R1508# METAL OXIDE FILM RES. 2W J 0.22 Ω RN02R22ZU001 R1509 RES CARBON FILM T 1/4W J 33k Ω RCX4333T1001 R1550 CHIP RES. 1/10W J 390 Ω RRXAJR5Z0391 R1551 CHIP RES. 1/10W J 390 Ω RRXAJR5Z0391 R1552 CHIP RES. 1/10W J 27k Ω RRXAJR5Z0273 R1553 CHIP RES. 1/10W J 27k Ω RRXAJR5Z0273 R1554 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R1555 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R1556 RES CARBON FILM T 1/4W J 27k Ω RCX4273T1001 R1557 RES CARBON FILM T 1/4W J 27k Ω RCX4273T1001 R1558 CHIP RES. 1/10W J 24k Ω RRXAJR5Z0243 R1559 CHIP RES. 1/10W J 8.2k Ω RRXAJR5Z0822 R1560 CHIP RES. 1/10W J 220k Ω RRXAJR5Z0224 R1600 CHIP RES. 1/10W J 10 Ω RRXAJR5Z0100 R1601 CHIP RES. 1/10W J 10 Ω RRXAJR5Z0100 R1602 CHIP RES. 1/10W J 12k Ω RRXAJR5Z0123 R1603 CHIP RES. 1/10W J 12k Ω RRXAJR5Z0123 R1608# METAL OXIDE FILM RES. 2W J 0.22 Ω RN02R22ZU001 R1609 RES CARBON FILM T 1/4W J 33k Ω RCX4333T1001 R1650 CHIP RES. 1/10W J 390 Ω RRXAJR5Z0391 R1651 CHIP RES. 1/10W J 390 Ω RRXAJR5Z0391 R1652 CHIP RES. 1/10W J 27k Ω RRXAJR5Z0273 R1653 CHIP RES. 1/10W J 27k Ω RRXAJR5Z0273 R1654 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R1655 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R1656 RES CARBON FILM T 1/4W J 27k Ω RCX4273T1001 R1657 RES CARBON FILM T 1/4W J 27k Ω RCX4273T1001 R1658 CHIP RES. 1/10W J 24k Ω RRXAJR5Z0243 R1659 CHIP RES. 1/10W J 8.2k Ω RRXAJR5Z0822 R1660 CHIP RES. 1/10W J 220k Ω RRXAJR5Z0224 R1700 CHIP RES. 1/10W J 10 Ω RRXAJR5Z0100 R1701 CHIP RES. 1/10W J 10 Ω RRXAJR5Z0100 R1702 CHIP RES. 1/10W J 12k Ω RRXAJR5Z0123 R1703 CHIP RES. 1/10W J 12k Ω RRXAJR5Z0123 R1708# METAL OXIDE FILM RES. 2W J 0.22 Ω RN02R22ZU001 R1709 RES CARBON FILM T 1/4W J 33k Ω RCX4333T1001 R1750 CHIP RES. 1/10W J 390 Ω RRXAJR5Z0391 R1751 CHIP RES. 1/10W J 390 Ω RRXAJR5Z0391 R1752 CHIP RES. 1/10W J 27k Ω RRXAJR5Z0273 R1753 CHIP RES. 1/10W J 27k Ω RRXAJR5Z0273 R1754 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R1755 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R1756 RES CARBON FILM T 1/4W J 27k Ω RCX4273T1001 R1757 RES CARBON FILM T 1/4W J 27k Ω RCX4273T1001 R1758 CHIP RES. 1/10W J 24k Ω RRXAJR5Z0243 R1759 CHIP RES. 1/10W J 8.2k Ω RRXAJR5Z0822 R1760 CHIP RES. 1/10W J 220k Ω RRXAJR5Z0224

MISCELLANEOUS

AC601# AC CORD W/O A GND WIRE UL/CSA 1770 NO

B13 HEAT SINK PMU A8A70UH 1EM324377 B14 POW HEAT SINK A7120UH 1EM423993 BC301 WIRE CP STP-S-0.50 XZ40F0REN001 BC601 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030 BC602 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030 BC603 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030 BC801 CHIP INDUCTOR BK1608HS601-T LLC601NTU017 BC1001 WIRE CP STP-S-0.50 XZ40F0REN001 BC1004 WIRE CP STP-S-0.50 XZ40F0REN001 F601# FUSE STC4A125V U/CT PAGE20CW3402 FH601 FUSE HOLDER MSF-015 LF (B110) XH01Z00LY002 FH602 FUSE HOLDER MSF-015 LF (B110) XH01Z00LY002

BLACK

WAC0172LW022

Ref. No. Description Part No.

JS103 WIRE CP STP-S-0.50 XZ40F0REN001 JS150 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 JS304 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 JS305 WIRE CP STP-S-0.50 XZ40F0REN001 JS306 WIRE CP STP-S-0.50 XZ40F0REN001 JS310 WIRE CP STP-S-0.50 XZ40F0REN001 JS801 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 JS802 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 JS803 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 JS804 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 JS1002 WIRE CP STP-S-0.50 XZ40F0REN001 JS1005 WIRE CP STP-S-0.50 XZ40F0REN001 JS1006 WIRE CP STP-S-0.50 XZ40F0REN001 L13 SCREW B-TIGHT D3X8 BIND HEAD+ GBJB3080 SA601# SURGE ABSORBER 470V+-10PER NVQZ10D471KB T601# TRANS POWER BCK-28-9911 LTT2PC0XB055 TM601 EYELET TYPE D-1 0VM406868 TM602 EYELET TYPE D-1 0VM406868 T1500# TRANS INVERTER HVT-179 LTZ3PZ0XB012 T1600# TRANS INVERTER HVT-179 LTZ3PZ0XB012 T1700# TRANS INVERTER HVT-179 LTZ3PZ0XB012 TU302 TUNER UNIT ATSC/NTSC/QAM TDAU4-D05A UTNATS0AL002

JACK ASSEMBLY

Ref. No. Description Part No.

JACK ASSEMBLY Consists of the following:

JACK CBA(MJC-A)

--------------------------------------------------------------FUNCTION CBA(MJC-B) IR SENSOR CBA(MJC-C) JUNCTION CBA(MJC-D)

JACK CBA

Ref. No. Description Part No.

JACK CBA (MJC-A) Consists of the following:

CAPACITORS

C703 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105 C704 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105 C723 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105 C724 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105 C731 CHIP CERAMIC CAP. CH J 39pF/50V CHD1JJ3CH390 C732 CHIP CERAMIC CAP. CH J 39pF/50V CHD1JJ3CH390 C733 CHIP CERAMIC CAP. CH J 39pF/50V CHD1JJ3CH390 C743 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105 C744 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105 C751 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101 C752 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101 C753 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101 C757 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105 C758 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105 C771 ELECTROLYTIC CAP. 100µF/16V M H7 CE1CMAVSL101 C772 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104 C773 CHIP CERAMIC CAP. (1608) F Z 1µF/16V CHD1CZ30F105 C775 CHIP CERAMIC CAP.(1608) CH J 33pF/50V CHD1JJ3CH330 C776 CHIP CERAMIC CAP.(1608) CH J 33pF/50V CHD1JJ3CH330 C841 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105 C842 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105 C843 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104 C845 CHIP CERAMIC CAP.(1608) CH J 33pF/50V CHD1JJ3CH330

CONNECTORS

A0172MJC-001

A0172MJC-001-JK

--------------------------------A0172MJC-001-FNIRJN

----------

20091221 14-7 A0172EL

Page 69

Ref. No. Description Part No.

CN701 FFC CONNECTOR IMSA-9615S-29A-PP-A JC96J29ER007 CN871 CONNECTOR PRINT OSU

008283021200000S+

J383C02UG004

IC771 IC SWITCHING TC4052BF(ELNF) QSZBA0TTS162

COILS

L851 WIRE CP STP-S-0.50 XZ40F0REN001 L852 WIRE CP STP-S-0.50 XZ40F0REN001 L853 WIRE CP STP-S-0.50 XZ40F0REN001

TRANSISTORS

Q722 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q771 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q773 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q774 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P Q841 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P

RESISTORS

R711 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R712 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R717 CHIP RES. 1/10W J 56k Ω RRXAJR5Z0563 R718 CHIP RES. 1/10W J 56k Ω RRXAJR5Z0563 R721 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R722 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R727 CHIP RES. 1/10W J 56k Ω RRXAJR5Z0563 R728 CHIP RES. 1/10W J 56k Ω RRXAJR5Z0563 R731 CHIP RES.(1608) 1/10W F 75 Ω RRXAFR5H75R0 R732 CHIP RES.(1608) 1/10W F 75 Ω RRXAFR5H75R0 R733 CHIP RES.(1608) 1/10W F 75 Ω RRXAFR5H75R0 R734 CHIP RES. 1/10W J 10 Ω RRXAJR5Z0100 R735 CHIP RES. 1/10W J 10 Ω RRXAJR5Z0100 R736 CHIP RES. 1/10W J 10 Ω RRXAJR5Z0100 R741 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R742 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R747 CHIP RES. 1/10W J 56k Ω RRXAJR5Z0563 R748 CHIP RES. 1/10W J 56k Ω RRXAJR5Z0563 R751 CHIP RES. 1/10W J 75 Ω RRXAJR5Z0750 R752 CHIP RES. 1/10W J 75 Ω RRXAJR5Z0750 R753 CHIP RES. 1/10W J 75 Ω RRXAJR5Z0750 R754 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R755 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R756 RES CARBON FILM T 1/4W J 10 Ω RCX4100T1001 R757 RES CARBON FILM T 1/4W J 10 Ω RCX4100T1001 R758 RES CARBON FILM T 1/4W J 10 Ω RCX4100T1001 R763 RES CARBON FILM T 1/4W J 56k Ω RCX4563T1001 R764 CHIP RES. 1/10W J 56k Ω RRXAJR5Z0563 R772 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R773 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R774 RES CARBON FILM T 1/4W J 10k Ω RCX4103T1001 R775 RES CARBON FILM T 1/4W J 10k Ω RCX4103T1001 R780 CHIP RES. 1/10W J 82k Ω RRXAJR5Z0823 R781 CHIP RES. 1/10W J 82k Ω RRXAJR5Z0823 R782 RES CARBON FILM T 1/4W J 82k Ω RCX4823T1001 R783 CHIP RES. 1/10W J 82k Ω RRXAJR5Z0823 R784 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R785 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R786 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R787 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R788 RES CARBON FILM T 1/4W J 82k Ω RCX4823T1001 R789 RES CARBON FILM T 1/4W J 82k Ω RCX4823T1001 R790 CHIP RES. 1/10W J 82k Ω RRXAJR5Z0823 R791 CHIP RES. 1/10W J 82k Ω RRXAJR5Z0823 R792 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R793 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R794 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104

Ref. No. Description Part No.

R795 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R796 CHIP RES. 1/10W J 2.2k Ω RRXAJR5Z0222 R797 CHIP RES. 1/10W J 2.2k Ω RRXAJR5Z0222 R843 CHIP RES. 1/10W J 110 Ω RRXAJR5Z0111 R844 CHIP RES. 1/10W J 220 Ω RRXAJR5Z0221 R845 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104 R846 CHIP RES. 1/10W J 100 Ω RRXAJR5Z0101 R847 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R848 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103 R851 RES CARBON FILM T 1/4W J 180 Ω RCX4181T1001 R852 RES CARBON FILM T 1/4W J 180 Ω RCX4181T1001

MISCELLANEOUS

BC771 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030 BC841 CHIP INDUCTOR BK1608HS601-T LLC601NTU017 JK711 JACK HPEP SML PCB S PJ-358H JXSJ020YUQ01 JK721 JACK RCA PCB S WHITE 01/RCA-101H(WH) JXRJ010YUQ02 JK722 JACK RCA PCB S RED 01/RCA-101H(RD) JXRJ010YUQ01 JK731 JACK RCA PCB S GREEN 01/RCA-101H(GN) JXRJ010YUQ03 JK732 JACK RCA PCB S BLUE 01/RCA-101H(BL) JXRJ010YUQ04 JK733 JACK RCA PCB S RED 01/RCA-101H(RD) JXRJ010YUQ01 JK741 JACK RCA PCB S WHITE 01/RCA-101H(WH) JXRJ010YUQ02 JK742 JACK RCA PCB S RED 01/RCA-101H(RD) JXRJ010YUQ01 JK751 JACK SW DIN PCB L DIN-435C(777D) JYEL040YUQ03 JK752 JACK RCA PCB L RCA-101S(1)-03 JXRL010YUQ12 JK753 JACK RCA PCB L RCA-101S(1)-04 JXRL010YUQ13 JK754 JACK SW RCA PCB L RCA-102F(RD) JYRL010YUQ05 JK841 JACK RCA PCB S ORANGE 01/RCA-101H(OR) JXRJ010YUQ06 JK851 JACK SW HPEP SML PCB L PJ-350 JYSL010YUQ03 JS701 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000

FUNCTION CBA

Ref. No. Description Part No.

FUNCTION CBA (MJC-B) Consists of the following:

----------

CAPACITOR

C108 CAP CERAMIC (AX) 0.1µF/50V/F/Z CA1J104TU062

RESISTORS

R108 RES CARBON FILM T 1/4W J 220 Ω RCX4221T1001 R109 RES CARBON FILM T 1/4W G 10k Ω RCX4103T1002 R111 RES CARBON FILM T 1/4W G 4.7k Ω RCX4472T1002 R112 RES CARBON FILM T 1/4W G 2.7k Ω RCX4272T1002 R113 RES CARBON FILM T 1/4W G 4.7k Ω RCX4472T1002 R114 RES CARBON FILM T 1/4W G 8.2k Ω RCX4822T1002 R115 RES CARBON FILM T 1/4W G 18k Ω RCX4183T1002

SWITCHES

SW101 TACT SWITCH SKQSAB SST0101AL038 SW103 TACT SWITCH SKQSAB SST0101AL038 SW104 TACT SWITCH SKQSAB SST0101AL038 SW105 TACT SWITCH SKQSAB SST0101AL038 SW106 TACT SWITCH SKQSAB SST0101AL038 SW107 TACT SWITCH SKQSAB SST0101AL038

IR SENSOR CBA

Ref. No. Description Part No.

IR SENSOR CBA (MJC-C) Consists of the following:

CAPACITORS

C101 ELECTROLYTIC CAP. 47µF/16V M H7 CE1CMAVSL470 C103 CHIP CERAMIC CAP. B K 330pF/50V CHD1JK30B331 C104 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104 C105 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104

----------

20091221 14-8 A0172EL

Page 70

Ref. No. Description Part No.

DIODE

D101 LED (WHITE) SLR343WBC7T3XM QPWM343WBC7T

RESISTORS

R101 RES CARBON FILM T 1/4W J 100 Ω RCX4101T1001 R102 RES CARBON FILM T 1/4W J 3.3k Ω RCX4332T1001 R103 CHIP RES. 1/10W J 2.2k Ω RRXAJR5Z0222 R106 RES CARBON FILM T 1/4W J 1.0k Ω RCX4102T1001

MISCELLANEOUS

CL102 WIRE ASSEMBLY 5PIN 5PIN/340MM WX1A0172-001 CL103 WIRE ASSEMBLY 3PIN 3PIN/110MM WX1A0172-004 RS101 SENSOR REMOTE RECEIVER KSM-712TH2E USESJRSKK044

JUNCTION CBA

Ref. No. Description Part No.

JUNCTION CBA (MJC-D) Consists of the following:

CONNECTOR

CN101 242 SERIES CONNECTOR TUC-P05X-B1 WHT STJCTUB05TG002

----------

20091221 14-9 A0172EL

Page 71

PARTS LIST [22PFL3505D/F7 (Serial No.: DS2A)]

Mechanical Parts

PRODUCT SAFETY NOTE: Products marked with a

NOTE: Parts that are not assigned part numbers (---------) are not available.

Different parts from the original model 22PFL3505D/F7 (Serial No.: DS1A)

Ref. No. Description Part No.

B25 THERMAL SHEET TMS-14-20 12X12 XK10000X4011 S1 CARTON A0172UH 1EM431819 X10 REGISTRATION CARD(PHILIPS) A01F2UH 1EMN25799B

20101102 14-10 A0172(DS2A)CA

Page 72

Electrical Parts

PRODUCT SAFETY NOTE: Products marked with a

NOTE: Parts that are not assigned part numbers (---------) are not available.

Different parts from the original model 22PFL3505D/F7 (Serial No.: DS1A)

Ref. No. Description Part No.

DIGITAL MAIN CBA UNIT A0172MMA-003

MAIN CBA A0172MPWA002

CN102 CONNECTOR PRINT OSU B5B-PH-K-S

(LF)(SN)

J3PHC05JG029

JACK ASSEMBLY Consists of the following

JACK CBA

----------------------------------------------------------------FUNCTION CBA(MJC-B) IR SENSOR CBA(MJC-C)

IR SENSOR CBA ----------

CL102 WIRE ASSEMBLY 5PIN 5PIN/340MM WX1A0172-011

JUNCTION CBA (In this model, the JUNCTION CBA is not used.)

CN101 Not used

A0172MJC-002

A0172MJC-002-JK

---------------------------A0172MJC-002-FNIR

20101102 14-11 A0172(DS2A)EL

Page 73

22PFL3505D/F7(A017JMA) (Serial No.: XA1A)

(

)

20110506

22PFL3505D/F7

A017JMA) (Serial No.: XA1A

Different parts from the original model 22PFL3505D/F7(Serial No.: DS1A) Ref. No. Descri

tion

Parts No.

MECHANICAL PARTS

REAR ASSEMBLY A017JMZ 1ESA29823 A6! RATING LABEL A017JMA ---------B25 THERMAL SHEET TMS-14-20 12X12 XK10000X4011 S1 CARTON A017JMA 1EM436398 S4 SET BAG A81N0UH 1EM323958A S5 SERIAL NO. LABEL A01PBUH ---------S17 CARTON LABEL A017JMA ---------X2! OWNERS MANUAL A01NLMA 1EMN28641 X6 QUICK START GUIDE A01NKUH 1EMN28500 X10 REGISTRATION CARD(PHILIPS) A11P4UH 1EMN27321

ELECTRICAL PARTS

MAIN CBA A0172MPWA002 CN102 CONNECTOR PRINT OSU B5B-PH-K-S (LF)(SN) J3PHC05JG029

JACK ASSEMBLY A0172MJC-002

Consists of the followin

JACK CBA(MJC-A) A0172MJC-002-JK

FUNCTION CBA(MJC-B)

IR SENSOR CBA(MJC-C)

A0172MJC-002-FNIR

IR SENSOR CBA ---------CL102 WIRE ASSEMBLY 5PIN 5PIN/340MM WX1A0172-011

JUNCTION CBA

(In this model, the JUNCTION CBA is not used.) CN101 Not used

1 / 1 page

Page 74

REVISION HISTORY

Chassis PL10.1

• 2009-12-25 22PFL3505D/F7 (Serial No. : DS1A) added

• 2010-11-05 22PFL3505D/F7 (Serial No. : DS2A) added

• TBD 22PFL3505D/F7 (Serial No. : XA1A) added

15-1 PL10.1REV

Page 75

COMPARISON LIST OF MODEL NAME

Chassis PL10.1

22PFL3505D/F7 (DS1A) A0172UH

(DS2A) A0172UH

(XA1A) A017JMA

PL10.1COM
