Page 1

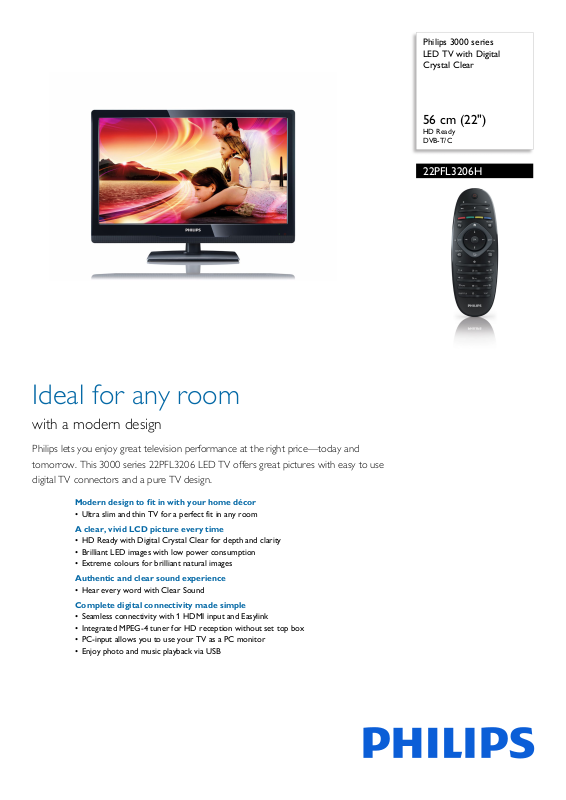

Philips 3000 series
LED TV with Digital
Crystal Clear
56 cm (22")
HD Ready
DVB-T/C
22PFL3206H
Ideal for any room
with a modern design
Philips lets you enjoy great television performance at the right price—today and
tomorrow. This 3000 series 22PFL3206 LED TV offers great pictures with easy to use
digital TV connectors and a pure TV design.
Modern design to fit in with your home décor
• Ultra slim and thin TV for a perfect fit in any room
A clear, vivid LCD picture every time
• HD Ready with Digital Crystal Clear for depth and clarity
• Brilliant LED images with low power consumption
• Extreme colours for brilliant natural images
Authentic and clear sound experience
• Hear every word with Clear Sound
Complete digital connectivity made simple
• Seamless connectivity with 1 HDMI input and Easylink
• Integrated MPEG-4 tuner for HD reception without set top box
• PC-input allows you to use your TV as a PC monitor
• Enjoy photo and music playback via USB
Page 2
22PFL3206H/12
LED TV
56 cm (22") HD Ready, DVB-T/C
Highlights
Clear Sound
Clear Sound is an innovative audio technology
that significantly increases the
comprehensibility of the voice, whether
spoken or sung. It ensures you hear every
word, so you can enjoy what you're watching
to the fullest.
1 HDMI inputs with Easylink
HDMI is a single cable, which carries both
picture and audio signals from your devices to
your TV, helping to avoid cable clutter. It
carries uncompressed signals, ensuring the
highest quality from source to screen.
Together with Philips Easylink, you need only
one remote control to perform most
operations on your TV, DVD, BluRay, set top
box or home theatre system.
PC input (HDMI and VGA)
With PC input you can use your TV as a PC
moni
tor either using a HDMI-DVI cable/
converter (for digital signals) or VGA cable (for
analogue signals).
Integrated DVB tuner MPEG-4
The integrated digital tuner lets you receive
digit
al cable and terrestrial TV without an
additional set top box. Enjoy quality TV clutter
free.
Digital Crystal Clear
Digital Crystal Clear is a package of picture
i
nnovations that digitally adjusts and optimises
picture quality to optimal contrast, colour and
sharpness levels. The result is extremely clear
pictures from any source.
Page 3
22PFL3206H/12
LED TV
56 cm (22") HD Ready, DVB-T/C
Specifications
Picture/Display
• Display: LED HD Ready
• Diagonal screen size: 22 inch / 56 cm
• Panel resolution: 1366 x 768p
• Aspect ratio: 16:9
• Brightness: 300 cd/m²
• Peak Luminance ratio: 65 %
• Dynamic screen contrast: 100,000:1
• Response time (typical): 5 ms
l Crystal Clear
• Picture enhancement: Digit
a
Sound
• Output power (RMS): 6 W (2 x 3 W)
• Sound Enhancement: Auto Vo
Sound, Incredible Surround, Treble and Bass
Control
lume Leveller, Clear
Connectivity
• Number of HDMI connections: 1
• EasyLink (HDMI-CEC): System standby, One touch
play
• Number of components in (YPbPr): 1
•Number of scarts (RGB/CVBS): 1
• Other connections: Antenna IEC75, Common
n
terface Plus (CI+), Digital audio out (coaxial), PC-
I
in VGA + Audio L/R in, Headphone out
Multimedia Applications
• Multimedia connections: USB
• Music Playback Formats: MP3
• Picture Playback Formats: JPEG
Supported Display Resolution
• Computer inputs: up to 1920 x 1080 @ 60 Hz
• Video inputs: 24, 25, 30, 50, 60 Hz, up to 1920 x
1080p
Convenience
• Electronic Programme Guide: 8-day Electronic
Programme Guide
• Ease of Installation: Channel installation wizard,
gs assistant wizard
Settin
• Ease of Use: One-stop Home button
• Screen Format Adjustments: 4:3, Autofill,
o
zoom, Movie expand 14:9, Movie expand
Aut
16:9, Subtitle Zoom, Super Zoom, Widescreen
• Teletext: 1000-page Smart Text
• Firmware upgradeable: Firmware upgradeable via
B
US
Tuner/Reception/Transmission
• Digital TV: DVB-C MPEG2*, DVB-C MPEG4*,
DVB-T MPEG2*, DVB-T MPEG4*
• Video Playback: NTSC, PAL, SECAM
Power
• Mains power: AC 220-240 V; 50-60 Hz
• Ambient temperature: 5°C to 40°C
• Energy Label Class: B
• EU Energy Label power: 33 W
• Annual energy consumption: 47 kW·h
• Standby power consumption: <0.3 W
• Power Saving Features: Eco mode, Eco settings
u
men
Presence of lead: Yes*
•
Dimensions
•Box dimensions (W x H x D):
576 x 426 x 133 mm
•Set dimensions (W x H x D): 520 x 340 x 43 mm
• Set dimensions with stand (W x H x D):
0 x
380 x 145 mm
52
• Product weight: 3.21 kg
• Product weight (+stand): 3.4
kg
Accessories
• Included accessories: Power cord, Remote
Control, 2 x AAA Batteries, Tabletop stand, User
Manual, Quick start guide, Warranty Leaflet
•
Issue date 2019-06-18
Version: 3.5.11
12 NC: 8670 000 83676
EAN: 87 12581 62460 6
© 2019 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
* The TV supports DVB reception for 'Free to air' broadcast. Specific
DVB operators may not be supported. An up to date list can be
found in the FAQ section of the Philips support website. For some
operators Conditional Access and subscription are required.
Contact your operator for more information.
* 8 days EPG, service not available in all countries
* Energy consumption in kWh per year based on the power
consumption of the television operating 4 hours per day for 365
days. The actual energy consumption will depend on how the
television is used.
* Typical on-mode power consumption measured according to
IEC62087 Ed 2.
* This television contains lead only in certain parts or components
where no technology alternatives exist in accordance with existing
exemption clauses under the RoHS Directive.
