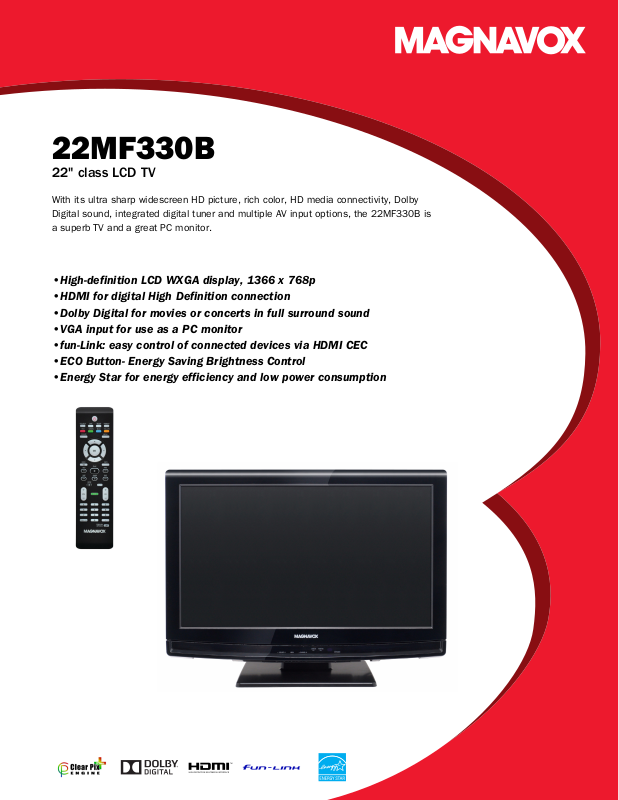

22MF330B
22" class LCD TV
With its ultra sharp widescreen HD picture, rich color, HD media connectivity, Dolby
Digital sound, integrated digital tuner and multiple AV input options, the 22MF330B is
a superb TV and a great PC monitor.
•High-definition LCD WXGA display, 1366 x 768p
•HDMI for digital High Definition connection
•Dolby Digital for movies or concerts in full surround sound
•VGA input for use as a PC monitor
•fun-Link: easy control of connected devices via HDMI CEC
•ECO Button- Energy Saving Brightness Control
•Energy Star for energy efficiency and low power consumption
22MF330B/F7
22" class LCD TV
Product specifications
Picture/Display
• Aspect ratio: Widescreen
• Diagonal screen size: 22 inch / 55.8 cm
• Visible screen diagonal (inch): 21.6 inch
• Panel resolution: 1366 x 768p
• Picture enhancement: Clear Pix Plus Engine,
ogressive scan, 3D Combfilter, Digital Noise
Pr
Reduction
Sound
• Sound System: Mono, Stereo, SAP, Dolby Digital
(AC-3)
• Output power (RMS): 2 x 3W
Loudspeakers
• Built-in speakers: 2
Convenience
• Ease of Installation: Autostore, PLL Digital Tuning,
Plug & Play
• User convenience: Sleep Timer
• Ease of Use: On Screen Display, Closed Captioning
ll Text, Smart Picture, Smart Sound, Side Control
Fu
• Screen Format Adjustments: 4:3, Normal, Zoom,
Full, Movie Expand, Wide
16:9,
• Child Protection: Child Lock+Parental Control
Tuner/Reception/Transmission
• Aerial Input: 75 ohm F-type
• Tuner bands: UHF, VHF
• TV system: ATSC, NTSC
• Video Playback: NTSC
Connectivity
• AV 1: Audio L/R in, YPbPr
• Front / Side connections: CVBS in, Audio L/R in,
Hea
dphone Out, S-video in, HDMI
• HDMI 1: Analog audio L/R in, HDMI
• PC: 3.5 mm PC audio input x1, VGA-in D-Sub 15HD
• Audio Output - Digital: Coaxial (cinch)
• AV output: Audio (L/R) x1
• Other connections: Service connector
• HDMI-CEC: One touch play, Power status, System
dby
stan
Power
• Mains power: 120V/60Hz
• Standby power consumption: <0.5W
• Ambient temperature: 5°C to 35°C (41°F to 95°F)
• Power consumption: 67 W
Dimensions
• Set dimensions in inch (W x H x D):
21.4 x 14.8 x 4.0 inch
• Set dimensions with stand in inch (W x H x D):
4 x 16.2 x 8.3 inch
21.
• Product weight (lb): 9.71
• Product weight (+stand) (lb): 10.37 lb
• Box dimensions in inch (W x H x D):
6 x 18.1 x 7.3 inch
24.
• Weight incl. Packaging (lb): 13.67
• VESA wall mount compatible: 100 x 100 mm
Accessories
• Included accessories: User Manual, Quick start
guide, Remote Control, Batteries for remote
control, Table top stand
LCD WXGA display, 1366x768p
This WXGA display with state-of-the-art LCD screen
technology gives you widescreen HD resolution of
1366 x 768p pixels. It produces brilliant flicker-free
progressive scan pictures with optimum brightness
and superb colors. This vibrant and sharp image will
provide you with an enhanced viewing experience.
HDMI input
HDMI makes an uncompressed digital RGB
connection from the source to the screen. By
eliminating conversion to an analog signal, it delivers
an unblemished image. The non-degraded signal
reduces flicker and leads to a clearer picture. HDMI
intelligently communicates the highest output
resolution with the source device. The HDMI input is
fully backward compatible with DVI sources but
includes digital audio. HDMI uses HDCP copy
protection.
Dolby Digital
Dolby Digital, the world's leading digital multi-channel
audio standard, makes use of the way the human ear
naturally processes sound. With Dolby Digital you
experience superb quality surround sound audio with
realistic spatial cues.
VGA input
VGA input provides a connector to accommodate input
of an analog signal for use as a PC monitor.
fun-Link
fun-Link uses the HDMI CEC industry standard , to
share control between devices connected to the TV.
With fun-Link only one remote control is needed to
operate the main functions on your TV and connected
devices like a Blu-ray player or home theater system.
Energy Star
Energy Star-labeled home electrical products are
designed to use less energy - saving you money while
reducing environmental pollution. In fact, Energy
Star-compliant products consume less than 1 watt of
power while in standby mode. This is achieved by
having low standby power consumption through
innovatively designed standby circuitry and stringent
selection of components made with high efficiency
materials.
Date of issue 2013-02-24
Version: 1.1.1
12 NC: 8670 000 57339
UPC: 6 09585 17846 5
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips Electronics N.V. or their
respective owners.
© 2013 Magnavox.
All Rights reserved.
www.magnavox.com
