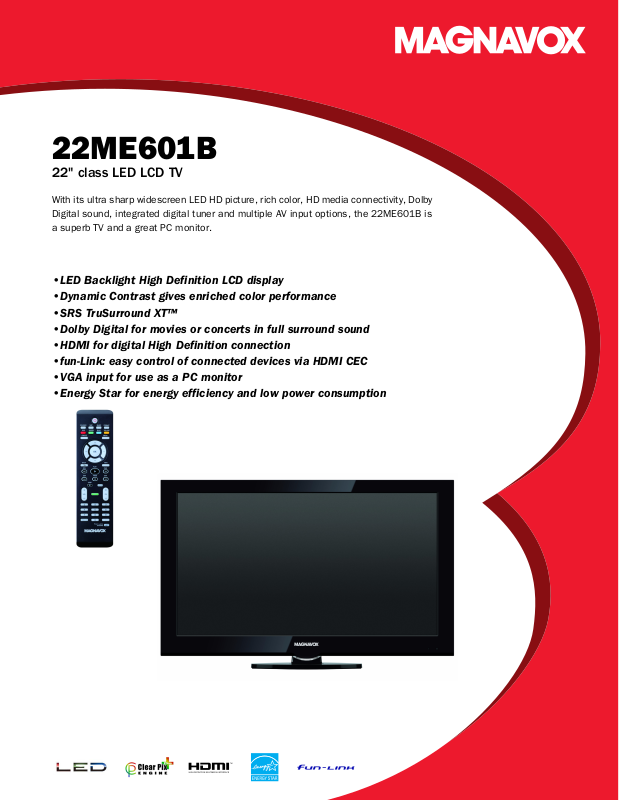

22ME601B
22" class LED LCD TV
With its ultra sharp widescreen LED HD picture, rich color, HD media connectivity, Dolby
Digital sound, integrated digital tuner and multiple AV input options, the 22ME601B is
a superb TV and a great PC monitor.
•LED Backlight High Definition LCD display
•Dynamic Contrast gives enriched color performance
•SRS TruSurround XT™
•Dolby Digital for movies or concerts in full surround sound
•HDMI for digital High Definition connection
•fun-Link: easy control of connected devices via HDMI CEC
•VGA input for use as a PC monitor
•Energy Star for energy efficiency and low power consumption
22ME601B/F7
22" class LED LCD TV
Product specifications
Picture/Display
• Aspect ratio: Widescreen
• Diagonal screen size: 22 inch / 55.8 cm
• Visible screen diagonal (inch): 21.6 inch
• Panel resolution: 1366 x 768p
• Picture enhancement: Progressive scan, 3D
mbfilter, Digital Noise Reduction, Dynamic
Co
contrast enhancement, 3/2 - 2/2 motion pull
down, Clear Pix Engine Plus
Sound
• Sound System: SRS TruSurround XT, Mono, Stereo,
SAP, Dolby Digital (AC-3)
• Output power (RMS): 2 x 1.5W
Loudspeakers
• Built-in speakers: 2
Convenience
• Ease of Installation: Autostore, PLL Digital Tuning
• User convenience: Sleep Timer
• Ease of Use: On Screen Display, Smart Picture,
art Sound, Closed Captioning Full Text, Side
Sm
Control, Auto Volume Leveller (AVL)
• Screen Format Adjustments: 4:3, 16:9, Zoom, Full,
ie Expand, Normal, Wide
Mov
• Child Protection: Child Lock+Parental Control
Tuner/Reception/Transmission
• Aerial Input: 75 ohm F-type
• Tuner bands: UHF, VHF
• TV system: ATSC, NTSC
• Video Playback: NTSC
Connectivity
• AV 1: CVBS in, Shared audio L/R in
• AV 2: YPbPr, Shared audio L/R in
• HDMI 1: HDMI, Shared audio L/R in
• PC: VGA-in D-Sub 15HD, Shared audio L/R in
• USB: USB(photo)
• AV output: Headphone out
• Audio Output - Digital: Coaxial (cinch)
• HDMI-CEC: One touch play, Power status, System
dby
stan
Power
• Mains power: 120V/60Hz
• Standby power consumption: <1W
• Ambient temperature: 5°C to 40°C (41°F to 104°F)
Dimensions
• Set dimensions in inch (W x H x D):
21.4 x 13.7 x 2.1 inch
• Set dimensions with stand in inch (W x H x D):
4 x 14.6 x 5.6 inch
21.
• Product weight (lb): 7.13 lb
• Product weight (+stand) (lb): 7.35 lb
• Box dimensions in inch (W x H x D):
6 x 16.6 x 4.1 inch
24.
• Weight incl. Packaging (lb): 9.6 lb
• VESA wall mount compatible: 100 x 100 mm
Accessories
• Included accessories: User Manual, Quick start
guide, Registration card, Remote Control, Batteries
for remote control, Table top stand
LED display
The LED Display renders the highest available
contrast with stunning brilliance, colors and low power
consumption. The revolutionary new LED lights are
positioned at both sides in the backlight for the LCD
display. They generate brilliant light in bright image
scenes, and are dimmed to lowest levels in dark
scenes. The result is a stunning picture with extreme
contrast, sharpness, vibrant color and with less
energy compared to a normal LCD TV of the same
screen size.
SRS TruSurround XT™
TruSurround XT™ creates a truly immersive surround
sound experience with rich bass and clear dialog from
only two speakers.
HDMI input
HDMI makes an uncompressed digital RGB
connection from the source to the screen. By
eliminating conversion to an analog signal, it delivers
an unblemished image. The non-degraded signal
reduces flicker and leads to a clearer picture. HDMI
intelligently communicates the highest output
resolution with the source device. The HDMI input is
fully backward compatible with DVI sources but
includes digital audio. HDMI uses HDCP copy
protection.
Dolby Digital
Dolby Digital, the world's leading digital multi-channel
audio standard, makes use of the way the human ear
naturally processes sound. With Dolby Digital you
experience superb quality surround sound audio with
realistic spatial cues.
VGA input
VGA input provides a connector to accommodate input
of an analog signal for use as a PC monitor.
fun-Link
fun-Link uses the HDMI CEC industry standard , to
share control between devices connected to the TV.
With fun-Link only one remote control is needed to
operate the main functions on your TV and connected
devices like a Blu-ray player or home theater system.
Date of issue 2013-02-24
Version: 3.3.3
12 NC: 8670 000 72807
UPC: 6 09585 20569 7
Energy Star
Energy Star-labeled home electrical products are
designed to use less energy - saving you money while
reducing environmental pollution. In fact, Energy
Star-compliant products consume less than 1 watt of
power while in standby mode. This is achieved by
having low standby power consumption through
innovatively designed standby circuitry and stringent
selection of components made with high efficiency
materials.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips Electronics N.V. or their
respective owners.
© 2013 Magnavox.
