Philips 22HFL5551D/10 leaflet

Download

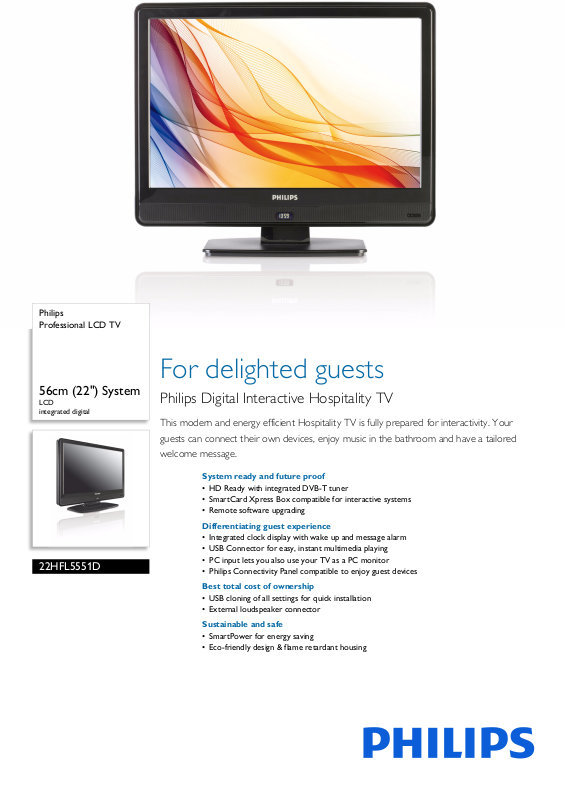

Page 1

Philips Professional LCD TV

For delighted guests

56cm (22") System

LCD integrated digital

22HFL5551D

Philips Digital Interactive Hospitality TV

This modern and energy efficient Hospitality TV is fully prepared for interactivity. Your guests can connect their own devices, enjoy music in the bathroom and have a tailored welcome message.

System ready and future proof

• HD Ready with integrated DVB-T tuner

• SmartCard Xpress Box compatible for interactive systems

• Remote software upgrading

Differentiating guest experience

• Integrated clock display with wake up and message alarm

• USB Connector for easy, instant multimedia playing

• PC input lets you also use your TV as a PC monitor

• Philips Connectivity Panel compatible to enjoy guest devices

Best total cost of ownership

• USB cloning of all settings for quick installation

• External loudspeaker connector

Sustainable and safe

• SmartPower for energy saving

• Eco-friendly design & flame retardant housing

Page 2

Professional LCD TV

56cm (22") System LCD, integrated digital

Highlights

22HFL5551D/10

SmartCard Xpress Box

The optional SmartCard Xpress Box can be mounte

d at the rear side of the TV set and allows third party decoders and application cards to interface with the TV adding new functionality to the TV. The TV can also be connected to external decoders and set-top boxes of all major interactive system providers, through the Serial Xpress Control Interface (supporting UART and RS232 protocols) and the SmartPlug Control interface.

USB Cloning

Provides the ability to easily copy all programming settings from one TV into other TV sets in less than a minute. The feature ensures uniformity between TV sets and significantly reduces installation time and costs.

Integrated clock display

The built-in clock display, which is also a wakeup

alarm, eliminates the need and investment for an additional clock with cables and connections in the room.

and channel programming

USB multimedia playing

This Philips TV allows the guest to connect a USB

stick for easy and instant playing of multimedia content. Playback formats supported are MP3, Slideshow files (.alb) and JPEG Still pictures.

PC input

With PC input you can connect your TV to a computer and use th

External loudspeaker connector

Amplified audio connector for easy installation o

f external speakers (like for bathrooms), eliminating the need for investments in external equipment

Connectivity Panel compatible

This TV work seamlessly with Philips Co

nnectivity Panels. The guest can easily connect and enjoy media from a PC, MP3 player, DVD player, camcorder and various other devices. With autosensing the Connectivity Panel and the TV will automatically switch to display the content from the connected guest device.

e TV as a PC monitor.

SmartPower

The backlight intensity can be controlled and p

re-set by the system to reduce the power consumption by up to 50%, which saves substantially on energy costs.

Eco-friendly design

Sustainability is integral to the way Philips does b

usiness. Philips TVs are designed and produced according to our EcoDesign principles aimed at minimizing overall environmental impact, through lower power consumption, removal of hazardous substances, lower weight, more efficient packaging and better recyclability. Philips TVs also have a special housing of flame retardant material. Independent tests carried out by emergency fire services have shown that whereas TVs can sometimes intensify fires caused by external sources, Philips TVs will not contribute to the fire.

Page 3

Professional LCD TV

56cm (22") System LCD, integrated digital

Specifications

22HFL5551D/10

Picture/Display

• Diagonal screen size: 22 inch / 56 cm

• Peak Luminance ratio: 96 %

• Aspect ratio: Widescreen

• Display screen type: LCD WXGA Active Matrix T

•

Panel resolution: 1366 x 768p

• Brightness: 350 cd/m²

• Contrast ratio (typical): 1000:1

• Dynamic screen contrast: 30000:1

• Response time (typical): 5 ms

• Viewing angle (H / V): 170 / 160 degree

• Screen enhancement: Anti-Reflection coated

• Picture enhancement: 3/2 - 2/2 motion pull down,

ombfilter, Active Control, Black stretch, Blue

3D C stretch, Color Enhancement, Color Transient Improvement, Digital Noise Reduction, Luminance Transient Improver, Motion adaptive deinterlacing, Progressive scan, Automatic skin tone correction, Dynamic contrast enhancement, White stretch, Green stretch, Pixel Plus HD

•Color cabinet: Black

Supported Display Resolution

• Video formats

olution Refresh rate

Res 480i 60Hz 480p 60Hz 576i 50Hz 576p 50Hz 1080i 50, 60Hz 720p 50, 60Hz

mputer formats

• Co

olution Refresh rate

Res 640 x 480 60Hz 800 x 600 60Hz 1024 x 768 60Hz 1280 x 1024 60Hz

Tuner/Reception/Transmission

• Aerial Input: 75 ohm coaxial (IEC75)

• Number of Preset Channels: 250

• Tuner bands: Hyperband, S-Channel, UHF, VHF

•Tuner Display: PLL

• TV system: PAL I, PAL B/G, PAL D/K, SECAM B/G,

SECAM D/K, SECAM L/L',

• Video Playback: PAL, SECAM, NTSC

• Digital TV: DVB Terrestrial *

DVB C

OFDM 2K/8K

Sound

• Output power (RMS): 2 x 5W

• Sound System: Mono, Stereo, Nicam Dolby Digital (AC-3), Virtual Dolby Digital

• Sound Enhancement: Auto Volume Leveller,

• Equalizer: 5-bands

le Surround, Smart Sound

Incredib

Stereo, BBE,

Loudspeakers

• Built-in speakers: 2

Connectivity

•Number of Scarts: 2

• Ext 1 Scart: Audio L/R, CVBS in/out, RGB

• Ext 2 Scart: Audio L/R, CVBS in/out

• Ext 3: Audio L/R in, YPbPr

• Ext 4: HDMI v1.3

• Ext 5: HDMI v1.3

• Ext 6: HDMI v1.3

• Front / Side connections: Audio L/R in, CVBS in, S-

deo in, USB 2.0, HDMI v1.3

• Other connections: Analog audio Le PDIF out (coaxial), Headphone out, PC-In VGA, Common Interface

• Connectivity Enhancements: Serial Xpress

SmartPlug Xpress Interface, RJ12

interface connector, RJ45 connector, SmartCard Xpress box ready, Fast Infrared loop through, HM-Link, External Loudspeaker connector, Power on scart, USB2.0

ft/Right out, S/

Convenience

• Ease of Installation: Advanced Hotel Mode, Fine Tuning, PLL Digital Tuning, Program Name, Cloning of TV settings via USB, Installation menu locking, Security menu access, Keyboard lock-out

• Ease of Use: Auto Volume Leveller (AVL), 1

ann

el list analog/digital, Smart Picture, Smart

ch Sound

• Comfort: Hotel Guest features, Auto power on, Welcome m channel, Volume limitation, Fast startup

• Interactive hotel features: Connectivity panel

mpatible

• Prison mode: Teletext and MHEG disable

• Clock: Integrated LCD Clock Display, Sleep Timer, Wake u

• Clock Enhancements: Synchro Time via TXT/DVB

• Teletext: 1000 page Smart Text

ssage, Message indicator, Switch on

Clock

•

Teletext languages: Western European, Eastern Euro

• Electronic Program Guide: Now + Next EPG

• Screen Format Adjustments Movie expand 14:9, Movie expand 16:9, Widescreen, Subtitle Zoom, Super Zoom, Auto Format

• Firmware upgradeable: Local upgrade total TV softw upgradeable via USB

• Other convenience: Kensington lock

rillic

pean, Cy

4:3, Full screen,

, Remote upgrade hotel TV softw, Firmware

Healthcare

• Control: Multi remote control

• Convenience: Headphone out, Independent main speaker mute Safety: Double isolation Class II

•

Multimedia Applications

• Multimedia connections: USB

• Playback Formats: MP3, JPEG Still pictures, Slidesho

w files (.alb)

Green Specifications

• Safety: Flame retardant housing

•SmartPower

Power

• Mains power: 220-240V, 50/60Hz

• Presence of lead: Yes*

• Mercury content: 11.2 mg

• Annual energy consumption: 68 kW·h

• Power consumption: 55 W

• Passive stand-by consumption: 1.2 W

• Standby power consumption: <2 W (w. clock)

• Active stand-by consumption: 20 W

• Ambient temperature: 5 °C to 35 °C

Issue date 2014-02-12

Version: 1.0.3

12 NC: 8670 000 57775 EAN: 87 12581 51309 2

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips N.V. or their respective owners.

www.philips.com

* For information on DVB-T enrolled countries please ask your Philips

contact.

* Typical on-mode power consumption measured according to

IEC62087 Ed 2.

* Energy consumption in kWh per year, based on the power

consumption of the television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used.

* This television contains lead only in certain parts or components

where no technology alternatives exist in accordance with existing exemption clauses under the RoHS Directive.
