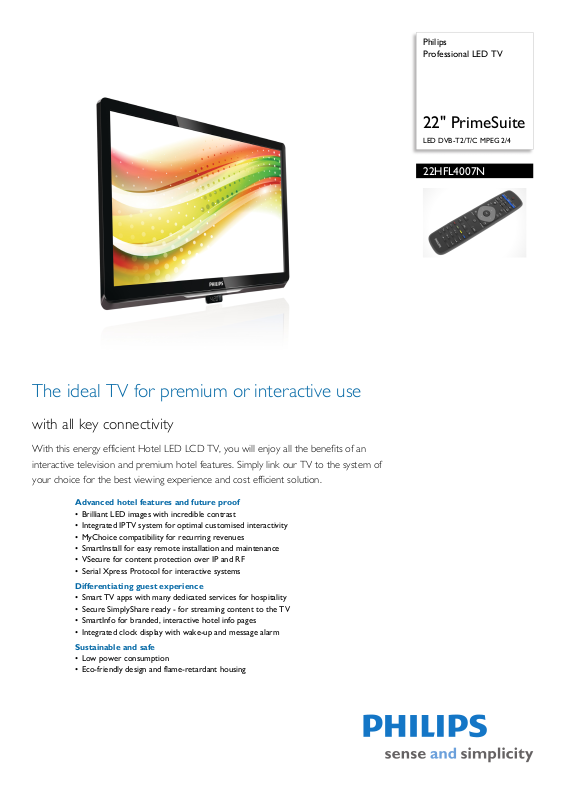

Page 1

Philips Professional LED TV

22" PrimeSuite

LED DVB-T2/T/C MPEG 2/4

22HFL4007N

The ideal TV for premium or interactive use

with all key connectivity

With this energy efficient Hotel LED LCD TV, you will enjoy all the benefits of an interactive television and premium hotel features. Simply link our TV to the system of your choice for the best viewing experience and cost efficient solution.

Advanced hotel features and future proof

• Brilliant LED images with incredible contrast

• Integrated IPTV system for optimal customised interactivity

• MyChoice compatibility for recurring revenues

• SmartInstall for easy remote installation and maintenance

• VSecure for content protection over IP and RF

• Serial Xpress Protocol for interactive systems

Differentiating guest experience

• Smart TV apps with many dedicated services for hospitality

• Secure SimplyShare ready - for streaming content to the TV

• SmartInfo for branded, interactive hotel info pages

• Integrated clock display with wake-up and message alarm

Sustainable and safe

• Low power consumption

• Eco-friendly design and flame-retardant housing

Page 2

Professional LED TV

22" PrimeSuite LED DVB-T2/T/C MPEG 2/4

Highlights

22HFL4007N/10

Serial Xpress Protocol (SXP)

The TV can be connected to external decoders and set-top system providers, through the Serial Xpress Protocol (SXP).

MyChoice compatible

MyChoice offers a simple and low-cost way to o

ffer your guests premium TV channels. At the same time it delivers an additional revenue stream which allows you to recover your initial TV investment.

Eco-friendly design

Sustainability is integral to the way Philips does bu

siness. Philips TVs are designed and produced according to our EcoDesign principles aimed at minimising overall environmental impact, through lower power consumption, removal of hazardous substances, lower weight, more efficient packaging and better recyclability. Philips TVs also have a special housing of flame-retardant material. Independent tests carried out by emergency fire services have shown that whereas TVs can sometimes intensify fires caused by external sources, Philips TVs will not contribute to a fire.

Integrated IPTV

Save costs and clutter. With our new Smart TVs yo on the TV. Interactive channels, video-ondemand, interactive hotel menus and information as well as online ordering systems are all possible without an external box

boxes of all major interactive

u can build your hotel system directly

attached to the TV. As well as delivering content over coax TV cables, you can now also use your Internet network to deliver your TV channels or VOD directly to the TV. Our partner network can make sure you get the customised portal you want.

SmartInfo

SmartInfo allows you to provide hotel or city i

nformation to your guests through SmartUI. Your guests have access to this interactive hotel webpage even when the TV is not connected to your intranet or Internet. You can change the information regularly and easily to keep your guests up-to-date with all the latest developments in your hotel.

Smart TV apps

Philips Smart TV apps consist of an ever grow

ing choice of applications ranging from YouTube to social networking apps and many more. The dedicated version is tailored for hospitality use and has several added benefits, such as making sure guest information is securely deleted after use and avoiding illegal content that can harm your business. With guests being able to use apps & catch-up TV even from their home country, Smart TV apps is leading the way in entertainment.

SmartInstall

SmartInstall makes the installation and mainte

nance of your TVs effortless. With a simple to use web tool, you can now remotely configure and install your TVs without visiting any rooms! This saves you time and makes

sure your guests are not disturbed. Whether it is updating the hotel info pages or installing new channels, SmartInstall can handle all.

VSecure over IP and RF

To show HD premium content to the guest you

need strict content security precautions from the content industry. Philips developed VSecure over RF and IP (Marlin and Windows DRM) for content protection on your Hotel TV.

Secure SimplyShare ready

With our optional Wi-Fi dongle you can enable S

ecure SimplyShare. This gives your customers the freedom to enjoy their content on the big TV wirelessly and without hassle. With our open system approach we serve iOS as well as Android users and continuously extend our compatibility. Our secure sharing makes this DLNA-based system protected so your guests will not be disturbed by other people. Pictures, movies, music, all can be shared and enjoyed via SimplyShare on the TV!

Energy

For many years Philips has pro-actively been w

orking on energy efficiency. As a result, most Philips products have achieved green energy labels. The greener the label, the lower the energy consumption, the lower your energy bill and the friendlier for the environment.

Full HD

LED

Page 3

Professional LED TV

22" PrimeSuite LED DVB-T2/T/C MPEG 2/4

Specifications

22HFL4007N/10

Picture/Display

• Display: LED Full HD

• Diagonal screen size: 22 inch / 56 cm

• Aspect ratio: 16:9

• Panel resolution: 1920 x 1080p

• Brightness: 250 cd/m²

• Viewing angle: 170º (H)/160º (V)

• Picture enhancement: Pixel Plus HD

• Dynamic screen contrast: 500,000:1

• Colour cabinet: Grey tint deco front with high oss black cabinet

Supported Display Resolution

• Computer inputs: up to 1920 x 1080 @ 60 Hz

• Video inputs: 24, 25, 30, 50, 60 Hz, up to 1920 x

1080p

Tuner/Reception/Transmission

• Aerial Input: 75 ohm coaxial (IEC75)

• Tuner bands: Hyperband, S-Channel, UHF, VHF

• Digital TV: DVB-C MPEG4*, DVB-T MPEG4*,

DVB-T2, DVB-C MPEG2*

•TV system: PAL, SECAM

• Video Playback: PAL, SECAM, NTSC

• IP Playback: IGMP Multicast

, DVB-T MPEG2*

Sound

• Output power (RMS): 6 W (2 x 3 W)

• Sound Enhancement: Auto Volume Leveller,

edible Surround

Incr

Loudspeakers

• Built-in speakers: 2

Connectivity

• Number of USBs: 2

• Number of HDMI connections: 3

• Number of components in (YPbPr): 1

•Number of scarts (RGB/CVBS): 1

• EasyLink (HDMI-CEC): One touch play, System an

dby

• Other connections: Antenna IEC75, Headphone

out, PC-in out, Common Interface Plus (CI+), Ethernet-LAN RJ-45, Digital audio out (coaxial)

• Connectivity Enhancements: Serial Xpress

in loop through, Power on scart, USB2.0, Wi-Fi via PTA01 (option), External Power 12V/15W

VGA + Audio L/R in, Bathroom speaker

terfac

e, IR-out, RJ-48 connector, Fast Infrared

Convenience

• Ease of Installation: Plug and Play, Advanced Hotel Mode, Automatic Tuning System (ATS), PLL Digital Tuning, Automatic Channel Install (ACI), Programme Name, Auto Programme Naming, Autostore, Cloning of TV settings via USB, Installation menu locking, Security menu access, Keyboard lock-out

• Ease of Use: Auto Volume Leveller (AVL), 1

el list analogue/digital, On-Screen Display,

ann

ch Programme List, Back Controls, Graphical User Interface

• Comfort: Hotel Guest features, Auto power on,

n/Fast startup, Welcome message, Message

Gre indicator, Switch on channel, Volume limitation, Sleep timer

• Interactive hotel features: Connectivity panel

mpatible, ThemeTV, Block automatic channel

c update, Block over-the-air SW download, Vsecure, SmartInstall, MyChoice, SmartInfo Premium

• Prison mode: Txt, MHEG, USB, EPG, Sub block

• Clock: Dimmable, Integrated LCD Clock Display, Sleep Timer, Wake

•

Clock Enhancements: Synchro Time via TXT/DVB

• Teletext: 1000-page Hypertext

• Teletext enhancements: Fast text, Programme

rmat

ion Line

info

• Electronic Programme Guide Programme Guide, Now + Next EPG, IP EPG

• Screen Format Adjustments: Movie expand 16:9, Widescreen, Sup

• Remote control type: 22AV1109A/10 (RC6)

• Remote Control: low battery detection, battery

ti-theft protection

• Firmware upgradeable: Firmware upgradeable via USB, Firmware upgradeable via R upgradeable via IP

• Other convenience: Kensington lock

-up Clock

: 8-day Electronic

er Zoom, Auto Format

F, Firmware

Healthcare

• Control: Multi remote control

• Convenience: Headphone out, Independent main speaker mute Safety: Nurse call system compatible, Double

•

olation Class II

Multimedia Applications

• Multimedia connections: USB

• Video Playback Formats: H264/MPEG-4 AVC,

MPEG-1, MPEG-2, MP

• Music Playback Formats: AAC, MP3

• Picture Playback Formats: JPEG

EG-4

Power

• Mains power: 220-240 V, 50/60 Hz

• EU Energy Label power: 27 W

• Energy Label Class: B

• Annual energy consumption: 37 kW·h

• Standby power consumption: < 0.3 W

• Ambient temperature: 5°C to 40°C

Green Specifications

• Safety: Flame-retardant housing

• Low Power Standby

• SmartPower Eco

Dimensions

•Set dimensions (W x H x D): 514 x 339 x 45 mm

•Box dimensions (W x H x D): x 405 x 126 mm

570

• Product weight: 3.8 kg

• Weight incl. Packaging: 5.3 kg

• VESA wall mount compatible: 100 x 100 mm

Accessories

• Included accessories: Remote Control, Batteries

for remote control, Power cord, Warranty Leaflet

• Optional accessories: Set up remote 22AV8573/

reless USB adapter (PTA01)

00, Wi

Smart TV Applications

• Net TV: Online apps, For HotelTV, configurable

• SimplyShare: SimplyShare Ready, DMP, Secured

Pairing

ontrol: IXP control

•C

•Other: HbbTV

•

Issue date 2013-04-17

Version: 3.1.6

12 NC: 8670 000 92413 EAN: 87 12581 65204 3

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.

www.philips.com

* Energy consumption in kWh per year based on the power

consumption of the television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used.

* This television contains lead only in certain parts or components

where no technology alternatives exist in accordance with existing exemption clauses under the RoHS Directive.

* Typical on-mode power consumption measured according to

IEC62087 Ed 2.
