Philips 22HFL3007D/10 leaflet

Download

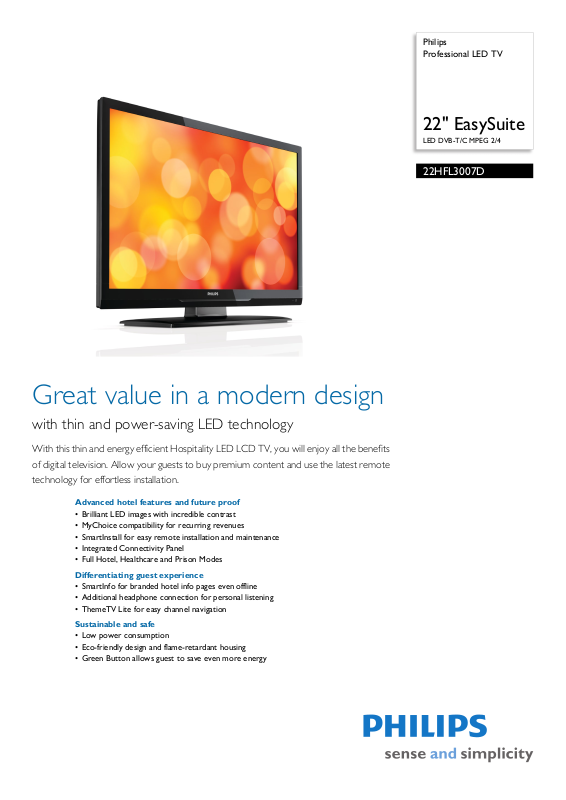

Page 1

Philips Professional LED TV

22" EasySuite

LED DVB-T/C MPEG 2/4

22HFL3007D

Great value in a modern design

with thin and power-saving LED technology

With this thin and energy efficient Hospitality LED LCD TV, you will enjoy all the benefits of digital television. Allow your guests to buy premium content and use the latest remote technology for effortless installation.

Advanced hotel features and future proof

• Brilliant LED images with incredible contrast

• MyChoice compatibility for recurring revenues

• SmartInstall for easy remote installation and maintenance

• Integrated Connectivity Panel

• Full Hotel, Healthcare and Prison Modes

Differentiating guest experience

• SmartInfo for branded hotel info pages even offline

• Additional headphone connection for personal listening

• ThemeTV Lite for easy channel navigation

Sustainable and safe

• Low power consumption

• Eco-friendly design and flame-retardant housing

• Green Button allows guest to save even more energy

Page 2

Professional LED TV

22" EasySuite LED DVB-T/C MPEG 2/4

Highlights

22HFL3007D/10

MyChoice compatible

MyChoice offers a simple and low-cost way to o

ffer your guests premium TV channels. At the same time it delivers an additional revenue stream which allows you to recover your initial TV investment.

Integrated Connectivity Panel

The Integrated Connectivity Panel allows your gue

sts to seamlessly connect their personal devices to your TV without the need for an external Connectivity Panel.

Eco-friendly design

Sustainability is integral to the way Philips does bu

siness. Philips TVs are designed and produced according to our EcoDesign principles aimed at minimising overall environmental impact, through lower power consumption, removal of hazardous substances, lower weight, more efficient packaging and better recyclability. Philips TVs also have a special housing of flame-retardant material. Independent tests carried out by emergency fire services have shown that whereas TVs can sometimes intensify fires caused by external sources, Philips TVs will not contribute to a fire.

ThemeTV Lite

ThemeTV Lite offers an easy user interface th

at gives your guests the opportunity to

navigate the guest menu to find channels from

their home country, news and hotel information easily without the need for an interactive entertainment system.

Full HD LED TV

The most advanced LED lighting technology in this Full HD LED TV combines an eye-catching minimalistic design with stunning image quality as well as the lowest power consumption in its category. On top of that, LED lighting technology does not contain any hazardous materials. Thus, with LED backlights you can enjoy low power consumption, high brightness, incredible contrast, sharpness and vibrant colours.

Green Button

With the Green Button guests have the option t

o save even more energy on the TV by opting for a higher backlight dimming or by switching off the screen when listening to radio. Another way to reduce a hotel's operating costs while involving guests directly.

SmartInstall

SmartInstall makes the installation and mainte

nance of your TVs effortless. With a simple to use web tool, you can now remotely configure and install your TVs without visiting any rooms! This saves you time and makes sure your guests are not disturbed. Whether it is updating the hotel info pages or installing new channels, SmartInstall can handle all.

SmartInfo

SmartInfo allows you to provide hotel or city i

nformation to your guests through Hotel Info. Your guests have access to hotel info pages which can be changed regularly and easily to keep your guests up-to-date with all the latest developments in your hotel.

Energy

For many years Philips has pro-actively been w

orking on energy efficiency. As a result, most Philips products have achieved green energy labels. The greener the label, the lower the energy consumption, the lower your energy bill and the friendlier for the environment.

Full HD

LED

Page 3

Professional LED TV

22" EasySuite LED DVB-T/C MPEG 2/4

Specifications

22HFL3007D/10

Picture/Display

• Display: LED Full HD

• Diagonal screen size: 22 inch / 56 cm

• Aspect ratio: 16:9

• Panel resolution: 1920 x 1080p

• Brightness: 250 cd/m²

• Viewing angle: 170º (H)/160º (V)

• Picture enhancement: Digital Cryst Perfect Motion Rate

• Dynamic screen contrast: 100,000:1

• Colour cabinet: High gloss black cabinet

l Clear, 100 Hz

Supported Display Resolution

• Computer inputs: up to 1920 x 1080 @ 60 Hz

• Video inputs: 24, 25, 30, 50, 60 Hz, up to 1920 x 1080p

Tuner/Reception/Transmission

• Aerial Input: 75 ohm coaxial (IEC75)

• Video Playback: PAL, SECAM, NTSC

• Digital TV: DVB-C MPEG4*, DVB-T MPEG4*, DVB-C MPEG2*, DV

•TV system: PAL, SECAM

B-T MPEG2*

Sound

• Output power (RMS): 6 W (2 x 3 W)

• Sound Enhancement: Auto Volume Leveller,

credible Surround, Treble and Bass Control,

In Clear Sound

Connectivity

• Number of AV connections: 1

• Number of USBs: 1

• Number of HDMI connections: 3

• Number of components in (YPbPr): 1

•Number of scarts (RGB/CVBS): 1

•HDMI features: Audio R

• EasyLink (HDMI-CEC): One touch play, System

dby, Remote control pass-through, System

stan audio control

• Other connections: Antenna IEC75, Headphone

t, P

C-in VGA + Audio L/R in, Common Interface

ou Plus (CI+), Digital audio out (coaxial)

turn Channel

Convenience

• Ease of Installation: Plug and Play, Advanced Hotel Mode, Automatic Tuning System (ATS), PLL Digital Tuning, Automatic Channel Install (ACI), Auto Programme Naming, Autostore, Cloning of TV

settings via USB, Cloning of TV settings via RF, Installation menu locking, Security menu access, Keyboard lock-out

• Ease of Use: Auto Volume Leveller (AVL), 1 el list analogue/digital, On-Screen Display,

ann

ch Programme List, Side Control, Graphical User Interface

• Comfort: Hotel Guest features, Welcome

message, Switch on channel, V Sleep timer

• Interactive hotel features: Block autom

update, MyChoice, ThemeTV Lite

• Prison mode: Txt, MHEG, USB, EPG, Sub block

• Clock Enhancements: Synchro Time via TXT/DVB

• Teletext: 1000-page Smart Text

• Electronic Programme Guid

Programme Guide, Now + Next EPG

• Screen Format Adjustments: 4:3, Movie expand

, Movie expand 16:9, Widescreen, Subtitle

14:9 Zoom, Super Zoom, Auto Format

• Remote control type: 22AV1108A (RC6)

• Remote Control: low battery detection, battery

ti-theft protection

• Firmware upgradeable: Firmware upgradeable via

, Firmware upgradeable via RF

USB

• Other convenience: Kensington lock

• Clock: Sleep Timer

lume limitation,

tic channel

: 8-day Electronic

Healthcare

• Control: Multi remote control

• Convenience: Headphone out, Independent main

speaker mute Safety: Double isolation Class II

•

Multimedia Applications

• Multimedia connections: USB

• Video Playback Formats: H264/MPEG-4 AVC,

MPEG-1, MPEG-2, 4, WMV9/VC1

• Music Playback Formats: AAC, MP3

• Picture Playback Formats: JPEG

Containers: AVI, MKV, MPEG-

Power

• Mains power: 220-240 V, 50/60 Hz

• Standby power consumption: <0.3 W

• Ambient temperature: 5°C to 35°C

• Annual energy consumption: 35 kW·h

• Energy Label Class: A

• EU Energy Label power: 24 W

Green Specifications

• Safety: Flame-retardant housing

• Low Power Standby

• SmartPower Eco

Dimensions

•Set dimensions (W x H x D):

519.8 x 340.3 x 38.3 mm

• Set dimensions with stand (W x H x D): x 380.3 x 144.5 mm

519.8

•Box dimensions (W x H x D):

x 426 x 108 mm

576

• Product weight: 3.07 kg

• Product weight (+stand): 3.28 kg

• Weight incl. Packaging: 4.42 kg

• VESA wall mount compatible: 75 x 75 mm

Accessories

• Included accessories: Remote Control, Batteries

for remote control, Power cord, Tabletop stand, Warranty Leaflet

• Optional accessories: Set up remote 22AV8573/00

Loudspeakers

• Built-in speakers: 2

•

Issue date 2013-04-16

Version: 4.2.4

12 NC: 8670 000 91919 EAN: 87 12581 65054 4

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.

www.philips.com
