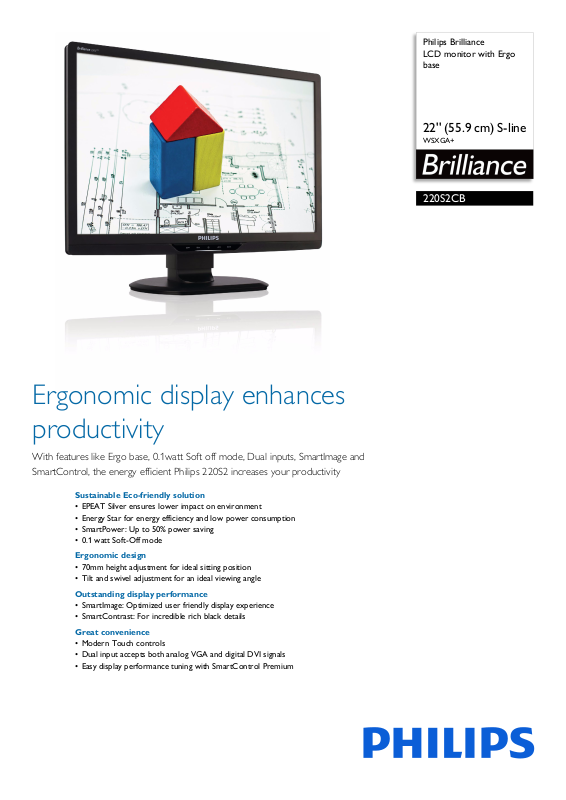

Philips 220S2CB-00 User Manual
Philips Brilliance
LCD monitor with Ergo
base
22'' (55.9 cm) S-line
WSXGA+
220S2CB
Ergonomic display enhances
productivity
With features like Ergo base, 0.1watt Soft off mode, Dual inputs, SmartImage and
SmartControl, the energy efficient Philips 220S2 increases your productivity
Sustainable Eco-friendly solution
• EPEAT Silver ensures lower impact on environment
• Energy Star for energy efficiency and low power consumption
• SmartPower: Up to 50% power saving
• 0.1 watt Soft-Off mode
Ergonomic design
• 70mm height adjustment for ideal sitting position
• Tilt and swivel adjustment for an ideal viewing angle
Outstanding display performance
• SmartImage: Optimized user friendly display experience
• SmartContrast: For incredible rich black details
Great convenience
• Modern Touch controls
• Dual input accepts both analog VGA and digital DVI signals
• Easy display performance tuning with SmartControl Premium
LCD monitor with Ergo base
22'' (55.9 cm) S-line WSXGA+
220S2CB/00
Highlights
SmartImage
SmartImage is an exclusive leading edge Philips
technology that analyzes the content displayed on
your screen and gives you optimized display
performance. This user friendly interface allows you
to select various modes like Office, Image,
Entertainment, Economy etc., to fit the application in
use. Based on the selection, SmartImage dynamically
optimizes the contrast, color saturation and
sharpness of images and videos for ultimate display
performance. The Economy mode option offers you
major power savings. All in real time with the press
of a single button!
SmartPower
SmartPower is an artificial intelligent technology
which dynamically analyzes the content of the screen
image to achieve power saving. The backlight
intensity can be controlled automatically and pre-set
by the system to reduce the power consumption by
up to 50%, which saves substantially on energy costs
Dual input
www.epeat.net for registration status in your
country.
Energy Star 5.0
Energy Star is a US EPA sponsored energy efficiency
program also adopted by many other countries.
Energy Star certification ensures that you are buying
a product which meets the latest power efficiency
standards which operates with maximum power
efficiency at all operational levels. New Philips
monitors are certified for Energy Star 5.0
specifications and meet or exceed the standard. For
example, in sleep mode Energy Star 5.0 requires less
than 1watt power consumption, whereas Philips
monitors consume less than 0.5watts. Further details
can be obtained from www.energystar.gov
Screen tilt and swivel
Screen tilt and swivel is a mechanism built into the
base permits the monitor to swivel and tilt backward
or forward.
70mm height adjustment
The Super Ergo Base is a 'people friendly' Philips
monitor base that not only tilts and swivels, but is
also height adjustable and pivots to 90 degree, so
that each user can adjust the monitor to their
personal preference for maximum viewing comfort
and efficiency.
Touch controls
Touch controls are intelligent, touch sensitive icons
that replace protruding buttons that lets the user
adjust the monitor to their requirement. Responding
to your lightest touch,Touch control gives the
monitor a modern feel
SmartContrast
Specifications
Picture/Display
• LCD panel type: TFT-LCD
• Panel Size: 22 inch / 55.9 cm
• Aspect ratio: 16:10
• Optimum resolution: 1680 x 1050 @ 60Hz
• Response time (typical): 5 ms
• Brightness: 250 cd/m²
• SmartContrast: 500,000:1
• Pixel pitch: 0.282 x 0.282 mm
• Viewing angle: 176º (H) / 170º (V), @ C/R > 5
• Picture enhancement: SmartImage
• Display colors: 16.7 M
• Scanning Frequency: 30 -83 kHz (H) / 56 -75 Hz (V)
•sRGB
Connectivity
• Signal Input: VGA (Analog ), DVI-D (digital, HDCP)
• Sync Input: Separate Sync, Sync on Gre
Convenience
• User convenience: SmartImage, SmartPower,
Brightness, Menu, Power On/Off
• OSD Languages: English, F
Italian, Russian, Simplified Chinese, Portuguese
• Other convenience: VESA mount (100x100mm),
nsington lock
Ke
• Plug & Play Compatibility: DDC/CI, Windows 7/
ta/XP/2000/98, Mac OS X, sRGB
Vis
rench, German, Spanish,
Stand
• Tilt: -5/20 degree
• Height adjustment: 70 mm
Power
• Smart Power Mode: 12W (Min.)
• On mode: <21.5W (EnergyStar 5.0 test method)
• Standby mode: <0.1 W
• Off mode: <0.1 W
• Power LED indicator: Operation - White, Standby
mode- White (blinking)
• Power supply: Built-in, 100-240VAC, 50/60Hz
en
Dual input provides connectors to accommodate
input of both analog VGA and digital DVI signals.
EPEAT Silver
Philips EPEAT Silver certified monitors ensure
protection for human health and environment, and
are highly energy efficient ensuring low emissions of
climate changing green house gases. EPEAT program
helps purchasers evaluate, compare and select
Monitors based on 51 environmental criteria
supported by US EPA. EPEAT Silver is valid only
where Philips registers the product. Please visit
Issue date 2014-03-14
Version: 3.0.3
12 NC: 8670 000 61635
EAN: 87 12581 53508 7
SmartContrast is a Philips technology that analyzes
the contents you are displaying, automatically
adjusting colors and controlling backlight intensity to
dynamically enhance contrast for the best digital
images and videos or when playing games where
dark hues are displayed. When Economy mode is
selected, contrast is adjusted and backlighting finetuned for just-right display of everyday office
applications and lower power consumption.
© 2014 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
Dimensions
• Packaging in mm (WxHxD): 486 x 551 x 138 mm
• Product with stand (mm): 416 x 505 x 201 mm
• Product without stand (mm): 351 x 505 x 59 mm
Weight
• Product with packaging (kg): 5.66 kg
• Product with stand (kg): 4.18 kg
• Product without stand (kg): 3.79 kg
Operating conditions
• Temperature range (operation): 0°C to 40°C °C
• Temperature Range (storage): -20°C to 60°C °C
• Relative humidity: 20%-80 %
• MTBF: 50,000 hour(s)
Sustainability
• Environmental and energy: RoHS, EPEAT Silver,
EnergyStar 5.0
Compliance and standards
• Regulatory Approvals: BSMI, CE Mark, FCC, Class
B, GOST, SEMKO, TCO 5.0, TUV/GS, TUV Ergo,
UL/cUL
Cabinet
• Color: Black/Black
• Finish: Texture
•
