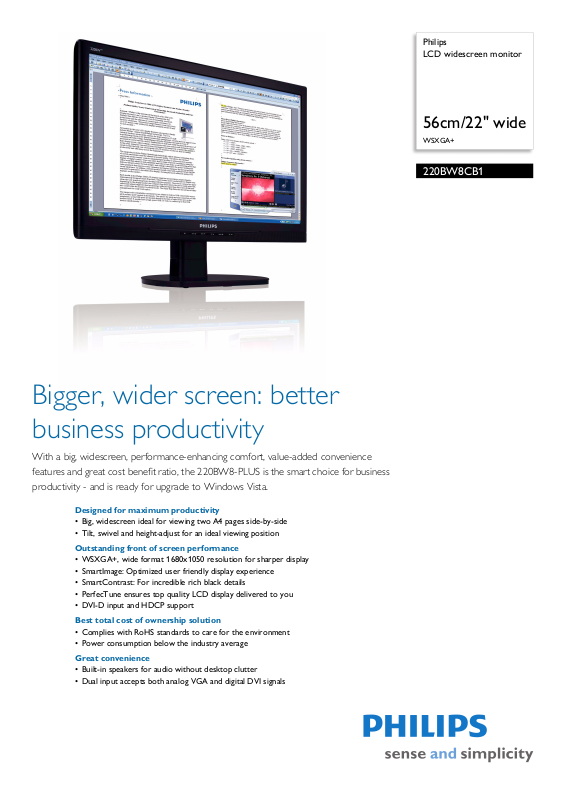

Philips
LCD widescreen monitor
56cm/22" wide
WSXGA+
220BW8CB1
Bigger, wider screen: better
business productivity
With a big, widescreen, performance-enhancing comfort, value-added convenience
features and great cost benefit ratio, the 220BW8-PLUS is the smart choice for business
productivity - and is ready for upgrade to Windows Vista.
Designed for maximum productivity
• Big, widescreen ideal for viewing two A4 pages side-by-side
• Tilt, swivel and height-adjust for an ideal viewing position
Outstanding front of screen performance
• WSXGA+, wide format 1680x1050 resolution for sharper display
• SmartImage: Optimized user friendly display experience
• SmartContrast: For incredible rich black details
• PerfecTune ensures top quality LCD display delivered to you
• DVI-D input and HDCP support
Best total cost of ownership solution
• Complies with RoHS standards to care for the environment
• Power consumption below the industry average
Great convenience
• Built-in speakers for audio without desktop clutter
• Dual input accepts both analog VGA and digital DVI signals
LCD widescreen monitor
56cm/22" wide WSXGA+
Highlights
220BW8CB1/93
Compact Ergo Base
The Compact Ergo Base is a 'people friendly'
Phili
ps monitor base that tilts, swivels and
height adjusts so each user can position the
monitor for maximum viewing comfort and
efficiency.
WSXGA+, wide format 1680x1050
Wide format, super extended graphics array is
a
display specification that is capable of
displaying 1680 x 1050 resolution or
approximately 1.7 million pixels.
SmartImage
SmartImage is an exclusive leading edge Philips
te
chnology that analyzes the content displayed
on your screen and gives you optimized display
performance. This user friendly interface
allows you to select various modes like Office,
Image, Entertainment, Economy etc., to fit the
application in use. Based on the selection,
SmartImage dynamically optimizes the
contrast, color saturation and sharpness of
images and videos for ultimate display
performance. The Economy mode option
offers you major power savings. All in real time
with the press of a single button!
SmartContrast
SmartContrast is a Philips t
analyzes the contents you are displaying,
automatically adjusting colors and controlling
backlight intensity to dynamically enhance
contrast for the best digital images and videos
or when playing games where dark hues are
displayed. When Economy mode is selected,
contrast is adjusted and backlighting fine-tuned
for just-right display of everyday office
applications and lower power consumption.
PerfecTune
PerfectTune is industry-leading, proprietary
Phili
ps testing and algorithm technology for
monitor adjustment and fine tuning, an
extensive process that ensures ultimate display
performance in compliance with a standard
four-times more stringent than Microsoft's
Vista requirements from each and every
monitor that leaves the factory - not just a few
review samples. Only Philips goes to these
lengths to deliver this exacting level of color
accuracy and display quality in every new
monitor.
HDCP ready
High-Bandwidth Digital Content Protection
(HDCP) is a
copyright protection system that
echnology that
is incorporated into the DVI connector. It
helps stop unauthorized duplication of
copyrighted content. HDCP allows you to play
protected content media such as movies and
concerts. It checks the signal to prevent piracy,
allowing only legal copies of content to display.
Compliant with RoHS standards
Philips designs and produces display products
i
n compliance with strict Restriction of
Hazardous Substances (RoHS) standards that
restrict lead and other toxic substances that
can harm the environment.
Lower power consumption
Reduction of the electrical power required to
o
perate a device.
Built-in speakers
A pair of stereo speakers built into a display
device.
It can be visible front firing, or invisible
down firing, top firing, rear firing, etc
depending on model and design.
Dual input
Dual input provides connectors to
accommoda
digital DVI signals.
te input of both analog VGA and
LCD widescreen monitor
56cm/22" wide WSXGA+
Specifications
220BW8CB1/93
Picture/Display
• LCD panel type: 1680 x 1050 pixels, Anti-glare
polarizer, RGB vertical stripe
• Panel Size: 22" / 55.9 cm
• Effective viewing area: 474 x 296 mm
• Pixel pitch: 0.282 x 0.282 mm
• Brightness: 300 cd/m²
• Contrast ratio (typical): 1000:1
• SmartContrast ratio (dynamic): 3400:1
• Display colors: 16.7 M
• Viewing angle: 160º (H) / 160º (V), @ C/R > 10
• Response time (typical): 5 ms
• White Chromaticity, 6500K: x = 0.313 / y = 0.329
• White Chromaticity, 9300K: x = 0.283 / y = 0.297
• Maximum Resolution: 1680 x 1050 @ 60Hz
• Optimum resolution: 1680 x 1050 @ 60Hz
• Video Dot Rate: 205 MHz
• Horizontal Scanning Frequency: 30 - 83 kHz
• Vertical Scanning Frequency: 56 - 75 Hz
• Aspect ratio: 16:10
•sRGB
Connectivity
• Signal Input: VGA (Analog ), DVI-D
• USB: USB 2.0 x 1
• Sync Input: Composite Sync,
on Green
• Video input impedance: 75 ohm
• Sync input impedance: 2.2k ohm
• Video input signal levels: 0.7 Vpp
Separate Sync, Sync
Convenience
• User convenience: On-screen Display
• Monitor Controls: SmartImage, Auto (Back), Input
wn), Volume (Up), Menu (OK), Power On/Off
(Do
• OSD Languages: English, Fr
Russian, Spanish
• Other convenience: Kensingto
• Plug & Play Compatibility: DDC/CI, sRGB,
ws 98/ME/2000/XP/Vista
Windo
• Regulatory approvals: CE Mark, Energy Star, FCC
ench, German, Italian,
n lock compatible
ass B, SEMKO, TCO '03, TÜV/GS, TÜV Ergo,
Cl
UL/cUL, CCC
• Tilt: -5° to 20°
•Swivel: +/-45°
• VESA Mount: 100 x 100 mm
• Built-in Audio: 1 W x 2
Accessories
• Included accessories: AC Power Cord, VGA cable,
DVI-D cable, Audio Cable
• User Manual
Dimensions
•Box dimensions (W x H x D):
565 x 490 x 173 mm
• Box dimensions in inch (W x H x D):
.2 x 19.3 x 6.8 inch
22
• Set dimensions (W x H x D): 451 x 519 x 113 mm
• Set dimensions in inch (W
17.8 x 20.4 x 4.4 inch
• Set dimensions with stand (W x H x D):
5 x 519 x 211 mm
45
•Set dimensions with st
17.9 x 20.4 x 8.3 inch
• Height adjustment range: 70 mm
• MTBF: 50,000 hrs
• Relative humidity: 20% - 80%
• Temperature range (operation): 0°C to 40°C
• Temperature range (storage): -20°C to 60°C
• Product weight (+stand): 5.6 kg
• Product weight (+stand) (lb): 12.3 lb
• Weight incl. Packaging: 6.8 kg
• Weight incl. Packaging (lb): 15.0
x H x D):
and in inch (W x H x D):
Power
• Complies with: Energy Star
• Consumption (On mode): < 45 W (Typical)
•Consumption (Off Mo
• Power LED indicator: Stand by/sleep - Amber,
eration - green
Op
• Power supply: Built-in, 100-240VAC, 50/60Hz
•
de): < 1 W
Issue date 2012-01-20
Version: 1.0.3
12 NC: 8670 000 39859
EAN: 87 12581 42421 3
© 2012 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
