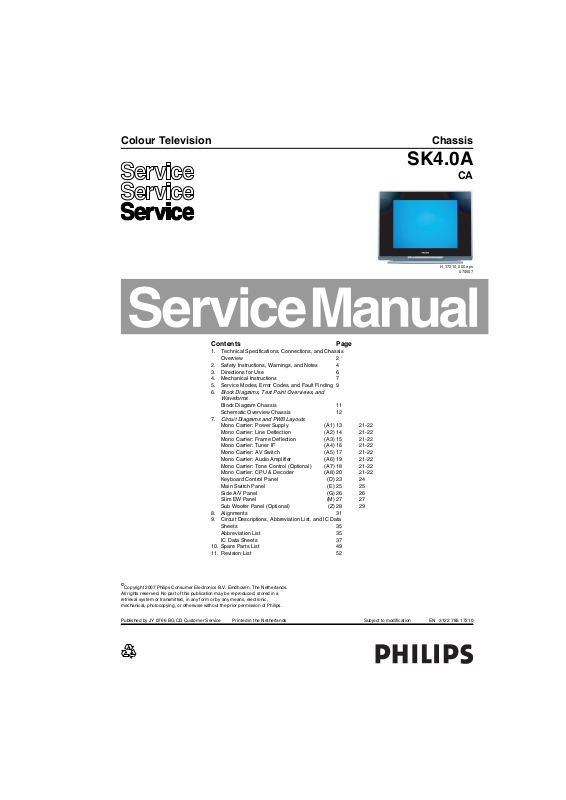

Philips 21PT8868/94 Schematic

Colour Television Chassis

SK4.0A

CA

H_17210_000.eps

070607

Contents Page

1. Technical Specifications, Connections, and Chassis
Overview 2

2. Safety Instructions, Warnings, and Notes 4

3. Directions for Use 6

4. Mechanical Instructions 7

5. Service Modes, Error Codes, and Fault Finding 9

6. Block Diagrams, Test Point Overviews, and

Waveforms

Block Diagram Chassis 11
Schematic Overview Chassis 12

7. Circuit Diagrams and PWB Layouts
Mono Carrier: Power Supply (A1) 13 21-22
Mono Carrier: Line Deflection (A2) 14 21-22
Mono Carrier: Frame Deflection (A3) 15 21-22
Mono Carrier: Tuner IF (A4) 16 21-22
Mono Carrier: AV Switch (A5) 17 21-22
Mono Carrier: Audio Amplifier (A6) 19 21-22
Mono Carrier: Tone Control (Optional) (A7) 18 21-22
Mono Carrier: CPU & Decoder (A8) 20 21-22
Keyboard Control Panel (D) 23 24
Main Switch Panel (E) 25 25
Side A/V Panel (G) 26 26
Slim EW Panel (M) 27 27
Sub Woofer Panel (Optional) (Z) 28 29

8. Alignments 31

9. Circuit Descriptions, Abbreviation List, and IC Data
Sheets 35
Abbreviation List 35
IC Data Sheets 37

10. Spare Parts List 49

11. Revision List 52

©

Copyright 2007 Philips Consumer Electronics B.V. Eindhoven, The Netherlands.
All rights reserved. No part of this publication may be reproduced, stored in a
retrieval system or transmitted, in any form or by any means, electronic,
mechanical, photocopying, or otherwise without the prior permission of Philips.

Published by JY 0766 BG CD Customer Service Printed in the Netherlands Subject to modification EN 3122 785 17210

EN 2 SK4.0A CA1.

Technical Specifications, Connections, and Chassis Overview

1. Technical Specifications, Connections, and Chassis Overview

Index of this chapter:

1.1 Technical Specifications

1.2 Connection Overview

1.3 Chassis Overview (Mechanical chassis)

Note: Data below can deviate slightly from the actual situation,
due to the different set executions.

1.1 Technical Specifications

1.1.1 Vision

Display type : CRT
Screen size : 21” (55 cm), 4:3
Tuning system : PLL
TV Colour systems : PAL B/G, D/K, I
Video playback : NTSC M/N 3.58, 4.43

: PAL 50
Presets/channels : 200 channels
Tuner bands : VHF

: UHF

1.1.2 Sound

Sound systems : FM-stereo
Maximum power (W

1.1.3 Miscellaneous

Power supply:

- Mains voltage (V

- Mains frequency (Hz) : 50 / 60

Ambient conditions:

- Temperature range (°C) : -5 to +45

- Maximum humidity : 90% R.H.

Power consumption

- Normal operation (W) : ≈ 62

- Stand-by (W) : < 3

):2 x 3

RMS

) : 160 - 260 (/93)

AC

: 90 - 260 (/94)

1.2 Connection Overview

Note: The following connector colour abbreviations are used

(acc. to DIN/IEC 757): Bk= Black, Bu= Blue, Gn= Green, Gy=
Grey, Rd= Red, Wh= White, and Ye= Yellow.

1.2.1 Rear and Side Connections

H_17210_023.eps

Figure 1-1 Rear and Side Connections

Cinch: Video CVBS - Out, Audio - Out

Ye - Video CVBS 1 V
Wh - Audio L 0.5 V
Rd - Audio R 0.5 V

Cinch: Video CVBS - In, Audio - In

Ye - Video CVBS 1 V
Wh - Audio L 0.5 V
Rd - Audio R 0.5 V

Cinch: Video YPbPr - In

Gn - Video Y 1 V
Bu - Video Pb 0.7 V
Rd - Video Pr 0.7 V

Aerial - In

- - IEC-type (EU) Coax, 75 ohm D

Cinch: Video CVBS - In, Audio - In

Ye - Video CVBS 1 V
Wh - Audio L 0.5 V
Rd - Audio R 0.5 V

/ 75 ohm kq

PP

/10 kohm kq

RMS

/ 10 kohm kq

RMS

/ 75 ohm jq

PP

/ 10 kohm jq

RMS

/ 10 kohm jq

RMS

/ 75 ohm jq

PP

/ 75 ohm jq

PP

/ 75 ohm jq

PP

/ 75 ohm jq

PP

/ 10 kohm jq

RMS

/ 10 kohm jq

RMS

080607

Technical Specifications, Connections, and Chassis Overview

1.3 Chassis Overview (Mechanical chassis)

EN 3SK4.0A CA 1.

CRT PANEL

B

POWER SUPPLY

A1

LINE DEFLECTION

A2

FRAME DEFLECTION

A3

A4

TUNER IF

AV I/O

A5

TONE CONTROL

A6

(Optional)

AUDIO AMPLIFIER

A7

CPU AND DECODER

A8

MONO

CARRIER

FRONT CONTROL PANEL

SIDE AV PANEL

MAIN SWITCH

PA NE L

12

9

H_17210_028.eps

Figure 1-2 PWB location

D

G

E

130607

EN 4 SK4.0A CA2.

Safety Instructions, Warnings, and Notes

2. Safety Instructions, Warnings, and Notes

Index of this chapter:

2.1 Safety Instructions

2.2 Maintenance Instructions

2.3 Warnings

2.4 Notes

2.1 Safety Instructions

Safety regulations require the following during a repair:

• Connect the set to the Mains/AC Power via an isolation

transformer (> 800 VA).

• Replace safety components, indicated by the symbol h,

only by components identical to the original ones. Any
other component substitution (other than original type) may
increase risk of fire or electrical shock hazard.

• Wear safety goggles when you replace the CRT.

Safety regulations require that after a repair, the set must be
returned in its original condition. Pay in particular attention to
the following points:

• General repair instruction: as a strict precaution, we advise

you to re-solder the solder connections through which the
horizontal deflection current flows. In particular this is valid
for the:

1. Pins of the line output transformer (LOT).

2. Fly-back capacitor(s).

3. S-correction capacitor(s).

4. Line output transistor.

5. Pins of the connector with wires to the deflection coil.

6. Other components through which the deflection current
flows.

Note: This re-soldering is advised to prevent bad connections
due to metal fatigue in solder connections, and is therefore only
necessary for television sets more than two years old.

• Route the wire trees and EHT cable correctly and secure
them with the mounted cable clamps.

• Check the insulation of the Mains/AC Power lead for
external damage.

• Check the strain relief of the Mains/AC Power cord for
proper function, to prevent the cord from touching the CRT,
hot components, or heat sinks.

• Check the electrical DC resistance between the Mains/AC
Power plug and the secondary side (only for sets that have
a Mains/AC Power isolated power supply):

1. Unplug the Mains/AC Power cord and connect a wire

between the two pins of the Mains/AC Power plug.

2. Set the Mains/AC Power switch to the "on" position

(keep the Mains/AC Power cord unplugged!).

3. Measure the resistance value between the pins of the

Mains/AC Power plug and the metal shielding of the
tuner or the aerial connection on the set. The reading
should be between 4.5 Mohm and 12 Mohm.

4. Switch "off" the set, and remove the wire between the

two pins of the Mains/AC Power plug.

• Check the cabinet for defects, to prevent touching of any
inner parts by the customer.

2.2 Maintenance Instructions

We recommend a maintenance inspection carried out by
qualified service personnel. The interval depends on the usage
conditions:

• When a customer uses the set under normal
circumstances, for example in a living room, the
recommended interval is three to five years.

• When a customer uses the set in an environment with
higher dust, grease, or moisture levels, for example in a
kitchen, the recommended interval is one year.

• The maintenance inspection includes the following actions:

1. Perform the “general repair instruction” noted above.

2. Clean the power supply and deflection circuitry on the
chassis.

3. Clean the picture tube panel and the neck of the picture
tube.

2.3 Warnings

• In order to prevent damage to ICs and transistors, avoid all
high voltage flashovers. In order to prevent damage to the
picture tube, use the method shown in figure “Discharge
picture tube”, to discharge the picture tube. Use a high
voltage probe and a multi-meter (position V
until the meter reading is 0 V (after approx. 30 s).

V

E_06532_007.eps

250304

Figure 2-1 Discharge picture tube

• All ICs and many other semiconductors are susceptible to
electrostatic discharges (ESD w). Careless handling
during repair can reduce life drastically. Make sure that,
during repair, you are connected with the same potential as
the mass of the set by a wristband with resistance. Keep
components and tools also at this same potential. Available
ESD protection equipment:
– Complete kit ESD3 (small tablemat, wristband,

connection box, extension cable and earth cable)
4822 310 10671.

– Wristband tester 4822 344 13999.

• Be careful during measurements in the high voltage
section.

• Never replace modules or other components while the unit
is switched "on".

• When you align the set, use plastic rather than metal tools.
This will prevent any short circuits and prevents circuits
from becoming unstable.

2.4 Notes

2.4.1 General

• Measure the voltages and waveforms with regard to the
chassis (= tuner) ground (H), or hot ground (I), depending
on the tested area of circuitry. The voltages and waveforms
shown in the diagrams are indicative. Measure them in the
Service Default Mode (see chapter 5) with a colour bar
signal and stereo sound (L: 3 kHz, R: 1 kHz unless stated
otherwise) and picture carrier at 475.25 MHz for PAL, or

61.25 MHz for NTSC (channel 3).

• Where necessary, measure the waveforms and voltages
with (D) and without (E) aerial signal. Measure the
voltages in the power supply section both in normal
operation (G) and in stand-by (F). These values are
indicated by means of the appropriate symbols.

• The semiconductors indicated in the circuit diagram and in
the parts lists, are interchangeable per position with the
semiconductors in the unit, irrespective of the type
indication on these semiconductors.

• Manufactured under license from Dolby Laboratories.
“Dolby”, “Pro Logic” and the “double-D symbol”, are
trademarks of Dolby Laboratories.

). Discharge

DC

Safety Instructions, Warnings, and Notes

EN 5SK4.0A CA 2.

2.4.2 Schematic Notes

• All resistor values are in ohms, and the value multiplier is
often used to indicate the decimal point location (e.g. 2K2
indicates 2.2 kohm).

• Resistor values with no multiplier may be indicated with
either an "E" or an "R" (e.g. 220E or 220R indicates 220
ohm).

• All capacitor values are given in micro-farads (μ= x10
nano-farads (n= x10

-9

), or pico-farads (p= x10

• Capacitor values may also use the value multiplier as the
decimal point indication (e.g. 2p2 indicates 2.2 pF).

• An "asterisk" (*) indicates component usage varies. Refer
to the diversity tables for the correct values.

• The correct component values are listed in the Spare Parts
List. Therefore, always check this list when there is any
doubt.

2.4.3 Lead-free Soldering

Due to lead-free technology some rules have to be respected
by the workshop during a repair:

• Use only lead-free soldering tin Philips SAC305 with order
code 0622 149 00106. If lead-free solder paste is required,
please contact the manufacturer of your soldering
equipment. In general, use of solder paste within
workshops should be avoided because paste is not easy to
store and to handle.

• Use only adequate solder tools applicable for lead-free
soldering tin. The solder tool must be able:
– To reach a solder-tip temperature of at least 400°C.
– To stabilize the adjusted temperature at the solder-tip.
– To exchange solder-tips for different applications.

• Adjust your solder tool so that a temperature of around
360°C - 380°C is reached and stabilized at the solder joint.
Heating time of the solder-joint should not exceed ~ 4 sec.
Avoid temperatures above 400°C, otherwise wear-out of
tips will increase drastically and flux-fluid will be destroyed.
To avoid wear-out of tips, switch “off” unused equipment or
reduce heat.

• Mix of lead-free soldering tin/parts with leaded soldering
tin/parts is possible but PHILIPS recommends strongly to
avoid mixed regimes. If this cannot be avoided, carefully
clear the solder-joint from old tin and re-solder with new tin.

-12

2.4.5 Practical Service Precautions

• It makes sense to avoid exposure to electrical shock.
While some sources are expected to have a possible
dangerous impact, others of quite high potential are of
limited current and are sometimes held in less regard.

• Always respect voltages. While some may not be

-6

),

).

dangerous in themselves, they can cause unexpected
reactions that are best avoided. Before reaching into a
powered TV set, it is best to test the high voltage insulation.
It is easy to do, and is a good service precaution.

2.4.4 Alternative BOM identification

In September 2003, Philips CE introduced a change in the way
the serial number (or production number, see Figure 2-2) is
composed. From this date on, the third digit in the serial
number (example: AG2B0335000001) indicates the number of
the alternative BOM (Bill of Materials used for producing the
specific model of TV set). It is possible that the same TV model
on the market is produced with e.g. two different types of
displays, coming from two different O.E.M.s.
By looking at the third digit of the serial number, the service
technician can see if there is more than one type of B.O.M.
used in the production of the TV set he is working with. He can
then consult the At Your Service Web site, where he can type
in the Commercial Type Version Number of the TV set (e.g.
28PW9515/12), after which a screen will appear that gives
information about the number of alternative B.O.M.s used.
If the third digit of the serial number contains the number 1
(example: AG1B033500001), then there is only one B.O.M.
version of the TV set on the market. If the third digit is a 2
(example: AG2B0335000001), then there are two different
B.O.M.s. Information about this is important for ordering the
correct spare parts!
For the third digit, the numbers 1...9 and the characters A...Z
can be used, so in total: 9 plus 26 = 35 different B.O.M.s can
be indicated by the third digit of the serial number.

EN 6 SK4.0A CA3.

3. Directions for Use

You can download this information from the following websites:

http://www.philips.com/support
http://www.p4c.philips.com

Directions for Use

4. Mechanical Instructions

Mechanical Instructions

EN 7SK4.0A CA 4.

Index of this chapter:

4.1 Set Disassembly

4.2 Assembly / Board Removal

4.3 Set Re-assembly

Note: Figures below can deviate slightly from the actual
situation, due to the different set executions.

4.1 Set Disassembly

Follow the disassemble instructions in described order.

4.1.1 Rear Cover Removal

Warning: disconnect the mains power cord before you remove

the rear cover.

1. Remove all the fixation screws of the rear cover.

2. Now, pull the rear cover backwards and remove it.

4.2 Assembly / Board Removal

4.2.1 Side I/O Panel removal

1

H_17210_025.eps

130607

Figure 4-1 Rear Cover removal

H_17210_032.eps

110607

Figure 4-2 Side-I/O panel removal

1. Disconnect the sidepanel cable from the mono carrier and
remove the cable from it’s strain reliefs.

2. Then, remove the two fixation screws (1) and remove the
board.

EN 8 SK4.0A CA4.

4.2.2 Power Switch removal

1

Figure 4-3 Power switch removal

1. From the mono carrier disconnect the main power, the
degaussing coil, the speakers, the front control panel, the
side I/O panel and deflection coil cables. Release the main
power cord and the side I/O panel cable from it’s strain
reliefs. Pull out the mono carrier and place it sidewards.
This enables the removal of the power switch panel.

2. Then, remove the two fixation screws (1) of the power
switch panel and remove the board.

Mechanical Instructions

H_17210_026.eps

080607

4.2.3 Front Control Panel removal

1

1

Figure 4-4 Front Control Panel removal

1. From the mainboard disconnect the main power, the
degaussing coil, the speakers, the front control panel, the
side I/O panel and deflection coil cables. Release the main
power cord and the side I/O panel cable from it’s strain
reliefs. Pull out the mono carrier and place it sidewards.
This enables the removal of the front control panel.

2. Then, remove the four fixation screws (1) of the Front
Control panel and remove the board.

1

1

H_17210_027.eps

080607

4.3 Set Re-assembly

To re-assemble the whole set, do all processes in reverse
order.
Be sure that, before the rear cover is mounted:

• The mains cord is positioned correctly in its guiding
brackets (make sure that the strain reliefs are replaced in
its correct position and that it will function correctly!).

• All wires/cables are returned in their original positions.

Service Modes, Error Codes, and Fault Finding

5. Service Modes, Error Codes, and Fault Finding

EN 9SK4.0A CA 5.

Index of this chapter:

5.1 Test Points

5.2 Service Modes

5.3 Error Codes

5.4 Fault Finding

5.1 Test Points

See chapter 6 "Block Diagrams, Testpoint Overviews, and
Waveforms".

Perform measurements under the following conditions:

• Service Default Mode.

• Video: colour bar signal.

• Audio: 3 kHz left, 1 kHz right.

5.2 Service Modes

This chassis does not contain a specific Service Mode. Service
and Alignment of the TV set can be done via the Factory Mode
by the service technician, see further down in this manual.

5.3 Error Codes

Not applicable.

5.4 Fault Finding

5.4.1 Power on Failure

5.4.6 Picture not or incorrect Coloured

• Check the circuit from IC201 to R.G.B. three gun circuit.

• Check the IC soldering and relevant circuitry on physical
damage or check for defective capacitors.

5.4.7 Picture with Horizontal Bright Line and Sound

Check both supply voltages of vertical IC301 and relevant
circuitry on correctness. Also check the vertical synchronizing
signal from IC201.

5.4.8 Remote Control Malfunction

Check the voltage on pin 64 of IC201. The normal value should
be 5.15 V. If this is correct check front control panels soldering
connections. If can't be solved, check the remote control,
crystal or transmitting diode of the remote control are in good
condition.

5.4.9 No Sound

Check power supply of sound IC (IC402) and relevant circuitry
(not exclude IC402 to be defective) or change speakers.

5.4.10 Poor Sound Quality

Check the sound system after searching the channel which
should set at DK, I or AUTO. If still has problem, check
accompany board circuit on chassis good or not.

Check whether the power supply is working properly and
whether the values of voltages normal. If those are correct,
check line transistor and transformer are working properly or
check fore or back line for defects.

5.4.2 Horizontal Deflection Transistor Defective: No Picture, No Sound.

To find the fault for a defect horizontal deflection transistor
please check the following items:

• Over voltage to breakdown.

• Over current to burn.

• Horizontal frequency too low.

• Horizontal drive inefficient.

5.4.3 Picture Interference

• Check if the signal line contact is good.

• Change Tuner if is necessary.

5.4.4 Can't find any TV program

Checking method: Check the closed circuit from tuner to
picture decoder IC to detect whether there are defective
components. Or check whether the resistance of R117, R118,
R203 and R204 has increased which also could cause the
problem.

5.4.5 No Good Picture or Double Image

Check the correctness of the signal from IF1/IF2 to Q101 and
relevant circuit. In this case the problem can be Q101 and/or
SAW101.

EN 10 SK4.0A CA5.

Personal Notes:

Service Modes, Error Codes, and Fault Finding

E_06532_012.eps

131004

Block Diagrams, Test Point Overviews, and Waveforms

A1

A2

A3

B

D

E

G

M

A6

A7

A5

A8

6. Block Diagrams, Test Point Overviews, and Waveforms

Block Diagram Chassis

1

2

EN 11SK4.0A CA 6.

6543

Y

ANTENNA

D

SCART 1

V in

UV

AUDIO

REAR AV SIDE AV S-VHS

RLV

V

LR

YC

AV OUT

VLR

D

A7

LR

V

RGB

FS TUNER

C

IF

AV2 SW

IF AMP SAW101

AV1 SW

AV3 SW

4
62
63

AV in

IF

C in

CVBS OUT

SCL

SDA

FM

MTS/A2/NICAM

15
2

5
14

1
12

10
9

411

A5

3

SCL

L

R

SDA

13

AV-SW 4052

A6

TONE CONTROL

L

R

AMP-TDA9841/9842/9843

SPL

SPR

C

PHILIPS UOC2

SCL

A4

KEY CONTROL

SDA

PWM CONTROL AUDIO VOL

MUTE

AUDIO OUT

SCART ID

TDA93XX/N3

6KEY

7
10

I/O

44
5

A8

B

R

G

B

IK

R OUT

G OUT

B OUT

21" CRT

CRT BOARD

B

V--DY

A3

V AMP TDA4863AJ

H--DY

-12V+12V

SW

POWER

CQ0765

+110V FOR B+

+43V

+8V FOR UOC

SCL

24C08

SDA

90V-260V

A1

A

1234 65

+12V FOR MAIN

+20V FOR AMP

DEG COIL

SLIM PART

H DRIVE

A2

3DD5023

H_17210_024.eps

080607

A

Block Diagrams, Test Point Overviews, and Waveforms

Schematic Overview Chassis

EN 12SK4.0A CA 6.

H_17210_022.eps

080607

Circuit Diagrams and PWB Layouts

7. Circuit Diagrams and PWB Layouts

Mono Carrier: Power Supply

EN 13SK4.0A CA 7.

321

4

A1 A1

POWER SUPPLY

D

RL601

RELAY

C607

15mH

C603

0.22uF

AC2 50V

C602

0.22uF/250V

R601

RES

SR601

GAS DISCHARGE

T602

T60 1

C601

0.22uF/250V

VDR601

RST601

RES1

GSTT601

Rs

23

RT602

Rp

9RM

1

C

C603

0.1uF/250V

L2

PFC 15mH×2

CN602

DEGA US S ING

F601

B

N

CN601

BLUE

2

T3.15A

AC250V

1

AC9 0-27 0V

BROWN

L

4700pF

D607

D606

C606

4700pF

R602

2

200K

R604
39K

D602

L601

10U H

C633

CAP

1

D

5

3

4

VCC

S/GN D

O LP/SS

IC601

C608

4700pF

D608

D605

C609

C605

4700pF

220uF

450V

FB601

R606

C611

0.1uF

6

R605

220

7

FB

OCP/BD

ZD604

6K8

C612

470pF

C613
10nF

C610
10uF

18V

R607

D603

BA1 58

22

R608

2K2

STR-W 65 54

D618

1N4148

T603

16 1

15

2

14

13

12

11

10

TRANSFORMER

IC6 02

OPTOISO1

R609

8.2M

C614 0.0022uF

R635

10

Q607
C1815

R238

6.8K

R619

1K/1W

SOUND

+22V_VCC

+33V_BT

+48V_VCC

R618

0.22 2W

C637

680pF 500V

D613

RU4 YX

C623
1000uF

25V

C627
1000uF

25v

C629

47uF 16V

R634

33K

C630
47uF

R636

10K

3

R611

100

680pF 500V

D622

BYW 36

C619

680pF 500V

D621

BA158

560pF 2KV

C618

C620

D620

RU4B

R612

C625
1000uF

C622
470uF

C621

100uF

200V

C626

1000uF

+115v

R615
200K

R617

4

12V

0.22 2W

6

R616

0.22 2W

<45V>

7

89

2.2K

VR601

1K

RGP1 0D

D615

R630

R

Q606

1013A

R632
1K

R633

10K

D609

J6 25

4148

3V6

C615

R613

10K

0.1U

K

R

Q601

TL431

A

C1815

R639

10K

Q603

R624

10K

R625
1K

D617

4148

Q604

C1815

R626

1K

C627A

Q608

1013A

R621

22

OFF

IC6 04

In Ou t

Gn d

L7808

Q602

1815

R622

820

180

R638

D611

3V9

ON

C628

C628A

D615

R

1000uF 25V

1000uF 25V

C630
R

C632
CAP

+5V_VCC

+8V_ VCC

+3.3V_VCC

STANDBY

D

C

B

A

5800 A3P610-00

1 2 3 4

H_17210_001.eps

070607

A

Circuit Diagrams and PWB Layouts

Mono Carrier: Line Deflection

EN 14SK4.0A CA 7.

321

4

A2 A2

D

C

B

LINE DEFLECTION

+8V_ VCC

R401

4K7

R403

NC

R325

100

EW

R324

100

H-ou t

Q450

C2482

R323

75K

R327

2K7

C321

2200pF

500V

+48V_VCC

C322

220pF

500V

Q303
F630

!

C323

1uF

160V

T302

BCL

EHT

CN30 1

5

6

EHT

!

+V

-V

!

+135V_VCC

C309

C300

R454

33

Q302

D5032

4.7UF 250V

!

C314

!

2n7 /2KV

470PF 500V

C315

7n2

2KV 2KV

BCL

T0
CRT

1

2

3

4

180V

CRT G ND

R301

0.33

2W

R302

0.33

D308

R314

2158

0.22 2W

L432

790mH

!

C316
6n8

C312

D302

BY22 8

C317

564

D311
RU4B

!

!

273J/630V

R315

4.7K

HEATER

GND

L302

34mH

C318

274J/400V

L301

105mH

+V

-V

6

HEATER

M

GND

2

B+

10

180V

R321
1K

C319

681

1

HY

C325

364J/400

T402

D309

1N4148

R318
680

!

R317

220

R310

560K

D305

MTZJ 20

3

4

7

AFC

R319

3.9K

R316

4.7K

C310

27PF/50V

D306

8V2

AFC

AFC

9

5

FOCUS

SCREEN

FLYBAC K

FOCUS

D307
1N4148

D205

1N4148

R250

2.2K

SCREEN

ABL

R312

1K

C308

0.1U

8

R245
1K

C238

4.7U/50V

+8V_ VCC

D

C

B

A

5800 A3P610-00

R322

6. 8 2W

C477

4.7uF

50V

L303

400uH

1 2 3 4

H_17210_002.eps

070607

A

Circuit Diagrams and PWB Layouts

Mono Carrier: Frame Deflection

EN 15SK4.0A CA 7.

321

4

A3 A3

D

FRAME DEFLECTION

CN301

IC3 01

!

TDA4863AJ

6

5

!

INP

INN

V out

VP4 -13V4Vp3 pump

7

6

5

C

VDRA

VDRB

C216

CAP

C215
CAP

B

EHT

R255

100

R256

100

D301

R305

1K8

R326

10K

R308

1K8

+8V

Q301

3

C305

100uF/50V

D304
BA158

R304

220/1W

R303

VP3-

VP1 +13V

2

1

C306

0.1uF/100V

R309

270 1W

R306

220/2W

C302

0.1uF

C307

0 . 1uF / 10 0V

1000uF/ 25V

1

C304

100V

R307

2W

C301

0.1uF

C303
1000uF/25V

BA158

D302

BA158

D303

C302

470pF

C301

470pF

v+

v-

D

C

B

A

5800 A3P610-00

A

H_17210_003.eps

110607

1 2 34

Mono Carrier: Tuner IF

Circuit Diagrams and PWB Layouts

EN 16SK4.0A CA 7.

E

D

C

A4

TUNER IF

A101

IF

NC

BT+33V

GND

BM+5V

SDA

SCL

R105

1.5K

C703

47/50V

R106

68

IC703

UPC574

R703

10K

C107

10n

L201

C109
10n

R107

1.2K

R108

4.7K

R109

1.2K

LC101

31.9M

NTSC-M

Q101

KSC1674C

C109

0.01U

C108

100pF

R111
470

R110
10

R112

10

L101J

4321

5

A4

Q102

C1815

10K

R114
10K

R113

220

1UH

R116

2.2K

R213
100

C204

0.01U

Q103

C1815

R115

SYSTEM

SYSTEM

SYSTEM

1

SYSTEM1

SIF SAW102

SIF SAW102

E

D

C

B

38MHZ

A

5800 A3P610-00

38.9MHz

SAS

NC

AGC

C103

10U/16V

R215

680

R102

15K

R101
27K

100U/16V

C105

10UH

C104

100U/16V

+33V_BT

+8V_VCC

TUNER AGC

SDA

SCL

+33V_BT

+8V_VCC

TUNER AGC

SDA

SCL

B

A

H_17210_004.eps

110607

1 2 3 45

Mono Carrier: AV Switch

A5

AV SWITCH

Circuit Diagrams and PWB Layouts

EN 17SK4.0A CA 7.

321

4

Personal Notes:

A5

D

+8v

GN D

21

VI

20

VO

19

VI G

18

VO G

17

BL

16

V / R

15

BG

14

RGND

13

NC

12

Y / G

11

NC

10

GGN D

9

OP T

8

U / B

7

L in

6

BGND

5

GN D

C

P701

YUV

B

P701

AV OUT

LO

RO

P701 21PIN

Y

U

V

V out

L out

R out

V IN

R in

4

3

2

1

P702

Y

P701

L IN

R IN

SIDE AV IN

V IN

L IN

P701

R IN

A

REAR AV I N

R780

R777

100K

100K

L806

L805

D802

D807

75

8V2

D834

R837

R834

75

8V2

D833

8V2

75

R836
75

J743

10K

D832

R835

R73 1

75

820

L803

L804

C806

C805

CAP

CAP

S-VHS

C

ZD706

R778

8V2

75

8V2

C717

10uF

R701

47K

C242

10uF

R803
75

C777

10uF

C772

10uF

C774

10uF

ZD711

ZD709

8V2

8V2

R815

1K

1000

R816

1K

C813

R818

1000

100K

VIDEO OUT

ZD701

8V2

+8V

+8V

R834

100K

R821

100K

C816

10uF

C811

C812

R817

100K

10uF

D802
8V2

C810

10uF

R807

75

Q204

R251

C1815

1K

R802

75

AUDIO L out

C804

10uF

R847

100

R846

750

+8V

R824
100K

CAP

C817

R830
100K

C190

R825

10U/16V

100K

R827

100K

SIDE L

+8V

R152

R151

300

100
R826

100K

REAR L

R831
R828

1.2K

100K

+8V

R822

100K

R832

R833
100K

1.2K

R829

+8V

10

C823

10U/16V

Q803

1815

Q804

1815

Q805

1815

C822

0.1U

Q802

C1815

R848

100K

C821

1U/50V

R831

2.7K

OUT L

HEF4052

1

L

2

0

3

1

2
3

4

5

6

E

7

Vee

8

Vss

AUDIO SWITCH

R842

R840

R841

4.7K

4.7K

4.7K

R835

10K

R836

10K

R837

10K

R8541.5K

R855

R852

1.5K

1.5K

AUDIO R ou t

C807

10uF

R844

Q801

100

C1815

R845

750

R849

100K

1U/50V

C820

+8V

OUT R

IC801

Vdd

0
1
2

3

+8V

16

15

SIDE R

14

REAR R

13

12

11

R838

10

1K

R839

9

1K

CVBS/Y

BLANK

OPTION

V / R i n

Y / G i n

U / B i n

TONE 26

TONE 7

AUDOUT

TONE 28

TONE 3 0

+8V_VC C

4052 3

4052 13

TONE 32

TONE 1

CVBS

CVBS

AV1

AV1

AV2

AV2

AV3

CVBS/Y

BLANK

OPTION

V / R i n

Y / G i n

U / B i n

C IN

C IN

AUDOUT

+8V_VC C

4052 3

4052 13

A1

A1

A2

A2

D

C

B

A

5800 A3P610-00

1 2 3 4

H_17210_005.eps

070607

E_06532_012.eps

131004

Circuit Diagrams and PWB Layouts

Mono Carrier: Tone Control (Optional)

1 2345678910

EN 18SK4.0A CA 7.

A

B

C

D

E

A6

TONE CONTROL

CN902

VCC

GND

MUTE1

GND

MUTE2

R

L

C901

10U

C902

10U

R911
100K

R901

10K

R902

10K

D902

4148

D903

4148

C903

0.47U

R912

1K

R916

51K

C1815

Q902

R903

51K

WEIGHT TONE

C512

1000U

C909

100U

C914

1K

R920
270

R917
100K

C910

0.22U

R904

100K

R903
51K

R914
510

D901

8V2

R917

820

Q901

C1815

R907
1K

R905

0.1U

C913

0.01U

R909
100K

Q902

R913
510

0.22U C908

C907

8

1

9

3

7

VCC

MUTE

IN-

IN+

SVRR

IC9 01

TFA9800

4

OUT1

SG

6

2

PG

OUT2

CAP

C?

WOODER 8OHM

5

A6

A

B

C

C?

D

E

F

G

5800 A3P610-00

47U

12345

678910

C903

R908
100K

R912
510

0.22U

H_17210_006.eps

110607

F

G

Circuit Diagrams and PWB Layouts

Mono Carrier: Audio Amplifier

EN 19SK4.0A CA 7.

D

C

A7

AUDIO AMPLIFIER

+8V_ VCC

MUT E

MU T E

+8V_VCC

D761

1N4148

D401 IN4148

R411

47K

R409

3K3

Q402

A1015

Q401

C1815

C432

100uF

R410
75K

321

4

A7

D

IC402

2

1

RO

RI

3

C428

47u F/50V

4

L in

5

6

C429

220 uF/25V

8

7

R407
10K

9

L out

TFA9842AJ

C433

1000uF/ 25V

C434

1000UF/ 25V

Lout

SW2

Ro ut

CN760

1

2

C

SPL

10W

4

1

2

SW2

SPR

4

10W

B

A

5800 A3P610-00

VOL

+22V_VCC

C431
10u F/16V

R408

3K3

L OUT

C750

C749

1uF

1uF

R770 1K

R769 1K

C426

106E

C424

222D

C430

1uF

50V

B

VOL

4052 13

4050 3

R253

15K

R OUT

+22V_VCC

A

H_17210_007.eps

110607

1 2 34

Circuit Diagrams and PWB Layouts

Mono Carrier: CPU & Decoder

EN 20SK4.0A CA 7.

321

4

D

C

B

A8

CPU & DECODER

+5v

5

6

C203

C227

47uF/16V

STANDBY

SCL

SDA

MUTE

AV3

VOL

+3.3v

SYSTEM

EW

VDRB

VDRA

IF

AGC

SIF

STANDBY

NTSC

SYSTEM

EW

VDRB

VDRA

IF

AGC

SIF

0.01U

SAW102

SCL

SDA

MUTE

AV3

VOL

+3.3V

PAL

1

2

NI CAM

Vdd8PTC7SCL

WP1n.c.2A23Vss

R218

10K

C218

1U/50V

C214

2.2U/ 50V

SAW101

1

2

4

5

SAW102

3

Q9362M

NO N ICAM

+8V

C22 1

3n3

SDA

IC202

24C08

4

C226

100U/10V

L201

10uH

C212

10UH

0.01U

C217

+

0.1U

4

5

SAW101

3

SW02B

C222

10uF

1uF/50V

C211

R312

C206

10U/16V

+

C202

100pF

3K3

C208 4n7

C224

1.5nF

C223

A8

D

C201

R210

R208

100pF

3.3K

3.3K

R204

100

R206

100

R21947

C250

0.01U

R245

15K

R214

39K

C213

0.1U/ 63V

C251

2.2U/ 50V

C216

3.3K

R203

R2053.3K

R2023.3K

3.3K

R207 3.3k

R234

R235

IC201

STANDBY

SCL

SDA

AV3/TUNING

SCART ID

KEY

VOL

MUTE

Vss C/P

LED

PAL/NTSC

VssA

SECPLL

Vp2

DECDIG

PH2LF

PH1LF

GND3

DECBG

AVL/EWD

VDRB

VDRA

IF1

IF2

IREF

VSC

TUNER AGC

AUDEEM/SIF1

DECSDEM/SIF2

GND2

SNDPLL/SIFAGC

AVL/REFO

TDA83731

AUDOUT/AMOUT

AUDEXT/QSSO

1

2

3

4

5

6

7

C205

8

D206

0.01U

8V2

9

10

11

0.22UF

220nF

2200p

0.022U

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

C219

28

29

30

31

32

C220

4.7uF

C207

C210

C209

VddP

RESET

XTAL OUT

XTAL IN

OscGn d

VddC

VddA

B OUT

G

R OUT

BLANKING

BCL IN

B / U IN

G / Y IN

R / V IN

BLANK

C IN

CVBS/Y IN

GND1

CVBSI NT

IFVO /S V O

PLL IF

EHTO

FBISO

H. OUT

64

IRi n

63

AV2

62

AV1

61

60

59

58

57

56

55

VpE

54

53

52

OU

T

51

50

49

48

47

46

45

44

43

42

41

40

39

Vp1

38

37

36

35

34

33

X201

12MHz

3.3K

C230

C229

33pF

R231

2.2K

R220

3.3K

5K1

R217

100

C246

0.1U/ 63V

+3.3V

L204

L203

10uH

10uH

+

C233

0.01u

C234

10u/16v

L202

10uH

+

C232

C231

33pF

2.2U/50V

0.01U

C235

10u/16v

C236

0.01u

R239

100

R241

100

R240

100

R242

10K

C239

0.022U

0.022U

C240

C241

0.022U

R229

390

AUDEXT

1

234

5

IR

5V

KEY

GND

LED

+5V_VC C

+5V_VC C

A2

A1

+8V

R243

22K

R247

33K

C243

0.01U

R725

10K

C244

100U/16V

R425

ZD1 0 4
8V2

D203
8V2

R221

47

R228
100

27K

L205

10uH

C352
47U/16V

D202

8V2

D20 4
8V2

R220
100K

R311
27K

R230
100

GND

1

B

2

G

3

CN102

R

4

BL

5

+

C245
10U/16V

8V

R465

560K

BCL

BCL

U / B i n

U / B in

Y / G in

Y / G i n

V / R i n

V / R in

BLANK

BLANK

AUDIO OUT

AUDIO OUT

C I N

C IN

CVBS/Y IN

CVBS/ Y IN

8v

EHT

EHT

AFC

AFC

H-ou t

H-out

C

B

A

5800 A3P610-00

Q201
C1815

L206

R224

100

R223
180

R227
4K7

1 2 3 4

6.8uH

Z201
XT-6.5

GND

Z202
XT-6.0

GND

Z203

Q202

XT-5. 5

Q203
C1815

GND

C1815

R226
4K7

1

SYSTEM

SYSTEM 1

GND

Z204
XT-4.5

CVBS

CVBS

H_17210_008.eps

070607

A

Circuit Diagrams and PWB Layouts

Layout Mono Carrier (Top Side)

EN 21SK4.0A CA 7.

5800 A3P610-00

H_17210_009.eps

080607

Circuit Diagrams and PWB Layouts

Layout Mono Carrier (Bottom Side)

EN 22SK4.0A CA 7.

5800 A3P610-00

H_17210_010.eps

080607

Keyboard Control Panel

1 2345678910

Circuit Diagrams and PWB Layouts

EN 23SK4.0A CA 7.

A

B

C

D

D D

KEYBOARD CONTROL

KEYBOARD CIRCUIT

KEYBOARD CIRCUIT

TV/AV

SW008

M001

123

C***

10U

SW001

PRO-

R717
RES

R710

180

SW002

PRO+

R711

220

SW003

VOL -

R712

330

SW004

VOL+

R713

470

SW005

ME NU

R714

820

SW006

SLEE P

R715

1.5K

SW007

MUTE

R716

4.7K

A

B

C

D

E

F

G

5800 D1SL7P-61

LED001

LED

1K

R**

1

2

KEY

LED

R***
100

3

5V

4

GN D

5

IR

H_17210_011.eps

080607

E

F

G

12345

678910

Circuit Diagrams and PWB Layouts

Layout Keyboard Control Panel (Top Side)

EN 24SK4.0A CA 7.

5800 D1SL7P-61

Layout Keyboard Control Panel (Bottom Side)

5800 D1SL7P-61

H_17210_012.eps

080607

H_17210_013.eps

080607

Circuit Diagrams and PWB Layouts

EN 25SK4.0A CA 7.

Main Switch Panel

MAIN SWITCH

E E

Layout Main Switch (Top Side)

5800 E1SL7P-61

H_17210_014.eps

080607

5800 E1SL7P-61

H_17210_015.eps

080607

Side A/V Panel

Circuit Diagrams and PWB Layouts

EN 26SK4.0A CA 7.

G G

5800 G1SL7P-61

SIDE AV

H_17210_016.eps

Layout Side A/V Panel

TOP SIDE

080607

BOTTOM SIDE

5800 G1SL7P-61

H_17210_017.eps

080607

Circuit Diagrams and PWB Layouts

EN 27SK4.0A CA 7.

Slim EW Panel

SLIM DEFLECTION

M M

Layout Slim EW Panel

5800 M3P610-00

H_17210_018.eps

080607

5800 M3P610-00

H_17210_019.eps

080607

Circuit Diagrams and PWB Layouts

Sub Woofer Panel (Optional)

EN 28SK4.0A CA 7.

SUB WOOFER

Z Z

5800 Z3P610-00

H_17210_020.eps

080607

Circuit Diagrams and PWB Layouts

Layout Sub Woofer Panel

EN 29SK4.0A CA 7.

Personal Notes:

5800 Z3P610-00

H_17210_021.eps

080607

E_06532_012.eps

131004

Personal Notes:

Circuit Diagrams and PWB Layouts

EN 30SK4.0A CA 7.

E_06532_013.eps

131004

8. Alignments

Alignments

EN 31SK4.0A CA 8.

Index of this chapter:

8.1 General Alignment Conditions

8.2 Hardware Alignments

8.3 Software Alignments

8.4 E2PROM initializtion

8.1 General Alignment Conditions

8.1.1 Default Alignment Settings

Perform all electrical adjustments under the following
conditions:

• Power supply voltage: 230 V

• Connect the set to the mains via an isolation transformer
with low internal resistance.

• Allow the set to warm up for approximately 20 to 30
minutes.

• Measure voltages and waveforms in relation to chassis
ground (with the exception of the voltages on the primary
side of the power supply).
Caution: never use heatsinks as ground.

• Test probe: 100 : 1, Ri > 10 Mohm, Ci < 3.5 pF.

• Use an isolated trimmer/screwdriver to perform
alignments.

/ 50 Hz (± 10 %).

AC

8.2 Hardware Alignments

Note: The only hardware alignment in this TV set is the

adjustment of the main voltage (B+), see below.

8.2.1 Main Voltage Adjustment

In order to adjust the main voltage, connect a voltage meter to
the cathode of diode D610, and adjust VR601 to a voltage of
110 V ±0.3 V.

3. Adjust flyback transformers Screen knob till the level bright
line just can be seen, press PROG+ and turn to other
factory menu.

8.3.4 Horizontal Adjustment (key 1)

1. Provide a 50 Hz monoscope pattern. Put the set in the
MENU mode. Press key 1 to enter factory mode.

2. Adjust 5HSH (for 60 Hz picture, its is 6HSH) to set picture
horizontal centre to CRT horizontal centre.

3. Provide a 60 Hz monoscope pattern. Put the set in the
MENU mode. Press key 1 to enter factory mode.

4. Adjust 6HSH to set picture horizontal centre to CRT
horizontal centre.

8.3.5 Vertical & YUV/RGB Horizontal Adjust (key2)

1. Provide a 50 Hz cross hatch signal, set TV to standard
mode. Adjust 5VSL so that half picture of the pane cross
appears. The picture’s vertical line is just at the bottom of
the half picture. Adjust 5VSL to make the centre of the
picture’s vertical line and the kinescope are in
superposition.

2. Adjust 5VAM to obtain picture’s vertical re-display ratio
more than 90%.

3. Provide a 60 Hz cross hatch signal, do step 1 and 2 again
to adjust.

4. If necessary, fine adjust above items.

5. Provide a 50 Hz RGB or YUV cross hatch signal, set the TV
in the standard mode, adjust 5RGH till picture horizontal
centre is at the CRT centre (optional).

6. Provide a 60 Hz RGB or YUV cross hatch signal, set the TV
in the standard mode, in the factory menu, adjust 6RGH to
make the pane cross vertical centre at the centre of the
screen (optional).

8.3.6 OSD Position

8.3 Software Alignments

Put the set in its MENU mode (factory mode) as follows (see
also figure “Factory Mode“ on the next page):

• Press the keys [i+], and  to enter the factory menu.

• Press the number keys to enter the adjust page, press B/
y to choose the items that to be adjusted, Press z /A to
adjust its value. Press CH+/CH- to change the display in
order.

• Press [i+] to quit factory mode.

The different alignment parameters are described further on.

8.3.1 Rf AGC Voltage Adjust

1. Provide a 475.25 MHz, 60 dB half colour bar signal.

2. Enter factory mode and press key 4.

3. Measure tuner AGC point voltage, adjust AGC item till the
voltage is 2.4 V, or till picture noise just disappears.

8.3.2 Focus Fine Adjust

1. Provide a cross-hatch pattern signal.

2. Set state to dynamic.

3. Adjust flyback transformers Focus knob till picture is clear.

8.3.3 Screen Voltage Adjust (Key 0).

1. Menu OSD position adjustment: Provide a 50/60 Hz cross
hatch pattern. Put the set in MENU mode. Press key 2 to
enter the factory mode. Adjust 5VOF/6VOF and HOF item,
to obtain menu OSD at the centre of CRT screen.

2. LOGO position adjustment: Provide a 50/60 Hz cross
hatch pattern. Put the set in MENU mode. Press key 7 to
enter the factory mode. Adjust XMIN, XMAX, YMIN and
YMAX, to obtain LOGO at the centre up to 1/3 of CRT
screen.

3. Teletext OSD position adjustment: Provide a red signal in
the standard mode. Press key 7 to enter the factory mode.
Adjust TXMI and 5TYM/6TYM to obtain index at the centre
of screen.

8.3.7 White Balance Adjustment (key 3)

Normally, this chassis can auto adjust white balance, but for
some CRTs it a necessity to adjust white balance carefully by
hand. Set Brightness and Contrast at normal status, provide a
greay scale testpattern and from the MENU mode press key 3
to enter the factory mode. Set WPR at 31, adjust WPG and
WPR to obtain white balance.

1. Set picture to “Standard” mode, without signal input.

2. Enter factory mode and press key ”0”. There will be a level
bright line displays.

EN 32 SK4.0A CA8.

6

6

6

6

6

6

6

6

6

6

A

0

0

R

0

0

0

V

Alignments

Enter Factory Mode:

Press sequentially: I+ ---> Smart Sound ---> Smart Picture
Main Menu in red box.

Navigation:

Method 1 From the first menu, use the arrow Up or Down to navigate to different pages.
Method 2 Selecting the number "0 - 9" on the remote control to go directly to the pages.
At any point, enter the "Menu" key twice to go back to the main Menu.

Changing value

Move to the intended parameter with the arrow "up" and "down" key on the RC.
Use the arrow "Right" and "Left" to increse and decrease the value respectively.

Exit

Enter " I+ " on the RC to exit factory mode.

Main Page

CPU EEPROM: 070406

STS 0: 01110010
STS 1: 01010001
STS 2: 11001001

CPU EEPROM: 07040

"1"

CPU EEPROM: 07040

"2"

01111111
11110111

"4"

CPU EEPROM: 07040

"6"

CPU EEPROM: 07040

"7"

00LOC
40NOC

00PHS

0405RB

0405LC

0705OC

0505HS
001FIRB
001FLOC
001FNOC
08FPHS

3201LV72RAP5
0502LV83WOB5
9503LV04HSH5
2704LV84WWE5
3805LV45PWE5
44NIMX03RCU5
681XAMX92RCL5
64NIMY12TWE5
16XAMY
04IMXT
83MYT5

2+RLLC92LSV5
0GLLC64MAV5
0RPLC81LCS5
0GPLC43HSV5
6+BPLC83HGR5
3+RLAW83FOV5
0GLAW24FOH
01+RPAW23XV
9+GPAW0EDIW
0BPAW4VUY5
0DDAH5VUYG
97DDAL
72ULAV
8LWEP

TINI70IRB

"8"

CPU EEPROM: 07040

CPU EEPROM: 07040

604070 :MORPEE UPC604070 :MORPEE UPC

CPU EEPROM: 07040

CPU EEPROM: 07040

TUN

"3"

0KVM
1YMVS
0VUT

CPU EEPROM: 07040

"9"

CPU EEPROM: 07040

"5"

UY8ERTM

650VW13DER
0451VW13NRG
0852VW13RPW
0953VW13GPW
8954VW53BPW
655VW8PFDY VG2: OUT HIGH
0456VW8SFDY
0857VW0RBTT
0958VW31DTUM
8959VW06LEDM

10110118121PO03CG
1000010662PO54LOV

1001000093PO749589
11001100154PO3
101110111225PO3SFFI

1000010666PO2LODH

100000113917PO72DPS
1000110898PO64B2GV
001000089PO91SABM

1CWE91ABTM

1

0BGR52IRBT

0M

51LBGR

"0"

H_17210_042.eps

120607

Figure 8-1 Software Alignments

Alignments

EN 33SK4.0A CA 8.

8.4 E2PROM initializtion

8.4.1 E2PROM Initializtion (key 8)

An empty or used E2PROM can be used for servicing. The
following steps have to be passed through to initialize the
E2PROM.
While in the MENU mode press key 8 to enter the factory mode.
Now enter the initialization menu by pressing z/A. The set
shows the OSD ”INIT BUSY” on screen, 5 minutes later, the
text “BUSY” disappears. Now power OFF and ON the set. This
finalizes the initialization.

8.5 Option Settings

Item Storage address Display string Range (Index value) 21PT8667/93 21PT8867/93 21PT8857/93 21PT5547/94 21PT8867/94

option 1

Shade bar adjust mode Bit 0 AVG VSD 0 0 0 0 0

YUV or Yprpb Bit 1 YUV Yprpb 1 1 1 1 1

WIDE BAND SOUND Bit 2 Off On 0 0 0 0 0

BLACK STRETCH AMOUNT Bit 3 10% 20% 1 1 1 1 1

AV2 Bit 4 Off On 1 1 1 1 1

SVHS Bit 5 Off On 0 0 0 0 0

BLACK STRETCH DEPTH Bit 6 20IRE 30IRE 1 1 1 1 1

CMSS Bit 7 Off On 1 1 1 1 1

option 2

AVL Bit 0 Off On 0 0 0 0 0

Auto sound in auto search mode Bit 1 Off On 0 0 0 1 1

Pan Europe Teletext set Bit 2 Off On 0 0 0 0 0

Cyrillic Teletext set Bit 3 Off On 0 0 0 0 0

Farsi Teletext set Bit 4 Off On 0 0 0 0 0

Arabic Teletext set Bit 5 Off On 0 0 0 0 0

Sync On Y (YUV/Yprpb mode) Bit 6 no yes 1 1 1 1 1

Slicing lever Bit 7 Dependent on

option 3

3P61 Bit 0 Off On 1 1 1 1 1

English

XXX Bit 1 Off On 0 0 0 0 0

XXX Bit 2 Off On 0 0 0 0 0

Chinese Bit 3 Off On 1 1 1 0 0

XXX Bit 4 Off On 0 0 0 0 0

XXX Bit 5 Off On 0 0 0 0 0

XXX Bit 6 Off On 0 0 0 0 0

XXX Bit 7 HITACHI re-

option 4

Sound intermediate frequency
control( FWMS)450KHz frequen­cy deflection

Boot-strap mode Bit 1 Boot-strap

geomagnetism adjust function Bit 2 Off On 0 0 0 0 0

Logo Bit 3 Off On 0 0 0 0 0

EHT tracking mode Bit 4 Vertical Vertical/hori-

Search tuing mode sensitivity Bit 5 Normal Low 1 1 1 1 1

Calendar translucence function Bit 6 Off On 0 0 0 0 0

Zoom function Bit 7 Off On 0 0 0 0 0

option 5

DK sound system Bit 0 Off On 1 1 1 1 1

BG sound system Bit 1 Off On 0 0 0 1 1

I sound system Bit 2 Off On 1 1 1 1 1

CORING0 Bit 3 Off On 1 1 1 1 1

CORING1 Bit 4 Off On 1 1 1 1 1

XXX (comb filter) Bit 5 Off On 0 0 0 0 0

Switch-off in vertical overscan Bit 6 Undefined Vert. overscan 1 1 1 1 1

Power on to last status Bit 7 Off On 1 1 1 1 1

option 6

XXX (”NO SINGAN” screen pro­tection)

No signal black/blue backgr ound Bit 1 Black Blue 1 1 1 1 1

16:9 function Bit 2 Off On 0 0 0 0 0

189 OP1 0 1 218 218 218 218 218

190 OP2 0 1 64 64 64 66 66

191 OP30 1 99911

192 OP4 0 1 51 51 51 51 51

Bit 0NarrowWide11111

193 OP5 0 1 221 221 221 223 223

194 OP6 0 1 66 66 66 66 66

Bit 0 Off On 0 0 0 0 0

noise

mote control
code

standby

8.4.2 Function Settings (key 5)

1. While in the MENU mode press key 5 to enter the factory
menu.

2. The Logo setting is used when powered on or no signal.
Press MENU in the factory mode to enter the compile
mode, there are to rows. The first can set the customer’s
name etc. The second row is intended to display the
customer’s e-mail, telephone etc. Press z/A to select the
character to edit. Use keys B/yto choose the character.
Press MENU again to exit this view.

3. Set values for Option 1 to Option 8.

Reference Reference Reference Reference Reference

Fixed00000

Skyworth code 0 0 0 0 0

Memory mode11111

zontal

11111

EN 34 SK4.0A CA8.

Item Storage address Display string Range (Index value) 21PT8667/93 21PT8867/93 21PT8857/93 21PT5547/94 21PT8867/94

Child lock Bit 3 Off On 0 0 0 0 0

No signal blue screen channel
switch sign shake

XXX menu middle colour bar
(hotel mode)

Set “POC” bit when no signal Bit 6 Off On 1 1 1 1 1

game Bit 7Offon00000

option 7

AV1 Bit 0OffOn11111

XXX (AV3) Bit 10 1 00000

video/audio output control Bit 2 When No

LISTEN function Bit 3 Off On 0 0 0 0 0

Boot-strap mode 2 Bit 4 See OP4 bit 1 Boot-strap 0 0 0 0 0

Noise reduce point 1 Bit 5 0 0 0 0 0

Noise reduce point 2 Bit 6 1 1 1 1 1

M system absorb control level
(UOC 11th pin )

option 8

9373 (9363/9384)

XXX (Nicam) Bit 0 No Yes 0 0 0 0 0

4052 Bit 1No/noYes/yes11111

X-ray (XDT) Bit 2 XDT=1: bit 4

3p or 5p Bit 3 3p 5p 0 0 0 0 0

(STB) Bit 4yesno00000

When X-ray Bit 5 No power off Power off 1 1 1 1 1

Blue/black background switch Bit 6 Off On 1 1 1 1 1

Blink power supply indicator Bit7 No flash flash 0 0 0 0 0

option 9

FMWS setting When searching Bit0 0 1 0 0 0 0 0

FMWS1 setting When searching Bit1 0 1 0 0 0 0 0

WOOFER switch Bit2 Off On 0 0 0 0 0

AUTO sound system Bit3 No Yes 0 0 0 1 1

Soft clipping level (SOC0) Bit4 0 1 0 0 0 0 0

Soft clipping level (SOC1) Bit5 0 1 0 0 0 0 0

Tint control on UV single (TUV) Bit6 0 1 0 0 0 0 0

Other options

EW-C 198 0 0 00000

RGB function switch 200 RGB Off On 0 0 0 0 0

YUV function switch 199 YUV Off On 1 1 1 1 1

M function switch 201 M Off On 0 0 0 0 0

RGBL 202 RGBL0-25 1515151515

195 OP7 0 1 193 193 193 193 193

196 OP8 0 1 102 102 102 102 102

197 OP90 1 00088

Alignments

Reference Reference Reference Reference Reference

Bit 4No shakeshake00000

Bit 5OffOn00000

SCART, follow
screen

Bit 7 0 high 1 low 1 1 1 1 1

not applicable

When Yes
SCART follow
TV

XDT=0: bit 4 is
valid

00000

11111

Circuit Descriptions, Abbreviation List, and IC Data Sheets

9. Circuit Descriptions, Abbreviation List, and IC Data Sheets

EN 35SK4.0A CA 9.

Index of this chapter:

9.1 Introduction

9.2 The various circuits

9.3 Abbreviation List

9.4 IC Data Sheets

9.1 Introduction

The SK4.0A CA is a CRT TV for the year 2007, based on the
3P61 platform. In this chapter, only a general description of the
various circuits is given. For more detailed information, see the
circuit diagrams in this manual.

9.2 The various circuits

9.2.1 Tuner

The function of the tuner is to select the channel to be received
and suppress the interference of neighboring channels, to
amplify the high frequency signal, to improve the receiving
sensitivity and SNR, and to generate a PIF signal through
frequency conversion.

9.2.2 IF Channel

The IF Channel mainly ensures the sensitivity and selectivity of
the complete TV set. The IF AMP integrated in the UOCIII is
made up of a three-stage dual-differential amplifier with a gain
value above 70dB, a SNR of 55dB and a bandwidth of 7 MHz.
The video demodulation circuit is made from the built-in PLL
Sync Detector. The spectrum of the demodulation carrier is
unitary and it is not affected by the content of the video signal.
The tuner features stable receptivity while the signal output
from the video detector features high fidelity. The built-in PLL
circuit of the UOCIII generates a 38.0 MHz or 38.9 MHz
demodulation reference signal for the sync detector to
demodulate the video signal; this is called "PLL sync
demodulation".

9.2.3 Sound Channel

An external ceramic filter is used to select the second SIF
signal for the sound channel of UOCIII from the signal output of
the video detector. The audio signal is obtained after limiting
amplification and demodulation by the intermediate frequency
detector for the SIF signal, and then the audio signal is output
to the audio amplifier TFA9842., which drives the speakers to
provide the sound. The intermediate frequency detector and
volume-control attenuator that are built in the UOCIII are set
and adjusted via the CPU.

9.2.4 CRT Drive Circuit

In the driver circuit, both the voltage and current of the R/G/B
signal are amplified, after which the CRT drive circuit
modulates the cathode beam current of the CRT. The R/G/B
signal input into the driver circuit is of negative polarity.

9.2.5 Power Supply Circuit

The function of the power supply circuit is to supply various
stabilized operating voltages and to provide protections against
excessive voltages and currents.

9.3 Abbreviation List

2CS 2 Carrier Sound
A2 Commonly known as 2 Carrier Sound

(2CS) system
AC Alternating Current
ACI Automatic Channel Installation:

algorithm that installs TV channels

directly from a cable network by

means of a predefined TXT page
ADC Analogue to Digital Converter
AFC Automatic Frequency Control: control

signal used to tune to the correct

frequency
AGC Automatic Gain Control: algorithm that

controls the video input of the feature

box
AM Amplitude Modulation
ANC Automatic Noise Reduction; One of

the algorithms of Auto TV
AP Asia Pacific
AR Aspect Ratio: 4 by 3 or 16 by 9
AV Audio Video
AVL Automatic Volume Level control
B/G Monochrome TV system. Sound

carrier distance is 5.5 MHz
BCL Beam Current Limiter
CBA Circuit Board Assembly (or PWB)
CFR Carbon Film Resistor
ComPair Computer aided rePair
CRT Cathode Ray Tube (or picture tube)
CVBS Composite Video Blanking and

Synchronisation
CVI Component Video Input
D/K Monochrome TV system. Sound

carrier distance is 6.5 MHz. D= VHF-

band, K= UHF-band
DAC Digital to Analogue Converter
DC Direct Current
DC-filament Filament supply voltage
DFU Directions For Use: owner's manual
DPL Dolby Pro Logic
DRAM Dynamic RAM; dynamically refreshed

RAM
DVD Digital Versatile Disc
EEPROM Electrically Erasable and

Programmable Read Only Memory
EHT Extreme High Tension; the voltage

between the cathode and the shadow

mask that accelerates the electrons

towards the screen (around 25 kV)
EMI Electro Magnetic Interference;

Leakage of high-frequency radiation

from a transmission medium
EU EUrope
EW East West, related to horizontal

deflection of the set
EW-DRIVE East -West correction drive signal.
EXT EXTernal (source), entering the set by

SCART or by cinches (jacks)
FBL Fast Blanking: DC signal

accompanying RGB signals
FE Front End; Tuner and RF part together
Field Each interlaced broadcast FRAME is

composed of two Fields, each Field

consists of either Odd or Even lines
Filament Filament of CRT
FM Field Memory / Frequency Modulation
Frame A complete TV picture comprising all

lines (625/525)
FTV Flat TeleVision

EN 36 SK4.0A CA9.

Circuit Descriptions, Abbreviation List, and IC Data Sheets

G Green
H H_sync to the module
H-DRIVE Horizontal Drive
H-FLYBACK Horizontal Flyback
H-OUT H_sync output of the module /

Horizontal Output pulse

HA Horizontal Acquisition; horizontal sync

pulse

HFB Horizontal Flyback Pulse; Horizontal

sync pulse from large signal deflection
HW Hardware
I Monochrome TV system. Sound

carrier distance is 6.0 MHz. VHF- and

2

C Inter IC bus (also called IIC)

I

2

I

S Inter IC Sound bus

UHF-band

IC Integrated Circuit
IF Intermediate Frequency
IIC Inter IC bus (also called I2C)
Interlaced Scan mode where two fields are used

to form one frame. Each field contains

half the number of the total amount of

lines. The fields are written in "pairs",

causing line flicker.
IO In/Out
IR Infra Red
L Left audio channel
L/L’ Monochrome TV system. Sound

carrier distance is 6.5 MHz. L' is Band

I, L is all bands except for Band I
LATAM LATin AMerica
LED Light Emitting Diode
LOT Line Output Transformer (also called

FBT); The transformer in which the

EHT is generated
LS Loud Speaker
M/N Monochrome TV system. Sound

carrier distance is 4.5 MHz. M= 525

lines @ 60 Hz, N= 625 lines @ 50 Hz
MOFR Metal Oxide Film Resistor
MOSFET Metal Oxide Semiconductor Field

Effect Transistor
MPX MultiPleX
NAFTA North American Free Trade

Association: Trade agreement

between Canada, USA and Mexico
NC Not Connected
NICAM Near Instantaneously Companded

Audio Multiplexing; This is a digital

sound system, mainly used in Europe
NTC Negative Temperature Coefficient,

non-linear resistor (resistance

decreases if temperature increases)
NTSC National Television Standard

Committee. Colour system used

mainly in North America and Japan.

Colour carrier NTSC M/N = 3.579545

MHz, NTSC 4.43 = 4.433619 MHz

(this is a VCR norm, it is not

transmitted off-air)
NVM Non Volatile Memory; IC containing

data such as alignment values, preset

stations
OB Option Byte
OC Open Circuit
OP OPtion byte
OSD On Screen Display
P50 Project 50; Communication protocol

between TV and peripherals
PAL Phase Alternating Line; Colour system

mainly used in West Europe (colour

carrier= 4.433619 MHz) and South

America (colour carrier PAL M=

3.575612 MHz and PAL N= 3.582056

MHz)

PCB Printed Circuit Board (or PWB)
PLL Phase Locked Loop; Used for e.g.

FST tuning systems. The customer
can directly provide the desired
frequency

Progressive Scan Scan mode where all scan lines are

displayed in one frame at the same
time, creating a double vertical
resolution.

PTC Positive Temperature Coefficient, non

linear resistor (resistance increases if
temperature increases)

PWB Printed Wiring Board (also called PCB

or CBA)
QSS Quasi Split Sound
R Right audio channel / Red
RAM Random Access Memory
RC Remote Control transmitter
RC5 (6) Remote Control system 5 (6), the

signal from the remote control receiver
RF Real Flat (picture tube) or Radio

Frequency
RGB Red, Green, and Blue colour space;

The primary colour signals for TV. By

mixing levels of R, G, and B, all colours

(Y/C) are reproduced
RGBHV Red, Green, Blue, Horizontal sync,

and Vertical sync
RMS Root Mean Square value
ROM Read Only Memory
SAP Secondary Audio Program; Generally

used to transmit audio in a second

language
SAW Surface Acoustic Wave
SC SandCastle: two-level pulse derived

from sync signals
S/C Short Circuit
SCL Serial Clock signal on I
SD Standard Definition
SDA Serial Data line of I

2

C bus

2

C bus

SDRAM Synchronous DRAM
SIF Sound Intermediate Frequency
SMC Surface Mounted Component
SMD Surface Mounted Device
SMPS Switched Mode Power Supply
SND SouND
SRAM Static RAM
STBY STandBY
SVHS Super Video Home System
TBD To Be Defined
TXT Teletext; TXT is a digital addition to

analogue TV signals that contain

textual and graphical information (25

rows x 40 columns). The information is

transmitted within the first 25 lines

during the Vertical Blank Interval (VBI)
µC Microcontroller
UOC Ultimate One Chip
µP Microprocessor
UV Colour difference signals
V V_sync
V-BAT Main supply for deflection (usually 141

V)
VA Vertical Acquisition
VBI Vertical Blanking Interval; Time during

which the video signal is blanked when

going from bottom to top of the display
VCR Video Cassette Recorder
VGA Video Graphics Array
VIF Video Intermediate Frequency
WE Write Enable control line
WST World System Teletext
XTAL Quartz crystal
Y Luminance signal

Circuit Descriptions, Abbreviation List, and IC Data Sheets

9.4 IC Data Sheets

This section shows the internal block diagrams and pin layouts
of ICs that are drawn as "black boxes" in the electrical
diagrams.

9.4.1 Diagram A1, W6554A, (IC601)

EN 37SK4.0A CA 9.

Figure 9-1 Block Diagram and Pin Configuration

H_17210_039.eps

120607

EN 38 SK4.0A CA9.

9.4.2 Diagram A1, P412, (IC602)

Circuit Descriptions, Abbreviation List, and IC Data Sheets

H_17210_039.eps

120607

Figure 9-2 Block Diagram and Pin Configuration

Circuit Descriptions, Abbreviation List, and IC Data Sheets

9.4.3 Diagram A3, TDA486x, (IC301)

Block Diagram

EN 39SK4.0A CA 9.

DIFFERENTIAL

INPUT

STAGE

7

INP INN

from

deflection controller

Block diagram of TDA4865AJ

Pin Configuration

THERMAL

TDA4865AJ

PROTECTION

VERTICAL

OUTPUT

FLYBACK

GENERATOR

REFERENCE

CIRCUIT

65432 1

VOUT GND V

C

R

S1

S1

deflection

R

P

R3

R2

coil

R1

V

N

P2

R5

C1

V

P3

C

F

V

P1

D1

C2

R6

V

P

V

1

P1

V

2

P3

V

3

P2

4

GND

VOUT

INN

INP

TDA4865AJ

5

6

7

Pin configuration for DBS7P
(TDA4865AJ)

Figure 9-3 Block Diagram and Pin Configuration

H_17210_038.eps

120607

EN 40 SK4.0A CA9.

Circuit Descriptions, Abbreviation List, and IC Data Sheets

Figure 9-4 Block Diagram

H_17210_035.eps

120607

Circuit Descriptions, Abbreviation List, and IC Data Sheets

9.4.4 Diagram A5, 4052, (IC102)

Block Diagram

EN 41SK4.0A CA 9.

Pin Configuration

Figure 9-5 Block Diagram and Pin Configuration

H_17210_041.eps

120607

EN 42 SK4.0A CA9.

9.4.5 Diagram A7, TDA9842, (IC402)

Block Diagram

IN1

Circuit Descriptions, Abbreviation List, and IC Data Sheets

V

CC

9

4

60

kΩ

8

OUT1

1

IN2

60

kΩ

3

CIV

7

VC

Pin Configuration

IN2

OUT2

CIV

IN1

GND

SVR

VC

OUT1

V

CC

VOLUME

CONTROL

TFA9842AJ

1

2

3

4

5

TFA9842AJ

6

7

8

9

V

REF

GND

5

SHORT-CIRCUIT

AND

TEMPERATURE

PROTECTION

V

CC

0.5V

CC

2

OUT2

6

SVR

H_17210_033.eps

Figure 9-6 Block Diagram and Pin Configuration

110607

Circuit Descriptions, Abbreviation List, and IC Data Sheets

9.4.6 Diagram A8, OM837x (IC201)

Block Diagram

EN 43SK4.0A CA 9.

Figure 9-7 Block Diagram

H_17210_034.eps

130607

EN 44 SK4.0A CA9.

Circuit Descriptions, Abbreviation List, and IC Data Sheets

Pin Configuration

Figure 9-8 Pin Configuration

H_17210_029.eps

130607

Circuit Descriptions, Abbreviation List, and IC Data Sheets

EN 45SK4.0A CA 9.

Figure 9-9 Pin Configuration

H_17210_030.eps

130607

EN 46 SK4.0A CA9.

Pinning

Circuit Descriptions, Abbreviation List, and IC Data Sheets

Figure 9-10 Pin Configuration

H_17210_031.eps

130607

Circuit Descriptions, Abbreviation List, and IC Data Sheets

9.4.7 Diagram A8, 24C08 (IC202)

EN 47SK4.0A CA 9.

Figure 9-11 Block Diagram

H_17210_035.eps

120607

EN 48 SK4.0A CA9.

Pin Configuration

Circuit Descriptions, Abbreviation List, and IC Data Sheets

Figure 9-12 Pin Configuration

H_17210_036.eps

120607

10. Spare Parts List

Spare Parts List

EN 49SK4.0A CA 10.

Set Level

Various

A101 9965 100 04933 Tuners 38.00MHz
A101 9965 100 05328 Tuner 5V 38.9MHz AGC
GST601 9965 000 40274 Surge Abs. 300V 30%
M001 9965 000 40270 IR receiver mod. 36kHz
CRT 9965 100 04929 21"HUAFEI CRT

CRT 9965 100 05327 21"HUAFEI CRT

CRT001 9965 100 04949 21"LG.PHILIPS

F601 9965 000 40277 Fuse 3.15A/250V
F601 9965 100 05334 Fuse T5A 250V
H602 9965 100 04926 Degaussing Coil
H602 9965 100 05322 Degaussing Coil
S501 9965 000 40278 CRT Socket
SAW101 9965 000 40261 SAW K2974J 38.0MHz
SAW101 9965 100 05326 SAW N2977B 38.9MHz
SPEAKER 9965 100 04936 Loudsp. 8Ω 10W
SR601 9965 000 40275 Gas Tube CMQX0680
SW001 9965 100 04934 Tact Switch
SW002 9965 100 04934 Tact Switch
SW003 9965 100 04934 Tact Switch
SW004 9965 100 04934 Tact Switch
SW601 9965 000 40271 Switch KDC-A11-102A
SW601 9965 100 04935 MPS.SDDF-3-03

g

C101 9965 000 41097 100pF 50V
C102 9965 000 41097 100pF 50V
C103 9965 000 40171 10µF 20% 16V
C104 9965 000 40172 100µF 20% 16V
C105 9965 000 40156 0.01µF 50V
C106 9965 100 04885 0.47uF 20% 50V
C107 9965 000 40156 0.01µF 50V
C108 9965 100 04866 0.001uF 5% 50V
C109 9965 000 40156 0.01µF 50V
C110 9965 000 40156 0.01µF 50V
C201 9965 000 41097 100pF 50V
C202 9965 000 41097 100pF 50V
C203 9965 000 40156 0.01µF 50V
C206 9965 000 40171 10µF 20% 16V
C207 9965 100 04892 0.22µF 5% 63-100V
C208 9965 100 04870 0.0047µF +80-20% 50V
C209 9965 100 04867 0.0022µF +80-20% 50V
C210 9965 100 04892 0.22µF 5% 63-100V
C211 9965 000 40178 1µF 20% 50V
C212 9965 000 40156 0.01µF 50V
C213 9965 100 04891 0.1µF 5% 63-100V
C214 9965 100 04866 0.001uF 5% 50V
C215 9965 100 04866 0.001uF 5% 50V
C216 9965 100 04866 0.001uF 5% 50V
C217 9965 100 04891 0.1µF 5% 63-100V
C218 9965 000 40180 2.2µF20% 50V
C219 9965 000 40156 0.01µF 50V
C220 9965 000 40171 10µF 20% 16V
C221 9965 000 40562 Mylar 0.0033mF 100V
C221 9965 100 05316 0.0027µF 10% 100V
C222 9965 000 40171 10µF 20% 16V
C223 9965 000 40208 Mylar 0.0015μF 100V
C224 9965 000 40159 330pF 50V
C224 9965 100 04873 390pF 10% 500V
C226 9965 000 41097 100pF 50V
C227 9965 000 40176 470µF 20% 16V
C229 9965 000 40529 33pF 50V
C230 9965 000 40529 33pF 50V
C231 9965 000 40172 100µF 20% 16V
C232 9965 000 40156 0.01µF 50V
C233 9965 000 40156 0.01µF 50V
C234 9965 000 40171 10µF 20% 16V
C235 9965 000 40156 0.01µF 50V
C236 9965 000 40171 10µF 20% 16V
C237 9965 100 04871 560pF 5% 50V
C238 9965 000 40179 10μF 20% 50V-63V
C239 9965 100 04868 0.022µF +80-20% 50V
C240 9965 100 04868 0.022µF +80-20% 50V
C241 9965 100 04868 0.022µF +80-20% 50V
C243 9965 000 40172 100µF 20% 16V
C244 9965 000 40156 0.01µF 50V
C245 9965 000 40171 10µF 20% 16V
C246 9965 100 04891 0.1µF 5% 63-100V
C247 9965 000 40158 220pF 50V
C248 9965 000 40175 47µF 20% 16V
C253 9965 000 40180 2.2µF20% 50V

A51ERU191X03

A51ERU191X03/E

A51QDJ420XZ5N

C300 9965 100 04874 470pF 10% 500V
C301 9965 100 04874 470pF 10% 500V
C302 9965 100 04874 470pF 10% 500V
C303 9965 100 04884 470µF 20% 25V
C304 9965 100 04884 470µF 20% 25V
C305 9965 100 04900 100µF 20% 50V
C306 9965 100 04891 0.1µF 5% 63-100V
C307 9965 100 04891 0.1µF 5% 63-100V
C308 9965 000 40157 0.1µF 50V
C309 9965 100 04887 4.7µF 20% 250V
C309 9965 100 05317 47µF 20% 250V
C310 9965 100 04873 390pF 10% 500V
C311 9965 100 04887 4.7µF 20% 250V
C311 9965 100 04944 4.7uF 20% 160V
C312 9965 100 04890 0.027UF 5% 630V
C314 9965 100 04894 0.0027µF 5% 2kV
C315 9965 100 04895 0.0072uF 5% 2kV
C315 9965 100 04946 0.1uF 250V-500V
C316 9965 000 40558 0.0082μF 5% 2kV
C317 9965 100 04893 0.78µF 5% 400V
C317 9965 100 04945 0.33µF 5% 400V
C318 9965 100 04888 0.27µF 5% 400V
C319 9965 000 41107 CerCap 680pF 2kV
C321 9965 000 40164 CerCap 0.0022μF 500V
C322 9965 100 04866 0.001uF 5% 50V
C323 9965 000 40180 2.2µF20% 50V
C325 9965 000 41097 100pF 50V
C325 9965 100 04889 PFC.0.36uF 400V +/-5%
C326 9965 000 41097 100pF 50V
C411 9965 000 40178 1µF 20% 50V
C412 9965 000 40178 1µF 20% 50V
C424 9965 000 40209 Mylar 0.0022μF 100V
C425 9965 000 40209 Mylar 0.0022μF 100V
C426 9965 000 40179 10μF 20% 50V-63V
C428 9965 100 04885 0.47uF 20% 50V
C429 9965 000 40545 220μF 20% 25V
C430 9965 000 40157 0.1µF 50V
C432 9965 000 40172 100µF 20% 16V
C433 9965 100 04883 1000µF 20% 25V
C434 9965 100 04883 1000µF 20% 25V
C436 9965 000 40172 100µF 20% 16V
C477 9965 100 04902 4.7µF 20% 480mA 50V
C501 9965 000 40159 330pF 50V
C502 9965 000 40159 330pF 50V
C503 9965 000 40159 330pF 50V
C504 9965 100 04876 0.001µF 10% 2kV
C508 9965 100 04872 82pF 5% 50V
C508 9965 100 04875 470pF 10% 1kV
C509 9965 100 04875 470pF 10% 1kV
C509 9965 100 05315 47µF 250V
C510 9965 100 04875 470pF 10% 1kV
C516 9965 100 04875 470pF 10% 1kV
C601 9965 100 04896 0.1uF 250V-500V
C602 9965 100 04897 0.22µF 250V-500V
C603 9965 000 40565 0.001μF 250V-400V
C604 9965 000 40565 0.001μF 250V-400V
C605 9965 000 41100 0.0047µF 500V
C608 9965 000 41100 0.0047µF 500V
C609 9965 000 40564 220µF

9

C60
C610 9965 000 40171 10µF 20% 16V
C611 9965 000 40157 0.1µF 50V
C611 9965 100 04891 0.1µF 5% 63-100V
C612 9965 000 40531 470pF 50V
C613 9965 000 40156 0.01µF 50V
C614 9965 100 04898 0.22pF 20% 250V-400V
C615 9965 100 04869 270pF 5% 50V
C616 9965 000 40551 47μF 20% 160V
C617 9965 100 04901 100µF 20% 160V
C618 9965 100 04878 220pF 10% 2kV
C619 9965 100 04875 470pF 10% 1kV
C620 9965 100 04875 470pF 10% 1kV
C621 9965 100 04882 1000µF 20% 25V
C622 9965 100 04886 470uF 20% 50V
C625 9965 000 40541 2200μF
C626 9965 000 40156 0.01µF 50V
C627 9965 100 04883 1000µF 20% 25V
C628 9965 100 04881 1000µF 20% 16V
C628A 9965 100 04883 1000µF 20% 25V
C631 9965 000 40176 470µF 20% 16V
C633 9965 100 04877 0.001µF 10% 2KV
C634 9965 000 40173 1000μF
C637 9965 100 04875 470pF 10% 1kV
C801 9965 000 41097 100pF 50V
C802 9965 000 40171 10µF 20% 16V
C803 9965 000 41097 100pF 50V
C804 9965 000 40178 1µF 20% 50V
C804 9965 000 40179 10μF 20% 50V-63V
C805 9965 000 41097 100pF 50V

9965 100 04899 100µF 20% 400V

C806 9965 000 41097 100pF 50V
C807 9965 000 40179 10μF 20% 50V-63V
C807 9965 100 04880 1µF 16V
C808 9965 000 40179 10μF 20% 50V-63V
C809 9965 000 40179 10μF 20% 50V-63V
C810 9965 000 40179 10μF 20% 50V-63V
C811 9965 000 40179 10μF 20% 50V-63V
C812 9965 000 41097 100pF 50V
C813 9965 000 41097 100pF 50V
C820 9965 000 40171 10µF 20% 16V
C821 9965 000 40171 10µF 20% 16V
C822 9965 000 40157 0.1µF 50V
C823 9965 000 40171 10µF 20% 16V
C888 9965 100 04879 10µF 20% 10V
CR1 9965 100 04879 10µF 20% 10V
Z201 9965 100 05325 Trap 5.5MHz PAL BG
Z202 9965 000 40608 Trap 6.0MHz PAL I
Z203 9965 000 40609 Trap 6.0MHz PAL DK

f

J629 9965 000 39975 CFR 100Ω 1/16W
J632A 9965 000 40700 CFR 4.7kΩ 1/16W
J849 9965 000 40700 CFR 4.7kΩ 1/16W
L801 9965 100 04847 560Ω 5% 1/16-1/6W
L802 9965 100 04847 560Ω 5% 1/16-1/6W
L805 9965 100 04847 560Ω 5% 1/16-1/6W
L806 9965 100 04847 560Ω 5% 1/16-1/6W
R101 9965 100 04841 27kΩ 5% 1/16-1/6W
R102 9965 000 40686 CFR 15kΩ 1/16W
R103 9965 100 04852 51Ω 5% 1/4W
R104 9965 100 04852 51Ω 5% 1/4W
R105 9965 000 39984 CFR 75Ω 1/16W
R106 9965 000 39983 CFR 56Ω 1/16W
R106 9965 000 40705 CFR 68Ω 1/16W
R107 9965 100 04836 1.2kΩ 5% 1/16-1/6W
R107 9965 100 04838 180Ω 5% 1/16-1/6W
R108 9965 000 40700 CFR 4.7kΩ 1/16W
R109 9965 000 40304 CFR 1KΩ 1/16W
R109 9965 100 04836 1.2kΩ 5% 1/16-1/6W
R110 9965 000 40684 CFR 10Ω 1/16W
R111 9965 000 40699 CFR 470Ω 1/16W
R111 9965 100 04849 680Ω 5% 1/16-1/6W
R112 9965 100 05311 82Ω 5% 1/16-1/6W
R113 9965 100 04838 180Ω 5% 1/16-1/6W
R117 9965 000 39975 CFR 100Ω 1/16W
R118 9965 000 39975 CFR 100Ω 1/16W
R151 9965 000 39975 CFR 100Ω 1/16W
R152 9965 000 39975 CFR 100Ω 1/16W
R201 9965 000 39975 CFR 100Ω 1/16W
R202 9965 000 40695 CFR 3.3kΩ 1/16W
R203 9965 000 40695 CFR 3.3kΩ 1/16W
R204 9965 000 39975 CFR 100Ω 1/16W
R205 9965 000 40695 CFR 3.3kΩ 1/16W
R206 9965 000 39975 CFR 100Ω 1/16W

8

R20
R210 9965 000 40700 CFR 4.7kΩ 1/16W
R214 9965 000 40122 MOFR 39kΩ
R214 9965 000 40494 CFR 39kΩ 1W
R215 9965 100 04849 680Ω 5% 1/16-1/6W
R216 9965 000 40695 CFR 3.3kΩ 1/16W
R217 9965 000 39975 CFR 100Ω 1/16W
R218 9965 000 39976 CFR 10kΩ 1/16W
R219 9965 000 39975 CFR 100Ω 1/16W
R220 9965 000 40695 CFR 3.3kΩ 1/16W
R221 9965 100 04846 47Ω 5% 1/16-1/6W
R222 9965 100 04839 2.2kΩ 5% 1/6W
R223 9965 100 04838 180Ω 5% 1/16-1/6W
R224 9965 000 39975 CFR 100Ω 1/16W
R228 9965 000 40304 CFR 1KΩ 1/16W
R229 9965 100 04844 390Ω 5% 1/6W
R230 9965 100 04836 1.2kΩ 5% 1/16-1/6W
R231 9965 100 04839 2.2kΩ 5% 1/6W
R232 9965 000 39984 CFR 75Ω 1/16W
R234 9965 000 40695 CFR 3.3kΩ 1/16W
R235 9965 100 04839 2.2kΩ 5% 1/6W
R238 9965 000 40706 CFR 6.8kΩ 1/16W
R239 9965 000 39975 CFR 100Ω 1/16W
R240 9965 000 39975 CFR 100Ω 1/16W
R241 9965 000 39975 CFR 100Ω 1/16W
R242 9965 000 39976 CFR 10kΩ 1/16W
R243 9965 100 04841 27kΩ 5% 1/16-1/6W
R245 9965 000 40304 CFR 1KΩ 1/16W
R246 9965 000 40686 CFR 15kΩ 1/16W
R247 9965 000 40698 CFR 39kΩ 1/16W
R250 9965 100 04848 5.6kΩ 5% 1/16-1/6W
R251 9965 000 40304 CFR 1KΩ 1/16W
R252 9965 100 04841 27kΩ 5% 1/16-1/6W
R255 9965 000 40700 CFR 4.7kΩ 1/16W

9965 000 40686 CFR 15kΩ 1/16W

EN 50 SK4.0A CA10.

Spare Parts List

R256 9965 000 40700 CFR 4.7kΩ 1/16W
R257 9965 000 39975 CFR 100Ω 1/16W
R258 9965 000 39975 CFR 100Ω 1/16W
R259 9965 000 39984 CFR 75Ω 1/16W
R260 9965 000 39975 CFR 100Ω 1/16W
R261 9965 000 39975 CFR 100Ω 1/16W
R301 9965 100 04864 0.33Ω 5% 2W
R302 9965 100 04864 0.33Ω 5% 2W
R304 9965 100 04856 220Ω 5% 1W
R305 9965 000 40687 CFR 1.8kΩ 1/16W
R306 9965 000 39985 CFR 5.6Ω
R307 9965 000 40135 MOFR 1.2Ω
R307 9965 000 40781 MOFR 0.82Ω
R307 9965 100 05312 0.82Ω 2W
R308 9965 000 40687 CFR 1.8kΩ 1/16W
R309 9965 100 04860 330Ω 5% 2W
R309 9965 100 05314 330Ω 2W
R310 9965 000 40692 CFR 240kΩ 1/16W
R311 9965 100 04841 27kΩ 5% 1/16-1/6W
R312 9965 000 40304 CFR 1KΩ 1/16W
R314 9965 000 40145 Fusible 0.18Ω 2W
R315 9965 000 40148 Fusible 2.2Ω 2W
R315 9965 100 04908 2.7Ω 5% 2W
R316 9965 100 04861 4.7kΩ 5% 2W
R317 9965 100 04838 180Ω 5% 1/16-1/6W
R318 9965 100 04842 330Ω 5% 1/16-1/6W
R321 9965 100 04859 1kΩ 5% 2W
R322 9965 000 40513 MOFR 1Ω
R322 9965 100 05313 1.5Ω 5% 2W
R323 9965 000 40698 CFR 39kΩ 1/16W
R324 9965 000 39975 CFR 100Ω 1/16W
R325 9965 000 40691 CFR 220Ω 1/16W
R326 9965 000 39977 CFR 100kΩ
R327 9965 100 04854 1.5kΩ 5% 1W
R405 9965 000 40304 CFR 1KΩ 1/16W
R406 9965 000 40304 CFR 1K
R407
R408 9965 000 40700 CFR 4.7kΩ 1/16W
R409 9965 000 40695 CFR 3.3kΩ 1/16W
R410 9965 100 04837 130kΩ 5% 1/16-1/6W
R410 9965 100 05310 120kΩ 5% 1/6W
R411 9965 000 39976 CFR 10kΩ 1/16W
R412 9965 000 40695 CFR 3.3kΩ 1/16W
R501 9965 000 40690 CFR 22Ω 1/16W
R502 9965 100 04839 2.2kΩ 5% 1/6W
R503 9965 000 40491 CFR 270Ω 1W
R504 9965 000 40690 CFR 22Ω 1/16W
R505 9965 100 04858 270Ω 5% 1W
R506 9965 000 40517 MOFR 15kΩ
R507 9965 100 04856 220Ω 5% 1W
R508 9965 000 40774 MOFR 1kΩ
R508 9965 100 04853 1kΩ 5% 1W
R510 9965 000 39998 CFR 22Ω 1/4W
R511 9965 000 40000 CFR 2.2kΩ
R512 9965 000 39998 CFR 22Ω 1/4W
R513 9965 000 40491 CFR 270Ω 1W
R514 9965 100 04858 270Ω 5% 1W
R515 9965 000 40517 MOFR 15kΩ
R516 9965 100 04856 220Ω 5% 1W
R517 9965 000 40774 MOFR 1kΩ
R517 9965 100 04853 1kΩ 5% 1W
R519 9965 000 40503 CFR 220kΩ 1W
R520 9965 100 04839 2.2kΩ 5% 1/6W
R521 9965 000 39998 CFR 22Ω 1/4W
R522 9965 000 39998 CFR 22Ω 1/4W
R523 9965 000 40491 CFR 270Ω 1W
R524 9965 100 04858 270Ω 5% 1W
R525 9965 000 40517 MOFR 15kΩ
R526 9965 100 04856 220Ω 5% 1W
R527 9965 000 40774 MOFR 1kΩ
R527 9965 100 04853 1kΩ 5% 1W
R601 9965 000 40150 High Volt. 2.2M
R602
R603 9965 000 40524 NTC 5/5A
R604 9965 000 40698 CFR 39kΩ 1/16W
R605 9965 000 40691 CFR 220Ω 1/16W
R606 9965 000 40706 CFR 6.8kΩ 1/16W
R607 9965 000 39998 CFR 22Ω 1/4W
R608 9965 100 04839 2.2kΩ 5% 1/6W
R609 9965 000 40154 High Volt. 8.2MΩ 1W
R611 9965 100 04849 680Ω 5% 1/16-1/6W
R612 9965 100 04839 2.2kΩ 5% 1/6W
R613 9965 000 40700 CFR 4.7kΩ 1/16W
R614 9965 100 04845 4.3kΩ 5% 1/16-1/6W
R615 9965 000 40490 CFR 220kΩ 1W
R616 9965 100 04862 0.22Ω 5% 1W
R617 9965 100 04863 0.33Ω 5% 1W
R618 9965 100 04863 0.33Ω 5% 1W
R619 9965 100 04858 270Ω 5% 1W
R621 9965 100 04855 22Ω 5% 1W
R622 9965 100 04851 820Ω 5% 1/16-1/6W
R623 9965 000 40101 CFR 3.3kΩ
R624 9965 000 39976 CFR 10kΩ 1/16W
R625 9965 000 39976 CFR 10kΩ 1/16W

9965 000 39976 CFR 10kΩ 1/16W

9965 100 04857 220kΩ 5% 1W

Ω 1/

16W

Ω 1/

R626 9965 000 39976 CFR 10kΩ 1/16W
R630 9965 000 39999 CFR 220Ω
R632 9965 000 39976 CFR 10kΩ 1/16W
R633 9965 000 40304 CFR 1KΩ 1/16W
R637 9965 000 40517 MOFR 15kΩ
R638 9965 000 40694 CFR 33Ω 1/16W
R638 9965 100 04838 180Ω 5% 1/16-1/6W
R639 9965 000 39976 CFR 10kΩ 1/16W
R640 9965 100 04937 Bead 3.5 X 1 X 5mm
R801 9965 000 40705 CFR 68Ω 1/16W
R802 9965 100 04838 180Ω 5% 1/16-1/6W
R804 9965 000 39982 CFR 33kΩ 1/16W
R804 9965 000 40700 CFR 4.7kΩ 1/16W
R805 9965 000 39982 CFR 33kΩ 1/16W
R805 9965 000 40700 CFR 4.7kΩ 1/
R806
R807 9965 000 39975 CFR 100Ω 1/16W
R815 9965 100 04921 Peaking Coil 56µH 10%
R816 9965 100 04921 Peaking Coil 56µH 10%
R817 9965 000 39982 CFR 33kΩ 1/16W
R817 9965 000 40700 CFR 4.7kΩ 1/16W
R818 9965 000 39982 CFR 33kΩ 1/16W
R818 9965 000 40700 CFR 4.7kΩ 1/16W
R819 9965 000 39975 CFR 100Ω 1/16W
R820 9965 000 39975 CFR 100Ω 1/16W
R821 9965 000 39977 CFR 100kΩ
R822 9965 000 39977 CFR 100kΩ
R825 9965 000 39977 CFR 100kΩ
R826 9965 000 39977 CFR 100kΩ
R827 9965 000 39977 CFR 100kΩ
R828 9965 000 39977 CFR 100kΩ
R831 9965 000 40693 CFR 2.7kΩ 1/16W
R832 9965 000 40693 CFR 2.7kΩ 1/16W
R833 9965 000 39977 CFR 100kΩ
R834 9965 000 39977 CFR 100kΩ
R835 9965 000 39976 CFR 10kΩ 1/16W
R836 9965 000 39976 CFR 10kΩ 1/16W
R838 9965 000 39976 CFR 10kΩ 1/16W
R839 9965 000 39976 CFR 10kΩ 1/16W
R841 9965 000 40700 CFR 4.7kΩ 1/16W
R842 9965 000 40700 CFR 4.7kΩ 1/16W
R844 9965 000 39975 CFR 100Ω 1/16W
R845 9965 100 04850 750Ω 5% 1/16-1/6W
R846 9965 100 04850 750Ω 5% 1/16-1/6W
R847 9965 000 39975 CFR 100Ω 1/16W
R848 9965 000 39977 CFR 100kΩ
R849 9965 000 39977 CFR 100kΩ
R852 9965 000 40685 CFR 1.5kΩ 1/16W
R854 9965 000 40685 CFR 1.5kΩ 1/16W
RD2 9965 000 39975 CFR 100Ω 1/16W
RD2 9965 100 04851 820Ω 5% 1/16-1/6W
RD3 9965 000 40693 CFR 2.7kΩ 1/16W
RD3 9965 100 04843 3.6kΩ
RD4
RD4 9965 000 40686 CFR 15kΩ 1/16W
RD5 9965 000 40688 CFR 18kΩ 1/16W
RD5 9965 100 04840 24kΩ 5% 1/16-1/6W
RR1 9965 000 39987 CFR 100Ω
RST601 9965 100 04856 220Ω 5% 1W
RT602 9965 100 04865 Ther Resistor 9Ω for 29"
VR601 9965 000 40155 Semi-fixed R 1kB (H)

9965 000 39975 CFR 100Ω 1/16W

996

5 000 39976 CFR 10kΩ 1/16W

5% 1/16-1/6W

b

J249 9965 000 40252 Peaking coil 10μH 10%
J807 9965 100 04921 Peaking Coil 56µH 10%
J808 9965 100 04921 Peaking Coil 56µH 10%
L101 9965 000 40602 Peaking coil 1μH 10%
L102 9965 000 40253 Peaking coil 100μH 10%
L201 9965 000 40252 Peaking coil 10μH 10%
L202 9965 000 40252 Peaking coil 10μH 10%

2W

L203 9965 000 40252 Peaking coil 10μH 10%
L204 9965 000 40252 Peaking coil 10μH 10%
L205 9965 000 40252 Peaking coil 10μH 10%
L206 9965 100 04920 Peaking Coil 6.8µH
L301 9965 100 04922 Choke Coil 105µH
L302 9965 100 04925 Linearity Coil 44µH 20%
L302 9965 100 04948 Linearity Coil 44µH 20%
L302 9965 100 05323 Linearity Coil 44µH 20%
L303 9965 100 04923 Choke Coil 400µH
L304 9965 100 04924 Choke Coil 790µH
L501 9965 000 40252 Peaking coil 10μH 10%
L601 9965 000 41227 Bead 3.5 x 1 x 9mm
L605 9965 100 04927 Choke Coil 100μH 10%
LED 9965 000 40273 LED 3.1mm red
R843 9965 000 40252 Peaking coil 10μH 10%
T301 9965 100 04931 21" Transformer B+115V
T301 9965 100 04950 21" Flyback Transformer
T302 9965 100 04930 Horizontal Drive Trans
T601 9965 000 40260 Line filter 30mHx2
T601 9965 100 05324 Line Filter 30mH x 2
T602 9965 000 40260 Line filter 30mHx2
T602 9965 100 05324 Line Filter 30mH x 2

16W

T604 9965 100 04932 Switching Transf. Ec40
X201 9965 100 04928 Xtal HC-49U 12.000MHz

d

D101 9965 000 40221 Zener 5V1 1/2W 5%
D201 9965 000 40221 Zener 5V1 1/2W 5%
D202 9965 000 40224 Zener 8V2 1/2W 5%
D203 9965 000 40224 Zener 8V2 1/2W 5%
D204 9965 000 40224 Zener 8V2 1/2W 5%
D205 9965 000 40218 1N4148 150mA/100V
D206 9965 000 41175 6V2 5% 1/2W
D207 9965 000 40221 Zener 5V1 1/2W 5%
D301A 9965 000 40224 Zener 8V2 1/2W 5%
D302 9965 000 40219 BA158 600V/1A
D303 9965 000 40219 BA158 600V/1A
D304 9965 000 40219 BA158 600V/1A
D305 9965 000 40218 1N4148 150mA/100V
D306 9965 000 40224 Zener 8V2 1/2W 5%
D307 9965 000 40218 1N4148 150mA/100V
D308 9965 000 40219 BA158 600V/1A
D309 9965 100 04909 Zener Diode 18V 1/2W
D310 9965 000 40219 BA158 600V/1A
D311 9965 100 04906 3A/800V(DO-27)
D312 9965 100 04904 BY228
D401 9965 000 40218 1N4148 150mA/100V
D402 9965 000 40218 1N4148 150mA/100V
D403 9965 000 40218 1N4148 150mA/100V
D501 9965 000 40218 1N4148 150mA/100V
D502 9965 000 40219 BA158 600V/1A
D503 9965 000 40218 1N4148 150mA/100V
D504 9965 000 40219 BA158 600V/1A
D505 9965 000 40218 1N4148 150mA/100V
D506 9965 000 40219 BA158 600V/1A
D603 9965 000 40218 1N4148 150mA/100V
D603 9965 000 40219 BA158 600V/1A
D604 9965 100 04909 Zener Diode 18V 1/2W
D605 9965 100 04911 TA20-08 2A/800V
D606 9965 100 04911 TA20-08 2A/800V
D607 9965 100 04911 TA20-08 2A/800V
D608 9965 100 04911 TA20-08 2A/800V
D609 9965 100 04907 3V6 1/2W +/-5%
D610 9965 100 04910 RU4AM
D611 9965 100 04903 TH2008 800V/2A
D612 9965 000 40219 BA158 600V/1A
D613 9965 100 04905 TRU3YX 200V/2A
D615 9965 000 40219 BA158 600V/1A
D616 9965 000 40220 Zener 3V9 1/2W 5%
D617 9965 000 40218 1N4148 150mA/100V
D801 9965 000 40224 Zener 8V2 1/2W 5%
D802 9965 000 40224 Zener 8V2 1/2W 5%
D803 9965 000 40224 Zener 8V2 1/2W 5%
D804 9965 000 40224 Zener 8V2 1/2W 5%
D805 9965 000 40224 Zener 8V2 1/2W 5%
J625 9965 000 40218 1N4148 150mA/100V
ZD501 9965 000 40224 Zener 8V2 1/2W 5%

ce

IC101 9965 000 40249 KA33V
IC201 9965 000 40245 OM8370
IC201 9965 000 40595 OM8373
IC202 9965 000 40597 8kb IIC Bus
IC202 9965 100 05320 24C08 8K-BIT EEPROM
IC301 9965 000 40243 TDA4864AJ
IC301 9965 100 04918 TDA4865AJ DBS7P
IC402 9965 100 04917 TFA9842AJ PHILIPS
IC601 9965 100 04916 STR-W6554A Sanken
IC602 9965 100 04915 I.C. TLP421 TOSHIBA
IC604 9965 000 40247 L7808CV
IC801 9965 000 40309 HCF4052BF SGS
Q101 9965 000 40237 2SC2717
Q101 9965 000 40584 2SC3779D
Q201 9965 000 40232 2SC1815Y/2PC1815
Q204 9965 000 40232 2SC1815Y/2PC1815
Q302 9965 100 04914 Trans. 3DD5032/D5032
Q302 9965 100 04947 Trans. 3DD5023/D5023
Q303 9965 000 41191 Trans. FQPF630
Q303 9965 100 05188 Trans. FQPF630
Q401 9965 000 40232 2SC1815Y/2PC1815
Q402 9965 000 40231 2SA1015Y\2PA1015
Q450 9965 000 40234 2SC2482/3DG2482Y
Q501 9965 000 40238 BF422 NPN (250V)
Q501 9965 100 05318 BF422 NPN (250V)
Q502 9965 000 40239 BF423 PNP (-250V)
Q502 9965 100 05319 BF423 PNP (-250V))
Q503 9965 000 40238 BF422 NPN (250V)
Q503 9965 100 05318 BF422 NPN (250V)
Q504 9965 000 40238 BF422 NPN (250V)
Q504 9965 100 05318 BF422 NPN (250V)
Q505 9965 000 40239 BF423 PNP (-250V)
Q505 9965 100 05319 BF423 PNP (-250V)

Q506 9965 000 40238 BF422 NPN (250V)
Q506 9965 100 05318 BF422 NPN (250V)
Q507 9965 000 40238 BF422 NPN (250V)
Q507 9965 100 05318 BF422 NPN (250V)
Q508 9965 000 40239 BF423 PNP (-250V)
Q508 9965 100 05319 BF423 PNP (-250V)
Q509 9965 000 40238 BF422 NPN (250V)
Q509 9965 100 05318 BF422 NPN (250V)
Q601 9965 100 04919 I.C.AZ431AZ-BAAC
Q601 9965 100 05321 TL431ALF/TL431ALS Ik
Q602 9965 100 04913 Transistor 2SC2120Y
Q603 9965 000 40232 2SC1815Y/2PC1815
Q604 9965 000 40232 2SC1815Y/2PC1815
Q606 9965 100 04912 Transistor 2SA1013
Q608 9965 000 40231 2SA1015Y\2PA1015
Q801 9965 000 40232 2SC1815Y/2PC1815
Q802 9965 000 40232 2SC1815Y/2PC1815
Q803 9965 000 40232 2SC1815Y/2PC1815
Q804 9965 000 40232 2SC1815Y/2PC1815
l601 9965 000 41227 Bead 3.5 x 1 x 9mm

Spare Parts List

EN 51SK4.0A CA 10.

EN 52 SK4.0A CA11.

11. Revision List

Manual 3122 785 17210

• First release.

Revision List
