Philips 21PT6820-05 User Manual

1

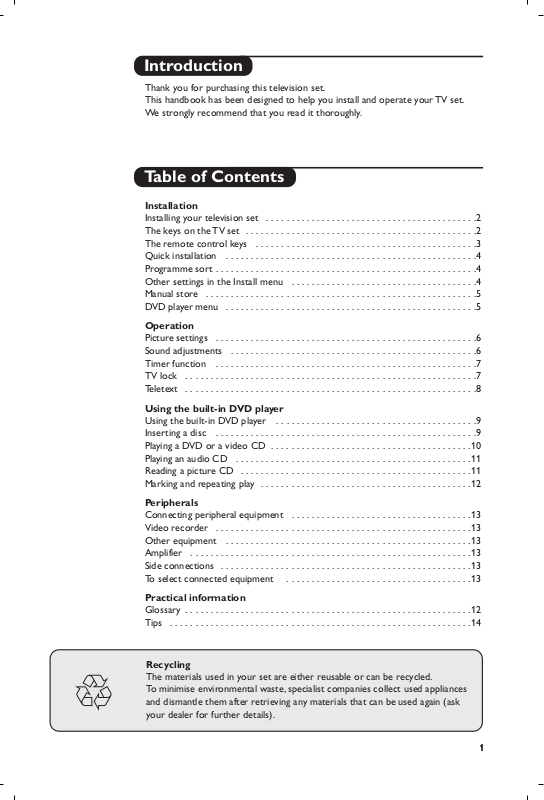

Introduction
Ta b le of Contents
Thank you for purchasing this television set. This handbook has been designed to help you install and operate your TV set. We strongly recommend that you read it thoroughly.
Installation
Other settings in the Install menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Operation
Teletext . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Using the built-in DVD player
Using the built-in DVD player . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Playing a DVD or a video CD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Marking and repeating play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Peripherals
Connecting peripheral equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
To select connected equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Practical information
°
Recycling
The materials used in your set are either reusable or can be recycled. To minimise environmental waste, specialist companies collect used appliances and dismantle them after retrieving any materials that can be used again (ask your dealer for further details).
The television has 6 keys located on the front of the set.
The
; key switches the TV set on and off.
The
fl key opens and closes the DVD tray.
The VOLUME - + (-
”+) keys adjust the
sound. The P - + select the programmes.
To access the menus simultaneously press the
”
- and ”+ keys.The P - + keys select a
setting and the
”
- + keys make adjustments. To quit the menu displayed,press the two keys
” - and ” +.
Note: when the childlock is active, the keys are deactivated (see p. 7).
2
&
Positioning the television set
Place your TV on a solid, stable surface, leaving a space of at least 5 cm around the appliance. To avoid accidents, do not put anything on the set such as a cloth or cover, a container with liquid (vase) or a heat source (lamp). The set must not be exposed to water.
é
Connections
• Insert the aerial plug into the : socket at
the rear of the set.
If you are using an indoor aerial, reception may be difficult in certain conditions.You can sometimes improve reception by rotating the aerial. If the reception remains poor, you will need to use an external aerial.
• Insert the mains plug into a wall socket (220-240 V / 50 Hz).
“
Remote control
Insert the two R6-type batteries (supplied) making sure that they are in the correct way.
The batteries supplied with this appliance do not contain mercury or nickel cadmium. If you have access to a recycling facility,please do not discard your used batteries (if in doubt, consult your dealer). When the batteries are replaced, use the same type.
‘
Switching on
To switch on the set, press the on/off key. A red indicator comes on and the screen lights up. If the television remains in standby mode, press P
# on the remote control.
The indicator will flash when you use the remote control.
T
5 cm
5 cm
5 cm
Installing your television set
The keys on the TV set
12
Mark
MENU
OK
”
P
564
879
0
¢
∫
ù
¤
ª
3
--
++
.
[
Zoom DVD Menu
Search
A-B
Repeat Clear
Subtitle
Fast
Skip
Ω™
Ë
›ÓŸ∏
Æ
∆
TV/DVD
Audio
-
Á
Ø
Ê
fl
3
The remote control keys
TV : Information Screen
To display / hide the programme
number, name (if there is one) sound
mode*, and the time remaining on
the timer.
DVD:Info.on playing (p.10)
DVD keys (p.10, 12)
TV : teletext keys (p.8)
Rewind and fast forward (p. 10)
Stop, Eject (p. 10)
Cursor
These four keys navigate the menus.
Menu
To call or close menus.
Selection of EXT sockets
Press several times to select
EXT1, EXT2 and AV* (p. 13).
* Only available on stereo versions.
Standby
Lets you place the TV set in standby. To turn on the TV,press @ P #,
b, 0 to 9.
TV : Call teletext (p.8)
(according to the version)
DVD : disc menu (p. 10)
16:9 format
To select different screen formats.
Change track (p.10)
Play, pause (p.10)
Volume
To adjust the sound level.
Mute
Mute or bring back sound.
TV : Sound mode*
Changes Stereo and Nicam
Stereo
transmissions into Mono
or for bilingual transmissions to
choose between Dual I or Dual II.
DVD :choice of language
(p.11)
Programme selection
To access the next or previous programme.
Picture and sound settings
Accesses a choice of picture and sound settings.
The position PERSONAL corresponds to the settings stored in the menus.
Numerical keys
Direct access to the programmes. For a two digit programme,enter the second digit before the dash disappears.
Previous programme
To access the previously displayed programme.
Validation
TV / DVD mode
To switch between TV or DVD mode
(p.10)
.
4
Quick installation
Programme sort
Other settings in the Install menu
When you turn on the TV set for the first time, a menu is displayed on screen.This menu prompts you to select the country and language :
If the menu is not displayed, press and hold down the
”- and ”+ keys on the TV set for
5 seconds to display the menu.
& Use the
îÏ keys on the remote control
to select your country and confirm with
¬.
If your country does not appear in the list, select choice “. . .”
é Next select your language using the
îÏ
keys and confirm with ¬.
“ The search starts automatically.
Finally the
INSTALLATION menu appears
automatically. If the programmes found have not been correctly numbered,use the
Sort menu to
renumber them.
If no picture is found see Tips (p. 14).
‘ If you want to exit the menus, press
H
several times.
This menu allow you to change the numbering of programmes.
& Press the
H key.The MAIN MENU is
displayed on the screen.
é Select the
INSTALLATION menu with the
cursor then the
Sort menu.
“ Select the programme you want to move with
the
îÏ keys and press ¬.
‘ Then use the
îÏ keys to choose the new
number and confirm with
È.
( Repeat steps “ and ‘ as many times as
required to move the programmes.
§ To exit the menus, press
H
several times.
& Press the H key and select the Install menu: é Language : to change the display language for
the menu.
“ Country : to select your country (GB for
Great Britain).
This setting is used for the search, automatic programme sort and teletext display. If your country does not appear in the list, select “. . .”
‘ Auto Store : to start automatic search for all
programmes available in your region.
Finally the
INSTALLATION menu appears
automatically. If the programmes found have not been correctly numbered,use the
Sort menu to
renumber them.
If no picture is found see Tips (p. 14).
( If you want to exit the menus, press
H
several times.
WELCOME
Country
GB
Language
ENGLISH
MAIN MENU
PICTURE SOUND FEATURES
INSTALLATION
DVD
INSTALLATION
LANGUAGE ENGLISH Country GB Auto Store Manual Store
Sortrt
5
Manual store
DVD player menu
This menu is used to store the programmes one at a time or to add a programme to the existing list.
& Press the
H key to display the MAIN MENU.
Select INSTALLATION with the cursor then the manual store
menu then press u.
é System : select Europe (automatic detection*)
or according to the versions
Western Europe
(BG standard), Eastern Europe (DK standard), United Kingdom (I standard) or France (LL’ standard).
* Except for France (LL’ standard), you must select
the choice France.
“
Search :press ¬.The search starts.
Once a programme is found,the scanning stops. Go to the next step.If you know the frequency of the required programme, enter its number directly with the
0 to 9 keys.
If no picture is found, consult the possible solutions (p. 14).
‘
Fine tuning : if the reception is not
satisfactory,adjust using the
Ȭkeys.
(
Programme : enter the desired number with
the keys
Ȭ or 0 to 9.
§
Name : use the Ȭ keys to move around
the name display area (5 characters) and the
îÏ
keys to select the characters.
When the name has been entered press the
È key to exit.
è
Store :press ¬.The programme is stored.
! Repeat steps é to è for each programme to
be stored.
ç To exit the menus press
H several times.
Use this menu to set the preferences of the integrated DVD player.
& Press the
H key. The MAIN MENU is
displayed on screen.
é Use the îÏ key on the remote to select
DVD SETUP then confirm with u.
The DVD menu appears and the TV set switches to DVD mode. Use the
îÏ
keys to select a
setting and
u
to confirm, enter or leave
submenus.
“
TV aspect : to select the required screen
format.
‘
Audio : to select the preferred language of the
DVD film sound track.
If the preferred language is available on the disc it will be selected by default. Otherwise the first language of the disc will be activated.
(
Subtitle : to select the preferred subtitle
language of the DVD films.
§ Disc Menu : to define the preferred language of
the DVD disc menu.
è Parental : to activate parental locking level from
1 (minimum) to 8 (maximum).The
off position
deactivates the feature.
Some DVD discs have locking levels (1 to 8), sometimes with replacement scenes. For example, if you choose Level 4, all the scenes of level 4 (and lower) will be played. Scenes with a higher level will not be played or replaced with replacement scenes. If the disc does not have any replacement scene, it stops playing and you have to enter the four figure Password.
!
Password : to change password. First key in
your old password, then key your new password.Confirm by keying it a second time.
If you have forgotten your password, enter the universal code 0711.
ç Press
H.
several times to exit the menus.
MAIN MENU
PICTURE SOUND FEATURES
INSTALLATION
DVD
MENU PRINCIPAL
IMAGE SOUND AUTRES MENUS INSTALLATION
DVD
DVD SETUP
TV aspect PS
Audio ENG Subtitle ENG Disc Menu GER Parental Password
Manual Store
Program 01 Name ----­System EUROPE Search 671 MHz Fine Tune -----|-----­Store
