User Manual
that make using your Philips product
20PT9007D
Thank you for choosing Philips.
Need help fast?
Read your Quick Use Guide and/or
Owner s Manual first for quick tips
more enjoyable.
If you have read your instructions
and still need assistance,
you may access our online help at
www.usasupport.philips.com
or call
1-888-PHILIPS(744-5477)
while with your product
(and Model / Serial number)
For Customer Use
Enter below the Serial No. which is located
on the rear of the cabinet. Retain this
information for future reference.
Model No.
Serial No.
Return your Product Registration card today
to get the very most from your purchase.
Complete and return your Product Registration Card at once to ensure:
Proof of
Purchase
Returning the enclosed card guarantees
that your date of purchase will be on
file, so no additional paperwork will be
required from you to obtain warranty
service.
Congratulations on your purchase,
and welcome to the family!
,,
Product Safety
Notification
By registering your product, you ll
receive notification - directly from the
manufacturer - in the rare case of a
product recall or safety defect.
,,
Dear PHILIPS product owner:
Thank you for your confidence in PHILIPS. You ve selected one
of the best-built, best-backed products available today. We ll do
everything in our power to keep you happy with your purchase for
many years to come.
As a member of the PHILIPS family , you re entitled to protection
by one of the most comprehensive warranties and outstanding
service networks in the industry. What s more, your purchase
guarantees you ll receive all the information and special offers
for which you qualify, plus easy access to accessories from our
convenient home shopping network.
Most importantly, you can count on our uncompromising
commitment to your total satisfaction.
All of this is our way of saying welcome - and thanks for investing in
a PHILIPS product.
,
,,
,,
,
,
,
,
Additional Benefits
of Product Ownership
,
Registering your product guarantees that
you ll receive all of the privileges to which
you re entitled, including special moneysaving offers.
Know these
Symbols
,,
This bolt of lightning indicates
uninsulated material within your unit
may cause an electrical shock. For the safety
of everyone in your household, please do not
remove product covering.
read the enclosed literature closely to
prevent operating and maintenance problems.
WARNING: To reduce the risk of fire or
electric shock, this apparatus should not be
exposed to rain or moisture and objects filled
with liquids, such as vases, should not be
placed on this apparatus.
CAUTION: To prevent electric shock,
match wide blade of plug to wide slot, fully
insert.
ATTENTION: Pour eviter les choc
electriques, introduce la lame la plus large de
la fiche dans la bome correspondante de la
prise et pousser jusqu au fond.
,,
The exclamation point calls attention
to features for which you should
,,
,,
,
P.S. To get the most from your PHILIPS purchase,
be sure to complete and return your Product
Registration Card at once.
Visit our World Wide Web Site at http://www.usasupport.philips.com
2
IMPORTANT SAFETY INSTRUCTIONS
Read before operating equipment
1.
Read these instructions.
2.
Keep these instructions.
3.
Heed all warnings.
4.
Follow all instructions.
5.
Do not use this apparatus near water.
Clean only with a dry cloth.
6.
Do not block any of the ventilation openings. Install in accordance
7.
with the manufacturer s instructions.
8.
Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers) that
produce heat.
Do not defeat the safety purpose of the polarized or grounding-
9.
type plug. A polarized plug has two blades with one wider than the
other. A grounding type plug has two blades and a third grounding
prong. The wide blade or third prong are provided for your safety.
When the provided plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet.
Protect the power cord from being walked on or pinched
10.
particularly at plugs, convenience receptacles, and the point where
they exit from the apparatus.
Only use attachments/accessories specified by the manufacturer.
11.
12.
the cart/TV combination to avoid injury from tip-over.
Unplug this TV during lightning storms or when unused for long
13.
periods of time.
Refer all servicing to qualified service personnel. Servicing is
14.
required when the TV has been damaged in any way, such as
power-supply cord or plug is damaged, liquid has been spilled or
objects have fallen into the TV, the TV has been exposed to rain
or moisture, does not operate normally, or has been dropped.
This product may contain lead and mercury. Disposal of these
15.
materials may be regulated due to environmental considerations.
For disposal or recycling information, please contact your local
authorities or the Electronic Industries Alliance: www.eiae.org
16.
Damage Requiring Service - The TV should be serviced by qualified
service personnel when:
A.
B.
C.
Note to the CATV system installer: This reminder is provided to call the Cable TV system installer's attention to Article 820-40 of the NEC
that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the
building, as close to the point of cable entry as practical.
Use only with a cart, stand, tripod, bracket, or table
specified by the manufacturer, or sold with the TV.
When a cart is used, use caution when moving
The power supply cord or the plug has been damaged; or
Objects have fallen, or liquid has been spilled into the TV; or
The TV has been exposed to rain; or
,
17.
18.
19.
20.
21.
22.
The TV does not appear to operate normally or exhibits a
D.
marked change in performance; or
E.
The TV has been dropped, or the enclosure damaged.
Tilt/Stability - All televisions must comply with recommended
international global safety standards for tilt and stability properties
of its cabinet design.
Do not compromise these design standards by applying excessive
pull force to the front, or top, of the cabinet, which could ultimately
overturn the product.
Also, do not endanger yourself, or children, by placing electronic
equipment/toys on the top of the cabinet. Such items could
unsuspectingly fall from the top of the set and cause product
damage and/or personal injury.
Wall or Ceiling Mounting - The TV should be mounted to a
wall or ceiling only as recommended by the manufacturer.
Power Lines - An outdoor antenna should be located away from
power lines.
Outdoor Antenna Grou nding - If an outside antenna is
connected to the receiver, be sure the antenna system is grounded so
as to provide some protection against voltage surges and built up static
charges.
Section 810 of the National Electrical Code, ANSI/NFPA No. 701984, provides information with respect to proper grounding of
the mast and supporting structure, grounding of the lead-in wire to
an antenna discharge unit, size of grounding connectors, location
of antenna-discharge unit, connection to grounding electrodes, and
requirements for the grounding electrode. See Figure below.
Object and Liquid Entry - Care should be taken so that
objects do not fall and liquids are not spilled into the enclosure
through openings.
a) Warning: To reduce the risk of fire or electric shock, this
apparatus should not be exposed to rain or moisture and objects
filled with liquids, such as vases, should not be placed on this
apparatus.
Battery Usage CAUTION - To prevent battery leakage that
may result in bodily injury, property damage, or damage to the unit:
Install all batteries correctly, with + and - aligned as marked on
the unit.
Do not mix batteries (old and new or carbon and alkaline, etc.).
Remove batteries when the unit is not used for a long time.
Example of Antenna Grounding
as per NEC - National Electrical Code
3
CONTENTS
INTRODUCTION
Welcome/Registration of Your TV
Safety/Precautions
A Guide to Digital TV
Quick Tips Before You Start
GETTING STARTED
Description of Remote Control Buttons
Basic TV and Remote Control Operation
First Time You Turn On The TV
INSTALLATION MENU
Auto Channel Search
How To Use The Language Control
How To Use The Source Type Control
Channel Edit & Name
Favorite List
Digital Audio
Auto Volume Leveler Control
Time Zone
Daylight Saving
Picture Menu Controls
Auto Picture
FEATURES MENU
Understanding Parental Controls
Parental Control - Password
Master Enable and Child Lock Control
Movie Ratings
USA TV Content Ratings
Unrated and No Rating
Downloadable V-chip
How To Use The Time Menu Controls
How To Use The Closed Caption Controls
How To Use The Zoom Control
Sleep Timer
OTHER FEATURES

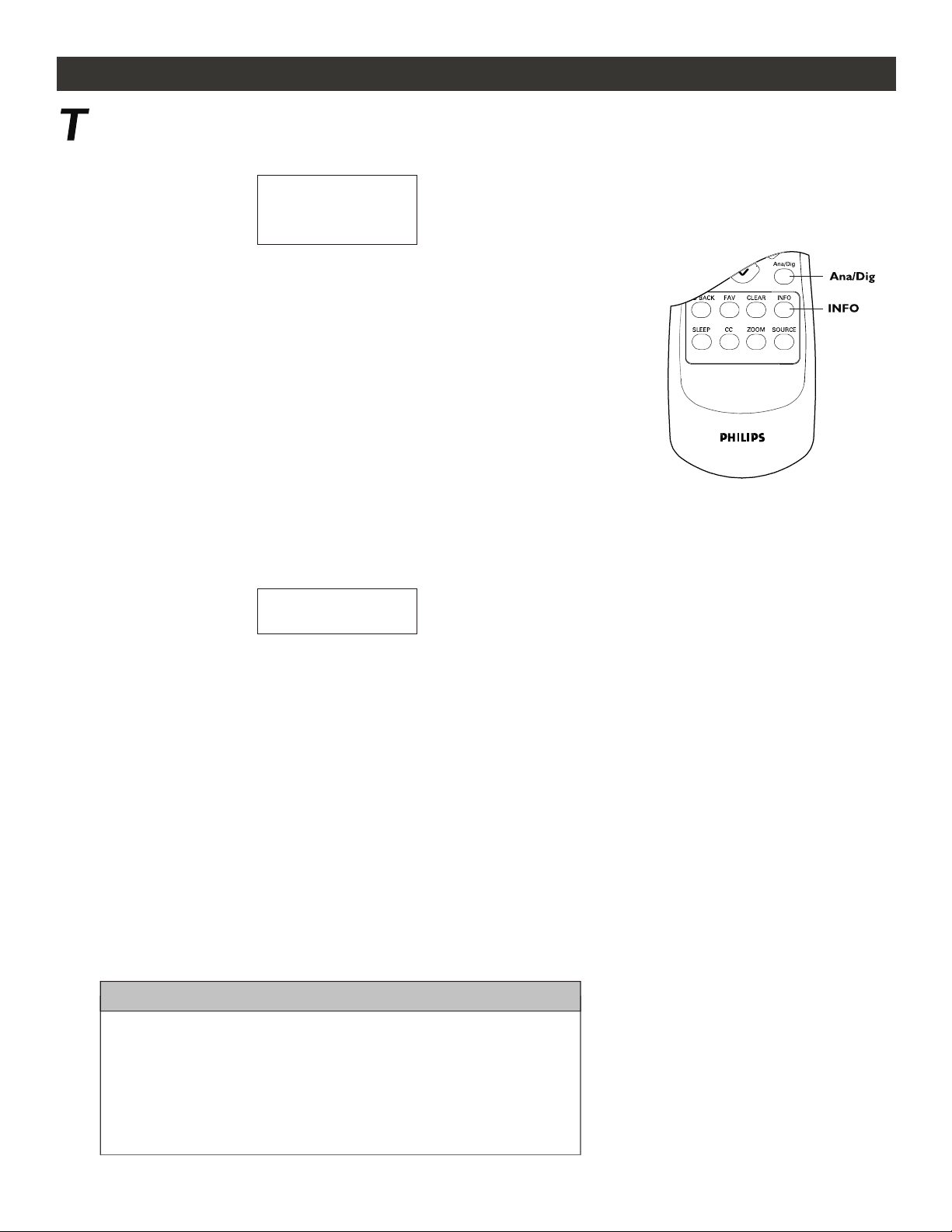

Information Banner
IMPORTANT INFORMATION
Glossary
Troubleshooting Tips
Cleaning and Care
Specifications
Limited Warranty
Index
2/3
10
11
12
13
14
14
15
15
16
16
17
18
19
20
21
22
22
23
24
25
25
26
27
28-29
30
31
32
33
FEATURES
Audio Volume Leveler (AVL) Control keeps the TV sound at
2
an even level. Differences in volume levels during commercial
breaks are reduced, making for a more consistent, comfortable
5
sound for your listening pleasure (Pg. 14).
5
Auto Picture lets you change the picture settings (color, tint,
contrast, etc.) for various types of programming, such as Personal,
6
Weak Signal, Sports, Movies or Multimedia (games) with the push
of one button (Pg. 16).
7
8
Update Clock makes the clock of the TV be consistent with
the time extracted from the current channel in Digital mode.
(Pg. 23).
9
Parental Control lets you block programs from viewing with
content not suitable for children or with restricted TV ratings
(Pg. 18-22).
Channel Edit & Name Lets you skip or unskip channels from
the selection cycle with CH+/CH-. Also, Channel Edit allows you
to give a name to a certain channel (Pg. 12).
Closed Caption allows you to read TV program dialogue or
voice conversations as onscreen text. (Pg. 24).
Digital Audio allows you to switch to another audio language
when it is available. This is only for programs that are shown in
more than one audio language (Pg. 14).
Sleep Timer automatically turns OFF the TV after a set amount of
time that you have chosen (Pg. 25).
Auto Off turns the TV off automatically when no signal has been
received for 15 minutes. TV Switching Off will appear during the
last minute before the TV switches off.
done during the last minute, the Auto Off will be cancelled and
will reinitialize the countdown to 15 minutes again.
As an Energy Star Partner, Philips Consumer
Electronics has determined this product meets
the Energy Star guidelines for energy efficiency
Energy Star is a U.S. registered marek. Using
products with the Energy Star label can save energy. Saving
energy reduces air pollution and lowers utility bills.
Manufactured under license from Dolby
Laboratories. Dolby and the double-D symbol
are trademarks of Dolby Laboratories.
,,
,,
,,
,,
If there is any operation
4
What is Digital Television (DTV)?
A GUIDE TO DIGITAL TV
Digital Television (DTV)
new experience. Digital technology is used to capture images and sound to deliver a better picture quality.
There are many levels of digital television quality. The most common are:
Standard Definition TV (SDTV)
SDTV is the basic level of quality display and resolution for both analog and digital. Transmission of SDTV can be in the
traditional (4:3) or widescreen (16:9) format.
Enhanced Definition TV (EDTV)
EDTV is better in picture quality than analog television. The formats for EDTV are 480p widescreen (16:9) or traditional
(4:3). EDTV is in the middle range quality between SDTV and HDTV.
High Definition TV (HDTV)
HDTV has the highest quality for digital broadcast formats. Its resolution is widescreen format (16:9). Combined with
digitally enhanced sound technology, HDTV sets new standards for sound and picture quality in television.
is a relatively new type of broadcasting that promises to transform television viewing into a whole
Difference between Digital and Analog?
Digital Television is a more flexible and efficient technology than the analog broadcast system. Analog broadcasts can only
provide one program at a time. Digital television can broadcast a high definition program or more than one standard definition
program at the same time.
This information is provided by the broadcaster.
With Digital television you can receive information of programs through the Information Banner.
QUICK TIPS BEFORE YOU START
1
When the TV is powered on for the first time you will be prompted to auto install the TV in order to receive the channels
that are broadcasted locally.
Auto installation may take 20 to 40 minutes depending on the number of channels that are transmitted by the cable provider
2
or broadcaster.
When the TV is not receiving any signal from the antenna / cable, NO SIGNAL will appear on the TV screen. This can be
3
caused by the antenna /cable not being plugged in correctly or when the wrong tuner mode is selected.
When no transmission is received from the broadcaster, NO PROGRAM will appear on the TV screen.
When in Digital Mode an audio only (without video picture) signal is received from the broadcaster, AUDIO ONLY will
appear on the TV screen.
4
You will not be able to receive pay channels when using direct antenna/ cable connection to the television.
5
When the set-top box is connected to the television using coaxial cable, it is necessary to auto-program the television for
the signal channel (3 or 4) that the set-top box outputs and change the channels at the set-top box to view the program.
When the set-top box is connected to the television using AV connection, select the television input source for the
6
set-top box to view the program and change the channels at the set-top box to view the program.
7
Pressing the Ana/Dig button on the remote control toggles the TV between Digital and Analog Mode.
,,
,,
Accessories List:
1 Remote Control
2 AA batteries
1 User Manual
1 Warranty card
5
DESCRIPTION OF REMOTE CONTROL BUTTONS
POWER Button - Press to turn the
TV On or put on Standby mode.
TV channels or enter values in the onscreen menu. For single channel entries,
press the numbered button for the channel you desire. The TV will pause for a
second or two before changing to the
chosen channel.
or decrease the TV sound level.
in the onscreen menu and to
activate the channel list.
Cursor Buttons ( , , , )
TV onscreen menu.
menu.
previous channel or menu.
favorite channels
after which the TV turns itself off or
deactivate the sleep timer.
five pre-defined picture settings.
(Personal, Weak Signal, Sports, Movies
or Multimedia).
Audio menu in Digital mode.
channels in ascending or descending
order.
sound from the TV..
or Digital mode.
banner
or display from the screen and return
you to normal TV viewing.
source (the last-viewed digital TV, the lastviewed analog TV, FRONT, AV1or CVI)
submenu directly
format mode for 16:9 digital signal.
6
BASIC TV AND REMOTE CONTROL OPERATION
Press POWER button on the TV to turn it
on.
Press the VOLUME + to increase the
sound level and VOLUME - to lower the
sound level.
Press CHANNEL + or - to select TV
channels.
Point the remote control towards the
remote sensor window on the front of the
TV when using the remote control.
Press MENU button on the remote to
display the onscreen menu.
REMOTE CONTROL
ow to load the supplied batteries into the remote
H
control.
Remove the battery compartment lid on the
back of the remote control.
Insert two AA-sized batteries into the battery
compartment, making sure the positive + and
negative - polarity line up correctly as indicated
inside the case.
Close the battery lid.
Battery compartment lid
2 AA-sized batteries
Back of Remote
Battery compartment
7
FIRST TIME YOU TURN ON THE TV
he first time you turn on the new TV set, you will see a screen that helps you to auto install the programs. Auto
installation starts with the analogue channels followed by the digital channels.
T
depends on the number of channels available. During installation, if you press the button on the
remote control you stop the installation process.
The channels that are already found are kept.
completes, the information about how many Analog channels and Digital channels are found will appear on the
screen.
Note : This screen will only appear the first time you turn on the TV. If you wish to auto install programs later,
please follow the procedure in the next page (page 9).
Please connect Antenna or Cable
to TV. Select TV signal by or
arrow key and press ok
Antenna
Cable
Installation may take about 30
minutes
OK
The time taken for installation
CURSOR
When searching
Follow the instructions on this screen to start auto installation:
Press CURSOR or to select Antenna or Cable.
Press OK button to confirm and start auto installation.
HELPFUL HINTS
ANTENNA : If you have an off-air or roof-top
antenna, select Antenna.
CABLE : If you have subscribed to cable signal from
any cable company, or you are receiving free-to-air
cable channels through your wall connection select
Cable.
The first-time installation will install both Digital
and Analog channels.
8
AUTO CHANNEL SEARCH
ou can auto install programs on your TV. This makes it easy for you to select only the TV stations in your area
when the CHANNEL (+) or (-) buttons are pressed.
Y
Follow these steps for Digital Mode and Analog Mode.
MAIN MENU
Complete the antenna or cable signal connection
before activating AUTO CHANNEL SEARCH.
,,
See How to make the best connection guide for
,,
details.
Press MENU button on the remote control to
display onscreen menu.
Exit
Setup
Parental Control
Time
Press CURSOR or to scroll through the
onscreen menu until you see Setup highlighted.
Press CURSOR or to display the SETUP
menu features.
Press CURSOR or to scroll through the
setup features until you see Auto Channel Search
highlighted.
Press CURSOR or to display the Auto Channel
Search menu features. Use CURSOR or to
highlight Start Search.
Press CURSOR or and auto channel search will
begin. This may take some time depending on the number
of channels available. Analog channels searching completes
followed by digital channels . During searching, pressing
,
CURSOR will stop the process but with all already
found channels kept. When searching completes, the
information about how many Analog channels and Digital
channels are found will appear on the screen.
SETUP
Go back
Auto Channel Search
Channel Edit & Name
Closed Caption
Favorite List
Language Eng.
Format 4 : 3
Auto Vol. Level On
Auto Channel Search
Go back
Source Type Cable
Start Search
HELPFUL HINTS
When Cable is selected, channels 1 to 135 are available
in Digital Mode and channels 1 to 125 are available in
Analog Mode.
When Antenna is selected, channels 2 to 69 are
available for both Digital and Analog Modes.
When you are in Digital Mode, channel numbers will be
displayed as 1-2, or 2-35 etc.
Whether you selected either Cable or Antenna mode,
both Digital and Analog channels will be installed.
MENU
CLEAR
9
HOW TO USE THE LANGUAGE CONTROL
or Spanish speaking TV owners an onscreen language option is present. With the language control you can set the
,
TV s onscreen menu to be shown in English or Spanish.
F
Follow these steps for Digital Mode and Analog Mode.
MAIN MENU
Press MENU button on the remote control to
display onscreen menu.
Press CURSOR or to scroll through the
onscreen menu until you see Setup highlighted.
Press CURSOR or to display the SETUP menu
features.
Press CURSOR or to scroll through the
setup features until you see Language highlighted.
Press CURSOR or to select Eng. (English) or
Esp.(Spanish).
When finished, press CLEAR button to clear the menu
from the TV screen.
Exit
Setup
Parental Control
Time
SETUP
Go back
Auto Channel Search
Channel Edit & Name
Closed Caption
Favorite List
Language Eng.
Format 4 : 3
Auto Vol. Level On
CONFIGURACION
Regresar
Busqueda de Canales Auto
Editar Canal y nombre
Favritos Lista
Idioma Esp .
Formato 4 : 3
Nivel auto. Encend
HELPFUL HINTS
The Language control only makes the TV onscreen
Menu items appear in English or Spanish text.
It does not change the other onscreen text languages
such as Closed Caption (CC) .
10
HOW TO USE THE SOURCE TYPE CONTROL
he SOURCE TYPE control lets you change the TV input signal to ANTENNA or CABLE mode. It is important
that you know which type of signal to look for (Cable or Antenna).
T
Follow these steps for Digital Mode and Analog Mode.
Press MENU button on the remote control to
display onscreen menu.
Press CURSOR or to scroll through the
onscreen menu until you see Setup highlighted.
Press CURSOR or to display the SETUP menu
features.
Press CURSOR or to scroll through the
setup features until you see Auto Channel Search
highlighted.
Press CURSOR or to display the Auto Channel
Search menu features. Use CURSOR or to
highlight Source Type.
Press CURSOR or to toggle between Antenna and
Cable.
When finished, press CLEAR button to clear the menu
from the TV screen.
MAIN MENU
Exit
Setup
Parental Control
Time
SETUP
Go back
Auto Channel Search
Channel Edit & Name
Closed Caption
Favorite List
Language Eng.
Format 4 : 3
Auto Vol. Level On
Auto Channel Search
Go back
Source Type Cable
Start Search
HELPFUL HINTS
When Cable is selected, channels 1 to 135 are available
in Digital Mode and channels 1 to 125 are available in
Analog Mode.
When Antenna is selected, channels 2 to 69 are
available for both Digital and Analog Modes.
When you are in Digital Mode, channel numbers will be
displayed as 1-2, or 1-3 etc.
Whether you selected either Cable or Antenna mode,
both Digital and Analog channels will be installed.
MENU
CLEAR
11
CHANNEL EDIT & NAME
hannel Edit & Name allows you to skip or not a channel and assign a name to the channel.
C
Follow these steps for Digital Mode and Analog Mode.
MAIN MENU
Press MENU button on the remote control to
display onscreen menu.
Press CURSOR or to scroll through the
onscreen menu until you see Setup highlighted.
Press CURSOR or to display the SETUP menu
features.
Exit
Setup
Parental Control
Time
Press CURSOR or to scroll through the setup
features until you see Channel Edit & Name
highlighted. Press CURSOR or to display its
features.
Press CURSOR or to highlight Channel. Use
CURSOR or to select a channel No..
Press CURSOR or to highlight Skip. Use
CURSOR or check or uncheck. If checked,
the channel will be skipped while scrolling channels
with CH+/CH-.
Press CURSOR or to highlight Channel Name.
Use CURSOR or to move the cursor left or right
and press NUMERIC buttons to enter the name. The
name can have six letters at most.
When finished, press CLEAR button to clear the menu
from the TV screen.
SETUP
Go back
Auto Channel Search
Channel Edit & Name
Closed Caption
Favorite List
Language Eng.
Format 4 : 3
Auto Vol. Level On
Channel Edit & Name
Go back
Channel 1-10
Skip
Channel Name
Digital Mode
NUMERIC
Channel Edit & Name
Go back
Channel 10
Skip
Channel Name
Analog Mode
HELPFUL HINTS
It is important to auto install the TV (Refer to page 9)
before you try to Edit the Channels.
Press Ana/Dig button on the remote control to toggle
between Digital and Analog Mode.
12
MENU
Ana/Dig
CLEAR
FAVORITE LIST
avorite List allows you to set up to 5 channels to your favorite in Digital mode or Analog mode each. By pressing
FAV button repeatedly, you can easily access all the favorite channels you have set.
F
Follow these steps for Digital Mode and Analog Mode.
Press MENU button on the remote control to
display onscreen menu.
Press CURSOR or to scroll through the
onscreen menu until you see Setup highlighted.
Press CURSOR or to display the SETUP menu
features.
Press CURSOR or to scroll through the setup
features until you see Favorite List highlighted.
Press CURSOR or to display its features.
Press CURSOR or followed by CURSOR
or to select a channel No. for each Favorite.
When finished, press CLEAR button to clear the
menu from the TV screen.
Press FAV button repeatedly to go to the favorite
channels you have set. If you want to cancel one or
two channels from the favortie channel cycle, just go
back to the Favorite List menu. Use CURSOR or
to highlight the corresponding favorites and press
CURSOR or to select .None
Favorite List
Go back
Favorite 1 1-10
Favorite 2 1-9
Favorite 3 None
Favorite 4 None
Favorite 5 None
Digital Mode
MAIN MENU
Exit
Setup
Parental Control
Time
SETUP
Go back
Auto Channel Search
Channel Edit & Name
Closed Caption
Favorite List
Language Eng.
Format 4 : 3
Auto Vol. Level On
Favorite List
Go back
Favorite 1 10
Favorite 2 9
Favorite 3 None
Favorite 4 None
Favorite 5 None
Analog Mode
HELPFUL HINTS
When you are in Digital mode, you can only set Digital
favorite channels. And in Digital mode, you can only
access the Digital favorite channels.
When you are in Analog mode, you can only set Analog
favorite channels. And in Analog mode, you can only
access the Analog favorite channels.
Press Ana/Dig button on the remote to switch between
Digital and Analog Mode.
13
MENU
FAV
Ana/Dig
CLEAR
DIGITAL AUDIO
igital Audio allows you to select the language you preferred for dialog when it is availabe. This feature is ONLY
available in Digital Mode.
D
Press SOUND button on the remote control to
display Digital Audio menu.
Press CURSOR or to scroll through the
onscreen menu to highlight Cur. Language.
Press CURSOR or to select an audio language
available for the program that you are watching. If the
selected language is being broadcast, it becomes your
preferred audio language for that digital channel until
you turn the TV off. Otherwise, the TV will play the
default audio for the program.
Press CURSOR or to scroll through the
onscreen menu to highlight Def. Language.
Press CURSOR or to select an audio language
you prefer for dialog on digital channels. The options
are English or Spanish. If the language is being
broadcast with a program, the TV will play it. If not,
then the TV will play the default audio for the program.
When finished, press CLEAR button to clear the menu
from the TV screen.
Digital Mode
Digital Audio
Cur. Language English
Def. Language Spanish
AUTO VOLUME LEVELER CONTROL
uto Volume Leveler (AVL) Control keeps the TV sound at an even level. Differences in volume levels during
commercial breaks or channel changes are reduced, making a more consistent, comfortable sound for your
A
listening pleasure.
Follow these steps for Digital Mode and Analog Mode.
Press MENU button on the remote control to
display main menu.
Press CURSOR or to scroll through the
onscreen menu to highlight Setup. Press
CURSOR or to display SETUP menu.
Press CURSOR or to highlight Auto Vol.
Level. Press CURSOR or to select On or
Off. When turned On, AVL will level out the sound
being heard when sudden change in volume occurs
during breaks or channel changes.
When finished, press CLEAR button to clear the
menu from the TV screen.
MAIN MENU
Exit
Setup
Parental Control
Time
SETUP
Go back
Auto Channel Search
Channel Edit & Name
Closed Caption
Favorite List
Language Eng.
Format 4 : 3
Auto Vol. Level On
14

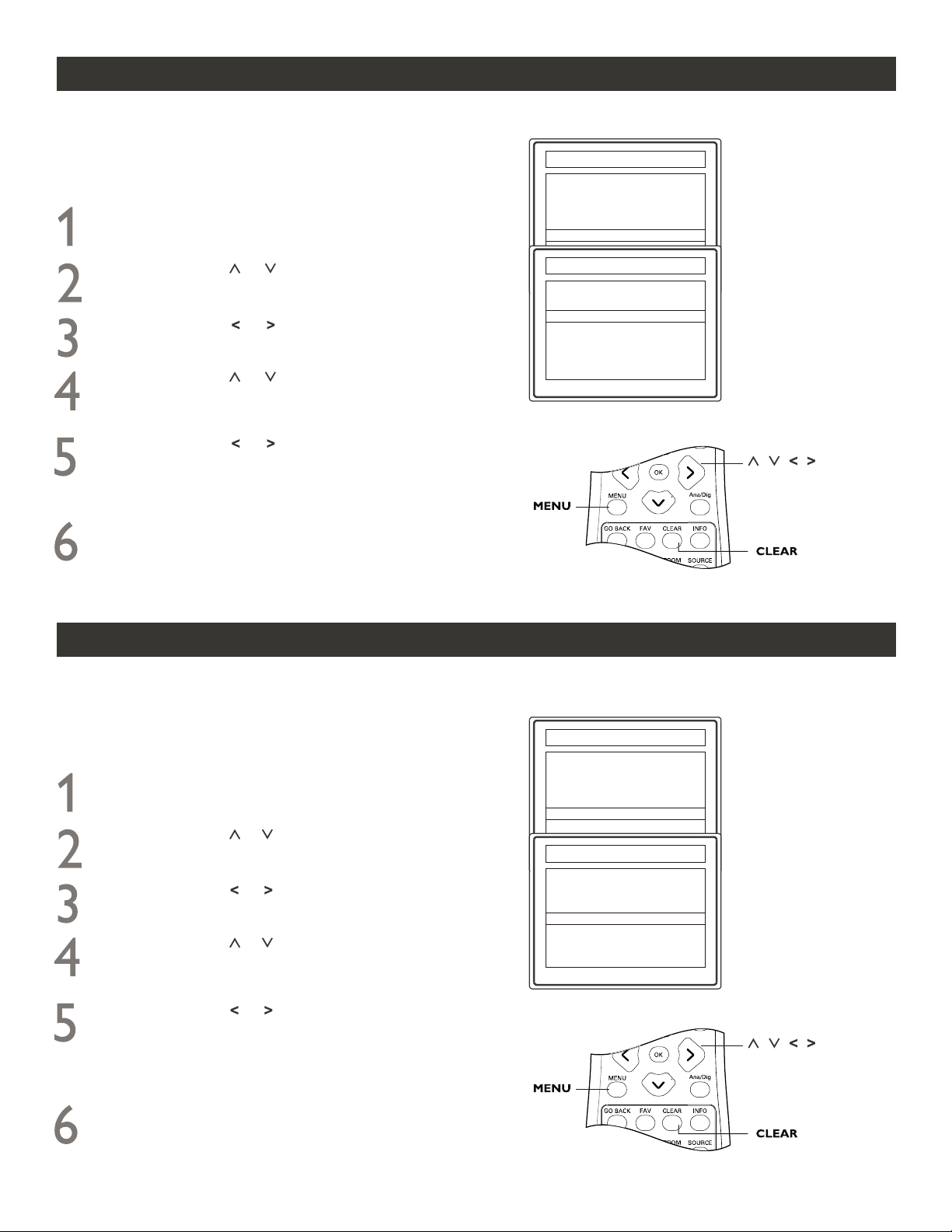

TIME ZONE
his feature allows you to select the time zone you are in.
T
Follow these steps for Digital Mode and Analog Mode.
Press MENU button on the remote control to
display onscreen menu.
MAIN MENU
Exit
Setup
Parental Control
Time
Press CURSOR or to scroll through the
onscreen menu until you see Time highlighted.
Press CURSOR or to display the TIME menu
features.
TIME
Go back
Clock 1:35 AM
Time Zone Eastern
Daylight Sav. Off
Time Setting
Press CURSOR or to scroll through the
time features until you see Time Zone
highlighted.
Press CURSOR or repeatedly to select the
Time Zone you are in. Choices include Central,
Eastern, Atlantic, Hawaii, Alaska, Pacific and
Mountain.
When finished, press CLEAR button to clear the
menu from the TV screen.
DAYLIGHT SAVING
aylight saving feature allows you to adjust the timer on the TV an hour ahead of the official standard time.
D
Follow these steps for Digital Mode and Analog Mode.
Press MENU button on the remote control to
display onscreen menu.
Press CURSOR or to scroll through the
onscreen menu until you see Time highlighted.
Press CURSOR or to display the TIME menu
features.
Press CURSOR or to scroll through the
time features until you see Daylight Sav.
highlighted.
Press CURSOR or to select On or Off. If
Daylight Sav. is set to On, the timer on the
TV will display One hour ahead of the actual
time. If Daylight Sav. is set to Off, the timer
on the TV will display the actual time set.
When finished, press CLEAR button to clear the menu
from the TV screen.
MAIN MENU
Exit
Setup
Parental Control
Time
TIME
Go back
Clock 2:35 AM
Time Zone Eastern
Daylight Sav. On
Time Setting
15
PICTURE MENU CONTROLS
o adjust your TV picture controls, select a channel and use the Picture Menu Controls listed below. Your selection
is stored as Personal.
T
Follow these steps for Digital Mode and Analog Mode.
Press MENU button on the remote control to display
onscreen menu.
Press CURSOR or to scroll through the onscreen
menu until you see Picture highlighted.
Press CURSOR or to display the PICTURE menu
features.
Press CURSOR or to scroll through the picture features
and use CURSOR or to adjust
Color Control - to add or remove color.
Brightness Control - until the darkest parts of the picture are
as bright as you want.
Contrast Control - to increase or decrease the difference
between the black portions and white portions of the picture.
When contrast is increased, it helps to sharpen the picture
quality.
Sharpness Control - to improve sharpness in the picture.
Tint Control - to adjust natural skin tones in the picture quality.
This option is adjustable only for NTSC signals and not available
in CVI mode.
NOTE: There is a bargraphic to display for each of the above
options. When finished, press OK button to exit back to
PICTURE menu.
Blue Mute Control - when set to On, blue background will
appear and sound is muted when no signal is received.
Color Temp. Control - to select Normal, Warm, or Cool picture
preferences. For Normal, whites will maintain their whiteness;
Cool will make the white bluish; and Warm will make the whites
reddish.
When finished, press CLEAR button to clear the menu
from the TV screen.
,,
,,
MAIN MENU
Exit
Setup
Parental Control
Time
Go back
Color 45
Brightness 50
Contrast 50
Sharpness 53
Tint 00
Blue Mute On
Color Temp. Cool
Contrast 50
HELPFUL HINTS
AUTO PICTURE
hether you re watching a movie or a sporting event, your TV has automatic video control settings to enhance
W
NOTE: The way you choose to set the Picture Menu
controls will become your personal setting.
your current program source or content.
Press PICTURE button on the remote
control. The current Auto Picture setting
will display on the screen.
Press PICTURE repeatedly to select
either Personal, Weak Signal, Sports,
Movies or Multimedia picture settings.
16
Press Ana/Dig button on the remote to switch between
Digital and Analog Mode.
Weak Signal
Sports
Personal
Movies
Multimedia
UNDERSTANDING PARENTAL CONTROLS
arental control is a feature that lets the TV receive and process data sent by broadcasters or other program
providers with program content advisory. When programmed by the viewer, a TV with Parental Control can
respond to the content advisory and block program content that may be found objectionable (such as offensive
language, violence, sexual situations, etc.). This feature is useful for adults to prevent certain types of programs
from being viewed by children.
Parental control offers the following features to choose from:
V-chip Setting - allows you to block programs by ratings. Within its submenu, you can use a certain rating like
Movie Ratings, USA TV Content Ratings, Unrated or No Rating.
Movie Ratings - Certain blocking options exist which will block programming based on ratings patterned by
the Motion Pictures Association of America (MPAA).
USA TV Content Ratings - Like the Movie Ratings, programs can be blocked from viewing using standard TV
ratings set by USA TV broadcasters.
Unrated / No Rating - All programs with no content advisory data can be blocked if Unrated / No Rating
is set to .
Master Enable - Is a master switch for parental lock. When set to , all blocking/censoring you have set is enabled.
Otherwise, if set to , all blocking is disabled.
Child Lock - When set to , the front panel of the TV is locked and the TV can be operated by the remote control
only.
Create Password - A password must be set to prevent children from unblocking questionable or censored
programming set by their parents.
NOTE: All the above features are available in both Digital mode and Analog mode. Whether they are activated in either
Digital mode or Analog mode, they work in both modes.
Downloadable V-chip - Lets you lock or unlock the programs with a new, different rating region code of 0x05 defined
by extension or replacement of the content advisory system in the U.S. . This feature is only available in Digital mode
and when there is a regional rating table available.
,,
,,
MOVIE RATINGS
G: General Audience - All ages admitted. Suitable for all
ages.
PG: Parental Guidance Suggested - Contains material
unsuitable for younger children.
PG-13: Parents Strongly Cautioned - Contains material
unsuitable for children under the age of 13.
R: Restricted - Suitable for adults above 17 years of age
only.
NC-17: - No one under the age of 17 will be admitted.
X: Adults Only - Contains one or more of the following:
very graphic violence, very graphic and explicit or indecent
sexual acts, very coarse and intensely suggestive language.
HELPFUL HINTS
Neither the V-chip settings nor the password you set will
be reset by running AUTO CHANNEL SEARCH.
TV RATINGS
TV-Y: Designed for a very young audience, including
children ages 2-6
TV-Y7: Contains Fantasy Violence (FV). Appropriate for
children age 7 and above who have acquired the
development skills needed to distinguish between
make-believe and reality.
TV-G: Suitable for most audiences. Contains little or
no violence, no strong language, and little or no sexual
dialogue or situations.
TV-PG: Contains material unsuitable for younger
children. Could contain moderate violence (V), some
sexual situations (S), infrequent coarse language (L), or
some suggestive dialogue (D).
TV-14: Contains some material unsuitable for children
under 14 years of age. Contains one or more of the
following: intense violence (V), intense sexual situations
(S), strong coarse language (L), or intensely suggestive
dialogue (D).
TV-MA: Viewed by adults and therefore may be
unsuitable for children under 17. Contains one or more
of the following: graphic violence (V), explicit sexual
situations (S), or crude indecent language(L).
17
PARENTAL CONTROL - PASSWORD
arental control allows you to block out any channels. A channel blocked by the Parental Control cannot be viewed
until a correct password is used to unblock the channel for viewing. Parental control is defaulted without password
protection. The first time you use the TV, create a password to activate Parental Control.
NOTE: the following menu illustrations are given for Analog mode only.
Follow these steps for Digital Mode and Analog Mode.
Press MENU button on the remote control to
display onscreen menu.
Press CURSOR or to scroll through the
onscreen menu until you see Parental Control
highlighted. Press CURSOR or to display
the PARENTAL CONTROL menu.
Press CURSOR or to scroll through
parental control features until you see Create
Password highlighted. Press CURSOR or
to display its submenu.
Press the NUMERIC buttons on the remote control
to enter a four-digit password. You are required to
input twice so as to confirm the password.
After you set the password, the PARENTAL CONTROL
menu changes with Create Password being replaced
,,
,,
,,
,,
by Change Password . If you want to set another
password easier for memory, just do as follows:
MAIN MENU
Exit
Setup
Parental Control
Time
PARENTAL CONTROL
Go back
V-chip Setting
Master Enable
Child Lock
Create Password
Password
Go back
Create Password _ _ _ _
Confirm Password _ _ _ _
PARENTAL CONTROL
Go back
V-chip Setting
Master Enable
Child Lock
Change Password
Press CURSOR or followed by the
NUMERIC buttons on the remote control to
enter a new four-digit password twice.
NOTE: Remember this code which you have set.
You can use this code to access the Parental Control
features in both Digital and Analog mode.
HELPFUL HINTS
If you forget the password, you can reset it with key
combinations:
Put the TV to Standby mode first, then press the VOL-
button on the front panel and the Clear button on the
remote control at the same time and hold them for 5
seconds.
Password
Go back
New Password _ _ _ _
Confirm Password _ _ _ _
NUMERIC
OK
18
MASTER ENABLE AND CHILD LOCK CONTROL
arental control includes Master Enable and Child Lock features. Master Enable is a master switch for
Parental Control. Parental Control cannot take effect unless Master Enable is activated. When a password is set,
P
Master Enable is automatically enabled.
NOTE: the following menu illustrations are given for Analog mode only.
Follow these steps for Digital Mode and Analog Mode.
,,
,,
Press MENU button on the remote control to
display onscreen menu.
Press CURSOR or to scroll through the
onscreen menu until you see Parental Control
highlighted. Press CURSOR or and you are
required to enter the password you have set. If
you enter a wrong password, Incorrect
Password! will appear. Then you have to try again.
,,
,,
Only with a correct password, you have access to
PARENTAL CONTROL menu. Within the Parental
Control menu, you can see Master Enable is set
to .
Press CURSOR or to highlight Master
Enable. If you use CURSOR or to change
the setting of Master Enable to , Master
Enable is deactivated and then password
protection is cancelled.
Press CURSOR or to highlight Child Lock.
If you want to lock the buttons on the front panel,
use CURSOR or to set to . Then the
message Child Lock! Press any key to remove
this message will appear when any button on the
,,
,,
front panel is pressed. And you can operate the TV
with the remote control only.
MAIN MENU
Exit
Setup
Parental Control
Time
Go back
Password _ _ _ _
PARENTAL CONTROL
Go back
V-chip Setting
Master Enable
Child Lock
Change Password
PARENTAL CONTROL
Go back
V-chip Setting
Master Enable
Child Lock
Change Password
When finished, press CLEAR button to clear the
menu from the TV screen.
NUMERIC
OK
19
MOVIE RATINGS
he parental control feature can block programs based on the Movie Industry ratings. Once you have entered your
password, the Parental Control features are displayed on the screen.
T
NOTE: the following menu illustrations are given for Analog mode only.
Follow these steps for Digital Mode and Analog Mode.
Press CURSOR or until you see V-chip Setting
highlighted. Press CURSOR or to display the V-chip
Setting menu.
Press CURSOR or until you see Movie Ratings
highlighted. Press CURSOR or to display Movie
Ratings menu. It includes the six options: G, PG, PG-13,
R, NC-17 and X.
Press CURSOR or to highlight any of the Movie
Ratings options. When highlighted, press OK to set
(which will allow viewing) or (which will allow
blocking).
NOTE: locking a lower rating automatically locks all the
higher ratings.
When finished, press CLEAR button to clear the
menu from the TV screen.
PARENTAL CONTROL
Go back
V-chip Setting
Master Enable
Child Lock
Change Password
V-chip Setting
Go back
Movie Ratings
USA TV Content Ratings
Unrated
No Rating
Movie Ratings
Go back
Reset
G
PG
PG-13
R
NC-17
X
NOTE: If Parental Control is activated while a TV program
with the rating locked in the Movie Ratings menu is received
for the current channel, a message will appear to tell you to
press OK to enter the password to temporarily deactivate
Parental Control.
HELPFUL HINTS
,,
Reset in Movie Ratings menu can unblock all options.
Press C to highlight Reset and press
OK to do this.
,,
URSOR or
20
USA TV CONTENT RATINGS
he parental control feature can block programs based on the USA TV Industry ratings. Once you have entered
your password, the Parental Control features are displayed on the screen.
T
NOTE: the following menu illustrations are given for Analog mode only.
Follow these steps for Digital Mode and Analog Mode.
Press CURSOR or until you see V-chip Setting
highlighted. Press CURSOR or to display the V-chip
Setting menu.
Press CURSOR or until you see USA TV
Content Ratings highlighted. Press CURSOR or
to display the USA TV Content Ratings menu.
Press CURSOR or to highlight any rating option
( TV-Y, TV-Y7, TV-G, TV-PG, TV-14 or TV-MA). When
highlighted, press OK to set (which will allow
viewing) or (which will allow blocking).
The TV-Y7, TV-PG, TV-14 and TV-MA each includes
different content themes: FV , V, S, L or D. Press CURSOR
or to select one and press OK to set (which
will allow viewing) or (which will allow blocking).
NOTE: locking a lower rating automatically locks all the
higher ratings. Locking a content of a given lower rating
automatically locks all the higher ratings for the same
content. For a given rating, so long as one content is
unlocked, this rating is viewable and only the locked
sub-rating is not viewable.
PARENTAL CONTROL
Go back
V-chip Setting
Master Enable
Child Lock
Change Password
V-chip Setting
Go back
Movie Ratings
USA TV Content Ratings
Unrated
No Rating
USA TV Content Ratings
Go back
Reset F V V S L D
TV-Y
TV-Y7
TV-G
TV-PG
TV-14
TV-MA
When finished, press CLEAR button to clear the menu
from the TV screen.
NOTE: If Parental Control is activated while a TV program
with the rating locked in the USA TV Content Ratings menu
is received for the current channel, a message will appear to
tell you to press OK to enter the password to temporarily
deactivate Parental Control.
HELPFUL HINTS
,,
Reset in USA TV Content Ratings menu can unblock
all options. Press C to highlight Reset
and press OK to do this.
,,
URSOR or
21
UNRATED AND NO RATING
he parental control feature can block programs with no content advisory data. Once you have entered your
password, the Parental Control features are displayed on the screen.
T
NOTE: the following menu illustrations are given for Analog mode only.
Follow these steps for Digital Mode and Analog Mode.
Press CURSOR or until you see V-chip Setting
highlighted. Press CURSOR or to display the V-chip
PARENTAL CONTROL
Go back
V-chip Setting
Master Enable
Child Lock
Change Password
Ï
Ï
Setting menu.
Press CURSOR or to highlight Unrated. Press
CURSOR or to set (which will allow viewing)
or (which will allow blocking).
Press CURSOR or to highlight No Rating. Press
V-chip Setting
Go back
Movie Ratings
USA TV Content Ratings
Unrated
No Rating
V-chip Setting
Go back
Movie Ratings
USA TV Content Ratings
Unrated
No Rating
CURSOR or to set (which will allow viewing)
or (which will allow blocking).
DOWNLOADABLE V-CHIP
his TV supports downloadable V-chip which allows you to block programs with a new, different rating region code
of 0x05. This feature is ONLY available in Digital mode and if the stream contains the regional
T
ratings table.
If you are watching a digital signal with the regional ratings table, you
can follow the procedures below. Once you have entered your
password, the Parental Control features are displayed on the screen.
Press CURSOR or until you see Downloadable V-chip
highlighted. Press CURSOR or to display the Downloadable
V-chip submenu. You can see there are many items. The amount
of items and their names are dependent on the signal stream
received. Every page can display 8 items at most. If the stream
contains more than 8 items, they will be displayed multi-paged.
Press CURSOR or to select a page and press CURSOR
or to highlight one item, i.e. Dim0. Press OK to enter its
submenu and see all the ratings it contains. The amount of ratings
and their names are dependent on the signal stream received.
Every page can display 8 ratings at most. If the item contains
more than 8 ratings, they will be displayed multi-paged.
Press CURSOR or to select a page and press CURSOR
or to highlight one rating, i.e. Abre0. Press OK to set (which
will allow viewing) or (which will allow blocking).
NOTE: If the ratings are graduated, locking a lower rating
automatically locks all the higher ratings.
HELPFUL HINTS
If there is only one page, pressing CURSOR or
does not work.
,,
Reset in Downloadable V-chip menu can clear limiting
of all ratings. Press C to highlight Reset
and press OK to do this.
,,
URSOR or
PARENTAL CONTROL
Go back
V-chip Setting
Downloadable V-chip
Master Enable
Child Lock
Change Password
Downloadable V-chip
Go back
Reset
Dim0
Dim1
Dim2
Dim3
Dim4
Dim5
Dim6
Dim7
Page 1 of 3
Dim0
Downloadable V-chip
Go back
Abre0
Abre1
Abre2
Abre3
Abre4
Abre5
Page 1 of 1
Abre0
22
HOW TO USE THE TIME MENU CONTROLS
his television comes with an onscreen clock. You can set the TV to turn itself on or off at a specific time, once or
daily.
T
Follow these steps for Digital Mode and Analog Mode.
Press MENU button on the remote control to
display onscreen menu.
Press CURSOR or to scroll through the
onscreen menu until you see Time highlighted.
Press CURSOR or to display the TIME menu
features.
Press CURSOR or to scroll through the
time features until you see Time Setting
highlighted. Press CURSOR or to display
its submenu.
MAIN MENU
Exit
Setup
Parental Control
Time
TIME
Go back
Clock 1:35 AM
Time Zone Eastern
Daylight Sav. On
Time Setting
Press CURSOR or until one of the options
,
(Today s Date, Clock, Update Clock, Off Time or
On Time) is highlighted.
Make adjustments to the selected items by following
the steps below:
,
Today s Date - Use the NUMERIC buttons to enter
the date in the format of MM/DD/YYYY.
Clock - Use the NUMERIC buttons to enter a time
or use CURSOR or to select a time. Press OK
to toggle between AM and PM.
Cur. CH Time - This line exists only in Digital mode,
displaying the time extracted from the current viewing
channel.
Update Clock - only available in Digital mode. Use
CURSOR or to update the time displayed on
Clock line and make it be consistent with the time of
Cur. CH Time.
Once updating finishes, Done will appear.
,,
,,
Off Time - Set how often the timer turn itself off at a
certain time. Use CURSOR or to select Off, Daily
or Once. Use NUMERIC buttons to enter a time or
use CURSOR or to select a time. Press OK to
toggle between AM and PM.
,,
,,
NOTE: TV Switching Off will appear during the last
minute before the TV switches off. If there is any operation
done during the last minute, Off timer is cancelled.
Time Setting
Go back
,
Today s Date 11/21/2006
Clock 12:15PM
Cur. CH Time 12:15AM
Update Clock --Off Time Off
20:00PM
On Time Off
21:00PM
Digital Mode
NUMERIC
OK
MENU
Time Setting
Go back
,
Today s Date 11/21/2006
Clock 12:15PM
Off Time Off
20:00PM
On Time Off
21:00PM
Analog Mode
Ana/Dig
CLEAR
On Time - Set how often the timer turn itself on at a
certain time. Use CURSOR or to select Off, Daily
or Once. Use NUMERIC buttons to enter a time or
use CURSOR or to select a time. Press OK to
toggle between AM and PM.
NOTE: If you press and hold CURSOR or , time will
change by 10 minutes.
When finished, press CLEAR button to clear the menu
from the TV screen.
23
HELPFUL HINTS
If there is a loss of power, the time set for Clock will be
lost and must be re-entered.
Press Ana/Dig button on the remote to switch between
Digital and Analog Mode.
HOW TO USE THE CLOSED CAPTION CONTROLS
any programs are encoded with closed-captioning information, The Closed Caption feature lets you display the
audio portion of a program as text on the TV screen. Closed Caption options are different for Digital mode and
M
Analog mode.
Follow these steps for Digital Mode.
Press CURSOR or
to scroll through the
SETUP menu until you
see Closed Caption
highlighted.
Press CURSOR or
followed by CURSOR
or to highlight CC
Display.
Press CURSOR or
to select Muted=On,
On or Off.
When Muted=On or
On, you can set the
following options:
CC Type - six choices for you to select: Service 1,
Service 2, Service 3, Service 4, Service 5 and Service 6.
CC Mode - two choices: Customer and Broadcast.
If Customer is chosen, you can continue to customize
the following display options:
CC Size - Standard, Large or Small for CC text
CC Font - Font 1, Font 2, Font 3, Font 4, Font 5, Font 6,
Font 7 or Font 8 for CC text
CC Opacity - Solid, Flashing, Trnsl or Trnsp for CC text
CC Color - White, Red, Green, Blue, Yellow, Magenta,
Cyan or Black for CC text
CC Bkgrnd. - to display
CC Background menu.
Then you can do further
setting on CC Background,
like its Edge Color, Edge
Type, Bkgrd. Color and
Bkgrd. Opacity.
SETUP
Go back
Auto Channel Search
Channel Edit & Name
Closed Caption
Favorite List
Language Eng.
Format
Auto Vol. Level On
Closed Caption
Go back
CC Display On
CC Type Service1
CC Mode Customer
CC Size Large
CC Font Font1
CC Opacity Solid
CC Color Blue
CC Bkgrnd.
CC Background
Go back
Edge Color Black
Edge Type None
Bkgrd. Color Red
Bkgrd. Opacity Solid
SETUP
Go back
Auto Channel Search
Channel Edit & Name
Closed Caption
Favorite List
Language Eng.
Format
Auto Vol. Level On
Closed Caption
Go back
CC Display On
Analog CC CC1
Closed Caption
Go back
CC Display On
Analog CC CC1
Follow these steps for Analog Mode.
Press CURSOR or
to scroll through the
SETUP menu until you
see Closed Caption
highlighted.
Press CURSOR or
followed by CURSOR
or to highlight CC
Display.
Press CURSOR or
to select Muted=On,
On or Off.
When Muted=On or
On, you can set Analog
CC. You can select one
from CC1, CC2, CC3,
CC4,TEXT1, TEXT2,
TEXT3 and TEXT4.
When finished, press
CLEAR button to clear
the menu from the TV
screen.
When finished, press CLEAR button to clear the menu
from the TV screen.
HELPFUL HINTS
An alternative way of entering closed caption submenu
is by pressing the CC button on the remote control.
Press Ana/Dig button on the remote control to toggle
between Digital and Analog Mode.
24
HOW TO USE ZOOM CONTROL
he Zoom Control feature allows you to select the picture format mode. This feature is only available in
Digital Mode.
T
Selecting a Picture Format Using the Remote Control
Press ZOOM button repeatedly on the remote
control to select one of the screen format options
namely 4:3, Expand 4:3, Stretch 4:3 and Compress 16:9.
Picture Format Modes
4:3 Shows picture in 4:3 aspect ratio format. You
will see two black borders at the top and
bottom of the screen.
Expand 4:3 Expands the picture vertically.
Stretch 4:3 Expands the picture horizontally eliminating
the side borders on both sides of the TV
screen.
Compress 16:9 Expands the picture horizontally delivering a
home-cinema experience. The display effect
is similar to 4:3.
ZOOM
HELPFUL HINTS
Picture Format Mode only can be activated when you
are watching 16:9 programs.
Press Ana/Dig button on the remote control to toggle
between Digital and Analog Mode.
SLEEP TIMER
he Sleep Timer feature allows you to set a timer to automatically turn the TV off after a period of time you
choose - ranging from 10 to 240 minutes in 10 minute intervals.
T
Follow these steps for Digital Mode and Analog Mode.
Press SLEEP button on the remote control to
display the sleep timer menu.
Press SLEEP button on the remote control repeatedly
to select the amount of time (10, 20, ..., 240min) before
the TV automatically switches off. The cycle includes
Off option. If set to Off, sleep timer is off.
When finished, press CLEAR button to clear the menu
from the TV screen.
NOTE: TV Switching Off will appear during the last
minute before the TV switches off. If there is any operation
done during the last minute, sleep timer is cancelled.
,,
,,
Sleep 10min.
25
INFORMATION BANNER
he Information Banner displays information of the program that is being transmitted by broadcasters. By pressing
INFO button on the remote control, you can see Information Banner appear on the screen. Digital information
banner is different from that for Analog. See the descriptions below:
Information Banner
In Digital Mode
1-1 Flower: displays the digital channel no. and name
11:20 AM: displays the current time as set in time menu.
9:00 AM: displays the start time of the currently-viewed program
12:00 AM: displays the stop time of the currently-viewed program
Unrated: to indicate rating and content theme of the currently-viewed program
HD: displayed if the feature of high definition is available with the program;
otherwise, display SD.
Stereo: to indicate the sound mode of the currently-viewed program. It may be
Stereo or Mono according to the program itself. If the program is Multi Audio
languages, display Multi.
The information on the Information Banner is transmitted by the
broadcasters. The quality and accuracy of the information depend on the
broadcaster. You might see a difference in broadcast time if the
broadcaster is from different time zone area.
1-1 Flower 11:20 AM
9:00AM 12:00AM Unrated
HD Stereo
Program name
Information Banner
In Analog Mode
10 Rain 11:20 AM
Unrated
Analog MONO
10 Rain: displays the analog channel no. and name
11:20 AM: displays the current time as set in time menu.
Unrated: to indicate rating and content theme of the currently-viewed program
Analog: to indicate TV is in Analog mode.
MONO: to indicate the sound mode of this TV.
NOTE: The information banner is time out. Or you can remove the information
banner from the screen by pressing CLEAR button on the remote control.
HELPFUL HINTS
,,
If No Program Information appears on the screen when the INFO
button on the remote control is pressed, it means the broadcaster is
not providing any information.
,,
Press Ana/Dig button on the remote to switch between Digital and
Analog Mode.
26
GLOSSARY
Aspect Ratio
Audio Video (A/V)
ATSC
CVBS
DTV
Digital Tuner
HDTV
NTSC National Television System Committee. The organization that developed the analog television standard currently in use in the
Progressive Scan In Progressive Scanning all the horizontal scan lines are scanned on to the screen at one time. The Digital TV and HDTV
The ratio between the width and height of the TV picture on the screen. In a normal TV set the aspect ratio is 4
to 3 (4:3). The aspect ratio in HDTV is 16:9, which resembles the aspect ratio in a movie theatre (Widescreen).
New TV systems support both 4:3 and 16:9 aspect ratio and can automatically switch between them.
A term often used when discussing a channel on a TV receiver or on video equipment, which has been
especially designed to accept VCR audio-video signal. The A/V channel automatically activates special circuitry
within the TV set to prevent picture distortion and skewing. It is also used for audio-video processors, which
handle both types of signal.
ATSC: Advance Television Systems Committee. Formed to establish technical standards for advanced
television systems, including digital high definition television (HDTV).
Composite Video Baseband Signal. In broadcast television this refers to the video signal.
including the colour information and syncs.
Digital television. Generic term that refers to all digital television formats, including high-definition television
(HDTV) and standard-definition television (SDTV).
A digital tuner serves as the decoder required to receive and display digital broadcasts. It can be included inside TV sets or
via a set-top box.
The generally agreed upon definition of HDTV is approximately twice the vertical and horizontal picture resolution of today s
NTSC TV, which essentially makes the picture twice as sharp. HDTV also has a screen ratio of 16:9. HDTV offers reduced
motion artifacts (i.e. ghosting, dot crawl), and offers 5.1 independent channels of CD-quality stereo surround sound,(also
referred to as AC-3).
U.S., Canada, and Japan. Now generally used to refer to that standard. The NTSC standard combines blue, red and green
signals modulated as an AM signal with an FM signal for audio.
standards accept both Interlaced Scan and Progressive Scan broadcast and display methods.
,
Resolution Resolution: A measurement of the finest (smallest) detail that is visible in a video image. TV resolutions may be expressed as
number of pixels in an image, or more commonly as Total Number of (horizontally scanned) Lines used to create the image.
Standard Digital TV Resolutions:
SDTV: 480i - The picture is 704x480 pixels, 480p - The picture is 704x480 pixels.
HDTV: 720p - The picture is 1280x720 pixels, 1080i - The picture is 1920x1080 pixels, 1080p - The picture is 1920x1080 pixels.
27
TROUBLESHOOTING TIPS
Check the List of Symptoms and Suggested Steps To Take before requesting Service. You may be able to solve the problem yourself.
If you face problems connecting the TV to external devices, please refer to the User Guide of the external device or call their service centers
for help. Charges for TV installation and adjustments of customer controls are not covered under your warranty.
SYMPTOMS SUGGESTED STEPS TO TAKE
,
Installation
Can t get the AV
channels on the TV
screen.
Press the SOURCE button on the remote control repeatedly to select the desired AV channels.
Installation
Installation
Installation
Installation
Installation
Parental Control
Closed Caption
TV displays wrong
channel or no
channels above 13
Channel numbers
do not follow the
channel number
of the programs.
Channel numbers
look different. Eg.
23-1, 45-3 etc.
Auto installation is
taking too long.
Cannot set
favorite channels
in Favorite List.
Unable to
change Parental
Control password.
Closed Caption
text does not
appear.
Go to SOURCE TYPE in the television menu and select the correct signal source, then perform
the automatic installation again. (Refer to page 11).
Go to SOURCE TYPE in the television menu and select the correct signal source, then perform
the automatic installation again. (Refer to page 11).
You are in Digital Mode. Press Ana/Dig button on the remote control to toggle between Digital
and Analog mo de.
Auto installation may take 20 to 40 minutes depending on the number of channels that are available.
1. You may not have completed auto installation. Do an auto installation again (refer to page 9).
2. You may have chosen the wrong SOURCE TYPE. Go to SOURCE TYPE in the TV menu and
select the correct signal source, then perform the auto installation again (refer to page 11).
You can change the Parental Control password via the helpful hint (refer to page 18).
Closed Caption text takes a while to appear. If Closed Caption text still does not appear, go to
Closed Caption menu to switch to another Closed Caption channel (refer to page 24).
Digital Audio
Zoom Control
Information
Banner
Unable to switch
to another audio
language.
Unable to change
picture format.
,,
No Program
Information
appears on the TV
screen.
,,
You can only select different audio languages when the program is broadcasted in different audio
language (refer to page 14).
Picture Format Mode only can be activated when you are watching 16:9 Digital programs (refer
to page 25).
Information is broadcaster dependent. If the broadcaster does not provide any information. No
Program Information will be displayed when the INFO button on the remote control is pressed
(refer to page 26).
,,
,,
28
TROUBLESHOOTING TIPS
SYMPTOMS SUGGESTED STEPS TO TAKE
Settings
Sound
Sound
General
Error messages
appear on the
screen of TV:
No Signal
No Program
Audio Only
Sound is not in
Stereo.
Disturbing sound
(such as buzzing,
clicking, cracking,
humming, whistling
etc.)
No power to the
TV
Check that the antenna / cable is connected properly and that you have selected the correct
source type (refer to page 11).
There could be temporarily no transmission on the selected channel. When transmission is
resumed or when available, your TV will receive it.
The current channel has only audio transmission.
This could be due to any of the following reasons:
1. Not all transmitted broadcasts by the cable or broadcast stations are in STEREO. Try checking
with several major network stations to be sure that the station you selected is in STEREO.
2. When using an AV input, the television will not display STEREO even though it is producing
stereo sound.
It is normal to hear a disturbing sound (such as buzzing, clicking, cracking, humming, whistling, etc)
from a distance less than 2 meters (6 feet) with the television sound muted.
If problem occurs on one channel, you may have a signal problem. Please contact the cable provider
or local broadcaster regarding the specific channel.
Check the TV power cord. Unplug the power cord from the TV, wait 10 seconds, then reinsert
the plug into your wall outlet. Power On the TV again.
General
General
General
TV is not
responding to
Remote Control
No picture to the
TV
TV displays white
lines in letterbox
when viewing a
DVD disc.
Plug the power cord directly to the wall socket and not via an extension cord.
If you need to use an extension cord, check that the fuse on the AC power strip is not blown.
Ensure the batteries are inserted into the remote control according to the illustration in the
battery compartment (refer to page 7).
Reset the TV by disconnecting the power plug from the wall outlet for 10 seconds and then
reconnecting it again.
Check antenna connections. Are they properly secured to the TV ANT 75 ohm plug?
Check the SOURCE TYPE control for the correct tuner setting.
Try running the Auto Channel Search feature to find all available channels (refer to page 9).
Press the SOURCE button on the remote control to make sure the correct signal source is
selected (FRONT, AV1, CVI, Current Channel, etc.).
Some DVD discs are encoded with as much as 30% more video information to give the best
possible picture quality. With the DVD player in the 16:9 picture format, the playback of this
type of disc with extra video information can produce a number of small white lines in the
upper portion of the black letterbox area. With some of these discs, this problem is inherent
and does not require a service call.
29
CLEANING AND CARE
WARNING
Do not leave stationary or letterbox images on screen for
extended periods of time. This can cause uneven picture-tube
aging.
Normal use of the TV should involve the showing of pictures
that contain constantly moving and changing images that fill the
screen. Be careful not to leave nonmoving images on screen
for extended periods of time, or to display the same images
on screen too frequently, because subtle ghost images can be
left on the screen. Sources of stationary images may be DVD
disks, laser disks, video games, cd-i disks, videotapes, digital
television boxes, broadcast channels, cable channels, satellite
channels, and others. Here are some examples of stationary
images (this is not an all-inclusive list; you may encounter
others in your viewing):
DVD menus
Letterbox black bars
TV screen when a wide screen (16:9) movie is viewed on a
TV with standard (4:3) aspect ratio.
Video-game images and scoreboards.
Television station logos
bright and stationary; moving or low-contrast graphics are
less likely to cause uneven aging of the picture tube.
Stock-market tickers
screen.
Shopping channel logos and pricing displays
shown constantly or repeatedly in the same location on the
TV screen.
Concerning stationary images on the TV Screen:
listings of DVD disk content.
shown at the top and bottom of the
present a problem if they are
presented at the bottom of the TV
bright and
Placement of the TV
To avoid cabinet warping, cabinet color changes, and
increased chance of set failure, do not place the TV where
temperatures can become excessively hot, for example, in
direct sunlight or near a heating appliance.
Be sure to allow a free flow of air to and from the perfo-
rated back cover of the set.
Cleaning
To avoid possible shock hazard, unplug the TV from the
Electrical outlet before cleaning.
Regularly dust the TV with a dry, nonscratching duster to
keep the TV clean.
When cleaning the TV, take care not to scratch or damage
the screen surface. Avoid using anything abrasive. Do not
use household cleaners. Wipe the front screen with a
clean cloth dampened with water. Use even, easy, vertical
strokes when cleaning.
Gently wipe the cabinet surfaces with a clean cloth or
sponge dampened in a solution of cool, clear water and a
mild soap or detergent. Use a clean, dry cloth to dry the
wiped surfaces.
Occasionally vacuum the ventilation holes or slots in the
back cover of the set.
Never use thinners, insecticide sprays, or other chemicals on
or near the cabinet, as they might cause permanent damage
of the cabinet finish.
30
PICTURE / DISPLAY
Aspect ratio :
Picture Display
Picture Enhancement
SOUND
SPECIFICATIONS
20PT9007D
4 : 3
20 Real Flat Picture Tube
Auto Picture (5 modes)
Tint, Color, Sharpness,
Color Temperature Control
Sound Power (Output RMS)
CONVENIENCE
ON SCREEN DISPLAY
LANGUAGES
CONNECTIVITY
Rear
Front
ELECTRICAL INFORMATION
Voltage (V)
Frequency (Hz)
Approx. consumption (W)
2 x 2w
Auto Install
Easy toggle Digital / Analog modes
Closed Caption teletext
Parental Lock
Sleep Timer
Clock
English and Spanish
Component Video In (Y Pb Pr) - 480i only
Composite Video In (CVBS)
Audio L/R In
Audio/ Video Out (Cinch)
Composite Video In (CVBS)
120V
60Hz
70W
WEIGHT & DIMENSIONS :
Weight (incl. Packaging) :
Weight (excl. Packaging) :
Visible diagonal / screen size :
Specifications and information are subject to change without notice.
24 kg / 66 lbs
23 kg / 55 lbs
20 inch / 50.8 cm
31
Philips, P.O. Box 520890, Miami, FL 33152 (402) 536-4171
90 Days Labor & One (1) Year Parts & Two (2) Years Display
PHILIPS LIMITED WARRANTY
PHILIPS CONSUMER ELECTRONICS warrants this
product against defect in material or workmanship, subject to
any conditions set forth as follows:
PROOF OF PURCHASE: You must have proof of the date
of purchase to receive warranted repair on the product. A sales
receipt or other document showing the product and the date
that you purchased the product as well as the authorized retailer included, is considered such proof.
COVERAGE:
(If the product is determined to be defective)
LABOR: For a period of ninety (90) days from the date of purchase, Philips will repair or replace the product, at its option, at
no charge, or pay the labor charges to any Philips authorized
repair facility. After the period of ninety (90) days, Philips will
no longer be responsible for charges incurred.
PARTS: For a period of one (1) year from the date of purchase,
Philips will supply at no charge, new or rebuilt replacement
parts in exchange for defective parts. Philips authorized service
centers will provide removal and installation of the part under
the specified labor warranty.
DISPLAY: For a period of two (2) years from the date of purchase, Philips will supply, at no charge, a new or rebuilt active
display device in exchange for the defective display. Philips
authorized service centers will provide removal and installation
of the parts under the specified labor warranty.
EXCLUDED FROM WARRANTY COVERAGE
Your warranty does not cover:
• Labor charges for installation or setup of the product, adjustment of customer controls on the product, and installation
or repair of antenna systems outside of the product.
• Product repair and/or part replacement because of improper
installation, connections to improper voltage supply, abuse,
neglect, misuse, accident, unauthorized repair or other cause
not within the control of Philips.
• A product that requires modification or adaptation to enable
it to operate in any country other than the country for
which it was designed, manufactured, approved and/or
authorized, or repair of products damaged by these modifications.
• Damage occurring to product during shipping when improperly packaged or cost associated with packaging.
• Product lost in shipment and no signature verification of
receipt can be provided.
• A product used for commercial or institutional purposes
(including but not limited to rental purposes).
• Products sold AS IS or RENEWED.
TO OBTAIN WARRANTY SERVICE IN THE U.S.A.,
PUERTO RICO, OR U.S. VIRGIN ISLANDS…
Contact Philips Customer Care Center at:
1-800-531-0039
TO OBTAIN WARRANTY SERVICE IN CANADA…
1-800-661-6162 (French Speaking)
1-800-531-0039 (English or Spanish Speaking)
REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS
WARRANTY IS THE EXCLUSIVE REMEDY FOR THE CONSUMER. PHILIPS SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF
ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS
PRODUCT IS LIMITED IN DURATION TO THE DURATION
OF THIS WARRANTY.
Some states do not allow the exclusions or limitation of incidental or consequential damages, or allow limitations on how
long an implied warranty lasts, so the above limitations or
exclusions may not apply to you. In addition, if you enter into a
service contract agreement with the PHILIPS partnership within
ninety (90) days of the date of sale, the limitation on how long
an implied warranty lasts does not apply.
EL6588E001 / 01-04
This warranty gives you specific legal rights. You may have other rights which vary from state/province to state/province.
32
INDEX
Accessories List 5
Auto Channel Search
Auto Picture
Auto Volume Leveller Control
Basic TV and Remote Control Operation
Brightness Control
Channel Edit & Name
Cleaning and Care
Closed captioning in Digital Mode
Closed captioning in Analog Mode
Color Control
Color Temperature (Color Temp) Control
Favorite List
Feature Highlights
First Time You Turn On The TV
Glossary
Guide to Digital TV
16
14
16
12
30
24
24
16
16
13
27
Movie Ratings 20
9
7
4
8
5
Password 18
Unrated and No Rating
USA TV Content Ratings
Picture Control
Quick Tips
Registration of TV Information
Safety / Precautions
Sharpness Control
Sleep timer
Source Type Control
Specifications
Timer Controls
Clock Control
Daylight Saving
Off Time Control
On Time Control
22
21
16
5
2
2/3
16
25
11
31
23
15
23
23
Index
Information Banner
Language Control
Parental Controls
Child Lock 19
Downloadable V-chip
Master Enable 19
33
26
10
22
Time Zone
Update Clock
Tint Control
Troubleshooting
Warranty (Limited)
Zoom Control
15
23
16
28-29
32
25
33
34
Loading...
