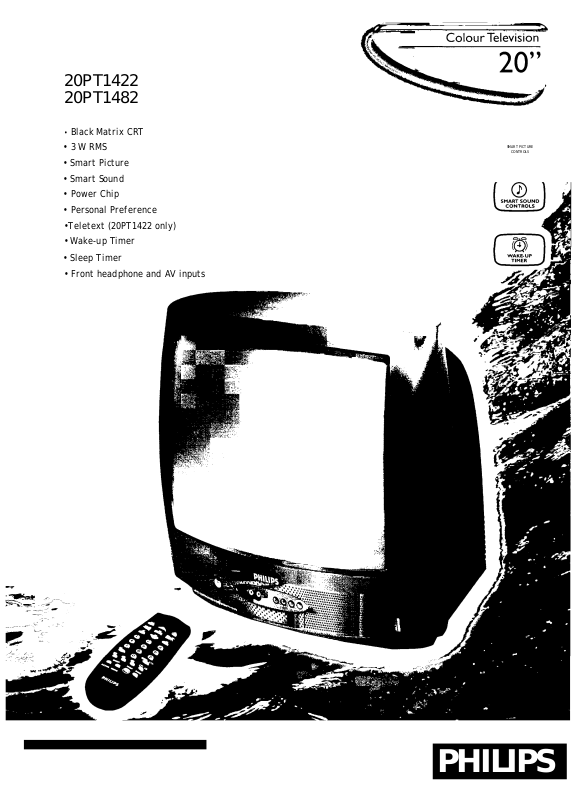

Philips 20PT1422 User Manual
20PT1422
20PT1482
• Black Matrix CRT
• 3 W RMS
• Smart Picture
• Smart Sound
• Power Chip
• Personal Preference
•Teletext (20PT1422 only)
• Wake-up Timer
• Sleep Timer
• Front headphone and AV inputs
SMART PICTURE
CONTROLS
PHILIPS
20PT1422
20PT1482
Product Information
Screen size
Picture tube
Viewing area 48 cm
Smart Picture modes Soft. Natural. Rich.
Power Chip
20" (51 cm)
Black Matrix CRT
Personal
Sound
Sound output 3W RMS
Loudspeakers
Smart Sound modes Theatre. Music.Voice.
Full Range Speaker
Normal
Reception
Tuning system
Tuner UV. S and Hyperband.
Channel selection 80 presets
TV systems
Video playback NTSC 3.58 / 4.43
VST tuning. Mains
PLL tuning for NTSC
Full cable for NTSC
See table
Teletext (20PT1422 only)
Text standards
Number of teletext
buttons Subcode/Time Display.
WST / FLOF
5 buttons (On/Off.
Enlarge. Hold. Reveal)
Connectors
Front
Rear
Headphone out
(3.5 mm)
Audio /Video input
Audio /Video input
Audio /Video output
(monitor out)
Operation
Remote control RC0770/01
Number of remote
control buttons
29 buttons
Features
Sharpness Control
Personal Preference (13 X RF,1 xAV)
Auto Search and Store
Swap
Wake-up Timer
Sleep Timer
Auto Switch Off
Measurements
100- 250V. 50/60 Hz
Power consumption 56 W
Net weight
Gross weight
Set dimension 503 X 473 X 463
Box dimension 583 X 556 X 546
Container loading 352 sets
(per 40 ft. loose)
160- 250V. 50/60 Hz
(Normal Operation)
8W (Standby)
20 kg
22 kg
(W X D X H mm)
(W X D X H mm)
Product Highlights
Smart Picture provides the option of selecting one
of four preset positions (Soft, Natural, Rich, Persanal)
to enhance enjoyment of video games, sports and
mavies. Select the desired option and all impartant
picture elements are instantly adjusted to optimize
viewing pleasure.
Smart Sound provides the option of selecting one of
four preset positions (Theatre, Music, Voice, Normal)
to optimize each individual saund preference when
viewing different pragrammes ar saurces.
Power Chip boasts of a Philips BIMOS Piaure
Improvement Circuitry which provides better contrast,
good colour transience, accurate colour reproduction
and optimum sharpness for improved picture quality.
Personal Preference allows the viewer to
personally select and pragram different picture
settings and sound volume level combinations for 13
different RF channels and 1AV channel. This is to
cater to the different transmission signal conditions of
various broadcasting stations.
Sleep Timer automatically turns off the TV at a pre
set time of up to 120 minutes from the time the
feature is activated. Sleep timer settings are
programmed in 15-minute intervals.
Type
Number
20PT1422 Mono.Teletext 20PT1482 Mono
Chassis
Release Date
Reference
Features
L7
March 1998
LSS/20SYM/LOB BTV
PAL B/G
/50 /67 /68 /70 /75 /79
• •
• • • • • • •
PAL 1. PAL D/K, PAL 1 NTSC M
/57
/73 /71 /97
• •
Features and specifications subject to change without notice
PAL B/G. PAL D/K.
SECAM BG/DK (K1)
/59
•
Ls if à mk t e ff et r
