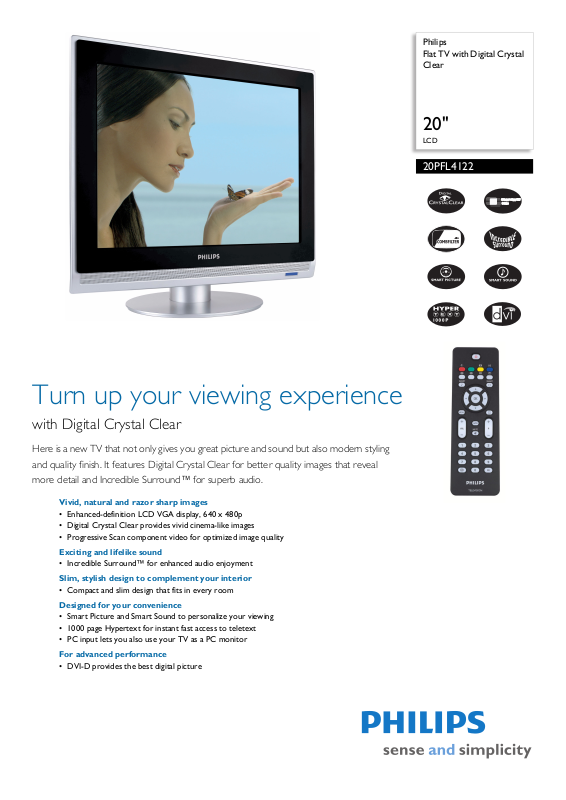

Philips
Fla t TV with Digital Crys tal
Clear

20"

LCD

20PFL4122

Turn up your viewing experience

with Digital Crystal Clear

Here is a new TV that not only gives you great picture and sound but also modern styling
and quality finish. It features Digital Crystal Clear for better quality images that reveal
more detail and Incredible Surround™ for superb audio.

Vivid, natural and razor sharp images

• Enhanced-definition LCD VGA display, 640 x 480p

• Digital Crystal Clear provides vivid cinema-like images

• Progressive Scan component video for optimized image quality

Exciting and lifelike sound

• Incredible Surround™ for enhanced audio enjoyment

Slim, stylish design to complement your interior

• Compact and slim design that fits in every room

Designed for your convenience

• Smart Picture and Smart Sound to personalize your viewing

• 1000 page Hypertext for instant fast access to teletext

• PC input lets you also use your TV as a PC monitor

For advanced performance

• DVI-D provides the best digital picture

Flat TV with Digital Crystal Clear

20" LCD

20PFL4122/98

Specifications Product highlights

Picture/Display

• Aspect ratio: 4:3

• Brightness: 400 cd/m²

• Contrast ratio (typical): 500:1

• Response time (typical): 8 ms

• Viewing angle (H / V): 170 / 170 degree

• Diagonal screen size: 20 inch / 51 cm

• Display screen type: LCD VGA Active Matrix TFT

• Panel resolution: 640 x 480p

• Picture enhancement: Digital Crystal Clear, 2D
Combfilter, Blue stretch, Green enhancement,
Color Temperature Adjustment, Progressive
Scan, Sharpness Adjustment, Automatic skin tone
correction

• Screen enhancement: Anti-Reflection coated
screen

Supported Display Resolution

• Computer formats
Resolution Refresh rate
640 x 480 60, 67, 72, 75Hz

• Video Formats
Resolution Refresh rate
640 x 480i 1Fh
640 x 480p 2Fh
720 x 576i 1Fh
720 x 576p 2Fh
1280 x 720p 3Fh
1920 x 1080i 2Fh
1920 x 1080p

Sound

• Output power (RMS): 2 x 3W

• Sound Enhancement: Incredible Surround

• Sound System: Mono, Nicam Stereo, Stereo

Loudspeakers

• Built-in speakers: 2

Convenience

• Child Protection: Child Lock+Parental Control

• Clock: Sleep Timer

• Ease of Installation: Automatic Channel
Install(ACI), Automatic Tuning System (ATS),
Autostore, Fine Tuning, PLL Digital Tuning,
Sorting

• Ease of Use: Auto Volume Leveller (AVL), On

Screen Display, Program List, Smart Picture
Control, Smart Sound Control, Top Controls

• Remote Control: TV

• Remote control type: RC2023611/01B

• Screen Format Adjustments: 16:9 compress, 4:3,
4:3 expand, 4:3 HD

• Teletext: 1000 page Smart Text

• Teletext enhancements: Program information
Line

Tuner/Reception/Transmission

• Aerial Input: 75 ohm coaxial (IEC75)

• TV system: PAL I, PAL B/G, SECAM B/G, SECAM
D/K

• Video Playback: NTSC, PAL

• Tuner bands: Hyperband, S-Channel, UHF, VHF

• Tuner Display: PLL

Connectivity

• AV 1: Audio L/R in, YPbPr

• Front / Side connections: Audio L/R in, CVBS in,
Headphone out, S-video in

• Other connections: DVI-D, PC Audio in, PC-In
VGA

Power

• Ambient temperature: 5 °C to 40 °C

• Mains power: 100-240V, 60-50 Hz

• Power consumption: 70 W

• Standby power consumption: < 2 W

Accessories

• Included Accessories: Table top stand, Power
cord, Quick start guide, User Manual, Warranty
certificate, Remote Control, Batteries for remote
control

Dimensions

• Color cabinet: Silver, high gloss black

• Set dimensions (W x H x D): 497 x 428 x 80 mm

• Set dimensions with stand (W x H x D):
497

x 472 x 218 mm

• Product weight: 7.5 kg

• Product weight (+stand): 8.55 kg

• Box dimensions (W x H x D):
548

x 566 x 222 mm

• Weight incl. Packaging: 10.4 kg

• VESA wall mount compatible: 100 x 100 mm

•

LCD VGA display, 640 x 480p

This VGA display with state-of-the-art LCD screen
technology has an enhanced resolution of 640 x 480p.

Digital Crystal Clear

Digital Crystal Clear is a package of picture innovations
that digitally adjusts and optimizes picture quality to
optimal contrast, color and sharpness levels. It's like
watching vivid cinema-like images.

Progressive Scan

Progressive Scan doubles the vertical resolution of the
image resulting in a noticeably sharper picture. Instead of
se nd ing a fiel d compr isin g the odd l ine s t o t he scre en fi rst ,
followed by the field with the even lines, both fields are
written at one time. A full image is created
instantaneously, using the maximum resolution. At such a
speed, your eye perceives a sharper picture with no line
structure.

Incredible Surround™

Incredible Surround is an audio technology from Philips
that dramatically magnifies the sound field to immerse
you in the audio. Using state-of-the-art electronic phase
shifting, Incredible Surround mixes sounds from left and
right in such a way that it expands the virtual distance
between the two speakers. This wider spread greatly
enhances the stereo effect and creates a more natural
sound dimension. Incredible Surround allows you to
experience total surround with greater depth and width
of sound, without the use of additional speakers.

Compact and slim design

This design style emphasizes a slim, compact look that
saves space and fits in anywhere.

Smart Picture and Smart Sound

Philips preset modes for Smart Picture and Smart Sound
provide you with direct access via a single key on the
remote control. You can select optimized picture and
sound settings for the various picture and sound modes.

1000 page Hypertext

The teletext is a common system transmitted by most
broadcasters. The 1000 page smart text feature gives
you extremely fast access to information when changing
pages.

DVI-D input

A DVI-D input makes an uncompressed digital RGB
connection from source to screen. By eliminating the
conversion of the digital signal to analog, it delivers an
unblemished image. Thanks to the non-degraded signal,
you get le ss flicker and a c learer picture. The DVI input is
fully backward compatible with HDMI sources, and also
uses HDCP copy protection.

PC input

With PC input you can connect your TV to a computer
and use the TV as a PC monitor.

Issue date 2008-10-27

Version: 2.1.16

12 NC: 8670 000 27398
EAN: 87 12581 31811 6

© 2008 Koninklijke Philips Electronics N.V.
All Rights reserved.

Specifications are subject to change without notice.
