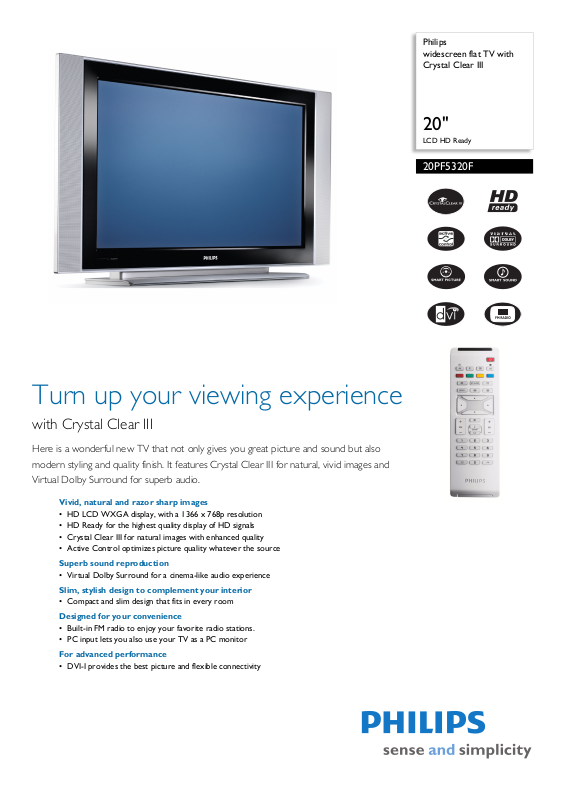

Page 1
Philips
widescreen flat TV with
Crystal Clear III
20"
LCD HD Ready
20PF5320F
Turn up your viewing experience
with Crystal Clear III
Here is a wonderful new TV that not only gives you great picture and sound but also
modern styling and quality finish. It features Crystal Clear III for natural, vivid images and
Virtual Dolby Surround for superb audio.
Vivid, natural and razor sharp images
• HD LCD WXGA display, with a 1366 x 768p resolution
• HD Ready for the highest quality display of HD signals
• Crystal Clear III for natural images with enhanced quality
• Active Control optimizes picture quality whatever the source
Superb sound reproduction
• Virtual Dolby Surround for a cinema-like audio experience
Slim, stylish design to complement your interior
• Compact and slim design that fits in every room
Designed for your convenience
• Built-in FM radio to enjoy your favorite radio stations.
• PC input lets you also use your TV as a PC monitor
For advanced performance
• DVI-I provides the best picture and flexible connectivity
Page 2
Widescreen flat TV with Crystal Clear III
20" LCD HD Ready
Specifications
20PF5320F/01
Picture/Display
• Aspect ratio: Widescreen
• Brightness: 450 cd/m²
• Contrast ratio (typical): 600:1
• Response time (typical): 25 ms
• Viewing angle (H / V): 176 / 176 degree
• Diagonal screen size: 20 inch / 51 cm
• Display screen type: LCD WXGA Active Matrix
TFT
• Panel resolution: 1366 x 768p
• Picture enhancement: 2D Combfilter, Active
Control, Color Temperature Adjustment, Crystal
Clear III, Progressive Scan, Sharpness Adjustment
• Screen enhancement: Anti-Reflection coated
screen
Supported Display Resolution
• Computer formats
Resolution Refresh rate
640 x 480 60, 67, 72, 75Hz
720 x 400 70Hz
800 x 600 56, 60, 72, 75Hz
832 x 624 75Hz
1024 x 768 60, 70, 75Hz
1280 x 768 60Hz
• Video Formats
Resolution Refresh rate
640 x 480i 1Fh
640 x 480p 2Fh
720 x 576i 1Fh
720 x 576p 2Fh
1280 x 720p 3Fh
1920 x 1080i 2Fh
Sound
• Equalizer: 5-bands
• Output power (RMS): 2 x 5W
• Sound Enhancement: Dynamic Bass Enhancement
• Sound System: Mono, Nicam Stereo, Virtual
Dolby Surround
Convenience
• Clock: Sleep Timer
• Ease of Installation: Auto Program Naming,
Automatic Channel Install(ACI), Automatic
Tun ing Sys tem (A TS), A ut ost ore , F ine T uni ng , PLL
Digital Tuning, Plug & Play, Program Name,
Sorting
• Ease of Use: Auto Volume Leveller (AVL), FM
Radio, Menu Control, On Screen Display,
Program List, Smart Picture Control, Smart Sound
Control
• Remote Control: TV
• Remote control type: RCFE05SMU00
• Screen Format Adjustments: 4:3, Movie expand
14:9, Movie expand 16:9, Subtitle Zoom, Super
Zoom, Widescreen
• Picture in Picture: Twin page text
• Teletext: 10 page Smart Text
• VESA Mount: 100 x 100 mm
Tuner/Reception/Transmission
• Aerial Input: 75 ohm coaxial (IEC75)
• TV system: PAL I, PAL B/G, PAL D/K, SECAM B/
G, SECAM D/K, SECAM L/L', PAL, SECAM
• Video Playback: NTSC, SECAM, PAL
• Tuner bands: Hyperband, S-Channel, UHF, VHF,
FM
• Number of Preset Channels: 100
• Tuner Display: PLL
Connectivity
• Ext 1 Scart: Audio L/R, CVBS in/out, RGB
• Number of Scarts: 1
• Front / Side connections: Audio in, CVBS in,
Headphone out, S-video in
• Other connections: D VI- I, FM Ant enn a, P C Au dio
in, Antenna IEC75
Power
• Ambient temperature: 5 °C to 40 °C
• Power consumption: 80 W
• Power supply: AC 90-240
• Standby power consumption: < 1W
Dimensions
• Set dimensions (W x H x D): 618 x 325 x 90 mm
• Dimensions (with base) (W x H x D):
618
x 369 x 195 mm
• Weight incl. Packaging: 10.5 kg
• Product weight: 7.9 kg
• Box dimensions (W x H x D):
659
x 565 x 211 mm
• Color cabinet: Silver Frost / Black deco front
Accessories
• Included Accessories: Table top stand, FM
antenna, Power cord, Quick start guide, User
Manual, Registration card, Remote Control
• Cables: DVI-I to YPbPr cable
•
Page 3
Widescreen flat TV with Crystal Clear III
20" LCD HD Ready
20PF5320F/01
Product highlights
HD Ready
Enjoy the exceptional picture quality of High Definition
pictu res and be f ull y prepar ed f or HD so urc es like H DTV
settop box or Blu-ray disc. HD Ready is a protected label
that offers picture quality beyond that of progressive
scan. It conforms to strict standards laid out by EICTA to
offer a HD screen that displays the benefits of resolution
and picture quality of a High Definition signal. It has a
universal connection for both analog YPbPr and
uncompressed Digital connection of DVI or HDMI,
supporting HDCP. It can display 720p, and 1080i signals
at 50 and 60Hz.
Crystal Clear III
Crystal Clear III combines a whole range of
enhancements to provide a better picture. They include a
2D Comb filter, Dynamic contrast, Blue stretch and
Green enhancement so that you always get the most
natural looking colors.
Active Control
Active Control ensure that noise and sharpness
improvements are continuously made at a rate of 60
times per second. By continually adjusting picture setting
over 3,000 times pe r m inute, Active Control Plus ensures
that the viewing experience is optimized.
Virtual Dolby Surround
Virtual Dolby Surround is a processing technology for
enhancing surround sound effects. It will create the
sensation of Dolby Pro Logic without the necessity of
additional rear speakers. You become totally immersed in
your television experience.
FM Radio
An FM radio capable of storing 40 preset stations in built
in. On-screen station naming makes navigation simple,
and a handy Clock Screensaver is also included for use
while listening.
PC input
With PC input you can connect your TV to a computer
and use the TV as a PC monitor.
DVI-I Input
A DVI-I input connects the non-compressed highbandwidth digital RGB signal from source to screen. By
eliminating the conversion of the digital signals to analog,
it delivers an unblemished and noisefree image, that is
clear and flickerfree. The DVI input supports HDCP copy
protection that allows viewing of copy protected
programs from Digital Settop boxes, DVD players and
HD recorders. DVI-I is future proof as it can be be
connected to all HDMI devices (a converter cable is
required). The DVI-I input also supports analog PC-VGA
signals.
Issue date 2008-09-23
Version: 2.1.7
12 NC: 8670 000 24185
EAN: 87 10895 97278 9
© 2008 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
