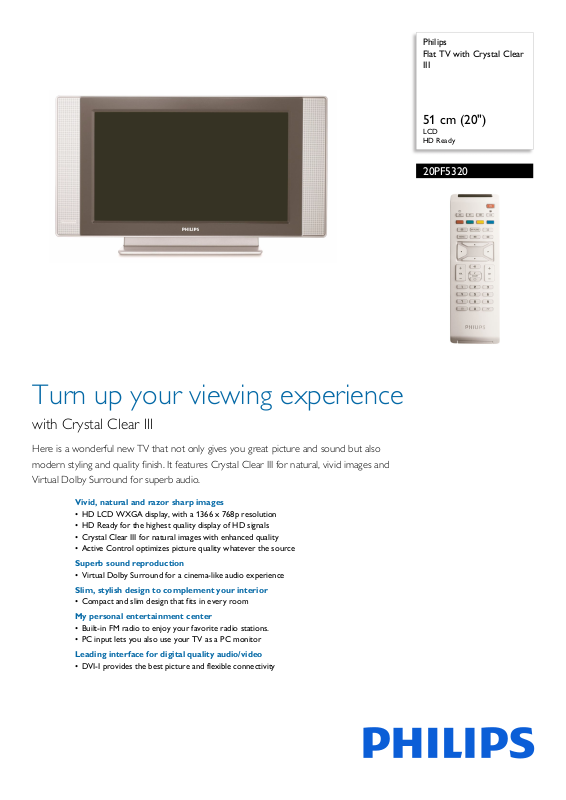

Philips Flat TV with Crystal Clear III

51 cm (20")

LCD HD Ready

20PF5320

Turn up your viewing experience

with Crystal Clear III

Here is a wonderful new TV that not only gives you great picture and sound but also modern styling and quality finish. It features Crystal Clear III for natural, vivid images and Virtual Dolby Surround for superb audio.

Vivid, natural and razor sharp images

• HD LCD WXGA display, with a 1366 x 768p resolution

• HD Ready for the highest quality display of HD signals

• Crystal Clear III for natural images with enhanced quality

• Active Control optimizes picture quality whatever the source

Superb sound reproduction

• Virtual Dolby Surround for a cinema-like audio experience

Slim, stylish design to complement your interior

• Compact and slim design that fits in every room

My personal entertainment center

• Built-in FM radio to enjoy your favorite radio stations.

• PC input lets you also use your TV as a PC monitor

Leading interface for digital quality audio/video

• DVI-I provides the best picture and flexible connectivity

Page 2

20PF5320/01

Flat TV

51 cm (20") LCD, HD Ready

Highlights

HD Ready

Enjoy the exceptional picture quality of High Definiti

on pictures and be fully prepared for HD sources like HDTV settop box or Blu-ray disc. HD Ready is a protected label that offers picture quality beyond that of progressive scan. It conforms to strict standards laid out by EICTA to offer a HD screen that displays the benefits of resolution and picture quality of a High Definition signal. It has a universal connection for both analog YPbPr and uncompressed Digital connection of DVI or HDMI, supporting HDCP. It can display 720p, and 1080i signals at 50 and 60Hz.

Crystal Clear III

Crystal Clear III combines a whole range of e

nhancements to provide a better picture. They include a 2D Comb filter, Dynamic contrast, Blue stretch and Green enhancement so that you always get the most natural looking colors.

Active Control

Active Control ensure that noise and sharpness impro made at a rate of 60 times per second. By continually adjusting picture setting over 3,000 times per minute, Active Control Plus ensures that the viewing experience is optimized.

Virtual Dolby Surround

Virtual Dolby Surround is a processing te

chnology for enhancing surround sound effects. It will create the sensation of Dolby Pro Logic without the necessity of additional rear speakers. You become totally immersed in your television experience.

FM Radio

An FM radio capable of storing 40 preset s

tations in built in. On-screen station naming makes navigation simple, and a handy Clock Screensaver is also included for use while listening.

vements are continuously

PC input

With PC input you can connect your TV to a c

omputer and use the TV as a PC monitor.

DVI-I Input

A DVI-I input connects the non-compressed h

igh-bandwidth digital RGB signal from source to screen. By eliminating the conversion of the digital signals to analog, it delivers an unblemished and noisefree image, that is clear and flickerfree. The DVI input supports HDCP copy protection that allows viewing of copy protected programs from Digital Settop boxes, DVD players and HD recorders. DVI-I is future proof as it can be be connected to all HDMI devices (a converter cable is required). The DVI-I input also supports analog PC-VGA signals.

Page 3

20PF5320/01

Flat TV

51 cm (20") LCD, HD Ready

Specifications

Picture/Display

• Aspect ratio: Widescreen

• Brightness: 450 cd/m²

• Contrast ratio (typical): 600:1

• Diagonal screen size: 20 inch / 51 cm

• Display screen type: LCD WXGA Active Matrix T

•

Picture enhancement: Crystal Clear I scan, 2D Combfilter, Active Control, Sharpness Adjustment, Color Temperature Adjustment

• Screen enhancement: Anti-Reflection coated

• Viewing angle (H / V): 176 / 176 degree

• Response time (typical): 25 ms

• Panel resolution: 1366 x 768p

• Color cabinet: Silver Frost / Black deco front

II, Progressive

Supported Display Resolution

mputer formats

• Co

Res

olution Refresh rate 640 x 480 60, 67, 72, 75Hz 720 x 400 70Hz 800 x 600 56, 60, 72, 75Hz 832 x 624 75Hz 1024 x 768 60, 70, 75Hz 1280 x 768 60Hz

deo Formats

• Vi olution Refresh rate

Res 640 x 480i 1Fh 640 x 480p 2Fh 720 x 576i 1Fh 720 x 576p 2Fh 1280 x 720p 3Fh 1920 x 1080i 2Fh

Sound

• Sound Enhancement: Dynamic Bass Enhancement

• Sound System: Nicam Stereo, Virtual Dolby

Surround, M

• Output power (RMS): 2 x 5W

• Equalizer: 5-bands

ono

Convenience

• Ease of Installation: Auto Program Naming,

Automatic Channel Install(ACI), Automatic Tuning System (ATS), Autostore, Fine Tuning, PLL Digital Tuning, Plug & Play, Program Name, Sorting

• Ease of Use: Auto Volume Leveller (AVL), FM a

dio, Menu Control, On Screen Display, Program

R List, Smart Picture, Smart Sound

• Remote control type: RCFE05SMU00

• Teletext: 10 page Smart Text

• Picture in Picture: Twin page text

• Remote Control: TV

• Screen Format Adjustments: 4:3, Movie expand

, Movie expand 16:9, Subtitle Zoom, Super

14: Zoom, Widescreen

• Clock: Sleep Timer

• VESA Mount: 100 x 100 mm

Tuner/Reception/Transmission

• Tuner bands: FM, Hyperband, S-Channel, UHF,

VHF

• TV system: PAL, PAL B/G, PAL

SECAM, SECAM B/G, SECAM D/K, SECAM L/L'

• Video Playback: NTSC, PAL, SECAM

• Aerial Input: 75 ohm coaxial (IEC75)

•Tuner Display: PLL

• Number of Preset Channels: 100

D/K, PAL I,

Connectivity

•Number of Scarts: 1

• Ext 1 Scart: Audio L/R, CVBS in/out, RGB

• Other connections: Antenna IEC75, DVI-I, FM

Antenna, PC Au

• Front / Side connections: Audio in, CVBS in,

Headphon

dio in

e Out, S-video in

Power

• Power consumption: 80 W

• Standby power consumption: < 1W

• Ambient temperature: 5 °C to 40 °C

• Power supply: AC 90-240

Dimensions

• Dimensions (with base) (W x H x D):

618 x 369 x 195 mm

•Set dimensions (W x H x D): 618 x 325 x 90 mm

• Set weight: 7.9 kg

•Box dimensions (W x H x D): x 565 x 211 mm

659

• Product weight: 7.9 kg

• Weight incl. Packaging: 10.5 kg

Accessories

• Included accessories: Power cord, Quick start

guide, Registration card, Remote Control, Table top stand, User Manual

• FM antenna: FM Antenna

• Cables: DVI-I to YPbPr cable

•

Issue date 2019-06-25

Version: 14.1.18

12 NC: 8670 000 22261 EAN: 87 10895 87553 0

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips N.V. or their respective owners.
