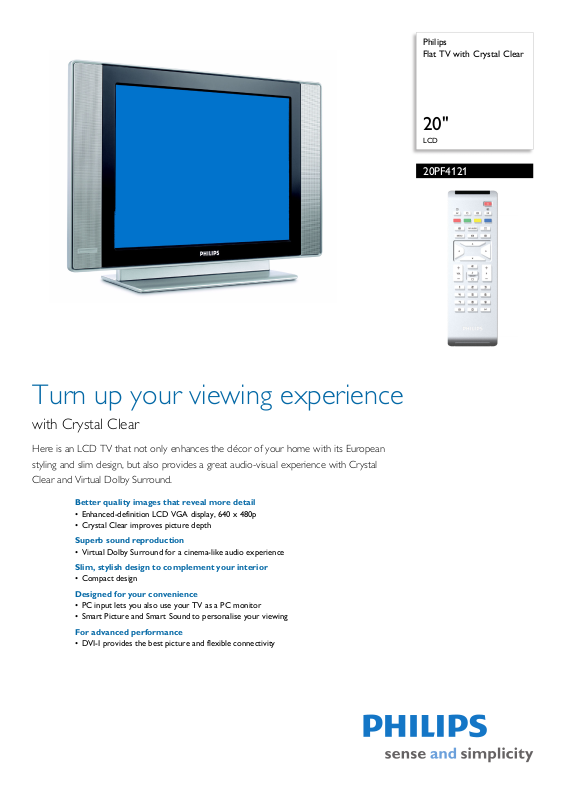

Page 1
Philips
Flat TV with Crystal Clear
20"
LCD
20PF4121
Turn up your viewing experience
with Crystal Clear
Here is an LCD TV that not only enhances the décor of your home with its European
styling and slim design, but also provides a great audio-visual experience with Crystal
Clear and Virtual Dolby Surround.
Better quality images that reveal more detail
• Enhanced-definition LCD VGA display, 640 x 480p
• Crystal Clear improves picture depth
Superb sound reproduction
• Virtual Dolby Surround for a cinema-like audio experience
Slim, stylish design to complement your interior
•Compact design
Designed for your convenience
• PC input lets you also use your TV as a PC monitor
• Smart Picture and Smart Sound to personalise your viewing
For advanced performance
• DVI-I provides the best picture and flexible connectivity
Page 2
Flat TV with Crystal Clear
20" LCD
Highlights
20PF4121/01
LCD VGA display, 640 x 480p
This VGA display with state-of-the-art LCD
screen t
echnology has an enhanced resolution
of 640 x 480p.
Crystal Clear
Combining picture enhancements like
Co
ntrast plus and colour improvement,
Crystal Clear improves picture depth.
Virtual Dolby Surround
Virtual Dolby Surround is a processing
te
chnology for enhancing surround sound
effects. It will create the sensation of Dolby
Pro Logic without the necessity of additional
rear speakers. You become totally immersed
in your television experience.
PC input
With PC input you can connect your TV to a
computer and use th
Smart Picture and Smart Sound
Philips preset modes for Smart Picture and
Sm
art Sound provide you with direct access via
a single key on the remote control. You can
select optimised picture and sound settings for
the various picture and sound modes.
e TV as a PC monitor.
DVI-I Input
A DVI-I input connects the non-compressed
h
igh-bandwidth digital RGB signal from source
to screen. By eliminating the conversion of the
digital signals to analogue, it delivers an
unblemished and noise-free image that is clear
and flicker-free. The DVI input supports
HDCP copy protection that allows viewing of
copy protected programmes from Digital Settop boxes, DVD players and HD recorders.
DVI-I is future proof as it can be connected to
all HDMI devices (a converter cable is
required). The DVI-I input also supports
analogue PC-VGA signals.
Page 3
Flat TV with Crystal Clear
20" LCD
Specifications
20PF4121/01
Picture/Display
• Aspect ratio: 4:3
• Brightness: 450 cd/m²
• Contrast ratio (typical): 500:1
• Diagonal screen size: 20 inch / 51 cm
• Display screen type: LCD VGA Active Matrix TFT
• Picture enhancement: Crystal Clear, Progressive
Scan, Sharpnes
Adjustment, 2D Combfilter, Contrast Plus
• Screen enhancement: Anti-Reflection coated
reen
sc
• Viewing Angle (H / V): 160 / 120 degree
• Panel resolution: 640 x 480p
• Response time (typical): 16 ms
s Adjustment, Colour Temperature
Supported Display Resolution
• Computer formats
Resolution Refresh rate
640 x 480 60, 67, 72, 75 Hz
1024 x 768 60, 70, 75Hz
720 x 400 70 Hz
deo Formats
• Vi
Resolution Refresh rate
640 x 480i 1Fh
640 x 480p 2Fh
720 x 576i 1Fh
720 x 576p 2Fh
1280 x 720p 3Fh
Sound
• Sound Enhancement: Dynamic Bass Enhancement
• Sound System: Mono, Nicam Stereo, Virtual Dolby
ound
Surr
• Output power (RMS): 2 x 5W
• Equalizer: 5-bands
Convenience
• Ease of Installation: Auto Programme Naming,
Automatic Channel Install (ACI), Automatic
Tuning System (ATS), Autostore, Fine Tuning, PLL
Digital Tuning, Programme Name, Sorting
• Ease of Use: Auto Volume Leveller (AVL
Control, On-Screen Display, Programme List,
), Menu
Smart Picture, Smart Sound
• Remote control type: RCFE05ZAU00
• Teletext: 10-page Smart Text
• Remote Control: TV
• Screen Format Adjustments: 16:9 compress, 4:3,
xpand
4:3 e
• Clock: Sleep Timer
• Teletext enhancements: 4 favourite pages,
gramme information Line
Pro
Tuner/reception/transmission
• Tuner bands: Hyperband, S-Channel, UHF, VHF
• TV system: PAL, PAL B/G,
SECAM, SECAM B/G, SECAM D/K, SECAM L/L'
• Video Playback: NTSC, PAL, SECAM
• Aerial Input: 75 ohm coaxial (IEC75)
•Tuner Display: PLL
• Number of Preset Channels: 100
PAL D/K, PAL I,
Connectivity
•Number of Scarts: 1
• Ext 1 Scart: Audio L/R, CVBS in/out, RGB
• Other connections: Antenna IEC75, PC Audio in,
DVI-I
• Front/Side connections: Audio in, CVBS in,
one out, S-video in
Headph
Power
• Power consumption: 55 W
• Standby power consumption: 1.5 W
• Ambient temperature: 5°C to 40°C
• Power supply: AC 90-240
Dimensions
• Product weight: 8.8 kg
• Dimensions (with base) (W x H x D):
4 x 429 x 195 mm
59
•Box dimensions (W x H x D):
9 x 565 x 211 mm
65
•Set dimensions (W x H x
• Set weight: 8.8 kg
• Weight incl. Packaging: 11.5 kg
• Colour cabinet: Silver/Black
D): 594 x 391 x 83 mm
Accessories
• Included Accessories: Power cord, Quick start
guide, Registration card, Remote Control,
Tabletop stand, User manual
•
Issue date 2009-08-06
Version: 3.0.9
12 NC: 8670 000 23473
EAN: 87 10895 94340 6
© 2009 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
