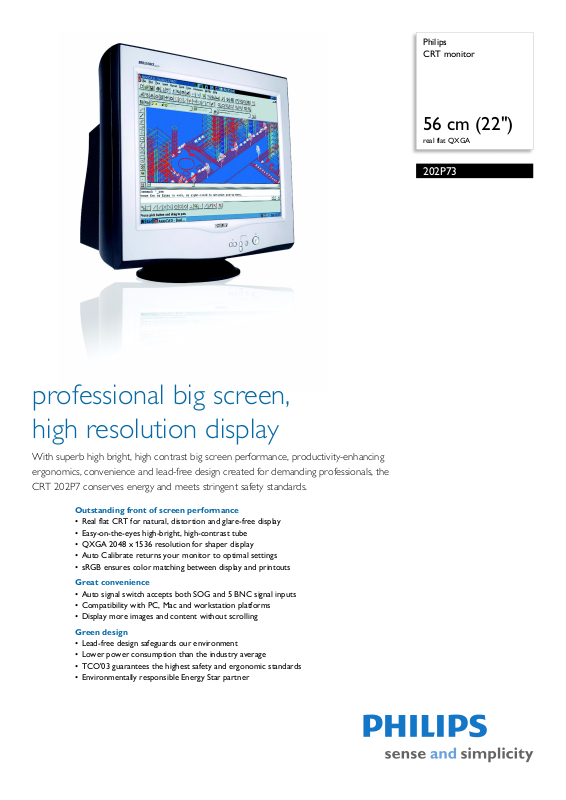

Page 1
Philips
CRT monitor
56 cm (22")
real flat QXGA
202P73
professional big screen,
high resolution display
With superb high bright, high contrast big screen performance, productivity-enhancing
ergonomics, convenience and lead-free design created for demanding professionals, the
CRT 202P7 conserves energy and meets stringent safety standards.
Outstanding front of screen performance
• Real flat CRT for natural, distortion and glare-free display
• Easy-on-the-eyes high-bright, high-contrast tube
• QXGA 2048 x 1536 resolution for shaper display
• Auto Calibrate returns your monitor to optimal settings
• sRGB ensures color matching between display and printouts
Great convenience
• Auto signal switch accepts both SOG and 5 BNC signal inputs
• Compatibility with PC, Mac and workstation platforms
• Display more images and content without scrolling
Green design
• Lead-free design safeguards our environment
• Lower power consumption than the industry average
• TCO'03 guarantees the highest safety and ergonomic standards
• Environmentally responsible Energy Star partner
Page 2
CRT monitor
56 cm (22") real flat QXGA
Highlights
202P73/27
Real flat CRT display
Philips advanced flat CRT technology reduces
gl
are and reflection more efficiently than a
conventional CRT. The special high-bright,
high-contrast shadow mask helps maintain
sharper focus and eliminates 'color blooming'
compared to standard tubes. It displays images
on a monitor that look like images on paper:
Viewing the image is more comfortable.
Straight lines are straight. Finding a reflectionfree viewing position is much easier. This adds
up to reduced eyestrain for a comfortable
viewing experience.
High-bright-high-contrast tube
A CRT tube designed to increase display
bright
ness and contrast by increasing the CRT
ray gun's beam current.
QXGA, 2048 x 1536 resolution
Quantum eXtended Graphics Array: A screen
resolutio
n of 2048 x 1536 pixels.
Auto Calibrate
A one-touch system for maintaining optimal
CR
T monitor performance by automatically
recalibrating color temperature to their
original values.
sRGB ready
sRGB is an industry standard that ensures the
be
st possible match between the colors
displayed on your screen and those in your
printouts.
Auto signal switch
The function determines signal type and routes
th
e signal to the proper channel.
Large viewing area
Viewing area is the visible portion of a monitor
s
creen available for displaying data.
Lead-free
Lead-free display products are designed and
produced
in compliance with strict European
Community directives on Restriction of
Hazardous Substances (RoHS) standards that
restrict lead and other toxic substances that
can harm the environment.
Energy efficiency
Reduction of the electrical power required to
operate
TCO '03 compliance
A TCO (Swedish Confederation of
Prof
stringent than MPR-II for safety and
ergonomics, especially concerning alternating
electric fields (AEF).
Energy Star partner
A manufacturer in compliance with power
conservatio
Environmental Protection Agency of the U.S.
government.
a device to achieve real savings.
essional Employees) standard even more
n requirements set forth by the
Page 3
CRT monitor
56 cm (22") real flat QXGA
Specifications
202P73/27
Picture/Display
• Display screen type: Shadow mask Real Flat CRT
• Panel Size: 22"/ 55 cm
• Phosphor: P22
• Recommended display area(mm): 392 x 294 mm
• Recommended Display Area(inch): 15.4" x 11.6"
• Dot pitch: 0.25 mm
• Dot Pitch (horizontal): 0.21 mm
• White Chromaticity, 5500K: x = 0.332 / y = 0.347
• White Chromaticity, 6500K: x = 0.313 / y = 0.329
• White Chromaticity, 9300K: x = 0.283 / y = 0.297
• Maximum Resolution: 2048 x 1536 @ 80 Hz
• Optimum resolution: 1600 x 1200 @ 85 Hz
• Factory Preset Modes: 9 modes
• Factory Preset Mode: 1024 x 768 @ 75 Hz, 1024
8 @ 85 Hz, 1280 x 1024 @ 75 Hz, 1280 x
x 76
24 @ 85 Hz, 1600 x 1200 @ 75 Hz, 1600 x
10
00 @ 85 Hz, 1792 x 1344 @ 75 Hz, 1920 x
12
40 @ 75 Hz, 1920 x 1440 @ 85 Hz
14
• Factory Preload Modes: 27 modes
• Video Dot Rate: 360 MHz
• Horizontal Scanning Frequency: 30 - 130 kHz
• Vertical Scanning Frequency: 50 - 160 Hz
• Recommended Refresh Rate: 85 Hz
• Screen enhancement: Anti-glare Polarizer, Anti-
• Picture enhancement: Auto Calibrate
•sRGB
•GTF
n, Anti-Static, High Brightness, High
Reflectio
Contrast
Connectivity
• Cables: D-sub Video Cable, Power Cord
• Sync input impedance: 2.2k ohm
• Video input impedance: 75 ohm
• Video input signal levels: 0.7 Vpp
• Sync Input: Composite Sync,
on Green
Separate Sync, Sync
• Video Sync Polarities: Positive and Negative
• Cable Connection: AC Power in, 5BNC, D-sub
Convenience
• User convenience: Auto Signal Switch, Menu
Languages, On-screen Display
• Monitor Controls: Brightness Control, Contrast
ntrol, Left/Right, Menu, Power On/Off, Up/
Co
Down
• OSD Languages: English, Fr
Spanish, Portuguese, Simplified Chinese, Korean
• Plug & Play Compatibility: DDC 2B, sRGB,
ws 98/ME/2000/XP
Windo
• Regulatory approvals: CE Mark, E2000, FCC-B, UL,
, FDA, NUTEK, Energy Star, SEMKO, TCO
CSA
'03, TÜV/GS, TÜV Ergo
•Swivel: +/- 90°
• Tilt: -5° to 25°
ench, German, Italian,
Accessories
• Included accessories: AC Power Cord
• User Manual
Dimensions
• Dimensions (with base) (W x H x D):
501 x 466 mm
501 x
• Temperature range (operation): 5°C to 35°C
• Temperature range (storage): -25°C to 65°C
•Weight: 26.34 kg
Power
• Complies with: E2000, Energy Star, NUTEK
• Consumption (On mode): 125 W (Typical)
• Consumption (Off Mode): 1 W
• Power LED indicator: Off - Amber, Operation -
n
gree
• Power supply: Built-in
•
Issue date 2011-06-07
Version: 2.0.3
12 NC: 8639 000 16175
UPC: 0 37849 96352 4
© 2011 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
