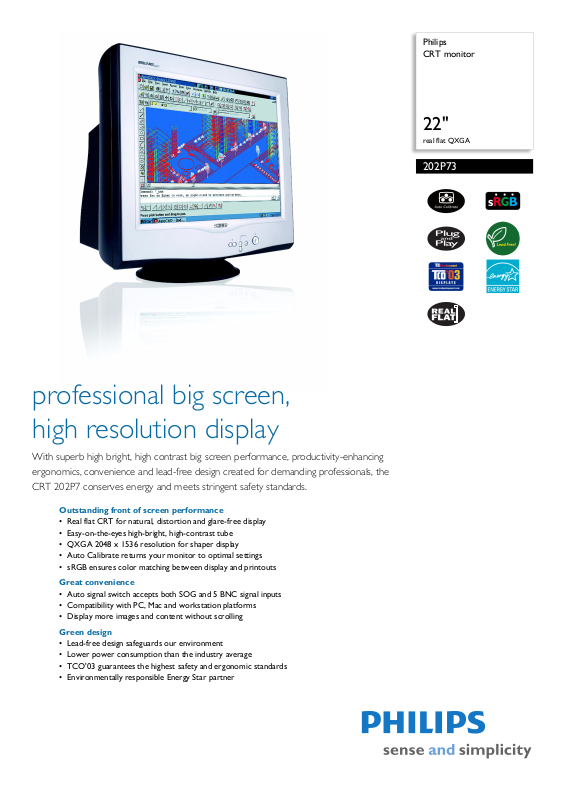

Page 1
Philips
CRT monitor
22"
real flat QXGA
202P73
professional big screen,
high resolution display
With superb high bright, high contrast big screen performance, productivity-enhancing
ergonomics, convenience and lead-free design created for demanding professionals, the
CRT 202P7 conserves energy and meets stringent safety standards.
Outstanding front of screen performance
• Real flat CRT for natural, distortion and glare-free display
• Easy-on-the-eyes high-bright, high-contrast tube
• QXGA 2048 x 1536 resolution for shaper display
• Auto Calibrate returns your monitor to optimal settings
• sRGB ensures color matching between display and printouts
Great convenience
• Auto signal switch accepts both SOG and 5 BNC signal inputs
• Compatibility with PC, Mac and workstation platforms
• Display more images and content without scrolling
Green design
• Lead-free design safeguards our environment
• Lower power consumption than the industry average
• TCO'03 guarantees the highest safety and ergonomic standards
• Environmentally responsible Energy Star partner
Page 2
CRT monitor
202P73/27
22" real flat QXGA
Specifications Product highlights
Picture/Display
• Display screen type: Shadow mask Real Flat CRT
• Panel Size: 22"/ 55 cm
• Phosphor: P22
• Recommended display area(mm): 392 x 294 mm
• Recommended Display Area(inch): 15.4" x 11.6"
• Dot pitch: 0.25 mm
• Dot Pitch (horizontal): 0.21 mm
• White Chromaticity, 5500K: x = 0.332 / y = 0.347
• White Chromaticity, 6500K: x = 0.313 / y = 0.329
• White Chromaticity, 9300K: x = 0.283 / y = 0.297
• Maximum Resolution: 2048 x 1536 @ 80 Hz
• Optimum Resolution: 1600 x 1200 @ 85 Hz
• Factory Preset Modes: 9 modes
• Factory Preset Mode: 1024 x 768 @ 75 Hz, 1024
x 768
@ 85 Hz, 1280 x 1024 @ 75 Hz, 1280 x
1024
@ 85 Hz, 1600 x 1200 @ 75 Hz, 1600 x
1200
@ 85 Hz, 1792 x 1344 @ 75 Hz, 1920 x
1440
@ 75 Hz, 1920 x 1440 @ 85 Hz
• Factory Preload Modes: 27 modes
• Video Dot Rate: 360 MHz
• Horizontal Scanning Frequency: 30 - 130 kHz
• Vertical Scanning Frequency: 50 - 160 Hz
• Recommended Refresh Rate: 85 Hz
• Screen enhancement: Anti-glare Polarizer, AntiReflection, Anti-Static, High Brightness, High
Contrast
• Picture enhancement: Auto Calibrate
•sRGB
•GTF
Connectivity
• Cables: D-sub Video Cable, Power Cord
• Sync input impedance: 2.2k ohm
• Video input impedance: 75 ohm
• Video input signal levels: 0.7 Vpp
• Video Sync Input Signal: Composite Sync, Separate
Sync, Sync on Green
• Video Sync Polarities: Positive and Negative
• Cable Connection: AC Power in, 5BNC, D-sub
Convenience
• User convenience: Auto Signal Switch, Menu
Languages, On-screen Display
• Monitor Controls: Brightness Control, Contrast
Control, Left/Right, Menu, Power On/Off, Up/
Down
• OSD Languages: English, French, German, Italian,
Spanish, Portuguese, Simplified Chinese, Korean
• Plug & Play Compatibility: DDC 2B, sRGB,
Windows 98/ME/2000/XP
• Regulatory Approvals: CE Mark, E2000, FCC-B,
UL, CSA, FDA, NUTEK, Energy Star, SEMKO,
TCO '03, TÜV/GS, TÜV Ergo
• Swivel: +/- 90°
• Tilt: -5° to 25°
Accessories
• Included Accessories: AC Power Cord
•User Manual
Dimensions
• Dimensions (with base) (W x H x D):
501
x 501 x 466 mm
• Temperature range (operation): 5°C to 35°C
• Temperature range (storage): -25°C to 65°C
• Weight: 26.34 kg
Power
• Complies with: E2000, Energy Star, NUTEK
• Consumption (On mode): 125 W (Typical)
• Consumption (Off Mode): 1 W
• Power LED indicator: Off - Amber, Operation green
• Power supply: Built-in
•
Real flat CRT display
Philips advanced flat CRT technology reduces glare and
reflection more efficiently than a conventional CRT. The
special high-bright, high-contrast shadow mask helps
maintain sharper focus and eliminates 'color blooming'
compared to standard tubes. It displays images on a
monitor that look like images on paper: Viewing the
image is more comfortable. Straight lines are straight.
Finding a reflection-free viewing position is much easier.
This adds up to reduced eyestrain for a comfortable
viewing experience.
High-bright-high-contrast tube
A CRT tube designed to increase display brightness and
contrast by increasing the CRT ray gun's beam current.
QXGA, 2048 x 1536 resolution
Quantum eXtended Graphics Array: A screen resolution
of 2048 x 1536 pixels.
Auto Calibrate
A one-touch system for maintaining optimal CRT monitor
performance by automatically recalibrating color
temperature to their original values.
sRGB ready
sRGB is an industry standard that ensures the best
possible match between the colors displayed on your
screen and those in your printouts.
Auto signal switch
The function determines signal type and routes the signal
to the proper channel.
Large viewing area
Viewing area is the visible portion of a monitor screen
available for displaying data.
Lead-free
Lead-free display products are designed and produced in
compliance with strict European Community Restriction
of Hazardous Substances (RoHS) standards that restrict
lead and other toxic substances that can harm the
environment.
Energy efficiency
Reduction of the electrical power required to operate a
device to achieve real savings.
TCO '03 compliance
A TCO (Swedish Confederation of Professional
Employees) standard even more stringent than MPR-II
for safety and ergonomics, especially concerning
alternating electric fields (AEF).
Energy Star partner
A manufacturer in compliance with power conservation
requirements set forth by the Environmental Protection
Agency of the U.S. government.
Issue date 2009-02-12
Version: 2.0.3
12 NC: 8639 000 16175
UPC: 0 37849 96352 4
© 2009 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
