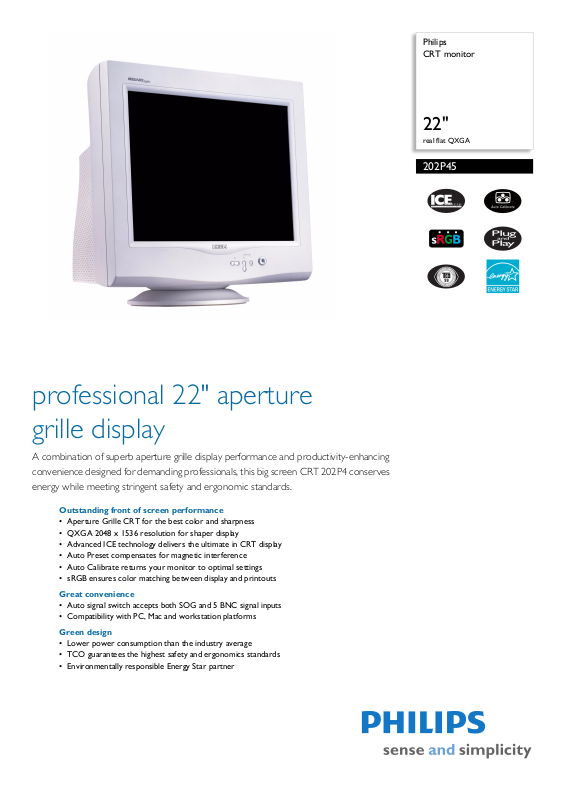

Philips
CRT monitor
22"
real flat QXGA
202P45
professional 22" aperture
grille display
A combination of superb aperture grille display performance and productivity-enhancing
convenience designed for demanding p r ofessionals, this big scre en CRT 202P4 conserves
energy while meeting stringent safety and ergonomic standards.
Outstanding front of screen performance
• Aperture Grille CRT for the best color and sharpness
• QXGA 2048 x 1536 resolution for shaper display
• Advanced ICE technology delivers the ultimate in CRT display
• Auto Preset compensates for magnetic interference
• Auto Calibrate returns your monitor to optimal settings
• sRGB ensures color matching between display and printouts
Great convenience
• Auto signal switch accepts both SOG and 5 BNC signal inputs
• Compatibility with PC, Mac and workstation platforms
Green design
• Lower power consumption than the industry average
• TCO guarantees the highest safety and ergonomics standards
• Environmentally responsible Energy Star partner
CRT monitor
202P45/94
22" real flat QXGA
Specifications Product highlights
Picture/Display
• Display screen type: Aperture Grille CRT
• Panel Size: 22"/ 55 cm
• Phosphor: B22
• Recommended display area(mm): 392 x 294 mm
• Recommended Display Area(inch): 15.4" x 11.6"
• Dot pitch: 0.24 mm
• Dot Pitch (horizontal): 0.24 mm
• White Chromaticity, 5500K: x = 0.332 / y = 0.347
• White Chromaticity, 6500K: x = 0.313 / y = 0.329
• White Chromaticity, 9300K: x = 0.283 / y = 0.297
• Maximum Resolution: 2048 x 1536 @ 80 Hz
• Optimum Resolution: 1600 x 1200 @ 85 Hz
• Factory Preset Modes: 9 modes
• Factory Preset Mode: 1024 x 768 @ 75 Hz, 1024
x 768
@ 85 Hz, 1280 x 1024 @ 75 Hz, 1280 x
1024
@ 85 Hz, 1600 x 1200 @ 75 Hz, 1600 x
1200
@ 85 Hz, 1792 x 1344 @ 75 Hz, 1920 x
1440
@ 75 Hz, 1920 x 1440 @ 85 Hz
• Factory Preload Modes: 27 modes
• Video Dot Rate: 360 MHz
• Horizontal Scanning Frequency: 30 - 130 kHz
• Vertical Scanning Frequency: 50 - 160 Hz
• Recommended Refresh Rate: 85 Hz
• Screen enhancement: Anti-glare Polarizer, AntiReflection, Anti-Static, High Contrast, High
Brightness
• Picture enhancement: Auto Calibrate, ICE
Technology
•sRGB
•GTF
Connectivity
• Cables: D-sub Video Cable, Power Cord
• Sync input impedance: 2.2k ohm
• Video input impedance: 75 ohm
• Video input signal levels: 0.7 Vpp
• Video Sync Input Signal: Composite Sync, Separate
Sync, Sync on Green
• Video Sync Polarities: Positive and Negative
• Cable Connection: AC Power in, 5BNC, D-sub
Convenience
• User convenience: Auto Preset, Auto Signal
Switch, Menu Languages, On-screen Display
• Monitor Controls: Brightness Control, Contrast
Control, Left/Right, Menu, Power On/Off, Up/
Down
• OSD Languages: English, French, German, Italian,
Spanish, Portuguese, Simplified Chinese, Korean
• Plug & Play Compatibility: DDC 2B, sRGB,
Windows 98/ME/2000/XP
• Regulatory Approvals: CE Mark, E2000, FCC-B,
UL, CSA, FDA, NUTEK, Energy Star, SEMKO,
TCO '99, TÜV/GS, TÜV Ergo
• Swivel: +/- 90°
• Tilt: -5° to 25°
Accessories
• Included Accessories: AC Power Cord
•User Manual
Dimensions
• Dimensions (with base) (W x H x D):
501
x 501 x 466 mm
• Temperature range (operation): 0°C to 35°C
• Temperature range (storage): -25°C to 65°C
• Weight: 29.6 kg
Power
• Complies with: E2000, Energy Star, NUTEK
• Consumption (On mode): 130 W (Typical)
• Consumption (Off Mode): 1 W
• Power LED indicator: Off - Amber, Operation green
• Power supply: Built-in
•
Aperture Grille CRT
A high-end technology used for illuminating phosphors in
CRT tubes. It delivers a brighter, sharper overall picture.
QXGA, 2048 x 1536 resolution
Quantum eXtended Graphics Array: A screen resolution
of 2048 x 1536 pixels.
ICE technology
An exclusive Philips suite of technical enhancements that
deliver outstanding CRT display.
Auto preset
Designed to keep the purity and video position of your
monitor at good under different magnetic field.
Auto Calibrate
A one-touch system for maintaining optimal CRT monitor
performance by automatically recalibrating color
temperature to their original values.
sRGB ready
sRGB is an industry standard that ensures the best
possible match between the colors displayed on your
screen and those in your printouts.
Auto signal switch
The function determines signal type and routes the signal
to the proper channel.
Platform compatibility
The ability to work with a variety of platforms; Philips
monitors are compatible to connect with PCs and
workstation by employing a VGA connection and connect
with Macintosh.
Energy efficiency
Reduction of the electrical power required to operate a
device to achieve real savings.
TCO '99 compliance
A TCO (Swedish Confederation of Professional
Employees) standard even more stringent than MPR-II
for safety and ergonomics, especially concerning
alternating electric fields (AEF).
Energy Star partner
A manufacturer in compliance with power conservation
requirements set forth by the Environmental Protection
Agency of the U.S. government.
Issue date 2009-02-12
Version: 4.0.5
12 NC: 8639 000 14958
© 2009 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
