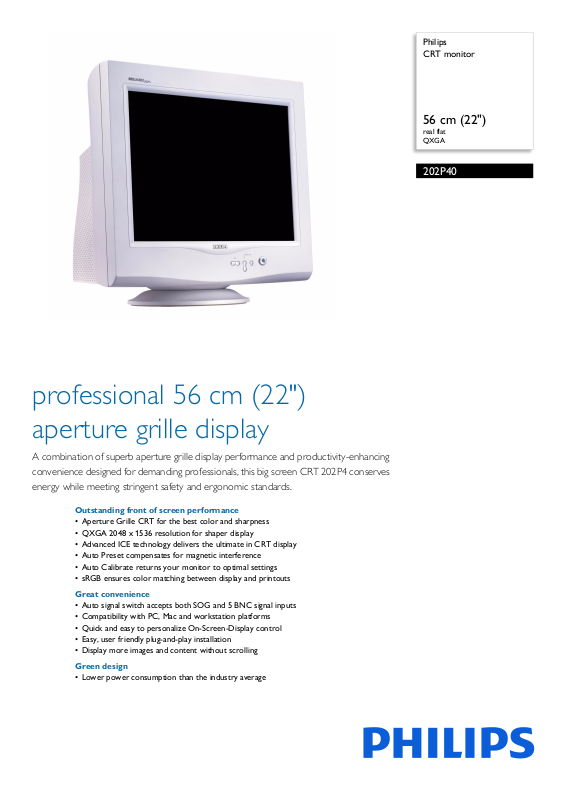

Philips 202P40 User Manual
Philips
CRT monitor
56 cm (22")
real flat
QXGA
202P40
professional 56 cm (22")
aperture grille display
A combination of superb aperture grille display performance and productivity-enhancing
convenience designed for demanding professionals, this big screen CRT 202P4 conserves
energy while meeting stringent safety and ergonomic standards.
Outstanding front of screen performance
• Aperture Grille CRT for the best color and sharpness
• QXGA 2048 x 1536 resolution for shaper display
• Advanced ICE technology delivers the ultimate in CRT display
• Auto Preset compensates for magnetic interference
• Auto Calibrate returns your monitor to optimal settings
• sRGB ensures color matching between display and printouts
Great convenience
• Auto signal switch accepts both SOG and 5 BNC signal inputs
• Compatibility with PC, Mac and workstation platforms
• Quick and easy to personalize On-Screen-Display control
• Easy, user friendly plug-and-play installation
• Display more images and content without scrolling
Green design
• Lower power consumption than the industry average
CRT monitor
56 cm (22") real flat, QXGA
202P40/20
Specifications
Picture/Display
• Display screen type: Aperture Grille CRT
• Panel Size: 22"/ 55 cm
• Phosphor: B22
• Recommended display area(mm): 392 x 294 mm
• Recommended Display Area(inch): 15.4" x 11.6"
• Dot pitch: 0.24 mm
• Dot Pitch (horizontal): 0.24 mm
• White Chromaticity, 5500K: x = 0.332 / y = 0.347
• White Chromaticity, 6500K: x = 0.313 / y = 0.329
• White Chromaticity, 9300K: x = 0.283 / y = 0.297
• Maximum Resolution: 2048 x 1536 @ 80 Hz
• Optimum resolution: 1600 x 1200 @ 85 Hz
• Factory Preset Modes: 9 modes
• Factory Preset Mode: 1024 x 768 @ 75 Hz, 1024
8 @ 85 Hz, 1280 x 1024 @ 75 Hz, 1280 x
x 76
24 @ 85 Hz, 1600 x 1200 @ 75 Hz, 1600 x
10
00 @ 85 Hz, 1792 x 1344 @ 75 Hz, 1920 x
12
40 @ 75 Hz, 1920 x 1440 @ 85 Hz
14
• Factory Preload Modes: 27 modes
• Video Dot Rate: 360 MHz
• Horizontal Scanning Frequency: 30 - 130 kHz
• Vertical Scanning Frequency: 50 - 160 Hz
• Recommended Refresh Rate: 85 Hz
• Screen enhancement: Anti-glare Polarizer, Anti-
eflection, Anti-Static, High Contrast, High
R
Brightness
• Picture enhancement: Auto
Technology
•sRGB
•GTF
Connectivity
• Cables: D-sub Video Cable, Power Cord
• Sync input impedance: 2.2k ohm
• Video input impedance: 75 ohm
• Video input signal levels: 0.7 Vpp
• Sync Input: Composite Sync,
Calibrate, ICE
Separate Sync, Sync
on Green
• Video Sync Polarities: Positive and Negative
• Cable Connection: AC Power in, 5BNC, D-sub
Convenience
• User convenience: Auto Preset, Auto Signal
Switch, Menu Languages, On-screen Display
• Monitor Controls: Brightness Control, Contrast
ntrol, Left/Right, Menu, Power On/Off, Up/
Co
Down
• OSD Languages: English, Fr
Simplified Chinese, Spanish
• Plug & Play Compatibility: DDC 2B, sRGB,
ws 98/ME/2000/XP
Windo
• Regulatory approvals: CE Mark, FCC-B, UL, CSA,
O, TCO '03, TÜV/GS, TÜV Ergo, FDA,
SEMK
E2000, NUTEK, Energy Star
•Swivel: +/- 90°
• Tilt: -5° to 25°
ench, German, Italian,
Accessories
• Included accessories: AC Power Cord
• User Manual
Dimensions
• Dimensions (with base) (W x H x D):
501 x 501
• Temperature range (operation): 0°C to 35°C
• Temperature range (storage): -25°C to 65°C
•Weight: 29.6 kg
x 466 mm
Power
• Complies with: E2000, Energy Star, NUTEK
• Consumption (On mode): 130 W (Typical)
• Consumption (Off Mode): 1 W
• Power LED indicator: Off - Amber, Operation -
n
gree
• Power supply: Built-in
•
Highlights
Aperture Grille CRT
A high-end technology used for illuminating
phosphors in CRT tubes. It delivers a brighter,
sharper overall picture.
QXGA, 2048 x 1536 resolution
Quantum eXtended Graphics Array: A screen
resolution of 2048 x 1536 pixels.
ICE technology
An exclusive Philips suite of technical enhancements
that deliver outstanding CRT display.
Auto preset
Designed to keep the purity and video position of
your monitor at good under different magnetic field.
Auto Calibrate
A one-touch system for maintaining optimal CRT
monitor performance by automatically recalibrating
color temperature to their original values.
sRGB ready
sRGB is an industry standard that ensures the best
possible match between the colors displayed on
your screen and those in your printouts.
Auto signal switch
The function determines signal type and routes the
signal to the proper channel.
Platform compatibility
The ability to work with a variety of platforms;
Philips monitors are compatible to connect with PCs
and workstation by employing a VGA connection
and connect with Macintosh.
OSD On-Screen-Display control
An on-screen panel for adjusting a monitor. The
OSD is used for contrast, brightness, horizontal,
vertical positioning and other monitor adjustments.
Issue date 2014-02-05
Version: 3.0.4
12 NC: 8639 000 14872
EAN: 87 10895 81221 4
© 2014 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
Easy plug-and-play
Plug-and-play is a peripheral connectivity standard. A
plug and play display device can be connected to a PC
and operate without requiring user intervention to
adjust complicated settings.
Large viewing area
Viewing area is the visible portion of a monitor
screen available for displaying data.
Energy efficiency
Reduction of the electrical power required to
operate a device to achieve real savings.
TCO '03 compliance
A TCO (Swedish Confederation of Professional
Employees) standard even more stringent than MPRII for safety and ergonomics, especially concerning
alternating electric fields (AEF).
Energy Star partner
A manufacturer in compliance with power
conservation requirements set forth by the
Environmental Protection Agency of the U.S.
government.
Flame retardant cabinet
PC/ABS plastic composite is the industry's best and
toughest flame-retardant casing material; and is a
space-age compound deployed in the aerospace and
automotive industries as well as in fire detectors that
is compliant with most stringent fire safety
standards.
