Safety & Troubleshooting

Safety and Troubleshooting Information

Safety Precautions and Maintenance • Troubleshooting • Regulatory Information • Other Related Information

Safety precautions and maintenance

WARNING: Use of controls, adjustments, or procedures other than those specified in this documentation may result in exposure to shock, electrical hazards, and/or mechanical hazards.

Read and follow these instructions when connecting and using your computer monitor:

● Disconnect the monitor from the power supply if the monitor is not to be used for an

extended period of time.

● Do not attempt to remove the back cover, as you will be exposed to a shock hazard. The

back cover should only be removed by qualified service personnel.

● Do not place objects on top of the monitor cabinet, objects could fall into vents or cover them

and prevent proper cooling of the monitor's electronic devices.

● To avoid the risk of shock or permanent damage to the set, do not expose the monitor to rain

or excessive moisture.

● Do not use alcohol or ammonia-based liquid to clean the monitor. If necessary, clean with a

slightly damp cloth. Disconnect the monitor from the power supply before cleaning.

● When positioning the monitor, make sure the power plug and outlet are easily accessible.

Consult a service technician if the monitor does not operate normally when operating instructions of this manual are followed.

RETURN TO TOP OF THE PAGE

file:///D|/EDFU/crt_19_5/edoc/english/202F/SAFETY/SAFETY.HTM2005-04-21 ¤W¤È 09:40:33

About This Electronic User's Manual

About This Guide • Other Documents You May Need • Notational Descriptions

About This Guide

This electronic user's guide is intended for anyone who uses the Philips Color Monitor. It describes the monitor's features, setup, operation and all other information, which is the same exact information described in our printed version.

The sections are as follows:

● Safety and Troubleshooting Information provides tips and solutions for common problems,

and other related information you may need.

● About This Electronic User's Manual gives overview of what information are included as well

as notation icon descriptions and other documentation you can refer to.

● Product Information gives an overview of the monitor's features and as well as the technical

specifications for this monitor.

● Installing Your Monitor describes the initial setup process and gives an overview of how to

use the monitor.

● On Screen Display provides information on adjusting the settings on your monitor.

● Customer Care and Warranty is a list of worldwide Philips consumer information centers

along with the help desk phone numbers and information on the applicable warranty of your product..

● Glossary provides more information for technical terms.

● Download allows users to install the entire manual on their hard drive.

● Frequently Asked Questions provides answers to commonly asked questions.

RETURN TO TOP OF THE PAGE

202F Product Information

Product Information

Product Features • Technical Specifications • Automatic Power Saving • Physical Specification • Pin Assignment • Product Views

Product Features

Model Regulation Color 202F40 TCO'03 Gray

202F4:

● 22-inch (20.0" VIS) Real Flat color monitor with excellent front of screen performance for use with

MACs, PCs or Workstations

● Autoscan covers horizontal frequencies up to 115 kHz offering a maximum resolution of 2048 x 1536

with flicker free display of 1600 x 1200 at up to 90 Hz

● Flat aperture grille CRT with high-resolution 0.24 mm stripe pitch.

● Large screen display in a small footprint: World's shortest 22-inch Flat monitor with maximum depth of

only 466 mm/18.3"

● sRGB for true on screen color representation.

● FCC, CE (in selected countries only) and ISO9241, ISO14001 certified

RETURN TO TOP OF THE PAGE

Technical Specifications*

CRT

• Size and deflection

22 inch / 55.9 cm ; 90° deflection angle

• Dot pitch / Grille pitch 0.24 mm

• Horizontal pitch

• Tube type

Aperture grille, flat, high contrast, anti-glare, anti-static, anti reflection

• Phosphor B22

• Recommended display area 15.4" x 11.6" / 392 x 294 mm

• Maximum display area 16.0" x 12.0" / 406 x 305 mm

file:///D|/EDFU/crt_19_5/edoc/english/202F/PRODUCT/PRODUCT.HTM (1 of 5)2005-04-21 ¤W¤È 09:40:34

202F Product Information

SCANNING

• Horizontal scanning 30 - 115 KHz

• Vertical scanning 50 - 160 Hz

VIDEO

• Video dot rate 320 MHz

• Input impedance

- Video 75 ohm

- Sync 4.7 kOhm

• Input signal levels 0.7 Vpp

• Sync input signal

Separate sync Composite sync SOG

• Sync polarities Positive and negative

WHITE COLOR TEMPERATURE

Chromaticity CIE coordinates:

• at 9300 K degrees x = 0.283 / y = 0.297

• at 6500 K degrees x = 0.313 / y = 0.329

• at 5500 K degrees x = 0.332 / y = 0.347

sRGB

sRGB is a standard for ensuring correct exchange of colors between different devices (e.g. digital cameras, monitors, printers, scanners, etc.)

Using a standard unified color space, sRGB will help represent pictures taken by an sRGB compatible device correctly on your sRGB enabled Philips monitors. In that way, the colors are calibrated and you can rely on the correctness of the colors shown on your screen.

Important with the use of sRGB is that the brightness and contrast of your monitor is fixed to a predefined setting as well as the color gamut. Therefore it is important to select the sRGB setting in the monitor's OSD.

To do so, open the OSD by pressing the OK button on the front of your monitor. Use the down button to go to Color temperature and press OK again. Then move the down button to go to sRGB and press

file:///D|/EDFU/crt_19_5/edoc/english/202F/PRODUCT/PRODUCT.HTM (2 of 5)2005-04-21 ¤W¤È 09:40:34

202F Product Information

OK again.

Exit this OSD.

After this, please don't change the brightness or contrast setting of your monitor. If you change either of these, the monitor will exit the sRGB mode and go to a color temperature setting of 9300K.

For more information on sRGB, please visit:

www.srgb.com

* These information are subject to change without notice.

RETURN TO TOP OF THE PAGE

Automatic Power Saving

If you have VESA's DPMS compliance display card or software installed in your PC, the monitor can automatically reduce its power consumption when not in use. And if an input from a keyboard, mouse or other input device is detected, the monitor will automatically "wake up". The following table shows the power consumption and signaling of this automatic power saving features:

Power Management Definition

VESA's Mode Video H-sync V-sync Power Used

Power

Saving (%)

LED color

ON Active Yes Yes

Typical

130 W

0 % Green

OFF Blanked No No < 1W 99 % Yellow

This monitor is ENERGY STAR® compliant. As an ENERGY STAR® Partner, PHILIPS has determined that this product meets the

ENERGY STAR

guidelines for energy efficiency.

RETURN TO TOP OF THE PAGE

file:///D|/EDFU/crt_19_5/edoc/english/202F/PRODUCT/PRODUCT.HTM (3 of 5)2005-04-21 ¤W¤È 09:40:34

202F Product Information

Physical Specifications

• Dimensions

19.7" x 19.7" x 18.3" / 501 x 501 x 466 mm (including base)

19.7" x 18.1" x 18.3" / 501 x 461 x 466 mm (excluding base)

• Weight 29.8 kg

• Power supply 100-240VAC, 60-50Hz

• Temperature (operating)

0° to 35°C / 32° to 95°F

• Temperature (storage)

-25° to +65°C / -13° to +149°F

• Relative humidity 5% to 95%

* Resolution 1280 x 1024, standard size, contrast max., brightness 50%, 9300°, full white pattern.

* These information are subject to change without notice.

RETURN TO TOP OF THE PAGE

Pin Assignment

The 15-pin D-sub connector (male) of the signal cable (IBM systems):

No.

Assignment

No.

Assignment

file:///D|/EDFU/crt_19_5/edoc/english/202F/PRODUCT/PRODUCT.HTM (4 of 5)2005-04-21 ¤W¤È 09:40:34

202F Product Information

1 Red video input 9 +5V (PC) 2 Green video input&SOG 10 Logic ground

3 Blue video input 11

Identical output - connected to pin 10

12 Serial data line (SDA)

5 Ground 13 H. Sync / H+V 6 Red video ground 14 V. Sync (VCLK for DDC) 7 Green video ground 15 Data clock line (SCL) 8 Blue video ground

RETURN TO TOP OF THE PAGE

Views

Follow the links to see various views of the monitor and its components.

Front View

Rear View

RETURN TO TOP OF THE PAGE

file:///D|/EDFU/crt_19_5/edoc/english/202F/PRODUCT/PRODUCT.HTM (5 of 5)2005-04-21 ¤W¤È 09:40:34

Installing your Monitor

Front View • Rear View

Front View

Power button switches your monitor on.

OK button which when pressed will take you to the OSD controls

file:///D|/EDFU/crt_19_5/edoc/english/INSTALL_4/INSTALL.HTM (1 of 4)2005-04-21 ¤W¤È 09:40:35

Installing your Monitor

Contrast hotkey. When the UP arrow is pressed, the adjustment controls for the CONTRAST will show up.

UP and DOWN buttons are used when adjusting the OSD of your monitor

Brightness hotkey. When the RIGHT arrow is pressed ,the adjustment controls for BRIGHTNESS will show up.

LEFT and RIGHT buttons, like the UP and DOWN buttons, are also used in adjusting the OSD of your monitor.

By pressing both the UP and OK buttons, you can easily access the Input Signals A and/or B.

RETURN TO TOP OF THE PAGE

Rear View

file:///D|/EDFU/crt_19_5/edoc/english/INSTALL_4/INSTALL.HTM (2 of 4)2005-04-21 ¤W¤È 09:40:35

Installing your Monitor

1. D-Sub Port - Attach the D-Sub connector that comes with your monitor here.

Other end connects to your PC.

2. Power in - Attach power cable here.

file:///D|/EDFU/crt_19_5/edoc/english/INSTALL_4/INSTALL.HTM (3 of 4)2005-04-21 ¤W¤È 09:40:35

Installing your Monitor

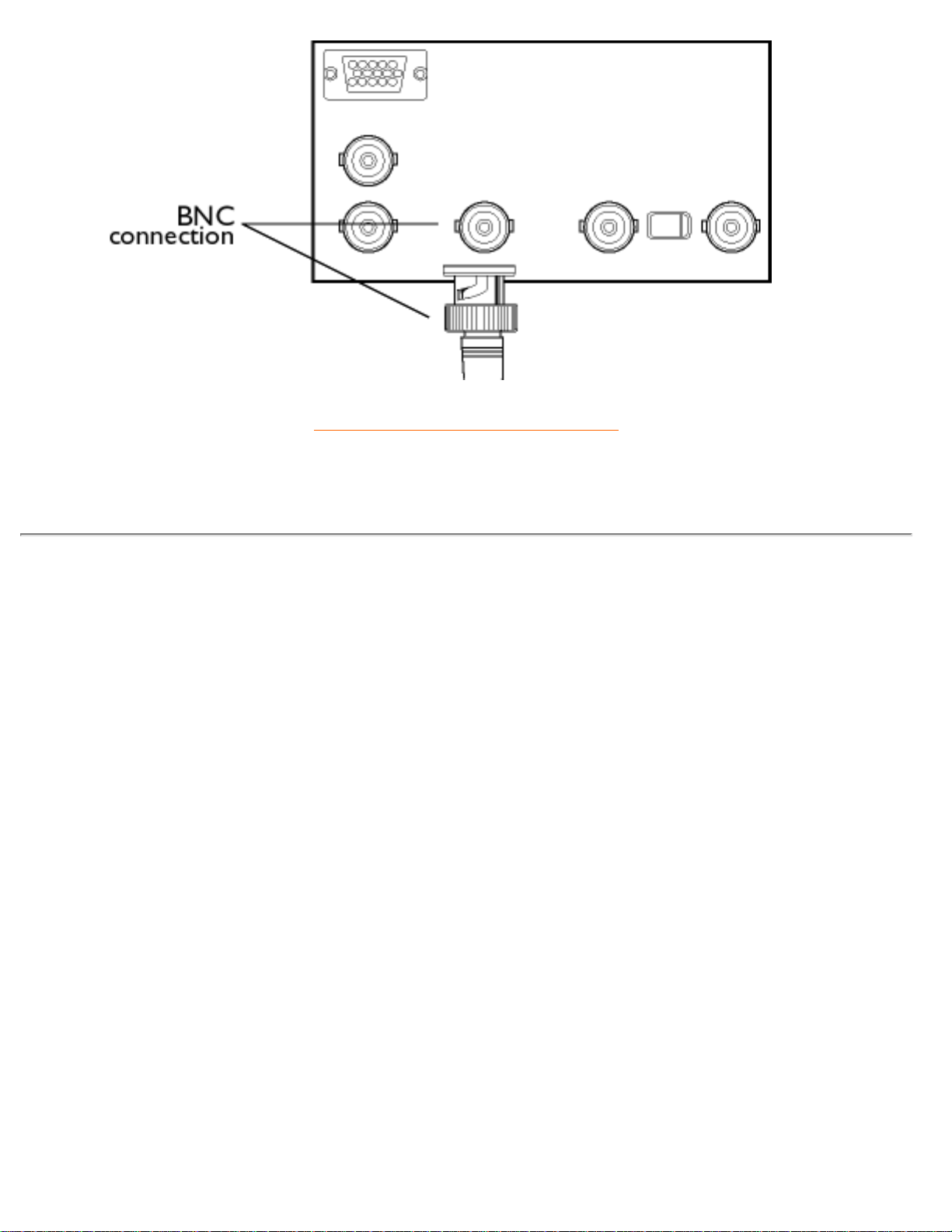

3. BNC Connectors - Attach the connectors here to get the best video

performance from your monitor.

RETURN TO TOP OF THE PAGE

file:///D|/EDFU/crt_19_5/edoc/english/INSTALL_4/INSTALL.HTM (4 of 4)2005-04-21 ¤W¤È 09:40:35

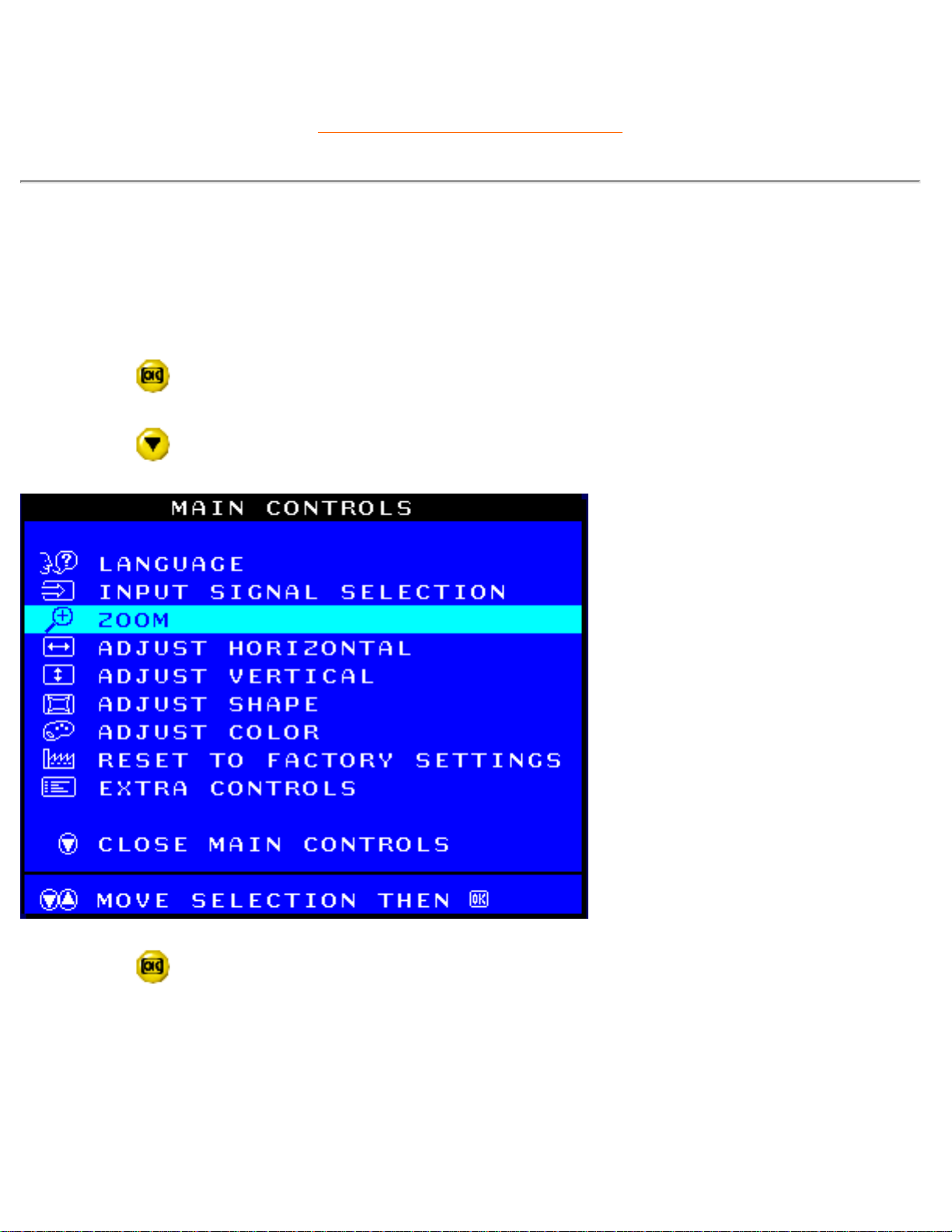

On-Screen Display

Description of the On-Screen Display • The OSD Tree • The OSD Controls

Description of the On Screen Display

What is the On-Screen Display?

This is a feature in all Philips monitors which allows an end-user to adjust screen performance of monitors directly though an on-screen instruction window. The user interface provides userfriendliness and ease-of-use when operating the monitor.

Basic and simple instruction on the control keys.

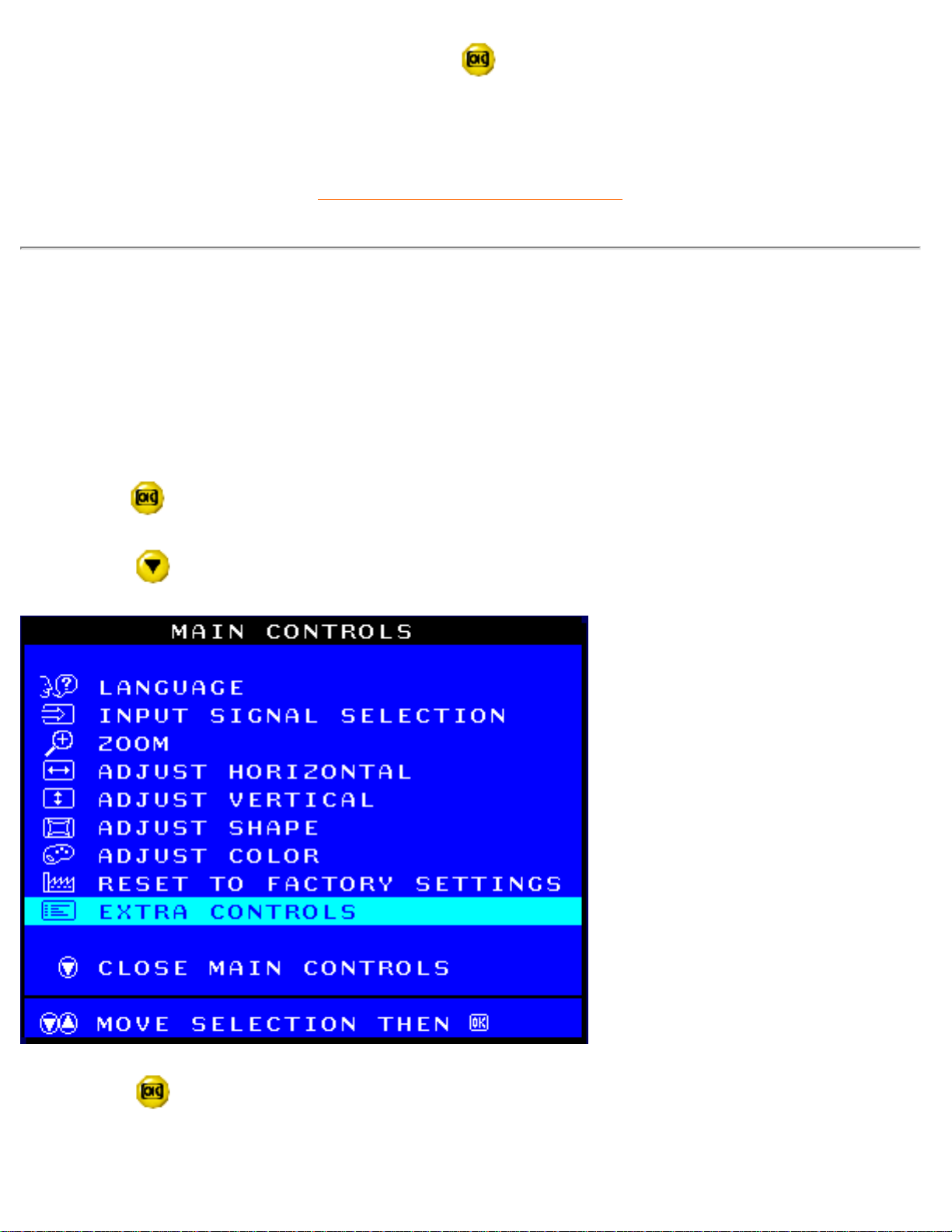

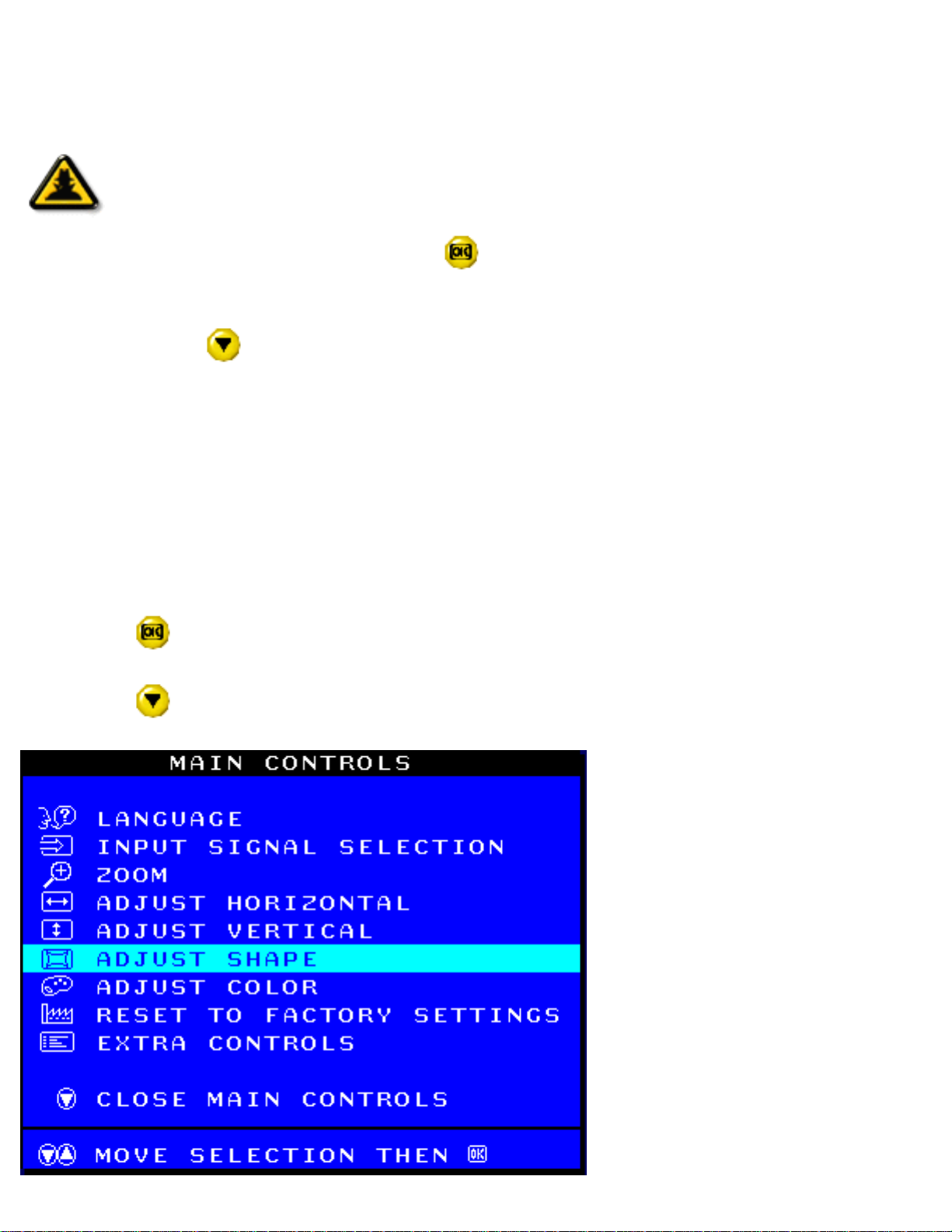

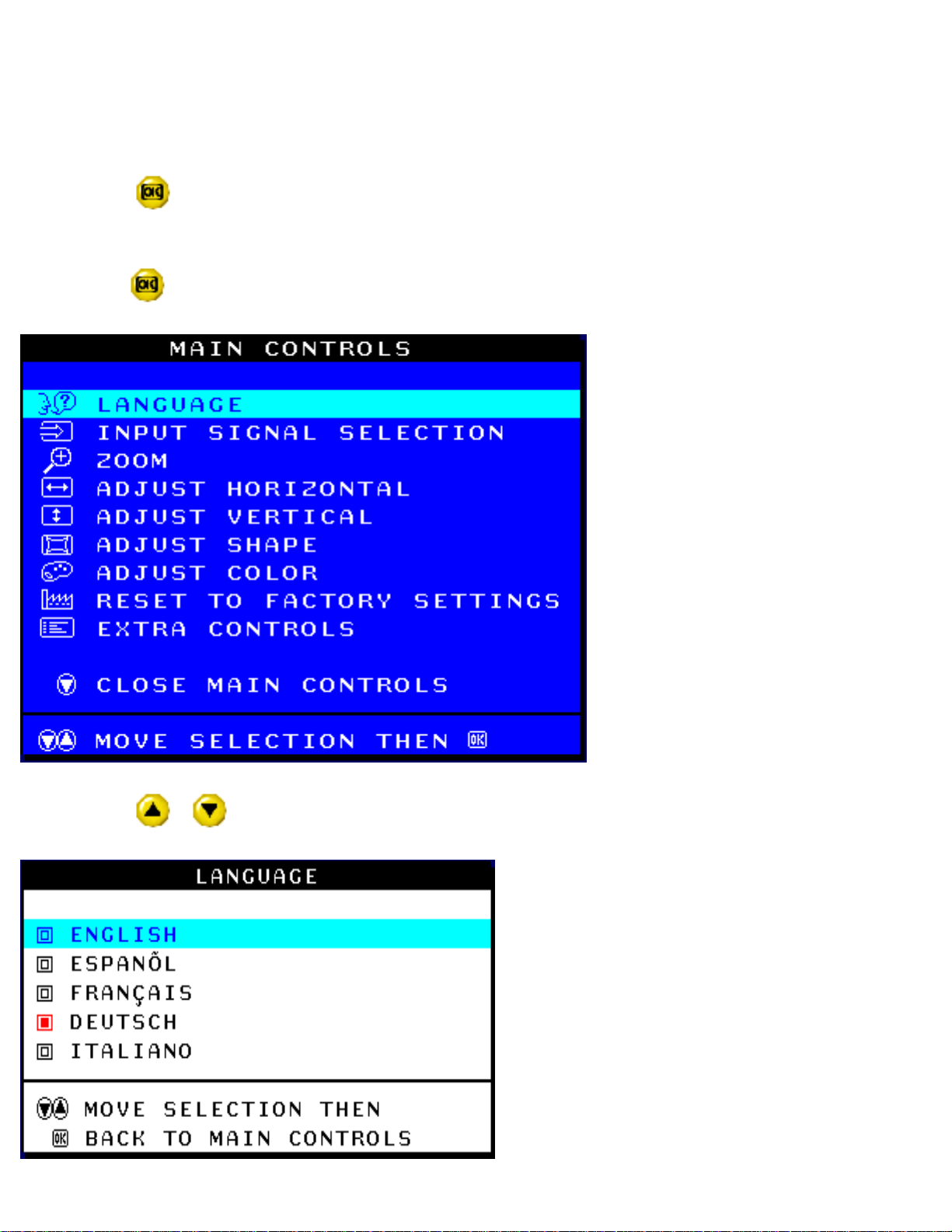

On the front controls of your monitor, once you press the

button, the On Screen Display (OSD)

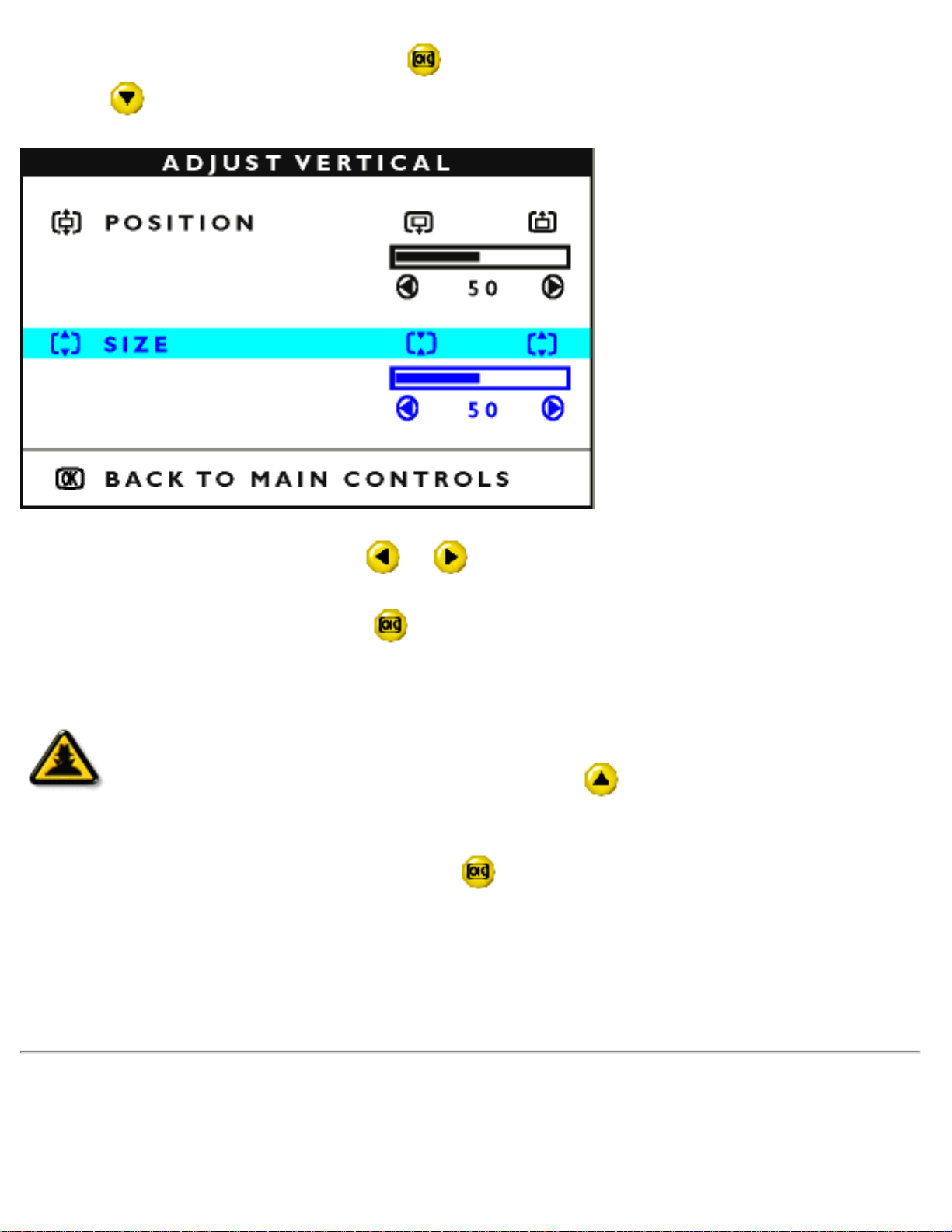

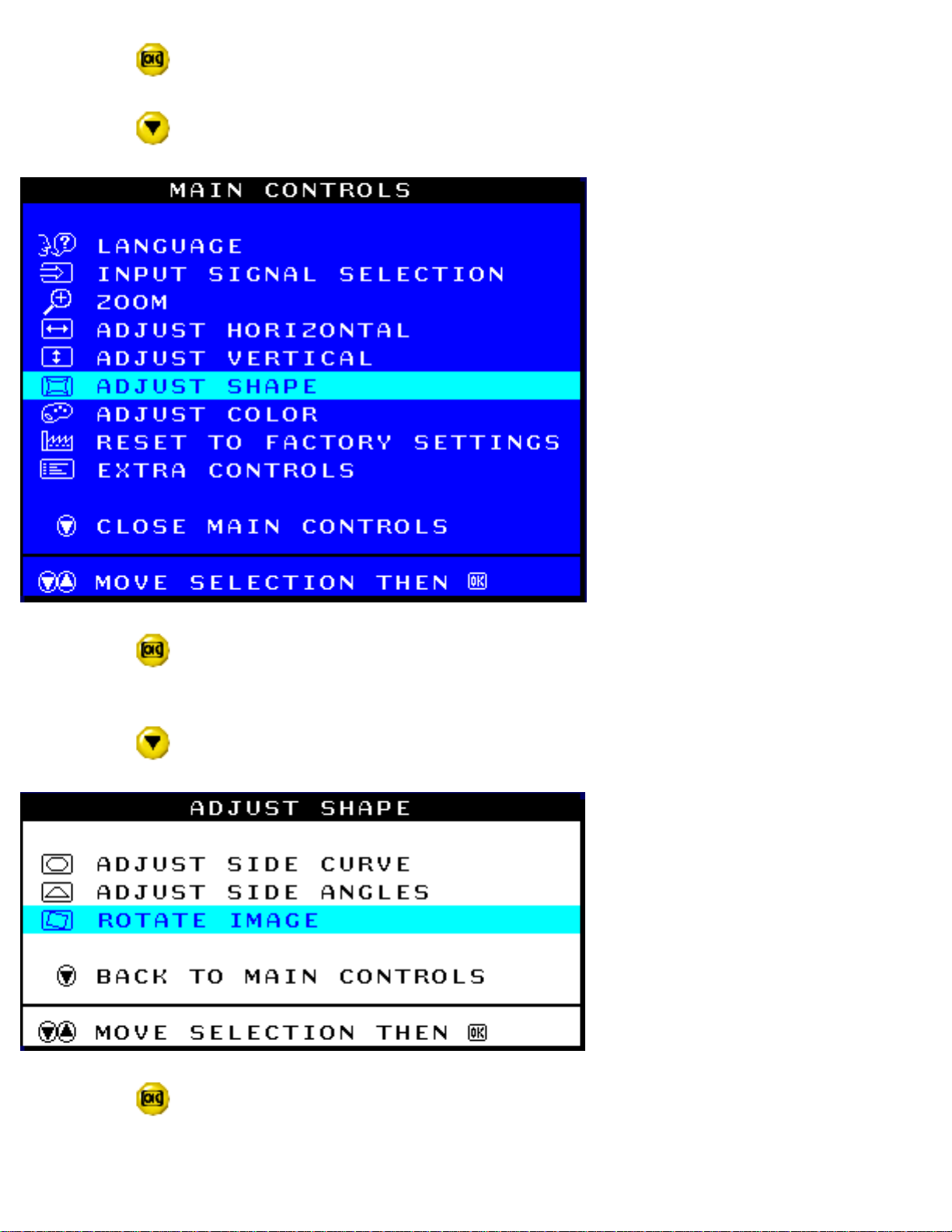

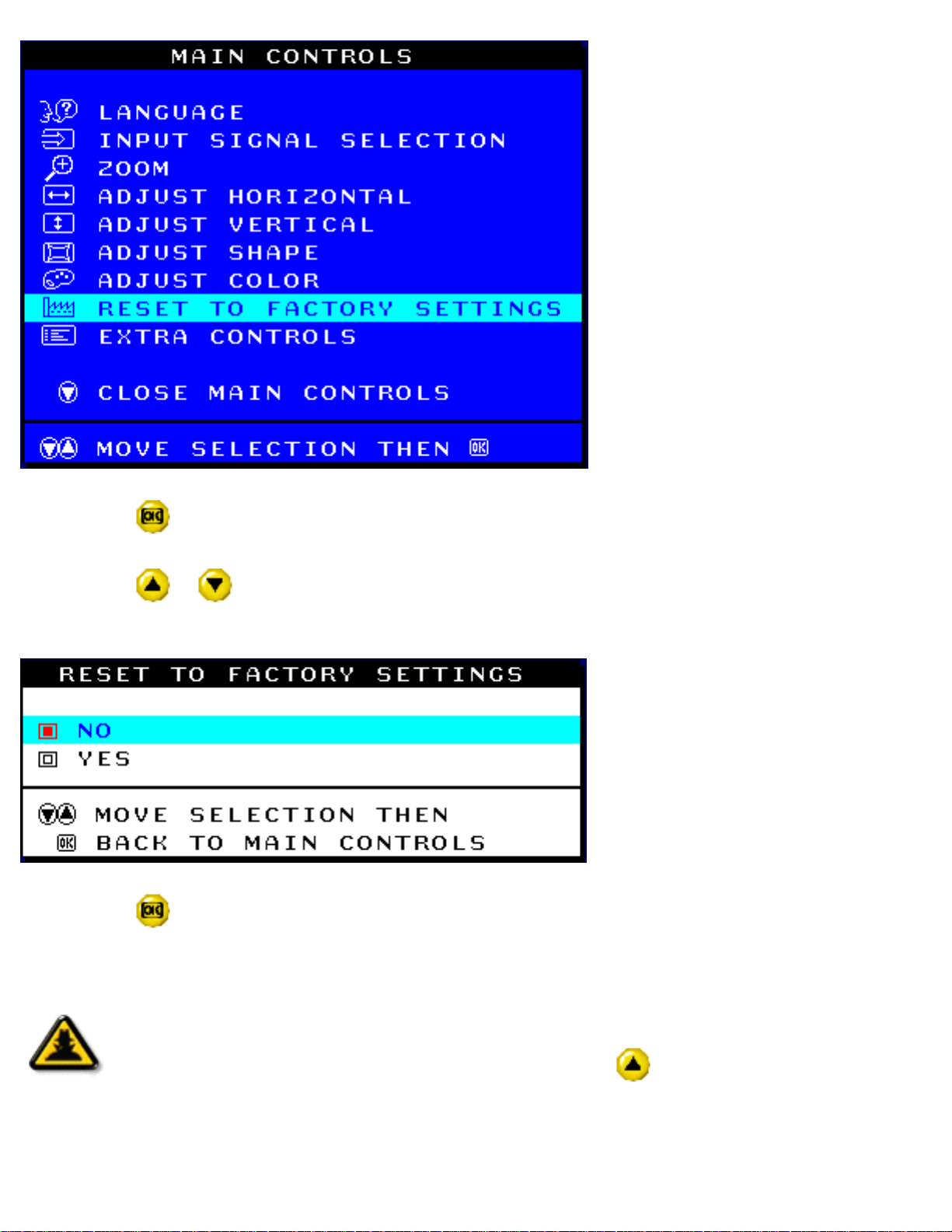

Main Controls window will pop up and you can now start making adjustments to your monitor's various features. Use the

or the keys to make your adjustments within.

file:///D|/EDFU/crt_19_5/edoc/english/OSD/OSDDESC.HTM (1 of 4)2005-04-21 ¤W¤È 09:40:35

On-Screen Display

RETURN TO TOP OF THE PAGE

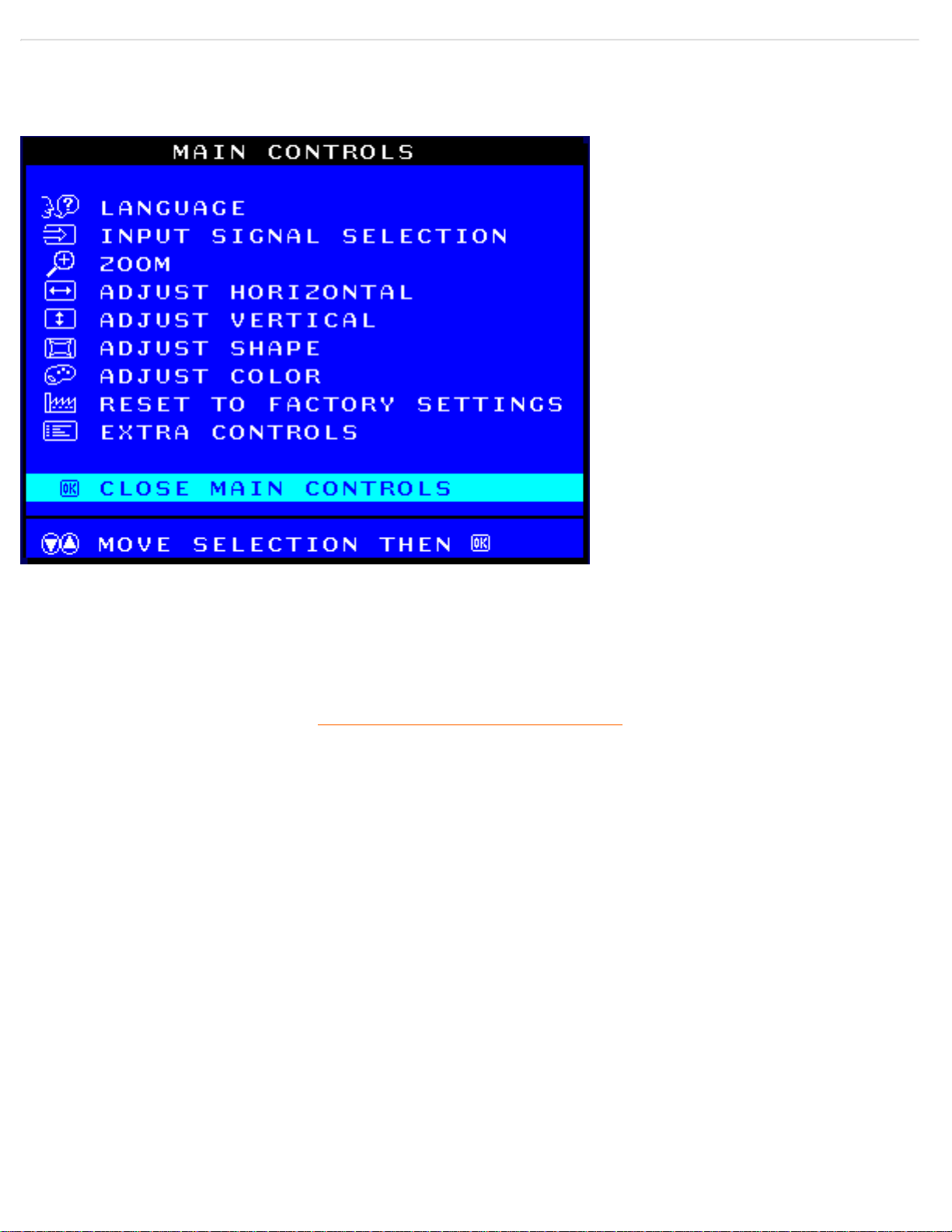

The OSD Tree

Below is an overall view of the structure of the On-Screen Display. You can use this as reference when you want to later on work your way around the different adjustments.

Your monitor may not include all the items in the OSD tree shown below.

file:///D|/EDFU/crt_19_5/edoc/english/OSD/OSDDESC.HTM (2 of 4)2005-04-21 ¤W¤È 09:40:35

On-Screen Display

file:///D|/EDFU/crt_19_5/edoc/english/OSD/OSDDESC.HTM (3 of 4)2005-04-21 ¤W¤È 09:40:35

On-Screen Display

RETURN TO TOP OF THE PAGE

file:///D|/EDFU/crt_19_5/edoc/english/OSD/OSDDESC.HTM (4 of 4)2005-04-21 ¤W¤È 09:40:35

Customer Care and Warranty

Customer Care & Warranty

PLEASE SELECT YOUR COUNTRY/AREA TO READ THE WARRANTY COVERED:

WESTERN EUROPE:

Austria • Belgium • Cyprus • Denmark • France • Germany • Greece • Finland • Ireland • Italy • Luxembourg • the Netherlands • Norway • Portugal • Sweden • Switzerland • Spain • United Kingdom

EASTERN EUROPE: Czech Republic • Hungary • Poland • Russia • Turkey • Bulgaria •

Slovakia • Slovenia

LATIN AMERICA: Antilles • Argentina • Brazil • Chile • Colombia • Mexico • Paraguay •

Peru • Uruguay • Venezuela

NORTH AMERICA: USA & Canada

PACIFIC: Australia • New Zealand

ASIA: Bangladesh • China • Hong Kong • India • Indonesia • Japan • Korea • Malaysia •

Pakistan • Philippines • Singapore • Taiwan • Thailand

AFRICA: Morocco • South Africa

MIDDLE EAST: Dubai • Egypt

file:///D|/EDFU/crt_19_5/edoc/english/WARRANTY/WARRANTY.HTM2005-04-21 ¤W¤È 09:40:36

Frequently Asked Questions

1. What does the "Designed for Windows" logo signify?

The "Designed for Windows" logo means your Philips monitor fulfills the requirements and recommendations of the PC9x (97, 98, or 99) System Design Guide and passes stringent WHQL tests.

2. What is USB?

Think of USB as a smart plug for PC peripherals. USB automatically determines resources (like driver software and bus bandwidth) required by peripherals. USB makes necessary resources available without user intervention. Its three main benefits are:

● USB eliminates "Case angst," the fear of removing the computer case to install circuit board

cards - that often require adjustment of complicated IRQ settings -- for add-on peripherals.

● USB does away with "port gridlock." Without USB, PCs are normally limited to one printer,

two Com port devices (usually a mouse and modem), one Enhanced Parallel Port add-on (scanner or video camera, for example) and a joystick. More and more peripherals for multimedia computers come on the market every day. With USB, up to 127 devices can run simultaneously on a computer.

● USB permits "hot plug-in." No need to shut down, plug in, reboot and run set up to install

peripherals. No need to go through the reverse process to unplug a device. Bottom line: USB transforms today's "Plug-and-Pray" into true Plug-and-Play!

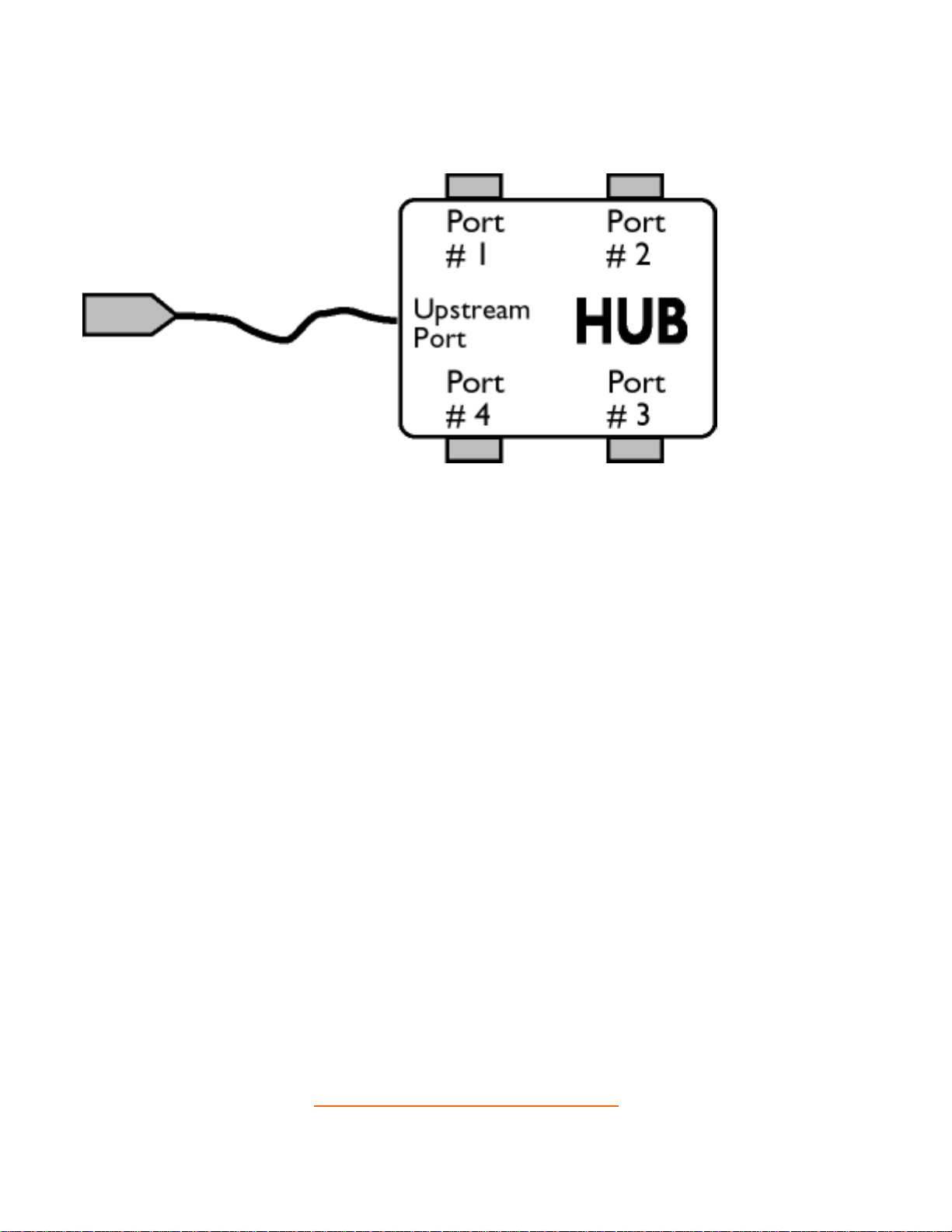

3. What is a USB hub? Think of USB hub as a extension of USB ports. Normally, the PC provides only one or two USB ports.

To connect additional USB devices, you need a USB hub.

4. What is Philips Monitors USB hub solution?

Increasingly, monitors include USB hub functionality. But not all users need or want a USB hub. To give users freedom of choice, Philips provides an optional USB hub (type number PCUH411). The USB hub consists of two parts that are normally connected: one is functional, the other aesthetic. The aesthetic element is a removable cover. With the cover removed, the USB hub can be attached to the base or pedestal of monitor. The attached USB hub can be rotated to any position around the monitor's base. With this innovative Philips solution, your USB hub is always within reach for convenient connection and disconnection of USB peripherals.

file:///D|/EDFU/crt_19_5/edoc/english/FAQ.HTM (1 of 14)2005-04-21 ¤W¤È 09:40:37

Frequently Asked Questions

6. What models are Mac compatible? All listed Philips monitors are Mac compatible. BUT, you may need an adapter to connect the monitor to

your Mac system. Please contact your dealer/reseller for details.

7. What is TCO?

TCO is a Swedish abbreviation for the Swedish Confederation of Professional Employees.

8. What is MPR? MPR is a Swedish abbreviation for the Swedish National Board of Measurement and Testing.

9. What are the differences between MPRII, TCO92, TCO95, TCO99 and TCO'03?

In the general hierarchy of standards, TCO'03/TCO99 is the highest level of certification. Next is TCO95, which is "better" than TCO92, which, in turn, is better than MPRII. Below, we compare the standards in each category.

-TCO 92 Phase out: June 30, 2000

-TCO 95 Will be end December 31, 2003

Emissions:

MPRII: Set low emission rules for visual displays. TCO92: Imposed more stringent standards than MPRII. TCO95: Further toughened TCO92 rules.

TCO99: Delineated even more severe standards and test procedures than TCO95. TCO'03: Same as TCO99 standard + Testing uncertainty.

Safety:

MPRII: No requirement. TCO92/95/99/03: All set requirements.

file:///D|/EDFU/crt_19_5/edoc/english/FAQ.HTM (2 of 14)2005-04-21 ¤W¤È 09:40:37

Frequently Asked Questions

Energy Saving:

MPRII: No requirement. TCO92: Standby mode < 30W, Off mode < 8W TCO95: Standby mode < 30W, Off mode < 8W TCO99: Standby mode < 15W, Off mode < 5W

TCO'03:Standby mode < 15W, Off mode < 5W

Visual Ergonomics:

MPRII: No requirement. TCO92: No requirement. TCO95: Set ergonomic rules including minimum contrast level, flicker and jitter. TCO99: Tightened TCO95 rules. TCO'03: Tighten TCO99 rule for CRT and new requirement of screen color for TFT LCD Monitors.

Ecology:

MPRII: No requirement. TCO92: No requirement. TCO95: Set general ecological standards including recycling preparation, environmental policy and environmental certification. TCO99: Further tightened TCO95 norms. TCO'03:Require the recycling information to users.

10. How do I enable the energy saving function?

Go to 'My Computer' and select 'Control Panel' followed by 'Monitor Control.' Select "All default selection' and choose your Philips monitor model from the default driver list. Plug and Play will automatically enable the EPA tick box for you. In DOS or Windows 3.1, you must first make sure your PC supports power saving.

11. What is refresh rate?

file:///D|/EDFU/crt_19_5/edoc/english/FAQ.HTM (3 of 14)2005-04-21 ¤W¤È 09:40:37

Frequently Asked Questions

"Refresh rate" describes the number of times an entire screen is vertically scanned each second. In other words: If a monitor's refresh rate is 85 Hz, its screen is refreshed - or vertically scanned - 85 times per second. A higher the refresh rate means better image stability and less flicker. A high refresh rate helps users who work long hours in front of a monitor avoid eye fatigue and stress. To change the refresh rate, go into "Start/Settings / Control Pannel / Display / Properties / Setting/Advance/Adaptor" Windows settings of the computer, the monitor will automatically adjust itself to the video card.

12. Why does the picture on the screen appear to flicker?

A low refresh rate or electrical interference typically causes flickering in the picture. Possible solutions include the following:

● Verify that the proper drivers are installed for your video card

● Make sure that all electrical devices (such as mobile phones) are at least 1m from the monitor

● Place the monitor in another physical location away from electrical interference

● Adjust the refresh rate to 75hz or higher.

13. How do I adjust my monitor's resolution?

Available resolutions are determined by the capabilities of your video card and graphic driver. Under Windows '95, you may select the desired available resolution through the 'Display properties/Settings' menu.

14. How can I adjust the size, position and rotation of my screen?

Depending on the model you own, you can use your CustoMax Software, On Screen Display (OSD) or control knobs located on the monitor.

15. What if I get lost when making monitor adjustments?

file:///D|/EDFU/crt_19_5/edoc/english/FAQ.HTM (4 of 14)2005-04-21 ¤W¤È 09:40:37

Frequently Asked Questions

Simply press OK button then select "Reset to factory settings" to restore all settings.

16. What is LightFrame



LightFrame is a Philips technology breakthrough which offers a unique and revolutionary solution for boosting a monitor 's brightness and sharpness. With LightFrame

, the user experiences TV quality performance for video or photos without deterioration to the monitor 's performance in windows used for other applications.

17. How does LightFrame



work?

LightFrame consists of a software application and an Integrated Circuit (IC) embedded in the monitor. Together, they boost brightness and sharpness in a user defined window or screen area. Unique

LightFrame

technology dramatically improves photo and video display quality.

18. Why is LightFrame



important to me?

With LightFrame, selected Philips monitors deliver TV quality video and photo display while maintaining monitor performance for text-based applications. The result is that movies and other video are brighter and livelier; photos are more vibrant and lifelike.

file:///D|/EDFU/crt_19_5/edoc/english/FAQ.HTM (5 of 14)2005-04-21 ¤W¤È 09:40:37

Frequently Asked Questions

19. Will anyone else have this?

LightFrame was invented, developed and patented by Philips. It is a unique feature that you will find exclusively in Philips monitors.

20. Will LightFrame



shorten the life of a monitor?

No. Extensive testing has confirmed LightFrame does not adversely affect monitor life. Today's stateof-the-art Philips monitors employ improved phosphors and are designed for high light output.

LightFrame



normally highlights photos and videos. Though the peak brightness of the highlighted area is strongly increased, the average brightness - a determining factor for cathode deterioration - is not normally increased. In any case, a special Automatic Beam Limiter (ABL) circuit keeps a monitor 's

maximum average brightness within acceptable levels.

21. I get a message warning that my monitor 'may not support LightFrame '. I am certain my monitor does. What is wrong?

Only a Philips driver can determine if your monitor is equipped with LightFrame; a generic Windows driver cannot. Install the special Philips driver that came with your monitor. If the warning continues to

flash after your Philips driver is installed, ignore the message. LightFrame

will function properly.

22. What will happen when my system is no longer connected to a LightFrame™ enabled monitor - for example, when I take my notebook on the road?

file:///D|/EDFU/crt_19_5/edoc/english/FAQ.HTM (6 of 14)2005-04-21 ¤W¤È 09:40:37

Frequently Asked Questions

Philips exclusive LightFrame feature requires the combined operation of hardware that resides in your monitor and software installed on your system. It only works when a monitor with built-in hardware

receives commands from system software. Without both the LightFrame

hardware equipped monitor

and system software, the LightFrame



does not function.

23. What is "XtraSpace Design" (XSD)?

XSD stands for XtraSpace Design, a Philips breakthrough that reduces a CRT display device's footprint. Philips XSD monitors combine the world's smallest front-to-back footprint with excellent front of screen performance.

24. How did Philips achieve XtraSpace Design?

Philips achieved this breakthrough in reduced footprint CRT display devices through short depth tubes and a focused design process that squeezed every excess millimeter out of XSD monitor desk space requirements.

25. What is Philips monitors' solution for audio?

Not all users need multimedia capabilities. To give users freedom of choice, Philips provides an optional Multimedia Base (type number: 6G3B10). The Multimedia Base replaces the easily removable standard

pedestal of the monitor.

file:///D|/EDFU/crt_19_5/edoc/english/FAQ.HTM (7 of 14)2005-04-21 ¤W¤È 09:40:37

Frequently Asked Questions

26. Which models can be incorporated with the Multimedia Base?

The following models can be incorporated with the Multimedia Base: 109B5, 109E5,109F5, 107B5, 107E5,107F5, 107S5, 107T5.

27. What are Philips Multimedia Base's specifications?

See detailed Multimedia Base specifications on the product information page.

28. Why is a Multimedia Base better than separate speakers?

The major advantage of the Multimedia Base is its minimal space requirements. In fact, it hardly uses any extra space at all: monitor depth and width are unchanged. Only the monitor's height is increased by only 3 centimeters.

29. Where can I buy a multimedia base to incorporate with my Philips monitor?

Please contact your dealer/reseller for details.

30. What does Auto Calibrate do?

It makes your monitor perform better and last longer. As a monitor becomes older, brightness gradually deteriorates and its colors change. This well-known process effects all monitors. Eventually after a

file:///D|/EDFU/crt_19_5/edoc/english/FAQ.HTM (8 of 14)2005-04-21 ¤W¤È 09:40:37

Frequently Asked Questions

number of years, the monitor's brightness deteriorates to below 50% of its original value. At this stage, the usable life of a monitor is considered ended. Auto Calibrate regularly readjusts color temperature and luminance to their original values.

31. How does Philips Auto Calibrate feature benefit me?

With Auto Calibrate, it takes a monitor's luminance 33 percent longer to deteriorate to the 50 percent level that marks the end of a display device's useful life. Thanks to Auto Calibrate, a monitor with a normal life of 10,000 hours, for example, would last for 13,300 hours, a full one third longer.

32. How does Auto Calibrate work?

During the calibration process, different predefined black and white images are displayed on thescreen. The beam currents of the red, green and blue cannon are accurately measured and compared to the original values stored in the monitor. By readjusting gain values of the individual cannons, deviation is reduced to zero. Default values are stored during production. If the user sets a new color temperature, this new value is saved as the new default value.

33. When should calibration be performed?

The calibration process takes less than six seconds. During this period, different specific images are displayed. After the process is finalized, the original image is redisplayed. Constant re-calibration is not required. Calibration should be performed after the monitor is warmed up. Auto Calibration takes place

when a monitor receives a signal indicating an imminent switch to its sleep mode/stand-by mode.

34. Which models of Philips monitors are equipped with Auto Calibrate feature?

file:///D|/EDFU/crt_19_5/edoc/english/FAQ.HTM (9 of 14)2005-04-21 ¤W¤È 09:40:37

Frequently Asked Questions

Auto Calibrate is currently available in the new 201P, 201B and 109P.

35. The Main Menu displays OSD MAIN MENU LOCKED . Pressing the front control panels hasno effect. How can I unlock this function?

Press and hold the OSD menu key for about 10 seconds until picture displays "OSD MAIN MENU UNLOCKED"

36. My screen shows NO SYNC INPUT , how can I get rid of this?

Check the following for possible solutions:

● Bent pins on the video cable

● Make sure the computer is turned on

● Ensure the VGA Cable is properly connected

● Ensure the BNC/D-Sub connector on the rear of the monitor is in the correct position, newer

models have this option in the On Screen Display under Input Signal Selection.

● Video card may be not a VESA standard (try the monitor with another computer)

37. Why does my monitor display "Out of Range"?

The video card installed in your computer may be too high for the monitor 's specifications. Please contact your computer manufacturer for details on how to lower resolution for your operating system.

38. What is Moire? Why does my monitor have this wavy phenomenon?

Moire is a natural effect or phenomenon of CRT that has the appearance of a wavy pattern, which is repetitive and superimposed on the screen as ripple images. These are a few suggestions to help reduce or minimize the effects:

file:///D|/EDFU/crt_19_5/edoc/english/FAQ.HTM (10 of 14)2005-04-21 ¤W¤È 09:40:37

Frequently Asked Questions

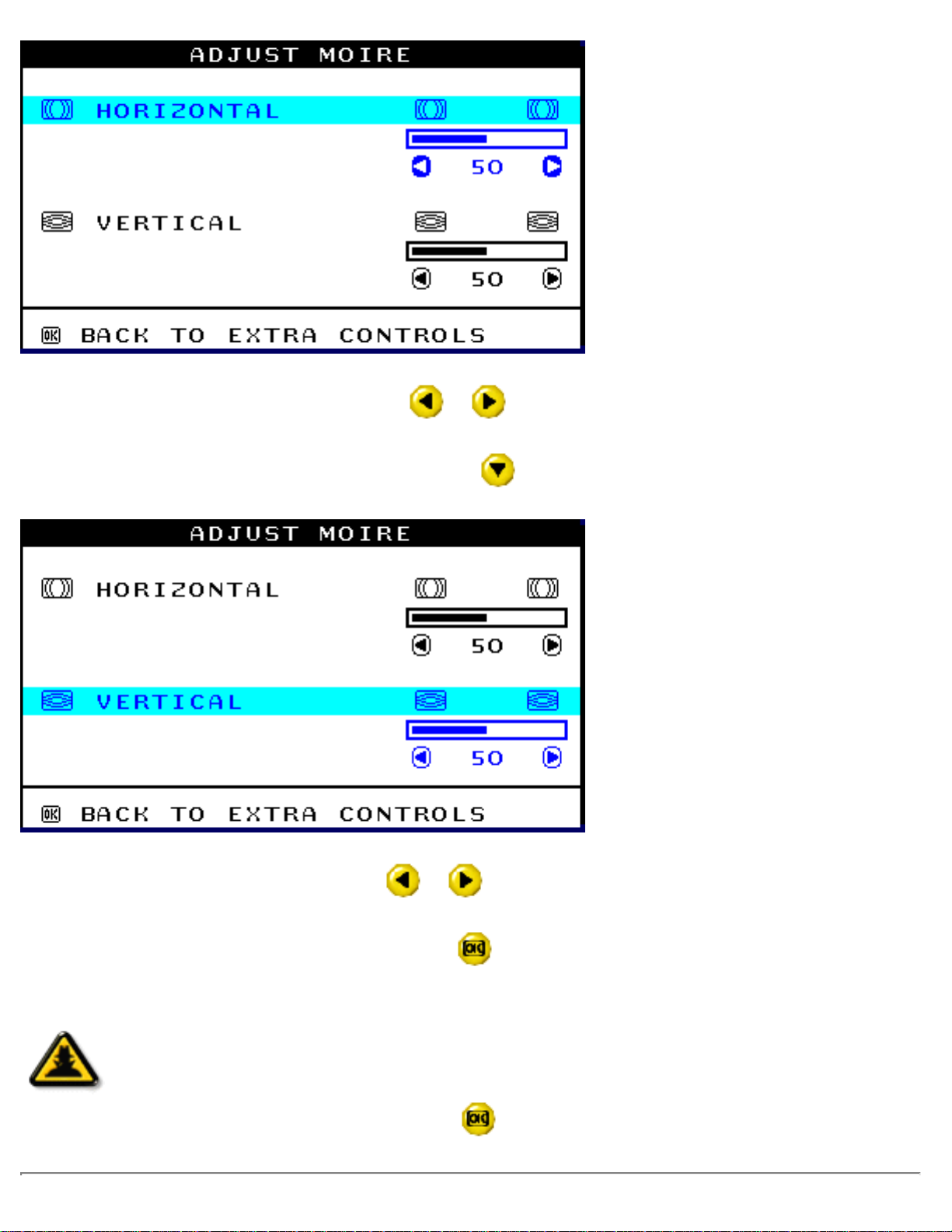

● Some monitors have a Moire cancellation feature, activate it to the on position or adjust the

Moire cancellation function via the OSD on the monitor.

● Change resolution to the recommended standard for the specific monitor size.

● Change Window viewing pattern/scheme to a pattern where the Moire is less visible.

● Change horizontal and vertical size to optimize the reduction of the Moire effect.

39. What is CustoMax?

CustoMax is proprietary Philips software that allows user to control parameter (e.g. Size, Color, Geometry) in place of the buttons on the front of the monitor. To install and run the CustoMax software,

you must have a USB compatible system and have a USB connection at the rear of your monitor.

40. My monitor appears to be missing one or more colors. How do I correct this?

● If the OSD menu is also missing a color, please contact service for details

● Set color temperature to 9300 color coordination

● Check the video cable for any bent pins

● Video card could be defective (try the monitor with another computer).

41. When I degauss my monitor, it makes a loud noise. Is this normal?

Yes, when degaussing your monitor via the OSD, it is normal for the monitor to make a relatively loud noise. Please be aware that many models will not degauss more than once within any given time period (up to 10 minutes). This is due to the unit having a temperature sensitive resistor. While the unit is degaussing, the resistor increases in value with heat and once it reaches a certain temperature, the resistance will rise and prevent voltage from reaching the degaussing coil. This is what stops the degausser, and this device's resistance will decrease as it cools back off, enabling the degauss function to operate again. This is an intentional design and is an industry standard, not just for Philips monitors. Please be aware that not all models in the Philips range has this manual degauss function. Some models are built with an auto degauss feature which automatically degausses the monitor when it is switched on.

file:///D|/EDFU/crt_19_5/edoc/english/FAQ.HTM (11 of 14)2005-04-21 ¤W¤È 09:40:37

Frequently Asked Questions

42. How do I adjust the picture on the screen?

Please perform the following to correct the picture image:

● Reset your monitor via the OSD menu

● Adjust the Horz (width) and/or Vert size (height) in the OSD

● Change monitor timing to work at the recommended resolution

43. The edge of the picture on the screen appears to be distorted. How can I correct this?

Please perform the following to correct the picture image:

● A magnetic or electrical interference typically causes poor geometry in the picture. Place the

monitor in a different physical location

● Reset the monitor to the factory preset via the OSD menu

● Access the Geometry Menu in the OSD of the Monitor and perform the necessary adjustments

● Change the monitor timing to the recommended resolution

44. The picture appears too dim. How can I correct this?

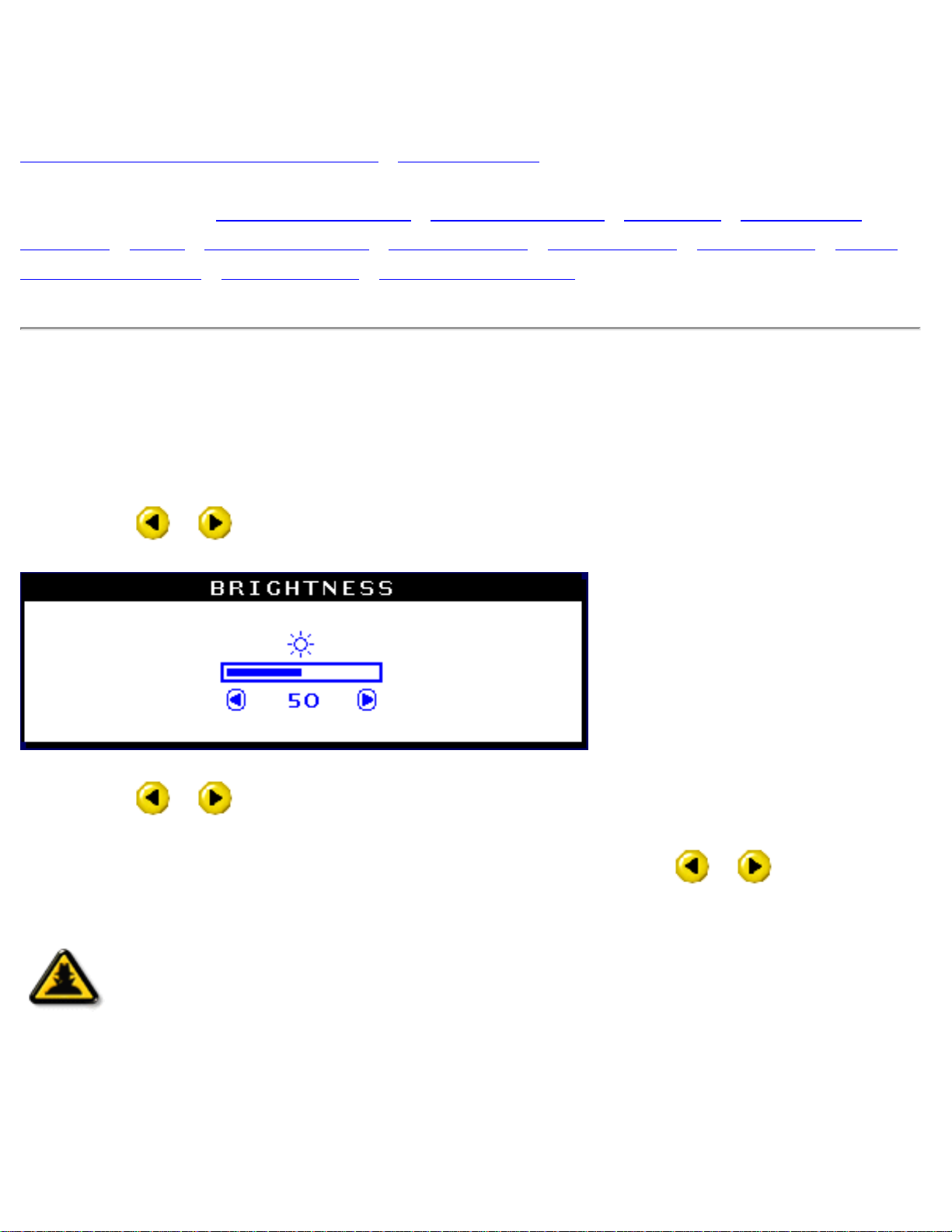

Adjust Brightness and/or Contrast via the monitor 's OSD. Some models have a Video Input Select

under Advanced Controls in the monitor 's OSD. Most computers require it to be set at 0.7V.

Please review the following for possible solutions:

● If the OSD menu is also dim, please contact service for repair

● Reset the monitor via the OSD menu

● Change the color temperature settings to 9300 color coordination via the OSD menu

● Set the Contrast to maximum level (100) and Brightness to middle level (50)

Video card could be defective (try the monitor with another computer)

file:///D|/EDFU/crt_19_5/edoc/english/FAQ.HTM (12 of 14)2005-04-21 ¤W¤È 09:40:37

Frequently Asked Questions

45. I have noticed two thin horizontal lines on the screen of my Philips monitor. Is this normal?

This phenomenon can occur with Philips 107P, 109P and 201P monitors and is normal. Your monitor is using an Aperture Grille, which consists of fine vertical wires to align the electron beams with the phosphors on the screen. To prevent these vertical wires from vibrating and to keep them properly aligned with the picture tube, two horizontal damper wires are required. These are located on one-third and on two-third from the top of the screen. The result is that you will see two very thin horizontal lines over your screen since the two wires are casting a slight shadow on the screen surface. You will find these wires (line) in any monitor from Philips and other brands using the Aperture Grille technology.

46. How can I increase the color display of my monitor?

The amount of video memory your video card holds determines the amount of colors that can be displayed on your computer screen. To get the most out of your video card, you will need to either install the latest drivers onto your computer or upgrade the video cards memory. Please check with your computer or video card manufacturer for further details.

47. Why is there no picture on my monitor?

● Check the wall socket for power. Verify that there is power by connecting another product.

● Ensure the power cable is correctly attached to both the wall socket and the monitor.

● Check that the power button is switched on.

● Unplug the monitor for approx. 1 minute and plug it in again. Switch the monitor back on.

48. Why is there no picture on my monitor even though the power LED is yellow/amber or flashing green?

● Reboot your computer while holding the Ctrl key on your computer. If you see any picture during

the boot procedure, please verify the settings of your video card (for Windows go to Control Panel and select Display).

● Check that the video cable is not damaged, bent or that any of the pins in the connector are

damaged (please be aware that some VGA connectors have one missing pin). If damaged, replace with a new cable.

● Check that the cable is attached correctly to the computer.

● Press any key on the keyboard to wake-up the computer from power saving mode.

file:///D|/EDFU/crt_19_5/edoc/english/FAQ.HTM (13 of 14)2005-04-21 ¤W¤È 09:40:37

Frequently Asked Questions

49. Why is there no picture on my monitor even though the power LED is green?

● Verify the Contrast and Brightness setting of the monitor. First press and hold the 5 (-) button to

increase Contrast and then press and hold the

4 (+) button to increase Brightness. These

buttons are located on the front of your monitor.

● Press both the 5(-) button and the OK button at the same time to switch input A|B.

● Try and repeat step 48 above.

50. Why does the picture disappear after I press the on/off button quickly?

This is a unique Philips feature designed to preserve the life of your monitor. Please allow 5 seconds between powering off and on your monitor, your picture will then be restored.

file:///D|/EDFU/crt_19_5/edoc/english/FAQ.HTM (14 of 14)2005-04-21 ¤W¤È 09:40:37

Glossary

A B C D E F G H I J K L M N O P Q R S T U V W X Y Z

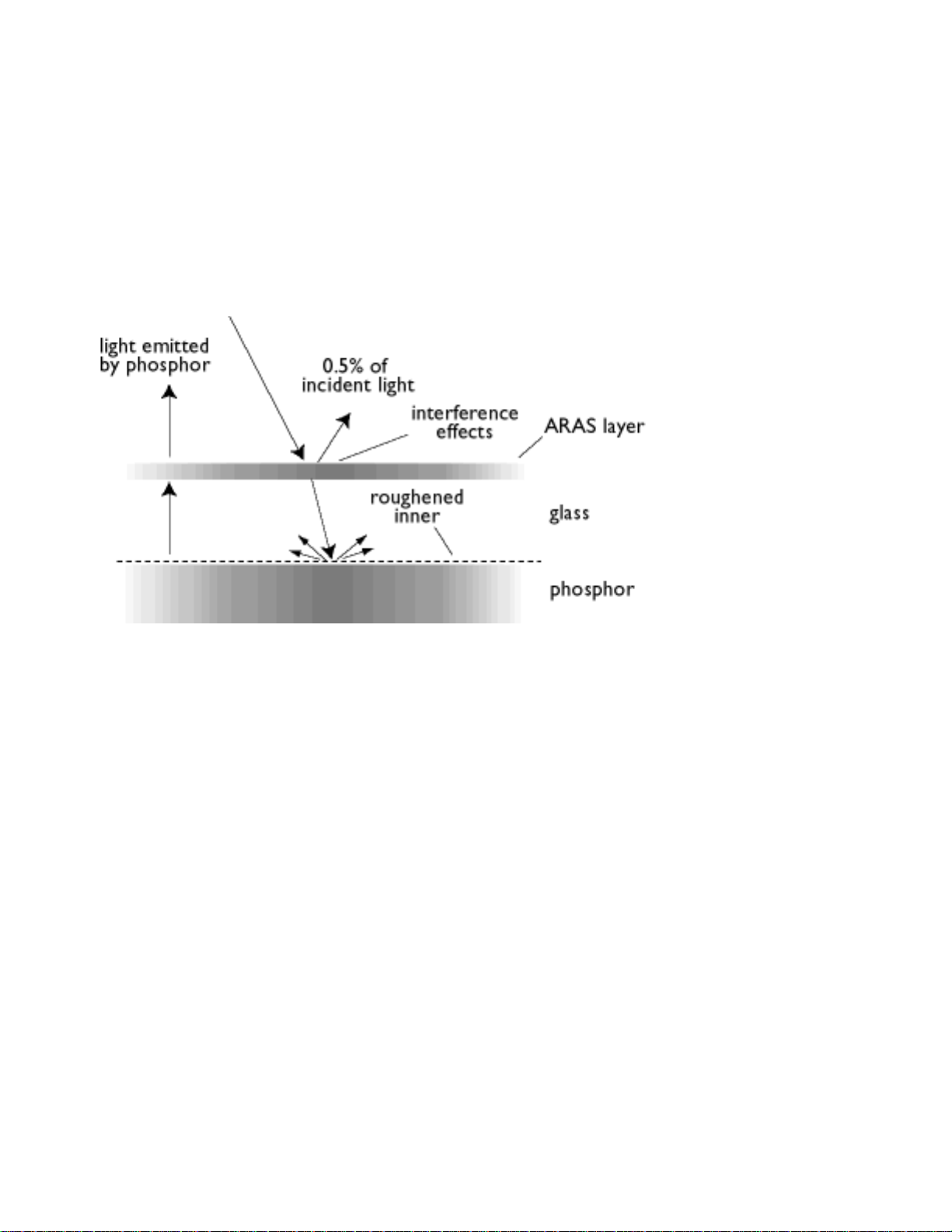

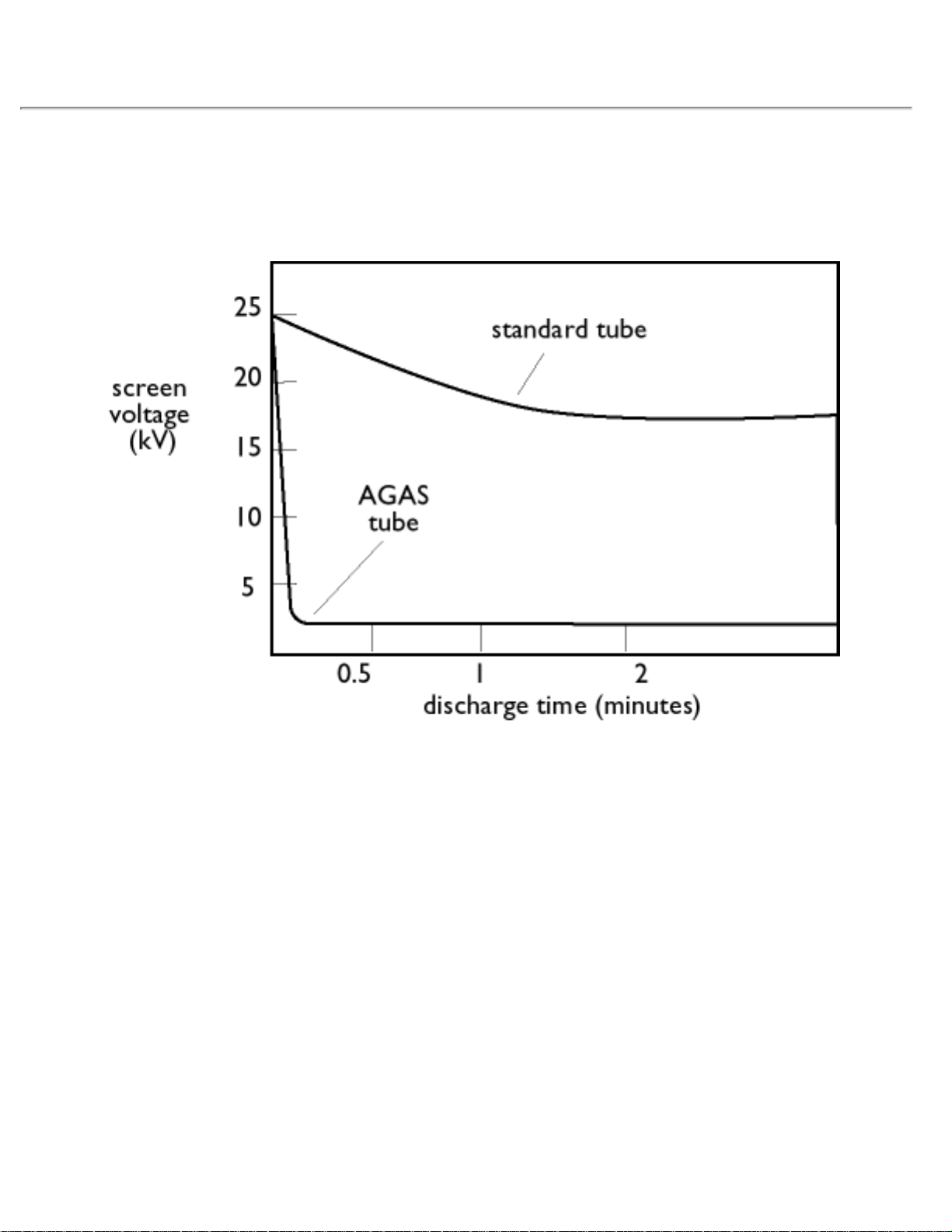

Autoscan

A microprocessor-based feature of Philips Brilliance monitors is able to detect automatically horizontal and vertical frequencies of input signals with those of the installed video card. An autoscan monitor can thus operate with a wide range of video cards. MultiSync, a registered trademark of NEC, provides a similar function.

RETURN TO TOP OF THE PAGE

Balanced pincushion

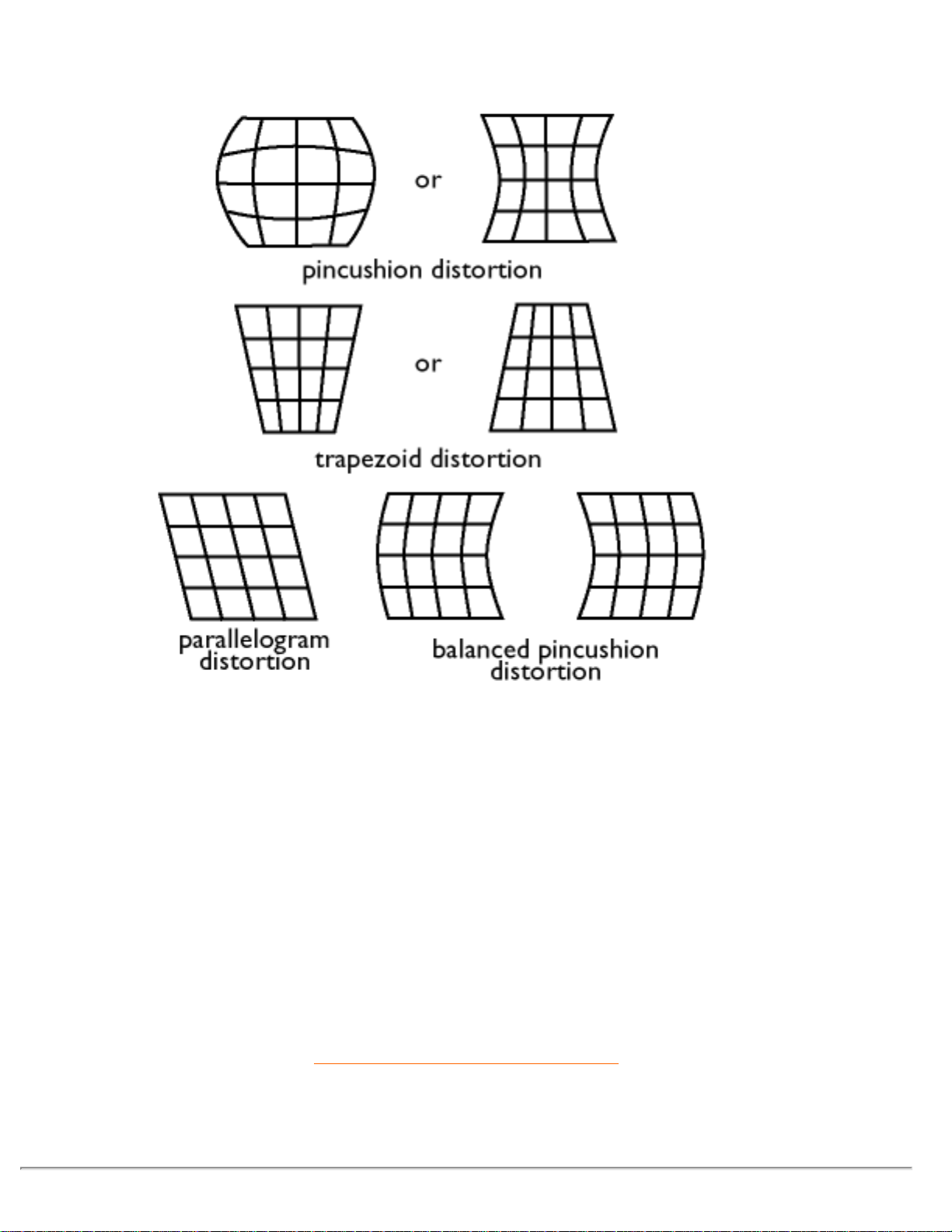

See Geometric distortion

BNC connection

A special construction of connector used in some monitors with higher horizontal scanning frequency. The BNC connection can provide the optimum shielding and matching characteristic impedance of video signal path to ensure the best video performance.

file:///D|/EDFU/crt_19_5/edoc/english/GLOSSARY/GLOSSARY.HTM (1 of 22)2005-04-21 ¤W¤È 09:40:39

Glossary

RETURN TO TOP OF THE PAGE

CE Mark

CE mark is displayed on products per EMC and LV ( low Voltage Device ) directives in compliance with European Community safety, EMI and EMS requirements and is compulsory on products for sale in the European Community.

Color temperature

A way of describing the color of a radiating source in terms of the temperature (in degrees Kelvin) of a black body radiating with the same dominant frequency as the source.

Most Philips monitors offer the possibility of setting the color temperature to any desired value.

Contrast

The ratio between the brightness of the brightest and darkest parts of a picture. The darkest part of

file:///D|/EDFU/crt_19_5/edoc/english/GLOSSARY/GLOSSARY.HTM (2 of 22)2005-04-21 ¤W¤È 09:40:39

Glossary

a picture is set by the brightness of the unexcited phosphor, which is governed by the degree with which ambient light is reflected. Contrast is therefore reduced in conditions of high ambient light levels. Black Matrix tubes reflect less ambient light so exhibit higher contrast than other tubes.

Convergence error

Bean misalignment causing one or more of the three beams passing through the wrong aperture in the shadow mask and striking a phosphor dot in the wrong triad.

Convergence error is expressed in mm often at three well-defined points on the screen, designated A, B and C (see figure ). Also known as misconvergence.

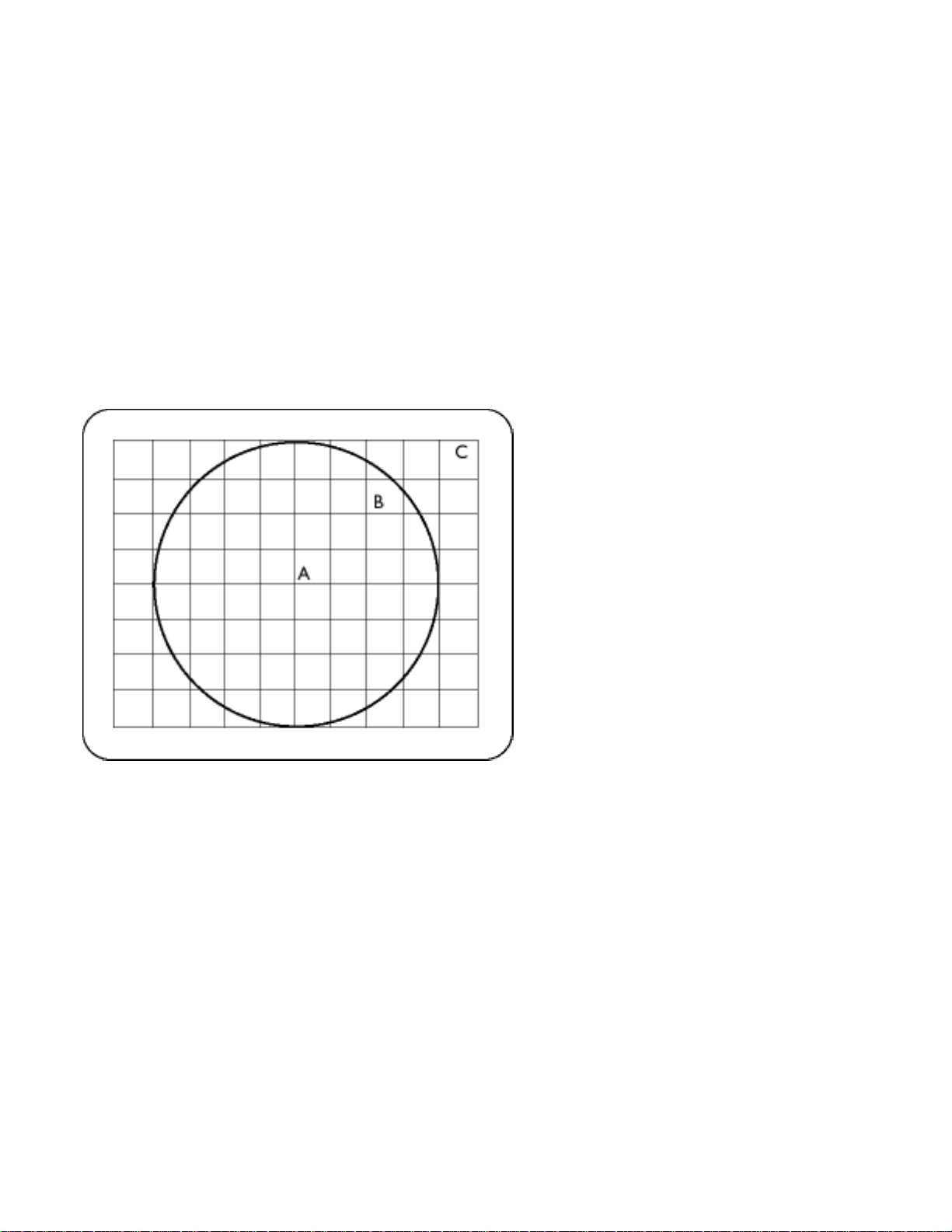

Points where convergence error is specified

Convergence-error correction

A method of correcting for convergence error to insure that all three beams land simultaneously in the same triad. This is usually accomplished by means of special convergence-error correction coils in the deflection yoke.

CRT

file:///D|/EDFU/crt_19_5/edoc/english/GLOSSARY/GLOSSARY.HTM (3 of 22)2005-04-21 ¤W¤È 09:40:39

Glossary

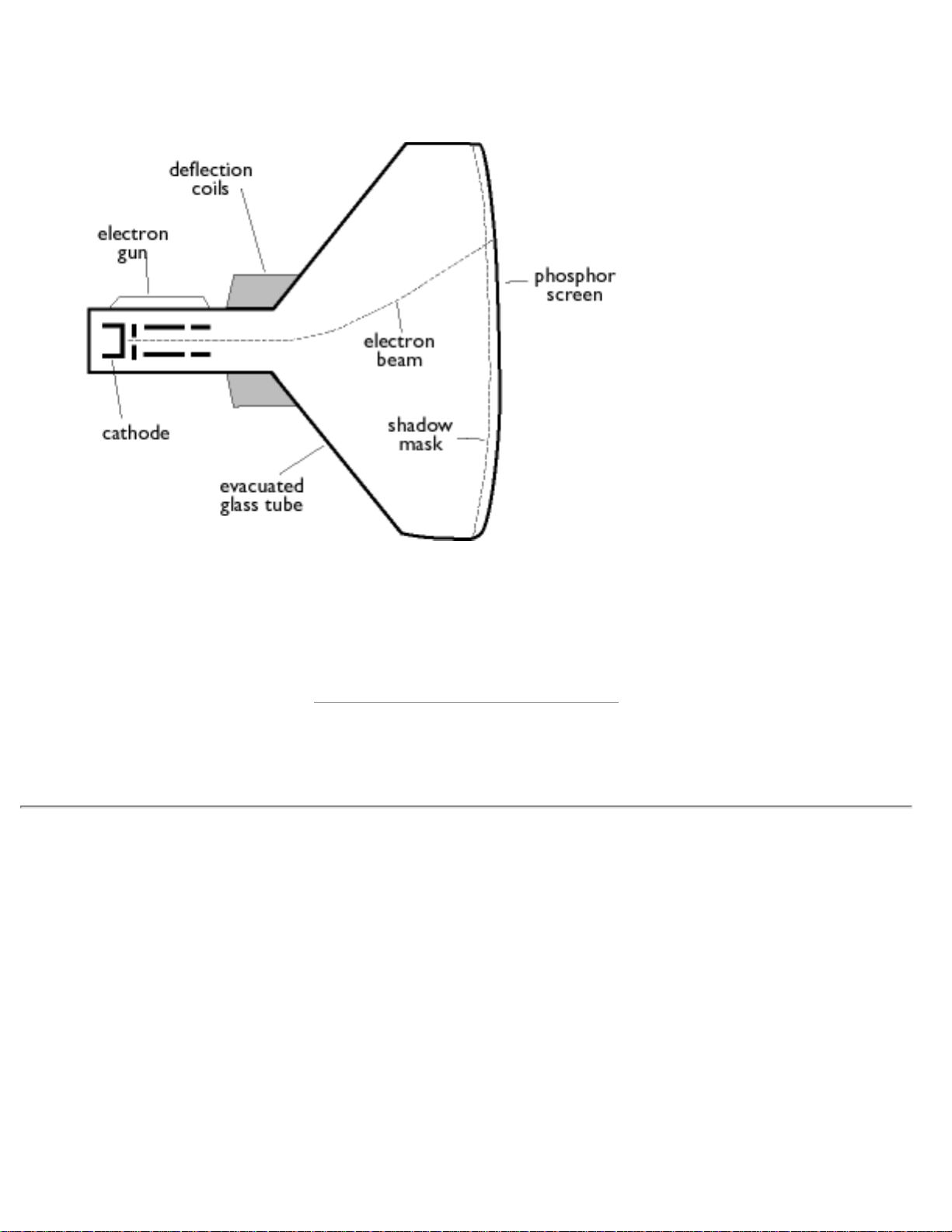

Cathode-ray tube - the general term for all tubes in which one or more electron beams emitted by a cathode are periodically scanned across a phosphor screen by means of deflection circuitry. A special form of the cathode-ray tube is the TV and monitor picture tube.

RETURN TO TOP OF THE PAGE

DDC (Display Data Channel)

DDC is a communication channel for displays and computers. The DDC feature allows the monitor controller to be automatically configured to make optimal use of the display without manual user interaction. DDC is implemented as part of the new Plug & Play approach introduced into the PC market to increase user friendliness.

The three levels developed for Plug & play are: (1) DDC1, monitor send data to the PC; (2) DDC2B, PC can request information from monitor; and (3) DDC2Bi which is a two-way communication monitor can be addressed and PC or graphics board can give commands to monitor.

file:///D|/EDFU/crt_19_5/edoc/english/GLOSSARY/GLOSSARY.HTM (4 of 22)2005-04-21 ¤W¤È 09:40:39

Glossary

DDC 1/2B

See DDC.

DDC 2Bi

See DDC.

Degaussing

The procedure of demagnetizing the shadow mask and associated metal parts of a picture tube at switch-on to minimize picture distortion. This is usually accomplished by means of a special degaussing coil through which a decaying alternating current is passed to generate an alternating magnetic field that gradually decays to demagnetize the tube. Some monitors offer a manual degaussing facility that can be activated at any time.

Digital control

Microprocessor-based digital control of picture parameters and video modes for complete control of picture settings and modes and instant recall of all settings at the push of a button. This is a very advanced feature that allows the user to switch to any required mode at any instant without having to spend time readjusting the picture. It is currently available in most Philips monitors.

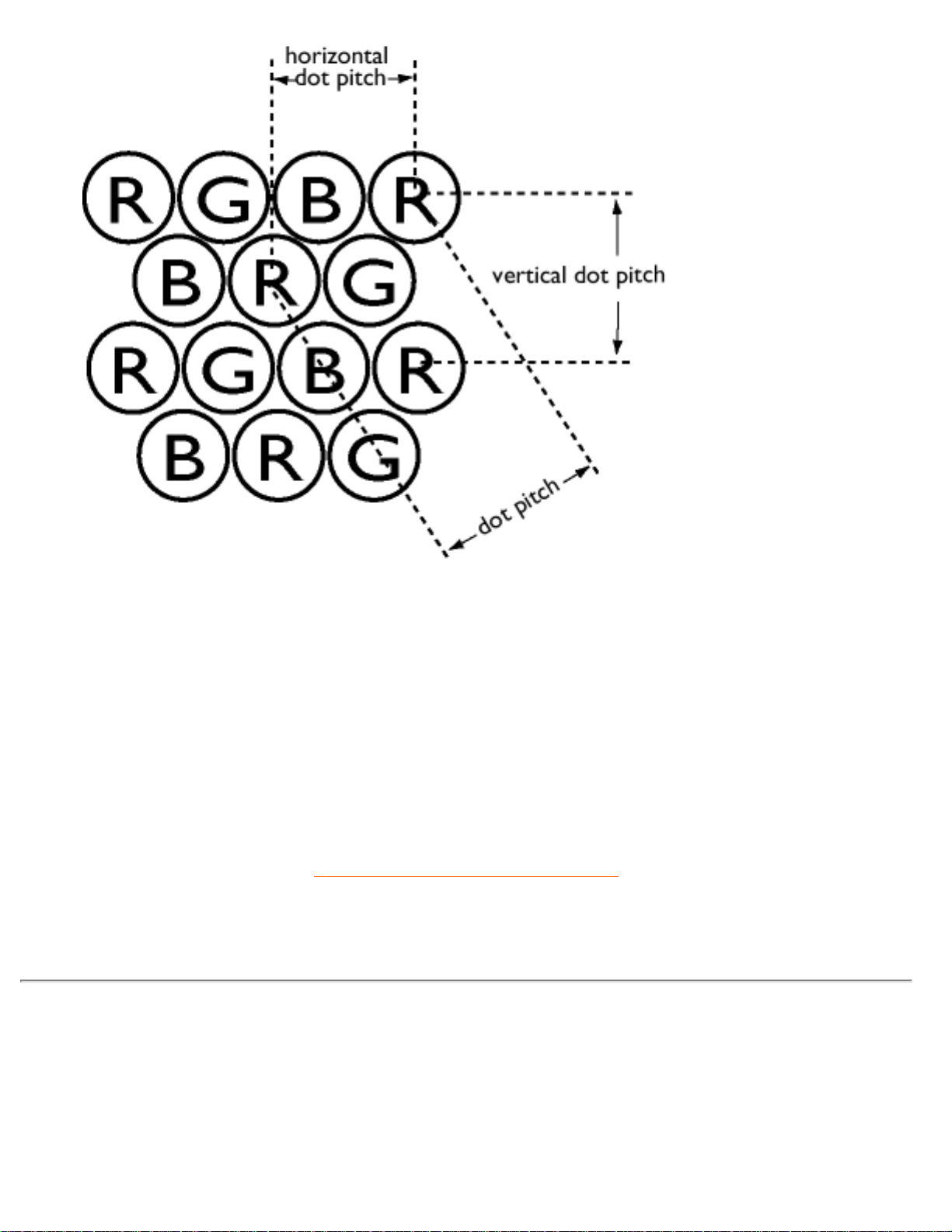

Dot pitch

The shortest distance between two phosphor dots of the same color on the screen. The smaller the dot pitch, the better the resolution of the monitor.

file:///D|/EDFU/crt_19_5/edoc/english/GLOSSARY/GLOSSARY.HTM (5 of 22)2005-04-21 ¤W¤È 09:40:39

Glossary

Dot rate

Frequency in MHz of the dot clock. It is a measure of the speed with which data is transferred between the video card and subsequent processing circuitry.

Also known as video dot rate.

RETURN TO TOP OF THE PAGE

Electromagnetic radiation standards

International standards set to limit electromagnetic emissions from monitors. There are currently

file:///D|/EDFU/crt_19_5/edoc/english/GLOSSARY/GLOSSARY.HTM (6 of 22)2005-04-21 ¤W¤È 09:40:39

Glossary

two important standards both derived from regulations originally laid down by Swedish authorities.

MPR-II

The standard originally proposed by the Swedish National Board of Measurement and Testing. It set maximum levels of electromagnetic radiation emitted by monitors, and has now been adopted as a world standard. MPR-II defines maximum permitted electrostatic, magnetic and electric field levels measured at a distance of 50 cm from the center of the monitor (see table).

TCO

In 1991, the Swedish Tjänstemannens Central Organization (TCO, Swedish confederation of Professional Employees ) set a standard even more severe than MPR-II, especially for alternating electric fields (AEF). The TCO standard is more severe since not only are the permitted field levels reduced compared with MPR-II, but the measuring distance is also reduced (see table).

Electromagnetic radiation standards

EMI (Electrical Magnetic Interference)

The electrical and/or magnetic radiation coming from the working electrical or electronic equipment.

EMS (Electrical Magnetic Sustainment)

The ability of electrical or electronic equipment to function properly in the environment with electrical and/or magnetic interference.

RETURN TO TOP OF THE PAGE

Flicker

Very rapid variations in picture intensity caused by the finite time required for the electron beam to scan a picture onto the screen. Two kinds of flicker occur: line flicker caused by the electron beam scanning-in each line of the picture; and frame flicker (or field flicker if the picture is interlaced) caused by the frame repetition rate of 50 frames/second. Frame flicker is noticeable with GUI and DTP software (which have a light background), and can be very disturbing, especially for those who work regularly with displays - contributing to eye strain, headaches, visual blurring, stress, etc. The

file:///D|/EDFU/crt_19_5/edoc/english/GLOSSARY/GLOSSARY.HTM (7 of 22)2005-04-21 ¤W¤È 09:40:39

Glossary

problem can, however, be eliminated by increasing the refresh rate (number of frames/second) of the monitor to a value above around 70 Hz. Sensitivity to flicker appears to diminish with increasing age.

RETURN TO TOP OF THE PAGE

Hertz

The unit of frequency named after the physicist Heinrich Hertz (1857-1894). 1 hertz (Hz) is equal to 1 cycle/second.

Horizontal dot pitch

See Dot pitch.

Horizontal scanning frequency

Also called line frequency and expressed in kHz, it is the number of video lines written on the screen every second (from left to right). The higher the horizontal scanning frequency, the better the resolution (i.e., the higher the resolution and/or the higher the refresh rate).

RETURN TO TOP OF THE PAGE

INF File

file:///D|/EDFU/crt_19_5/edoc/english/GLOSSARY/GLOSSARY.HTM (8 of 22)2005-04-21 ¤W¤È 09:40:39

Glossary

INF file (Information File)

Information (INF) files store information in a specific format. The set-up functions retrieve information from the INF file to use when performing installation operations. Examples of the type of information stored in an INF file include INI and registry changes, file names, and locations of the source files on source media.

Interlaced/non-interlaced

Interlaced.

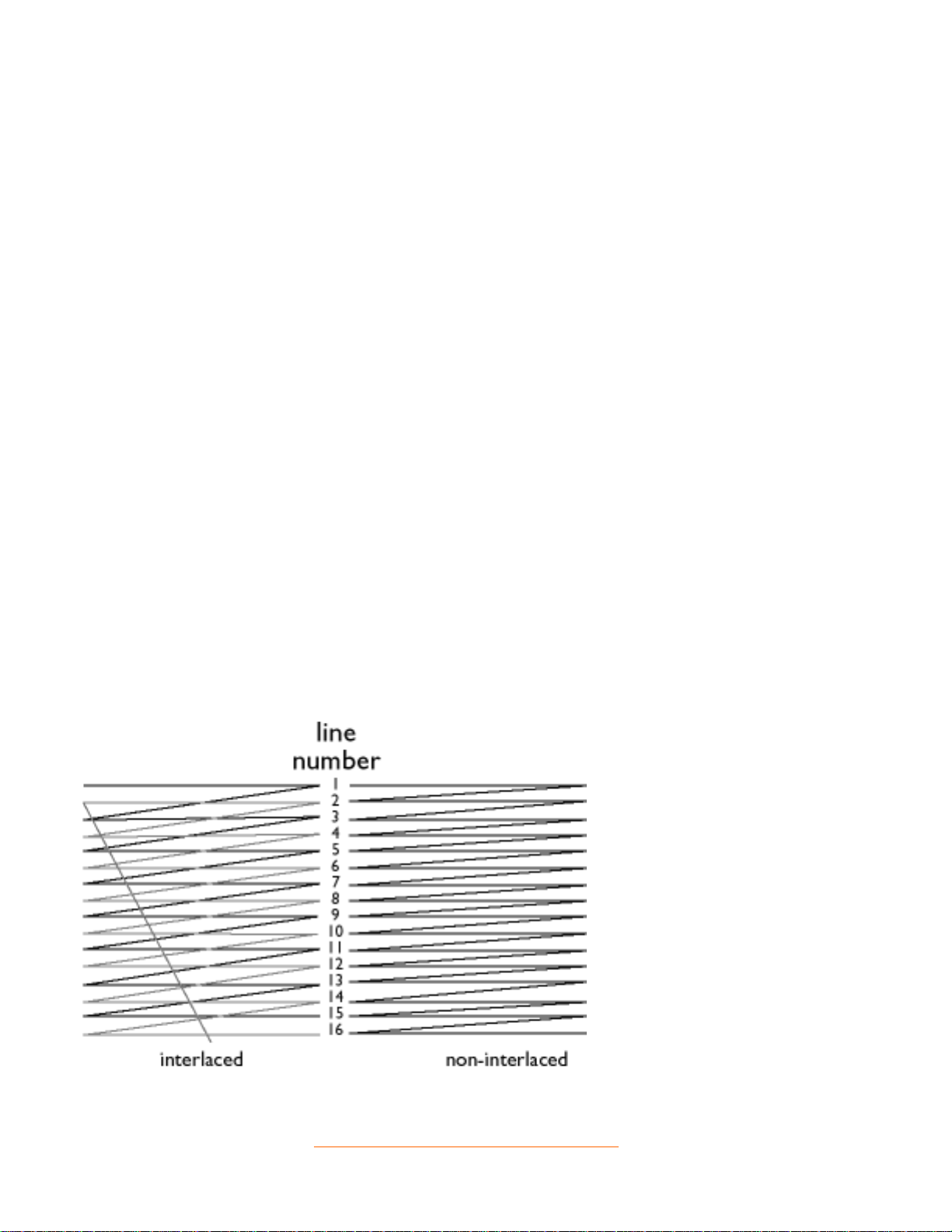

The method of writing a picture on the screen by initially writing all even lines and subsequently writing all odd lines of the picture. Result: The complete picture is composed of two interlaced half pictures (or fields). With interlacing, a vertical (or field) frequency of 50 Hz means a picture (or frame) frequency of 25 Hz.

Non-interlaced.

The method of writing a picture on the screen by successive video lines of the picture so that a full frame is written onto the screen in one vertical sweep of the beams. With a non-interlaced display, a vertical frequency of 50 Hz means a picture (or frame) frequency of 50 Hz. At any given resolution, non-interlaced modes are preferable to interlaced modes; however, generation of non-interlaced modes is more expensive.

RETURN TO TOP OF THE PAGE

file:///D|/EDFU/crt_19_5/edoc/english/GLOSSARY/GLOSSARY.HTM (9 of 22)2005-04-21 ¤W¤È 09:40:39

Glossary

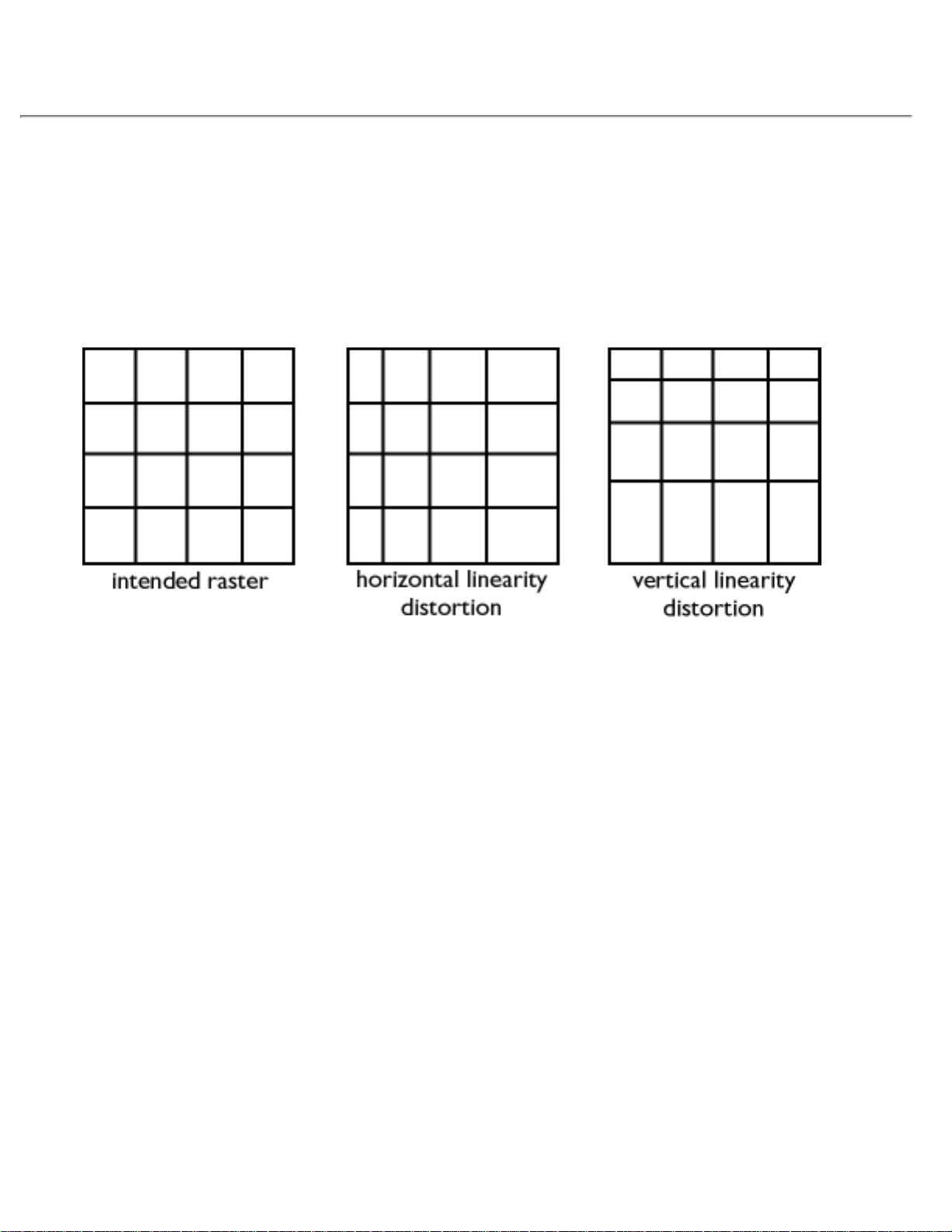

Linearity

The degree to measure the actual location of a pixel on the screen corresponds with its intended location. ( see figure )

Line frequency

See Horizontal scanning frequency.

Low-emission monitor

A monitor that complies with international standards on radiation.

See Electromagnetic radiation standards.

Low-frequency electric and magnetic fields

file:///D|/EDFU/crt_19_5/edoc/english/GLOSSARY/GLOSSARY.HTM (10 of 22)2005-04-21 ¤W¤È 09:40:39

Glossary

Alternating fields generated by the deflection yoke. These are subject to increasing attention, notably by governing authorities, the trade and the press. Although there is no scientific evidence that monitor emissions are harmful, much effort has gone into reducing emissions on the principle of better safe than sorry. Currently, there are two areas of interest: very-low frequency (VLF) electric and magnetic fields extending from 2 kHz to 400 kHz, and extreme low frequency (ELF) fields extending from 5 Hz to 2 kHz.

See also Electromagnetic radiation standards.

RETURN TO TOP OF THE PAGE

Moiré effect

A fringe pattern arising from the interference between two superimposed line patterns.

In a monitor it comes from the interference between the shadow mask pattern and the video information (video moiré), and between the shadow mask pattern and the horizontal line pattern (scan moiré). It shows itself as wavy patterns on the screen and becomes more noticeable as monitor resolution increases. Since the video signal varies continuously, little can be done about video moiré. Scan moiré depends on the horizontal scanning frequency and can be alleviated by appropriate choice of frequency. Autoscan (MultiSync) monitors, which operate over a range of scanning frequencies, may sometimes exhibit moiré in certain video modes.

MPR

See Electromagnetic radiation standards.

MultiSync monitor

See Autoscan monitor.

RETURN TO TOP OF THE PAGE

file:///D|/EDFU/crt_19_5/edoc/english/GLOSSARY/GLOSSARY.HTM (11 of 22)2005-04-21 ¤W¤È 09:40:39

Glossary

Non-interlaced

See Interlaced/non-interlaced.

RETURN TO TOP OF THE PAGE

OSD (On Screen Display)

The feature that allows an end user to adjust screen performance and parameters of monitors directly through an on-screen instruction window. See CustoMax in CrystalClear section.

Overscan

The practice in which areas without useful video information are scanned outside the visible screen area in order to make maximum use of the screen for display of active video information. This practice is occasionally necessary because some video cards generate a video pattern that is smaller than the visible screen area, resulting in an image that is smaller (and less legible) than it needs to be.

RETURN TO TOP OF THE PAGE

file:///D|/EDFU/crt_19_5/edoc/english/GLOSSARY/GLOSSARY.HTM (12 of 22)2005-04-21 ¤W¤È 09:40:39

Glossary

Parallelogram Distortion

See Geometric distortion.

Phosphor

Generic name for the class of substances that exhibit luminescence. To produce a picture on screen, phosphors are deposited on the inner surface of the picture-tube screen and excited into luminescence by the electron beam. Typical examples of phosphors are P22 medium shortpersistence phosphor and EBU high-color-saturation phosphor.

Pin-cushion Distortion

See Geometric distortion.

Pixel

Abbreviation for picture element, the smallest element of the picture that can be displayed on the screen. The smaller the pixel size, the better the resolution of the monitor. Pixel size is determined by the size of the electron spot on the screen and not necessarily by the phosphor dot pitch (the size of the triad). Thus, a monitor with a large electron spot covering several triads can exhibit poor resolution even though its dot pitch is small.

Pixel frequency

The number of pixels that can be written in a video line per second.

Pixel rate

See pixel frequency

file:///D|/EDFU/crt_19_5/edoc/english/GLOSSARY/GLOSSARY.HTM (13 of 22)2005-04-21 ¤W¤È 09:40:39

Glossary

Plug-and-Play

See DDC. See USB section.

RETURN TO TOP OF THE PAGE

Raster

The area on screen that electron beam can reach.

Refresh rate

See Vertical scanning frequency.

Resolution

The number of pixels that can be displayed on the screen. The resolution is specified as the number of pixels in a line multiplied by the number of horizontal lines.

Download and Print

This page provides an option to read the manual in .pdf format. PDF files can be downloaded into your hard disk, then viewed and printed with Acrobat Reader or through your browser.

If you do not have Adobe¨ Acrobat Reader installed, click on the link to install the application.

Adobe® Acrobat Reader for PC / Adobe® Acrobat Reader for Mac.

Download instructions:

To download the file:

1. Click-and-hold your mouse over the icon below. (Win95/98 users right-click)

2. From the menu that appears, choose 'Save Link As...', 'Save Target As...' or 'Download Link to Disk'.

3. Choose where you would like to save the image; click 'Save' (if prompted to save as either 'text' or 'source', choose 'source').

Printing instructions:

To print the manual:

1. With the manual file open, follow your printer's instructions and print the pages you need.

109B.pdf

English language manual

109E.pdf

109F.pdf

109P.pdf

201B.pdf

file:///D|/EDFU/crt_19_5/edoc/english/DOWNLOAD/DOWNLOAD.HTM (1 of 2)2005-04-21 ¤W¤È 09:40:39

Download and Print

202F.pdf

202P.pdf

file:///D|/EDFU/crt_19_5/edoc/english/DOWNLOAD/DOWNLOAD.HTM (2 of 2)2005-04-21 ¤W¤È 09:40:39

Troubleshooting

Safety Precautions and Maintenance • Troubleshooting • Regulatory Information• Other Related Information

Common Problems

Having trouble? Something not working? Before calling for help, try these suggestions.

Having this problem?

Check these items

No Picture

(Power LED not lit)

● Make sure the Power cable is plugged into the power outlet

and back of the monitor.

● Power button on the front of your monitor should be in the

ON position.

● Disconnect the monitor from the power outlet for about one

minute.

No Picture

(Power LED is yellow)

● Make sure the computer is turned on.

● Make sure the monitor cable is properly connected to your

computer.

● Check to see if the monitor cable has bent pins.

● The Energy Saving feature may be activated

No Picture

(Power LED is green)

● Make sure the Brightness and Contrast controls are set

correctly.

● Make sure the monitor cable is properly connected to your

computer.

● Check to see if the monitor cable has bent pins.

● Make sure the computer Power button is on.

Screen doesn't show

when you turn on the monitor

● Make sure the monitor cable is properly connected to your

computer. (Also refer to the Quick Start Guide).

● Check to see if the monitor cable has bent pins.

● Make sure the computer is turned on.

file:///D|/EDFU/crt_19_5/edoc/english/202F/SAFETY/saf_troub.htm (1 of 3)2005-04-21 ¤W¤È 09:40:47

Troubleshooting

No color or intermittent color

● If you are using a non-VESA-DDC standard video card,

turn the DDC1 / 2B feature Off.

Color appears blotchy

● The picture may need degaussing.

● Remove any nearby magnetic objects.

● Face the monitor toward the East for the best picture

quality.

Missing one or more colors

● Check the Color Temperature.

● Make sure the monitor cable is properly connected to your

computer.

● Check to see if the monitor cable has bent pins.

Dim Picture

● Adjust the Brightness and Contrast controls.

● Check your video card and it's owner's manual instructions

for it may be a non-VESA-DDC Standard card.

Picture is too large or too small.

● Adjust the Horizontal and/or Vertical Size.

● Adjust the Zoom.

Edges of the picture are not square.

● Adjust the geometry.

Picture has a double image.

● Eliminate the use of a video extension cable and/or video

switch box.

● Face the monitor toward the East for the best picture

quality.

Picture is not sharp.

● Check to make sure Moiré is switched off.

● Adjust Sync Input.

Unstable Picture

● Increase your refresh rate.

Problem with On Screen Display

● Refer to the instructions and troubleshooting information in

that chapter.

file:///D|/EDFU/crt_19_5/edoc/english/202F/SAFETY/saf_troub.htm (2 of 3)2005-04-21 ¤W¤È 09:40:47

Troubleshooting

For further assistance, refer to the Consumer Information Centers list to contact your local Philips distributor.

RETURN TO TOP OF THE PAGE

file:///D|/EDFU/crt_19_5/edoc/english/202F/SAFETY/saf_troub.htm (3 of 3)2005-04-21 ¤W¤È 09:40:47

Regulatory Information

TCO '03 Information • Recycling Information for Customers

Safety Precautions and Maintenance • Troubleshooting • Other Related Information

TCO' 03 Information

Congratulations!

The display you have just purchased carries the TCO'03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the impact on our natural environment.

Some of the features of the TCO'03 Display requirements.

Ergonomics

●

Good visual ergonomics and image quality in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution, reflectance, colour rendition and image stability.

Energy

●

Energy-saving mode after a certain time-beneficial both for the user and the environment

● Electrical safety

file:///D|/EDFU/crt_19_5/edoc/english/202F/SAFETY/regs/regulat.htm (1 of 3)2005-04-21 ¤W¤È 09:40:47

Regulatory Information

Emissions

● Electromagnetic fields

● Noise emissions

Ecology

● The product must be prepared for recycling and the manufacturer must have a certified

environmental management system such as EMAS or ISO 14 000

● Restrictions on

chlorinated and brominated flame retardants and polymers

heavy metals such as cadmium, mercury and lead.

The requirements included in this label have been developed by TCO Development in cooperation with scientists, experts, users as well as manufacturers all over the world. Since the end of the 1980s TCO has been involved in influencing the development of IT equipment in a more user-friendly direction. Our labelling system started with displays in 1992 and is now requested by users and IT-manufacturers all over the world.

For more information, please visit

www.tcodevelopment.com

RETURN TO TOP OF THE PAGE

Recycling Information for Customers

Philips establishes technically and economically viable objectives to optimize the environmental performance of the organization's product, service and activities.

From the planning, design and production stages, Philips emphasizes the important of making products that can easily be recycled. At Philips, end-of-life management primarily entails participation in national take-back initiatives and recycling programs whenever possible, preferably in cooperation with competitors.

There is currently a system of recycling up and running in the European countries, such as The Netherlands, Belgium, Norway, Sweden and Denmark.

In U.S.A., Philips Consumer Electronics North America has contributed funds for the Electronic Industries Alliance (EIA) Electronics Recycling Project and state recycling initiatives for end-of-life electronics products from household sources. In addition, the Northeast Recycling Council (NERC) - a multi-state non-profit organization focused on promoting recycling market development - plans to implement a recycling program.

file:///D|/EDFU/crt_19_5/edoc/english/202F/SAFETY/regs/regulat.htm (2 of 3)2005-04-21 ¤W¤È 09:40:47

Regulatory Information

In Asia Pacific, Taiwan, the products can be taken back by Environment Protection Administration (EPA) to follow the IT product recycling management process, detail can be found in web site

www.epa.gov.tw

For help and service, please contact

Consumers Information Center or F1rst Choice Contact Information Center

in each country or the following team of Environmental specialist can help.

Mr. Job Chiu - Environment manager Philips Electronics Industries (Taiwan) Ltd, Monitor Business Unit E-mail:

job.chiu@philips.com

Tel: +886 (0) 3 454 9839

Mr. Maarten ten Houten - Senior Environmental Consultant Philips Consumer Electronics E-mail:

marten.ten.houten@philips.com

Tel: +31 (0) 40 27 33402

Ms. Delmer F. Teglas Philips Electronics North America E-mail:

butch.teglas@philips.com

Tel: +1 865 521 4322

RETURN TO TOP OF THE PAGE

file:///D|/EDFU/crt_19_5/edoc/english/202F/SAFETY/regs/regulat.htm (3 of 3)2005-04-21 ¤W¤È 09:40:47

Other Related Information

Safety Precautions and Maintenance • Troubleshooting • Regulatory Information • Information for Users in the U. S. • Information for Users Outside the U.S

Information for Users in the U. S.

For units set at 115 V :

Use a UL Listed Cord Set consisting of a minimum 18 AWG, Type SVT or SJT three conductor cord a maximum of 15-feet long and a parallel blade, grounding type attachment plug rated 15 A, 125 V.

For units set at 230 V:

Use a UL Listed Cord Set consisting of a minimum 18 AWG, Type SVT or SJT three conductor cord a maximum of 15-feet long and a tandem blade, grounding type attachment plug rated 15 A, 250 V.

Information for Users outside the U.S.

For units set at 230 V:

Use a Cord Set rated minimum 5 A, 250 V ( for units set at 230V ) or 10A, 125V (for units set at 115V). The Cord Set should have the appropriate safety approvals for the country in which the equipment will be installed.

RETURN TO TOP OF THE PAGE

file:///D|/EDFU/crt_19_5/edoc/english/202F/SAFETY/saf_other.htm2005-04-21 ¤W¤È 09:40:47

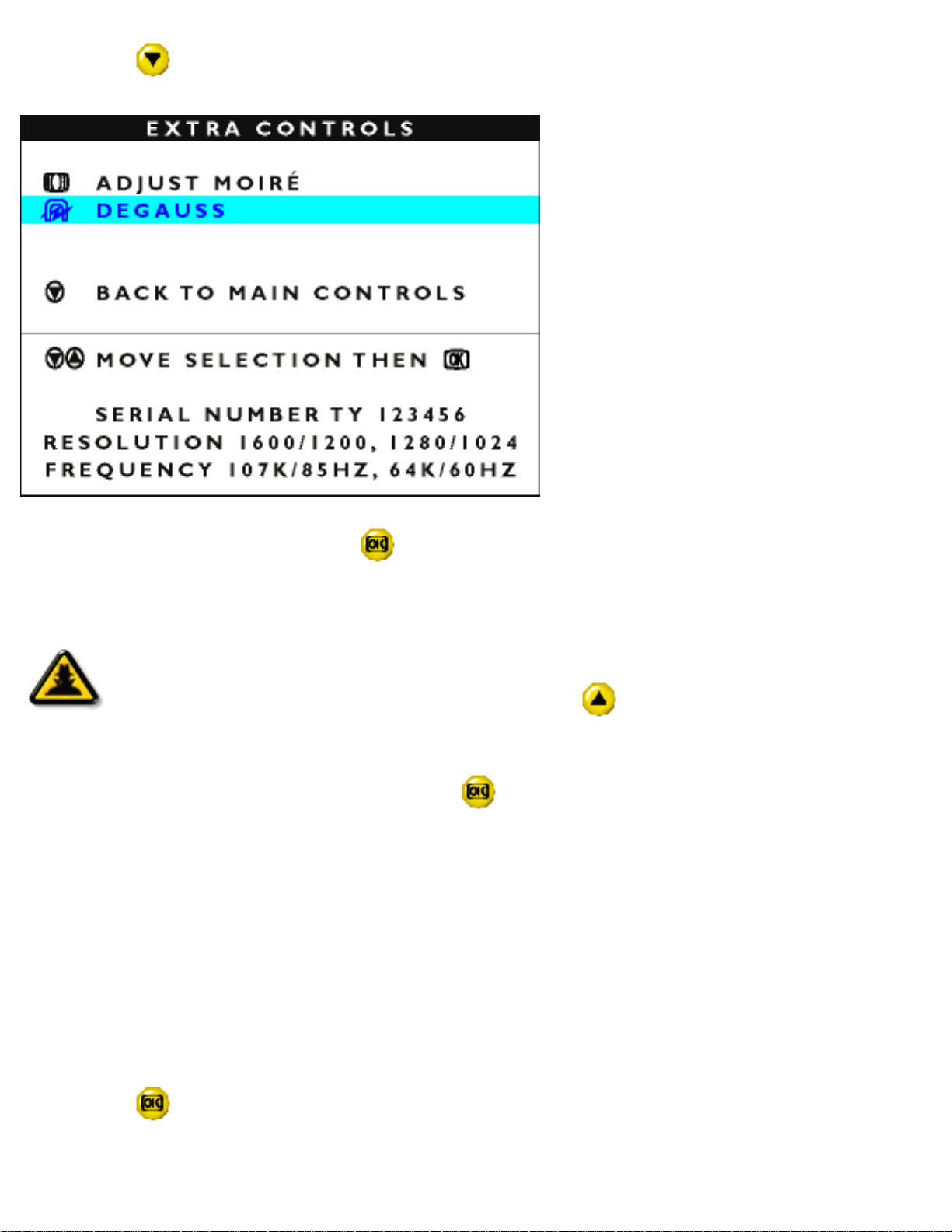

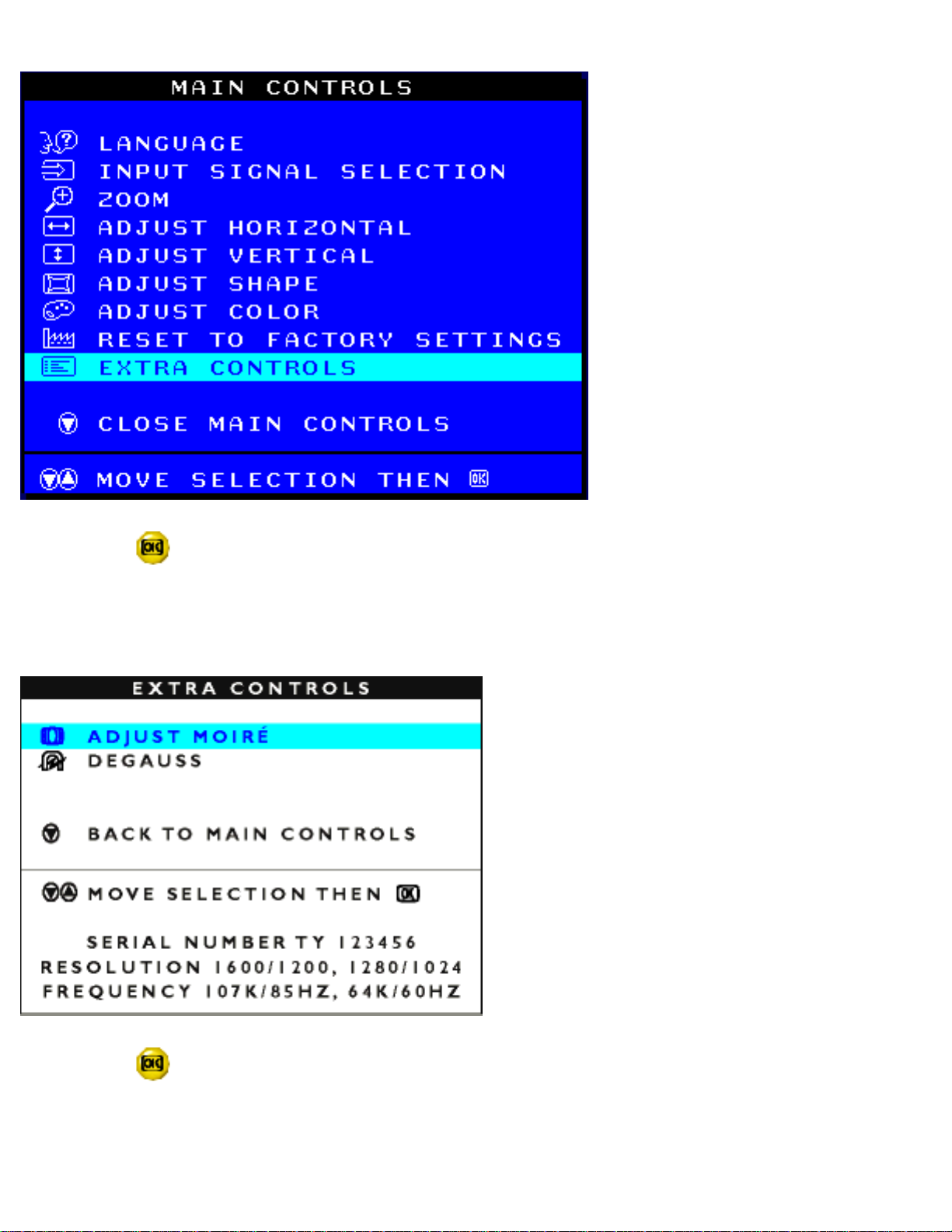

The OSD Controls

Description of the On-Screen Display • The OSD Tree

The OSD Controls : Brightness (HotKey) • Contrast (HotKey) • Language • Input Signal

Selection • Zoom • Adjust Horizontal • Adjust Vertical • Adjust Shape • Adjust Color • Reset to Factory Settings • Extra Controls • Close Main Controls

BRIGHTNESS

To adjust your screen's brightness, follow the steps below. Brightness is the overall intensity of the light coming from the screen. A 50% brightness is recommended.

1) Press the

or button on the monitor. The BRIGHTNESS window appears.

2) Press the or button to adjust the brightness.

3) When the brightness is adjusted to the level desired, stop pressing the

or button and

after three seconds the BRIGHTNESS window will disappear with the new adjustment saved.

Smart

Help

After the BRIGHTNESS window has disappeared, to continue to the CONTRAST window, follow the steps under CONTRAST.

file:///D|/EDFU/crt_19_5/edoc/english/OSD/osd_cont.htm (1 of 27)2005-04-21 ¤W¤È 09:40:55

The OSD Controls

RETURN TO TOP OF THE PAGE

CONTRAST

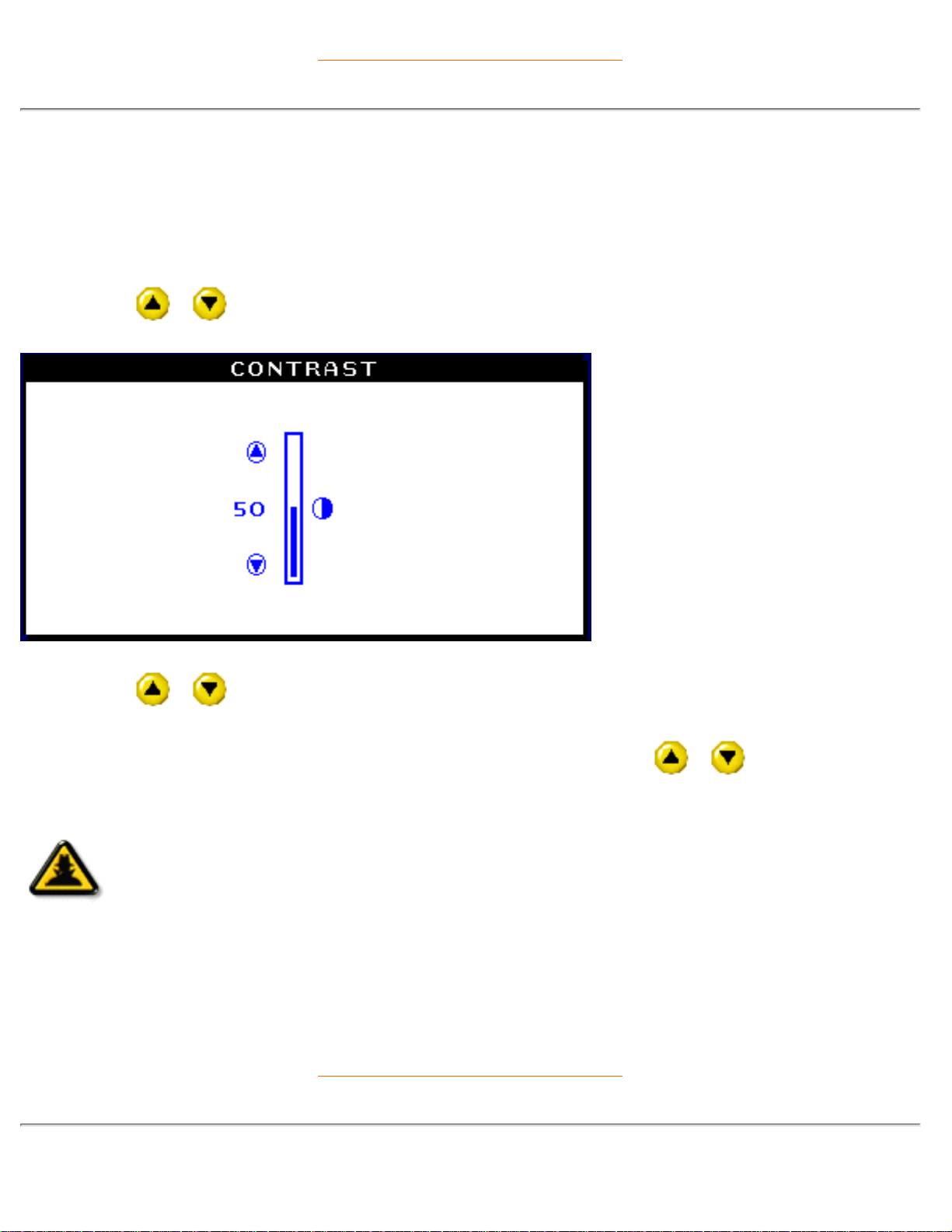

To adjust your screen's contrast, follow the steps bellow. Contrast is the difference between the light and dark areas on the screen. A 100% contrast is recommended.

1) Press the

or button on the monitor. The CONTRAST window appears.

2) Press the or button to adjust the contrast.

3) When the contrast is adjusted to the level desired, stop pressing the

or button and after

three seconds the CONTRAST window will disappear with the new adjustment saved.

Smart

Help

After the CONTRAST window has disappeared, to continue to the MAIN CONTROLS, follow the steps under LANGUAGE

RETURN TO TOP OF THE PAGE

file:///D|/EDFU/crt_19_5/edoc/english/OSD/osd_cont.htm (2 of 27)2005-04-21 ¤W¤È 09:40:55

The OSD Controls

LANGUAGE

The ON SCREEN DISPLAY shows its settings in one of five languages. The default is English, but you can select French, Spanish, German, or Italian.

1) Press the

button on the monitor. The MAIN CONTROLS window appears. LANGUAGE

should be highlighted.

2) Press the

button again. The LANGUAGE window appears.

3) Press the or button until the desired language is highlighted.

file:///D|/EDFU/crt_19_5/edoc/english/OSD/osd_cont.htm (3 of 27)2005-04-21 ¤W¤È 09:40:55

The OSD Controls

4) Press the button to confirm your selection and return to MAIN CONTROLS window. CLOSE MAIN CONTROLS will be highlighted...

Smart

Help

After returning to MAIN CONTROLS . . .

. . . to continue to INPUT SIGNAL SELECTION, press the button until INPUT SIGNAL SELECTION is highlighted. Next, follow steps 3 - 5 under INPUT SIGNAL

SELECTION.

. . . to exit completely, press the

button

RETURN TO TOP OF THE PAGE

INPUT SIGNAL SELECTION (Not available in all models)

INPUT SIGNAL SELECTION determines what you see on the screen. The default setting is INPUT A, but if the video input signal is different that the output signal, you may want to change it to INPUT B.?

1) Press the

button on the monitor. The MAIN CONTROLS window appears.

2) Press the

button until INPUT SIGNAL SELECTION is highlighted.

file:///D|/EDFU/crt_19_5/edoc/english/OSD/osd_cont.htm (4 of 27)2005-04-21 ¤W¤È 09:40:55

The OSD Controls

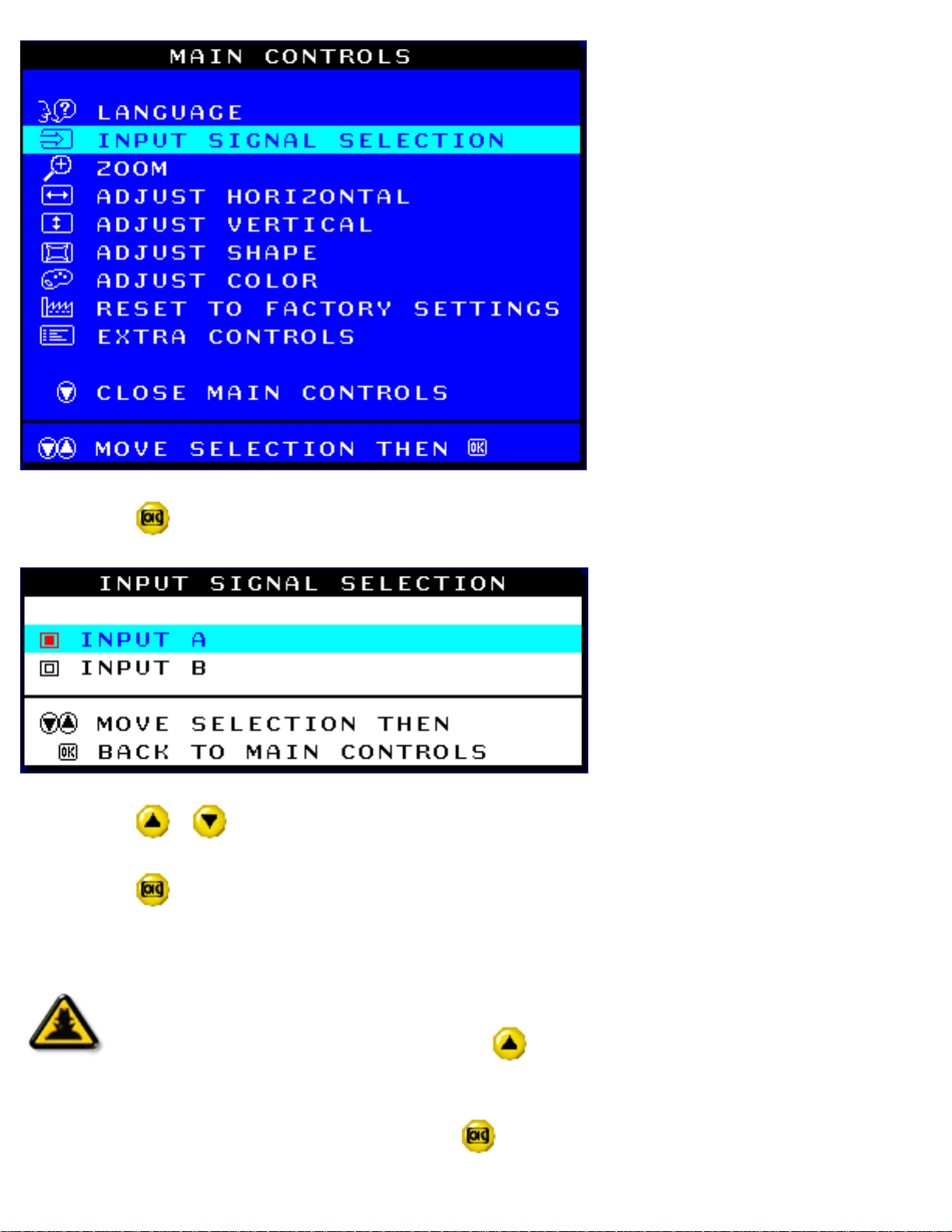

3) Press the button. The INPUT SIGNAL SELECTION window appears.

4) Press the or button to highlight INPUT B or INPUT A.

5) Press the

button to confirm your selection and return to the MAIN CONTROLS window.

CLOSE MAIN CONTROLS will be highlighted.

Smart

Help

After returning to MAIN CONTROLS . . .

. . . to continue to ZOOM, press the button until ZOOM is highlighted. Next, follow steps 3 - 5 under ZOOM.

. . . to exit completely, press the

button

file:///D|/EDFU/crt_19_5/edoc/english/OSD/osd_cont.htm (5 of 27)2005-04-21 ¤W¤È 09:40:55

The OSD Controls

RETURN TO TOP OF THE PAGE

ZOOM

ZOOM increases or decreases the size of the images on your screen. To adjust the ZOOM follow the steps below.

1) Press the

button on the monitor. The MAIN CONTROLS window appears.

2) Press the

button until ZOOM is highlighted.

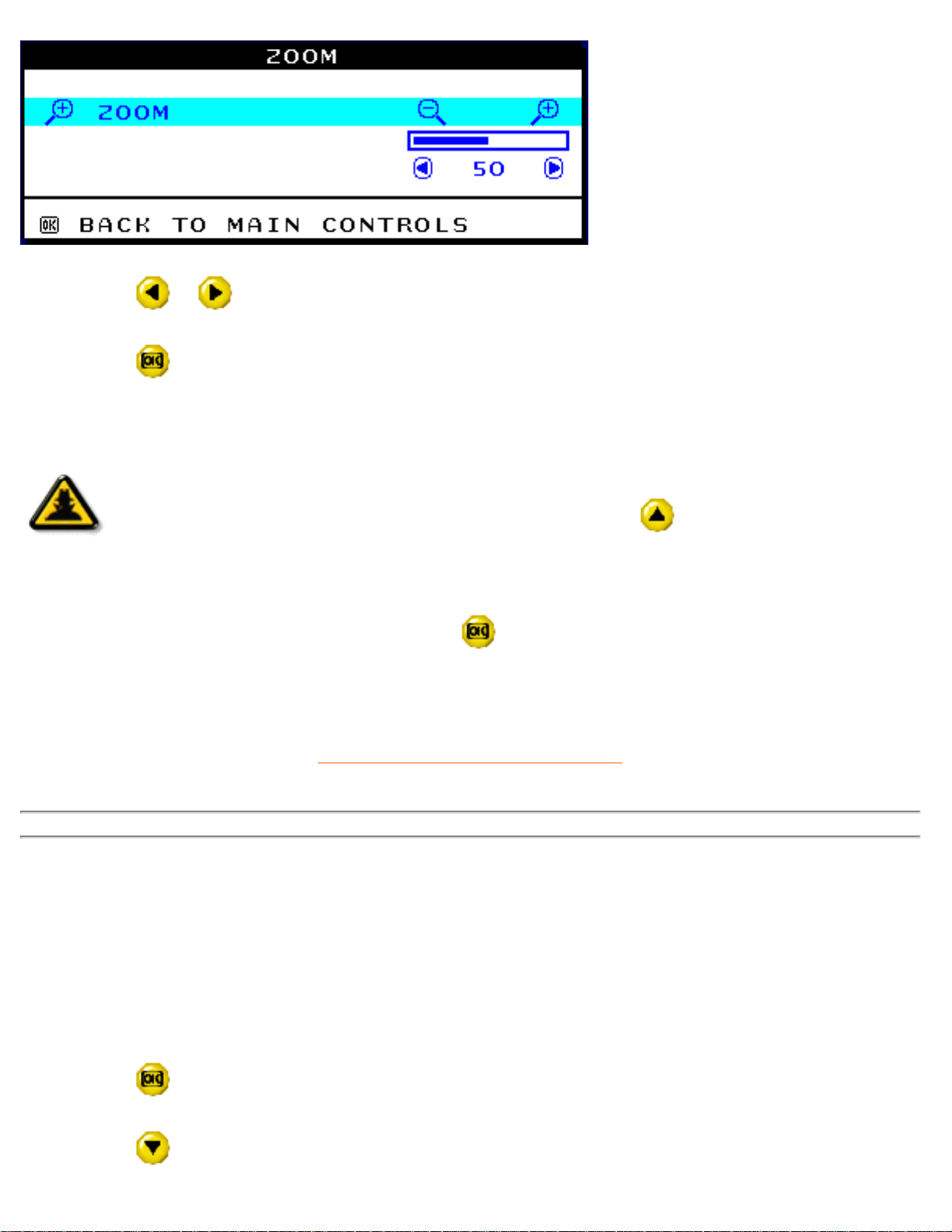

3) Press the button. The ZOOM window appears.

file:///D|/EDFU/crt_19_5/edoc/english/OSD/osd_cont.htm (6 of 27)2005-04-21 ¤W¤È 09:40:55

The OSD Controls

4) Press the or button to adjust ZOOM.

5) Press the

button to confirm your selection and return to the MAIN CONTROLS window.

CLOSE MAIN CONTROLS will be highlighted.

Smart

Help

After returning to MAIN CONTROLS . . .

. . . to continue to ADJUST HORIZONTAL, press the button until ADJUST HORIZONTAL is highlighted. Next, follow steps 3 - 7 under ADJUST

HORIZONTAL.

. . . to exit completely, press the

button

RETURN TO TOP OF THE PAGE

ADJUST HORIZONTAL

ADJUST POSITION under ADJUST HORIZONTAL shifts the image on your screen either to the left or right. Use this feature if your image does not appear centered. ADJUST SIZE under ADJUST HORIZONTAL expands or controls the image on your screen, pushing it out toward the left and right sides or pulling it in toward the center.

1) Press the

button on the monitor. The MAIN CONTROLS window appears.

2) Press the

button until ADJUST HORIZONTAL is highlighted.

file:///D|/EDFU/crt_19_5/edoc/english/OSD/osd_cont.htm (7 of 27)2005-04-21 ¤W¤È 09:40:55

The OSD Controls

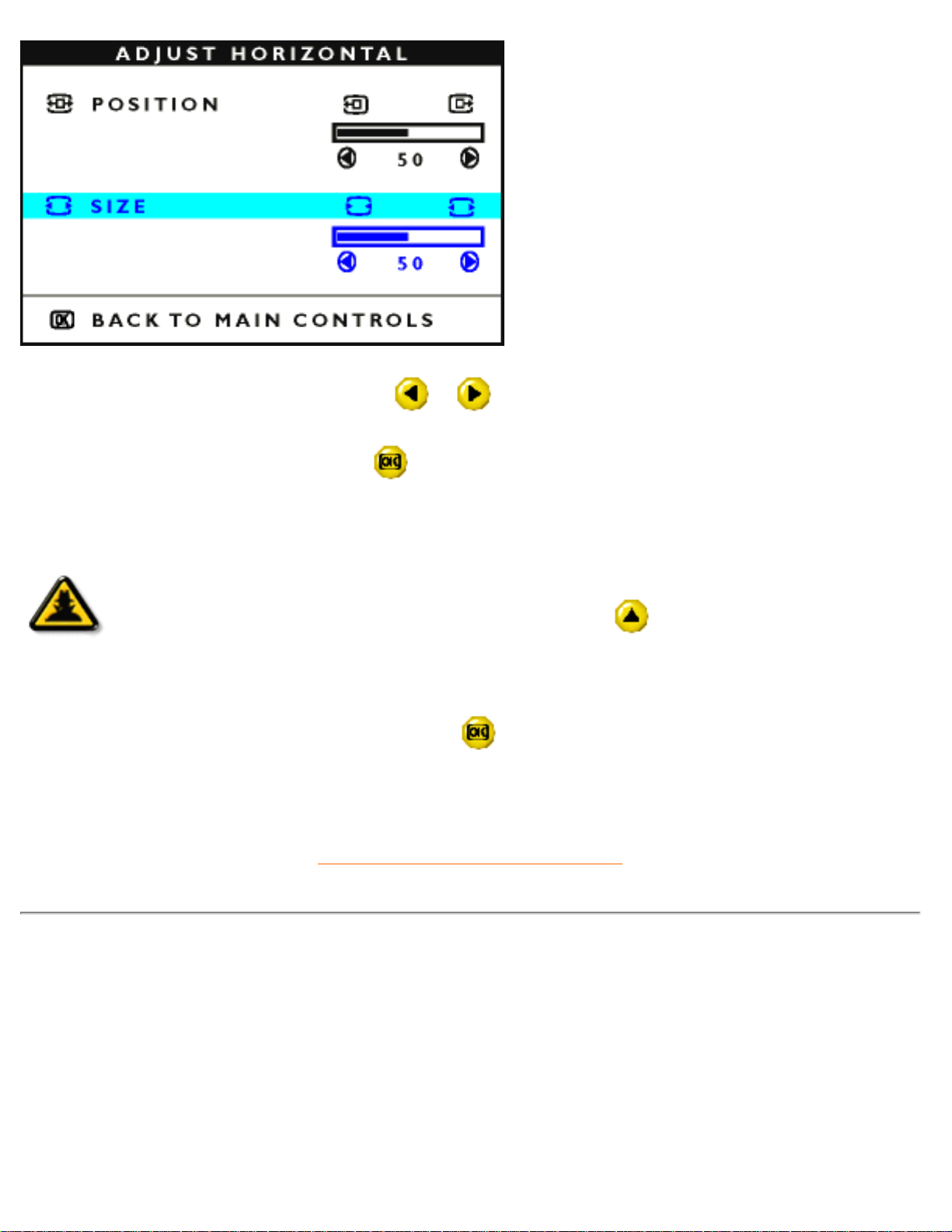

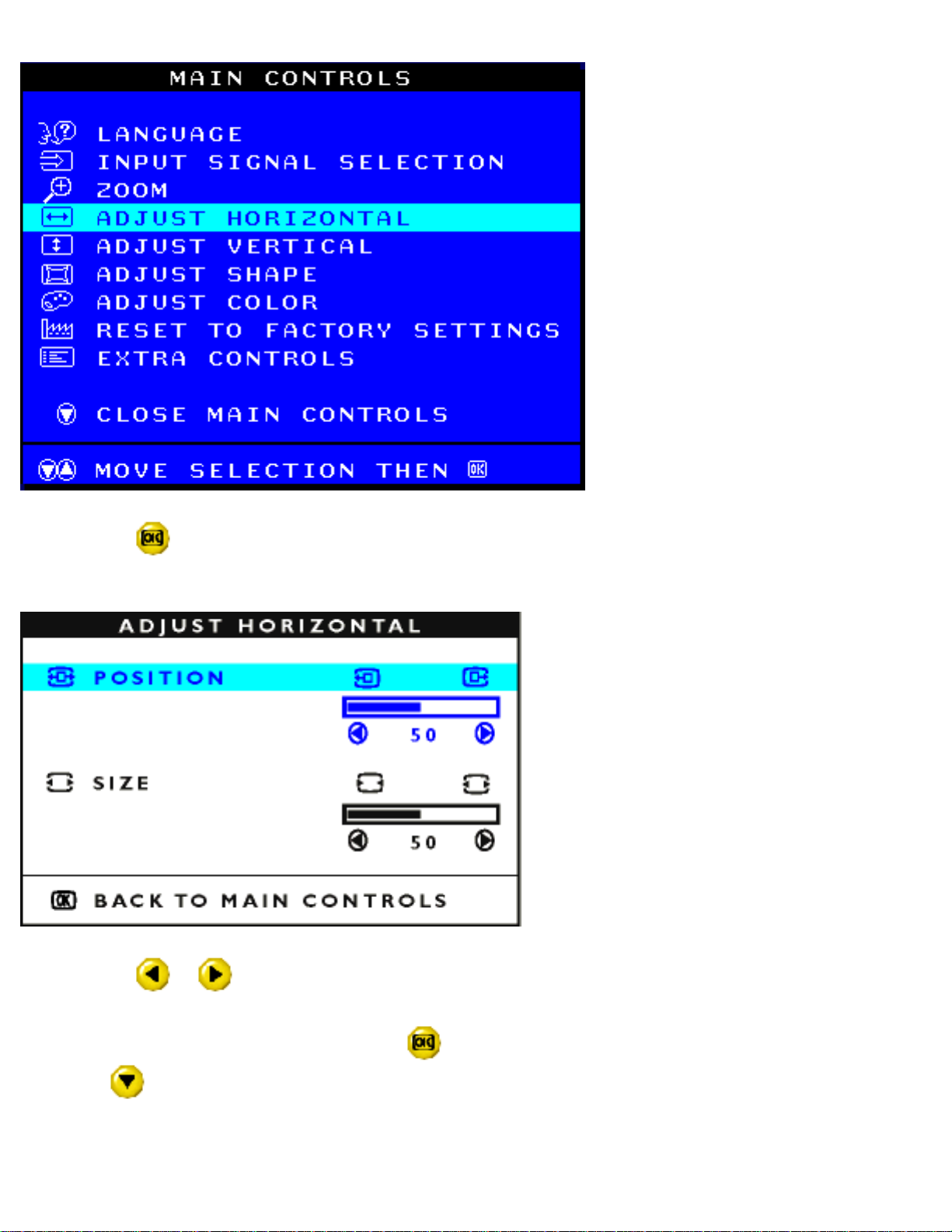

3) Press the button. The ADJUST HORIZONTAL window appears. POSITION should be highlighted.

4) Press the or button to move the image to the left or right.

5) When the position is adjusted, press the

button to return to MAIN CONTROLS window, or

press the

to highlight SIZE.

file:///D|/EDFU/crt_19_5/edoc/english/OSD/osd_cont.htm (8 of 27)2005-04-21 ¤W¤È 09:40:55

The OSD Controls

6) To adjust the horizontal size, press the or button.

7) When the size is adjusted, press the

button to return to MAIN CONTROLS window. CLOSE

MAIN CONTROLS will be highlighted.

Smart

Help

After returning to MAIN CONTROLS . . .

. . . to continue to ADJUST VERTICAL, press the button until ADJUST VERTICAL is highlighted. Next, start with step 3 under ADJUST VERTICAL and

follow the directions.

. . . to exit completely, press the

button

RETURN TO TOP OF THE PAGE

ADJUST VERTICAL

ADJUST POSITION under ADJUST VERTICAL shifts the image on your screen either up or down. Use this feature if your image does not appear centered. ADJUST SIZE under ADJUST VERTICAL expands or controls the image on your screen, pushing it out toward the top or bottom or pulling it in toward the center.

file:///D|/EDFU/crt_19_5/edoc/english/OSD/osd_cont.htm (9 of 27)2005-04-21 ¤W¤È 09:40:55

The OSD Controls

1) Press the button on the monitor. The MAIN CONTROLS window appears.

2) Press the

button until ADJUST VERTICAL is highlighted.

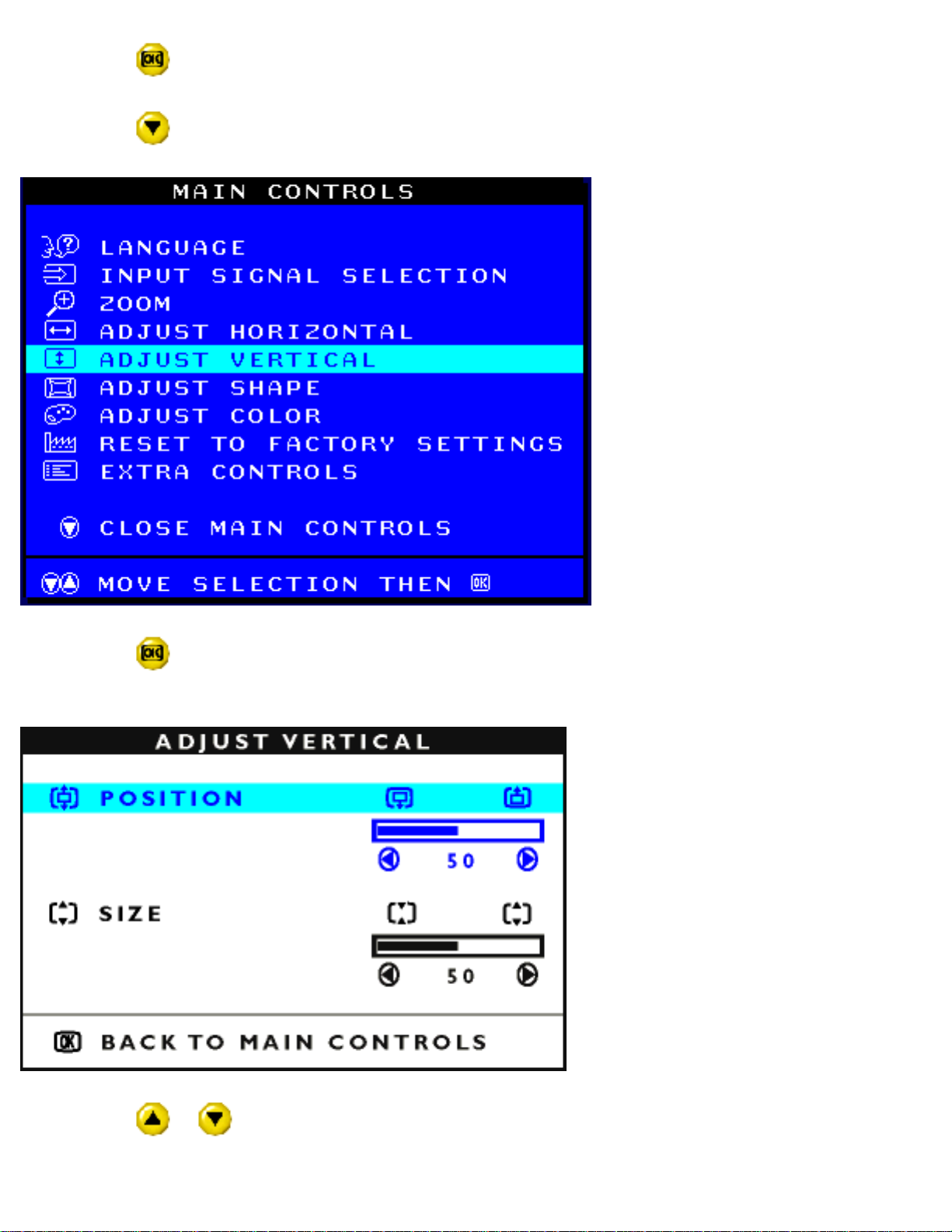

3) Press the button. The ADJUST VERTICAL window appears. POSITION should be highlighted.

4) Press the or button to move the image up or down.

file:///D|/EDFU/crt_19_5/edoc/english/OSD/osd_cont.htm (10 of 27)2005-04-21 ¤W¤È 09:40:55

The OSD Controls

5) When the position is adjusted, press the button to return to MAIN CONTROLS window, or press the

to highlight SIZE.

6) To adjust the vertical size, press the or button.

7) When the size is adjusted, press the

button to return to MAIN CONTROLS window. CLOSE

MAIN CONTROLS will be highlighted.

Smart

Help

After returning to MAIN CONTROLS . . .

. . . to continue to ADJUST SHAPE, press the button until ADJUST SHAPE is highlighted. Next, start with step 3 under ADJUST SHAPE and follow the directions.

. . . to exit completely, press the

button

RETURN TO TOP OF THE PAGE

ADJUST SHAPE

ADJUST SIDE CURVE

file:///D|/EDFU/crt_19_5/edoc/english/OSD/osd_cont.htm (11 of 27)2005-04-21 ¤W¤È 09:40:55

The OSD Controls

ADJUST SIDE CURVE under ADJUST SHAPE allows you to adjust two of the five preset options. These two options are PINCUSHION and BALANCED pincushion. Note: use these features only when the picture is not square.

1) Press the

button on the monitor. The MAIN CONTROLS window appears.

2) Press the

button until ADJUST SHAPE is highlighted.

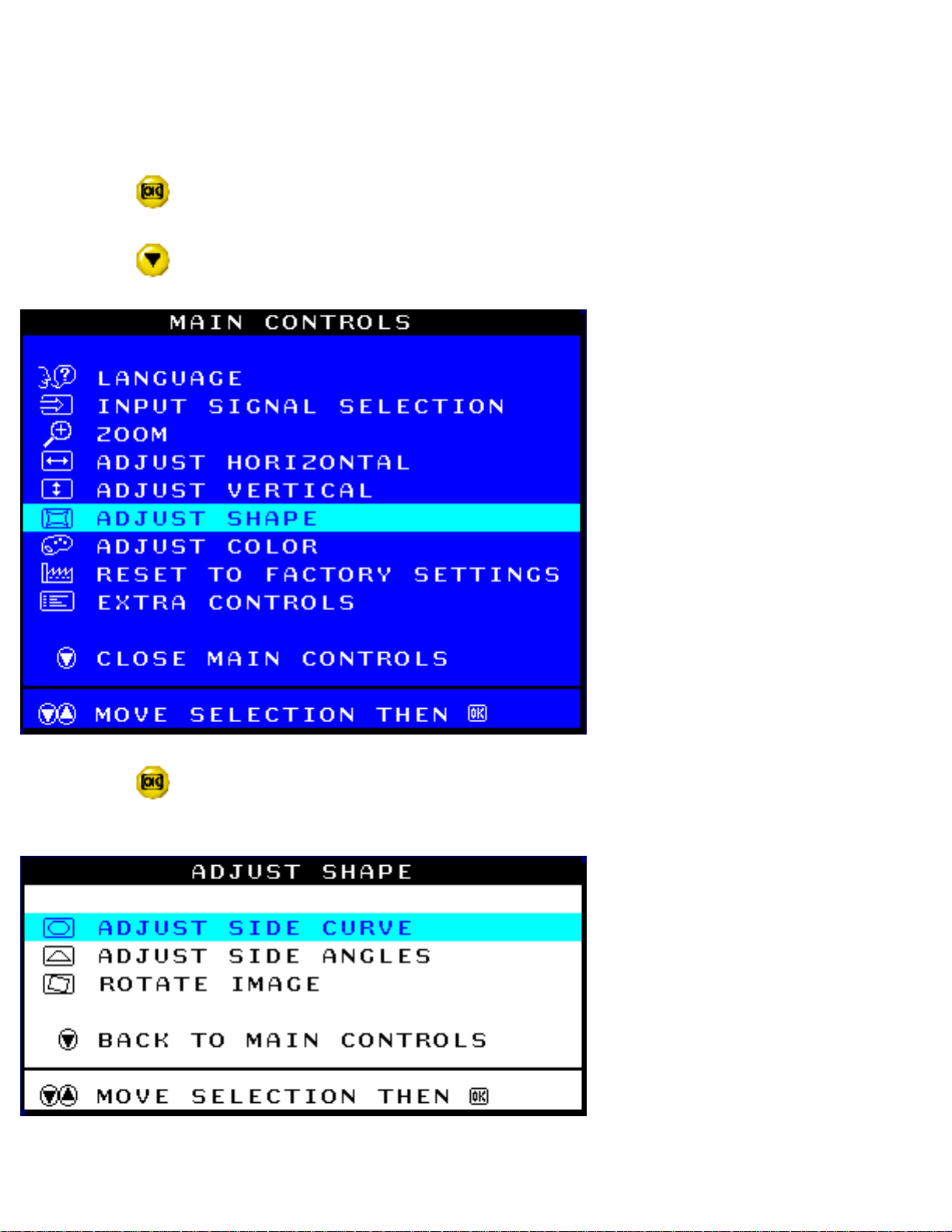

3) Press the button. The ADJUST SHAPE window appears. ADJUST SIDE CURVE should be highlighted.

file:///D|/EDFU/crt_19_5/edoc/english/OSD/osd_cont.htm (12 of 27)2005-04-21 ¤W¤È 09:40:55

The OSD Controls

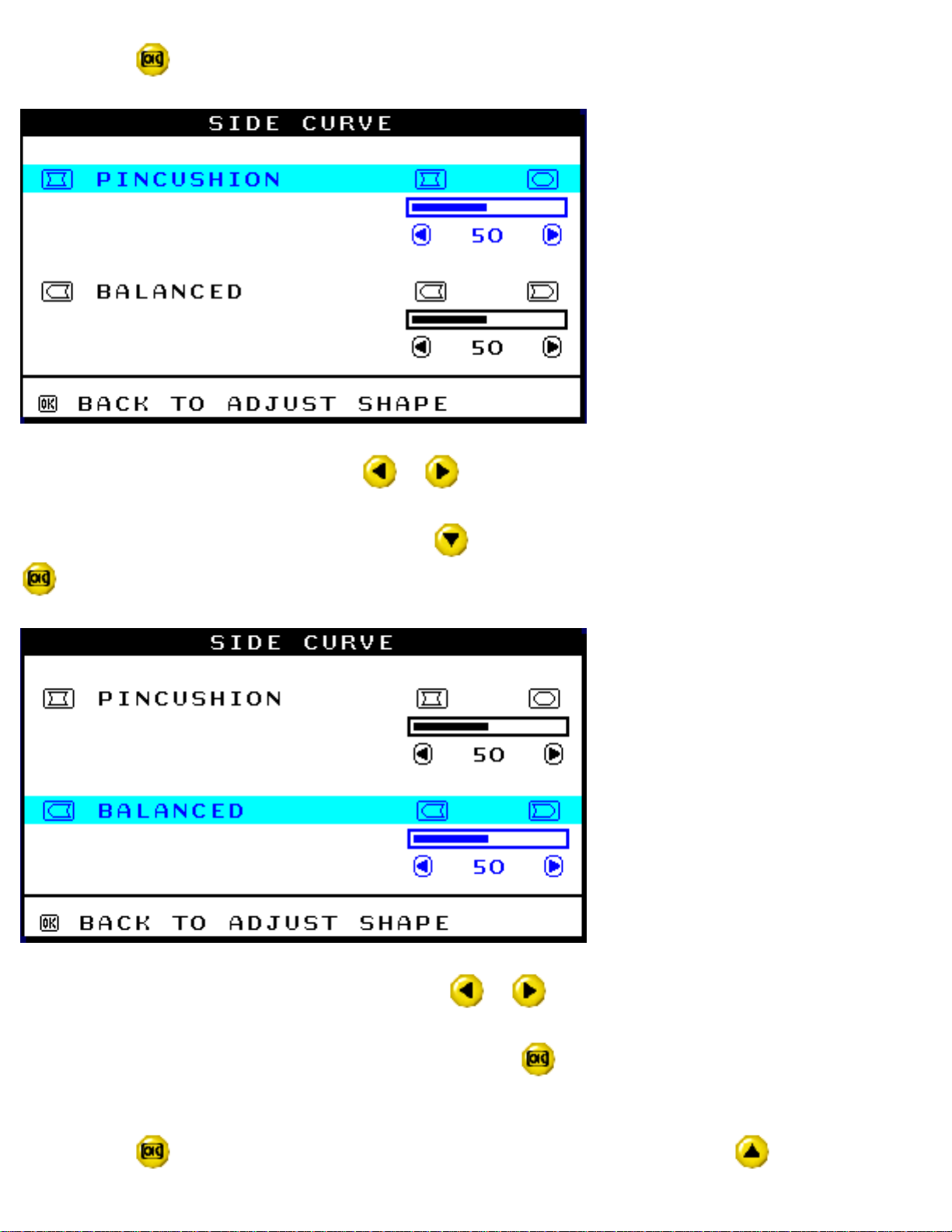

4) Press the button. The SIDE CURVE window appears. PINCUSHION should be highlighted.

5) To adjust the pincushion, press the or button.

6) When the pincushion is adjusted, press the

button to highlight BALANCED or press the

button to return to the ADJUST SHAPE window.

7) To adjust the balanced pincushion, press the or button.

8) When the balanced pincushion is adjusted, press the

button to return to the ADJUST SHAPE

window. BACK TO MAIN WINDOWS will be highlighted.

9) Press the

button to return to the MAIN CONTROLS window, or press the button until

file:///D|/EDFU/crt_19_5/edoc/english/OSD/osd_cont.htm (13 of 27)2005-04-21 ¤W¤È 09:40:55

The OSD Controls

ADJUST SIDE ANGLES is highlighted.

Smart

Help

After returning to MAIN CONTROLS . . .

...to continue to ADJUST SIDE ANGLES, start with step 5 under ADJUST SIDE ANGLES and follow the directions.

...to exit completely, press the

button twice.

...to adjust only the BALANCED pincushion, follow steps 1 - 4 above, then press the

button, and follow steps 7 - 9.

ADJUST SIDE ANGLES

ADJUST SIDE ANGLES under ADJUST SHAPE allows you to adjust two of the five preset options. These two options are TRAPEZOID and PARALLELOGRAM. Note: use these features only when the picture is not square.

1) Press the

button on the monitor. The MAIN CONTROLS window appears.

2) Press the

button until ADJUST SHAPE is highlighted.

file:///D|/EDFU/crt_19_5/edoc/english/OSD/osd_cont.htm (14 of 27)2005-04-21 ¤W¤È 09:40:55

The OSD Controls

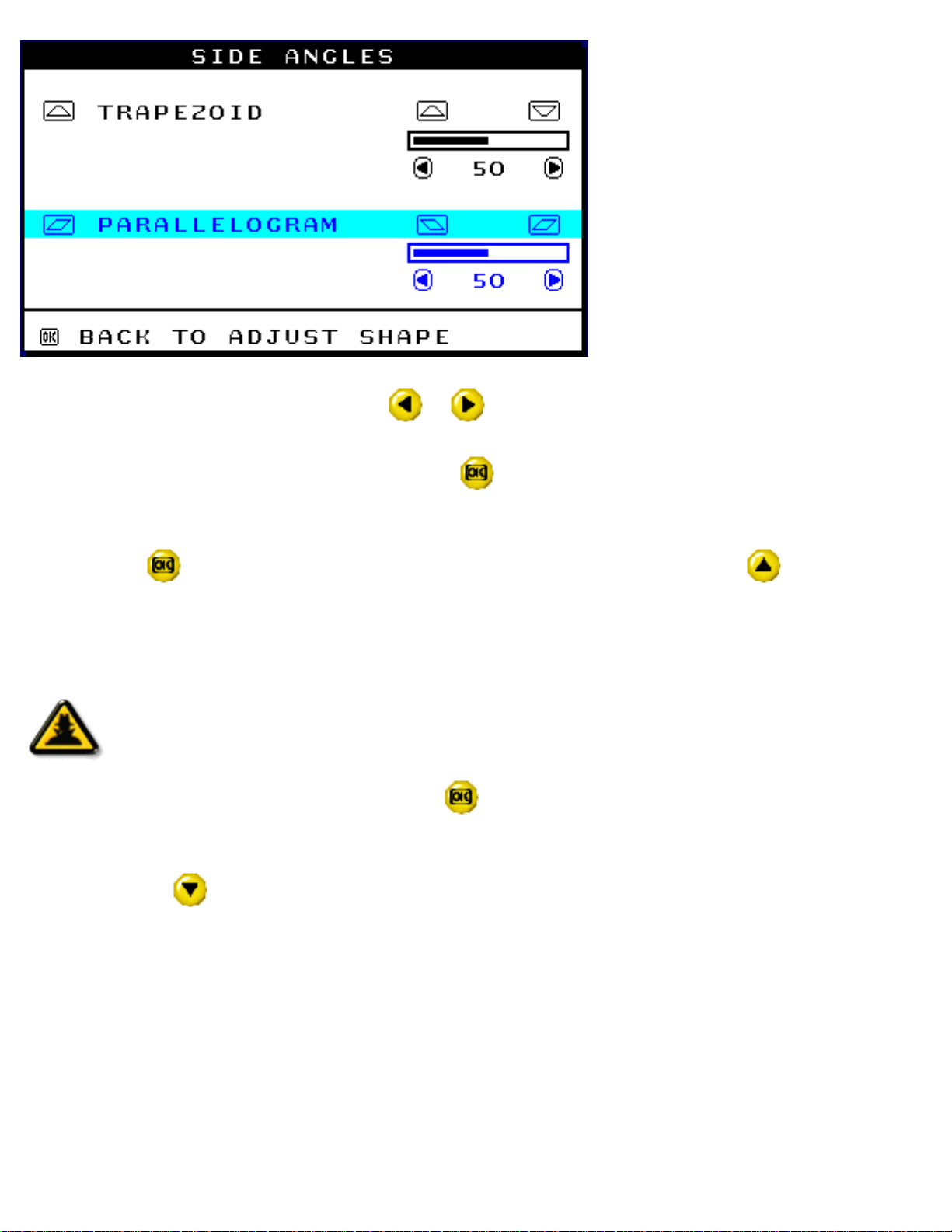

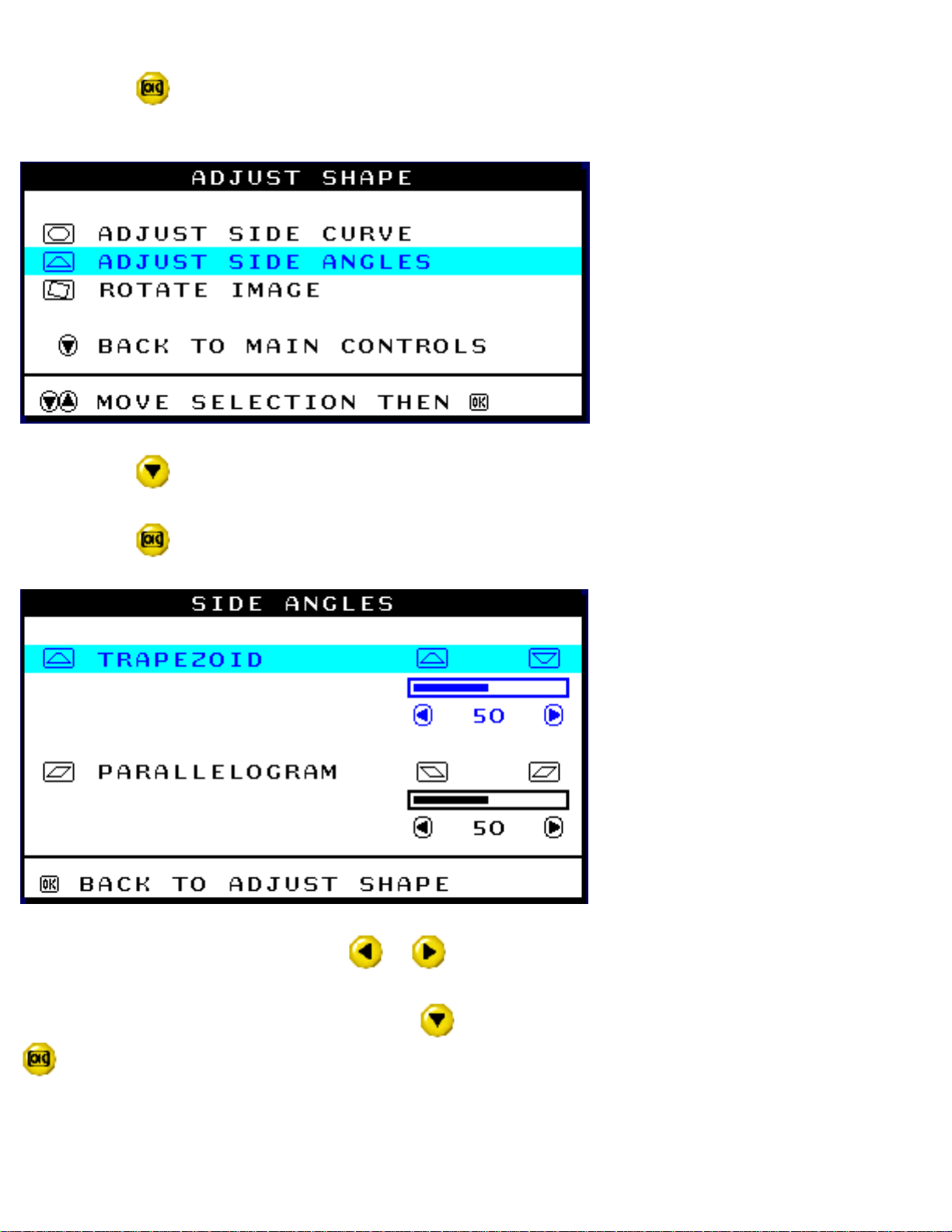

3) Press the button. The ADJUST SHAPE window appears. ADJUST SIDE CURVE should be highlighted.

4) Press the button to highlight ADJUST SIDE ANGLES.

5) Press the

button. The SIDE ANGLES window appears. TRAPEZOID should be highlighted.

6) To adjust the trapezoid, press the or button.

7) When the trapezoid is adjusted, press the

button to highlight PARALLELOGRAM or press the

button to return to the ADJUST SHAPE window.

file:///D|/EDFU/crt_19_5/edoc/english/OSD/osd_cont.htm (15 of 27)2005-04-21 ¤W¤È 09:40:55

The OSD Controls

8) To adjust the parallelogram, press the or button.

9) When the parallelogram is adjusted, press the

button to return to the ADJUST SHAPE

window. BACK TO MAIN WINDOWS will be highlighted.

10) Press the

button to return to the MAIN CONTROLS window, or press the button until

ROTATE IMAGE is highlighted.

Smart

Help

After returning to MAIN CONTROLS . . .

...to continue to ROTATE IMAGE, start with step 5 under ROTATE IMAGE and follow the directions.

...to exit completely, press the

button twice.

...to adjust only the PARALLELOGRAM, follow steps 1 - 4 above, then press the

button, and follow steps 7 - 9.

ROTATE IMAGE

(Not available in all models)

ROTATE IMAGE under ADJUST SHAPE allows you to adjust one of the five preset options. These two options are PINCUSHION and BALANCED pincushion. Note: use this feature only when the picture is not square.

file:///D|/EDFU/crt_19_5/edoc/english/OSD/osd_cont.htm (16 of 27)2005-04-21 ¤W¤È 09:40:55

The OSD Controls

1) Press the button on the monitor. The MAIN CONTROLS window appears.

2) Press the

button until ADJUST SHAPE is highlighted.

3) Press the button. The ADJUST SHAPE window appears. ADJUST SIDE CURVE should be highlighted.

4) Press the

arrow until ROTATE IMAGE is highlighted.

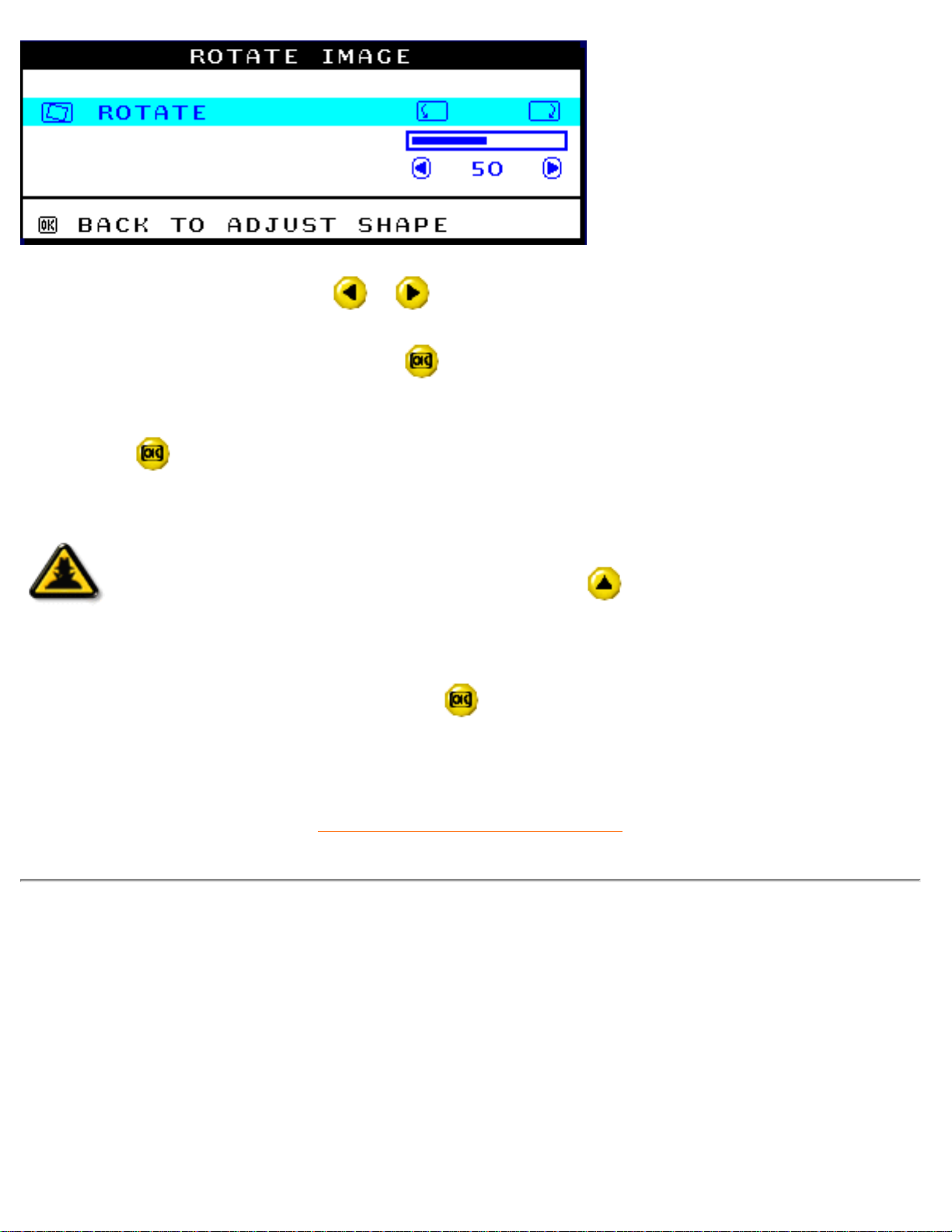

5) Press the button. The ROTATE IMAGE window appears. ROTATE should be highlighted.

file:///D|/EDFU/crt_19_5/edoc/english/OSD/osd_cont.htm (17 of 27)2005-04-21 ¤W¤È 09:40:55

The OSD Controls

6) To adjust the rotation, press the or button.

7) When the rotation is adjusted, press the

button to return to the ADJUST SHAPE window.

BACK TO MAIN CONTROLS should be highlighted.

8) Press the

button to return to MAIN CONTROLS.

Smart

Help

After returning to MAIN CONTROLS . . .

. . . to continue to ADJUST COLOR, press the button until ADJUST COLOR is highlighted. Next, start with step 3 under ADJUST COLOR and follow the

directions.

...to exit completely, press the

button twice.

RETURN TO TOP OF THE PAGE

ADJUST COLOR

Your monitor has three preset options you can choose from. The first option is for GENERAL USE, which is fine for most applications. The second option is for IMAGE MANAGEMENT, which includes projects such as desktop publishing, viewing a DVD from your DVD player or pictures on the World Wide Web, and playing video games. The third option is for PHOTO RETOUCH, which is for working with pictures you have imported into your computer and want to alter. When you select one of these options, the monitor automatically adjusts itself to that option. There is also a fourth option, USER PRESET, which allows you to adjust the colors on your screen to a setting you desire.

file:///D|/EDFU/crt_19_5/edoc/english/OSD/osd_cont.htm (18 of 27)2005-04-21 ¤W¤È 09:40:55

The OSD Controls

1) Press the button on the monitor. The MAIN CONTROLS window appears.

2) Press the

button until ADJUST COLOR is highlighted.

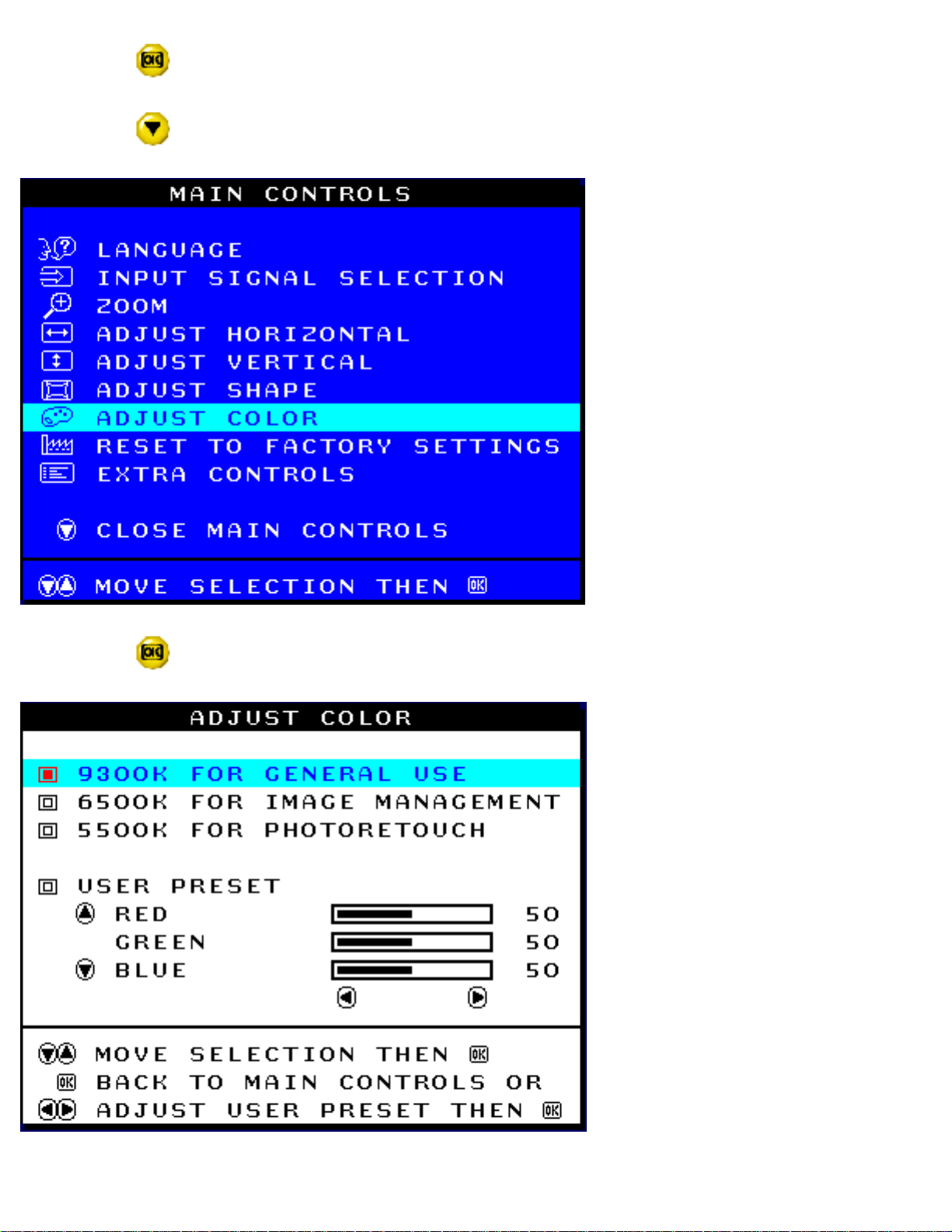

3) Press the button. The ADJUST COLOR window appears.

file:///D|/EDFU/crt_19_5/edoc/english/OSD/osd_cont.htm (19 of 27)2005-04-21 ¤W¤È 09:40:55

The OSD Controls

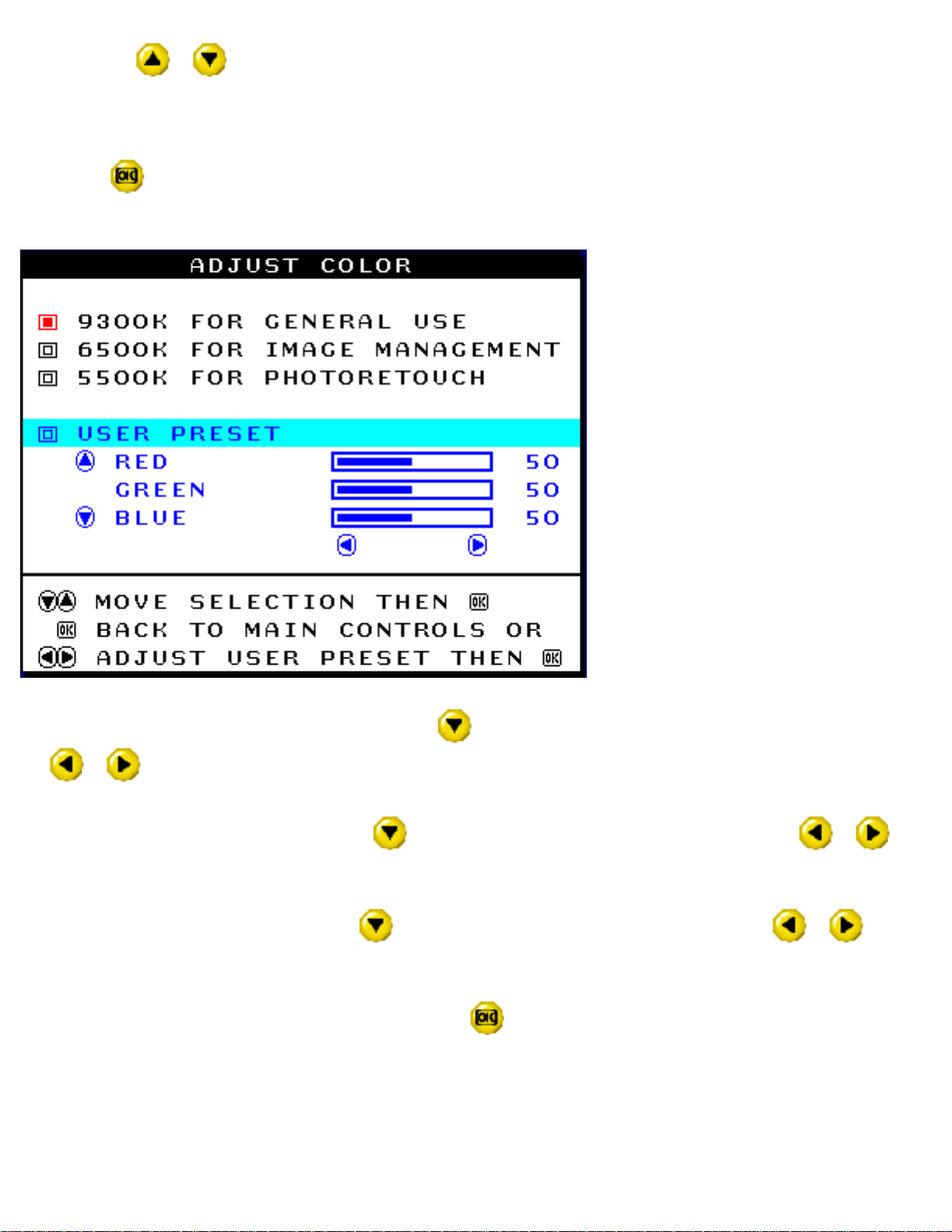

4) Press the or button to highlight 9300K for GENERAL USE, 6500K for IMAGE MANAGEMENT, 5500K for PHOTO RETOUCH, or USER PRESET.

5) Once you have highlighted GENERAL USE, IMAGE MANAGEMENT, or PHOTO RETOUCH, press the

button to confirm you selection and return to the MAIN CONTROLS window. CLOSE

MAIN CONTROLS will be highlighted.

6a) If USER PRESET is highlighted, press the button to highlight RED. Next, press the

or button to adjust the color red.

6b) When finished with RED, press the

button to highlight GREEN. Next, press the or

button to adjust the color green.

6c) When finished GREEN, press the

button to highlight BLUE. Next, press the or

button to adjust the color blue.

6d) When all adjustments are complete, press the

button to confirm your adjustments and return

to the MAIN CONTROLS window. CLOSE MAIN CONTROLS will be highlighted.

file:///D|/EDFU/crt_19_5/edoc/english/OSD/osd_cont.htm (20 of 27)2005-04-21 ¤W¤È 09:40:55

The OSD Controls

Smart

Help

After returning to MAIN CONTROLS. . .

. . . to continue to RESET TO FACTORY SETTINGS, press the button until RESET TO FACTORY SETTINGS is highlighted. Next, start with step 3 under

RESET TO FACTORY SETTINGS.

. . . to exit completely, press the

button.

RETURN TO TOP OF THE PAGE

RESET TO FACTORY SETTINGS

RESET TO FACTORY SETTINGS returns everything in all the windows to factory presets.

1) Press the

button on the monitor. The MAIN CONTROLS window appears.

2) Press the

button until RESET TO FACTORY SETTINGS is highlighted.

file:///D|/EDFU/crt_19_5/edoc/english/OSD/osd_cont.htm (21 of 27)2005-04-21 ¤W¤È 09:40:55

The OSD Controls

3) Press the button. The RESET TO FACTORY SETTINGS window appears.

4) Press the

or button to select YES or NO. NO is the default. YES returns all settings to

their original factory adjustments.

5) Press the button to confirm your selection and return to the MAIN CONTROLS window. CLOSE MAIN CONTROLS will be highlighted.

Smart

Help

After returning to MAIN CONTROLS . . .

. . . to continue to EXTRA CONTROLS, press the button until EXTRA CONTROLS is highlighted. Next, start with step 3 under EXTRA CONTROLS.

file:///D|/EDFU/crt_19_5/edoc/english/OSD/osd_cont.htm (22 of 27)2005-04-21 ¤W¤È 09:40:55

The OSD Controls

. . . to exit completely, press the button.

RETURN TO TOP OF THE PAGE

EXTRA CONTROLS

DEGAUSS

EXTRA CONTROLS is a set of three features, including DEGAUSS. Degaussing removes electromagnetic build up that may distort the color on your screen.

1) Press the

button on the monitor. The MAIN CONTROLS window appears.

2) Press the

button until EXTRA CONTROLS is highlighted.

3) Press the button. The EXTRA CONTROLS window appears. MOIRE will be highlighted.

file:///D|/EDFU/crt_19_5/edoc/english/OSD/osd_cont.htm (23 of 27)2005-04-21 ¤W¤È 09:40:55

The OSD Controls

4) Press the button to highlight DEGAUSS.

5) To degauss your screen, press the button. Your screen will be degaussed, then the MAIN CONTROLS window will reappear. CLOSE MAIN CONTROLS will be highlighted.

Smart

Help

After returning to MAIN CONTROLS . . .

. . . to continue to ADJUST MOIRE, press the button until EXTRA CONTROLS is highlighted. Next, start with step 3 under EXTRA CONTROLS, ADJUST MOIRE.

. . . to exit completely, press the

button.

ADJUST MOIRE

(Not available in all models)

EXTRA CONTROLS is a set of three features, including ADJUST MOIRE. Moire is a fringe pattern arising from the interference between two superimposed line patterns. To adjust your moire, follow the steps below. Note: Use only if necessary. By activating ADJUST MOIRE, sharpness can be affected.

1) Press the

button on the monitor. The MAIN CONTROLS window appears.

2) Press the DOWN CURSOR button until EXTRA CONTROLS is highlighted.

file:///D|/EDFU/crt_19_5/edoc/english/OSD/osd_cont.htm (24 of 27)2005-04-21 ¤W¤È 09:40:55

The OSD Controls

3) Press the button. The EXTRA CONTROLS window appears. ADJUST MOIRE will be highlighted.

4) Press the button. The ADJUST MOIRE window appears. HORIZONTAL will be highlighted.

file:///D|/EDFU/crt_19_5/edoc/english/OSD/osd_cont.htm (25 of 27)2005-04-21 ¤W¤È 09:40:55

The OSD Controls

5) To adjust the horizontal moire, press the or button.

6) When the horizontal moire is adjusted, press the

button to highlight VERTICAL.

7) To adjust the vertical moire, press the or button.

8) When the vertical moire is adjusted, press the

button to return to the EXTRA CONTROLS

window. BACK TO MAIN CONTROLS will be highlighted.

Smart

Help

After returning to MAIN CONTROLS . . .

. . . to exit completely, press the button.

file:///D|/EDFU/crt_19_5/edoc/english/OSD/osd_cont.htm (26 of 27)2005-04-21 ¤W¤È 09:40:55

The OSD Controls

CLOSE MAIN CONTROLS

RETURN TO TOP OF THE PAGE

file:///D|/EDFU/crt_19_5/edoc/english/OSD/osd_cont.htm (27 of 27)2005-04-21 ¤W¤È 09:40:55

F1rst Choice Warranty

Your Philips F1rst Choice Warranty

Thank you for purchasing this Philips monitor.

All Philips monitors are designed and manufactured to high standards and deliver high-quality performance, ease of use and ease of installation. Should you encounter any difficulties while installing or using this product, please contact the Philips helpdesk directly to benefit from your Philips F1rst Choice Warranty. This three-year service warranty entitles you to a swap model on-site if your monitor turns out to be faulty or defective.Philips aims at a swap within 48 hours of your call being received.

What is covered?

The Philips F1rst Choice Warranty applies within Andorra, Austria, Belgium, Cyprus, Denmark, France, Germany, Greece, Finland, Ireland, Italy, Liechtenstein, Luxembourg, Monaco, the Netherlands, Norway, Portugal, Sweden, Switzerland, Spain and the United Kingdom and only for monitors originally designed, manufactured, approved and/or authorized for usage within these countries.

Warranty coverage begins as from the day you buy your monitor. For three years thereafter, your monitor will be swapped by at least an equivalent monitor in case of defects provided for under the warranty coverage.

The swap monitor remains yours and Philips keeps the defective/original monitor. For the swap monitor the warranty period remains equal to that of your original monitor, being 36 months as from the purchase date of your original monitor.

What is excluded?

The Philips F1rst Choice Warranty applies provided the product is handled properly for its intended use, in accordance with its operating instructions and upon presentation of the original invoice or cash receipt, indicating the date of purchase, dealer's name and model and production number of the product.

The Philips F1rst Choice Warranty may not apply if:

●

The documents have been altered in any way or made illegible;

●

The model or production number on the product has been altered, deleted, removed or made illegible;

file:///D|/EDFU/crt_19_5/edoc/english/WARRANTY/war_1st.htm (1 of 3)2005-04-21 ¤W¤È 09:40:59

F1rst Choice Warranty

●

Repairs or product modifications and alterations have been executed by unauthorized service organizations or persons;

●

Damage is caused by accidents including but not limited to lightning, water or fire, misuse or neglect;

●

Reception problems caused by signal conditions or cable or antenna systems outside the unit;

●

Defects caused by abuse or misuse of the monitor;

●

Product requires modification or adaptation to enable it to comply with local or national technical standards, which apply in countries for which the product was not originally designed, manufactured, approved and/or authorized. Therefore always check whether a product can be used in a specific country.

●

Note that products that are not originally designed, manufactured, approved and/or authorized for usage within the Philips F1rst Choice countries, do not apply to the Philips F1rst Choice Warranty. In these cases the Philips global warranty terms are valid.

Just a click away

In case of any problems, we advise you to read the operating instructions carefully or go to the

www.

philips.com/support website for additional support.

Just a phone call away

In order to avoid unnecessary inconvenience, we advise you to read the operating instructions carefully or go to the

www.philips.com/support website for additional support before contacting the

Philips helpdesk.

To solve your problem quickly, please prepare the following details before contacting the Philips helpdesk:

● Philips type number

● Philips serial number

● Purchase date (copy of purchase may be required)

● PC environment Processor: ❍ 286/386/486/Pentium Pro/Internal memory ❍ Operating system (Windows, DOS, OS/2, MAC) ❍ Fax/Modem/Internet program?

● Other cards installed

file:///D|/EDFU/crt_19_5/edoc/english/WARRANTY/war_1st.htm (2 of 3)2005-04-21 ¤W¤È 09:40:59

F1rst Choice Warranty

Having the following information available will also help speed up the process:

● Your proof of purchase indicating: date of purchase, dealer name, model and product serial

number.

● The full address to which the faulty monitor has to be collected and the swap model should

be delivered.

Philips' customer help desks are located worldwide. Click here to access the

F1rst Choice Contact

Information.

Or you can reach us via: Website:

http://www.philips.com/support

file:///D|/EDFU/crt_19_5/edoc/english/WARRANTY/war_1st.htm (3 of 3)2005-04-21 ¤W¤È 09:40:59

Your Guarantee in Central and Eastern Europe

Dear Customer,

Thank you for purchasing this Philips product, which has been designed and manufactured to the highest quality standards. If, unfortunately, something should go wrong with this product Philips guarantees free of charge labor and replacement parts during a period of 36 months from date of purchase.

What is covered?

This Philips Guarantee in Central and Eastern Europe applies within Czech Republic, Hungary, Slovakia, Slovenia, Poland, Russia and Turkey and only for monitors originally designed, manufactured, approved and/or authorized for usage within these countries.

Warranty coverage begins as from the day you buy your monitor. For 3 years thereafter, your monitor will be serviced in case of defects provided for under the warranty coverage.

What is excluded?

The Philips guarantee applies provided the product is handled properly for its intended use, in accordance with its operating instructions and upon presentation of the original invoice or cash receipt, indicating the date of purchase, dealer's name and model and production number of the product.

The Philips guarantee may not apply if:

● the documents have been altered in any way or made illegible;

● the model or production number on the product has been altered, deleted, removed or made

illegible;

● repairs or product modifications and alterations have been executed by unauthorized service

organizations or persons;

● damage is caused by accidents including but not limited to lightning, water or fire, misuse or

neglect.

● Reception problems caused by signal conditions or cable or antenna systems outside the

unit;

● Defects caused by abuse or misuse of the monitor;

● Product requires modification or adaptation to enable it to comply with local or national

technical standards, which apply in countries for which the product was not originally designed, manufactured, approved and/or authorized. Therefore always check whether a product can be used in a specific country.

file:///D|/EDFU/crt_19_5/edoc/english/WARRANTY/WAR_EEU.HTM (1 of 2)2005-04-21 ¤W¤È 09:40:59

Your Guarantee in Central and Eastern Europe

Please note that the product is not defective under this guarantee in the case where modifications become necessary in order for the product to comply with local or national technical standards which apply in countries for which the product was not originally designed and/or manufactured. Therefore always check whether a product can be used in a specific country.

Just a click away

In case of any problems, we advise you to read the operating instructions carefully or go to the

www.

philips.com/support website for additional support.

Just a phone call away

In order to avoid unnecessary inconvenience, we advise you to read the operating instructions carefully before contacting our dealers or Information Centers

In case your Philips product is not working correctly or is defective, please contact your Philips dealer or directly the

Philips Service and Consumer Information Centers.

Website:

www.philips.com/support

file:///D|/EDFU/crt_19_5/edoc/english/WARRANTY/WAR_EEU.HTM (2 of 2)2005-04-21 ¤W¤È 09:40:59

International Guarantee

Your International Guarantee

Dear Customer,

Thank you for purchasing this Philips product which has been designed and manufactured to the highest quality standards.

If, unfortunately, something should go wrong with this product Philips guarantees free of charge labor and replacement parts irrespective of the country where it is repaired during a period of 12 months from date of purchase. This international Philips guarantee complements the existing national guarantee obligations to you of dealers and Philips in the country of purchase and does not affect your statutory rights as a customer.

The Philips guarantee may not apply if:

● the documents have been altered in any way or made illegible;

● the model or production number on the product has been altered, deleted, removed or made

illegible;

● repairs or product modifications and alterations have been executed by unauthorized service

organizations or persons;

● damage is caused by accidents including but not limited to lightning, water or fire, misuse or

neglect.

In case your Philips product is not working correctly or is defective, please contact your Philips dealer. In the event you require service whilst in another country a dealer address can be given to you by the Philips Consumer Help Desk in that country, the telephone and fax number of which can be found in the relevant part of this booklet.

In order to avoid unnecessary inconvenience, we advise you to read the operating instructions carefully before contacting your dealer. If you have questions which your dealer cannot answer or any related question please contact the

Philips Consumer Information Centers or via:

file:///D|/EDFU/crt_19_5/edoc/english/WARRANTY/WAR_INTL.HTM (1 of 2)2005-04-21 ¤W¤È 09:40:59

International Guarantee

Website: http://www.philips.com

file:///D|/EDFU/crt_19_5/edoc/english/WARRANTY/WAR_INTL.HTM (2 of 2)2005-04-21 ¤W¤È 09:40:59

United States Guarantee

Philips F1rst Choice Warranty (USA / Canada)

Thank you for purchasing this Philips monitor.

All Philips monitors are designed and manufactured to high standards and deliver high-quality performance, ease of use and ease of installation. Should you encounter any difficulties while installing or using this product, please contact Philips directly to benefit from your Philips F1rst Choice Warranty. This three-year service warranty entitles you to a swap model on-site within 48 hours of your call being received within the first year of purchase. If you have any problems with your monitor within the second or third year of purchase, we will repair it after it has been sent to the service provider at your expense and returned to you within five working days, free of charge.

LIMITED WARRANTY (Computer Monitor)

Click here to access the Warranty Registration Card

Three Years Free Labor / Three Years Free Service on Parts / One Year Exchange*

*Product will be exchanged with a new or renewed to original specifications unit within two business days for the first year. This product must be shipped in at your expense for service during years two and three.

WHO IS COVERED?

You must have proof of purchase to receive warranty service. A sales receipt or other document showing that you purchased the product is considered proof of purchase. Attach it to this owner's manual and keep both nearby.

WHAT IS COVERED?

Warranty coverage begins the day you buy your product. For three years thereafter, all parts will be repaired or replaced, and labor is free. After three years from the day of purchase, you pay for the replacement or repair of all parts, and for all labor charges.

All parts, including repaired and replaced parts, are covered only for the original warranty period.

file:///D|/EDFU/crt_19_5/edoc/english/WARRANTY/WAR_USA.HTM (1 of 4)2005-04-21 ¤W¤È 09:41:00

United States Guarantee

When the warranty on the original product expires, the warranty on all replaced and repaired products and parts also expires.

WHAT IS EXCLUDED?

Your warranty does not cover:

● labor charges for installation or setup of the product, adjustment of customer controls on the

product, and installation or repair of antenna systems outside of the product.

● product repair and/or part replacement because of misuse, accident, unauthorized repair or

other cause not within the control of Philips Consumer Electronics.

● reception problems caused by signal conditions or cable or antenna systems outside the

unit.

● a product that requires modification or adaptation to enable it to operate in any country other

than the country for which it was designed, manufactured, approved and/or authorized, or repair of products damaged by these modifications.

● incidental or consequential damages resulting from the product. (Some states do not allow

the exclusion of incidental or consequential damages, so the above exclusion may not apply to you. This includes, but is not limited to, prerecorded material, whether copyrighted or not copyrighted.)

● a product used for commercial or institutional purposes.

●

the model or production number on the product has been altered, deleted, removed or made illegible.

Where IS SERVICE AVAILABLE?

Warranty service is available in all countries where the product is officially distributed by Philips Consumer Electronics. In countries where Philips Consumer Electronics does not distribute the product, the local Philips service organization will attempt to provide service (although there may be a delay if the appropriate spare parts and technical manual(s) are not readily available).

Where CAN I GET MORE INFORMATION?

For more information, contact the Philips Customer Care Center by calling (877) 835-1838 (U.S.A.

customers only) or

(919) 573-7855.

Before Requesting Service...

Please check your owner's manual before requesting service. Adjustments of the controls

file:///D|/EDFU/crt_19_5/edoc/english/WARRANTY/WAR_USA.HTM (2 of 4)2005-04-21 ¤W¤È 09:41:00

Philips 202F40/93 Operation Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

electronic user's manual

Safety & Troubleshooting

About This Electronic User's Manual

202F Product Information

Installing your Monitor

On-Screen Display

Customer Care and Warranty

Frequently Asked Questions

Glossary

Download and Print

Troubleshooting

Regulatory Information

Other Related Information

The OSD Controls

F1rst Choice Warranty

Your Guarantee in Central and Eastern Europe

International Guarantee

United States Guarantee
