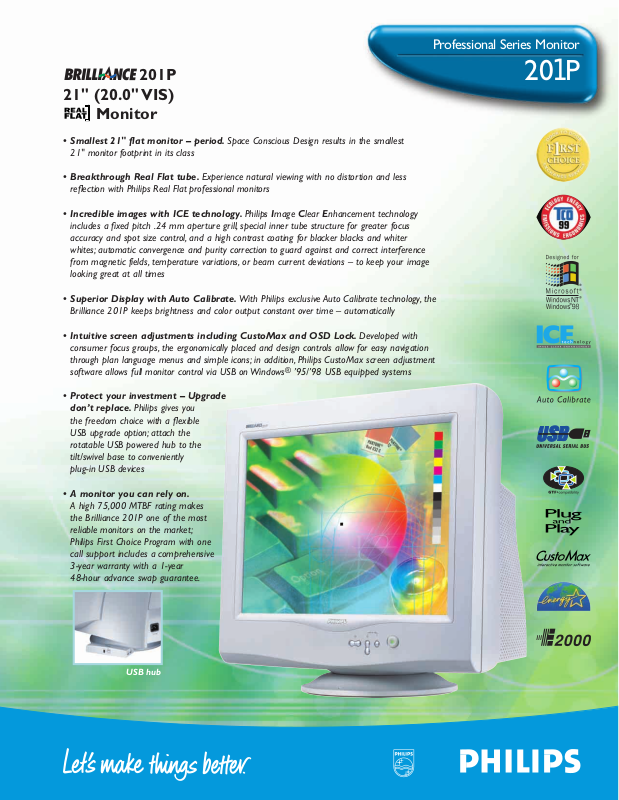

Philips 201P201P User Manual

Professional Series Monitor

201P

201P

21" (20.0" VIS)

Monitor

• Smallest 21" flat monitor – period. Space Conscious Design results in the smallest
21" monitor footprint in its class

• Breakthrough Real Flat tube. Experience natural viewing with no distortion and less
reflection with Philips Real Flat professional monitors

• Incredible images with ICE technology. Philips Image Clear Enhancement technology
includes a fixed pitch .24 mm aperture grill, special inner tube structure for greater focus
accuracy and spot size control, and a high contrast coating for blacker blacks and whiter
whites; automatic convergence and purity correction to guard against and correct interference
from magnetic fields, temperature variations, or beam current deviations – to keep your image
looking great at all times

• Superior Display with Auto Calibrate. With Philips exclusive Auto Calibrate technology, the
Brilliance 201P keeps brightness and color output constant over time – automatically

• Intuitive screen adjustments including CustoMax and OSD Lock. Developed with
consumer focus groups, the ergonomically placed and design controls allow for easy navigation
through plan language menus and simple icons; in addition, Philips CustoMax screen adjustment
software allows full monitor control via USB on Windows®’95/’98 USB equipped systems

• Protect your investment – Upgrade
don’t replace. Philips gives you

the freedom choice with a flexible
USB upgrade option; attach the
rotatable USB powered hub to the
tilt/swivel base to conveniently
plug-in USB devices

• A monitor you can rely on.

A high 75,000 MTBF rating makes
the Brilliance 201P one of the most
reliable monitors on the market;
Philips First Choice Program with one
call support includes a comprehensive
3-year warranty with a 1-year
48-hour advance swap guarantee.

USB hub

Product Number 201P10
Technical Specifications

CRT

• Size (inch/cm) 21"/51 cm (20.0" VIS)

• Deflection Angle (Degrees) 90°

• Grille Pitch 0.24 mm

-Tube Type Aperture Grille, Flat, High Contrast,

Anti-Glare,Anti-Static,Anti-Reflection,
Light Transmission 41%

• Phosphor B22

• Recom. Display Area(mm) 392 x 294 mm

• Recom. Display Area(inch) 15.4" x 11.6"

• Max. Display Area(mm) 406 x 305 mm

• Max. Display Area(inch) 16.0" x 12.0"

Scanning

• Horizontal Scanning 30 - 121kHz

• Vertical Scanning 50 - 160Hz

Video

• Video Dot Rate 320MHz

• Input Impedance

-Video 75Ω

-Sync 2.2kΩ

• Input Signal Levels 0.7 Vp-p

• Sync Input Signal Separate Sync
Composite Sync

• Sync Polarities Positive and Negative

White Color Temperature

Chromaticity CIE Coordinates:

• at 9300 K: x=0.283, y=0.297

• at 6500 K: x=0.313, y=0.329

• at 5500 K: x=0.332, y=0.347

Resolution and Preset Modes

• Max. Resolution 2048 x 1536

• Recom. Resolution 1600 x 1200

• 16 User Definable Modes

• 39 Factory Preset Modes:

H.freq (kHz)/ V.freq (Hz)

640 x 350 31.5K/70; 37.9K/85
640 x 480 31.5K/60; 37.9K/72; 37.5K/75; 43.3K/85; 50.6K/100
720 x 400 31.5K/70; 37.9K/85
800 x 600 37.9K/60; 48.1K/72; 46.9K/75; 53.7K/85; 63.9K/100
832 x 624 49.7K/75
1024 x 768 48.4K/60; 56.5K/70; 60.0K/75; 68.7K/85
1152 x 864 67.5K/75
1152 x 870 68.7K/75
1152 x 900 71.8K/76
1280 x 960 60.0K/60; 85.9K/85
1280 x 1024 64.0K/60; 80.0K/75; 91.1K/85
1600 x 1200 75.0K/60; 81.3K/65; 87.5K/70; 93.8K/75; 106.3K/85
1792 x 1344 83.6K/60; 106.3K/75
1856 x 1392 86.3K/60
1920 x 1440 90.0K/60; 112.5K/75
2048 x 1536 95.8K/60; 120.5K/75

Plug and Play Compatibility

• Display Data Channel DDC 1/2B

• Microsoft®,Windows®95/98/NT Compatible

• VESA®GTF Compatible

Power Management

Complies with EPA Energy Star, NUTEK and E2000 Specifications

• Operation (typ.) 124 W

• Suspend/Stand-By Mode (typ.) < 7 W

• Off Mode/Deep Sleep < 2.8 W

Low-emission Characteristics

• Complies with MPR-II and TCO ’99 Specifications

Monitor Controls and Functions

• Main 5-Button OSD
Brightness +/- Direct Access
Contrast+/- Direct Access
Input Selection Direct Access

• OSD Language (English, Spanish, French,
German, Italian), Zoom, Horizontal,
Vertical, Pincushion, Balanced,
Trapezoid, Parallelogram, Color, Reset,
Degauss, Moire, Serial Number,
Resolution, Frequency, Convergence,
Purity,Input Selection,Auto Calibrate

• CustoMax®via USB Adjustments,Test Patterns, Onscreen help

• Auto Calibrate Automatic and Manual Calibration of
Color Temperature, Brightness and
Contrast Levels to Original Setting

• Automatic Correction Automatic Convergence and Purity
Correction Due to Thermal or
Magnetic Influence

Connections and Cables

• Connections

-Video 15-pin D-Shell/5 x BNC

-USB Upstream Port

• Cables D-Sub Video, Power and USB

Regulatory Approvals

• TCO ‘99

• MPR-II Low Emission

• TüV/GS,TüV-Ergo

• FCC-B, UL, CSA, DHHS

• SEMKO, Poland-B Sign,C-Tick

• VCC-I, CE, BCIQ, PSB

Physical Specifications

• Dim. Incl. Base (WxHxD)(mm) 501 x 501 x 466

• Dim. Incl. Base (WxHxD)(inch) 19.7" x 19.7" x 18.3"

• Dim. Excl. Base (WxHxD)(mm) 501 x 461 x 466

• Dim. Excl. Base (WxHxD)(inch) 19.7" x 18.1" x 18.3"

• Unit Weight 29 kg/63.8 lbs.

• Power Supply 90 - 264 VAC, 50/60Hz

• UPC Code 0 37849 89463 7

• Carton Dimensions (WxHxD)(mm) 654 x 673 x 662

• Carton Dimensions (WxHxD)(inch) 25.7" x 26.5" x 26.1"

• Carton Weight 33kg/72.6 lbs.

• Temperature (Operational) 0°C to +35°C/ 32° to 95°F

• Temperature (Storage) -25°Cto +65°C/ -13° to 149°F

• Relative Humidity 5% to 95%

• MTBF (excl. CRT) > 75,000 H

Other

• USB Hub Option Type PCUH411

This monitor fulfills all Nutek requirements regarding power management
Philips is a partner in the EPA’s ENERGY STAR®Computers Program.
As an ENERGY STAR®partner,Philips has determined that this product meets the ENERGY STAR

®

guidelines for energy efficiency.
Mac is a registered trademark of Apple Computer,Inc. MS-DOS is a registered trademark and Windows®95/98/NT is
a trademark of Microsoft Corp.All trademarks acknowledged.

Printed in the U.S.A.
©2000 Philips Consumer Electronics Co.
A Division of Philips Electronics North America Corp.
200018 KID Design, Philips Consumer Electronics Co.
By using environmentally-friendly materials, Philips Consumer Electronics Company continues to demonstrate
our commitment to a cleaner environment.This paper is made from at least 10% post-recycled stock, and the
ink is vegetable based.
INTERNET ADDRESS: http://www.pcstuff.philips.com
FAX INFORMATION SYSTEM: [phone]
TECHNICAL SUPPORT: [phone] (USA)

[phone] (outside USA)

Professional Series Monitor

201P

Specifications subject to change without notice
