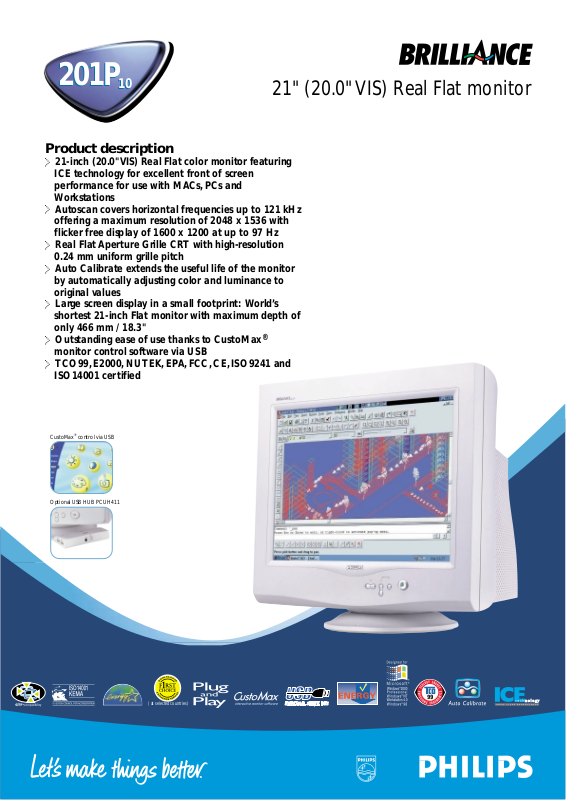

21" (20.0" VIS) Real Flat monitor
Product description
21-inch (20.0"VIS) Real Flat color monitor featuring
>
ICE technology for excellent front of screen
performance for use with MACs, PCs and
Workstations
Autoscan covers horizontal frequencies up to 121 kHz
>
offering a maximum resolution of 2048 x 1536 with
flicker free display of 1600 x 1200 at up to 97 Hz
Real Flat Aperture Grille CRT with high-resolution
>
0.24 mm uniform grille pitch
Auto Calibrate extends the useful life of the monitor
>
by automatically adjusting color and luminance to
original values
Large screen display in a small footprint: World’s
>
shortest 21-inch Flat monitor with maximum depth of
only 466 mm / 18.3"
Outstanding ease of use thanks to CustoMax®
>
monitor control software via USB
TCO99, E2000, NUTEK, EPA, FCC, CE, ISO9241 and
>
ISO14001 certified
CustoMax® control via USB
Optional USB HUB PCUH411
( at selected countries)
CRT
• Size (inch/cm) 21"/ 51 cm
• Deflection angle (degrees) 90°
• Grille pitch 0.24 mm uni-pitch
-Tube type Aperture grille, Real Flat,High
Contrast, Anti Glare,Anti Static,
Anti reflection,
Light T ransmission 41%
• Phosphor B22
• Recom.display area(mm) 392 x 294 mm
• Recom.display area(inch) 15.4" x 11.6"
• Max.display area(mm) 406 x 305 mm
• Max.display area(inch) 16.0" x 12.0"
Scanning
• Horizontal scanning 30 - 121 kHz
• Vertical scanning 50 - 160 Hz
Video
• Video dot rate 320 MHz
• Input impedance
-Video 75 Ohm
-Sync 2.2k Ohm
• Input signal levels 0.7 Vpp
• Sync input signal Separate sync
Composite sync
• Sync polarities Positive and negative
White color temperature
Chromaticity CIE coordinates:
• at 9300 K: x=0.283, y=0.297
• at 6500 K: x=0.313, y=0.329
• at 5500 K: x=0.332, y=0.347
Resolution and preset modes
• Max.resolution 2048 x 1536
• Recom.resolution 1600 x 1200
• GTF
• 16 user definable modes
• 39 factory preset modes:
H.freq (kHz)/ V.freq (Hz)
640 x 350 31.5K/70;37.9K/85
640 x 480 31.5K/60;37.9K/72;37.5K/75;
43.3K/85;50.6K/100
720 x 400 31.5K/70;37.9K/85
800 x 600 37.9K/60;48.1K/72;46.9K/75;
53.7K/85;63.9K/100
832 x 624 49.7K/75
1024 x 768 48.4K/60;56.5K/70; 60.0K/75;
68.7K/85
1152 x 864 67.5K/75
1152 x 870 68.7K/75
1152 x 900 71.8K/76
1280 x 960 60.0K/60;85.9K/85
1280 x 1024 64.0K/60;80.0K/75;91.1K/85
1600 x 1200 75.0K/60;81.3K/65;87.5K/70;
93.8K/75;106.3K/85
1792 x 1344 83.6K/60;106.3K/75
1856 x 1392 86.3K/60
1920 x 1440 90.0K/60;112.5K/75
2048 x 1536 95.8K/60;120.5K/75
Plug and play compatibility
• Display Data Channel DDC 1/2B
• Microsoft
®
Windows®95/98/NT/2000 compatible
Technical Specifications
Power management
• Operation (typ.) 124 W
• Suspend/Stand By mode (typ.)< 7 W
• Off mode/ Deep Sleep < 2.8 W
Low-emission characteristics
• Complies with MPR-II and TCO ’99 specifications
Monitor controls and functions
• Main 5-button OSD
Brightness +/- direct access
Contrast+/- direct access
Input selection direct access
• On Screen Display Language (English,Spanish,French,
German,Italian),zoom,horizontal,
vertical,pincushion,balanced,
trapezoid,parallelogram,color,reset,
degauss,moire,serial number,
resolution,frequency
Convergence,purity
Input selection
Auto Calibrate
• CustoMax®via USB Adjustments,test patterns, on screen
help
• Auto Calibrate Automatic and manual calibration of
color temperature,brightness and
contrast levels to original setting.
Connections and Cables
• Connections
-Video 15-pin D-Shell/ 5 BNC
-USB upstream port
• Cables Video,Power and USB
Regulatory approvals
• TCO ‘99
• MPR-II Low Emission
• TüV/GS,TüV-Ergo,TüV-9241-3
• FCC-B,UL,CSA,DHHS
• SEMKO,Poland-B sign, C-Tick
• VCC-I,CE,BCIQ,PSB
Physical specifications
• Dim.incl.base (WxHxD)(mm) 501 x 501 x 466
• Dim.incl.base (WxHxD)(inch) 19.7" x 19.7" x 18.3"
• Dim.excl.base (WxHxD)(mm) 501 x 461 x 466
• Dim.excl.base (WxHxD)(inch) 19.7" x 18.1" x 18.3"
• Weight (kg) 28.5 kg
• Power supply 90 - 264 VAC,50/60Hz
• Temperature (operational) 0°C to 35°C/ 32°F to 95°F
• Temperature (storage) -25°C to 65°C/ -13°F to 149°F
• Relative humidity 5% to 95%
• MTBF (excl.CRT) > 75,000 H
Other
• USB Hub option type:PCUH411
All data subject to change without notice
