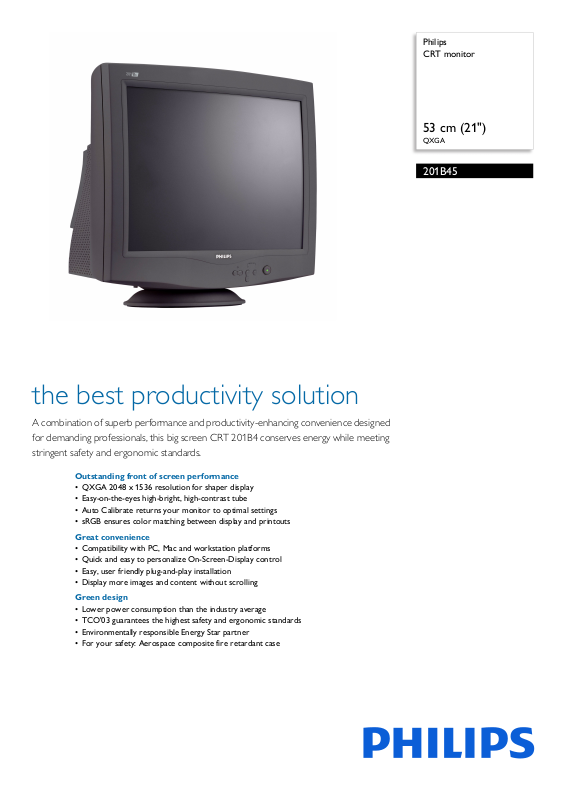

Philips 201B45-74 User Manual

Philips CRT monitor

53 cm (21")

QXGA

201B45

the best productivity solution

A combination of superb performance and productivity-enhancing convenience designed for demanding professionals, this big screen CRT 201B4 conserves energy while meeting stringent safety and ergonomic standards.

Outstanding front of screen performance

• QXGA 2048 x 1536 resolution for shaper display

• Easy-on-the-eyes high-bright, high-contrast tube

• Auto Calibrate returns your monitor to optimal settings

• sRGB ensures color matching between display and printouts

Great convenience

• Compatibility with PC, Mac and workstation platforms

• Quick and easy to personalize On-Screen-Display control

• Easy, user friendly plug-and-play installation

• Display more images and content without scrolling

Green design

• Lower power consumption than the industry average

• TCO'03 guarantees the highest safety and ergonomic standards

• Environmentally responsible Energy Star partner

• For your safety: Aerospace composite fire retardant case

CRT monitor

53 cm (21") QXGA

201B45/74

Specifications

Picture/Display

• Display screen type: Aperture Grille CRT

• Panel Size: 21"/ 51 cm

• Phosphor: P22

• Recommended display area(mm): 392 x 294 mm

• Recommended Display Area(inch): 15.4" x 11.6"

• Dot pitch: 0.25 mm

• Dot Pitch (horizontal): 0.21 mm

• White Chromaticity, 5500K: x = 0.332 / y = 0.347

• White Chromaticity, 6500K: x = 0.313 / y = 0.329

• White Chromaticity, 9300K: x = 0.283 / y = 0.297

• Maximum Resolution: 2048 x 1536 @ 72 Hz

• Optimum resolution: 1600 x 1200 @ 85 Hz

• Factory Preset Modes: 8 modes

• Factory Preset Mode: 1024 x 768 @ 75 Hz, 1024 8 @ 85 Hz, 1280 x 1024 @ 75 Hz, 1280 x

x 76

24 @ 85 Hz, 1600 x 1200 @ 75 Hz, 1600 x

00 @ 85 Hz, 1792 x 1344 @ 75 Hz, 1920 x

40 @ 75 Hz

• Factory Preload Modes: 26 modes

• Video Dot Rate: 320 MHz

• Horizontal Scanning Frequency: 30 - 115 kHz

• Vertical Scanning Frequency: 50 - 160 Hz

• Recommended Refresh Rate: 85 Hz

• Screen enhancement: Anti-glare Polarizer, Anti-

eflection, Anti-Static, High Contrast, High

R Brightness

• Picture enhancement: Auto Calibrate

•sRGB

•GTF

Connectivity

• Cables: D-sub Video Cable, Power Cord

• Sync input impedance: 2.2k ohm

• Video input impedance: 75 ohm

• Video input signal levels: 0.7 Vpp

• Sync Input: Composite Sync, Separate Sync

• Video Sync Polarities: Positive and Negative

• Cable Connection: AC Power in, 5BNC, D-sub

Convenience

• User convenience: Menu Languages, On-screen Display

• Monitor Controls: Brightness Control, Contrast

ntrol, Left/Right, Menu, Power On/Off, Up/

Co Down

• OSD Languages: English, Fr Simplified Chinese, Spanish

• Plug & Play Compatibility: DDC 2B, sRGB,

ws 98/ME/2000/XP

Windo

• Regulatory approvals: CE Mark, FCC-B, UL, CSA,

O, TCO '99, TÜV/GS, TÜV Ergo, FDA,

SEMK E2000, NUTEK, Energy Star

•Swivel: +/- 90°

• Tilt: -5° to 25°

ench, German, Italian,

Accessories

• Included accessories: AC Power Cord

• User Manual

Dimensions

• Dimensions (with base) (W x H x D): 482 x 476 x 467

• Temperature range (operation): 0°C to 35°C

• Temperature range (storage): -25°C to 65°C

•Weight: 28 kg

Power

• Complies with: E2000, Energy Star, NUTEK

• Consumption (On mode): 104 W (Typical)

•Consumption (Off Mo

• Power LED indicator: Off - Amber, Operation -

gree

• Power supply: Built-in

•

de): 2.8 W

Highlights

QXGA, 2048 x 1536 resolution

Quantum eXtended Graphics Array: A screen resolution of 2048 x 1536 pixels.

High-bright-high-contrast tube

A CRT tube designed to increase display brightness and contrast by increasing the CRT ray gun's beam current.

Auto Calibrate

A one-touch system for maintaining optimal CRT monitor performance by automatically recalibrating color temperature to their original values.

sRGB ready

sRGB is an industry standard that ensures the best possible match between the colors displayed on your screen and those in your printouts.

Platform compatibility

The ability to work with a variety of platforms; Philips monitors are compatible to connect with PCs and workstation by employing a VGA connection and connect with Macintosh.

OSD On-Screen-Display control

An on-screen panel for adjusting a monitor. The OSD is used for contrast, brightness, horizontal, vertical positioning and other monitor adjustments.

Easy plug-and-play

Plug-and-play is a peripheral connectivity standard. A plug and play display device can be connected to a PC and operate without requiring user intervention to adjust complicated settings.

Large viewing area

Viewing area is the visible portion of a monitor screen available for displaying data.

Issue date 2014-02-07

Version: 2.0.3

Energy efficiency

Reduction of the electrical power required to operate a device to achieve real savings.

TCO '03 compliance

A TCO (Swedish Confederation of Professional Employees) standard even more stringent than MPRII for safety and ergonomics, especially concerning alternating electric fields (AEF).

Energy Star partner

A manufacturer in compliance with power conservation requirements set forth by the Environmental Protection Agency of the U.S. government.

Flame retardant cabinet

PC/ABS plastic composite is the industry's best and toughest flame-retardant casing material; and is a space-age compound deployed in the aerospace and automotive industries as well as in fire detectors that is compliant with most stringent fire safety standards.
