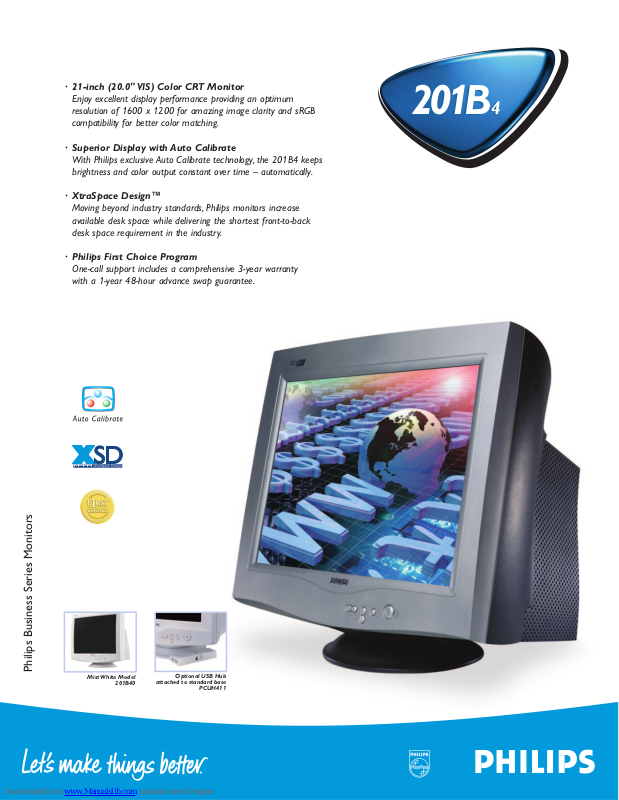

Philips 201B40, 201B4574, 201B4, 201B45 Specifications

Philips Business Series Monitors

201B4

201B

4

Mist White Model

201B40

Optional USB Hub

attached to standard base

PCUH411

· 21-inch (20.0" VIS) Color CRT Monitor

Enjoy excellent display performance providing an optimum
resolution of 1600 x 1200 for amazing image clarity and sRGB
compatibility for better color matching.

· Superior Display with Auto Calibrate

With Philips exclusive Auto Calibrate technology, the 201B4 keeps
brightness and color output constant over time – automatically.

· XtraSpace Design™

Moving beyond industry standards, Philips monitors increase
available desk space while delivering the shortest front-to-back
desk space requirement in the industry.

· Philips First Choice Program

One-call support includes a comprehensive 3-year warranty
with a 1-year 48-hour advance swap guarantee.

201B4

201B

4

Product Number 201B45 (Black/Silver)

201B40 (Mist White)

Technical Specifications

CRT

• Size (inch/cm) 21.0 inch / 51 cm (20.0" VIS)

• Deflection Angle (degrees) 90°

• Dot Pitch 0.25 mm

• Horizontal Pitch 0.21 mm

-Tube Type Shadow Mask, Flat Square, Super High
Contrast,Anti-glare,Anti-static,
Anti-reflection, Light Transmission 43%

• Phosphor P22

• Recom. Display Area (mm) 392 x 294 mm

• Recom. Display Area (inch) 15.4" x 11.6"

• Max. Display Area (mm) 406 x 305 mm

• Max. Display Area (inch) 16.0" x 12.0"

Scanning

• Horizontal Scanning 30 - 115 kHz

•Vertical Scanning 50 - 160 Hz

Video

• Video Dot Rate 261 MHz

• Input Impedance

-Video 75Ω

-Sync 2.2kΩ

• Input Signal Levels 0.7 Vp-p

• Sync Input Signal Separate Sync
Composite Sync

• Sync Polarities Positive and Negative

White Color Temperature

Chromaticity CIE Coordinates:

• at 9300 K: x=0.283, y=0.297

• at 6500 K: x=0.313, y=0.329

• at 5500 K: x=0.332, y=0.347

• sRGB

Resolution and Preset Modes

• Max. Resolution 1920 x 1440

• Recom. Resolution 1600 x 1200

• GTF

• 16 User Definable Modes

• 34 Factory Preset Modes:

Plug and Play Compatibility

• Display Data Channel DDC 2B (VESA)

• Microsoft®Windows®95/98/Me & 2000/XP Compatible

Specifications subject to change without notice.

Printed in the U.S.A., ©2002 Philips Consumer Electronics Co. A Division of Philips Electronics North America Corp.As an Energy Star partner,Philips has determined that this product meets the

Energy Star guidelines for energy efficiency. Microsoft and Windows are registered trademarks of Microsoft Corporation. Macintosh is a registered trademark of Apple Computer,Inc.

1244 - 07/02

Literature Order Number: 201B45/201B40

Power Management

Complies with EPA Energy Star and NUTEK specifications

• Operation 104 W (typical)

• Suspend/Stand By Mode < 7 W

• Off Mode/Deep Sleep Mode < 2.8 W

Low-Emission Characteristics

• Complies with MPR-II and TCO ’99 specifications

Monitor Controls and Functions

• Main 5-button OSD
Brightness +/- Direct Access
Contrast+/- Direct Access
Input Selection Direct Access

• On Screen Display Language (English, Spanish,French,
German, Italian),Zoom,
Horizontal,Vertical, Pincushion,
Balanced,Trapezoid, Parallelogram,
Color, sRGB, Reset, Degauss,
Moire, Serial Number,Resolution,
Frequency, Convergence, Purity,
Input Selection,Auto Calibrate

• Auto Calibrate Automatic and manual
calibration of color temperature,
brightness and contrast levels to
original setting

Connections and Cables

• Connections

-Video 15-pin D-Sub / 5 BNC

• Cables D-Sub Video Cable, Power Cord

Regulatory Approvals

• TCO ’99

• MPR-II Low Emission

• FCC-B, UL,CSA, DHHS

• VCC-I, CD, BCIQ, PSB

• Energy Star

Physical Specifications

• UPC Code 201B45 (Black/Silver) 0 37849 92919 3

201B40 (Mist White) 0 37849 92464 8

• Unit Dimension (WxHxD) 19.0" x 18.7" x 18.4" (incl. base)
482 x 476 x 467 mm (incl. base)

19.0" x 17.2" x 18.4" (excl. base)
482 x 437 x 467 mm (excl. base)

• Unit Weight 61.7 lbs/28.0 kg

• Carton Dimension (WxHxD) 22.0" x 25.0" x 23.5"

558.8 x 635.0 x 596.9 mm

• Carton Weight 62.0 lbs/28.1 kg

•Power Supply 90 – 264 VAC, 50/60Hz

•Temperature (operating) 0°C to 35°C/ 32°F to 95° F

•Temperature (storage) -25°C to 65°C/ -13°F to 149°F

• Relative Humidity 5% to 95%

• System MTBF > 75,000 hrs

Other

• USB Hub Option PCUH411

Carton contains: 201B4 Monitor, power cord, and user’s manual on CD.

INTERNET ADDRESS: http://www.philipsusa.com
TECHNICAL SUPPORT: [phone] (USA)

[phone] (outside USA)

Resolution H.freq V.freq

640 x 480 31.5(kHz) 60(Hz)
640 x 480 37.9 72
640 x 480 37.5 75
640 x 480 43.3 85
640 x 480 50.6 100
720 x 400 31.5 70
800 x 600 37.9 60
800 x 600 48.1 72
800 x 600 46.9 75
800 x 600 53.7 85
800 x 600 69.9 100
832 x 624 49.7 75
1024 x 768 48.4 60
1024 x 768 56.5 70
1024 x 768 60.0 75
1024 x 768 68.7 85
1152 x 870 68.7 75

Resolution H.freq V.freq

1280 x 960 85.9 85
1280 x 1024 64.0 60
1280 x 1024 80.0 75
1280 x 1024 91.1 85
1280 x 1024 115.0 107
1600 X 1200 75.0 60
1600 X 1200 81.3 65
1600 X 1200 87.5 70
1600 X 1200 93.8 75
1600 X 1200 106.3 85
1600 X 1200 115.0 92
1792 X 1344 83.6 60
1792 X 1344 106.3 75
1792 X 1344 114.0 81
1856 X 1392 86.3 60
1856 X 1392 110.0 75
1920 X 1440 90.0 60
