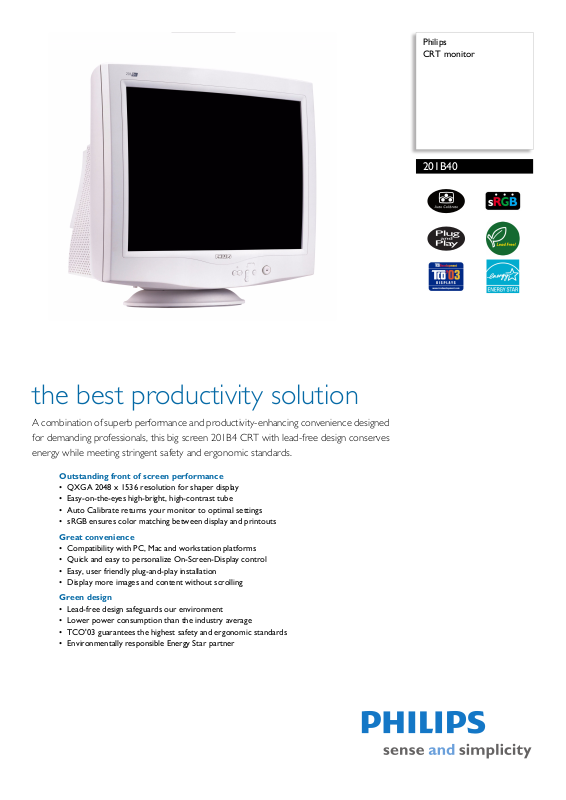

Philips
CRT monitor
201B40
the best productivity solution
A combination of superb performance and productivity-enhancing convenience designed
for demanding professionals, this big screen 201B4 CRT with lead-free design conserves
energy while meeting stringent safety and ergonomic standards.
Outstanding front of screen performance
• QXGA 2048 x 1536 resolution for shaper display
• Easy-on-the-eyes high-bright, high-contrast tube
• Auto Calibrate returns your monitor to optimal settings
• sRGB ensures color matching between display and printouts
Great convenience
• Compatibility with PC, Mac and workstation platforms
• Quick and easy to personalize On-Screen-Display control
• Easy, user friendly plug-and-play installation
• Display more images and content without scrolling
Green design
• Lead-free design safeguards our environment
• Lower power consumption than the industry average
• TCO'03 guarantees the highest safety and ergonomic standards
• Environmentally responsible Energy Star partner
CRT monitor
201B40/00
Specifications Product highlights
Picture/Display
• Panel Size: 21"/ 51 cm
• Phosphor: P22
• Recommended display area(mm): 392 x 294 mm
• Recommended Display Area(inch): 15.4" x 11.6"
• Dot pitch: 0.25 mm
• Dot Pitch (horizontal): 0.21 mm
• White Chromaticity, 5500K: x = 0.332 / y = 0.347
• White Chromaticity, 6500K: x = 0.313 / y = 0.329
• White Chromaticity, 9300K: x = 0.283 / y = 0.297
• Maximum Resolution: 2048 x 1536 @ 72 Hz
• Optimum Resolution: 1600 x 1200 @ 85 Hz
• Factory Preset Modes: 8 modes
• Factory Preset Mode: 1024 x 768 @ 75 Hz, 1024
x 768
@ 85 Hz, 1280 x 1024 @ 75 Hz, 1280 x
1024
@ 85 Hz, 1600 x 1200 @ 75 Hz, 1600 x
1200
@ 85 Hz, 1792 x 1344 @ 75 Hz, 1920 x
1440
@ 75 Hz
• Factory Preload Modes: 26 modes
• Video Dot Rate: 320 MHz
• Horizontal Scanning Frequency: 30 - 115 kHz
• Vertical Scanning Frequency: 50 - 160 Hz
• Recommended Refresh Rate: 85 Hz
• Screen enhancement: Anti-glare Polarizer, AntiReflection, Anti-Static, High Contrast, High
Brightness
• Picture enhancement: Auto Calibrate
•sRGB
•GTF
Connectivity
• Cables: D-sub Video Cable, Power Cord
• Sync input impedance: 2.2k ohm
• Video input impedance: 75 ohm
• Video input signal levels: 0.7 Vpp
• Video Sync Input Signal: Composite Sync, Separate
Sync
• Video Sync Polarities: Positive and Negative
• Cable Connection: AC Power in, 5BNC, D-sub
Convenience
• User convenience: Menu Languages, On-screen
Display
• Monitor Controls: Brightness Control, Contrast
Control, Left/Right, Menu, Power On/Off, Up/
Down
• OSD Languages: English, French, German, Italian,
Simplified Chinese, Spanish
• Plug & Play Compatibility: DDC 2B, sRGB,
Windows 98/ME/2000/XP
• Regulatory Approvals: CE Mark, E2000, FCC-B,
UL, CSA, FDA, NUTEK, Energy Star, SEMKO,
TCO '03, TÜV/GS, TÜV Ergo
• Swivel: +/- 90°
• Tilt: -5° to 25°
Accessories
• Included Accessories: AC Power Cord
•User Manual
Dimensions
• Dimensions (with base) (W x H x D):
482
x 476 x 467 mm
• Temperature range (operation): 0°C to 35°C
• Temperature range (storage): -25°C to 65°C
• Weight: 28 kg
Power
• Complies with: E2000, Energy Star, NUTEK
• Consumption (On mode): 104 W (Typical)
• Consumption (Off Mode): 2.8 W
• Power LED indicator: Off - Amber, Operation green
• Power supply: Built-in
•
QXGA, 2048 x 1536 resolution
Quantum eXtended Graphics Array: A screen resolution
of 2048 x 1536 pixels.
High-bright-high-contrast tube
A CRT tube designed to increase display brightness and
contrast by increasing the CRT ray gun's beam current.
Auto Calibrate
A one-touch system for maintaining optimal CRT monitor
performance by automatically recalibrating color
temperature to their original values.
sRGB ready
sRGB is an industry standard that ensures the best
possible match between the colors displayed on your
screen and those in your printouts.
Platform compatibility
The ability to work with a variety of platforms; Philips
monitors are compatible to connect with PCs and
workstation by employing a VGA connection and connect
with Macintosh.
OSD On-Screen-Display control
An on-screen panel for adjusting a monitor. The OSD is
used for contrast, brightness, horizontal, vertical
positioning and other monitor adjustments.
Easy plug-and-play
Plug-and-play is a peripheral connectivity standard. A plug
and play display device can be connected to a PC and
operate without requiring user intervention to adjust
complicated settings.
Large viewing area
Viewing area is the visible portion of a monitor screen
available for displaying data.
Lead-free
Lead-free display products are designed and produced in
compliance with strict European Community Restriction
of Hazardous Substances (RoHS) standards that restrict
lead and other toxic substances that can harm the
environment.
Energy efficiency
Reduction of the electrical power required to operate a
device to achieve real savings.
TCO '03 compliance
A TCO (Swedish Confederation of Professional
Employees) standard even more stringent than MPR-II
for safety and ergonomics, especially concerning
alternating electric fields (AEF).
Energy Star partner
A manufacturer in compliance with power conservation
requirements set forth by the Environmental Protection
Agency of the U.S. government.
Issue date 2009-02-12
Version: 1.0.2
12 NC: 8639 000 12748
EAN: 87 10895 73476 9
© 2009 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
