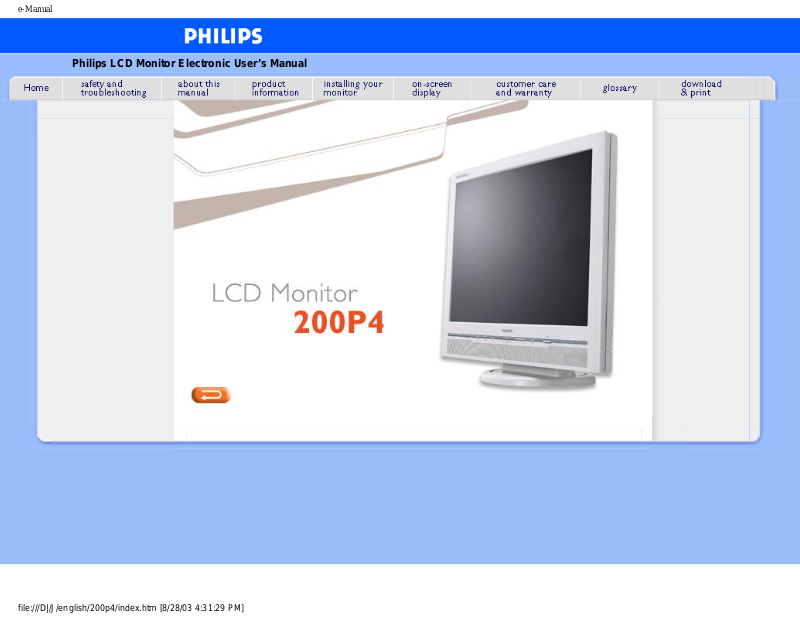

Philips 200p4 User Manual

Philips LCD Monitor Electronic User’s Manual

e-Manual

file:///D|/J/english/200p4/index.htm [8/28/03 4:31:29 PM]

Safety and Troubleshooting Information

•Safety Precautions and Maintenance

• Installation Locations

• FAQs

• Troubleshooting

• Regulatory Information

• Other Related Information

Safety and Troubleshooting Information

Safety precautions and maintenance

WARNING: Use of controls, adjustments or procedures other than those specified in this documentation may result in exposure to shock, electrical hazards and/or mechanical hazards.

Read and follow these instructions when connecting and using your computer monitor:

● Unplug the monitor if you are not going to use it for an extensive period of time.

● Unplug the monitor if you need to clean it with a slightly damp cloth. The screen many be wiped

with a dry cloth when the power is off. However, never use alcohol, solvents or ammonia-based liquids.

● Consult a service technician if the monitor does not operate normally when you have followed

the instructions in this manual.

● The casing cover should be opened only by qualified service personnel.

● Keep the monitor out of direct sunlight and away from stoves or any other heat source.

● Remove any object that could fall into the vents or prevent proper cooling of the monitor’s

electronics.

● Do not block the ventilation holes on the cabinet.

● Keep the monitor dry. To avoid electric shock, do not expose it to rain or excessive moisture.

● When positioning the monitor make sure the power plug and outlet are easily accessible.

● If turning off the monitor by detaching power cable or DC power cord, wait for 6 seconds before

attaching the power cable or DC power cord for normal operation.

● To avoid the risk of shock or permanent damage to the set do not expose the monitor to rain or

excessive moisture.

● IMPORTANT: Always activate a screen saver program during your application. If a still image in

high contrast remains on the screen for an extended period of time, it may leave an 'after-image' or 'ghost image' on front of the screen. This is a well-known phenomenon that is caused by the shortcomings inherent in LCD technology. In most cases the after-image will disappear gradually over a period of time after the power has been switched off. Be aware that the after-image

symptom cannot be repaired and is not covered under warranty.

Consult a service technician if the monitor does not operate normally when the operating instructions given in this manual have been followed.

RETURN TO TOP OF THE PAGE

Installation Locations

● Avoid exposure to heat and extreme cold.

file:///D|/J/english/200p4/safety/safety.htm (1 of 2) [8/28/03 4:31:32 PM]

Safety and Troubleshooting Information

● Do not store or use the LCD monitor in locations exposed to heat, direct sunlight or extreme

cold.

● Avoid moving the LCD monitor between locations with large temperature differences. Choose a

site that falls within the following temperature and humidity ranges.

❍ Temperature: 5-35°C 41-95°F ❍ Humidity: 20-80% RH

● Do not subject the LCD monitor to severe vibration or high impact conditions. Do not place the

LCD monitor inside a car boot.

● Take care not to mishandle this product by either knocking or dropping during operation or

transportation.

● Do not store or use the LCD monitor in locations where there is a high level of humidity or in

dusty environments. Do not allow water or other liquids to spill on or into the LCD monitor.

RETURN TO TOP OF THE PAGE

file:///D|/J/english/200p4/safety/safety.htm (2 of 2) [8/28/03 4:31:32 PM]

About This Manual

• About This Guide

• Notational Descriptions

About This Manual

About This Guide

This electronic user's guide is intended for anyone who uses the Philips LCD Monitor. It describes the LCD monitor's features, setup, operation and other important information. Its contents are identical to the information in our printed version.

It includes the following sections:

● Safety and Troubleshooting Information provides tips and solutions for common problems as well

as other related information you may need.

● About This Electronic User's Manual gives an overview of information included, along with

notation icon descriptions and other documentation for your reference.

● Product Information gives an overview of the monitor's features as well as the technical

specifications for this monitor.

● Installing Your Monitor describes the initial setup process and gives an overview of how to use the

monitor.

● On-Screen Display provides information on adjusting the settings on your monitor.

● Customer Care and Warranty contains a list of worldwide Philips Consumer Information Centers

along with help desk phone numbers and information on the warranty applicable to your product.

● Glossary defines technical terms.

● Download and Print Option transfers this entire manual to your hard drive for easy reference.

RETURN TO TOP OF THE PAGE

Notational Descriptions

The following subsections describe notational conventions used in this document.

Notes, Cautions and Warnings

Throughout this guide blocks of text may be accompanied by an icon and printed in bold or italic type. These blocks contain notes, cautions or warnings. They are used as follows:

file:///D|/J/english/200p4/about/about.htm (1 of 2) [8/28/03 4:31:35 PM]

About This Manual

NOTE: This icon indicates important information and tips that help you make better use of your computer system.

CAUTION: This icon indicates information that tells you how to avoid either potential damage to hardware or loss of data.

WARNING: This icon indicates the potential for bodily harm and tells you how to avoid the problem.

Some warnings may appear in alternate formats and may not be accompanied by an icon. In such cases, the specific presentation of the warning is mandated by the relevant regulatory authority.

RETURN TO TOP OF THE PAGE

All rights reserved. Reproduction, copying, use, modification, hiring, renting, public performance, transmission and/or broadcasting in whole or in part is prohibited without written consent of Philips Electronics NV

file:///D|/J/english/200p4/about/about.htm (2 of 2) [8/28/03 4:31:35 PM]

Product Information

• Product Features

•Technical Specifications

•Resolution & Preset Modes

•Philips Pixel Defect Policy

•Automatic Power Saving

•Physical Specification

•Pin Assignment

•Product Views

•Physical Function

Product Information

Product Features

BRILLIANCE 200P4

● 20-inch color LCD monitor with excellent display performance

● Multiple video input allowing connection of DVI-D digital and VGA analog

● Embedded AC power supply

● Front firing speakers with stereo 2x2W RMS stereo sound output

● Advanced AUTO adjustment optimizes picture quality

● Adjustable tilt and swivel function

● Picture-in-Picture (PIP) function for displaying both PC and video simultaneous on the screen

● Build in module to provide S-Video & CVBS Video inputs(200P4VS, 200P4VG, 200P4VB models)

● Optional module to provide S-video and CVBS video inputs(200P4SS, 200P4SG, 200P4SB

models)

● Optional super-ergo base for height adjustment

● sRGB compliant

RETURN TO TOP OF THE PAGE

Technical Specifications*

LCD PANEL

• Type TFT LCD

• Screen size 20.1" / 51cm

• Pixel Pitch 0.255 x 0.255mm

• LCD Panel type

1600 x 1200 pixels R.G.B. vertical stripe

Anti-glare polarizer, hard coated

• Effective viewing area 408 x 306 mm

• Display Colors 8 bits interface (16M colors)

SCANNING

Vertical refresh rate 56Hz-85Hz Horizontal Frequency 30kHz-94kHz (Analog input)

VIDEO

file:///D|/J/english/200p4/product/product.htm (1 of 8) [8/28/03 4:31:40 PM]

Product Information

• Video dot rate 165 MHz

• Input impedance

- Video 75 ohm

- Sync 2K2 ohm

• Input signal levels 0.7 Vpp

• Sync input signal

Separate sync Composite sync Sync on green

• Sync polarities Positive and negative

• S-Video Y input 1.0Vpp, C input 0.3Vpp, 75ohm input impedance

• CVBS Composite, 1.0Vpp, 75 ohm input impedance

•Video interface

D-Sub (Analog) DVI-D (Digital)

AUDIO-IN

• Input signal level 0.7 Vpp

• Headphone out signal level 20mW x 2, 32

• Input signal connector 3.5mm mini jack

• Loudspeaker

4W Stereo Audio (2W/channel RMSx2, 200Hz-12kHz, 4 ohm,THD=10%)

Optical characteristics

• Contrast ratio: 400:1 (typ.)

• Brightness:

250 cd/m

(typ.)

• Peak contrast angle 6 o'clock

• White Chromatcity:

x: 0.283 y: 0.297 (at 9300°K) x: 0.313 y: 0.329 (at 6500°K)

• Viewing Angle:

(C/R>10)

Upper >88° (typ.) Lower >88° (typ.) Left >88° (typ.) Right >88° (typ.)

• Response time 16 ms (typ.)

- Rise time 9 ms (typ.)

file:///D|/J/english/200p4/product/product.htm (2 of 8) [8/28/03 4:31:40 PM]

Product Information

- Fall time 7 ms (typ.)

sRGB

sRGB is a standard for ensuring correct exchange of colors between different devices (e.g. digital cameras, monitors, printers, scanners, etc.)

Using a standard unified color space, sRGB will help represent pictures taken by an sRGB compatible device correctly on your sRGB enabled Philips monitors. In that way, the colors are calibrated and you can rely on the correctness of the colors shown on your screen.

Important with the use of sRGB is that the brightness and contrast of your monitor is fixed to a predefined setting as well as the color gamut. Therefore it is important to select the sRGB setting in the monitor's OSD.

To do so, open the OSD by pressing the OK button on the front of your monitor. Use the down button to go to Adjust Color and press OK again. Then move the down button to go to sRGB and press OK again.

Exit this OSD.

After this, please don't change the brightness or contrast setting of your monitor. If you change either of these, the monitor will exit the sRGB mode and go to a color temperature setting of 6500K.

For more information on sRGB, please visit: www.srgb.com

* This data is subject to change without notice.

RETURN TO TOP OF THE PAGE

Resolution & Preset Modes

• Maximum

1600 x 1200 at 60Hz(analog input) 1600 x 1200 at 60Hz(digtal input)

• Recommended 1600 x 1200 at 60Hz * at DVI digital input

37 user definable modes

15 factory preset modes:

file:///D|/J/english/200p4/product/product.htm (3 of 8) [8/28/03 4:31:40 PM]

Product Information

H. freq (kHz) Resolution V. freq (Hz)

31.5 640*350 70 (IBM VGA 10h)

31.5 720*400 70

31.5 640*480 60

37.5 640*480 75

35.2 800*600 56

37.9 800*600 60

46.9 800*600 75

48.4 1024*768 60

60.0 1024*768 75

69.0 1152*870 75

63.9 1280*1024 60

80.0 1280*1024 75

75.0 1600*1200 60

33.8 1080i 60

45.0 720p 60

(Interlace mode is not applicable except 1080i)

RETURN TO TOP OF THE PAGE

Automatic Power Saving

If you have VESA DPMS compliance display card or software installed in your PC, the monitor can automatically reduce its power consumption when not in use. If an input from a keyboard, mouse or other input device is detected, the monitor will 'wake up' automatically. The following table shows the power consumption and signaling of this automatic power saving feature:

Power Management Definition

VESA Mode Video H-sync V-sync Power Used LED color

ON Active Yes Yes < 65W Green

file:///D|/J/english/200p4/product/product.htm (4 of 8) [8/28/03 4:31:40 PM]

Product Information

OFF Blanked No No < 1.5W Amber

This monitor is ENERGY STAR® compliant. As an ENERGY STAR® Partner, PHILIPS has determined that this product meets the

ENERGY STAR

guidelines for energy efficiency.

RETURN TO TOP OF THE PAGE

Physical Specifications

• Dimension (WxHxD) 488 x 459 x220 mm (incl. Pedestal)

• Weight 7.5 Kg

• Tilt / Swivel -5° ~ 25° / + - 175°

• Power supply 100 — 240 VAC, 50/60 Hz

• Power consumption 50 W* (typ.)

• Temperature

5° C to 35° C (operating)

-20° C to 60° C (storage)

• Relative humidity 20% to 80%

• System MTBF 50K hrs (excluding CCFL 40K hrs)

• Cabinet color

200P4VG/200P4SG: Light Gray 200P4VB/200P4SB: Black 200P4VS/200P4SS: Silver

* This data is subject to change without notice.

* Resolution 1600x1200, standard size, contrast max., brightness 50%, 9300° K, full white pattern, without audio/USB.

RETURN TO TOP OF THE PAGE

Pin Assignment

1. The digital only connector contains 24 signal contacts organized in three rows of eight contacts. Signal pin assignments are listed in the following table:

file:///D|/J/english/200p4/product/product.htm (5 of 8) [8/28/03 4:31:40 PM]

Product Information

No.

Signal Assignment

Pin No.

Signal Assignment

Pin No.

Signal Assignment

T.M.D.S. Data2-

T.M.D.S. Data1- 17 T.M.D.S. Data0-

T.M.D.S. Data2+

T.M.D.S. Data1+ 18 T.M.D.S. Data0+

T.M.D.S. Data2/4 Shield

T.M.D.S. Data1/3 Shield

T.M.D.S. Data0/5 Shield

No connect

No connect 20 No connect

No connect

No connect 21 No connect

DDC Clock

+5V Power 22

T.M.D.S. Clock Shield

DDC Data

Ground (for +5V) 23 T.M.D.S. Clock+

No connect 16 Hot Plug Detect 24 T.M.D.S. Clock-

2. The 15-pin D-sub connector (male) of the signal cable:

No.

Assignment

No.

Assignment

Red video input

+5V

Green video input/SOG

Logic ground

Blue video input

Ground

Serial data line (SDA)

No connect

H. Sync / H+V

file:///D|/J/english/200p4/product/product.htm (6 of 8) [8/28/03 4:31:40 PM]

Product Information

Red video ground

V. Sync (VCLK for DDC)

Green video ground

Data clock line (SCL)

Blue video ground

RETURN TO TOP OF THE PAGE

Product Views

Follow the links to see various views of the monitor and its components.

Front View Product Description

RETURN TO TOP OF THE PAGE

Physical Function

1) Tilt

file:///D|/J/english/200p4/product/product.htm (7 of 8) [8/28/03 4:31:40 PM]

Product Information

2) Swivel

RETURN TO TOP OF THE PAGE

file:///D|/J/english/200p4/product/product.htm (8 of 8) [8/28/03 4:31:40 PM]

Installing Your LCD Monitor

•

Front View Produt Description

•

Setting Up and Connecting Your Monitor

•

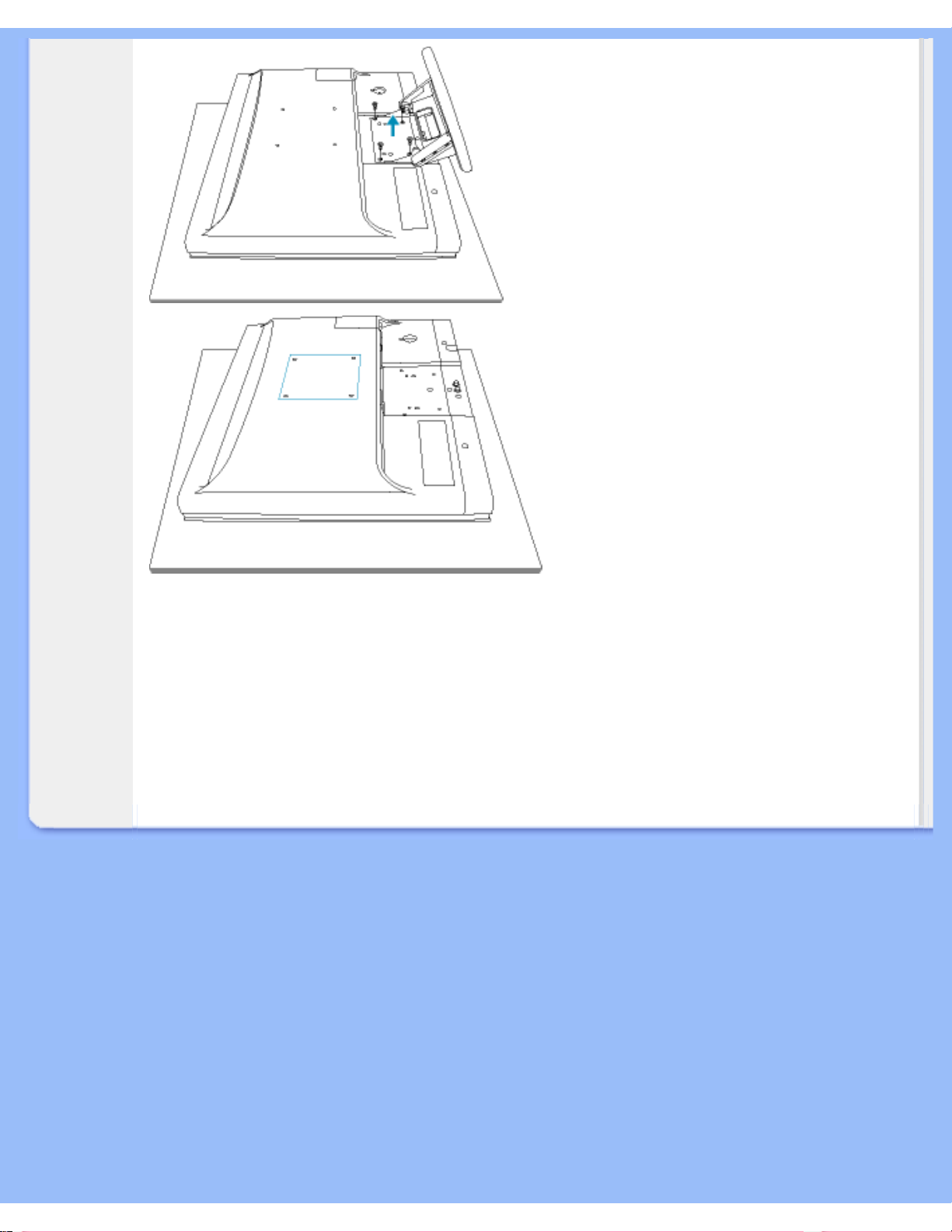

VESA Standard Mounting

•

Getting Started

•

Optimizing Performance

Installing Your LCD Monitor

Front View Product Description

To switch monitor's power On and Off Power LED To access OSD menu To adjust the OSD To adjust brightness of the display To adjust the OSD To adjust speakers volume

Automatically adjust the horizontal position, vertical position, phase and clock setting

Signal inputs selection

file:///D|/J/english/200p4/install/install.htm (1 of 3) [8/28/03 4:31:45 PM]

Installing Your LCD Monitor

Activate PIP (Picture in Picture) window

RETURN TO TOP OF THE PAGE

Rear View

1 CVBS video input (for video model 200P4V- only ) 2 S-Video input (for video model 200P4V- only ) 3 Earphone jack 4 VGA input 5 DVI-D input 6 Audio R/L input 7 PC audio input 8 AC power input

RETURN TO TOP OF THE PAGE

Optimizing Performance

file:///D|/J/english/200p4/install/install.htm (2 of 3) [8/28/03 4:31:45 PM]

Installing Your LCD Monitor

● For best performance, ensure that your display settings are set at 1600x1200@60Hz

Note: You can check the current display settings by pressing the 'OK' button once.

Go into the Product Information. The current display mode is shown on the item called RESOLUTION.

● You can also install the Flat Panel Adjust (FP Adjust) program, a program for getting the best

performance out of your monitor. This included on this CD. Step-by-step instructions are provided to guide you through the installtion process. Click on the link to know more about this program.

More about FP_setup04.exe

RETURN TO TOP OF THE PAGE

file:///D|/J/english/200p4/install/install.htm (3 of 3) [8/28/03 4:31:45 PM]

On-Screen Display

•Description of the OnScreen Display

•

The OSD Tree

On-Screen Display

Description of the On Screen Display

What is the On-Screen Display?

This is a feature in all Philips LCD monitors. It allows an end user to adjust screen performance of the monitors directly though an on-screen instruction window. The user interface provides user-friendliness and ease-of-use when the user is operating the monitor.

Basic and simple instruction on the control keys.

When you press the

button on the front control of your monitor, the On-Screen Display (OSD) Main

Controls window will pop up and you can then start making adjustments to your monitor's various features. Use the

or the keys to make your adjustments.

RETURN TO TOP OF THE PAGE

file:///D|/J/english/200p4/osd/osddesc.htm (1 of 6) [8/28/03 4:31:48 PM]

On-Screen Display

The OSD Tree

Below is an overall view of the structure of the On-Screen Display. You can use this as a reference when you want to work your way around the different adjustments later on.

file:///D|/J/english/200p4/osd/osddesc.htm (2 of 6) [8/28/03 4:31:48 PM]

On-Screen Display

file:///D|/J/english/200p4/osd/osddesc.htm (3 of 6) [8/28/03 4:31:48 PM]

On-Screen Display

file:///D|/J/english/200p4/osd/osddesc.htm (4 of 6) [8/28/03 4:31:48 PM]

On-Screen Display

RETURN TO TOP OF THE PAGE

file:///D|/J/english/200p4/osd/osddesc.htm (5 of 6) [8/28/03 4:31:48 PM]

On-Screen Display

file:///D|/J/english/200p4/osd/osddesc.htm (6 of 6) [8/28/03 4:31:48 PM]

Customer Care & Warranty

PLEASE SELECT YOUR COUNTRY/AREA TO REVIEW DETAILS OF YOUR WARRANTY COVERAGE

WESTERN EUROPE: Austria • Belgium • Cyprus • Denmark • France • Germany • Greece •

Finland • Ireland • Italy • Luxembourg • the Netherlands • Norway • Portugal • Sweden • Switzerland • Spain • United Kingdom

EASTERN EUROPE: Czech Republic • Hungary • Poland • Russia • Turkey

LATIN AMERICA: Antilles • Argentina • Brasil • Chile • Colombia • Mexico • Paraguay • Peru

• Uruguay • Venezuela

NORTH AMERICA: Canada • USA

PACIFIC: Australia • New Zealand

ASIA: Bangladesh • China • Hong Kong • India • Indonesia • Japan • Korea • Malaysia •

Pakistan • Philippines • Singapore • Taiwan • Thailand

AFRICA: Morocco • South Africa

MIDDLE EAST: Dubai • Egypt

file:///D|/J/english/warranty/warranty.htm [8/28/03 4:31:50 PM]

Glossary

A B C D E F G H I J K L M N O P Q R S T U V W X Y Z

Color temperature

A way of describing the color of a radiating source in terms of the temperature (in degrees Kelvin) of a black body radiating with the same dominant frequency as the source.

Most Philips monitors offer the possibility of setting the color temperature to any desired value.

RETURN TO TOP OF THE PAGE

D-SUB

Your monitor comes with a D-Sub cable.

Digital Visual Interface (DVI)

The Digital Visual Interface (DVI) specification provides a high-speed digital connection for visual data types that is display technology independent. The interface is primarily focused at providing a connection between a computer and its display device. The DVI specification meets the needs of all segments of the PC industry (workstation, desktop, laptop, etc.) and will enable these different segments to unite around one monitor interface specification.

file:///D|/J/english/200p4/glossary/glossary.htm (1 of 5) [8/28/03 4:31:55 PM]

Glossary

The DVI interface enables:

1. Content to remain in the lossless digital domain from creation to consumption.

2. Display technology independence.

3. Plug and play through hot plug detection, EDID and DDC2B.

4. Digital and Analog support in a single connector.

RETURN TO TOP OF THE PAGE

Energy Star Computers Programme

An energy conservation programme launched by the US Environmental Protection Agency (EPA) with the primary aim of promoting the manufacture and marketing of energy-efficient office automation equipment. Companies joining this programme must be willing to commit themselves to manufacturing one or more products capable of going into a low -power state (< 30 W) either after a period of inactivity or after a predetermined time selected by the user.

RETURN TO TOP OF THE PAGE

LCD Liquid Crystal Display

An alphanumeric display using the unique properties of liquid crystal to form characters. The latest flat-panel displays comprise a matrix of hundreds or thousands of individual LCD cells that generate text and colorful graphics on a screen. They consume little power though they do require external lighting to make them legible to the user.

file:///D|/J/english/200p4/glossary/glossary.htm (2 of 5) [8/28/03 4:31:55 PM]

+ 57 hidden pages
