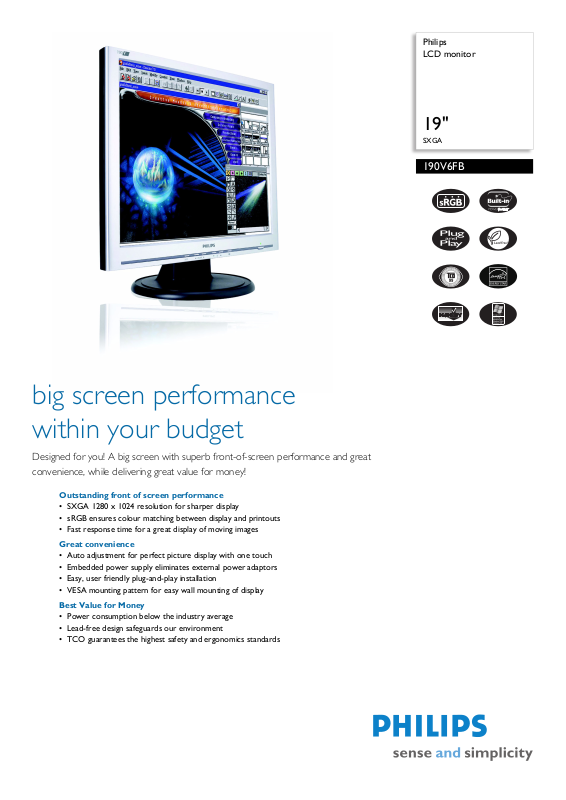

Philips 190V6FB User Manual

Philips
LCD monitor

19"

SXGA

190V6FB

big screen performance
within your budget

Designed for you! A big screen with superb front-of-screen performance and great
convenience, while delivering great value for money!

Outstanding front of screen performance

• SXGA 1280 x 1024 resolution for sharper display

• sRGB ensures colour matching between display and printouts

•Fast response time for a great display of moving images

Great convenience

• Auto adjustment for perfect picture display with one touch

• Embedded power supply eliminates external power adaptors

• Easy, user friendly plug-and-play installation

• VESA mounting pattern for easy wall mounting of display

Best Value for Money

• Power consumption below the industry average

• Lead-free design safeguards our environment

• TCO guarantees the highest safety and ergonomics standards

LCD monitor

190V6FB/00

19" SXGA

Specifications Product highlights

Picture/Display

• LCD panel type: 1280 x 1024 pixels, Anti-glare
polarizer, RGB vertical stripe

• Panel Size: 19"/ 48 cm

• Effective viewing area: 376.3 x 301.1 mm

• Pixel pitch: 0.294 x 0.294 mm

• Brightness (nits): 240 nit

• Contrast ratio (typical): 500:1

• Display colours: 16.2 M

• Viewing angle: @ C/R > 5

• Viewing Angle (H / V): 155 / 155 degree

• Response time (typical): 8 ms

• White Chromaticity, 6500K: x = 0.313 / y = 0.329

• White Chromaticity, 9300K: x = 0.283 / y = 0.297

• Maximum Resolution: 1280 x 1024 @ 75 Hz

• Recommended Resolution: 1280 x 1024 @ 60 Hz

• Video Dot Rate: 140 MHz

• Horizontal Scanning Frequency: 30 - 83 kHz

• Vertical Scanning Frequency: 56 - 76 Hz

•sRGB

Connectivity

• Signal Input: Analogue (VGA)

• Video Sync Input Signal: Composite Sync, Separate
Sync, Sync on Green

Convenience

• Convenience Enhancements: On-screen Display

• Monitor Controls: Auto, Brightness Control, Left/
Right, Menu (OK), Power On/Off, Up/Down

• OSD Languages: English, French, German, Italian,
Simplified Chinese, Spanish

• Other convenience: Kensington lock compatible

• Plug & Play Compatibility: DDC/CI, sRGB,
Windows 98/ME/2000/XP

• Regulatory Approvals: CE Mark, E2000, EMC,
FCC-B, UL, CSA, NUTEK, Energy Star, SEMKO,
TCO '99, TÜV/GS, TÜV Ergo

• Tilt: -5° to 25°

• VESA Mount: 100 x 100 mm

Accessories

• Included Accessories: AC Power Cord, VGA
cable

• Optional accessories: Super Ergo Base

•User Manual

Dimensions

• Dimensions (with base) (W x H x D):
425

x 419 x 235 mm

• MTBF: 50,000 hrs

• Relative Humidity: 20% - 80%

• Temperature range (operation): 5°C to 40°C

• Temperature range (storage): -20°C to 60°C

• Weight: 5.4 kg

Power

• Complies with: E2000, Energy Star, NUTEK

• Consumption: 34W (Typical)

• Off Mode: < 1 W

• Power LED indicator: Operation - green, Stand
by/sleep - Amber

• Power supply: Built-in, 90-264 VAC, 50/60 Hz

•

Fast response time

Response time measures signal reaction speed in
milliseconds. On/off response time measures the time
required for the screen to turn from completely white to
completely black and vice versa. Fast on/off response
time improves display of text. Grey-to-grey response time
measures the average time of transition between several
sets of random grey levels - Lower numbers mean faster
transitions. Faster is better because a fast response time
eliminates visible image artifacts that could dampen your
experience when viewing fast moving images or objects.

SXGA, 1280 x 1024 resolution

For graphics monitors, the screen resolution signifies the
numbe r of dot s (p ix els) o n t he e nti re sc re en. F or e xam ple ,
a 1280-by-1024 pixel screen is capable of displaying
1280 distinct dots on each of 1024 lines, or about 1.3
million pixels.

sRGB ready

sRGB is an industry standard that ensures the best
possible match between the colours displayed on your
screen and those in your printouts.

Embedded power supply

An embedded power supply is a power adaptor built into
the body of a display device that replaces a bulky external
power adaptor.

Easy plug-and-play

Plug-and-play is a peripheral connectivity standard. A plug
and play display device can be connected to a PC and
operate without requiring user intervention to adjust
complicated settings.

One-touch auto adjustment

The auto adjustment key restores optimal screen
position, phase and clock settings with the press of a
single button - without navigation through OSD menus
and control keys.

VESA mounting holes

A unified industry standard for wall mounting IT
equipment set by the Video Electronics Standards
Association.

Lead-free

Lead-free display products are designed and produced in
compliance with strict European Community Restriction
of Hazardous Substances (RoHS) standards that restrict
lead and other toxic substances that can harm the
environment.

Lower power consumption

Reduction of the electrical power required to operate a
device.

TCO '99 compliance

A TCO (Swedish Confederation of Professional
Employees) standard even more stringent than MPR-II
for safety and ergonomics, especially concerning
alternating electric fields (AEF).

Issue date 2007-12-07

Version: 4.0

12 NC: 8639 000 16376
EAN: 87 10895 90267 0

© 2007 Koninklijke Philips Electronics N.V.
All Rights reserved.

Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
