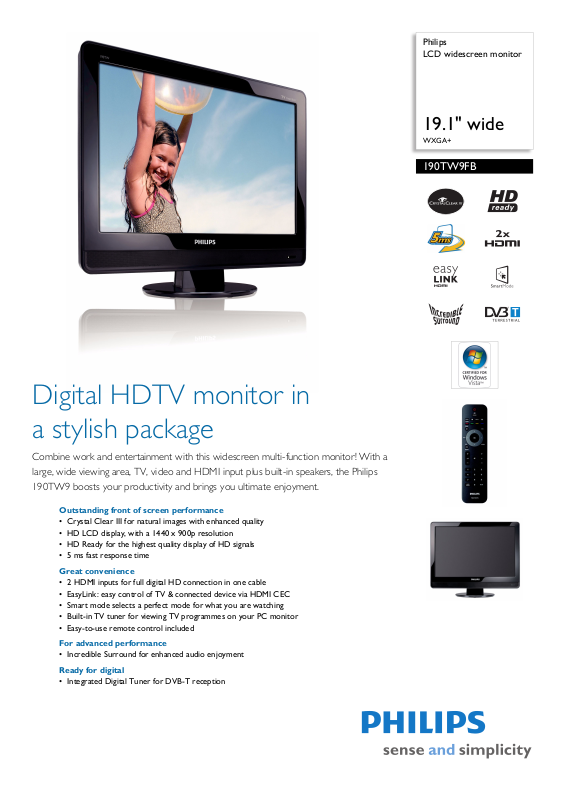

Philips
LCD widescreen monitor
19.1" wide
WXGA+
190TW9FB
Digital HDTV monitor in
a stylish package
Combine work and entertainment with this widescreen multi-function monitor! With a
large, wide viewing area, TV, video and HDMI input plus built-in speakers, the Philips
190TW9 boosts your productivity and brings you ultimate enjoyment.
Outstanding front of screen performance
• Crystal Clear III for natural images with enhanced quality
• HD LCD display, with a 1440 x 900p resolution
• HD Ready for the highest quality display of HD signals
• 5 ms fast response time
Great convenience
• 2 HDMI inputs for full digital HD connection in one cable
• EasyLink: easy control of TV & connected device via HDMI CEC
• Smart mode selects a perfect mode for what you are watching
• Built-in TV tuner for viewing TV programmes on your PC monitor
• Easy-to-use remote control included
For advanced performance
• Incredible Surround for enhanced audio enjoyment
Ready for digital
• Integrated Digital Tuner for DVB-T reception
LCD widescreen monitor
190TW9FB/00
19.1" wide WXGA+
Specifications Product highlights
Picture/Display
• Aspect ratio: Widescreen
• Brightness: 300 cd/m²
• Contrast ratio (typical): 1000:1
• Response time (typical): 5 ms
• Viewing angle: 170º (H)/160º (V)
• Diagonal screen size: 19 inch / 48 cm
• Display screen type: LCD WXGA+ Active Matrix
TFT
• Panel resolution: 1440 x 900p
• Picture enhancement: Crystal Clear III, 2D
Combfilter, 3/2 - 2/2 motion pull down, White
stretch, Progressive Scan, Smart Picture
• Screen enhancement: Anti-Reflection coated
screen
Supported Display Resolution
• Computer formats
Resolution Refresh rate
640 x 480 60 Hz
800 x 600 60 Hz
1024 x 768 60 Hz
1280 x 1024 60 Hz
1440 x 900 50Hz, 75Hz
• Video formats
Resolution Refresh rate
480i 60 Hz
480p 60 Hz
576i 50 Hz
576p 50 Hz
720p 50, 60 Hz
1080i 50, 60 Hz
Sound
• Output power (RMS): 2 x 3W
• Sound Enhancement: Auto Volume Leveller,
Incredible Surround, Smart Sound
• Sound System: Mono, Stereo
Convenience
• Clock: Sleep Timer, Start timer, Stop timer
• Connection Enhancement: Easy link
• Ease of Installation: Auto Programme Naming,
Automatic Channel Install (ACI), Automatic
Tuning System (ATS), Fine Tuning, PLL Digital
Tuning, Plug & Play
• Ease of Use: Auto Volume Leveller (AVL), OnScreen Display, Programme List, Side Control
• Electronic Programme Guide: Now + Next EPG,
8-day Electronic Programme Guide
• Picture in Picture: Text dual screen
• Remote Control: TV
• Remote control type: RCPF05E08B
• Screen Format Adjustments: 4:3, Movie expand
14:9, Movie expand 16:9, Subtitle Zoom, Super
Zoom, Widescreen
• Teletext: 100-page Smart Text
• Smart mode: Movie, Personal, Power saver,
Standard, Vivid
Tuner/Reception/Transmission
• Aerial Input: 75 ohm coaxial (IEC75)
• TV system: PAL I, PAL B/G, PAL D/K, SECAM B/
G, SECAM D/K, SECAM L/L'
• Video Playback: NTSC, SECAM, PAL
• DVB: DVB Terrestrial*
• Tuner bands: Hyperband, S-Channel, UHF, VHF
• Tuner Display: PLL
Connectivity
• Ext 1 Scart: Audio L/R, CVBS in/out, RGB
• Ext 2: S-video in, CVBS in, Audio L/R in
• Ext 3: YPbPr, Audio L/R in
• HDMI 1: HDMI v1.3
• HDMI 2: HDMI v1.3
• EasyLink (HDMI-CEC): One touch play, System
standby
• Other connections: Headphone out, PC Audio in,
PC-In VGA, S/PDIF out (coaxial), Common
Interface
Electricity
• Ambient temperature: 5°C to 35°C
• Mains power: 100-240V, 50/60Hz
• Power consumption: 46.5 W
• Standby power consumption: <0.3 W
Dimensions
• Set dimensions (W x H x D): 468 x 349 x 69 mm
• Set dimensions with stand (W x H x D):
468
x 392 x 166 mm
• Weight incl. Packaging: 5.84 kg
• Product weight: 3.9 kg
• Product weight (+stand): 4.4 kg
• Box dimensions (W x H x D):
512
x 458 x 136 mm
• VESA wall mount compatible: 100 x 100 mm
Accessories
• Included Accessories: Tabletop stand, Power
cord, Quick start guide, User Manual, Warranty
certificate, Remote Control, Batteries for remote
control
•
EXT 2
S-VIDEO R - AUDIO - L VIDEO IN
HDMI side
Crystal Clear III
Crystal Clear III combines a whole range of
enhancements to provide a better picture. They include a
2D Comb filter, Dynamic contrast, Blue stretch and
Green enhancement so that you always get the most
natural looking colours.
LCD display, 1440 x 900p
This WXGA+ display with state-of-the-art LCD screen
technology gives you widescreen HD resolution of 1440
x 900p pixels. It produces brilliant flicker-free progressive
scan pictures with optimum brightness and superb
colours. This vibrant and sharp image will provide you
with an enhanced viewing experience.
HD Ready
Enjoy the exceptional picture quality of High Definition
pict ures a nd be full y prepare d for H D sour ces li ke HDT V
set-top boxes and Blu-ray discs. HD Ready is a protected
la be l that of fers p ic ture qu ality be yond t ha t of pr og ressi ve
scan. It conforms to strict standards laid out by EICTA to
off er an HD sc re en th at di sp la ys th e b enefits of re so lu ti on
and picture quality of a High Definition signal. It has a
universal connection for both analogue YPbPr and
uncompressed digital connection of DVI or HDMI,
suppo rting HDCP. It can display 720p an d 1 080i signals
at 50 and 60 Hz.
5 ms on/off response time
On-Off response time is the period required for a liquid
crystal cell to go from active (black) to inactive (white)
and back to active (black) again. It is measured in
milliseconds. Faster is better: lower response time means
faster transitions and, therefore, results in fewer visible
image artefacts in the display of transition of texts and
graphics. On-Off response time is a more important
measure in the display of business content like
documents, graphs and photos.
2 HDMI inputs
HDMI makes an uncompressed digital RGB connection
from the source to the screen for the ultimate picture
quality. HDMI intelligently communicates the highest
ou tp ut res ol ution wi th th e s ource de vice . T he HDM I i nput
is fully backwards-compatible with DVI sources and
includes digital audio. HDMI uses HDCP copy protection.
Wi th on e HDM I inpu t on t he ba ck an d one HDMI on the
side of the TV you can connect multiple HD sources, for
instance an HD set-top bo x, a B lu-ray playe r a nd a game
console or digital camcorder. Your TV is fully prepared for
the HD future.
EasyLink
EasyLink uses the HDMI CEC industry standard protocol
to sh are functio nalit y betw een co nnect ed dev ices a nd the
TV. With EasyLink only one remote control is needed to
operate main functionalities on your TV and connected
devices. EasyLink uses the standard HDMI cable to
transfer system commands. It works between all
electronic devices equipped with HDMI CEC.
Smart mode
The optimum picture and sound depends on various
aspects like the video source, content type, surroundings
of the room, type of display device etc. Smart Mode has
predefined picture and sound settings conveniently preset by the way you use your TV. The ‘Personal’ setting,
al low s yo u to def ine the pic ture settings according to your
preference, store it and gain easy access for future
selection. All these conveniently built into your TV for
optimal settings.
Issue date 2009-01-22
Version: 1.0.4
12 NC: 8670 000 41245
EAN: 87 12581 43433 5
© 2009 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
