Safety and Troubleshooting Information

• Safety Precautions and Maintenance

• FAQs

• Troubleshooting

• Regulatory Information

• Other Related Information

Safety and Troubleshooting Information

Safety precautions and maintenance

WARNING: Use of controls, adjustments or procedures other than
those specified in this documentation may result in exposure to shock,
electrical hazards and/or mechanical hazards.

Read and follow these instructions when connecting and using your computer monitor:
Operation:

● Keep the monitor out of direct sunlight and away from stoves or any other heat source.

● Remove any object that could fall into ventilation holes or prevent proper cooling of the monitor’s electronics.

● Do not block the ventilation holes on the cabinet.

● When positioning the monitor, make sure the power plug and outlet are easily accessible.

● If turning off the monitor by detaching the power cable or DC power cord, wait for 6 seconds before attaching

the power cable or DC power cord for normal operation.

● Please use approved power cord provided by Philips all the time. If your power cord is missing, please

contact with your local service center. (Please refer to Customer Care Consumer Information Center)

● Do not subject the LCD monitor to severe vibration or high impact conditions during operation.

● Do not knock or drop the monitor during operation or transportation.

Maintenance:

● To protect your display from possible damage, do not put excessive pressure on the LCD panel. When

moving your monitor, grasp the frame to lift; do not lift the monitor by placing your hand or fingers on the LCD
panel.

● Unplug the monitor if you are not going to use it for an extensive period of time.

● Unplug the monitor if you need to clean it with a slightly damp cloth. The screen may be wiped with a dry

cloth when the power is off. However, never use organic solvent, such as, alcohol, or ammonia-based liquids
to clean your monitor.

● To avoid the risk of shock or permanent damage to the set, do not expose the monitor to dust, rain, water, or

excessive moisture environment.

● If your monitor gets wet, wipe it with dry cloth as soon as possible.

● If foreign substance or water gets in your monitor, please turn the power off immediately and disconnect the

power cord. Then, remove the foreign substance or water, and send it to the maintenance center.

● Do not store or use the LCD monitor in locations exposed to heat, direct sunlight or extreme cold.

● In order to maintain the best performance of your monitor and use it for a longer lifetime, please use the

monitor in a location that falls within the following temperature and humidity ranges.

❍ Temperature: 0-40°C 32-95°F
❍ Humidity: 20-80% RH

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/190S9/safety/safety.htm（第 1／2 页）2008-5-24 9:53:42

Safety and Troubleshooting Information

● IMPORTANT: Always activate a moving screen saver program when you leave your monitor unattended.

Always activate a periodic screen refresh application if your LCD monitor will display unchanging static
content. Uninterrupted display of still or static images over an extended period may cause “burn in”, also
known as “after-imaging” or “ghost imaging”, on your screen. "Burn-in", "after-imaging", or "ghost imaging" is
a well-known phenomenon in LCD panel technology. In most cases, the “burned in” or “after-imaging” or
“ghost imaging” will disappear gradually over a period of time after the power has been switched off.

WARNING: Severe” burn-in” or “after-image” or “ghost image” symptoms will not disappear

and cannot be repaired. The damage mentioned above is not covered under your
warranty.

Service:

● The casing cover should be opened only by qualified service personnel.

● If there is any need for any document for repair or integration, please contact with your local service center.

(please refer to the chapter of "Consumer Information Center")

● For transportation information, please refer to "Physical Specifications".

● Do not leave your monitor in a car/trunk under direct sun light.

Consult a service technician if the monitor does not operate normally, or you are not sure what
procedure to take when the operating instructions given in this manual have been followed.

RETURN TO TOP OF THE PAGE

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/190S9/safety/safety.htm（第 2／2 页）2008-5-24 9:53:42

FAQs (Frequently Asked Questions)

• Safety and Troubleshooting

• General FAQs

• Screen Adjustments

• Compatibility with Other Peripherals

• LCD Panel Technology

• Ergonomics, Ecology and Safety
Standards

• Troubleshooting

• Regulatory Information

• Other Related Information

FAQs (Frequently Asked Questions)

General FAQs

Q:

When I install my monitor what should I do if the screen shows 'Cannot display this video

mode'?

A: Recommended video mode for Philips 19": 1280x1024 @60Hz.

1. Unplug all cables, then connect your PC to the monitor that you used previously.

2. In the Windows Start Menu, select Settings/Control Panel. In the Control Panel Window, select

the Display icon. Inside the Display Control Panel, select the 'Settings' tab. Under the setting
tab, in box labeled 'desktop area', move the slidebar to 1280x1024 pixels (19").

3. Open 'Advanced Properties' and set the Refresh Rate to 60Hz, then click OK.

4. Restart your computer and repeat step 2 and 3 to verify that your PC is set at

1280x1024@60Hz (19").

5. Shut down your computer, disconnect your old monitor and reconnect your Philips LCD monitor.

6. Turn on your monitor and then turn on your PC.

Q: What does 'refresh rate' mean in connection with an LCD monitor?

A: The refresh rate is of much less relevance for LCD monitors. LCD monitors display a stable, flicker-

free image at 60Hz. There is no visible difference between 85Hz and 60Hz.

Q: What are the .inf and .icm files on the CD-ROM? How do I install the drivers (.inf and .

icm)?

A: These are the driver files for your monitor. Follow the instructions in your user manual to install the

drivers. Your computer may ask you for monitor drivers (.inf and .icm files) or a driver disk when you first
install your monitor. Follow the instructions to insert the ( companion CD-ROM) included in this package.
Monitor drivers (.inf and .icm files) will be installed automatically.

Q: How do I adjust the resolution?

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/190S9/safety/saf_faq.htm（第 1／8 页）2008-5-24 9:53:46

FAQs (Frequently Asked Questions)

A: Your video card/graphic driver and monitor together determine the available resolutions. You can

select the desired resolution under Windows® Control Panel with the "Display properties"

.

Q: What if I get lost when I am making monitor adjustments?

A: Simply press the OK button, then select 'Reset' to recall all of the original factory settings.

Q: What is the Auto function?

A: The AUTO adjustment key restores the optimal screen position, phase and clock settings by

pressing of a single button – without the need to navigate through OSD (On Screen Display) menus and
control keys.

Note: Auto function is available in selected models only.

Q: My Monitor has no power (Power LED does not light up). What should I do?

A: Make sure the AC power cord is connected between the monitor and AC outlet, and click a key on

keyboard/mouse to wake up the PC.

Q: Will the LCD monitor accept an interlaced signal under PC models?

A: No. If an Interlace signal is used, the screen displays both odd and even horizontal scanning lines at

the same time, thus distorting the picture.

Q: What does the Refresh Rate mean for LCD?

A: Unlike CRT display technology, in which the speed of the electron beam is swept from the top to the

bottom of the screen determines flicker, an active matrix display uses an active element (TFT) to control
each individual pixel and the refresh rate is therefore not really applicable to LCD technology.

Q: Will the LCD screen be resistant to scratches?

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/190S9/safety/saf_faq.htm（第 2／8 页）2008-5-24 9:53:46

FAQs (Frequently Asked Questions)

A: A protective coating is applied to the surface of the LCD, which is durable to a certain extent

(approximately up to the hardness of a 2H pencil). In general, it is recommended that the panel surface
is not subject to any excessive shocks or scratches.

Q: How should I clean the LCD surface?

A: For normal cleaning, use a clean, soft cloth. For extensive cleaning, please use isopropyl alcohol. Do

not use other solvents such as ethyl alcohol, ethanol, acetone, hexane, etc.

Q:Can I change the color setting of my monitor?

A:Yes, you can change your color setting through OSD control as the following procedures,

1. Press "OK" to show the OSD (On Screen Display) menu

2. Press "Down Arrow" to select the option "Color" then press "OK" to enter color setting, there are three
settings as below.

a. Color Temperature; The six settings are 5000K, 6500K, 7500K, 8200K, 9300K and
11500K. With settings in the 5000K range the panel appears ‘warm,' with a red-white color
tone, while a 11500K temperature yields ‘cool, blue-white toning."

b. sRGB; this is a standard setting for ensuring correct exchange of colors between different
device (e.g. digital cameras, monitors, printers, scanners, etc)

c. User Define; the user can choose his/her preference color setting by adjusting red, green
blue color.

*A measurement of the color of light radiated by an object while it is being heated. This measurement is
expressed in terms of absolute scale, (degrees Kelvin). Lower Kevin temperatures such as 2004K are
red; higher temperatures such as 9300K are blue. Neutral temperature is white, at 6504K.

Q: Can the Philips LCD Monitor be mounted on the wall?

A: Yes. Philips LCD monitors have this optional feature. For standard VESA mount holes on the rear

cover allows the user to mount the Philips monitor on most of the VESA standard arms or accessories.
We recommend to contact your Philips sales representative for more information.

RETURN TO TOP OF THE PAGE

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/190S9/safety/saf_faq.htm（第 3／8 页）2008-5-24 9:53:46

FAQs (Frequently Asked Questions)

Screen Adjustments

Q:

When I install my monitor, how do I get the best performance from the monitor?

A:For best performance, make sure your display settings are set at 1280x1024@60Hz for 19". Note:

You can check the current display settings by pressing the OSD OK button once. The current display
mode is shown in OSD first page.

Q: How do LCDs compare to CRTs in terms of radiation?

A: Because LCDs do not use an electron gun, they do not generate the same amount of radiation at the

screen surface.

RETURN TO TOP OF THE PAGE

Compatibility with other Peripherals

Q:

Can I connect my LCD monitor to any PC, workstation or Mac?

A: Yes. All Philips LCD monitors are fully compatible with standard PCs, Macs and workstations. You

may need a cable adapter to connect the monitor to your Mac system. Please contact your Philips sales
representative for more information.

Q: Are Philips LCD monitors Plug-and-Play?

A: Yes, the monitors are Plug-and-Play compatible with Windows® 95, 98, 2000, XP and Vista.

Q: What is USB (Universal Serial Bus)?

A: Think of USB as a smart plug for PC peripherals. USB automatically determines resources (like

driver software and bus bandwidth) required by peripherals. USB makes necessary resources available
without user intervention. There are three main benefits of USB. USB eliminates "case anxiety," the fear

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/190S9/safety/saf_faq.htm（第 4／8 页）2008-5-24 9:53:46

FAQs (Frequently Asked Questions)

of removing the computer case to install circuit board cards -- that often requires adjustment of
complicated IRQ settings -- for add-on peripherals. USB does away with "port gridlock." Without USB,
PCs are normally limited to one printer, two Com port devices (usually a mouse and modem), one
Enhanced Parallel Port add-on (scanner or video camera, for example), and a joystick. More and more
peripherals for multimedia computers come on the market every day. With USB, up to 127 devices can
run simultaneously on one computer. USB permits "hot plug-in." No need to shut down, plug in, reboot
and run set up to install peripherals. No need to go through the reverse process to unplug a device.
Bottom line: USB transforms today's "Plug-and-Pray" into true Plug-and-Play!

Please refer to glossary for more information about USB.

Q: What is a USB hub ?

A: A USB hub provides additional connections to the Universal Serial Bus. A hub's upstream port

connects a hub to the host, usually a PC. Multiple downstream ports in a hub allows connection to
another hub or device, such as a USB keyboard, camera or printer.

RETURN TO TOP OF THE PAGE

LCD Panel Technology

Q:

What is a Liquid Crystal Display?

A: A Liquid Crystal Display (LCD) is an optical device that is commonly used to display ASCII

characters and images on digital items such as watches, calculators, portable game consoles, etc. LCD
is the technology used for displays in notebooks and other small computers. Like light-emitting diode and
gas-plasma technologies, LCD allows displays to be much thinner than cathode ray tube (CRT)
technology. LCD consumes much less power than LED and gas-displays because it works on the
principle of blocking light rather than emitting it.

Q:

What differentiates passive matrix LCDs from active matrix LCDs?

A: An LCD is made with either a passive matrix or an active matrix display grid. An active matrix has a

transistor located at each pixel intersection, requiring less current to control the luminance of a pixel. For
this reason, the current in an active matrix display can be switched on and off more frequently, improving
the screen refresh time (your mouse pointer will appear to move more smoothly across the screen, for
example). The passive matrix LCD has a grid of conductors with pixels located at each intersection in
the grid.

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/190S9/safety/saf_faq.htm（第 5／8 页）2008-5-24 9:53:46

FAQs (Frequently Asked Questions)

Q: What are the advantages of TFT LCD compared with CRT?

A: In a CRT monitor, a gun shoots electrons and general light by colliding polarized electrons on

fluorescent glass. Therefore, CRT monitors basically operate with an analog RGB signal. A TFT LCD
monitor is a device that displays an input image by operating a liquid crystal panel. The TFT has a
fundamentally different structure than a CRT: Each cell has an active matrix structure and independent
active elements. A TFT LCD has two glass panels and the space between them is filled with liquid
crystal. When each cell is connected with electrodes and impressed with voltage, the molecular structure
of the liquid crystal is altered and controls the amount of inlet lighting to display images. A TFT LCD has
several advantages over a CRT, since it can be very thin and no flickering occurs because it does not
use the scanning method.

Q: Why is vertical frequency of 60Hz optimal for an LCD monitor?

A: Unlike a CDT monitor, the TFT LCD panel has a fixed resolution. For example, an XGA monitor has

1024x3 (R, G, B) x 768 pixels and a higher resolution may not be available without additional software
processing. The panel is designed to optimize the display for a 65MHz dot clock, one of the standards
for XGA displays. Since the vertical/horizontal frequency for this dot clock is 60Hz/48kHz, the optimum
frequency for this monitor is 60Hz.

Q: What kind of wide-angle technology is available? How does it work?

A: The TFT LCD panel is an element that controls/displays the inlet of a backlight using the dual-

refraction of a liquid crystal. Using the property that the projection of inlet light refracts toward the major
axis of the liquid element, it controls the direction of inlet light and displays it. Since the refraction ratio of
inlet light on liquid crystal varies with the inlet angle of the light, the viewing angle of a TFT is much
narrower than that of a CDT. Usually, the viewing angle refers to the point where the contrast ration is

10. Many ways to widen the viewing angle are currently being developed and the most common
approach is to use a wide viewing angle film, which widens the viewing angle by varying the refraction
ratio. IPS (In Plane Switching) or MVA (Multi Vertical Aligned) is also used to give a wider viewing angle.

Q: Why is there no flicker on an LCD Monitor?

A: Technically speaking, LCDs do flicker, but the cause of the phenomenon is different from that of a

CRT monitor -- and it has no impact of the ease of viewing. Flickering in an LCD monitor relates to
usually undetectable luminance caused by the difference between positive and negative voltage. On the
other hand, CRT flickering that can irritate the human eye occurs when the on/off action of the
fluorescent object becomes visible. Since the reaction speed of liquid crystal in an LCD panel is much
slower, this troublesome form of flickering is not present in an LCD display.

Q: Why is an LCD monitor virtually low of Electro Magnetic Interference?

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/190S9/safety/saf_faq.htm（第 6／8 页）2008-5-24 9:53:46

FAQs (Frequently Asked Questions)

A: Unlike a CRT, an LCD monitor does not have key parts that generate Electro Magnetic Interference,

especially magnetic fields. Also, since an LCD display utilizes relatively low power, its power supply is
extremely quiet.

RETURN TO TOP OF THE PAGE

Ergonomics, Ecology and Safety Standards

Q:

What is the CE mark?

A: The CE (Conformité Européenne) mark is required to be displayed on all regulated products offered

for sale on the European market. This 'CE' mark means that a product complies with the relevant
European Directive. A European Directive is a European 'Law' that relates to health, safety, environment
and consumer protection, much the same as the U.S. National Electrical Code and UL Standards.

Q: Does the LCD monitor conform to general safety standards?

A: Yes. Philips LCD monitors conform to the guidelines of MPR-II and TCO 99/03 standards for the

control of radiation, electromagnetic waves, energy reduction, electrical safety in the work environment
and recyclability. The specification page provides detailed data on safety standards.

More information is provided in the Regulatory Information section.

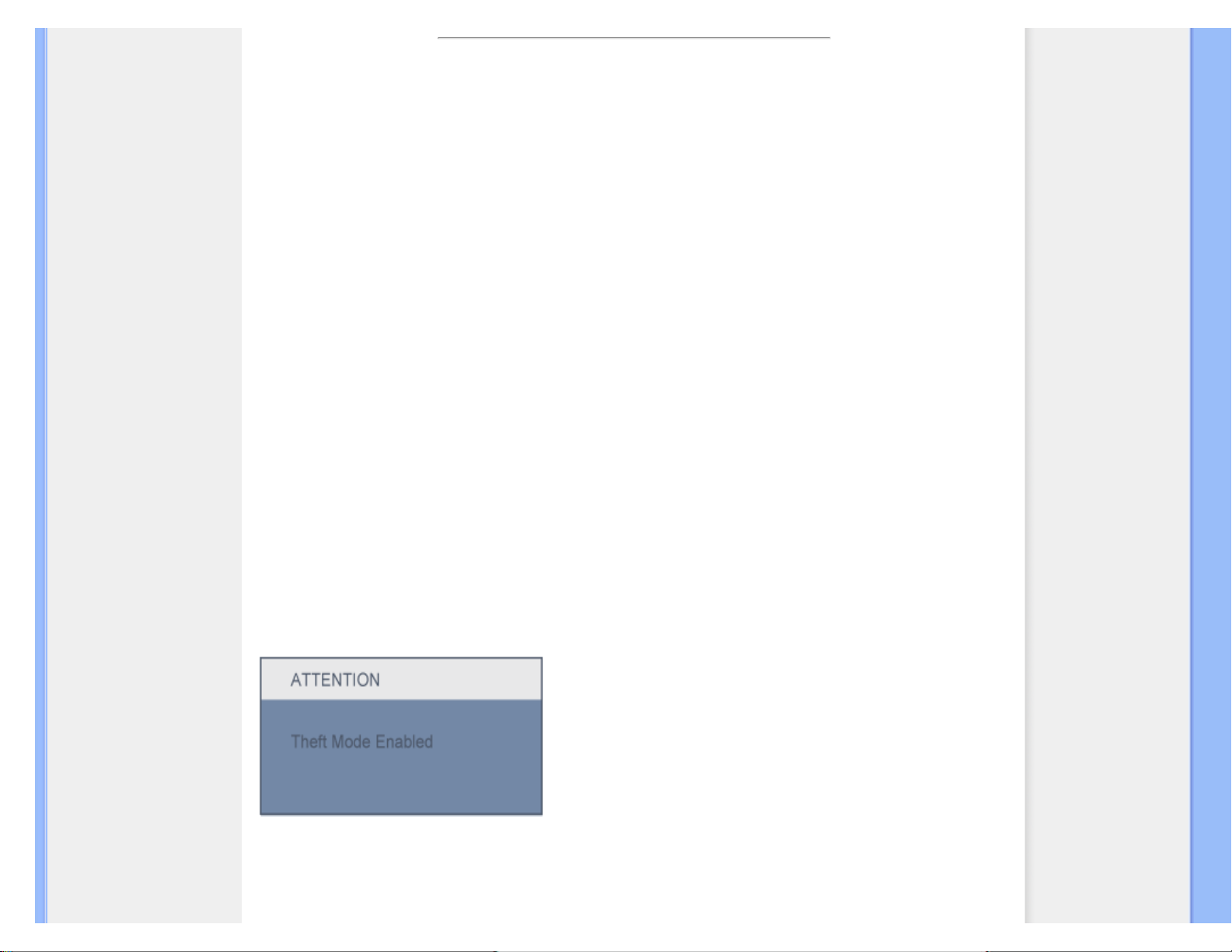

Q: After I change new PC, I found this information on screen, How can I do?

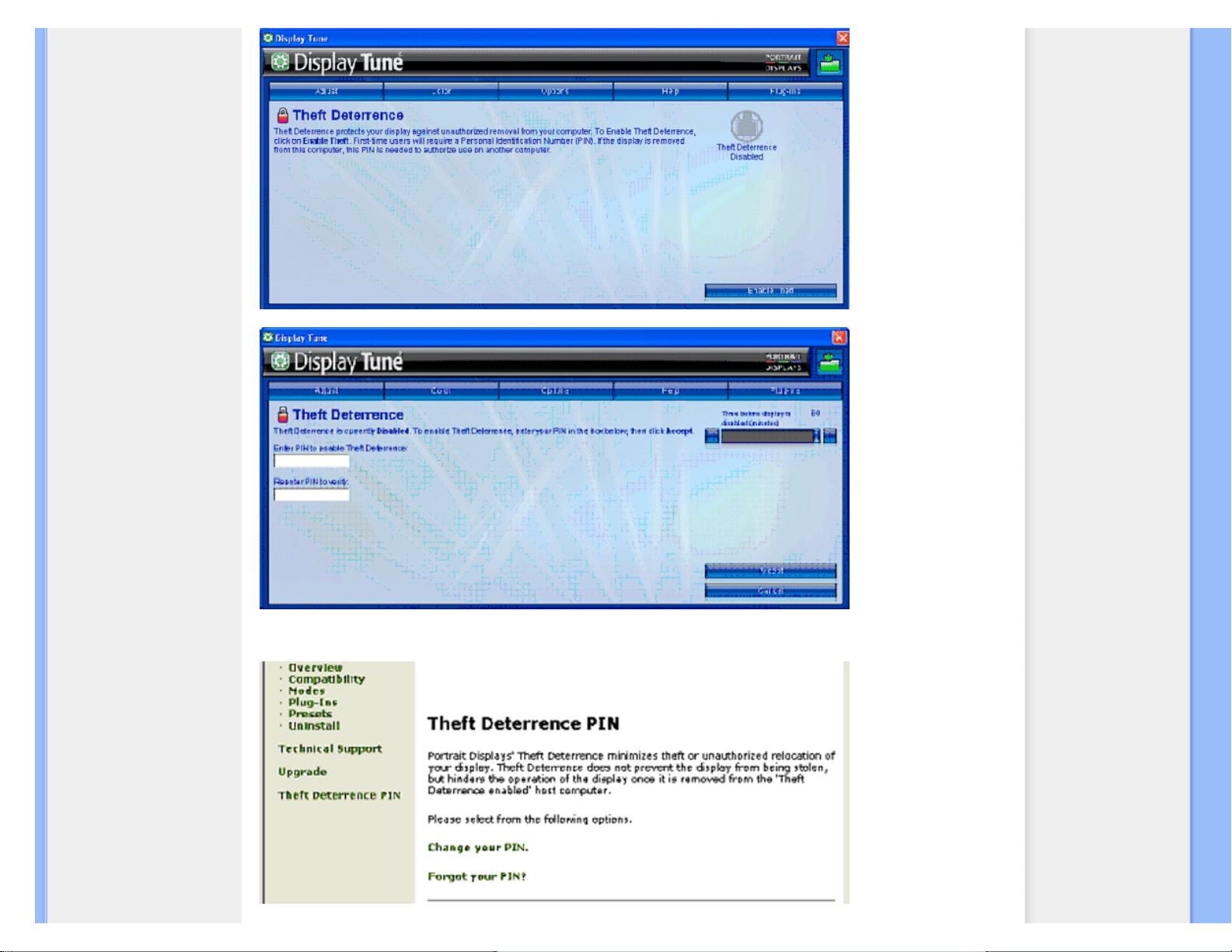

A: Because you activate Theft Deterrence function in SmartControl II. Please contact

IT manager or Philips Service Center.

RETURN TO TOP OF THE PAGE

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/190S9/safety/saf_faq.htm（第 7／8 页）2008-5-24 9:53:46

FAQs (Frequently Asked Questions)

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/190S9/safety/saf_faq.htm（第 8／8 页）2008-5-24 9:53:46

Troubleshooting

• Safety and
Troubleshooting

• FAQs

• Common Problems

• Imaging Problems

• Regulatory Information

• Other Related Information

Troubleshooting

This page deals with problems that can be corrected by a user. If the problem still persists after you have tried these solutions, contact Philips
customer service representative.

Adjust blue "power on" light

Common Problems

Having this problem Check these items

No Picture
(Power LED not lit)

● Make sure the power cord is plugged into the power outlet and into the back

of the monitor.

● First, ensure that the power button on the front of the monitor is in the OFF

position, then press it to the ON position.

No Picture

(Power LED is Blue Blinking)

● Make sure the computer is turned on.

● Make sure the signal cable is properly connected to your computer.

● Check to see if the monitor cable has bent pins.

● The Energy Saving feature may be activated

Screen says

● Make sure the monitor cable is properly connected to your computer. (Also

refer to the Quick Set-Up Guide).

● Check to see if the monitor cable has bent pins.

● Make sure the computer is turned on.

AUTO button not working properly

● The Auto Function is designed for use on standard Macintosh or IBM-

compatible PCs running Microsoft Windows.

● It may not work properly if using nonstandard PC or video card.

Imaging Problems

Display position is incorrect

● Press the Auto button.

● Adjust the image position using the Phase/Clock of Setup in OSD Main

Controls.

Image vibrates on the screen

● Check that the signal cable is properly connected to the graphics board or

PC.

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/190S9/safety/saf_troub.htm（第 1／3 页）2008-5-24 9:53:50

Troubleshooting

Vertical flicker appears

● Press the Auto button.

● Eliminate the vertical bars using the Phase/Clock of Setup in OSD Main

Controls.

Horizontal flicker appears

● Press the Auto button.

● Eliminate the vertical bars using the Phase/Clock of Setup in OSD Main

Controls.

The screen is too bright or too dark

● Adjust the contrast and brightness on On-Screen Display. (The backlight of

the LCD monitor has a fixed life span. When the screen becomes dark or
begins to flicker,

please contact your sales representative).

An after-image appears

● If an image remains on the screen for an extended period of time, it may be

imprinted in the screen and leave an after-image. This usually disappears
after a few hours

An after-image remains after the power has been
turned off.

● This is characteristic of liquid crystal and is not caused by a malfunction or

deterioration of the liquid crystal. The after-image will disappear after a
peroid of time.

Green, red, blue, dark, and white dots remains

● The remaining dots are normal characteristic of the liquid crystal used in

today’s technology.

Adjust blue "power on" light

● Adjust blue "power on" light using the power LED of Setup in OSD Main

Controls.

For further assistance, refer to the Consumer Information Centers list and contact Philips customer service representative.

RETURN TO TOP OF THE PAGE

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/190S9/safety/saf_troub.htm（第 2／3 页）2008-5-24 9:53:50

Troubleshooting

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/190S9/safety/saf_troub.htm（第 3／3 页）2008-5-24 9:53:50

Regulatory Information

• TCO'03 Information

•

Recycling Information for Customers

•

Waste Electrical and Electronic Equipment­WEEE

•

CE Declaration of Conformity

•

Energy Star Declaration

• Federal Communications Commission
(FCC) Notice (U.S. Only)

•

FCC Declaration of Conformity

• Commission Federale de la Communication
(FCC Declaration)

• EN 55022 Compliance (Czech Republic
Only)

•

MIC Notice (South Korea Only)

• Polish Center for Testing and Certification
Notice

•

North Europe (Nordic Countries) Information

• BSMI Notice (Taiwan Only)

• Ergonomie Hinweis (nur Deutschland)

• Philips End-of-Life Disposal

•

Information for UK only

•

China RoHS

• Safety Information

• Troubleshooting

• Other Related Information

•

Frequently Asked Questions (FAQs)

Regulatory Information

Model ID: 190S9
Model No: HNS9190T

TCO'03 Information

Congratulations!

The display you have just purchased carries the TCO'03 Displays label. This means that your display
is designed, manufactured and tested according to some of the strictest quality and environmental
requirements in the world. This makes for a high performance product, designed with the user in focus
that also minimizes the impact on our natural environment.

*available for selective models

Some of the features of the TCO'03 Display requirements.

Ergonomics

● Good visual ergonomics and image quality in order to improve the working environment for the user and to reduce sight and

strain problems. Important parameters are luminance, contrast, resoluction, reflectance, colour rendition and image stability.

Energy

● Energy-saving mode after a certain time-beneficial both for the user and the environment

● Electrical safety

Emissions

● Electromagnetic fields

● Noise emissions

Ecology

● The product must be prepared for recycling and the manufacturer must have a certified environmental management system

such as EMAS or ISO 14 000

● Restrictions on

❍ chlorinated and brominated flame retardants and polymers
❍ heavy metals such as cadmium, mercury and lead.

The requirements included in this label have been developed by TCO Development in co-operation with scientists, experts, users as
well as manufacturers all over the world. Since the end of the 1980s TCO has been involved in influencing the development of IT
equipment in a more user-friendly direction. Our labelling system started with displays in 1992 and is now requested by users and IT­manufacturers all over the world.

For more information, please visit

www.tcodevelopment.com

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/190S9/safety/regs/regulat.htm（第 1／11 页）2008-5-24 9:53:57

Regulatory Information

RETURN TO TOP OF THE PAGE

Recycling Information for Customers

Philips establishes technically and economically viable objectives to optimize the environmental performance of the organization's
product, service and activities.

From the planning, design and production stages, Philips emphasizes the important of making products that can easily be recycled. At
Philips, end-of-life management primarily entails participation in national take-back initiatives and recycling programs whenever
possible, preferably in cooperation with competitors.

There is currently a system of recycling up and running in the European countries, such as The Netherlands, Belgium, Norway, Sweden
and Denmark.

In U.S.A., Philips Consumer Electronics North America has contributed funds for the Electronic Industries Alliance (EIA) Electronics
Recycling Project and state recycling initiatives for end-of-life electronics products from household sources. In addition, the Northeast
Recycling Council (NERC) - a multi-state non-profit organization focused on promoting recycling market development - plans to
implement a recycling program.

In Asia Pacific, Taiwan, the products can be taken back by Environment Protection Administration (EPA) to follow the IT product
recycling management process, detail can be found in web site www.epa.gov.tw

The monitor contains parts that could cause damage to the nature environment. Therefore, it is vital that the monitor is recycled at the end of its
life cycle.

For help and service, please contact Consumers Information Center or F1rst Choice Contact Information Center in each country or the
following team of Environmental specialist can help.

Mrs. Argent Chan, Environment Manager
Philips Consumer Lifestyle
E-mail: [e-mail]

Tel: [phone]

Mr. Maarten ten Houten - Senior Environmental Consultant
Philips Consumer Electronics
E-mail: [e-mail]

Tel: [phone]

Mr. Delmer F. Teglas
Philips Consumer Electronics North America
E-mail: [e-mail]

Tel: [phone]

RETURN TO TOP OF THE PAGE

Waste Electrical and Electronic Equipment-WEEE

Attention users in European Union private households

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/190S9/safety/regs/regulat.htm（第 2／11 页）2008-5-24 9:53:57

Regulatory Information

This marking on the product or on its packaging illustrates that, under European Directive 2002/96/EG governing used
electrical and electronic appliances, this product may not be disposed of with normal household waste. You are responsible for disposal
of this equipment through a designated waste electrical and electronic equipment collection. To determine the locations for dropping off
such waste electrical and electronic, contact your local government office, the waste disposal organization that serves your household
or the store at which you purchased the product.

RETURN TO TOP OF THE PAGE

CE Declaration of Conformity

Philips Consumer Electronics declare under our responsibility that the product is in conformity with the following standards

- EN60950-1:2001 (Safety requirement of Information Technology Equipment)

- EN55022:1998 (Radio Disturbance requirement of Information Technology Equipment)

- EN55024:1998 (Immunity requirement of Information Technology Equipment)

- EN61000-3-2:2000 (Limits for Harmonic Current Emission)

- EN61000-3-3:1995 (Limitation of Voltage Fluctuation and Flicker)
following provisions of directives applicable

- 73/23/EEC (Low Voltage Directive)

- 89/336/EEC (EMC Directive)

- 93/68/EEC (Amendment of EMC and Low Voltage Directive)
and is produced by a manufacturing organization on ISO9000 level.

The product also comply with the following standards

- ISO9241-3, ISO9241-7, ISO9241-8 (Ergonomic requirement for CRT Monitor)

- ISO13406-2 (Ergonomic requirement for Flat Panel Display)

- GS EK1-2000 (GS specification)

- prEN50279:1998 (Low Frequency Electric and Magnetic fields for Visual Display)

- MPR-II (MPR:1990:8/1990:10 Low Frequency Electric and Magnetic fields)

- TCO'99, TCO'03 (Requirement for Environment Labelling of Ergonomics, Energy, Ecology and Emission, TCO: Swedish
Confederation of Professional Employees) for TCO versions

RETURN TO TOP OF THE PAGE

Energy Star Declaration

This monitor is equipped with a function for saving energy which supports the VESA Display Power Management
Signaling (DPMS)

standard. This means that the monitor must be connected to a computer which supports VESA

DPMS. Time settings are adjusted from the system unit by software.

VESA State LED Indicator Power Consumption
Normal operation ON (Active) Blue < 36W (typ.)
Power Saving

Alternative 2
One step

Sleep Blue (blinking) < 0.8 W (typ.)

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/190S9/safety/regs/regulat.htm（第 3／11 页）2008-5-24 9:53:57

Regulatory Information

Switch Off Off < 0.8 W (typ.)

As an ENERGY STAR

®

Partner, PHILIPS has determined that this product meets the ENERGY

STAR® guidelines for energy efficiency.

We recommend you switch off the monitor when it is not in use for a long time.

RETURN TO TOP OF THE PAGE

Federal Communications Commission (FCC) Notice (U.S. Only)

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:

● Reorient or relocate the receiving antenna.

● Increase the separation between the equipment and receiver.

● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

● Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.

Use only RF shielded cable that was supplied with the monitor when connecting this monitor to a computer device.

To prevent damage which may result in fire or shock hazard, do not expose this appliance to rain or excessive moisture.

THIS CLASS B DIGITAL APPARATUS MEETS ALL REQUIREMENTS OF THE CANADIAN INTERFERENCE-CAUSING EQUIPMENT
REGULATIONS.

RETURN TO TOP OF THE PAGE

FCC Declaration of Conformity

Trade Name: Philips

Responsible Party:

Philips Consumer Electronics North America
P.O. Box 671539
Marietta , GA 30006-0026
1-888-PHILIPS (744-5477)

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/190S9/safety/regs/regulat.htm（第 4／11 页）2008-5-24 9:53:57

Regulatory Information

Declaration of Conformity for Products Marked with FCC Logo,
United States Only

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may cause undesired operation.

RETURN TO TOP OF THE PAGE

Commission Federale de la Communication (FCC Declaration)

Cet équipement a été testé et déclaré conforme auxlimites des appareils numériques de class B,aux termes de
l'article 15 Des règles de la FCC. Ces limites sont conçues de façon à fourir une protection raisonnable contre
les interférences nuisibles dans le cadre d'une installation résidentielle. CET appareil produit, utilise et peut
émettre des hyperfréquences qui, si l'appareil n'est pas installé et utilisé selon les consignes données, peuvent
causer des interférences nuisibles aux communications radio. Cependant, rien ne peut garantir l'absence
d'interférences dans le cadre d'une installation particulière. Si cet appareil est la cause d'interférences nuisibles
pour la réception des signaux de radio ou de télévision, ce qui peut être décelé en fermant l'équipement, puis
en le remettant en fonction, l'utilisateur pourrait essayer de corriger la situation en prenant les mesures
suivantes:

● Réorienter ou déplacer l'antenne de réception.

● Augmenter la distance entre l'équipement et le récepteur.

● Brancher l'équipement sur un autre circuit que celui utilisé par le récepteur.

● Demander l'aide du marchand ou d'un technicien chevronné en radio/télévision.

Toutes modifications n'ayant pas reçu l'approbation des services compétents en matière de conformité est
susceptible d'interdire à l'utilisateur l'usage du présent équipement.

N'utiliser que des câbles RF armés pour les connections avec des ordinateurs ou périphériques.

CET APPAREIL NUMERIQUE DE LA CLASSE B RESPECTE TOUTES LES EXIGENCES DU REGLEMENT SUR LE MATERIEL
BROUILLEUR DU CANADA.

RETURN TO TOP OF THE PAGE

EN 55022 Compliance (Czech Republic Only)

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/190S9/safety/regs/regulat.htm（第 5／11 页）2008-5-24 9:53:57

Regulatory Information

RETURN TO TOP OF THE PAGE

MIC Notice (South Korea Only)

Class B Device

Please note that this device has been approved for non-business purposes and may be used in any environment, including residential
areas.

RETURN TO TOP OF THE PAGE

Polish Center for Testing and Certification Notice

The equipment should draw power from a socket with an attached protection circuit (a three-prong socket). All equipment that works
together (computer, monitor, printer, and so on) should have the same power supply source.

The phasing conductor of the room's electrical installation should have a reserve short-circuit protection device in the form of a fuse with
a nominal value no larger than 16 amperes (A).

To completely switch off the equipment, the power supply cable must be removed from the power supply socket, which should be
located near the equipment and easily accessible.

A protection mark "B" confirms that the equipment is in compliance with the protection usage requirements of standards PN-93/T-42107
and PN-89/E-06251.

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/190S9/safety/regs/regulat.htm（第 6／11 页）2008-5-24 9:53:57

Regulatory Information

RETURN TO TOP OF THE PAGE

North Europe (Nordic Countries) Information

Placering/Ventilation

VARNING:

FÖRSÄKRA DIG OM ATT HUVUDBRYTARE OCH UTTAG ÄR LÄTÅTKOMLIGA, NÄR DU STÄLLER DIN
UTRUSTNING PÅPLATS.

Placering/Ventilation

ADVARSEL:

SØRG VED PLACERINGEN FOR, AT NETLEDNINGENS STIK OG STIKKONTAKT ER NEMT
TILGÆNGELIGE.

Paikka/Ilmankierto

VAROITUS:

SIJOITA LAITE SITEN, ETTÄ VERKKOJOHTO VOIDAAN TARVITTAESSA HELPOSTI IRROTTAA
PISTORASIASTA.

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/190S9/safety/regs/regulat.htm（第 7／11 页）2008-5-24 9:53:57

Regulatory Information

Plassering/Ventilasjon

ADVARSEL:

NÅR DETTE UTSTYRET PLASSERES, MÅ DU PASSE PÅ AT KONTAKTENE FOR STØMTILFØRSEL
ER LETTE Å NÅ.

RETURN TO TOP OF THE PAGE

BSMI Notice (Taiwan Only)

RETURN TO TOP OF THE PAGE

Ergonomie Hinweis (nur Deutschland)

Der von uns gelieferte Farbmonitor entspricht den in der "Verordnung über den Schutz vor Schäden durch Röntgenstrahlen"
festgelegten Vorschriften.

Auf der Rückwand des Gerätes befindet sich ein Aufkleber, der auf die Unbedenklichkeit der Inbetriebnahme hinweist, da die
Vorschriften über die Bauart von Störstrahlern nach Anlage III ¤ 5 Abs. 4 der Röntgenverordnung erfüllt sind.

Damit Ihr Monitor immer den in der Zulassung geforderten Werten entspricht, ist darauf zu achten, daß

1. Reparaturen nur durch Fachpersonal durchgeführt werden.

2. nur original-Ersatzteile verwendet werden.

3. bei Ersatz der Bildröhre nur eine bauartgleiche eingebaut wird.

Aus ergonomischen Gründen wird empfohlen, die Grundfarben Blau und Rot nicht auf dunklem Untergrund zu
verwenden (schlechte Lesbarkeit und erhöhte Augenbelastung bei zu geringem Zeichenkontrast wären die Folge).

Der arbeitsplatzbezogene Schalldruckpegel nach DIN 45 635 beträgt 70dB (A) oder weniger.

ACHTUNG: BEIM AUFSTELLEN DIESES GERÄTES DARAUF ACHTEN, DAß NETZSTECKER UND
NETZKABELANSCHLUß LEICHT ZUGÄNGLICH SIND.

RETURN TO TOP OF THE PAGE

End-of-Life Disposal

Your new monitor contains materials that can be recycled and reused. Specialized companies can recycle your product to increase the
amount of reusable materials and to minimize the amount to be disposed of.

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/190S9/safety/regs/regulat.htm（第 8／11 页）2008-5-24 9:53:57

Regulatory Information

Please find out about the local regulations on how to dispose of your old monitor from your local Philips dealer.

(For customers in Canada and U.S.A.)

This product may contain lead and/or mercury. Dispose of in accordance to local-state and federal regulations.
For additional information on recycling contact www.eia.org (Consumer Education Initiative)

RETURN TO TOP OF THE PAGE

Information for UK only

WARNING - THIS APPLIANCE MUST BE GROUNDING.

Important:

This apparatus is supplied with an approved moulded 13A plug. To
change a fuse in this type of plug proceed as follows:

1. Remove fuse cover and fuse.

2. Fit new fuse which should be a BS 1362 5A,A.S.T.A. or BSI approved
type.

3. Refit the fuse cover.

If the fitted plug is not suitable for your socket outlets, it should be cut off
and an appropriate 3-pin plug fitted in its place.

If the mains plug contains a fuse, this should have a value of 5A. If a
plug without a fuse is used, the fuse at the distribution board should not
be greater than 5A.

Note: The severed plug must be destroyed to avoid a possible shock
hazard should it be inserted into a 13A socket elsewhere.

How to connect a plug

The wires in the mains lead are coloured in accordance with the
following code:

BLUE - "NEUTRAL" ("N")

BROWN - "LIVE" ("L")

GREEN & YELLOW - "GROUND" ("G")

1. The GREEN AND YELLOW wire must be connected to the terminal in
the plug which is marked with the letter "G" or by the Ground symbol

or coloured GREEN or GREEN AND YELLOW.

2. The BLUE wire must be connected to the terminal which is marked

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/190S9/safety/regs/regulat.htm（第 9／11 页）2008-5-24 9:53:57

Regulatory Information

with the letter "N" or coloured BLACK.

3. The BROWN wire must be connected to the terminal which marked
with the letter "L" or coloured RED.

Before replacing the plug cover, make certain that the cord grip is
clamped over the sheath of the lead - not simply over the three wires.

RETURN TO TOP OF THE PAGE

China RoHS

The People's Republic of China released a regulation called "Management Methods for Controlling Pollution by Electronic Information
Products" or commonly referred to as China RoHS. All products including CRT and LCD monitor which are produced and sold for China
market have to meet China RoHS request.

RETURN TO TOP OF THE PAGE

Safety Information: Electric, Magnetic and Electromagnetic Fields (“EMF”)

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/190S9/safety/regs/regulat.htm（第 10／11 页）2008-5-24 9:53:57

Regulatory Information

1. Philips Royal Electronics manufactures and sells many products targeted at consumers, which, like any electronic apparatus, in

general have the ability to emit and receive electro magnetic signals.

2.

One of Philips' leading Business Principles is to take all necessary health and safety measures for our products, to comply with
all applicable legal requirements and to stay well within the EMF standards applicable at the time of producing the products.

3. Philips is committed to develop, produce and market products that cause no adverse health effects.

4.

Philips confirms that if its products are handled properly for their intended use, they are safe to use according to scientific
evidence available today.

5. Philips plays an active role in the development of international EMF and safety standards, enabling Philips to anticipate further

developments in standardization for early integration in its products.

RETURN TO TOP OF THE PAGE

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/190S9/safety/regs/regulat.htm（第 11／11 页）2008-5-24 9:53:57

Other Related Information

• Safety and Troubleshooting

• FAQs

• Troubleshooting

• Regulatory Information

• Information
for Users in the U.S

• Information
for Users Outside the U.S

Other Related Information

Information for Users in the U. S.

For units set at 115 V :

Use a UL Listed Cord Set consisting of a minimum 18 AWG, Type SVT or SJT three conductor cord a maximum of 15­feet long and a parallel blade, grounding type attachment plug rated 15 A, 125 V.

For units set at 230 V:

Use a UL Listed Cord Set consisting of a minimum 18 AWG, Type SVT or SJT three conductor cord a maximum of 15­feet long and a tandem blade, grounding type attachment plug rated 15 A, 250 V.

Information for Users outside the U.S.

For units set at 230 V:

Use a Cord Set consisting of a minimum 18 AWG cord and grounding type attachment plug rated 15 A, 250 V. The Cord
Set should have the appropriate safety approvals for the country in which the equipment will be installed and / or be
marked HAR.

RETURN TO TOP OF THE PAGE

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/190S9/safety/saf_other.htm2008-5-24 9:54:02

About This Manual

• About This Guide

• Notational Descriptions

About This Manual

About This Guide

This electronic user's guide is intended for anyone who uses the Philips LCD Monitor. It describes the LCD monitor's
features, setup, operation and other important information. Its contents are identical to the information in our printed
version.

It includes the following sections:

● Safety and Troubleshooting Information provides tips and solutions for common problems as well as other

related information you may need.

● About This Electronic User's Manual gives an overview of information included, along with notation icon

descriptions and other documentation for your reference.

● Product Information gives an overview of the monitor's features as well as the technical specifications for this

monitor.

● Installing Your Monitor describes the initial setup process and gives an overview of how to use the monitor.

● On-Screen Display provides information on adjusting the settings on your monitor.

● Customer Care and Warranty contains a list of worldwide Philips Consumer Information Centers along with

help desk phone numbers and information on the warranty applicable to your product.

● Glossary defines technical terms.

● Download and Print Option transfers this entire manual to your hard drive for easy reference.

RETURN TO TOP OF THE PAGE

Notational Descriptions

The following subsections describe notational conventions used in this document.

Notes, Cautions and Warnings

Throughout this guide, blocks of text may be accompanied by an icon and printed in bold or italic type. These blocks
contain notes, cautions or warnings. They are used as follows:

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/190S9/about/about.htm（第 1／2 页）2008-5-24 9:54:09

About This Manual

NOTE: This icon indicates important information and tips that help you make
better use of your computer system.

CAUTION: This icon indicates information that tells you how to avoid either
potential damage to hardware or loss of data.

WARNING: This icon indicates the potential for bodily harm and tells you how
to avoid the problem.

Some warnings may appear in alternate formats and may not be accompanied by an icon. In such cases, the specific
presentation of the warning is mandated by the relevant regulatory authority.

RETURN TO TOP OF THE PAGE

©2008 Koninklijke Philips Electronics NV

All rights reserved. Reproduction, copying, use, modification, hiring, renting, public performance, transmission and/or broadcasting in whole or
in part is prohibited without written consent of Philips Electronics NV

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/190S9/about/about.htm（第 2／2 页）2008-5-24 9:54:09

Product Information

• Your LCD Monitor

• Smartimage

• SmartContrast

• SmartSaturate

• SmartSharpness

• Lead-free Product

• Technical Specifications

• Resolution & Preset Modes

• Philips Pixel Defect Policy

• Automatic Power Saving

• Physical Specification

• Pin Assignment

• Product Views

• Physical Function

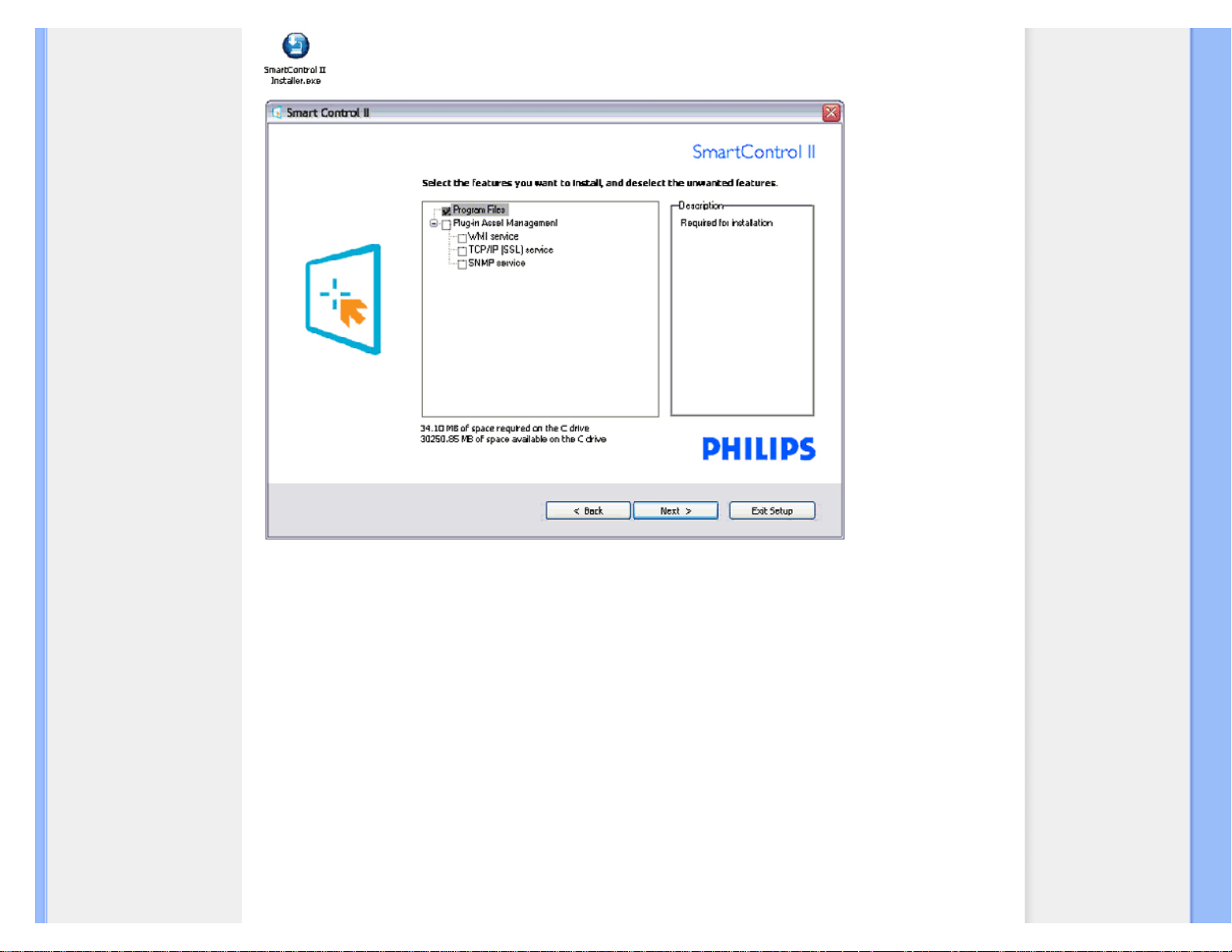

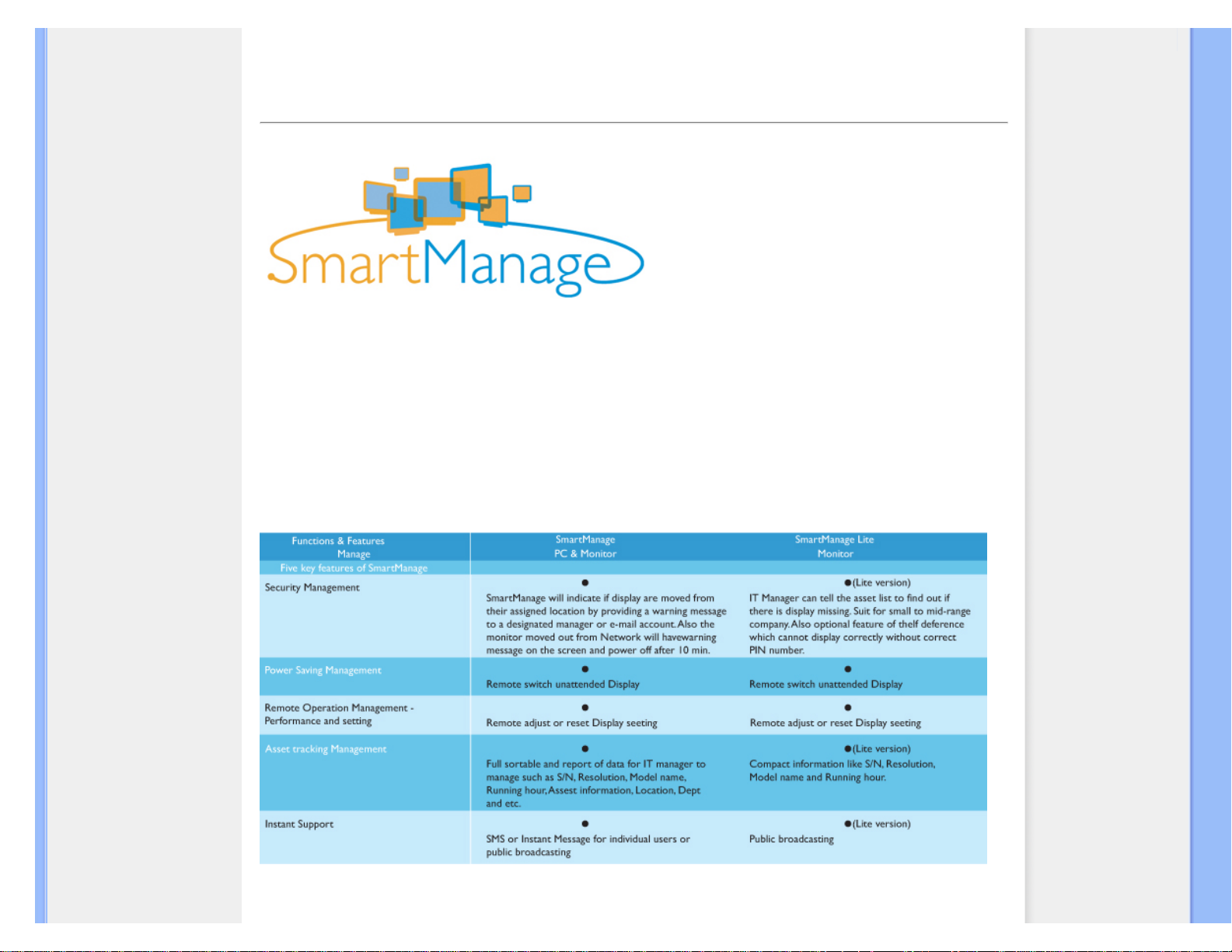

• SmartManage & SmartControl II

Product Information

Your LCD monitor

Congratulations on your purchase and welcome to Philips. To fully benefit from the support that Philips offers, register your product at. www.philips.com/

welcome

SmartImage

What is it?

SmartImage provides presets that optimize display for different types of content, dynamically adjusting brightness, contrast, color and sharpness in real time.
Whether you're working with text applications, displaying images or watching a video, Philips SmartImage delivers great optimized LCD display performance.

Why do I need it?

You want a LCD display that delivers optimized display all your favorite types of content, SmartImage software dynamically adjust brightness, contrast, color
and sharpness in real time to enhance your LCD viewing experience.

How does it work?

SmartImage – software based on Philips award-winning LightFrame™ technology – analyzes the content displayed on your screen. Based on a scenario you
select, SmartImage dynamically enhances the contrast, color saturation and sharpness of images and video for ultimate display performance – all in real time
with the press on a single button.

How to enable SmartImage?

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/190S9/product/product.htm（第 1／9 页）2008-5-24 9:54:14

Product Information

1.

Press to

launch the SmartImage on screen display;

2. Keep press

to toggle between Office Work, Image Viewing, Entertainment, Economy, and Off;

3. The SmartImage on screen display will remain on screen for 5 seconds or you can also press”OK” to make confirmation.

4. When SmartImage is enabled, the sRGB scheme is disabled automatically. To use sRGB you need to disable SmartImage with the
button at the front bezel of your monitor.

Except using key to scroll down, you can also press buttons to choose and press “OK” to confirm selection and close the SmartImage OSD.
There are five modes to be selected: Office Work, Image Viewing, Entertainment, Economy, and Off.

There are five modes to be selected: Office Work, Image Viewing, Entertainment, Economy, and Off.

1. Office Work: Enhances text and dampens brightness to increase readability and reduce eye strain. This mode significantly enhances readability

and productivity when you’re working with spreadsheets, PDF files, scanned articles or other general office applications.

2.

Image Viewing: This profile combines color saturation, dynamic contrast and sharpness enhancement to display photos and other images with

outstanding clarity in vibrant colors – all without artifacts and faded colors.

3. Entertainment: Ramped up luminance, deepened color saturation, dynamic contrast and razor sharpness displays every details in darker areas

of your videos without color washout in brighter areas maintaining a dynamic natural values for the ultimate video display.

4.

Economy: Under this profile, brightness, contrast are adjusted and backlighting fine-tuned for just right display of everyday office applications and

lower power consumption.

5. Off: No optimization by SmartImage.

RETURN TO TOP OF THE PAGE

SmartContrast

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/190S9/product/product.htm（第 2／9 页）2008-5-24 9:54:14

Product Information

What is it?

Unique technology that dynamically analyzes displayed content and automatically optimizes a LCD monitor's contrast ratio for maximum visual clarity and
viewing enjoyment, stepping up backlighting for clearer, crisper and brighter images or dimming backlighting for clear display of images on dark backgrounds.

Why do I need it?

You want the very best visual clarity and viewing comfort for every type of content. SmartContrast dynamically controls contrast and adjusts backlighting for
clear, crisp, bright gaming and video images or displays clear, readable text for office work. By reducing your monitor's power consumption, you save on
energy costs and extend the lifetime of your monitor.

How does it work?

When you active SmartContrast which will analysis the content you are displaying in real time to adjust colors and control backlight intensity. This function can
obviously enhance contrast in dynamic for more entertainment fun when viewing videos or playing games.

RETURN TO TOP OF THE PAGE

SmartSaturate

What is it?

Smart technology that controls color saturation - the degree to which one on screen color is diluted by neighboring colors - to deliver rich and vibrant images
for more entertainment fun when you are viewing videos.

Why do I need it?

You want rich, vibrant images for more entertainment fun when viewing photos or videos

.

How does it work?

SmartSaturate dynamically controls color saturation – the degree to which on-screen color is diluted by neighboring colors – to deliver rich, vibrant display for
more entertainment fun when you are viewing images or videos in your display's Entertainment mode and is turned off for top quality display of office
application and in the Economy mode to reduce power consumption

.

RETURN TO TOP OF THE PAGE

SmartSharpness

What is it?

Smart technology that enhances sharpness when you need it for ultimate display performance and more entertainment fun when you are viewing videos or
photos.

Why do I need it?

You want the ultimate in sharpness for more entertainment fun when viewing photos or videos.

How does it work?

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/190S9/product/product.htm（第 3／9 页）2008-5-24 9:54:14

Product Information

Smart technology enhances sharpness when you need it for ultimate display performance and more entertainment fun when you are viewing videos or photos
in the Entertainment mode and is turned off for top quality display of office applications and in the Economy mode to reduce power consumptions.

RETURN TO TOP OF THE PAGE

Lead-free Product

Philips eliminated toxic substances like lead from its displays. Lead-free display helps protect your health and promotes environmentally
sound recovery and disposal of waste from electrical and electronic equipment.Philips complies with the European Community stringent
RoHS Directive mandating restrictions on hazardous substances in electrical and electronic equipment. With Philips, you can be confident
that your display device does not harm the environment.

RETURN TO TOP OF THE PAGE

Technical Specifications*

LCD PANEL

• Type TFT LCD

• Screen size 19" visual

• Pixel Pitch 0.294 x 0.294 mm

• LCD Panel type

1280 x 1024 pixels
R.G.B. vertical stripe
Anti-glare polarizer, hard coated

• Effective viewing area 376.3 x 301.1 mm

SCANNING

• Vertical refresh rate 56 Hz-75 Hz

• Horizontal Frequency 30 kHz - 83 kHz

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/190S9/product/product.htm（第 4／9 页）2008-5-24 9:54:14

Product Information

VIDEO

• Video dot rate 165 MHz

• Input impedance

- Video
75 ohm

- Sync

2.2K ohm

• Input signal levels 0.7 Vpp

• Sync input signal

Separate sync
Composite sync
Sync on green

• Sync polarities Positive and negative

* This data is subject to change without notice.

RETURN TO TOP OF THE PAGE

Resolution & Preset Modes

A.

Maximum Resolution

- For 190S9

1280 x 1024 at 75 Hz (analog input)

1280 x 1024 at 75 Hz (digital input)

B. Recommended Resolution

- For 190S9

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/190S9/product/product.htm（第 5／9 页）2008-5-24 9:54:14

Product Information

1280 x 1024 at 60 Hz (digital input)

11 factory preset modes:

H. freq (kHz) Resolution V. freq (Hz)

31.469 720*400 70.087

31.469 640*480 59.940

35.000 640*480 67.000

37.500 640*480 75.000

35.156 800*600 56.250

37.879 800*600 60.317

46.875 800*600 75.000

48.363 1024*768 60.004

60.023 1024*768 75.029

63.981 1280*1024 60.020

79.976 1280*1024 75.025

RETURN TO TOP OF THE PAGE

Automatic Power Saving

If you have VESA DPMS compliance display card or software installed in your PC, the monitor can automatically reduce its power consumption when not in
use. If an input from a keyboard, mouse or other input device is detected, the monitor will 'wake up' automatically. The following table shows the power
consumption and signaling of this automatic power saving feature:

Power Management Definition

VESA Mode Video H-sync V-sync Power Used LED color

Active ON Yes Yes < 36W (typ.) Blue
Sleep OFF No No < 0.8 W (typ.)

Blue

(Blinking)

Switch Off OFF - -

< 0.8W

(typ.)

Off

This monitor is

ENERGY STAR

®

compliant. As an ENERGY STAR® Partner, PHILIPS has determined that this

product meets the

ENERGY STAR

®

guidelines for energy efficiency.

RETURN TO TOP OF THE PAGE

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/190S9/product/product.htm（第 6／9 页）2008-5-24 9:54:14

Product Information

Physical Specifications

• Tilt -5°+2/-0 ~+ 20°+3/-0

• Power supply 100 ~ 240 VAC, 50/60 Hz

• Power consumption 36W* (typ.)

• Temperature

0° C to 40 ° C (operating)

-20° C to 60° C (storage)

• Relative humidity 20% to 80%

• System MTBF 50K hours (CCFL 40K hours)

* This data is subject to change without notice.

1280 x 1024, standard size, contrast 50%, brightness max., 6500° K, full white pattern.

RETURN TO TOP OF THE PAGE

Pin Assignment

1.The digital only connector contains 24 signal contacts organized in three rows of eight contacts. Signal pin assignments are listed in the following table:

Pin No. Signal Assignment

Pin No. Signal Assignment

Pin No. Signal Assignment

1

T.M.D.S. Data2-

9 T.M.D.S. Data1-

17

T.M.D.S. Data0-

2 T.M.D.S. Data2+ 10 T.M.D.S. Data1+

18

T.M.D.S. Data0+

3 T.M.D.S. Data2/4 Shield 11 T.M.D.S. Data1/3 Shield

19

T.M.D.S. Data0/5 Shield

4 No connect 12 No connect

20

No connect

5 No connect 13 No connect

21

No connect

6 DDC Clock 14 +5V Power

22

T.M.D.S. Clock Shield

7 DDC Data 15 Ground (for +5V)

23

T.M.D.S. Clock+

8 No connect

16

Hot Plug Detect

24

T.M.D.S. Clock-

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/190S9/product/product.htm（第 7／9 页）2008-5-24 9:54:14

Product Information

2.The 15-pin D-sub connector (male) of the signal cable:

Pin No.

Assignment

Pin No.

Assignment

1

Red video input

9

DDC + 5 V

2

Green video input/SOG

10

Logic ground

3

Blue video input

11

Ground

4

Sense (GND)

12

Serial data line (SDA)

5

Cable detect (GND)

13

H. Sync / H+V. Sync

6

Red video ground

14

V. Sync

7

Green video ground

15

Data clock line (SCL)

8

Blue video ground

RETURN TO TOP OF THE PAGE

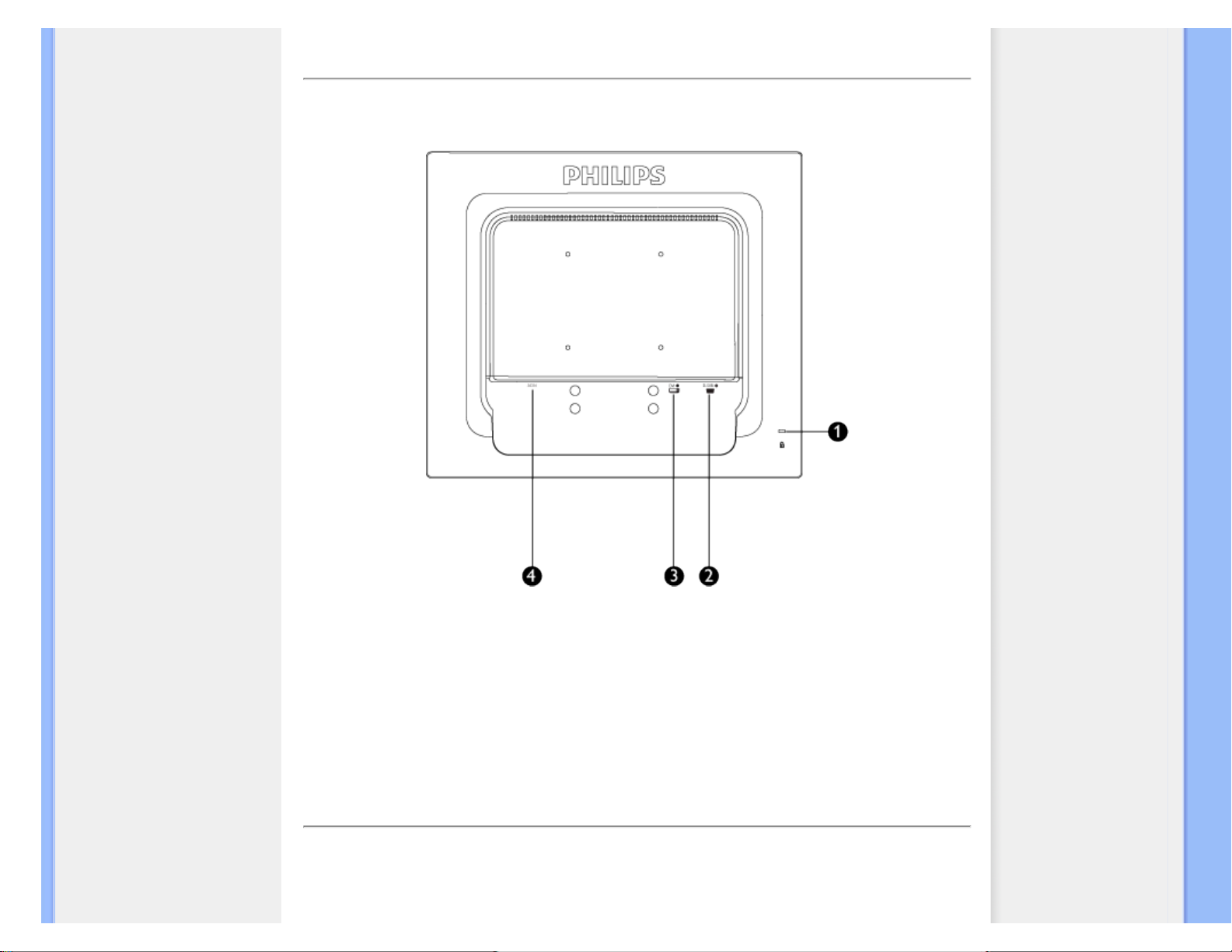

Product Views

Follow the links to see various views of the monitor and its components.

Front View Product Description

RETURN TO TOP OF THE PAGE

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/190S9/product/product.htm（第 8／9 页）2008-5-24 9:54:14

Product Information

Physical Function

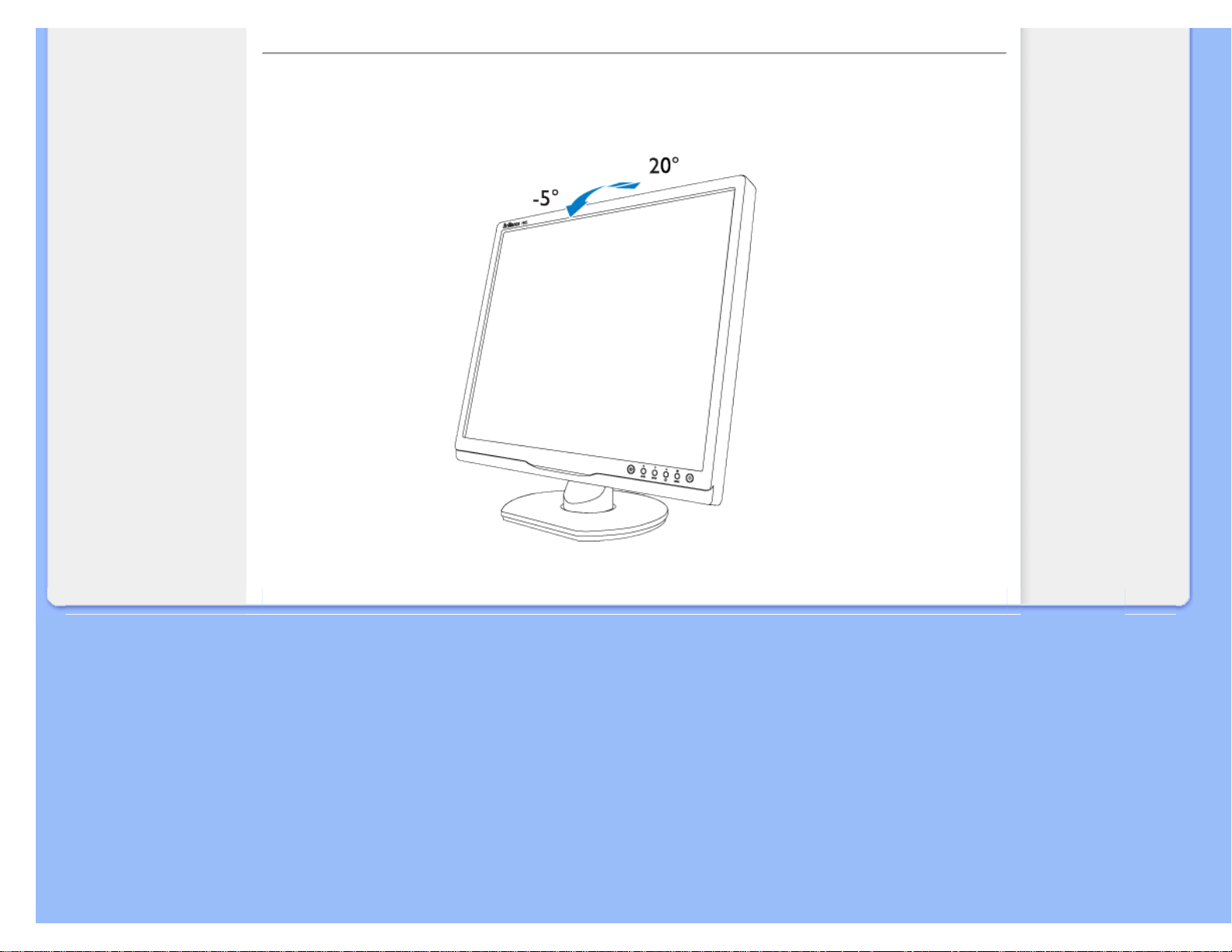

Tilt

RETURN TO TOP OF THE PAGE

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/190S9/product/product.htm（第 9／9 页）2008-5-24 9:54:14

Philips Pixel Defect Policy

• Product Features

• Technical Specifications

• Resolution & Preset Modes

• Automatic Power Saving

• Physical Specification

• Pin Assignment

• Product Views

Philips Pixel Defect Policy

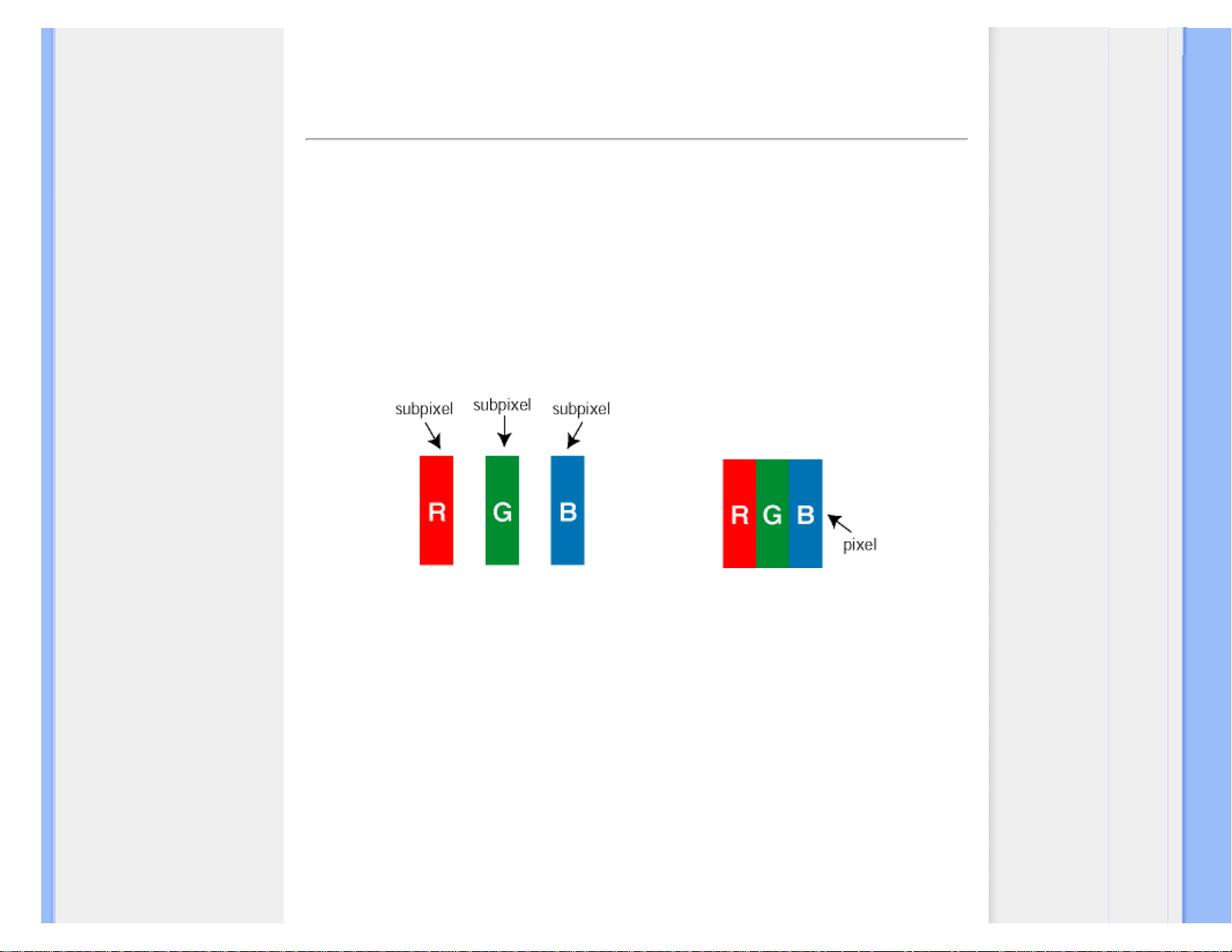

Philips' Flat Panel Monitors Pixel Defect Policy

Philips strives to deliver the highest quality products. We use some of the industry's most advanced manufacturing
processes and practice stringent quality control. However, pixel or sub pixel defects on the TFT LCD panels used in flat
panel monitors are sometimes unavoidable. No manufacturer can guarantee that all panels will be free from pixel defects,
but Philips guarantees that any monitor with an unacceptable number of defects will be repaired or replaced under
warranty. This notice explains the different types of pixel defects and defines acceptable defect levels for each type. In
order to qualify for repair or replacement under warranty, the number of pixel defects on a TFT LCD panel must exceed
these acceptable levels. For example, no more than 0.0004% of the sub pixels on a 19" XGA monitor may be defective.
Furthermore, Philips sets even higher quality standards for certain types or combinations of pixel defects that are more
noticeable than others. This policy is valid worldwide.

Pixels and Sub pixels

A pixel, or picture element, is composed of three sub pixels in the primary colors of red, green and blue. Many pixels
together form an image. When all sub pixels of a pixel are lit, the three colored sub pixels together appear as a single
white pixel. When all are dark, the three colored sub pixels together appear as a single black pixel. Other combinations of
lit and dark sub pixels appear as single pixels of other colors.

Types of Pixel Defects

Pixel and sub pixel defects appear on the screen in different ways. There are two categories of pixel defects and several
types of sub pixel defects within each category.

Bright Dot Defects Bright dot defects appear as pixels or sub pixels that are always lit or 'on'. That is, a bright dot is a

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/190S9/product/pixel.htm（第 1／4 页）2008-5-24 9:54:21

Philips Pixel Defect Policy

sub-pixel that stands out on the screen when the monitor displays a dark pattern. There are the types of bright dot defects:

One lit red, green or blue sub pixel

Two adjacent lit sub pixels:

- Red + Blue = Purple

- Red + Green = Yellow

- Green + Blue = Cyan (Light Blue)

Three adjacent lit sub pixels (one
white pixel)

A red or blue bright dot must be more than 50 percent brighter than neighboring dots while a green
bright dot is 30 percent brighter than neighboring dots.

Black Dot Defects Black dot defects appear as pixels or sub pixels that are always dark or 'off'. That is, a dark dot is a

sub-pixel that stands out on the screen when the monitor displays a light pattern. These are the types of black dot defects:

One dark sub pixel Two or three adjacent dark sub pixels

Proximity of Pixel Defects

Because pixel and sub pixels defects of the same type that are near to one another may be more noticeable, Philips also
specifies tolerances for the proximity of pixel defects.

Pixel Defect Tolerances

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/190S9/product/pixel.htm（第 2／4 页）2008-5-24 9:54:21

Philips Pixel Defect Policy

In order to qualify for repair or replacement due to pixel defects during the warranty period, a TFT LCD panel in a Philips
flat panel monitor must have pixel or sub pixel defects exceeding the tolerances listed in the following tables.

BRIGHT DOT DEFECTS ACCEPTABLE LEVEL

MODEL

190S9

1 lit subpixel 3 or fewer
2 adjacent lit subpixels 1 or fewer
3 adjacent lit subpixels (one white pixel) 0
Distance between two bright dot defects* >15mm
Total bright dot defects of all types 3 or fewer

BLACK DOT DEFECTS ACCEPTABLE LEVEL

MODEL

190S9

1 dark subpixel 5 or fewer
2 adjacent dark subpixels 2 or fewer
3 adjacent dark subpixels 0
Distance between two black dot defects* >15mm
Total black dot defects of all types 5 or fewer

TOTAL DOT DEFECTS ACCEPTABLE LEVEL

MODEL

190S9

Total bright or black dot defects of all types 5 or fewer

Note:

* 1 or 2 adjacent sub pixel defects = 1 dot defect

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/190S9/product/pixel.htm（第 3／4 页）2008-5-24 9:54:21

Philips Pixel Defect Policy

RETURN TO TOP OF THE PAGE

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/190S9/product/pixel.htm（第 4／4 页）2008-5-24 9:54:21

SmartManage

• Product Information

• Philips Pixel Defect Policy

• SmartManage Features and Benefits

•

Philips SmartControl ll

• System support and requirement

• Installation

• Start to use

• Q&A

SmartManage & SmartControl II (Selective Models)

Introduction

Philips SmartManage is an advanced solution for users, corporate/institution IT administrator in particular, to manage their Philips monitors as part of
the asset management environment. The solution includes three essential components, Philips SmartManage Administrator, and Philips
SmarControl and Agent.

If you are a small to middle business company, you may not need such professional software to do the asset management. Thus, Philips provide you
a compact version of SmartManage, SmartManage Lite. You can use SmartManage Lite to manage your Philips Monitors via LAN. Please. refer to
below comparison chart and determine if which one suit for your environment best.

SmartManage Features and Benefits

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/190S9/product/SMART.HTM（第 1／16 页）2008-5-24 9:54:28

SmartManage

The Philips SmartManage is a working console for IT management to gather monitors assets information, run asset report, control assets security,
monitor assets security, and issue instant messages to monitor users. Philips SmartManage includes the following major features:

1. Provides an additional security measure that helps corporate users safeguard their investment.

2. Power saving feature that reduces utility costs and manpower required to turn monitors on or off.

3. Provides an efficient means for adjusting monitor performance and settings.

4. Built-in asset reports reduce audit/maintenance manpower, cycle time and costs.

A trial version of SmartManage can be downloaded from

http://www.altiris.com/philips

You can also download SmartManage Lite

http://www.portrait.com/dtune/phl/enu/index.html

SmartManage is a software dedicated to business environments. Personal users normally do not need to use SmartManage.

Philips SmartManage is a solution joint developed by Philips and Altiris Inc.

Philips SmartControl II and SmartManage Lite is a solution joint developed by Philips and Portrait Display, Inc.

Philips SmartControl II

SmartControl II is monitor-based software with an easy-to-use on-screen graphic interface that guides you through fine-tuning resolution, color
calibration and other display settings including brightness, contrast, clock & phase, position, RGB, white point and - on models with onboard speakers ­volume adjustments. Monitors install SmartControl II can also have the ability to be managed by SmartManage which can manage PCs and Monitors or
by SmartManage Lite which can manage Monitors. (Please refer to SmartManage/SmartManage Lite chapter) .

System support and requirement:

1. Sytem support: 2000, XP, NT 4.0, XP 64 Edition, Vista 32/64. IE Support 6.0/7.0.

2. Language support: English, Simplified Chinese, German, Spanish, French, Italian, Russian, Portuguese.

3. Philips Monitor support DDC/CI Interface.

Installation:

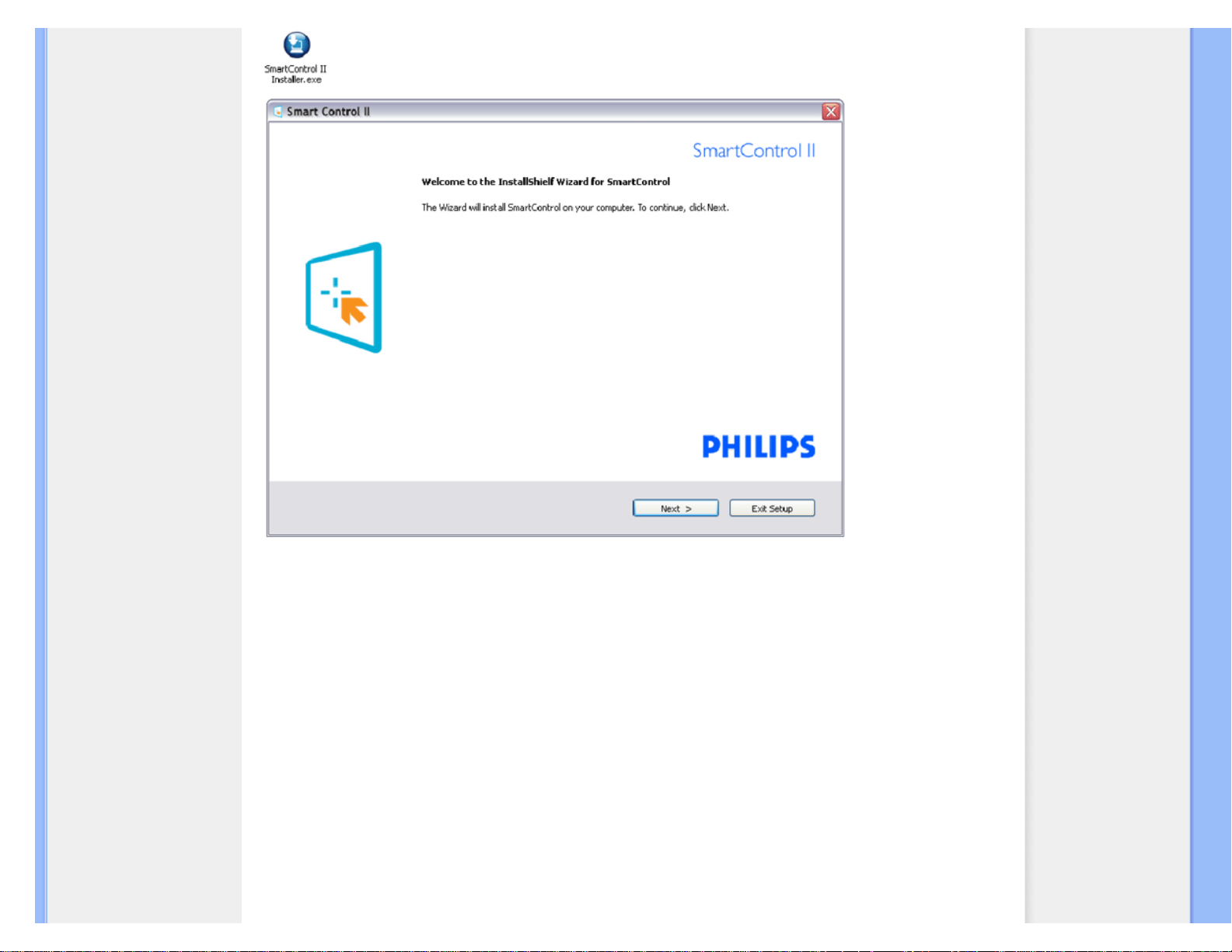

1. Installer – Install Shield Welcome

● Next Button takes user to next Install pane.

● Cancel prompts user if they want to cancel installation.

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/190S9/product/SMART.HTM（第 2／16 页）2008-5-24 9:54:28

SmartManage

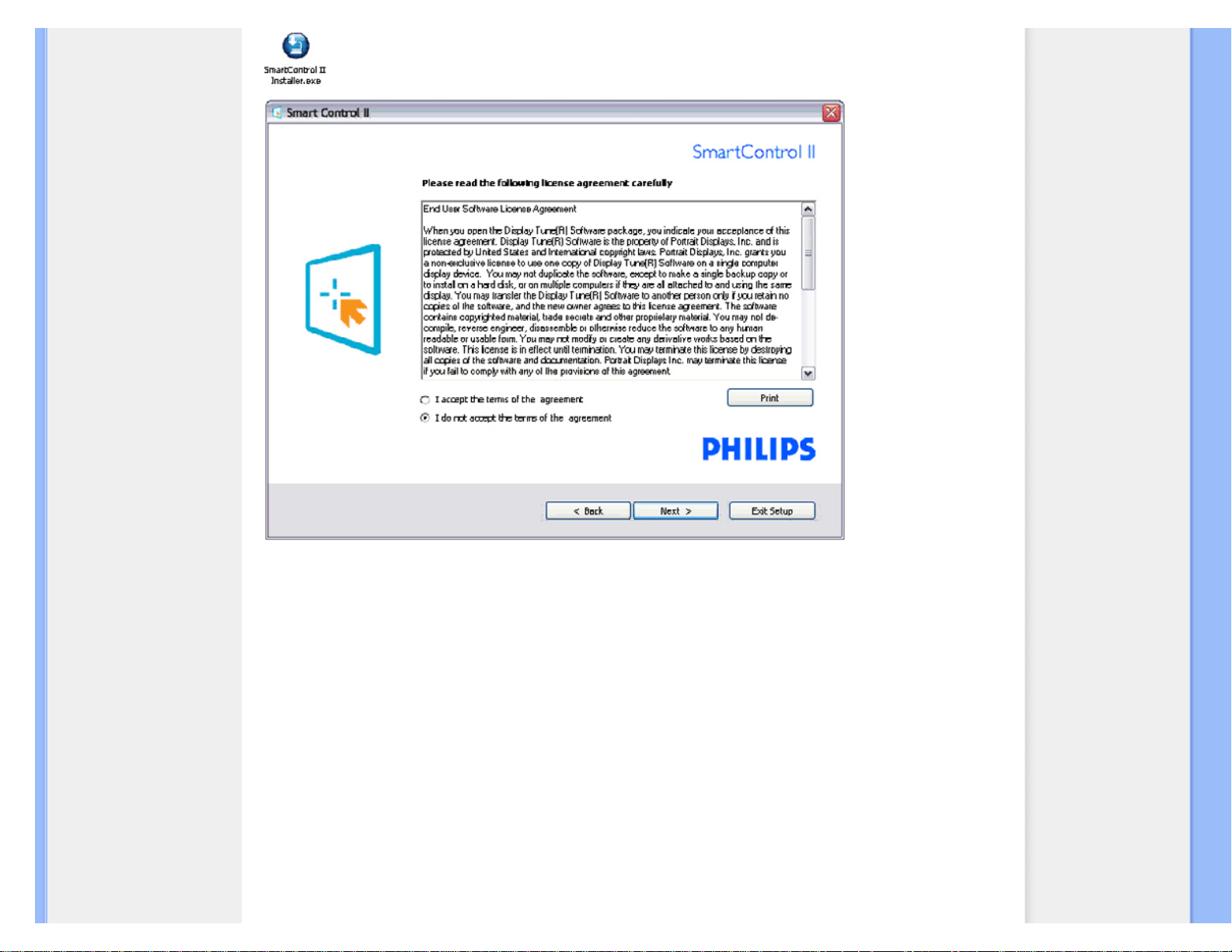

2. Installer – Install Shield Legal

● Choose "I accept" for installation process.

● Cancel prompts user if you want to cancel installation.

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/190S9/product/SMART.HTM（第 3／16 页）2008-5-24 9:54:28

SmartManage

3. Installer – Install Shield Program Files

● Check the box if you wants to install SmartManage Lite Asset Management services.

Personal user usually not need to active this function.Read SmartManage section in this manual before you choose SmartManage Lite function

.

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/190S9/product/SMART.HTM（第 4／16 页）2008-5-24 9:54:28

SmartManage

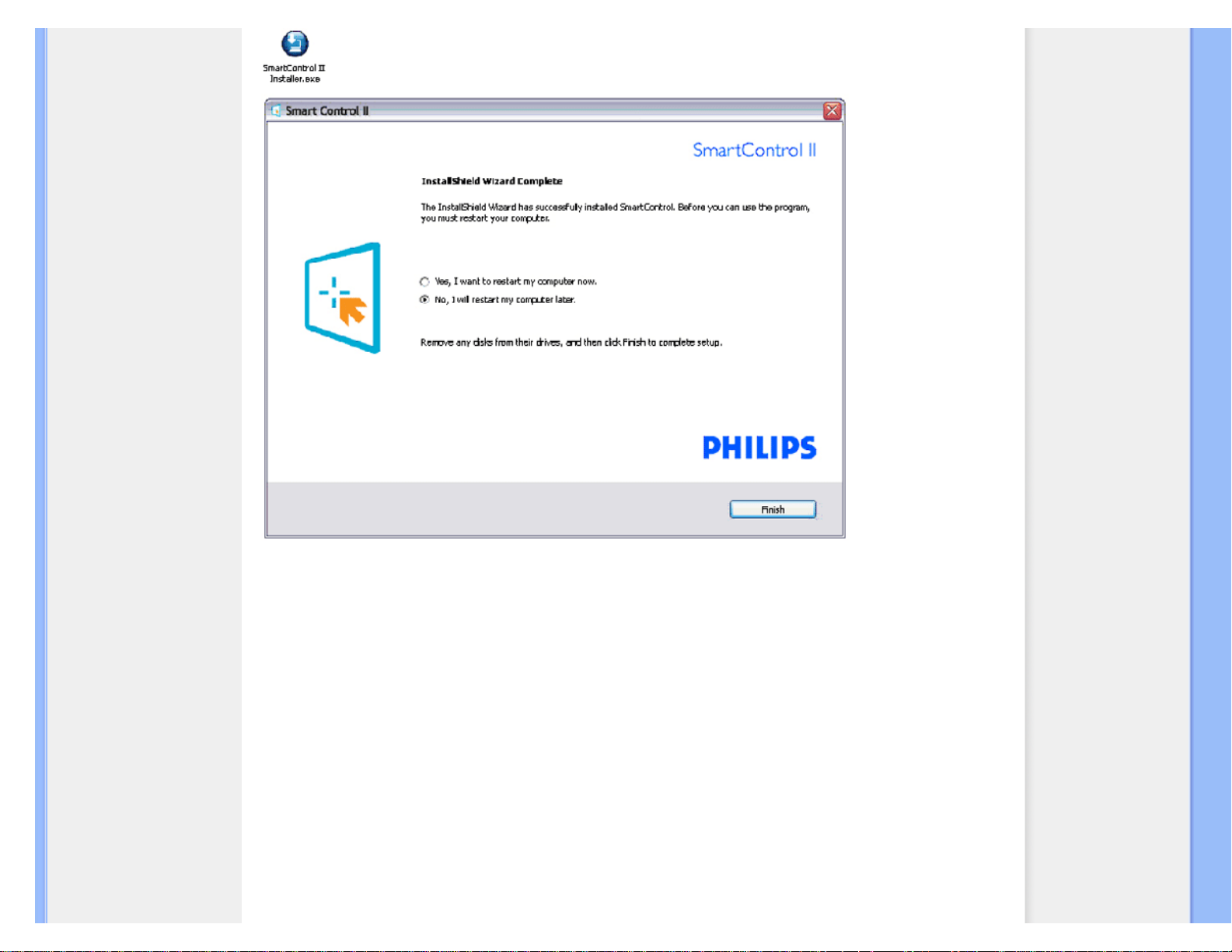

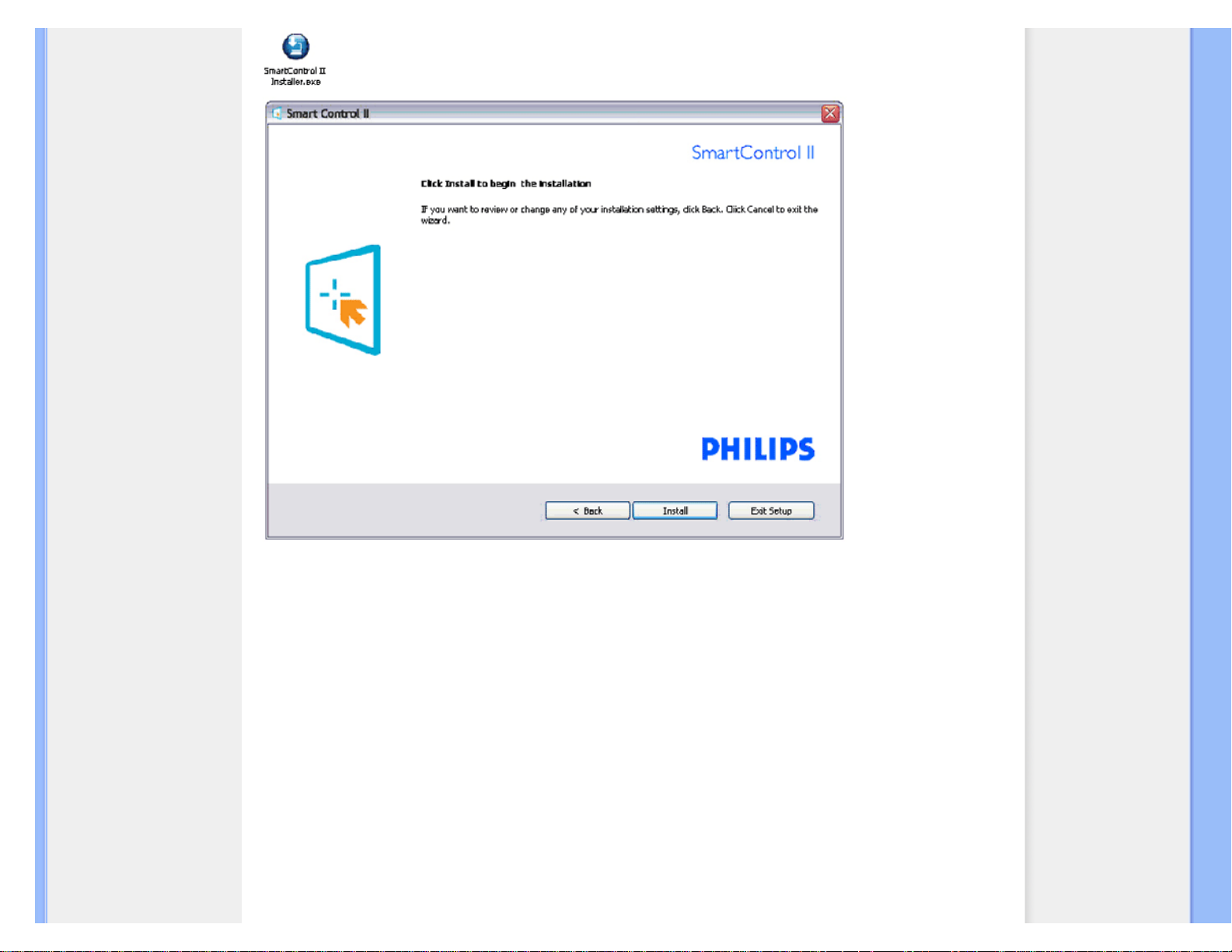

4. Installer – Installation Process

● Follow the instruction and complete the installation.

● You can launch after installation complete.

● If you want to launch later, you can either click the shortcut on desktop or toolbar.

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/190S9/product/SMART.HTM（第 5／16 页）2008-5-24 9:54:28

SmartManage

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/190S9/product/SMART.HTM（第 6／16 页）2008-5-24 9:54:28

SmartManage

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/190S9/product/SMART.HTM（第 7／16 页）2008-5-24 9:54:28

SmartManage

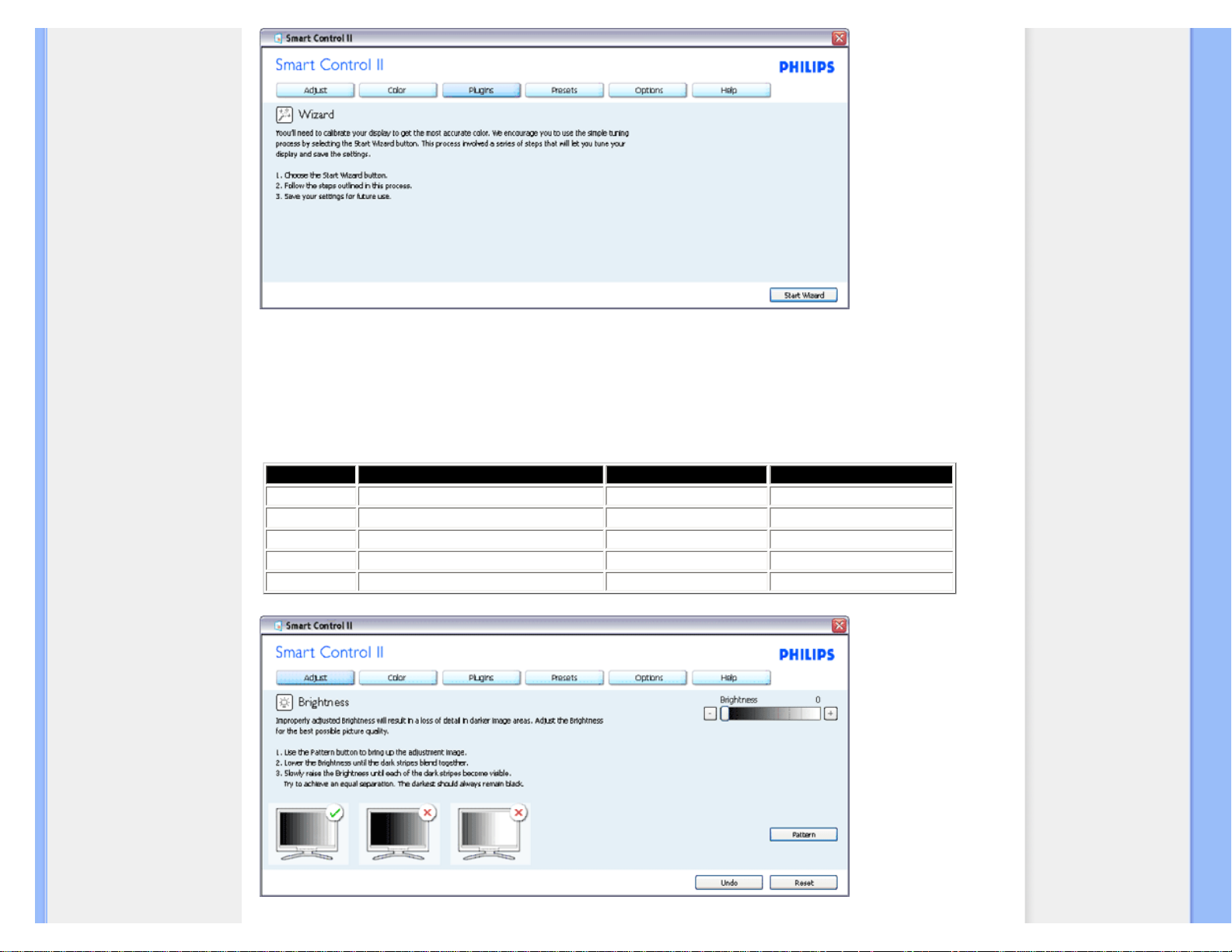

Start to use:

1. First launch –Wizard

● The first time after installation of SmartControl II, it will automatically go to Wizard for first time launch.

● The wizard will guide you through adjustment your monitor performance step by step.

● You can go to Plug-in menu to launch wizard later on as well.

● You can adjust more options without wizard by Standard pane.

Wizard Analog Seguence Wizard Degital Seguence

Resolution Resolution

Focus

Contrast

Brightness Brightness

Contrast White Point (Color Temp)
Position File

White Point (Color Temp)

-

File -

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/190S9/product/SMART.HTM（第 8／16 页）2008-5-24 9:54:28

SmartManage

2. Start with Standard pane:

Adjust menu:

● Adjust Menu allow you to adjust Brightness, Contrast, Focus, Position and Resolution.

● You can follow the instruction and do the adjustment.

● Cancel prompts user if you want to cancel installation.

Tab Heading Sub Menu Display in Analog Display in Digital

Adjust Brightness Yes Yes
Adjust

Contrast

Yes

Yes
Adjust Focus (Clock & Clock Phase) Yes No
Adjust Position Yes No
Adjust Resolution Yes Yes

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/190S9/product/SMART.HTM（第 9／16 页）2008-5-24 9:54:28

SmartManage

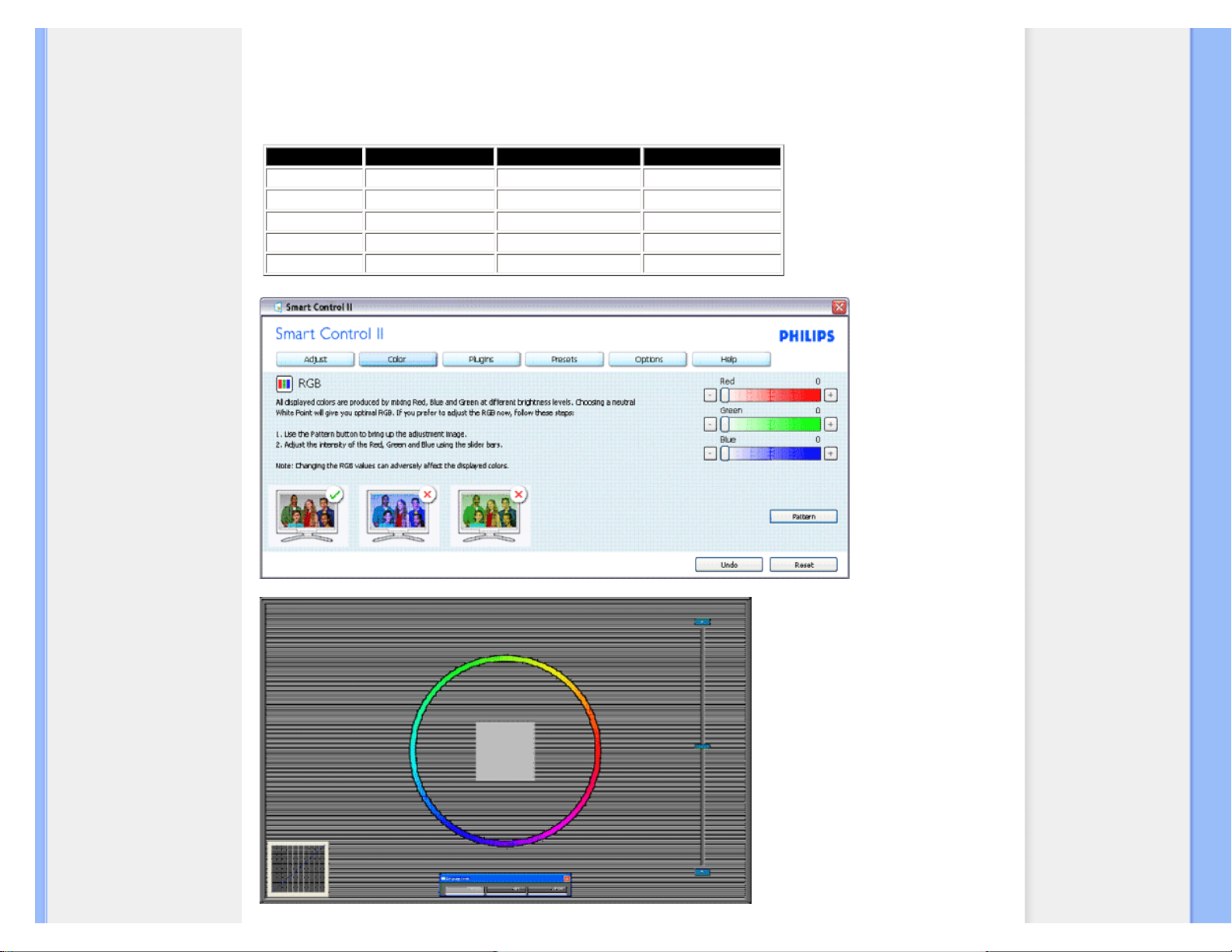

Color menu:

● Color Menu allow you to adjust RGB, Black Level, White Point, Color Calibration, and SmartImage (Please

refer to SmartImage section).

● You can follow the instruction and do the adjustment.

● Refer to below table for sub-menu item base on your input.

Tab Heading Sub Menu Display in Analog Display in Digital

Color RGB Yes Yes
Color

Black Level Yes

Yes
Color White Point Yes Yes
Color Color Calibration Yes Yes
Color Viewing Mode Yes Yes

Example for Color Calibration

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/190S9/product/SMART.HTM（第 10／16 页）2008-5-24 9:54:28

SmartManage

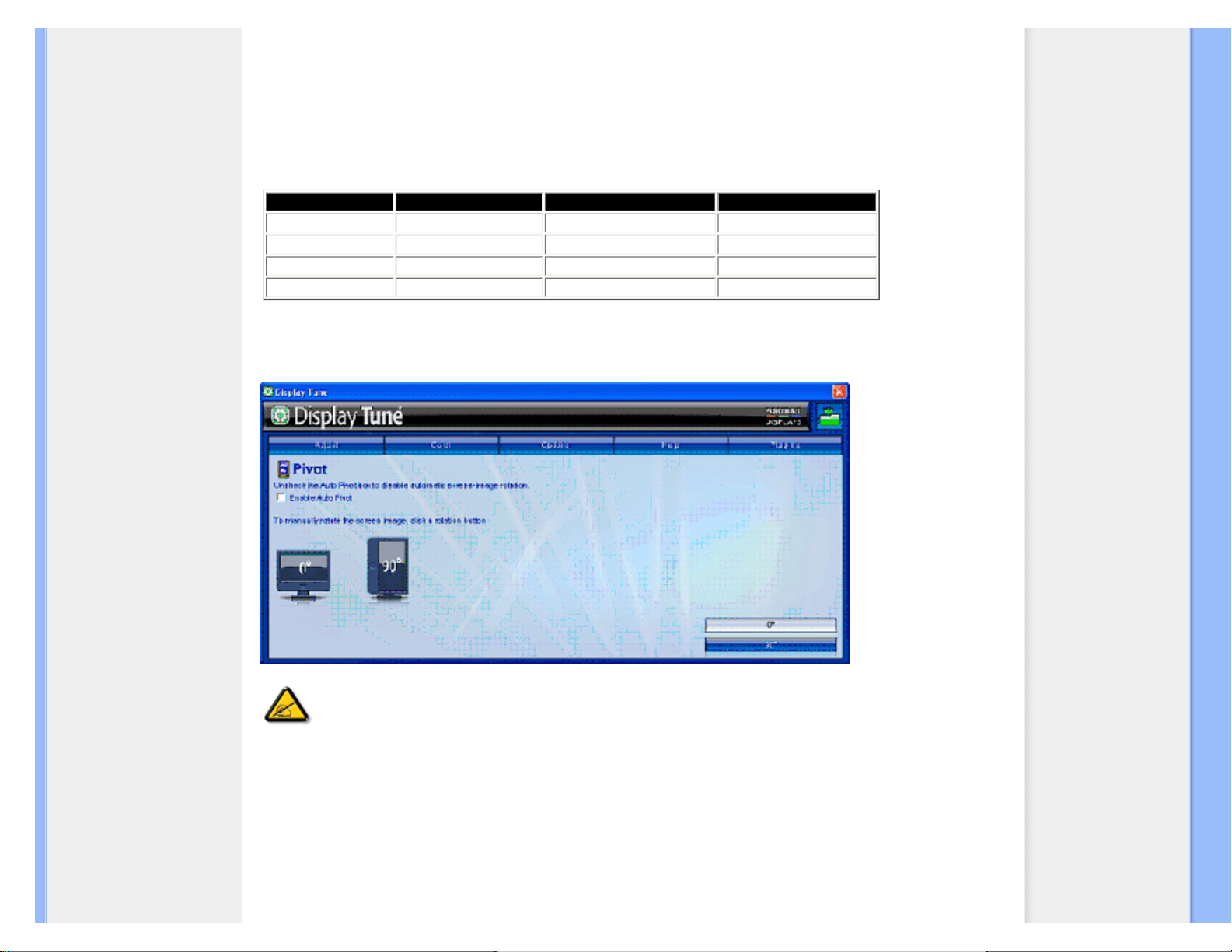

Optional Menu

● Option Menu let you to activate some features like AutoPivot, Preference, Input Selection and Audio Function.

● You can follow the instruction and do the adjustment.

● Refer to below table for sub-menu item base on your input.

Tab Heading Sub Menu Display in Analog Display in Digital

Options Auto Pivot Yes Yes
Options

Preferences

Yes

Yes
Options Input Yes Yes
Options Audio Yes Yes

AutoPivot, Input and Audio function will only available and shown if the product supports those features.

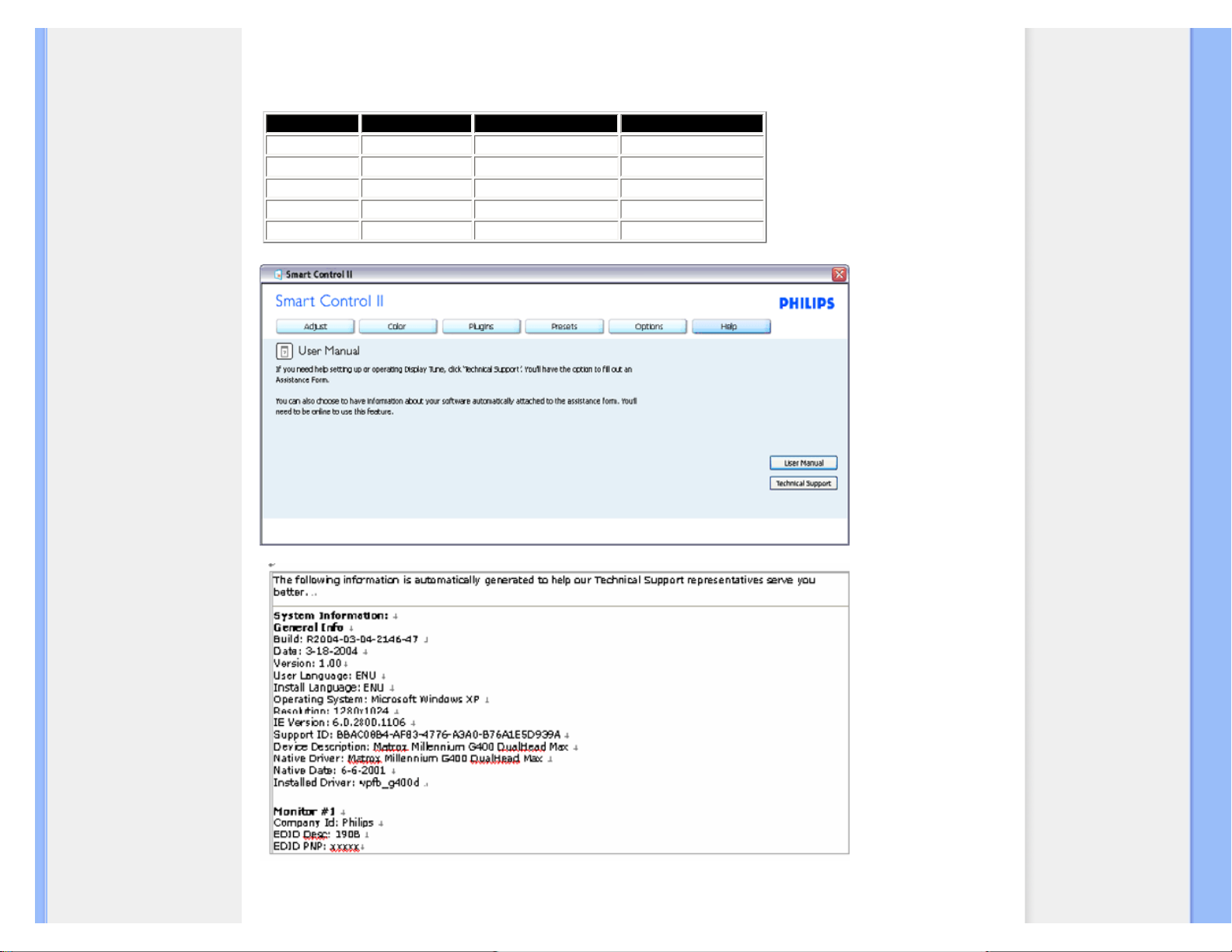

Help Menu

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/190S9/product/SMART.HTM（第 11／16 页）2008-5-24 9:54:28

SmartManage

● Help Menu will give you some information of Manual, Update, ID, System ID and version.

● If you ask for technical support. It will automatically generate a report for Philips supporting to

understand your enviorment by click "Tech. Support".

● Refer to below table for sub-menu item base on your input.

Tab Heading Sub Menu Display in Analog Display in Digital

Help User Manual Yes Yes
Help

Update

Yes

Yes
Help Display ID Yes Yes
Help System ID Yes Yes
Help Version Yes Yes

Example for support form after you click
"Tech. Support"

Plug Ins Menu

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/190S9/product/SMART.HTM（第 12／16 页）2008-5-24 9:54:28

SmartManage

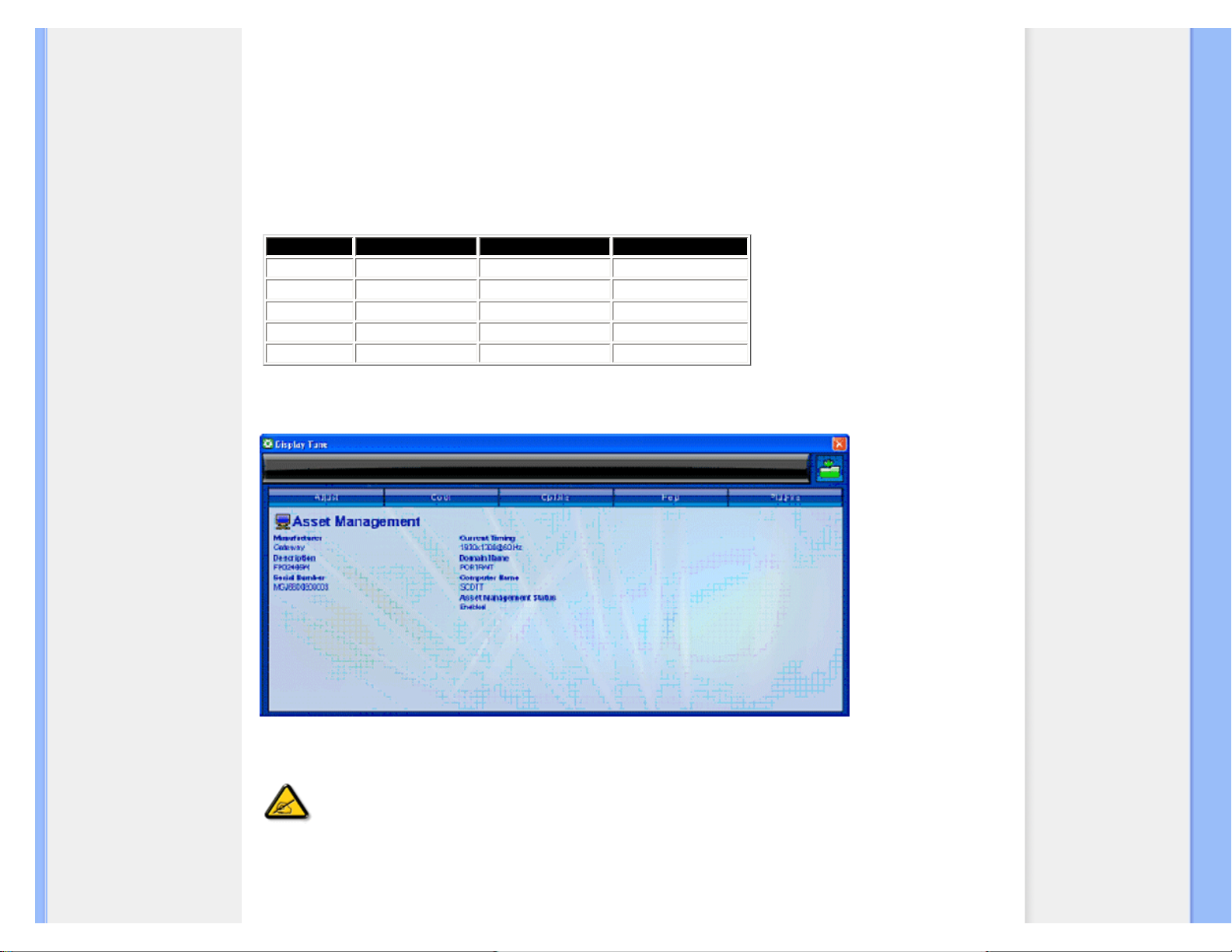

● Plug Ins Menu will allow you to have more add on features if applicable.

● PIP and Zoning functions will only support for the models with Video inputs.

● SmartManage Lite for Asset Management will only be supported if you activate it when installation.

Personal user usually will not need this function.

● Please follow the screen instruction for Theft deterrence function. You need to have Internet

access to register your PIN.

● We also suggest you to have at least 10 to 15 mins. time when you change different PC and enter

your PIN.

● You can activate Wizard like the first launch.

Tab Heading Sub Menu Display in Analog Display in Digital

Plug Ins PIP Yes Yes
Plug Ins

Zoning

Yes

Yes
Plug Ins Asset Management Yes Yes
Plug Ins Theft Deterrence Yes Yes
Plug Ins Wizard Yes Yes

Example for on line register theft
Deterrence PIN

Example for Theft Deterrence

PIP, Zoning, Asset Management and Theft Deterrence will only available and shown if the product supports those features Theft Deterrence
Philips Theft Deterrence minimizes theft or unauthorized relocation of your display. Theft Deterrence does not prevent the display from
being stolen, but hinders the operation of the display once it is removed from the “Theft Deterrence enabled” host computer. To get started,
you will need to register a personal identification number (PIN).

Example for Theft Deterrence

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/190S9/product/SMART.HTM（第 13／16 页）2008-5-24 9:54:28

SmartManage

Example for on line register Theft Deterrence PIN

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/190S9/product/SMART.HTM（第 14／16 页）2008-5-24 9:54:28

SmartManage

Q&A

Q1. What is the difference between SmartManage, SmartControl?

A. SmartManage is a remote management/control software for IT managers to manage monitors across the network

SmartControl is a control panel extension, which helps users to adjust monitor performances and settings by a software interface, instead of the hardware buttons
at the front bezel of the monitors.

Q2. I change the monitor on a PC to a different one and the SmartControl becomes un-usable, what do I do?

A. Restart your PC and see if SmartControl can work. Otherwise, you will need to remove and re-install SmartControl to ensure proper driver is installed.

Q3. The SmartControl functions well at the beginning, but it is not workable, what can I do?

A. If the following actions were executed, the monitor driver may need to be re-installed.

● Change video graphic adapter to another one

● Update video driver

● Activities on OS, such as service pack or patch

● Run Windows Update and updated monitor and/or video driver

● Windows was booted with the monitor power off or disconnected.

To find out, please right click My Computer and click on Properties->Hardware-> Device Manager.
If you see "Plug and Play Monitor" shows under Monitor, then you need to re-install. Simply remove SmartControl and re-install it.

Q4. After installing SmartControl, when clicking on SmartControl tab, nothing shows up after a while or a failure message shows, what happened?

A. It might be your graphic adaptor is not compatible with the SmartControl. If your graphic adaptor is one of the above mentioned brands, try to download the

most updated graphic adaptor driver from corresponding companies’ web site. Install the driver. Remove SmartControl, and re-install it once more.

If it is still not working, we are sorry that the graphic adaptor is not supported. Please pay attention to Philips’ web site for any updated SmartControl driver
available.

Q5. When I click on Product Information, only partial information is shown, what happened?

A. It might be your graphic card adaptor driver is not the most updated version which fully supporting DDC/CI interface. Please try to download the most updated

graphic adaptor driver from corresponding companies’ web site. Install the driver. Remove SmartControl, and re-install it once more.

Q6. I forgot my PIN for Theft Deterrence Function. How can I do?

A. Please contact IT manager or Philips Service Center.

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/190S9/product/SMART.HTM（第 15／16 页）2008-5-24 9:54:28

SmartManage

Q7. In a monitor with the Smartlmage feature, the sRGB scheme of color temperature function in SmartControl is not responding, why?

A. When Smartlmage is enabled, the sRGB scheme is disabled automatically. To use sRGB, you need to disable Smartlmage with the

button at the front

bezel of your monitor.

RETURN TO TOP OF THE PAGE

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/190S9/product/SMART.HTM（第 16／16 页）2008-5-24 9:54:28

Installing Your LCD Monitor

• Front View Produt Description

• Connecting to Your PC

• The Base

• Getting Started

• Optimizing Performance

Installing Your LCD Monitor

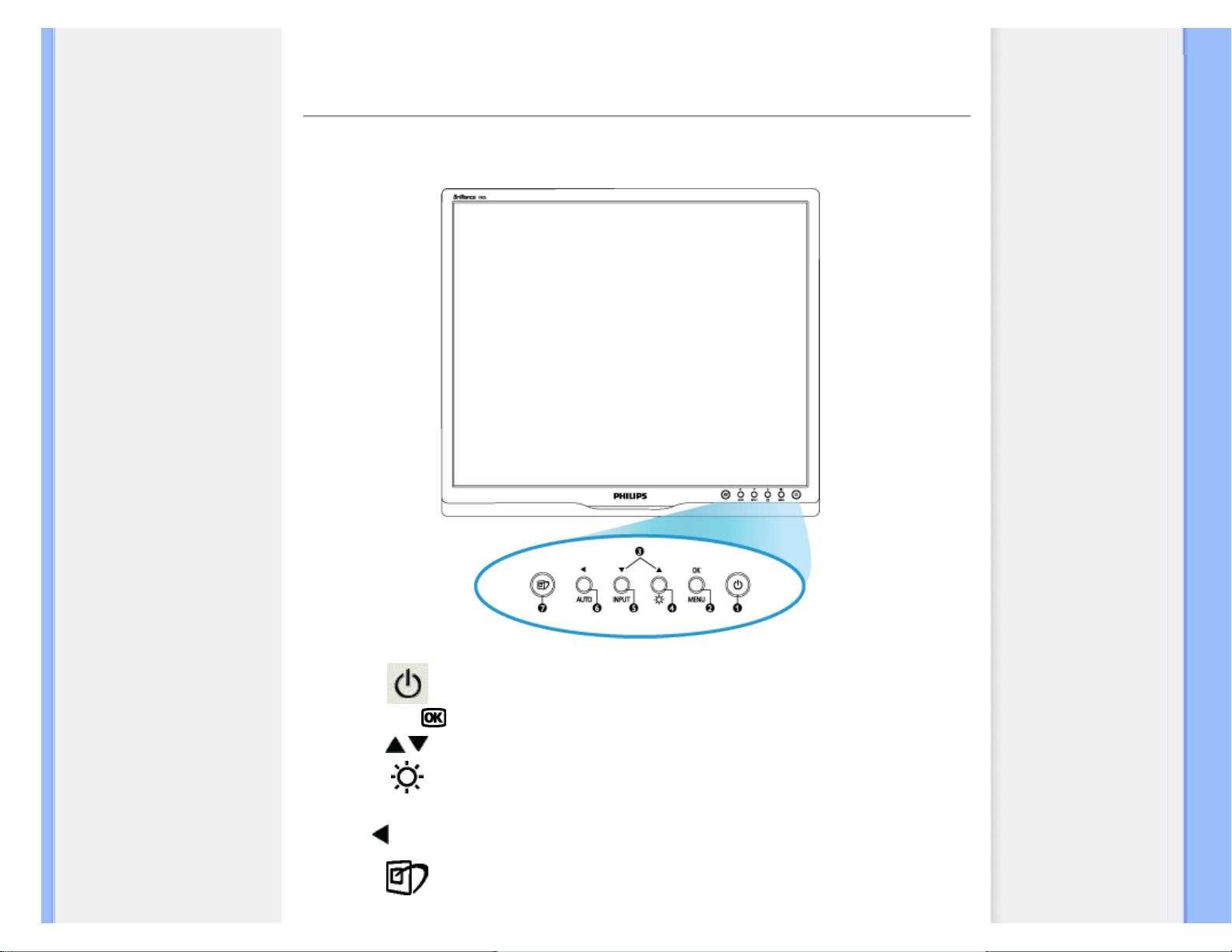

Front View Product Description

1 To switch monitor's power On and Off

2

MENU/

To access OSD menu

3

To adjust the OSD menu

4

To adjust brightness of the display

5

INPUT

.To change the signal input source.

6

/ AUTO

Return to previous OSD level / Automatically adjust the horizontal position, vertical
position, phase and clock settings.

7

Smartlmage. There are five modes to be selected: Office Work, Image Viewing,
Entertainment, Economy, and Off.

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/190S9/install/install.htm（第 1／3 页）2008-5-24 9:54:45

Installing Your LCD Monitor

RETURN TO TOP OF THE PAGE

Rear View

1 Kensington anti-thief lock
2 VGA input
3 DVI-D input (available for selective models)
4 AC power input

RETURN TO TOP OF THE PAGE

Optimizing Performance

● For best performance, ensure that your display settings are set at 1280x1024, 60Hz.

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/190S9/install/install.htm（第 2／3 页）2008-5-24 9:54:45

Installing Your LCD Monitor

Note: You can check the current display settings by pressing the 'OK' button

once. The current display mode is shown in OSD main controls called
RESOLUTION.

RETURN TO TOP OF THE PAGE

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/190S9/install/install.htm（第 3／3 页）2008-5-24 9:54:45

Connecting to Your PC

• Front View Product Description

• Accessory Pack

• Connecting to Your PC

• Getting Started

• Optimizing Performance

• The base

Connecting to Your PC

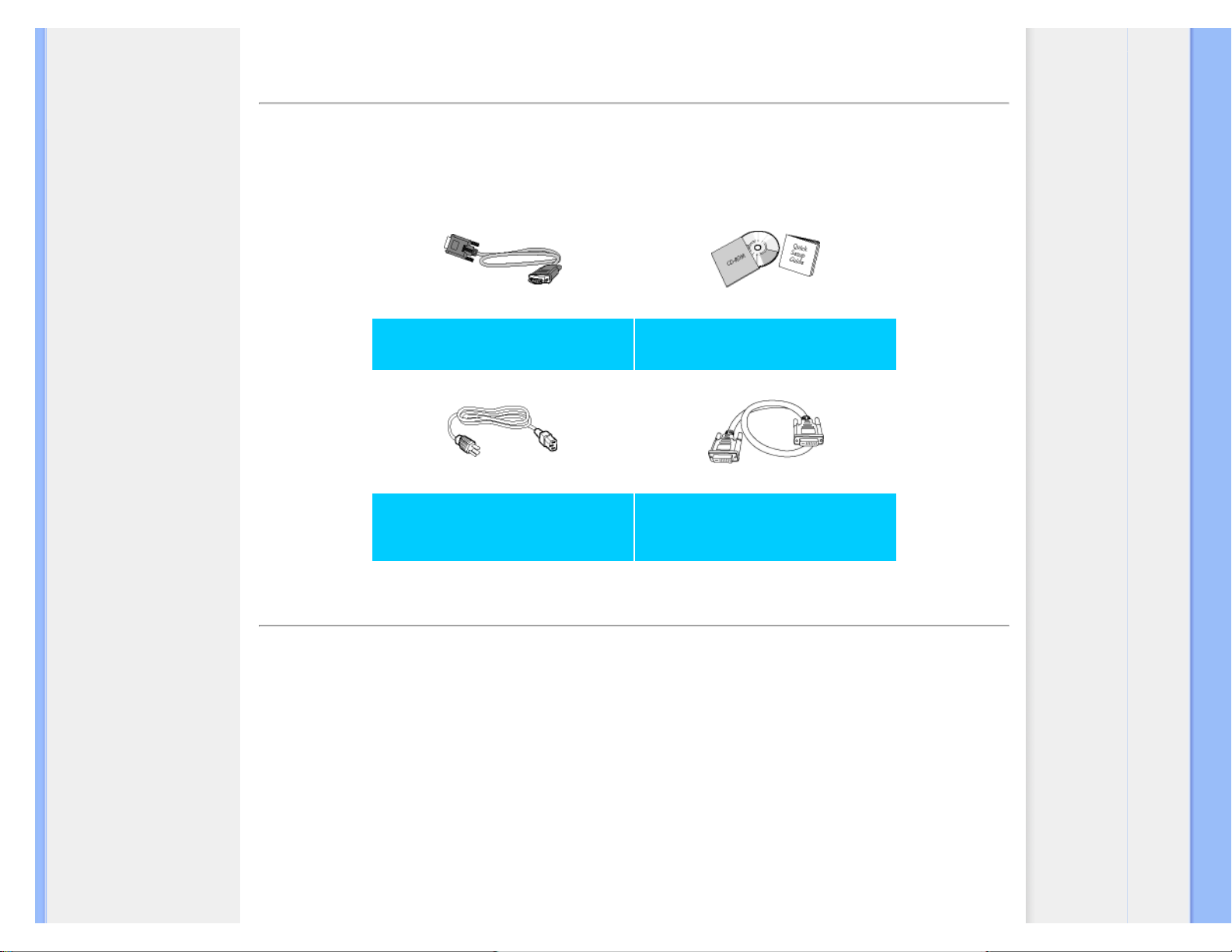

Accessory Pack

Unpack all the parts.

VGA cable

EDFU pack

Power cord

DVI cable (Optional)

RETURN TO TOP OF THE PAGE

Connecting to Your PC

1) Connect the power cord to the back of the monitor firmly. (Philips has pre-connected VGA cable for the

first installation.

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/190S9/install/connect.htm（第 1／2 页）2008-5-24 9:54:59

Connecting to Your PC

* available for selective models

* available for selective models

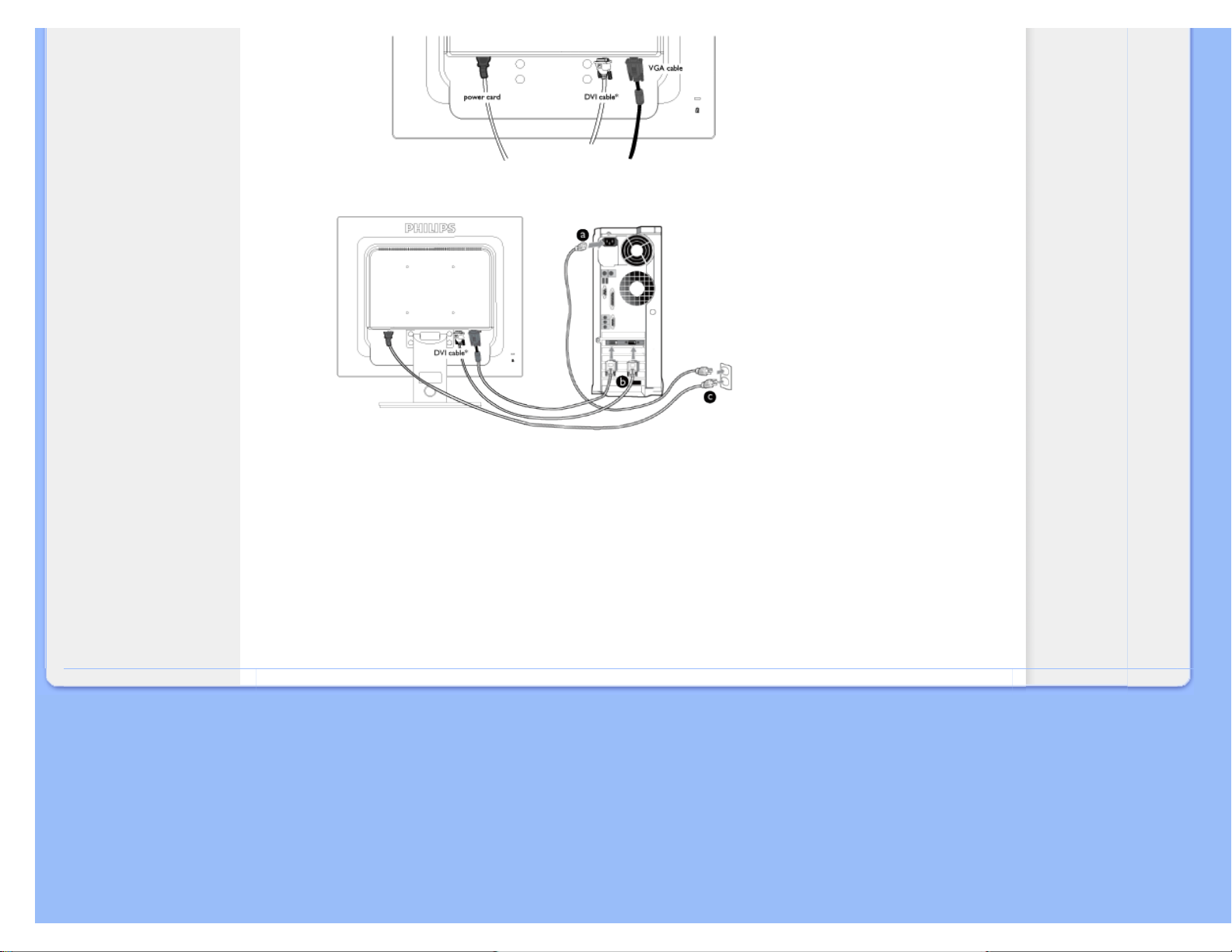

2) Connect to PC

(a) Turn off your computer and unplug its power cable.
(b) Connect the monitor signal cable to the video connector on the back of your computer.
(c) Plug the power cord of your computer and your monitor into a nearby outlet.
(d) Turn on your computer and monitor. If the monitor displays an image, installation is complete.

RETURN TO TOP OF THE PAGE

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/190S9/install/connect.htm（第 2／2 页）2008-5-24 9:54:59

The Base

:

• Front View Product Description

• Accessory Pack

• Setting up and connecting your
monitor

• Getting Started

• Optimizing Performance

• Attach the Base

• Detach the Base Stand

• Remove the Base

The Base

Attach and Detach the Base

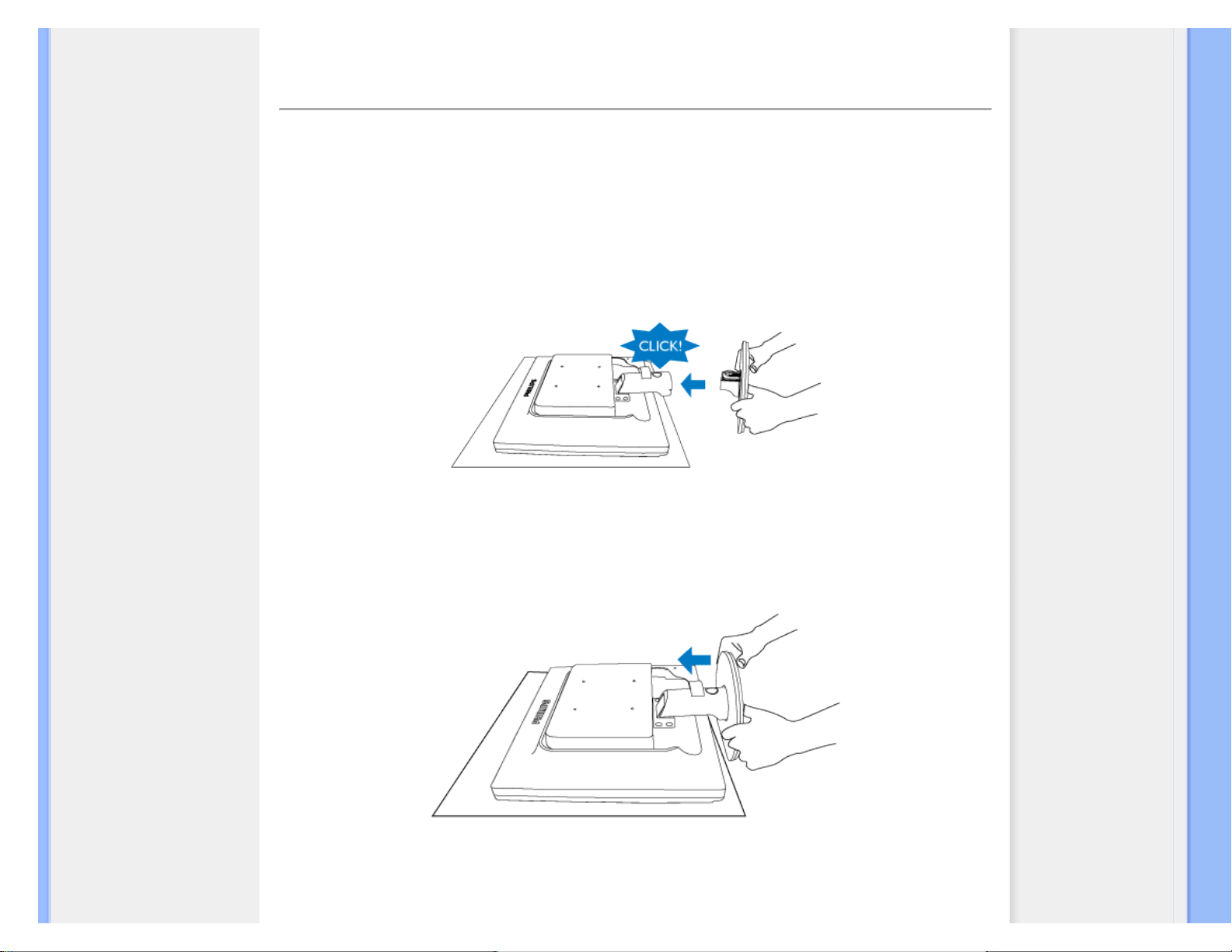

Attach the Base

1) Place the monitor face down on a smooth surface taking care to avoid scratching or damaging the screen.

2) Hold the monitor base with both hands and firmly insert the base stand into the base column.

RETURN TO TOP OF THE PAGE

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/190S9/install/base.htm（第 1／4 页）2008-5-24 9:55:04

The Base

Detach the Base

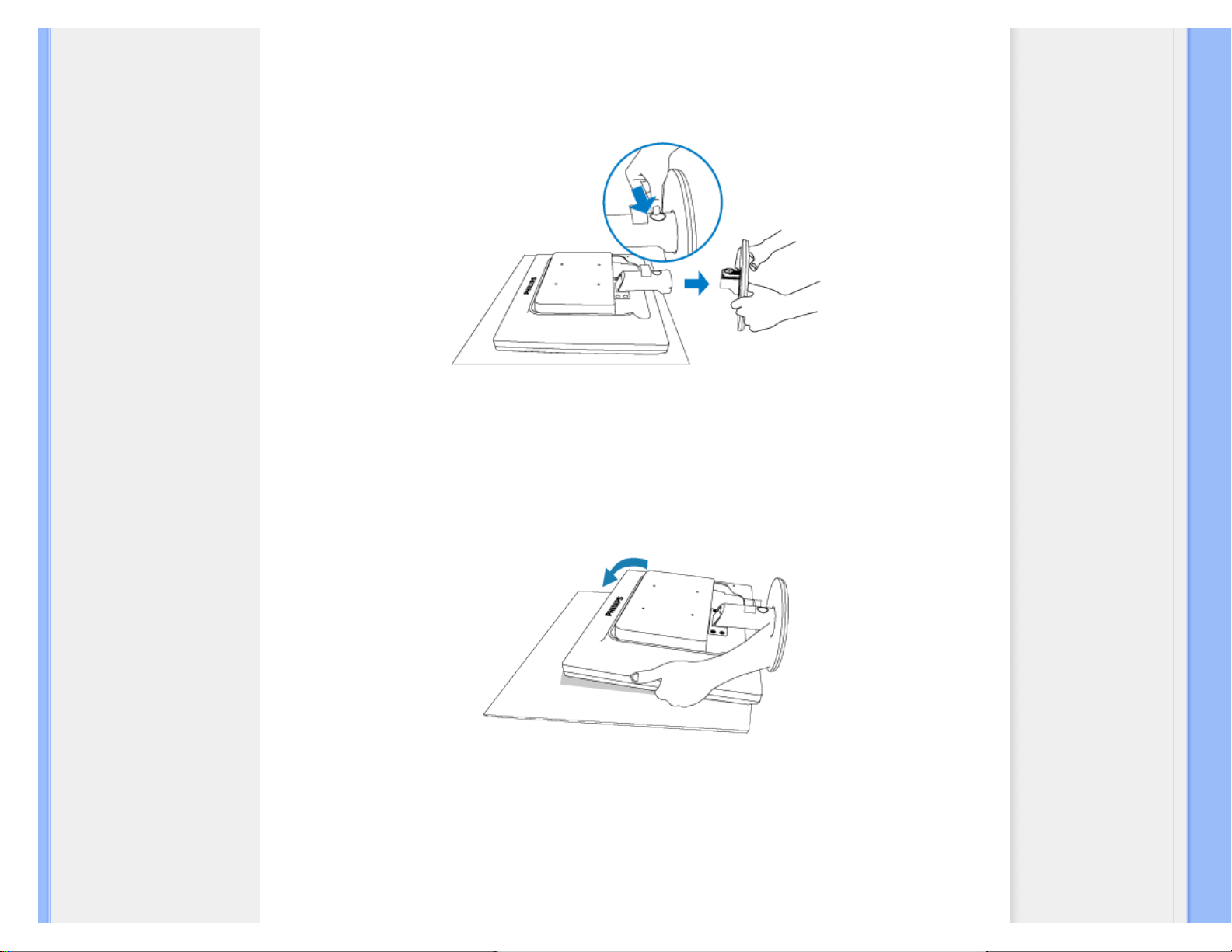

Place the monitor face on a safe surface, push down on the release button and pull the base stand away from the monitor body.

Remove the base

Condition:

For VESA Standard Mounting

1) Place monitor face down on a smooth surface.

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/190S9/install/base.htm（第 2／4 页）2008-5-24 9:55:04

The Base

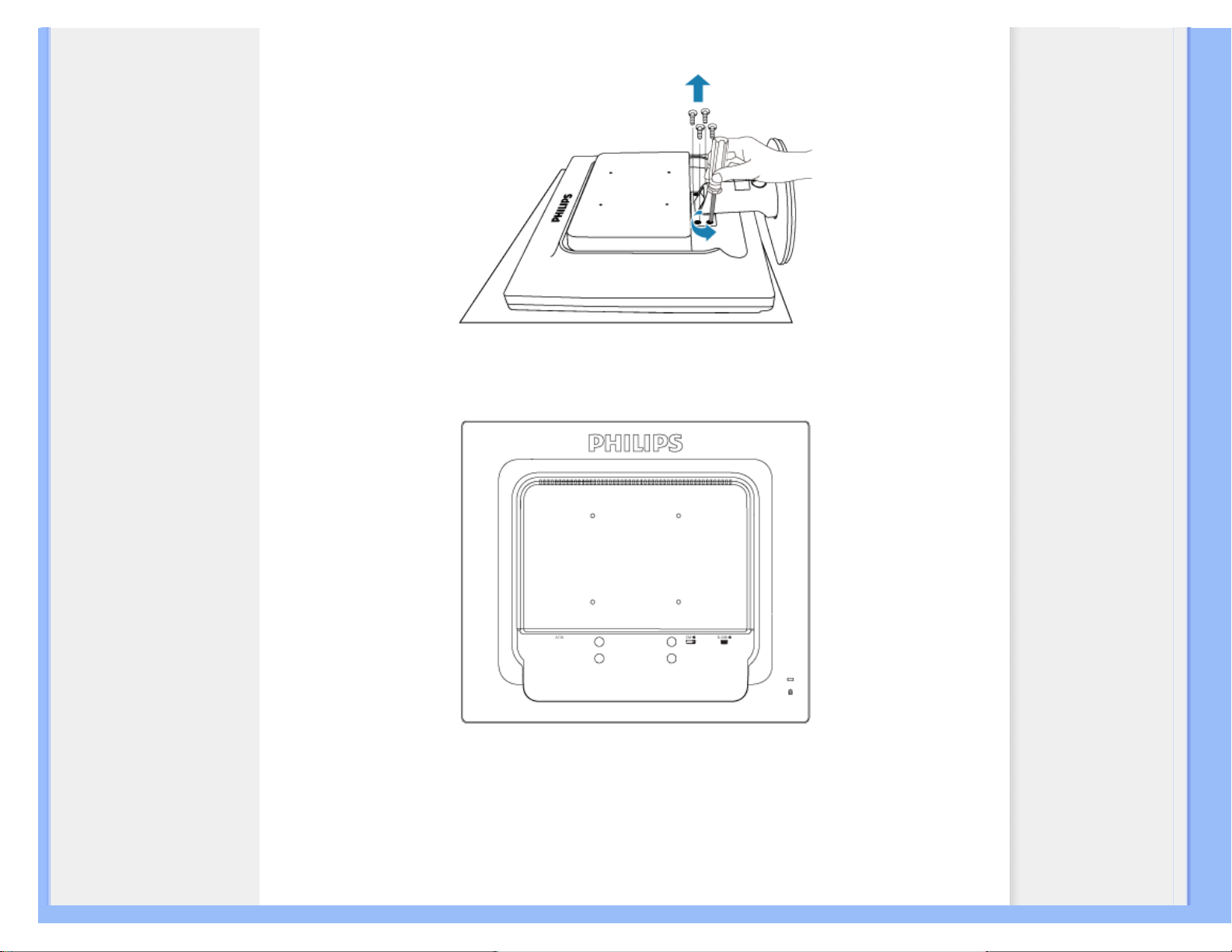

2) Remove the 4 Screws and then remove the base from the LCD monitor.

3) VESA mounting holes.

RETURN TO TOP OF THE PAGE

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/190S9/install/base.htm（第 3／4 页）2008-5-24 9:55:04

The Base

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/190S9/install/base.htm（第 4／4 页）2008-5-24 9:55:04

Getting Started

Your LCD Monitor :

• Front View Product Description

• Setting Up and Connecting Your
Monitor

• Getting Started

• Optimizing Performance

Getting Started

Getting Started

Use the information file ( .inf) for Windows® 95/98/2000/Me/XP/Vista or later

The built-in VESA DDC2B feature in Philips Monitors supports Plug & Play requirements for Windows® 95/98/2000/
Me/XP/Vista. This information file ( .inf) should be installed in order that your Philips monitor can be enabled from the
'Monitor' dialog box in Windows® 95/98/2000/Me/XP/Vista and the Plug & Play application can be activated. The
installation procedure based on Windows® '95 OEM Release 2 , 98 , 2000 , Me, XP and Vista is specified as follows.

For Windows® 95

1. Start Windows® '95

2. Click on the 'Start' button, point to 'Settings', and then click on 'Control Panel'.

3. Double click on the 'Display' Icon.

4. Select the 'Settings' tab then click on 'Advanced...'.

5. Select the 'Monitor' button, point to 'Change...' then click on 'Have Disk...'.

6. Click on the 'Browse...' button, select the appropriate drive F: ( CD-ROM Drive) then click on the 'OK' button.

7. Click on the 'OK' button then select your monitor model and click on 'OK'.

8. Click on the 'Close' button.

For Windows® 98

1. Start Windows® 98

2. Click on the 'Start' button, point to 'Settings', and then click on 'Control Panel'.

3. Double click on the 'Display' Icon.

4. Select the 'Settings' tab then click on 'Advanced...'.

5. Select the 'Monitor' button, point to 'Change...' then click on 'Next'

6. Select 'Display a list of all the drivers in a specific location, so you can choose the driver you want.' then click

on 'Next' and then click on 'Have Disk...'.

7. Click on the 'Browse...' button, select the appropriate drive F: ( CD-ROM Drive) then click on the 'OK' button.

8. Click on the 'OK' button then select your monitor model and click on the 'Next' button.

9. Click on the 'Finish' button then the 'Close' button.

For Windows® 2000

1. Start Windows® 2000

2. Click on the 'Start' button, point to 'Settings', and then click on 'Control Panel'.

3. Double click on the 'Display' Icon.

4. Select the 'Settings' tab then click on 'Advanced...'.

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/190S9/install/gt_start.htm（第 1／3 页）2008-5-24 9:55:12

Getting Started

5. Select 'Monitor'

- If the 'Properties' button is inactive, it means your monitor is properly configured. Please stop installation.

- If the 'Properties' button is active. Click on 'Properties' button. Please follow the steps given below.

6. Click on 'Driver' and then click on 'Update Driver...' then click on the 'Next' button.

7. Select 'Display a list of the known drivers for this device so that I can choose a specific driver', then click on

'Next' and then click on 'Have disk...'.

8. Click on the 'Browse...' button then select the appropriate drive F: ( CD-ROM Drive).

9. Click on the 'Open' button, then click on the 'OK' button.

10. Select your monitor model and click on the 'Next' button.

11. Click on the 'Finish' button then the 'Close' button.

If you can see the 'Digital Signature Not Found' window, click on the 'Yes' button.

For Windows® Me

1. Start Windows® Me

2. Click on the 'Start' button, point to 'Settings', and then click on 'Control Panel'.

3. Double click on the 'Display' Icon.

4. Select the 'Settings' tab then click on 'Advanced...'.

5. Select the 'Monitor' button, then click on 'Change...' button.

6. Select 'Specify the location of the driver(Advanced)' and click on the 'Next' button.

7. Select 'Display a list of all the drivers in a specific location, so you can choose the driver you want', then click

on 'Next' and then click on 'Have Disk...'.

8. Click on the 'Browse...' button, select the appropriate drive F: ( CD-ROM Drive) then click on the 'OK' button.

9. Click on the 'OK' button, select your monitor model and click on the 'Next' button.

10. Click on 'Finish' button then the 'Close' button.

For Windows® XP

1. Start Windows® XP

2. Click on the 'Start' button and then click on 'Control Panel'.

3. Select and click on the category 'Printers and Other Hardware'

4. Click on the 'Display' Item.

5. Select the 'Settings' tab then click on the 'Advanced' button.

6. Select 'Monitor' tab

- If the 'Properties' button is inactive, it means your monitor is properly configured. Please stop installation.

- If the 'Properties' button is active, click on 'Properties' button.
Please follow the steps below.

7. Click on the 'Driver' tab and then click on 'Update Driver...' button.

8. Select the 'Install from a list or specific location [advanced]' radio button and then click on the 'Next' button.

9. Select the 'Don't Search. I will choose the driver to install' radio button. Then click on the 'Next' button.

10. Click on the 'Have disk...' button, then click on the 'Browse...' button and then select the appropriate drive F:

(CD-ROM Drive).

11. Click on the 'Open' button, then click the 'OK' button.

12. Select your monitor model and click on the 'Next' button.

- If you can see the 'has not passed Windows® Logo testing to verify its compatibility with Windows® XP'
message, please click on the 'Continue Anyway' button.

13. Click on the 'Finish' button then the 'Close' button.

14. Click on the 'OK' button and then the 'OK' button again to close the Display_Properties dialog box.

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/190S9/install/gt_start.htm（第 2／3 页）2008-5-24 9:55:12

Getting Started

For Windows® Vista

1. Start Windows® Vista

2. Click the Start button; select and click on 'Control Panel'.

3. Select and click on 'Hardware and Sound'

4. Choose 'Device Manager' and Click on 'Update device drivers'.

5. Select 'Monitor' and then right click on 'Generic PnP Monitor'.

6. Click on 'Update Driver Software'.

7. Select 'Browse my computer for driver software'.

8. Click the 'Browse'button and choose the drive in which you've placed the disk. Example:(CD-ROM Drive:\\Lcd

\PC\drivers\).

9. Click the 'Next' button.

10. Wait few minutes for installing the driver, and then click 'Close' button.

If your Windows® 95/98/2000/Me/XP/Vista version is different or you need more detailed installation information,
please refer to your Windows® 95/98/2000/Me/XP/Vista user's manual.

RETURN TO TOP OF THE PAGE

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/190S9/install/gt_start.htm（第 3／3 页）2008-5-24 9:55:12

On-Screen Display

•
Description of the On-Screen Display

• The OSD Tree

On-Screen Display

Description of the On Screen Display

What is the On-Screen Display?

On-Screen Display (OSD) is a feature in all Philips LCD monitors. It allows an end user to adjust screen performance or
select functions of the monitors directly through an on-screen instruction window. A user friendly on screen display
interface is shown as below :

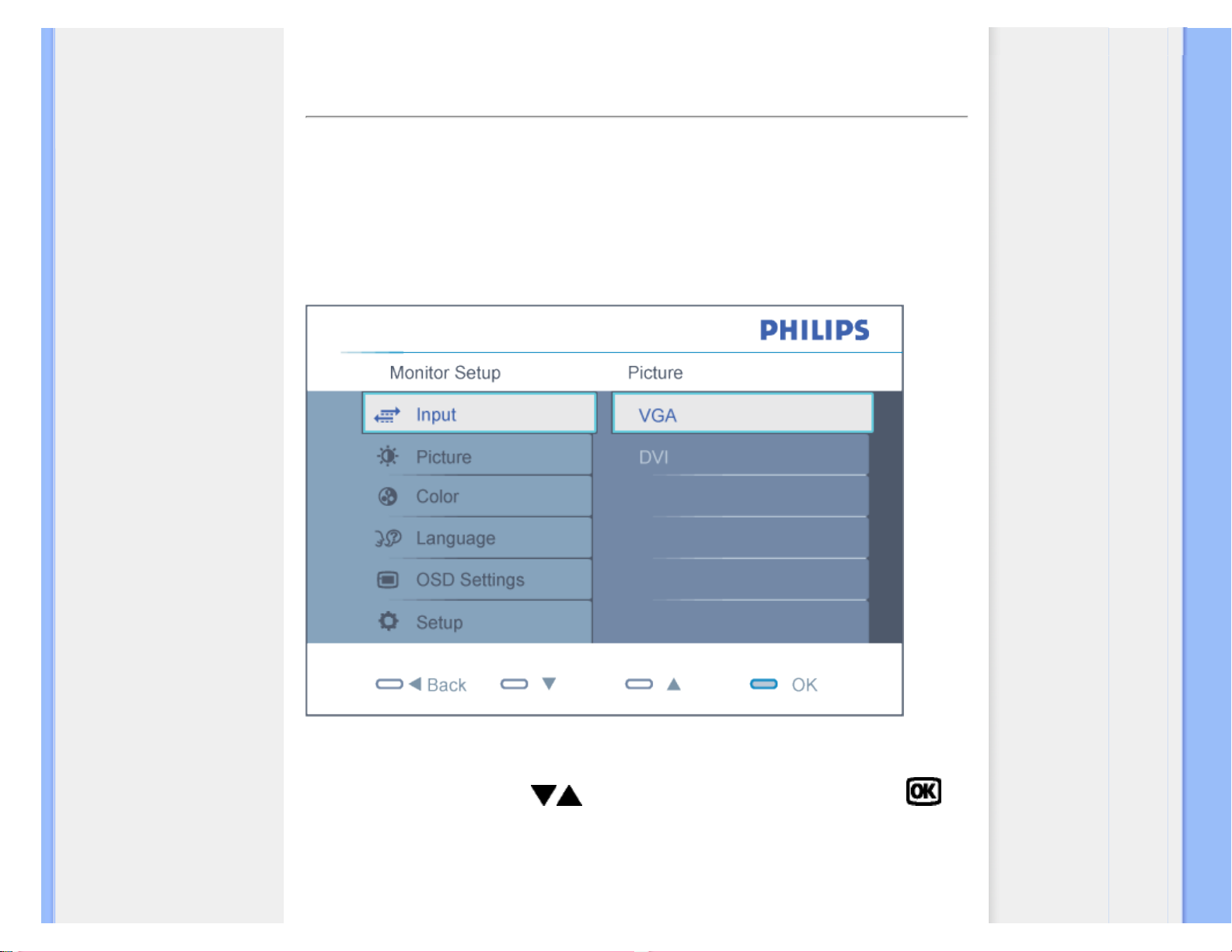

Basic and simple instruction on the control keys.

In the OSD shown above users can press

buttons at the front bezel of the monitor to move the cursor, to

confirm the choice or change.

RETURN TO TOP OF THE PAGE

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/190S9/osd/osddesc.htm（第 1／3 页）2008-5-24 9:55:42

On-Screen Display

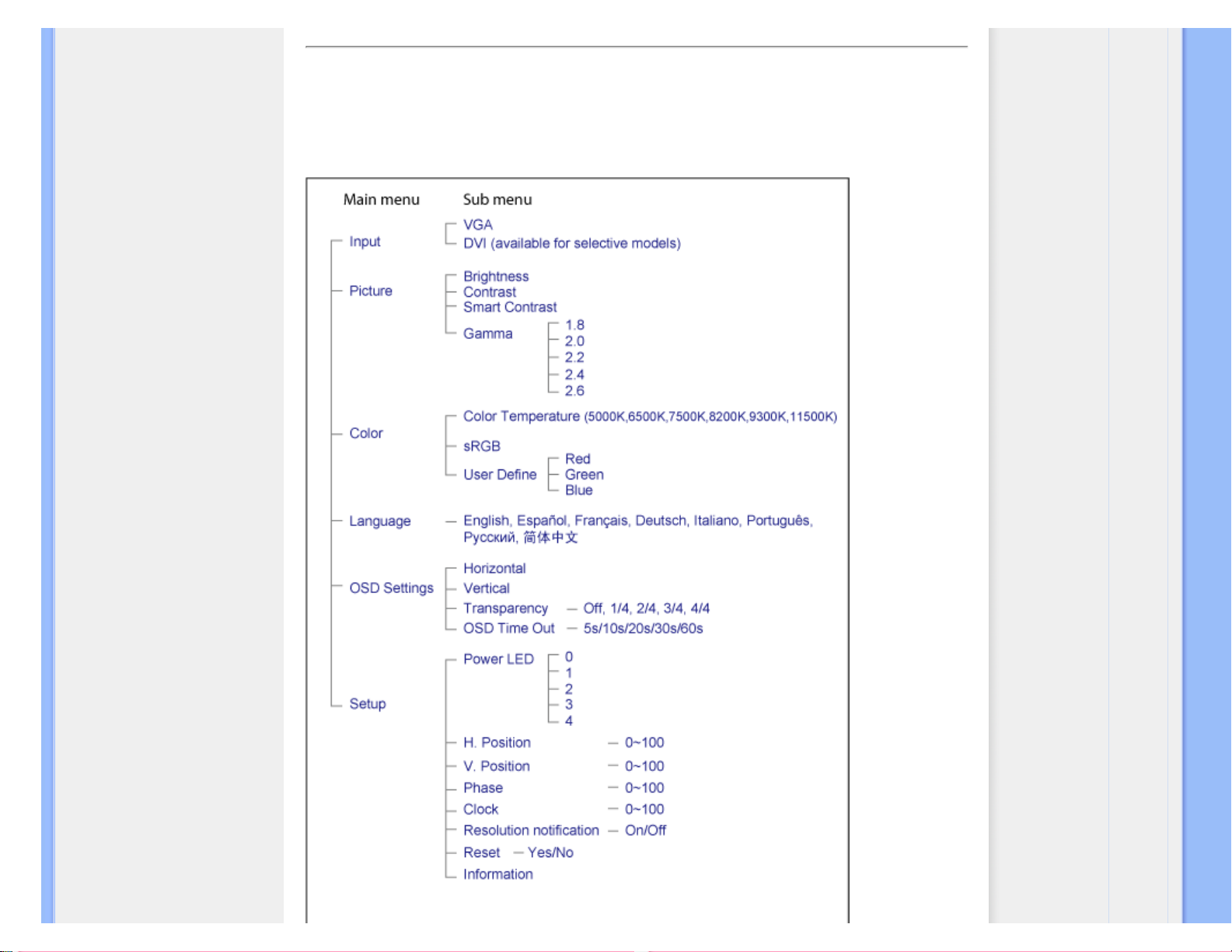

The OSD Tree

Below is an overall view of the structure of the On-Screen Display. You can use this as a reference when you want to
work your way around the different adjustments later on.

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/190S9/osd/osddesc.htm（第 2／3 页）2008-5-24 9:55:42

On-Screen Display

Resolution notification

This monitor is designed for optimal performance at its native resolution, 1280X1024@60Hz. When the monitor is
powered on at a different resolution, an alert is displayed on screen: Use 1280x1024@60Hz for best results.

Display of the native resolution alert can be switched off from Setup in the OSD (On Screen Display) menu.

RETURN TO TOP OF THE PAGE

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/190S9/osd/osddesc.htm（第 3／3 页）2008-5-24 9:55:42

Customer Care & Warranty

Customer Care & Warranty

PLEASE SELECT YOUR COUNTRY/AREA TO REVIEW DETAILS OF YOUR WARRANTY COVERAGE

WESTERN EUROPE: Austria • Belgium • Denmark • France • Germany • Greece • Finland • Ireland • Italy •

Luxembourg • the Netherlands • Norway • Portugal • Sweden • Switzerland • Spain • United Kingdom

EASTERN EUROPE: Czech Republic • Hungary • Poland • Russia • Slovakia • Slovenia • Turkey

LATIN AMERICA: Antilles • Argentina • Brasil • Chile • Colombia • Mexico • Paraguay • Peru • Uruguay •

Venezuela

NORTH AMERICA: Canada • USA

PACIFIC: Australia • New Zealand

ASIA: Bangladesh • China • Hong Kong • India • Indonesia • Japan • Korea • Malaysia • Pakistan • Philippines •

Singapore • Taiwan • Thailand

AFRICA: Morocco • South Africa

MIDDLE EAST: Dubai • Egypt

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/warranty/warranty.htm2008-5-24 9:55:51

Your Philips F1rst Choice Warranty

Your Philips F1rst Choice Warranty

Thank you for purchasing this Philips monitor.

All Philips monitors are designed and manufactured to high standards and deliver high-quality
performance, ease of use and ease of installation. Should you encounter any difficulties while
installing or using this product, please contact the Philips helpdesk directly to benefit from your Philips
F1rst Choice Warranty. This three-year service warranty entitles you to a swap model on-site if your
monitor turns out to be faulty or defective. Philips aims at a swap within 48 hours of your call being
received.

What is covered?

The Philips F1rst Choice Warranty applies within Andorra, Austria, Belgium, Cyprus, Denmark, France, Germany, Greece,
Finland, Ireland, Italy, Liechtenstein, Luxembourg, Monaco, the Netherlands, Norway, Poland, Portugal, Sweden,
Switzerland, Spain and the United Kingdom and only for monitors originally designed, manufactured, approved and/or
authorized for usage within these countries.

Warranty coverage begins as from the day you buy your monitor. For three years thereafter, your monitor will be
swapped by at least an equivalent monitor in case of defects provided for under the warranty coverage.

The swap monitor remains yours and Philips keeps the defective/original monitor. For the swap monitor the warranty
period remains equal to that of your original monitor, being 36 months as from the purchase date of your original monitor.

What is excluded?

The Philips F1rst Choice Warranty applies provided the product is handled properly for its intended use, in accordance
with its operating instructions and upon presentation of the original invoice or cash receipt, indicating the date of purchase,
dealer's name and model and production number of the product.

The Philips F1rst Choice Warranty may not apply if:

● The documents have been altered in any way or made illegible;

● The model or production number on the product has been altered, deleted, removed or made illegible;

● Repairs or product modifications and alterations have been executed by unauthorized service organizations or

persons;

● Damage is caused by accidents including but not limited to lightning, water or fire, misuse or neglect;

● Reception problems caused by signal conditions or cable or antenna systems outside the unit;

● Defects caused by abuse or misuse of the monitor;

● Product requires modification or adaptation to enable it to comply with local or national technical standards, which

apply in countries for which the product was not originally designed, manufactured, approved and/or authorized.
Therefore always check whether a product can be used in a specific country.

● Note that products that are not originally designed, manufactured, approved and/or authorized for usage within the

Philips F1rst Choice countries, do not apply to the Philips F1rst Choice Warranty. In these cases the Philips global

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/warranty/war_1st.htm（第 1／2 页）2008-5-24 9:55:55

Your Philips F1rst Choice Warranty

warranty terms are valid.

Just a click away

In case of any problems, we advise you to read the operating instructions carefully or go to the www.philips.com/support
website for additional support.

Just a phone call away

In order to avoid unnecessary inconvenience, we advise you to read the operating instructions carefully or go to the www.

philips.com/support website for additional support before contacting the Philips helpdesk.

To solve your problem quickly, please prepare the following details before contacting the Philips helpdesk:

● Philips type number

● Philips serial number

● Purchase date (copy of purchase may be required)

● PC environment Processor:

❍ 286/386/486/Pentium Pro/Internal memory
❍ Operating system (Windows, DOS, OS/2, Apple Macintosh)
❍ Fax/Modem/Internet program?

● Other cards installed

Having the following information available will also help speed up the process:

● Your proof of purchase indicating: date of purchase, dealer name, model and product serial number.

● The full address to which the faulty monitor has to be collected and the swap model should be delivered.

Philips' customer help desks are located worldwide. Click here to access the F1rst Choice Contact Information.

Or you can reach us via:

Website: http://www.philips.com/support

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/warranty/war_1st.htm（第 2／2 页）2008-5-24 9:55:55

F1rst Choice Contact Information

F1rst Choice Contact Information

Country Code Telephone number Tariff
Austria [phone]

€ 0.07

Belgium [phone]

€ 0.06
Denmark [phone] Local call tariff
Finland [phone] Local call tariff
France [phone]

€ 0.09
Germany [phone]

€ 0.09
Greece [phone] Free of charge
Ireland [phone] Local call tariff
Italy [phone]

€ 0.08
Luxembourg [phone] Local call tariff
The Netherlands [phone]

€ 0.10
Norway [phone] Local call tariff
Poland [phone] Local call tariff
Portugal [phone] Local call tariff
Spain [phone]

€ 0.10
Sweden [phone] Local call tariff
Switzerland [phone] Local call tariff
United Kingdom [phone] Local call tariff

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/warranty/warfirst.htm2008-5-24 9:56:02

Your Guarantee in Central and Eastern Europe

Your Guarantee in Central and Eastern Europe

Dear Customer,

Thank you for purchasing this Philips product, which has been designed and manufactured to the highest quality
standards. If, unfortunately, something should go wrong with this product Philips guarantees free of charge labor and
replacement parts during a period of 36 months from date of purchase.

What is covered?

This Philips Guarantee in Central and Eastern Europe applies within Czech Republic, Hungary, Slovakia, Slovenia,
Russia and Turkey and only for monitors originally designed, manufactured, approved and/or authorized for usage within
these countries.

Warranty coverage begins as from the day you buy your monitor. For 3 years thereafter, your monitor will be
serviced in case of defects provided for under the warranty coverage.

What is excluded?

The Philips guarantee applies provided the product is handled properly for its intended use, in accordance with its
operating instructions and upon presentation of the original invoice or cash receipt, indicating the date of purchase,
dealer's name and model and production number of the product.

The Philips guarantee may not apply if:

● the documents have been altered in any way or made illegible;

● the model or production number on the product has been altered, deleted, removed or made illegible;

● repairs or product modifications and alterations have been executed by unauthorized service organizations or

persons;

● damage is caused by accidents including but not limited to lightning, water or fire, misuse or neglect.

● Reception problems caused by signal conditions or cable or antenna systems outside the unit;

● Defects caused by abuse or misuse of the monitor;

● Product requires modification or adaptation to enable it to comply with local or national technical standards,

which apply in countries for which the product was not originally designed, manufactured, approved and/or
authorized. Therefore always check whether a product can be used in a specific country.

Please note that the product is not defective under this guarantee in the case where modifications become necessary in
order for the product to comply with local or national technical standards which apply in countries for which the product
was not originally designed and/or manufactured. Therefore always check whether a product can be used in a specific
country.

Just a click away

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/warranty/war_ee.htm（第 1／2 页）2008-5-24 9:56:10

Your Guarantee in Central and Eastern Europe

In case of any problems, we advise you to read the operating instructions carefully or go to the www.philips.com/support
website for additional support.

Just a phone call away

In order to avoid unnecessary inconvenience, we advise you to read the operating instructions carefully before contacting
our dealers or Information Centers

In case your Philips product is not working correctly or is defective, please contact your Philips dealer or directly the

Philips Service and Consumer Information Centers

Website:

http://www.philips.com/support

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/warranty/war_ee.htm（第 2／2 页）2008-5-24 9:56:10

Consumer Information Centers

Consumer Information Centers

Antilles • Argentina • Australia • Bangladesh • Brasil • Canada • Chile • China • Colombia • Belarus • Bulgaria •
Croatia • Czech Republic • Estonia • Dubai • Hong Kong • Hungary • India • Indonesia • Korea • Latvia •
Lithuania • Malaysia • Mexico • Morocco • New Zealand • Pakistan • Paraguay • Peru • Philippines • Romania •
Russia • Serbia & Montenegro • Singapore • Slovakia • Slovenia • South Africa • Taiwan • Thailand • Turkey •
Ukraine • Uruguay • Venezuela

Eastern Europe

BELARUS

Technical Center of JV IBA
M. Bogdanovich str. 155
BY - 220040 Minsk
Tel: [phone]

BULGARIA

LAN Service
140, Mimi Balkanska Str.
Office center Translog
1540 Sofia, Bulgaria
Tel: [phone]
www.lan-service.bg

CZECH REPUBLIC

General Consumer Information Center
800 142100

Xpectrum
Lu.ná 591/4
CZ - 160 00 Praha 6 Tel: [phone]
Email:[e-mail]
www.xpectrum.cz

CROATIA

Renoprom d.o.o.
Mlinska 5, Strmec
HR - 41430 Samobor
Tel: [phone]

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/warranty/warcic.htm（第 1／11 页）2008-5-24 9:56:18

Consumer Information Centers

ESTONIA

FUJITSU SERVICES OU
Akadeemia tee 21G
EE-12618 Tallinn
Tel: [phone]
www.ee.invia.fujitsu.com

HUNGARY

General Consumer Information Center
0680018544 (Local call tariff)

Serware Szerviz
Vizimolnár u. 2-4
HU - 1031 Budapest
Tel: [phone]
Email: [e-mail]
www.serware.hu

HUNGARY

General Consumer Information Center
0680018544 (Local call tariff)

Profi Service Center Ltd.
123 Kulso-Vaci Street ,
H-1044 Budapest ( Europe Center )
Hungary

Tel: [phone]
[e-mail]

LATVIA

ServiceNet LV
Jelgavas iela 36
LV - 1055 Riga,
Tel: [phone]
Email: [e-mail]

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/warranty/warcic.htm（第 2／11 页）2008-5-24 9:56:18

Consumer Information Centers

LITHUANIA

ServiceNet LT
Gaiziunu G. 3
LT - 3009 KAUNAS
Tel: [phone]
Email: [e-mail]
www.servicenet.lt

ROMANIA

Blue Ridge Int'l Computers SRL
115, Mihai Eminescu St., Sector 2
RO - 020074 Bucharest
Tel: [phone]

SERBIA & MONTENEGRO

Tehnicom Service d.o.o.
Viline vode bb
Slobodna zona Beograd , L12/4
Belgrade 11000
Tel. [phone]
Serbia

SLOVAKIA

General Consumer Information Center
0800004551

Datalan Servisne Stredisko
Puchovska 8
SK - 831 06 Bratislava
Tel: [phone]
Email: [e-mail]

SLOVENIA

PC HAND
Brezovce 10
SI - 1236 Trzin
Tel: [phone]
Email: [e-mail]

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/warranty/warcic.htm（第 3／11 页）2008-5-24 9:56:18

Consumer Information Centers

RUSSIA

Tel: [phone]
Tel: [phone]
Website: www.philips.ru

TURKEY

Türk Philips Ticaret A.S.
Yukari Dudullu Org.San.Bolgesi

2.Cadde No:22
34776-Umraniye/Istanbul
Tel: [phone]

UKRAINE

Comel
Shevchenko street 32
UA - 49030 Dnepropetrovsk
Tel: [phone]
www.csp-comel.com

Latin America

ANTILLES

Philips Antillana N.V.
Kaminda A.J.E. Kusters 4
Zeelandia, P.O. box 3523-3051
Willemstad, Curacao
Phone: [phone]
Fax : [phone]

ARGENTINA

Philips Antillana N.V.
Vedia 3892 Capital Federal
CP: 1430 Buenos Aires
Phone/Fax: [phone]

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/warranty/warcic.htm（第 4／11 页）2008-5-24 9:56:18

Consumer Information Centers

BRASIL

Philips da Amazônia Ind. Elet. Ltda.
Rua Verbo Divino, 1400-São Paulo-SP
CEP-04719-002
Phones: 11 21210203 -São Paulo & 0800-701-0203-Other Regions without São Paulo City

CHILE

Philips Chilena S.A.
Avenida Santa Maria 0760
P.O. box 2687Santiago de Chile
Phone: [phone]
Fax : [phone]

COLOMBIA

Industrias Philips de Colombia
S.A.-Division de Servicio
CARRERA 15 Nr. 104-33
Bogota, Colombia
Phone:[phone] (toll free)
Fax : [phone]-4104

MEXICO

Consumer Information Centre
Norte 45 No.669
Col. Industrial Vallejo
C.P.02300, -Mexico, D.F.
Phone: [phone]
Fax : [phone]

PARAGUAY

Av. Rca. Argentina 1780 c/Alfredo Seiferheld
P.O. Box 605
Phone: [phone]
Fax: [phone]
Customer Desk:
Phone: [phone]

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/warranty/warcic.htm（第 5／11 页）2008-5-24 9:56:18

Consumer Information Centers

PERU

Philips Peruana S.A.
Customer Desk
Comandante Espinar 719
Casilla 1841
Limab18
Phone: [phone]
Fax : [phone]

URUGUAY

Rambla O'Higgins 5303 Montevideo
Uruguay
Phone: [phone]
Fax: [phone]
Customer Desk:
Phone: [phone]

VENEZUELA

Industrias Venezolanas Philips S.A.
Apartado Postal 1167
Caracas 1010-A
Phone: [phone]
Fax : [phone]

Canada

CANADA

Philips Electronics Ltd.
281 Hillmount Road
Markham, Ontario L6C 2S3
Phone: [phone]

Pacific

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/warranty/warcic.htm（第 6／11 页）2008-5-24 9:56:18

Consumer Information Centers

AUSTRALIA

Philips Consumer Electronics
Consumer Care Center
Level 1, 65 Epping Rd
North Ryde NSW 2113
Phone: [phone]
Fax : [phone]

NEW ZEALAND

Philips New Zealand Ltd.
Consumer Help Desk
2 Wagener Place, Mt.Albert
P.O. box 1041
Auckland
Phone: [phone] (toll free)
Fax : [phone]

Asia

BANGLADESH

Philips Service Centre
100 Kazi Nazrul Islam
Avenue Kawran Bazar C/A
Dhaka-1215
Phone: [phone]
Fax : [phone]

CHINA

SHANGHAI
Rm 1007, Hongyun Building, No. 501 Wuning road,
200063 Shanghai P.R. China
Phone: [phone]
Fax: [phone]

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/warranty/warcic.htm（第 7／11 页）2008-5-24 9:56:18

Consumer Information Centers

HONG KONG

Philips Electronics Hong Kong Limited
Consumer Service
Unit A, 10/F. Park Sun Building
103-107 Wo Yi Hop Road
Kwai Chung, N.T.
Hong Kong
Phone: [phone]
Fax: [phone]

INDIA

Phone: [phone] ext: 2765
Fax: [phone]

BOMBAY
Philips India
Customer Relation Centre
Bandbox House
254-D Dr. A Besant Road, Worli
Bombay 400 025

CALCUTTA
Customer Relation Centre
7 justice Chandra Madhab Road
Calcutta 700 020

MADRAS
Customer Relation Centre
3, Haddows Road
Madras 600 006

NEW DELHI
Customer Relation Centre
68, Shivaji Marg
New Dehli 110 015

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/warranty/warcic.htm（第 8／11 页）2008-5-24 9:56:18

Consumer Information Centers

INDONESIA

Philips Group of Companies in Indonesia
Consumer Information Centre
Jl.Buncit Raya Kav. 99-100
12510 Jakarta
Phone: [phone] ext: 2100
Fax : [phone]

KOREA

Philips Consumer Service
Jeong An Bldg. 112-2
Banpo-dong, Seocho-Ku
Seoul, Korea
Customer Careline: 080-600-6600
Phone: [phone]
Fax : [phone]

MALAYSIA

After Market Solutions Sdn Bhd,
Philips Authorised Service Center,
Lot 6, Jalan 225, Section 51A,
46100 Petaling Jaya,
Selangor Darul Ehsan,
Malaysia.
Phone: [phone] 3695
Fax: [phone]
Customer Careline: 1800-880-180

PAKISTAN

Philips Consumer Service
Mubarak manzil,
39, Garden Road, Saddar,
Karachi-74400
Tel: [phone]
Fax: [phone]
E-mail: [e-mail]
Website: www.philips.com.pk

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/warranty/warcic.htm（第 9／11 页）2008-5-24 9:56:18

Consumer Information Centers

PHILIPPINES

PHILIPS ELECTRONICS & LIGHTING, INC.
Consumer Electronics
48F PBCOM tower
6795 Ayala Avenue cor VA Rufino St.
Salcedo Village
1227 Makati City, PHILS
Phone: [phone], Domestic Toll Free: 1-800-10-PHILIPS or 1-800-10-744 5477
Fax: [phone]

SINGAPORE

Accord Customer Care Solutions Ltd
Authorized Philips Service Center
Consumer Service
620A Lorong 1 Toa Rayoh
Singapore 319762
Tel: [phone]
Fax: [phone]

TAIWAN

Philips Taiwan Ltd.
Consumer Information Centre
13F, No. 3-1 Yuan Qu St., Nan Gang Dist.,
Taipei 115, Taiwan
Phone: [phone]
Fax : [phone]

THAILAND

Philips Electronics (Thailand) Ltd.
26-28th floor, Thai Summit Tower
1768 New Petchburi Road
Khwaeng Bangkapi, Khet Huaykhwang
Bangkok10320 Thailand
Tel: [phone]
E-mail: cic [e-mail]

Africa

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/warranty/warcic.htm（第 10／11 页）2008-5-24 9:56:18

Consumer Information Centers

MOROCCO

Philips Electronique Maroc
304,BD Mohamed V
Casablanca
Phone: [phone]
Fax : [phone]

SOUTH AFRICA

PHILIPS SA (PTY) LTD
Customer Care Center
195 Main Road
Martindale, Johannesburg
P.O. box 58088
Newville 2114
Telephone: [phone]
Fax: [phone]
E-mail: [e-mail]

Middle East

DUBAI

Philips Middle East B.V.
Consumer Information Centre
P.O.Box 7785
DUBAI
Phone: [phone]
Fax : [phone]

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/warranty/warcic.htm（第 11／11 页）2008-5-24 9:56:18

International Guarantee

Your International Guarantee

Dear Customer,

Thank you for purchasing this Philips product which has been designed and manufactured to the highest quality
standards.

If, unfortunately, something should go wrong with this product Philips guarantees free of charge labor and replacement
parts irrespective of the country where it is repaired during a period of 12 months from date of purchase. This international
Philips guarantee complements the existing national guarantee obligations to you of dealers and Philips in the country of
purchase and does not affect your statutory rights as a customer.

The Philips guarantee applies provided the product is handled properly for its intended use, in accordance with its
operating instructions and upon presentation of the original invoice or cash receipt, indicating the date of purchase,
dealer's name and model and production number of the product.

The Philips guarantee may not apply if:

● the documents have been altered in any way or made illegible;

● the model or production number on the product has been altered, deleted, removed or made illegible;

● repairs or product modifications and alterations have been executed by unauthorized service organizations or

persons;

● damage is caused by accidents including but not limited to lightning, water or fire, misuse or neglect.

Please note that the product is not defective under this guarantee in the case where modifications become necessary in
order for the product to comply with local or national technical standards which apply in countries for which the product
was not originally designed and/or manufactured. Therefore always check whether a product can be used in a specific
country.

In case your Philips product is not working correctly or is defective, please contact your Philips dealer. In the event you
require service whilst in another country a dealer address can be given to you by the Philips Consumer Help Desk in that
country, the telephone and fax number of which can be found in the relevant part of this booklet.

In order to avoid unnecessary inconvenience, we advise you to read the operating instructions carefully before contacting
your dealer. If you have questions which your dealer cannot answer or any related question please contact the Philips

Consumer Information Centers or via:

Website:

http://www.philips.com

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/warranty/war_intl.htm2008-5-24 9:56:26

United States Guarantee

Your Philips F1rst Choice Warranty(USA)

Thank you for purchasing this Philips monitor.

All Philips monitors are designed and manufactured to high standards and deliver high-quality
performance, ease of use and ease of installation. Should you encounter any difficulties while
installing or using this product, please contact Philips directly to benefit from your Philips F1rst
Choice Warranty. This three-year service warranty entitles you to a swap model on-site within 48
hours of your call being received within the first year of purchase. If you have any problems with
your monitor within the second or third year of purchase, we will repair it after it has been sent to
the service provider at your expense and returned to you within five working days, free of
charge.

LIMITED WARRANTY (Computer Monitor)

Click here to access the Warranty Registration Card.

Three Years Free Labor / Three Years Free Service on Parts / One Year Exchange*

*Product will be exchanged with a new or renewed to original specifications unit within two
business days for the first year. This product must be shipped in at your expense for service during
years two and three.

WHO IS COVERED?

You must have proof of purchase to receive warranty service. A sales receipt or other document showing that you
purchased the product is considered proof of purchase. Attach it to this owner's manual and keep both nearby.

WHAT IS COVERED?

Warranty coverage begins the day you buy your product. For three years thereafter, all parts will be repaired or
replaced, and labor is free. After three years from the day of purchase, you pay for the replacement or repair of
all parts, and for all labor charges.

All parts, including repaired and replaced parts, are covered only for the original warranty period. When the warranty on
the original product expires, the warranty on all replaced and repaired products and parts also expires.

WHAT IS EXCLUDED?

Your warranty does not cover:

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/warranty/war_usa.htm（第 1／4 页）2008-5-24 9:56:33

United States Guarantee

● labor charges for installation or setup of the product, adjustment of customer controls on the product, and

installation or repair of antenna systems outside of the product.

● product repair and/or part replacement because of misuse, accident, unauthorized repair or other cause not

within the control of Philips Consumer Electronics.

● reception problems caused by signal conditions or cable or antenna systems outside the unit.

● a product that requires modification or adaptation to enable it to operate in any country other than the country for

which it was designed, manufactured, approved and/or authorized, or repair of products damaged by these
modifications.

● incidental or consequential damages resulting from the product. (Some states do not allow the exclusion of

incidental or consequential damages, so the above exclusion may not apply to you. This includes, but is not
limited to, prerecorded material, whether copyrighted or not copyrighted.)

● the model or production number on the product has been altered, deleted, removed or made illegible.

Where IS SERVICE AVAILABLE?

Warranty service is available in all countries where the product is officially distributed by Philips Consumer Electronics. In
countries where Philips Consumer Electronics does not distribute the product, the local Philips service organization will
attempt to provide service (although there may be a delay if the appropriate spare parts and technical manual(s) are not
readily available).

Where CAN I GET MORE INFORMATION?

For more information, contact the Philips Customer Care Center by calling [phone] (U.S.A. customers only) or

[phone].

Before Requesting Service...

Please check your owner's manual before requesting service. Adjustments of the controls discussed there may save you
a service call.

TO GET WARRANTY SERVICE IN U.S.A., PUERTO RICO OR U.S. VIRGIN ISLANDS...

Contact the Philips Customer Care Center phone number listed below for product assistance and procedures for
servicing:

Philips Customer Care Center

[phone] or [phone]

(In U.S.A., Puerto Rico and U.S. Virgin Islands, all implied warranties, including implied warranties
of merchantability and fitness for a particular purpose, are limited in duration to the duration of this
express warranty. But, because some states do not allow limitations on how long an implied
warranty may last, this limitation may not apply to you.)

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/warranty/war_usa.htm（第 2／4 页）2008-5-24 9:56:33

United States Guarantee

TO GET WARRANTY SERVICE IN CANADA...

Please contact Philips at:

[phone]

Three years free parts and three years free labor will be provided at Philips Canada depot or any one of its authorized
service centers.

(In Canada, this warranty is given in lieu of all other warranties. No other warranties are expressed or implied, including
any implied warranties of merchantability or fitness for a particular purpose. Philips is not liable under any circumstances
for any direct, indirect, special, incidental or consequential damages, howsoever incurred, even if notified of the possibility
of such damages.)

REMEMBER... Please record the model and serial numbers found on the product below.

MODEL # ________________________________________________

SERIAL # ________________________________________________

This warranty gives you specific legal rights. You may have other rights which vary from state/
province to state/province.

Before contacting Philips, please prepare the following details so we can solve your problem quickly.

● Philips type number

● Philips serial number

● Purchase date (copy of purchase may be required)

● PC environment Processor:

❍ 286/386/486/Pentium Pro/Internal memory
❍ Operating system (Windows, DOS, OS/2, Apple Macintosh)
❍ Fax/Modem/Internet program?

● Other cards installed

Having the following information available will also help speed up the process:

● Your proof of purchase indicating: date of purchase, dealer name, model and product serial number.

● The full address to which the swap model should be delivered.

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/warranty/war_usa.htm（第 3／4 页）2008-5-24 9:56:33

United States Guarantee

Just a phone call away

Philips’ customer help desks are located worldwide. Within the U.S. you can contact Philips customer care Monday­Friday from 8:00 AM-9:00 PM Eastern Time (ET) and on Saturdays from 10:00 AM-5:00 PM ET hrs by using one of the
contact phone numbers.

For more information on this and more great Philips products visit our website at:

Website:

http://www.philips.com

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/warranty/war_usa.htm（第 4／4 页）2008-5-24 9:56:33

Glossary

Glossary

A B C D E F G H I J K L M N O P Q R S T U V W X Y Z

A

Active matrix

This is a kind of liquid crystal display structure in which switching transistors are attached to each pixel to control the on/
off voltage. It produces a brighter and sharper display with a broader viewing angle than a passive matrix display. Also
refer to TFT (thin film transistor).

Amorphous silicon (a-Si)

A semiconductor material that is used to make the thin film transistors (TFTs) layer of an active matrix LCD.

Aspect ratio

The width-to-height ratio of the active area of a display. In general, most monitors have an aspect ratio of 4:3. Wide
monitors or TVs have an aspect ratio of 16:9 or 16:10.

RETURN TO TOP OF THE PAGE

B

Backlight

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/190S9/glossary/glossary.htm（第 1／10 页）2008-5-24 9:56:42

Glossary

The light source for a transmissive LCD. There are two techniques used in nowaday LCD designs. Most TFT LCD panels
use CCFLs (cold cathode fluorescent light) and a diffuser panel directly behind the liquid crystal layer. New technology
using Light Emitting Diodes (LED) are still under development.

Brightness

The dimension of color that is referred to an achromatic scale, ranging from black to white, also called lightness or
luminous reflectance. Because of confusion with saturation, the use of this term should be discouraged.

RETURN TO TOP OF THE PAGE

C

CCFL(cold cathode fluorescent light)

These are the fluorescent light tubes providing the light for the LCD module. These tubes are generally very thin,
approximately 2 mm in diameter.

Chromaticity

That part of color specification, which does not involve illuminance. Chromaticity is two-dimensional and specified by pairs
of numbers such as dominant wavelength and purity.

CIE (Commission International de I'Eclairage)

The International Commission on Illumination, the primary international organization concerned with color and color
measurement.

Color temperature

A measurement of the color of light radiated by an object while it is being heated. This measurement is express in terms
of absolute scale, (degrees Kelvin). Lower Kelvin temperatures such as 2400° K are red; higher temperatures such as
9300° K are blue. Neutral temperature is white, at 6504° K. Philips monitors generally offers 9300° K, 6500° K, and user
define.

Contrast

The luminance variation between light and dark areas in an image.

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/190S9/glossary/glossary.htm（第 2／10 页）2008-5-24 9:56:42

Glossary

Contrast ratio

The ratio of luminance between the brightest white pattern and the darkest black pattern.

RETURN TO TOP OF THE PAGE

D

D-SUB

A VGA Analog input connector. Your monitor comes with a D-Sub cable.

Digital Visual Interface (DVI)

The Digital Visual Interface (DVI) specification provides a high-speed digital connection for visual data types that is
display technology independent. The interface is primarily focused at providing a connection between a computer and its
display device. The DVI specification meets the needs of all segments of the PC industry (workstation, desktop, laptop,
etc.) and will enable these different segments to unite around one monitor interface specification.

The DVI interface enables:

1. Reduce signal loss and video noise in signal due to less signal conversion.

2. Independent from display technology, and can be used on LCD, Plasma, LCOS, etc.

3. Plug and play through hot plug detection, EDID and DDC2B.

4. Digital and Analog support in a single connector (DVI-I only).

RETURN TO TOP OF THE PAGE

E

Energy Star Computers Program

An energy conservation program launched by the US Environmental Protection Agency (EPA), promotes the manufacture
and marketing of energy-efficient office automation equipment. Companies joining this program, must be willing to commit

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/190S9/glossary/glossary.htm（第 3／10 页）2008-5-24 9:56:42

Glossary

themselves to manufacture one or more products capable of going into a low -power state (< 30 W) either after a period
of inactivity, or after a predetermined time selected by the user.

RETURN TO TOP OF THE PAGE

G

Gamma

Screen luminance as a function of video voltage approximately follows a mathematical power function of the input video
signal, the exponent of which is called gamma.

Grayscale

An achromatic scale ranging from black through a series of successively lighter grays to white. Such a series may be
made up of steps, which appear to be equally distant from one another. If the Analog/ Digital converter is 8 bit, then the
monitor can display at most 2

8

= 256 levels. For a color monitor, R.G.B. each color hads 256 levels. Thus, total color can

display is 256x256x256= 16.7 million.

H

Hue

The main attribute of a color that distinguishes it from other colors. For example, a color may have a green, yellow, or
purple hue. Color defined as having hue are know as chromatic colors. White, black, and grays possess no hue.

I

IPS (In Plane Switching)

A technique of improving the viewing angle of an LCD where the liquid crystal molecules are switched in the plane of the
LCD layer rather than vertical to it.

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/190S9/glossary/glossary.htm（第 4／10 页）2008-5-24 9:56:42

Glossary

L

LCD (liquid crystal display)

A display composed of liquid crystal suspended between two transparent sheets. The display is composed thousands of
pixels which can be turned on or off with electrical stimulation. Thus, colorful images/texts can be generated.

Liquid crystal

The compound found in liquid crystal displays. Liquid crystal reacts predictably when electrically stimulated. This makes it
the ideal compound to turn LCD pixels "on" or "off." Liquid crystal is sometimes abbreviated as LC.

Luminance

A measure of the brightness or luminous intensity of light, usually expressed in units of Candelas per square meter (cd/
m2) or foot Lamberts. 1 fL=3.426 cd/m2.

RETURN TO TOP OF THE PAGE

N

Nit

A unit of luminance equal to 1 cd/m2 or 0.292 ftL.

P

Pixel

PICture Element; the smallest element on a computerized CRT or LCD image, and hence a display.

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/190S9/glossary/glossary.htm（第 5／10 页）2008-5-24 9:56:42

Glossary

Polarizer

A light filter which only allows light waves of a certain rotation through. Polarized material with perpendicular filtering is
used in LCDs to enclose the liquid crystal. The liquid crystal is then used as the medium which twists the light waves 90°
in order to allow the light to pass through or not.

R

Refresh rate

The number of times per second the screen is refreshed or redrawn. This number is usually stated in Hz (Hertz) or cycles
per second. A rate of 60 Hz is equal to 60 tomes per second.

S

SmartContrast

Unique technology that dynamically analyzes displayed content and automatically optimizes a LCD monitor's contrast
ratio for maximum visual clarity and viewing enjoyment, stepping up backlighting for clearer, crisper and brighter images
or dimming backlighting for clear display of images on dark backgrounds. For monitors with SmartContrast, contrast ratio
achieves 3000:1, the highest available today in a desktop LCD monitor.

SmartControl II

SmartControl II is monitor-based software with an easy-to-use on-screen graphic interface that guides you through fine­tuning resolution, color calibration and other display settings including brightness, contrast, clock & phase, position, RGB,
white point and - on models with onboard speakers - volume adjustments.

SmartImage

SmartImage provides presets that optimize display for different types of content, dynamically adjusting brightness,
contrast, color and sharpness in real time. Whether you're working with text applications, displaying images or watching a
video, Philips SmartImage delivers great optimized LCD display performance

.

SmartResponse

file:///G|/TEMP/PHILIPS/190S9 EDFU/lcd/manual/ENGLISH/190S9/glossary/glossary.htm（第 6／10 页）2008-5-24 9:56:42
