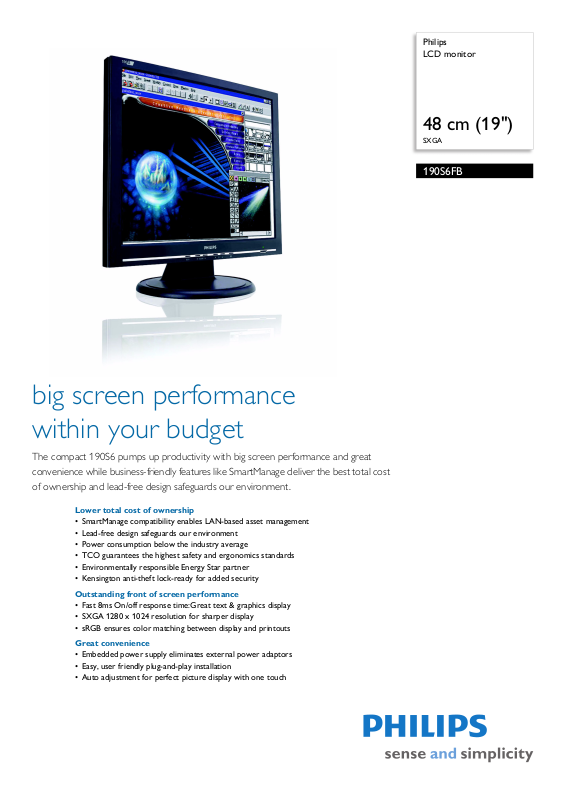

Page 1
Philips
LCD monitor
48 cm (19")
SXGA
190S6FB
big screen performance
within your budget
The compact 190S6 pumps up productivity with big screen performance and great
convenience while business-friendly features like SmartManage deliver the best total cost
of ownership and lead-free design safeguards our environment.
Lower total cost of ownership
• SmartManage compatibility enables LAN-based asset management
• Lead-free design safeguards our environment
• Power consumption below the industry average
• TCO guarantees the highest safety and ergonomics standards
• Environmentally responsible Energy Star partner
• Kensington anti-theft lock-ready for added security
Outstanding front of screen performance
• Fast 8ms On/off response time:Great text & graphics display
• SXGA 1280 x 1024 resolution for sharper display
• sRGB ensures color matching between display and printouts
Great convenience
• Embedded power supply eliminates external power adaptors
• Easy, user friendly plug-and-play installation
• Auto adjustment for perfect picture display with one touch
Page 2
LCD monitor
48 cm (19") SXGA
Highlights
190S6FB/00
SmartManage enabled
SmartManage is a system for monitoring,
managing and
as well as delivering remote support to users
who experience difficulties - all accomplished
over a LAN.
Lead-free
Lead-free display products are
produced in compliance with strict European
Community directives on Restriction of
Hazardous Substances (RoHS) standards that
restrict lead and other toxic substances that
can harm the environment.
Lower power consumption
Reduction of the electrical power required to
o
perate a device.
TCO '99 compliance
A TCO (Swedish Confederation of
Profe
ssional Employees) standard even more
stringent than MPR-II for safety and
checking status of display devices
designed and
ergonomics, especially concerning alternating
electric fields (AEF).
Kensington lock compatible
Small apertures built into the display's frame
for use w
display to a fixed object for added protection
against theft.
8ms response time (On/Off)
On-Off response time is the period required
for a liqui
to inactive (white) and back to active (black)
again. It is measured in milliseconds. Faster is
better: Lower response time means faster
transitions and, therefore, results in fewer
visible image artifacts in the display of
transition of text and graphics. On-Off
response time is a more important measure in
the display of business content like documents,
graphs and photos.
ith a locking device that secures a
d crystal cell to go from active (black)
sRGB ready
sRGB is an industry standard that ensures the
b
est possible match between the colors
displayed on your screen and those in your
printouts.
Embedded power supply
An embedded power supply is a power
adapto
r built into the body of a display device
that replaces a bulky external power adaptor.
Easy plug-and-play
Plug-and-play is a peripheral connectivity
standard. A
connected to a PC and operate without
requiring user intervention to adjust
complicated settings.
One-touch auto adjustment
The auto adjustment key restores optimal
screen
the press of a single button - without
navigation through OSD menus and control
keys.
plug and play display device can be
position, phase and clock settings with
Page 3
LCD monitor
48 cm (19") SXGA
Specifications
190S6FB/00
Picture/Display
• LCD panel type: 1280 x 1024 pixels, Anti-glare
polarizer, RGB vertical stripe
• Panel Size: 19"/ 48 cm
• Effective viewing area: 376.3 x 301.1 mm
• Pixel pitch: 0.294 x 0.294 mm
• Brightness (nits): 250 nit
• Contrast ratio (typical): 500:1
• Display colors: 16.2 M
• Viewing angle: @ C/R > 5
• Viewing angle (H / V): 160 / 160 degree
• Response time (typical): 8 ms
• White Chromaticity, 6500K: x = 0.313 / y = 0.329
• White Chromaticity, 9300K: x = 0.283 / y = 0.297
• Maximum Resolution: 1280 x 1024 @ 75 Hz
• Optimum resolution: 1280 x 1024 @ 60 Hz
• Factory Preset Modes: 15 modes
• User definable modes: 50 modes
• Video Dot Rate: 140 MHz
• Horizontal Scanning Frequency: 30 - 83 kHz
• Vertical Scanning Frequency: 56 - 76 Hz
•sRGB
Connectivity
• Signal Input: VGA (Analog )
• Sync Input: Composite Sync,
on Green
Separate Sync, Sync
Convenience
• User convenience: On-screen Display,
SmartManage enabled
• Monitor Controls: Auto, Brightness Control, Left/
ight, Menu (OK), Power On/Off, Up/Down
R
• OSD Languages: English, Fr
Simplified Chinese, Spanish
• Other convenience: Kensingto
• Plug & Play Compatibility: DDC/CI, sRGB,
ws 98/ME/2000/XP
Windo
• Regulatory approvals: CE Mark, E2000, EMC, FCC-
, UL, CSA, Energy Star, SEMKO, TCO '99, TÜV/
B
GS, TÜV Ergo
• Tilt: -5° to 25°
• VESA Mount: 100 x 100 mm
ench, German, Italian,
n lock compatible
Accessories
• Included accessories: AC Power Cord, VGA cable
• Optional accessories: Super Ergo Base
• User Manual
Dimensions
• Dimensions (with base) (W x H x D):
425 x 418 x 235 mm
• MTBF: 50,000 hrs
• Relative humidity: 20% - 80%
• Temperature range (operation): 5°C to 40°C
• Temperature range (storage): -20°C to 60°C
•Weight: 5.4 kg
Power
• Complies with: E2000, Energy Star, NUTEK
•Consumption (On mod
•Consumption (Off Mo
• Power LED indicator: Operation - green, Stand by/
eep - Amber
sl
• Power supply: Built-in, 90-264 VAC, 50/60 Hz
•
e): 34W (Typical)
de): < 1 W
Issue date 2011-06-07
Version: 2.0.5
12 NC: 8639 000 16185
EAN: 87 10895 89044 1
© 2011 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
