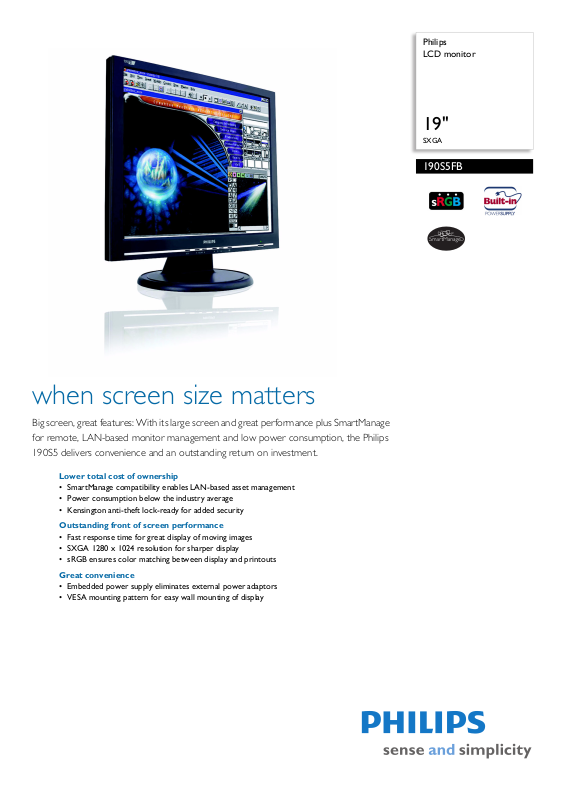

Philips 190S5FB User Manual
Philips
LCD monitor
19"
SXGA
190S5FB
when screen size matters
Big screen, great features: With its large screen an d great performance plus SmartManage
for remote, LAN-based monitor management and low power consumption, the Philips
190S5 delivers convenience and an outstanding return on investment.
Lower total cost of ownership
• SmartManage compatibility enables LAN-based asset management
• Power consumption below the industry average
• Kensington anti-theft lock-ready for added security
Outstanding front of screen performance
• Fast response time for great display of moving images
• SXGA 1280 x 1024 resolution for sharper display
• sRGB ensures color matching between display and printouts
Great convenience
• Embedded power supply eliminates external power adaptors
• VESA mounting pattern for easy wall mounting of display
LCD monitor
190S5FB/00
19" SXGA
Specifications Product highlights
Picture/Display
• LCD panel type: 1280 x 1024 pixels, Anti-glare
polarizer, RGB vertical stripe
• Panel Size: 19"/ 48 cm
• Effective viewing area: 376.3 x 301.1 mm
• Pixel pitch: 0.294 x 0.294 mm
• Brightness: 250 cd/m²
• Contrast ratio (typical): 500:1
• Display colors: 16 M
• Viewing angle: @ C/R > 5
• Viewing angle (H / V): 160 / 160 degree
• Response time (typical): 12 ms
• White Chromaticity, 6500K: x = 0.313 / y = 0.329
• White Chromaticity, 9300K: x = 0.283 / y = 0.297
• Maximum Resolution: 1280 x 1024 @ 75 Hz
• Optimum Resolution: 1280 x 1024 @ 60 Hz
• Factory Preset Modes: 15 modes
• User definable modes: 14 modes
• Horizontal Scanning Frequency: 30 - 82 kHz
• Refresh Rate (V): 56 - 76 Hz
•sRGB
Connectivity
• Signal Input: VGA (Analog )
Convenience
• User convenience: On-screen Display,
SmartManage
• Monitor Controls: Auto, Brightness Control, Left/
Right, Menu (OK), Power On/Off, Up/Down
• OSD Languages: English, French, German, Italian,
Simplified Chinese, Spanish
• Other convenience: Kensington lock
• Plug & Play Compatibility: DDC CI, sRGB,
Windows 98/ME/2000/XP
• Regulatory Approvals: CE Mark, E2000, EMC,
NUTEK, Energy Star, SEMKO, TCO '99, TÜV/GS,
TÜV Ergo, FCC-B, UL, CSA
• Tilt: 5° to 25°
• VESA Mount: 100 x 100 mm
Accessories
•User Manual
• Included Accessories: AC Power Cord, VGA
cable
• Optional accessories: Super Ergo Base
Dimensions
• Dimensions (with base) (W x H x D):
425
x 419 x 235 mm
• MTBF: 50,000 hrs
• Relative humidity: 20% - 80%
• Temperature range (operation): 5°C to 35°C
• Temperature range (storage): -20°C to 60°C
• Weight: 5.8 kg
Power
• Complies with: E2000, Energy Star, NUTEK
• Consumption (On mode): 34W (Typical)
• Consumption (Off Mode): 1 W
• Power LED indicator: Operation - green, Stand
by/sleep - Amber
• Power supply: Built-in
•
SmartManage enabled
SmartManage is a system for monitoring, managing and
checking status of display devices as well as delivering
remote support to users who experience difficulties - all
accomplished over a LAN.
Lower power consumption
Reduction of the electrical power required to operate a
device.
Kensington lock compatible
Small apertures built into the display's frame for use with
a locking device that secures a display to a fixed object
for added protection against theft.
Fast response time
Response time measures signal reaction speed in
milliseconds. On/off response time measures the time
required for the screen to turn from completely white to
completely black and vice versa. Fast on/off response
time improves display of text. Gray-to-grey response time
measures the average time of transition between several
sets of random gray levels - Lower numbers mean faster
transitions. Faster is better because a fast response time
eliminates visible image artifacts that could dampen your
experience when viewing fast moving images or objects.
SXGA, 1280 x 1024 resolution
For graphics monitors, the screen resolution signifies the
number o f d ots (p ix els) on th e ent ire sc re en. F or ex ample ,
a 1280-by-1024 pixel screen is capable of displaying
1280 distinct dots on each of 1024 lines, or about 1.3
million pixels.
sRGB ready
sRGB is an industry standard that ensures the best
possible match between the colors displayed on your
screen and those in your printouts.
Embedded power supply
An embedded power supply is a power adaptor built into
the body of a display device that replaces a bulky external
power adaptor.
VESA mounting holes
A unified industry standard for wall mounting IT
equipment set by the Video Electronics Standards
Association.
Issue date 2009-02-12
Version: 2.0.3
12 NC: 8639 000 15552
EAN: 87 10895 85007 0
© 2009 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
