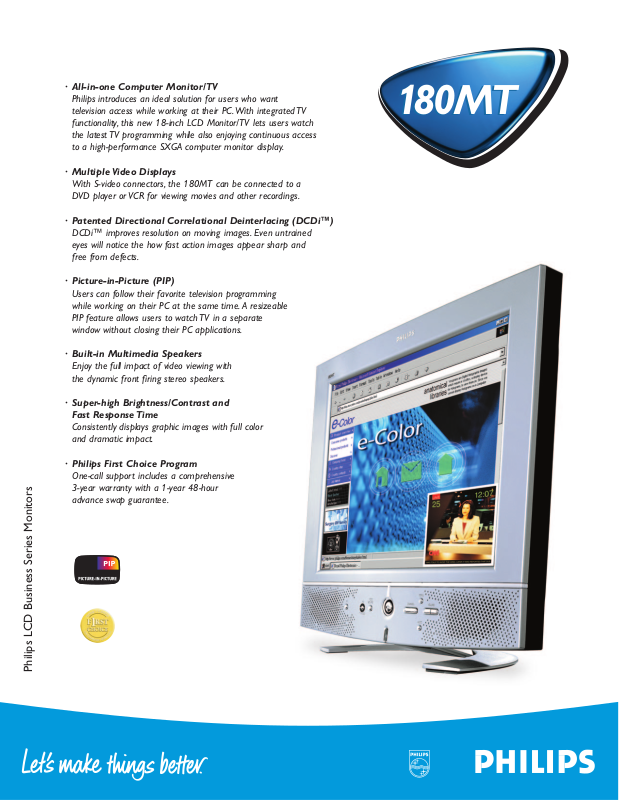

Philips LCD Business Series Monitors

180MT

· All-in-one Computer Monitor/TV

Philips introduces an ideal solution for users who want television access while working at their PC.With integrated TV functionality, this new 18-inch LCD Monitor/TV lets users watch the latest TV programming while also enjoying continuous access to a high-performance SXGA computer monitor display.

· Multiple Video Displays

With S-video connectors, the 180MT can be connected to a DVD player or VCR for viewing movies and other recordings.

·Patented Directional Correlational Deinterlacing (DCDi™)

DCDi™ improves resolution on moving images. Even untrained eyes will notice the how fast action images appear sharp and free from defects.

· Picture-in-Picture (PIP)

Users can follow their favorite television programming while working on their PC at the same time. A resizeable PIP feature allows users to watch TV in a separate window without closing their PC applications.

· Built-in Multimedia Speakers

Enjoy the full impact of video viewing with the dynamic front firing stereo speakers.

· Super-high Brightness/Contrast and Fast Response Time

Consistently displays graphic images with full color and dramatic impact.

· Philips First Choice Program

One-call support includes a comprehensive 3-year warranty with a 1-year 48-hour advance swap guarantee.

Product Number 180MT13P Technical Specifications

LCD Panel

• Panel TFT LCD

• Screen Size 18.1 inch

• Pixel Pitch 0.2805 x 0.2805 mm

• Display Format 1280 x 1024 pixels, RGB Vertical Stripe, Anti-glare Polarizer, Hard Coated

• Display Area 359.0 x 287.0 mm

• Display Colors 8 bits interface (16.7M colors)

Scanning

•Vertical Refresh Rate 56 - 75 Hz

• Horizontal Frequency 30 - 80 kHz

Video

• Video Dot Rate (Max.) 135 MHz

• Input Impedance

-Video 75Ω

-Sync 2KΩ

• Input Signal Levels 0.7 Vp-p

• Sync Input Signal Separate Sync Composite Sync

• Sync Polarities Positive and Negative

Optical Characteristics

• Contrast Ratio 300 : 1 (typ.)

• Brightness 300 cd/m

(typ.)

•Peak Contrast Angle 6 o’clock

• White Chromaticity (PC) x: 0.281 y: 0.311 (at 9300°K)

x: 0.312 y: 0.338 (at 6500°K)

• Viewing Angle V=170° Upper ≥ 85°(typ.)

(C/R ≥10) Lower ≥ 85°(typ.)

H=170° Left ≥ 85°(typ.)

Right ≥ 85°(typ.)

• Response Time ≤30 ms (typ.)

Resolution & Preset Modes

• Max. Resolution 1280 x 1024 at 75Hz

• Recom. Resolution 1280 x 1024 at 60Hz

• 17 User Definable Modes

• 17 Factory Preset Modes:

Plug and Play Compatibility

• Display data channel DDC 2B (VESA)

• Microsoft® Windows® 95/98/ Me & 2000/NT/XP Compatible

Power Management

Complies with EPA Energy Star specifications

• Operation 68W (typical)

• Sleep Mode

≤ 2W (typical)

•Power button LED indicator

-Operation Steady Green

-Stand By/Sleep Mode Flashing Green

Low-Emission Characteristics

• Complies with MPR-II and TCO ’95 specifications

Monitor Controls and Functions

•Front Power on/off -Tact Switch

PC,TV/Video -Tact Switch Source -Tact Switch PIP -Tact Switch Menu(OK) -Tact Switch Auto -Tact Switch Up/Down (Channel) -Tact Switch +/- (Volume) -Tact Switch

• LED Indicator Steady Green -Power On

Flashing Green -Stand By/ Sleep Mode

Connections

BACK

• D-Sub In (for PC)

• TV In (antenna/cable)

• S-Video In

•AV Audio L/R In

• PC Audio In

• 12Volt DC In SIDE

• Headphone Jack 3.5 mm Out

• Stereo Line Out Jack for External Speaker

Regulatory Approvals

• TÜV/GS,TÜV-Ergo • CE Mark

• FCC-B, UL, CSA • Energy Star

• SEMKO • TCO ’95

• MPR-II Low Emission


• Picture in Picture

• Incredible Picture Green Enhancement Histogram Colour Transient Improvement Blue Stretch Skin Tone Correction

• Dynamic Noise Reduction (DNR)

• Smart Picture Setting (Soft, Natural, Rich, Personal)

Sound

• Sound Power: 2x2.5W RMS, 200Hz-10kHz, 4Ω, 10% THD

• Smart Sound Setting (Theatre, Music,Voice, Normal)

• Incredible Surround

• Auto Volume Leveler

Ease of Use Installation

• Remote Control

• Autostore

• Sleep Timer

Reception

• TV System

• Stereo System

• Video Playback

• 100 Page Teletext

Physical Specifications

• UPC Code 180MT13P 0 37849 92642 0

• Unit Dimensions (WxHxD) 17.8" x 17.8" x 7.9"

452 x 452 x 200 mm (incl base)

• Unit Weight 13.9 lbs/6.3 kg

• Carton Dimensions (WxHxD) 21.5" x 10.1" x 21.9"

546.1 x 256.6 x 556.3 mm

• Carton Weight 21.0 lbs/9.5 kg

• Tilt/Swivel -0°~20°

•Power Supply 100 – 240 VAC, 50/60 Hz

•Temperature (operating) 0°C to +35°C/ 32° to 95°F

•Temperature (storage) -20°C to +60°C/ -4° to 140°F

• Relative Humidity 20% to 80%

• System MTBF 50K hrs

Carton contains: 180MT Monitor, power cord, and user’s manual on CD.

INTERNET ADDRESS: http://www.philipsusa.com TECHNICAL SUPPORT: (877) 835-1838 (USA)

(402) 536-4171 (outside USA)

18 0 MT

Specifications subject to change without notice.

Printed in the U.S.A., ©2002 Philips Consumer Electronics Co.A Division of Philips Electronics North America Corp.We recommend using 1280 x 1024 at 60Hz non-interlaced mode for the best picture quality.As an Energy Star partner, Philips has determined th at this product meets the Energy Star guidelines

for energy efficiency.Microsoft and Windows are registered trademarks of Microsoft Corporation Macintosh is a registered trademark of Apple Computer,Inc. * Resolution 1280 x 1024, standard size,contrast max., brightness 50%, 9300°K,full white pattern,without Audio/USB.

1244 - 07/02

Literature Order Number: 180MT

Resolution H.freq V.freq

640 x 350 31.5(kHz) 70.1(Hz) 720 x 400 31.5 70.1 640 x 480 31.5 59.9 640 x 480 35.0 67.0 640 x 480 37.8 72.8 640 x 480 37.5 75.0 800 x 600 35.2 56.3 800 x 600 37.9 60.3 800 x 600 48.0 72.0

Resolution H.freq V.freq

800 x 600 46.9 75.0 832 x 624 49.7 75.0 1024 x 768 48.4 60.0 1024 x 768 56.5 70.0 1024 x 768 60.1 75.0 1152x870 68.7 75.0 1280x1024 64.0 60.0 1280x1024 80.0 75.0 (Interlace mode is not supported)
