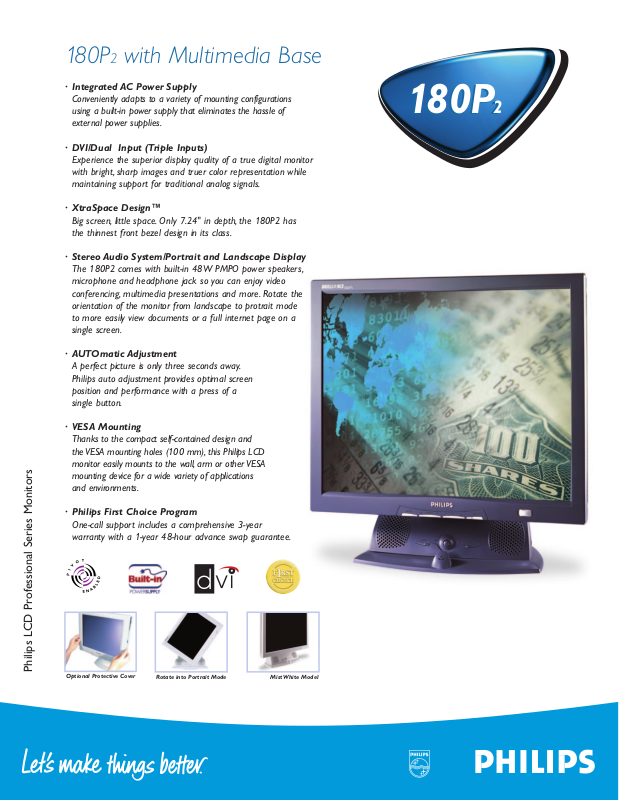

Philips 180P2 User Manual

180P

2

180P2

Philips LCD Professional Series Monitors

· Integrated AC Power Supply

Conveniently adapts to a variety of mounting configurations
using a built-in power supply that eliminates the hassle of
external power supplies.

·DVI/Dual Input (Triple Inputs)

Experience the superior display quality of a true digital monitor
with bright, sharp images and truer color representation while
maintaining support for traditional analog signals.

· XtraSpace Design™

Big screen, little space. Only 7.24" in depth, the 180P2 has
the thinnest front bezel design in its class.

· Stereo Audio System/Portrait and Landscape Display

The 180P2 comes with built-in 48W PMPO power speakers,
microphone and headphone jack so you can enjoy video
conferencing, multimedia presentations and more. Rotate the
orientation of the monitor from landscape to protrait mode
to more easily view documents or a full internet page on a
single screen.

·AUTOmatic Adjustment

A perfect picture is only three seconds away.
Philips auto adjustment provides optimal screen
position and performance with a press of a
single button.

· VESA Mounting

Thanks to the compact self-contained design and
the VESA mounting holes (100 mm),this Philips LCD
monitor easily mounts to the wall, arm or other VESA
mounting device for a wide variety of applications
and environments.

· Philips First Choice Program

One-call support includes a comprehensive 3-year
warranty with a 1-year 48-hour advance swap guarantee.

180P2 with Multimedia Base

™

Rotate into Portrait Mode Mist White Model

Optional Protective Cover

Product Number180P2G (Stealth Black)

180P2M (Mist White)

Technical Specifications

LCD Panel

• Panel TFT LCD

• Screen Size 18.1"/46 cm

• Pixel Pitch 0.280 x 0.280mm

• Display Format 1280 x 1024 pixels, R.G.B Vertical Stripe,
Anti-glare polarizer, hard coated

• Display Area 359 x 287.2 mm

Scanning

•Vertical Refresh Rate 56~76 Hz

• Horizontal Frequency 30~82 KHz

Video

• Video Dot Rate 135 MHz

• Input Impedance

- Video 75Ω

- Sync 2KΩ

• Input Signal Levels 0.7 Vpp

• Sync Input Signal Separate sync, Composite sync,
Sync on green

• Sync Polarities Positive and negative

• Video Interface Triple input (two connectors): D-Sub
(analog) and DVI-I (accepts both digital and
analog are available and user selectable

Audio

• Input Signal Level 0.7 Vpp

• Headphone Out Signal Level 32Ω 20+20mW

• Input Signal Connector 3.5mm Mini Jack

• Loudspeaker 2+2W stereo front firing
(PMPO: 48W)

Microphone

• Sensitivity -55dB re 1V/µbar at 1KHz

• Output Impedance 2.2KΩ max

• Directivity -5dB at 180°

•Frequency Range 300Hz~3KHz

Optical Characteristics

• Contrast Ratio 350 (typ.)

• Brightness 250 cd/m2 (typ.)

•Peak Contrast Angle 6 o’clock

• White Chromaticity x: 0.281 y: 0.311 (at 9300°K)
x: 0.312 y: 0.338 (at 6500°K)

• Viewing Angle V=160° Upper ≥ 80°(typ.)

(C/R >5) Lower ≥ 80°(typ.)

V=160° Left ≥ 80°(typ.)

Right ≥ 80°(typ.)

• Number of Colors 8 bits interface (16M colors)

• Response Time ≤50 ms (typ.)

Resolution & Preset Modes

• Maximum 1280x1024 at 75Hz

• Recommended Resolution 1280x1024 at 60Hz

• 32 User Definable Modes

• 15 Factory Preset Modes:

(Interlace mode is not applicable)

Plug and Play Compatibility

• Display Data Channel DDC 2B (VESA)

• Microsoft® Windows® 95/98/ Me & 2000/XP Compatible

Power Management

Complies with EPA Energy Star and NUTEK Specifications

•Typical operation 50W (typical)

• Sleep mode 2W

Low-emission Characteristics

• Complies with MPR-II and TCO ’99 (180P2M) or TCO’95 (180P2G) Specifications

Monitor Controls and Functions

•Front Power On/Off
OK
Auto
Up/Down (Brightness)
Left/Right (Input)

• LED Indicator Green Power On
Amber Stand By/Sleep Mode
Flashing Green New Mode

Multimedia Base Controls & Function

•Front Power On/Off & - Pop Out Rotary
Volume Adjustment
Bass
Mute
Microphone In - Built-In

• LED Indicator Green Power On
Green Bass
Red Mute

Connections and Cables

• Connections on Monitor

- Video 15-pin D-sub (analog); DVI-I (digital/analog)

- DC Output 12V, 6.5mm DC Connector

- Power IEC/CEE-22 Type Male Power Inlet on
Monitor Body

• Connections On Base

- Audio In & Mic Out: 3.5mm Audio In and Mic Out Jack

- Headphone: 3.5mm Headphone Jack

- Mic Phone In: 3.5mm Microphone In Jack

• Cables D-Sub Video Cable, DVI to D-Sub Video
Cable, Power Cable, DC 12V in Flying
Cable on Base,Audio Cable, Mic Cable

Optional Accessories

• USB Hub (PCUH411) 1 Up Stream, 4 Down Stream Ports,
Self Powered

•Protective Cover (XG3P31) Mist White Only

Regulatory Approvals

• TUV/GS,TUV-Ergo • FCC-B, UL, CSA • TCO ’99 180P2M

• MPR-II Low Emission • CE Mark • TCO ’95 180P2G

• NUTEK, Energy Star • SEMKO

Physical Specifications

• UPC Code 180P2G 0 37849 91851 7

180P2M 0 37849 91852 4

• Unit Dimension (WxHxD) 15.71" x 16.69" x 7.24"

399 x 424 x 184 mm (in lowest position)

• Unit Weight 17.64 lb / 8.0 Kg

• Carton Dimension (WxHxD) 20.1" x 22.4" x 9.6"

510 x 570 x 244 mm

• Carton Weight 22.04 lb / 10 Kg

•Power Supply 100 – 240 VAC, 50/60 Hz

•Power Consumption 50 W* (typ.)

•Temperature (operating) 41°F to 95°F / +5°C to +35°C

•Temperature (storage) -4°F to 140°F / -20°C to +60°C

• Relative Humidity 20% to 80%

• System MTBF 50K hrs (excluding CCFL 50K hrs)

Base Configuration

• Audio 48W PMPO

• Tilt/Swivel 0°~35° / ±175°

•Portrait Display 90° rotation counter clockwise**

Carton contains: 180P2 LCD Monitor, power cord,VGA cable, DIV-to-VGA cable, stereo cable,
mic cable, and user’s manual.

INTERNET ADDRESS: http://www.philips.com
TECHNICAL SUPPORT: [phone] (USA)

[phone] (outside USA)

Specifications subject to change without notice.

180P

2

180P2

Printed in the U.S.A., ©2002 Philips Consumer Electronics Co.A Division of Philips Electronics North America Corp.

We recommend using 1280 x 1024 at 60Hz non-interlaced mode for the best picture quality. As an Energy Star partner, Philips has determined that this product meets the Energy Star guidelines for energy

efficiency.Microsoft and Windows are registered trademarks of Microsoft Corporation Macintosh is a registered trademark of Apple Computer, Inc.

* Resolution 1280 x 1024, standard size,contrast max., brightness 50%, 9300°K,full white screen. ** Note: Monitor Pivot

®

Software. Pivot

®

Software is Iicensed from Portrait

Displays, Inc. © 1993-2000 Portrait Displays,Inc. US Patent #5,973,664

1191 - 02/02

Resolution H.freq V.freq

640 x 350 31.5(kHz) 70(Hz)
720 x 400 31.5 70
640 x 480 31.5 60
640 x 480 35.0 67
640 x 480 37.5 75
800 x 600 35.2 56
800 x 600 37.9 60
800 x 600 46.9 75

Resolution H.freq V.freq

832 x 624 49.7 75
1024 x 768 48.4 60
1024 x 768 60.0 75
1152 x 870 69.0 75
1152 x 900 71.8 76
1280 x 1024 63.9 60
1280 x 1024 80.0 75

Literature Order Number: 180P2G, 180P2M
