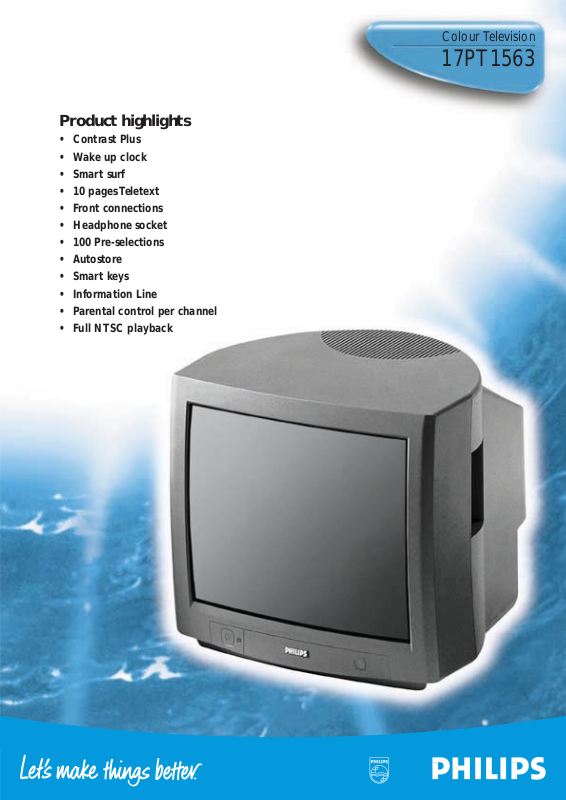

Philips 17PT1563 User Manual
Colour Television
17PT1563
Product highlights
• Contrast Plus
• Wake up clock
• Smart surf
• 10 pages Teletext
• Front connections
• Headphone socket
• 100 Pre-selections
• Autostore
• Smart keys
• Information Line
• Parental control per channel
• Full NTSC playback
Colour Television
17PT1563
Technical specifications
Chassis
• Type : L7.2
• Screen Diameter : 17”
• Visual Screen : 41 cm
• Picture tube : Black Hibri
• Contrast Plus
• Tint,adjustable white colour
• Smart control keys on the remote control with
four independant picture settings
Sound
• RMS output : 3W
• Loudspeakers : 4” full range top firing
• Smart control keys on the remote control with
four independant sound settings
• Bilingual switch on the remote control
Operation
• Remote control : RC0761/01
• Settings via OSD of : Volume
Brightness
Contrast
Colour
Sharpness
Sleep timer
Tint
• Multi-language selection for menu
• Information Line
• Wake up timer
• Sleeptimer 120 min.
• Parental control per channel
• Smart clock for automatic set up of the internal
clock
• Autoscan
• Auto stand-by if no picture
• Manual skip
• Fine tuning
• Manual sorting
Teletext
• Reception standards : WST,TOP/FLOF
• Memories : 10 pages
/00,/01,/05,/07,/11 Western Eur.TXT
/43 Greek+Turkish TXT
/58 East.Eur. Teletext
/60 Cyrillic TXT
Reception
• Tuning system : 100 fold VST
• Transmission system:
/00,/11 PAL B/G
/01 PAL BGSECAM LL
PAL I
/05,/07 PAL I
/43,/58,/60 PAL BG DK
SECAM BG DK
• Channel selections:
/00,/60 VHF,UHF, S, H
/01,/07,/11,/43,/58 VHF,UHF,S,H
/05 UHF
• NTSC Playback : 4.43 / 3.58 MHz
Connections
• Rear : Euro A/V connector
(Cenelec Specified)
Aerial input : 75 Ohm (Coax)
• Front : Headphone (3.5 mm jack)
Audio L/R in (cinch)
Video CVBS in (cinch)
Miscellaneous
• Mains : AC220-240V ±10%
• Power consumption : 55W
• Auto stand-by power: 7W
• Weight (excl. pack.) : 14 kg
• Weight (incl. pack.) : 18 kg
• Dimensions:
- TV (wxhxd) : 42 x 38 x 40 cm
- Packaging (wxhxd) : 53 x 46 x 51.5 cm
Product highlights
• Contrast Plus
To improve the image contrast via deeper blacks.
• Wake up clock
To program your set to switch on at a desired time.
• Smart surf
For an easy and pleasant browsing of the 8 most
viewed channels.
• 10 pages Teletext
Easy computer controlled teletext for quick and easy
access to the information transmitted by the TV
broadcaster,with Fastext and Table Of Page.
Supporting Features
• 1 scart
• Front connections
• Headphone socket
• 100 Pre-selections
• Sleeptimer
• Autostore
• Smart keys
• Automatic switch-off
• Sharpness control
• Information Line
• Parental control per channel
• Game key
• Full NTSC playback
• Multistandard Reception Optional
• Hyperband Reception Optional
Release date : March ‘98
Predecessor(s) : 17PT156B
Date of issue : January ‘98
Subject to modification without notice
RC 0761
