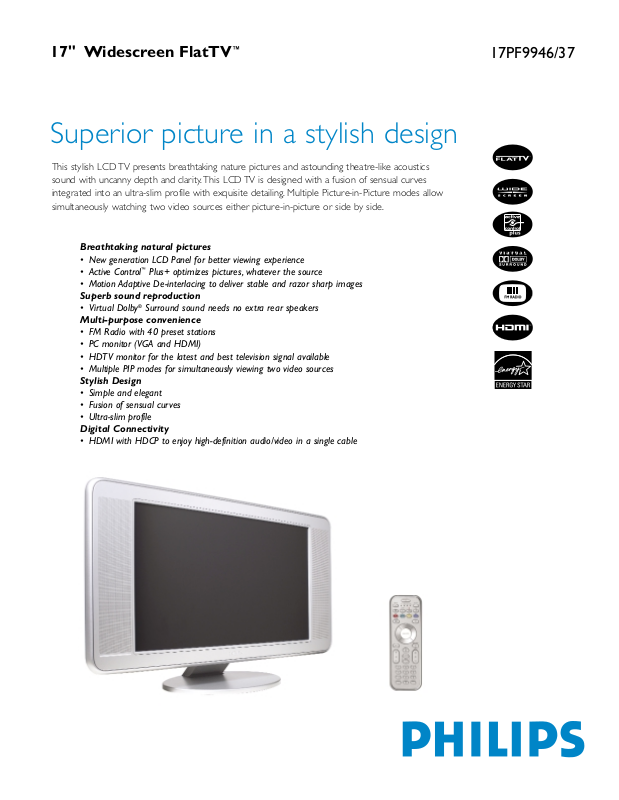

Philips 17PF9946, 17PF9937 User Manual

17" Widescreen FlatTV

™

Breathtaking natural pictures

• New generation LCD Panel for better viewing experience

• Active Control™Plus+ optimizes pictures, whatever the source

• Motion Adaptive De-interlacing to deliver stable and razor sharp images

Superb sound reproduction

• Virtual Dolby®Surround sound needs no extra rear speakers

Multi-purpose convenience

• FM Radio with 40 preset stations

• PC monitor (VGA and HDMI)

• HDTV monitor for the latest and best television signal available

• Multiple PIP modes for simultaneously viewing two video sources

Stylish Design

• Simple and elegant

• Fusion of sensual curves

• Ultra-slim profile

Digital Connectivity

• HDMI with HDCP to enjoy high-definition audio/video in a single cable

Superior picture in a stylish design

This stylish LCD TV presents breathtaking nature pictures and astounding theatre-like acoustics sound with uncanny depth and clarity.This LCD TV is designed with a fusion of sensual curves integrated into an ultra-slim profile with exquisite detailing. Multiple Picture-in-Picture modes allow simultaneously watching two video sources either picture-in-picture or side by side.

17PF9946/37

17" Widescreen Flat TV

™

17PF9946/37


• Screen (diagonal) : 26” (65 cm)

• Visible screen size : 26” (65 cm)

• Aspect ratio : Widescreen

• Display : LCD S-IPS Active Matrix TFT

• Response Time : 16 ms

• Resolution : 1280 x 768

• Brightness : 450 nits

• Contrast Ratio : 400:1

• Viewing Angle : 176 H/176 V

• Anti Reflex Coated Screen

• Progressive Scan

• Pixel Plus : More pixels and better pixels

• Digital Crystal Clear

- 3D Digital Combfilter

- Dynamic contrast

- Color Enhancement : Green/Blue Stretch

- Digital Color Transcient Improvement (CTI)

- Luminance Transcient Improver (LTI)

• Active Control™Plus+

- Auto sharpness

- Auto DNR

- Auto Contrast with respect to ambient light

• Digital Noise Reduction (DNR)

Sound Quality

• Sound Power : 10 watt rms

• Music Power : 20 watt rms

• 2 on board Flat speakers

• Virtual Dolby Surround

• Dynamic Bass Enhancement

Ease of Installation

• Plug & play

• 100 Preset channels

• Autostore

• Fine tuning

• Sorting

Ease of Use

• Side control

• Text + Icon Graphical User Interface

• Smart Picture (5 modes)

• Smart Sound (4 modes)

• Smart Listening (AVL)

• 6 Widescreen modes : 4:3, Zoom 14:9, Zoom 16:9, Super wide, Widescreen, Full Screen

• Multi-language OSD and menu control

• Program List (100 presets)

• Wake up clock

• Sleep timer

• Smart Lock (Child lock + Parental control)

• Slim Remote Control (Universal)

• Swivel and tilt stand

Side Connections (AV3)

• S-Video

• Headphone

• Video CVBS

Rear Connections

• AVI : AV in, CVI/YPbPr (1fh),Audio

• AV2: AV in, S-Video, CVBS,Audio

• AV4 : HDMI, Digital PC/HD input,Audio

• AV5 : VGA/RGB,Analog PC/HD (2fh) input

Multiple PIP

• Picture in Picture (PIP)

• Picture in Graphics (PIG)

• Picture by Picture (PBP)

FM Radio RDS

• Stereo FM Radio

• 40 Preset Channels

• Autostore/Manual store

• Sorting

• Preset List

Multimedia modes

Standard Resolution Refresh rate VGA 640 x 480 60,72,75,85 Hz VGA 720 x 400 70, 85 Hz VGA 640 x 350 70, 85 Hz MAC 640 x 480 66.67 Hz MAC 832 x 624 74.55 Hz SVGA 800 x 600 56, 60, 72, 75, 85 Hz XGA 1024 x 768 60, 70,75, 85 Hz WXGA 1280 x 768 60, 75 Hz

Reception

Tuning System : PLL Tuner : VHF, UHF, S-channel,Hyperband Aerial Input : 75 Ohm Coaxial (IEC75) Color transmission : NTSC-M system off-air

Miscellaneous

Ambient Temperature : +5/45°C Main : AC 90 – 240 Net Weight : 13.2 lbs Gross Weight : 17.6 lbs Set Dimensions without Stand/ : 21 x 12 x 3.4 (inch)/ with Stand (WxHxD) : 24.6 x 10 x 19 (inch) Box Dimensions : 34 x 23.6 x 12 (inch) (WxHxD)

UPC : 0 37849 94828 6

Technical specifications

Product highlights

New generation LCD panel

New generation LCD Panel offers superior entertainment with a wider viewing angle, a faster response time and natural brilliant colors. Minimal ‘color shift’ i.e. uniform natural colors when viewed from different angles, is a key picture performance factor for LCD TVs.

Digital Crystal Clear

™

A unique package of picture innovations including 3D Combfilter, Dynamic Contrast., Color Enhancement,and Luminance Transient Improvement resulting in more contrast, natural colors and a high level of detail.

HDTV with HDMI

HDMI is the first industry-supported, uncompressed, alldigital audio/video interface. HDMI makes direct digital-todigital connection possible. It eliminates the digital-toanalog conversion in order to deliver a completely pixelperfect image in the highest possible resolution without any deterioration. HDMI is fully backward-compatible with DVI for DTVs and Digital PC. HDMI will display video received from existing DVI-equipped products.

Active Control

™

Plus+

Active Control Plus+ delivers the best picture setting, any time, any source.The incoming signal is automatically analyzed and key picture settings are adjusted; sharpness, noise reduction, color and contrast.The ambient light sensor adjusts the settings according to the viewing conditions in the room.

Motion adaptive de-interlacing

A smart de-interlacing algorithm which is able to detect the type of video source such as Still Picture, Motion Picture or Film and automatically optimize the deinterlacing process with Spatial,Temporal or Film mode de-interlacing to deliver razor sharp and stable images at all time.

Virtual Dolby

Surround

Enjoy enhanced cinema surround sound effect without the need for rear speakers.

FM Radio

Listen to all your favorite radio channels (40 presets).

Multiple PIP

Multiple Picture-in-Picture modes allows simultaneously watching 2 video sources either Picture-in-Picture or side by side.

Date of issue 2004-05-13 Printed in USA 2004-05-21

Dolby and the double-D symbol are trademarks of Dolby Laboratories Licensing, Inc.

Specifications are subject to change without notice. Trademarks owned by Royal Philips Electronics.

www.philips.com

Rear AV Inputs/Outputs
