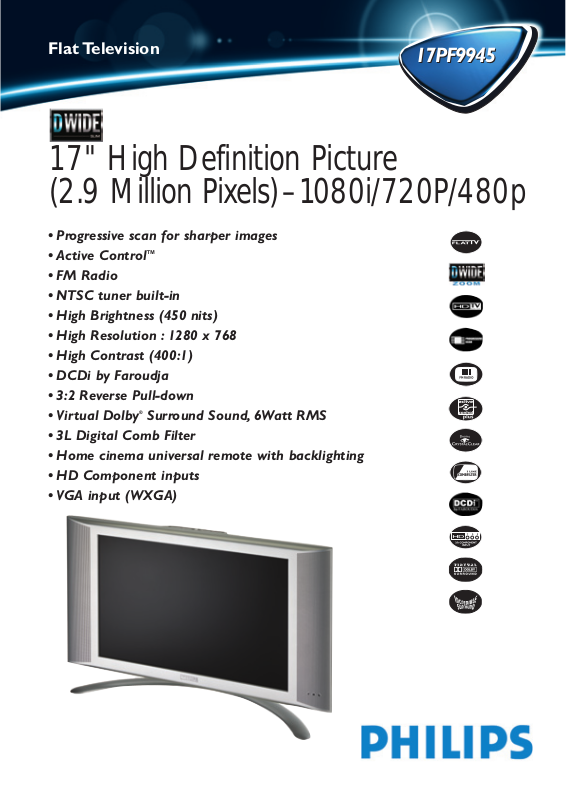

Flat Television

17PF9945

17" High Definition Picture (2.9 Million Pixels) – 1080i/720P/480p

•Progressive scan for sharper images

• Active Control

• FM Radio

• NTSC tuner built-in

•High Brightness (450 nits)

•High Resolution : 1280 x 768

• High Contrast (400:1)

• DCDi by Faroudja

• 3:2 Reverse Pull-down

• Virtual Dolby®Surround Sound, 6Watt RMS

• 3L Digital Comb Filter

• Home cinema universal remote with backlighting

• HD Component inputs

•VGA input (WXGA)

™

Flat Television

Technical specifications

17PF9945


• Screen Size 17" (43 cm)

•Visible Screen Size 43 cm (17”)

•Aspect ratio 16:9

•Display LCD WXGA Active

• Response time LCD 25ms (typical)

•Resolution 1280 x 768 (x3) pixels

•Brightness 450 cd/m

•Contrast Ratio 400:1

•Viewing Angles 150h/120V

•Anti Reflex Coated Glass Screen

•Progressive Scan

• DCDi by Faroudja

•3:2/2:2 Reverse Pull Down

•Crystal Clear III

•Active Control + Light Sensor

Matrix TFT technology

(2.9 Millions Pixels)

Sound

•Sound Power 6 RMS

•Dolby Virtual

•Incredible Surround

•2 On Board Speakers

Ease of Use: Installation

•Plug & Play

• 100 preset channels

•Autostore

•Fine tuning

• Sorting

Ease of Use: Utilisation

•Top Controls

•Universal RC (suitable for VCR/DVD/SAT/AUDIO/CD-R)

•Program List

•Auto Picture Control Personal, Movies,

•Auto Sound Control Personal,Voice, Music,

•AVL

•7 DWIDE modes 4:3, Zoom 14:9, Zoom

•Wake up Clock

•Smart Clock

•Sleep Timer (up to 240mn)

•Smart Lock (Child lock + Parental control)

• Screen Saver Digital Clock Display

Sports,Weak Signal, Multimedia

Theatre

16:9, Subtitle Zoom, Super Wide Widescreen, Full Screen

Connections

Side

•S-video Y/C (mini-DIN) in

•Video CVBS (cinch) in

•Audio L/R (cinch) in

•Monitor Output (cinch), Audio out (cinch)

•Headphones (3.5mm jack) out

Rear

•1 CVI, Audio (Cinch)

• 2FH (YPbPr),Audio (Cinch)

• CVBS input (Cinch),Audio in (Cinch)

•Audio L/R (cinch)

• Subwoofer out (Cinch)

•VGA (15pin sub-D) in

Information

•Picture In Graphic

FM Radio

• Stereo FM Radio

• 40 Preset channels

•Autostore/Manual store

• Sorting

•Preset List

Reception

•Tuning system PLL Digital Tuning

•Tuner VHF, UHF, S-Channel, Hyperband

•Aerial Input 75 Ohm F Type

• System NTSC

Multimedia modes

Standard Resolution Refresh rate VGA 640 x 480 60-75 Hz SVGA 800 x 600 60-75 Hz XGA 1024 x 768 60-75 Hz Wide VGA 852 x 480 60-75 Hz Wide SVGA 900 x 600 60-75 Hz Wide XGA 1280 x 768 60-75 Hz

Miscellaneous

• Ambient temperature +5 --+ 40°C

•Mains Auto Voltage AC 95V264V, 50/60Hz

•Power consumption 70W normal operation 1W Stand by

• Set Weight 6.4 Kg

•Weight Incl. Packaging 8.0 Kg

• Set Dimension 517 x 301 x 65 (W x H x D mm)

•Box Dimension 622 x 422 x 243 (W x H x D mm)

• TV Colour Precision Silver (10888)

•Optional Wall Mounting (VESA standard)

Product highlights

Flat, Slim,Wide

True Flat Multimedia TV which can be hung on the wall like a painting.

DWIDE Zoom

Whether you are watching a DVD or broadcast

programs, the DWIDE Zoom allows you to choose from

6 different TV formats, so you can enjoy a full screen

picture with less distortion of the image.

LCD Active Matrix TFT Panel

State of the art LCD screen technology enabling brillant flicker free picture with optimum brightness and superb colours.A thin film transistor (TFT) is used to generate clear and crisp colours. LCD allows screens to be thinner,so televisions lighter and more energy efficient then ever before.

Crystal Clear III

A unique package of picture innovations including Dynamic Contrast.Crystal Clear III,using 10 bit processing,offers 30% more contrast,natural colors and a high level of detail.

Active Control

Active Control is a unique, intelligent, and proactive control system, that continuously analyzes incoming video signal qualities for Dynamic Noise Reduction, Contrast and Sharpness and then automatically corrects them using the settings you previously selected in the picture menu.

Dolby Virtual

Dolby processing circuitry for an enhanced cinema surround sound effect without the need for rear speaker s.

FM Radio

A radio is included inside the TV,capable of stereo sound and storage of up to 40 FM Radio stations. On screen naming of all these stations is also possible for easy navigation.

Features and specifications subject to change

without notice
