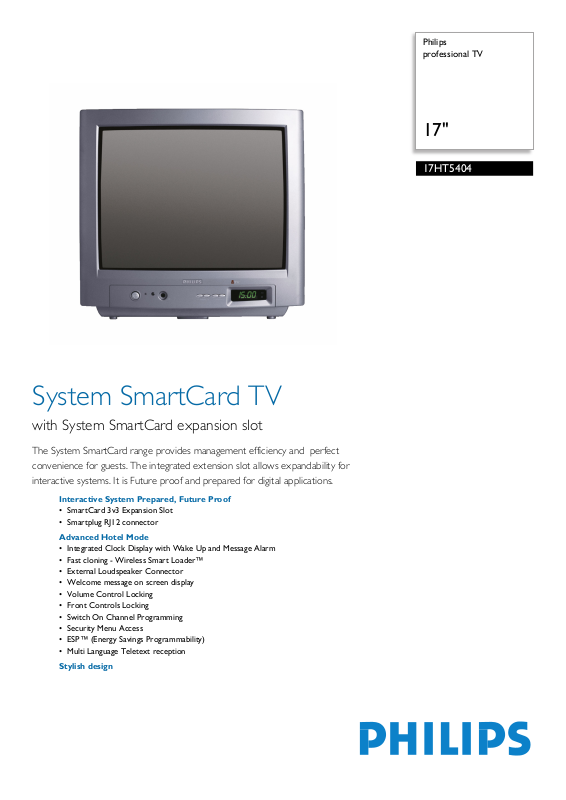

Philips
professional TV
17"
17HT5404
System SmartCard TV
with System SmartCard expansion slot
The System SmartCard range provides management efficiency and perfect
convenience for guests. The integrated extension slot allows expandability for
interactive systems. It is Future proof and prepared for digital applications.
Interactive System Prepared, Future Proof
• SmartCard 3v3 Expansion Slot
• Smartplug RJ12 connector
Advanced Hotel Mode
• Integrated Clock Display with Wake Up and Message Alarm
• Fast cloning - Wireless Smart Loader™
• External Loudspeaker Connector
• Welcome message on screen display
• Volume Control Locking
• Front Controls Locking
• Switch On Channel Programming
• Security Menu Access
• ESP™ (Energy Savings Programmability)
• Multi Language Teletext reception
Stylish design
For preview purpose only
professional TV
17"
Technical specifications Product highlights
Picture/Display
• Aspect ratio: 4:3
• Diagonal screen size: 17 inch / 43 cm
• Visible diagonal screen size: 41 cm
• Display screen type: Black Matrix picture tube
• Picture enhancement: Smart Picture
• Picture processing: 50 Hz
Sound
• Output power (RMS): 2W
• Sound System: Mono
• Ext 1 Scart: CVBS in/out, RGB
• Front / Side connections: Headphone out
• Headphone: 3.5 mm
• Number of Scarts: 1
Convenience
• Clock: Sleep Timer, Smart Clock
• Ease of Installation: PLL Digital Tuning
• Ease of Use: Smart Picture Control
• Remote control type: RC86702 (not included)
• Screen Format Adjustments: 4:3
• Teletext: 1 page Teletext
Loudspeakers
• Built-in speakers: 1
Tuner/Reception/Transmission
• Aerial Input: 75 ohm coaxial (IEC75)
• Number of Preset Channels: 125
• Tuner bands: Hyperband, S-Channel, UHF, VHF
• TV system: PAL I, PAL B/G, PAL D/K, SECAM B/
G, SECAM D/K, SECAM L/L'
• Video Playback: NTSC
Dimensions
• Box dimensions (W x H x D):
540x475x520mm
• Color cabinet: Blue silver
• Product weight: 14 kg
• Set dimensions (W x H x D):
422x396x405mm
• Weight incl. Packaging: 18 kg
Power
Connectivity
• Connectivity Enhancements: External
Loudspeaker connector, RJ12 SmartPlug
connector, SmartCard Expansion Slot
• Mains power: AC 220 - 240 V +/- 10%
• Power consumption: 45 W
• Standby power consumption: < 5 W
• Off Mode: 2.5 W
•
17HT5404/01Z
SmartCard 3v3 Expansion Slot
Permits OEM or 3rd party decoders and controllers to
be installed inside the television for custom designed
component integration. Eliminates the need for external
set-top decoders, controllers, or data terminals.
Integrates system for superior control applications.
Allows expandability for future upgrades. Prepared for
digital applications.
Smartplug RJ12 connector
The Smartplug RJ12 connector permits OEM or 3rd
party decoders and controllers to interface with the TV.
Integrated Clock Display
The built-in clock display, which is also an wake-up
alarm, eliminates the need for an additional clock with
cables and connections in the room. Automatic time
synchronisation via teletext, selectable display
brightness and wake-up alarm level to enhance guest
comfort.
Wireless Smart Loader™
Provides the ability to copy easy and wireless all
programmming settings from one TV set into other TV
sets in less then a minute. The feature ensures
uniformity between TV sets and significantly reduces
installation time and costs.
External Loudspeaker Connector
Amplified audio connector for easy installation of
external speakers (like for bathrooms), eliminating the
need for investments in external equipment
Welcome Message
Welcome greeting displayed on screen each time the
TV set is switched on
Volume Control Locking
This feature predefines the volume range in which the
TV set can operate, preventing excessive volume
adjustments avoiding disturbance of next door guests.
Front Controls Locking
Prevents unauthorised access to TV functions
Switch On Channel Programming
It forces the TV set to a specified channel when turned
on. Perfect for in-house advertising or information
channels.
Security Menu Access
Provides conditional access to installation and
configuration settings via a special code or master
remote control
ESP™
Feature can be selected in the set-up menu. The TV can
be switched off automatically after a specified period of
use saving energy and provide extended product life
time. The selectable range is from 0 to 99 hours.
Multi Language Teletext
Allows users to select their preferred language
supported by the teletext characters
Date of issue 2006-08-18
Version: 1.0
12 NC: 8670 000 14528
EAN: 87 10895 71480 8
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
© 2006 Koninklijke Philips Electronics N.V.
All Rights reserved.
