Philips 170P5ES User Guide

e-Manual

Philips LCD Monitor Electronic User’s Manual

file:///D|/My%20documents/dfu/W7/english/170p5/index.htm6/7/2004 5:20:09 PM

Safety and Troubleshooting Information

• Safety Precautions and Maintenance

• Installation Locations

• FAQs

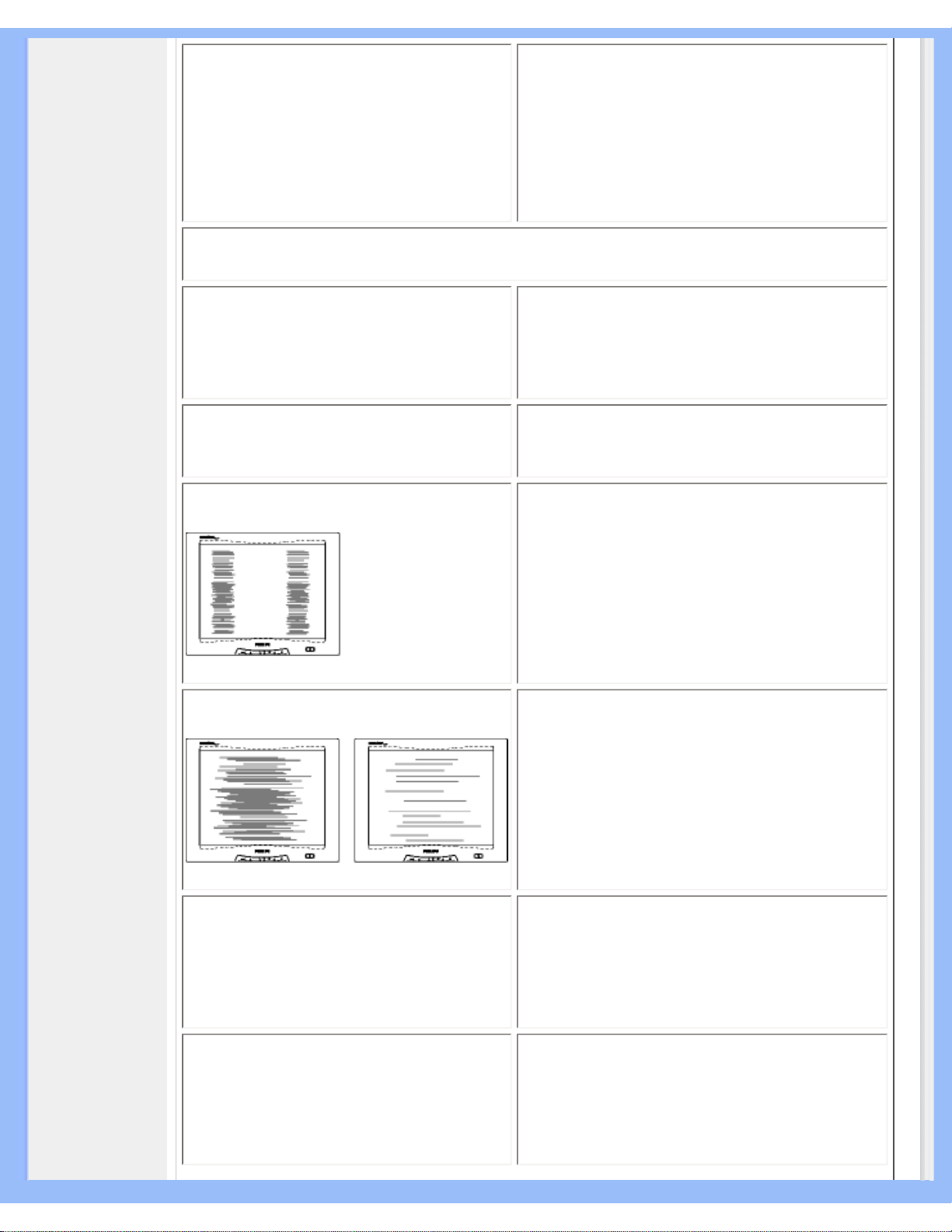

• Troubleshooting

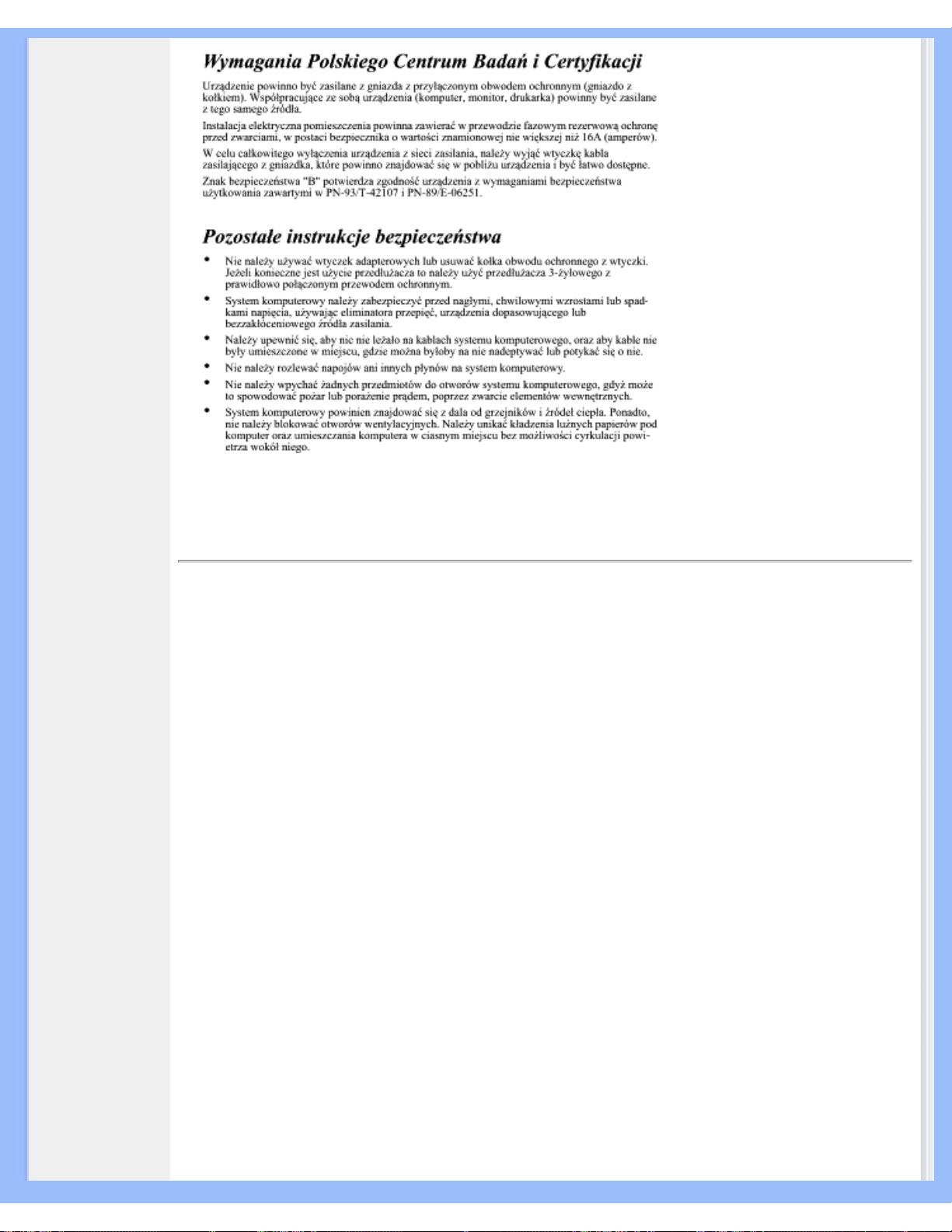

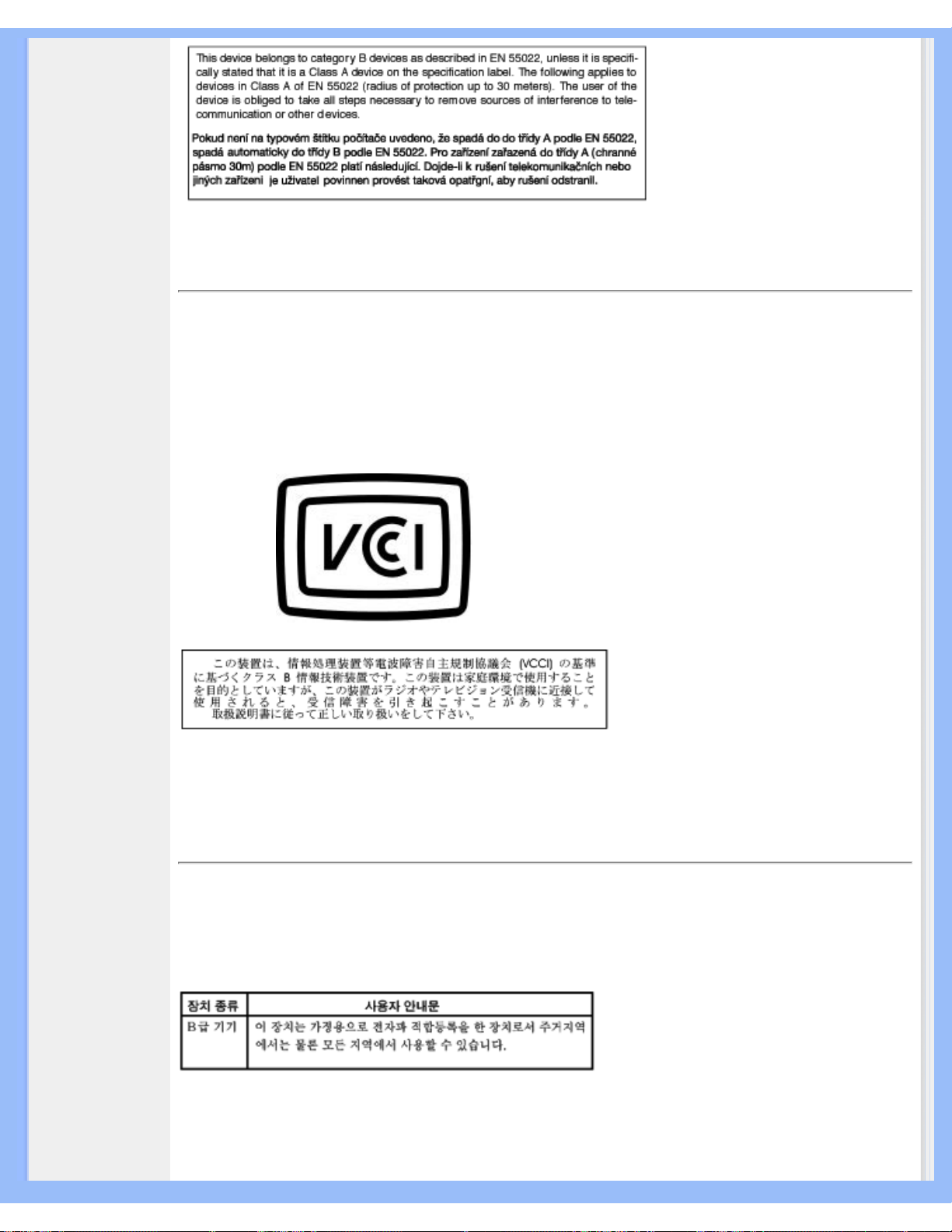

• Regulatory Information

• Other Related Information

Safety and Troubleshooting Information

Safety precautions and maintenance

WARNING: Use of controls, adjustments or procedures other than those specified in this documentation may result in exposure to shock, electrical hazards and/or mechanical hazards.

Read and follow these instructions when connecting and using your computer monitor:

● Unplug the monitor if you are not going to use it for an extensive period of time.

● Unplug the monitor if you need to clean it with a slightly damp cloth. The screen may be

wiped with a dry cloth when the power is off. However, never use alcohol, solvents or ammonia-based liquids.

● Consult a service technician if the monitor does not operate normally when you have

followed the instructions in this manual.

● The casing cover should be opened only by qualified service personnel.

● Keep the monitor out of direct sunlight and away from stoves or any other heat source.

● Remove any object that could fall into the vents or prevent proper cooling of the monitor’s

electronics.

● Do not block the ventilation holes on the cabinet.

● Keep the monitor dry. To avoid electric shock, do not expose it to rain or excessive

moisture.

● When positioning the monitor, make sure the power plug and outlet are easily accessible.

● If turning off the monitor by detaching the power cable or DC power cord, wait for 6

seconds before attaching the power cable or DC power cord for normal operation.

● To avoid the risk of shock or permanent damage to the set, do not expose the monitor to

rain or excessive moisture.

● IMPORTANT: Always activate a screen saver program during your application. If a still

image in high contrast remains on the screen for an extended period of time, it may leave an 'after-image' or 'ghost image' on front of the screen. This is a well-known phenomenon that is caused by the shortcomings inherent in LCD technology. In most cases, the afterimage will disappear gradually over a period of time after the power has been switched off. Be aware, that the after-image symptom cannot be repaired and is not covered under warranty.

Consult a service technician if the monitor does not operate normally when the operating instructions given in this manual have been followed.

RETURN TO TOP OF THE PAGE

Installation Locations

file:///D|/My%20documents/dfu/W7/english/170p5/safety/safety.htm (1 of 2)6/7/2004 5:20:20 PM

Safety and Troubleshooting Information

● Avoid exposure to heat and extreme cold.

● Do not store or use the LCD monitor in locations exposed to heat, direct sunlight or

extreme cold.

● Avoid moving the LCD monitor between locations with large temperature differences.

Choose a site that falls within the following temperature and humidity ranges.

❍ Temperature: 5-40°C 41-104°F ❍ Humidity: 20-80% RH

● Do not subject the LCD monitor to severe vibration or high impact conditions. Do not

place the LCD monitor in the trunk of a car.

● Take care not to mishandle this product by either knocking or dropping it during operation

or transportation.

● Do not store or use the LCD monitor in locations where there is a high level of humidity

or in dusty environments. Do not allow water or other liquids to spill on or into the LCD monitor.

RETURN TO TOP OF THE PAGE

file:///D|/My%20documents/dfu/W7/english/170p5/safety/safety.htm (2 of 2)6/7/2004 5:20:20 PM

About This Manual

• About This Guide

• Notational Descriptions

About This Manual

About This Guide

This electronic user's guide is intended for anyone who uses the Philips LCD Monitor. It describes the LCD monitor's features, setup, operation and other important information. Its contents are identical to the information in our printed version.

It includes the following sections:

● Safety and Troubleshooting Information provides tips and solutions for common problems

as well as other related information you may need.

● About This Electronic User's Manual gives an overview of information included, along with

notation icon descriptions and other documentation for your reference.

● Product Information gives an overview of the monitor's features as well as the technical

specifications for this monitor.

● Installing Your Monitor describes the initial setup process and gives an overview of how to

use the monitor.

● On-Screen Display provides information on adjusting the settings on your monitor.

● Customer Care and Warranty contains a list of worldwide Philips Consumer Information

Centers along with help desk phone numbers and information on the warranty applicable to your product.

● Glossary defines technical terms.

● Download and Print Option transfers this entire manual to your hard drive for easy

reference.

RETURN TO TOP OF THE PAGE

Notational Descriptions

The following subsections describe notational conventions used in this document.

Notes, Cautions and Warnings

Throughout this guide, blocks of text may be accompanied by an icon and printed in bold or italic type. These blocks contain notes, cautions or warnings. They are used as follows:

file:///D|/My%20documents/dfu/W7/english/170p5/about/about.htm (1 of 2)6/7/2004 5:20:24 PM

About This Manual

NOTE: This icon indicates important information and tips that help you make better use of your computer system.

CAUTION: This icon indicates information that tells you how to avoid either potential damage to hardware or loss of data.

WARNING: This icon indicates the potential for bodily harm and tells you how to avoid the problem.

Some warnings may appear in alternate formats and may not be accompanied by an icon. In such cases, the specific presentation of the warning is mandated by the relevant regulatory authority.

RETURN TO TOP OF THE PAGE

All rights reserved. Reproduction, copying, use, modification, hiring, renting, public performance, transmission and/or broadcasting in whole or in part is prohibited without written consent of Philips Electronics NV

file:///D|/My%20documents/dfu/W7/english/170p5/about/about.htm (2 of 2)6/7/2004 5:20:24 PM

Product Information

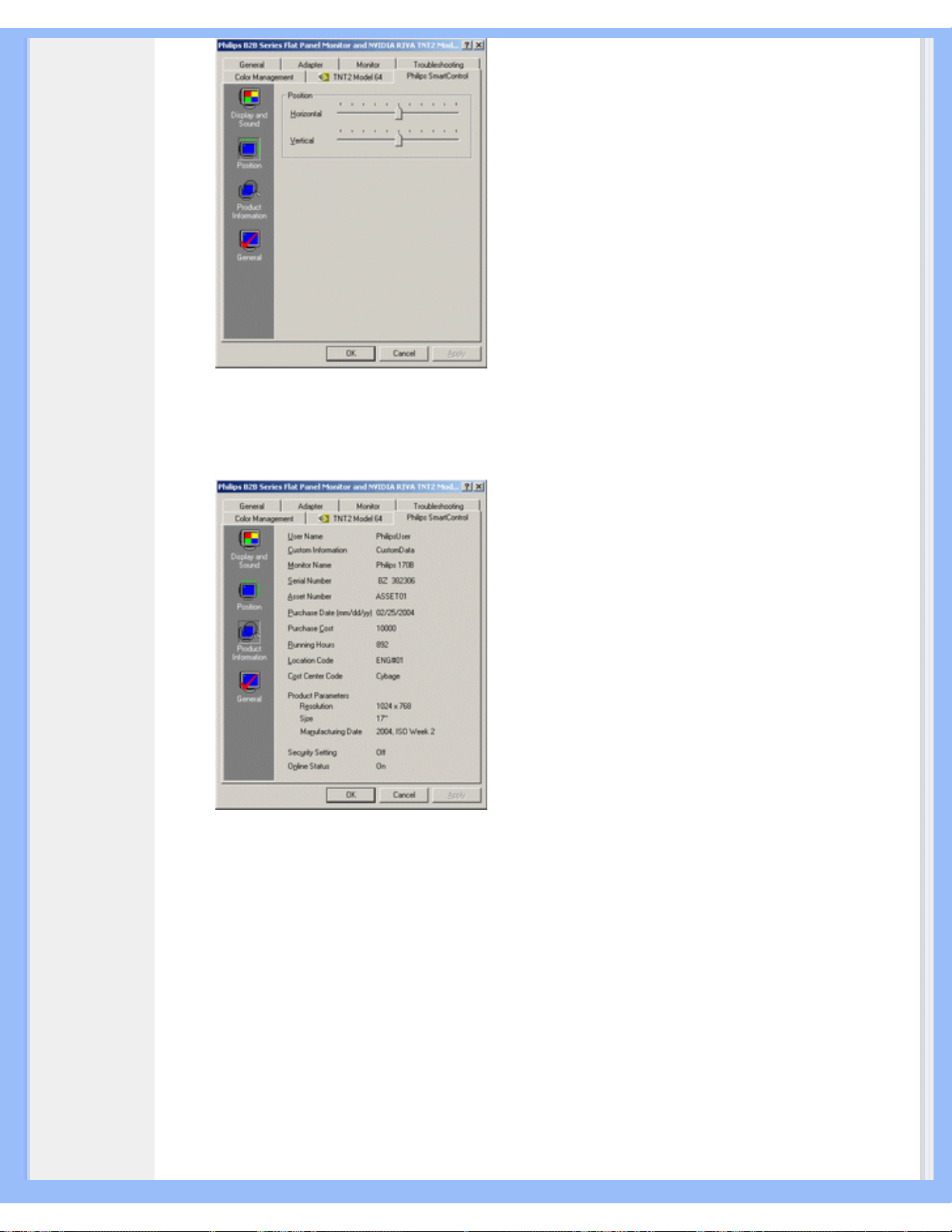

• SmartManage

• Product Features

•

LightFrame

for Windows

• Technical Specifications

• Resolution & Preset Modes

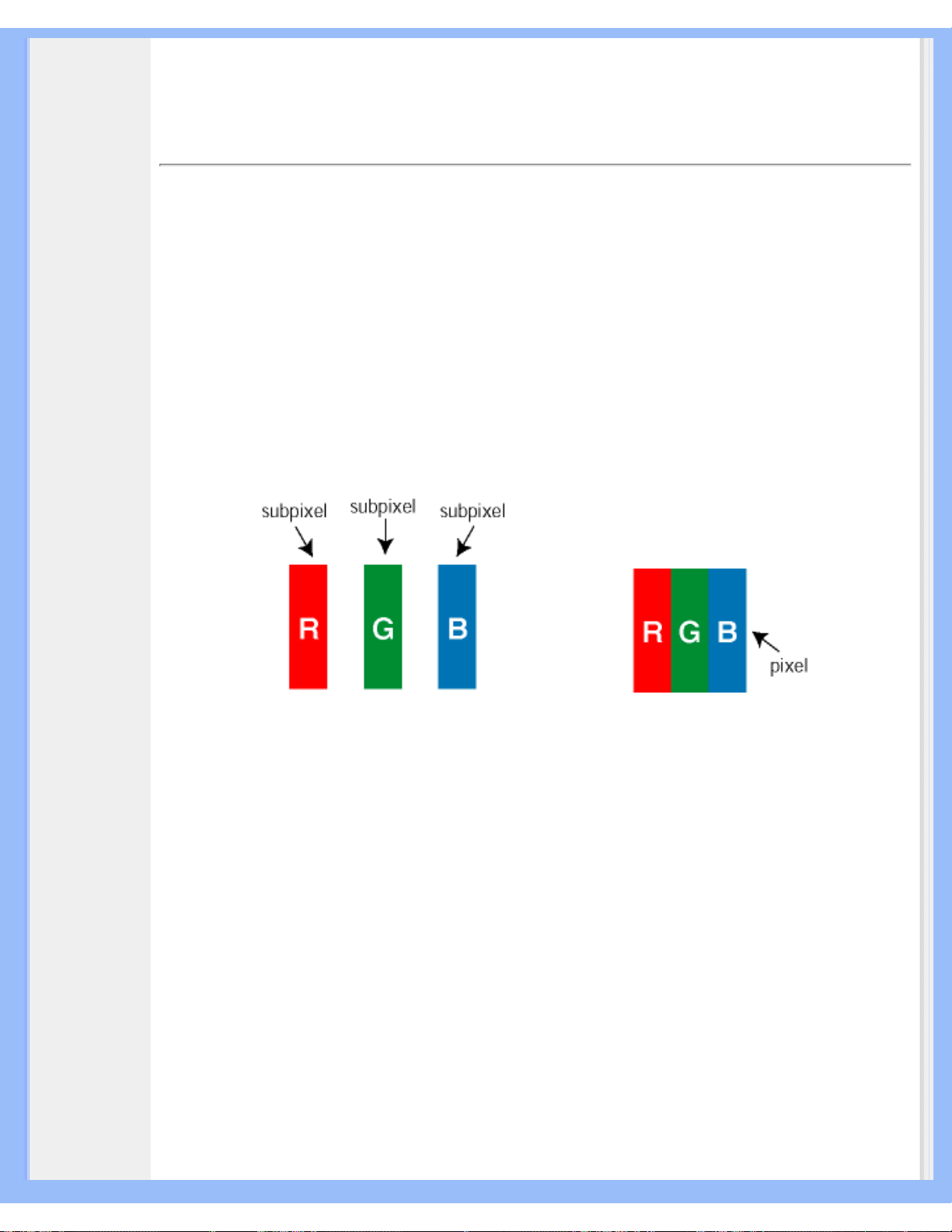

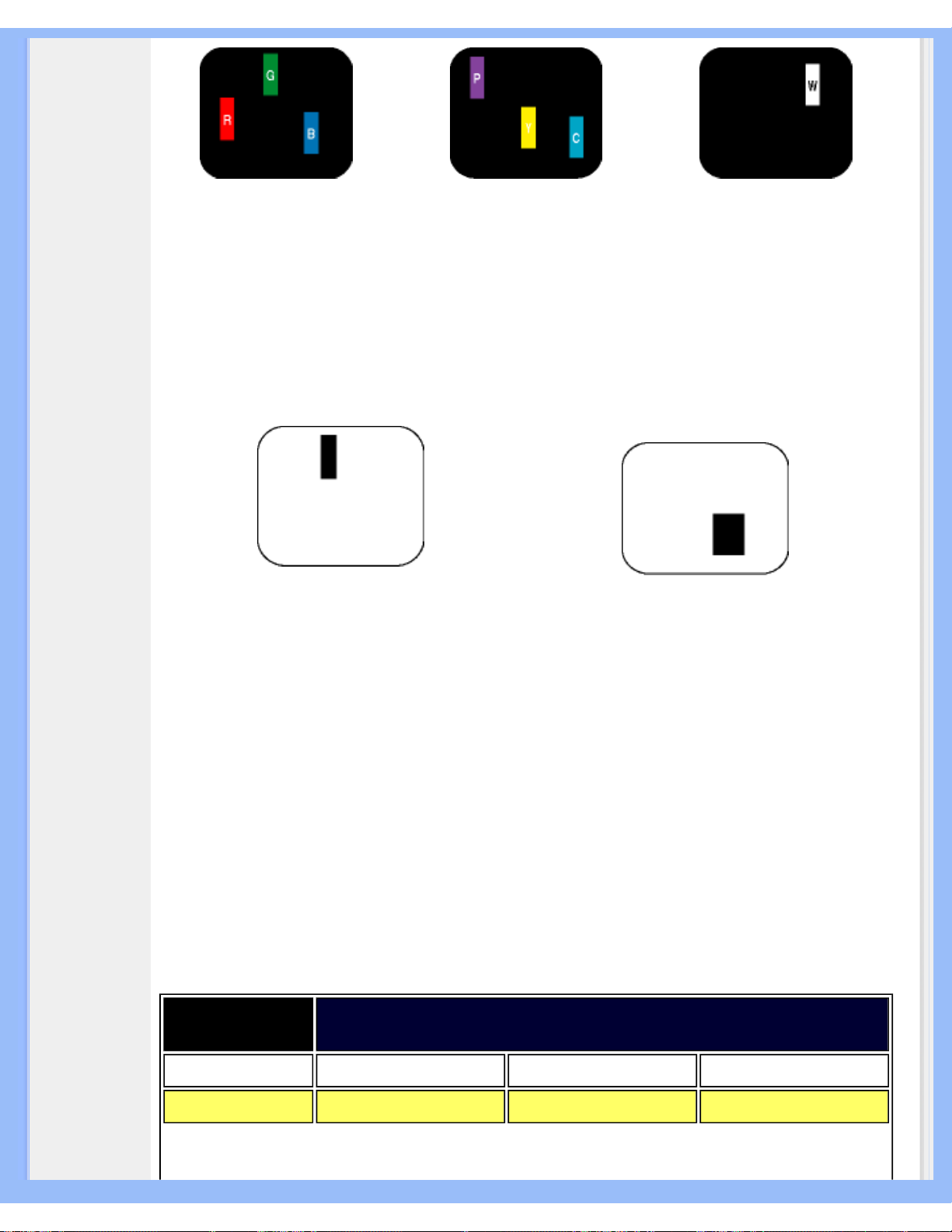

• Philips Pixel Defect Policy

• Automatic Power Saving

• Physical Specification

• Pin Assignment

• Product Views

• Physical Function

Product Information

Product Features

BRILLIANCE 170P5

● Outstanding front of screen performance

❍ LightFrame

delivers best-ever sharpness and brightness

❍ Zero Bright Dot

eliminates LCD bright dot defects

❍ Fast response time capable of handling fast moving pictures ❍ SXGA 1280 x 1024 resolution for sharper display ❍ Dual Input accepts both analog VGA and digital DVI signals ❍ Easy plug and play DVI ensures true digital experience ❍ sRGB ensures color matching between display and printouts

● Maximum comfort for maximum productivity

❍ Audio speakers built into a display device without clutter ❍ Screen height adjustable for ideal viewing angle ❍ Screen pivot for portrait and landscape options ❍ Screen tilt and swivel adjustment for ideal viewing angle ❍ Cable management for a tidy work space

● Best total cost of ownership solution

❍ Up to 20% lower power consumption than industry average ❍ Kensington anti-theft lock secures monitor against theft

● Great convenience

❍ Embedded power supply eliminates external power adaptors ❍ VESA mounting pattern for easy wall mounting of display ❍ FlexiHolder to hold notes, cards, and photos

RETURN TO TOP OF THE PAGE

LightFrameTM for Windows

Introduction

Philips LightFrame

feature enriches the experience of pictures and video on a Philips monitor.

LightFrame

will boost the brightness and sharpness of photos and videos on the monitor

screen.

To control the LightFrame

feature in your monitor, you have to install the LightFrameTM

file:///D|/My%20documents/dfu/W7/english/170p5/product/product.htm (1 of 12)6/7/2004 5:20:31 PM

Product Information

application which you will find on this CD-ROM.

Note

Philips LightFrame

will only work with monitors that have been built to use this software. Earlier Philips monitors or other manufacturers’ monitors will not work with this special software. It is recommended that you install this software only on a Philips monitor designed to use it. These

monitors can be identified by the LightFrame

logo on the front of the monitor.

LightFrame

will work with true Windows-based programs and DOS-based programs that operate in a Windows environment. It will not work with DOS-based programs operating only in a DOS environment.

Language Selection

While English is the default language of LightFrame

, the User Interface can be set up to operate in Dutch, French, German, Italian, Portuguese, Spanish, Simplified Chinese, Traditional Chinese or Korean.

Installation

1. To install LightFrame

, place the CD in the CD-ROM drive.

2. Next, when the menu of items on the CD appears on your screen, click on 'Install

LightFrame

3. Now, follow the on-screen prompts to properly install the program. The software checks to

see if you have a compatible monitor. You must agree to the license agreement terms for the software to install.

4. After installation, LightFrame

automatically loads and the icon appears in the taskbar.

Notes

If LightFrame

detects that your monitor is not LightFrameTM compatible, a message appears on

the monitor screen. If you see this message, you can select to abort or continue the installation. However, if you continue the installation, LightFrame

will probably not work on the monitor.

How to use LightFrame

After installation, LightFrameTM starts up automatically whenever the computer is started.

For information about using LightFrame

please refer to the help information which is available

after installation.

Compatibility

This version of LightFrame

is compatible with Windows® 95 Windows® 98 Windows® Me (Millennium Edition) Windows® XP Windows® 2000 Professional Edition.

RETURN TO TOP OF THE PAGE

file:///D|/My%20documents/dfu/W7/english/170p5/product/product.htm (2 of 12)6/7/2004 5:20:31 PM

Product Information

Technical Specifications*

LCD PANEL

• Type TFT LCD

• Screen size 17" / 43.2 cm diagonal

• Pixel Pitch 0.264 x 0.264 mm

• LCD Panel type

1280 x 1024 pixels R.G.B. vertical stripe Anti-glare polarizer, hard coated

• Effective viewing area 337.9 x 270.3 mm

• Display Colors 16M colors

SCANNING

Vertical refresh rate 56 Hz-76 Hz Horizontal Frequency 30k Hz-82 kHz

VIDEO

• Video dot rate 135 MHz

• Input impedance

- Video 75 ohm

- Sync

2.2K ohm

• Input signal levels 0.7 Vpp

• Sync input signal

Separate sync Composite sync Sync on green

• Sync polarities Positive and negative

• Video interface

Dual input: D-Sub (analog) and DVI-D (digital) are available and user selectable

• Light Frame

Brightness and sharpness enhancement

Audio

• Loudspeaker

4W Stereo Audio (2W/channel RMSx2, 300 Hz-13 kHz, 16 ohm, THD=10%, PMPO 32 Watts)

file:///D|/My%20documents/dfu/W7/english/170p5/product/product.htm (3 of 12)6/7/2004 5:20:31 PM

Product Information

• Headphone connector 3.5mm mini jack

• Input signal connector 3.5mm mini jack

Optical characteristics

• Contrast ratio 500:1 (typ.)

• Brightness

260 cd/m

(typ.)

• Peak contrast angle 6 o'clock

• White Chromaticity

x: 0.283 y: 0.297 (at 9300°K) x: 0.313 y: 0.329 (at 6500°K) x: 0.313 y: 0.329 (at sRGB)

• Viewing Angle (C/R>5)

Upper >70° (typ.) Lower >70° (typ.) Left >80° (typ.) Right >80° (typ.)

• Response time <16 ms (typ.)

sRGB

sRGB is a standard for ensuring correct exchange of colors between different devices (e.g. digital cameras, monitors, printers, scanners, etc.)

Using a standard unified color space, sRGB will help represent pictures taken by an sRGB compatible device correctly on your sRGB enabled Philips monitors. In that way, the colors are calibrated and you can rely on the correctness of the colors shown on your screen.

Important with the use of sRGB is that the brightness and contrast of your monitor is fixed to a predefined setting as well as the color gamut. Therefore it is important to select the sRGB setting in the monitor's OSD.

To do so, open the OSD by pressing the OK button on the front of your monitor. Use the down button to go to Adjust Color and press OK again. Then move the down button to go to sRGB and press OK again.

Exit this OSD.

After this, please do not change the brightness or contrast setting of your monitor. If you change either of these, the monitor will exit the sRGB mode and go to a color temperature setting of 6500K.

For more information on sRGB, please visit: www.srgb.com

* This data is subject to change without notice.

file:///D|/My%20documents/dfu/W7/english/170p5/product/product.htm (4 of 12)6/7/2004 5:20:31 PM

Product Information

RETURN TO TOP OF THE PAGE

Resolution & Preset Modes

• Maximum

1280 x 1024 at 75 Hz

• Recommended

1280 x 1024 at 60 Hz

33 user definable modes

15 factory preset modes:

H. freq (kHz) Resolution V. freq (Hz)

31.5 640*350 70

31.5 720*400 70

31.5 640*480 60

35.0 640*480 67

37.5 640*480 75

35.2 800*600 56

37.9 800*600 60

46.9 800*600 75

49.7 832*624 75

48.4 1024*768 60

60.0 1024*768 75

69.0 1152*870 75

71.8 1152*900 76

63.9 1280*1024 60

80.0 1280*1024 75

RETURN TO TOP OF THE PAGE

Automatic Power Saving

If you have VESA DPMS compliance display card or software installed in your PC, the monitor can automatically reduce its power consumption when not in use. If an input from a keyboard, mouse

file:///D|/My%20documents/dfu/W7/english/170p5/product/product.htm (5 of 12)6/7/2004 5:20:31 PM

Product Information

or other input device is detected, the monitor will 'wake up' automatically. The following table shows the power consumption and signaling of this automatic power saving feature:

Power Management Definition

VESA Mode Video H-sync V-sync Power Used LED color

ON Active Yes Yes < 45 W Green

OFF Blanked No No < 1 W Amber

This monitor is ENERGY STAR® compliant. As an ENERGY STAR® Partner, PHILIPS has determined that this product meets the

ENERGY STAR

guidelines for energy efficiency.

RETURN TO TOP OF THE PAGE

Physical Specifications

• Dimension (WxHxD) * 375 x 392 x 201 mm (in lowest position)

• Weight 7.3 kg

• Tilt / Swivel -5° ~ 25° / + - 45°

• Height adjustment rang 130 mm

• Portrait display 90° rotation counter clockwise

• Power supply 100 — 240 VAC, 50/60 Hz

• Power consumption 35 W* (typ.)

• Temperature

5° C to 40° C (operating)

-20° C to 60° C (storage)

• Relative humidity 20% to 80%

• System MTBF 50K hours (including CCFL 40K hours)

• Cabinet color

170P5EG: Light Gray 170P5EB: Black 170P5ES: Silver

* This data is subject to change without notice.

file:///D|/My%20documents/dfu/W7/english/170p5/product/product.htm (6 of 12)6/7/2004 5:20:31 PM

Product Information

* Resolution 1280x1024, standard size, brightness max., contrast 50%, 9300° K, full white pattern, without audio/USB.

RETURN TO TOP OF THE PAGE

Pin Assignment

1. The digital only connector contains 24 signal contacts organized in three rows of eight contacts. Signal pin assignments are listed in the following table:

Pin No.

Signal Assignment

No.

Signal Assignment

Pin No.

Signal Assignment

T.M.D.S. Data2-

T.M.D.S. Data1- 17 T.M.D.S. Data0-

T.M.D.S. Data2+

T.M.D.S. Data1+ 18 T.M.D.S. Data0+

T.M.D.S. Data2/4 Shield

T.M.D.S. Data1/3 Shield

T.M.D.S. Data0/5 Shield

No connect

No connect 20 No connect

No connect

No connect 21 No connect

DDC Clock

+5V Power 22

T.M.D.S. Clock Shield

DDC Data

Ground (for +5V) 23 T.M.D.S. Clock+

No connect 16 Hot Plug Detect 24 T.M.D.S. Clock-

2. The 15-pin D-sub connector (male) of the signal cable:

file:///D|/My%20documents/dfu/W7/english/170p5/product/product.htm (7 of 12)6/7/2004 5:20:31 PM

Product Information

No.

Assignment

No.

Assignment

Red video input

+5V

Green video input/SOG

Logic ground

Blue video input

Ground

Sense (GND)

Serial data line (SDA)

Hot Plug Detect

H. Sync / H+V

Red video ground

V. Sync (VCLK for DDC)

Green video ground

Data clock line (SCL)

Blue video ground

RETURN TO TOP OF THE PAGE

Product Views

Follow the links to see various views of the monitor and its components.

Front View Product Description

RETURN TO TOP OF THE PAGE

Physical Function

file:///D|/My%20documents/dfu/W7/english/170p5/product/product.htm (8 of 12)6/7/2004 5:20:31 PM

Product Information

1) Tilt

2) Swivel

file:///D|/My%20documents/dfu/W7/english/170p5/product/product.htm (9 of 12)6/7/2004 5:20:31 PM

Product Information

3) Height adjustment

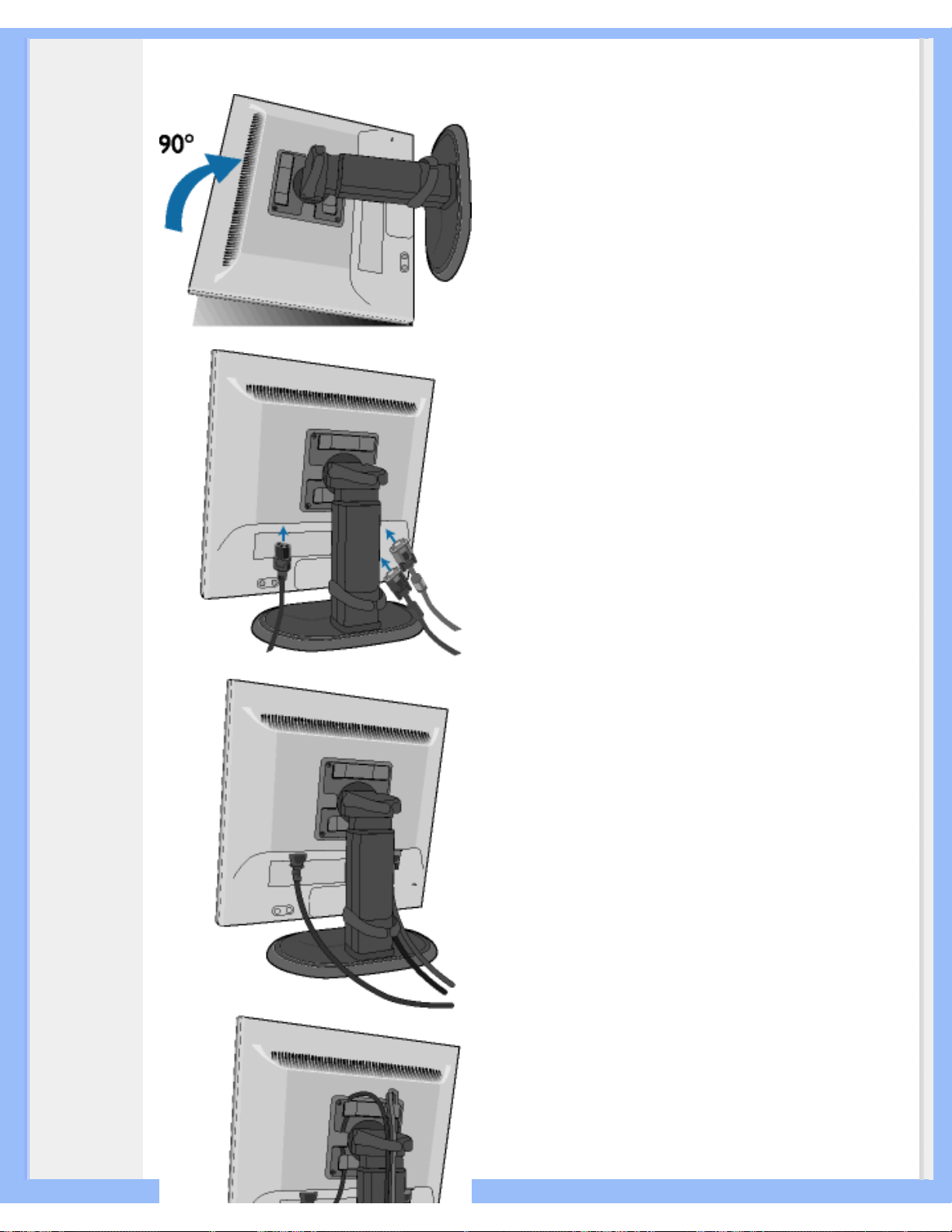

4) Portrait display

Turn monitor from landscape view to portrait view.

file:///D|/My%20documents/dfu/W7/english/170p5/product/product.htm (10 of 12)6/7/2004 5:20:31 PM

Product Information

Rotate the monitor body 90 degrees counter clockwise.

file:///D|/My%20documents/dfu/W7/english/170p5/product/product.htm (11 of 12)6/7/2004 5:20:31 PM

Product Information

RETURN TO TOP OF THE PAGE

file:///D|/My%20documents/dfu/W7/english/170p5/product/product.htm (12 of 12)6/7/2004 5:20:31 PM

Installing Your LCD Monitor

•

Front View Produt Description

•

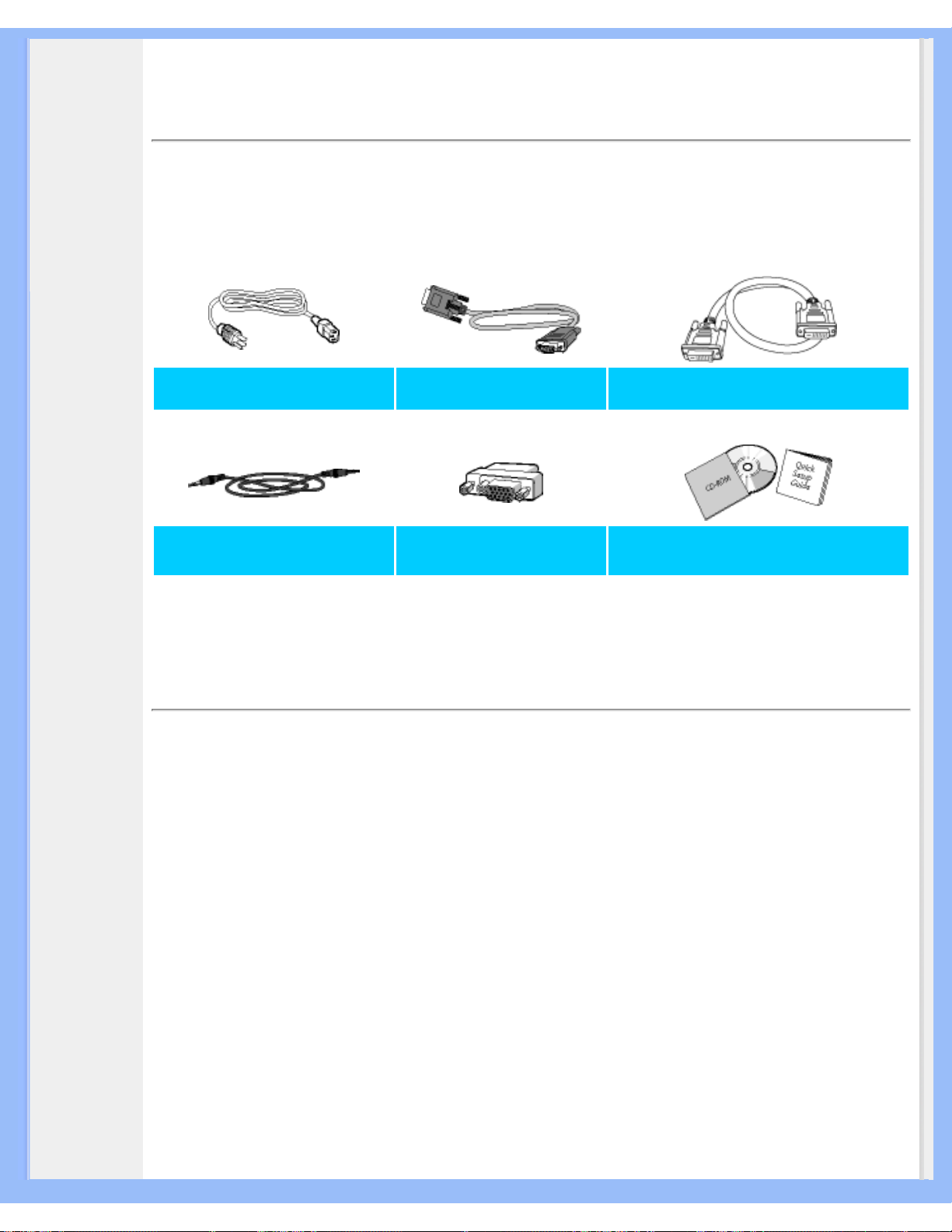

Connecting to Your PC

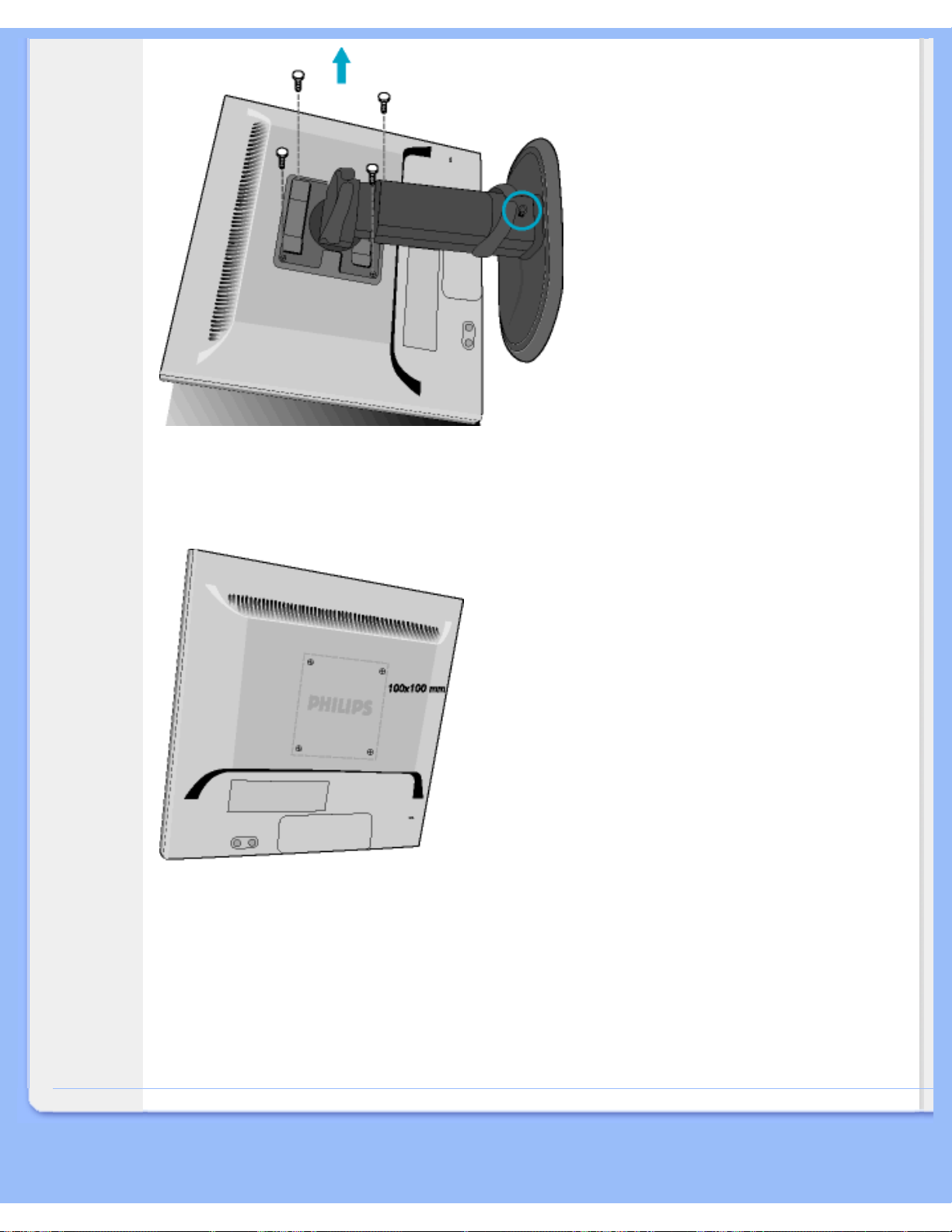

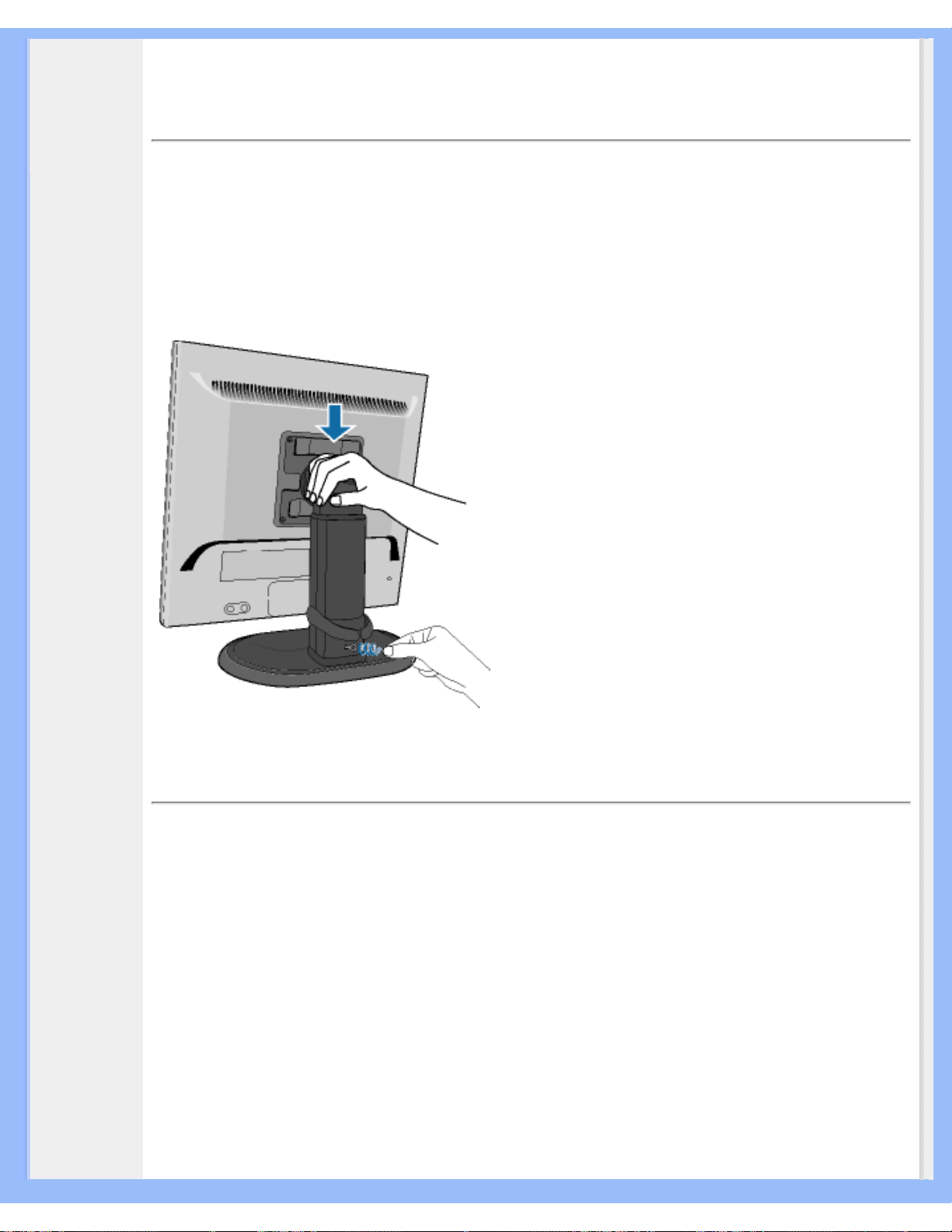

• The Base

•

Getting Started

•

Optimizing Performance

Installing Your LCD Monitor

Front View Product Description

UP and DOWN buttons are used when adjusting the OSD of your monitor.

LEFT and RIGHT buttons, like the UP and DOWN buttons, are also used in adjusting the OSD of your monitor.

BRIGHTNESS hotkey. When the UP and DOWN arrow buttons are pressed, the adjustment controls for the BRIGHTNESS will show up.

VOLUME

VOLUME hotkey. When the LEFT and RIGHT arrow buttons are pressed, the adjustment controls for VOLUME will show up.

OK button which when pressed will take you to the OSD controls.

POWER button switches your monitor on.

Automatically adjust the horizontal position, vertical position, phase and clock setting.

LightFrameTM hotkey for mode-switching between full-screen mode and multi-window mode

file:///D|/My%20documents/dfu/W7/english/170p5/install/install.htm (1 of 3)6/7/2004 5:20:48 PM

Installing Your LCD Monitor

RETURN TO TOP OF THE PAGE

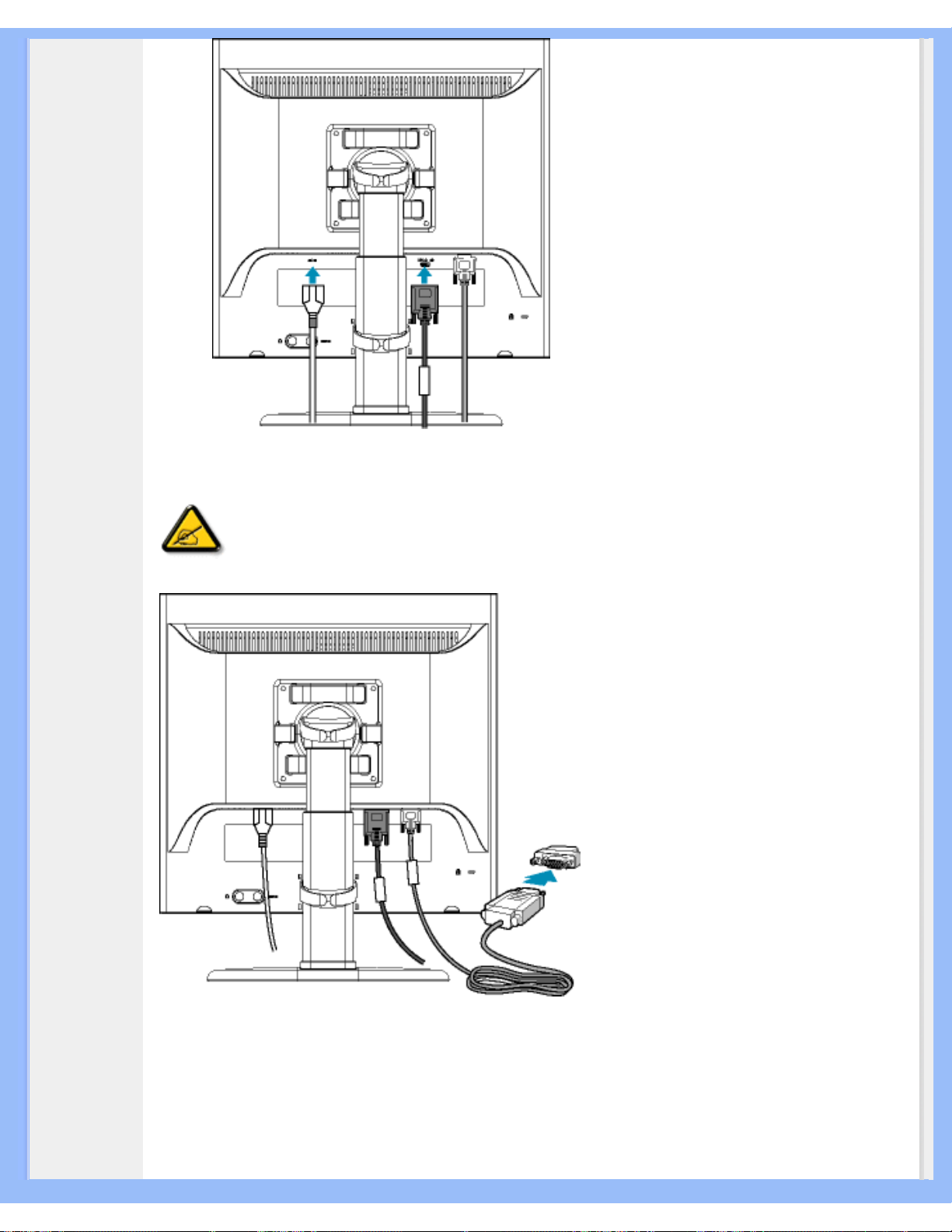

Rear View

1 Kensington anti-thief lock 2 VGA input 3 DVI-D input 4 PC audio input 5 Earphone jack 6 AC power input

RETURN TO TOP OF THE PAGE

Optimizing Performance

● For best performance, ensure that your display settings are set at 1280x1024, 60Hz.

file:///D|/My%20documents/dfu/W7/english/170p5/install/install.htm (2 of 3)6/7/2004 5:20:48 PM

Installing Your LCD Monitor

Note: You can check the current display settings by pressing the 'OK' button

once. Go into the Product Information. The current display mode is shown on the item called RESOLUTION.

● You can also install the Flat Panel Adjust (FP Adjust) program, a program for getting the best

performance out of your monitor. This is included on this CD. Step-by-step instructions are provided to guide you through the installtion process. Click on the link to know more about this program.

More about FP_setup04.exe

RETURN TO TOP OF THE PAGE

file:///D|/My%20documents/dfu/W7/english/170p5/install/install.htm (3 of 3)6/7/2004 5:20:48 PM

On-Screen Display

• Description of the OnScreen Display

•

The OSD Tree

On-Screen Display

Description of the On Screen Display

What is the On-Screen Display?

This is a feature in all Philips LCD monitors. It allows an end user to adjust screen performance of the monitors directly through an on-screen instruction window. The user interface provides userfriendliness and ease-of-use when operating the monitor.

Basic and simple instruction on the control keys.

When you press the

button on the front control of your monitor, the On-Screen Display (OSD)

Main Controls window will pop up and you can then start making adjustments to your monitor's various features. Use the or the keys to make your adjustments.

RETURN TO TOP OF THE PAGE

The OSD Tree

Below is an overall view of the structure of the On-Screen Display. You can use this as a reference when you want to work your way around the different adjustments later on.

Analog signal input:

file:///D|/My%20documents/dfu/W7/english/170p5/osd/osddesc.htm (1 of 3)6/7/2004 5:20:50 PM

On-Screen Display

Digital signal input:

file:///D|/My%20documents/dfu/W7/english/170p5/osd/osddesc.htm (2 of 3)6/7/2004 5:20:50 PM

On-Screen Display

RETURN TO TOP OF THE PAGE

file:///D|/My%20documents/dfu/W7/english/170p5/osd/osddesc.htm (3 of 3)6/7/2004 5:20:50 PM

Customer Care & Warranty

PLEASE SELECT YOUR COUNTRY/AREA TO REVIEW DETAILS OF YOUR WARRANTY COVERAGE

WESTERN EUROPE: Austria • Belgium • Cyprus • Denmark • France • Germany • Greece •

Finland • Ireland • Italy • Luxembourg • the Netherlands • Norway • Portugal • Sweden • Switzerland • Spain • United Kingdom

EASTERN EUROPE: Czech Republic • Hungary • Poland • Russia • Slovakia • Slovenia •

Turkey

LATIN AMERICA: Antilles • Argentina • Brasil • Chile • Colombia • Mexico • Paraguay •

Peru • Uruguay • Venezuela

NORTH AMERICA: Canada • USA

PACIFIC: Australia • New Zealand

ASIA: Bangladesh • China • Hong Kong • India • Indonesia • Japan • Korea • Malaysia •

Pakistan • Philippines • Singapore • Taiwan • Thailand

AFRICA: Morocco • South Africa

MIDDLE EAST: Dubai • Egypt

file:///D|/My%20documents/dfu/W7/english/warranty/warranty.htm6/7/2004 5:20:54 PM

Glossary

A B C D E F G H I J K L M N O P Q R S T U V W X Y Z

Color temperature

A way of describing the color of a radiating source in terms of the temperature (in degrees Kelvin) of a black body radiating with the same dominant frequency as the source.

Most Philips monitors offer the possibility of setting the color temperature to any desired value.

RETURN TO TOP OF THE PAGE

D-SUB

Your monitor comes with a D-Sub cable.

Digital Visual Interface (DVI)

The Digital Visual Interface (DVI) specification provides a high-speed digital connection for visual data types that is display technology independent. The interface is primarily focused at providing a connection between a computer and its display device. The DVI specification meets the needs of all segments of the PC industry (workstation, desktop, laptop, etc.) and will enable these different segments to unite around one monitor interface specification.

file:///D|/My%20documents/dfu/W7/english/170p5/glossary/glossary.htm (1 of 3)6/7/2004 5:20:56 PM

Glossary

The DVI interface enables:

1. Reduce signal loss and video noise in signal due to less signal conversion.

2. Independent from display technology, and can be used on LCD, Plasma, LCOS, etc.

3. Plug and play through hot plug detection, EDID and DDC2B.

4. Digital and Analog support in a single connector (DVI-I only).

RETURN TO TOP OF THE PAGE

Energy Star Computers Program

An energy conservation program launched by the US Environmental Protection Agency (EPA), promotes the manufacture and marketing of energy-efficient office automation equipment. Companies joining this program, must be willing to commit themselves to manufacture one or more products capable of going into a low -power state (< 30 W) either after a period of inactivity, or after a predetermined time selected by the user.

RETURN TO TOP OF THE PAGE

LCD Liquid Crystal Display

An alphanumeric display, using the unique properties of liquid crystal, to form characters. The latest flat-panel displays, contains a matrix of hundreds or thousands of individual LCD cells that generate text and colorful graphics on a screen. They consume little power, though they do require external lighting to make them legible to the user.

RETURN TO TOP OF THE PAGE

file:///D|/My%20documents/dfu/W7/english/170p5/glossary/glossary.htm (2 of 3)6/7/2004 5:20:56 PM

Glossary

Vertical refresh rate

Expressed in Hz, it is the number of frames (complete pictures) written to the screen every second.

RETURN TO TOP OF THE PAGE

file:///D|/My%20documents/dfu/W7/english/170p5/glossary/glossary.htm (3 of 3)6/7/2004 5:20:56 PM

Download and Print

• Installing your LCD monitor driver

• Download and Printing Instructions

•

Installing FPadjust Program

Download and Print

Installing Your LCD monitor driver

System requirements:

● PC running Windows 95, Windows® 98, Windows® 2000 , Windows® Me, Windows® XP

or later

● Find your driver ".inf/.icm/.cat" at : /PC/drivers/

Read the "Driver_install02.txt" file before installing.

This page provides an option to read the manual in .pdf format. PDF files can be downloaded into your hard disk, then viewed and printed with Acrobat Reader or through your browser.

If you do not have Adobe® Acrobat Reader installed, click on the link to install the application.

Adobe® Acrobat Reader for PC / Adobe® Acrobat Reader for Mac.

Download instructions:

To download the file:

1. Click-and-hold your mouse over the icon below. (Windows® 95/98/2000/Me/XP users rightclick)

Download

170B5.pdf

Download

170P5.pdf

Download

170S5.pdf

2. From the menu that appears, choose 'Save Link As...', 'Save Target As...' or 'Download Link to Disk'.

3. Choose where you would like to save the file; click 'Save' (if prompted to save as either 'text' or 'source', choose 'source').

file:///D|/My%20documents/dfu/W7/english/download/download.htm (1 of 3)6/7/2004 5:20:59 PM

Download and Print

Printing instructions:

To print the manual:

1. With the manual file open, follow your printer's instructions and print the pages you need.

RETURN TO TOP OF THE PAGE

Installing FPadjust Program

The FP Adjust program generates alignment patterns which will help you adjust monitor settings such as CONTRAST, BRIGHTNESS, HORIZONTAL & VERTICAL POSITION, PHASE and CLOCK.

System requirements:

● PC running Windows® 95, Windows® 98, Windows® 2000, Windows® Me, Windows®

XP or later

To install FPadjust Program:

● Click on the link or icon to install FPadjustment Program.

● Click-and-hold your mouse over the icon. (Win95/98/2000/Me/XP users right-click)

Download

FP_setup04.exe

● From the menu that appears, choose 'Save Link As...', 'Save Target As...' or 'Download

Link to Disk'.

● Choose where you would like to save the file; click 'Save' (if prompted to save as either

'text' or 'source', choose 'source').

● Exit your browser and install the FPadjust Program.

Read the "FP_Readme04.txt" file before installing.

file:///D|/My%20documents/dfu/W7/english/download/download.htm (2 of 3)6/7/2004 5:20:59 PM

+ 67 hidden pages
